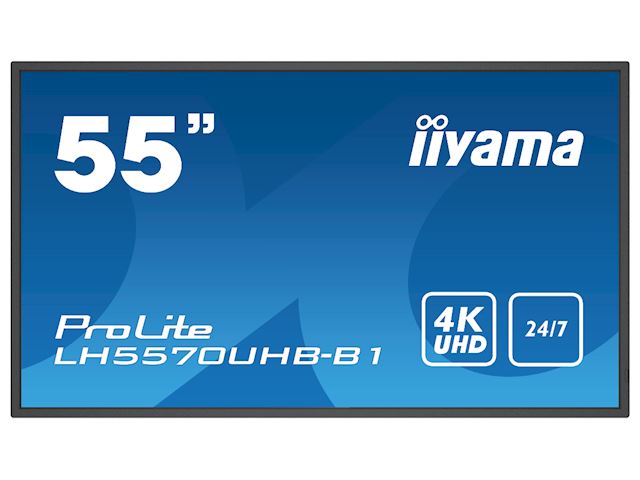

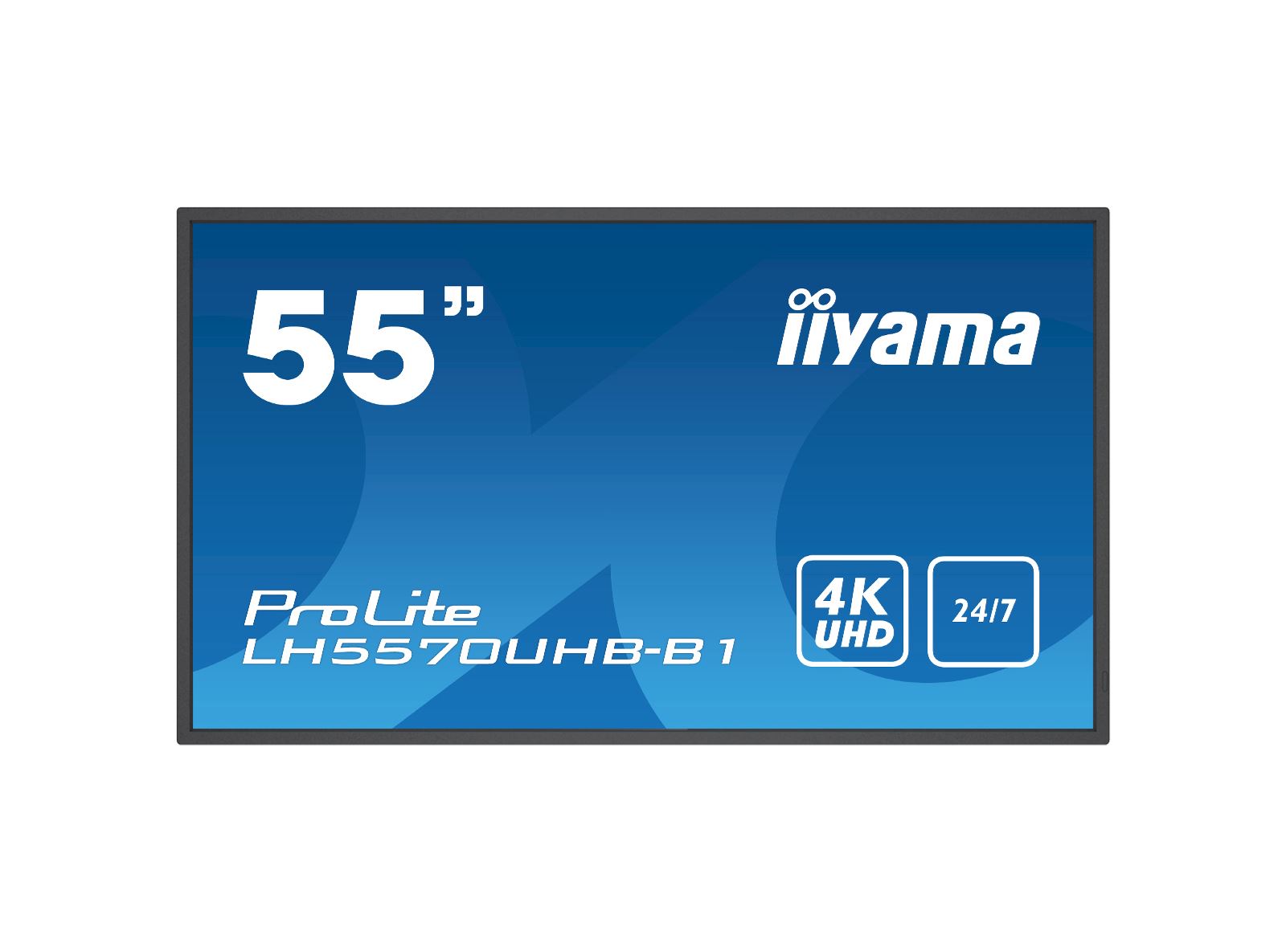

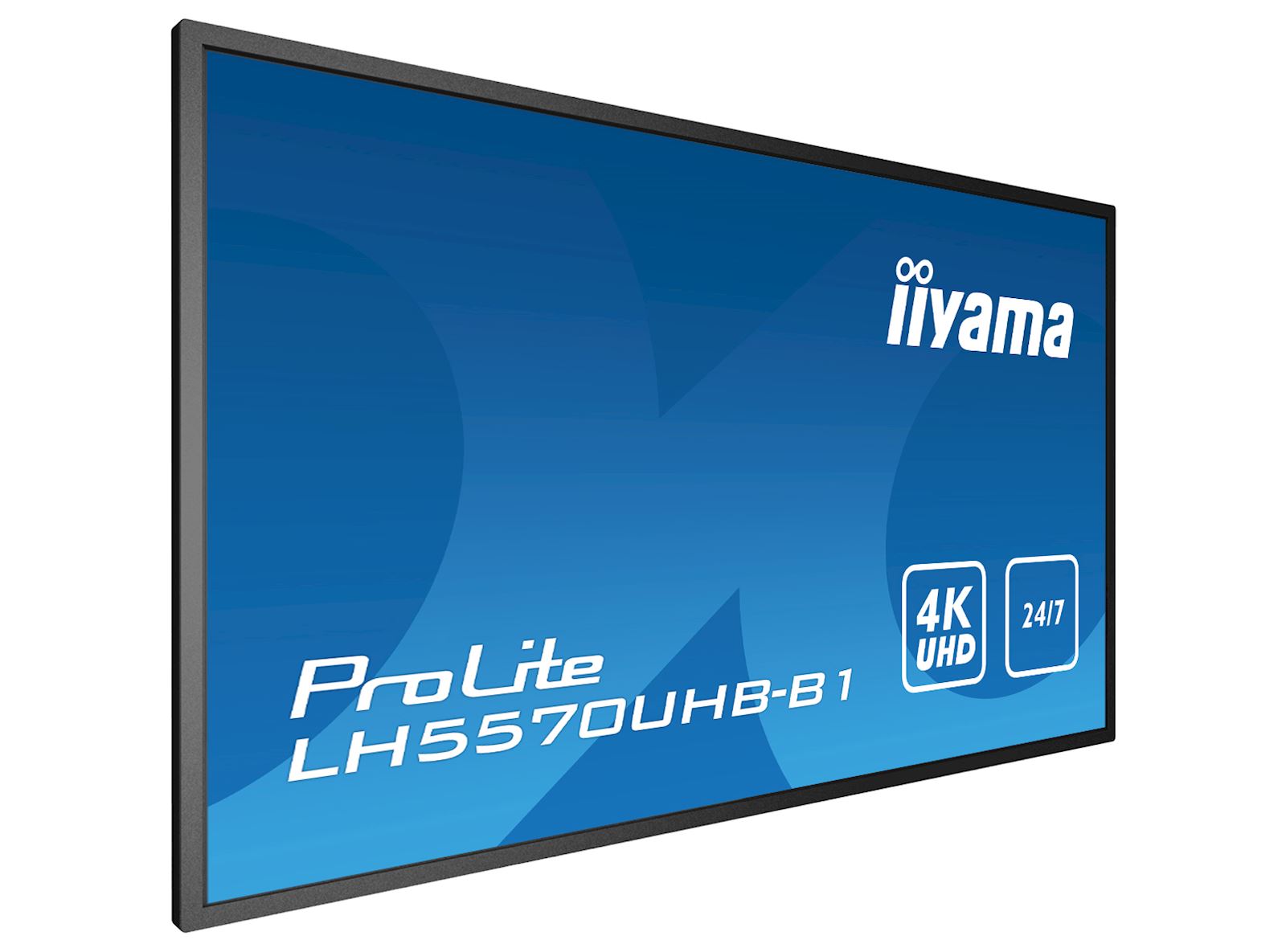

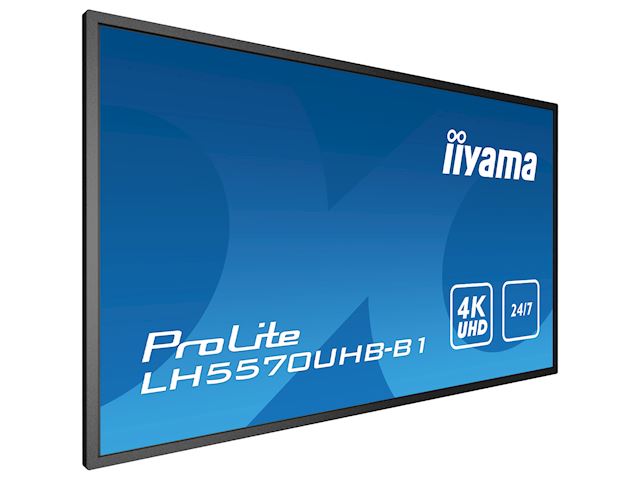

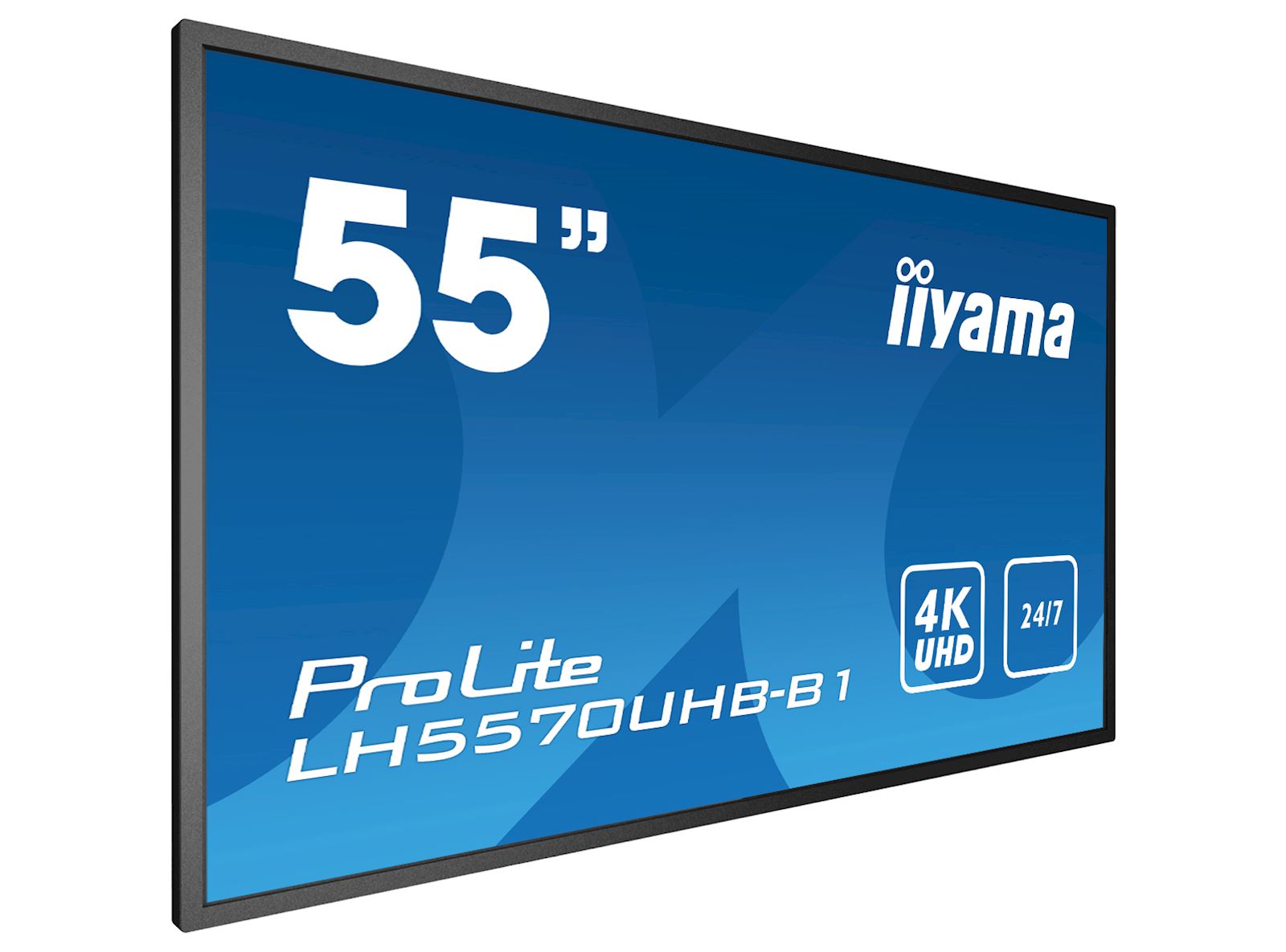

iiyama Prolite monitor LH5570UHB-B1 55” Professional Digital Signage display with 24/7, 4K UHD and 700cd/m² high brightness performance

£982.10 exc. VAT
£1,178.52 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Brand: iiyama

Manufacturer Code: LH5570UHB-B1

Product Description

This high brightness display will deliver dynamic and sharp content, designed to entice and captivate your audience. The slim bezel and true commercial display with a 4K UHD resolution (3840x2160), 700cd/m2 and a contrast ratio of 4000:1 provides vibrant, detailed and sublime images. Thanks to on-board Android 9.0 you can easily customize the display by installing applications directly to it and makes it the perfect choice for Digital Signage, In-store communication and messaging.

Designed to perform in continual, around the clock environments, the LH5570UHB can be installed and utilised in landscape and portrait orientation. The jaw dropping and best-in-class 34.5mm total depth (when used with the included proprietary brackets) will mean this display can be installed discreetly and elegantly in all areas.

Technical Information

DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 54.6", 138.8cm
Panel VA, matte finish
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 700 cd/m²
Static contrast 4000:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 10bit (8bit + Hi-FRC)
Horizontal Sync 28 - 135kHz
Viewable area W x H 1209.6 x 680.4mm, 47.6 x 26.8"
Bezel width (sides, top, bottom) 10.2mm, 10.2mm, 10.2mm
Pixel pitch 0.315mm
Bezel colour and finish black, matte

INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x2 (max. 3840x2160 @60Hz)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)
Audio output Mini jack x1 (3.5mm - stereo)
HDCP yes
USB ports x2 (v.2.0)

FEATURES

Integrated software Android OS 9.0, iiWare
Hardware CPU: A53*2, quad core 1.5G, Memory: 3GB DDR4, Storage:32GB eMMC
Max. non-stop operating time 24/7
Anti image retention yes
Media playback yes
Housing (bezel) metal

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
Control buttons Power
User controls picture (picture mode, contrast, brightness, hue, sharpness, saturation, black level, colour temp., aspect ratio, gamma selection), sound (balance, treble, bass), setting (OSD off timer, colour range, orientation, CEC options, wake on LAN, auto wake up, boot on source, logo on/off, HDMI version, IR/keypad lock, language, power saving, recovery from power off, restore to default), time (date, current time, scheduler), information (iiWare version, FW version, release date, current resolution, IP address, Wi-Fi MAC address, MAC address, internal thermal temp.)
Plug&Play DDC2B

MECHANICAL

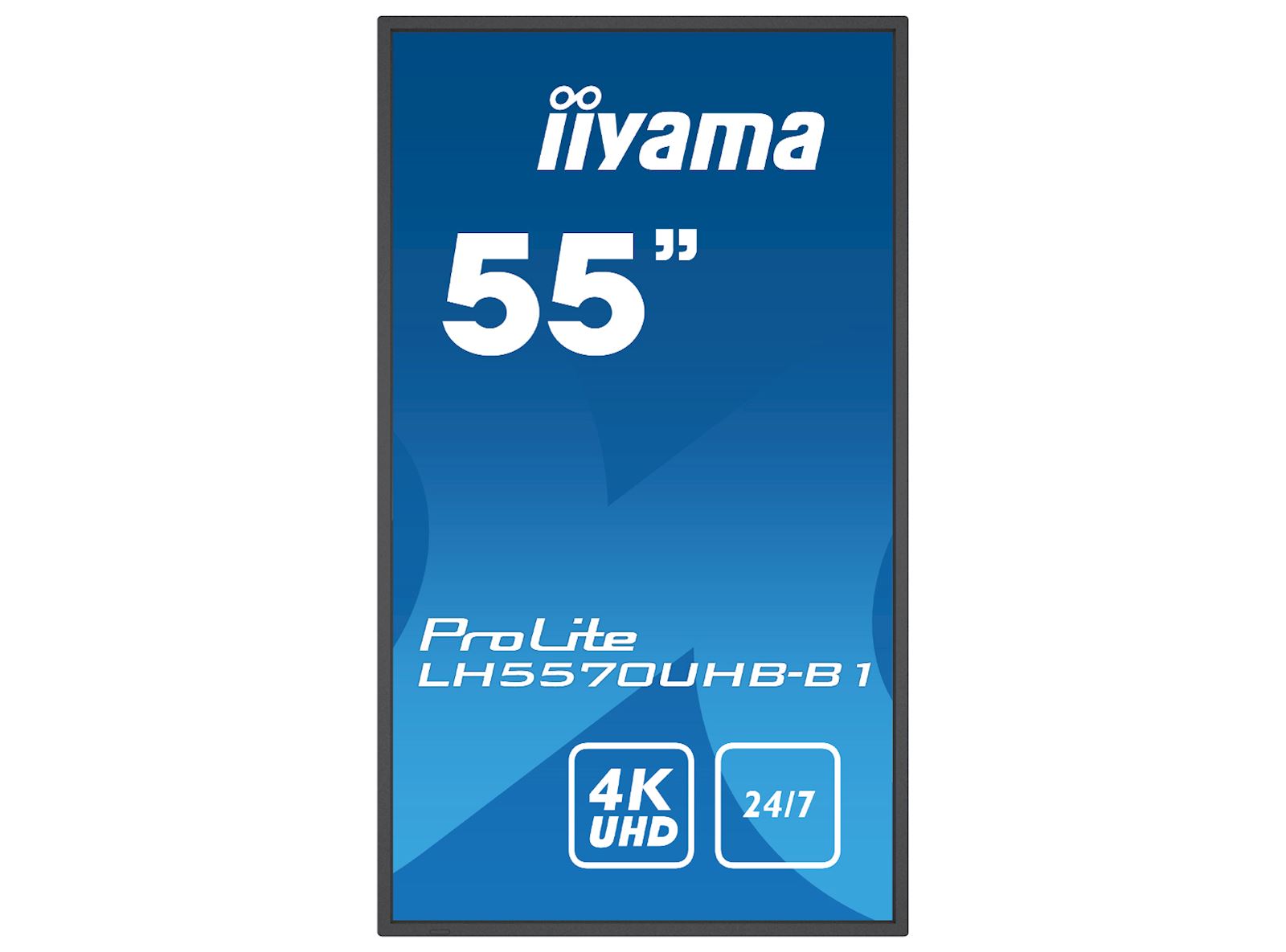

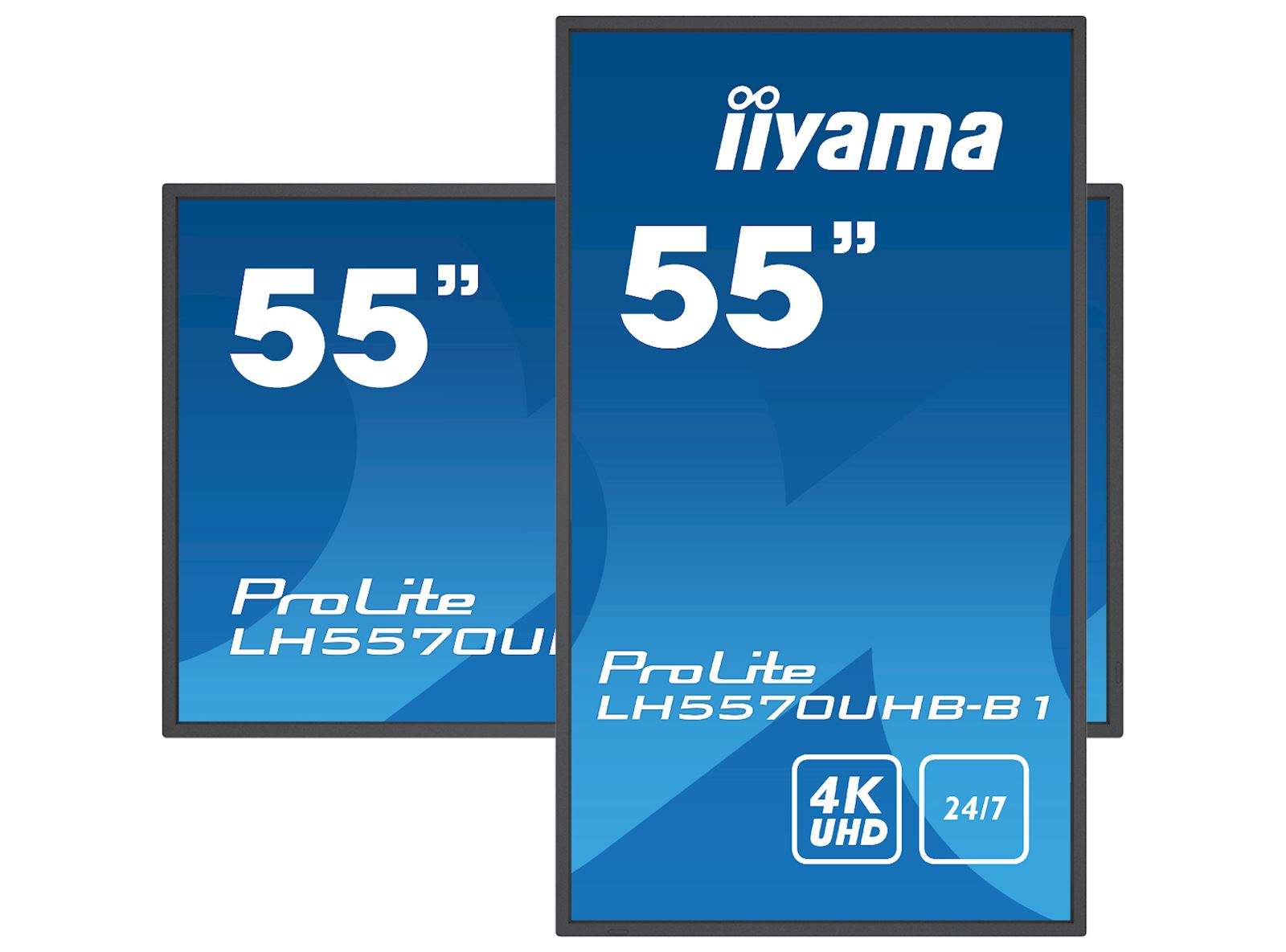

Orientation landscape, portrait
Fanless design yes
VESA mounting 400 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED

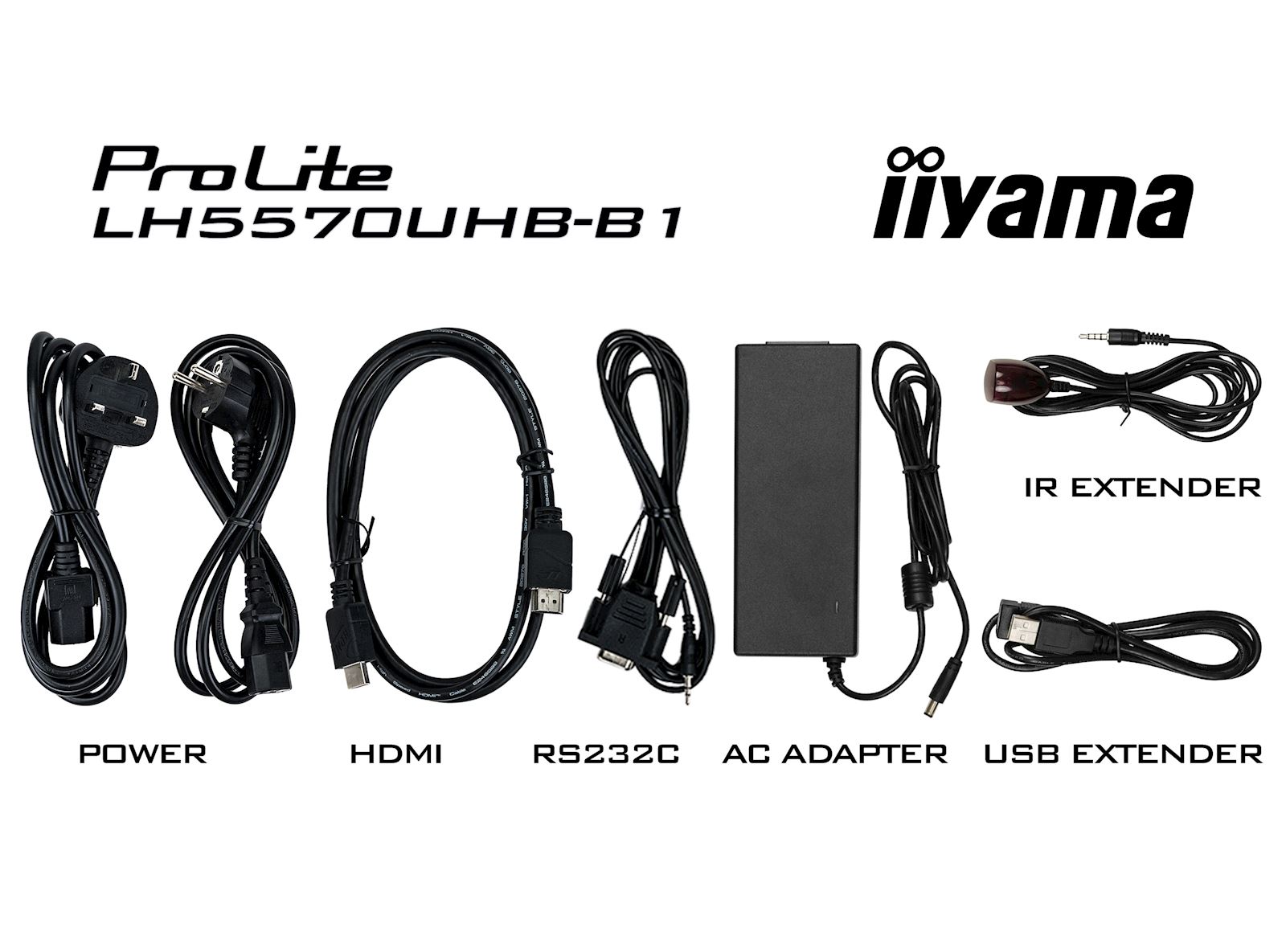

Cables power, USB, HDMI, RS-232c, IR-Extender
Guides quick start guide, safety guide
Other Stickers for screw holes, adhesive clips for cable management
Remote control yes (batteries included)

POWER MANAGEMENT

Power supply unit external
Power supply DC 24 V
Power usage 110W typical, 0.5W stand by, 0.5W off mode

SUSTAINABILITY

Regulations CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) G

DIMENSIONS / WEIGHT

Product dimensions W x H x D 1234 x 704 x 34.5mm
Weight (without box) 21.5kg
EAN code 4948570118540
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

USB PLAYBACK

The monitor supports playback of presentations, video and almost any type of content stored on the USB device or internal memory.

USB PLAYBACK

ULTRA SLIM LINE

ULTRA SLIM LINE

24/7

24/7 displays are designed for a continuous operation.



24/7

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS

Media player LFD

Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

Media player LFD
