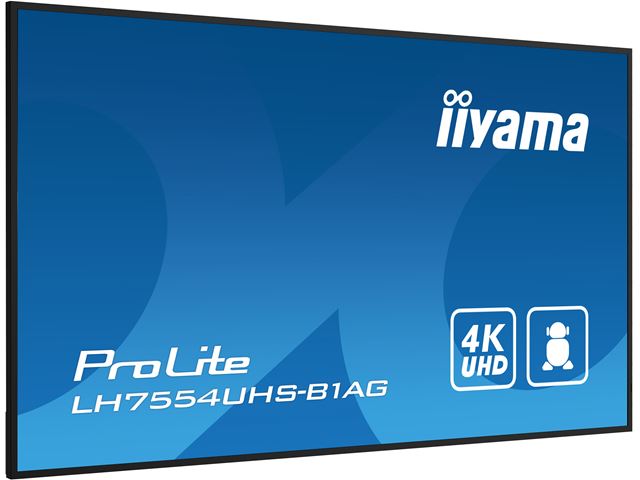

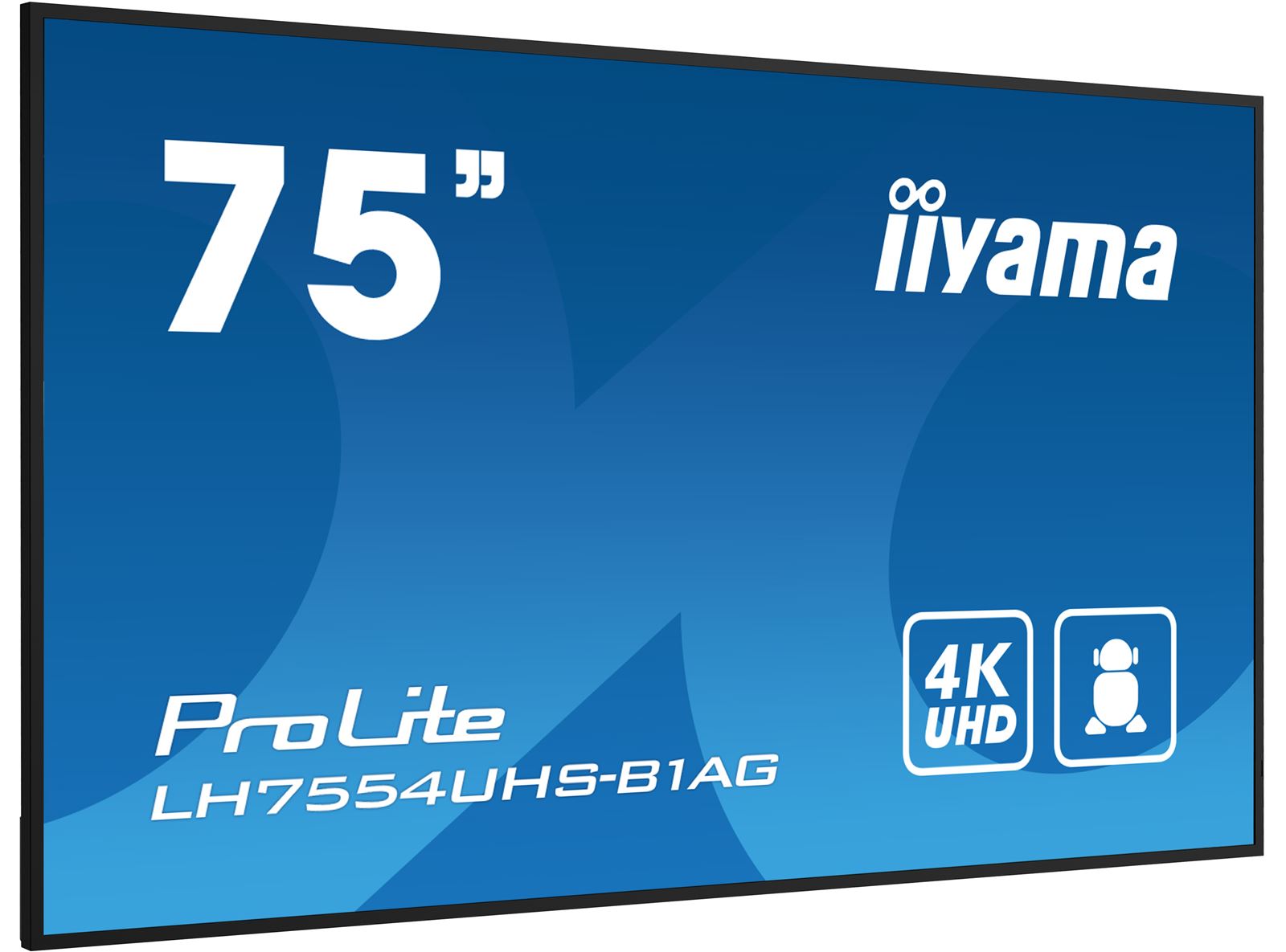

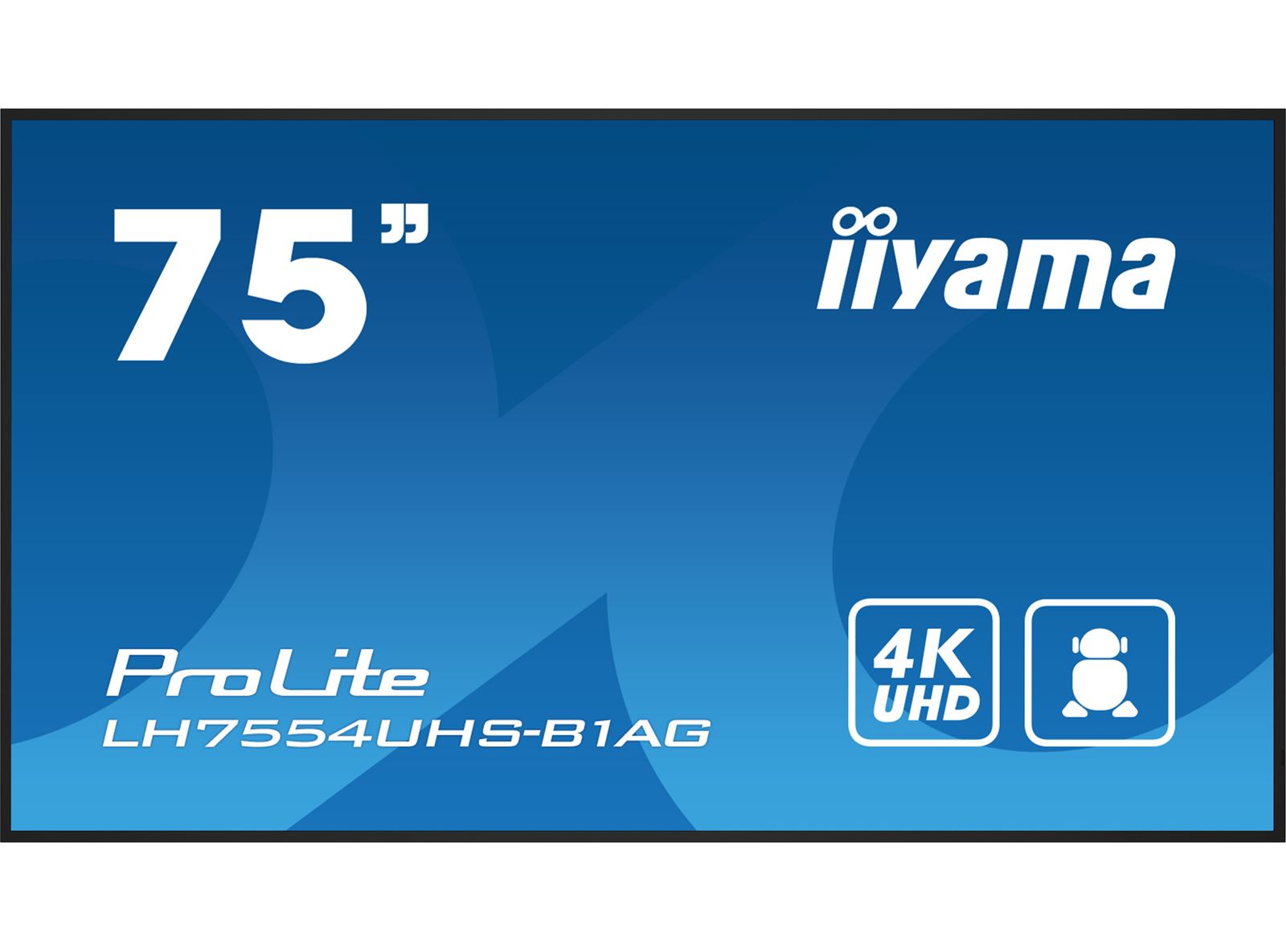

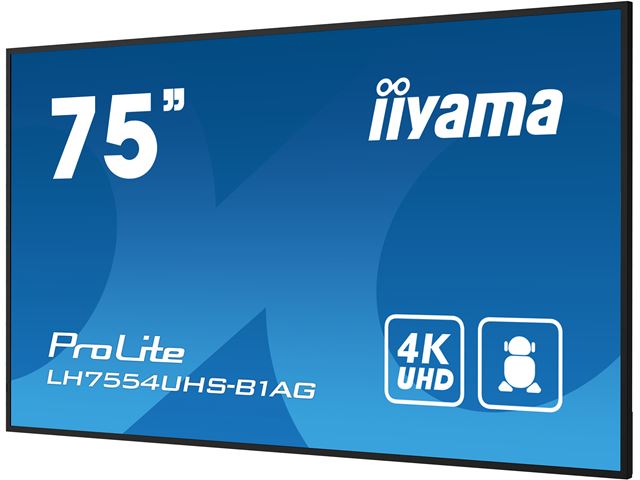

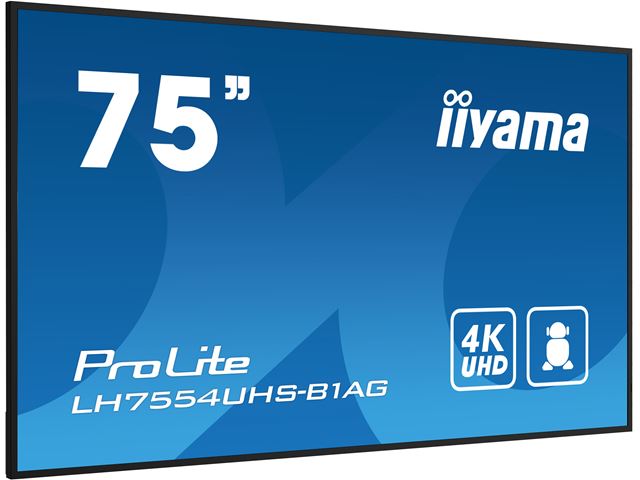

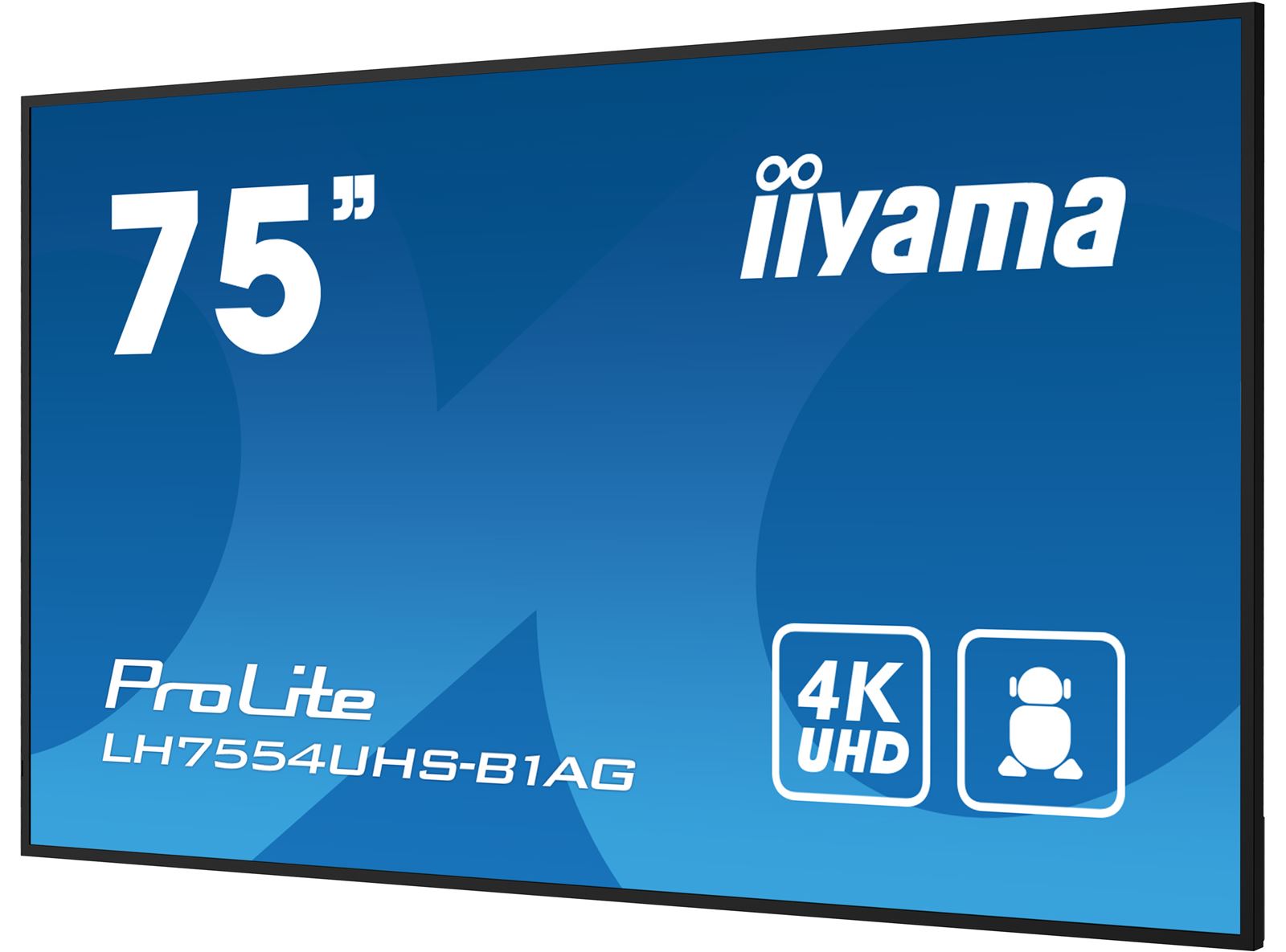

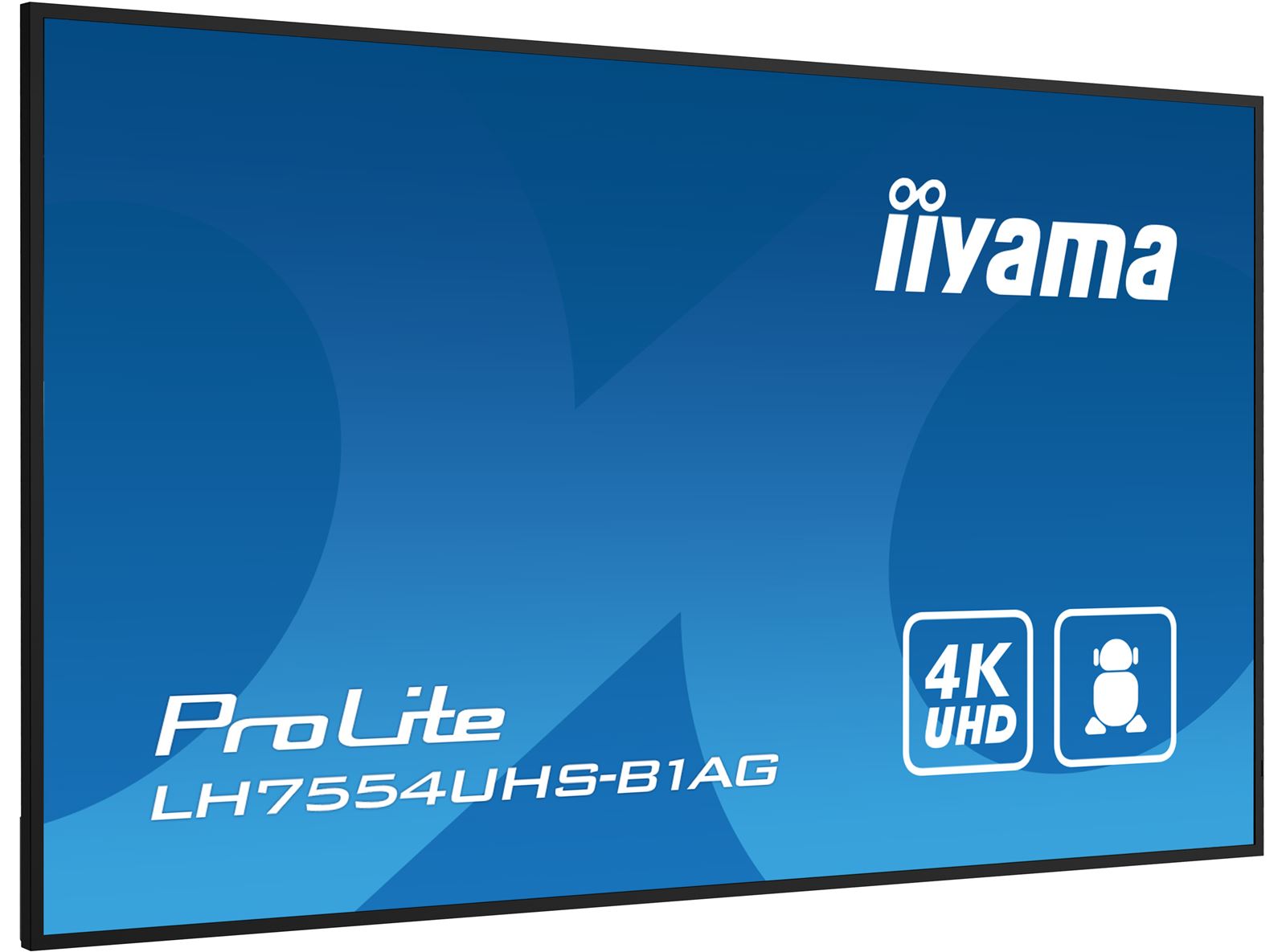

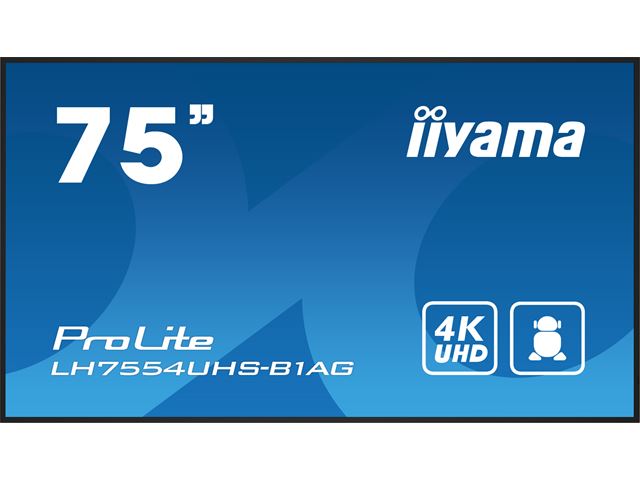

iiyama ProLite LH7554UHS-B1AG 75", 24/7, 4K, IPS, HDMI, landscape/portrait, Wifi, Android OS, FailOver and Intel® SDM slot, Anti-Glare

£1,220.15 exc. VAT
£1,464.18 inc. VAT

Brand: iiyama

Manufacturer Code: LH7554UHS-B1AG

Product Description

75" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH7554UHS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it.

The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control.

Technical Information

DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 74.5", 189.3cm
Panel IPS, AG coated glass, matte finish, haze 25%
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 8bit+FRC (NTSC 72%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1650 x 928mm, 65 x 36.5"
Pixel pitch 429.6mm
Bezel colour and finish black, matte

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1 (DVI-I: VGA+DVI)
Digital signal input DVI x1 (max. 2560x1440 @60Hz)
HDMI x3 (v.2.0, max. 3840x2160 @60Hz)
DisplayPort x1 (v.1.4, max. 3840x2160 @60Hz)
Audio input Mini jack x1 (3.5mm)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)
Digital signal output DisplayPort x1 (max. 3840x2160 @60Hz, MST-out Daisy Chain v.1.2)
Audio output Mini jack x1
Speakers 2 x 10W
Monitor control output RS-232c x1 (2.5mm sub-mini jack)
IR loop through x1 (3.5mm stereo mini)
HDCP v.2.2
USB ports x2 (v.2.0)

FEATURES

Integrated software Android 11 OS, iiSignage2, FailOver, EShare
WiFi yes (Built-in)
Hardware CPU: A73*4+A53*4, Memory: 4GB, Storage: 32GB
Extra Intel® SDM-L, micro SD card slot
Max. non-stop operating time 24/7
Anti image retention yes
Video wall / daisy chain Yes, (MST-output)
Media playback yes
Housing (bezel) metal

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
Control buttons Power, Up, Down, Volume up, Volume down, Mute, Input, Menu
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (H. position, V. position, clock, clock phase, zoom mode, custom zoom, auto adjust, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio source, audio reset, audio out sync, speaker setting), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, group ID, monitor information, DP version, DP monitors, HDMI version, configuration 2 reset), advanced option (IR control, power LED light, keyboard control, tiling, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, SDM settings, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Plug&Play DDC2B

MECHANICAL

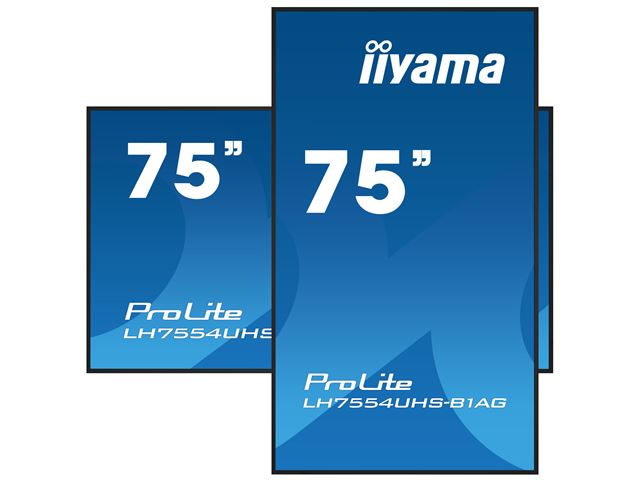

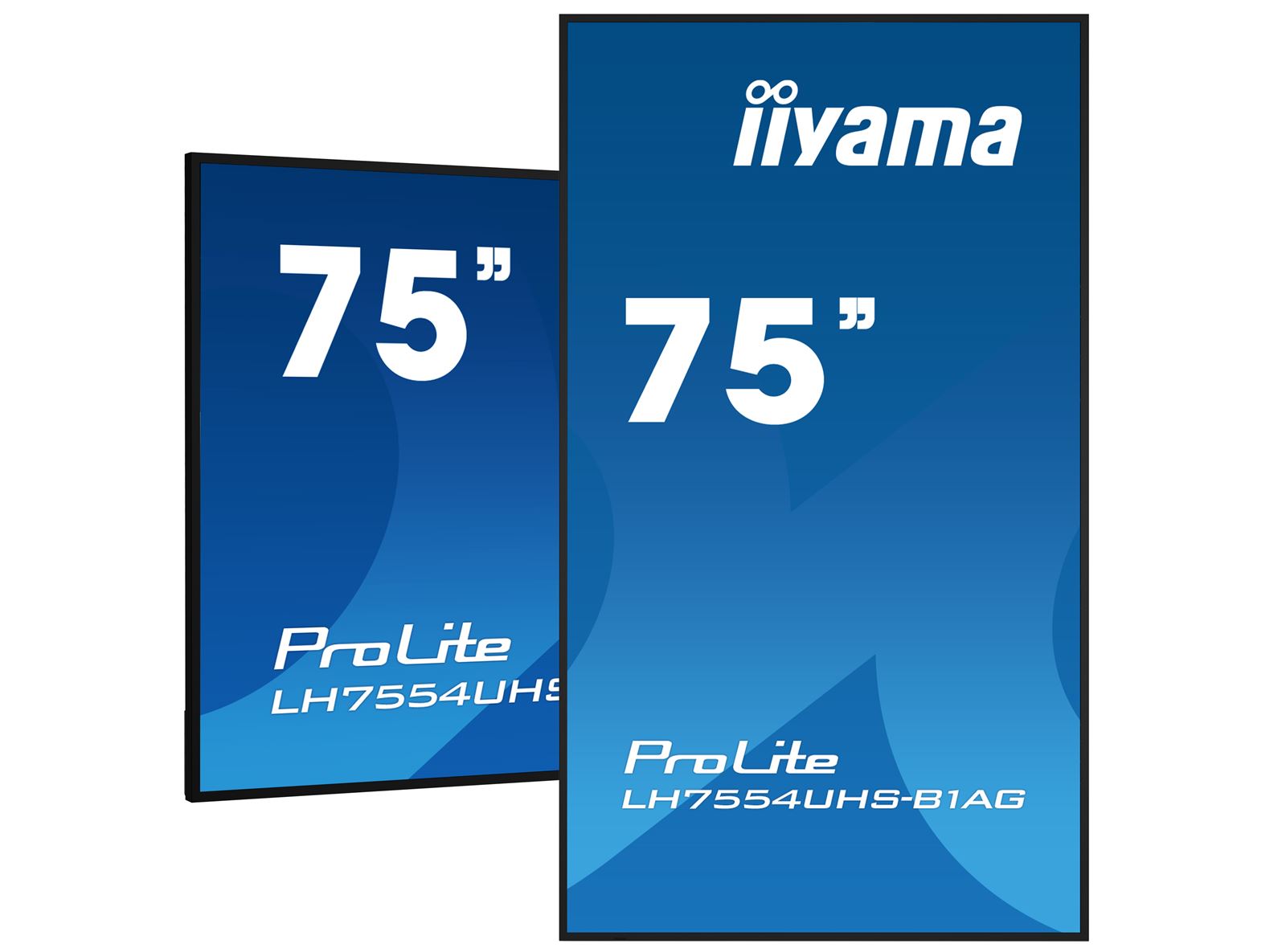

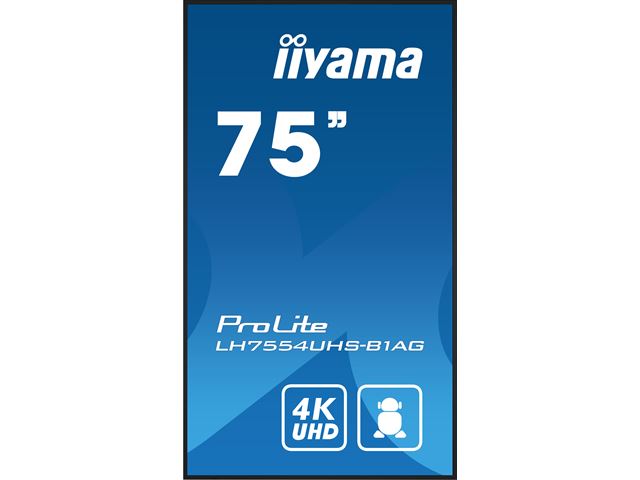

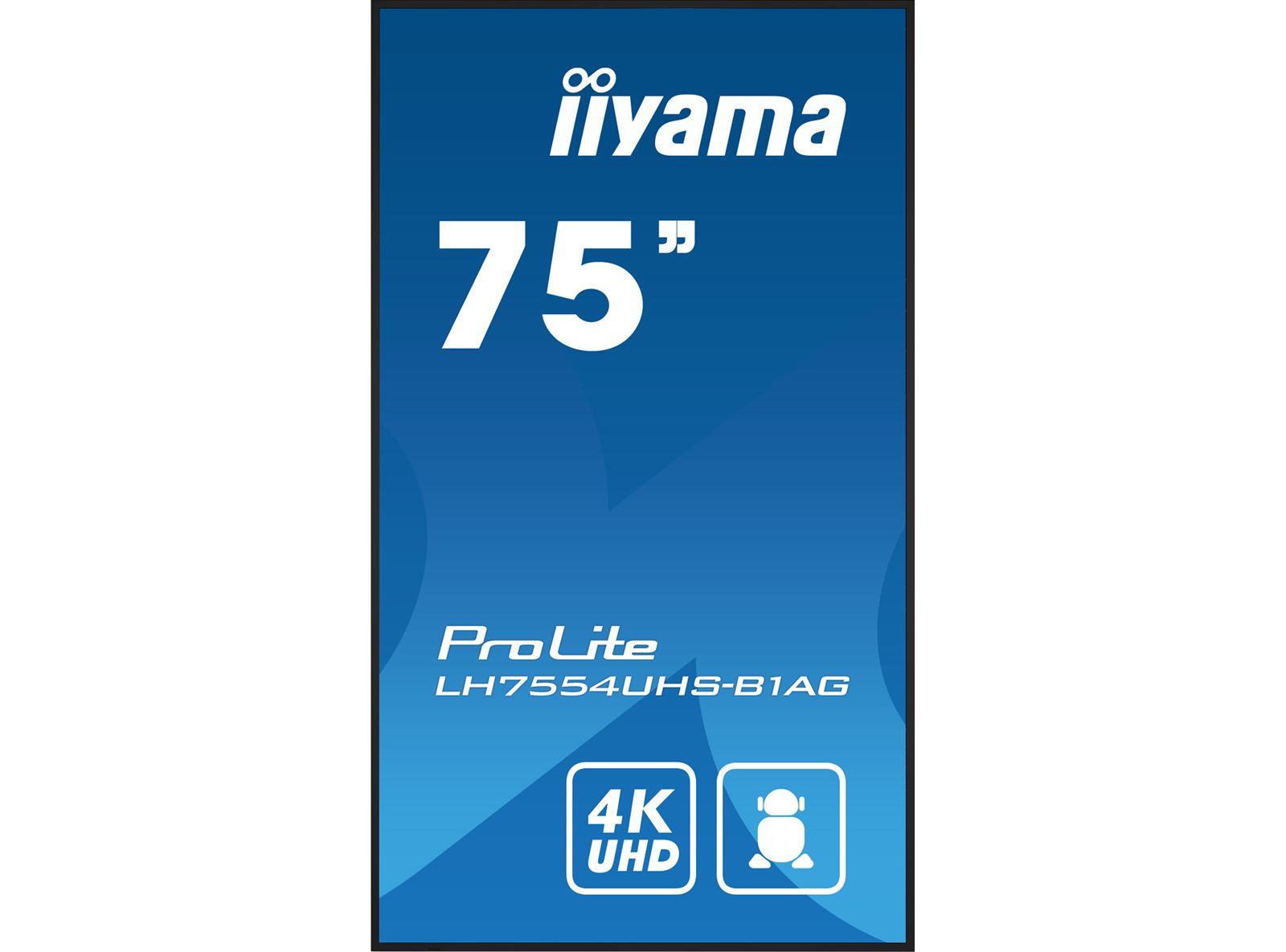

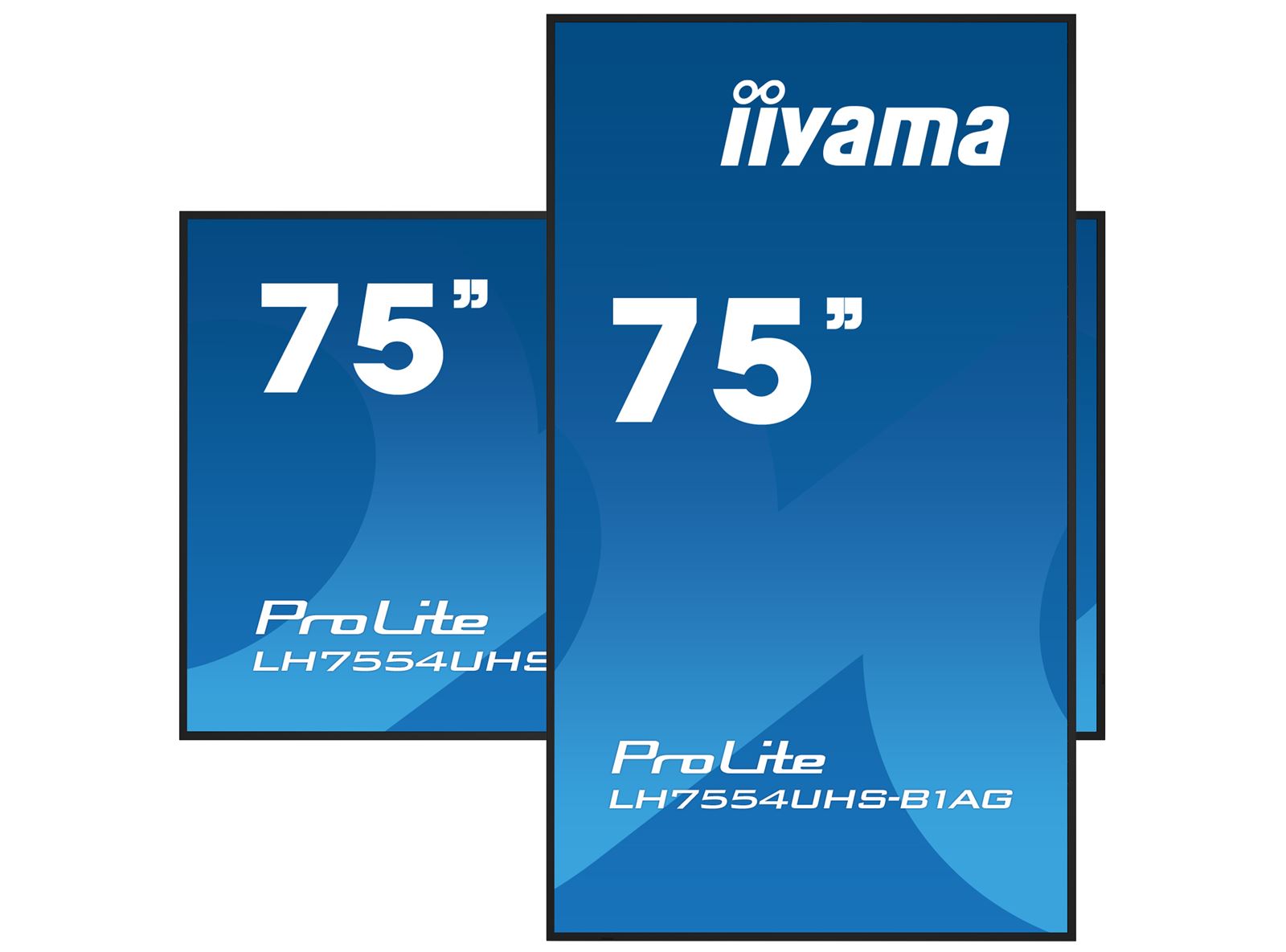

Orientation landscape, portrait
Fanless design yes

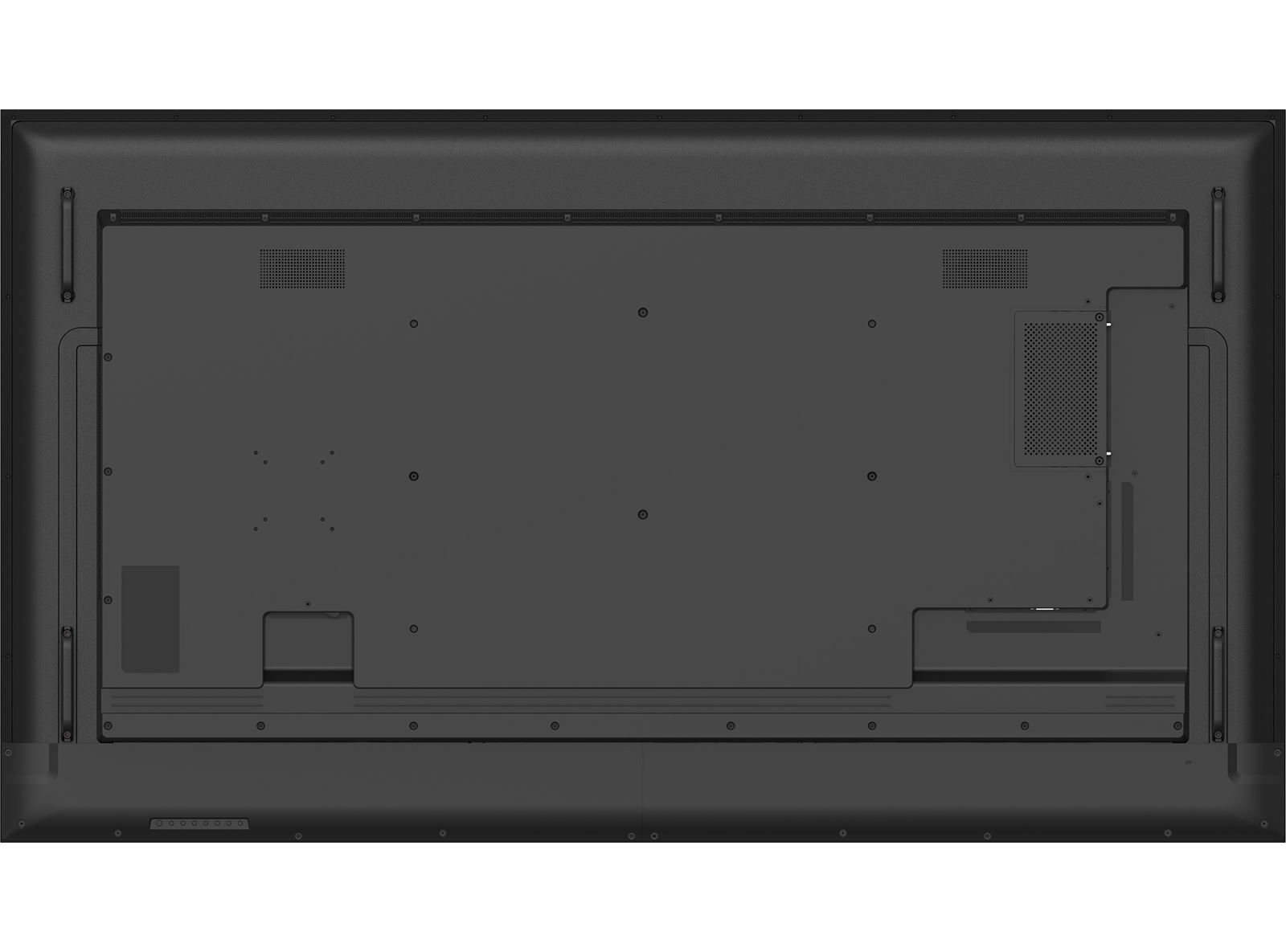

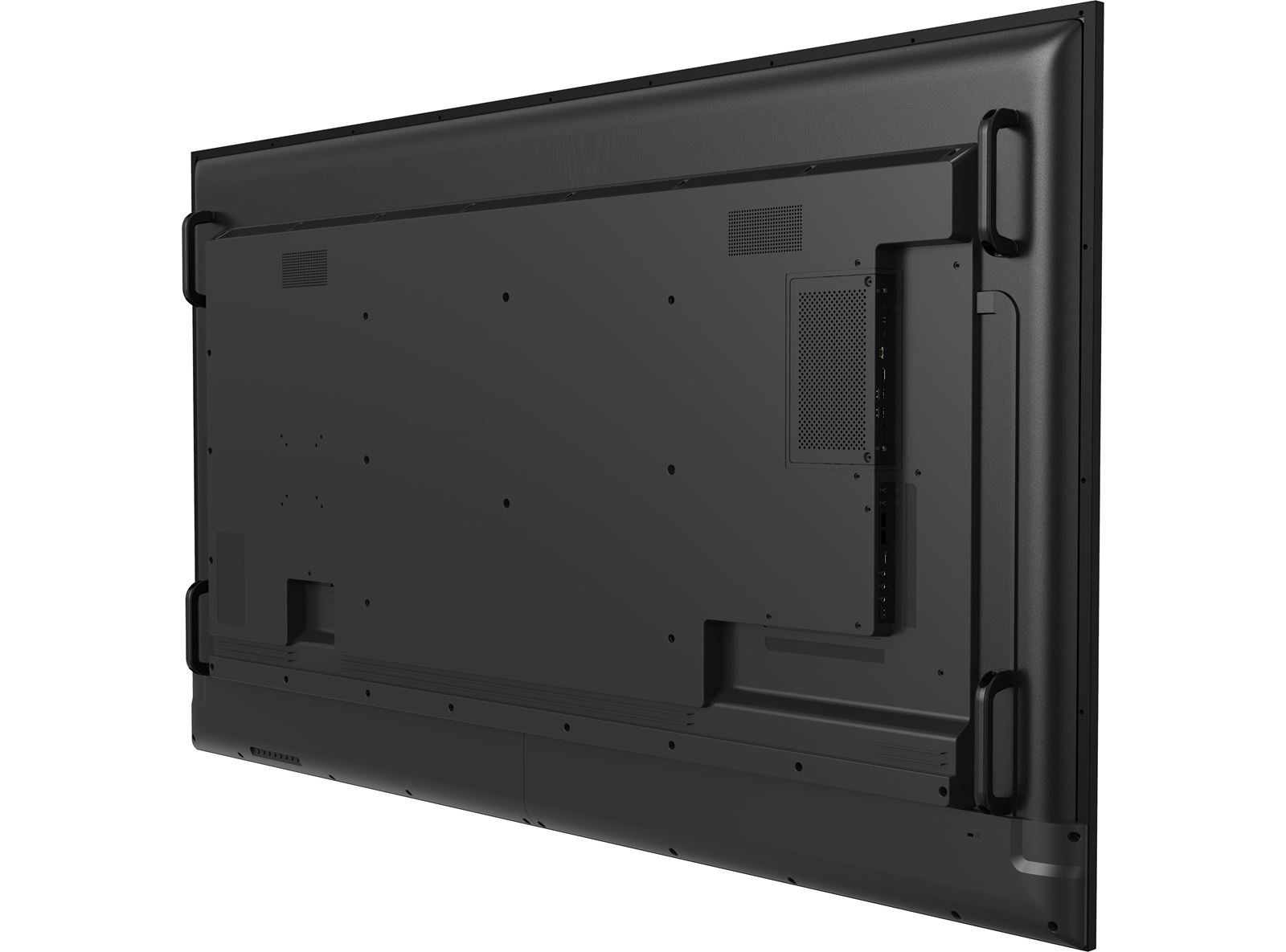

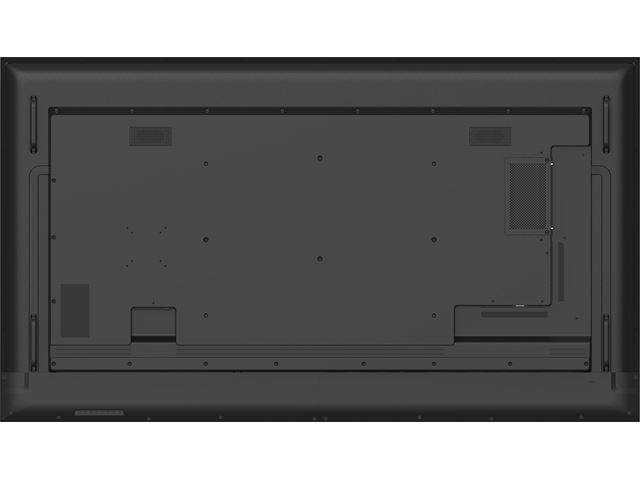

VESA mounting 600 x 400mm
Mini PC mount VESA 100 x 100
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED

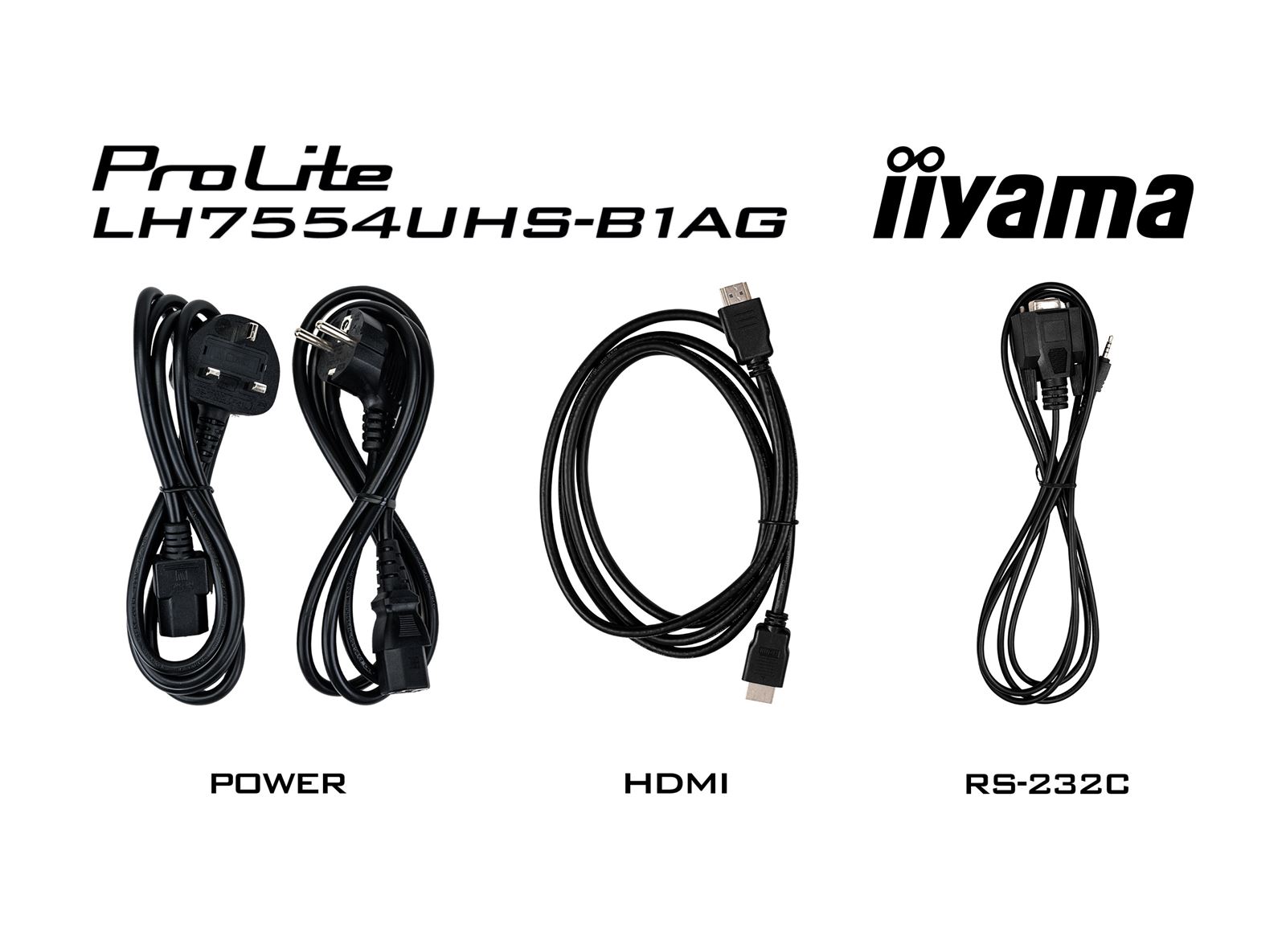

Cables power, HDMI, RS-232c
Guides quick start guide, safety guide
Other Stickers for screw holes, wire buckles
Remote control yes (batteries included)

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 330W typical, 0.5W stand by, 0.5W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Energy efficiency class (Regulation (EU) 2017/1369) G

DIMENSIONS / WEIGHT

Product dimensions W x H x D 1683.5 x 961.5 x 85mm
Box dimensions W x H x D 1900 x 1125 x 221mm
Weight (without box) 29.6kg
Weight (with box) 42kg
EAN code 4948570121014
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

OPS PC SLOT

Built-in expansion slot supports the Open Pluggable Specification (OPS) standard; it simplifies the installation of a plug-in PC for digital signage applications.



OPS PC SLOT

24/7

24/7 displays are designed for a continuous operation.



24/7

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS
