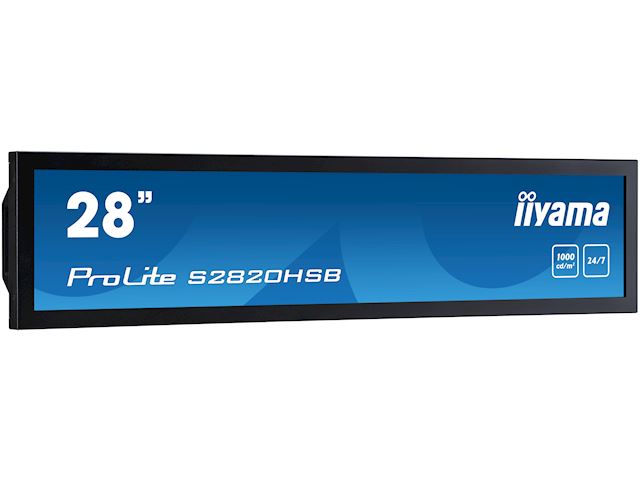

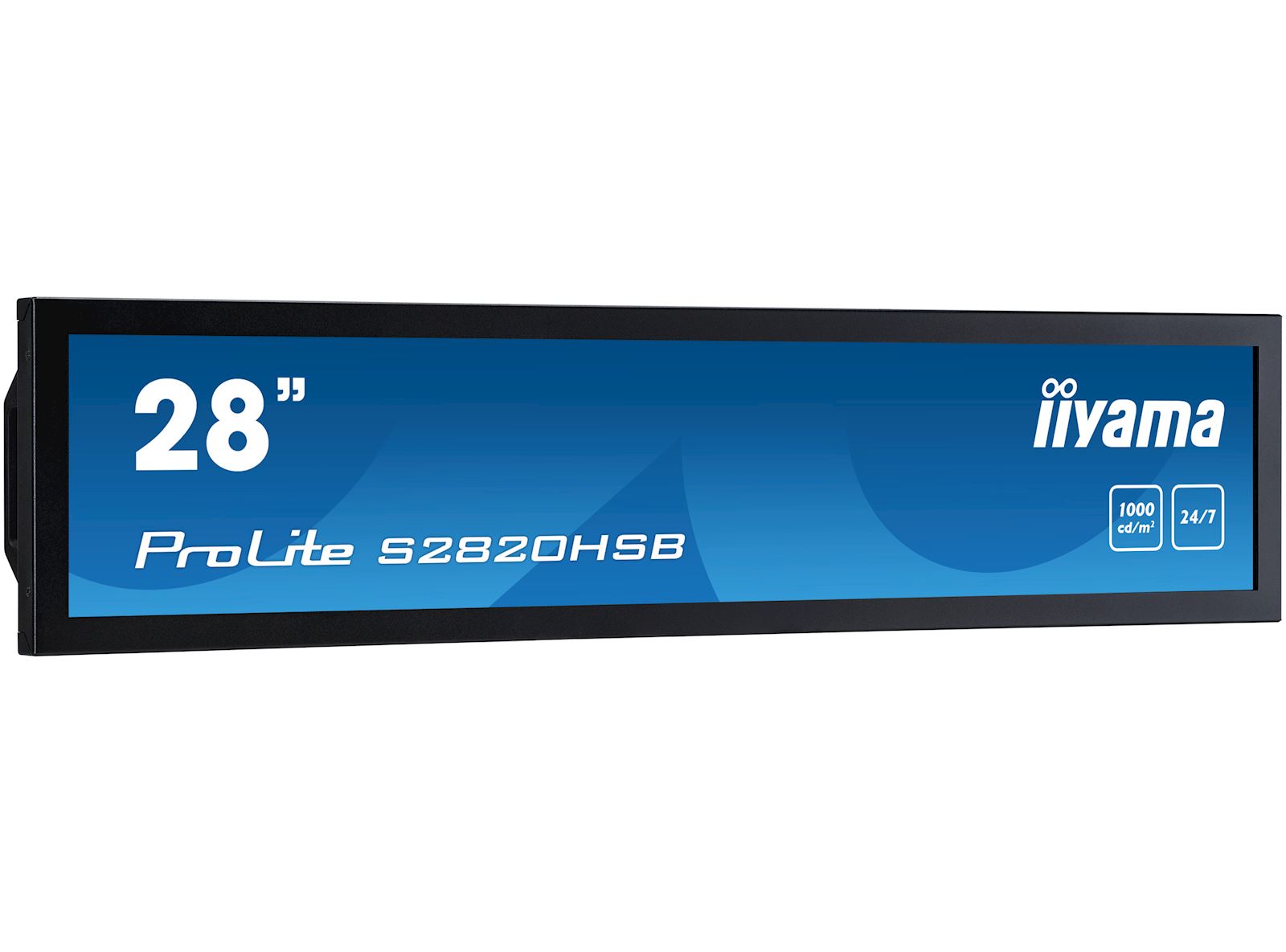

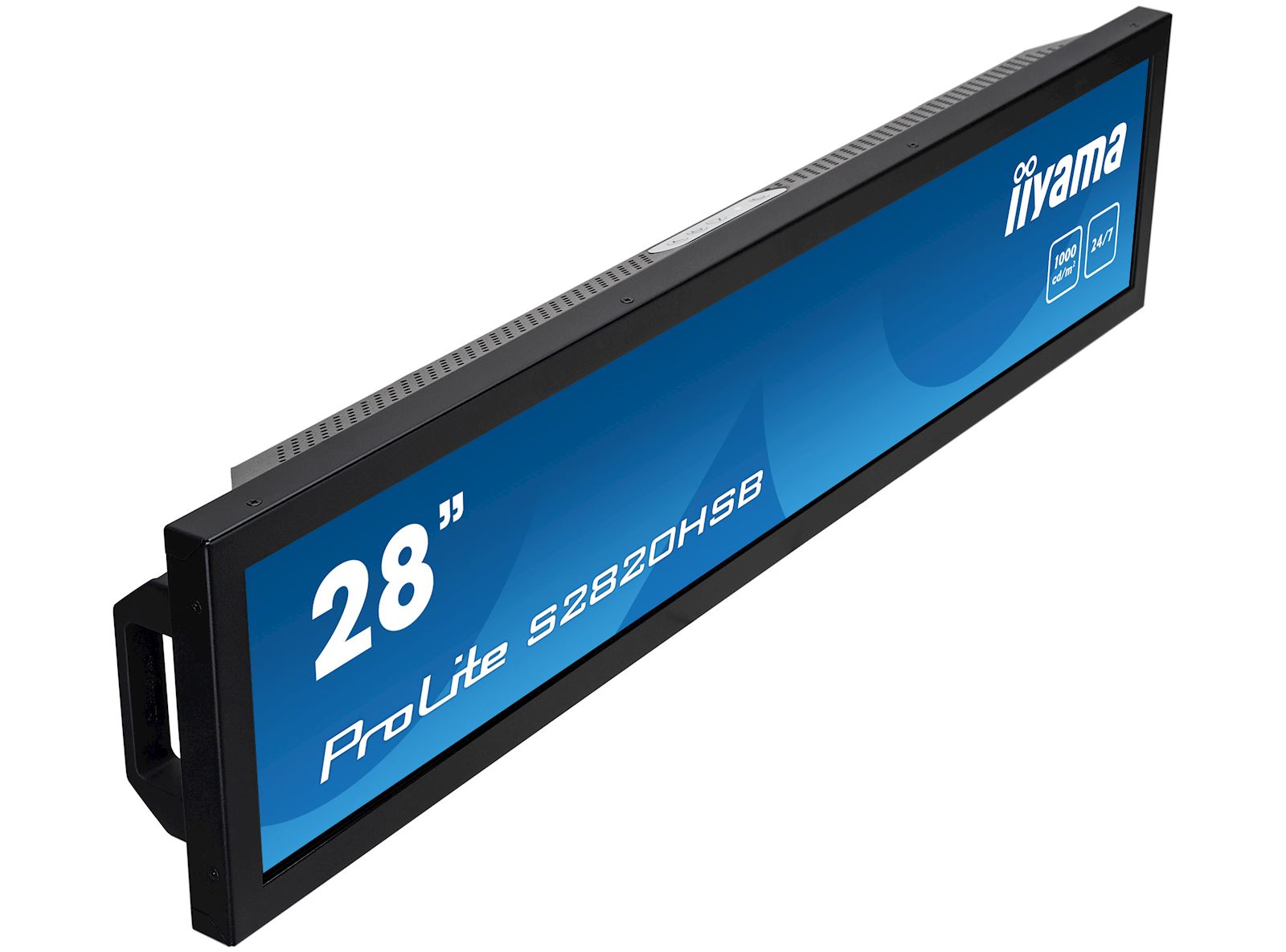

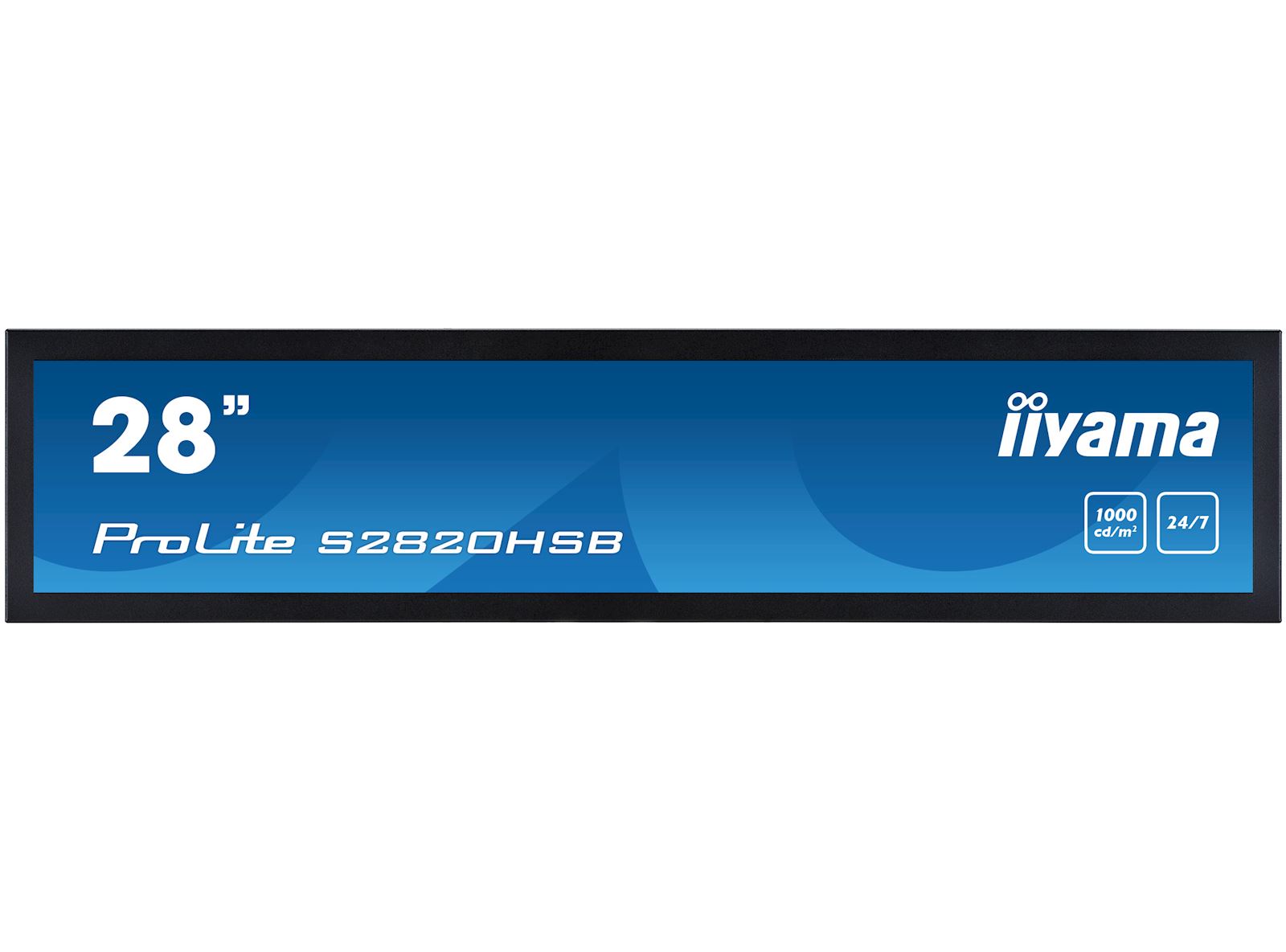

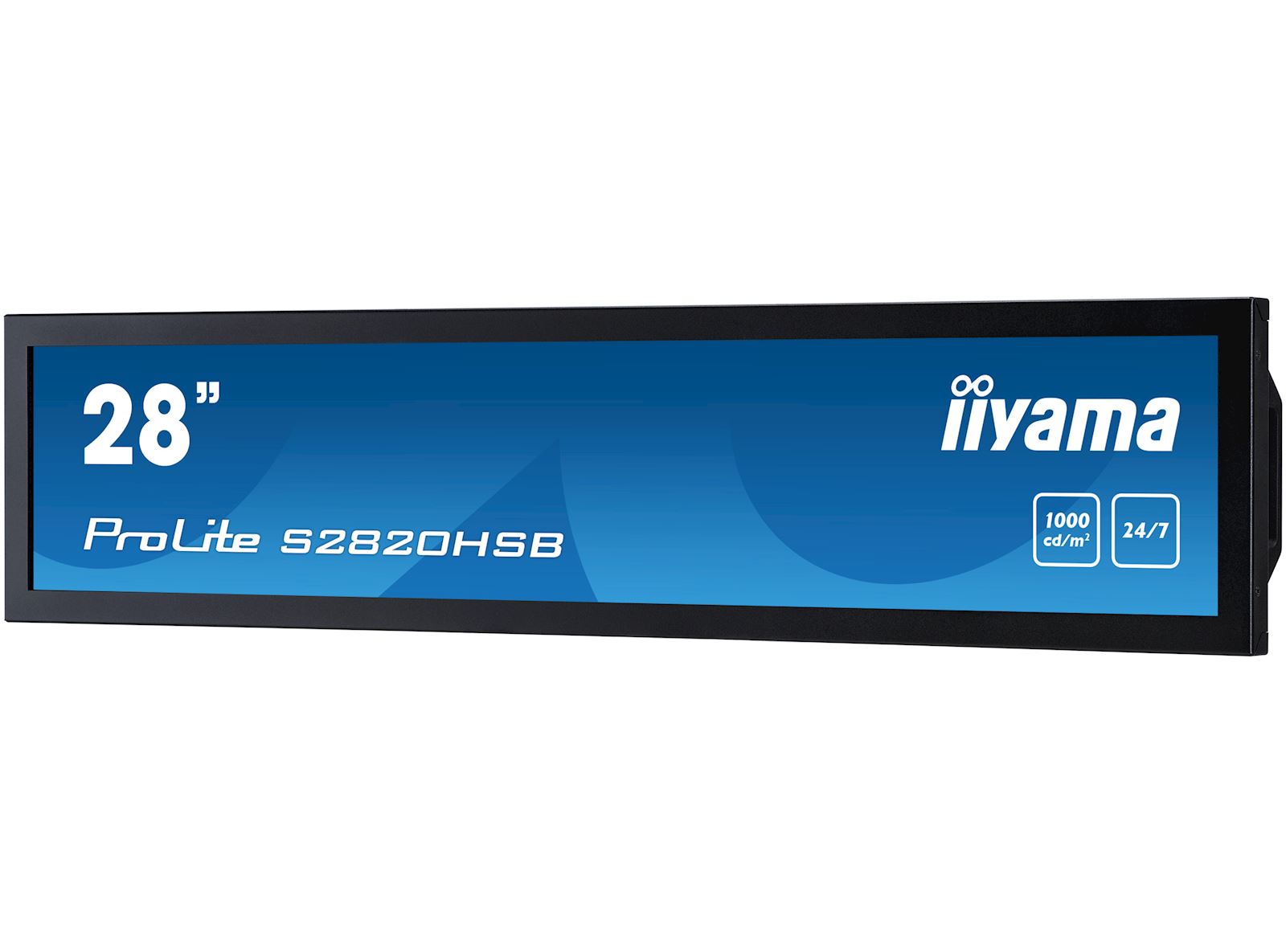

iiyama ProLite monitor S2820HSB-B1 28" stretched digital signage, 24/7, fanless, HDMI, Sunlight readable, Landscape/Portrait, Metal bezel, with handles

£546.56 exc. VAT
£655.87 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Brand: iiyama

Manufacturer Code: S2820HSB-B1

Product Description

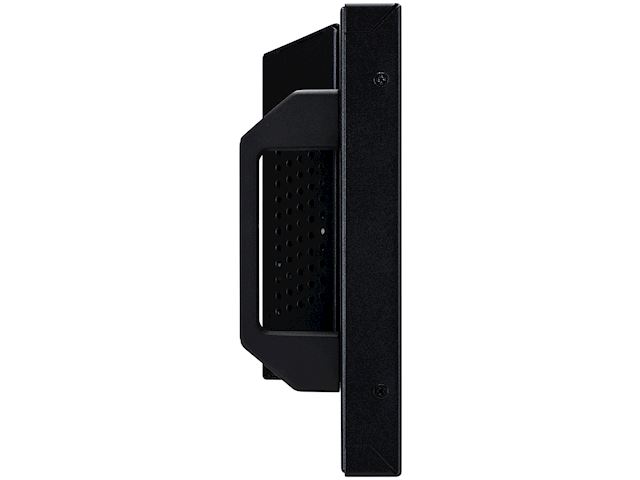

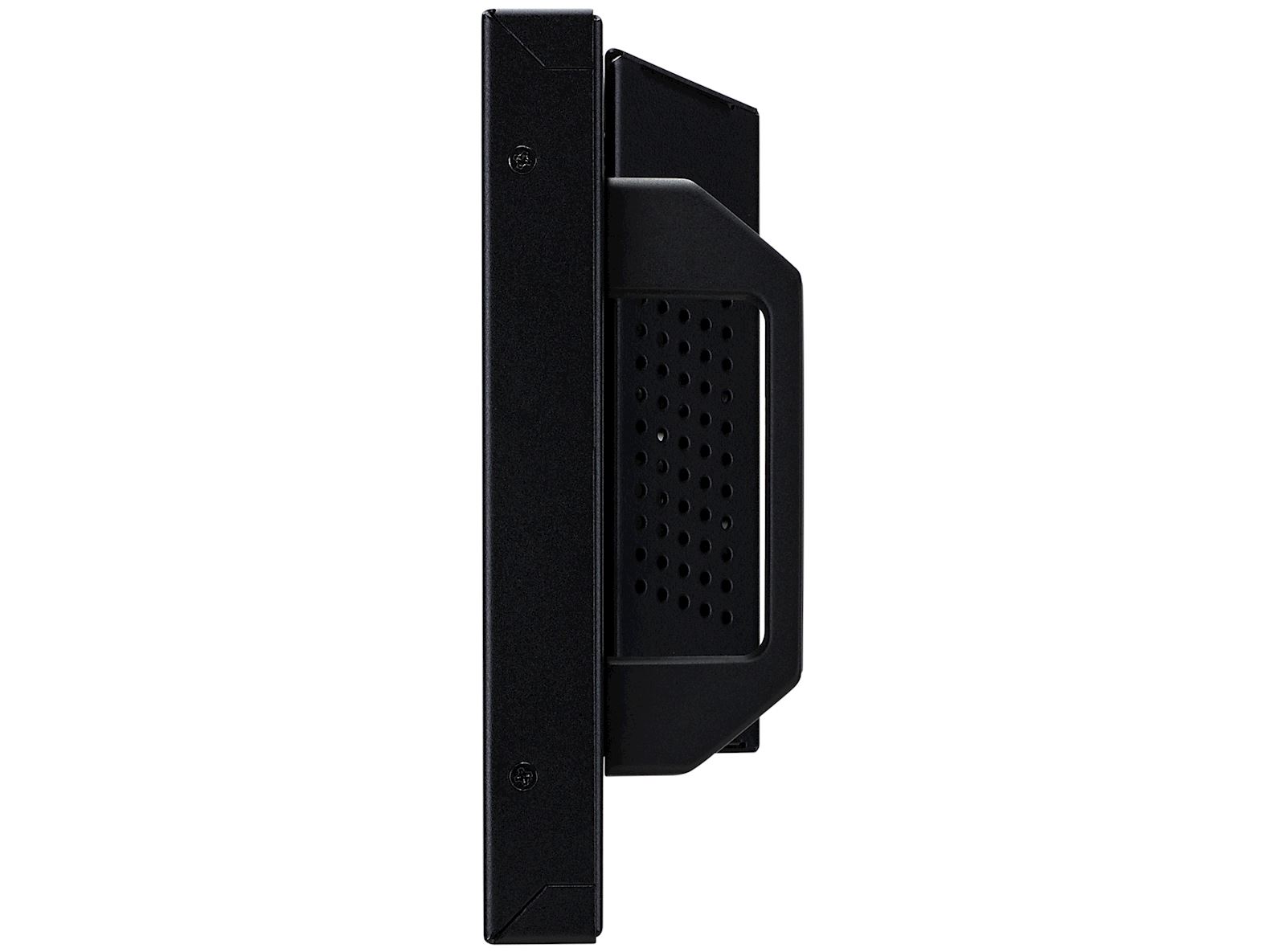

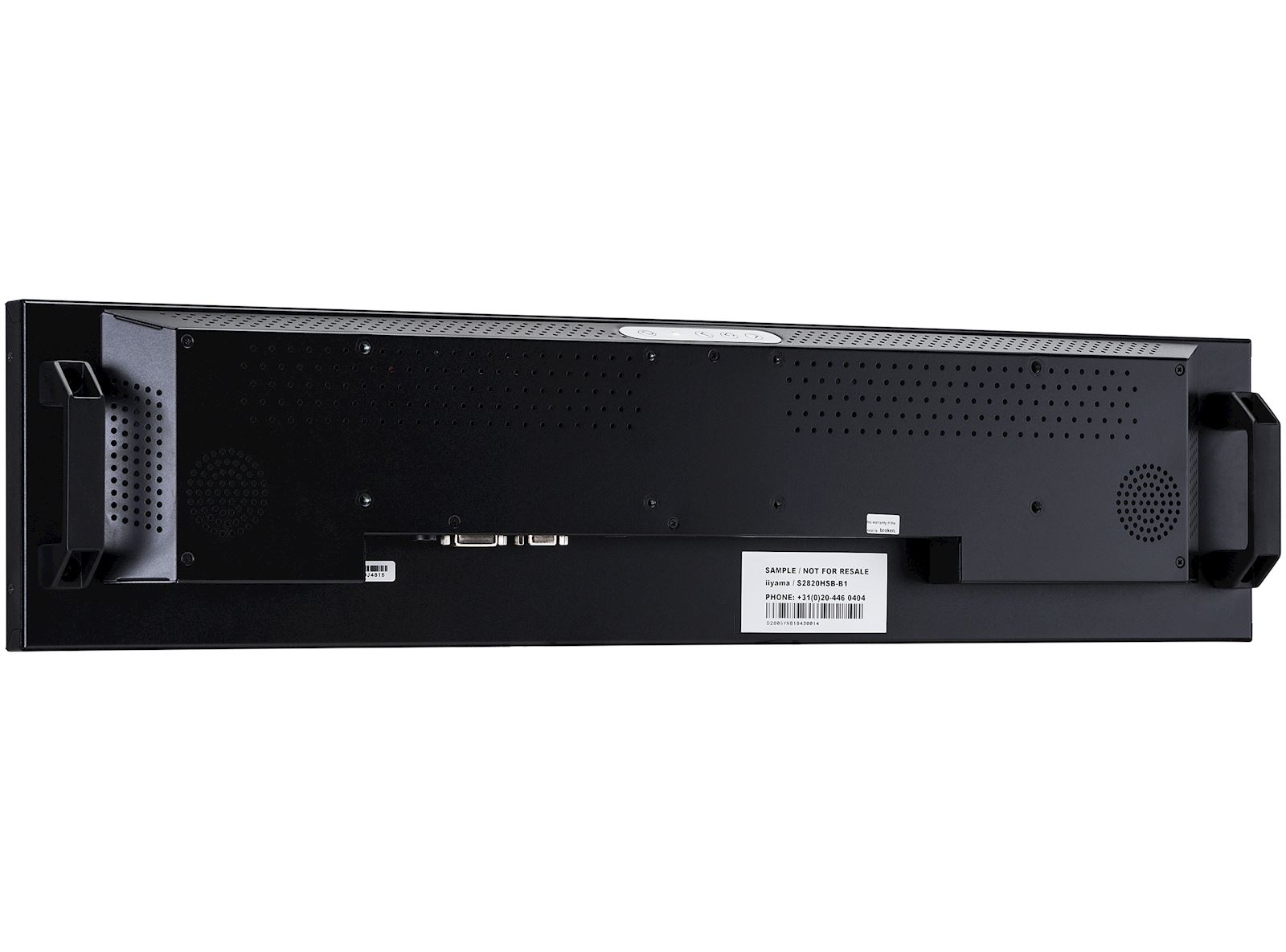

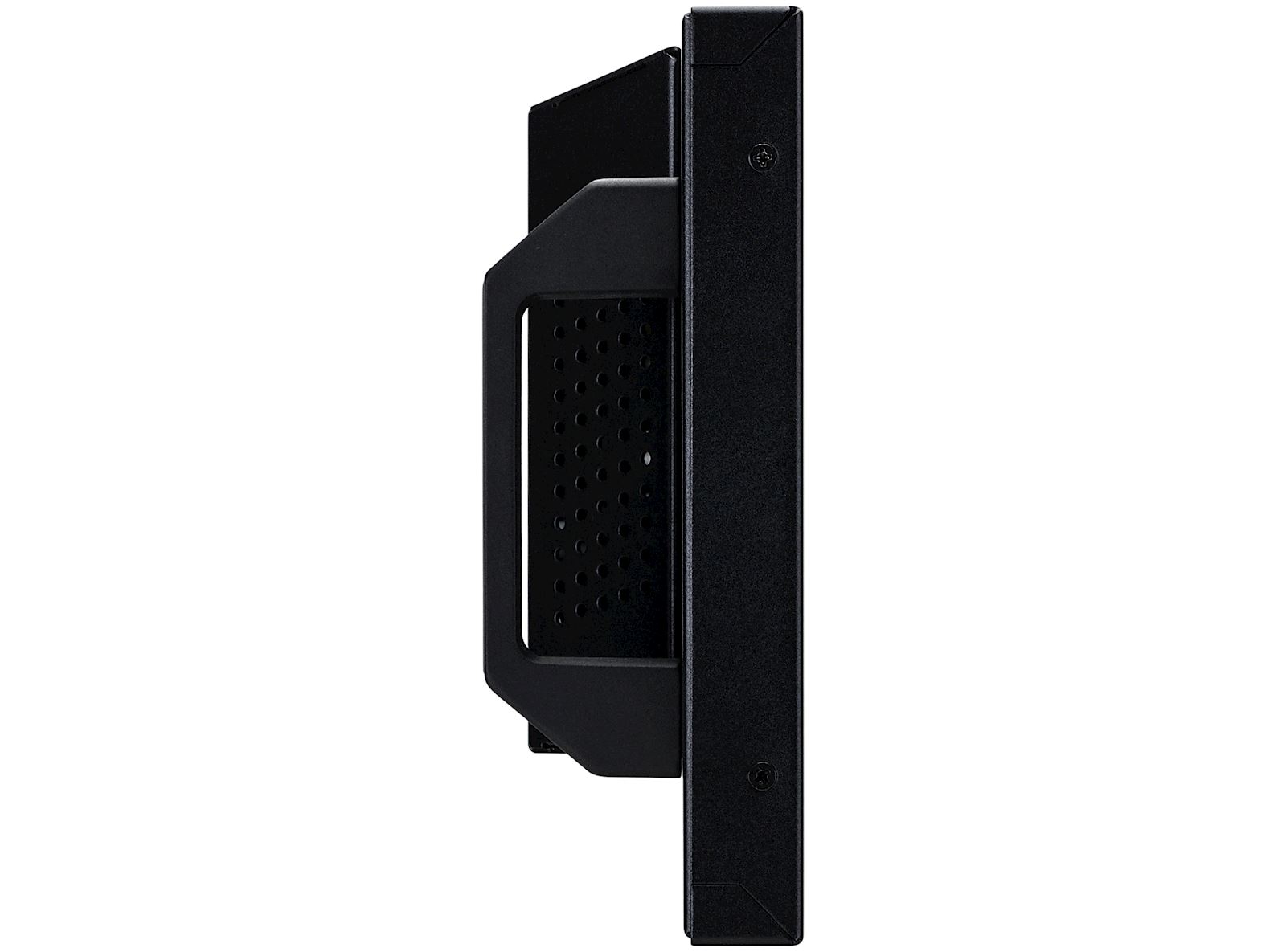

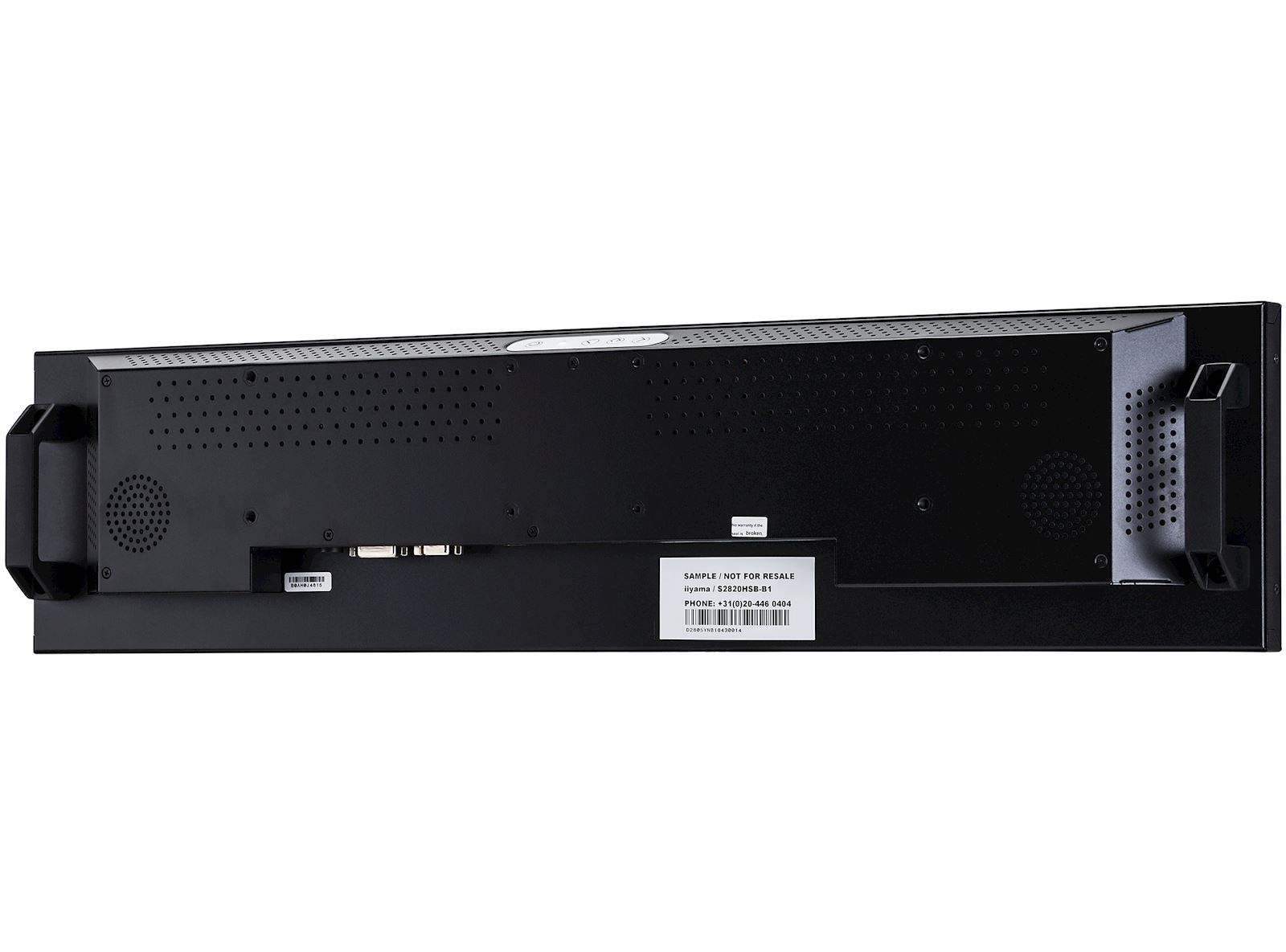

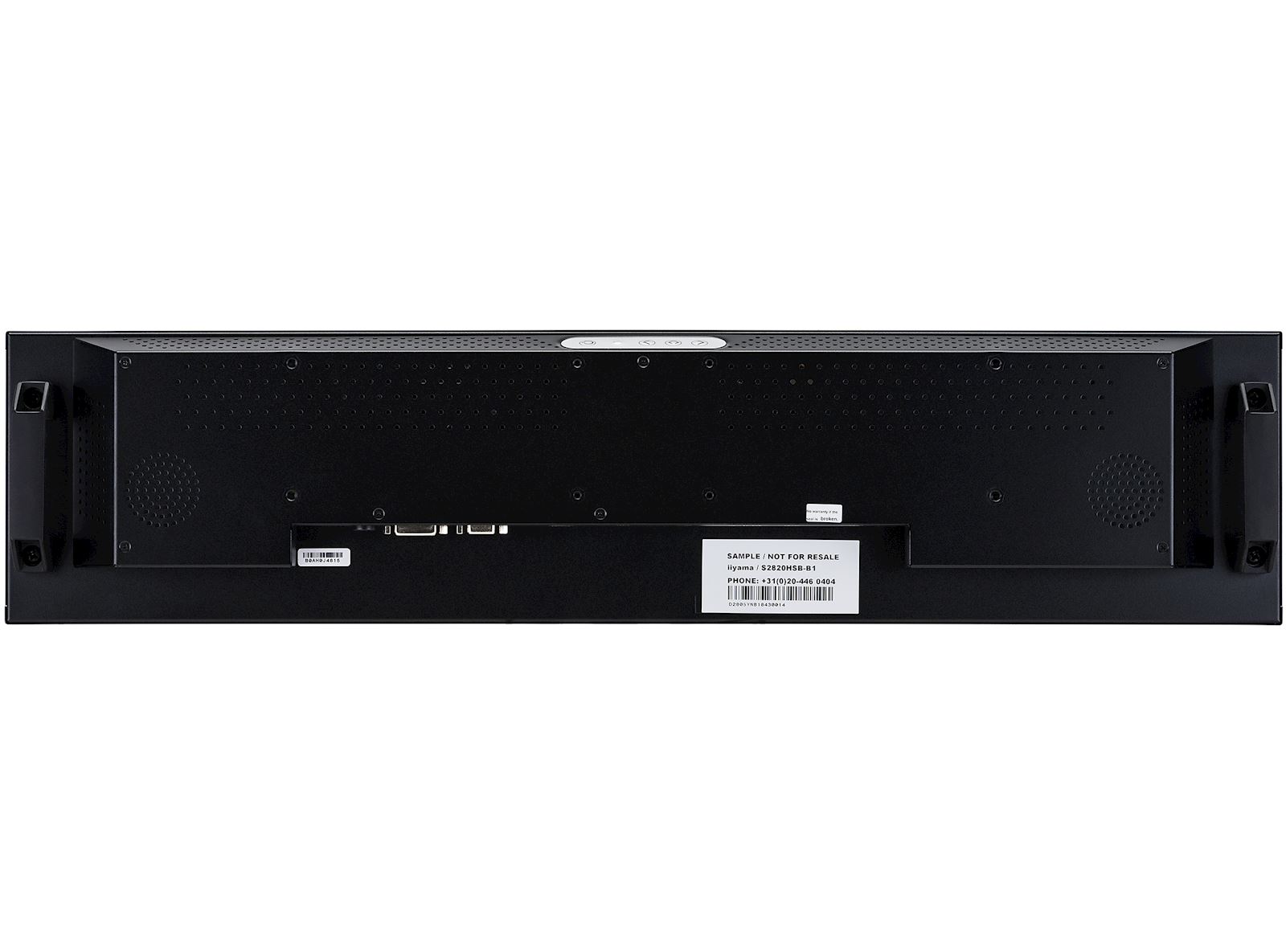

Give your sales promotions and in-store displays maximum impact and visibility with the ProLite S2820HSB-B1. The S2820HSB is a 28" stretched (1920x360) digital signage display that is ideally suited for retail, transportation, business and health care environments where a regular 16:9 display will not fit. With a 24/7 operating time, landscape and portrait orientation and brightness of 1000cd/m2, this display can be installed anyhow and anywhere you want, ensuring an optimal fit and maximum exposure. The S2820HSB is fanless, only weighs 5,5 kg and comes with two handles for easy handling and installation.

Technical Information


Diagonal 28", 71.2cm
Panel IPS LED, matte finish
Native resolution 1920 x 360 @60Hz (0.7 megapixel)
Aspect ratio 16:3
Brightness 1000 cd/m² typical
Static contrast 1000:1 typical
Response time 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit
Horizontal Sync 30 - 83KHz
Vertical Sync 50 - 76Hz
Viewable area W x H 699.84 x 131.22mm, 27.6 x 5.2"

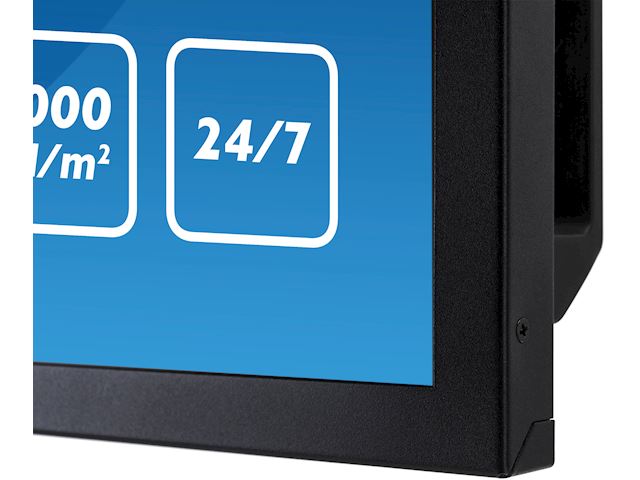

Bezel width (sides, top, bottom) 17.5 mm, 18.2mm, 18.2mm
Pixel pitch 0.1215 x 0.3645mm
Bezel colour and finish black, matte

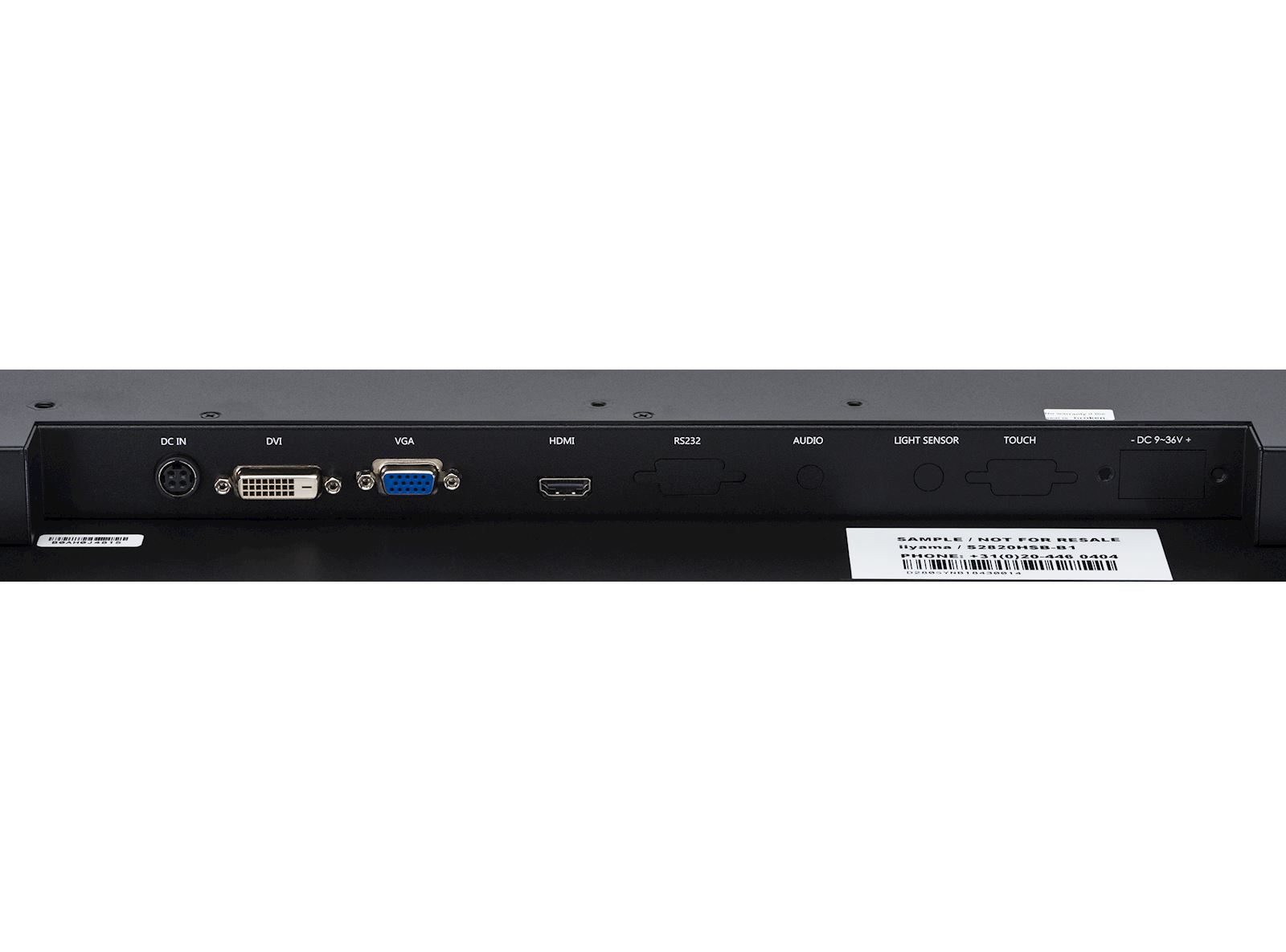

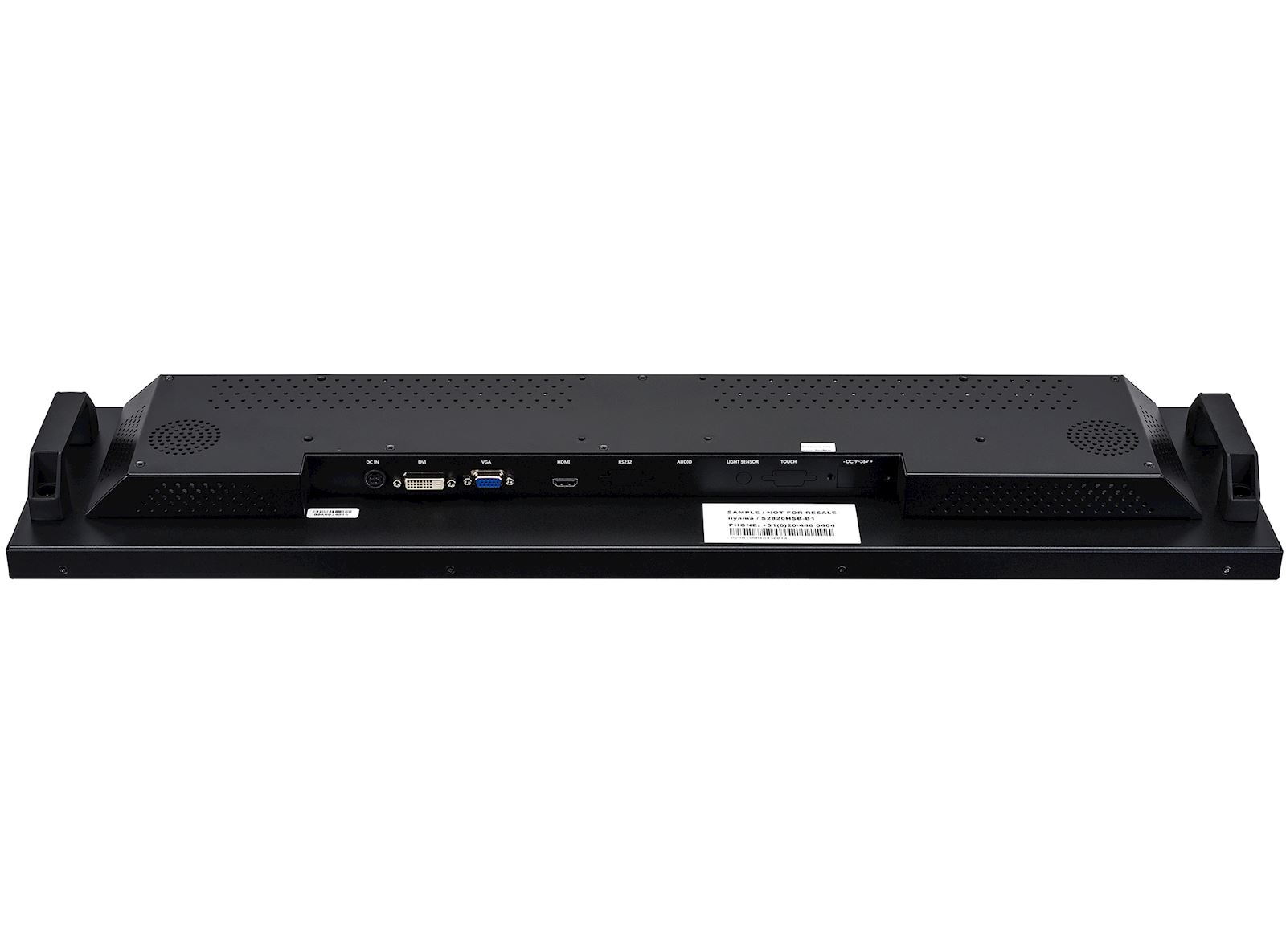

Analog signal input VGA x1
Digital signal input DVI x1 (DVI-D v.1.0)
HDMI x1 (v.2.0)
Audio input Mini jack x1
Monitor control input RS-232c x1
Audio output Speakers 2 x 5W
Monitor control output RS-232c x1


Extra sunlight readable, portrait orientation left and right, handles
Max. non-stop operating time 24/7

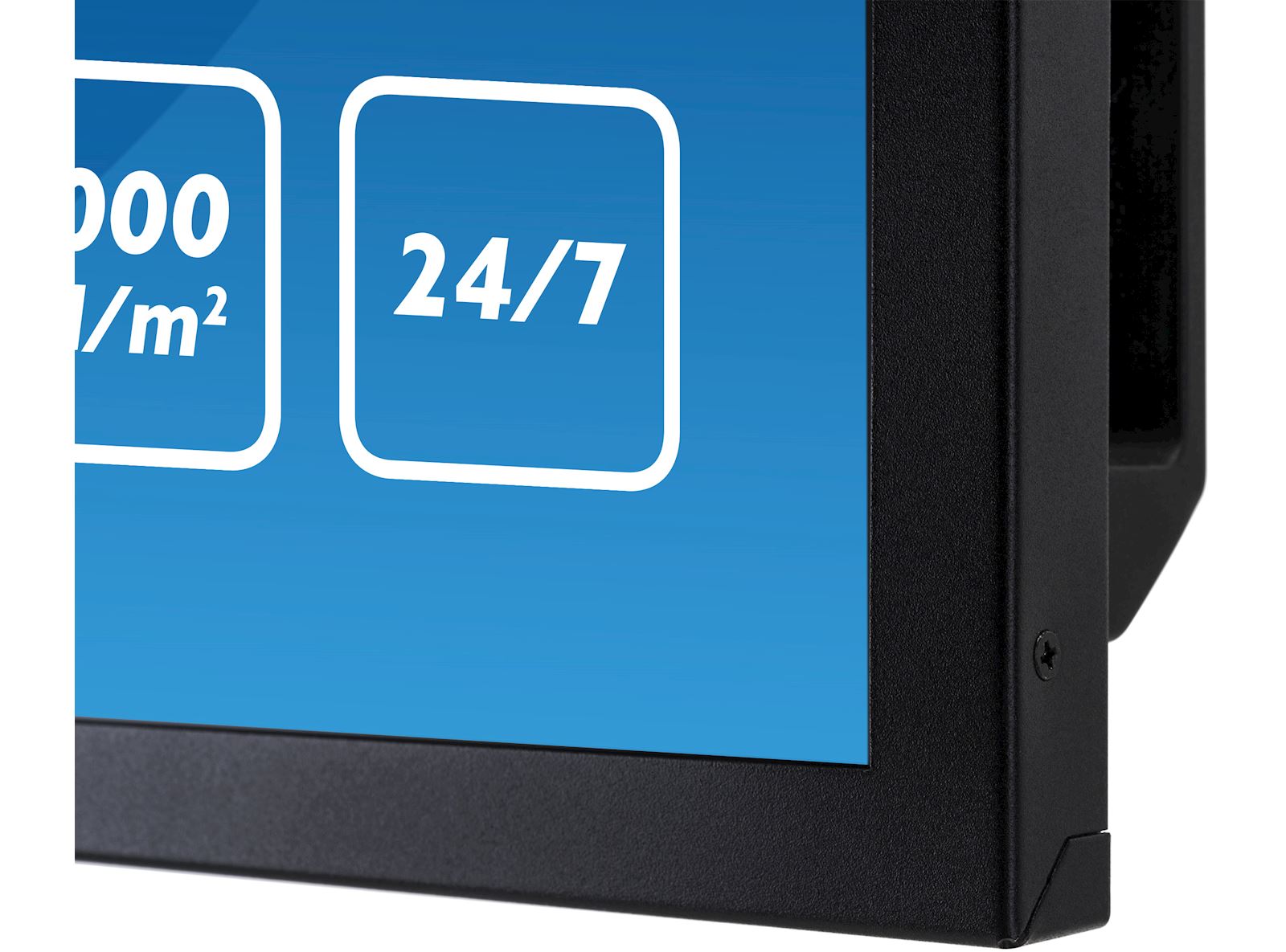

Housing (bezel) metal
Brightness sensor yes


OSD languages EN

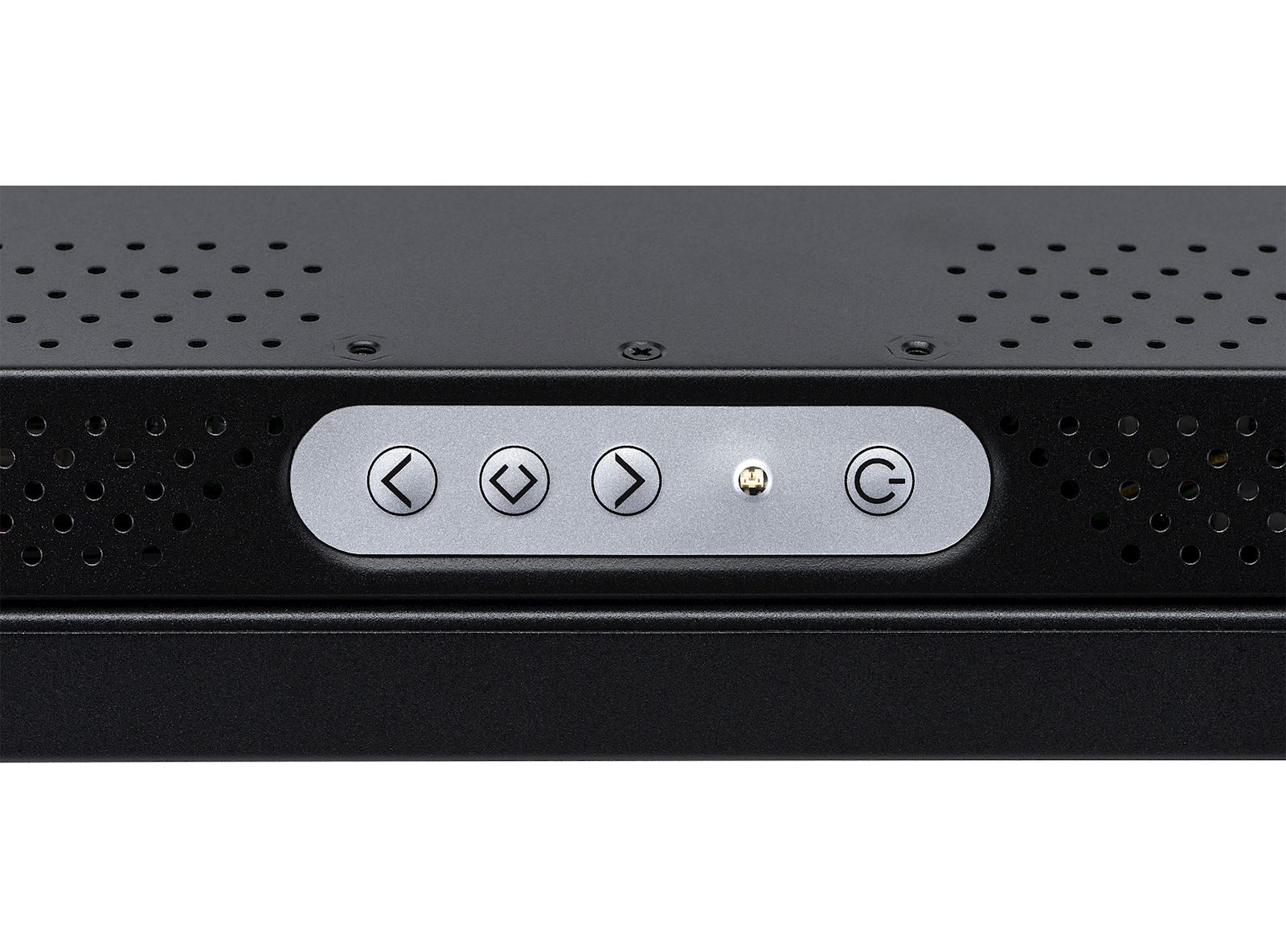

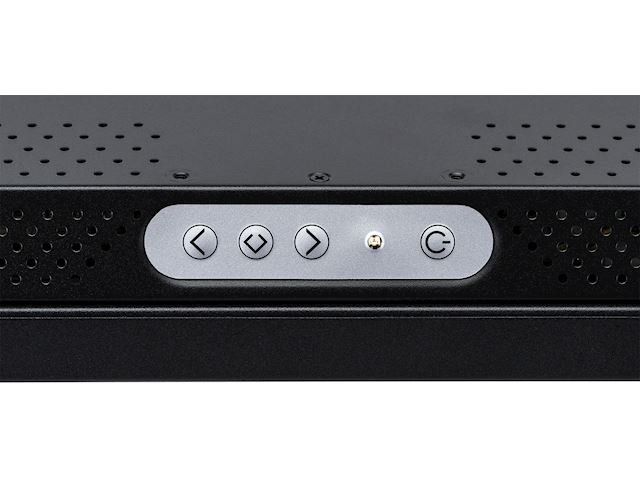

Control buttons Decrease / Brightness,. Menu / Enter, Increase / Input Select, Power
User controls brightness (OSD brightness, ambient light sensor with OSD offset, brightness, contrast, exit), signal select, sound (volume, mute, exit), color (color adjustment, sRGB, color temp, exit), image (auto adjustment, clock, phase, H. position, V. position, exit), tools (OSD control, reset, sharpness, exit), exit.
Plug&Play DDC2B, Mac OSX

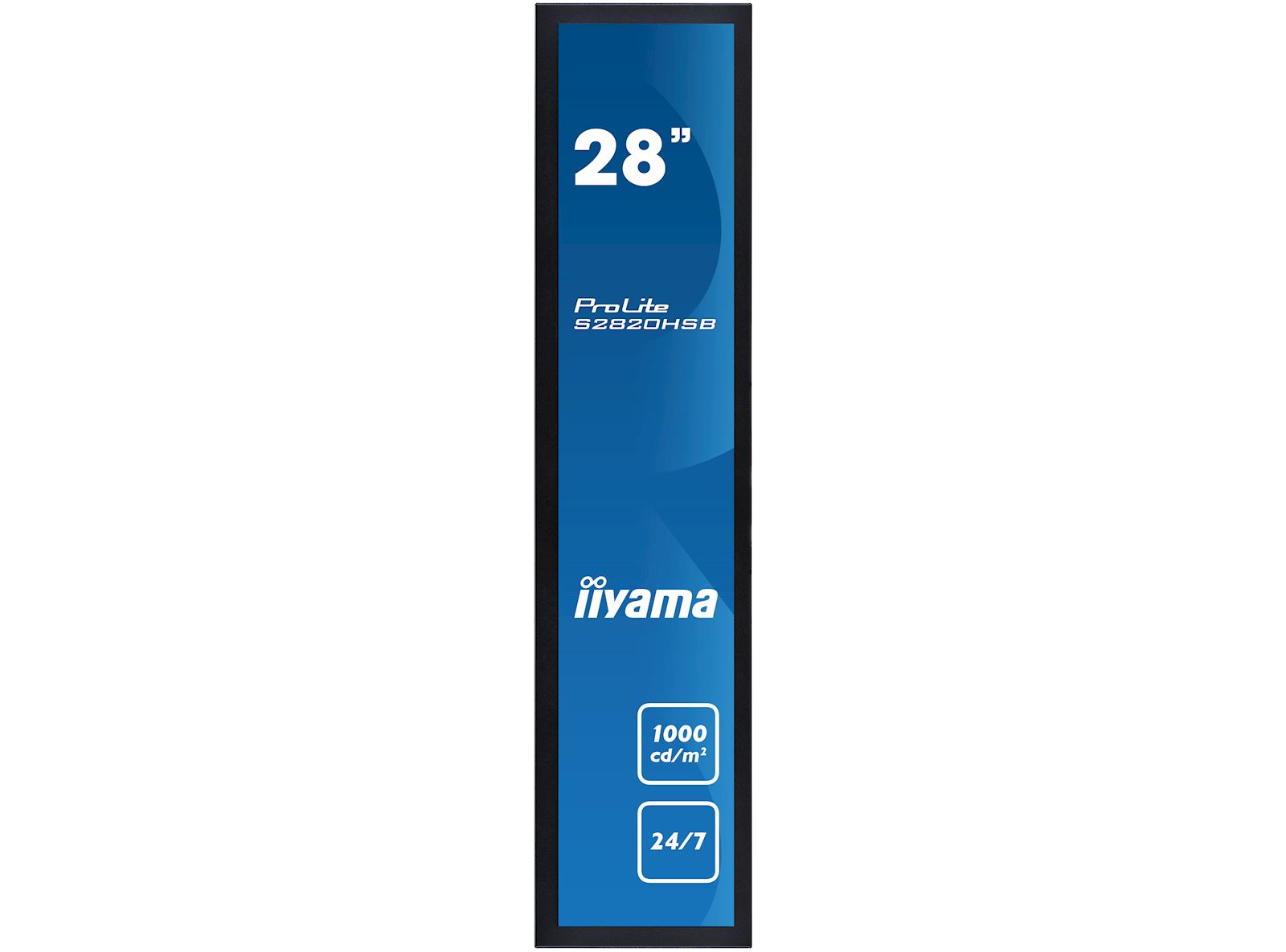

Orientation landscape, portrait
Fanless design yes
VESA mounting 75 x 75mm, 400 x 75mm
Operation temperature range 0°C - 50°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours


Cables power (1.8m), HDMI (1.8m), RS-232c
Guides quick start guide, safety guide
Other light sensor cable


Power supply unit external
Power supply DC 12 V
Power usage 28W typical, 0.5W stand by, 0.5W off mode


Regulations CB, CE
Energy efficiency class C
Other REACH SVHC above 0.1%: Lead


Product dimensions W x H x D 737 x 170 x 57.9mm
Weight (without box) 5.5kg
EAN code 4948570116959


Manufacturer iiyama
Model ProLite S2820HSB-B1
Energy efficiency class C
Visible screen diagonal 71.2cm; 28"; (28" segment)
ON mode power consumption 28W
Power in Standby 0.5W stand by
Resolution 1920 x 360


With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.



This LED monitor is equipped with two high quality stereo speakers.



24/7 displays are designed for a continuous operation.
