iiyama ProLite monitor TE7502MIS-B1AG 75", 4k UHD, Infrared 20pt touch, Anti-glare coating, VA, HDMI, features Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro

£1,698.55 exc. VAT
£2,038.26 inc. VAT

Brand: iiyama

Manufacturer Code: TE7502MIS-B1AG

Product Description

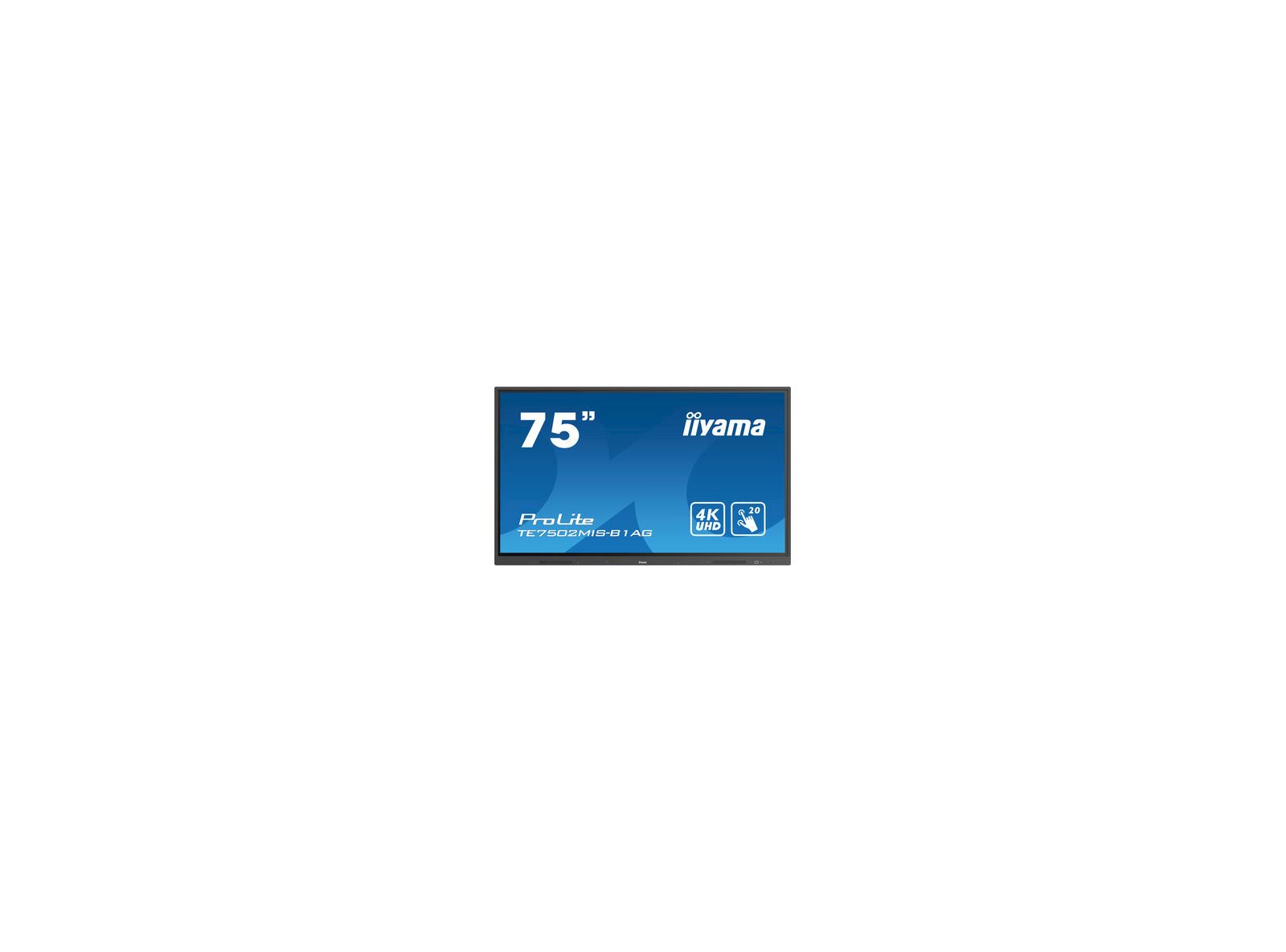

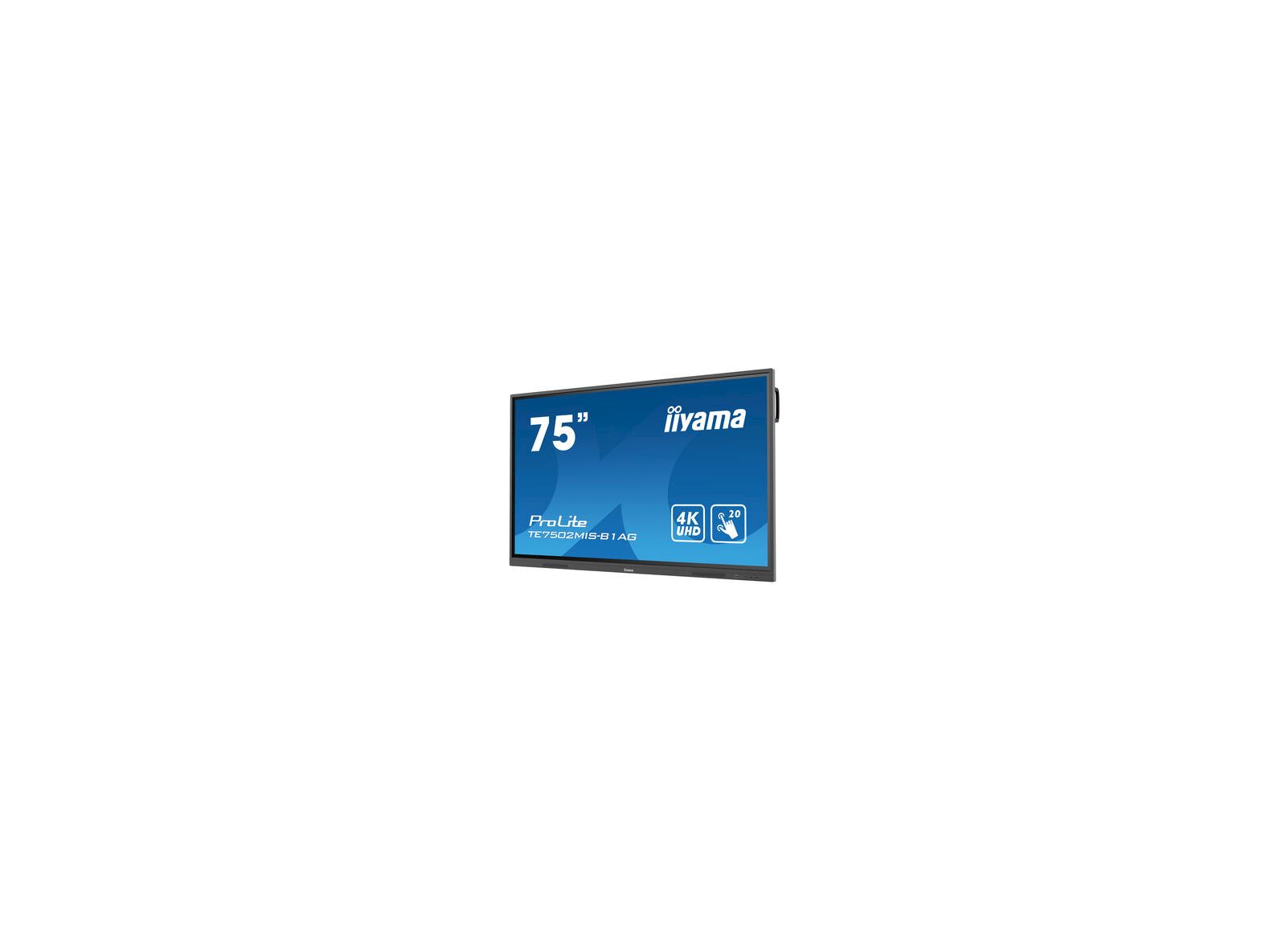

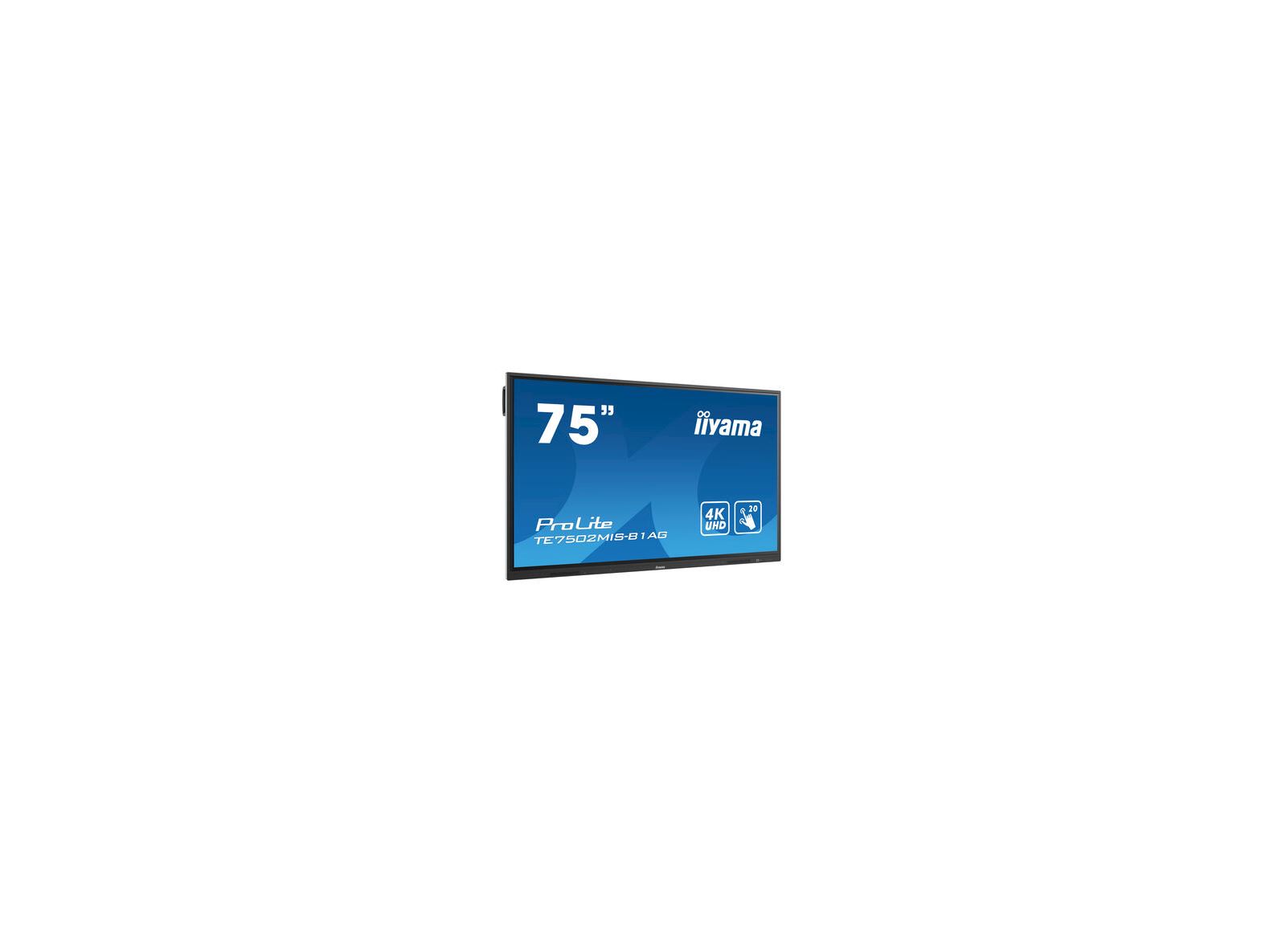

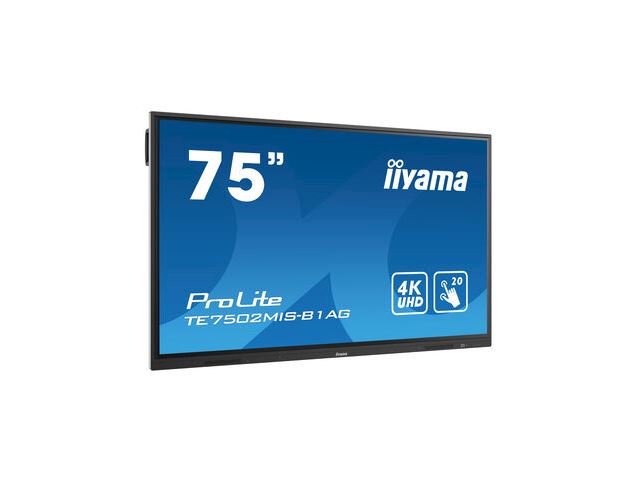

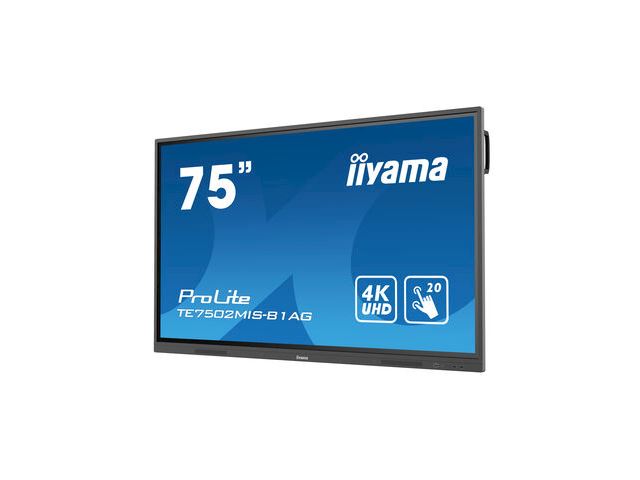

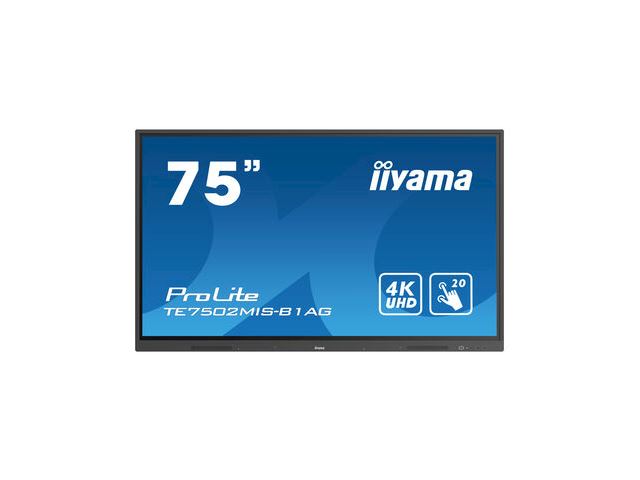

75’’ Interactive  4K UHD LCD Touchscreen with integrated annotation software

Inspire infinite possibilities with the ProLite TE7502MIS-B1AG, a perfect hybrid interactive solution for any room. This 75” 20-point touchscreen with iiWare (Android 9.0 OS) features Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro. The included touch pens allow users to annotate easily on files and on-screen content, which can be saved directly to a USB device, 16GB internal memory or a selected cloud drive. Supporting playback of presentations, high-resolution video and almost any other type of content. This touchscreen has a standard OPS Slot to slide in an OPS PC (available from iiyama) and comes with built in front facing speakers.

The high-quality commercial VA screen with a 4K UHD resolution (3840x2160), 400cd/m² and a contrast ratio of 5000:1 provides vibrant, detailed and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen is equipped with an all-metal bezel and 4mm thick hardened glass to ensure robust durability in high-use environments.

Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002) and ScreenSharePro app.

Technical Information

DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 75", 189.3cm
Panel VA, AG coated glass, haze 25%
Native resolution 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio 16:9
Panel brightness 400 cd/m²
Light transmittance 88%
Static contrast 5000:1
Dynamic contrast 15000:1
Response time (GTG) 8.5ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 10bit
Horizontal Sync 30 - 80kHz
Viewable area W x H 1650 x 928mm, 65 x 36.5"
Bezel width (sides, top, bottom) 16mm, 16mm, 44mm
Pixel pitch 0.430mm
Bezel colour and finish black, matte

TOUCH

Touch technology infrared
Touch points 20 (HID, only with supported OS)
Touch accuracy +- 2mm
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1 (max. 1920x1080 @60Hz)
Digital signal input HDMI x2 (2.0 - max. 3840x2160 @60Hz, RGB444/420)
Audio input Mini jack x1
Monitor control input RS-232c x1 (DSUB 9pin)
RJ45 (LAN) x1 (LAN Control)
Audio output Mini jack x1
Speakers 2 x 10W
HDCP yes
USB ports x4 (media playback / peripherals / storage – front side: 2x v.2.0, right side: 2x v.2.0)
RJ45 (LAN) x2 (Auto switch for PC & Android, 1000MB)

FEATURES

Integrated software iiWare 8.0 (Android 9.0 OS) featuring Note, web browser, file manager, cloud drives, WPS office, ScreenSharePro and EShare for wireless connection with Windows/iOS/Android devices
WiFi yes (WiFi Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac, Bluetooth Support: 2.1/3.0/4.2/5.0)
Hardware Quad core A54 CPU, Mali G31 MP2 GPU, 2GB RAM, 16GB internal memory
Extra Slot for OPS PC, Ambient light sensor
Kiosk mode yes
Media playback yes
Glass thickness 4mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL
Control buttons Power, Light Sensor, USB Connector (2.0)
User controls common settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift, eye care, auto light, ECO, ECR), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system)
Plug&Play DDC2B
Warranty 5 years (for details and eligible countries please check the Warranty section of our website)

MECHANICAL

Orientation landscape
Fanless design yes
VESA mounting 800 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED

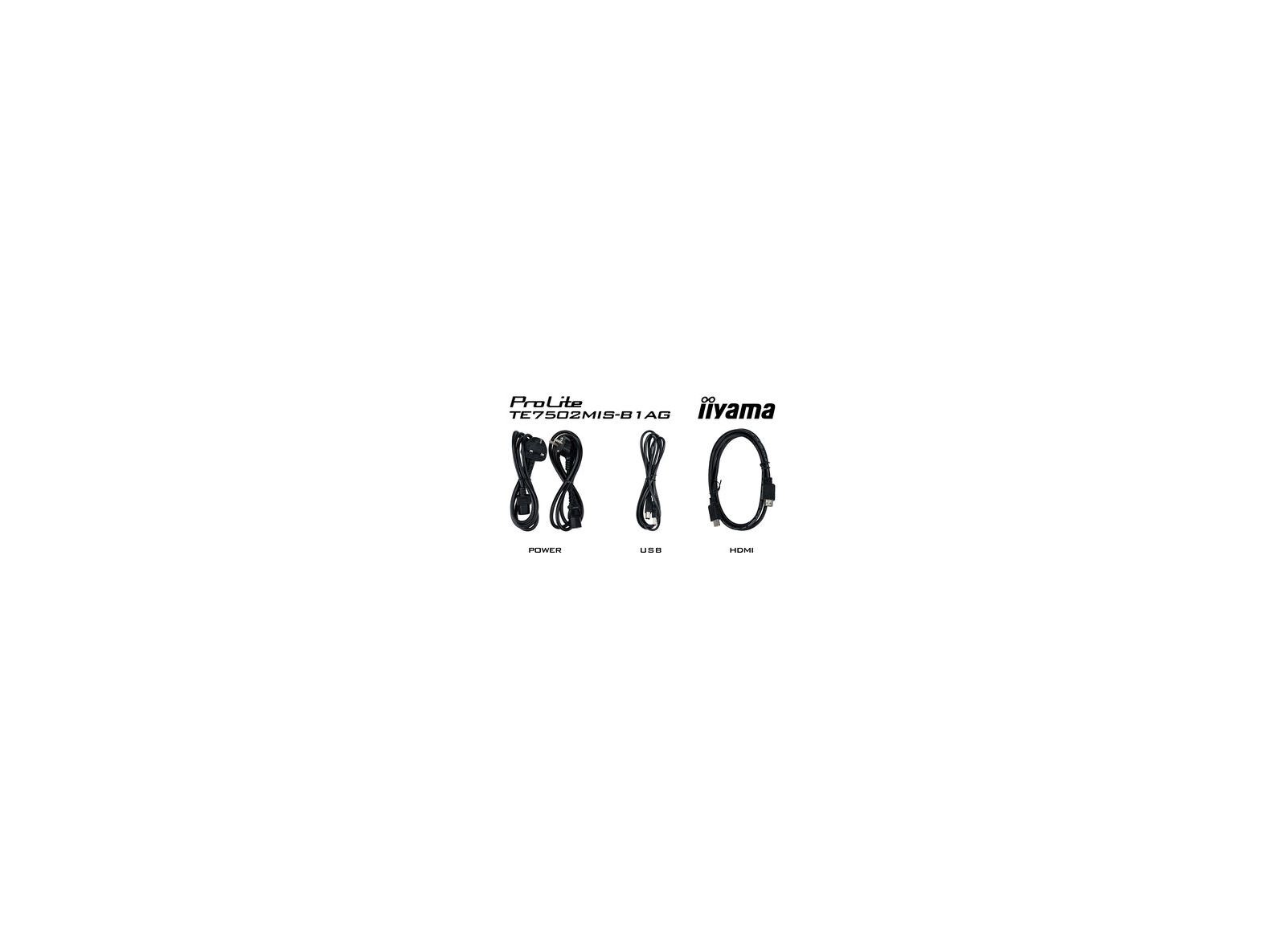

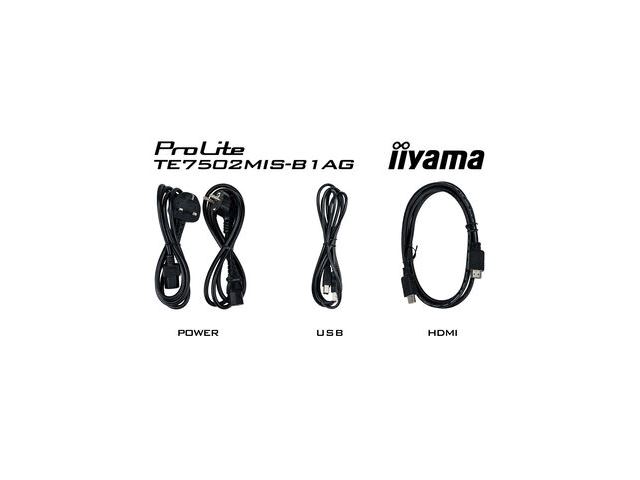

Cables power, USB, HDMI

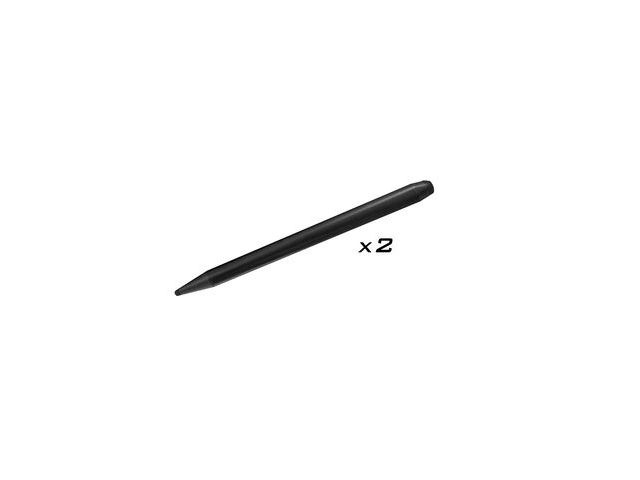

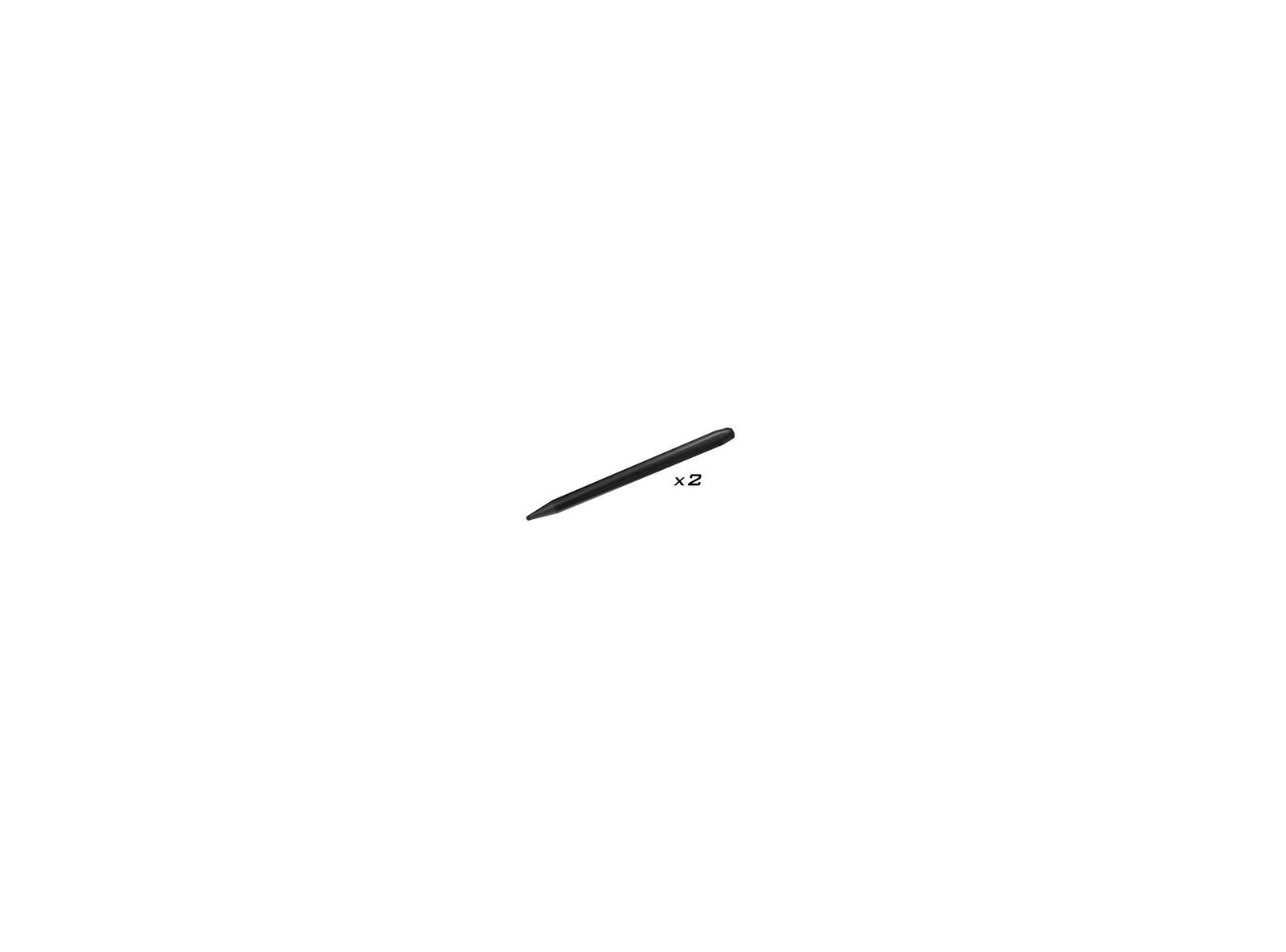

Touch pen x2 (Dual function tips)
Guides quick start guide, safety guide
Other WiFi Module (OWM002), Mounting bracket for NUC, Mounting bracket for webcam
Remote control yes (batteries included)

POWER MANAGEMENT

Power supply unit internal
Power supply AC 180 - 240V, 50/60Hz
Power usage 240W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS, Iot5)
REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

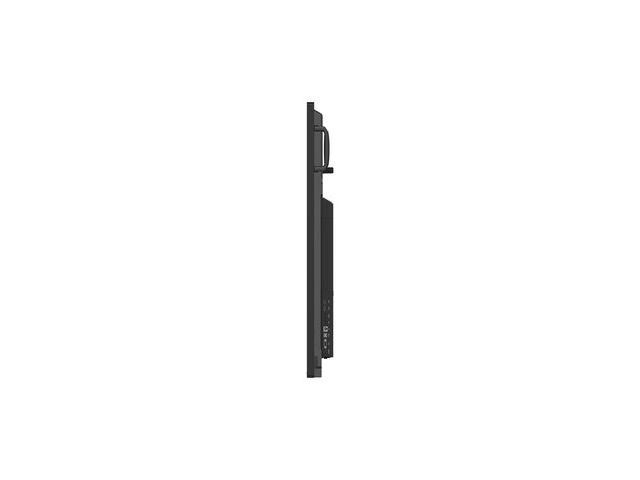

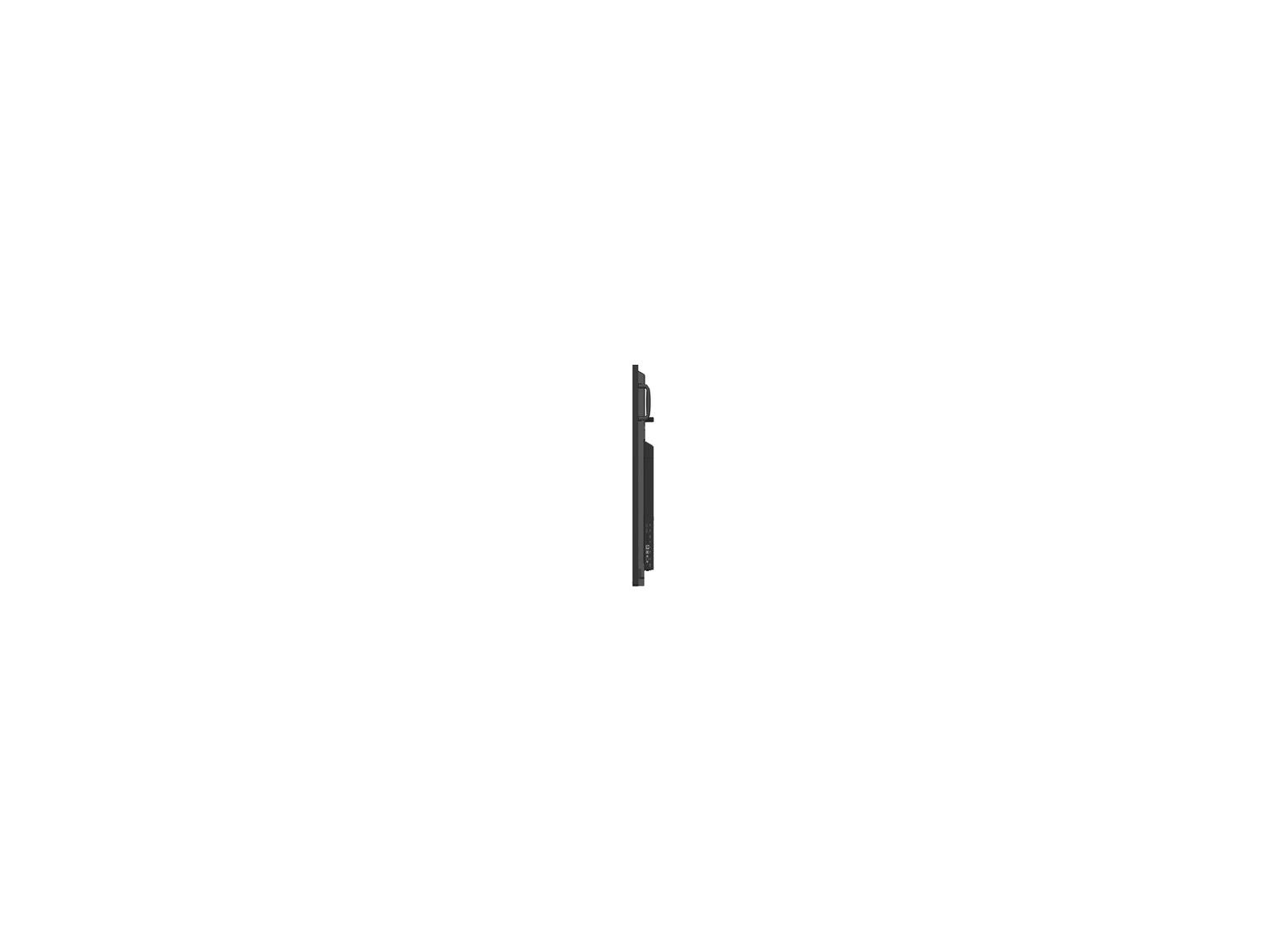

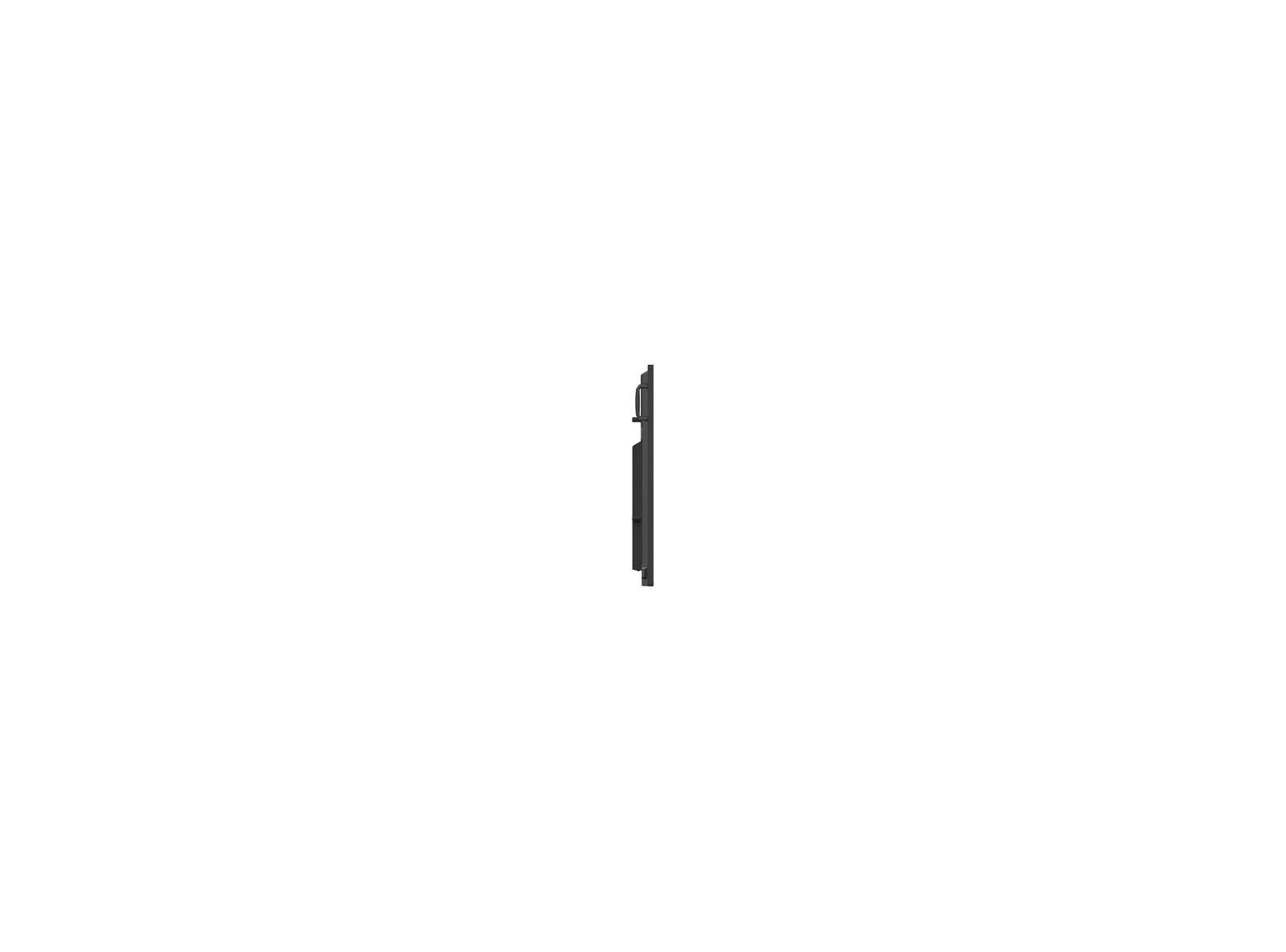

Product dimensions W x H x D 1710 x 1020 x 87mm
Box dimensions W x H x D 1930 x 280 x 1140mm
Pallet volume 4pcs
Weight (without box) 51.9kg
Weight (with box) 69kg
EAN code 4948570118847
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

IISIGNAGE

With iiSignage, you can easily create, publish and manage your own digital signage content on any iiyama 40-series display from a desktop PC in the same network. Use rich content like video’s and widgets to create highly impactful advertising in minutes and schedule your content across multiple displays to best match your customers' behavior.

IISIGNAGE

ULTRA SLIM LINE

ULTRA SLIM LINE

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

VA MATRIX

VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


VA MATRIX
