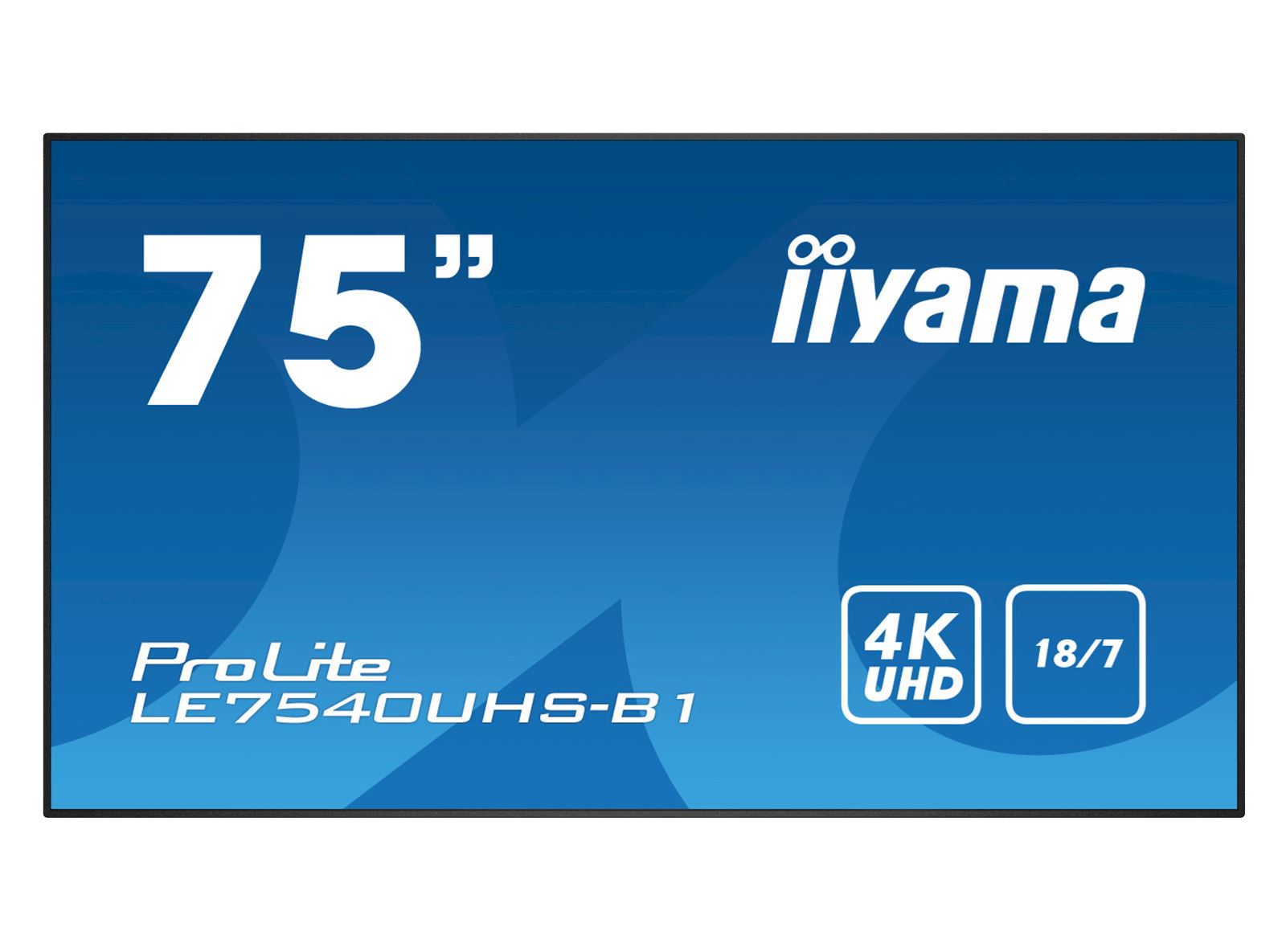

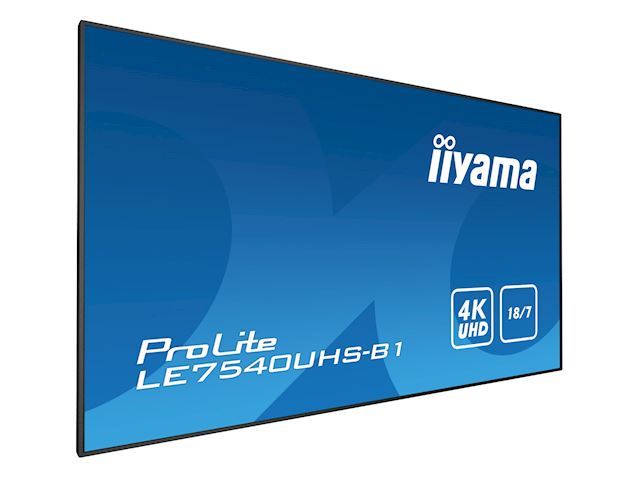

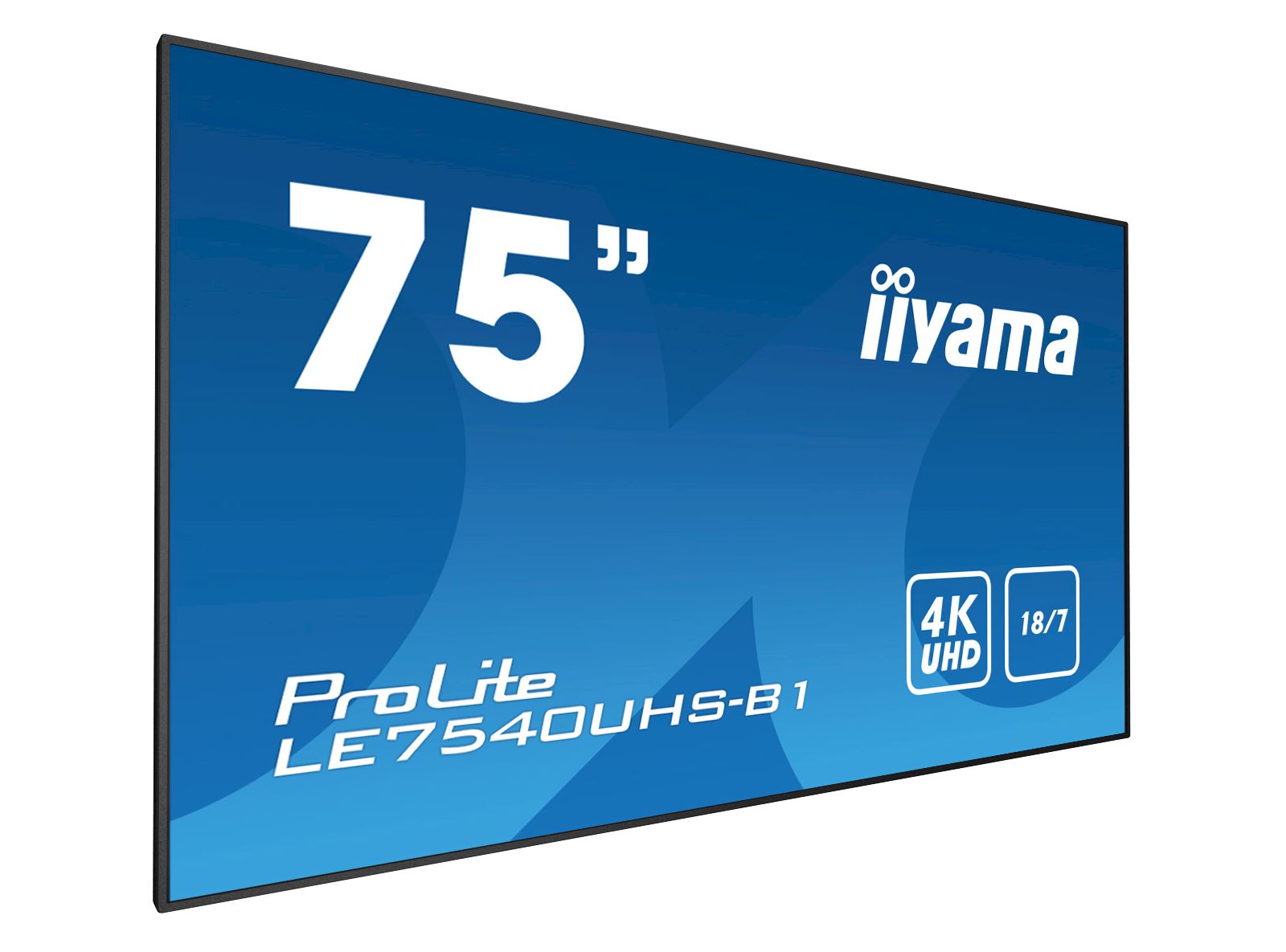

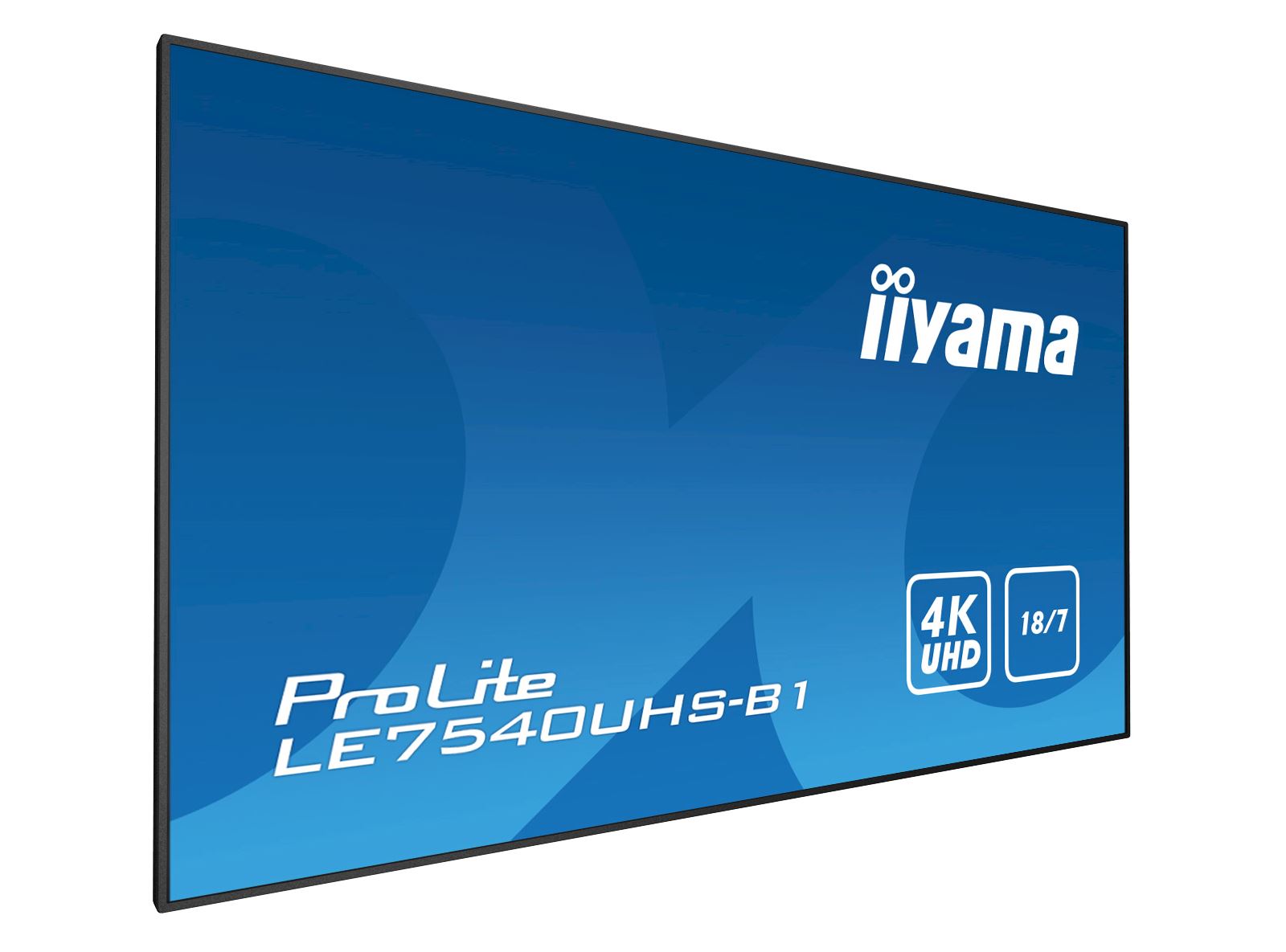

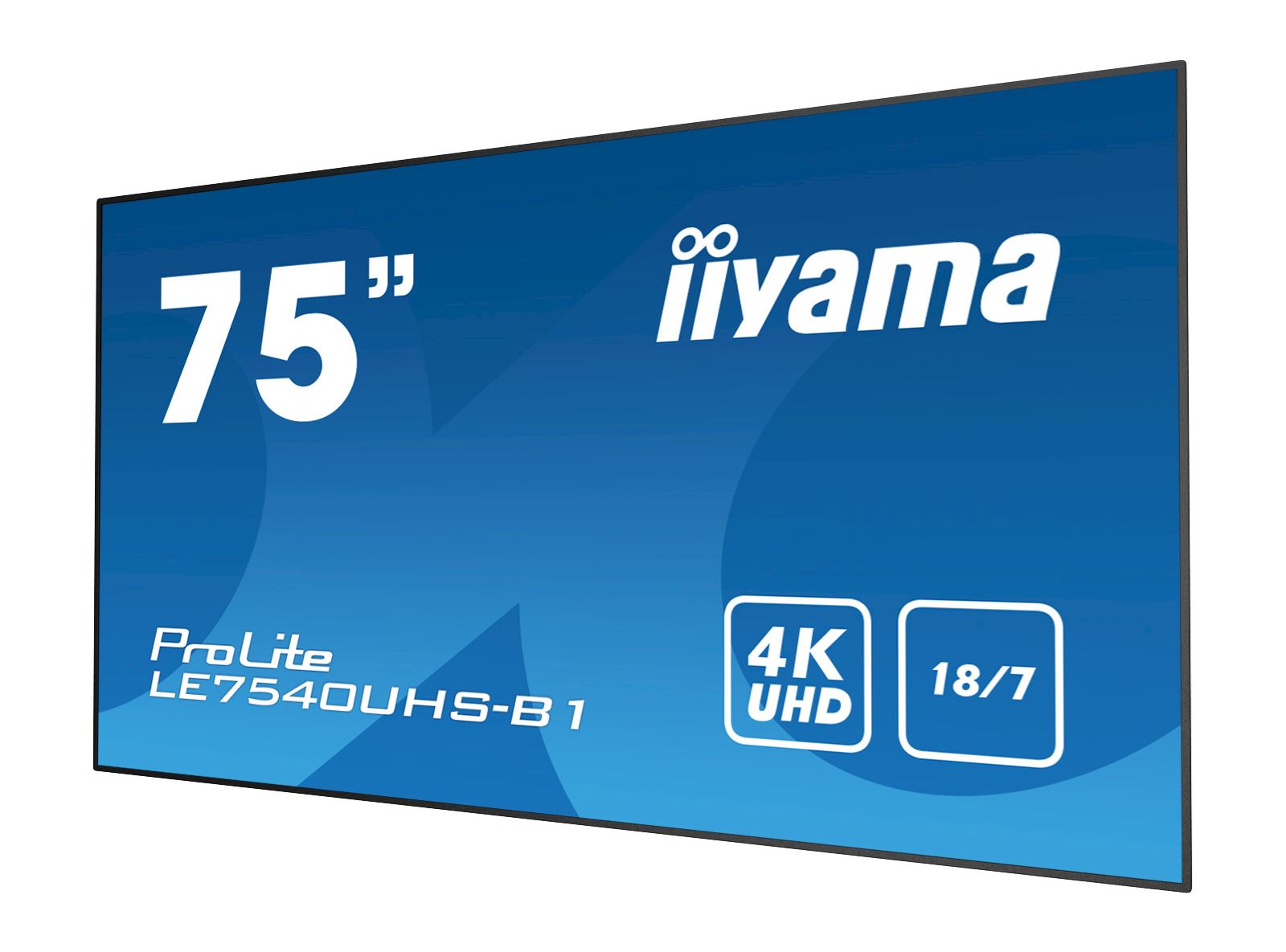

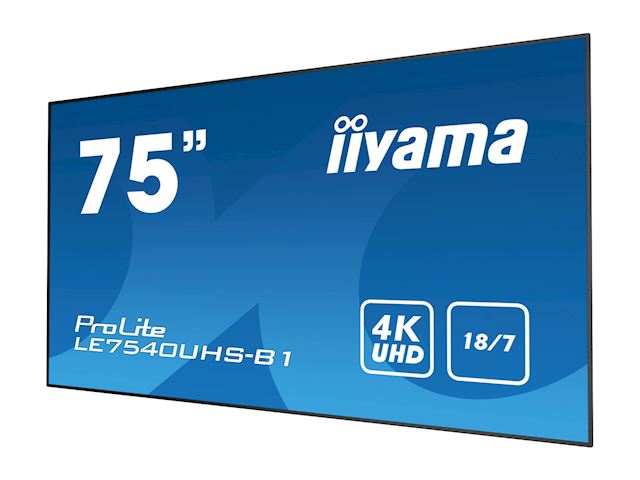

iiyama ProLite monitor LE7540UHS-B1 75", IPS, 4K UHD, 18/7 Hours Operation, 10W Speakers, Landscape, Build in Smart Signage CMS

£2,016.00 exc. VAT
£2,419.20 inc. VAT

Brand: iiyama

Manufacturer Code: LE7540UHS-B1

Product Description

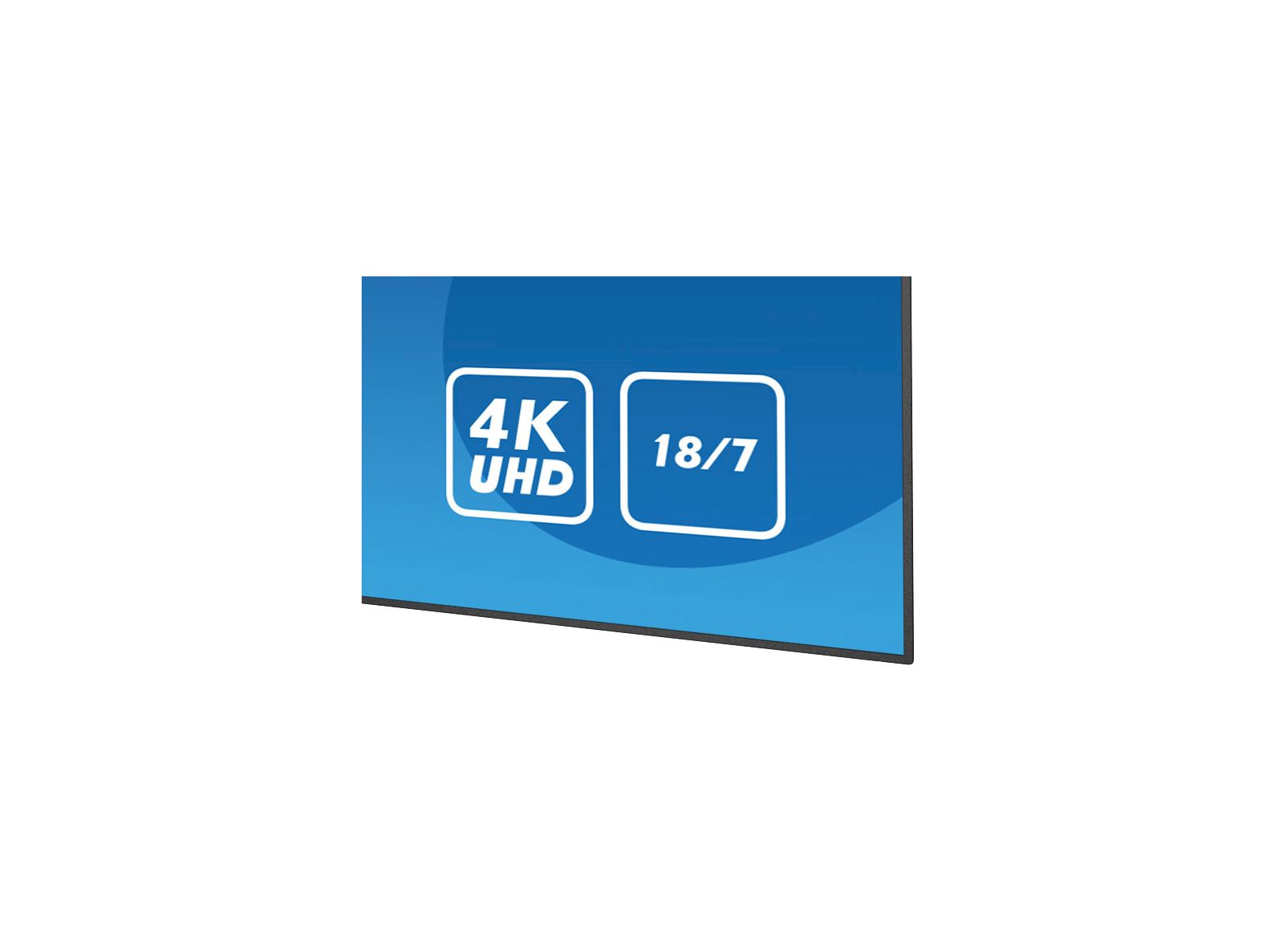

75" Professional Digital Signage display with an 18/7 operating time, 4K UHD resolution and an OPS slot

See the difference with the ProLite LE7540UHS. A professional digital signage display with 4K graphics, 18/7 operating time and an OPS slot. Featuring a slim bezel, an IPS LED panel for exceptional color and image performance and iiSignage, iiyama's free signage content creation and management software, the LE7540UHS offers businesses an easy and effective solution to successfully help them get their message across to the clients.

Technical Information

DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 75", 189.3cm
Panel IPS LED, matte finish, haze 3% (the higher the value, the less reflection)
Native resolution 3840 x 2160 @60Hz (8.3 megapixel 4K UHD)
Aspect ratio 16:9
Brightness 410 cd/m² typical
Static contrast 1200:1 typical
Response time 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 10bit (8bit + Hi-FRC)
Horizontal Sync 30 - 89KHz
Vertical Sync 50 - 76Hz
Viewable area W x H 1649.6 x 927.9mm, 64.9 x 36.5"
Bezel width (sides, top, bottom) 12.5mm, 12.5mm, 12.5mm
Pixel pitch 0.429mm
Bezel colour and finish black, matte

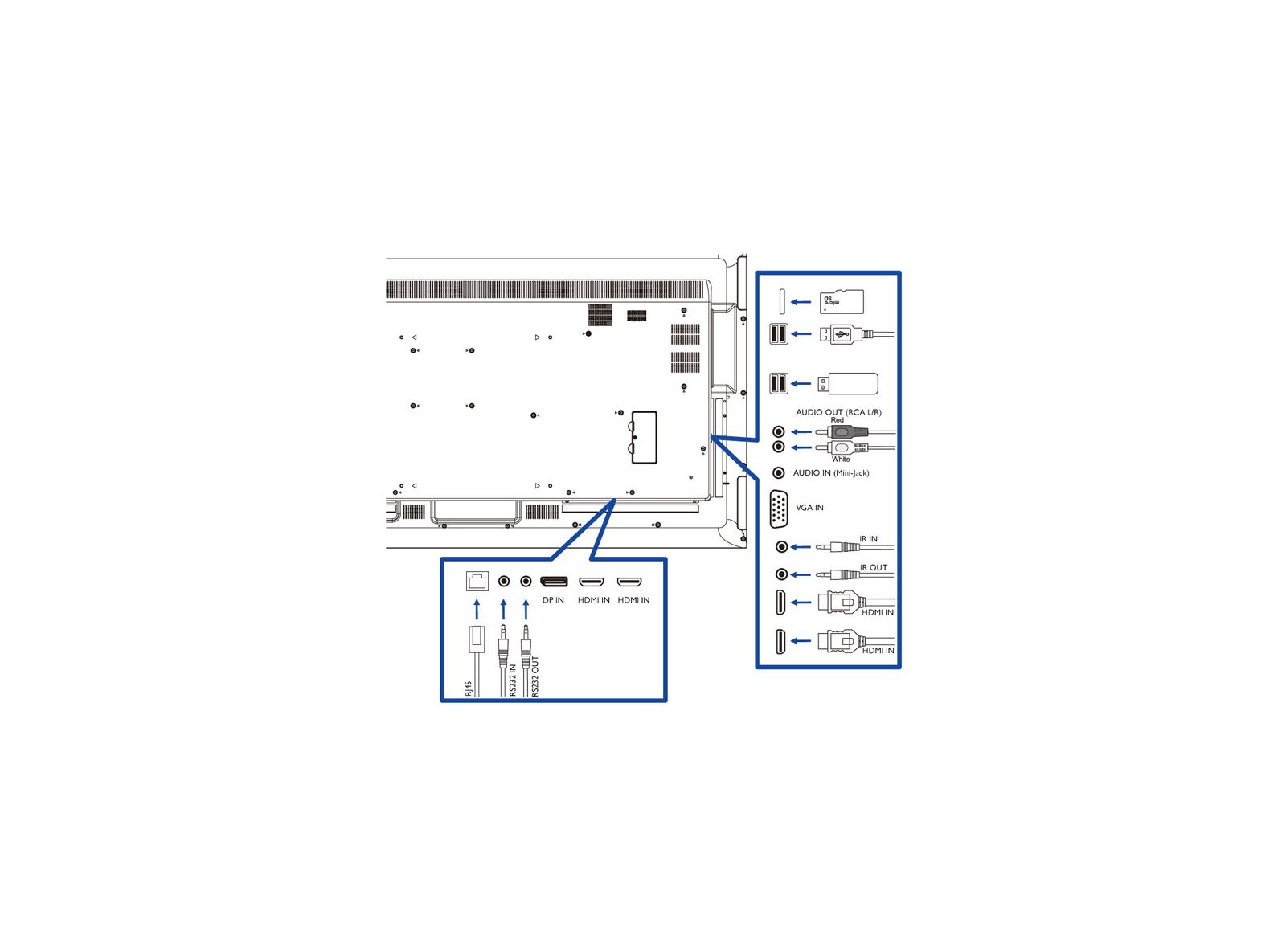

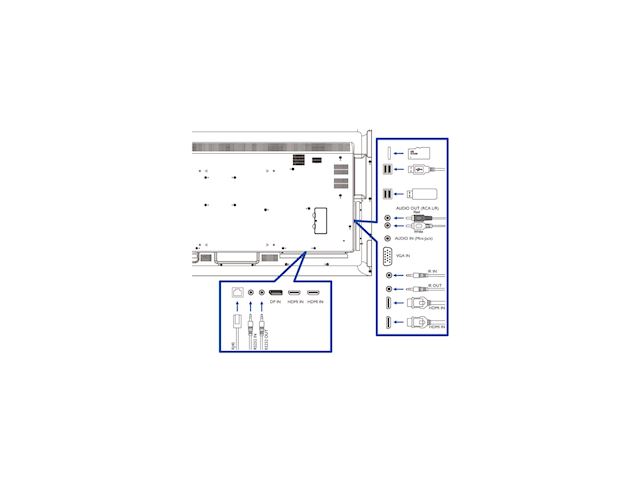

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1 (max. 1920x1080 @60Hz)
Digital signal input HDMI x4 (max. 3840x2160 @60Hz)
DisplayPort x1 (v.1.2, max. 3840x2160 @30Hz)
Audio input Mini jack x1
Monitor control input RS-232c x1
RJ45 (LAN) x1
IR x1
Audio output RCA (L/R) x1
Speakers 2 x 10W
Monitor control output RS-232c x1
IR loop through x1
OPS Slot x1
HDCP yes
USB ports x4 (v.2.0 x1, v.3.0 x1, v.5V0.5A x1, v.5v2A(USB power charging) x1)

FEATURES

Integrated software Android OS, iiSignage
Extra handles, micro SD slot
Max. non-stop operating time 18/7
Anti image retention yes
Media playback yes
Housing (bezel) metal

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
Control buttons Power, Mute, Input, Plus, Minus, Up, Down, Menu
User controls Picture (brightness, contrast, sharpness, black level, tint, color, noise reduction, gamma selection, color temperature, color control, smart power, over scan, picture reset), Screen (H.position, V.position, clock, clock phase, zoom mode, custom zoom, auto asjust, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio source, audio reset, audio out sync), Configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, RGB range, Config 1 reset, factory reset), Configuration 2 ( OSD turn off, OSD H-Position, OSD V-position, information OSD, logo, monitor ID, heat status, monitor information, HDMI version, config 2 reset), Advanced option (IR control, Power LED light, keyboard control, off timer, date and time, schedule, HDMI with One Wire, language, OSD transparency, power save, OPS settings, advanced option reset), Android settings (ethernet, signage display, system tools, display, apps, date & time, developer opt
Plug&Play DDC2B, Mac OSX

MECHANICAL

Orientation landscape
Fanless design yes

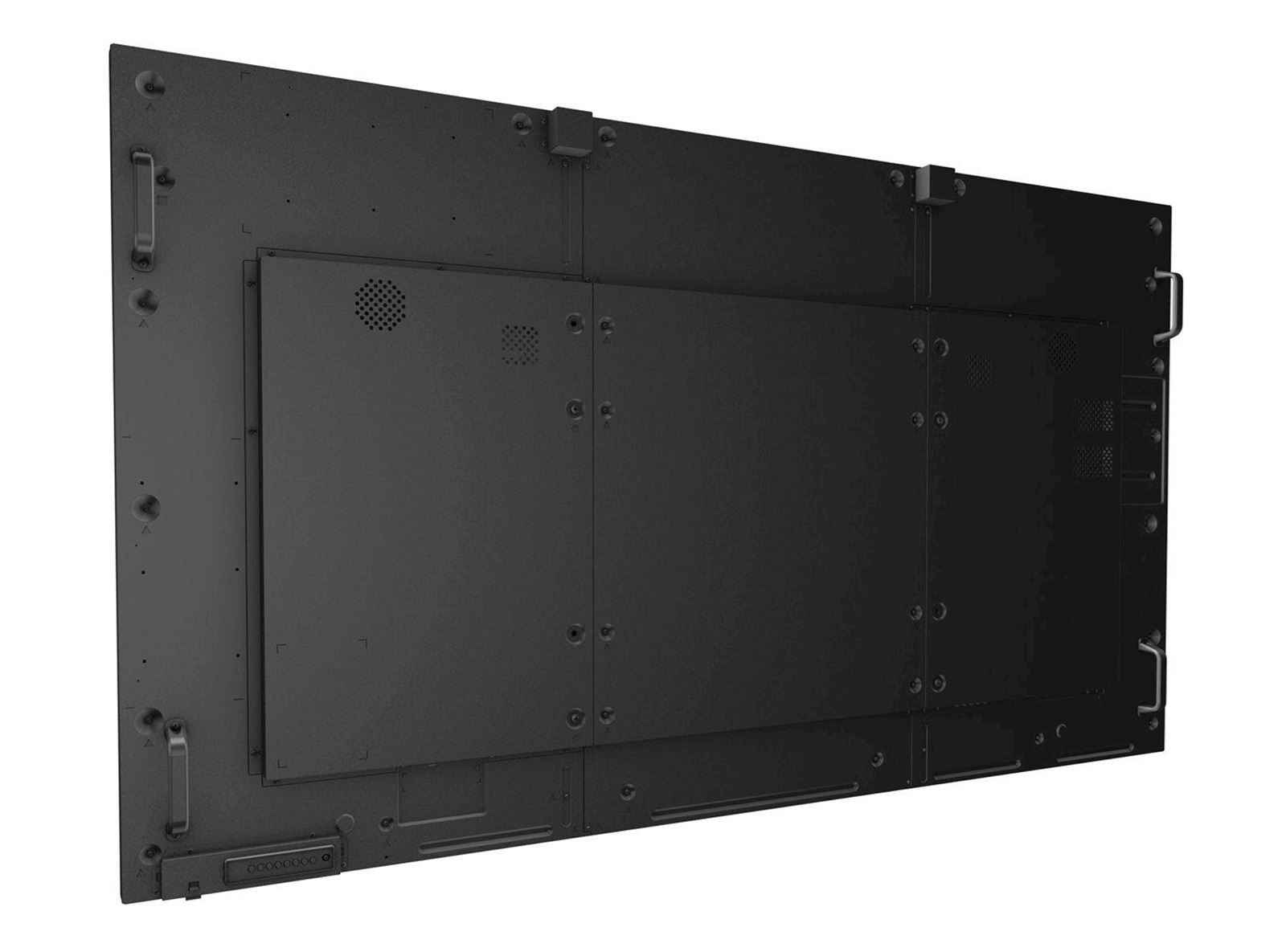

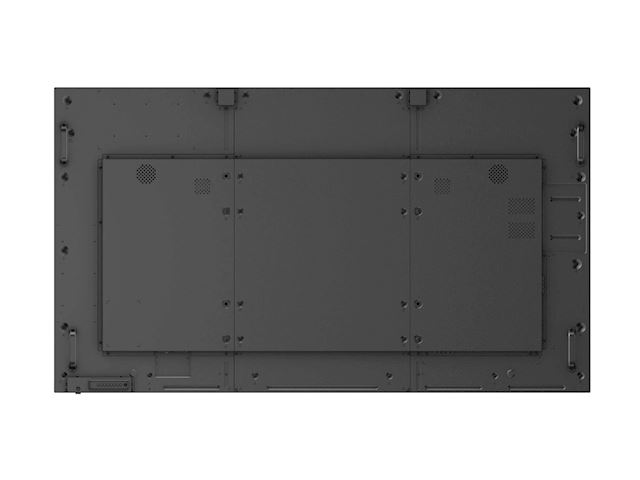

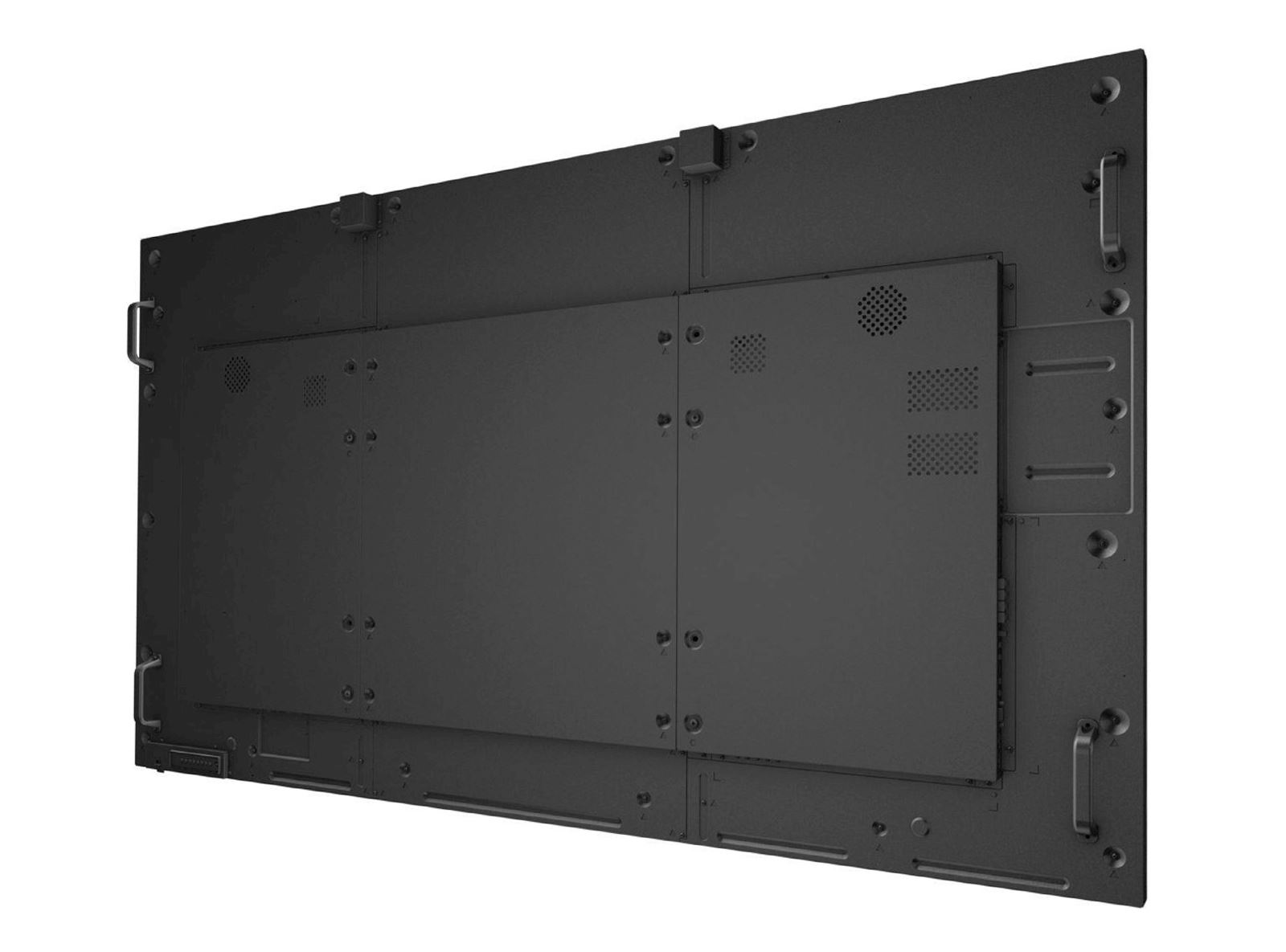

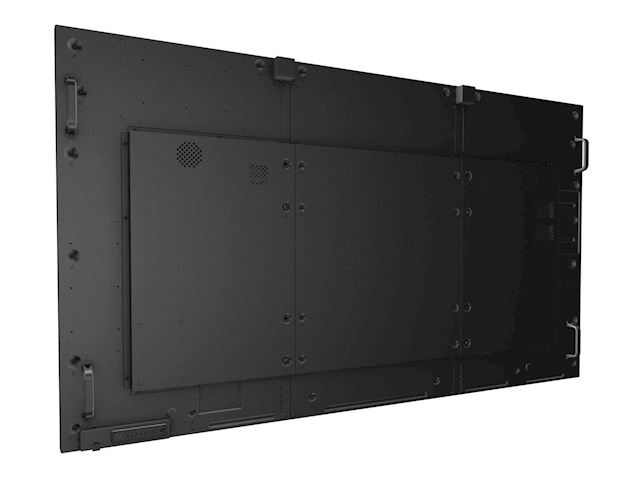

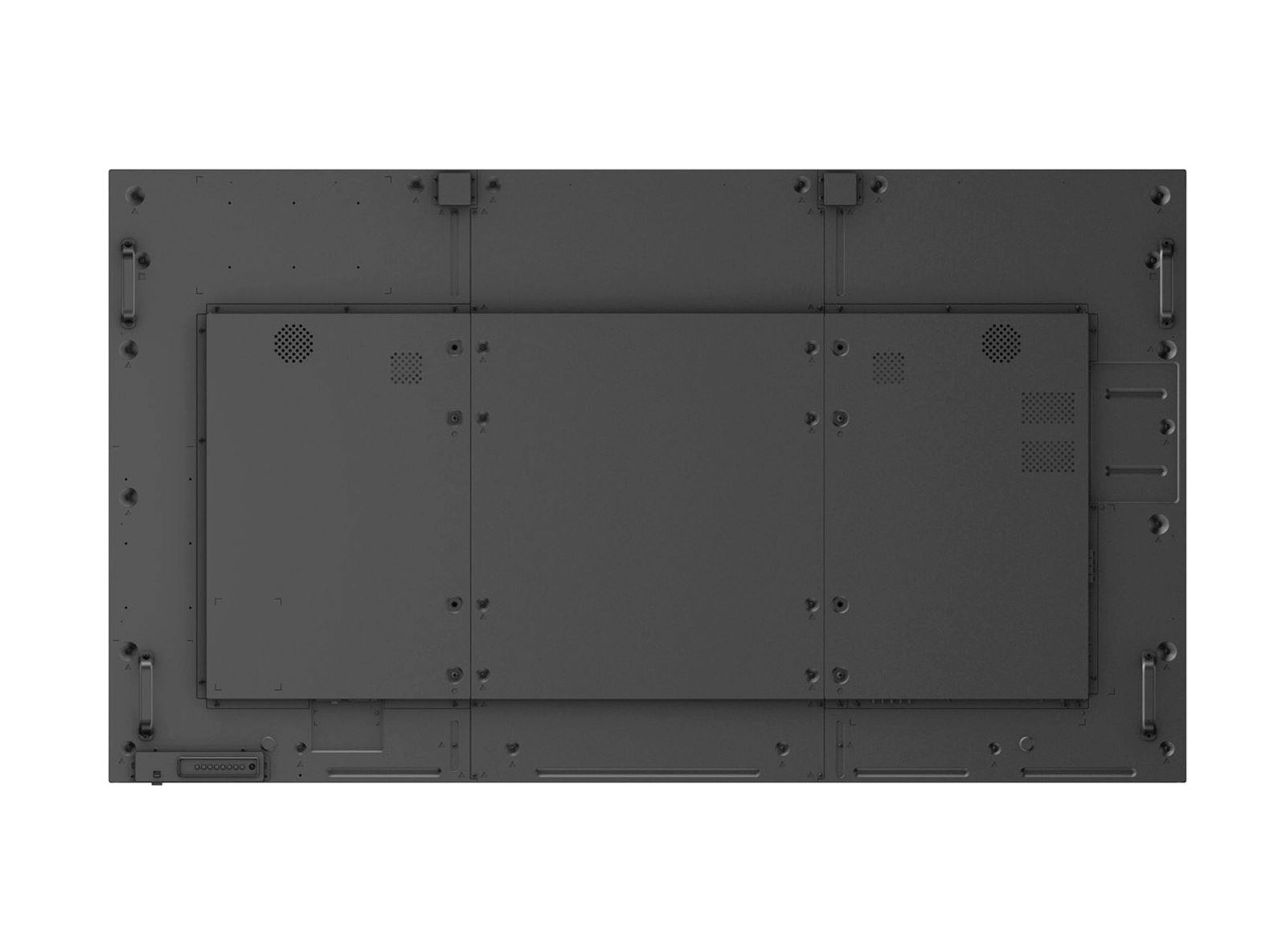

VESA mounting 600 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED

Cables power, HDMI, mDP - DP, DP, RS-232c
Guides quick start guide, safety guide
Remote control yes (batteries included)

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 220W typical, 0.5W stand by, 0.5W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, CU
Energy efficiency class B
Other REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 1676.6 x 955 x 73.8mm
Box dimensions W x H x D 1832 x 1283 x 280mm
Pallet volume 4pcs
Weight (without box) 53.3kg
EAN code 4948570116355

EU ENERGY EFFICIENCY LABEL

Manufacturer iiyama
Model ProLite LE7540UHS-B1
Energy efficiency class B
Visible screen diagonal 189.3cm; 74.5"; (75" segment)
ON mode power consumption 220W
Annual energy consumption 346kWh/annum*
Power in Standby 0.5W stand by
Resolution 3840 x 2160
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).




LAN CONTROL

IISIGNAGE

With iiSignage, you can easily create, publish and manage your own digital signage content on any iiyama 40-series display from a desktop PC in the same network. Use rich content like video’s and widgets to create highly impactful advertising in minutes and schedule your content across multiple displays to best match your customers' behavior.

IISIGNAGE

OPS PC SLOT

Built-in expansion slot supports the Open Pluggable Specification (OPS) standard; it simplifies the installation of a plug-in PC for digital signage applications.



OPS PC SLOT
Downloads
  • product downloads pdf
    ProLite LE7540UHS-B1 Product Information
  • product downloads manuals
    ProLite LE7540UHS-B1 User Manual
