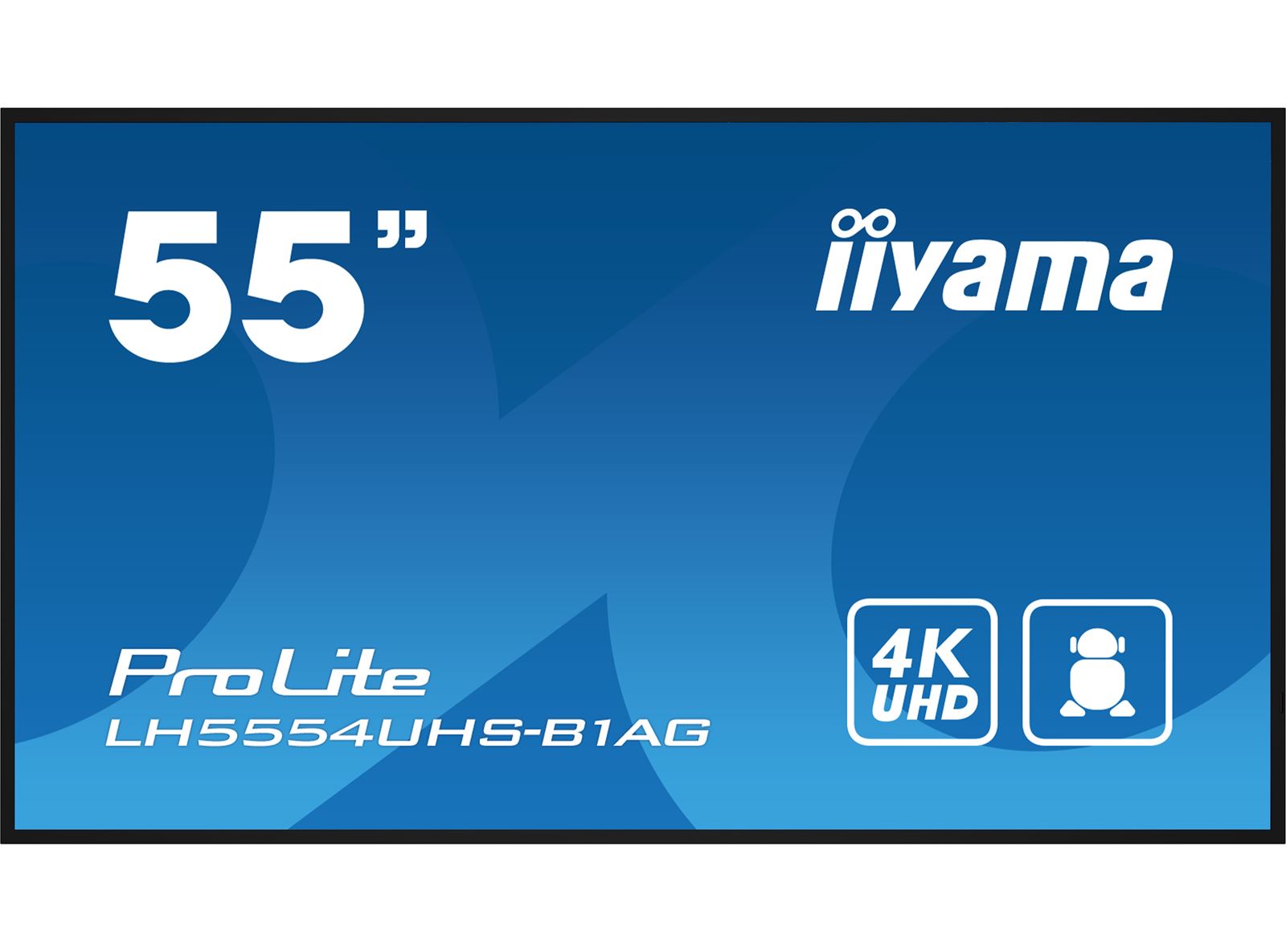

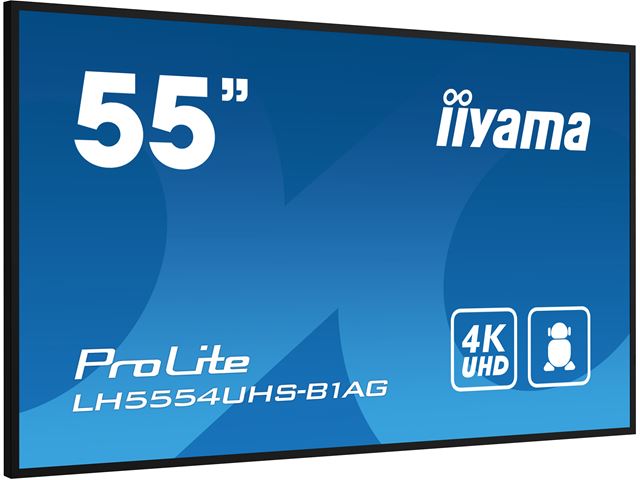

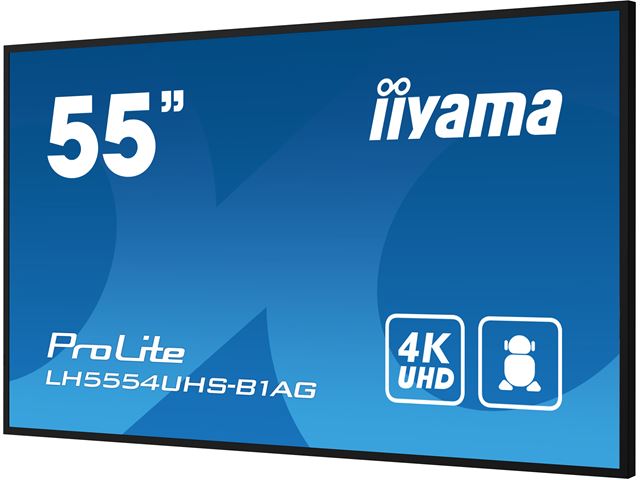

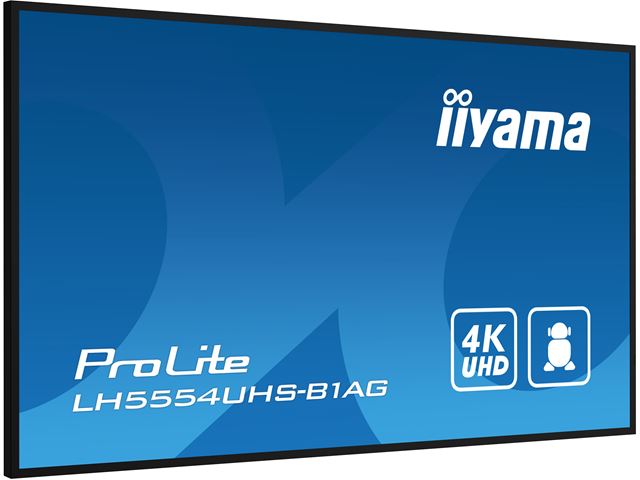

iiyama Prolite monitor LH5554UHS-B1AG 55" IPS, 4K, 24/7, Landscape/Portrait, featuring Android OS, FailOver and Intel® SDM slot, Anti-glare

£729.10 exc. VAT
£874.92 inc. VAT

Brand: iiyama

Manufacturer Code: LH5554UHS-B1AG

Product Description

55" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5554UHS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it.

The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control.

Technical Information

DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 54.6", 139cm
Panel IPS, AG coated glass, matte finish, haze 25%
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 8bit+FRC (NTSC 72%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1209.6 x 680.4mm, 47.6 x 28.8"
Pixel pitch 0.315mm
Bezel colour and finish black, matte

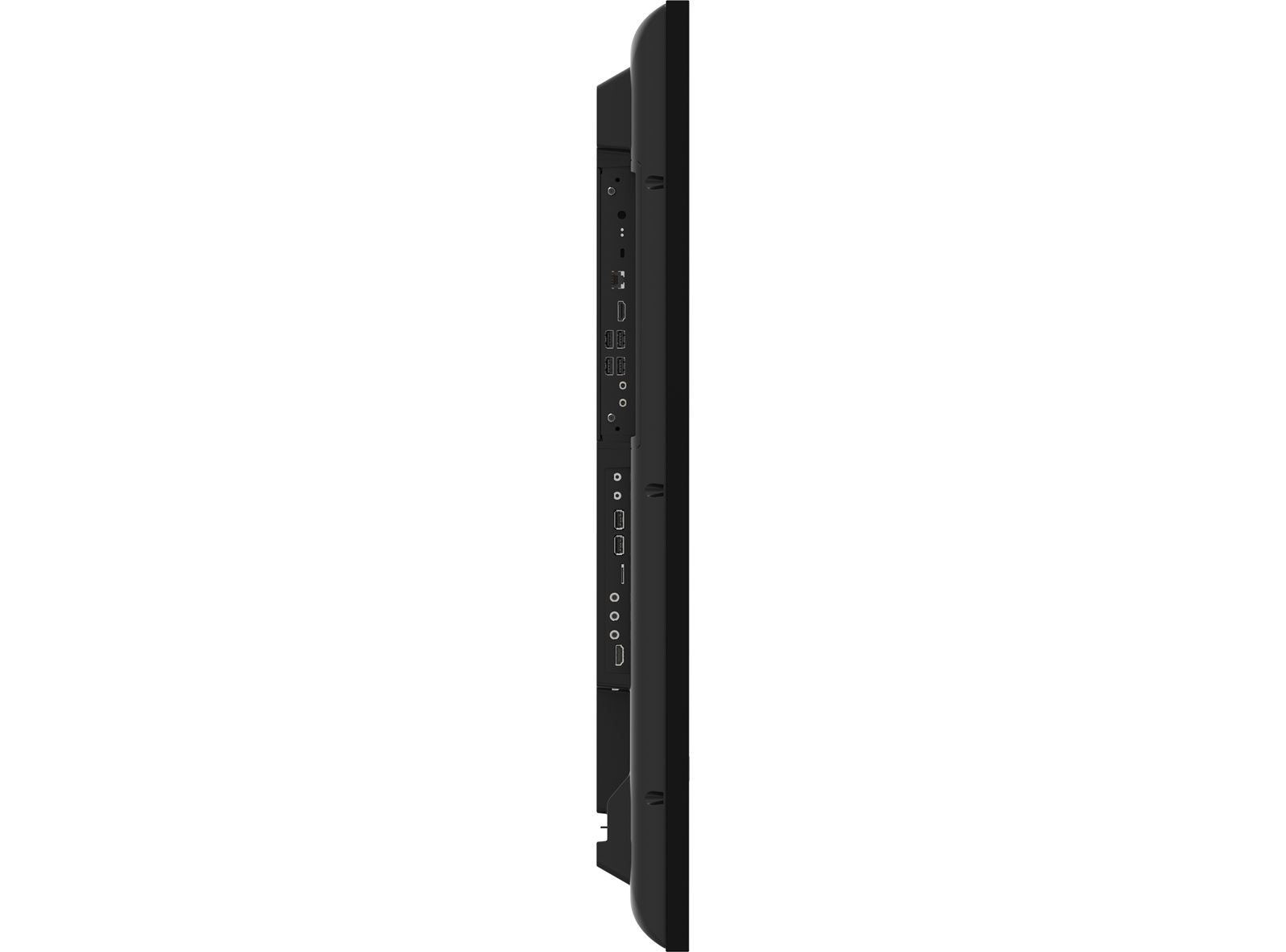

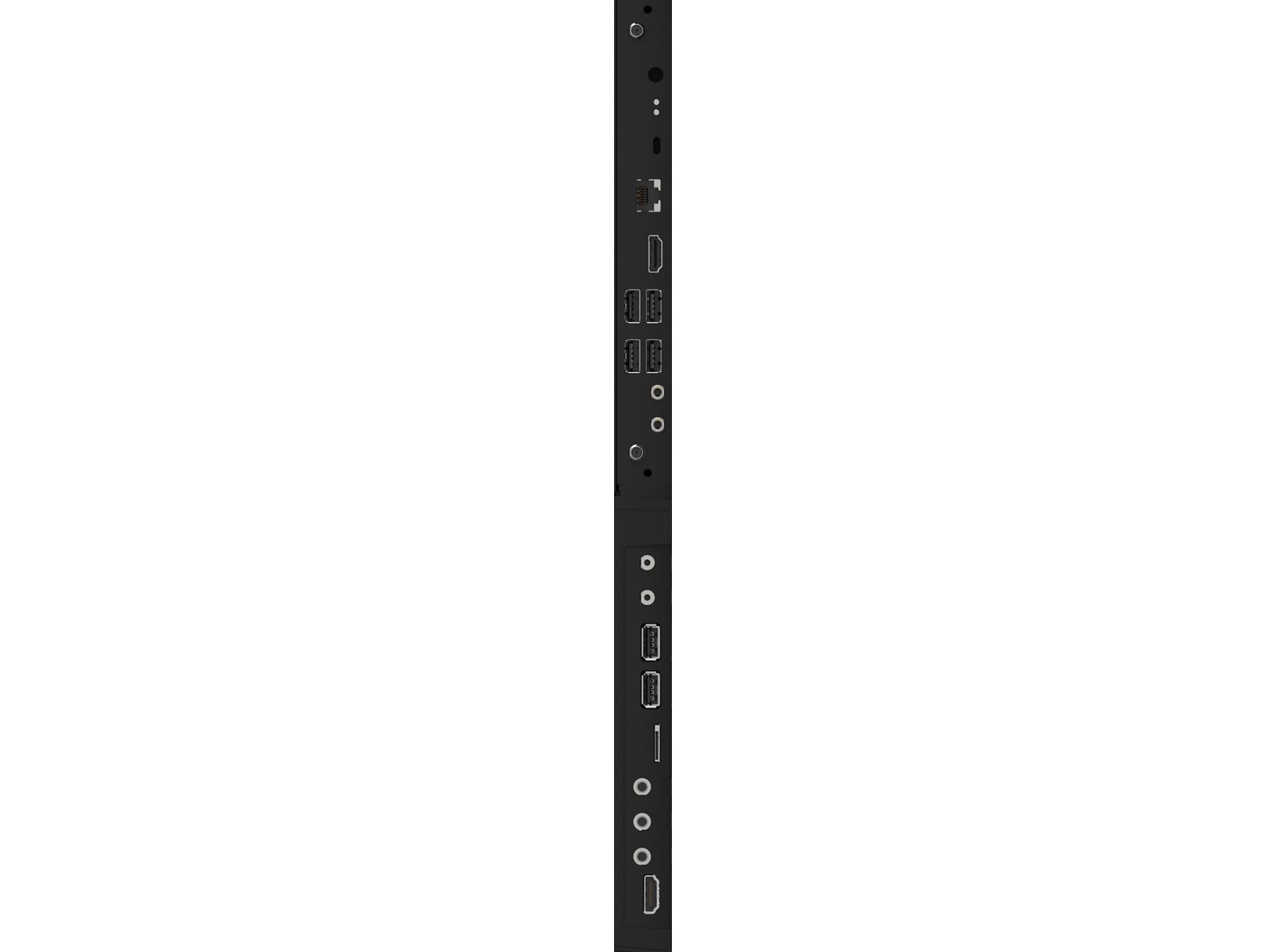

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1 (DVI-I: VGA+DVI)
Digital signal input DVI x1 (max. 2560x1440 @60Hz)
HDMI x3 (v.2.0, max. 3840x2160 @60Hz)
DisplayPort x1 (v.1.4, max. 3840x2160 @60Hz)
Audio input Mini jack x1 (3.5mm)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)
Digital signal output DisplayPort x1 (max. 3840x2160 @60Hz, MST-out Daisy Chain v.1.2)
Audio output Mini jack x1
Speakers 2 x 10W
Monitor control output RS-232c x1 (2.5mm sub-mini jack)
IR loop through x1 (3.5mm stereo mini)
HDCP v.2.2
USB ports x2 (v.2.0)

FEATURES

Integrated software Android 11 OS, iiSignage2 (available soon), FailOver, EShare
WiFi yes (Built-in)
Hardware CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
Extra Intel® SDM-L, micro SD card slot
Max. non-stop operating time 24/7
Anti image retention yes
Video wall / daisy chain Yes, (MST-output)
Media playback yes
Housing (bezel) metal

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
Control buttons Power, Up, Down, Volume up, Volume down, Mute, Input, Menu
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (H. position, V. position, clock, clock phase, zoom mode, custom zoom, auto adjust, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio source, audio reset, audio out sync, speaker setting), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, group ID, monitor information, DP version, DP monitors, HDMI version, configuration 2 reset), advanced option (IR control, power LED light, keyboard control, tiling, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, SDM settings, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Plug&Play DDC2B

MECHANICAL

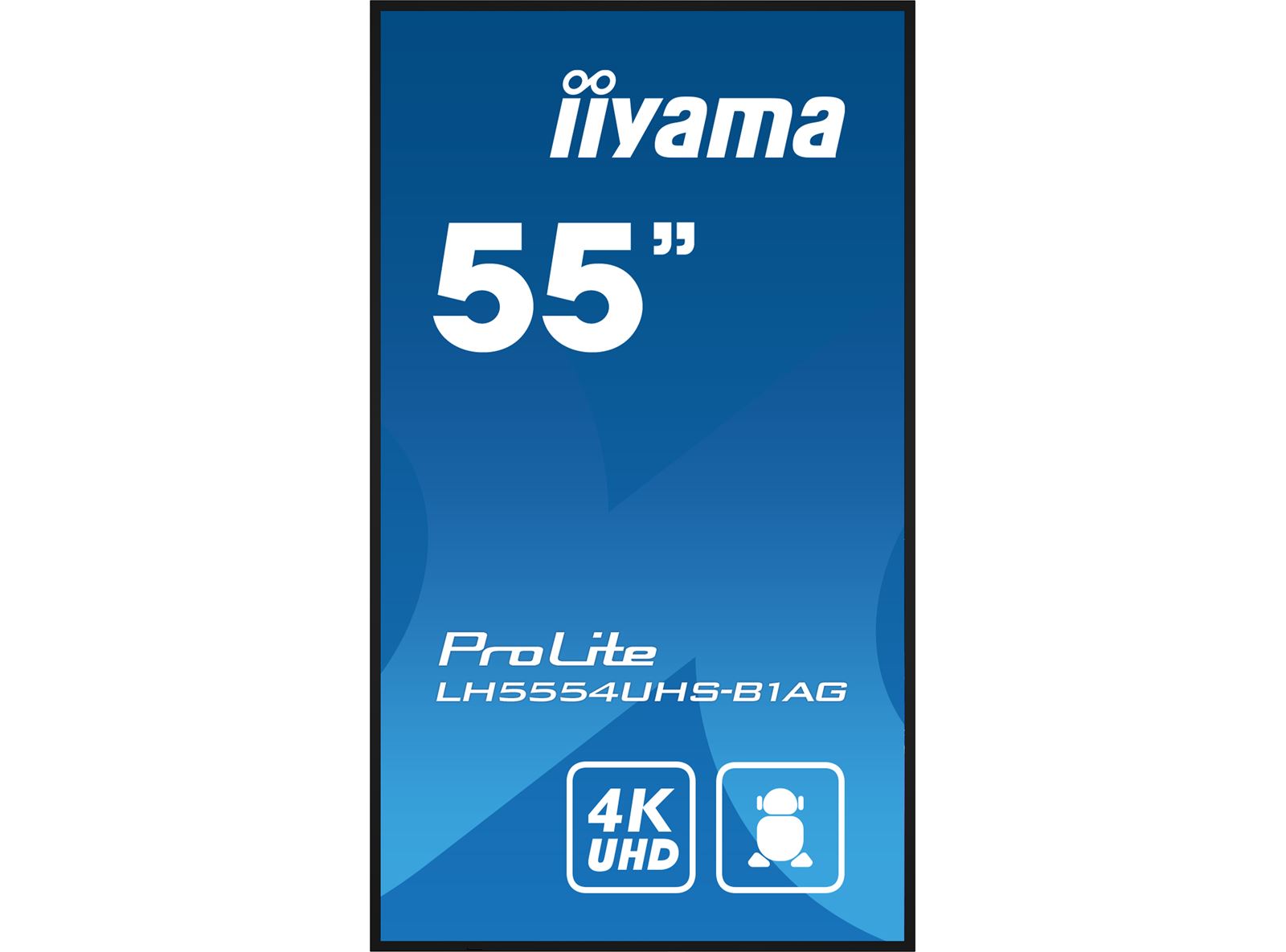

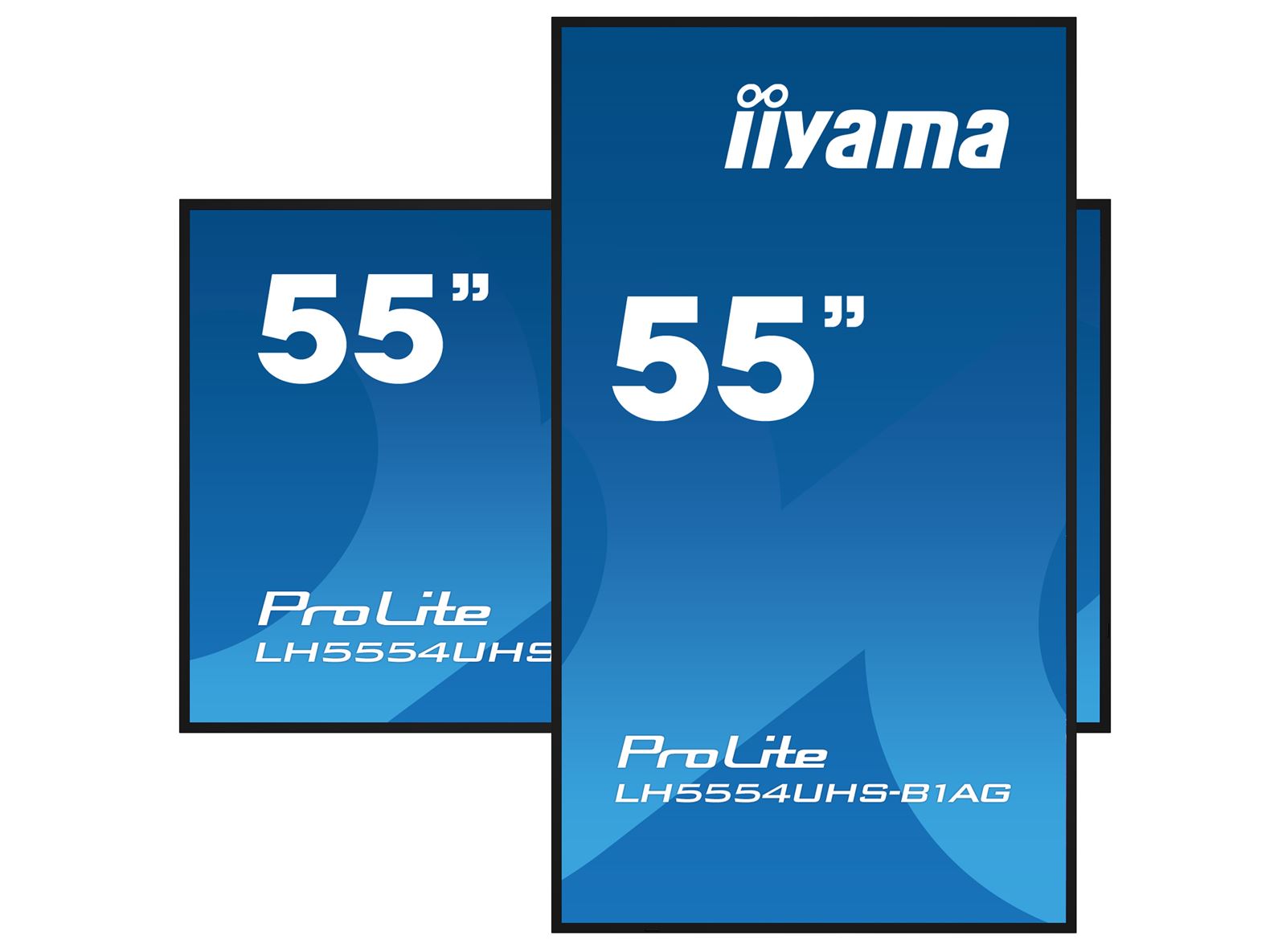

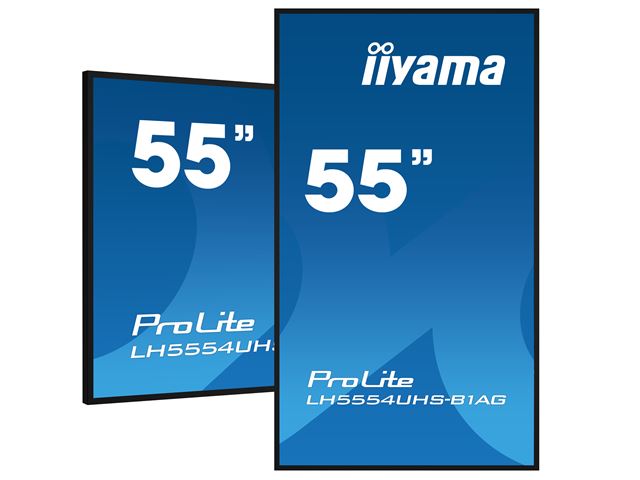

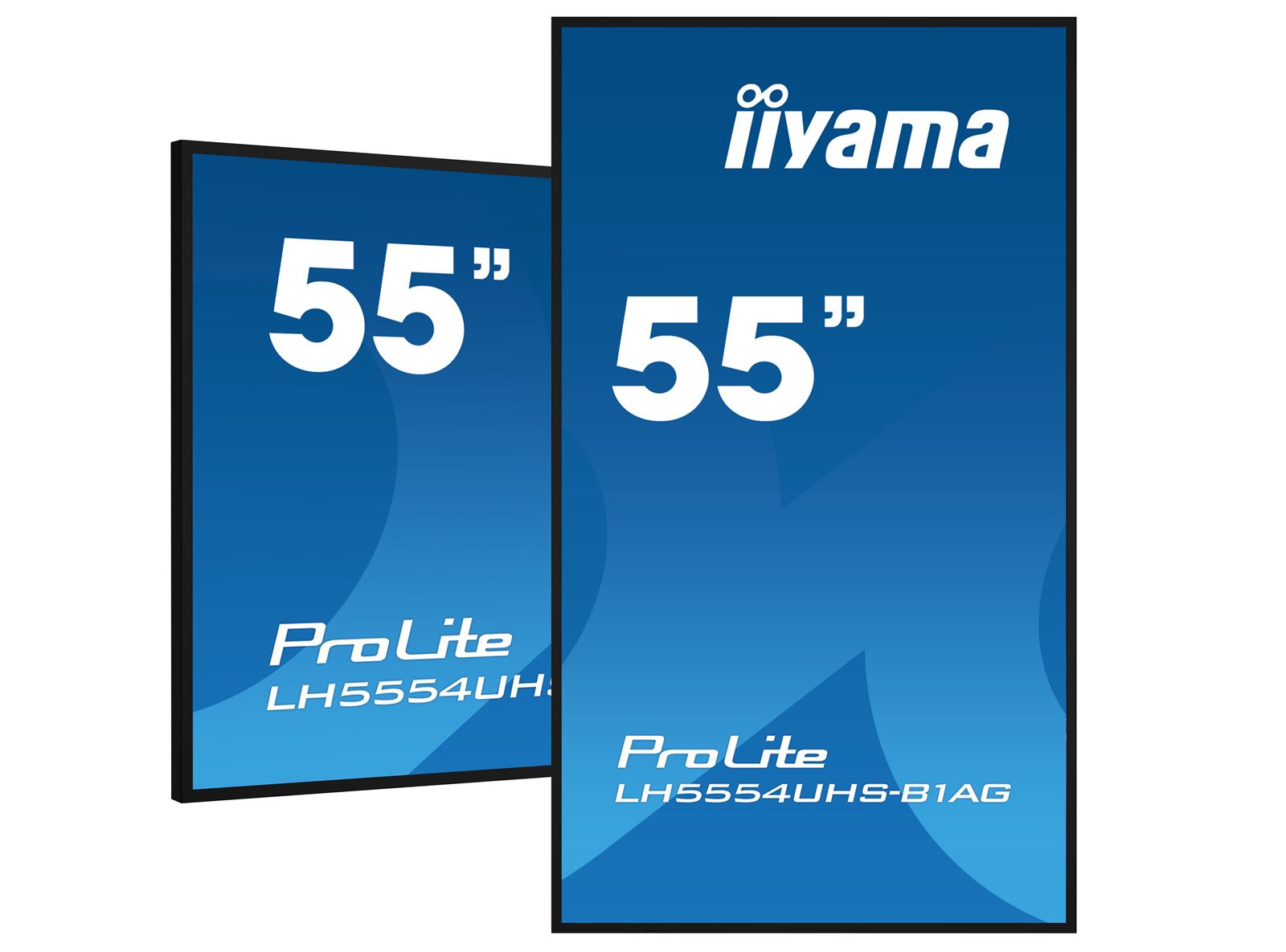

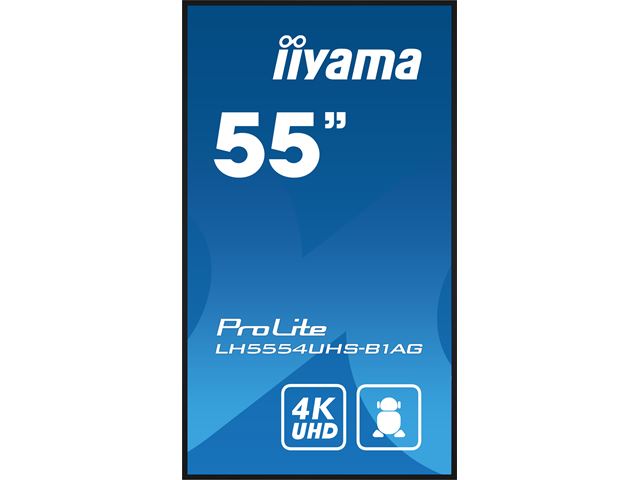

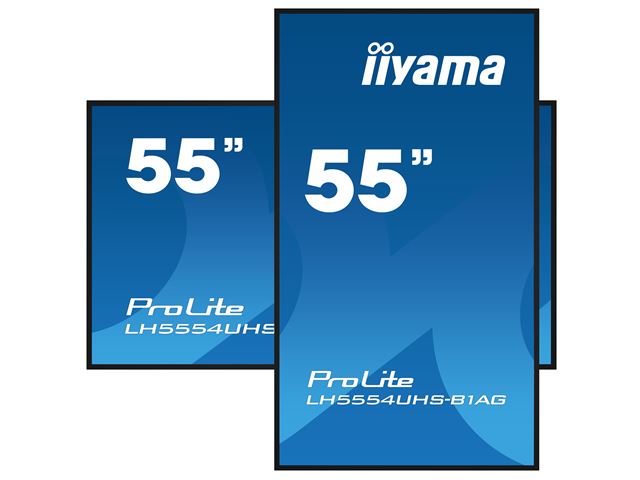

Orientation landscape, portrait
Fanless design yes

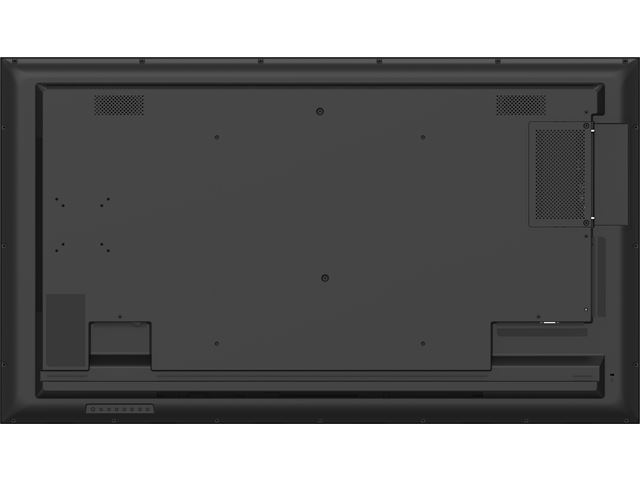

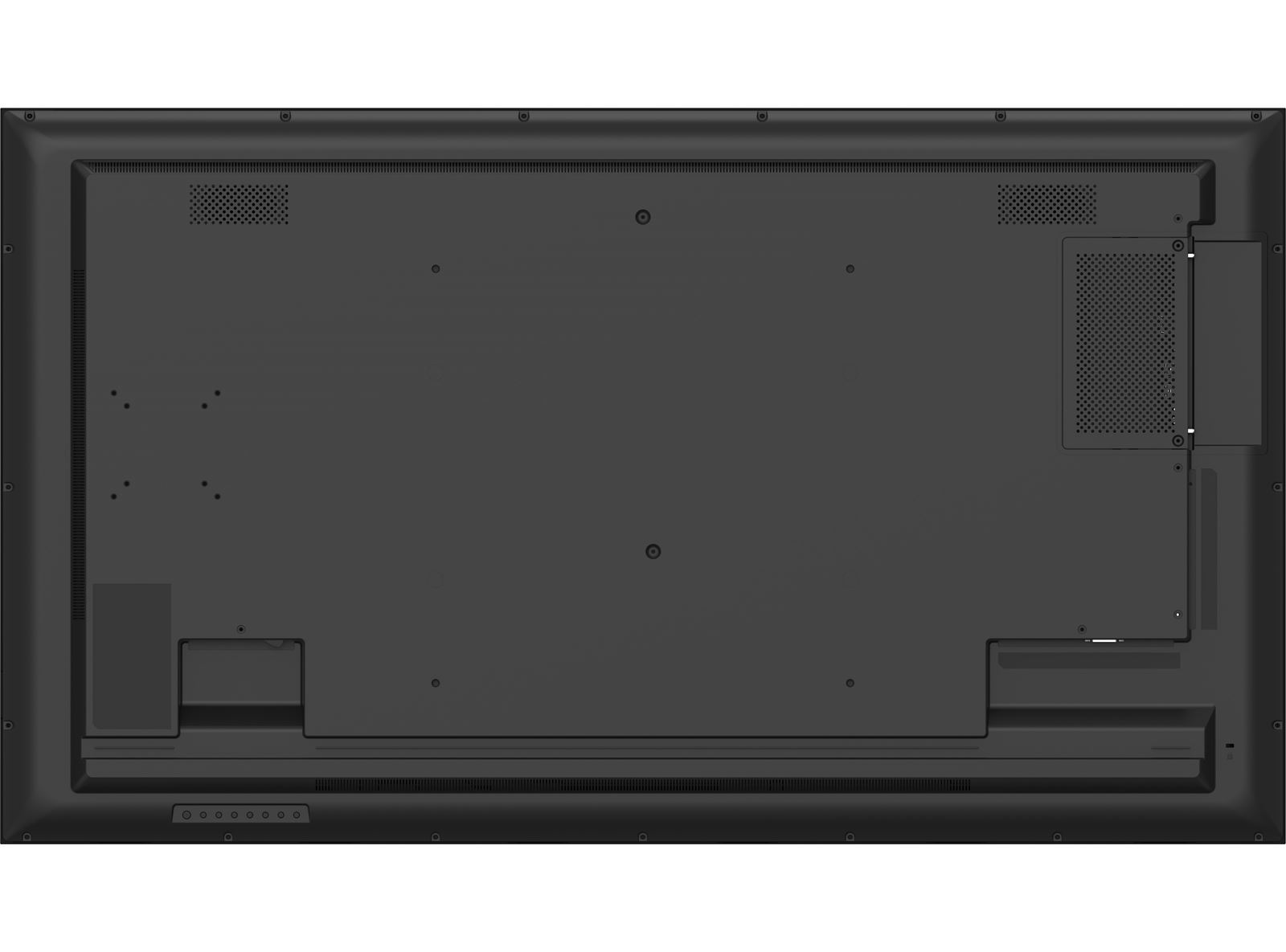

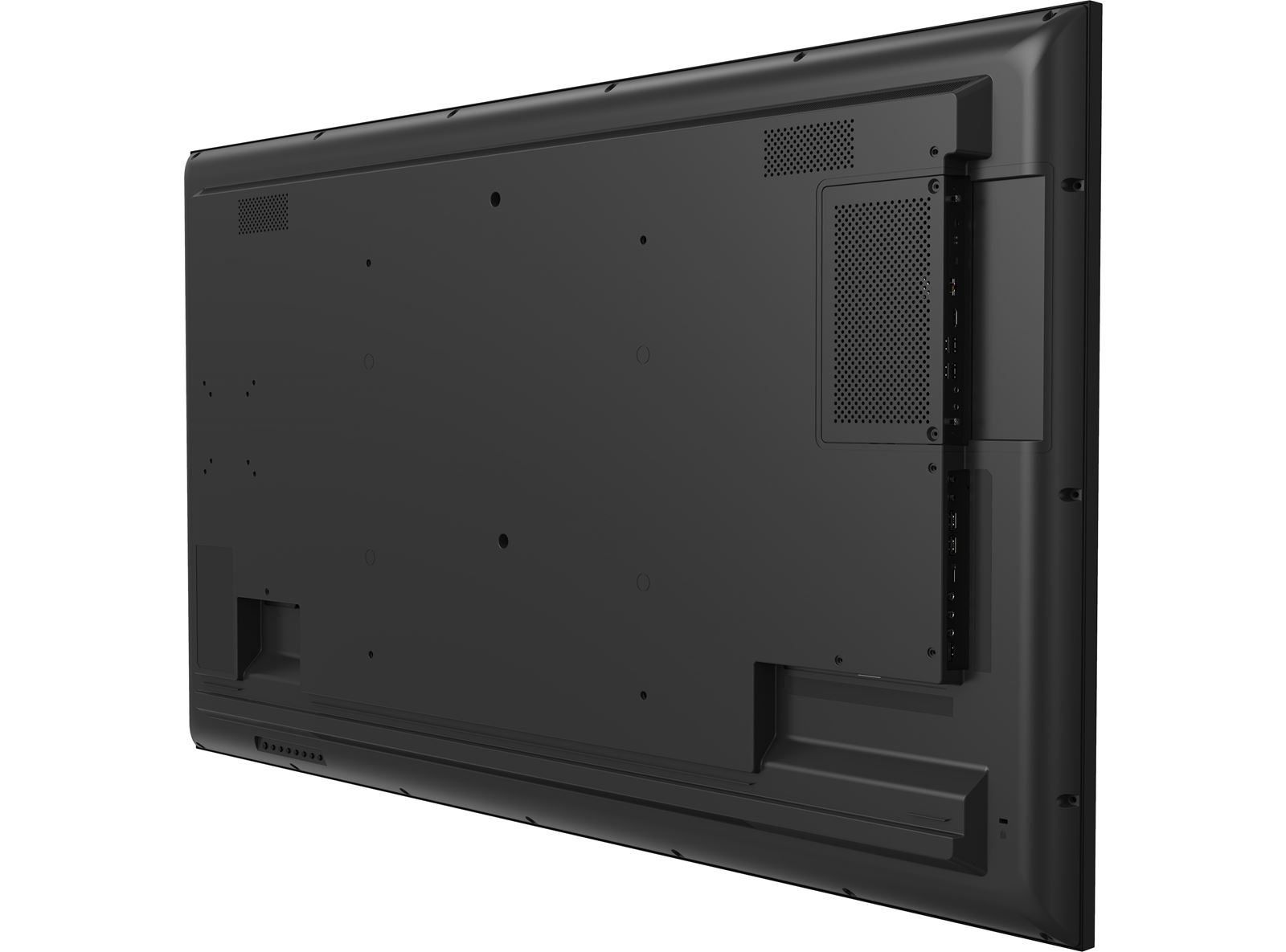

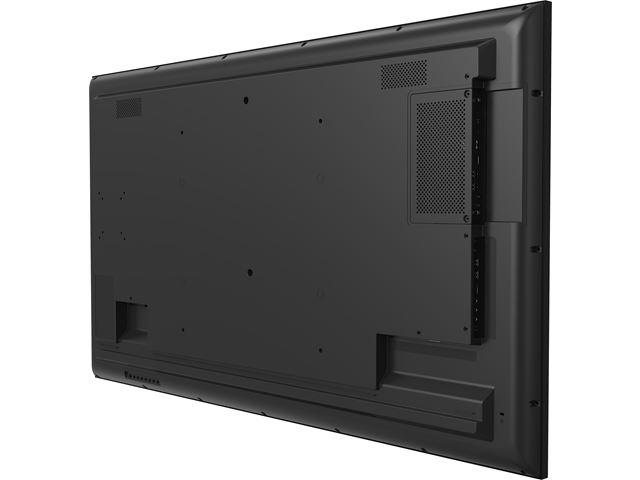

VESA mounting 400 x 400mm
Mini PC mount VESA 100 x 100
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED

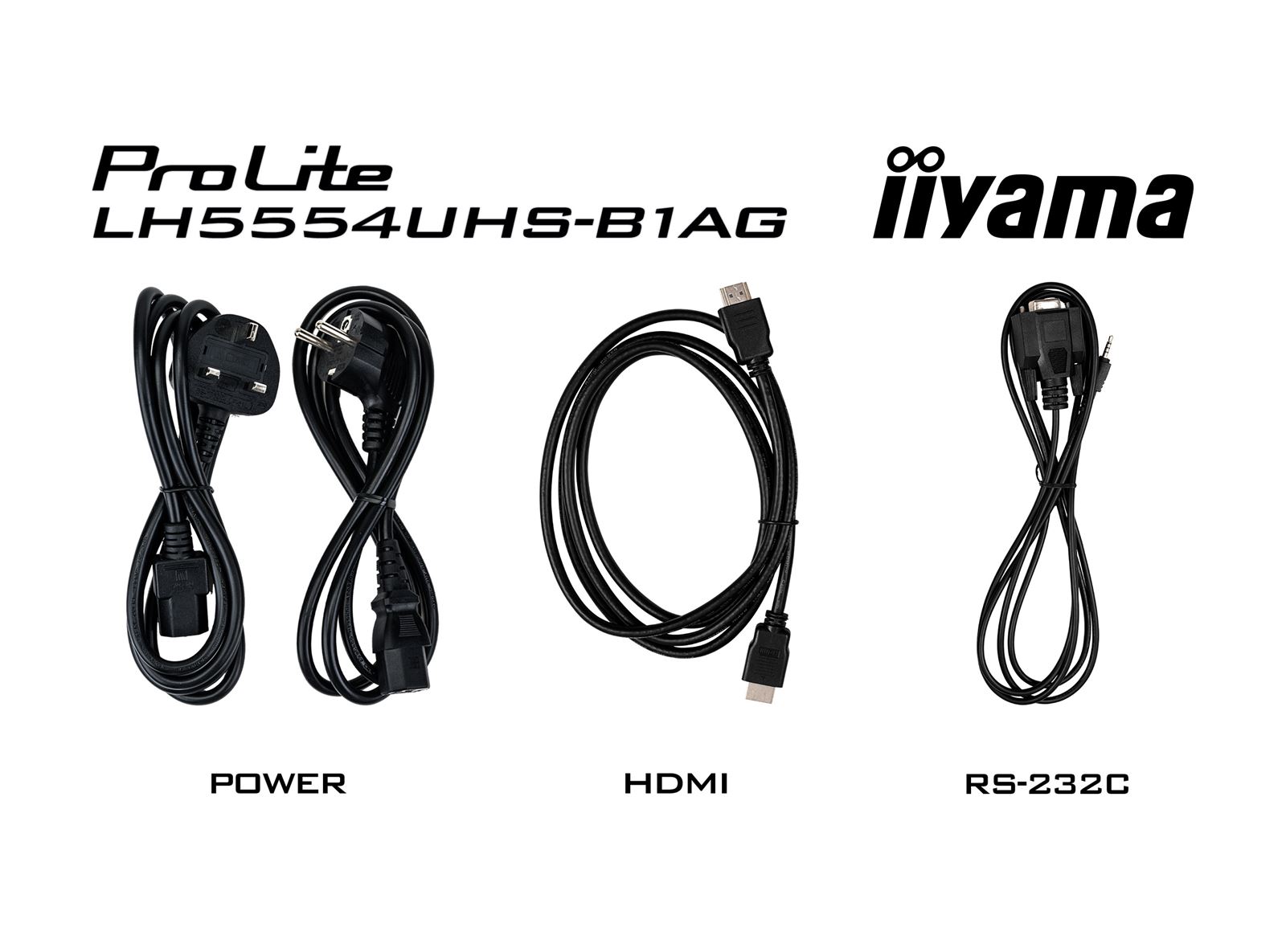

Cables power, HDMI, RS-232c
Guides quick start guide, safety guide
Other Stickers for screw holes, wire buckles
Remote control yes (batteries included)

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 151W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Energy efficiency class (Regulation (EU) 2017/1369) G

DIMENSIONS / WEIGHT

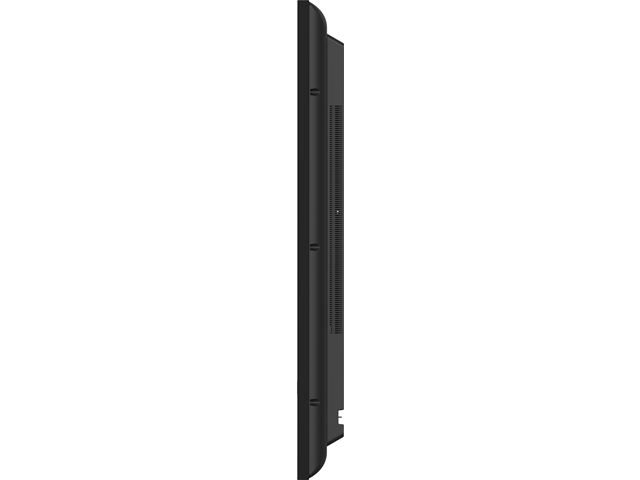

Product dimensions W x H x D 1240.6 x 711.7 x 69mm
Box dimensions W x H x D 1370 x 850 x 156mm
Weight (without box) 15kg
Weight (with box) 20.5kg
EAN code 4948570120994
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).




LAN CONTROL

DISPLAYPORT/HDMI DAISY CHAIN SUPPORT

A daisy chain is a wiring scheme in which multiple devices are wired together in sequence or in a ring. It enables a connection of a series of devices using a single connection between each two devices, using DisplayPort/HDMI input and a DisplayPort/HDMI output.  The output connects to the next downstream display.  This cabling arrangement, with one DisplayPort/HDMI cable between each set of monitors, provides a simple, less cluttered system configuration.



DISPLAYPORT/HDMI DAISY CHAIN SUPPORT

LIGHT SENSOR

The ambient light sensor detects changes in environmental lighting conditions and automatically adjusts the screens backlight brightness to compensate for an increase or decrease in light.




LIGHT SENSOR

24/7

24/7 displays are designed for a continuous operation.



24/7

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS

Media player LFD

Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

Media player LFD
