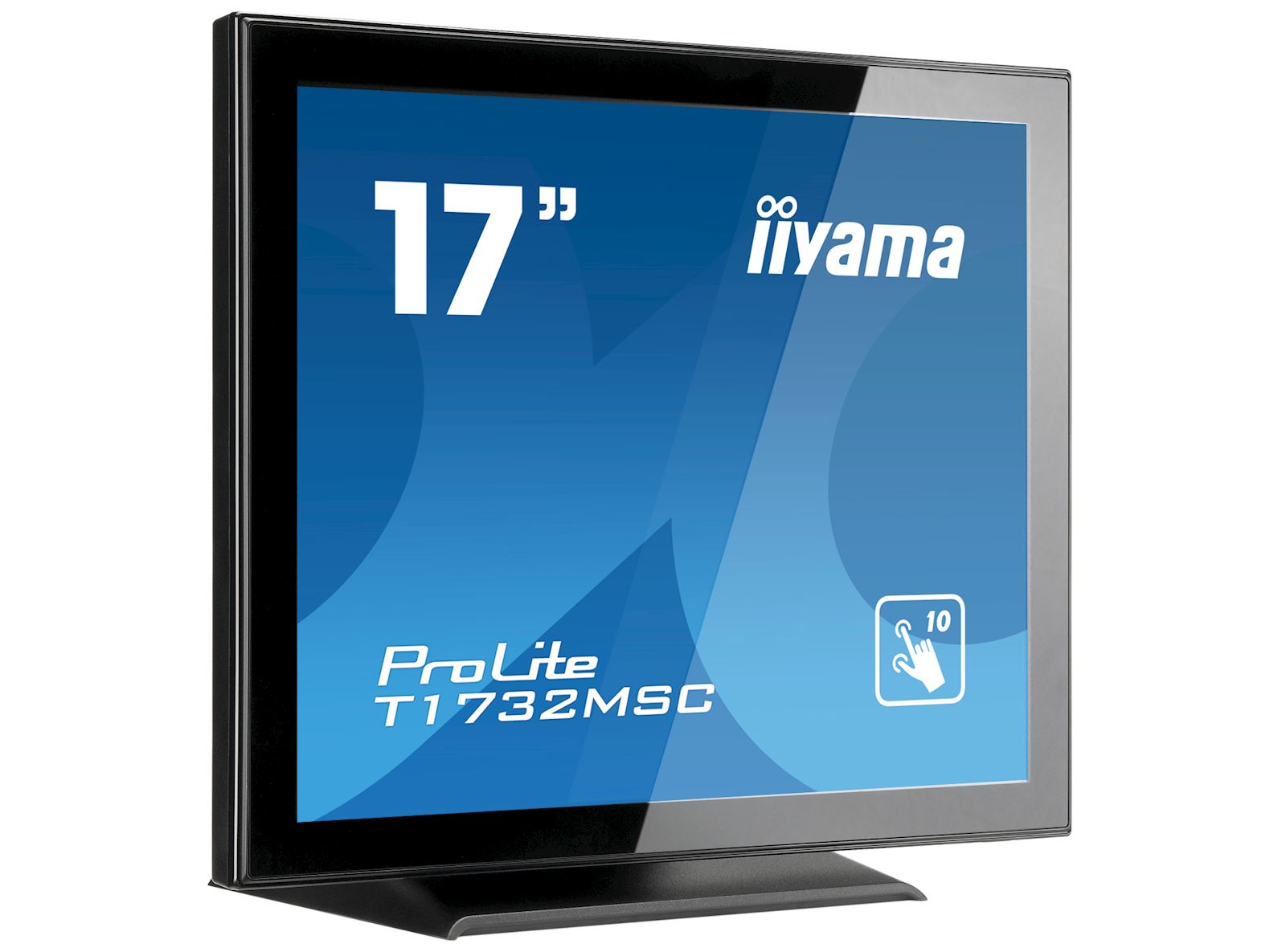

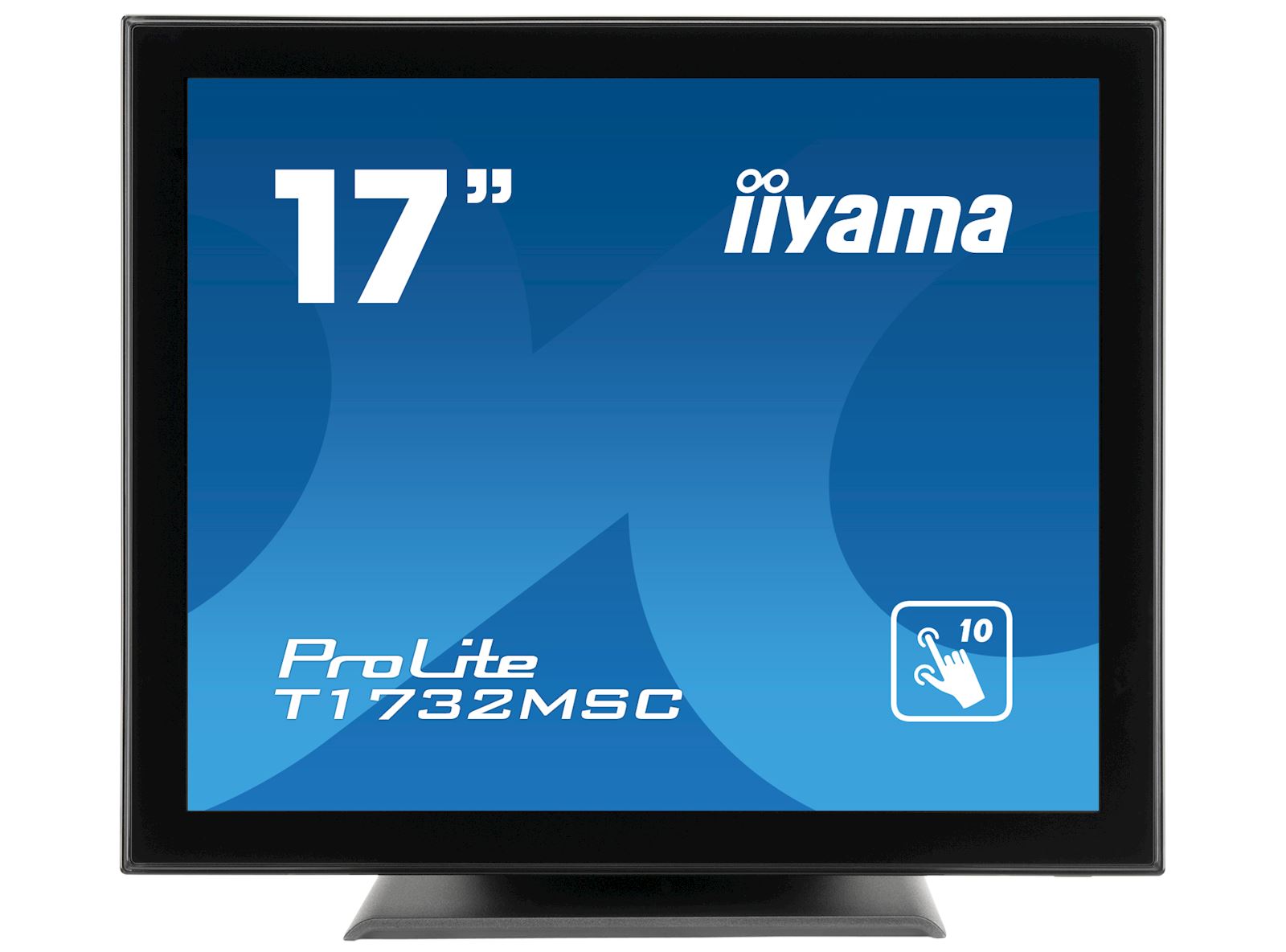

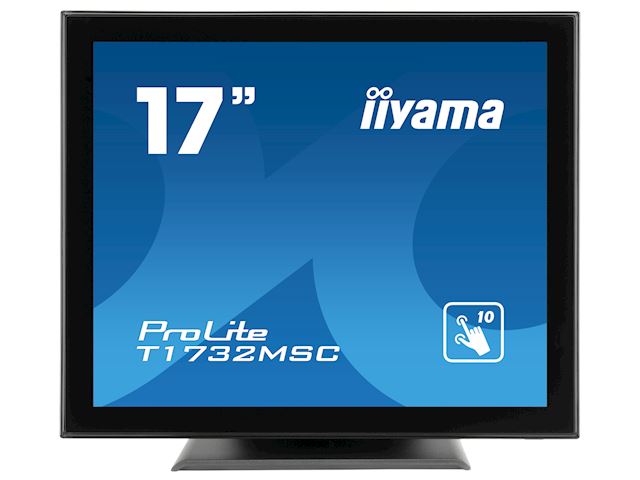

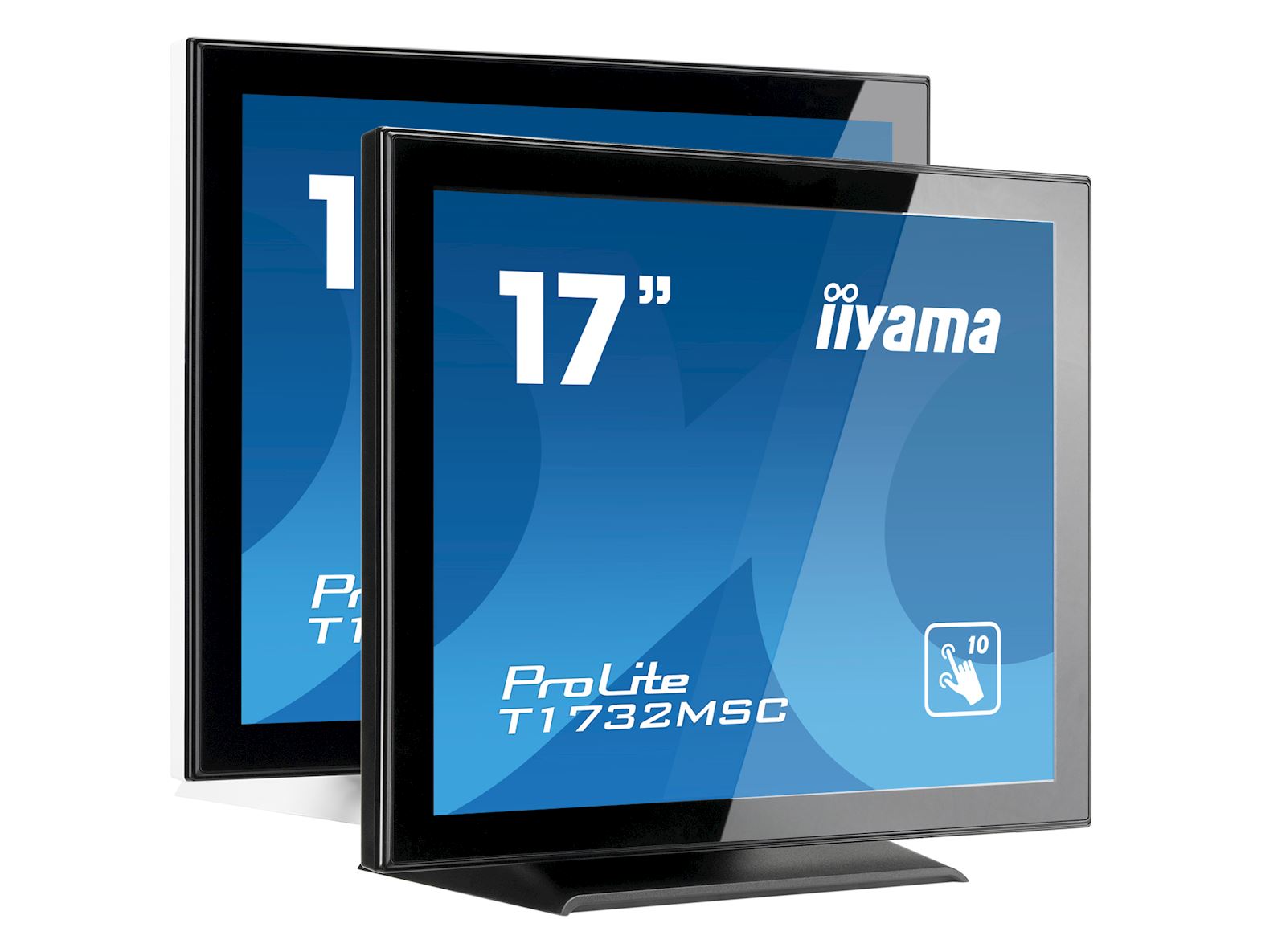

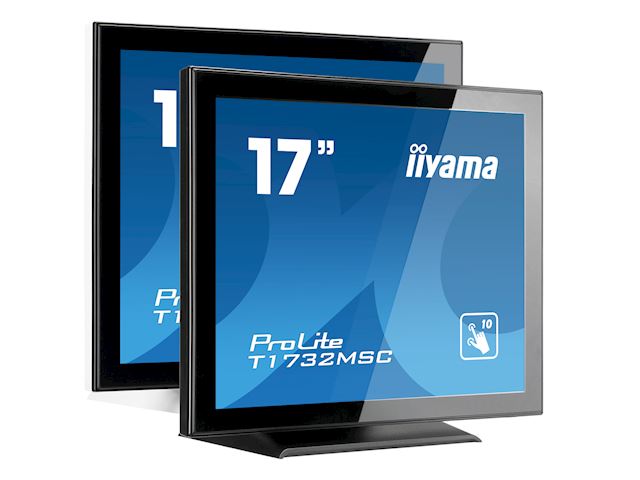

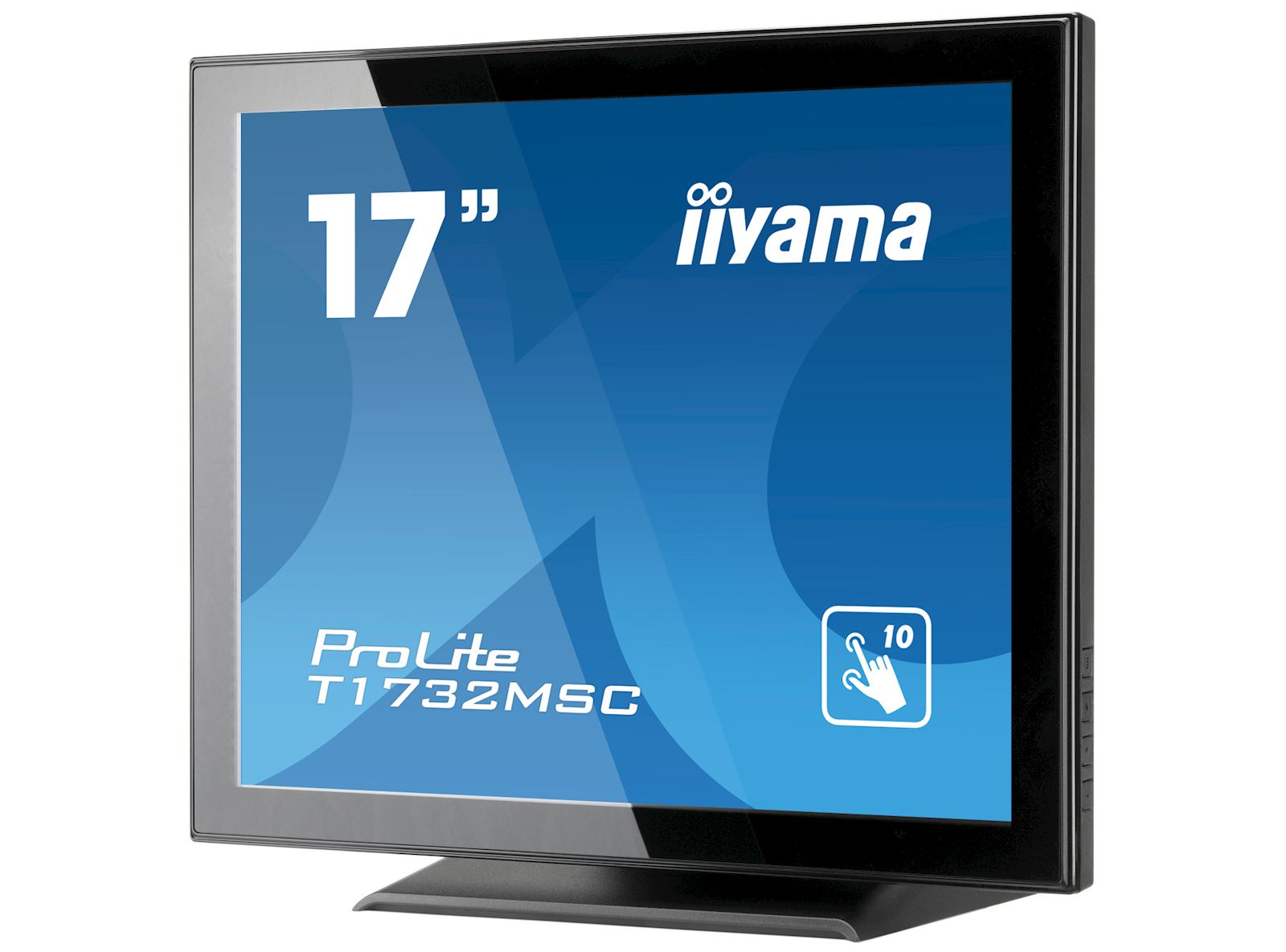

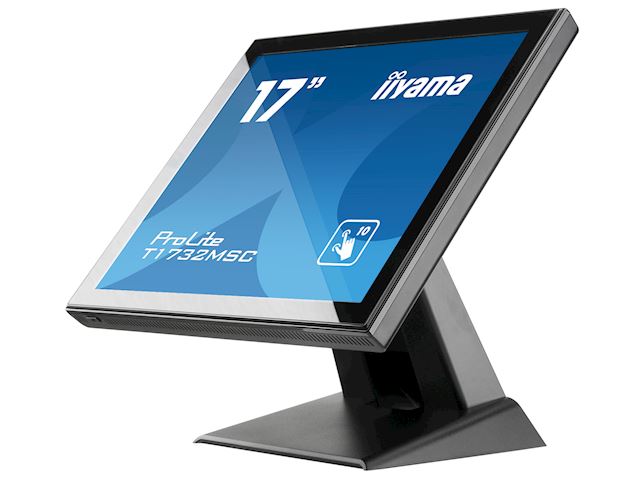

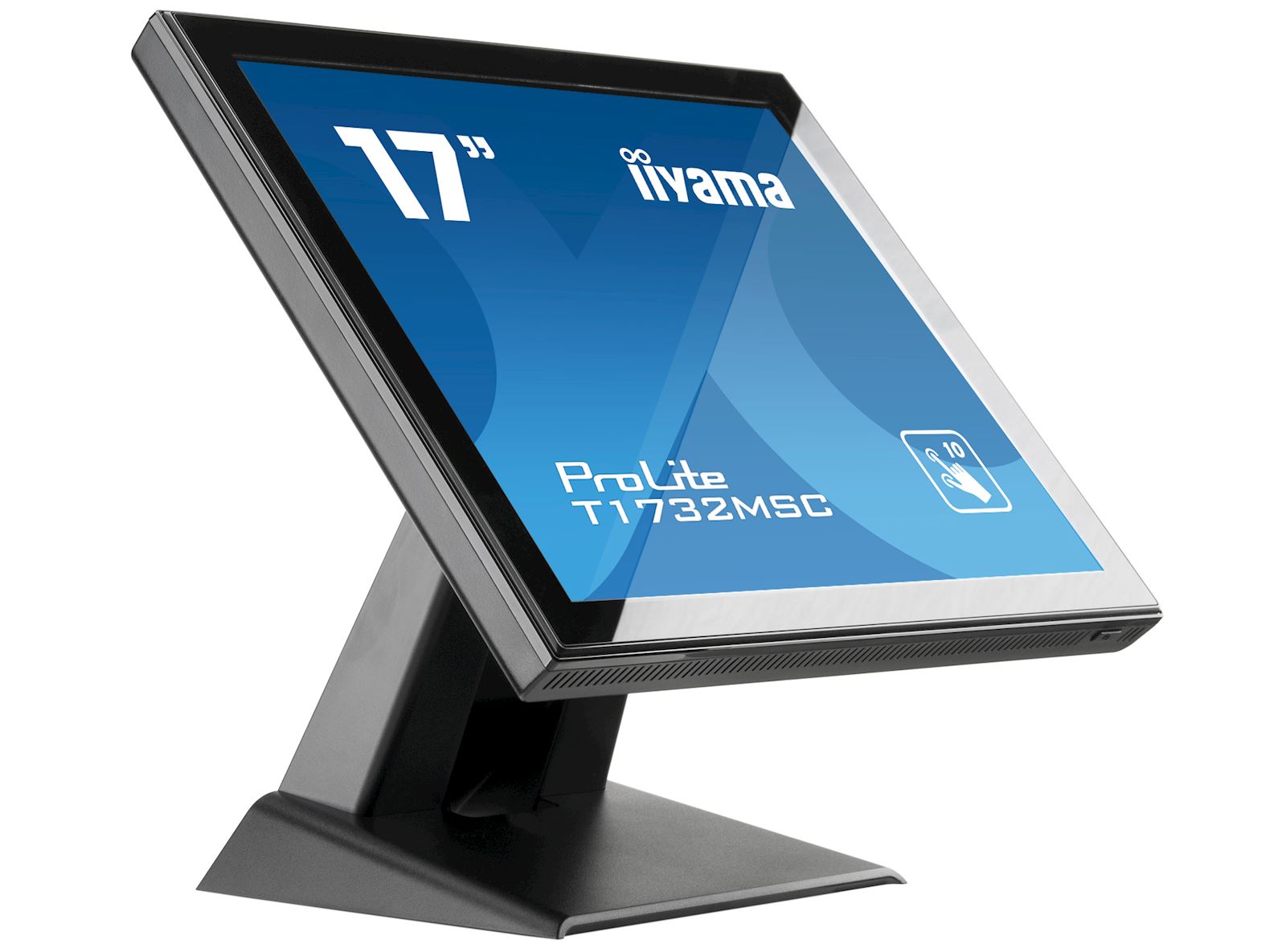

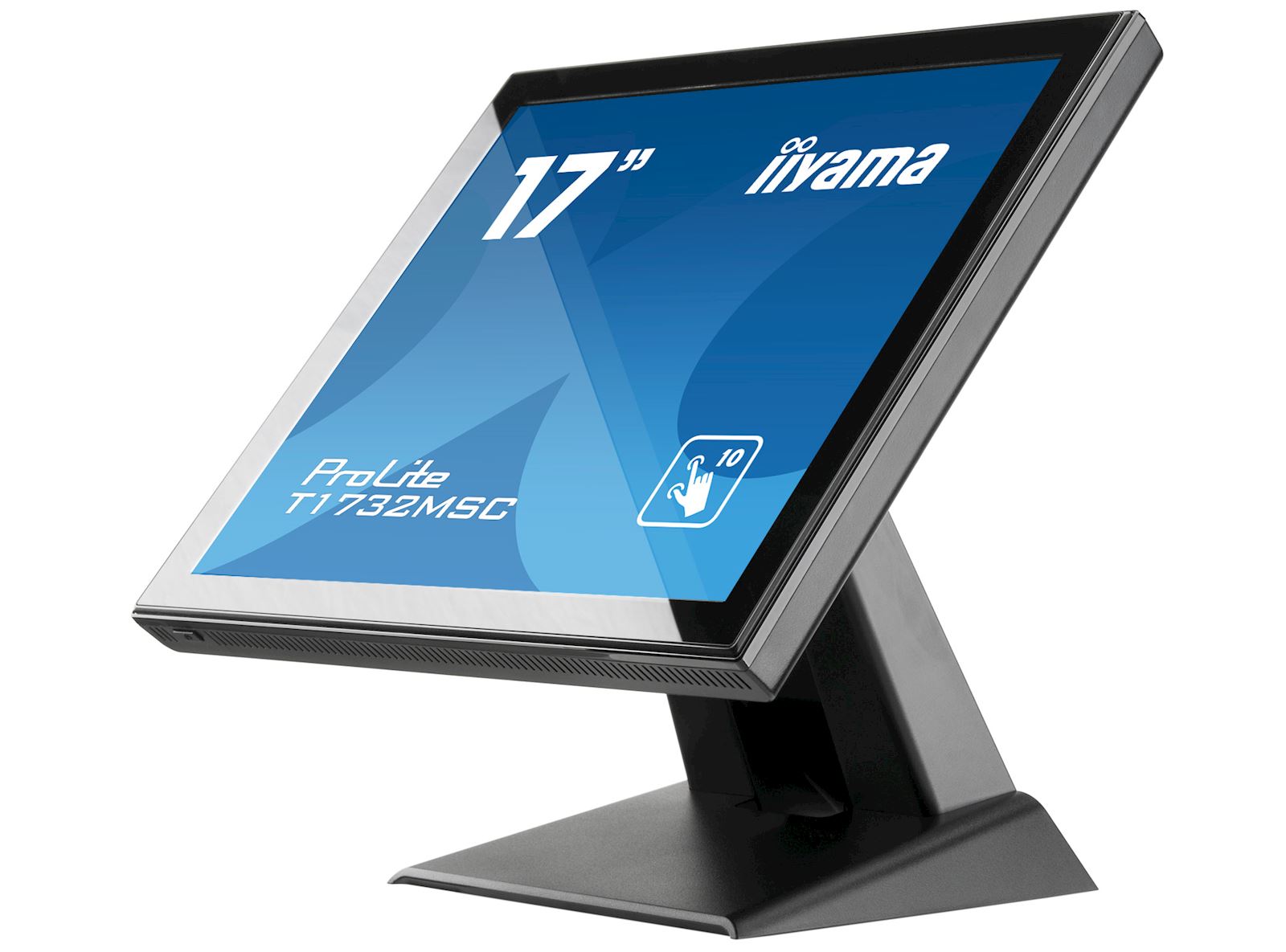

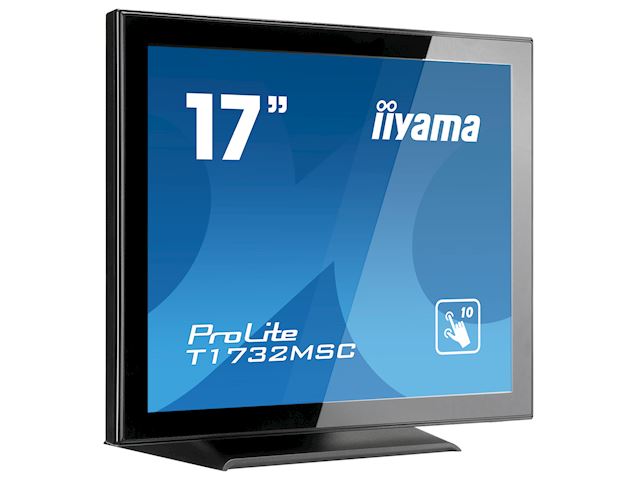

Iyama ProLite touch screen monitor T1732MSC-B5X 17" Black, 5:4, Projective Capacitive 10pt Touch, HDM, Display Port, Bezel Free

£328.90 exc. VAT
£394.68 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Brand: iiyama

Manufacturer Code: T1732MSC-B5X

Product Description

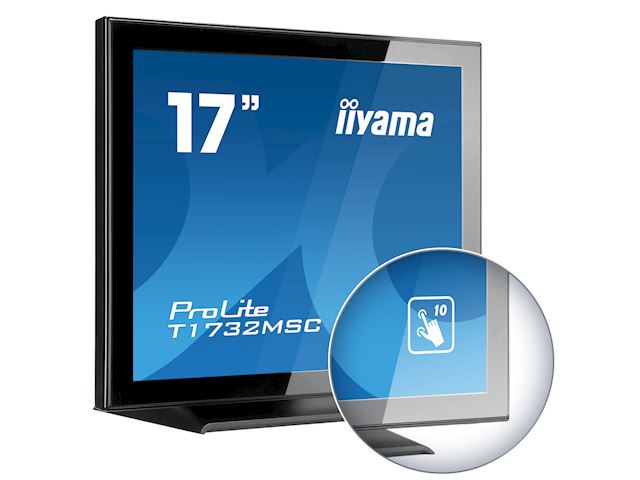

17" Projective Capacitive 10pt touch screen

The ProLite T1732MSC-B5X 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the TouchScreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the TouchScreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.

Technical Information

DISPLAY CHARACTERISTICS

Design Edge to edge glass
Diagonal 17", 43cm
Panel TN LED
Native resolution 1280 x 1024 (1.3 megapixel)
Aspect ratio 5:4
Brightness 250 cd/m² typical
Brightness 225 cd/m² with touch
Static contrast 1 000:1 with touch
Light transmittance 90%
Response time 5ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.7mln 8bit (6bit + Hi-FRC)
Horizontal Sync 31,4 - 80KHz
Vertical Sync 56 - 75Hz
Viewable area W x H 338 x 270.5mm, 13.3 x 10.6"
Pixel pitch 0.264mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio output Speakers 2 x 1W
HDCP yes

FEATURES

Water and dust protection IP54 (front)
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
Convenience Kensington-lock™ prepared
Plug&Play DDC2B

MECHANICAL

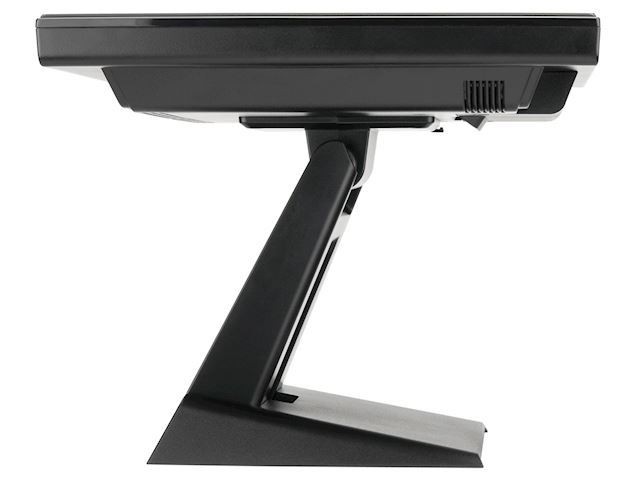

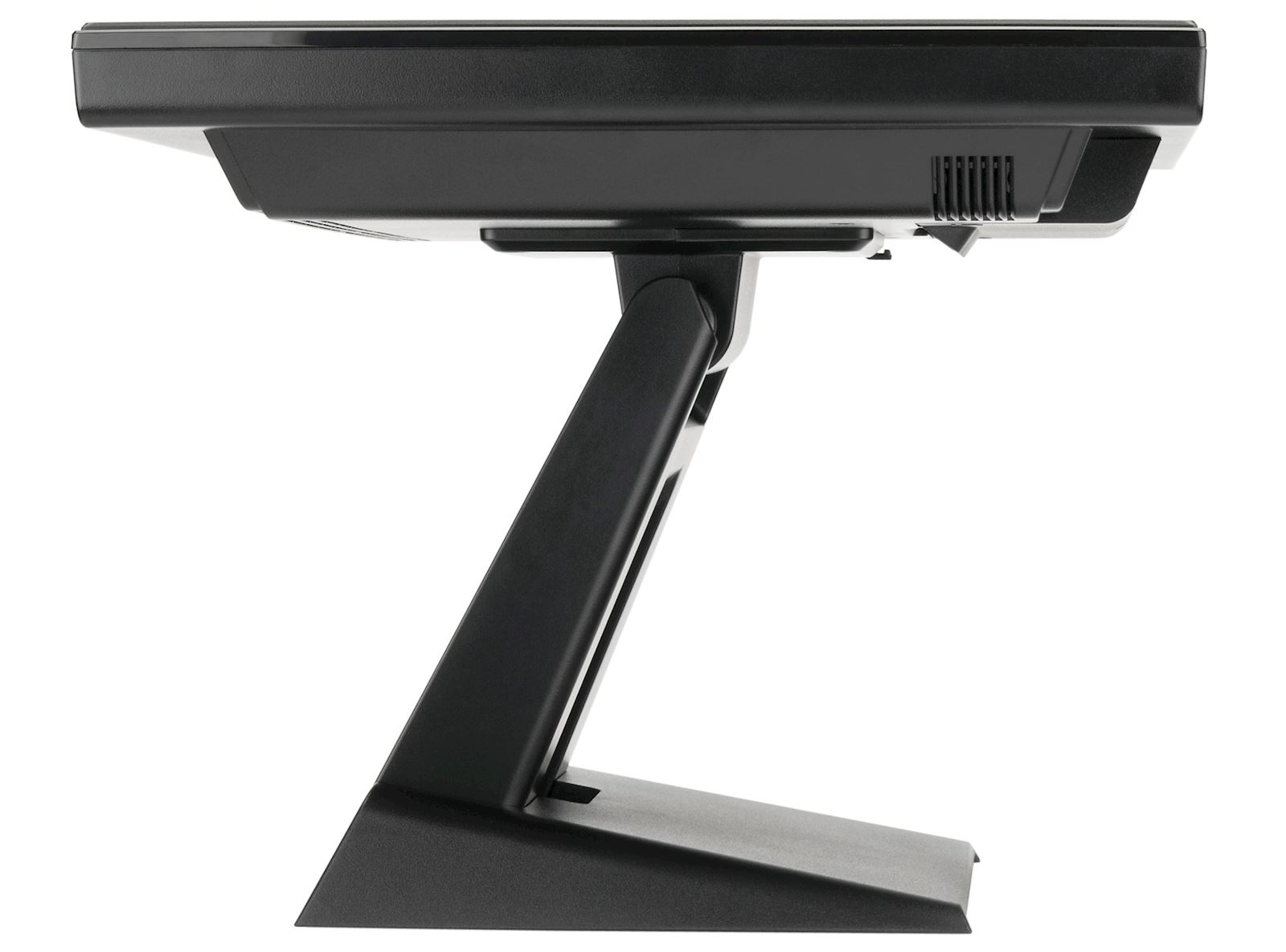

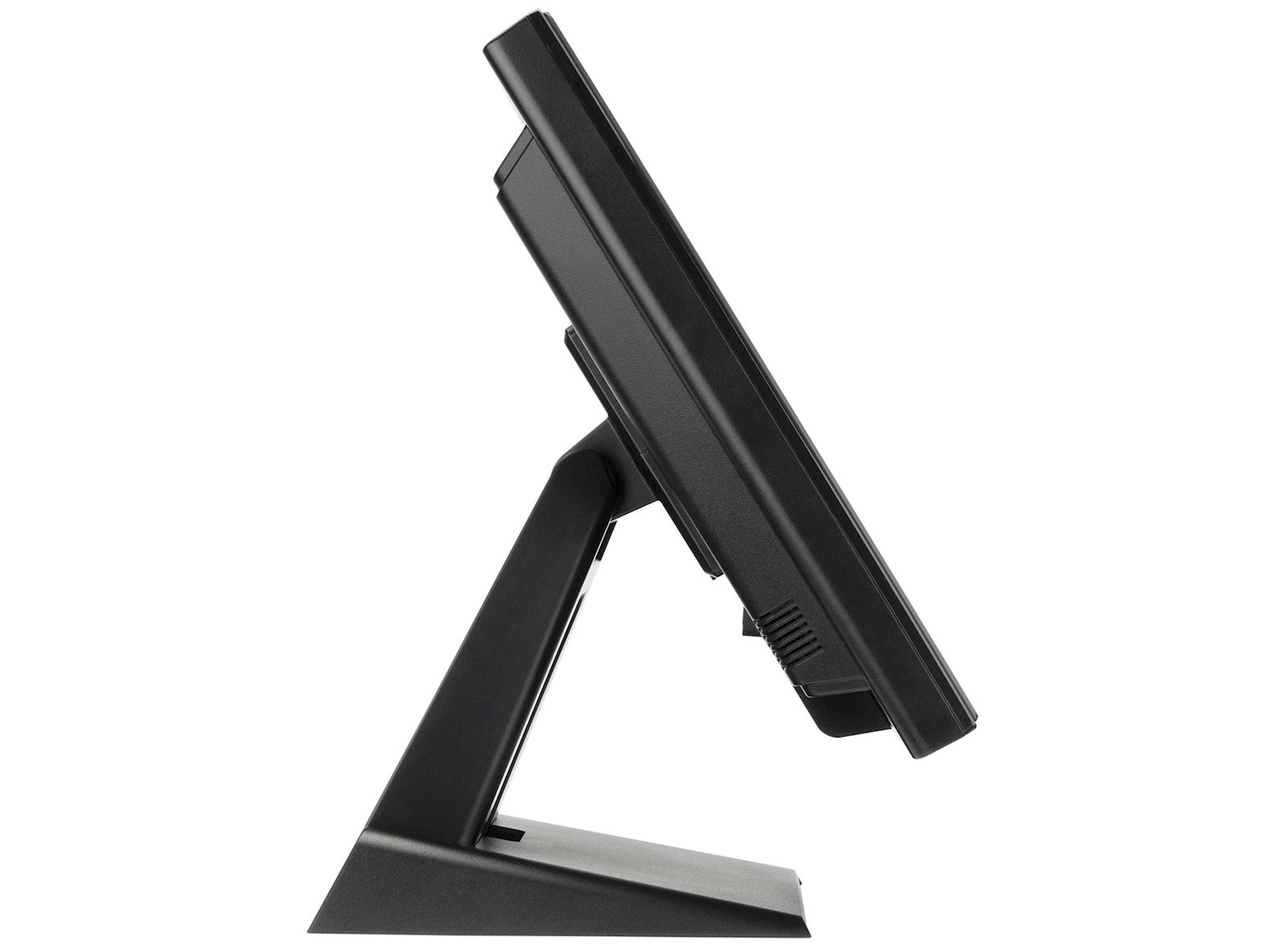

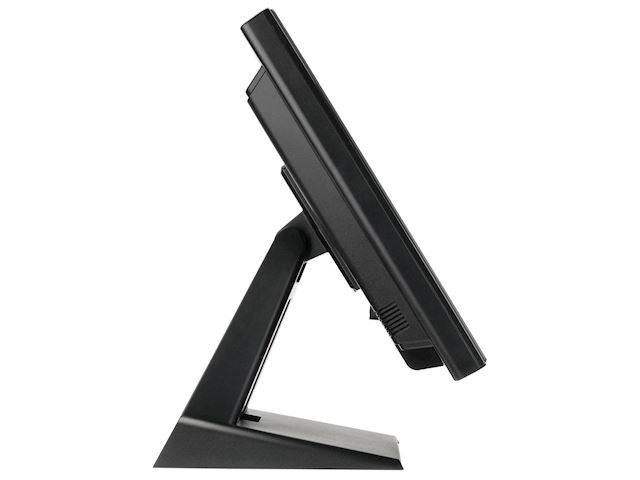

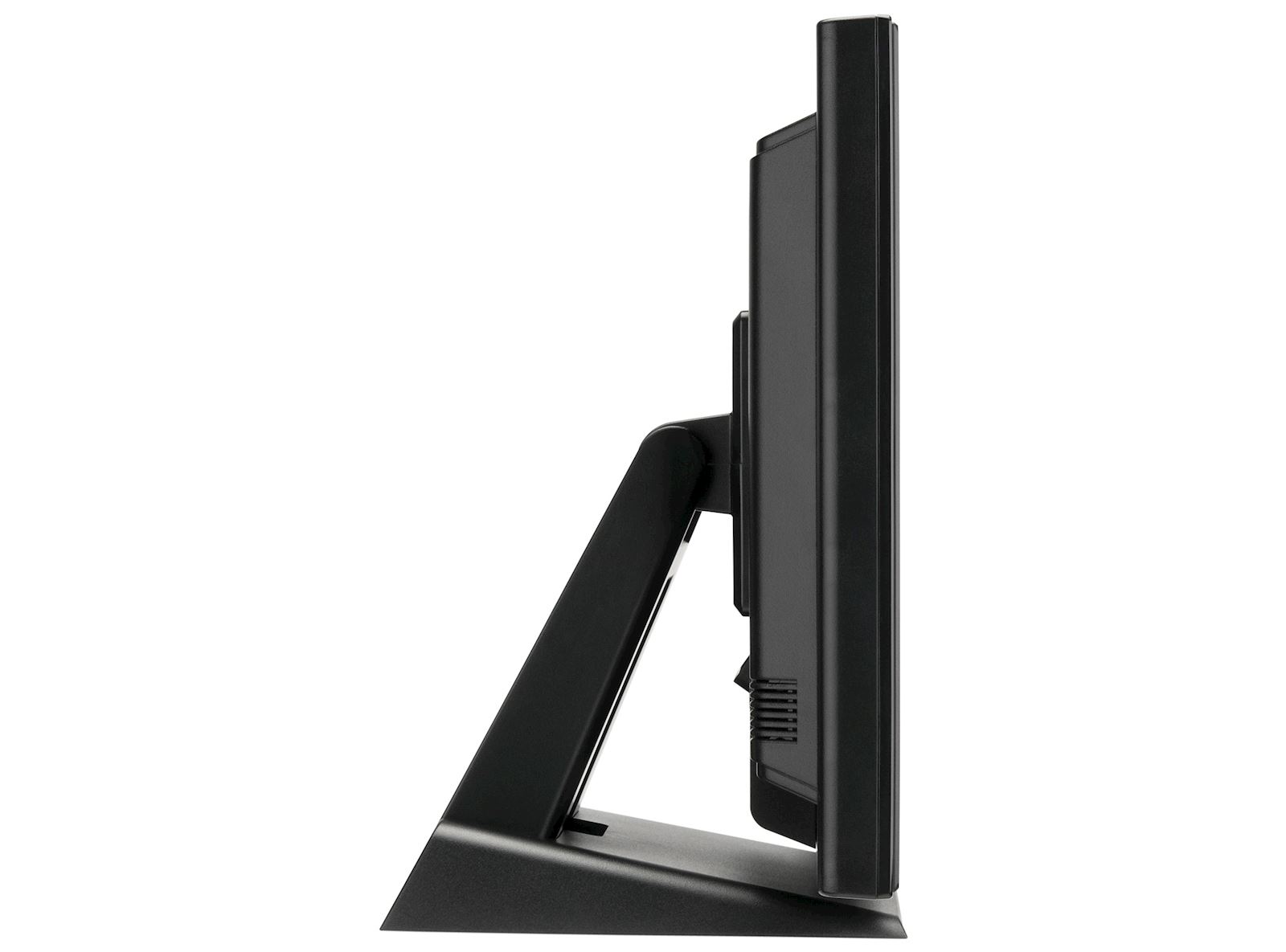

Tilt angle 90° up; 5° down
VESA mounting 100 x 100mm
Cable management system yes

ACCESSORIES INCLUDED

Cables power, USB, HDMI, Audio, DP
Guides quick start guide, safety guide
Other Touch Panel Driver Disk (CD-ROM)
Cable cover yes

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 20W typical, 2W stand by, 2W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, GOST, VCCI
Energy efficiency class B
Other REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 387 x 342 x 202mm
Weight (without box) 5.6kg
EAN code 4948570116041

EU ENERGY EFFICIENCY LABEL

Manufacturer iiyama
Model ProLite T1732MSC-B5X
Energy efficiency class B
Visible screen diagonal 43cm; 17"; (17" segment)
ON mode power consumption 19W
Annual energy consumption 27kWh/annum*
Power in Standby 2W stand by
Resolution 1280 x 1024
Features

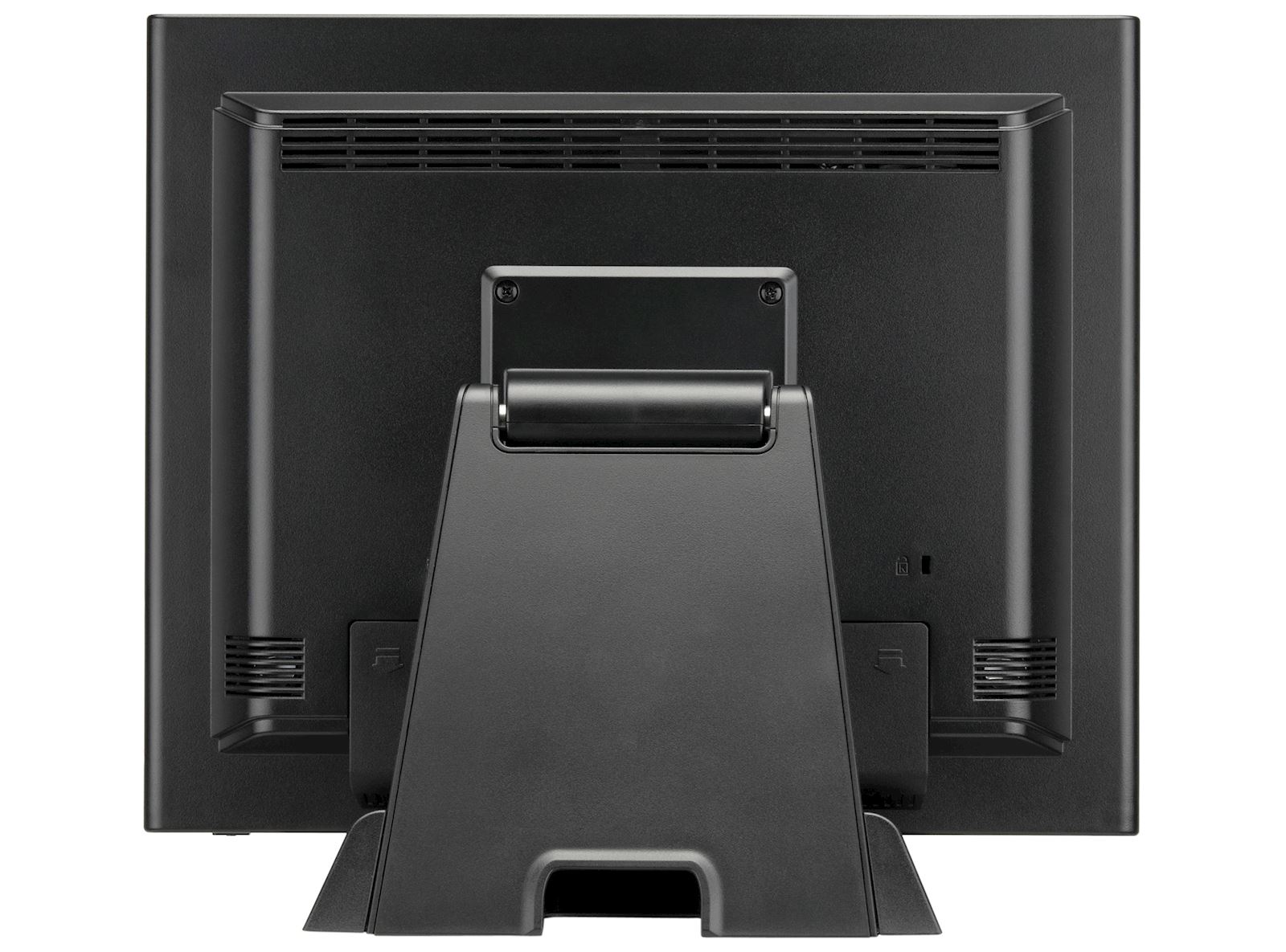

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

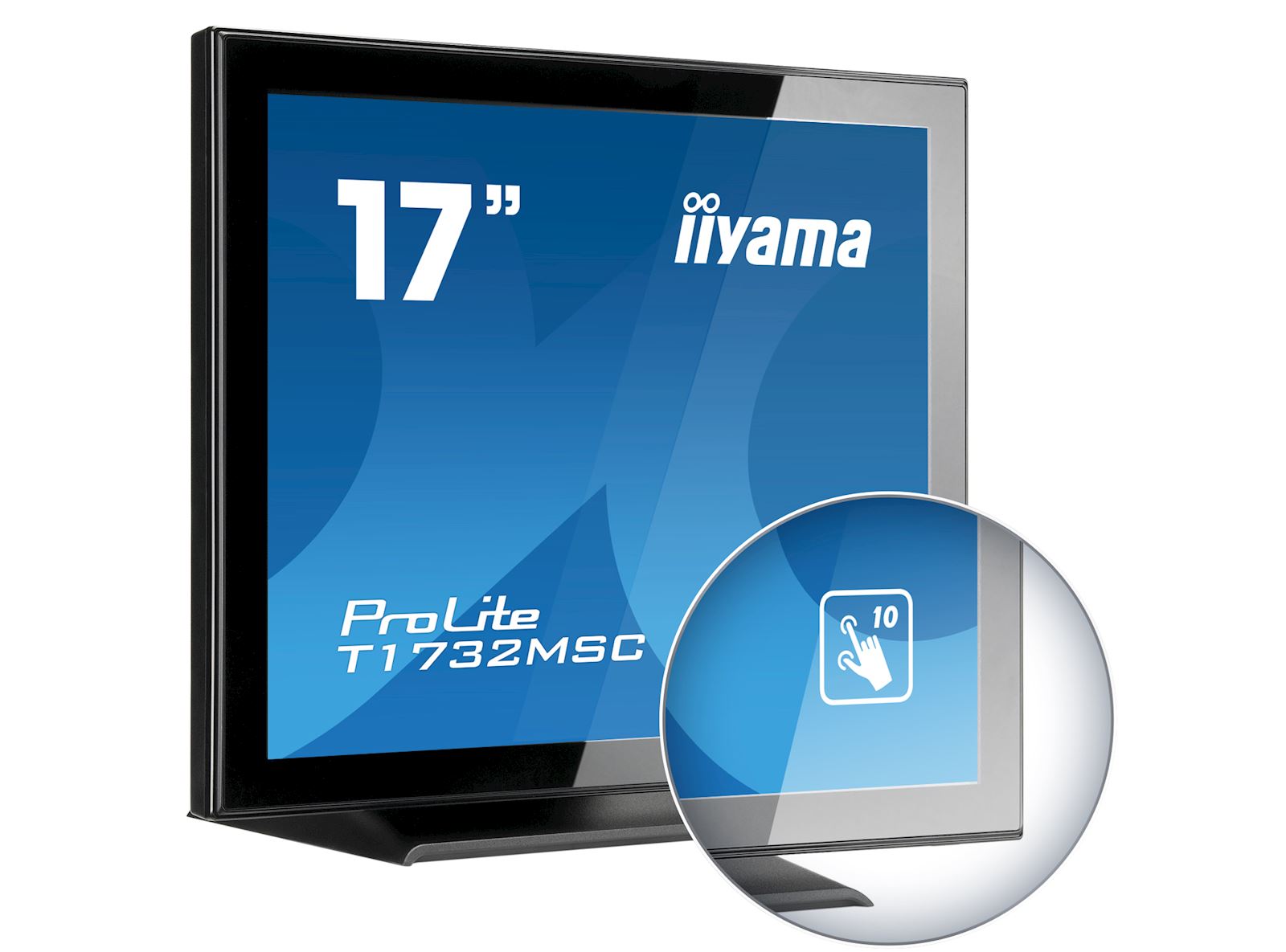

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SCRATCH RESISTANCE

IP54

The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

IP54
Downloads
  • product downloads pdf
    ProLite T1732MSC-B5X Product Information
  • product downloads manuals
    ProLite T1732MSC-B5X User Manual
