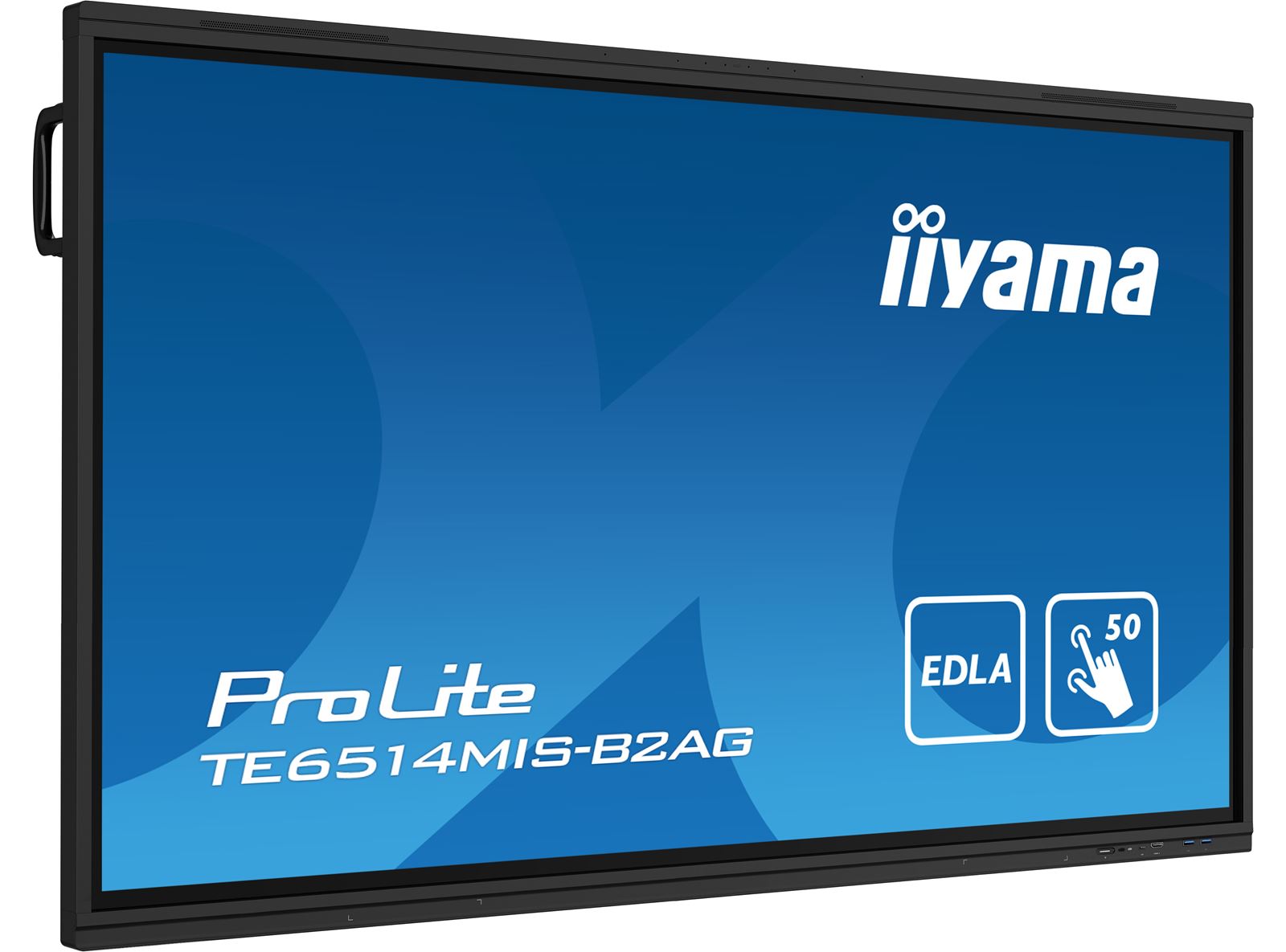

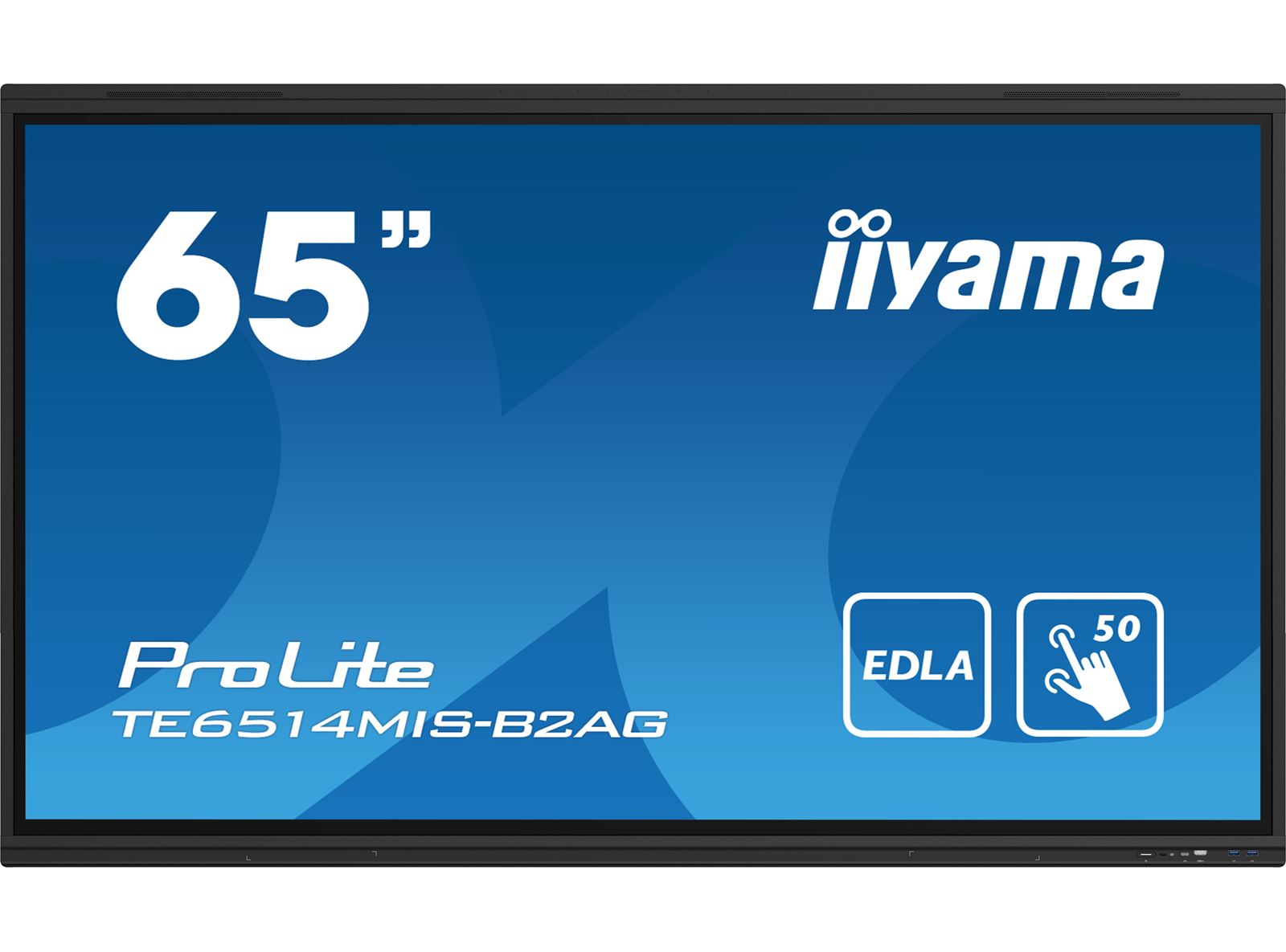

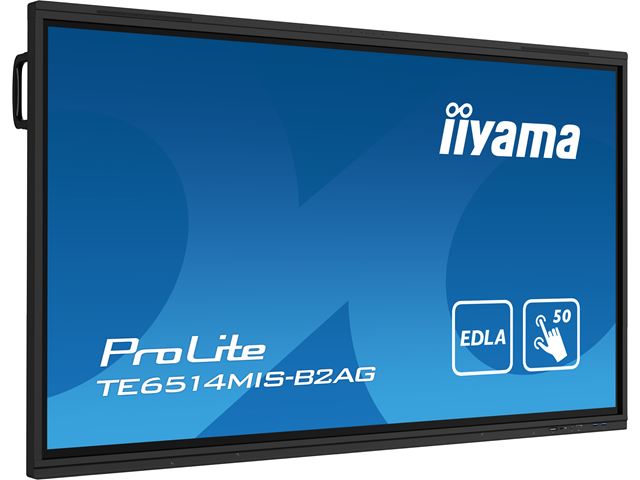

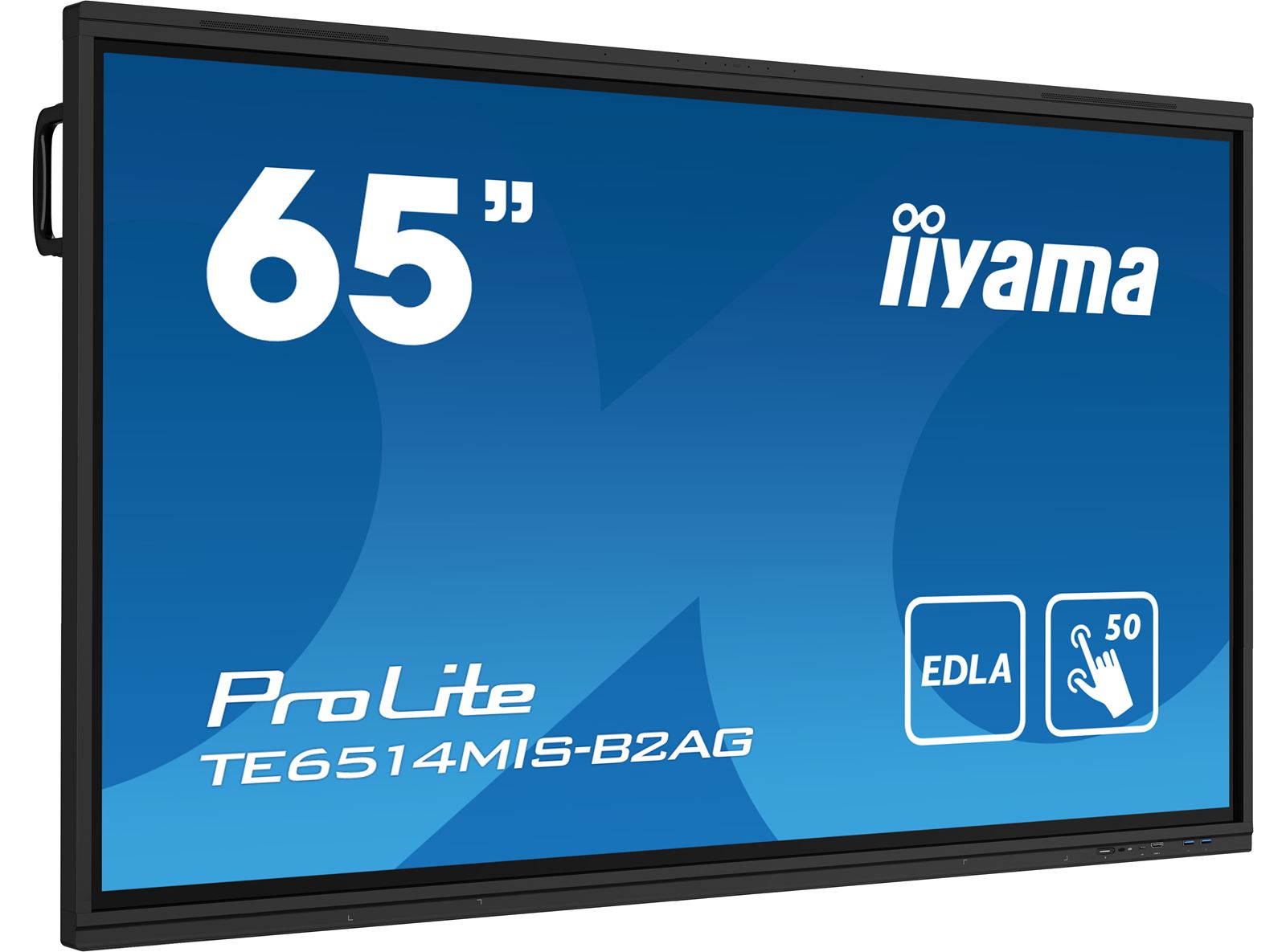

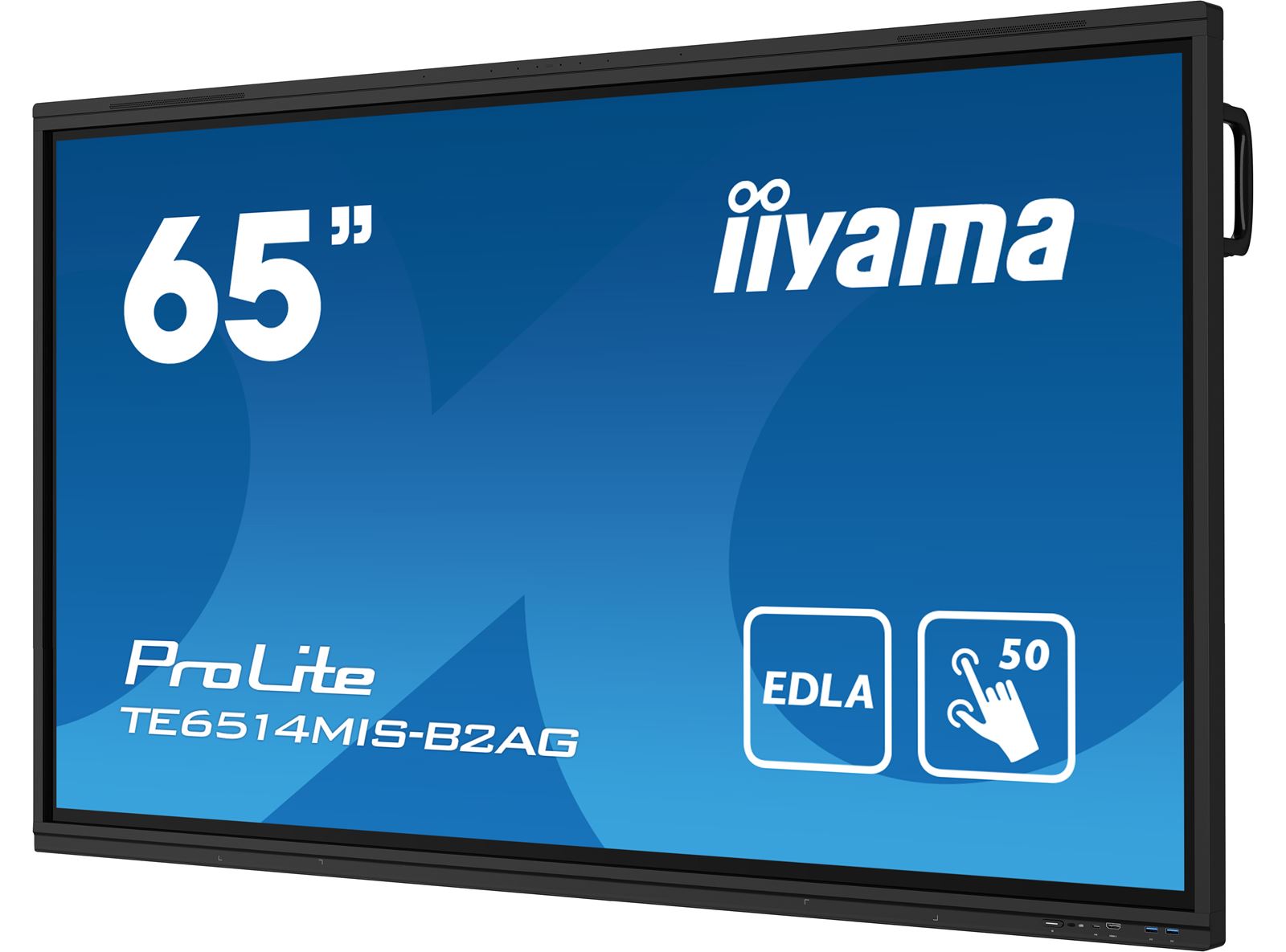

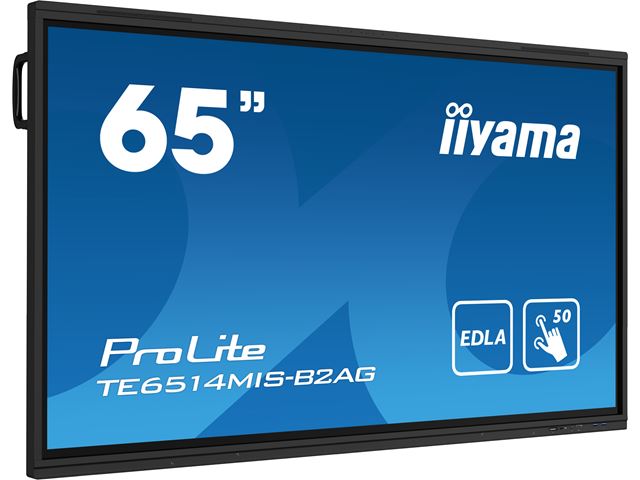

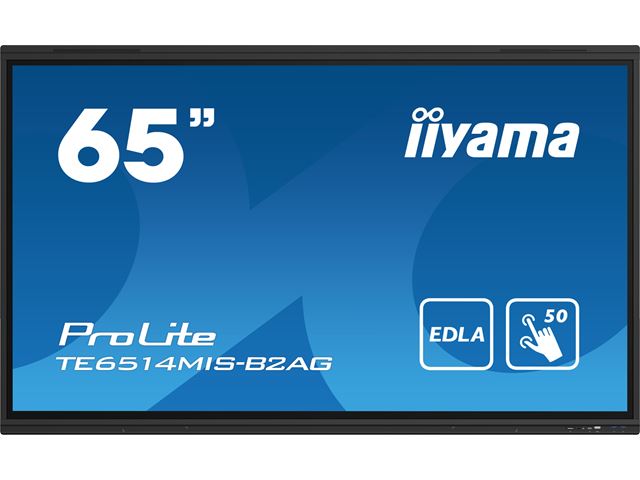

iiyama ProLite monitor TE6514MIS-B2AG 65", Google EDLA Certified, 4k UHD, Infrared 50pt touch, Anti-glare coating, VA, HDMI, features Note, Browser & Cloud Drive, iiWare 12E

£1,262.60 exc. VAT
£1,515.12 inc. VAT

Brand: iiyama

Manufacturer Code: TE6514MIS-B2AG

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

65" Google EDLA Certified Interactive display for seamless integration and collaboration in education and enterprise



The TE6514MIS-B2AG is a visionary 4K UHD Google EDLA Certified interactive display that sets a new standard for ingenuity and performance. Crafted with precision, it features a Zero Airgap LCD screen that eradicates parallax, alongside the accurate PureTouch-IR+ with Palm Rejection, ensuring seamless interaction. Powered by iiWare 12E with Android 13 and equipped with WiFi connectivity, it effortlessly integrates into your ecosystem, supported by the iiyama (DMS) Device management platform.

Experience unparalleled wireless sharing capabilities with the intuitive iiyama Share and EShare app, facilitating seamless brainstorming and effective collaboration within your enterprise or educational institution.

With its innovative 4K Interface and customizable User Profiles, the TE6514MIS-B2AG offers a personalized experience, granting easy access to bespoke applications and Cloud Drives. Adapted to thrive in bustling hybrid environments, it becomes a tailored solution for diverse user needs, revolutionizing collaboration, communication, and engagement.

Transforming modern workplaces, educational realms, and dynamic meeting spaces, this display emerges as an essential cornerstone, nurturing progress and connectivity beyond boundaries.

Technical Information

 DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 65", 163.9cm
Panel VA, haze 25%
Touch Glass Anti-Gloss treatment, Anti-Glare glass, Matt polished surface, Ultra smooth writing, Zero Air-Gap
Native resolution 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio 16:9
Panel brightness 435 cd/m²
Light transmittance 92%
Static contrast 4000:1
Dynamic contrast 5000:1
Response time (GTG) 6.5ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Horizontal Sync 30 - 135kHz
Viewable area W x H 1428 x 804mm, 56.3 x 31.7"
Bezel width (sides, top, bottom) 16.5mm, 16.5mm, 41mm
Pixel pitch 0.372mm
Bezel colour and finish black, matte

 TOUCH

Touch technology PureTouch-IR⁺
Touch points 50, 10pt writing (HID, only with supported OS, 40pt Touch with Android)
Touch accuracy +- 1mm
Touch method stylus, finger, glove (Passive pen, Opaque objects)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes

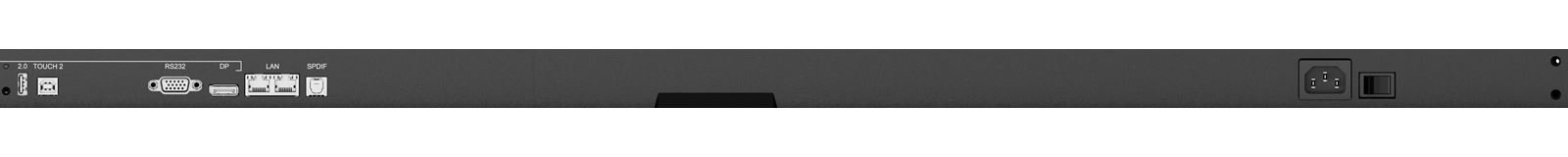

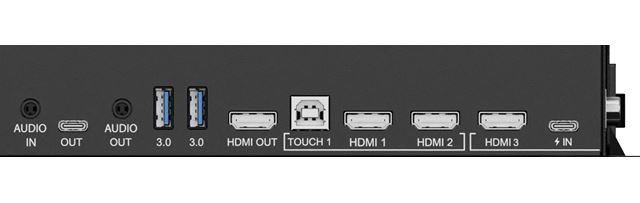

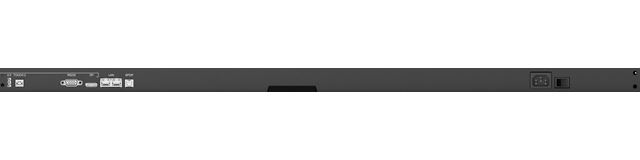

 INTERFACES / CONNECTORS / CONTROLS

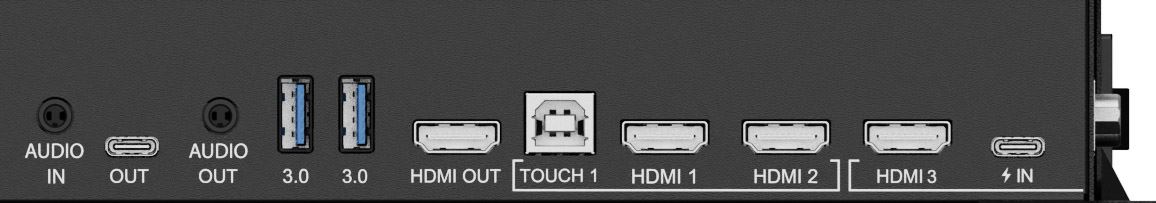

Digital signal input HDMI x4 (2.0, max. 3840x2160 @60Hz, YUV420/ YUV444/ RGB444)
DisplayPort x1 (2.1, max. 3840x2160 @30Hz)
USB-C x2 (3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz (RGB444), DP 1.2 Alt mode, Touch, 1x front: 100W PD , 1x back: 15W PD)
Audio input Mini jack x1
Monitor control input RS-232c x1 (DSUB 9pin)
RJ45 (LAN) x1 (LAN Control)
IR x1
Digital signal output HDMI x1 (2.0, max. 3840x2160 @60Hz, MSD (Multi-Screen Display))
USB-C x1 (3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz, DP 1.2 Alt mode, Touch, 5W PD, MSD (Multi-Screen Display))
Audio output S/PDIF (Optical) x1
Mini jack x1
Speakers 2 x 18W (Facing up), 2x 8W (Front facing)
HDCP HDMI: 2.3 + 1.4, DP: 2.3 + 1.3, USB-C: 2.3 + 1.3

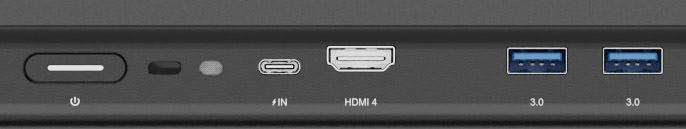

USB ports x6 (media playback / peripherals / storage – front side: 2x v.3.2 (Gen 1, 5Gbit), 1x USB-C v.3.2 (Gen 1, 5Gbit, 100W PD), back side: 2x v.3.2 (Gen 1, 5Gbit), 1x USB-C v.3.2 (Gen 1, 5Gbit, 15W PD))
RJ45 (LAN) x2 (Auto switch for PC & Android, 1000MB)
Microphone 8-Array (8m voice pick-up, Front facing)

 FEATURES

Integrated software iiWare 12E (Android 13 OS) featuring iiyama DMS, Google EDLA, Note, web browser, file manager, cloud drives, WPS office, iiyama Share and EShare for wireless connection with Windows/iOS/Android devices.
WiFi yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0)
Hardware CPU: A76*4+A55*4(2.4GHz), GPU: Mali G610 MC4, RAM: 8GB, ROM: 64GB
Extra WiFi 6 Module (OWM002), Slot for optional OPS Slot PC, 4x Touch pen (anti-bacterial coating)
Kiosk mode yes
Max. non-stop operating time 24/7
Media playback yes
Glass thickness 3mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB

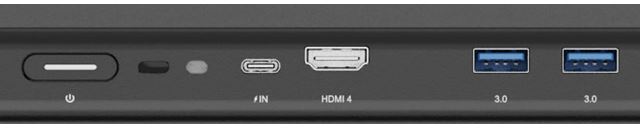

Control buttons Power button, Power Indicator, Remote Sensor, Light Sensor, USB-C Connector (3.2)
User controls general settings (input, volume, backlight), display settings (auto brightness, ECO, eye care, paper eye care, picture mode, brightness, contrast, saturation, sharpness, colour temp., advanced settings), audio settings (audio mode, volume, bass, treble, balance, mute), screen settings (pixel shift, auto light, , ECR), application settings (network & internet, apps, storage, personal, Google, advanced, administration, system, about)
Plug&Play DDC2B
Warranty 5 years (for details and eligible countries please check the Warranty section of our website)

 MECHANICAL

Orientation landscape
Fanless design yes

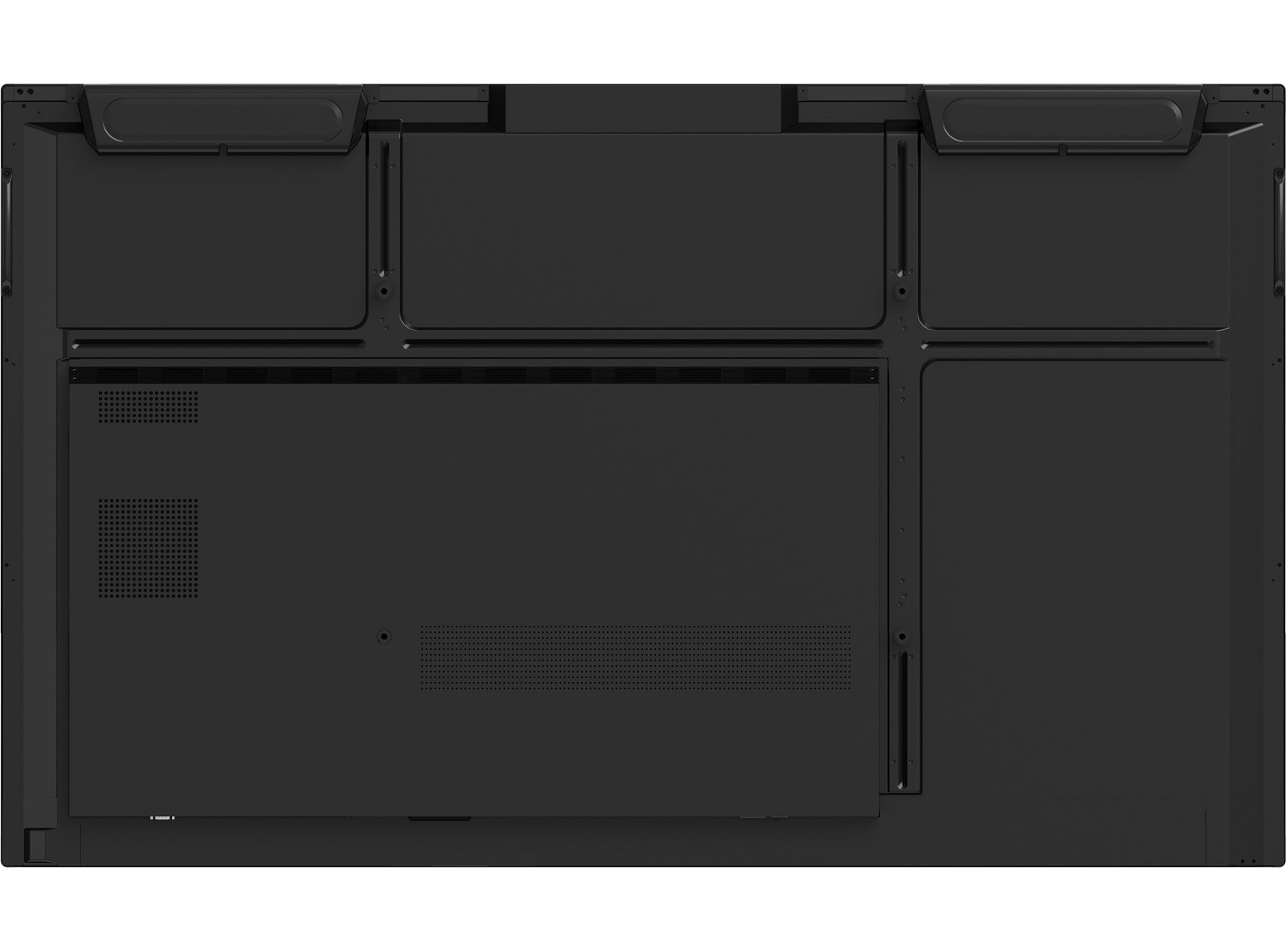

VESA mounting 600 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

 ACCESSORIES INCLUDED

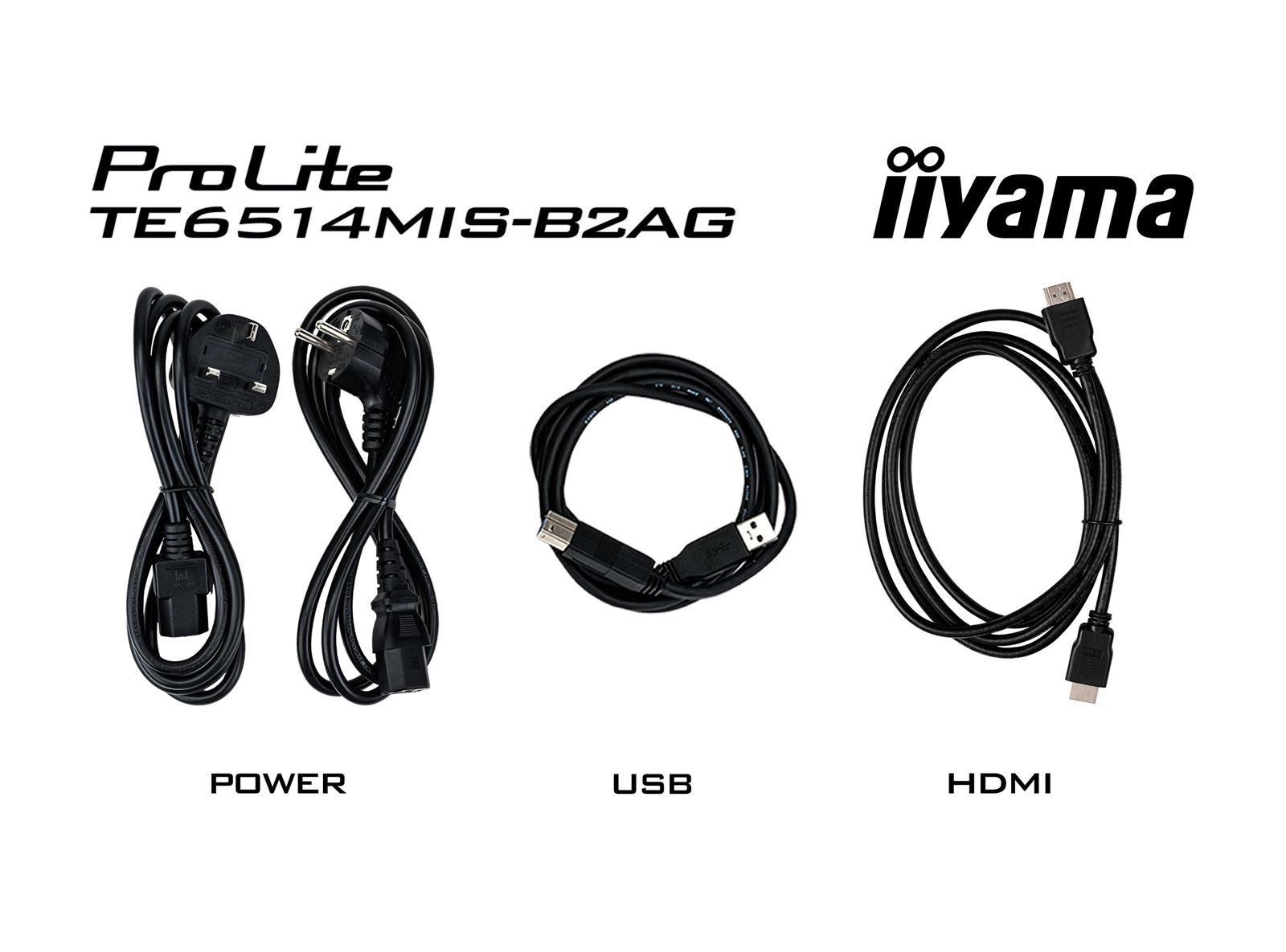

Cables power, USB, HDMI

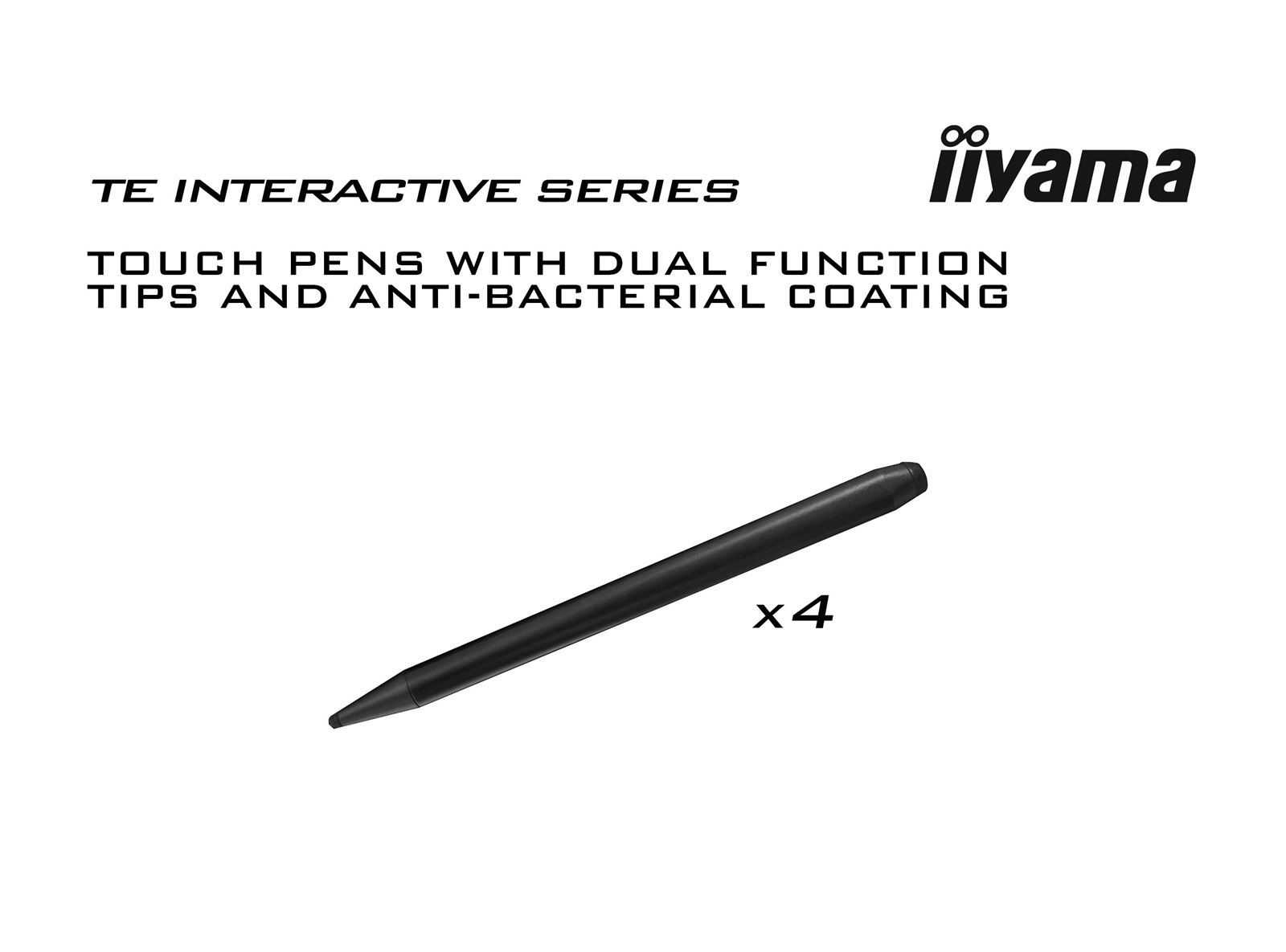

Touch pen x4 (Dual function tips, Anti-bacterial)
Guides quick start guide, safety guide

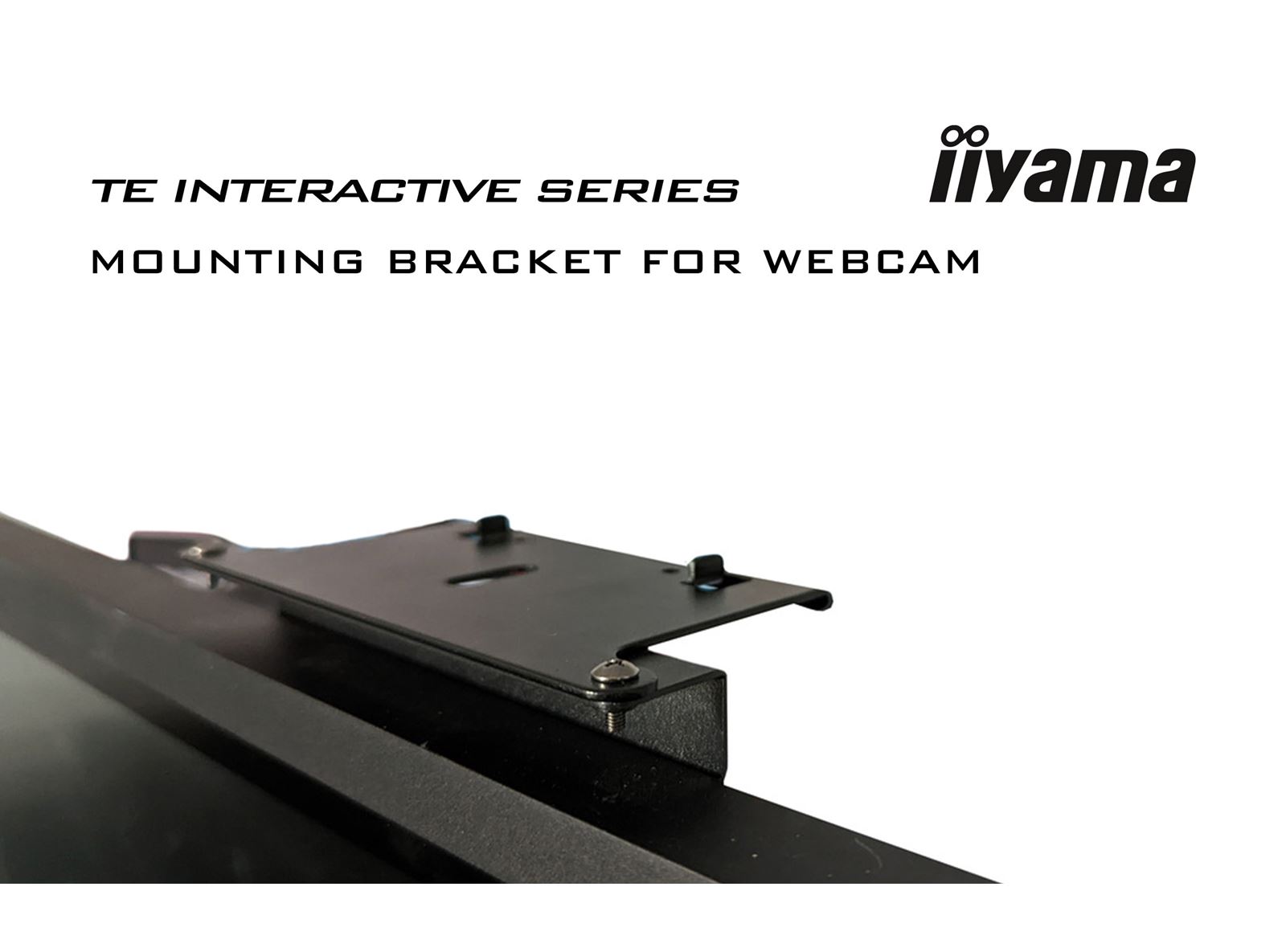

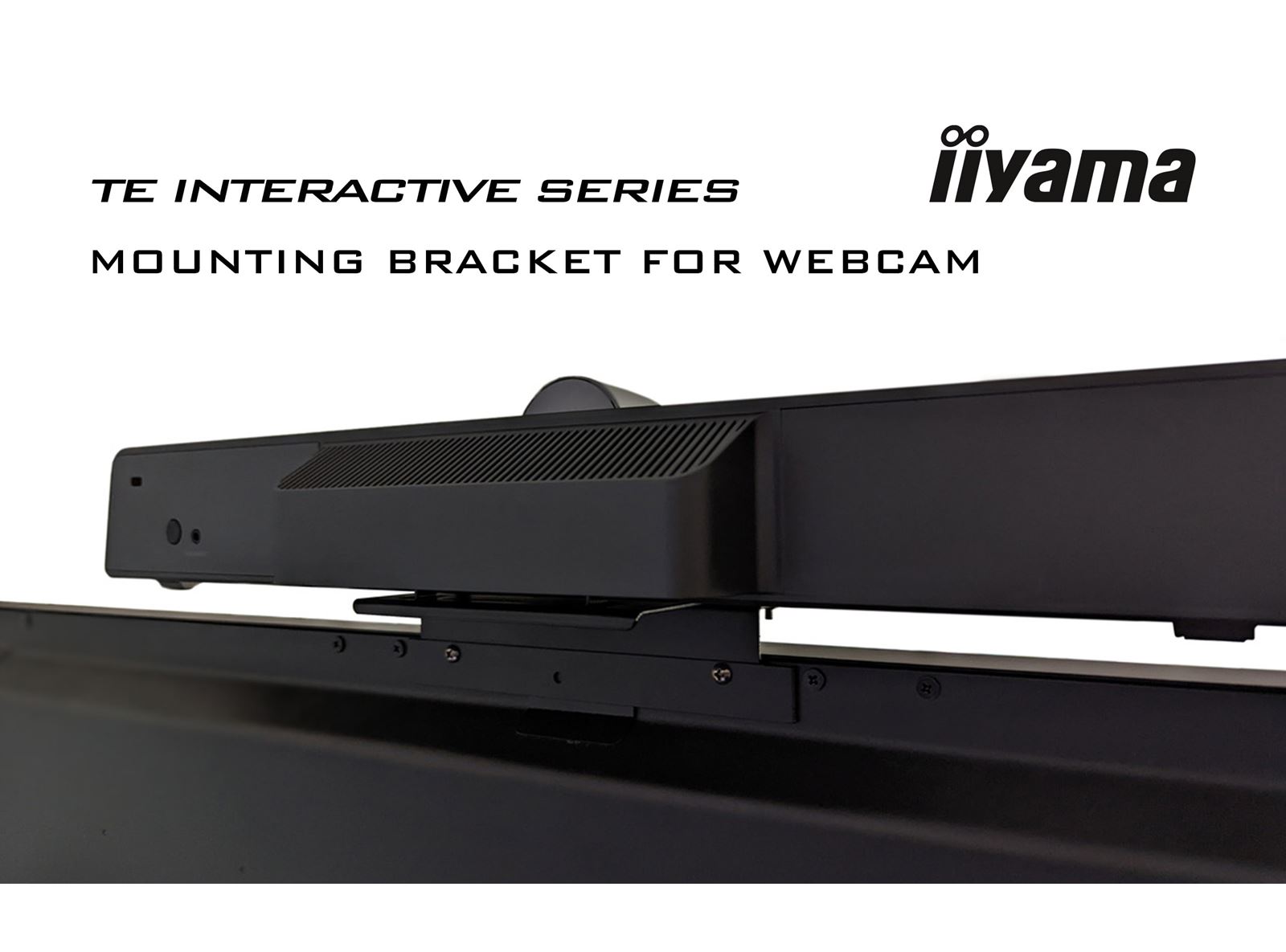

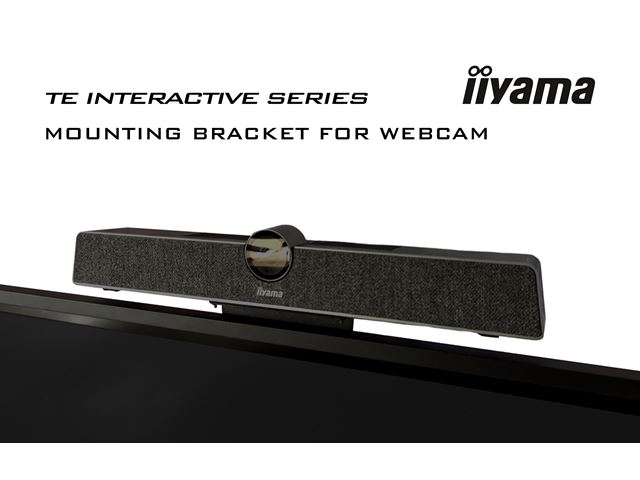

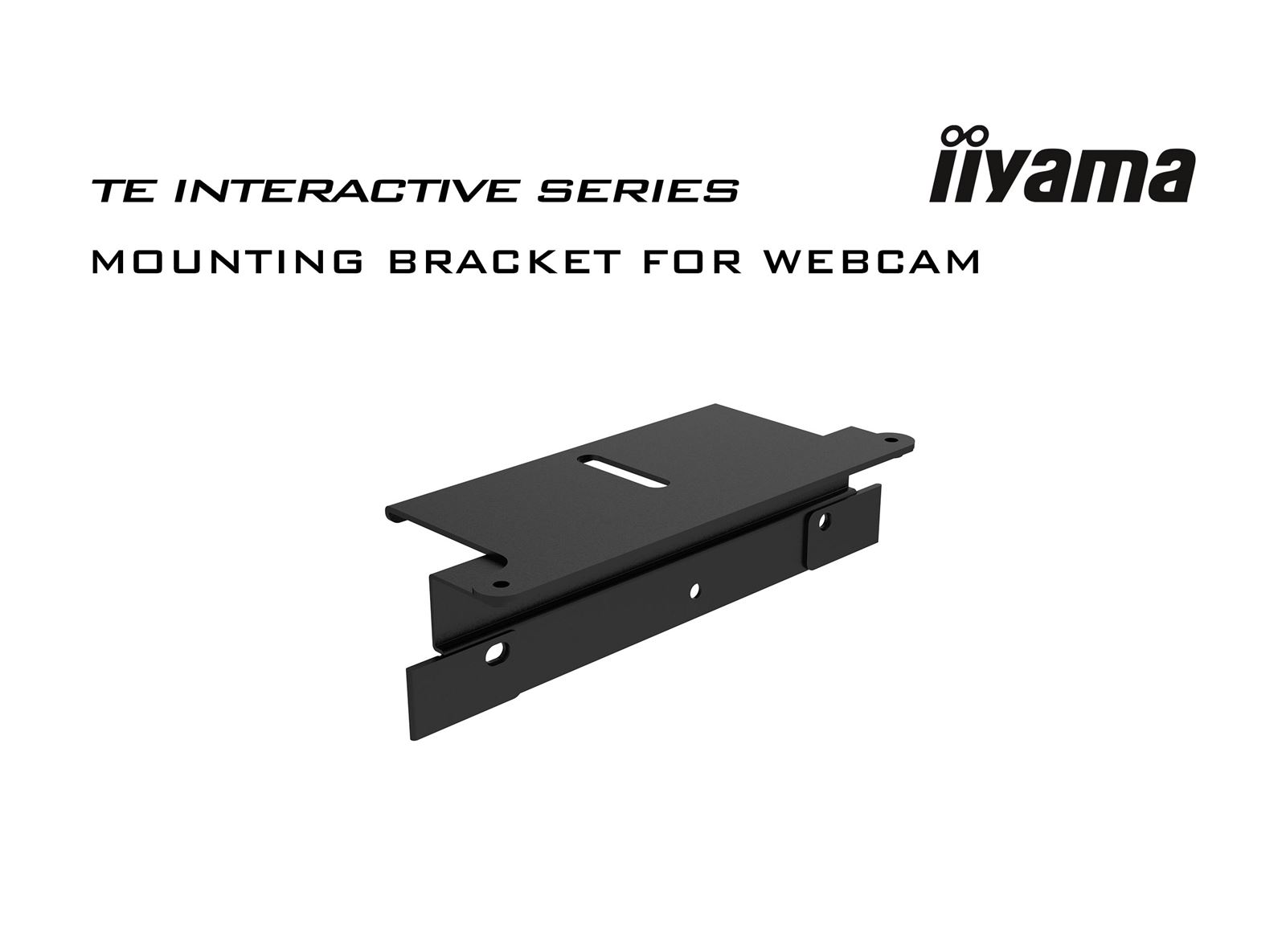

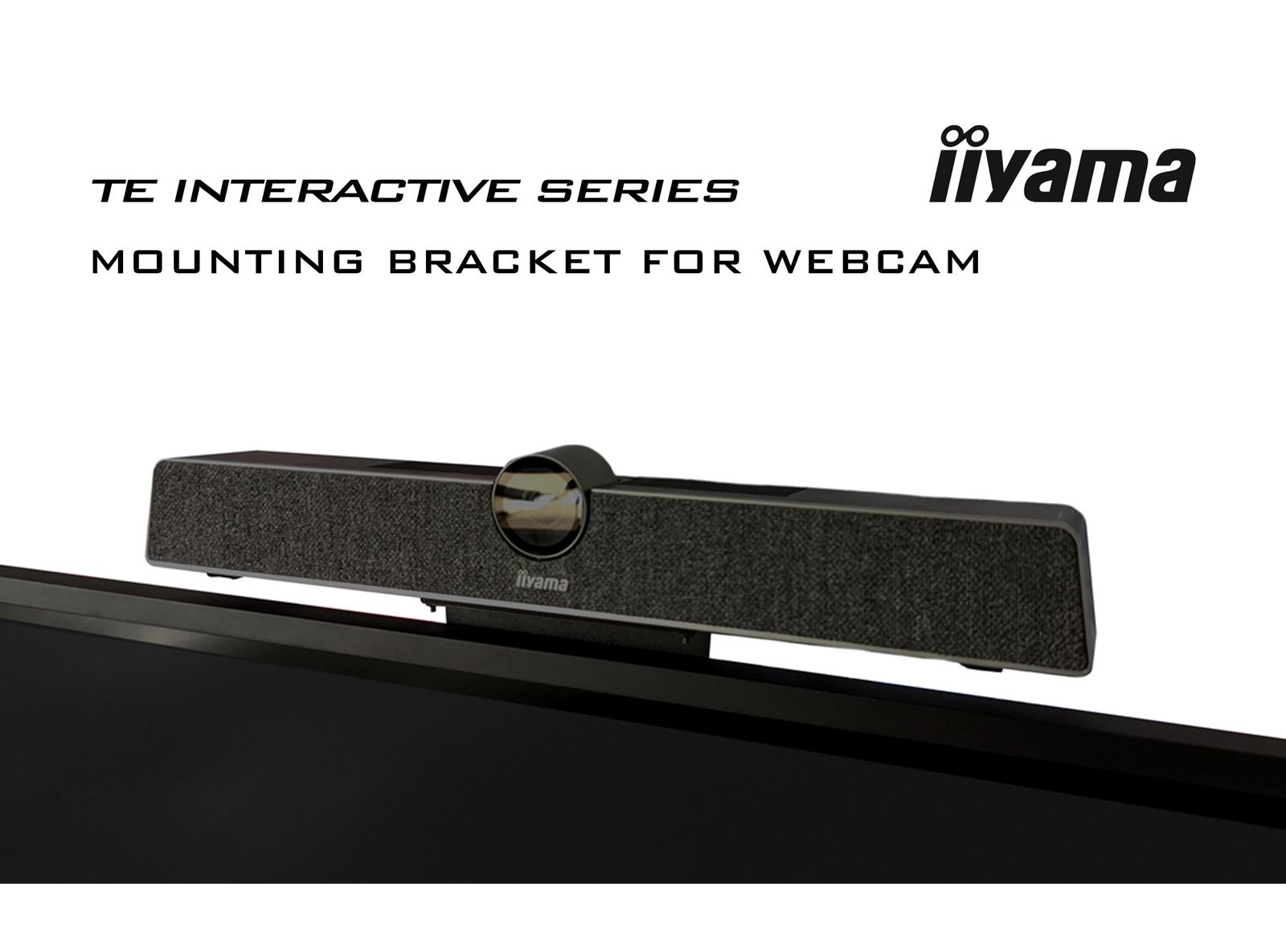

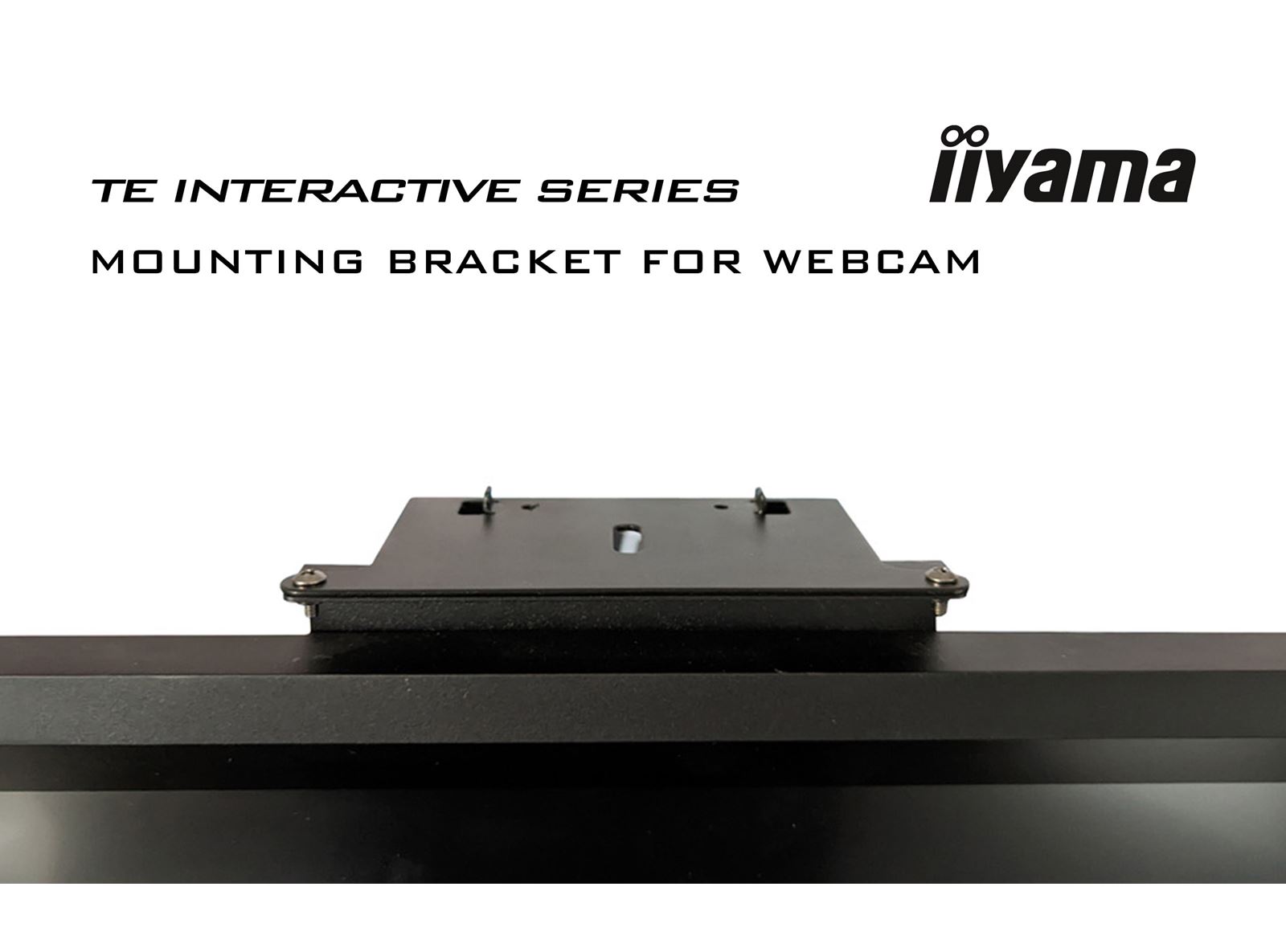

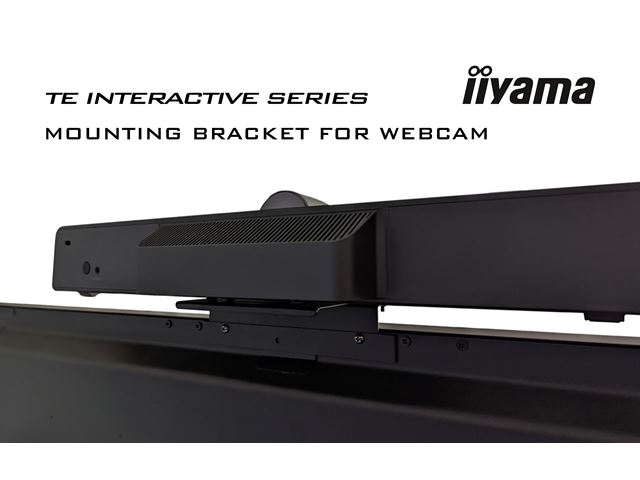

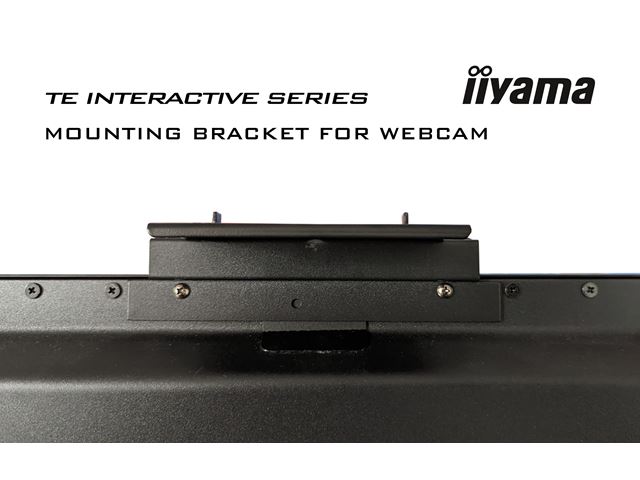

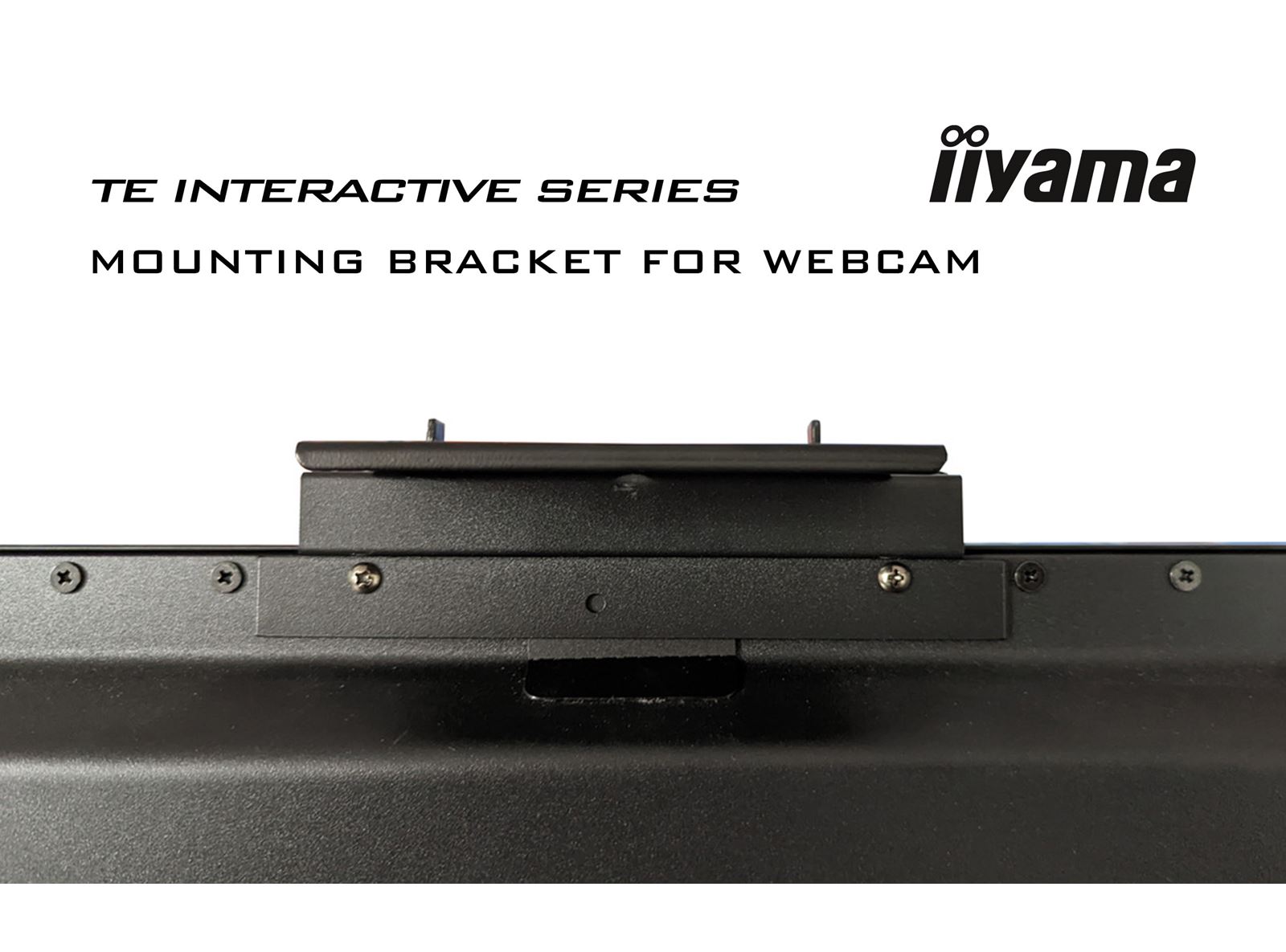

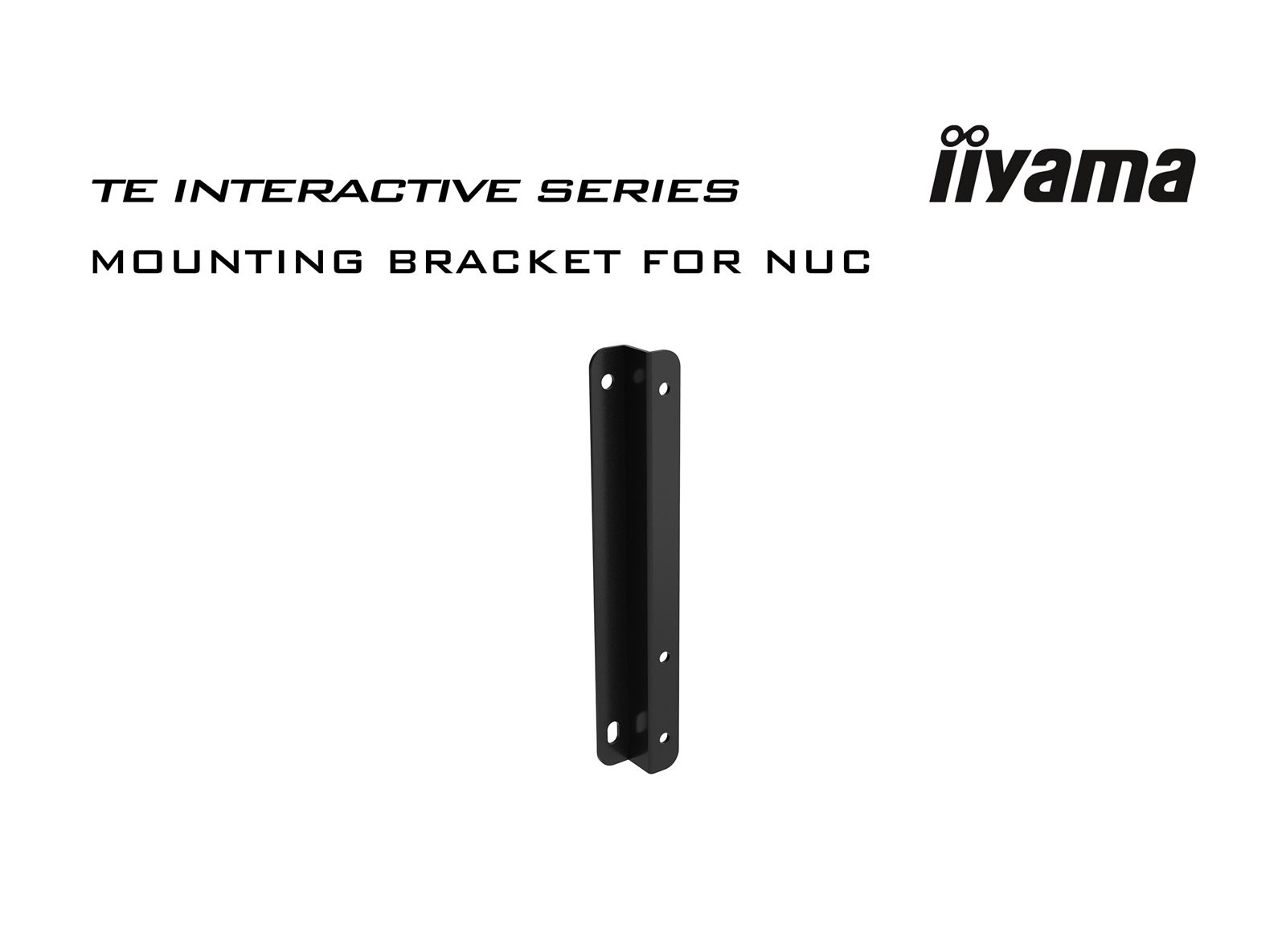

Other WiFi 6 Module (OWM002), Mounting bracket for NUC, Mounting bracket for webcam
Remote control yes (batteries included)

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 150W typical, 0.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 1488 x 908 x 86mm
Box dimensions W x H x D 1628 x 1005 x 208mm
Weight (without box) 39kg
Weight (with box) 48.3kg
EAN code 4948570124022
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

IISIGNAGE

With iiSignage, you can easily create, publish and manage your own digital signage content on any iiyama 40-series display from a desktop PC in the same network. Use rich content like video’s and widgets to create highly impactful advertising in minutes and schedule your content across multiple displays to best match your customers' behavior.

IISIGNAGE

OPS PC SLOT

Built-in expansion slot supports the Open Pluggable Specification (OPS) standard; it simplifies the installation of a plug-in PC for digital signage applications.



OPS PC SLOT

ULTRA SLIM LINE

ULTRA SLIM LINE

24/7

24/7 displays are designed for a continuous operation.



24/7

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

VA MATRIX

VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


VA MATRIX

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS

Media player LFD

Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

Media player LFD
