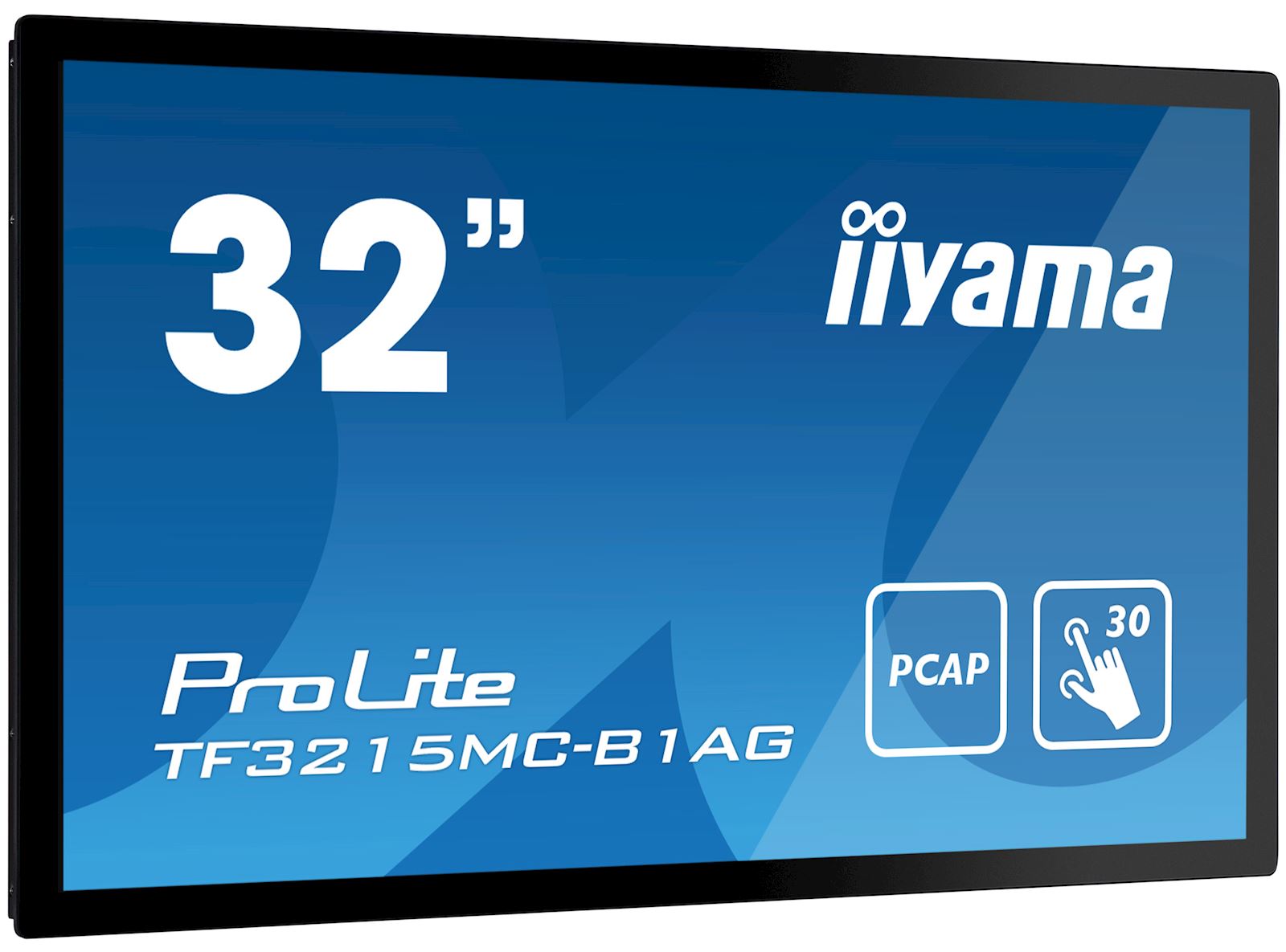

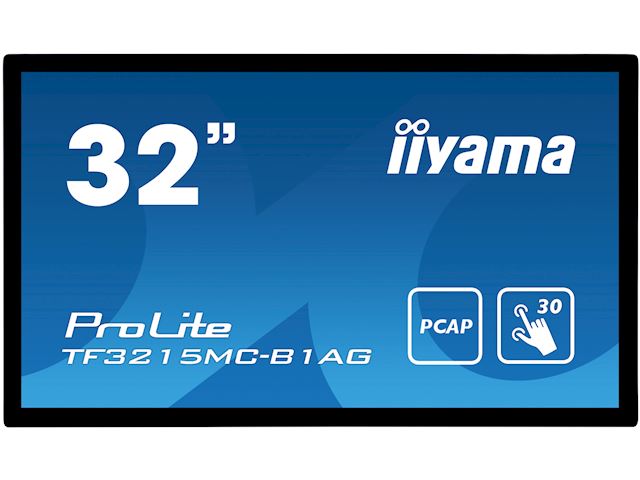

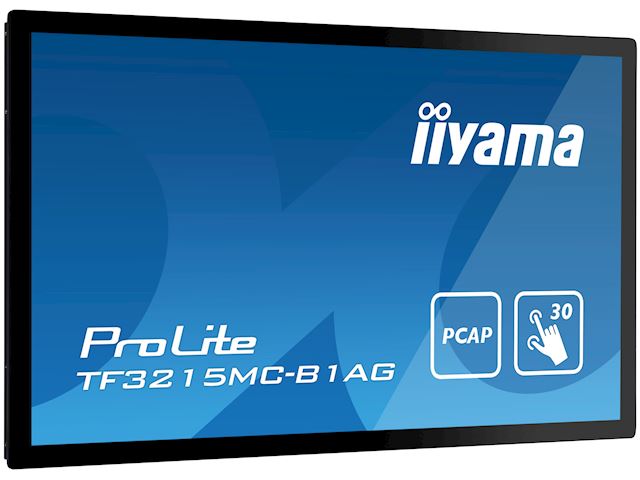

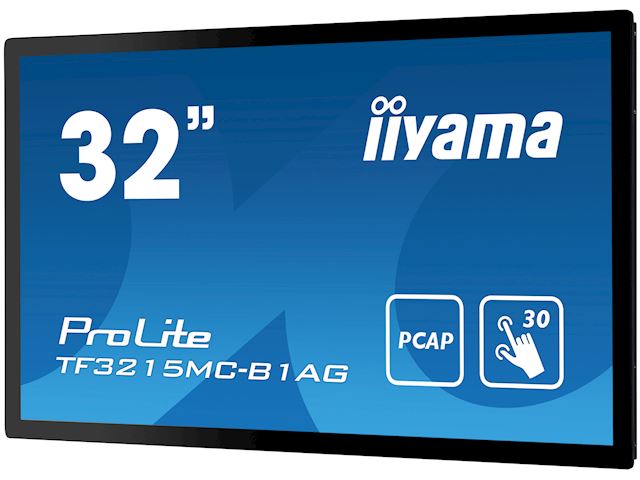

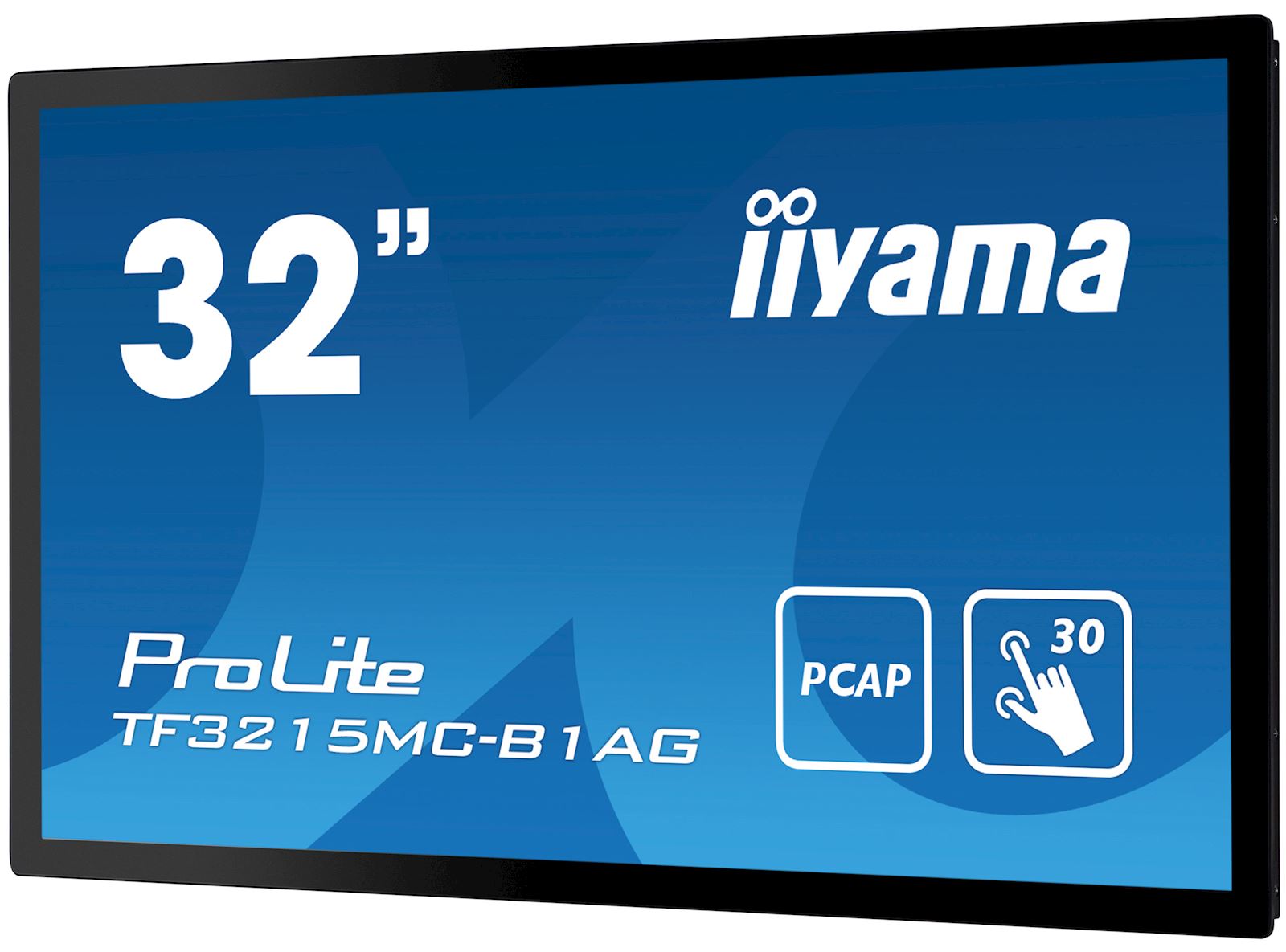

iiyama ProLite monitor TF3215MC-B1AG 31.5", AMVA3, Full HD, Open Frame, Projective Capacitive, 30pt touch screen, AG coating, VGA/HDMI

£678.70 exc. VAT
£814.44 inc. VAT

Brand: iiyama

Manufacturer Code: TF3215MC-B1AG

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

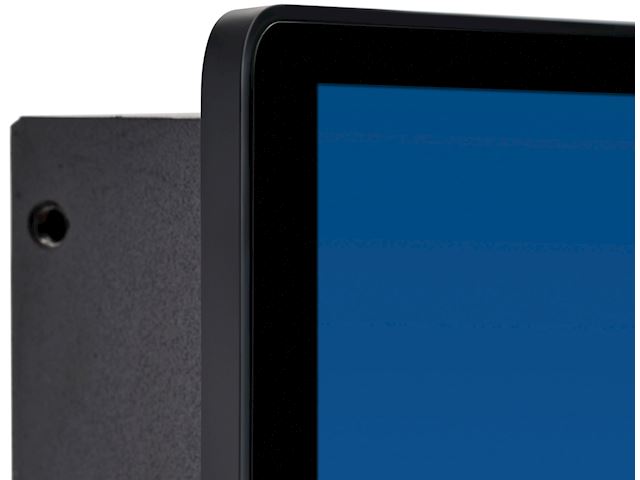

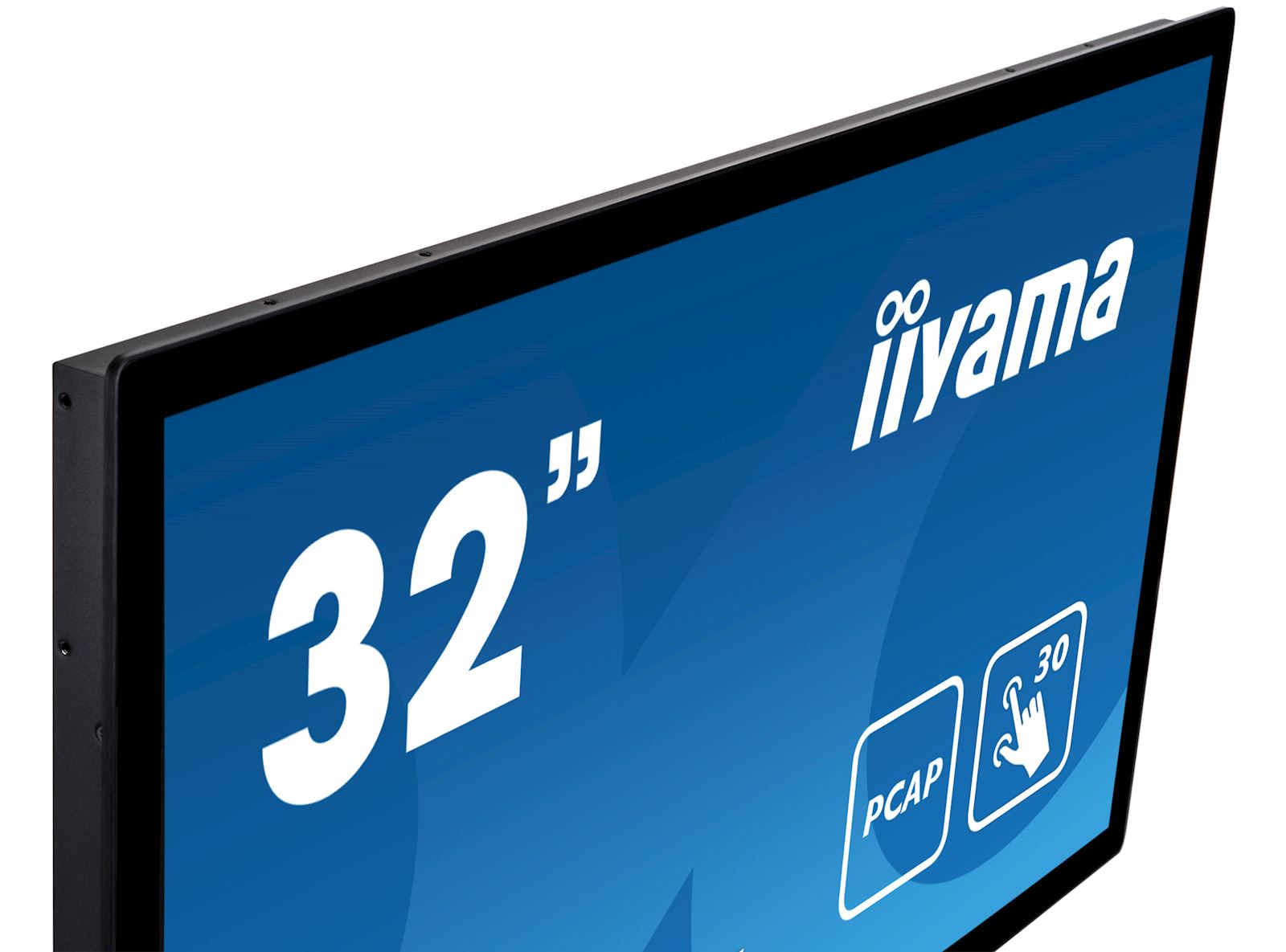

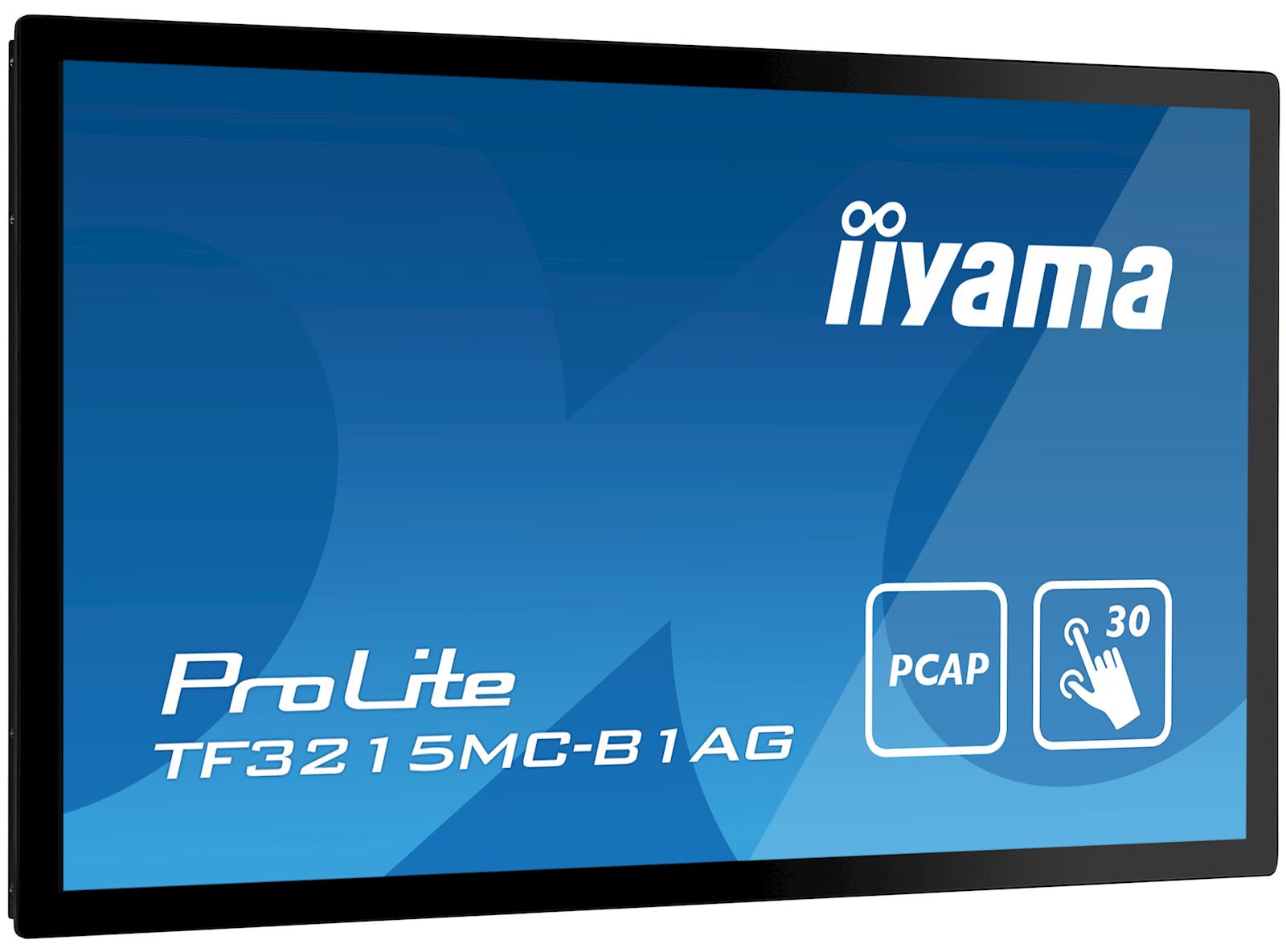

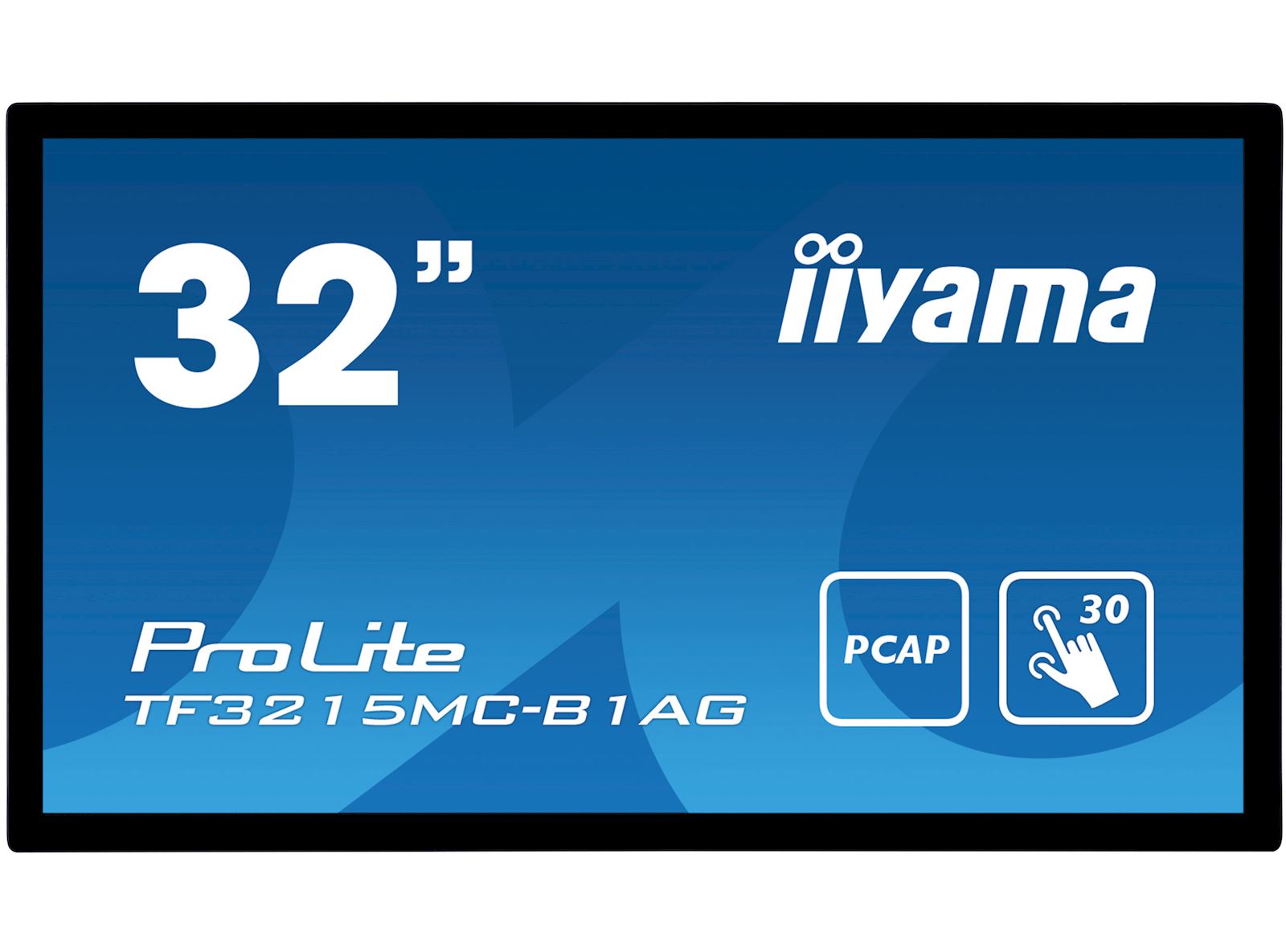

The ProLite TF3215MC-B1AG (31.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B1AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Technical Information

DISPLAY CHARACTERISTICS

Design Open Frame
Diagonal 31.5", 80cm
Panel AMVA3 LED, Anti-glare coating
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Brightness 500 cd/m² typical
Brightness 425 cd/m² with touch
Static contrast 3000:1 with touch
Light transmittance 85%
Response time 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit
Horizontal Sync 30 - 68KHz
Vertical Sync 47 - 63Hz
Viewable area W x H 698.4 x 392.8mm, 27.5 x 15.5"
Pixel pitch 0.3637mm
Bezel colour and finish black
Reommended usage retail

TOUCH

Touch technology projective capacitive
Touch points 30 (HID, only with supported OS)
Touch accuracy +- 2mm
Touch method finger, glove (latex), capacitive stylus
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm

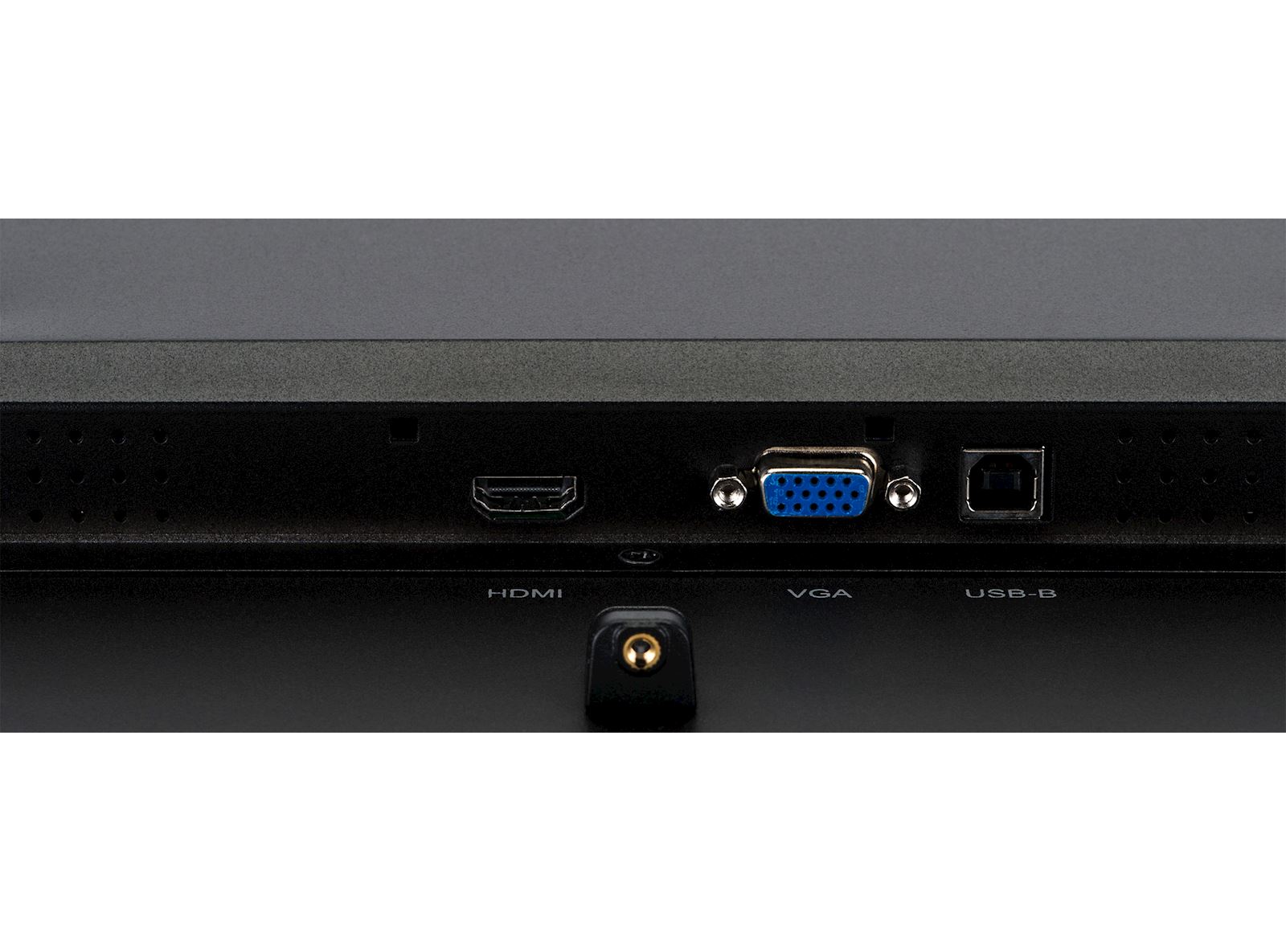

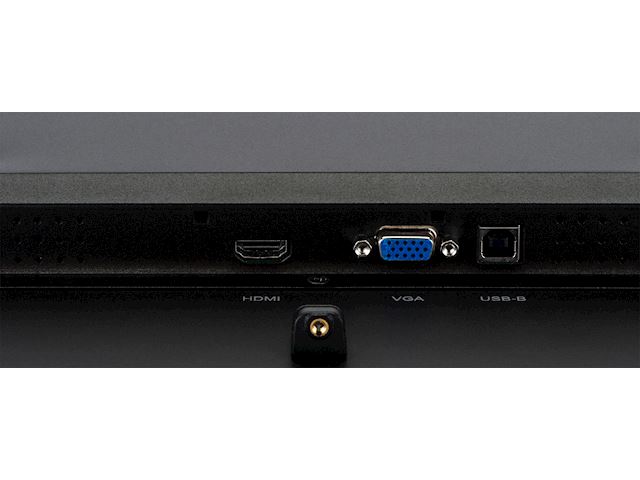

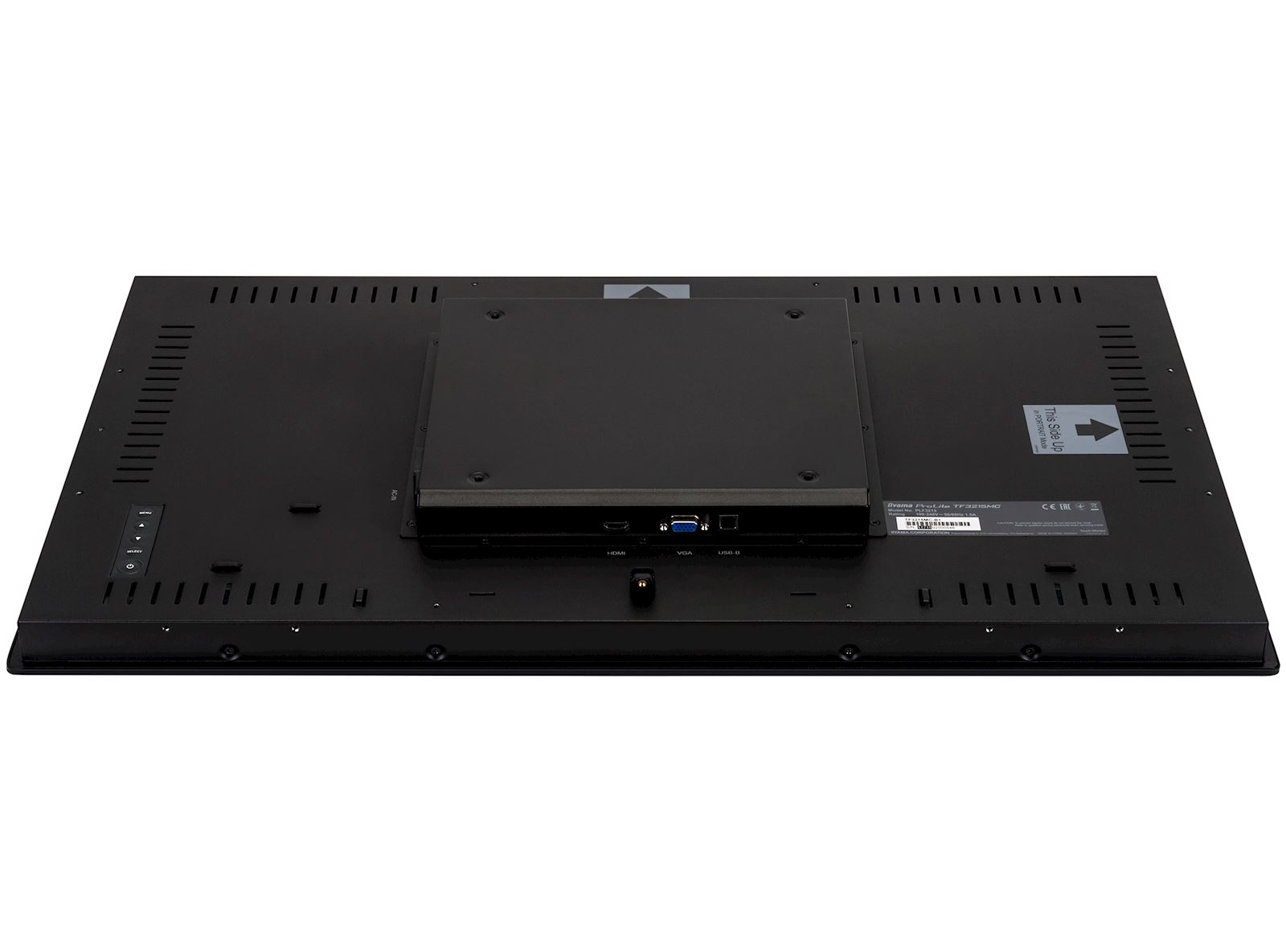

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
HDCP yes

FEATURES

Kiosk mode yes
Max. non-stop operating time 24/7
Glass thickness 3mm
Glass hardness 7H
60950 Ball drop test yes
Impact testing IK-7
Water and dust protection IP65 (front)
Housing (bezel) metal
Water tight seal yes
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls contrast, brightness, auto adjust, H.position, V.position, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, sharpness, touch switch (normal, glove, through-glass)
Plug&Play DDC2B

MECHANICAL

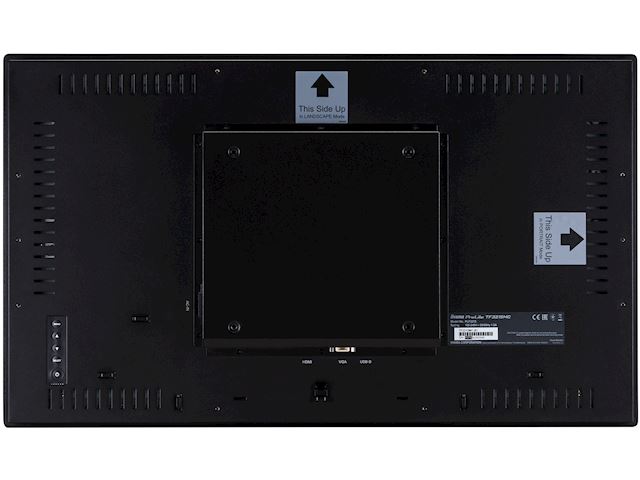

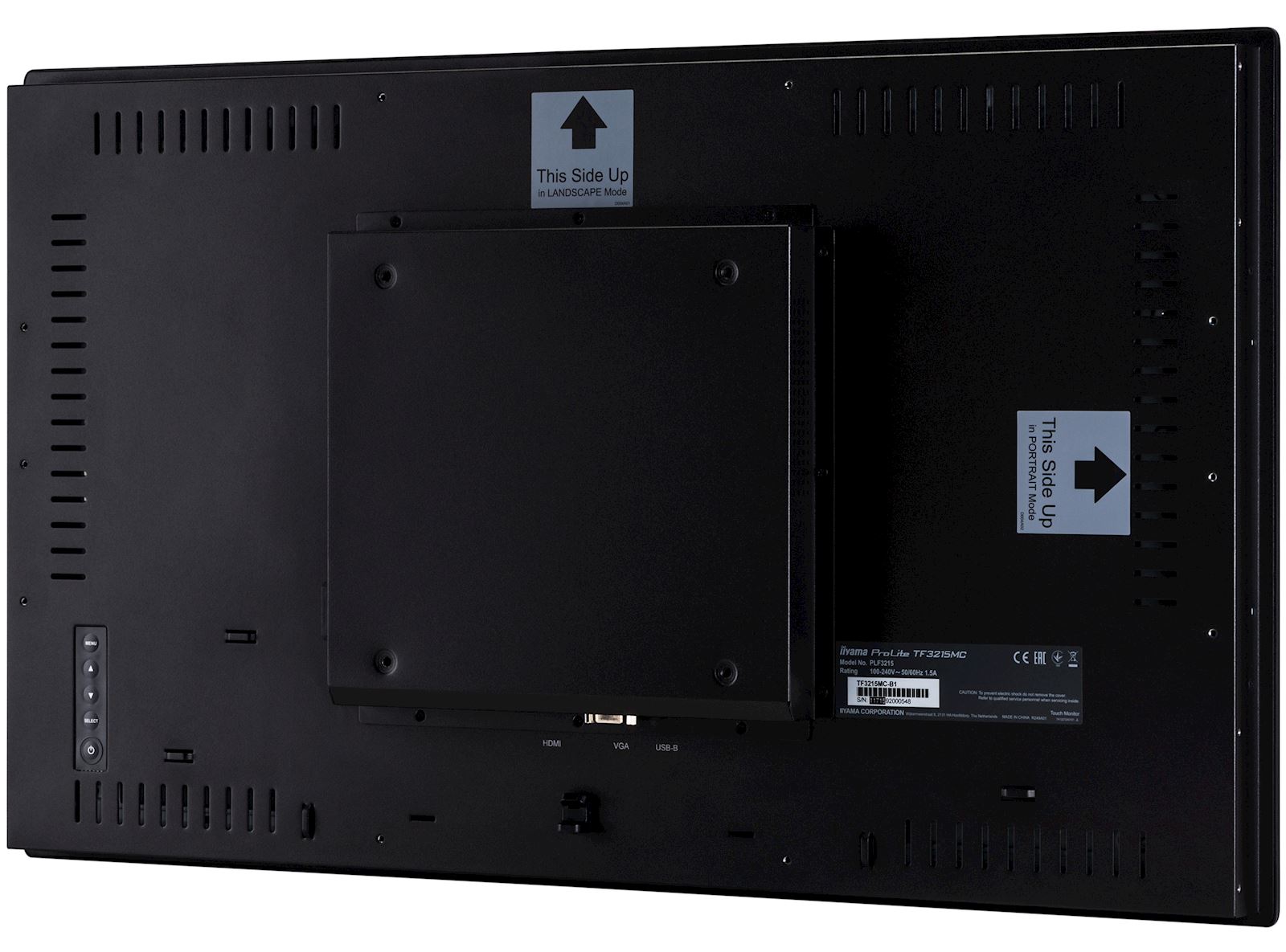

Orientation landscape, portrait
Fanless design yes

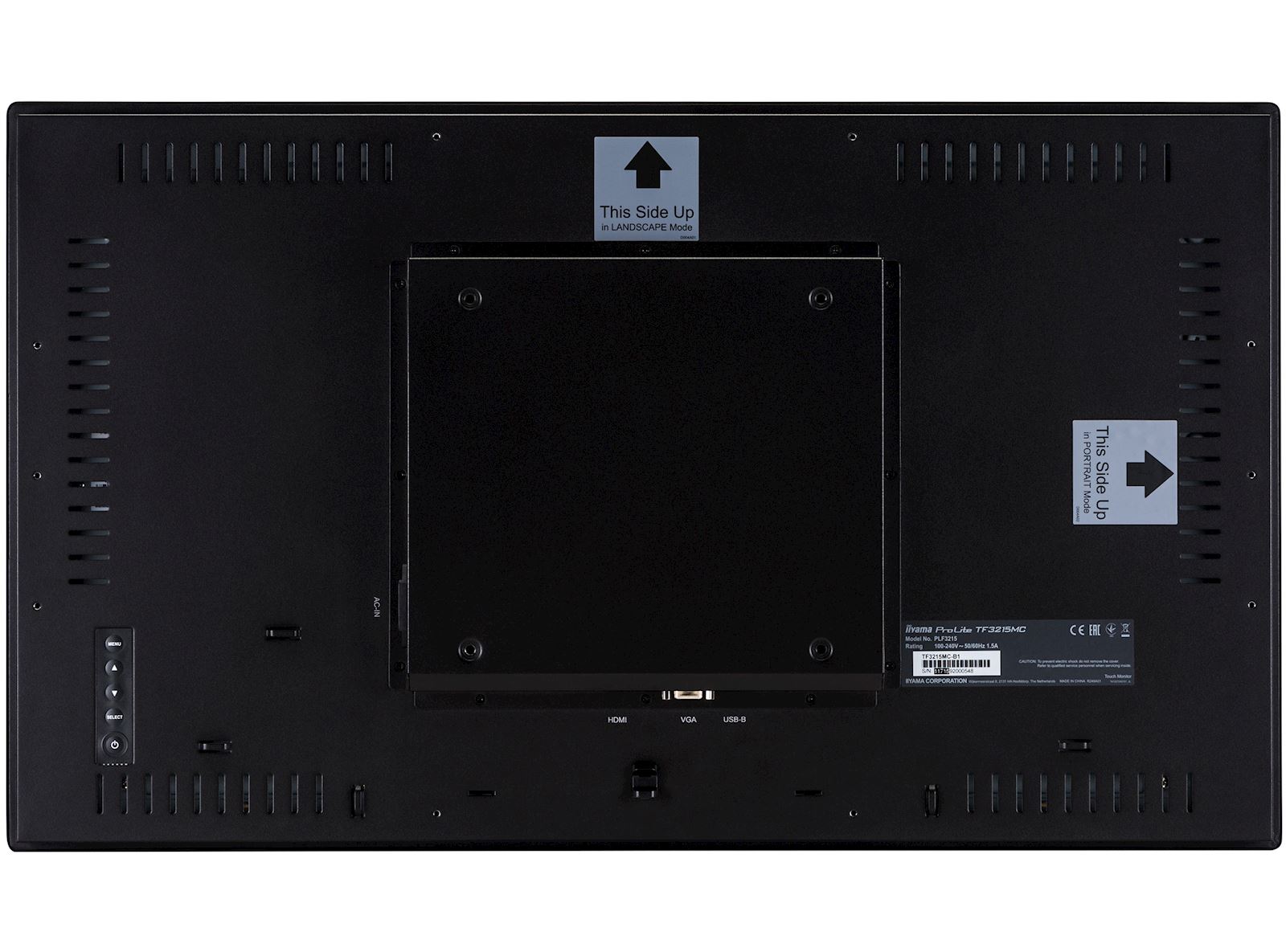

VESA mounting 200 x 200mm

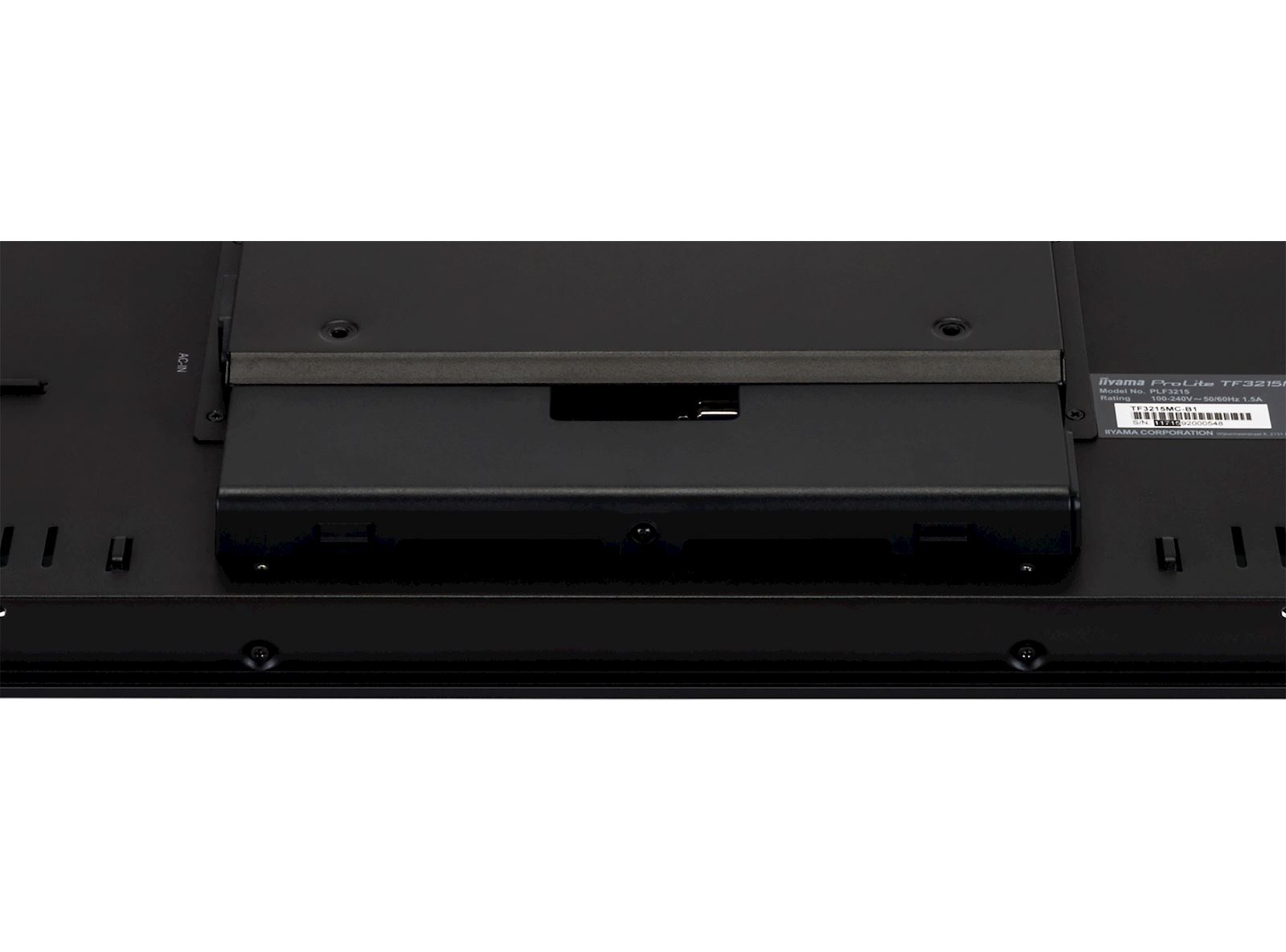

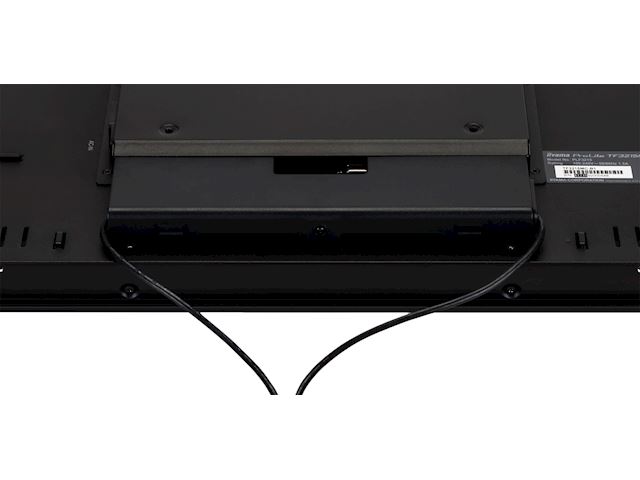

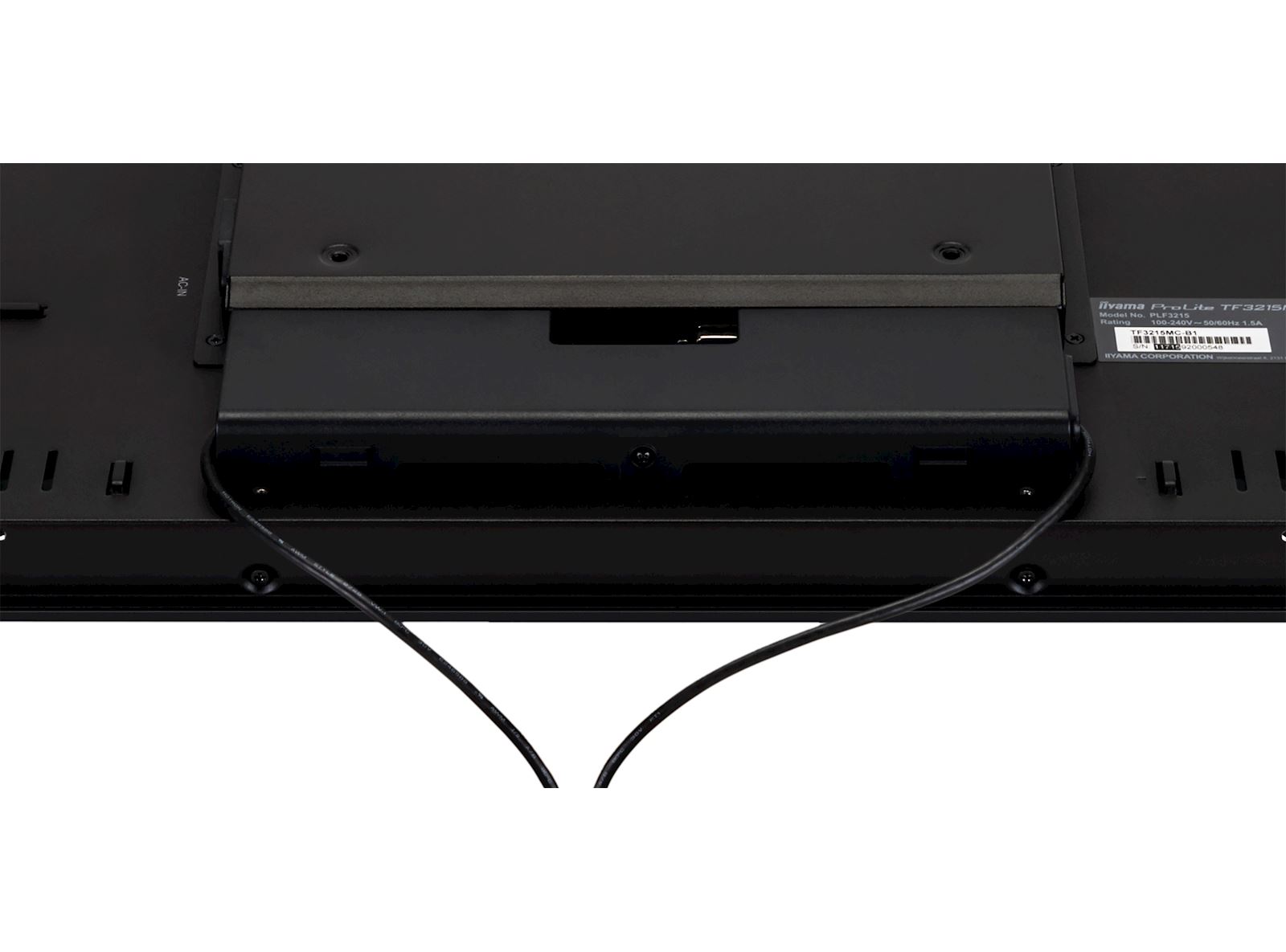

Cable management system cable cover
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50000 hours

ACCESSORIES INCLUDED

Cables power, USB, HDMI
Guides quick start guide, safety guide
Other Touch Panel Driver Disk (CD-ROM)
Cable cover yes

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 43W typical, 2W stand by

SUSTAINABILITY

Regulations CB, CE, CU
Other REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

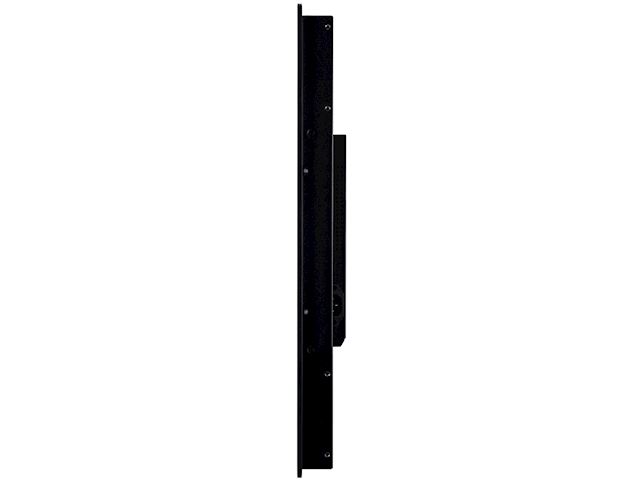

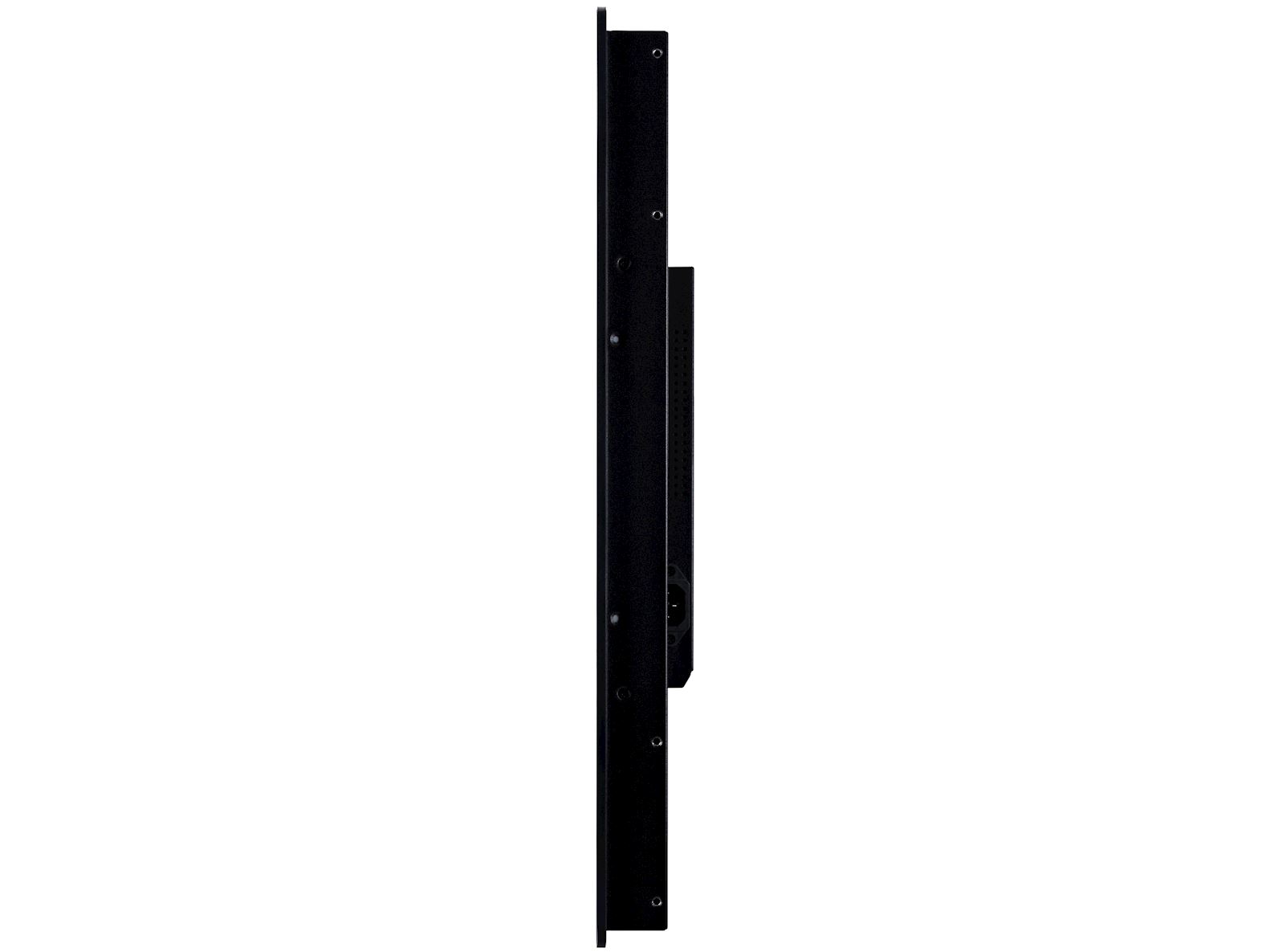

Product dimensions W x H x D 739.5 x 434 x 61mm
Box dimensions W x H x D 890 x 630 x 155mm
Pallet volume 21pcs
Pallet dimensions W x H x D 1000 x 2040 x 1200mm
Weight (without box) 10.3kg
Weight (with box) 12.85kg
EAN code 4948570117161
Product country origin China
Features

24/7

24/7 displays are designed for a continuous operation.



24/7

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

OPEN FRAME LFD

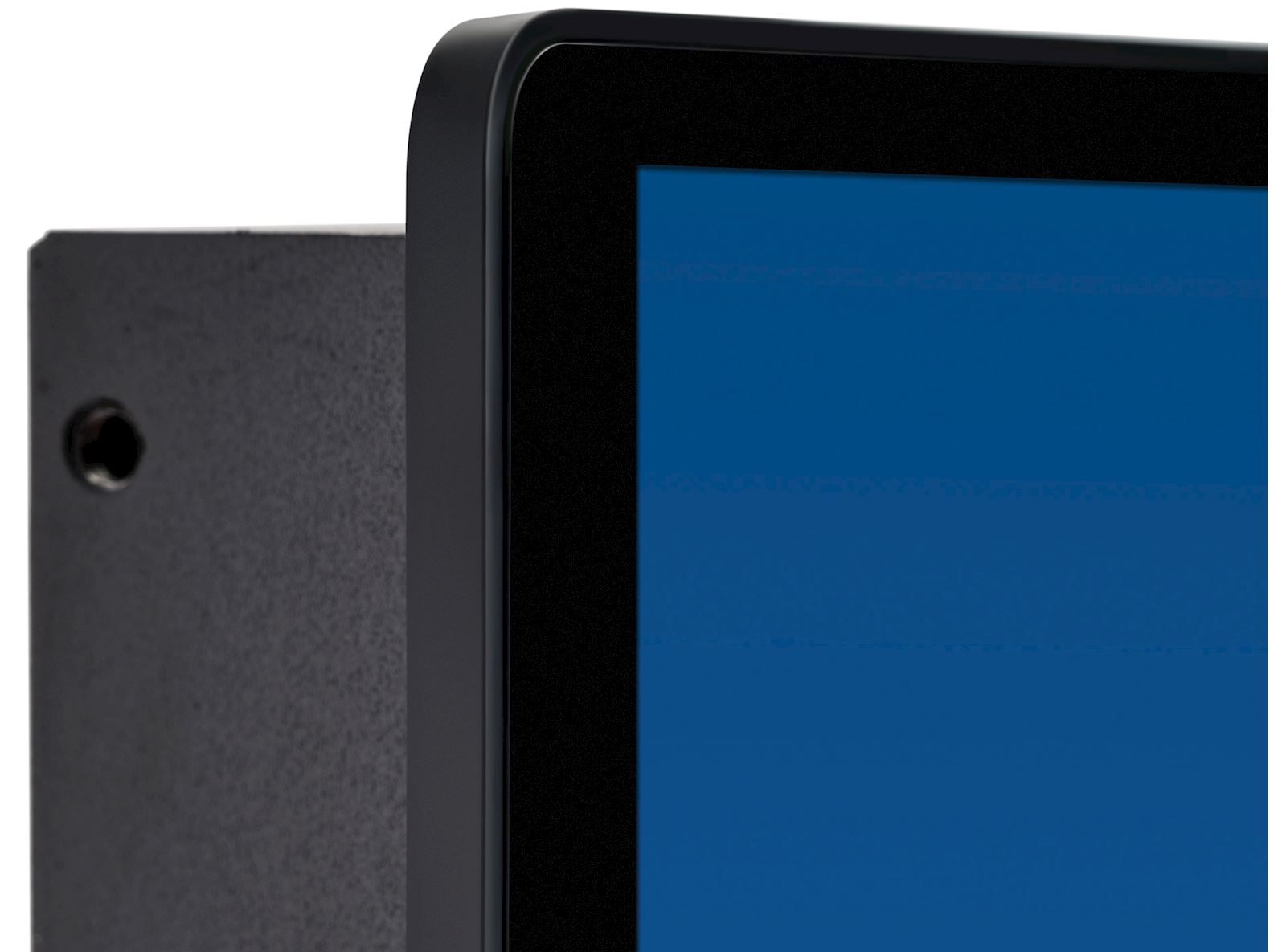

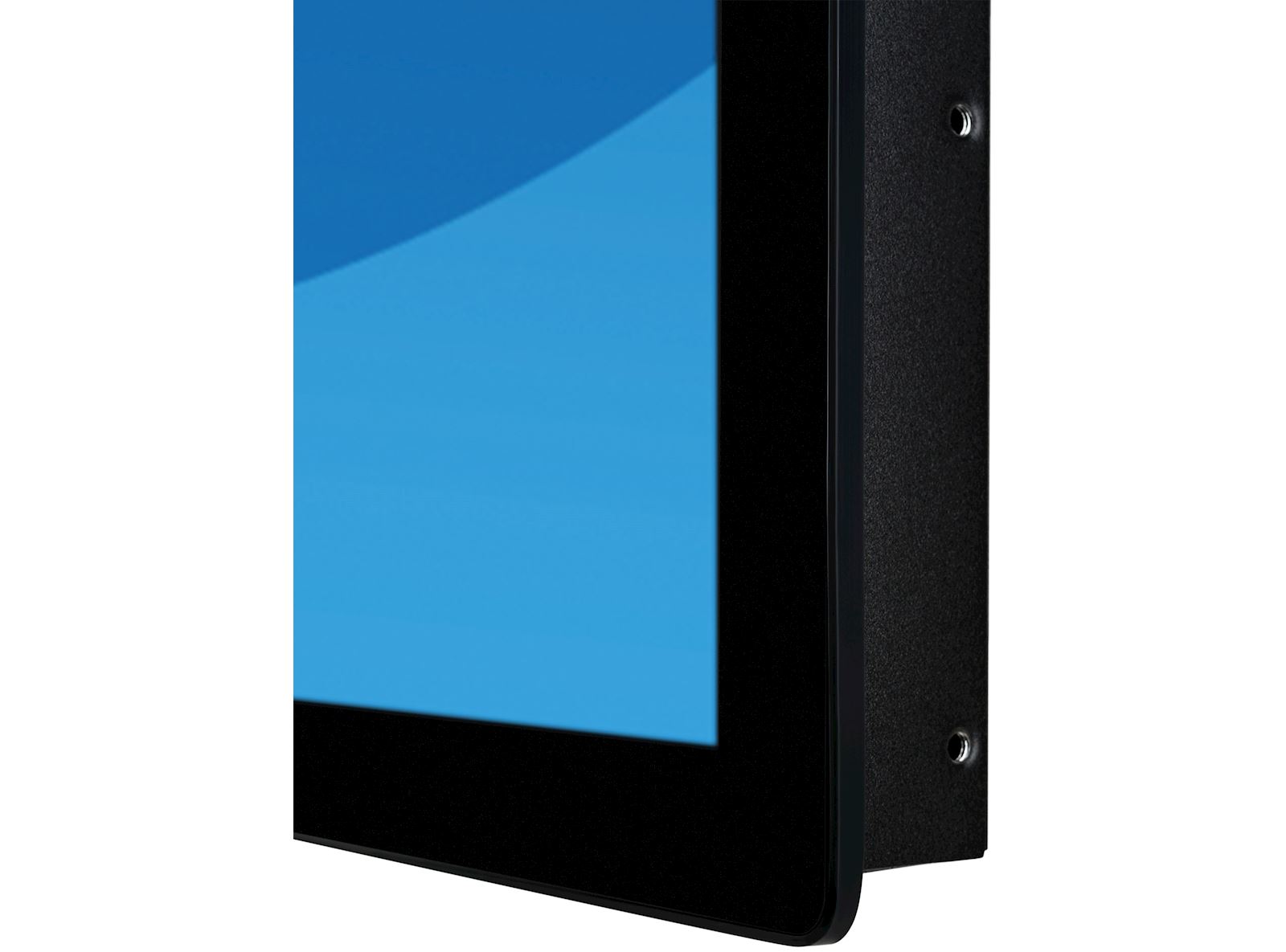

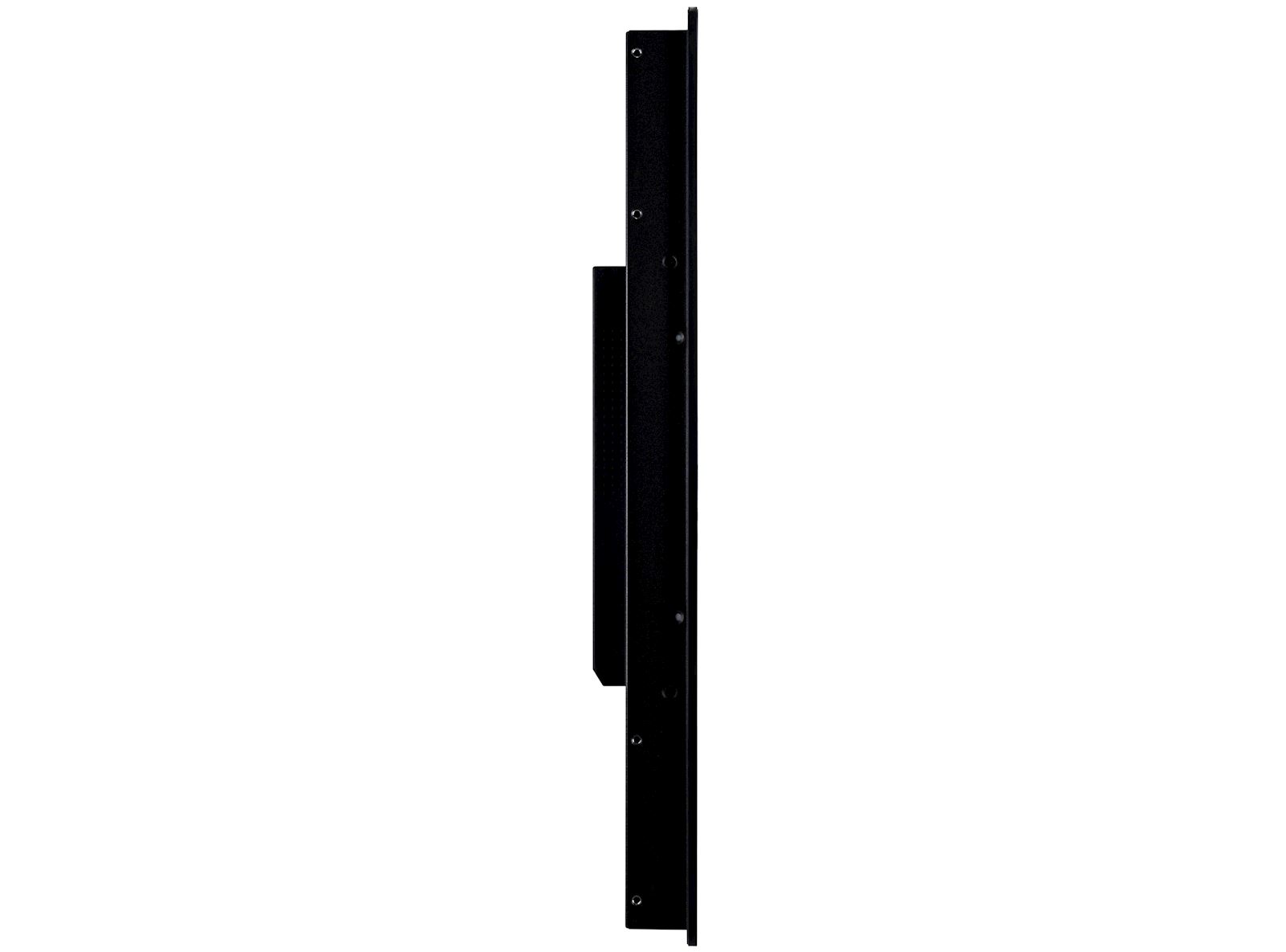

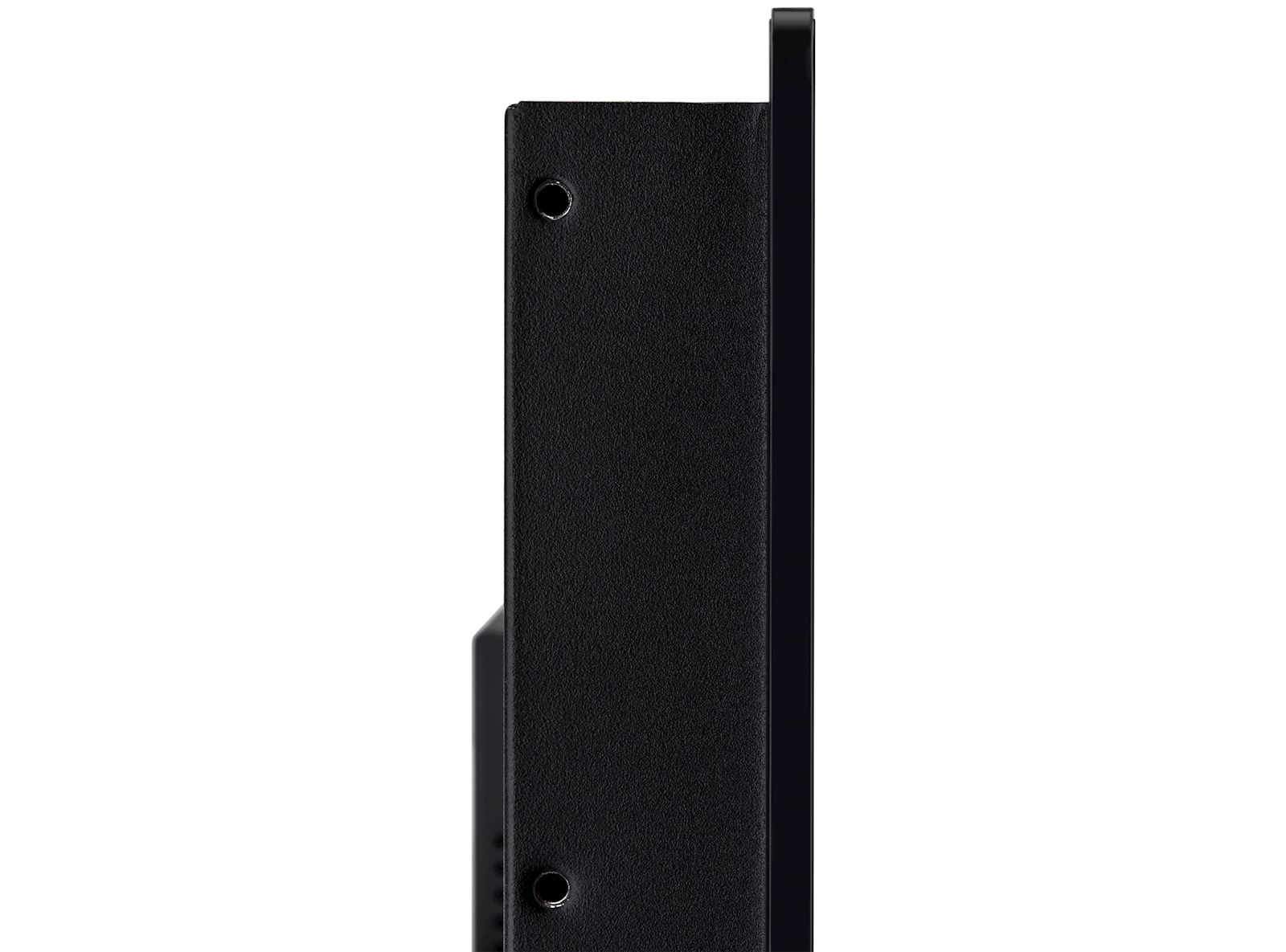

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.

OPEN FRAME LFD
Downloads
  • product downloads manuals
    ProLite TF3215MC-B1AG User Manual
  • product downloads pdf
    ProLite TF3215MC-B1AG Product Infomation
