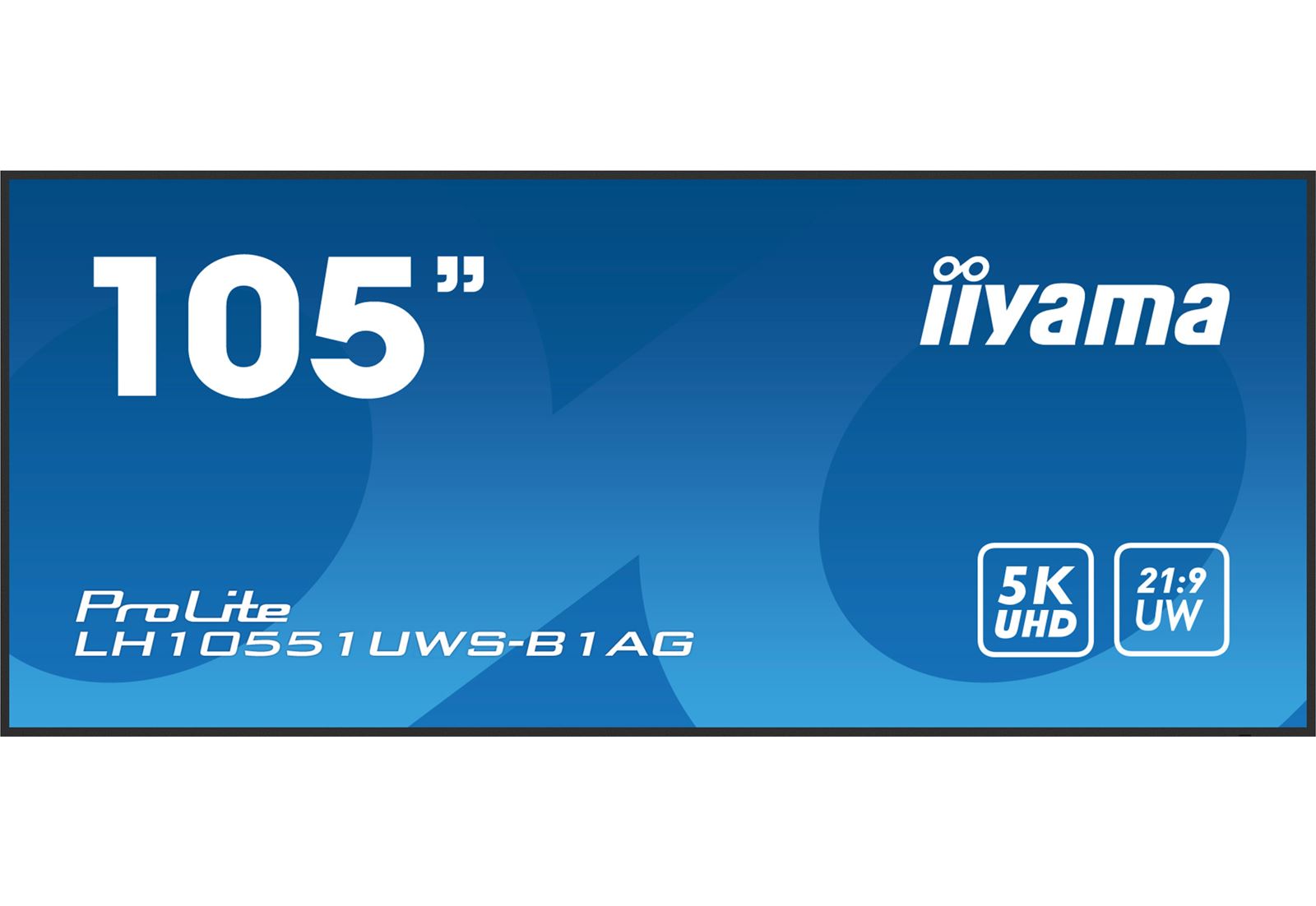

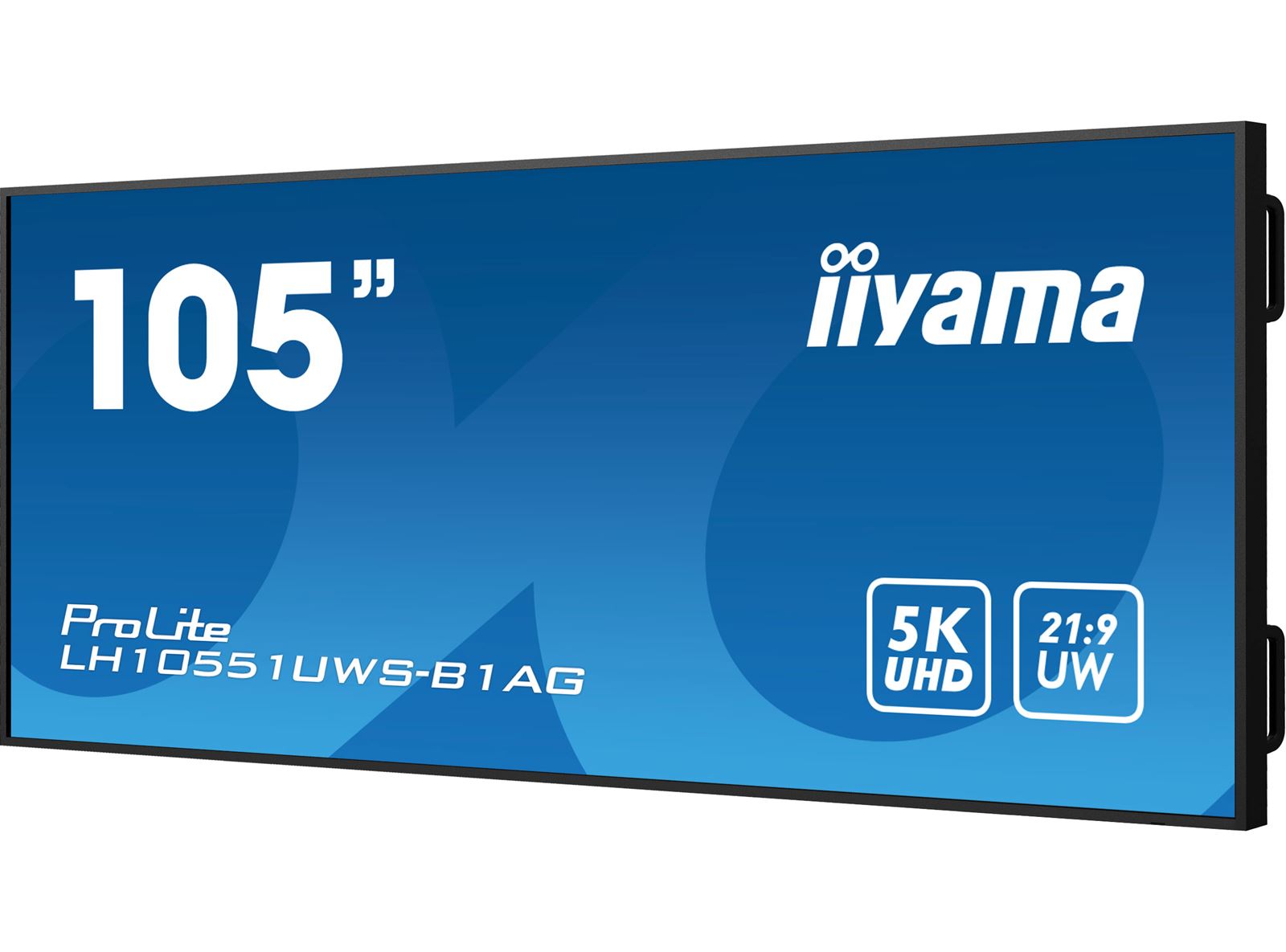

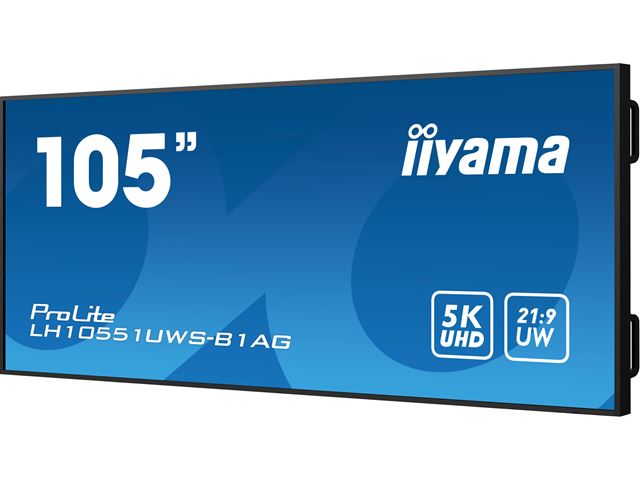

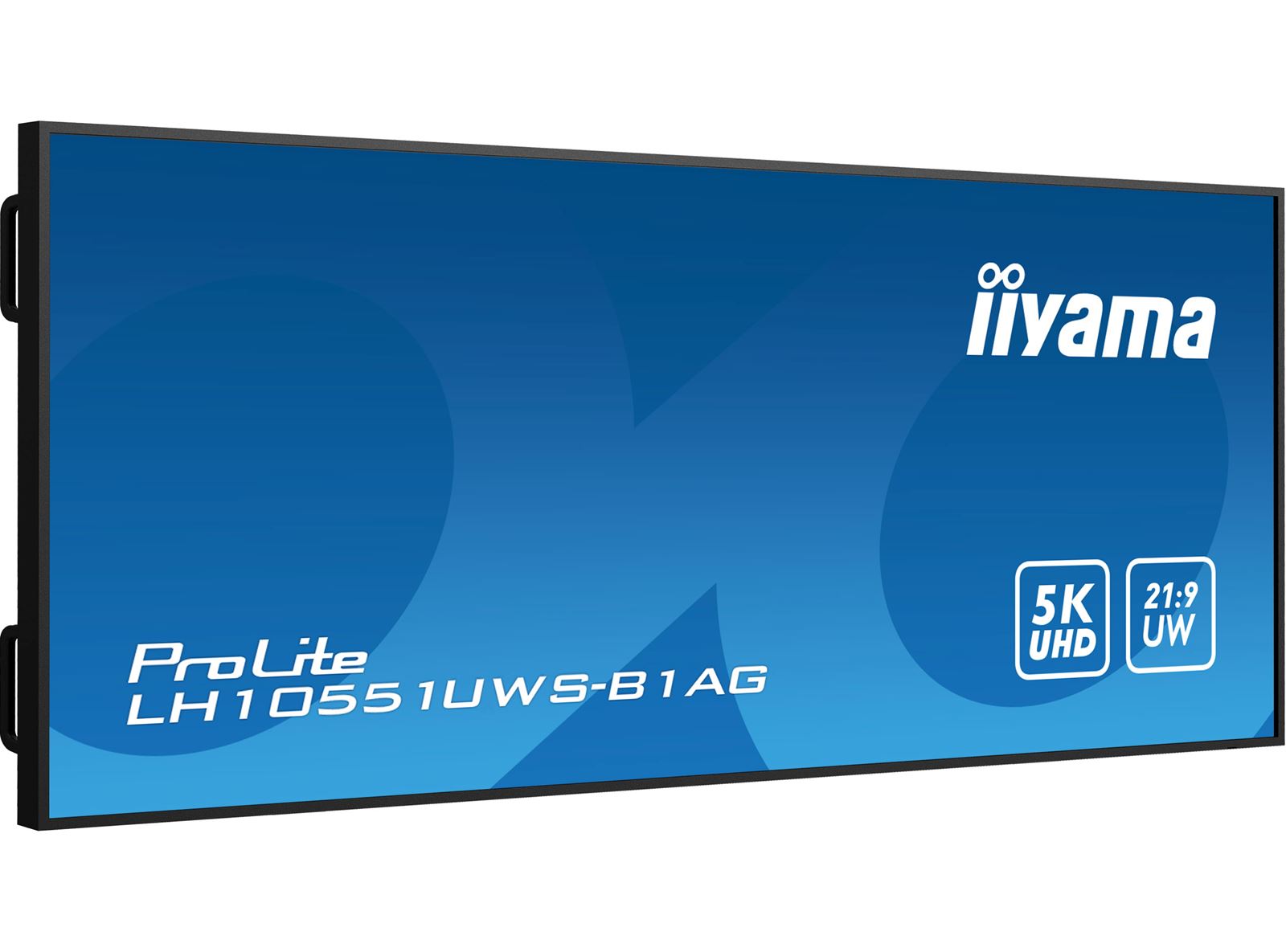

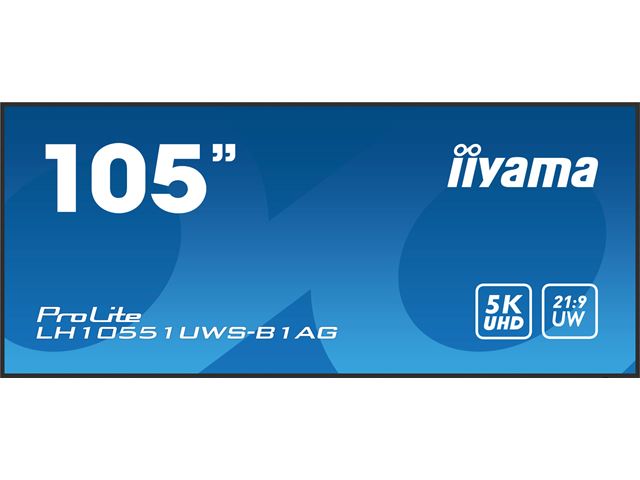

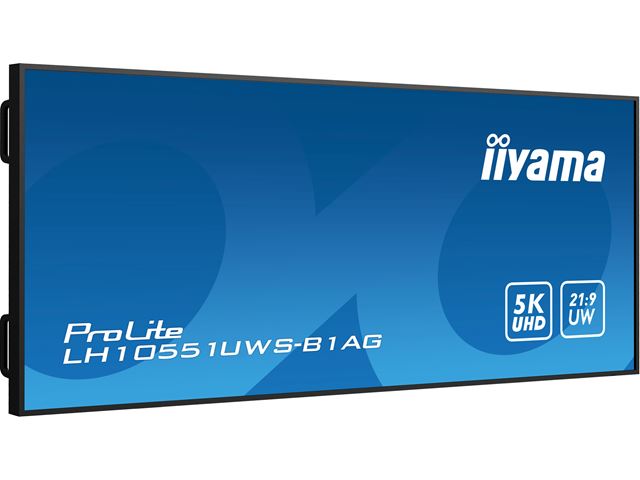

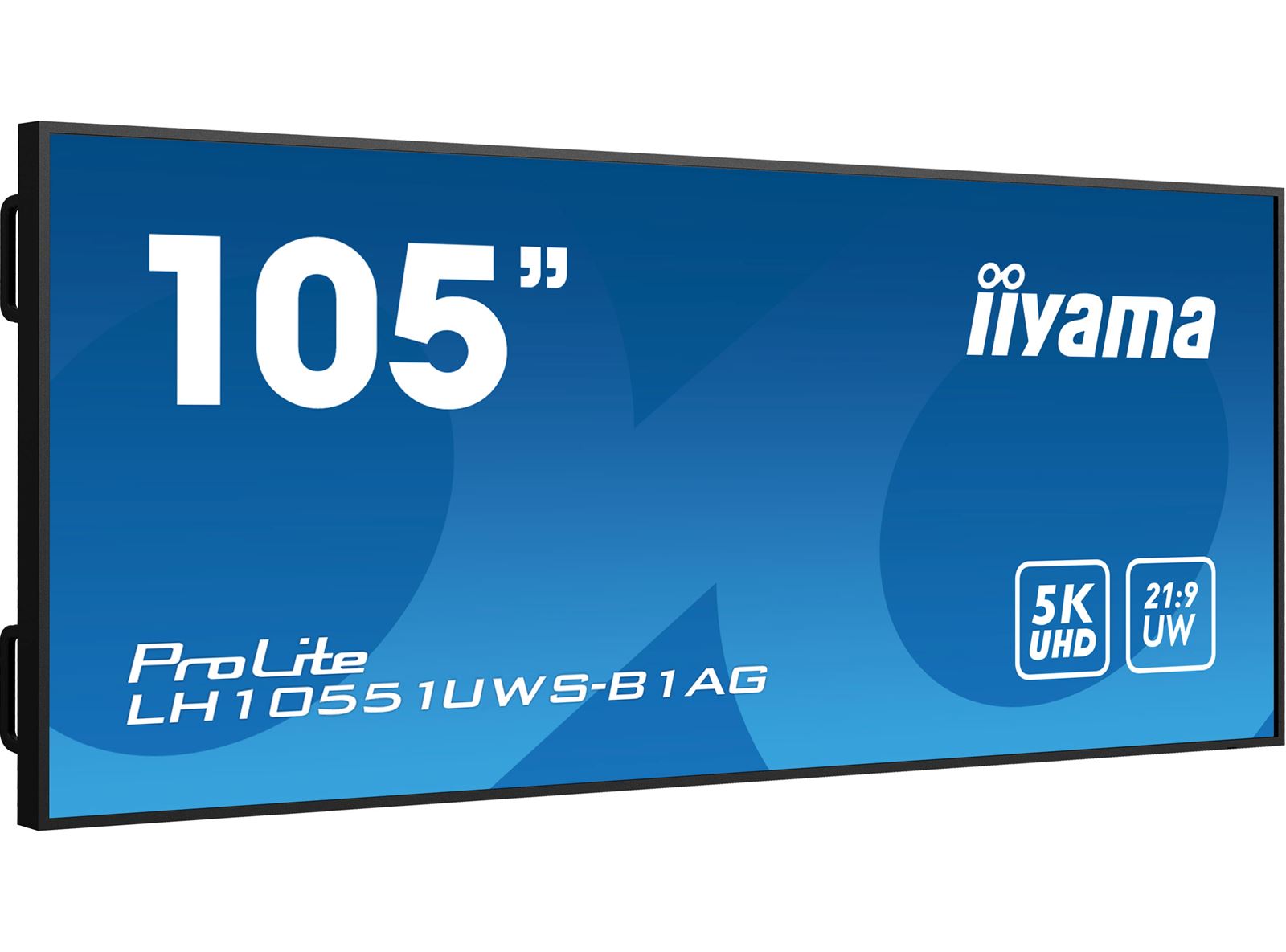

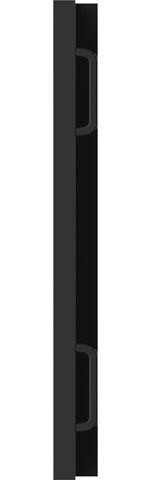

iiyama ProLite LH10551UWS-B1AG 105", specialised 21:9 panoramic commercial signage, 24/7, 5K, IPS, HDMI, landscape/portrait, OPS slot, Anti-Glare

£7,999.00 exc. VAT
£9,598.80 inc. VAT

Brand: iiyama

Manufacturer Code: LH10551UWS-B1AG

Product Description

105” Professional 5KUW Display for specialised 21:9 panoramic commercial signage

Experience a true 21:9 Panoramic Ultra-Wide view for all your content with the jaw dropping 105” displays of iiyama. This super sleek thin bezel design display shows vibrant and larger than life imagery and videos using 5KUW resolution to make the difference.

Whether installed in mission critical control room facilities or vibrant digital signage for high end retail spaces, this iiyama 105” large format display offers businesses an easy and effective solution to help capture their audience's attention. Designed to perform in continual, around the clock environments, the LH10551UWS-B1AG can be installed and utilised in landscape and portrait orientation to create the most stimulating imagery in any space.

Technical Information

DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 104.7", 265.9cm
Panel IPS, AG coated glass, matte finish, haze 25%
Native resolution 5120 x 2160 @60Hz (14.75 megapixel, 5KUW)
Aspect ratio 21:9
Panel brightness 500 cd/m²
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (NTSC 85%)
Horizontal Sync 30 - 140kHz
Viewable area W x H 2450 x 1033.6mm, 96.5 x 40.7"
Pixel pitch 0.479mm
Bezel colour and finish black, matte

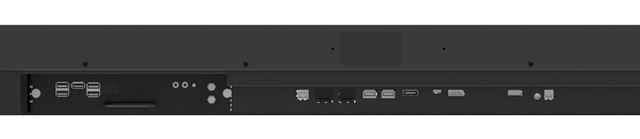

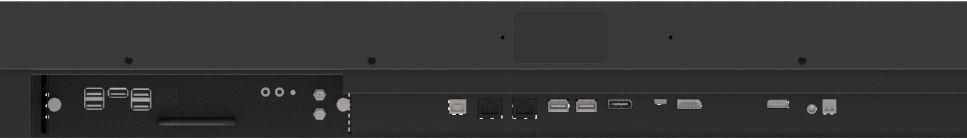

INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x1 (2.0, max. 3840x2160 @60Hz)
DisplayPort x1 (1.4, max. 5120x᠎2160 @60Hz)
Audio input Mini jack x1 (3.5mm)
Monitor control input RJ45 (LAN) x1
Digital signal output DisplayPort x1 (1.4, max. 5120x᠎2160 @60Hz, SST (Single Stream Transport ) Screen Mirror)
USB-C x1 (2.0 (signal only), 5120x2160 @60Hz (DP 1.4 Alt mode))
Audio output S/PDIF (Optical) x1
Mini jack x1 (3.5mm)
Speakers 2 x 10W
Monitor control output RS-232c x1 (2.5mm sub-mini jack)
HDCP v.2.2
USB HUB x4 (2.0)

FEATURES

Hardware RAM: 256MB, ROM: 16MB
Extra OPS PC Slot
Max. non-stop operating time 24/7
Anti image retention yes
Video wall / daisy chain Yes, Daisy Chain via DP-OUT (SST format)
Housing (bezel) metal

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
Control buttons Menu, Up, Down, Volume +, Volume -, Mute, Power, Power Indicator, Remote Sensor
User controls picture (brightness, contrast, sharpness), Audio (treble, bass, balance, speakers, volume), OSD setup (language, OSD H-Position, OSD V-position, transparency, OSD timeout, OSD rotation), advanced settings (colour temp., custom colour temp., gamma), general settings (power management, LED, RC lock, picture format, factory reset), other settings (source input, DP-OUT mirror, LAN, SW version)
Plug&Play DDC2B

MECHANICAL

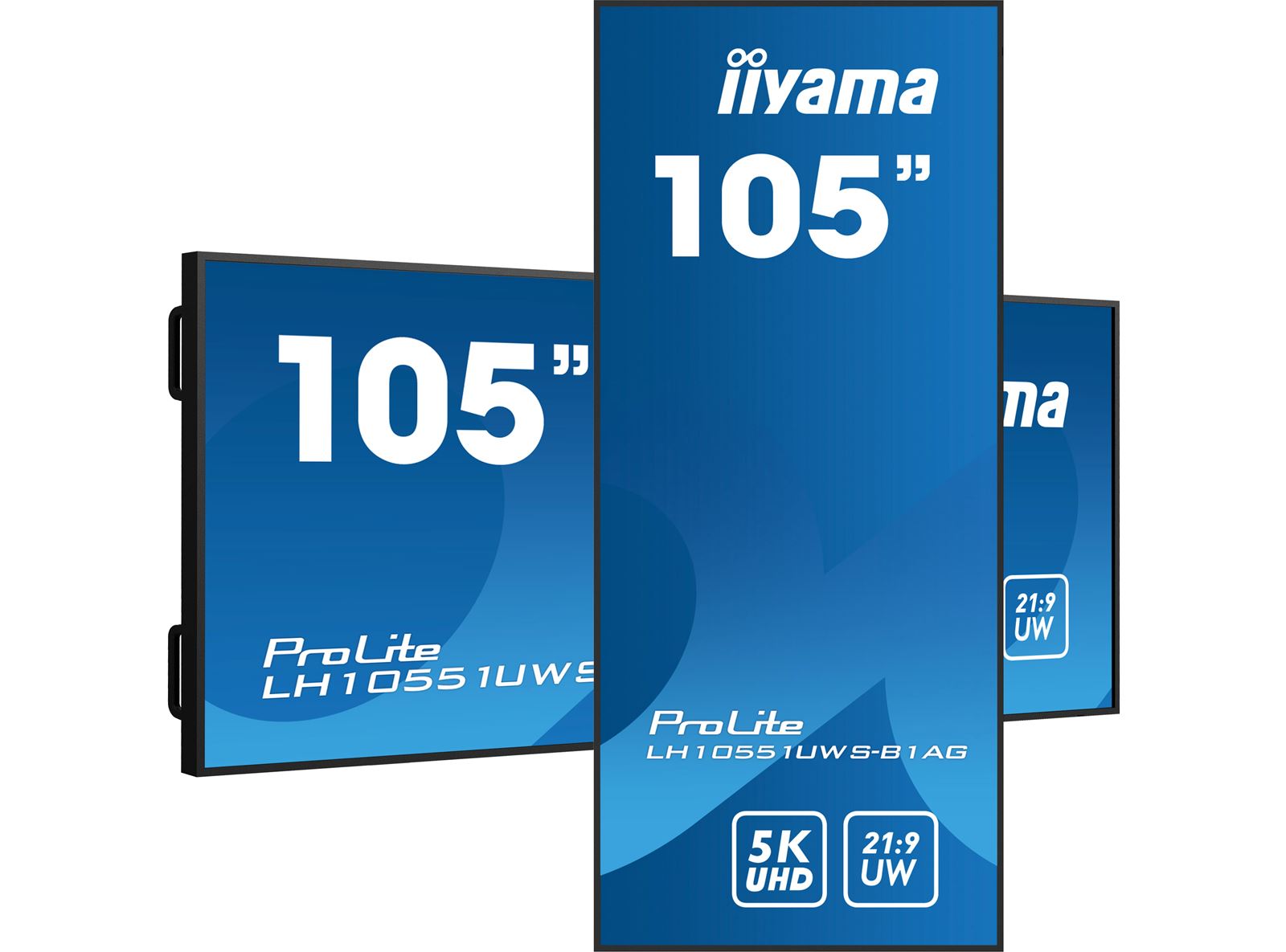

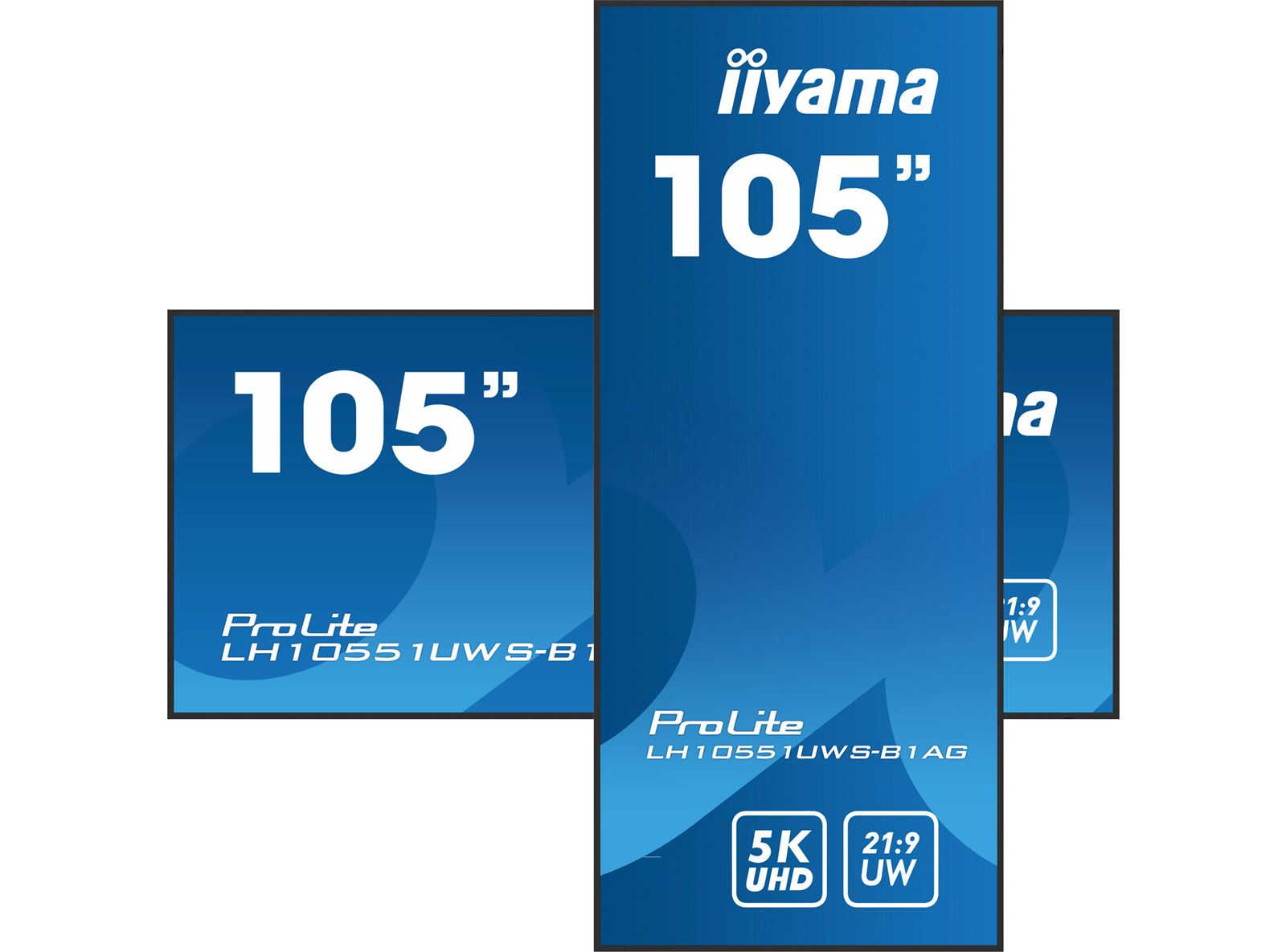

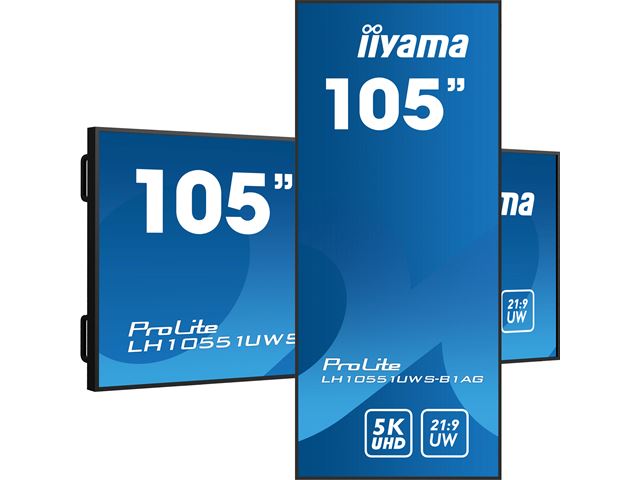

Orientation landscape, portrait
Fanless design yes

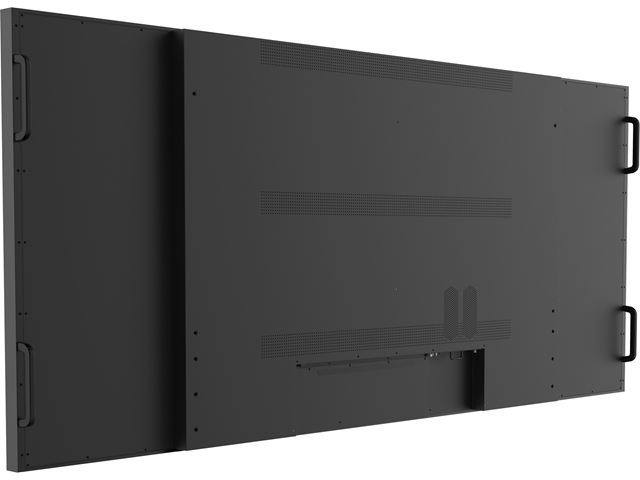

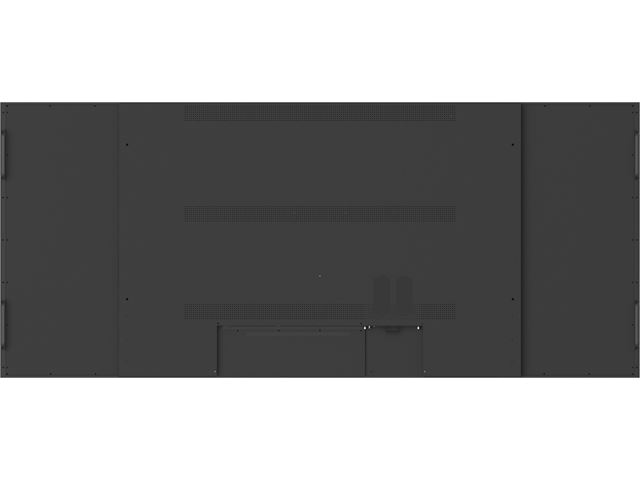

VESA mounting 1500 x 600mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED

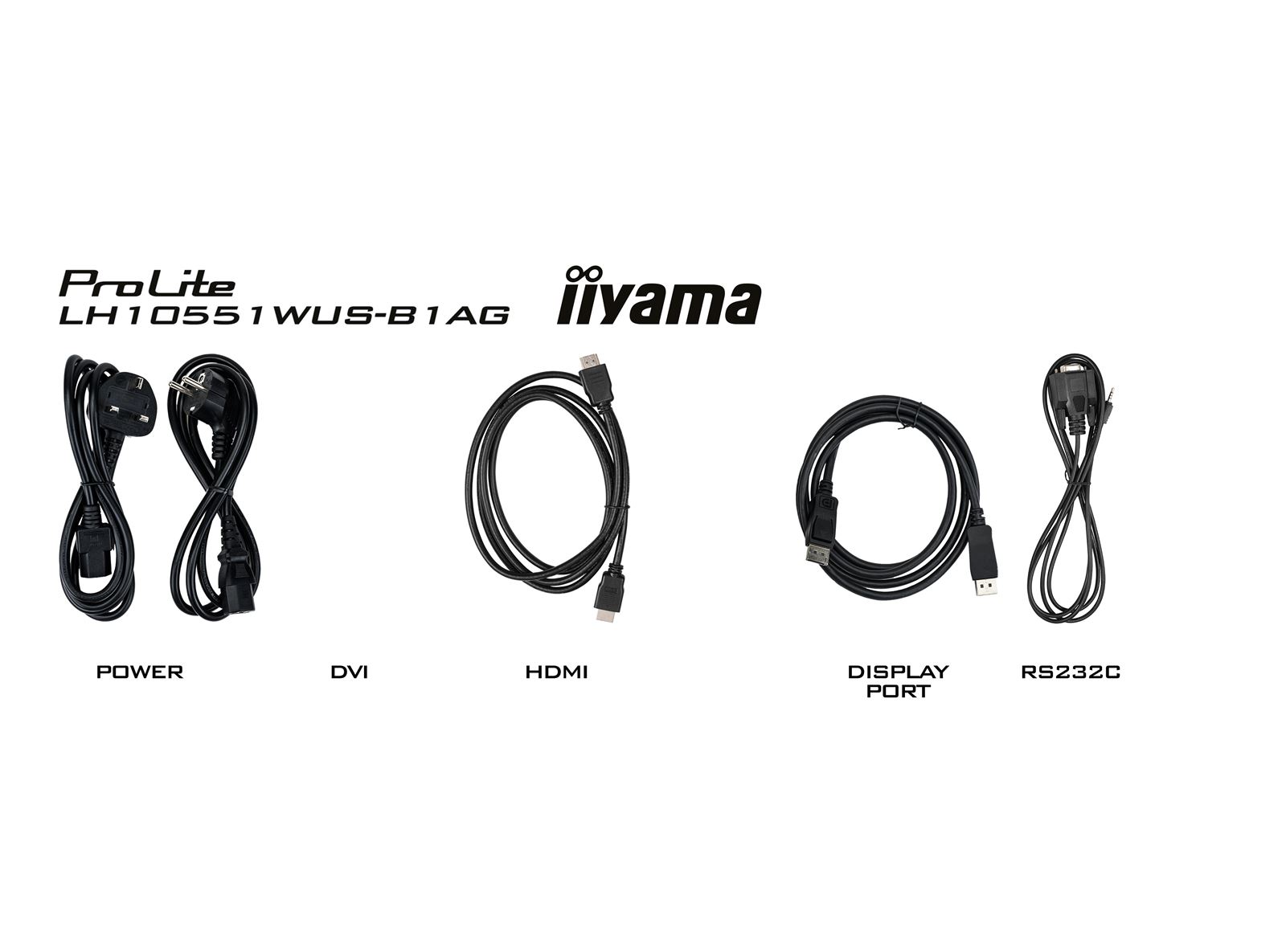

Cables power, HDMI, RS-232c
Guides quick start guide, safety guide
Other Stickers for screw holes, wire buckles
Remote control yes (batteries included)

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 247W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) G

DIMENSIONS / WEIGHT

Product dimensions W x H x D 2487.4 x 1070.6 x 99.1mm
Box dimensions W x H x D 2683 x 1407 x 339mm
Weight (without box) 60.14kg
Weight (with box) 88.7kg
EAN code 4948570121977
Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

OPS PC SLOT

Built-in expansion slot supports the Open Pluggable Specification (OPS) standard; it simplifies the installation of a plug-in PC for digital signage applications.



OPS PC SLOT

24/7

24/7 displays are designed for a continuous operation.



24/7

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

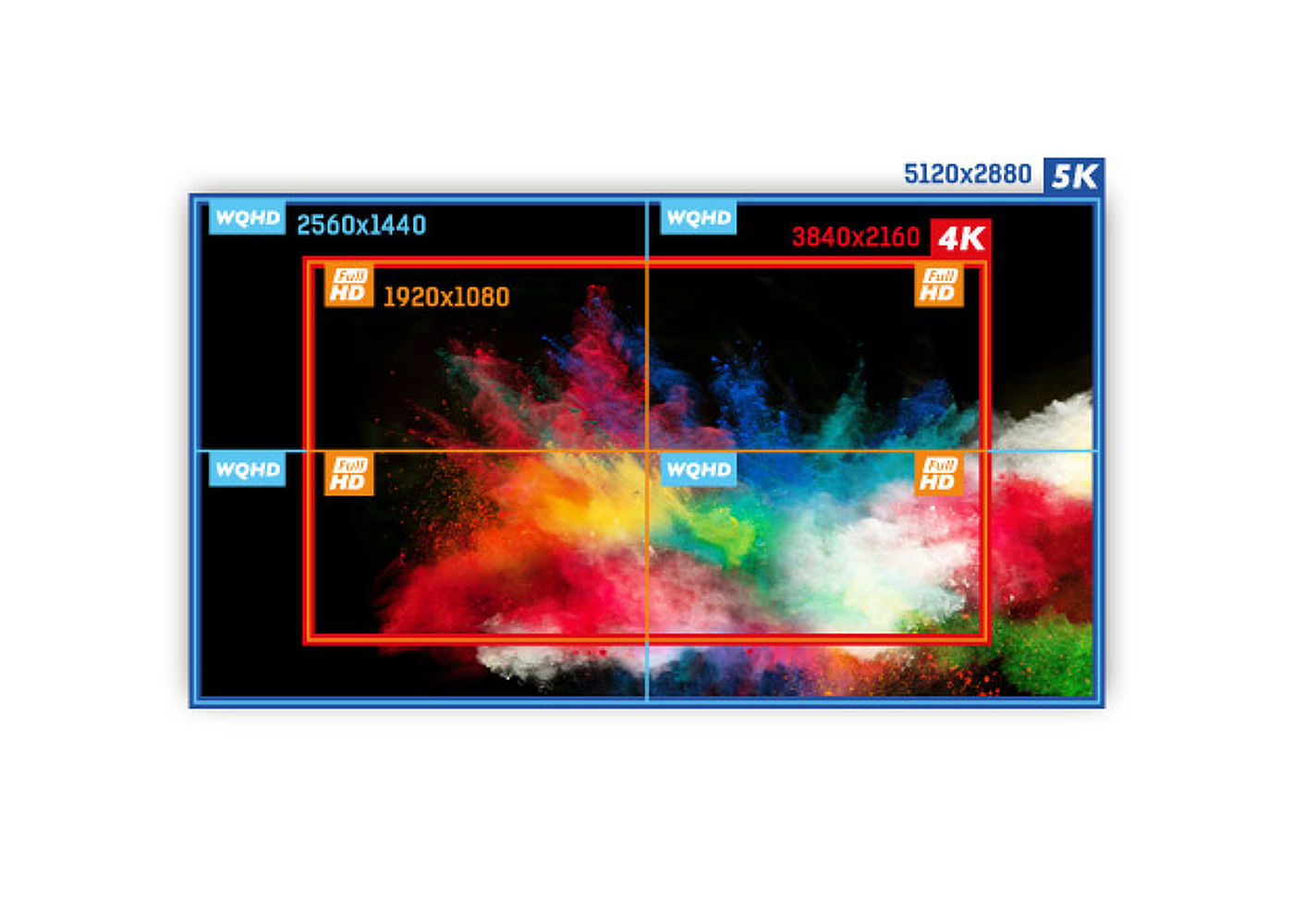

5K

5K (5120x2880) resolution means a monitor can display 14.7 MegaPixels on the screen – a stunning 7 times more than a Full HD monitor.




5K
