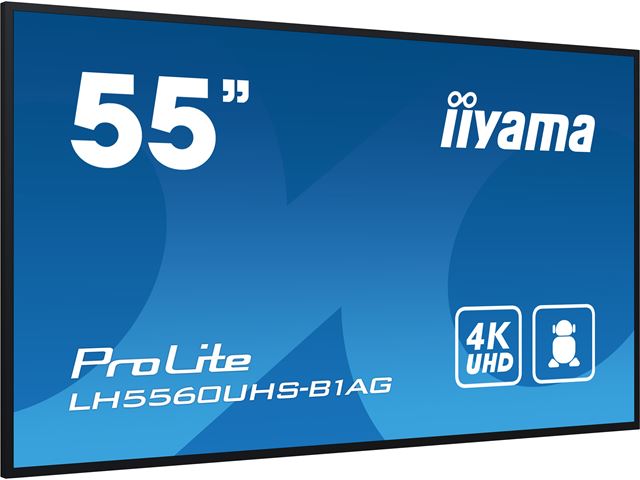

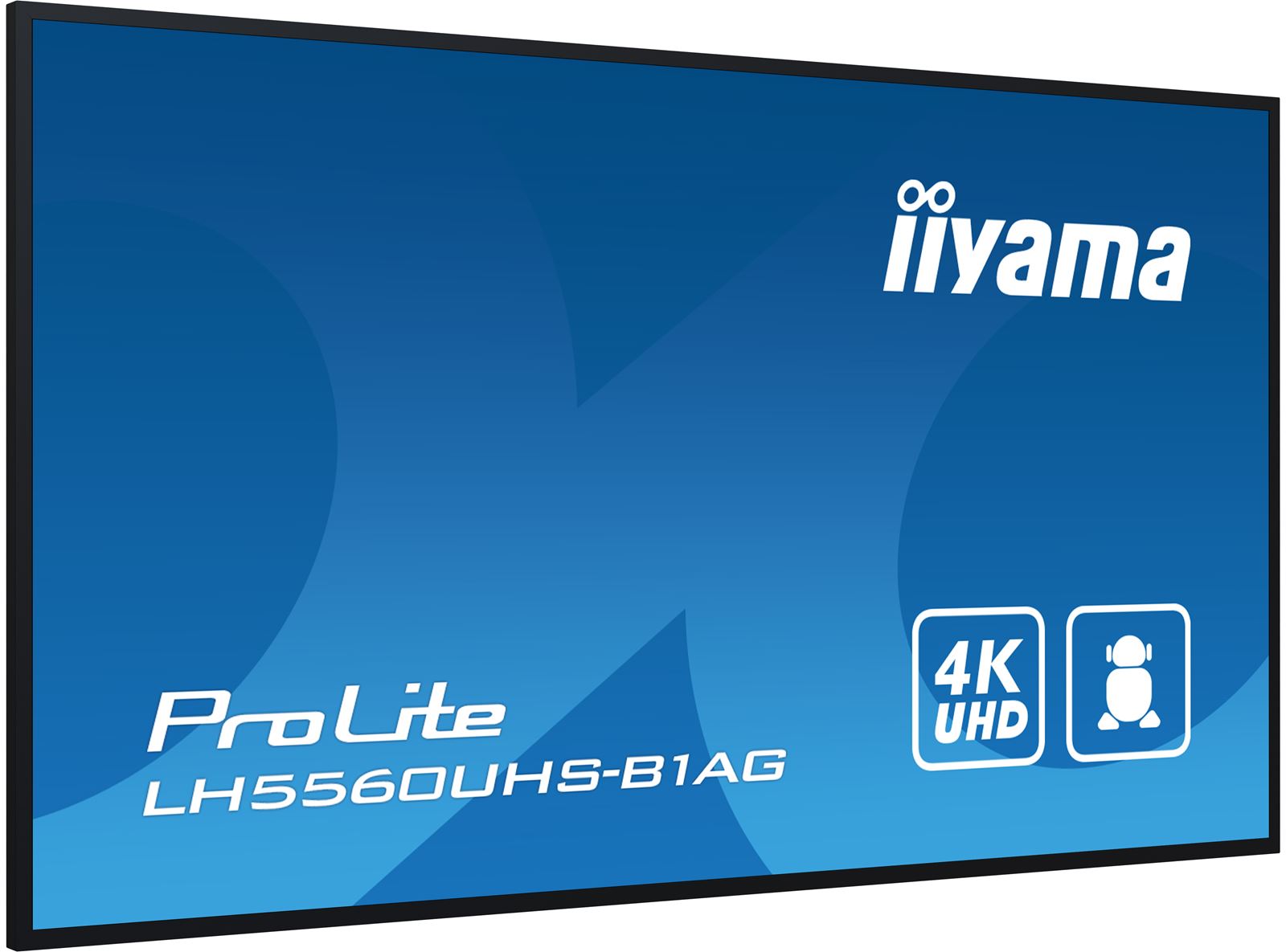

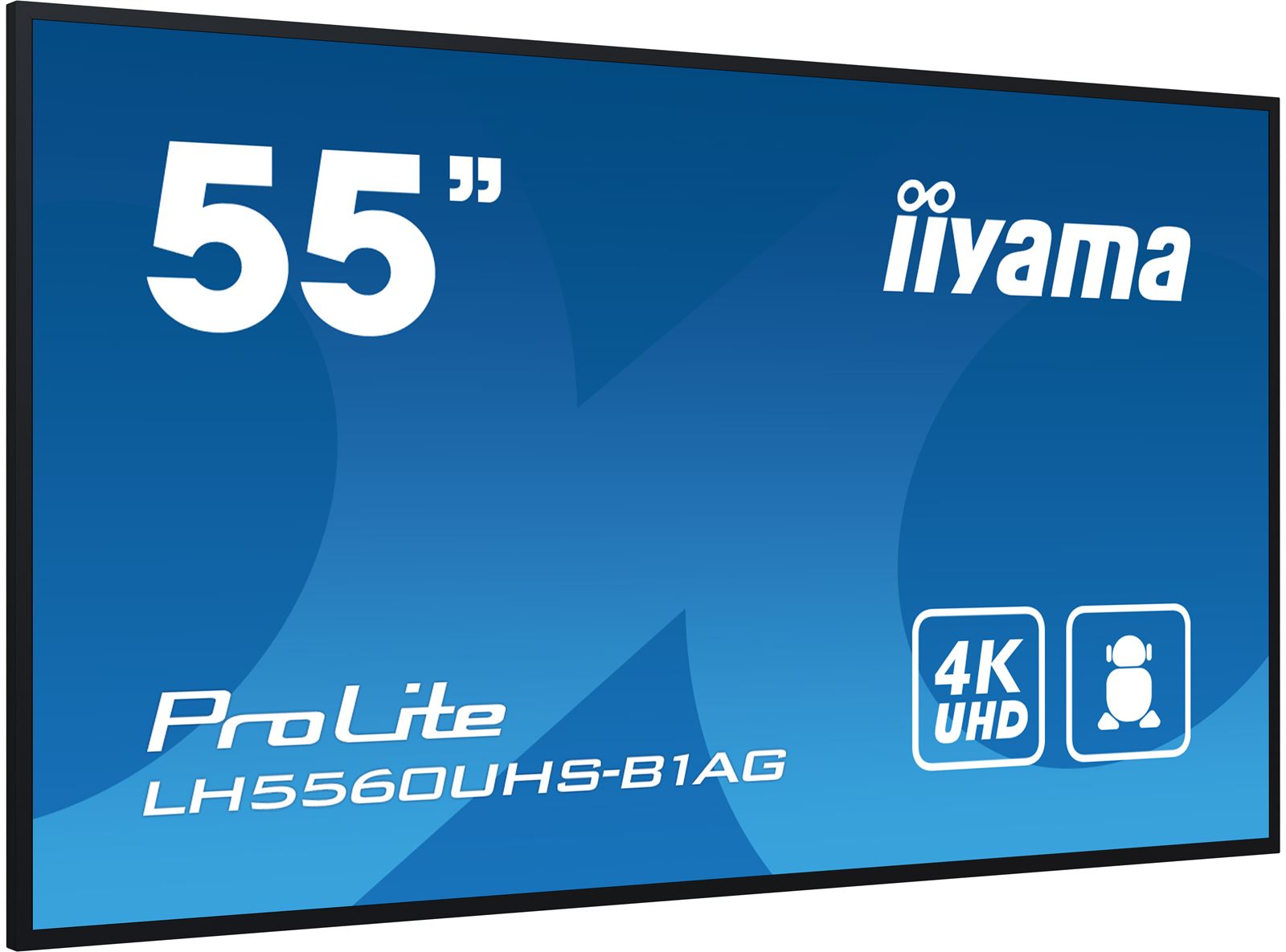

iiyama ProLite LH5560UHS-B1AG 55", VA, 4K, 24/7 Hours Operation, HDMI x 3, Landscape/Portrait, Android OS and FailOver

£616.00 exc. VAT
£739.20 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Brand: iiyama

Manufacturer Code: LH5560UHS-B1AG

Warranty: 3 year onsite swap out

Product Description

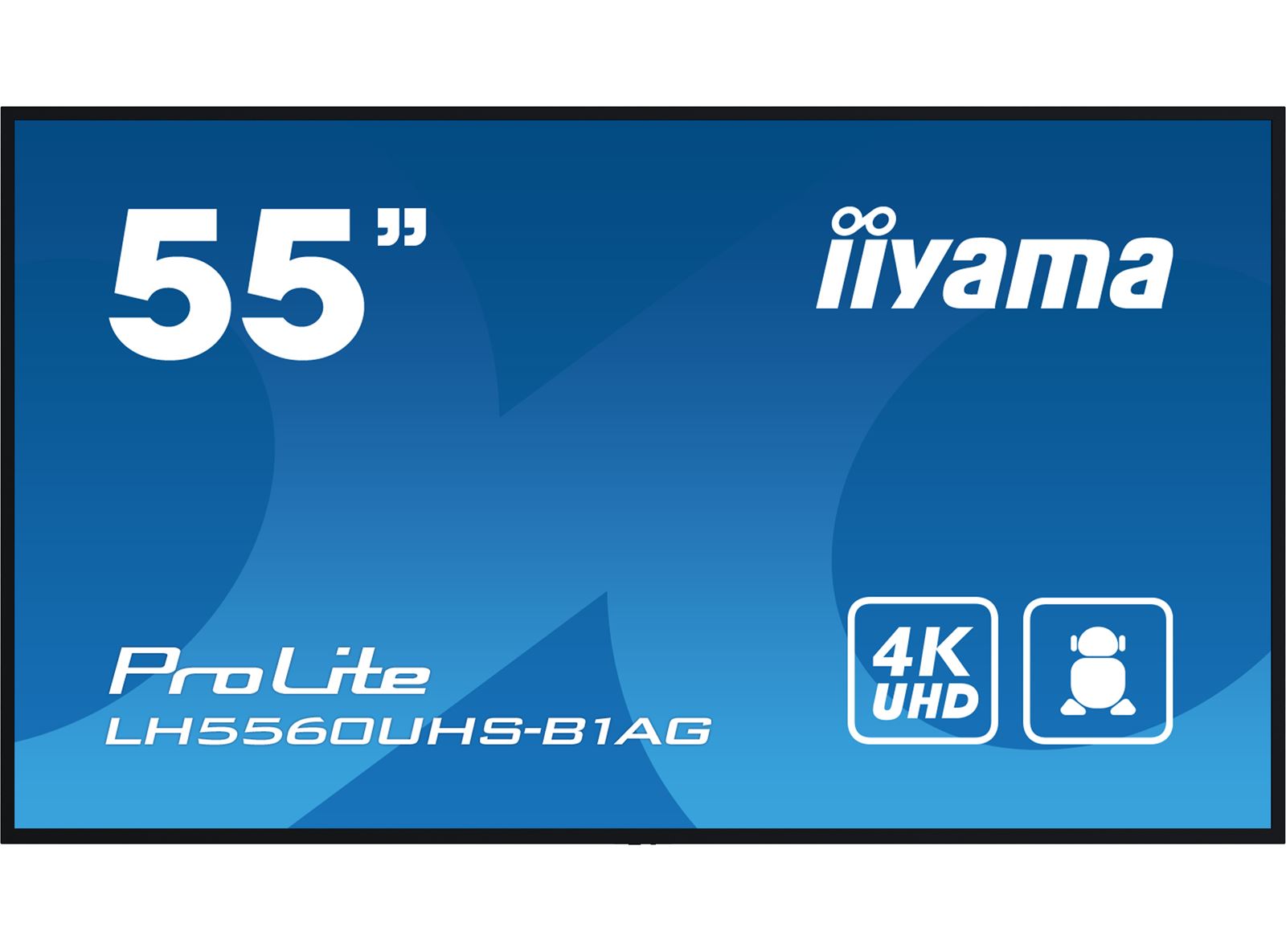

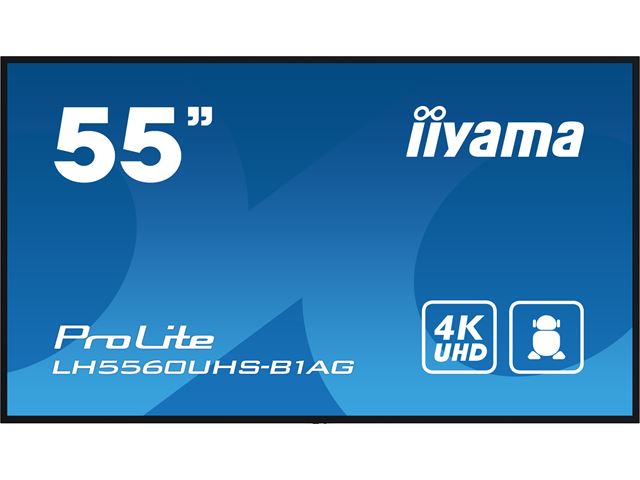

55" 4K UHD professional digital signage display with advanced control and connectivity options

Elevate your visual communication with the LH5560UHS-B1AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² content management software, Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze.

This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH5560UHS -B1AG will undoubtedly captivate your audience and leave a lasting impression.

Technical Information

DISPLAY CHARACTERISTICS

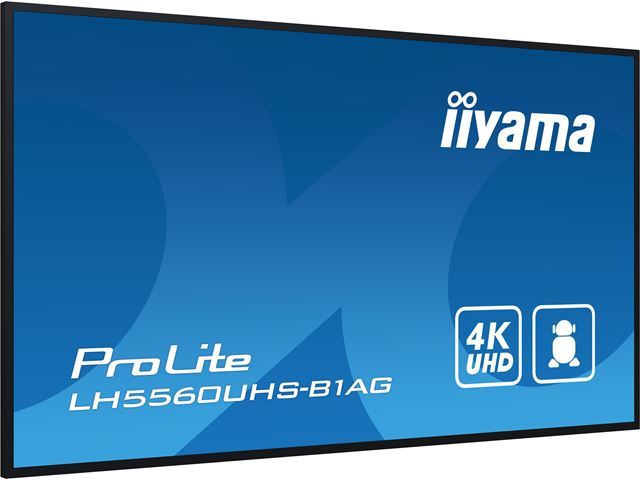

Design Thin bezel
Diagonal 54.6", 139cm
Panel VA, AG coated glass, matte finish, hard coating (3H), haze 25%
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Static contrast 4000:1
Response time (GTG) 6.5ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (NTSC 87%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1209.6 x 680.4mm, 47.6 x 28.8"
Bezel width (sides, top, bottom) 13.3mm, 13.3mm, 15.3mm
Pixel pitch 0.315mm
Bezel colour and finish black, matte

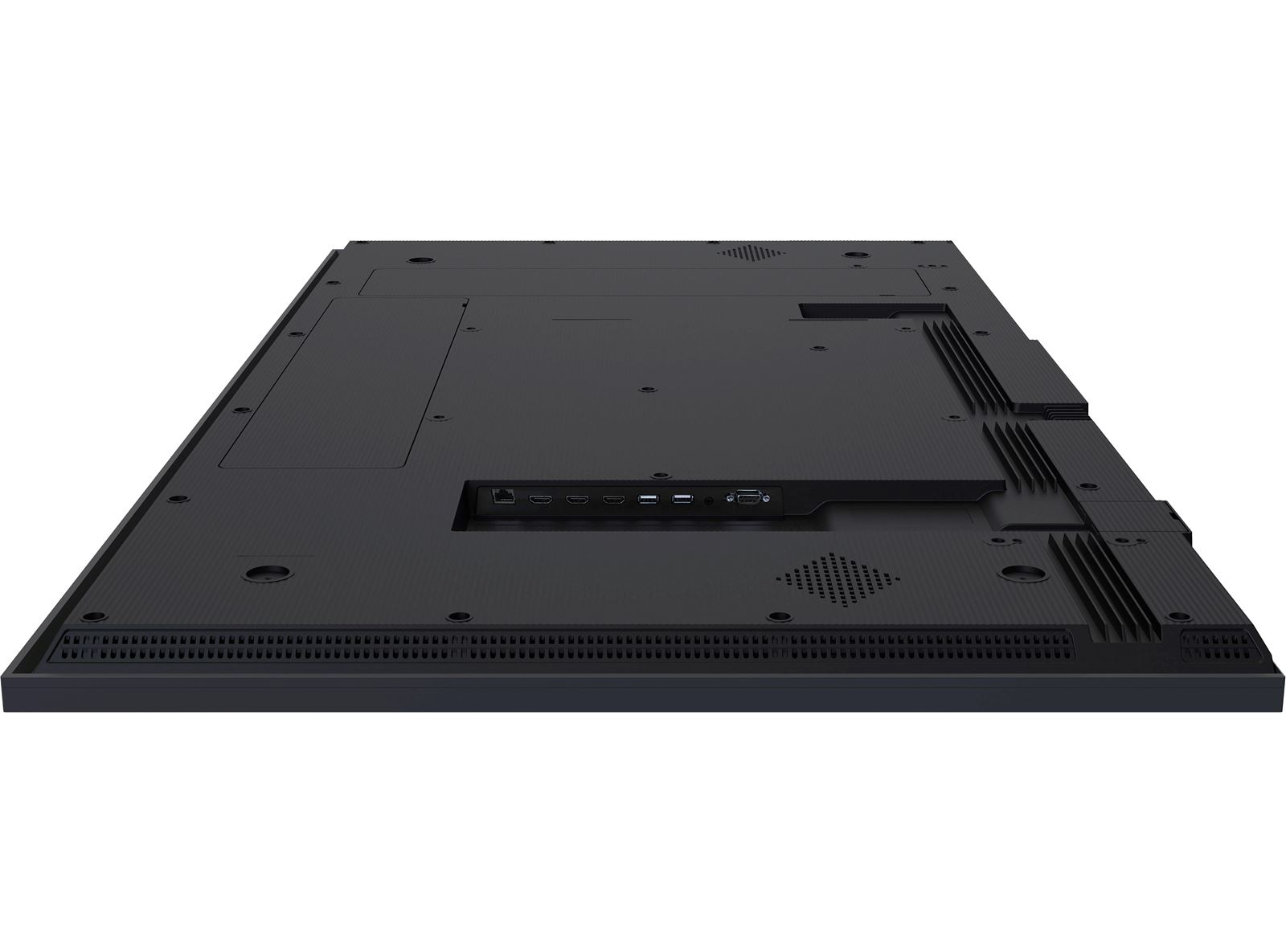

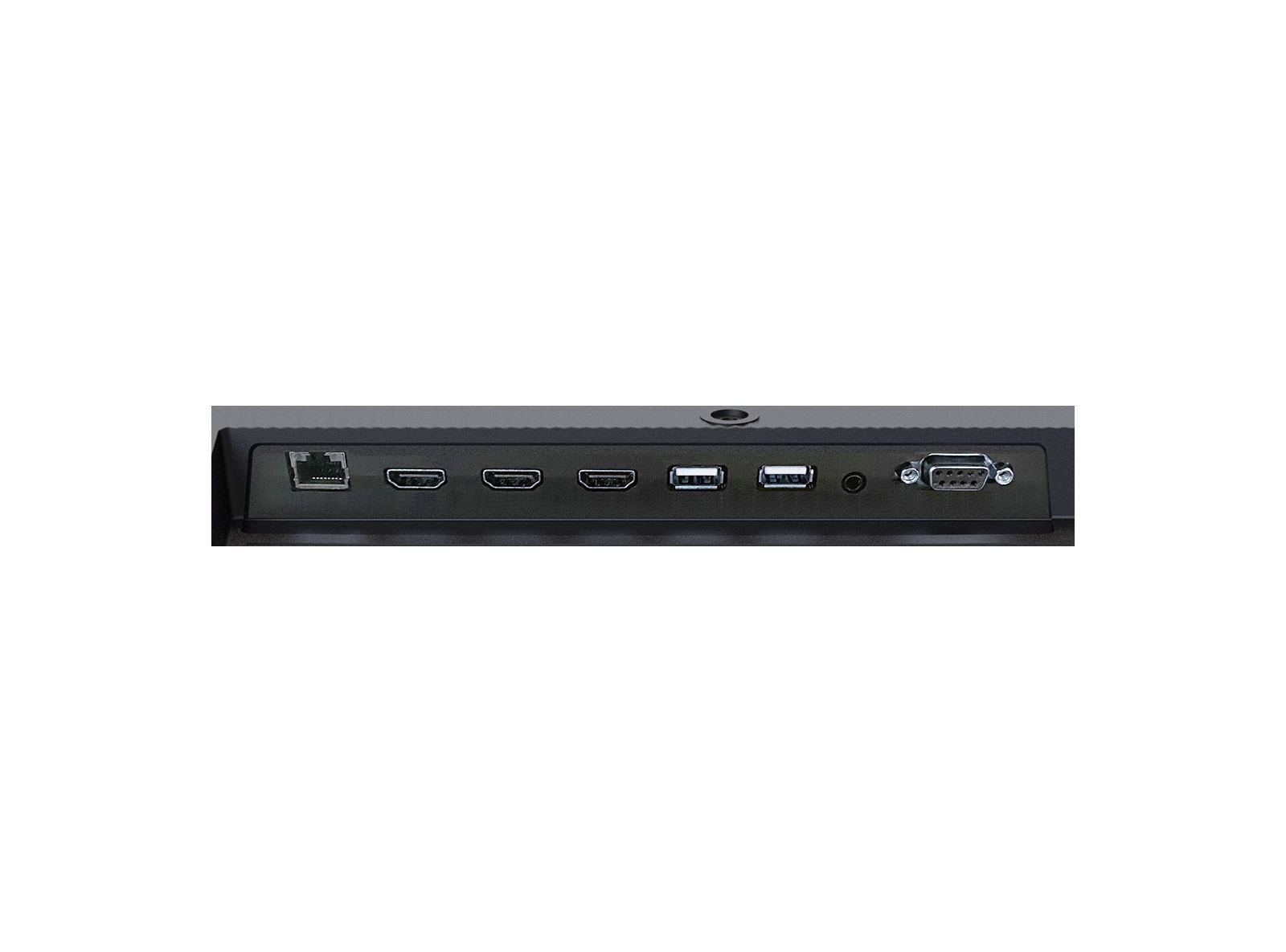

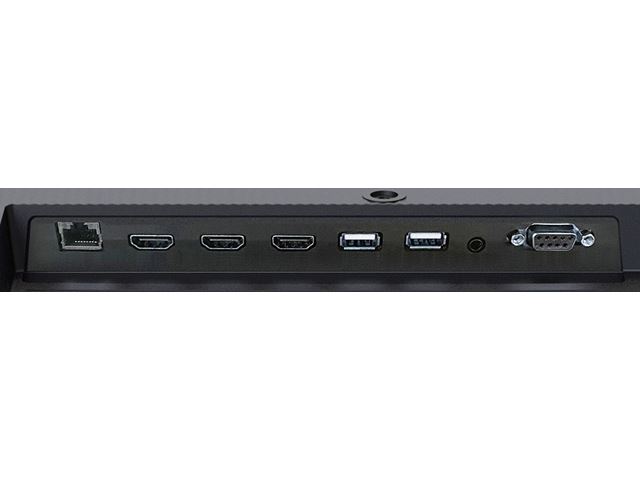

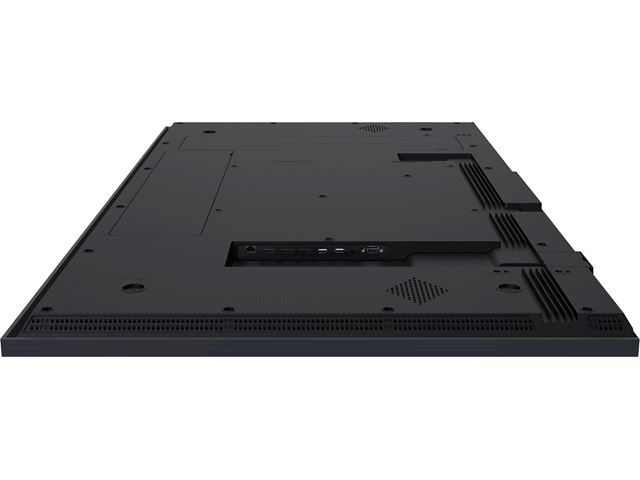

INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x3 (v.2.0, max. 3840x2160 @60Hz)
Audio input Mini jack x1 (3.5mm)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)
Audio output Mini jack x1
Speakers 2 x 10W
HDCP v.1.4 & 2.2
USB ports x2 (v.2.0)

FEATURES

Integrated software Android 11 OS, iiSignage², FailOver, EShare
WiFi yes (Built-in)
Hardware CPU: A53*4, GPU: G52 MP2, RAM: 2GB, ROM: 16GB

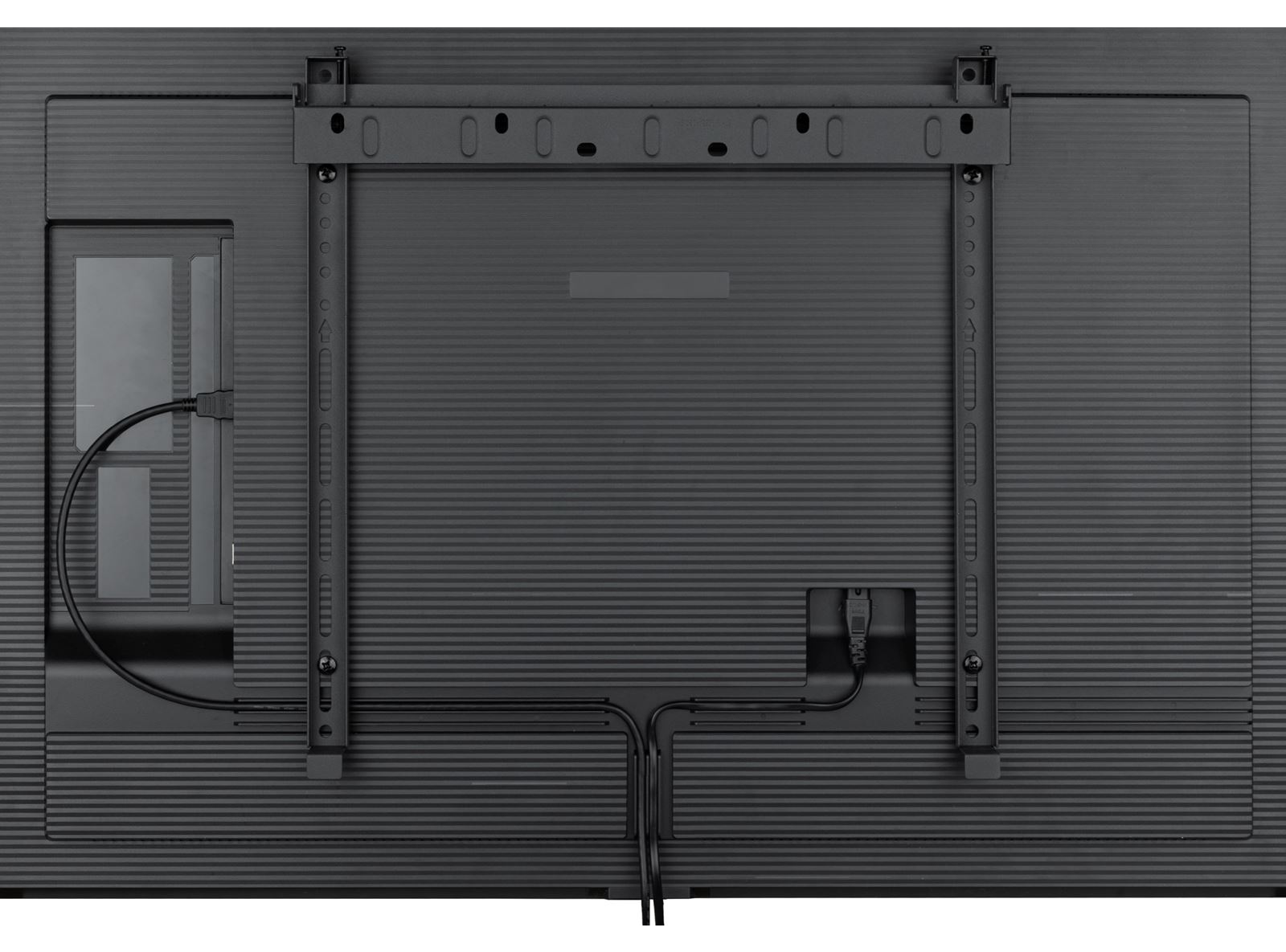

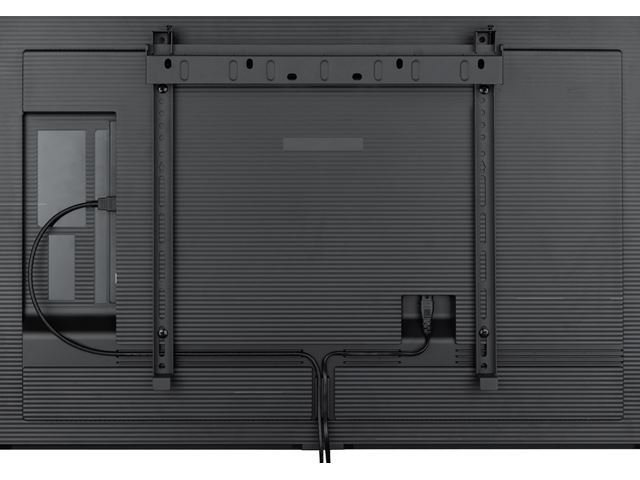

Extra Wall mounting kit included (VESA 300x400mm)
Max. non-stop operating time 24/7
Anti image retention yes
Media playback yes
Housing (bezel) metal (front)

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
Control buttons Power button, Power Indicator, Remote Sensor
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (zoom mode, custom zoom, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio out sync, speaker setting, audio reset), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (IR control, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Plug&Play DDC2B

MECHANICAL

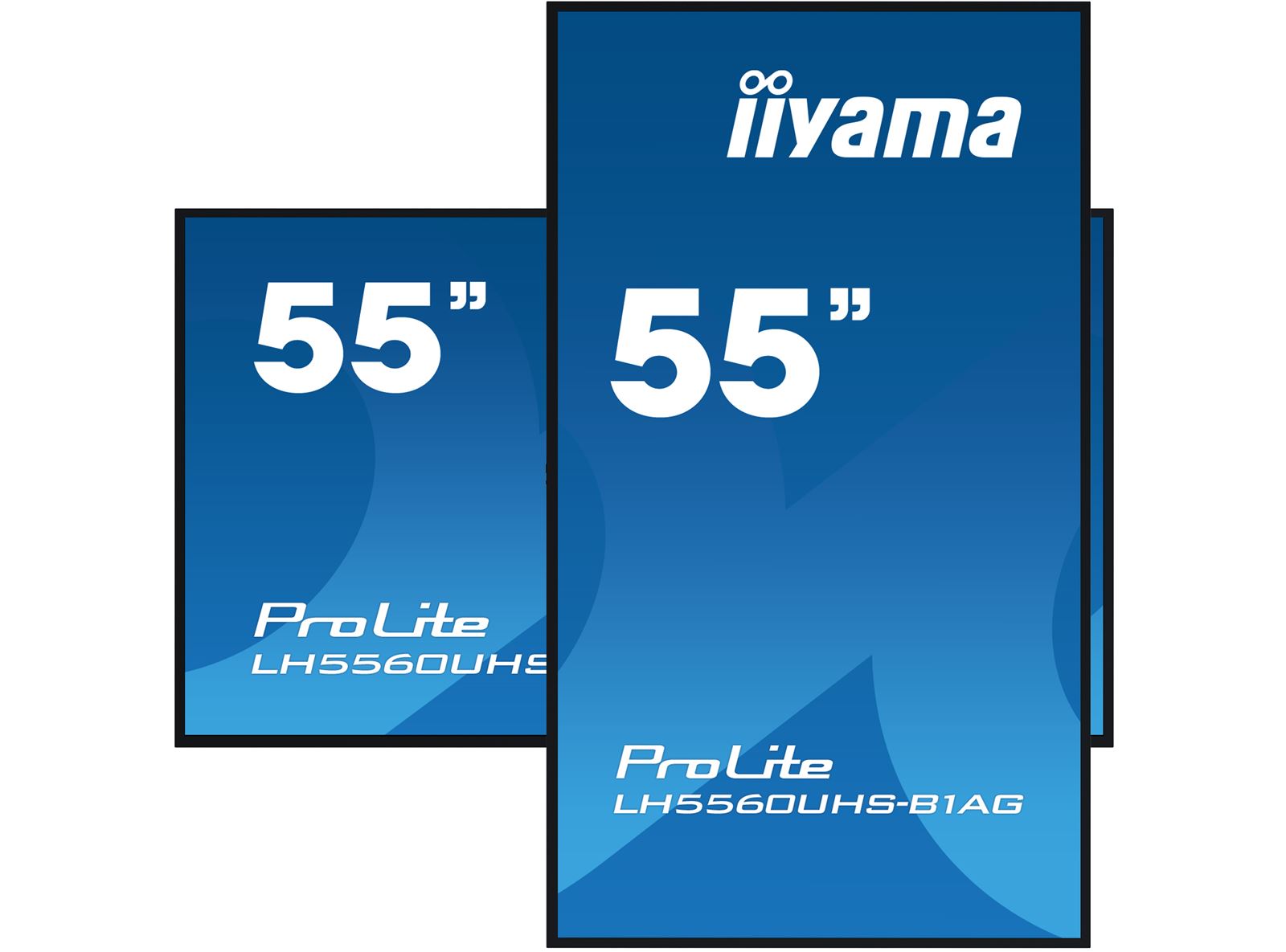

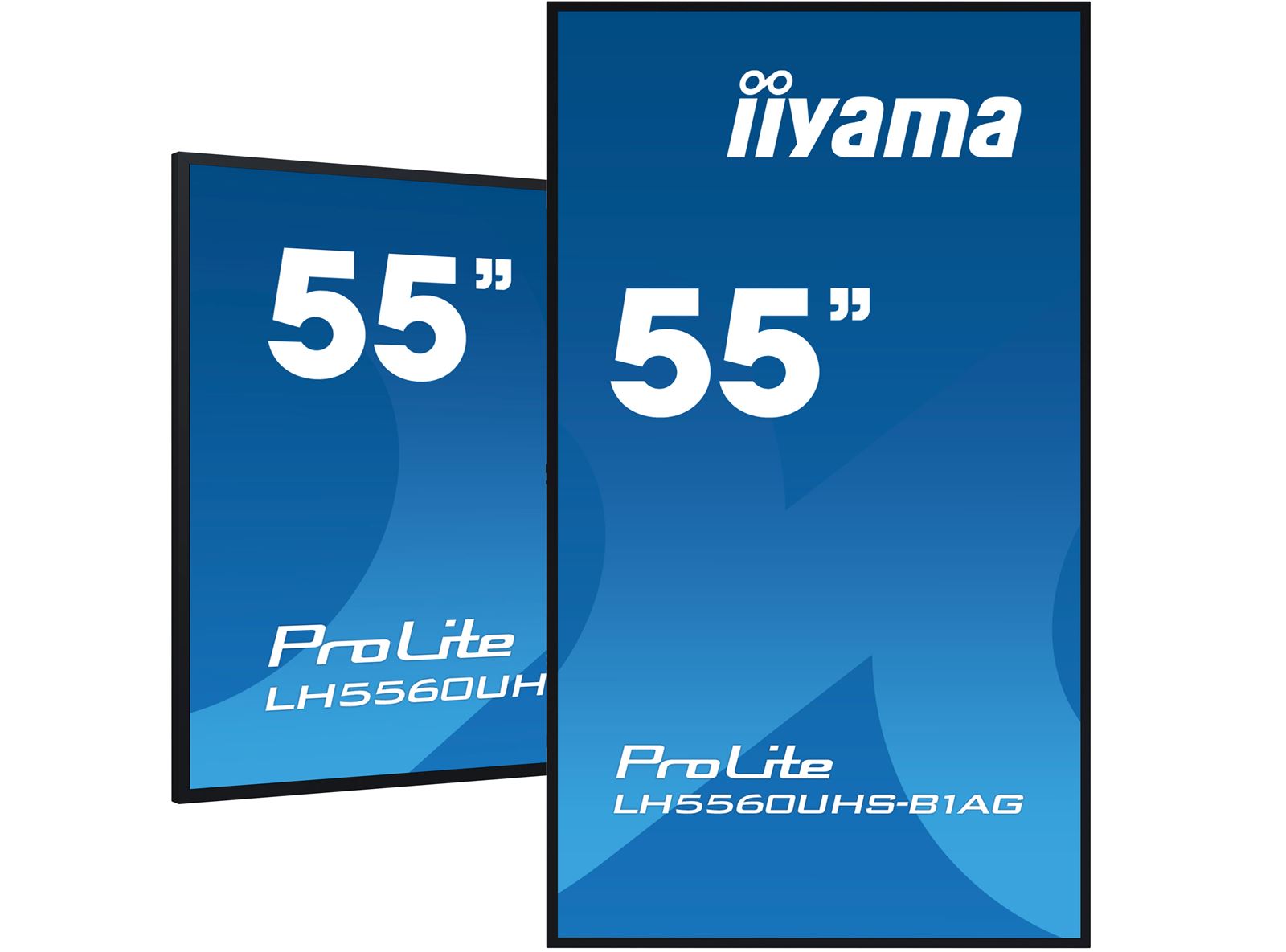

Orientation landscape, portrait
Fanless design yes

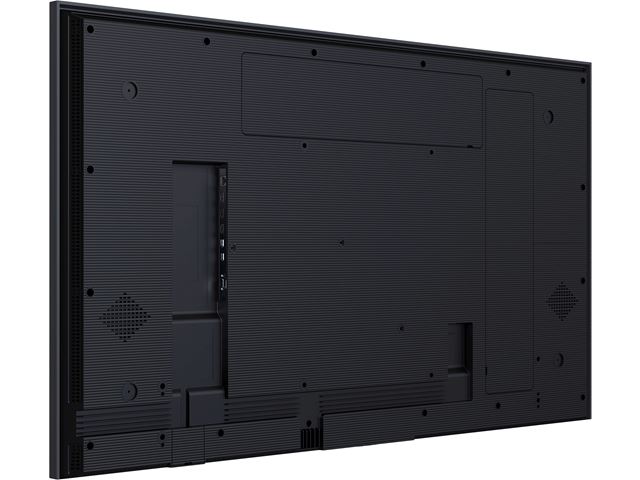

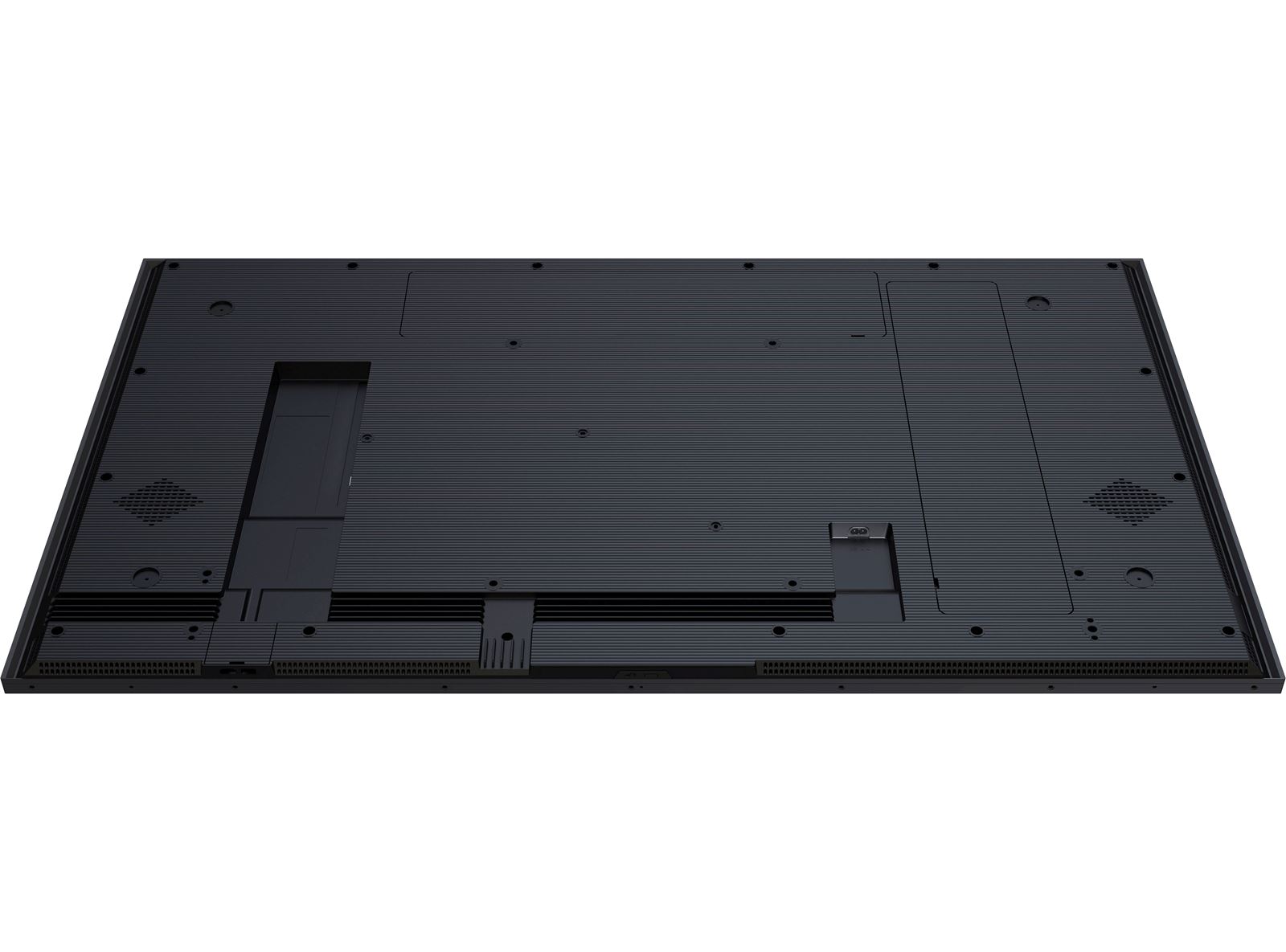

VESA mounting 300 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED

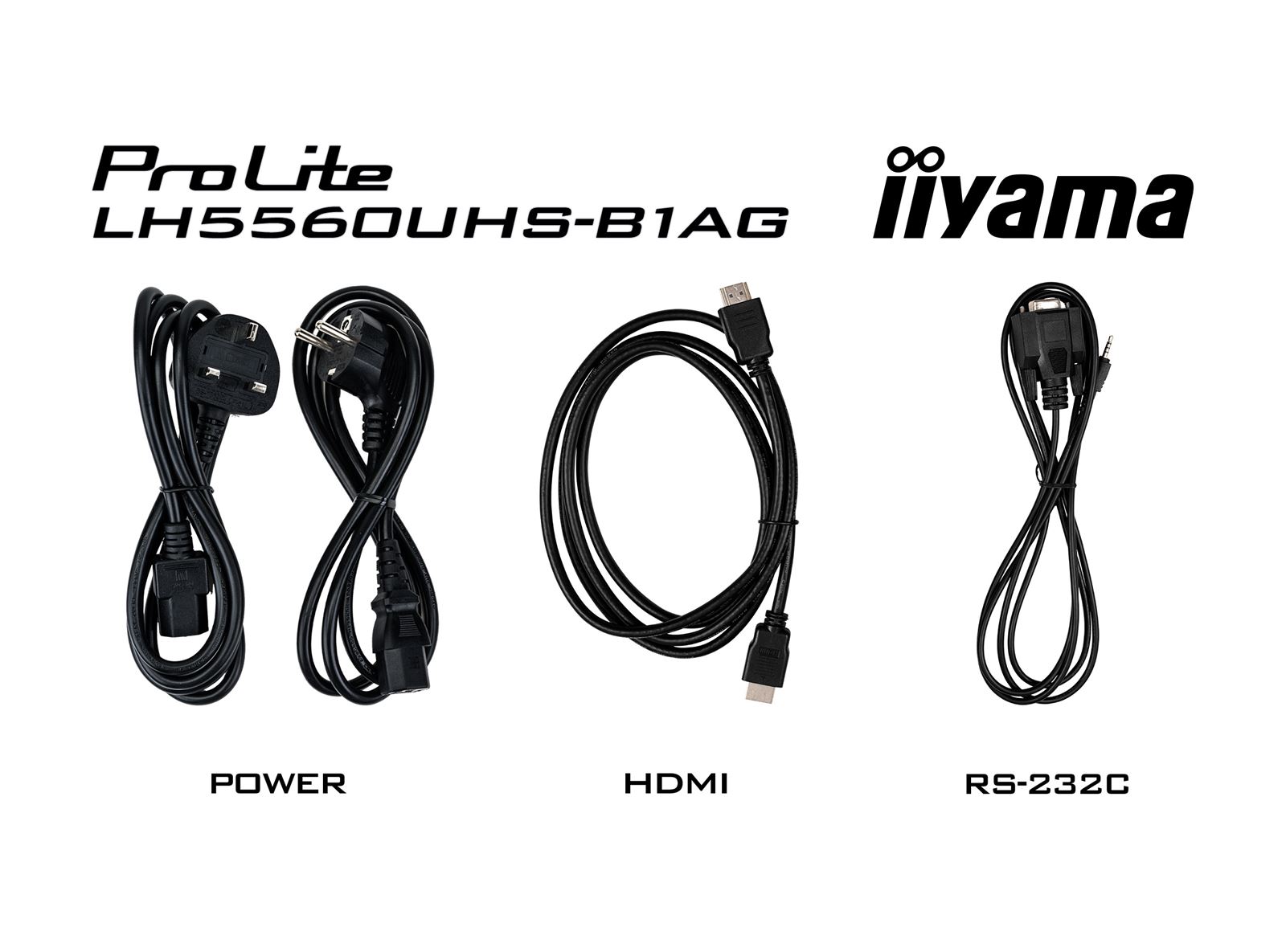

Cables power, HDMI, RS-232c
Guides quick start guide, safety guide
Other Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes
Remote control yes (batteries included)

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 89W typical, 0.5W stand by

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) G

DIMENSIONS / WEIGHT

Product dimensions W x H x D 1239.7 x 712.5 x 38.6mm
Box dimensions W x H x D 1390 x 850 x 136mm
Weight (without box) 17.6kg
Weight (with box) 22.9kg
EAN code 4948570122301
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).




LAN CONTROL

IISIGNAGE

With iiSignage, you can easily create, publish and manage your own digital signage content on any iiyama 40-series display from a desktop PC in the same network. Use rich content like video’s and widgets to create highly impactful advertising in minutes and schedule your content across multiple displays to best match your customers' behavior.

IISIGNAGE

24/7

24/7 displays are designed for a continuous operation.



24/7

VA MATRIX

VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


VA MATRIX

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS

Media player LFD

Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

Media player LFD
