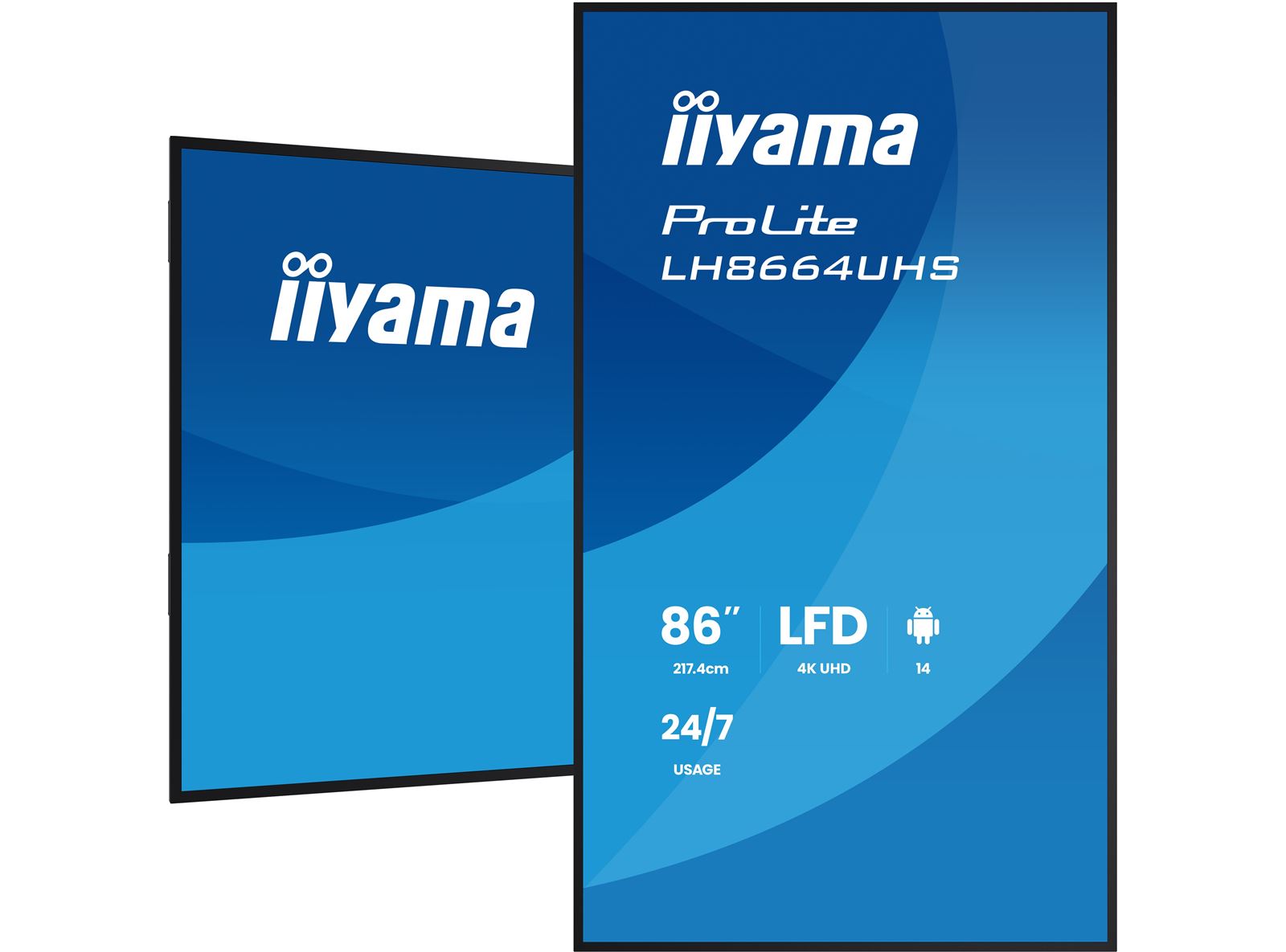

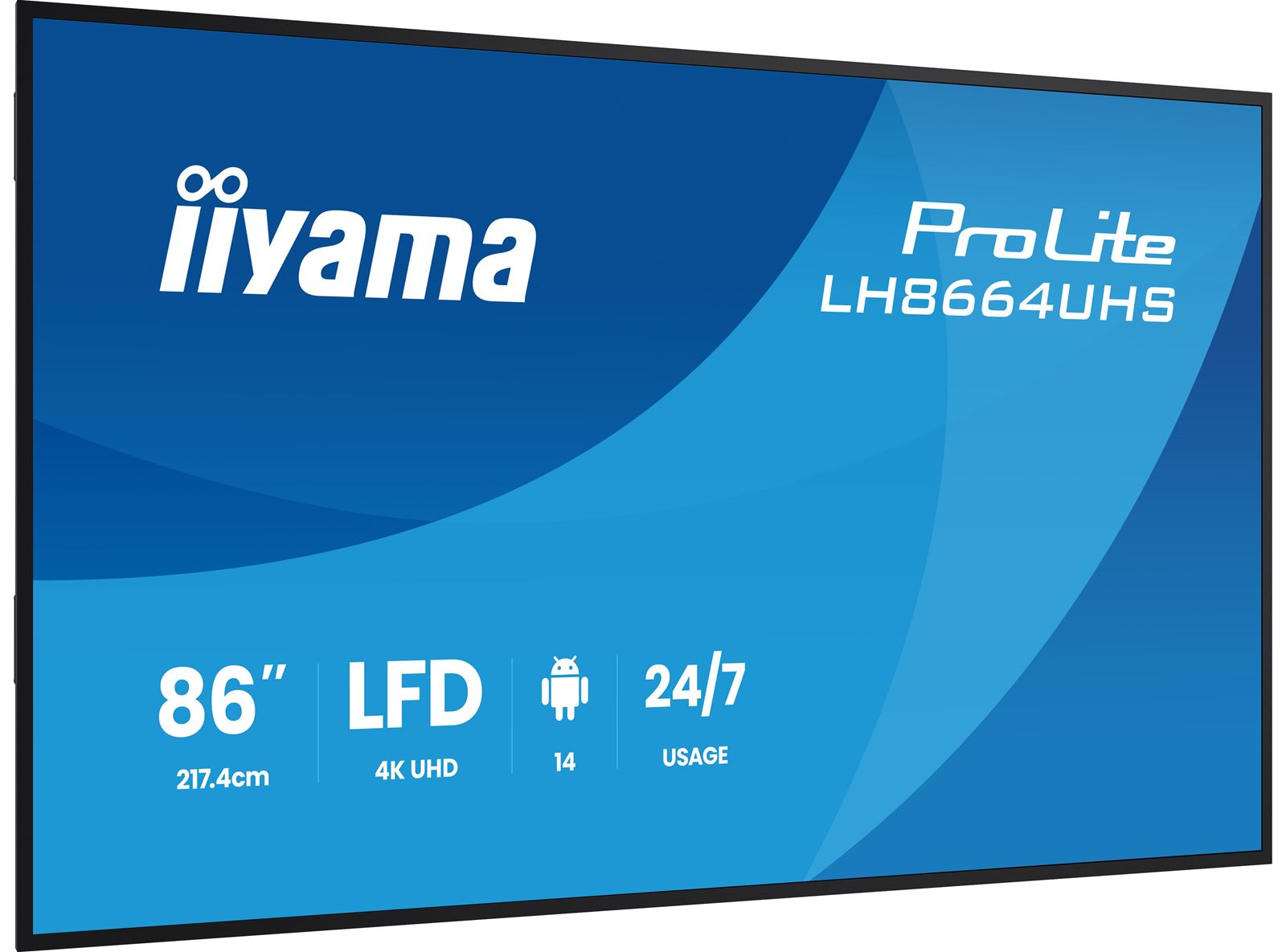

iiyama ProLite LH8664UHS-B3AG 86" Digital Signage, IPS, 4K, 24/7, USB-C, HDMI, Landscape/Portrait, iiSignage², Android 14 OS and FailOver

£1,265.00 exc. VAT
£1,518.00 inc. VAT

Brand: iiyama

Manufacturer Code: LH8664UHS-B3AG

Warranty: 3 years collect and return

Product Description

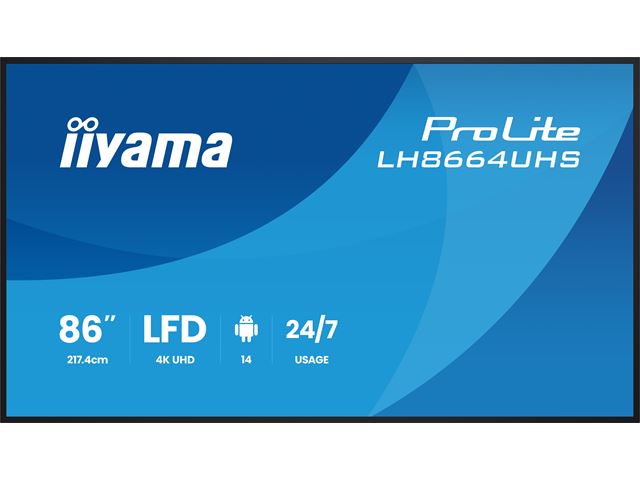

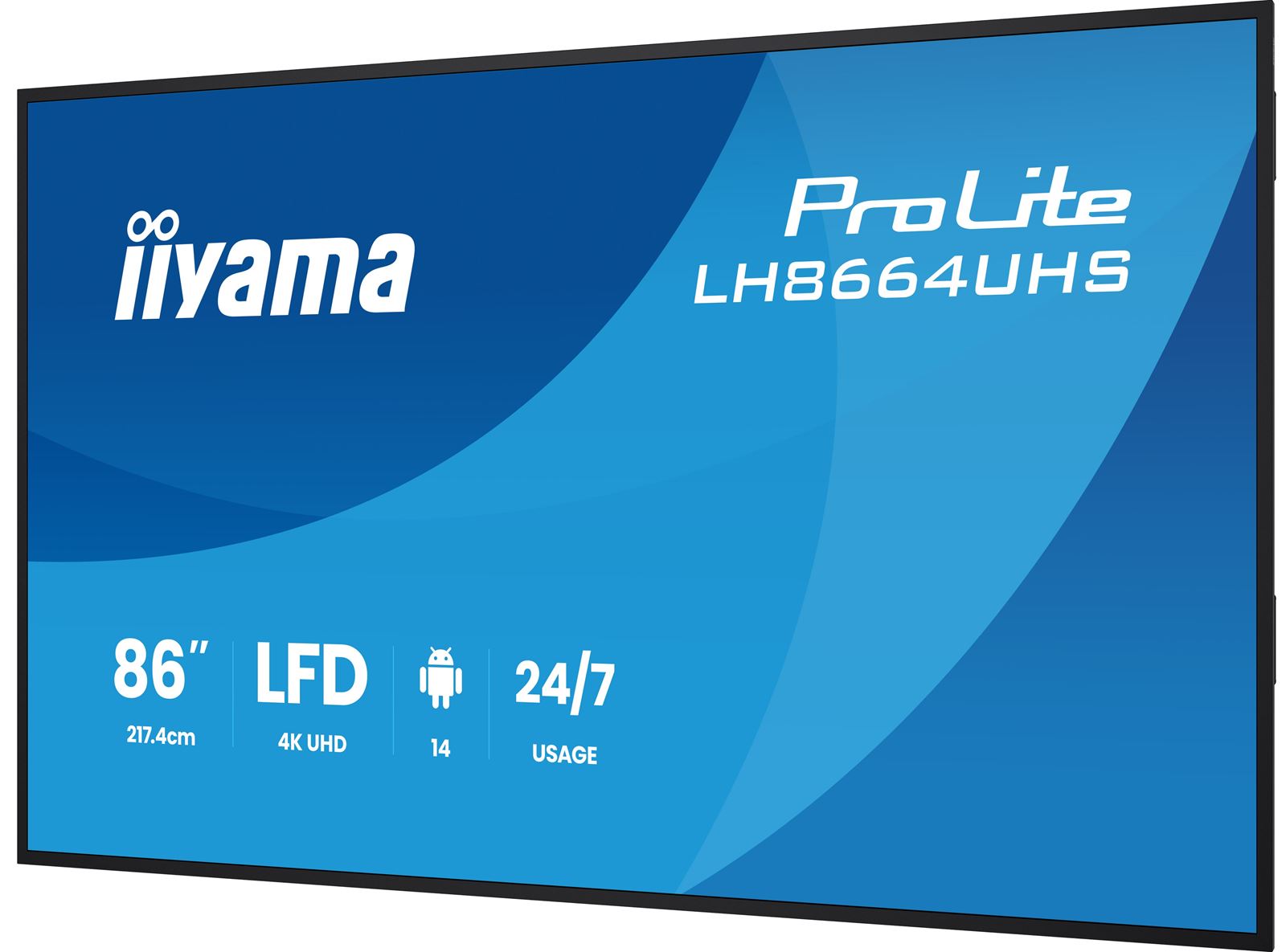

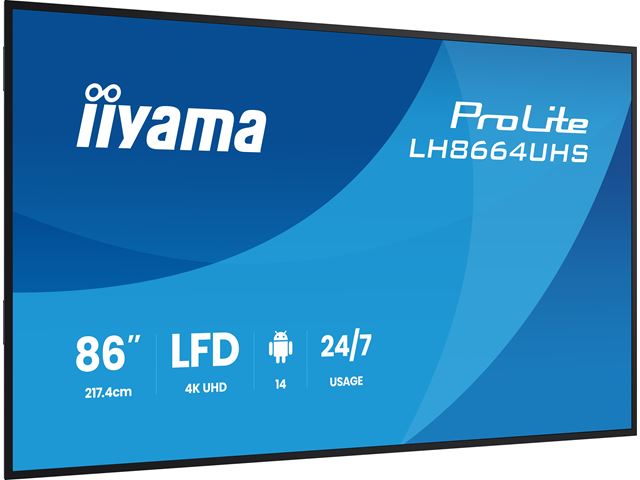

86" 4K UHD professional digital signage display with advanced control and connectivity options

Elevate your visual communication with the LH8664UHS-B3AG and unlock the new possibilities for your business. This 450cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With Android 14 OS, iiSignage² (CMS), iiControl (DMS) and iiShare, plus EShare (Wireless Presentation) features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control.

Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B3AG will undoubtedly captivate your audience and leave a lasting impression.

Technical Information

 DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 85.6", 217.4cm
Panel IPS, Anti-Glare coated glass, matte finish, haze 25%
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 450 cd/m²
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (NTSC 72%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1895 x 1066mm, 74.6 x 41.9"
Bezel width (sides, top, bottom) 21.5mm, 22mm, 22mm
Pixel pitch 0.493mm
Bezel colour and finish black, matte

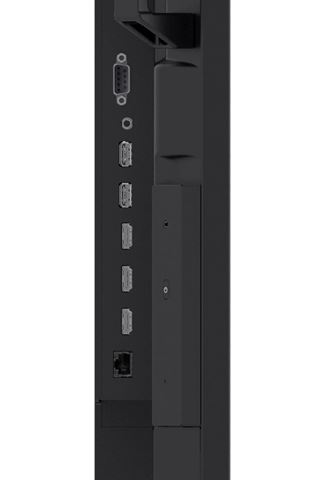

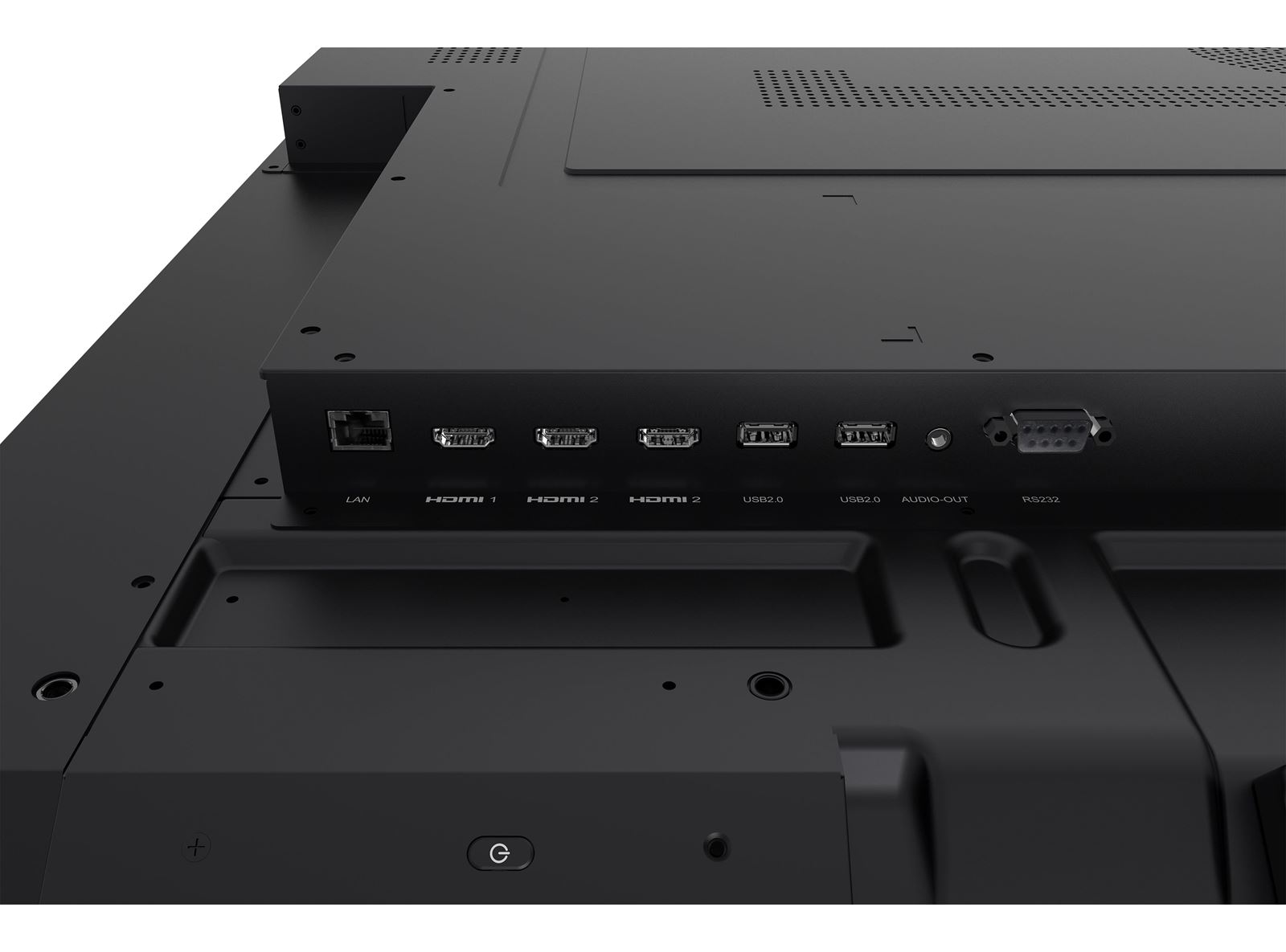

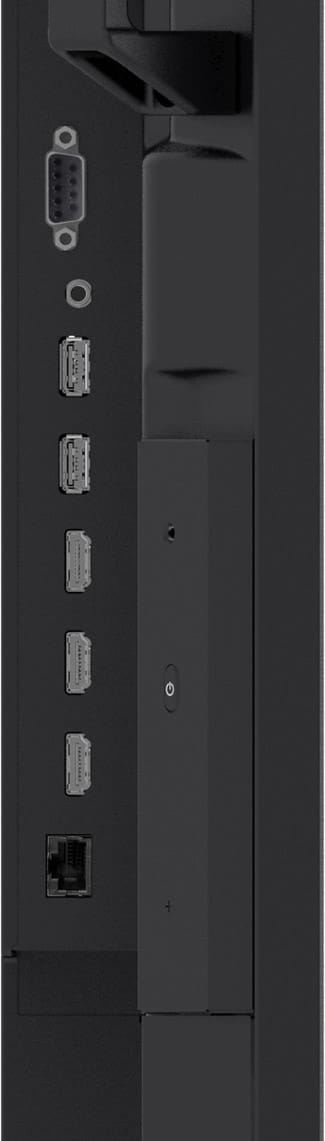

 INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x2 (2.0, max. 3840x2160 @60Hz, HDMI1: CEC/ ARC Support, HDMI2: CEC Support)
USB-C x1 (2.0, 15W PD, DP ALT 1.2, Data, Touch)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1 (10M/ 100M)
IR x1 (3.5mm stereo mini)
Audio output Mini jack x1 (3.5mm, Headphone Connector)
Speakers 2 x 16W
Monitor control output RS-232c x1 (2.5mm sub-mini jack)
IR loop through x1 (3.5mm stereo mini)
HDCP HDMI: 1.4 & 2.2, USB-C: 2.2
USB ports x2 (2.0)
USB HUB x1

 FEATURES

Integrated software Android 14, iiSignage² (CMS), iiControl (DMS), iiShare, EShare, iiBrowser, MediaPlayer, TeamViewer, File manager, FailOver
WiFi yes (Built-in WiFI5, 2.4G/ 5G)
Hardware Soc: MT9679, CPU: Quad Core A73*4, GPU: G52 MC1, RAM: 4GB, ROM: 32GB, NPU: 1.2T, UI: 4K @30Hz

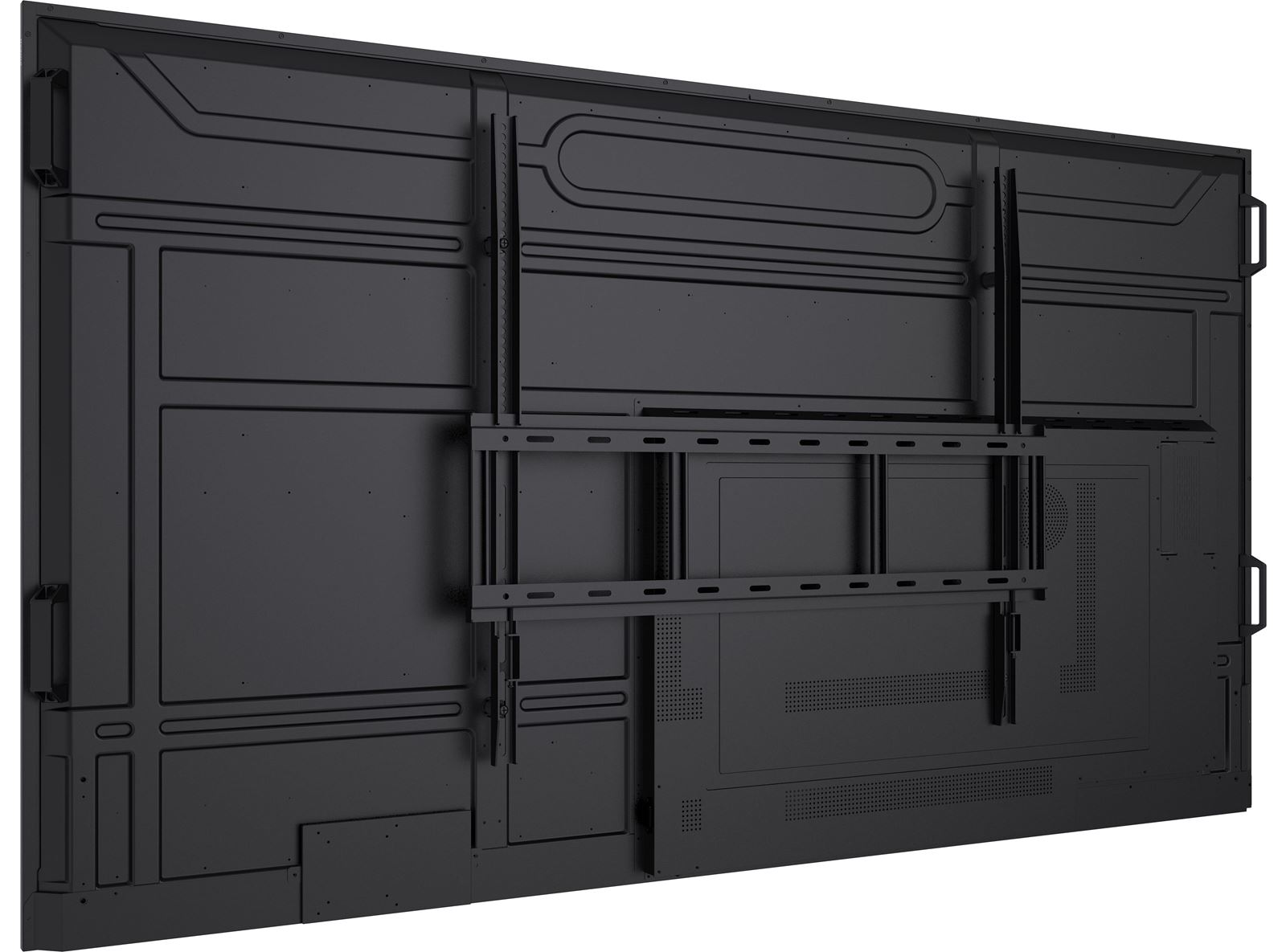

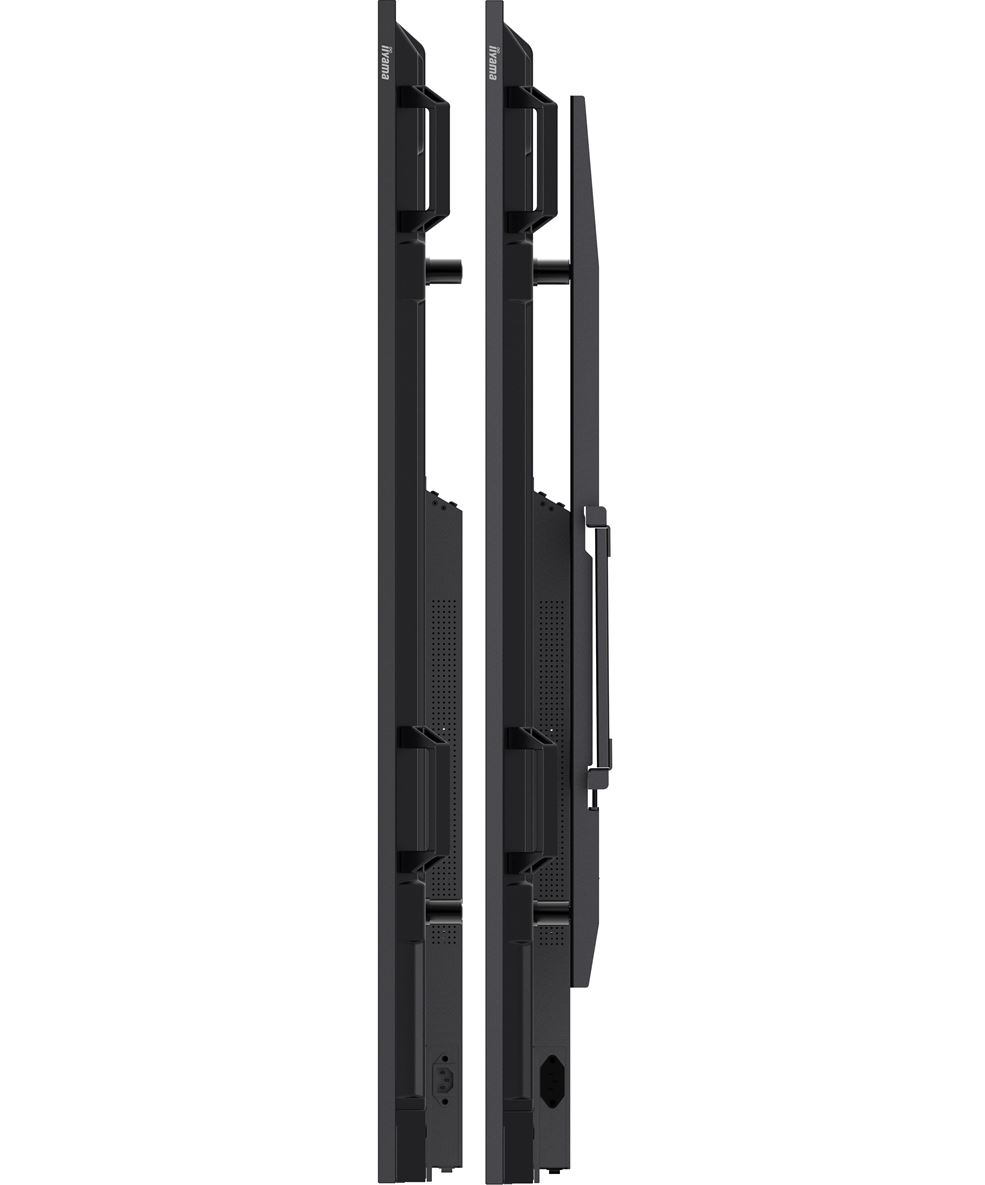

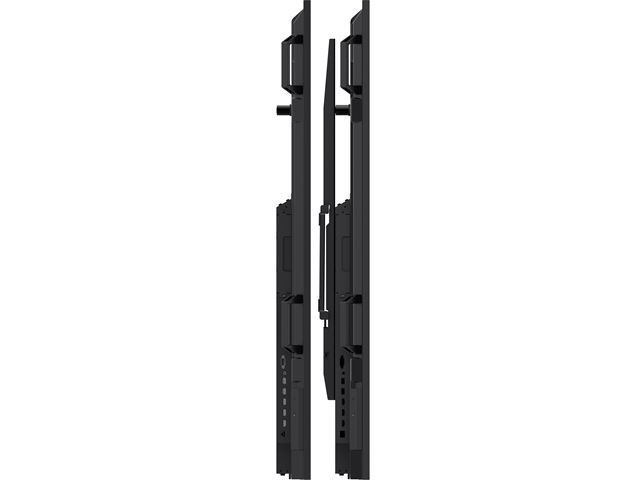

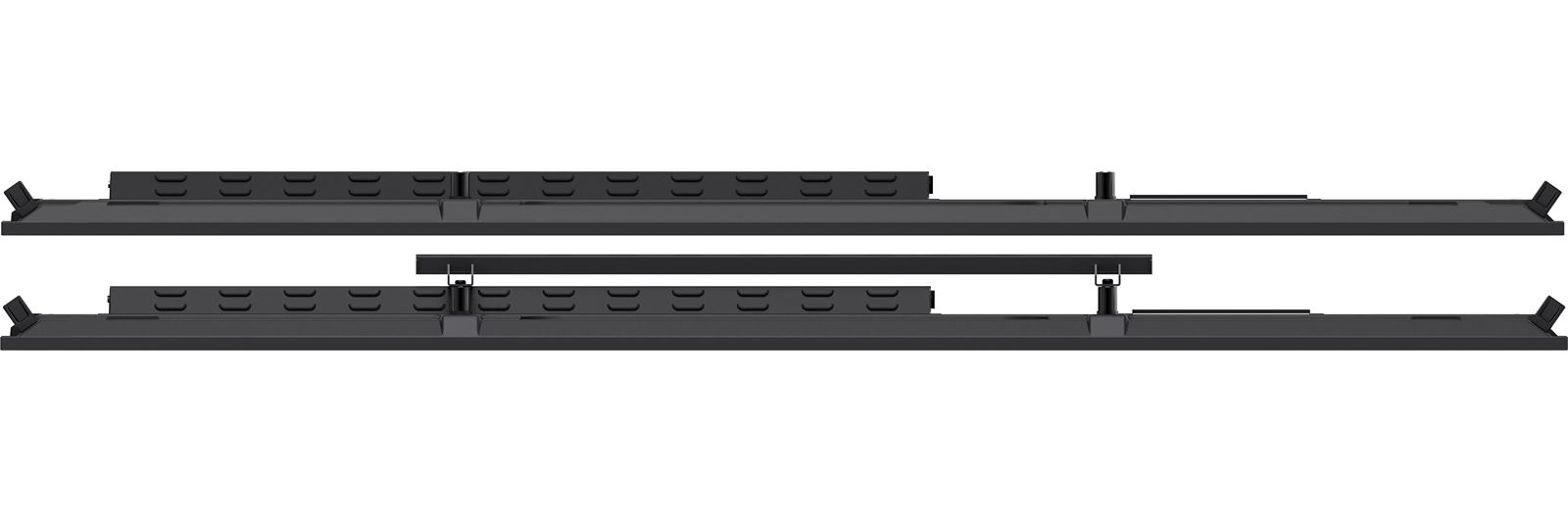

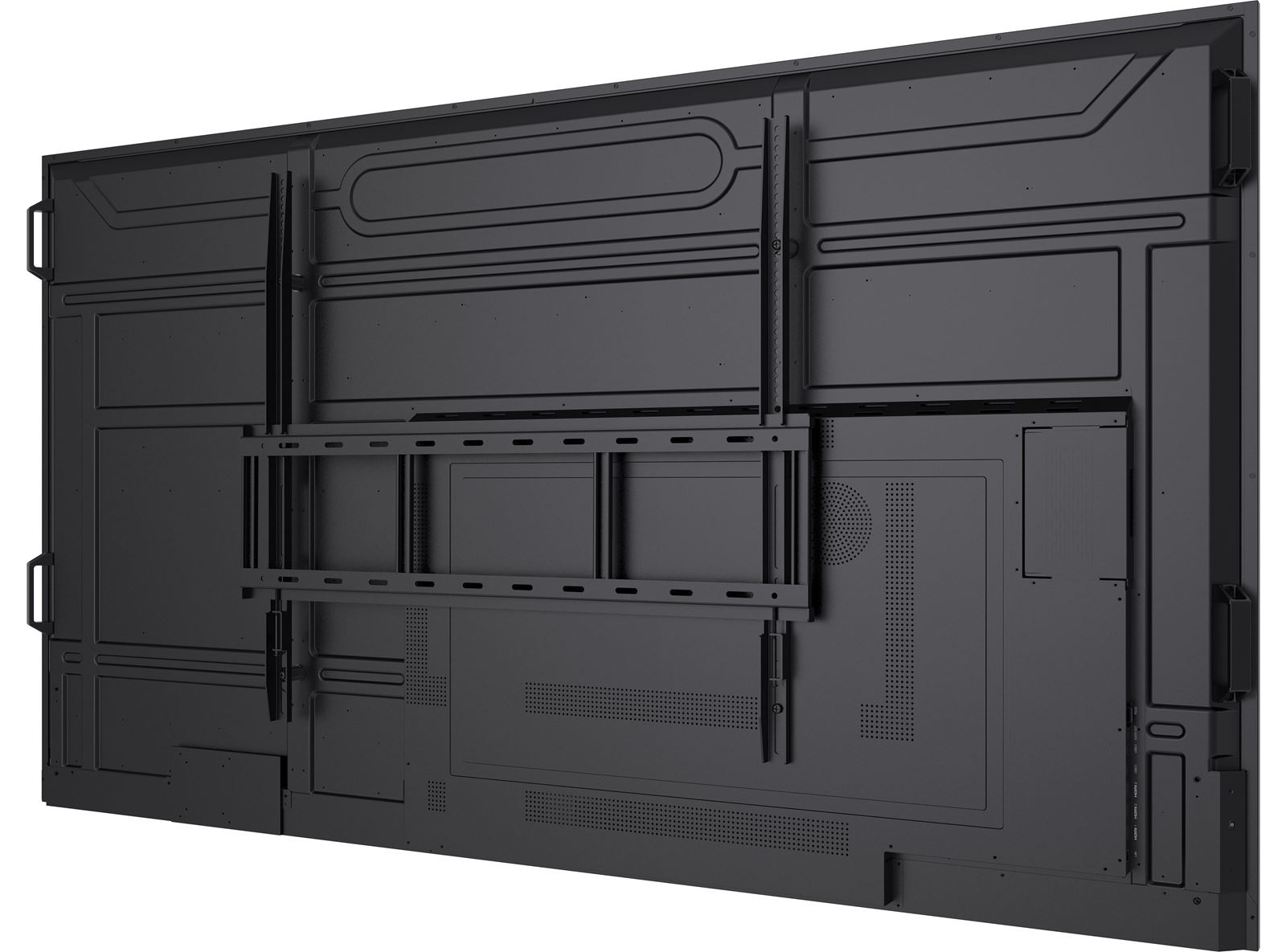

Extra Wall mounting kit included (VESA 800x600mm)
Max. non-stop operating time 24/7
Anti image retention yes
Media playback yes
Housing (bezel) metal

 GENERAL

OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons Remote Sensor, Power Indicator
User controls network (network status, WiFi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, over scan, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD settings (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD), General (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, physical button, power saving, panel saving, monitor information, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen Share, Miracast standby, log export)
Plug&Play DDC2B

 MECHANICAL

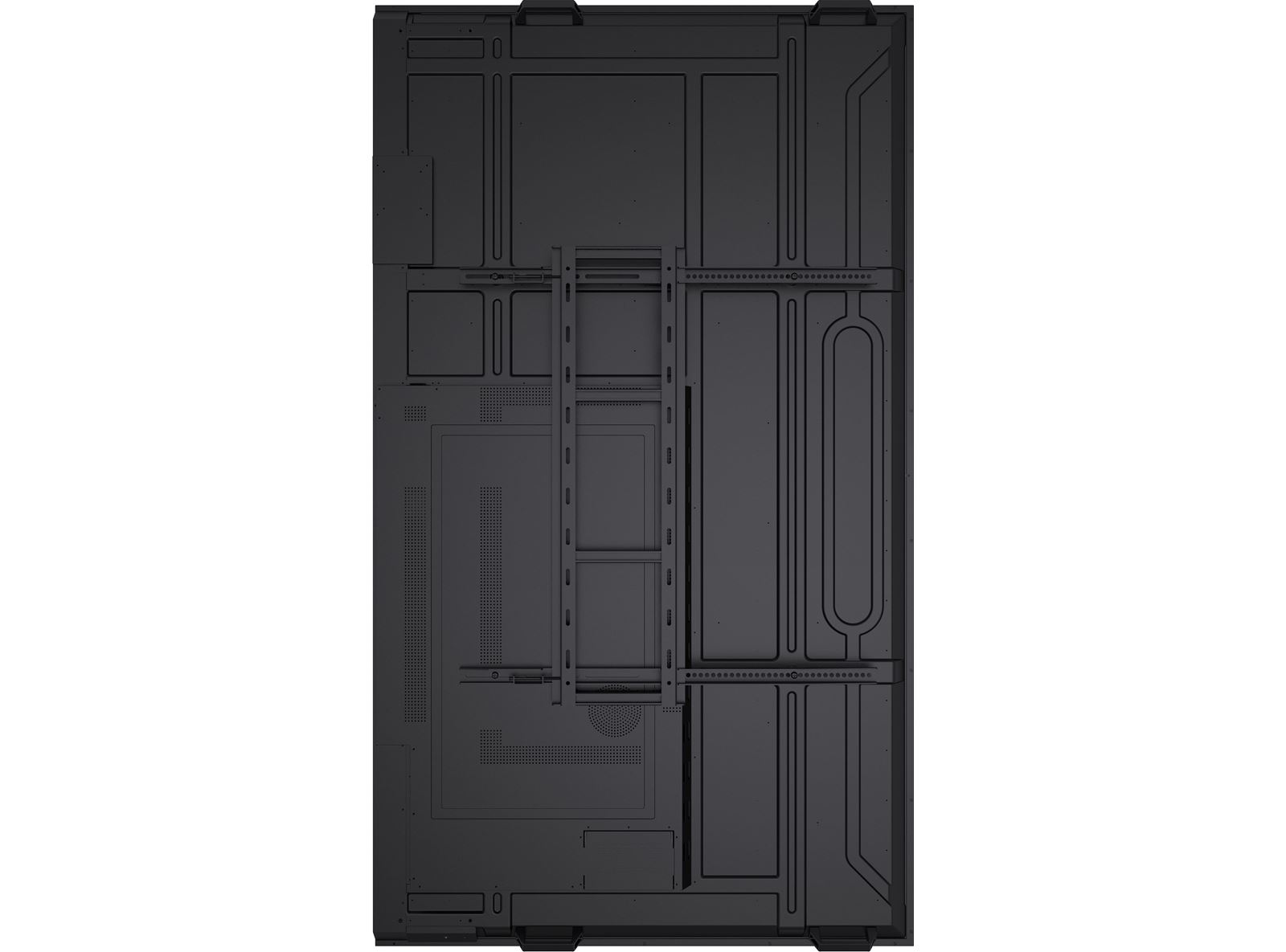

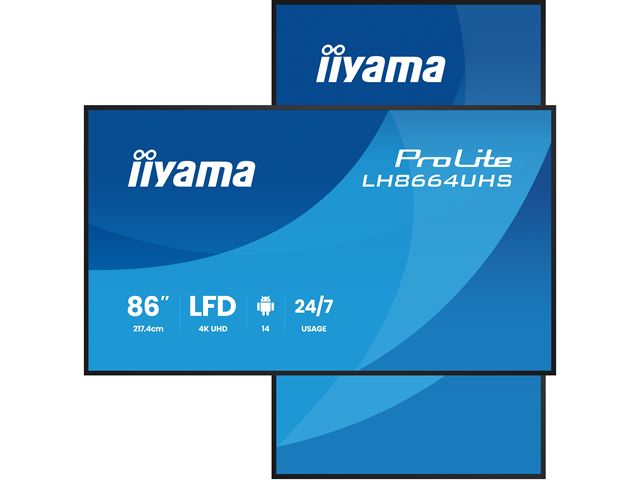

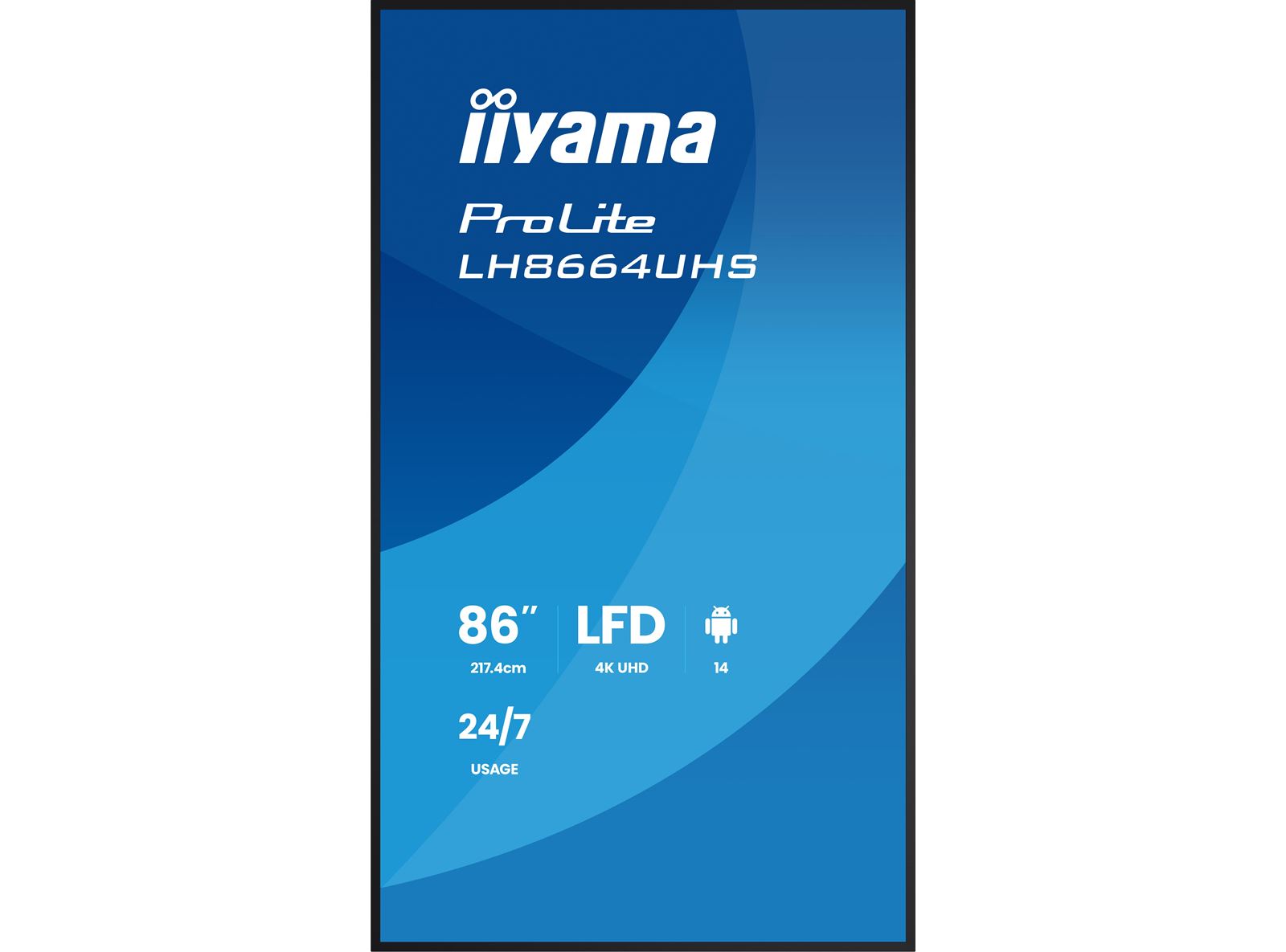

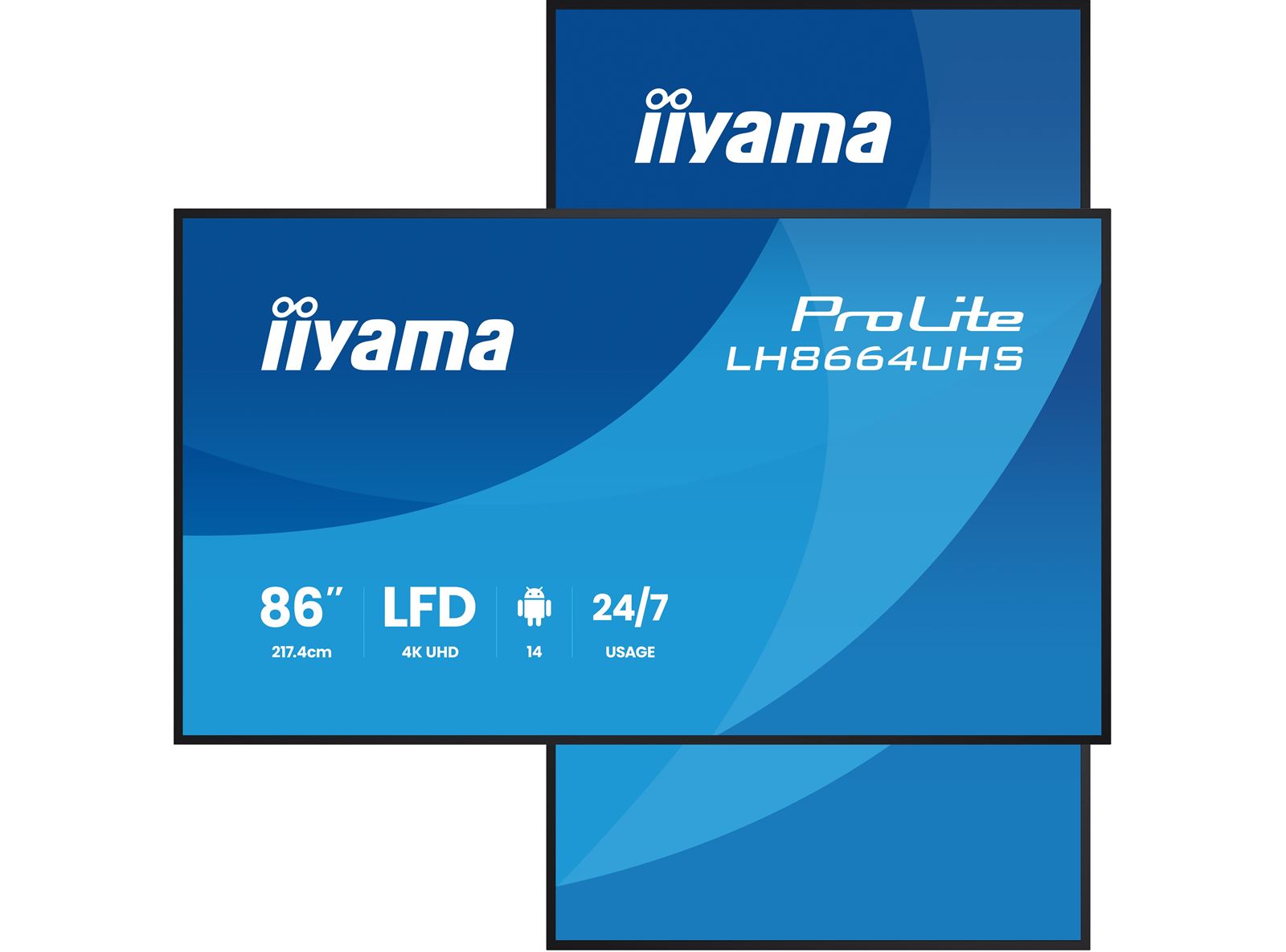

Orientation landscape, portrait
Fanless design yes

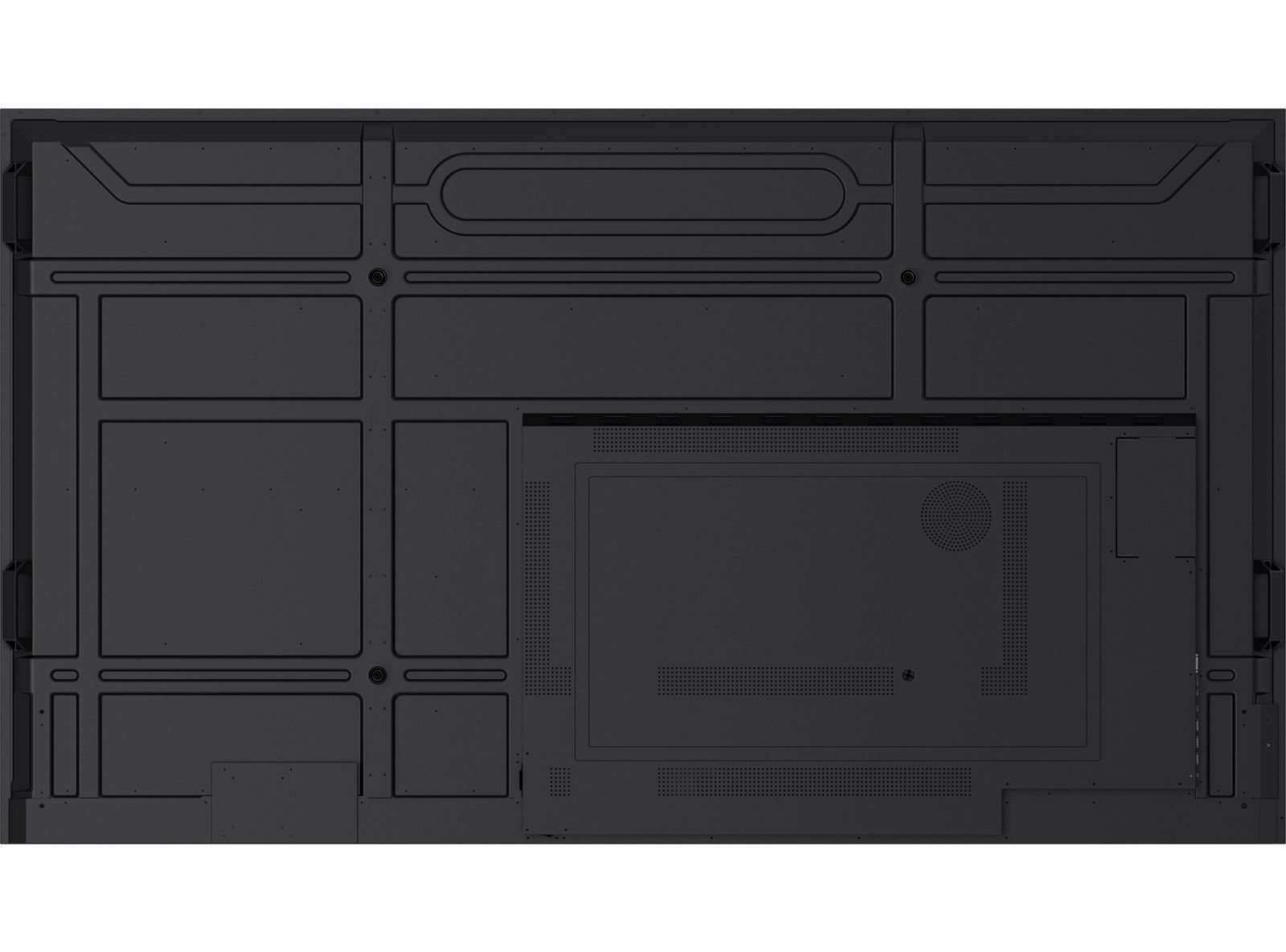

VESA mounting 800 x 600mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

 ACCESSORIES INCLUDED

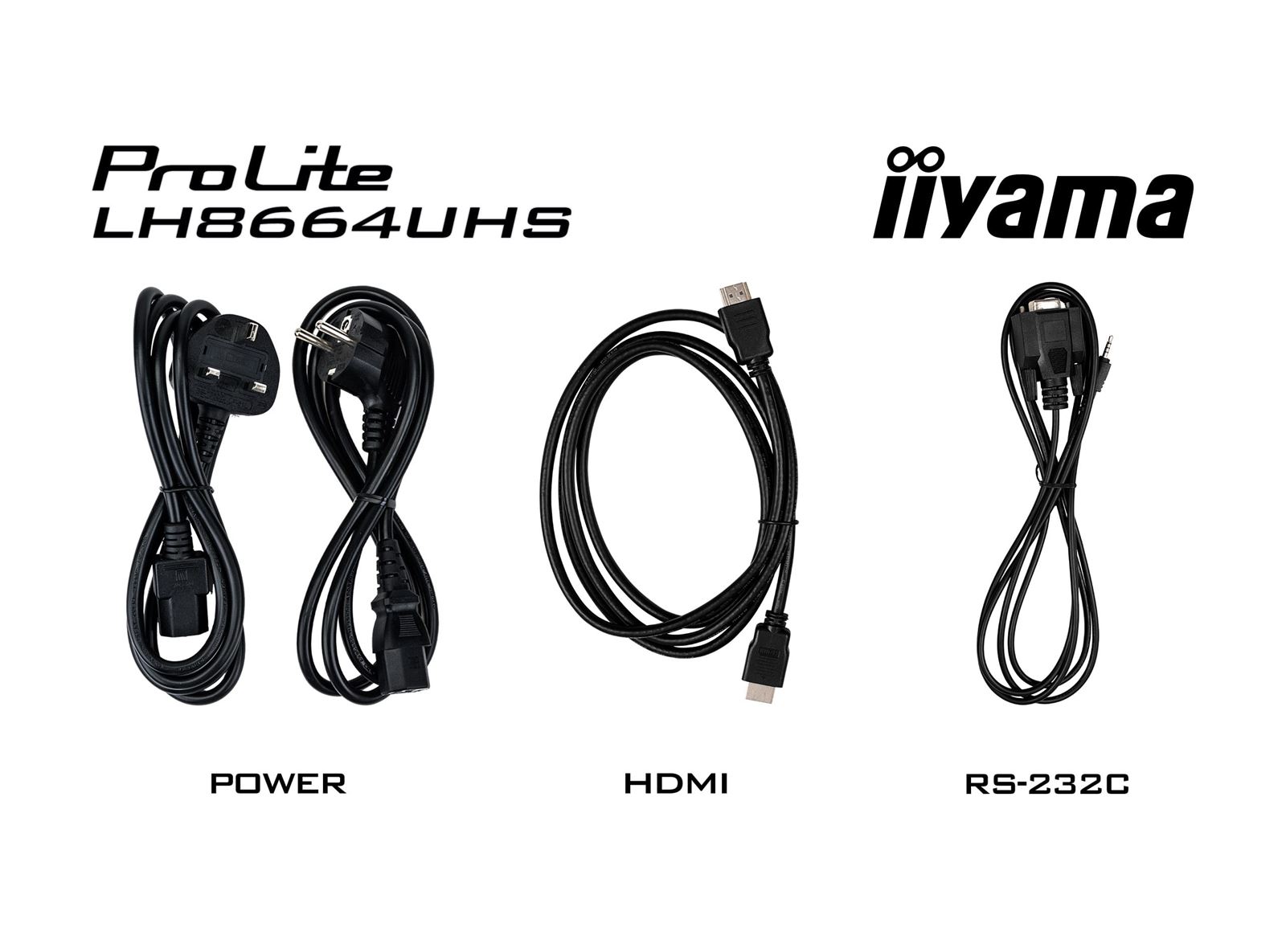

Cables power (1.8m), HDMI (1.8m), RS-232c (1.8m)
Guides quick start guide, safety guide

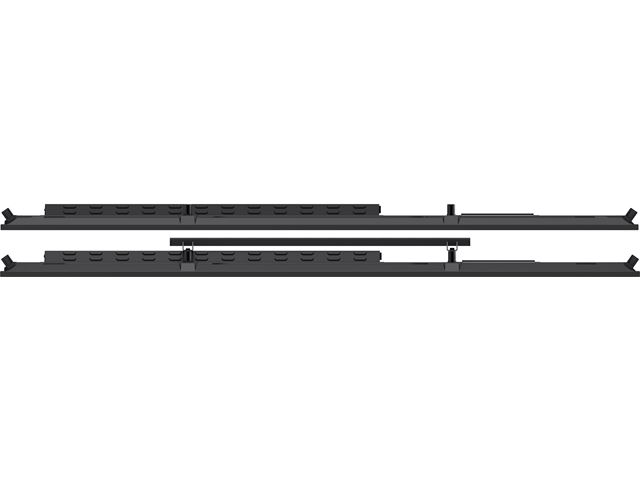

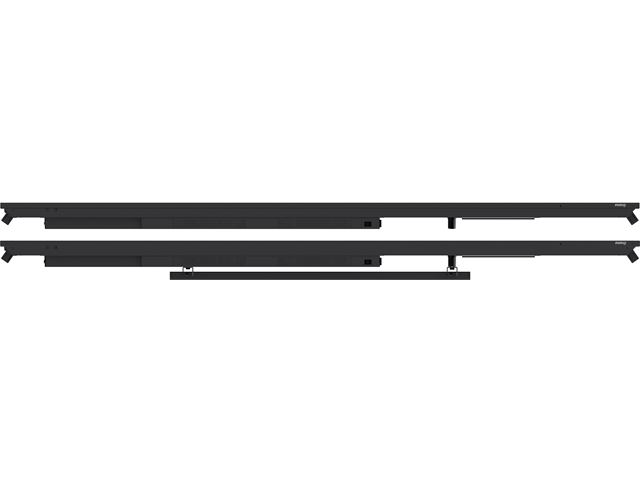

Other Wall mount bracket (800x600), PC Slot Bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes
Remote control yes (batteries included)

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 277W typical, 0.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) G

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 1937.8 x 1108.8 x 79.6mm
Box dimensions W x H x D 2095 x 1215 x 225mm
Weight (without box) 47.9kg
Weight (with box) 62.2kg
EAN code 4948570125357
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).




LAN CONTROL

IISIGNAGE

With iiSignage, you can easily create, publish and manage your own digital signage content on any iiyama 40-series display from a desktop PC in the same network. Use rich content like video’s and widgets to create highly impactful advertising in minutes and schedule your content across multiple displays to best match your customers' behavior.

IISIGNAGE

24/7

24/7 displays are designed for a continuous operation.



24/7

IPS TECHNOLOGY

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS TECHNOLOGY

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS

Media player LFD

Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

Media player LFD
