iiyama ProLite monitor TE10518UWI-B1AG 105", 5k UHD, Infrared 40pt touch, Anti-glare coating, VA, HDMI, USB-C, 21:9 panoramic view, 8-array mic, Android 13 OS

£7,000.00 exc. VAT
£8,400.00 inc. VAT

Brand: iiyama

Manufacturer Code: TE10518UWI-B1AG

Warranty: 3 years collect and return

Product Description

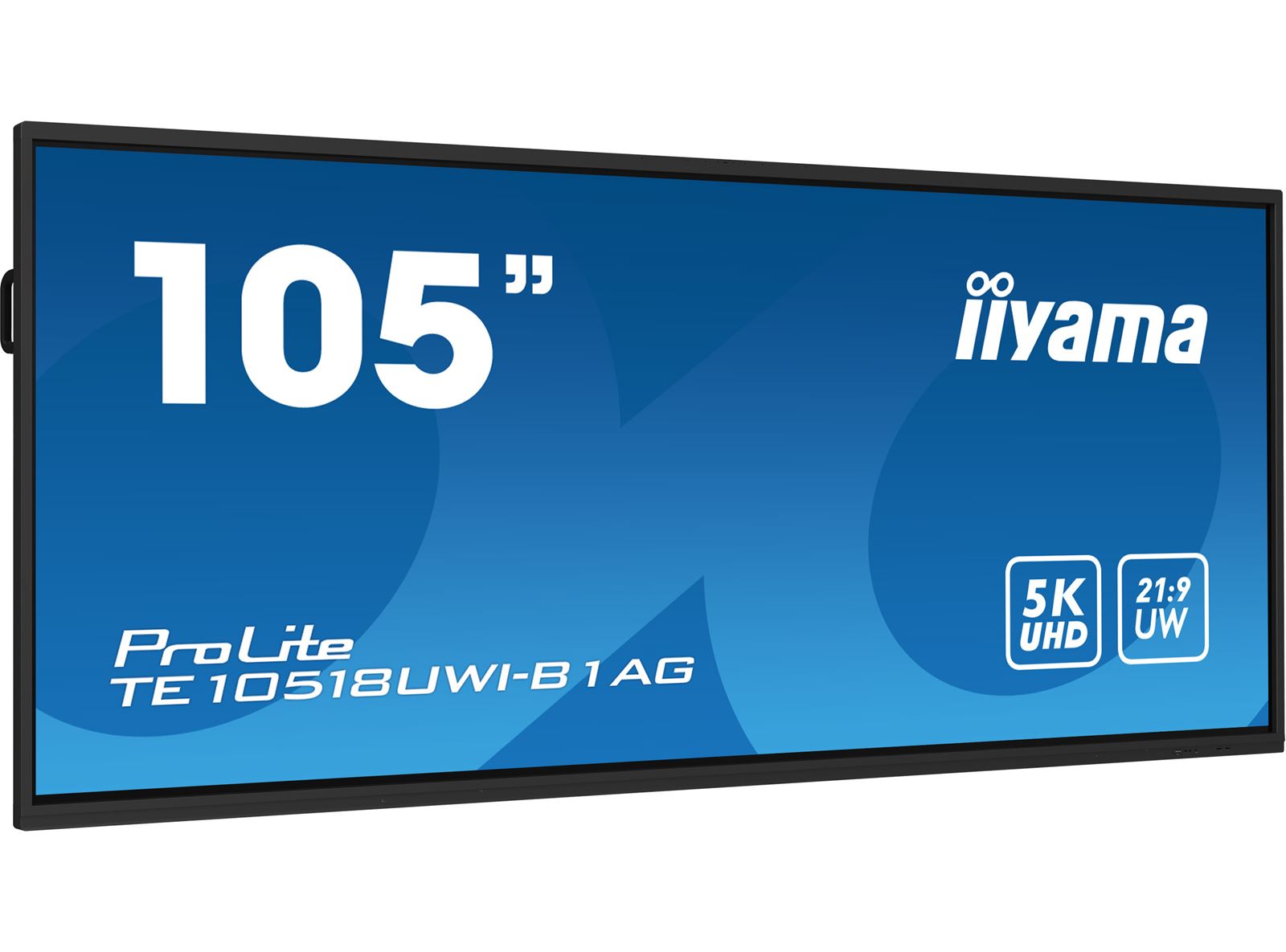

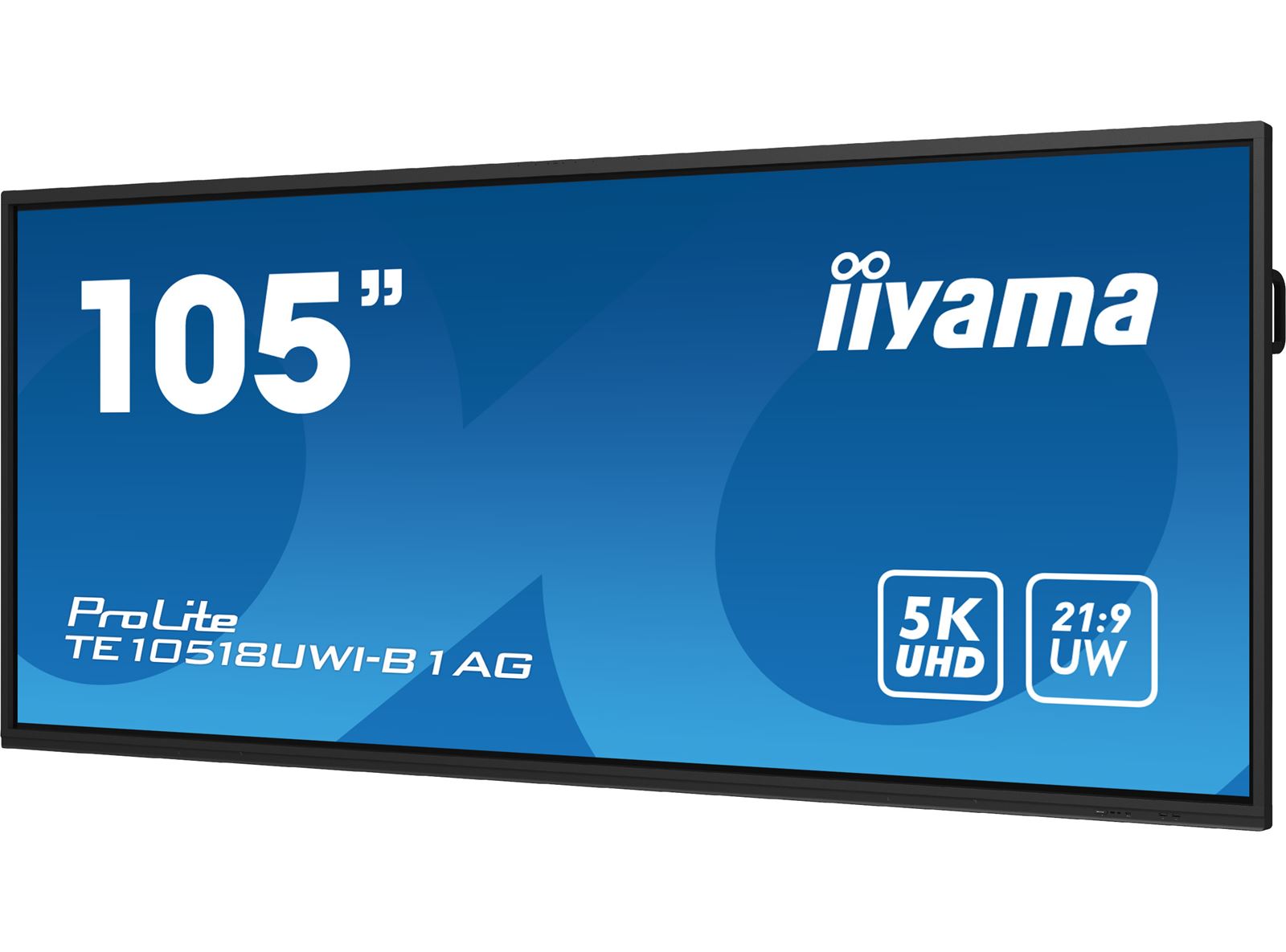

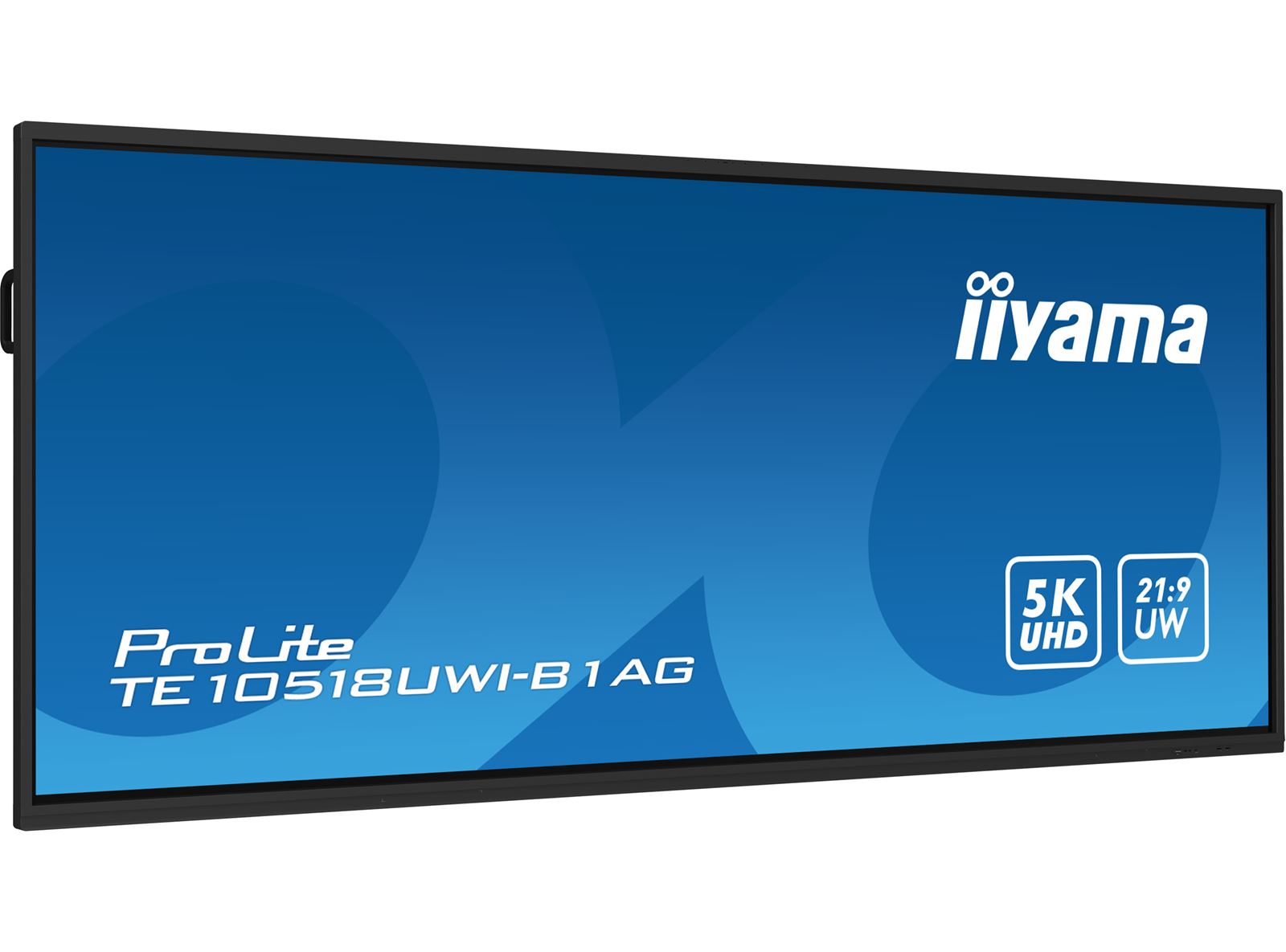

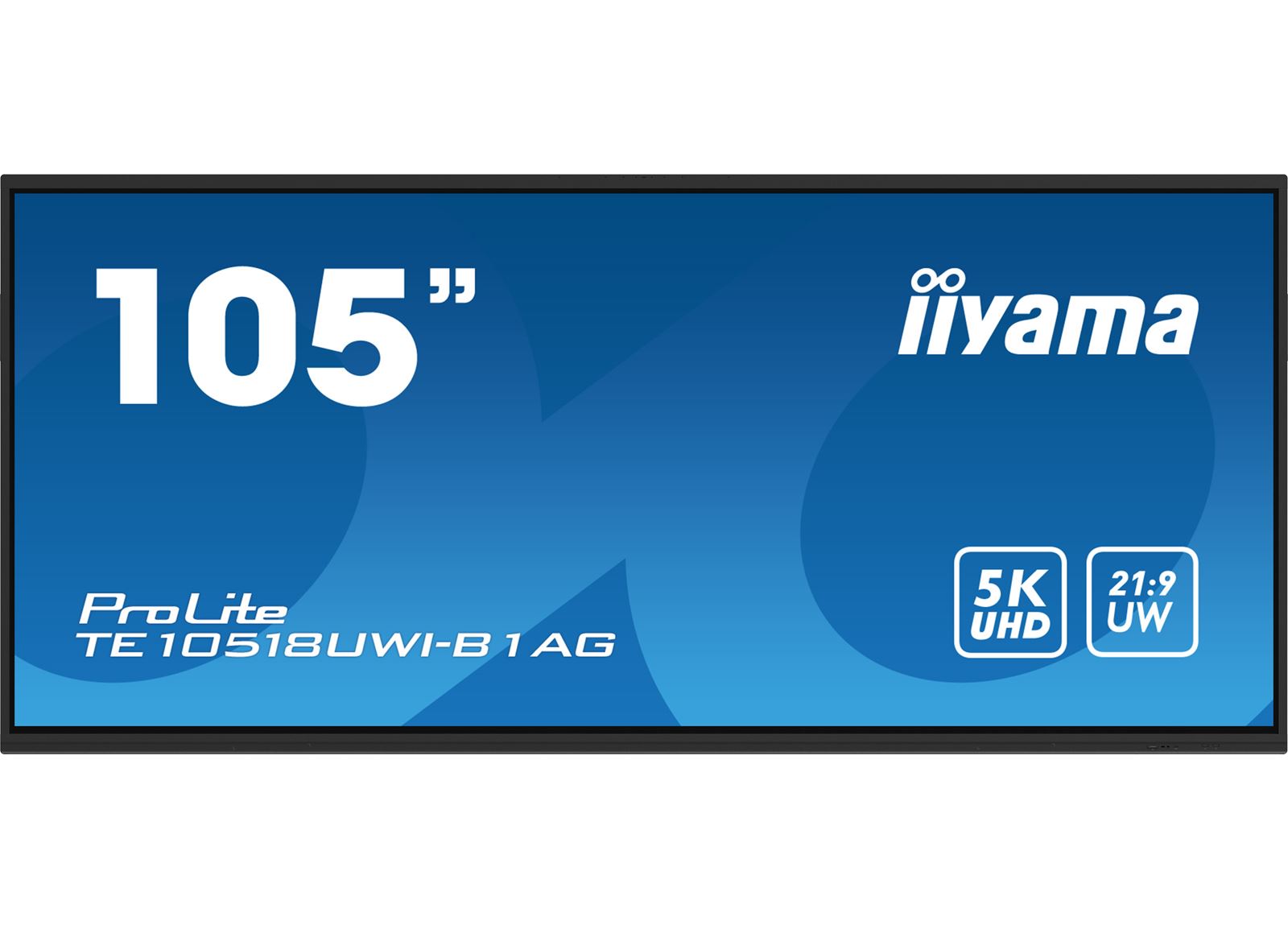

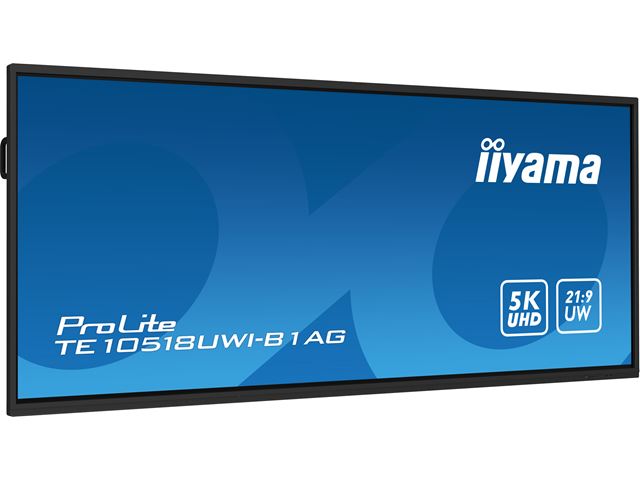

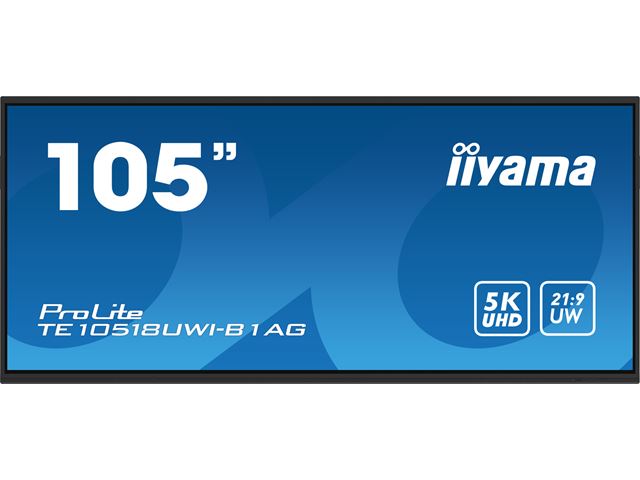

105” Ultra-wide Interactive 5K UHD display with 21:9 panoramic view

The TE10518UWI-B1AG is a revolutionary 105" 5K UHD Interactive Touchscreen that brings a new level of collaboration and engagement to your workspace. Boasting cutting-edge technology and a host of impressive features and functionalities, this interactive display is designed to transform the way you work, communicate, and share ideas. Whether it's for boardrooms, classrooms, or collaborative meeting spaces, this 105" 21:9 Ultra-Wide interactive touchscreen is the ultimate tool to foster creativity, productivity, and seamless communication.

Technical Information

 DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 104.6", 265.7cm
Panel VA
Touch Glass AG coated glass, zero bonding
Native resolution 5120 x 2160 (14.75 megapixel, 5K UHD)
Aspect ratio 21:9
Panel brightness 450 cd/m²
Light transmittance 92%
Static contrast 4000:1
Dynamic contrast 5000:1
Response time (GTG) 6.5ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 10bit (NTSC 90%)
Horizontal Sync 30 - 135kHz
Viewable area W x H 2450 x 1033.6mm, 96.5 x 40.7"
Pixel pitch 0.479mm
Bezel colour and finish black, matte

 TOUCH

Touch technology PureTouch-IR⁺
Touch points 40, 32pt writing (HID, only with supported OS)
Touch accuracy +- 1mm
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes

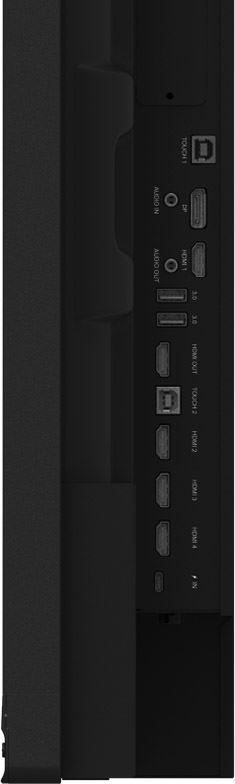

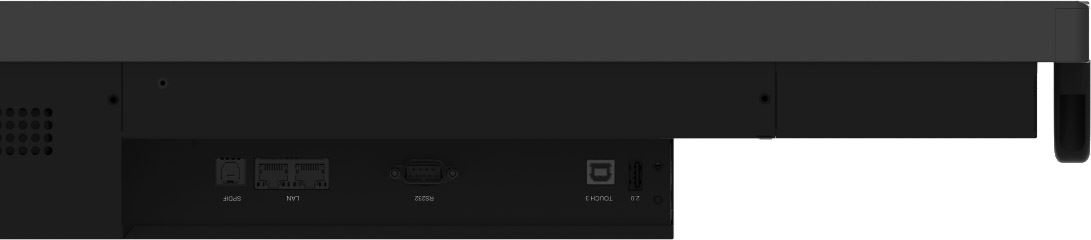

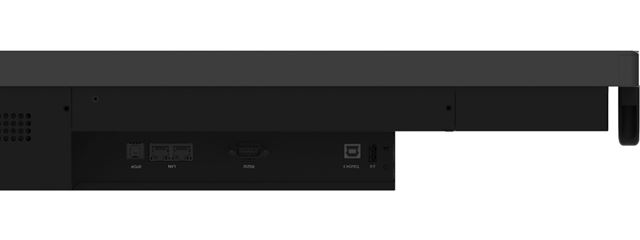

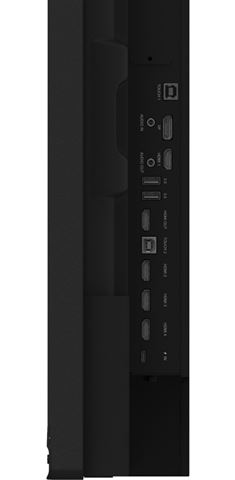

 INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x4 (1x 2.1, max. ᠎5120x᠎2160 @60Hz; 3x 2.0, max. 3840x2160 @60Hz, YUV444)
DisplayPort x1 (1.4, max. ᠎5120x᠎2160 @60Hz)
USB-C x2 (3.2 Gen 1, 3840x2160 @60Hz, DP Alt mode 1.2, Touch, front: 15W PD, back: 100W PD)
Audio input Mini jack x1
Monitor control input RS-232c x1
Digital signal output HDMI x1 (3840x2160 @60Hz, YUV/RGB444)
USB-C x1 (3.2 Gen 1, 3840x2160 @60Hz (DP 1.2 Alt mode, Touch, 5W PD, MSD (Multi-Screen Display))
Audio output S/PDIF (Optical) x1
Mini jack x1
Speakers 2 x 16W (Front + 16W Subwoofer)
HDCP HDMI, DP & USB-C: 2.3
USB ports x8 (media playback / peripherals / storage – front: 2x 3.2 (Gen 1, 5Gbit), 1x USB-C 3.2 (Gen 1, 15W PD), back side: 2x 3.2 (Gen 1, 5Gbit), 1x USB-C 3.2 (Gen 1, 100W PD), top side: 2x 3.2 (Gen 1, 5Gbit))
RJ45 (LAN) x2 (IN/OUT, Auto switch for PC & Android, 1000MB)
Microphone 8-Array (8m voice pick-up, Front facing)

 FEATURES

Integrated software iiWare 11 (Android 13 OS) featuring iiyama DMS, Note, web browser, file manager, cloud drives, WPS office, iiyama Share and EShare for wireless connection with Windows/iOS/Android devices
WiFi yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0)
Hardware CPU: A311D2 Quad core A76+A55, GPU: Mali G610, RAM: 8GB, ROM: 64GB
Extra WiFi 6 Module (OWM002), Slot for optional OPS Slot PC, 4x Touch pen
Kiosk mode yes
Max. non-stop operating time 16/7
Anti image retention yes
Media playback yes
Glass thickness 3mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB
Control buttons Power, Power Indicator, Remote Sensor, Ambient Light Sensor, USB-C Connector (3.2), USB Connector (3.2), Microphone Indicator
User controls common settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (pixel shift, eye care, auto light, ECO, ECR, auto colour temp.), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), settings (wireless & networks, personal, input & output, application, system)
Blue light reducer yes
Plug&Play DDC2B

 MECHANICAL

Orientation landscape
Fanless design yes

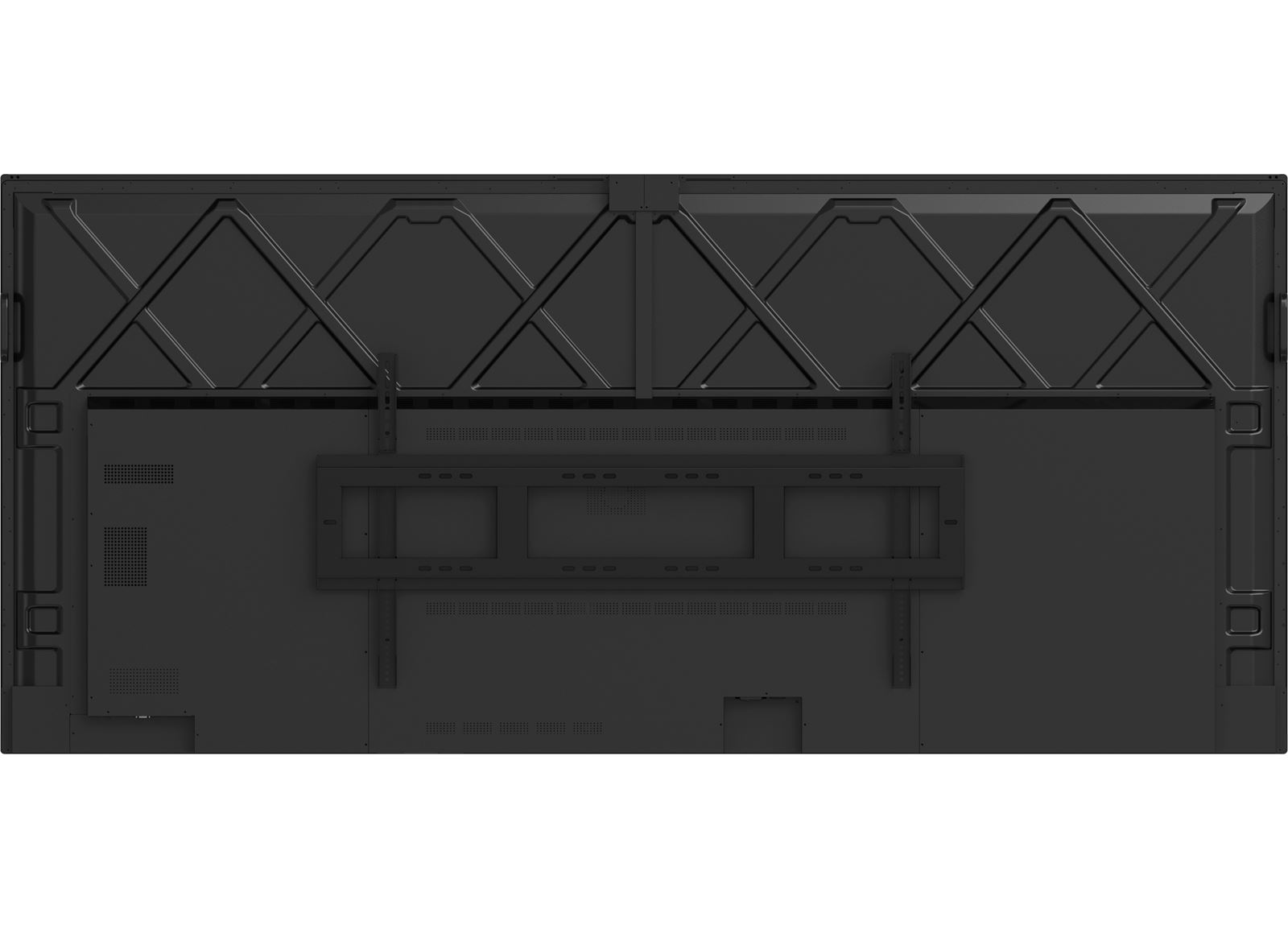

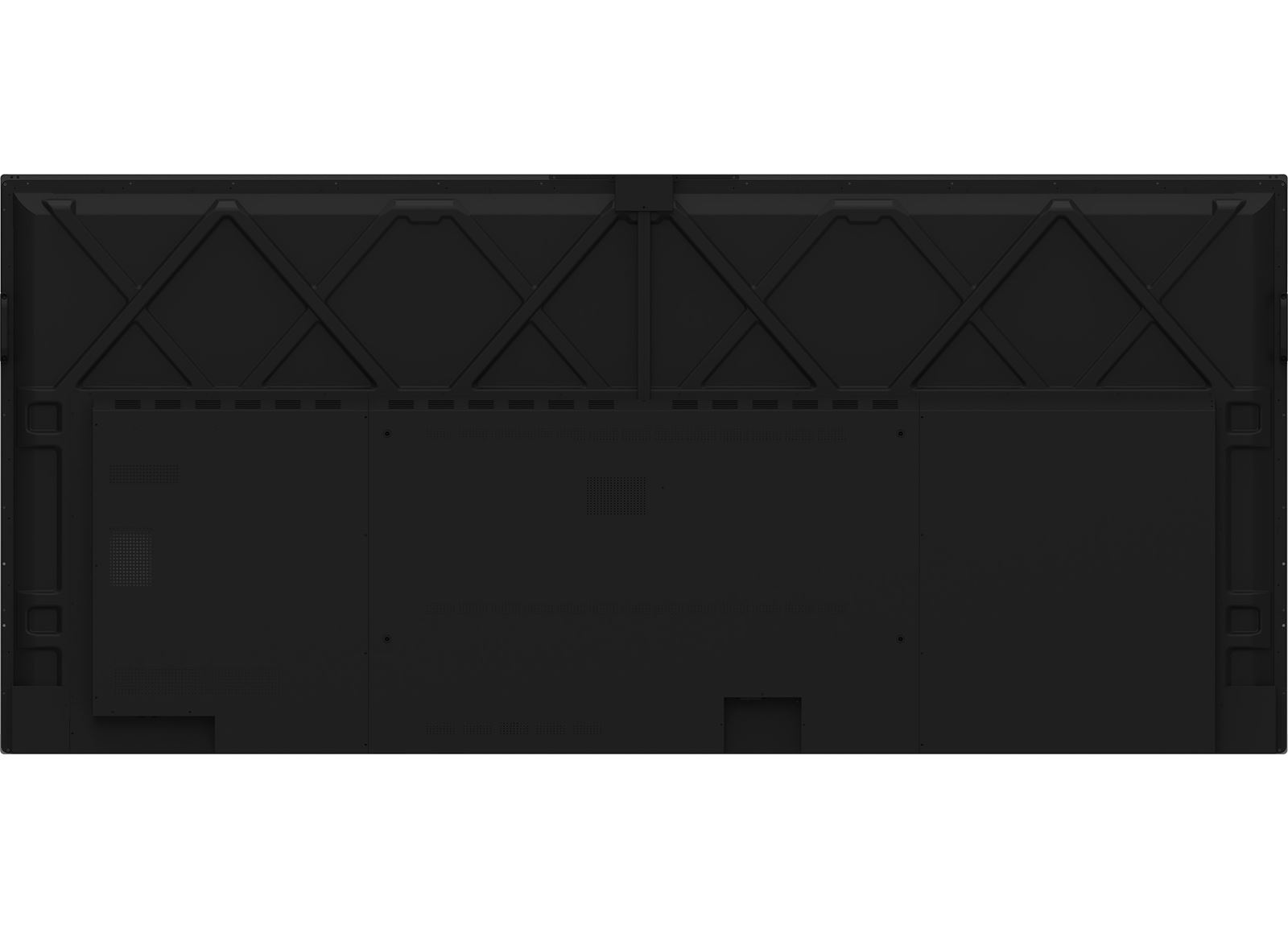

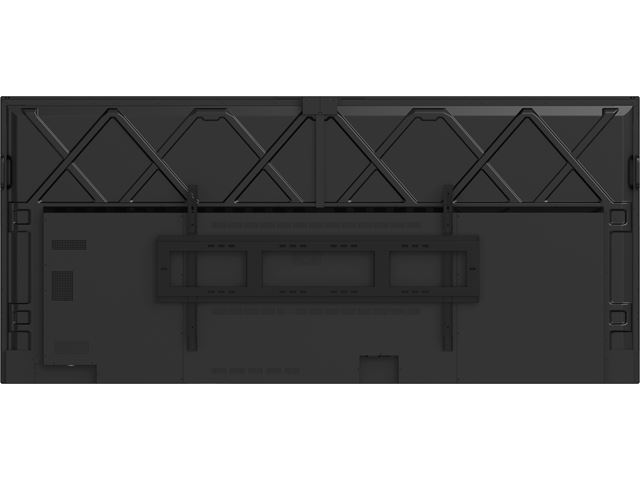

VESA mounting 1000 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

 ACCESSORIES INCLUDED

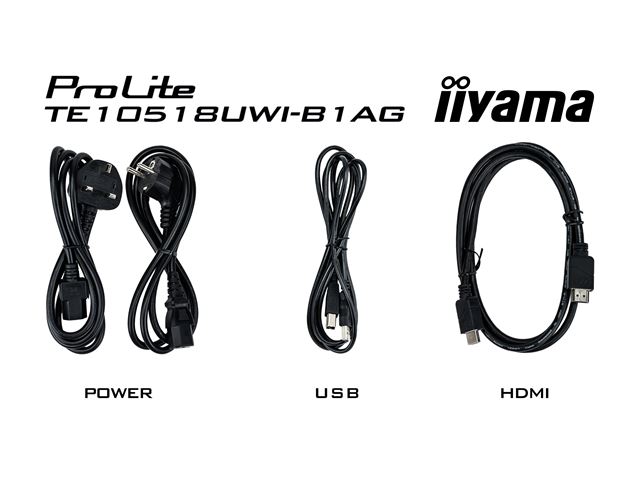

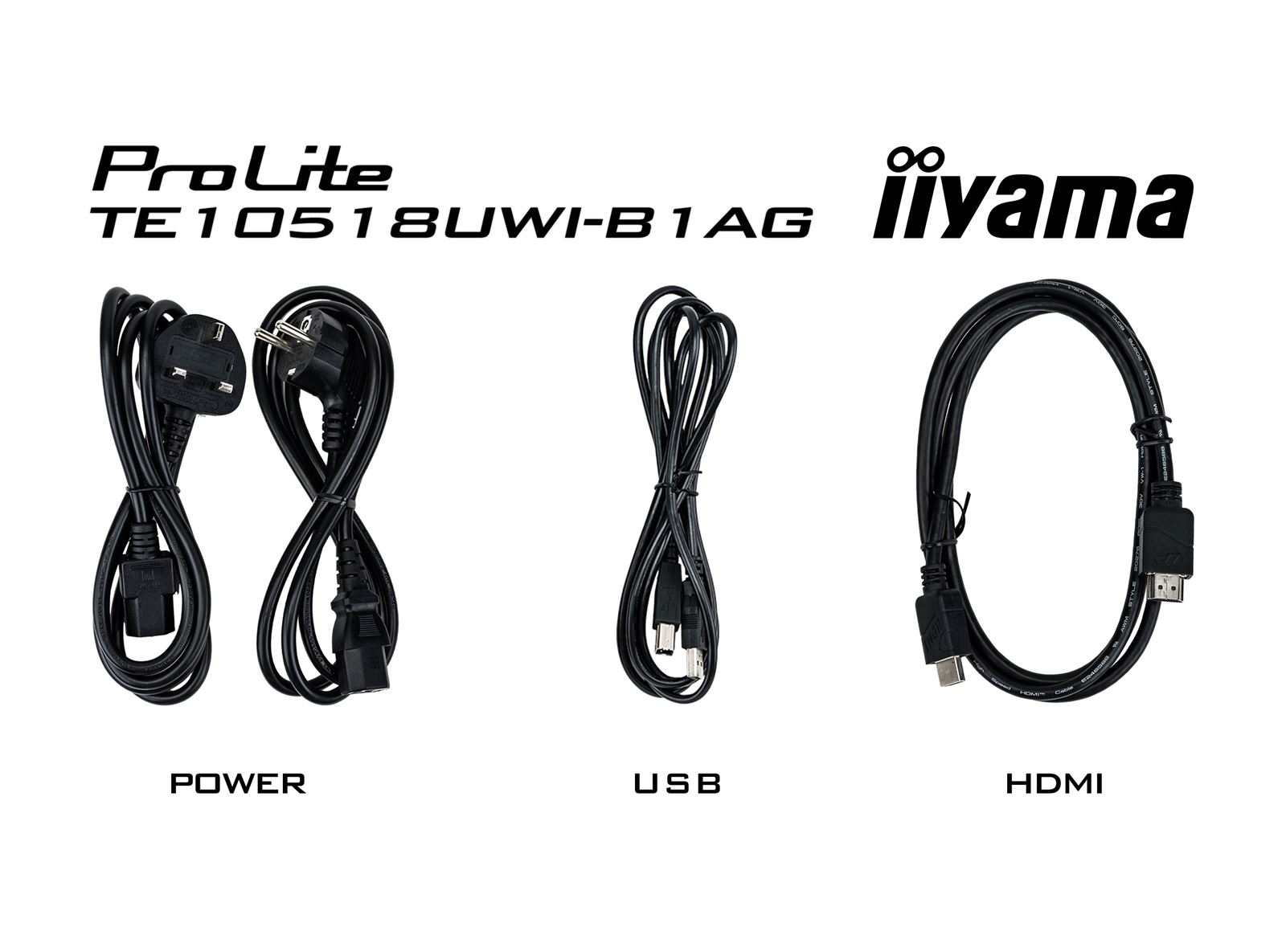

Cables power, USB, HDMI

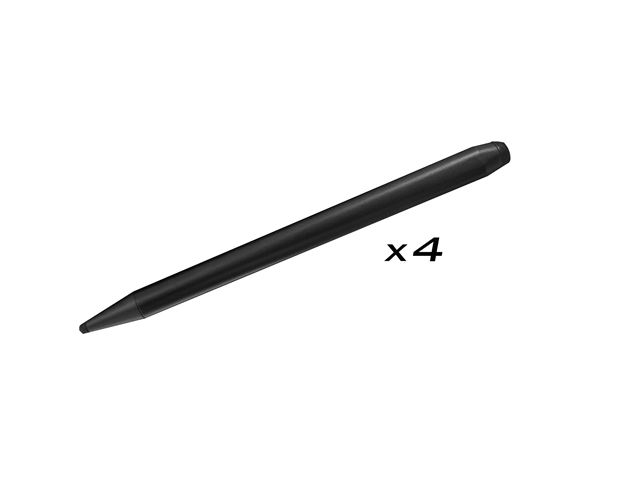

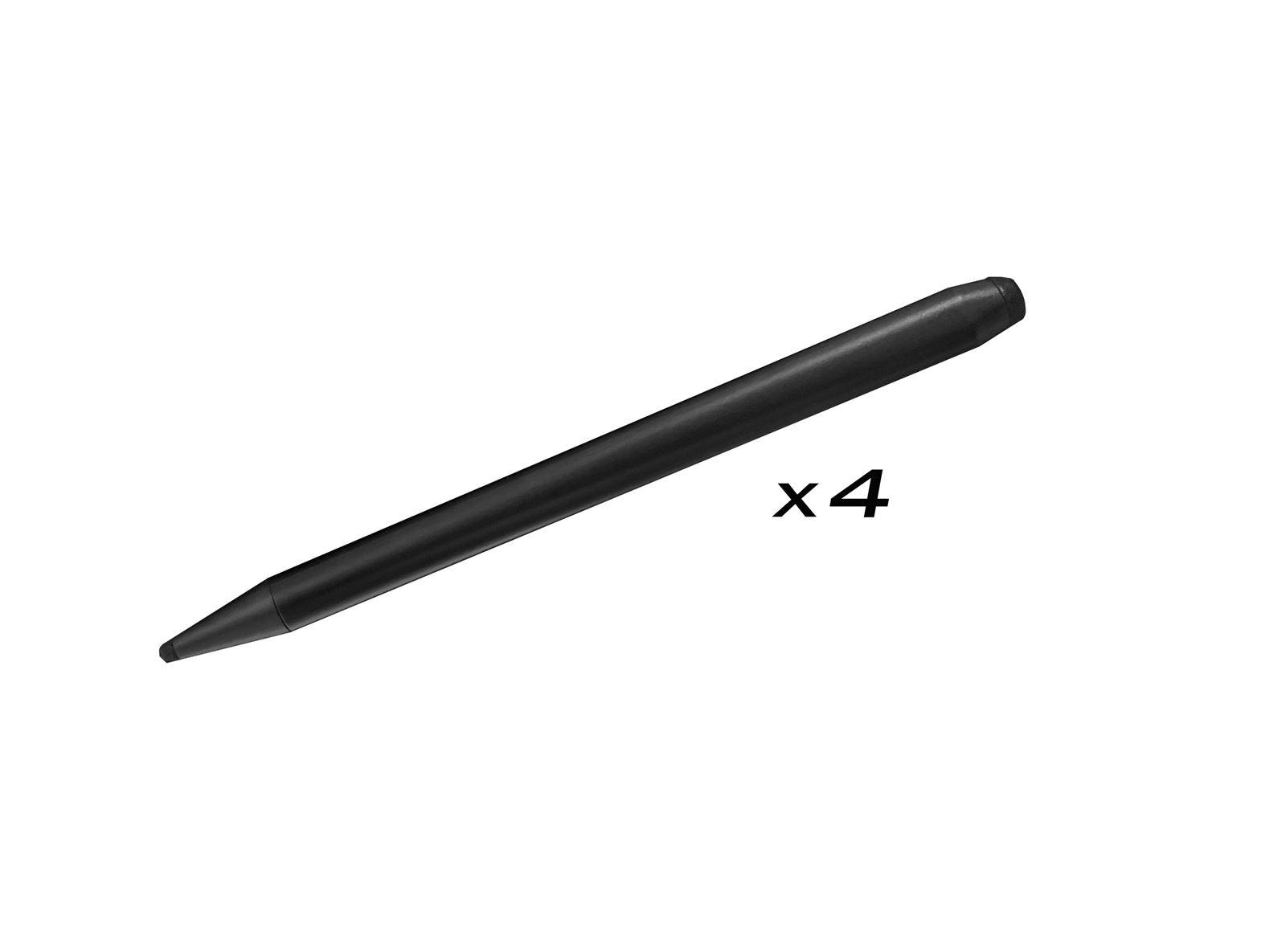

Touch pen x4 (Dual function tips, Anti-Bacterial)
Guides quick start guide, safety guide

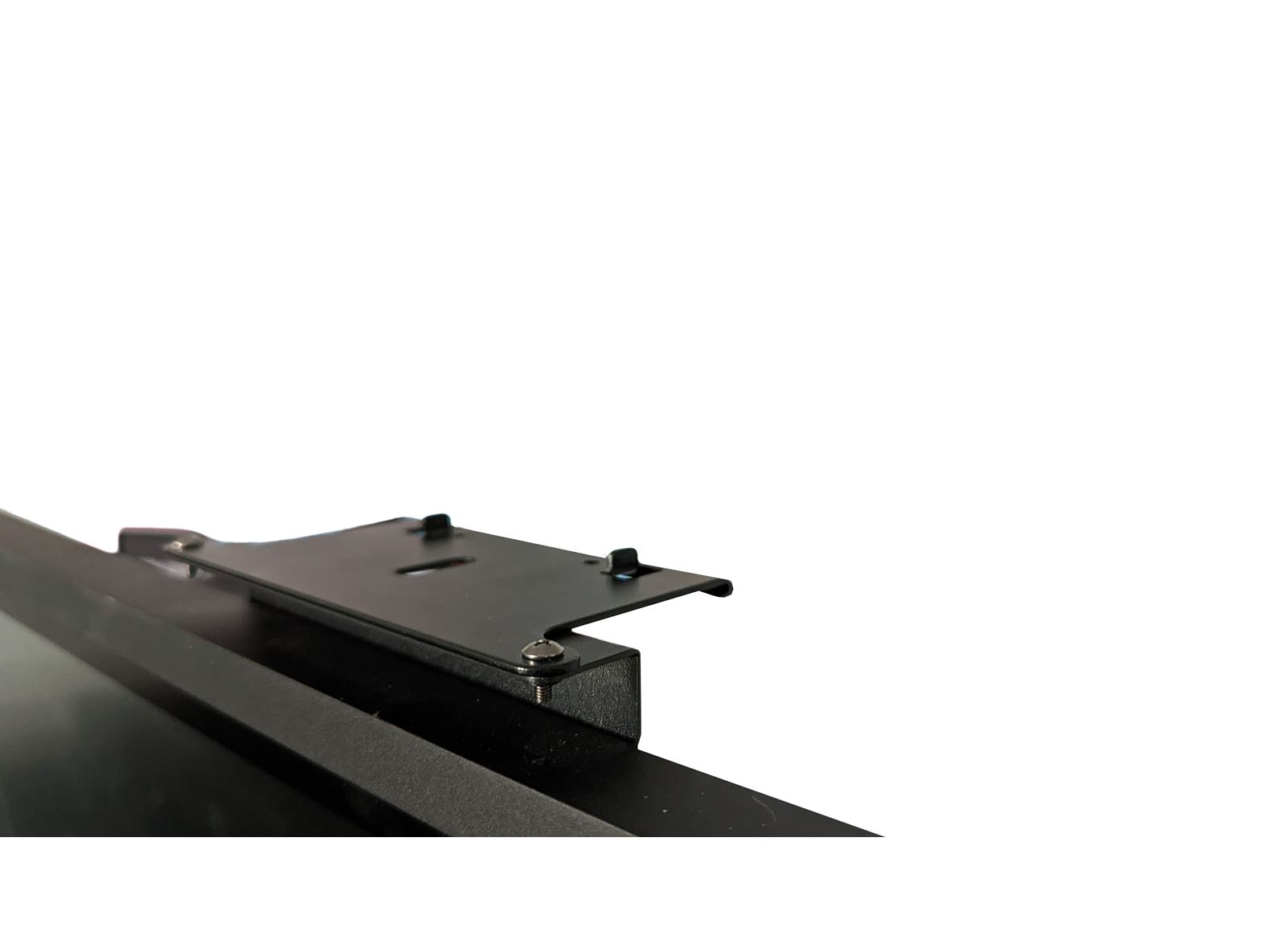

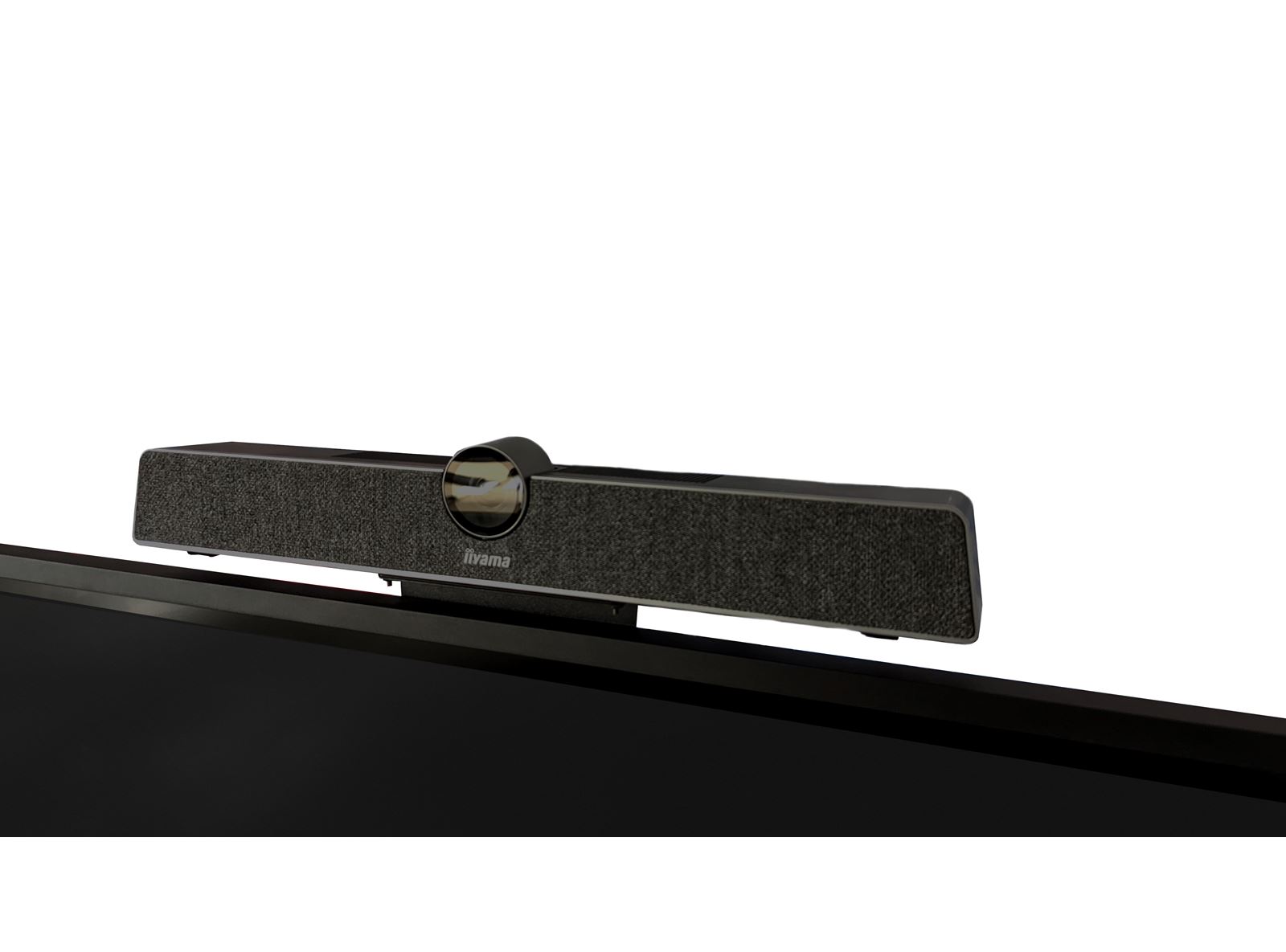

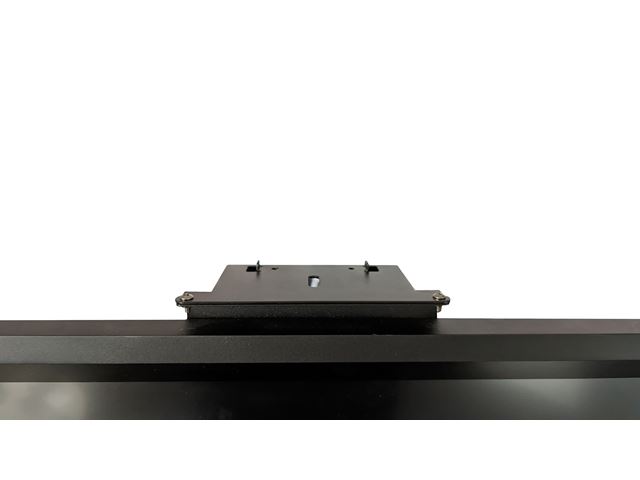

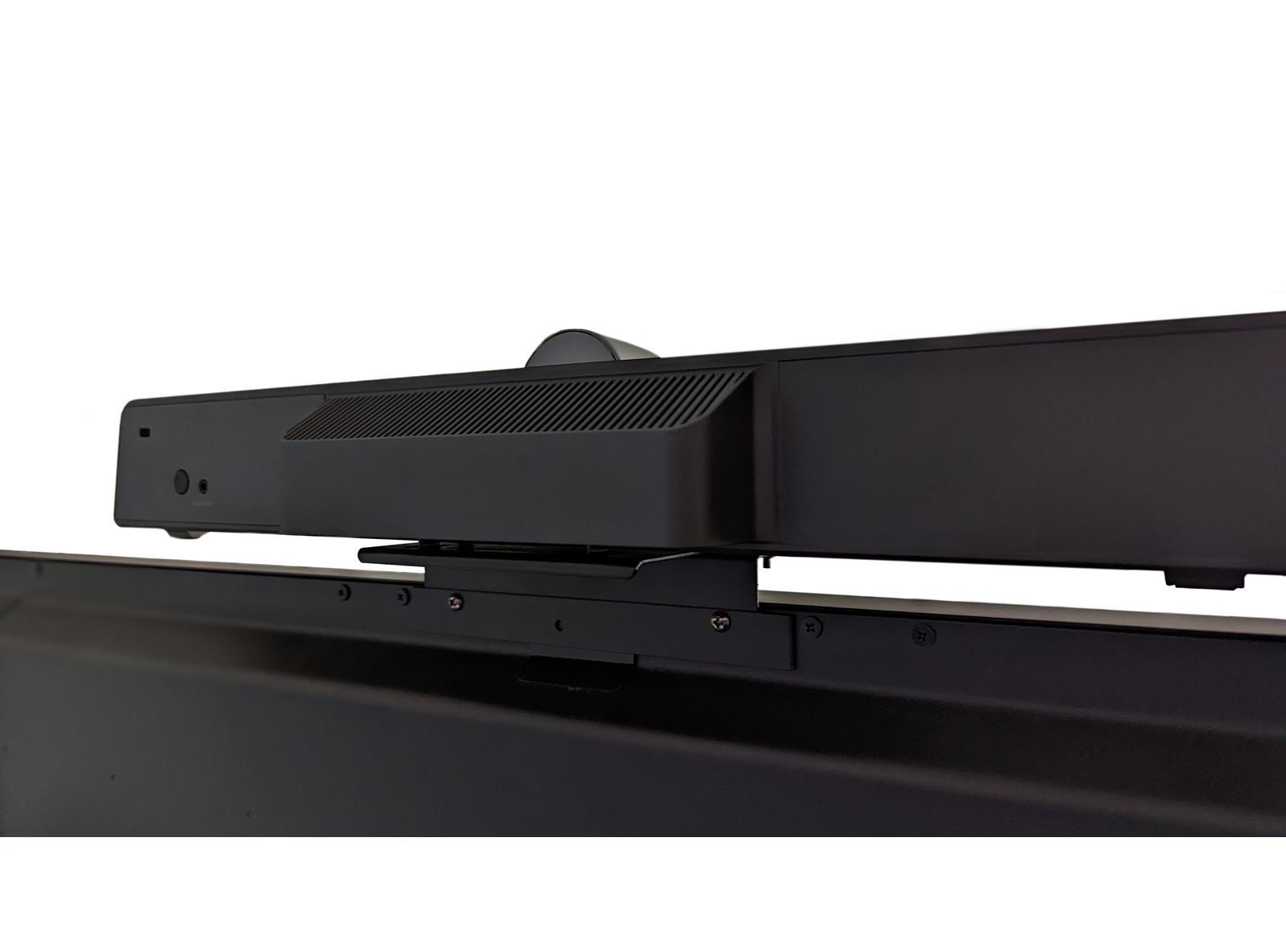

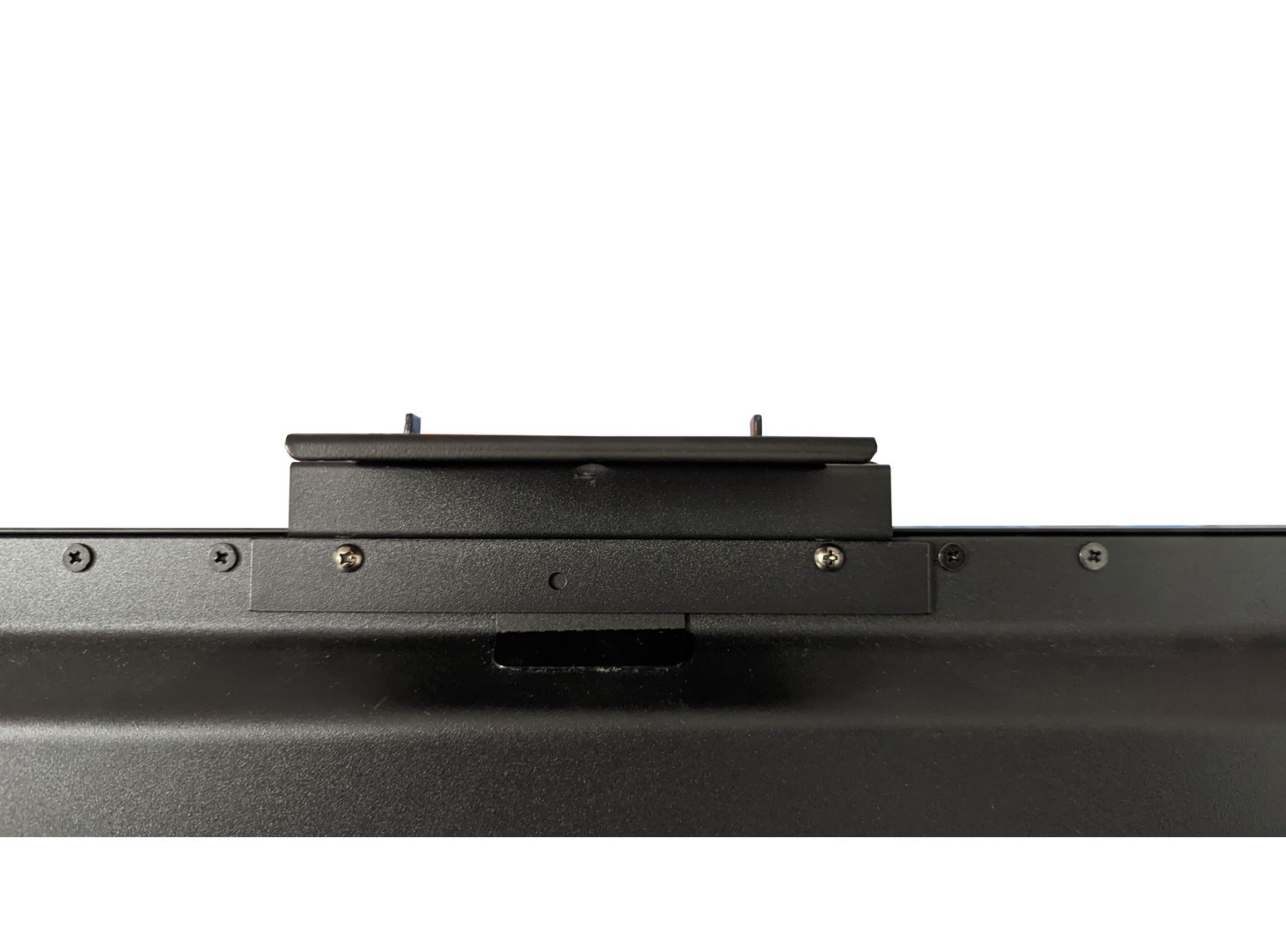

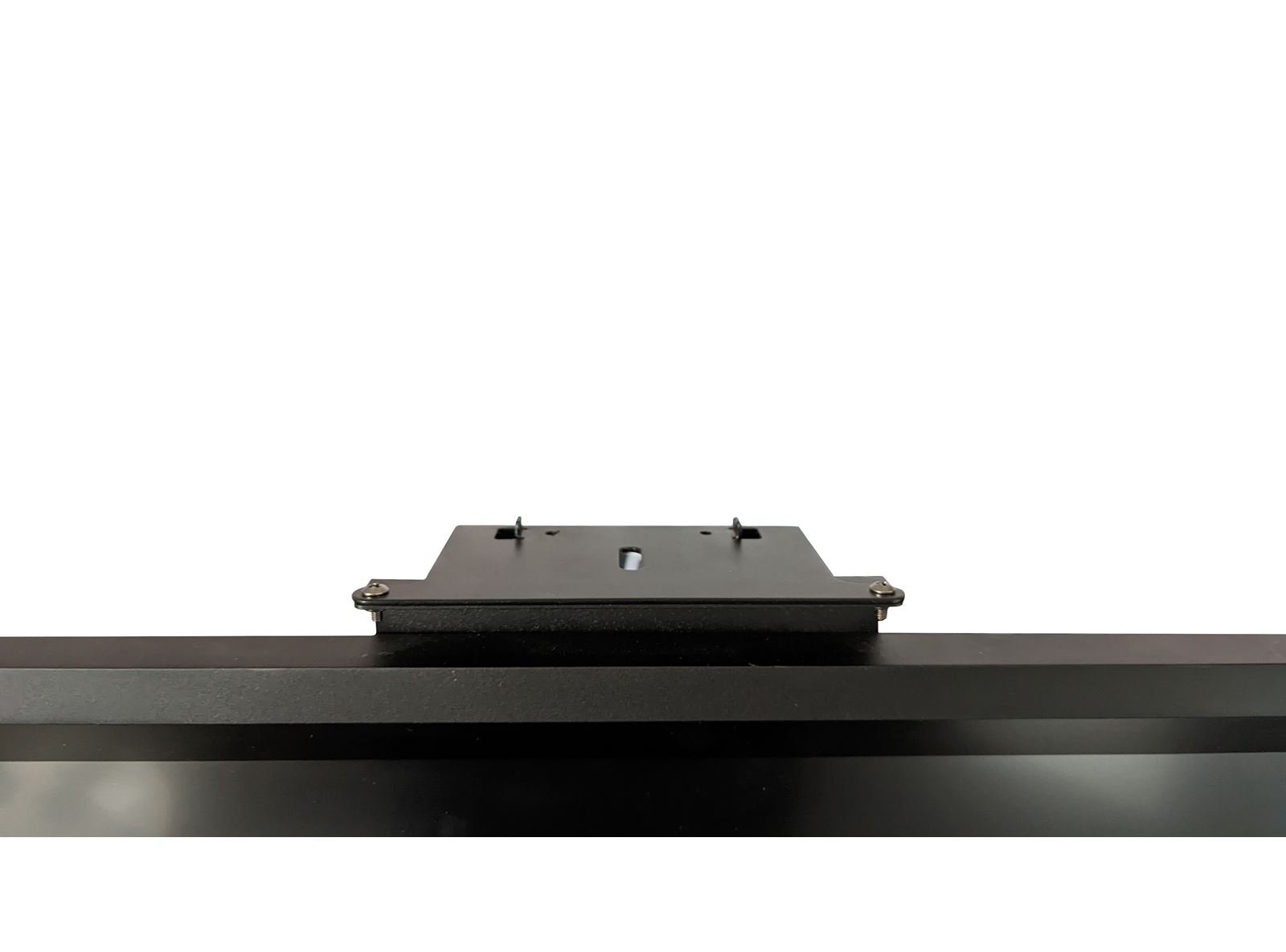

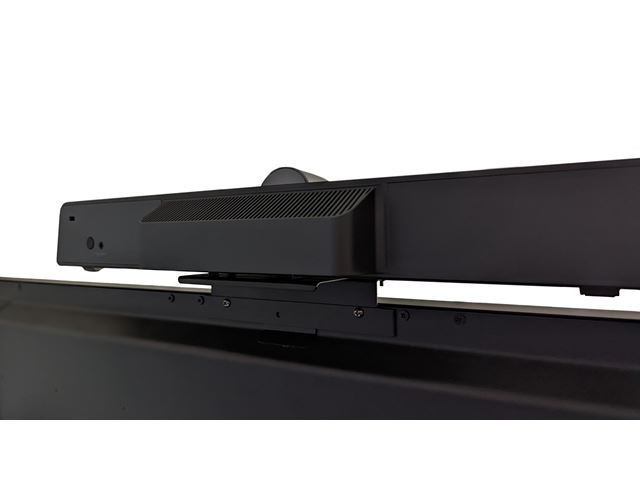

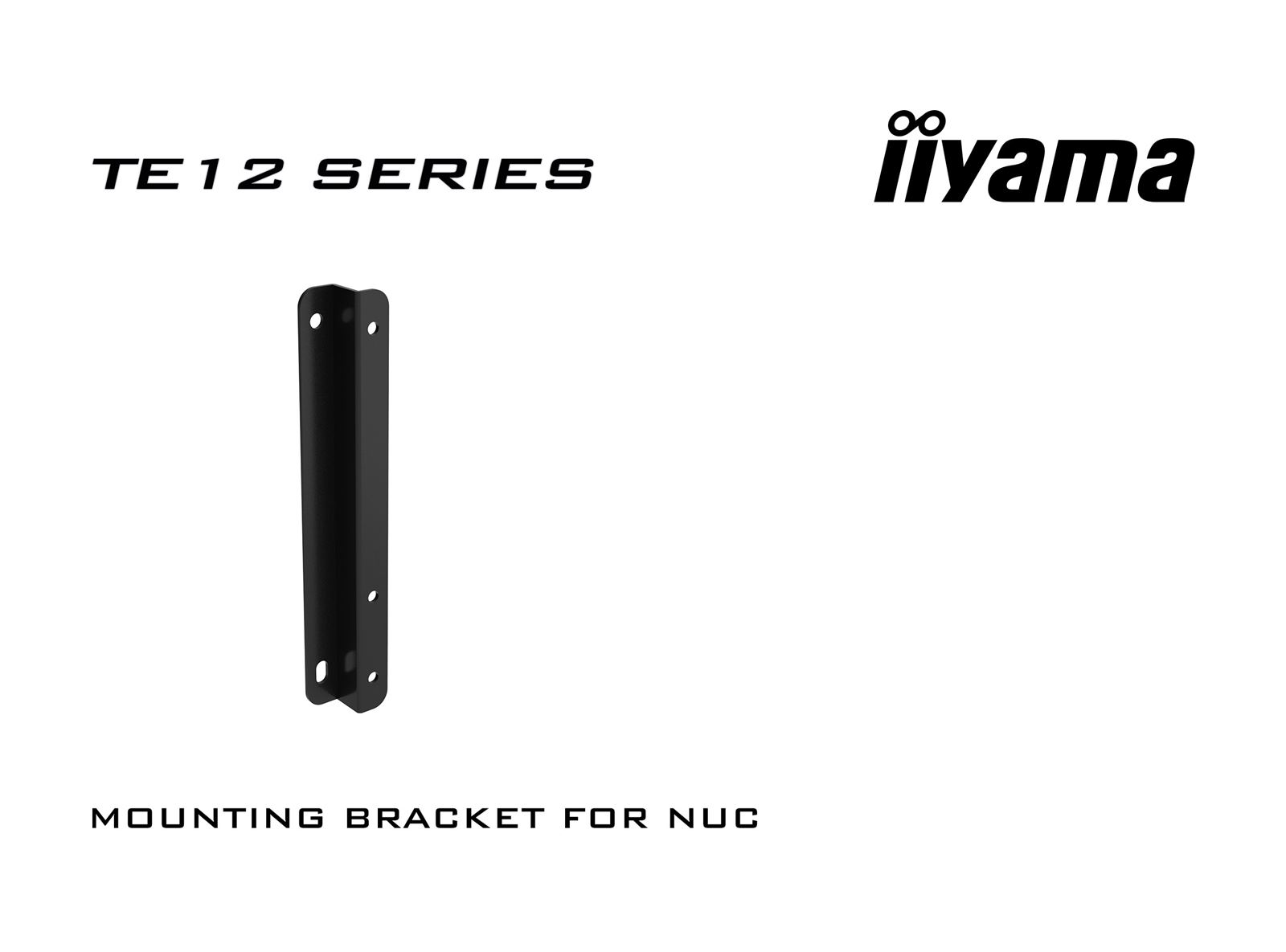

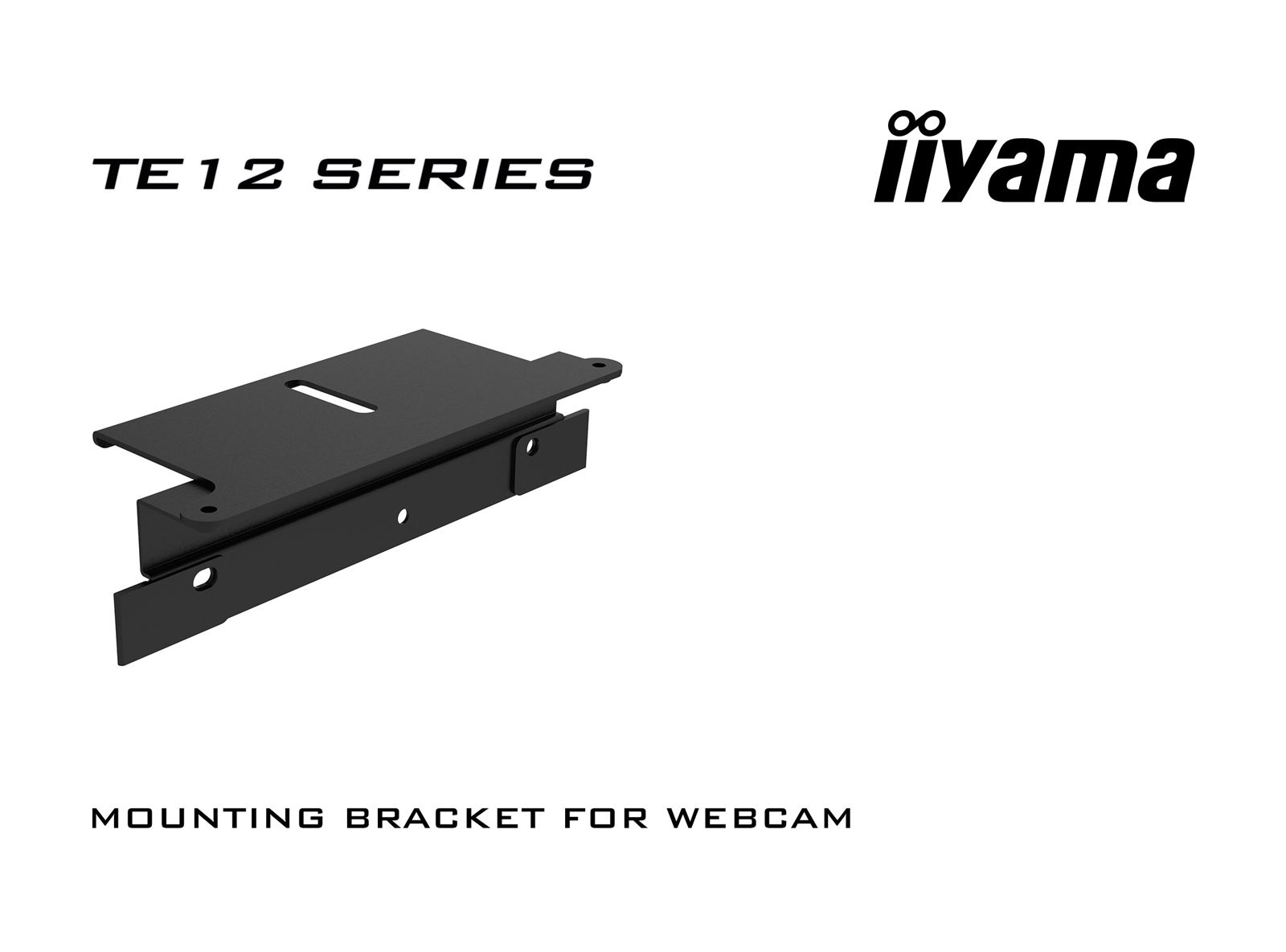

Other WiFi Module (OWM002), Wall Mounting Bracket (VESA 1000x400mm), Mounting bracket for NUC, Mounting bracket for webcam
Remote control yes (batteries included)

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 282W typical, 0.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 2507.2 x 1130.1 x 103mm
Box dimensions W x H x D 2668 x 1305 x 280mm
Weight (without box) 91.4kg
Weight (with box) 119.5kg
EAN code 4948570122011
Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

IISIGNAGE

With iiSignage, you can easily create, publish and manage your own digital signage content on any iiyama 40-series display from a desktop PC in the same network. Use rich content like video’s and widgets to create highly impactful advertising in minutes and schedule your content across multiple displays to best match your customers' behavior.

IISIGNAGE

ULTRA SLIM LINE

ULTRA SLIM LINE

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

VA MATRIX

VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


VA MATRIX

5K

5K (5120x2880) resolution means a monitor can display 14.7 MegaPixels on the screen – a stunning 7 times more than a Full HD monitor.




5K

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS
