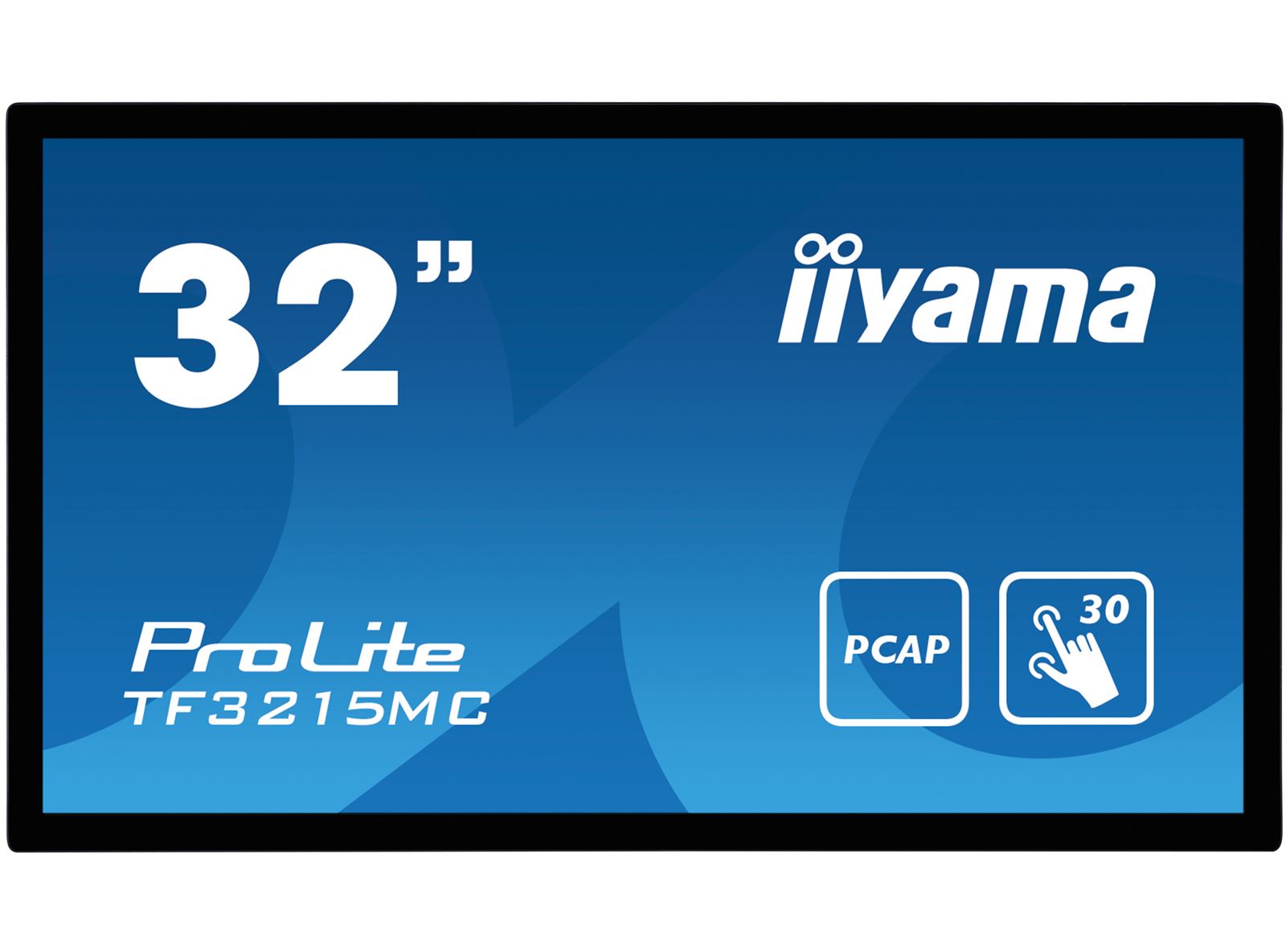

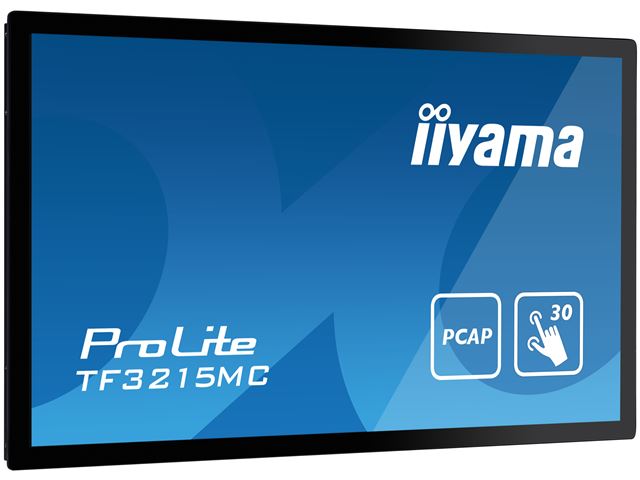

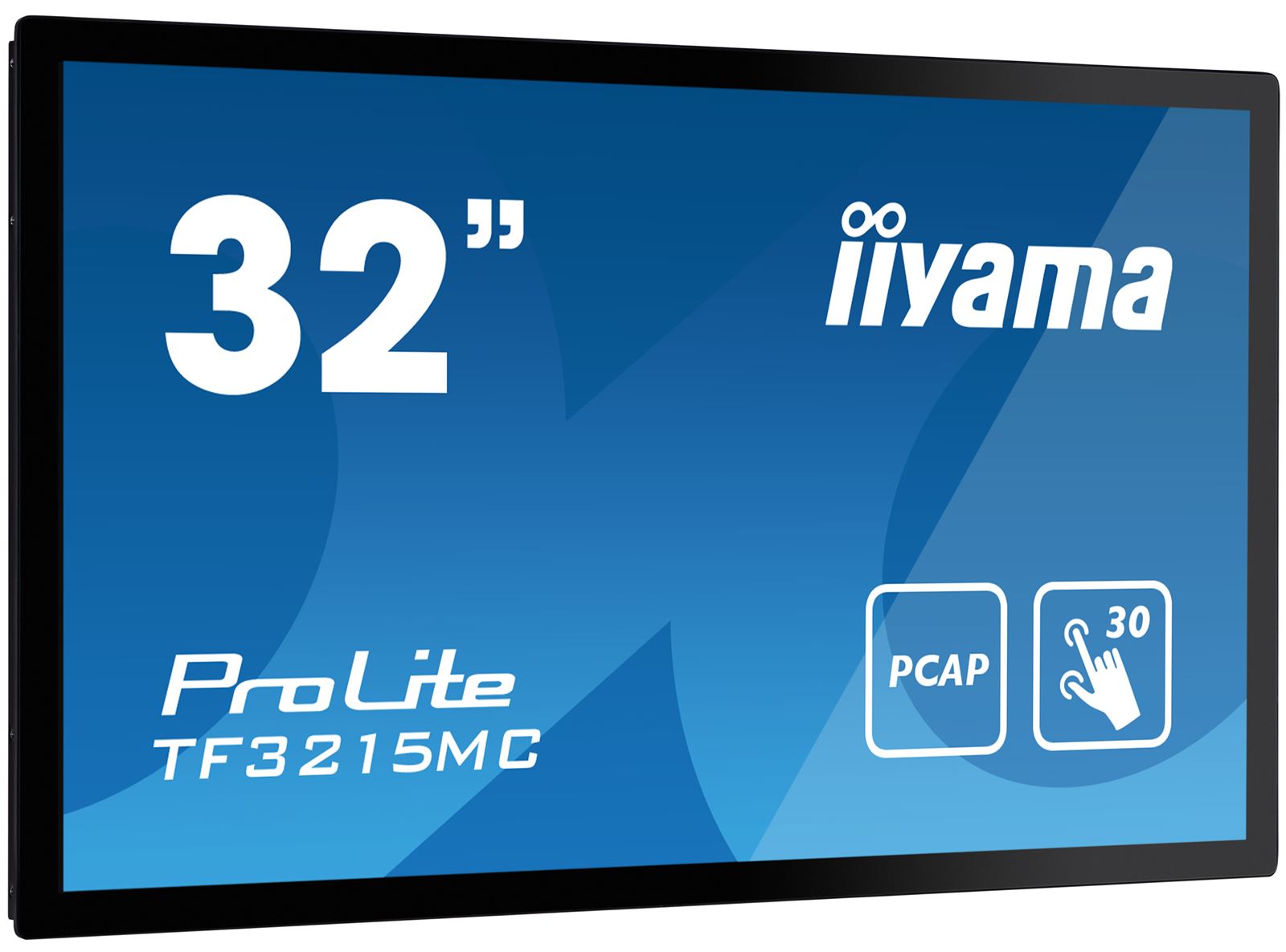

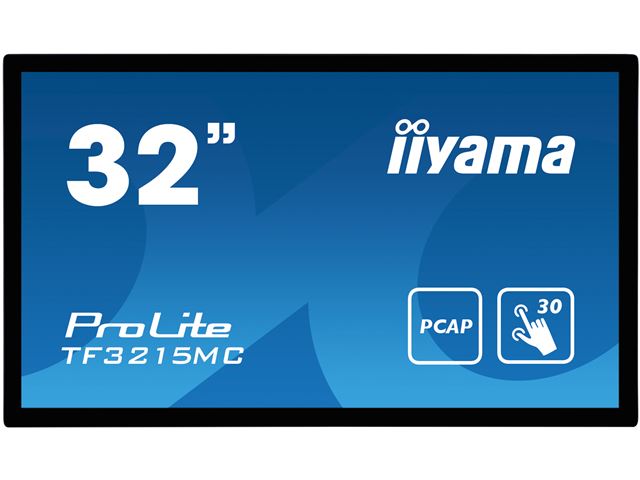

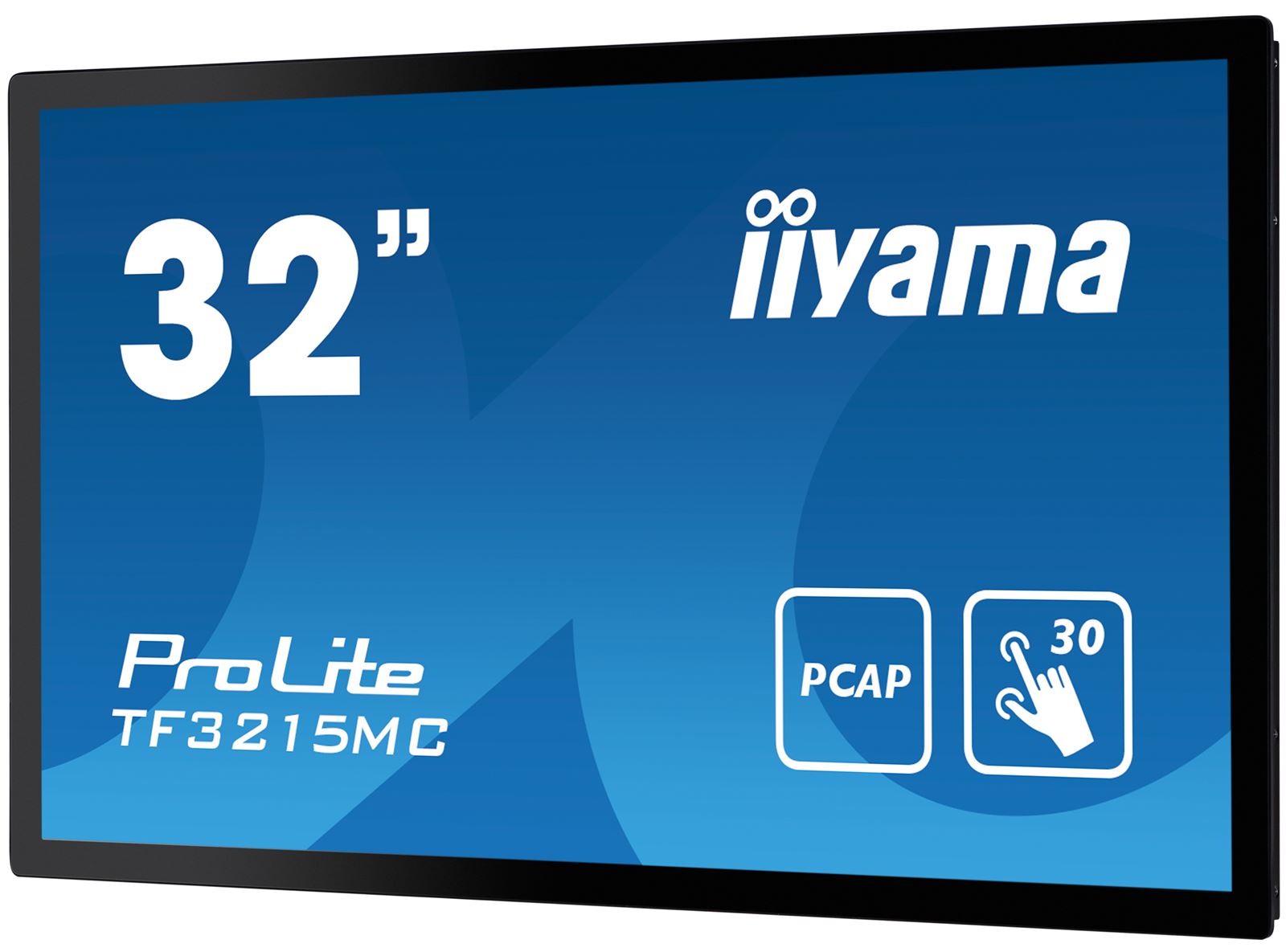

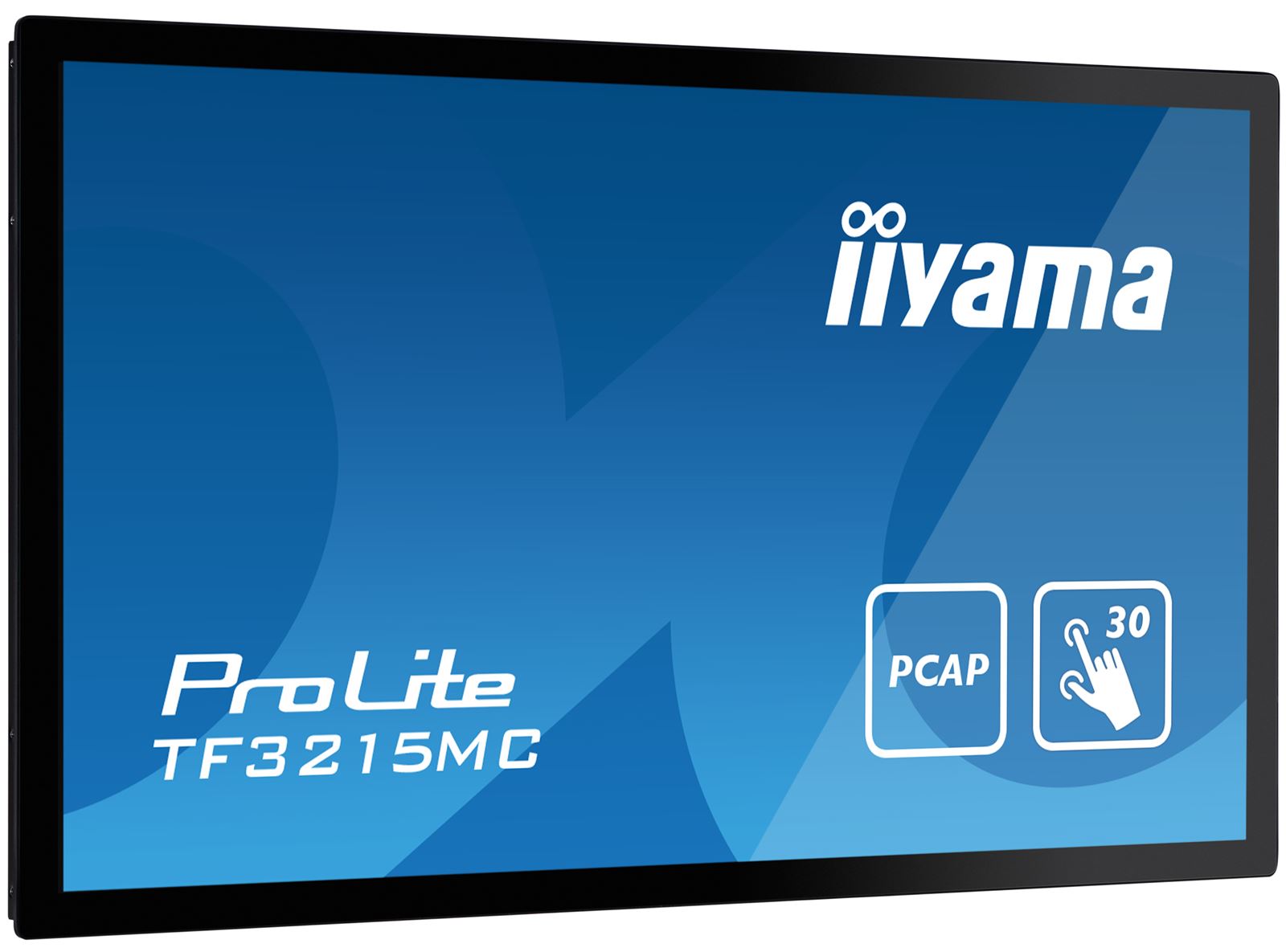

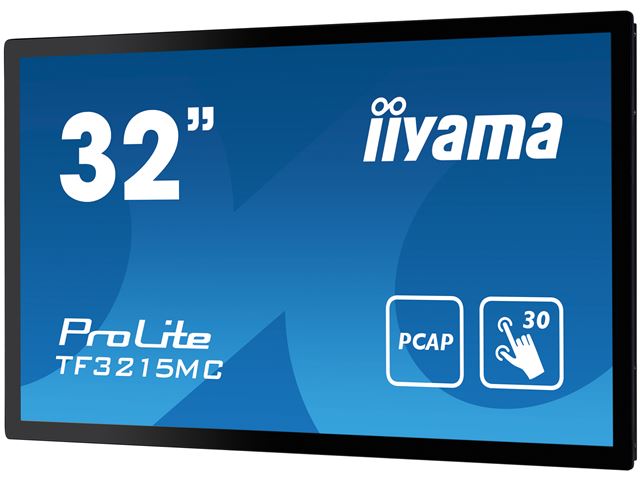

iiyama ProLite monitor TF3215MC-B2 31.5", VA, Full HD, Open Frame, Projective Capacitive, 30pt touch screen, VGA/HDMI/DP

£635.04 exc. VAT
£762.05 inc. VAT

Brand: iiyama

Manufacturer Code: TF3215MC-B2

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

Open Frame PCAP 30 point touch monitor with equipped with a foam seal finish for seamless integration

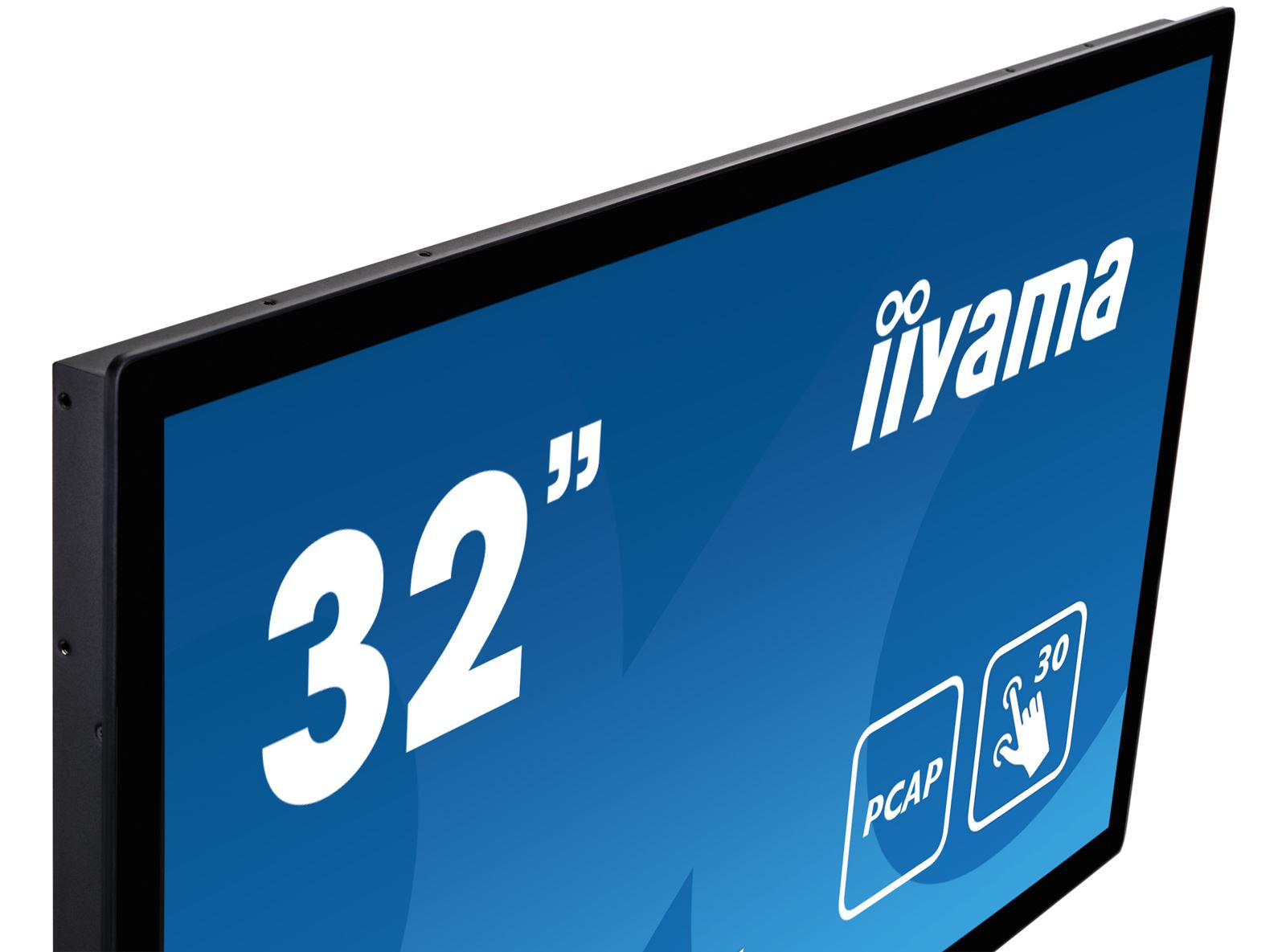

The ProLite TF3215MC-B2 with 30-point PCAP touch technology is a open frame monitor with an eye-catching edge-to-edge glass design. Thanks to this completely frame-less glass surface, it guarantees high durability and scratch resistance, making it perfect for kiosk systems and high-traffic public applications. The VA panel technology offers higher contrast and darker blacks.

Equipped with a foam seal, the monitor supports seamless integration and the IP65 rating ensures dust and water resistance from the front. Portrait and landscape orientation ensures flexible mounting options for 24/7 operation in almost any installation. The TF3215MC-B2 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media applications.

Technical Information


Design Open Frame
Diagonal 31.5", 80cm
Panel VA
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Brightness 460 cd/m² with touch
Light transmittance 92%
Static contrast 3000:1 with touch
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit
Horizontal Sync 30 - 68kHz
Viewable area W x H 698.4 x 392.8mm, 27.5 x 15.5"
Pixel pitch 0.3637mm
Bezel colour and finish black
Reommended usage retail


Touch technology projective capacitive
Touch points 30 (HID, only with supported OS)
Touch accuracy +- 2mm
Touch method finger, glove (latex), capacitive stylus
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm

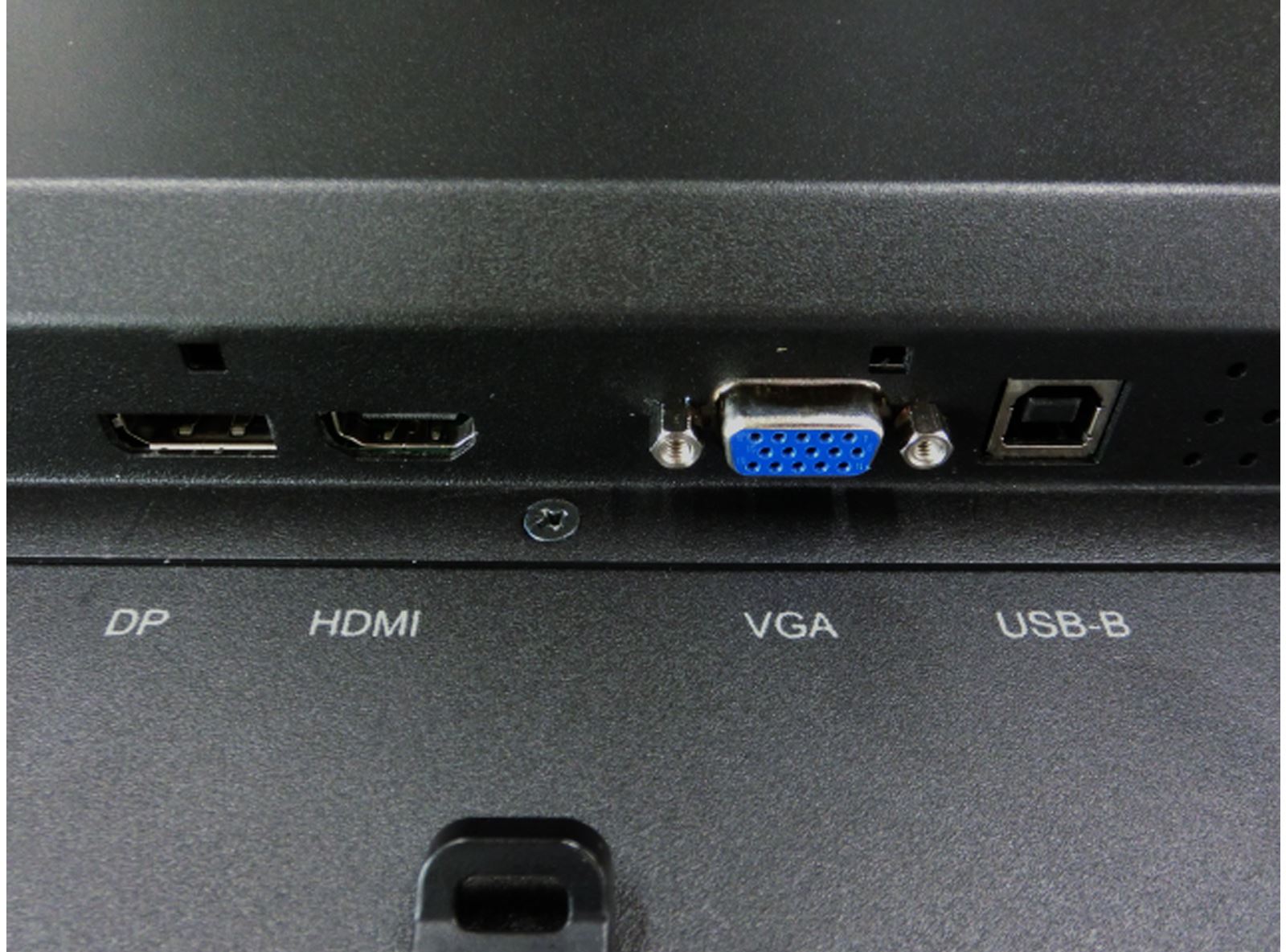

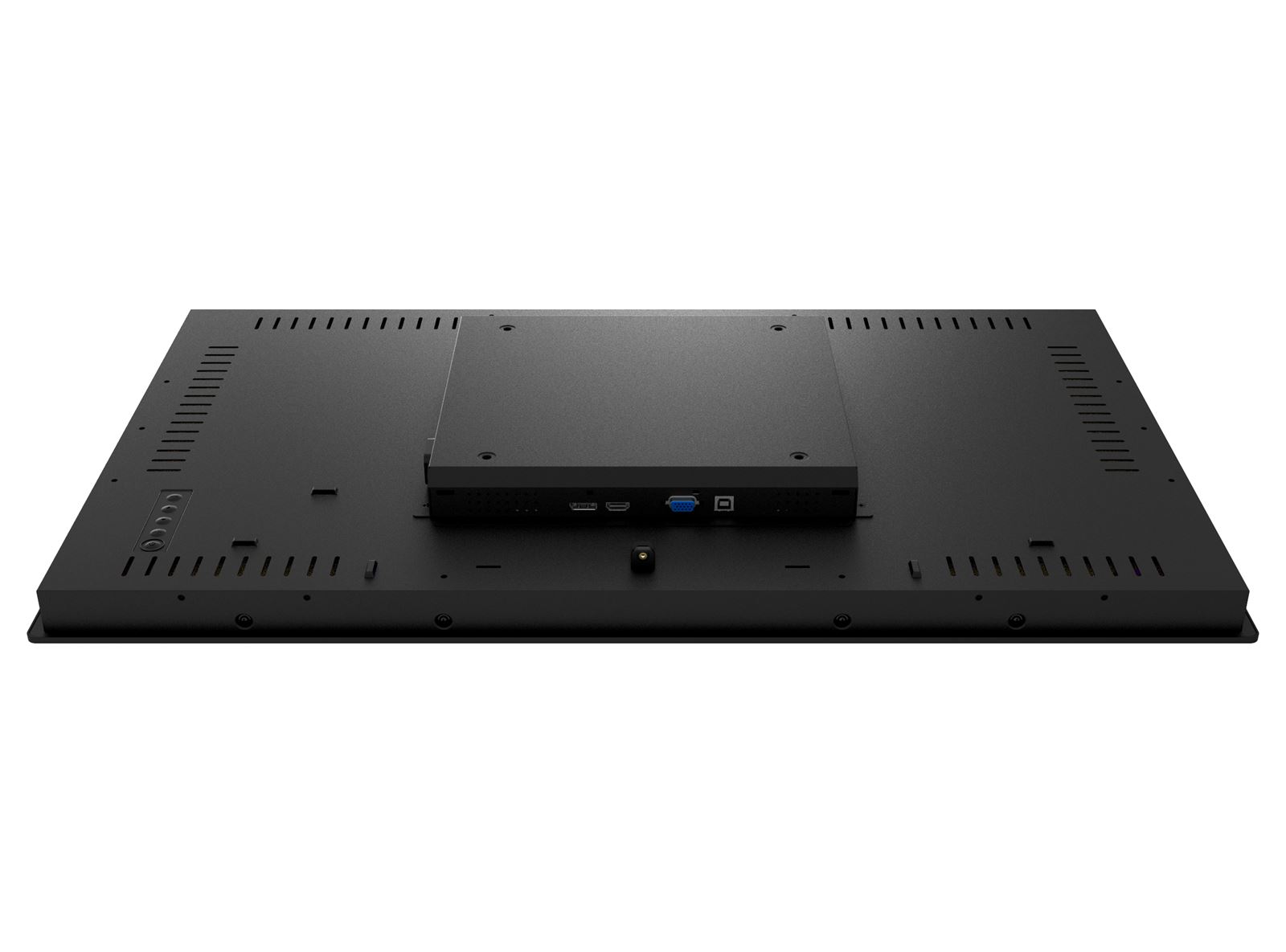

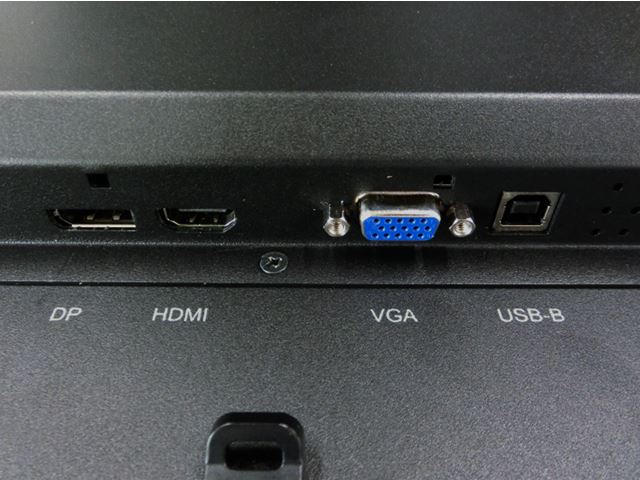

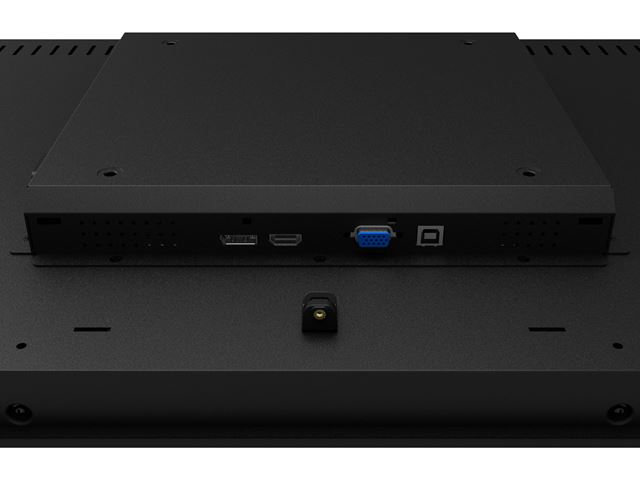

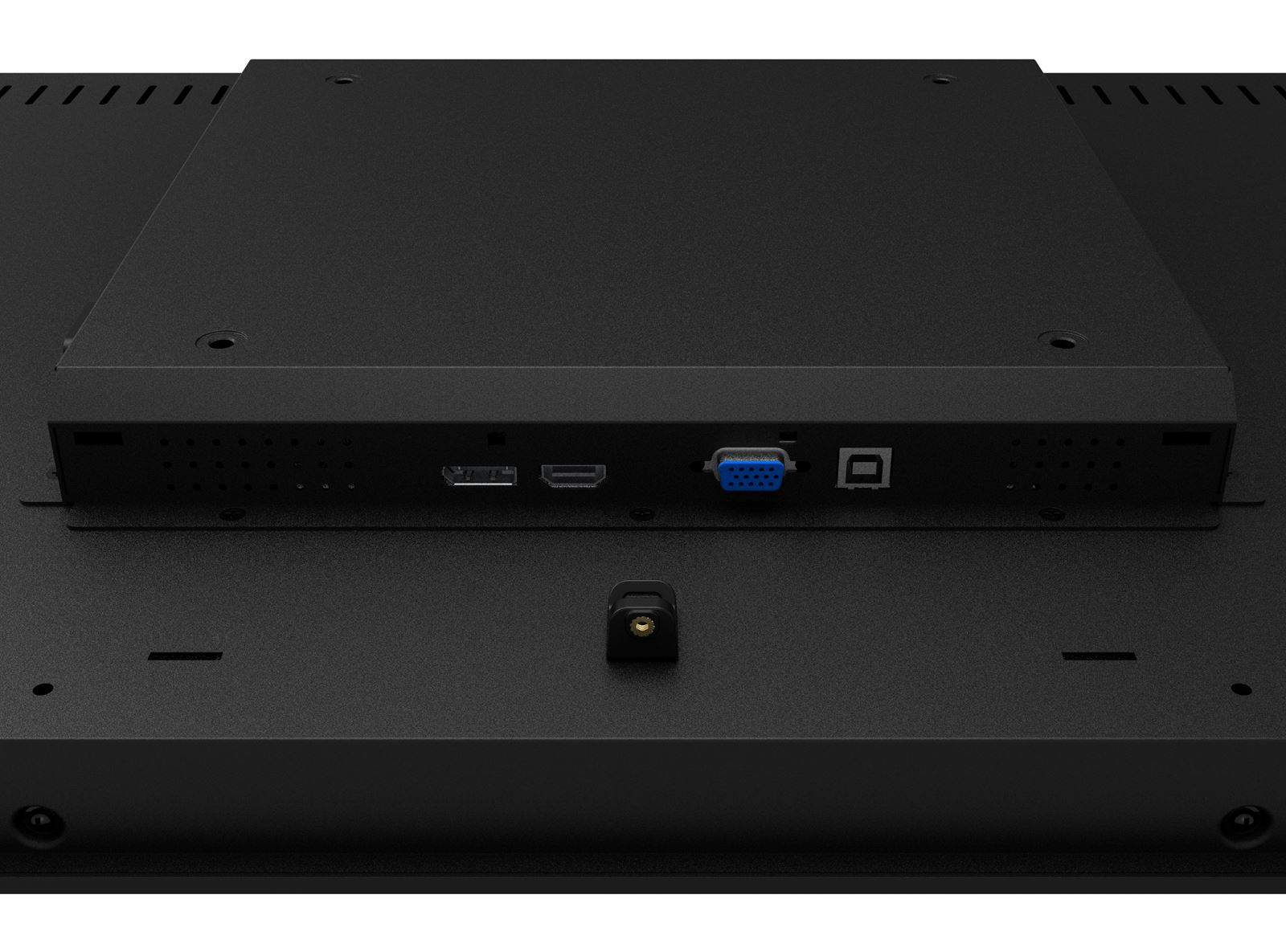

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
HDCP yes


Extra Touch Through-Glass
Kiosk mode yes
Max. non-stop operating time 24/7
Glass thickness 3mm
Glass hardness 7H
60950 Ball drop test yes
Impact testing IK-7
Water and dust protection IP65 (front)
Housing (bezel) metal
Water tight seal yes
OSD key lock yes


OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, poition, H-Position, V-Position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B

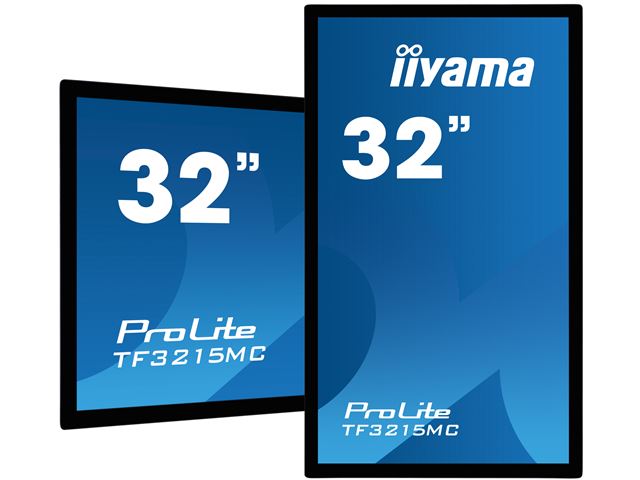

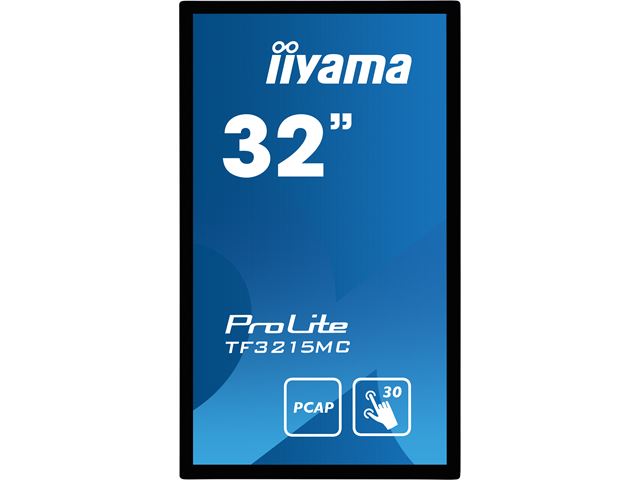

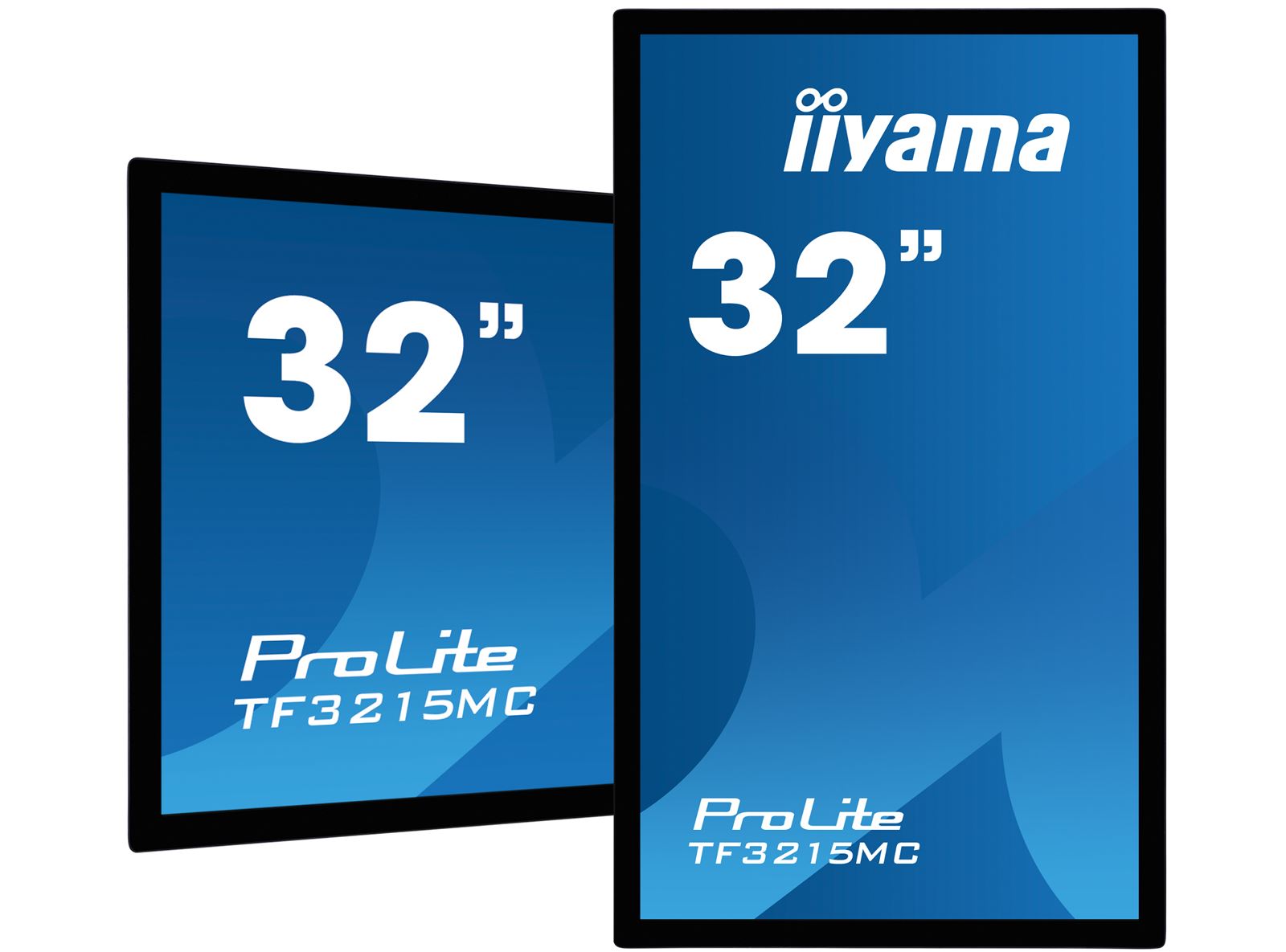

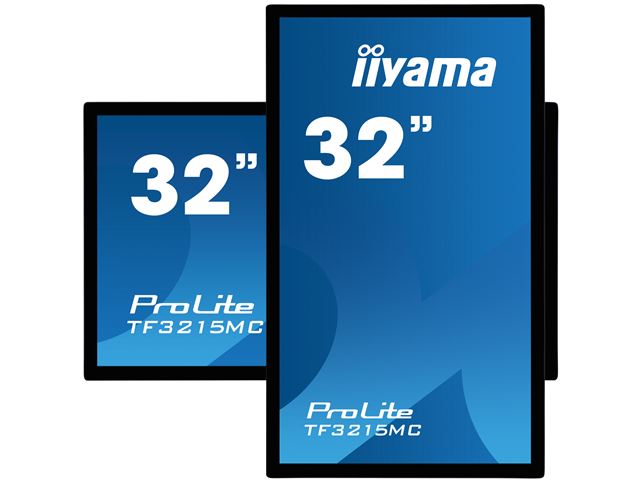

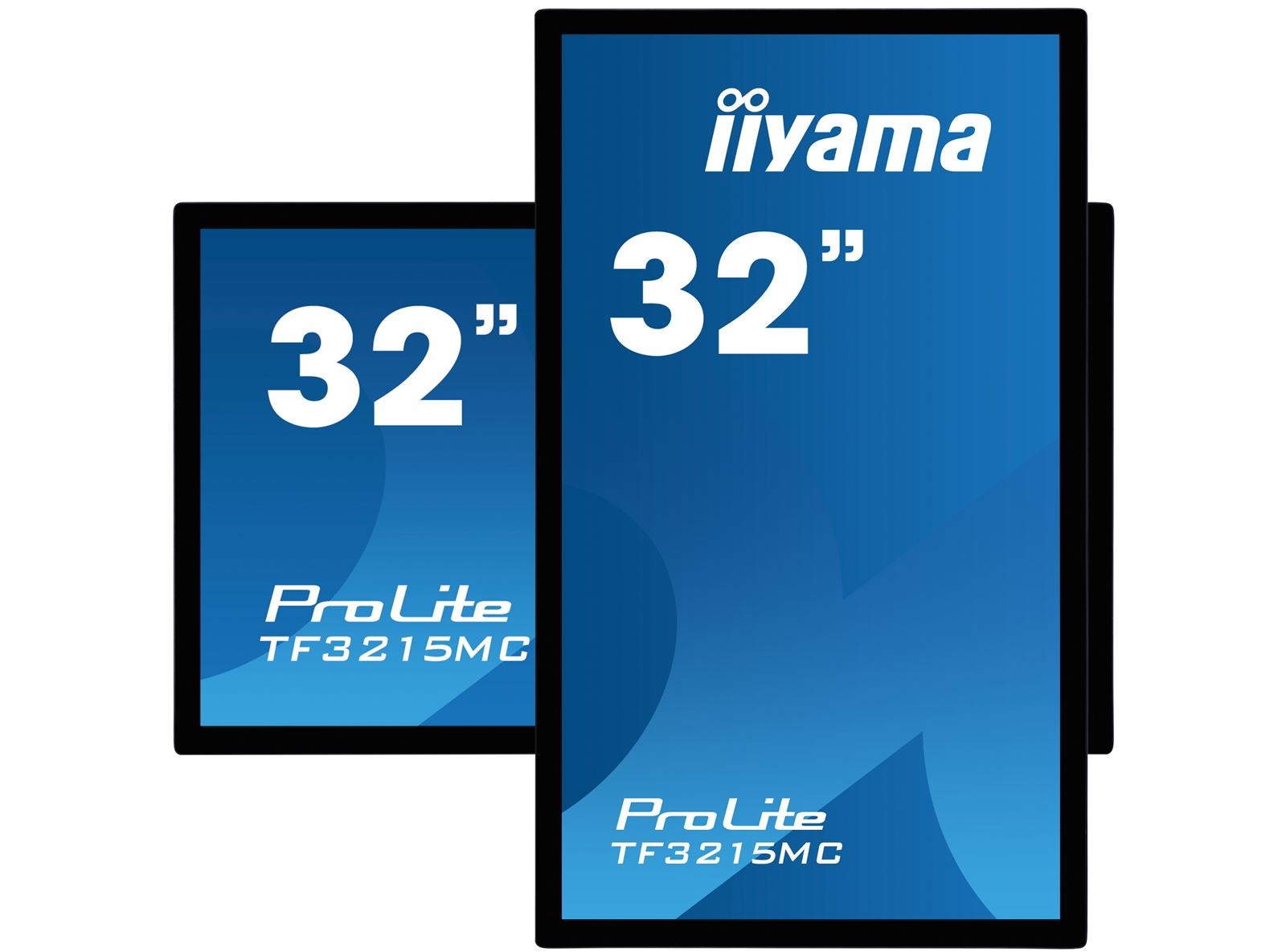

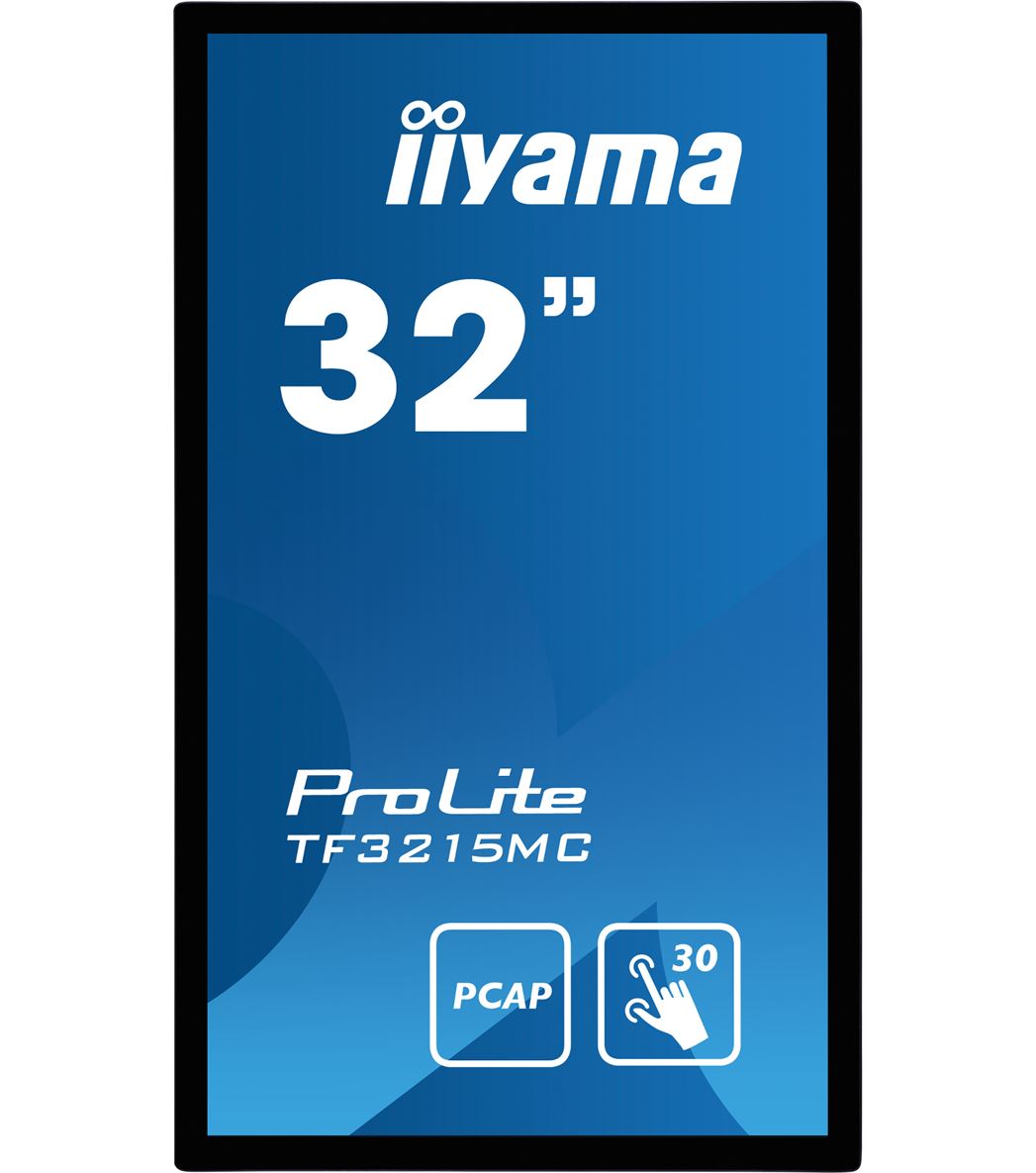

Orientation landscape, portrait
Fanless design yes

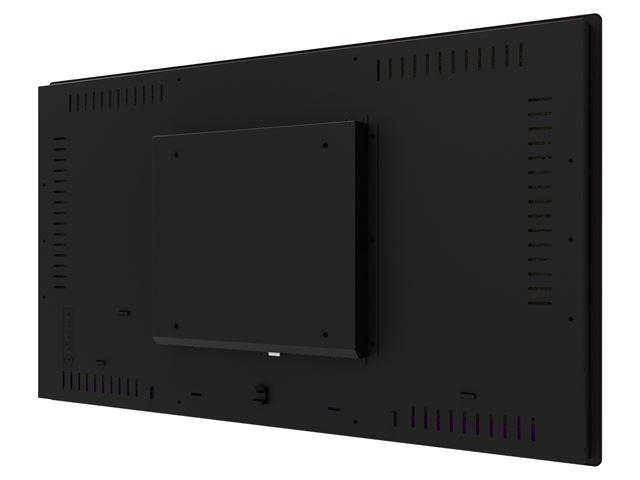

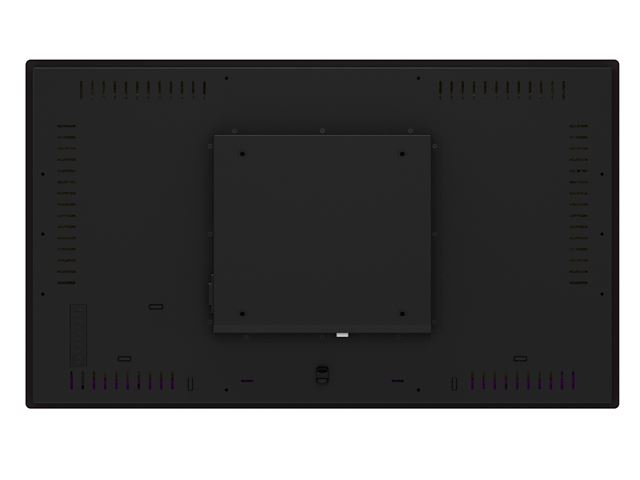

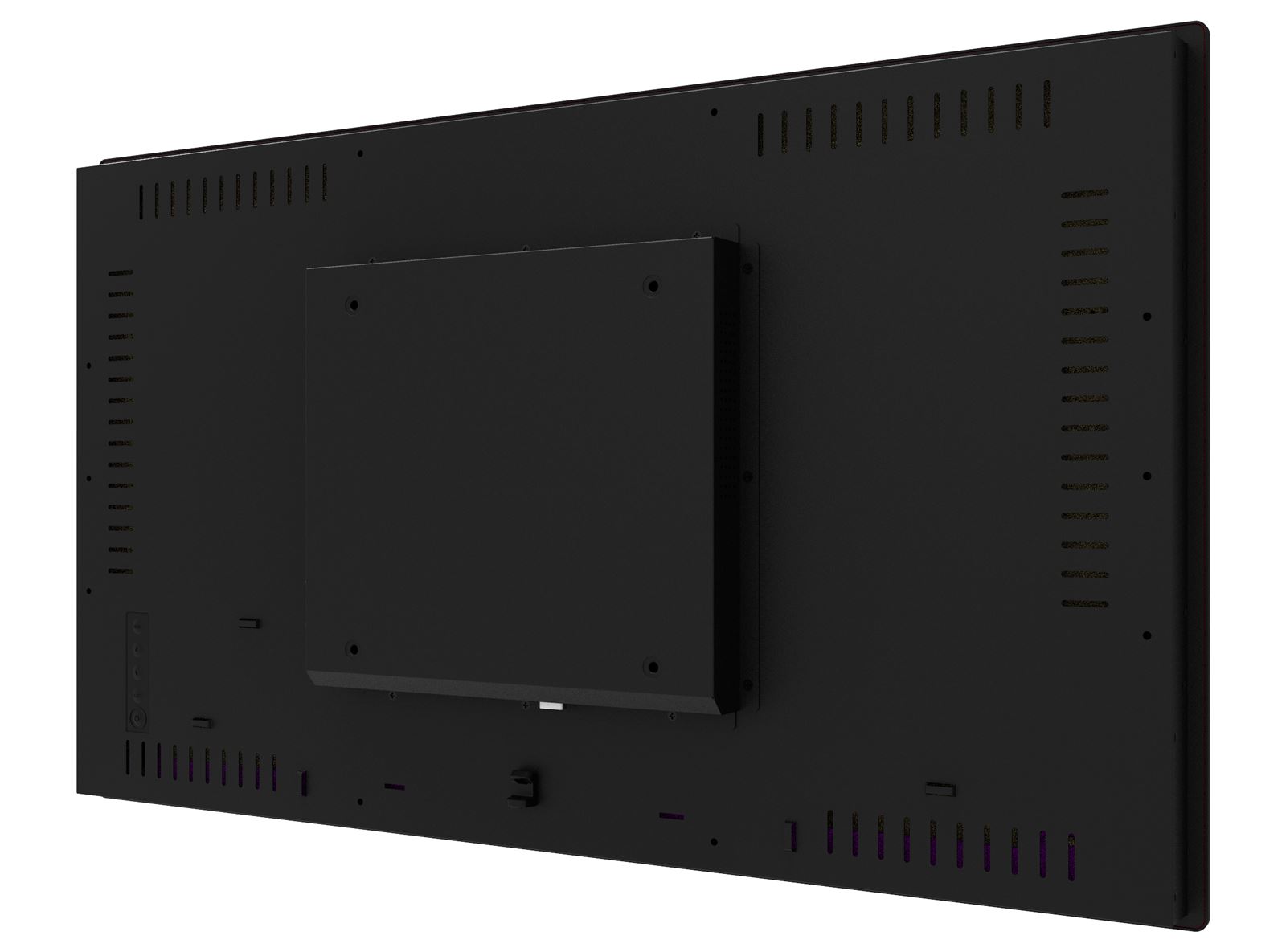

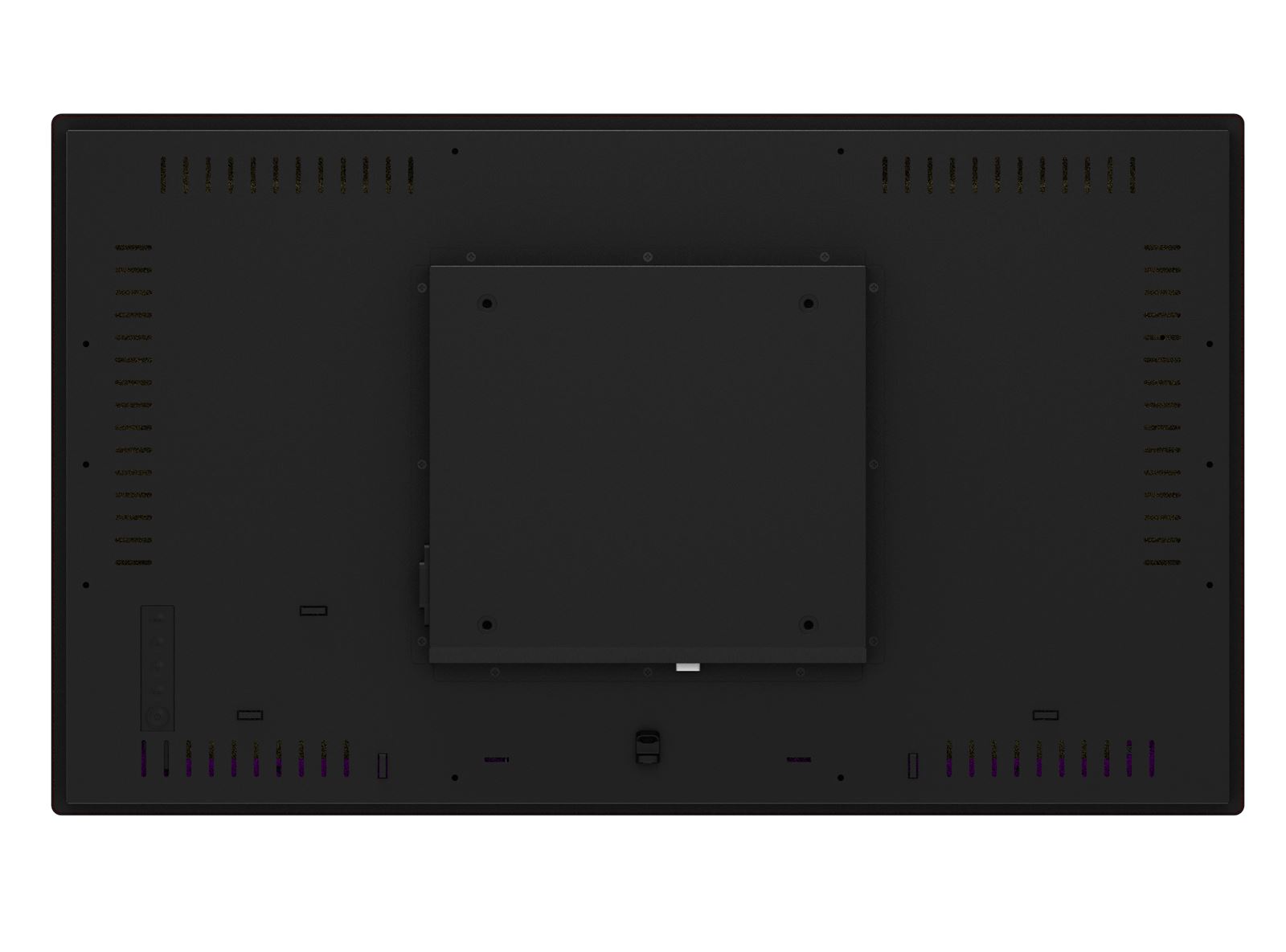

VESA mounting 200 x 200mm

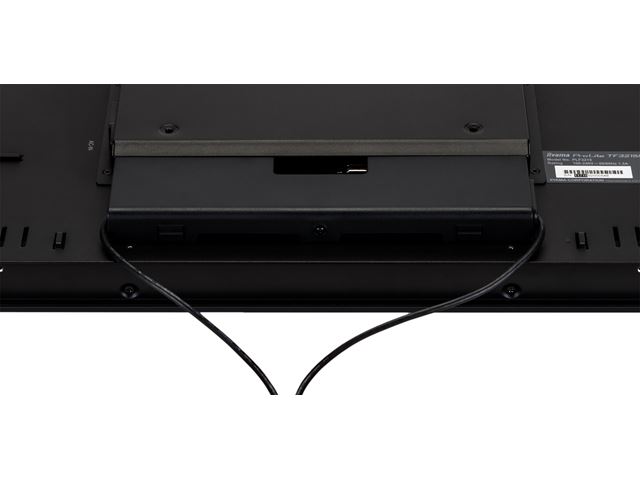

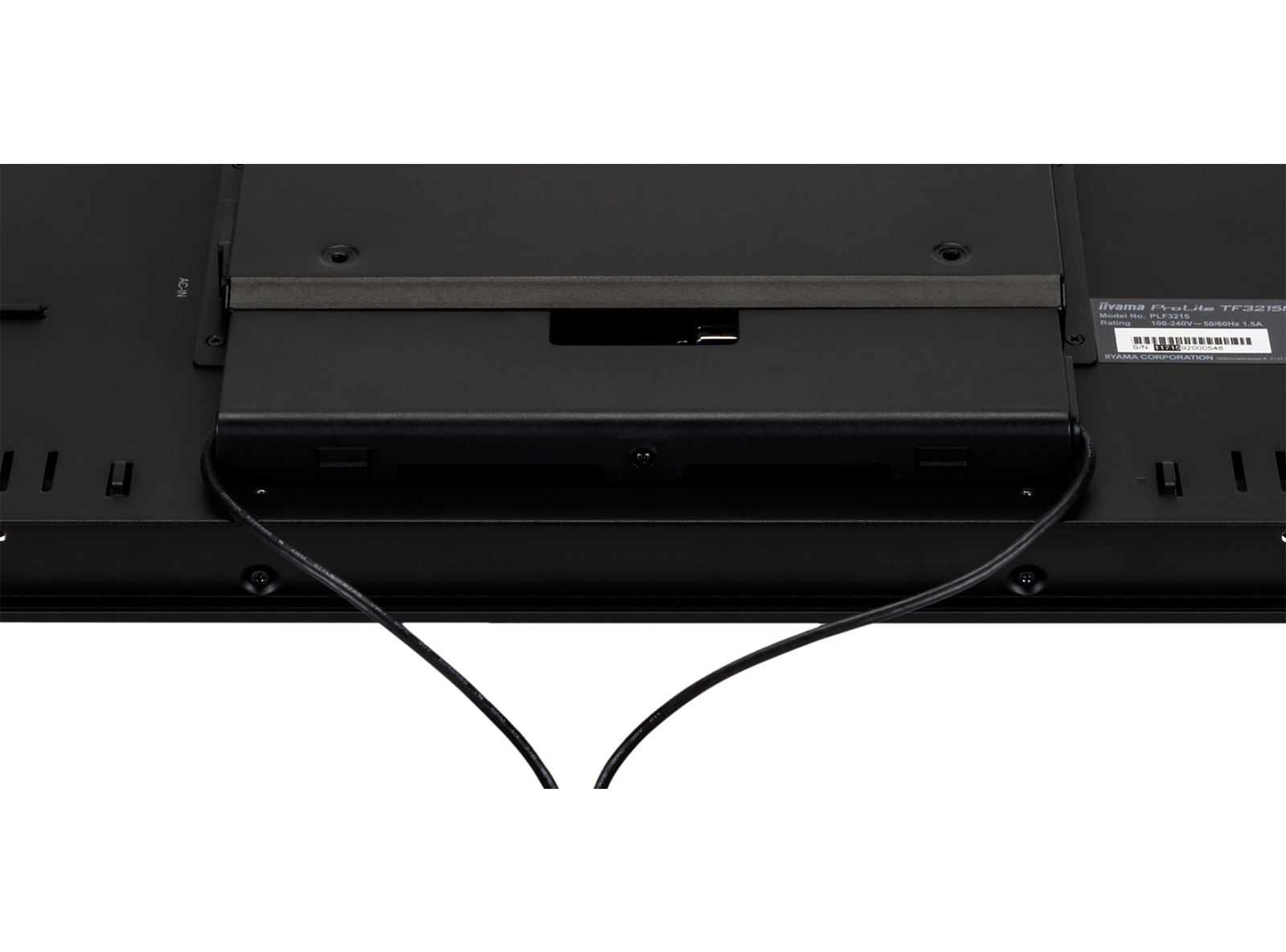

Cable management system yes
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50000 hours

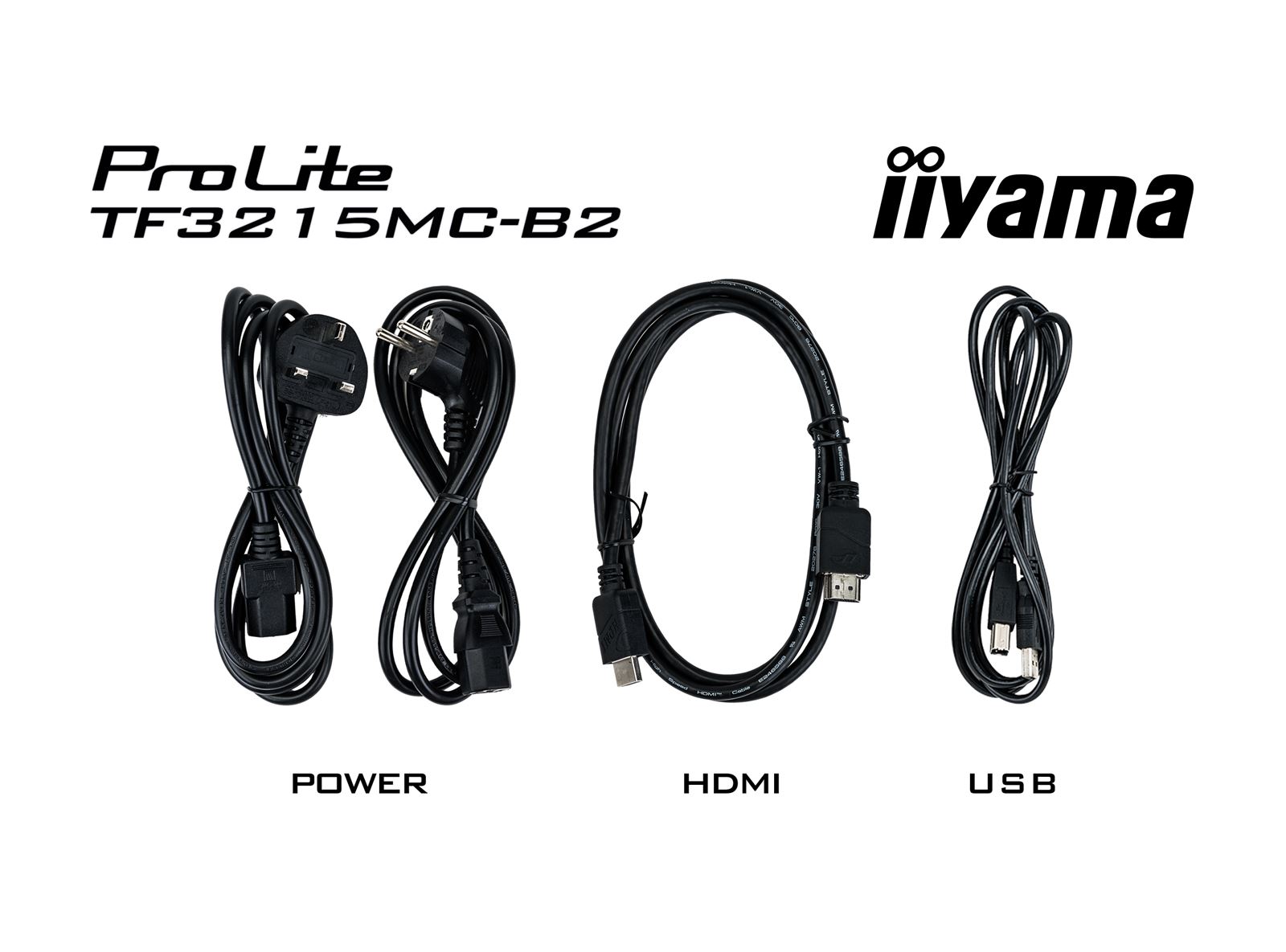

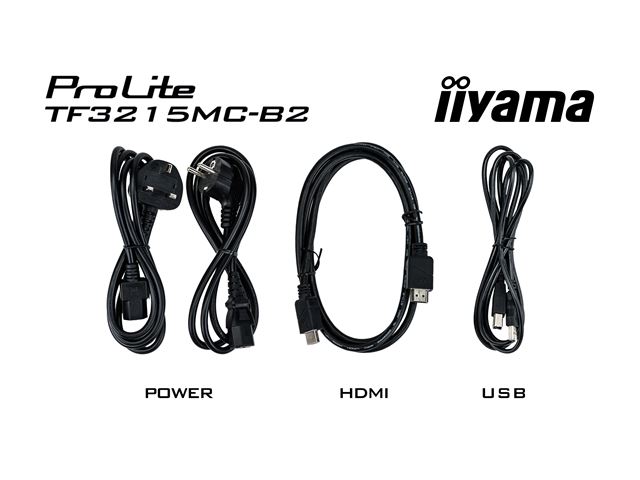

Cables power, USB, HDMI
Guides quick start guide, safety guide

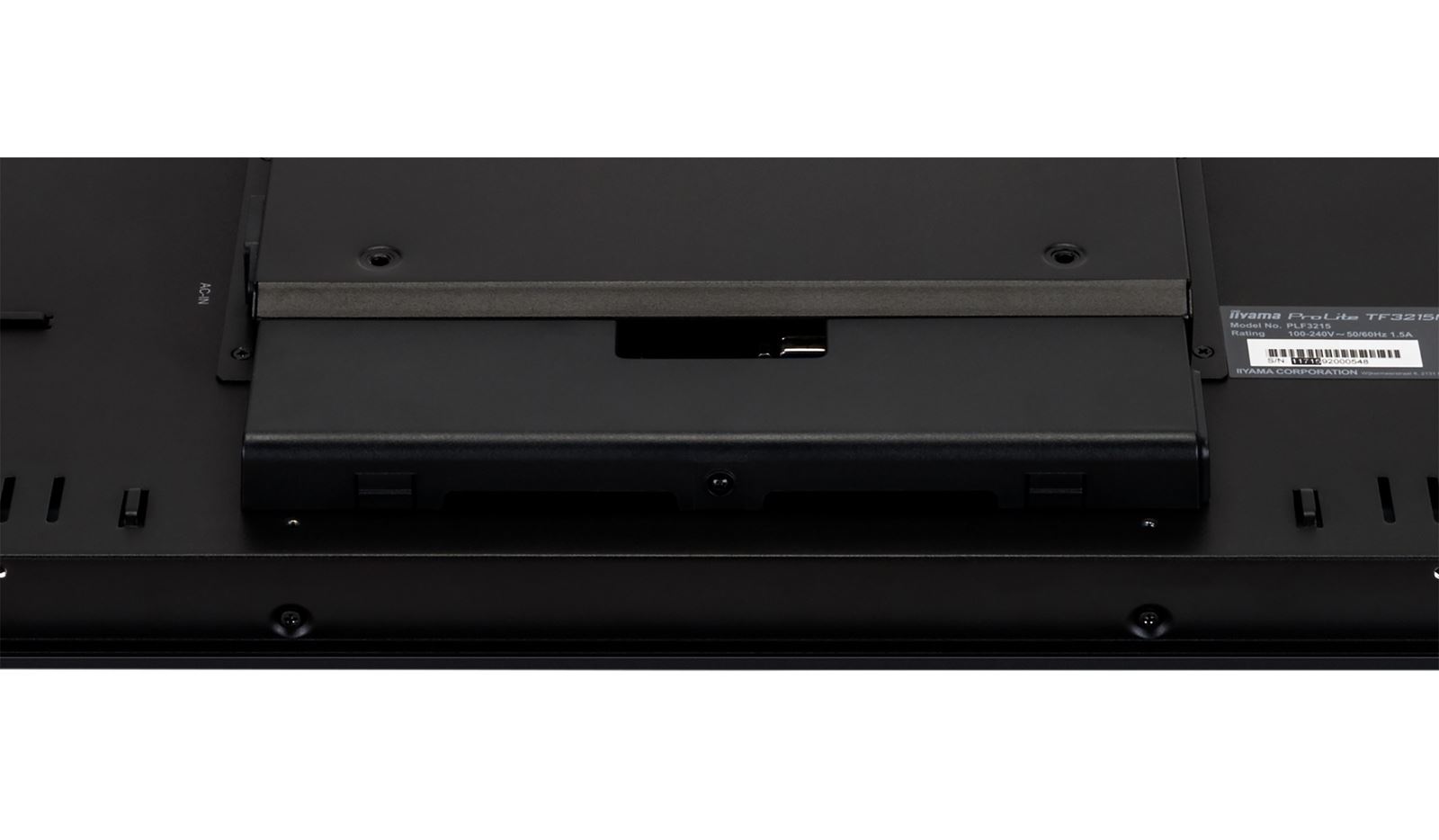

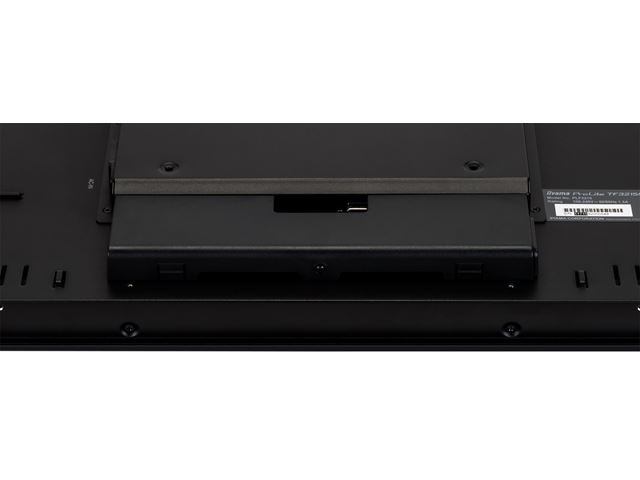

Cable cover yes


Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 32W typical, 1.5W stand by, 0.3W off mode


Regulations CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) F
REACH SVHC above 0.1%: Lead


Product dimensions W x H x D 739.5 x 434 x 61mm
Box dimensions W x H x D 890 x 630 x 155mm
Weight (without box) 10kg
Weight (with box) 13.3kg
EAN code 4948570123667


VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.



24/7 displays are designed for a continuous operation.




This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.



Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

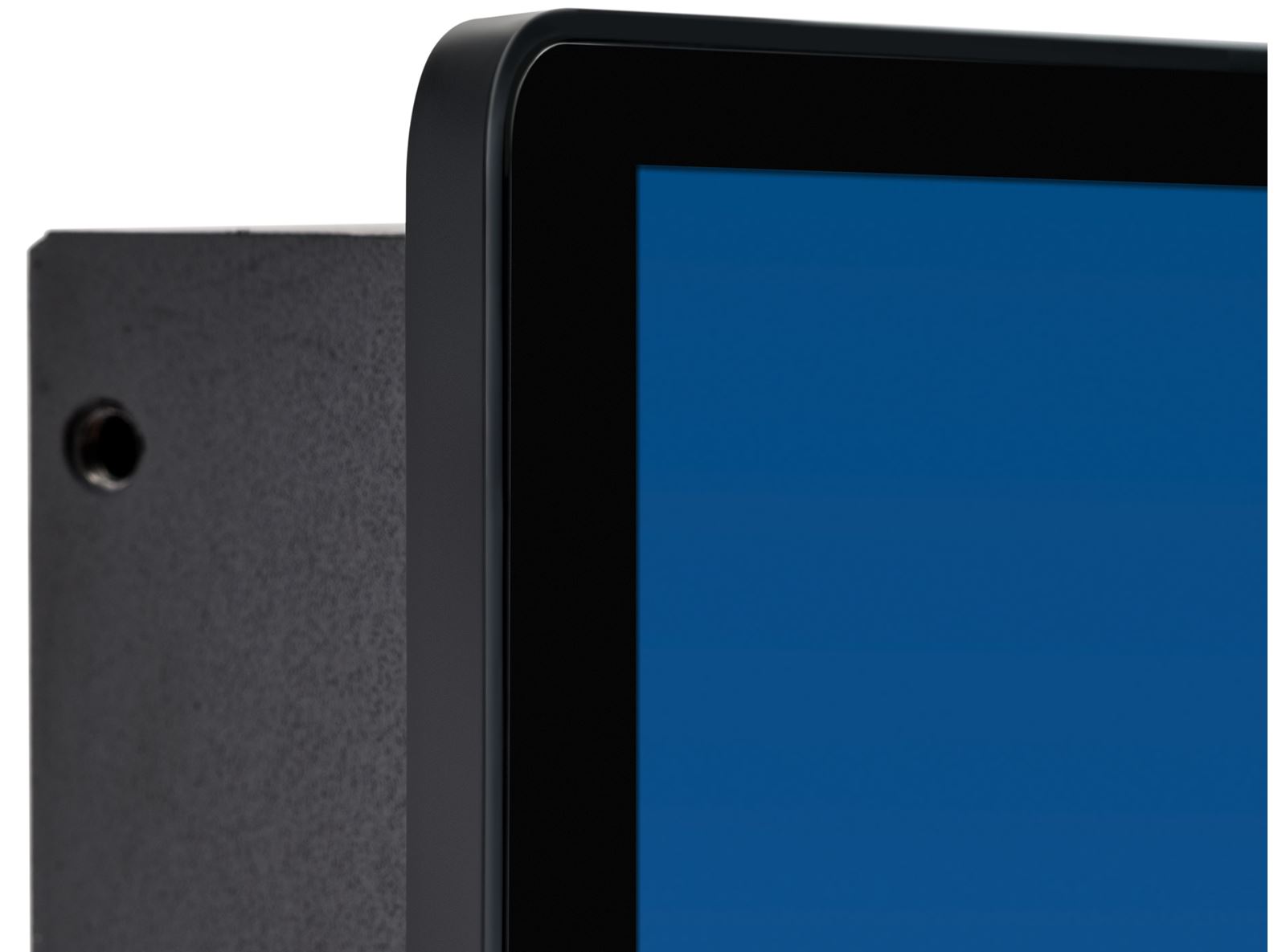

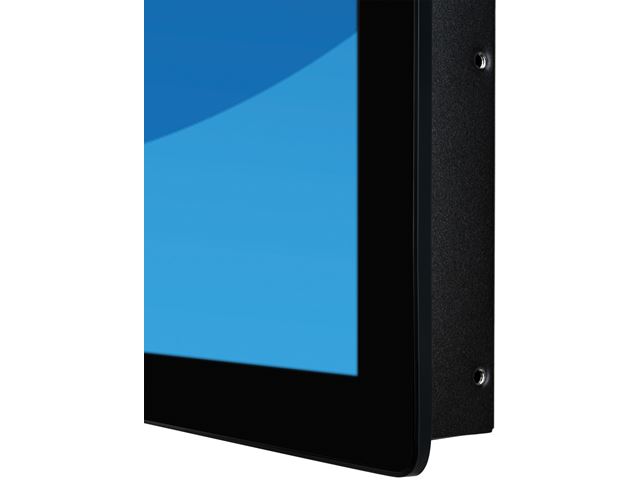

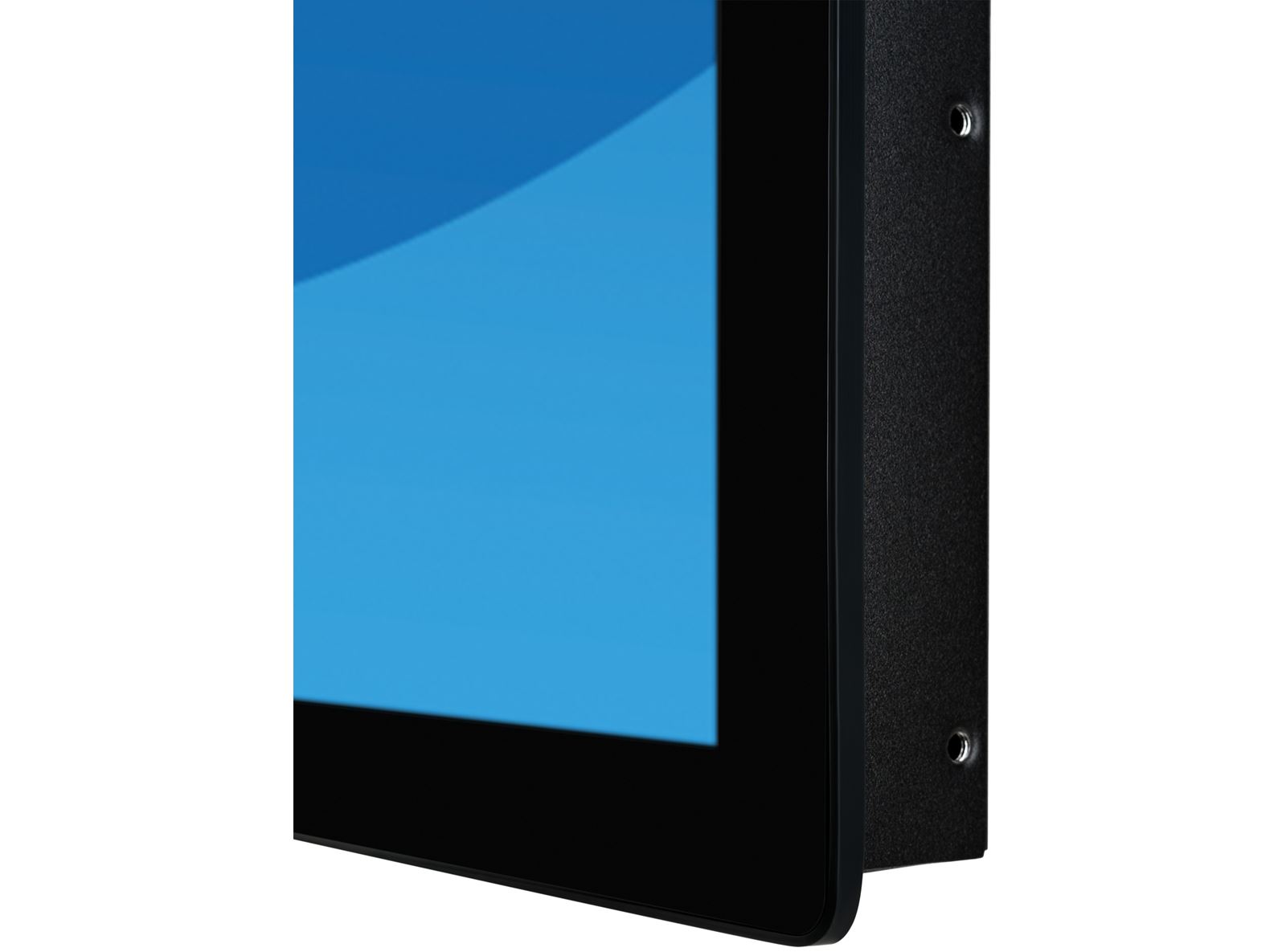

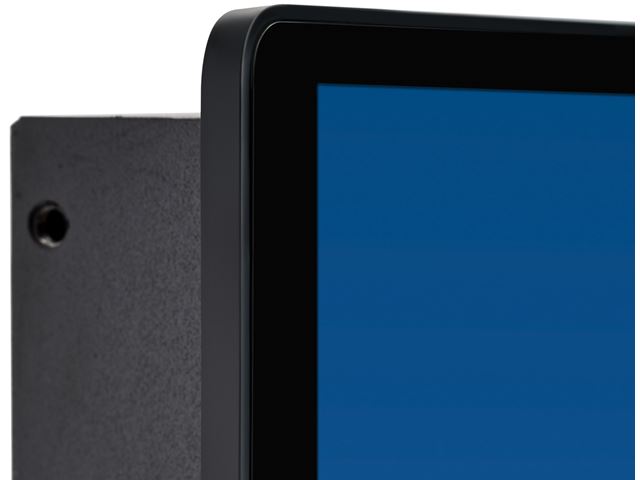

A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.



The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.
