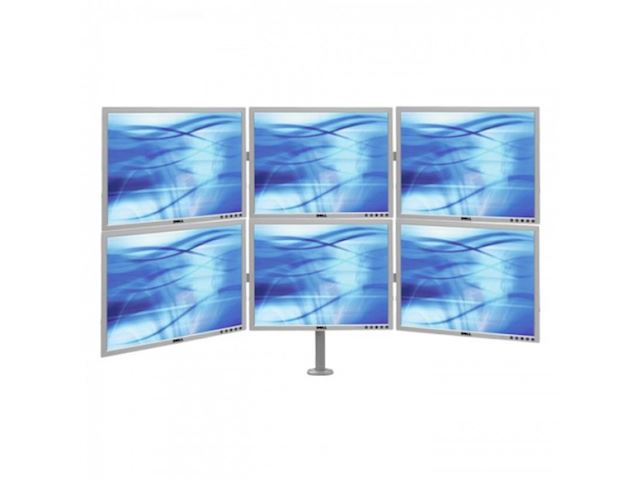

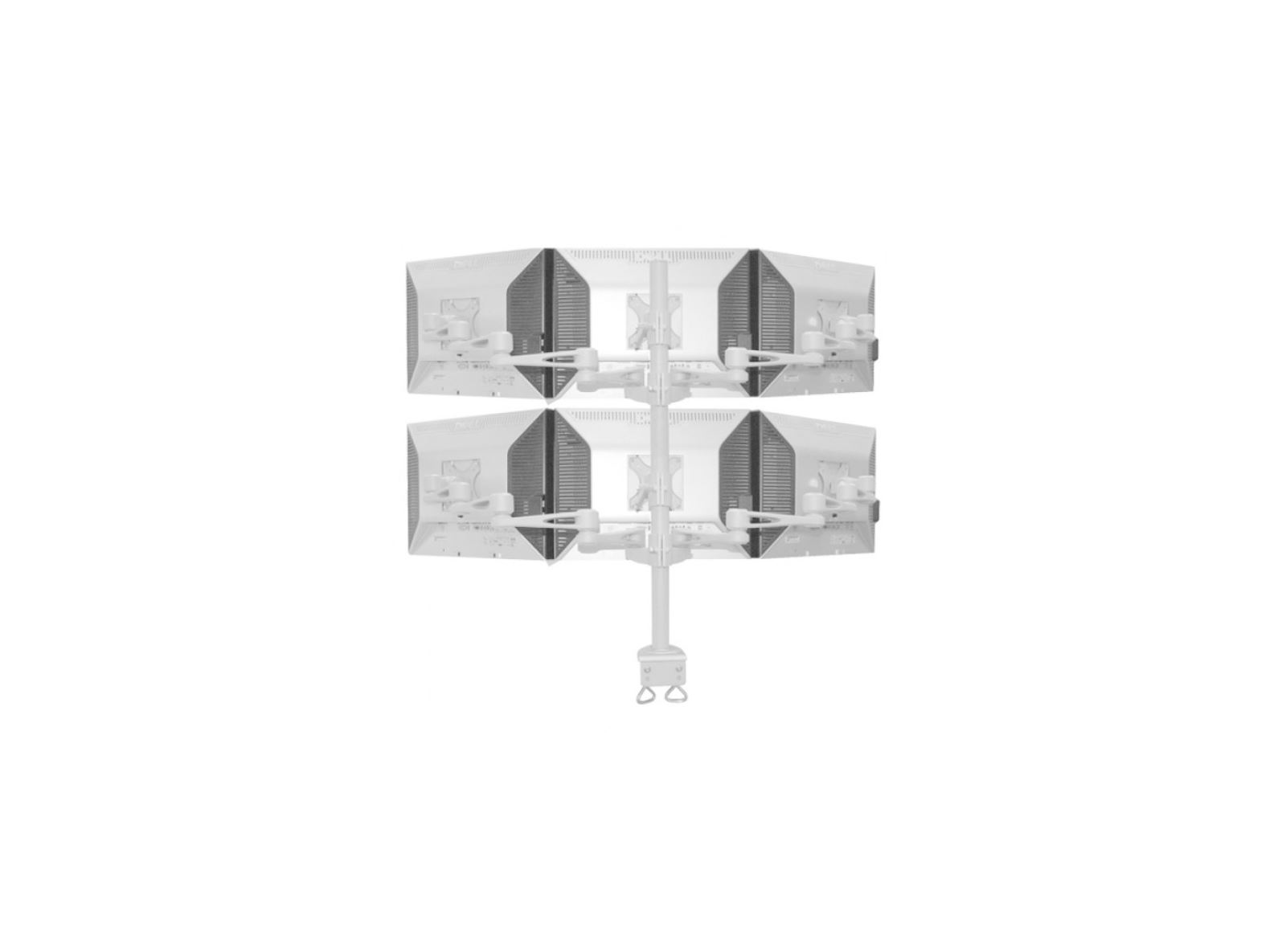

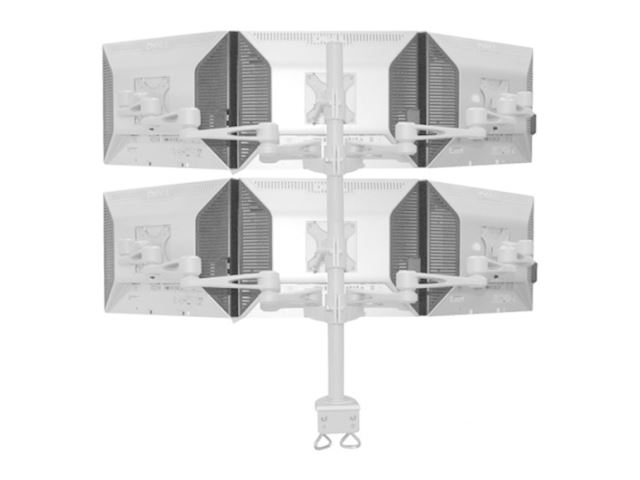

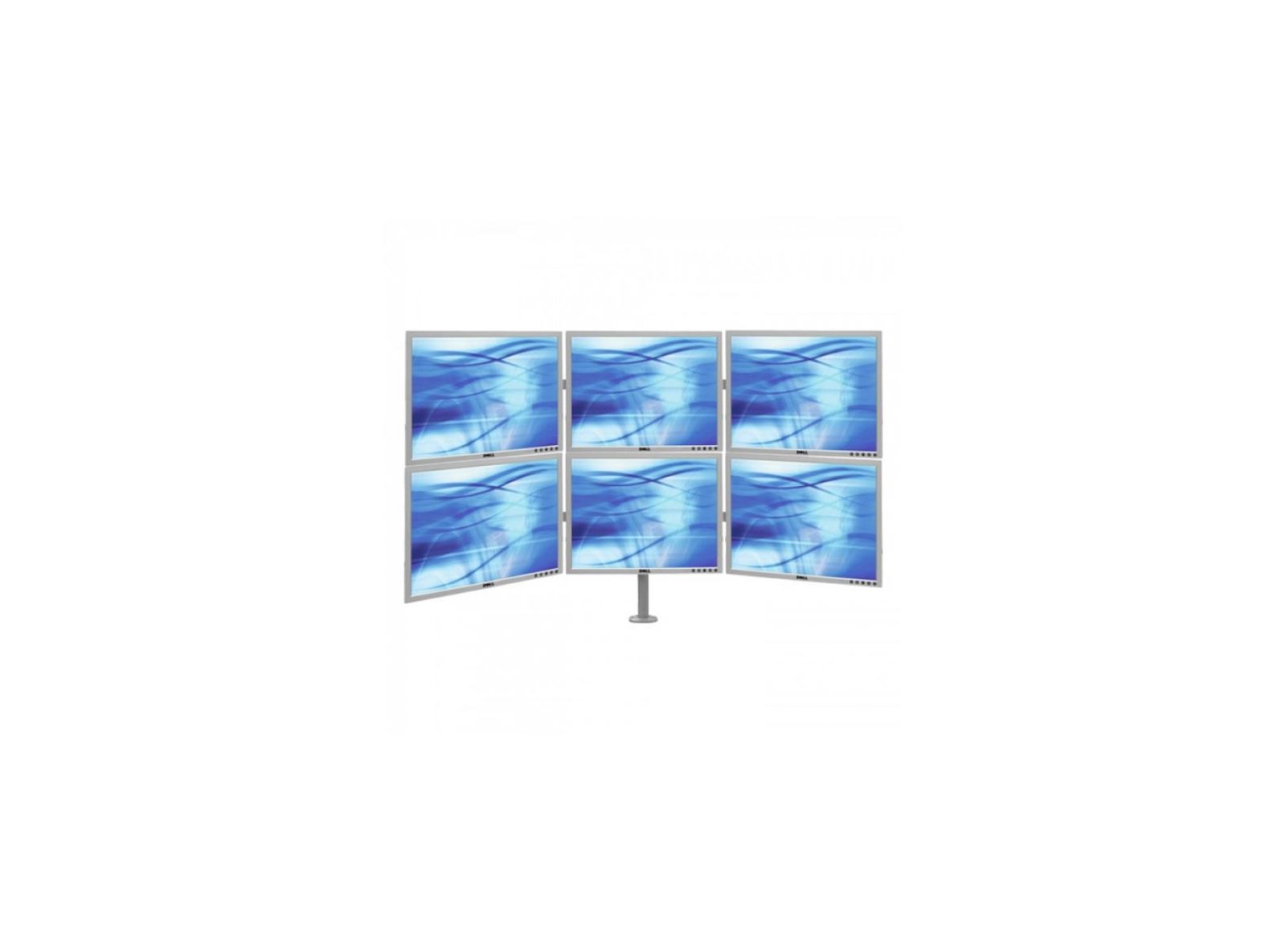

The ErgoMounts UltraView 466 Six Monitor Desk Mount Arm is an ideal solution for those looking to mount six screens (up to 8Kg each) in a 3 above 3 below configuration. Each monitor can be individually adjusted to create your ideal setup. The UltraView 466 is designed around a 35mm diameter pole to ensure the smallest possible footprint on the desk. The robust and ergonomic design allows for between 70mm and 470mm of monitor arm reach. Each monitor can tilt +/-90° and swivel +/-90°. Screens can also be rotated through landscape to portrait allowing faster reading and data entry. To find out if your screen is going to be compatible with this mount contact our sales team.
The UltraView 466 Six Screen Stand is available with a desk clamp (EMUV466DC) or bolt through (EMUV466TD) fitting. The desk clamp fitting on the EMUV466DC will adjust to fit work surfaces up to 72mm thick. The EMUV466TD is supplied with a grommet mount fitting that can fit over and through an existing cable port and still allows cables to be passed though with ease. Alternatively a single 10mm diameter hole can be drilled anywhere on the desktop for the mounting bolt to be secured through.
Utilising more than one monitor in the workplace has been proven to increase productivity by over 10% and reduce data entry errors by 18% (Source: University of Utah’s Department of Communication).
Mounting Surface: Desk Mount
VESA Interface: 75mm x 75mm, 100mm x 100mm
Weight Capacity: 8Kg (17.6lbs) Per Screen
Arm Reach: 470mm
Height Adjustment: 700mm
Tilt Adjustment: +/- 90°
Swivel Adjustment: +/- 90°
Screen Orientation: Portrait or Landscape
Desk Fitting: Desk Clamp
