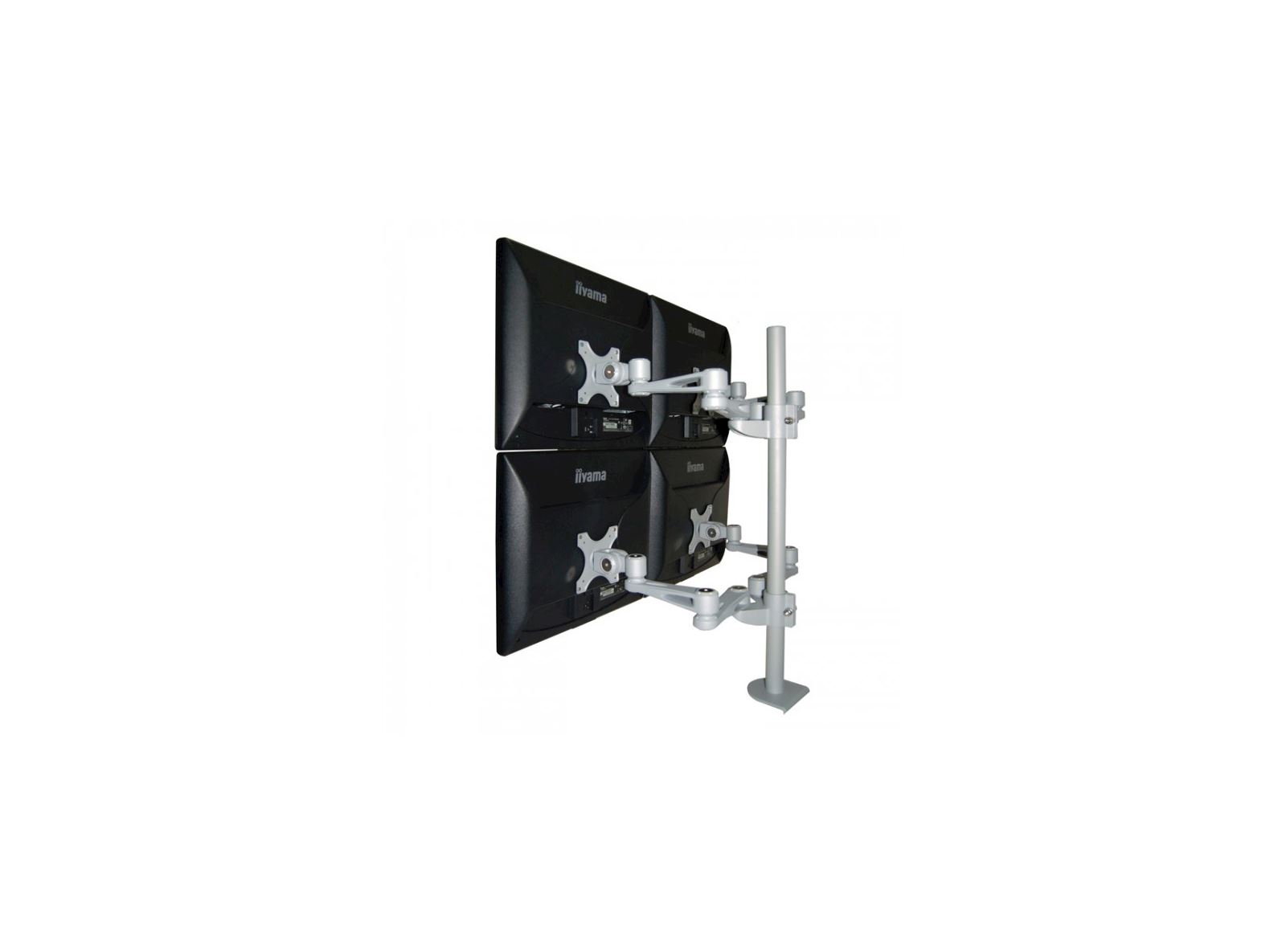

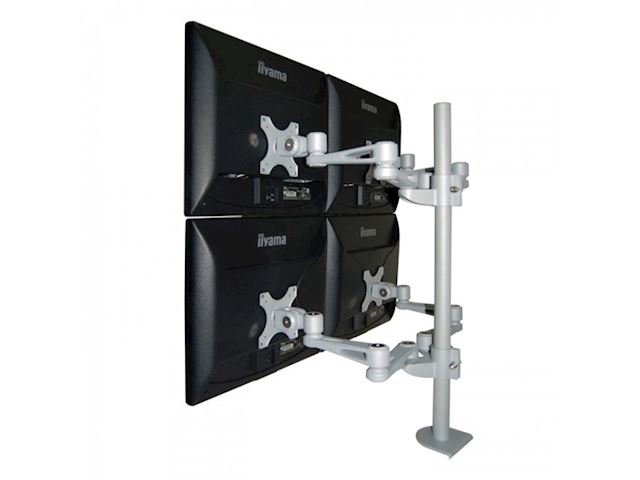

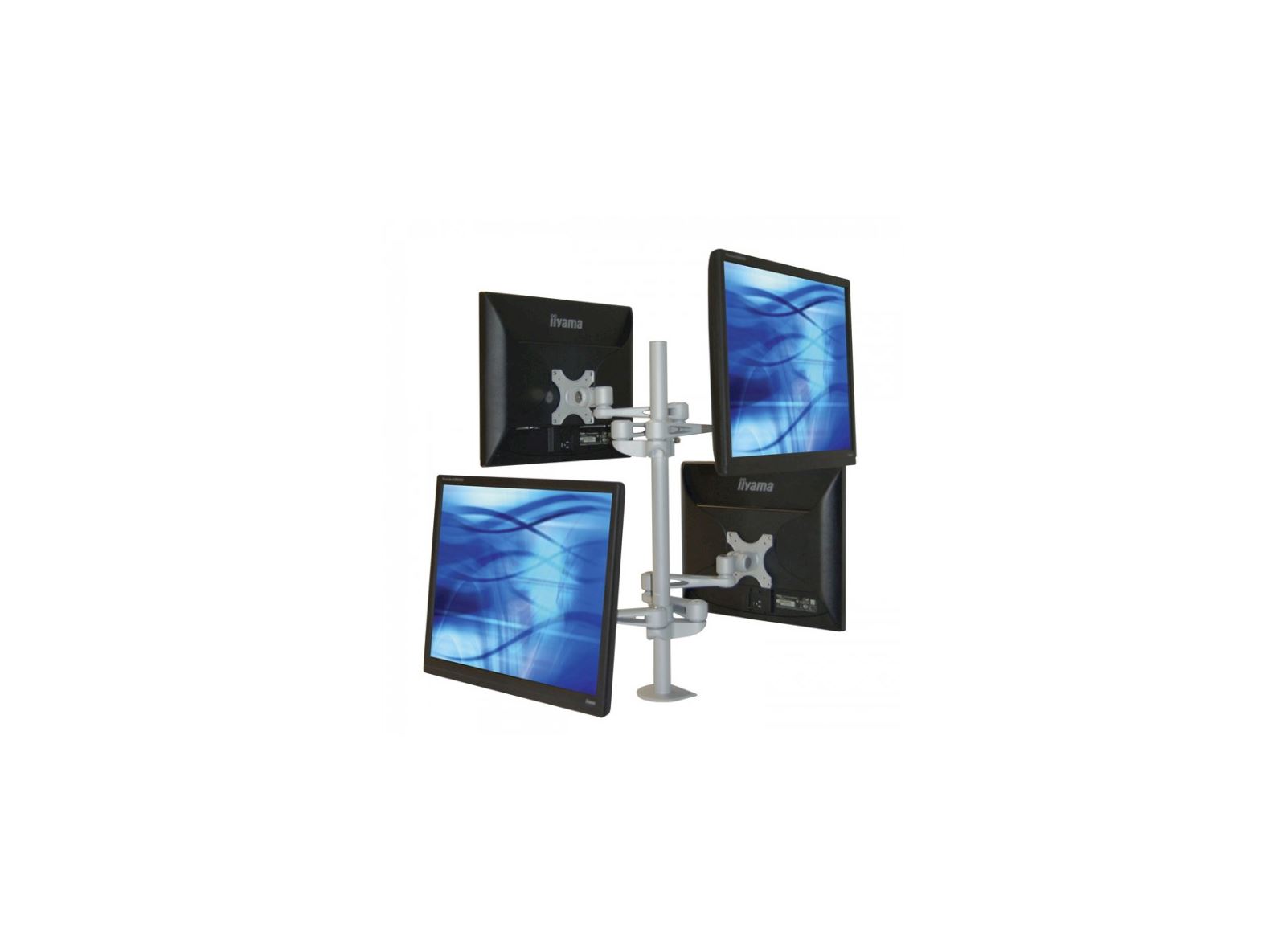

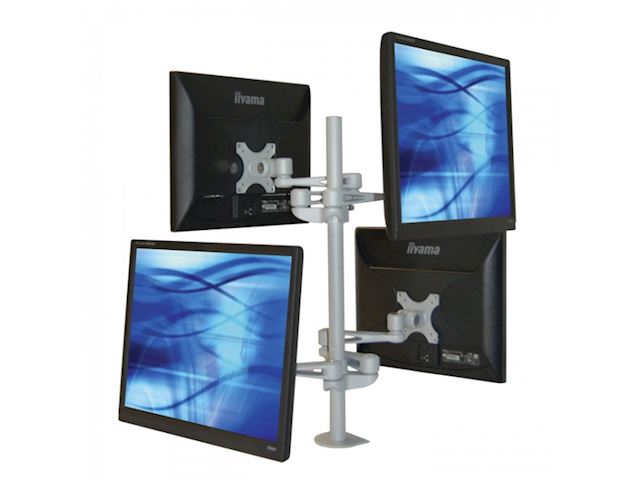

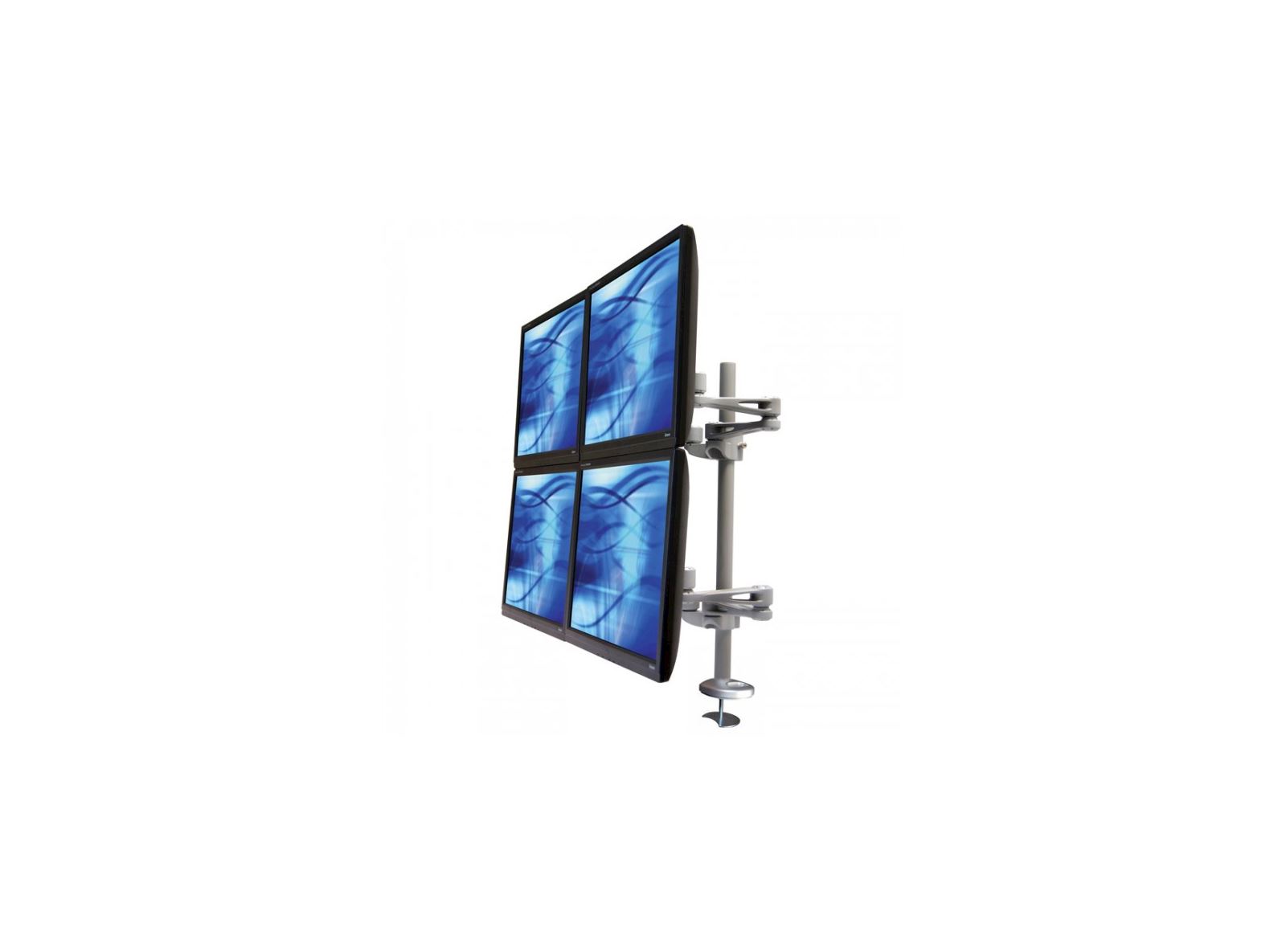

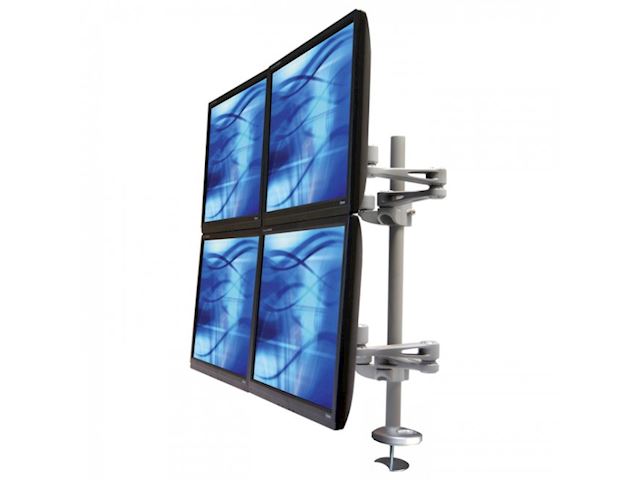

The ErgoMounts UltraView 440 Quad Monitor Desk Mount Arm is an ideal solution for those looking to mount four screens (up to 12Kg each) in a 2 above 2 below configuration. Each monitor can be individually adjusted to create your ideal setup. The UltraView 440 is designed around a 35mm diameter x 700mm tall pole to ensure the smallest possible footprint on the desk. The robust and ergonomic design allows for between 70mm and 470mm of monitor arm reach. Each monitor can tilt +/-90° and swivel +/-90°. Screens can also be rotated through landscape to portrait allowing faster reading and data entry. Maximum individual monitor width is 600mm. For larger screens contact our sales team for more information.
The UltraView 440 Four Screen Stand is available with a desk clamp (EMUV440DC) or bolt through (EMUV440TD) fitting. The desk clamp fitting on the EMUV440DC will adjust to fit work surfaces up to 72mm thick. The EMUV440TD is supplied with a grommet mount fitting that can fit over and through an existing cable port and still allows cables to be passed though with ease. Alternatively a single 10mm diameter hole can be drilled anywhere on the desktop for the mounting bolt to be secured through.
Utilising more than one monitor in the workplace has been proven to increase productivity by over 10% and reduce data entry errors by 18% (Source: University of Utah’s Department of Communication).
Mounting Surface: Desk Mount
VESA Interface: 75mm x 75mm, 100mm x 100mm
Weight Capacity: 12Kg (26lbs) Per Screen
Arm Reach: 470mm
Height Adjustment: 700mm
Tilt Adjustment: +/- 90°
Swivel Adjustment: +/- 90°
Screen Orientation: Portrait or Landscape
Desk Fitting: Bolt Through
Product Technical Drawing:
