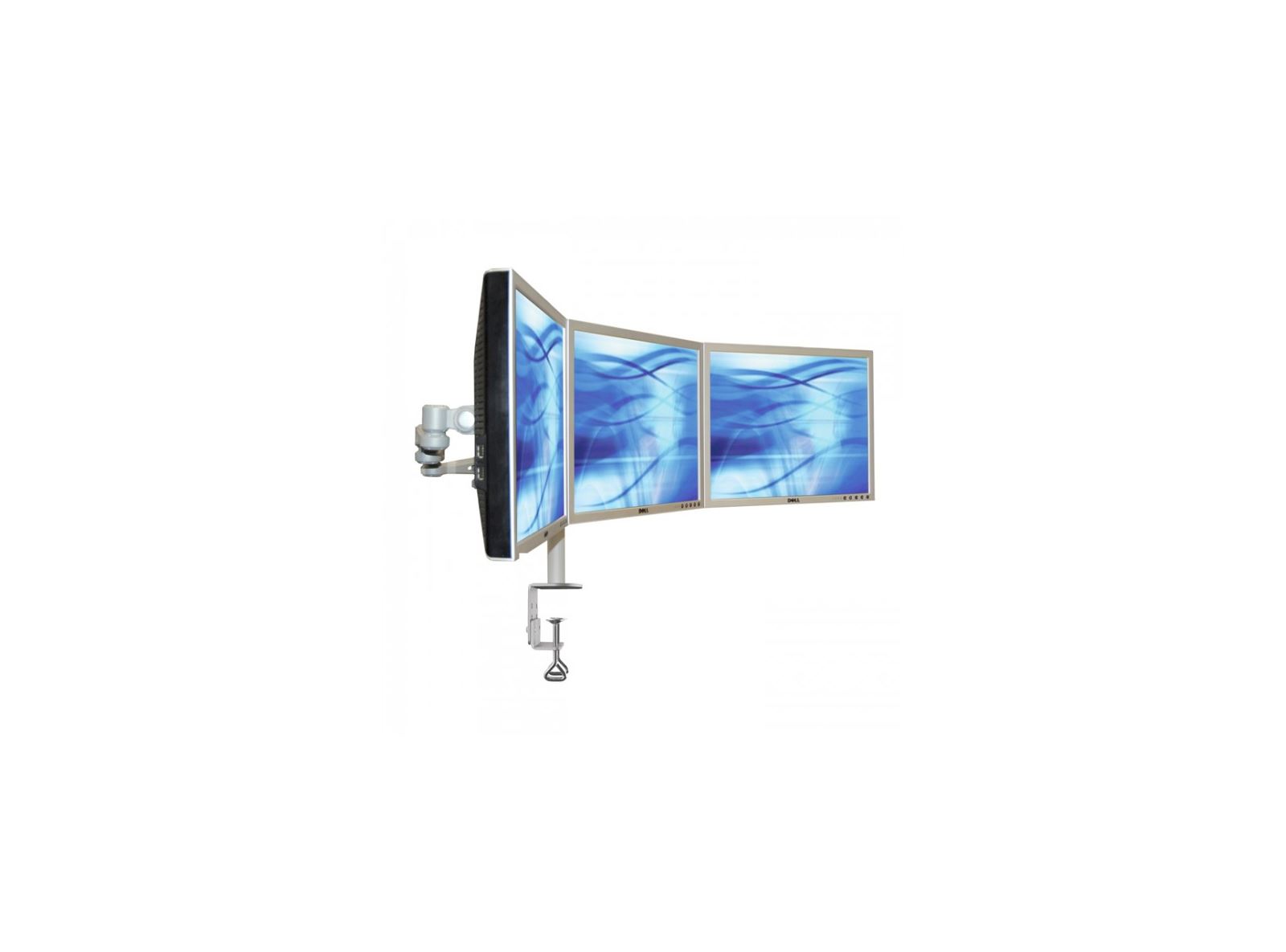

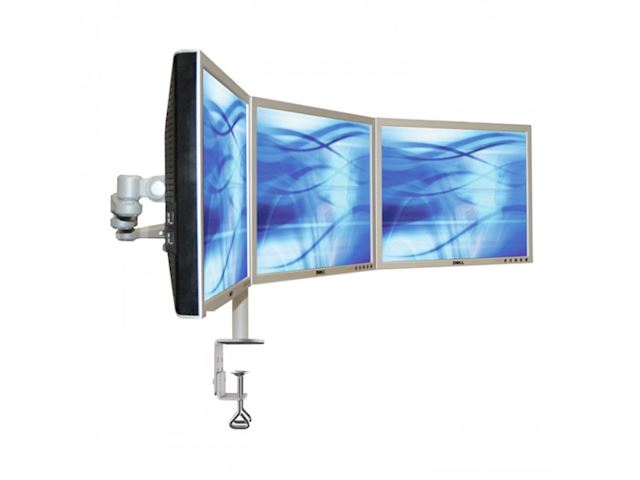

The ErgoMounts UltraView 460 Triple Horizontal Monitor Arm is an ideal solution for those looking to mount three monitors (up to 12Kg each) in a horizontal configuration. Each monitor can be individually adjusted to create your ideal setup. The UltraView 460 is designed around a 35mm diameter x 700mm tall pole to ensure the smallest possible footprint on the desk top. The robust and ergonomic design allows for between 70mm and 470mm of reach as well as height adjustment enabling monitors to be adjusted to suit both the tallest and shortest of users. Each monitor can tilt +/-90° and swivel +/-90°. Monitors can also be rotated through landscape to portrait allowing faster reading and data entry. Maximum individual monitor width is 600mm each.

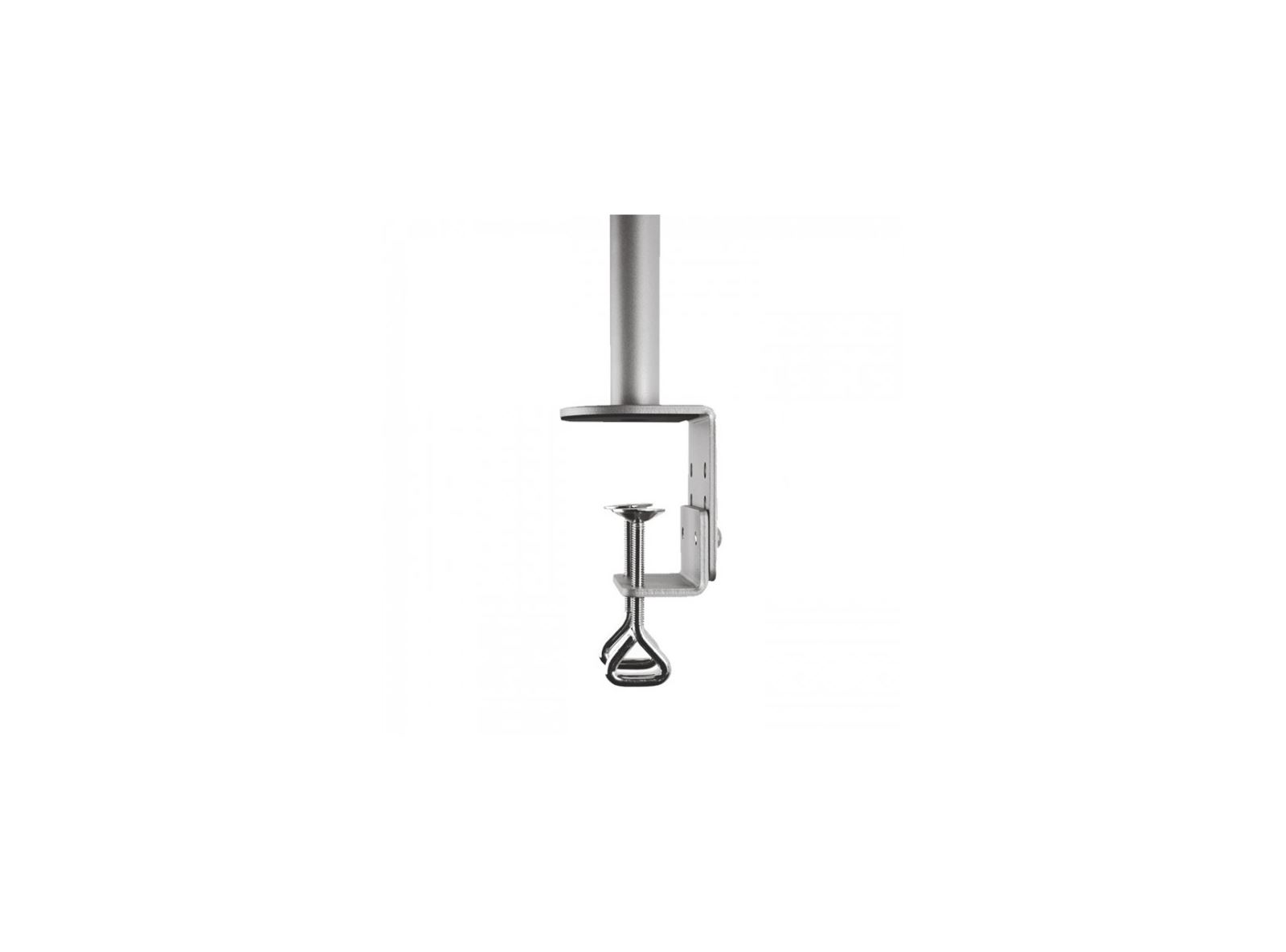

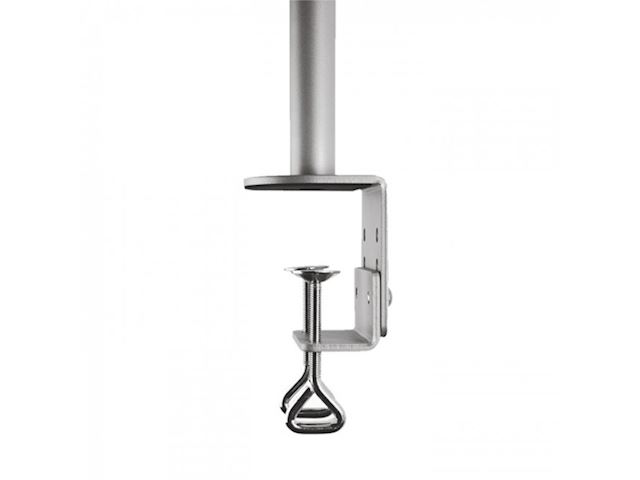

The UltraView 460 Triple Monitor Mount series is available with a desk clamp fitting (EMUV460DC) or bolt through (EMUV460TD). The desk clamp fitting on the EMMUV460DC will adjust to fit work surfaces up to 72mm thick. The EMUV460TD is supplied with a grommet mount fitting that can fit over and through an existing cable port which still enabling cables to be routed through the same port. Alternatively a single 10mm diameter hole can simply be drilled anywhere on the work surface allowing the bolt through desk fitting to be secured.
Utilising more than one monitor in the workplace has been proven to increase productivity by over 10% and reduce data entry errors by 18% (Source: University of Utah’s Department of Communication).
Mounting Surface: Desk Mount
VESA Interface: 75mm x 75mm, 100mm x 100mm
Weight Capacity: 6Kg (13lbs) Per Screen
Arm Reach: 470mm
Height Adjustment: 400mm
Tilt Adjustment: +/- 90°
Swivel Adjustment: +/- 90°
Screen Orientation: Portrait or Landscape
Desk Fitting: Desk Clamp
