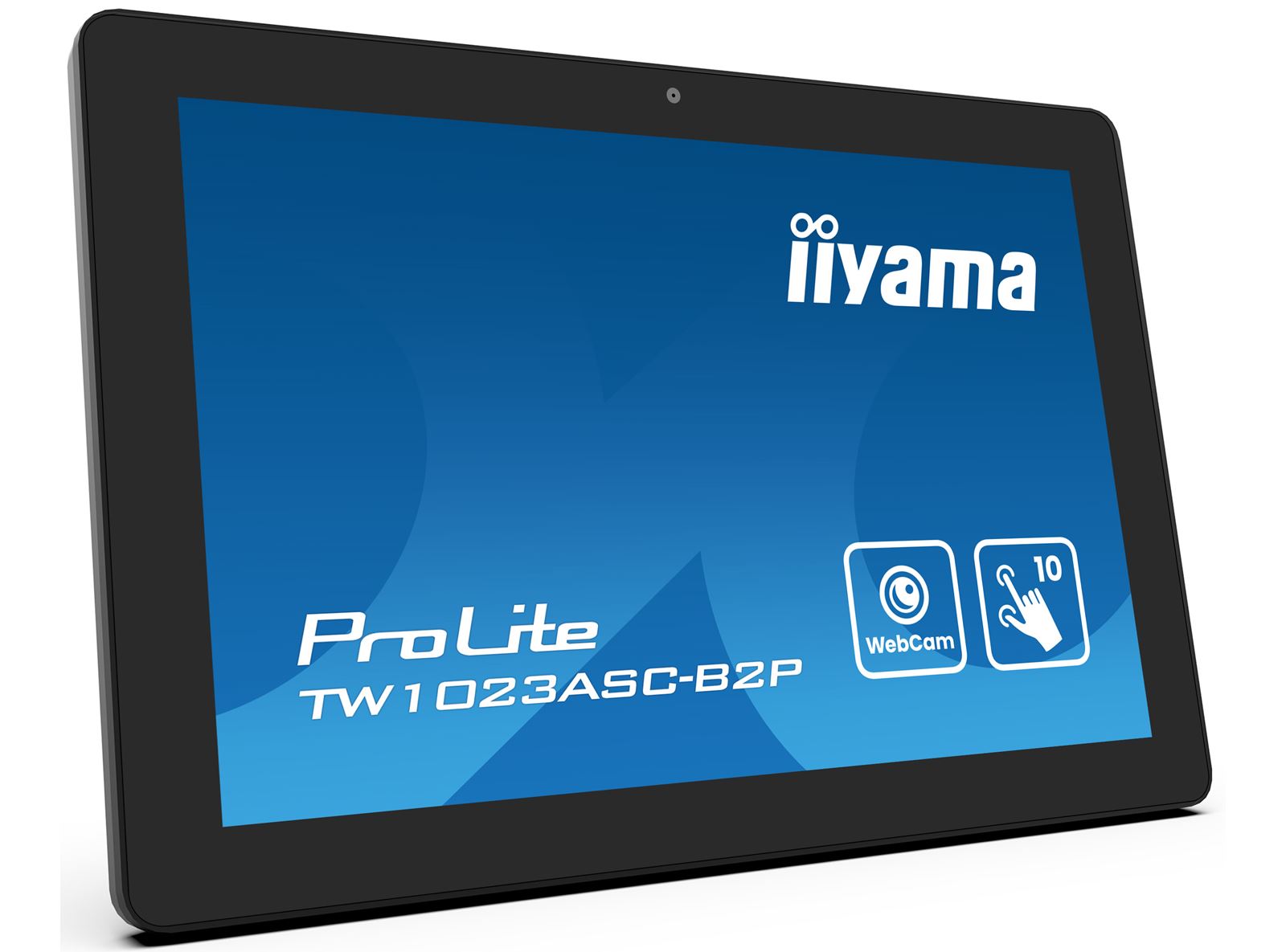

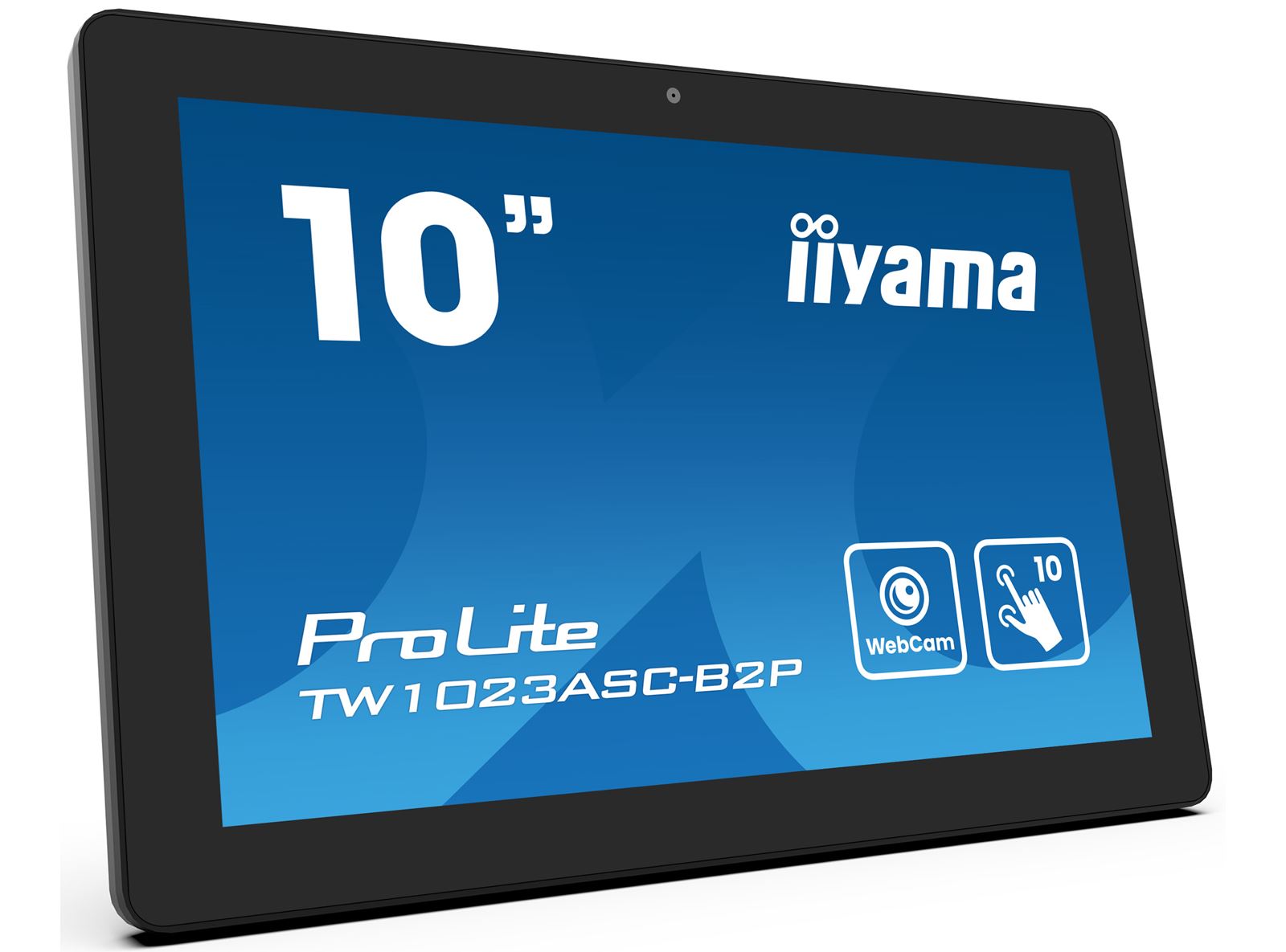

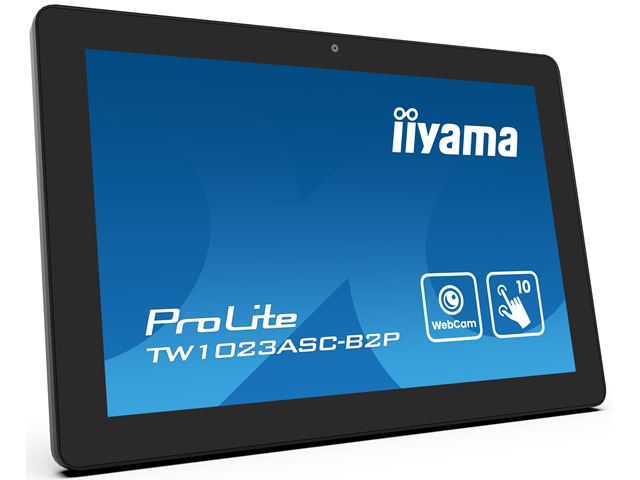

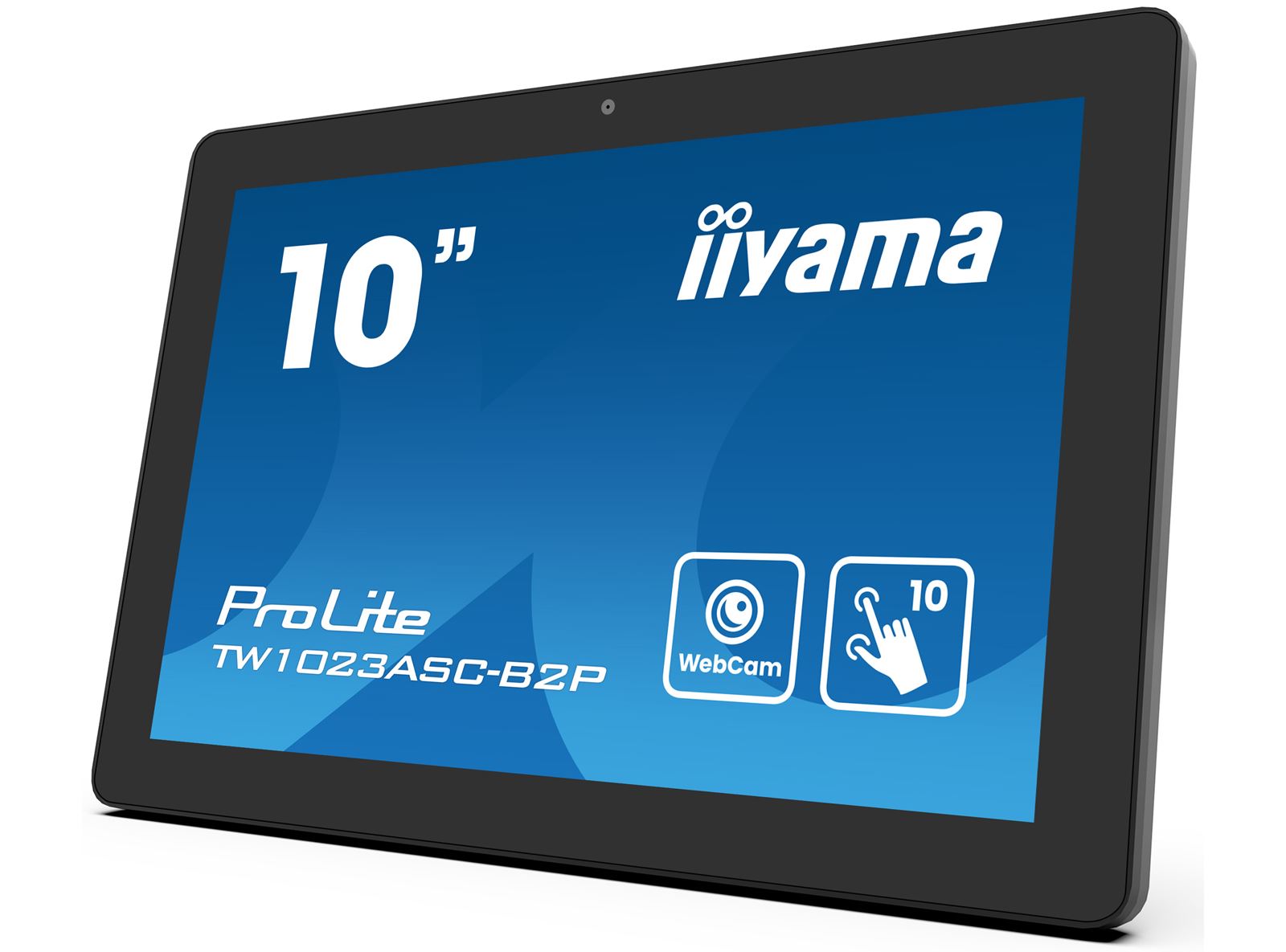

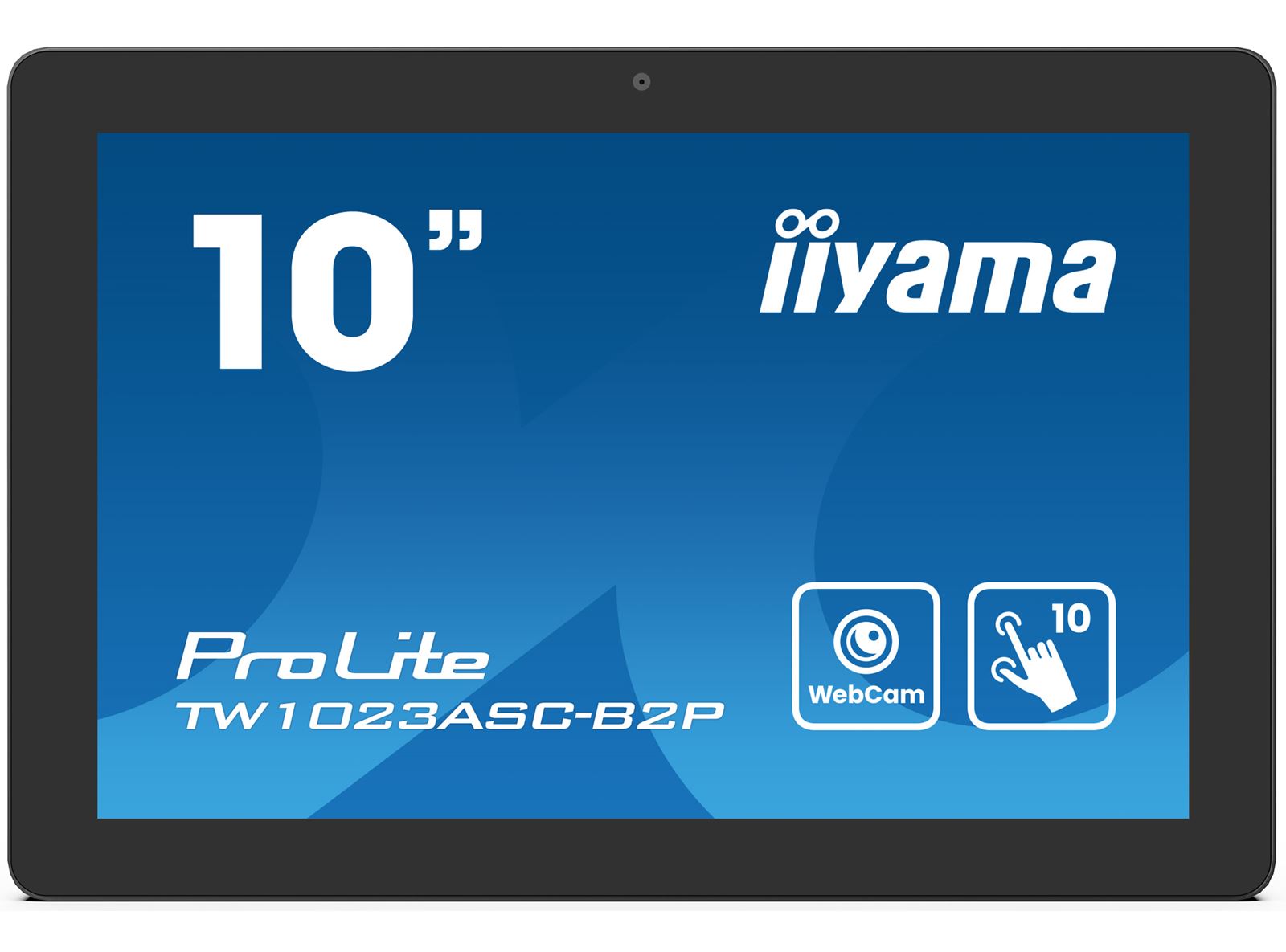

iiyama ProLite TW1023ASC-B2P, 10.1” PCAP 10pt touch screen with Android and Power over Ethernet Technology, Webcam/Mic

£160.60 exc. VAT
£192.72 inc. VAT

Brand: iiyama

Manufacturer Code: TW1023ASC-B2P

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

10.1” PCAP 10pt Touchscreen with Android and Power over Ethernet Technology

The ProLite TW1023ASC-B2P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications. Thanks to the pre-installed Android operating system, it is possible to easily customize the monitor by installing applications directly to it.

The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera, microphone and speakers it offers limitless, interactive installation possibilities.

Technical Information

 DISPLAY CHARACTERISTICS

Design Edge to edge glass
Diagonal 10.1", 25.5cm
Panel IPS
Native resolution 1280 x 800 (1 megapixel HD)
Aspect ratio 16:10
Panel brightness 450 cd/m²
Brightness 387 cd/m² with touch
Light transmittance 86%
Static contrast 1000:1 with touch
Response time (GTG) 25ms
Viewing zone horizontal/vertical: 160°/160°, right/left: 80°/80°, up/down: 80°/80°
Colour support 16.7mln 8bit
Viewable area W x H 216.6 x 135.4mm, 8.5 x 5.3"
Pixel pitch 0.1692mm
Bezel colour and finish black, matte

 TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method finger, glove (latex), capacitive stylus
Touch interface USB

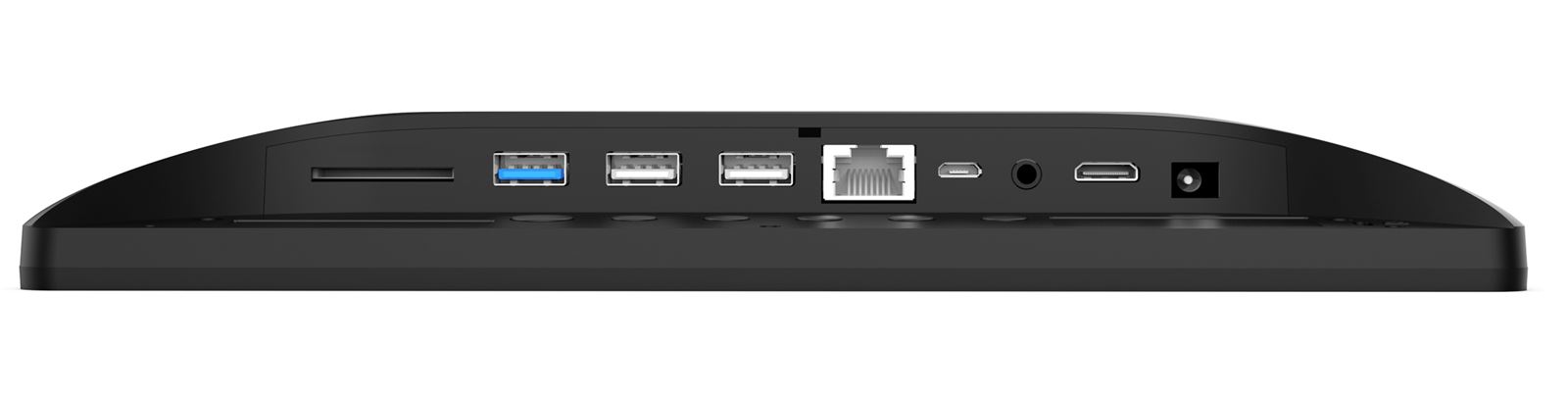

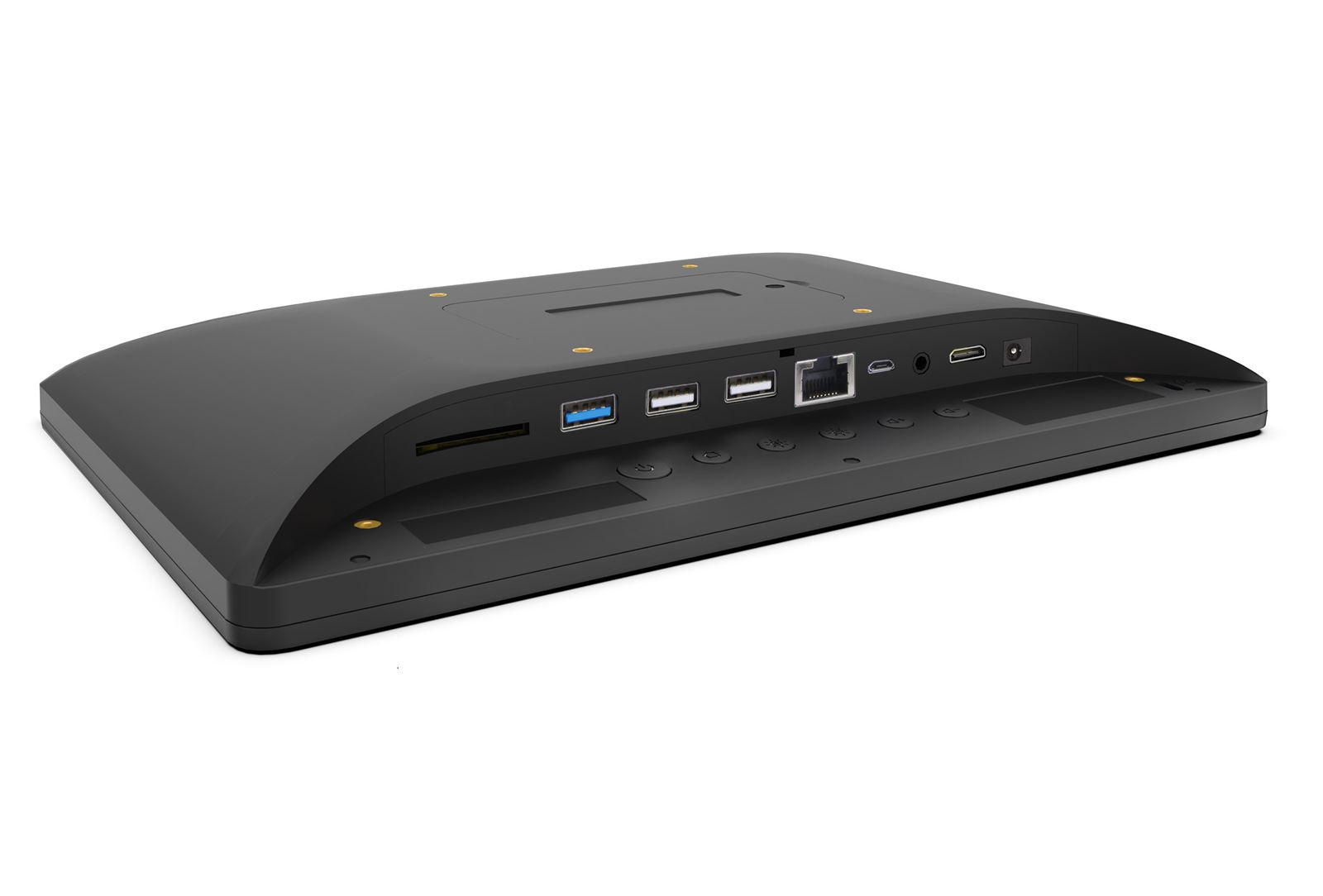

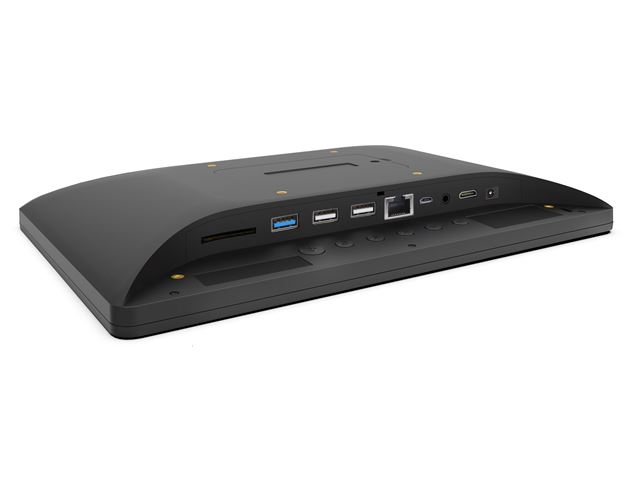

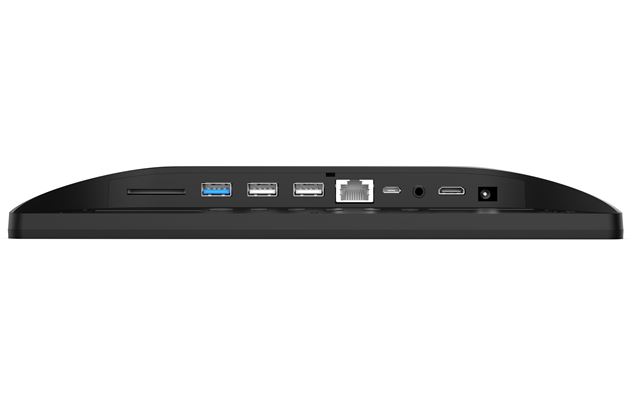

 INTERFACES / CONNECTORS / CONTROLS

Audio input Mini jack x1
Digital signal output HDMI x1 (mini HDMI, 1280x720 @60Hz)
Audio output Speakers 2 x 1.5W
USB ports x4 (1 x 3.2 Gen1 (5Gbps, DC5V, 900mA), 2 x 2.0 (DC5V, 500mA), 1 x MICRO with OTG)
RJ45 (LAN) x1 (PoE - IEEE802.3 at/Max. 30W)
Microphone 1

 FEATURES

Integrated software Android 13
CPU Rockchip RK3568, quad-core Cortex--A55 up to 2GHz
GPU Quad-core Cortex A55
Storage 32GB eMMC
Memory 4GB DDR4
WiFi IEEE802.11a/b/g/n/ac
Bluetooth 5.2
Extra auto-rotation, webcam (5 megapixel), microphone, SD card slot, anti-fingerprint coating
Kiosk mode yes
Max. non-stop operating time 24/7
Glass thickness 1.25mm
Glass hardness 6H
OSD key lock yes

 GENERAL

Control buttons Power
Applications lock applications, manage restart time, manage power on/off, calculator, calendar, Chrome, alarm/ clock/ timer/ stopwatch, manage files and folders, organize albums, Gmail, play audio files, Play store, Search engine, system preferences, sound recorder, play video files
Flicker free yes

 MECHANICAL

Orientation landscape, portrait, face-up

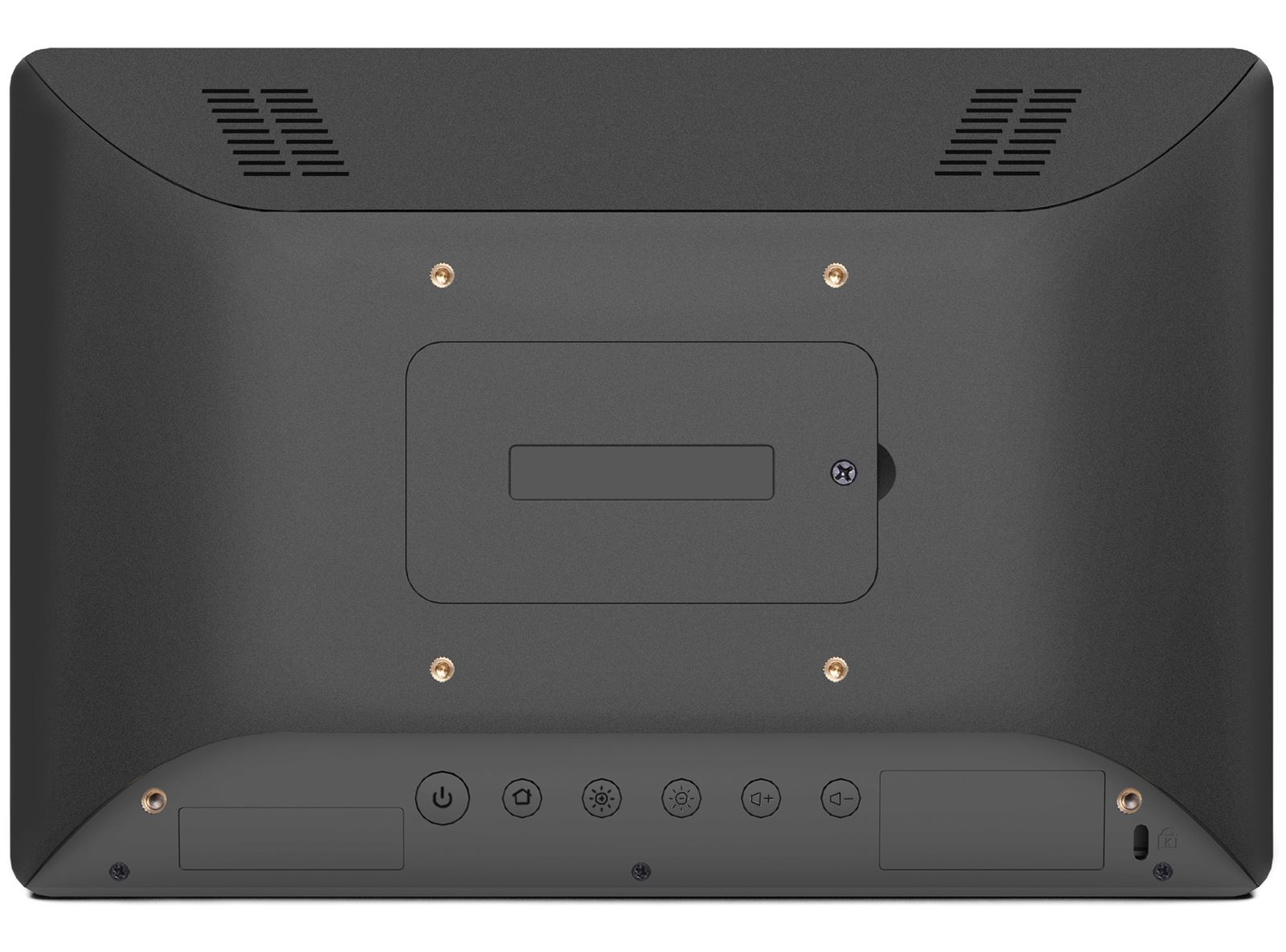

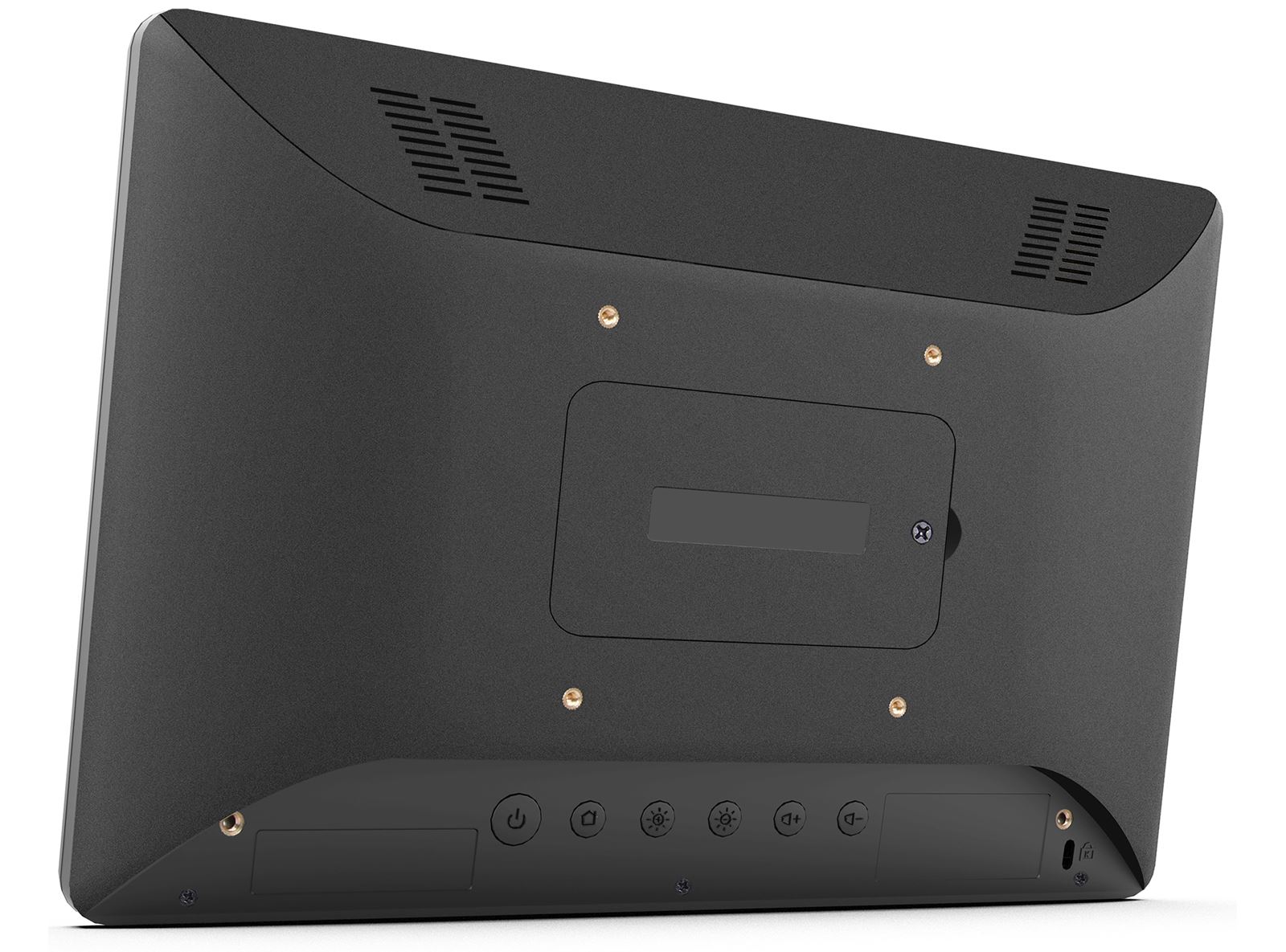

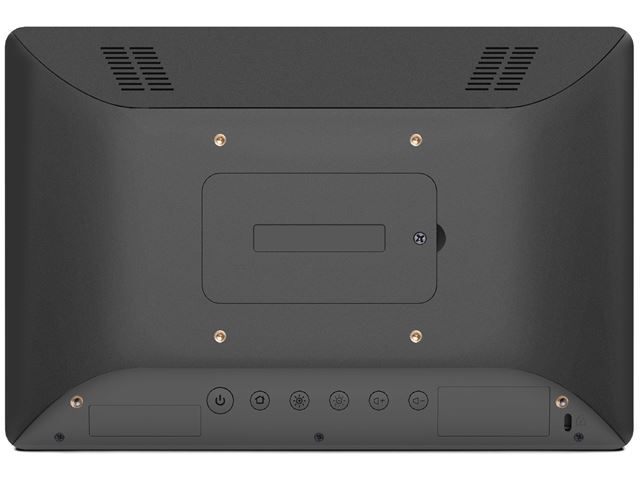

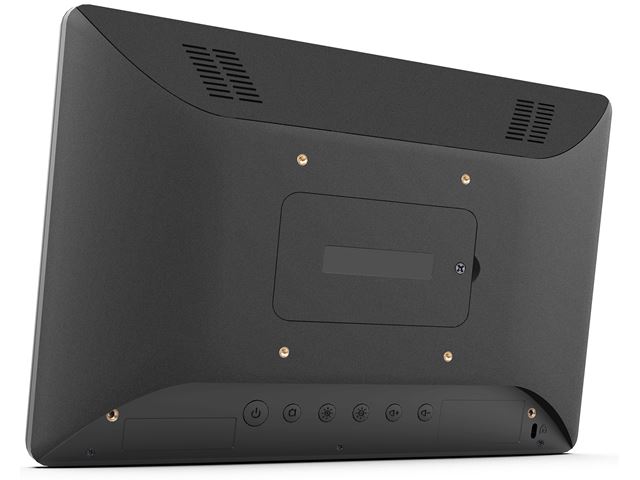

VESA mounting 75 x 75mm

 ACCESSORIES INCLUDED

Guides quick start guide, safety guide
Other AC adapter
Cable cover yes

 POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 18W typical, 0.5W stand by

 SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 255 x 172 x 30.5mm
Box dimensions W x H x D 398 x 223 x 68mm
Pallet volume 256pcs
Pallet dimensions W x H x D 1000 x 1200 x 2150mm
Weight (without box) 0.8kg
Weight (with box) 1.36kg
EAN code 4948570124541
Features

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

WEBCAM & MICROPHONE



Integrated web camera and microphone assure seamless compatibility with any video or web conferencing applications.

WEBCAM & MICROPHONE

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS
