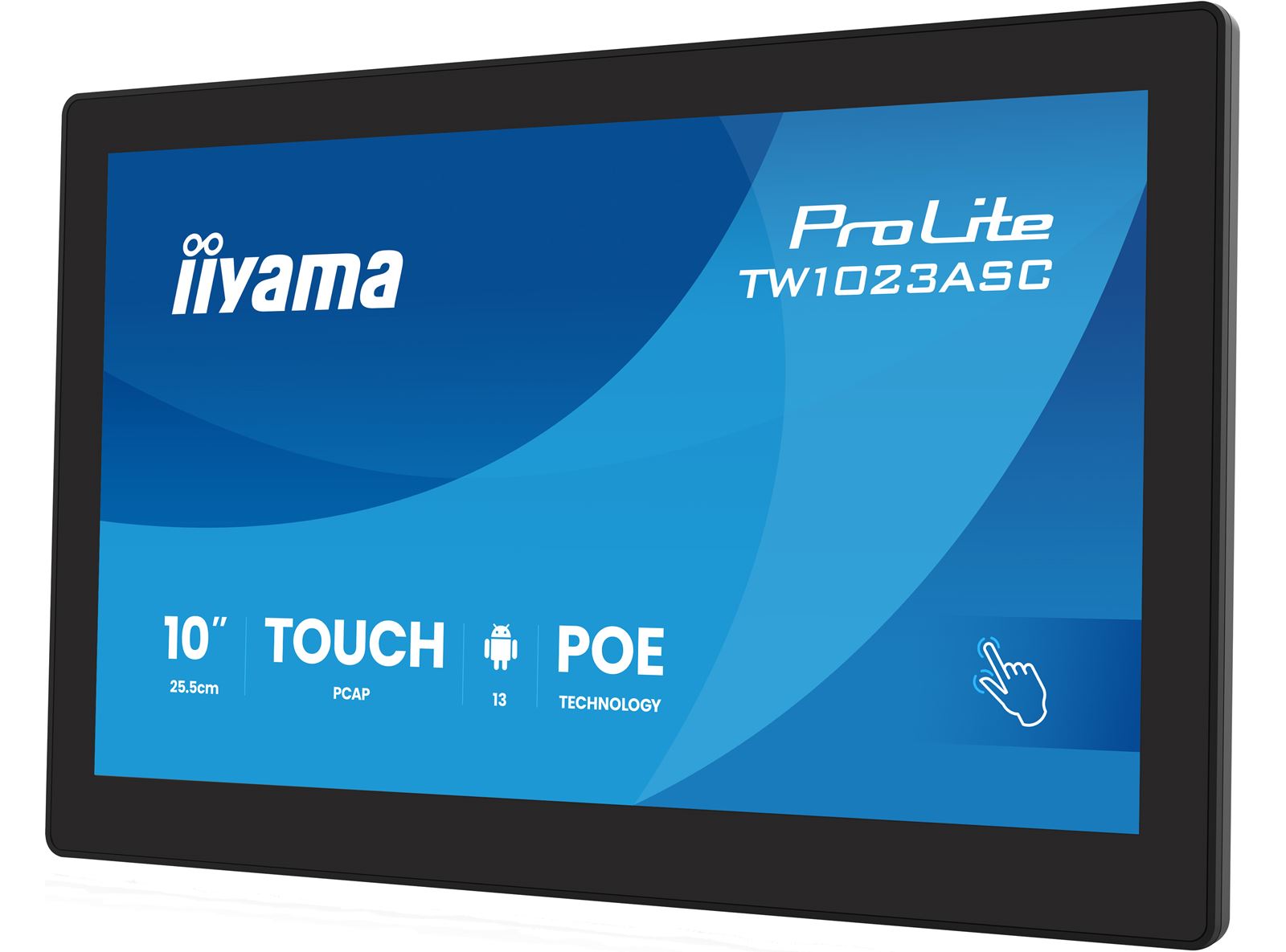

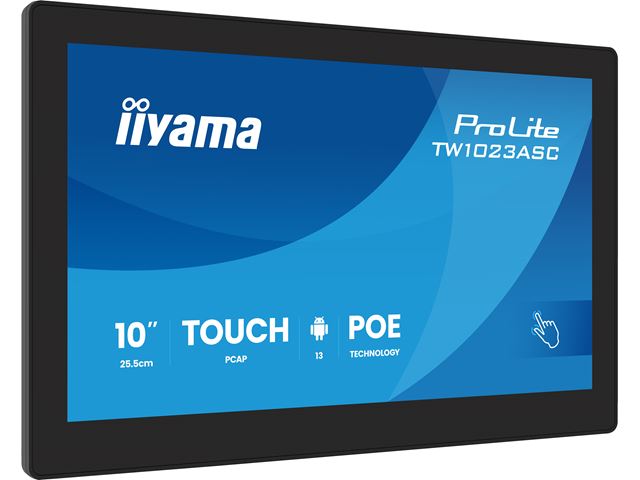

iiyama ProLite TW1023ASC-B3P, 10.1” PCAP 10pt touch screen with Android and Power over Ethernet Technology, iiSignage², Webcam/Mic

£163.52 exc. VAT
£196.22 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Send Back In Stock Notification

Brand: iiyama

Manufacturer Code: TW1023ASC-B3P

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

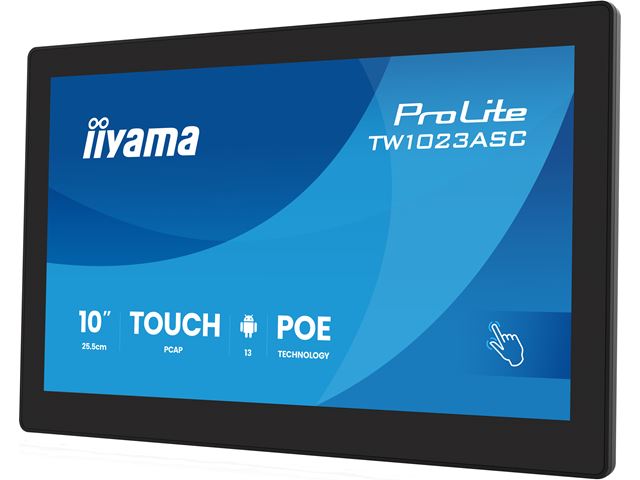

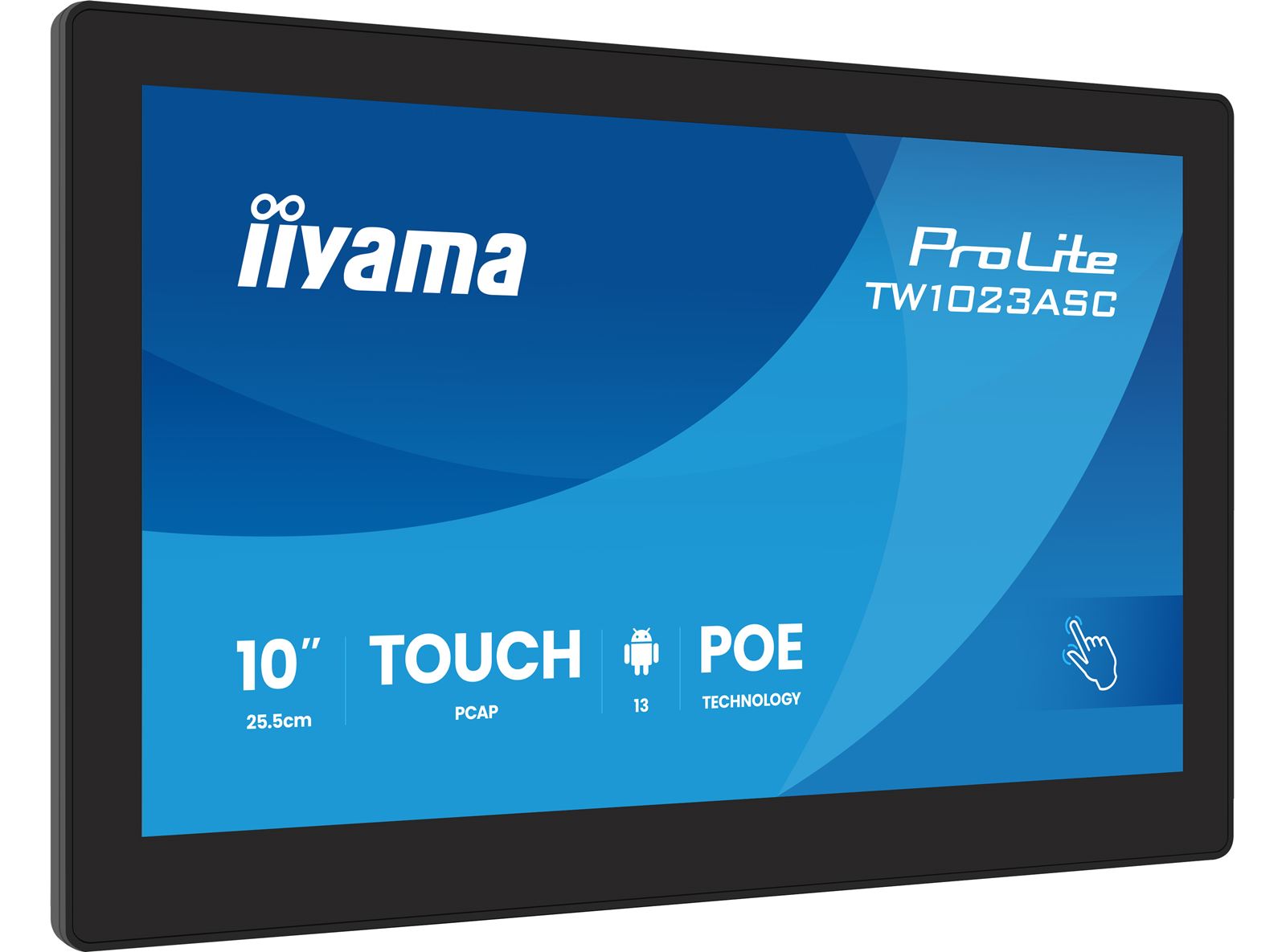

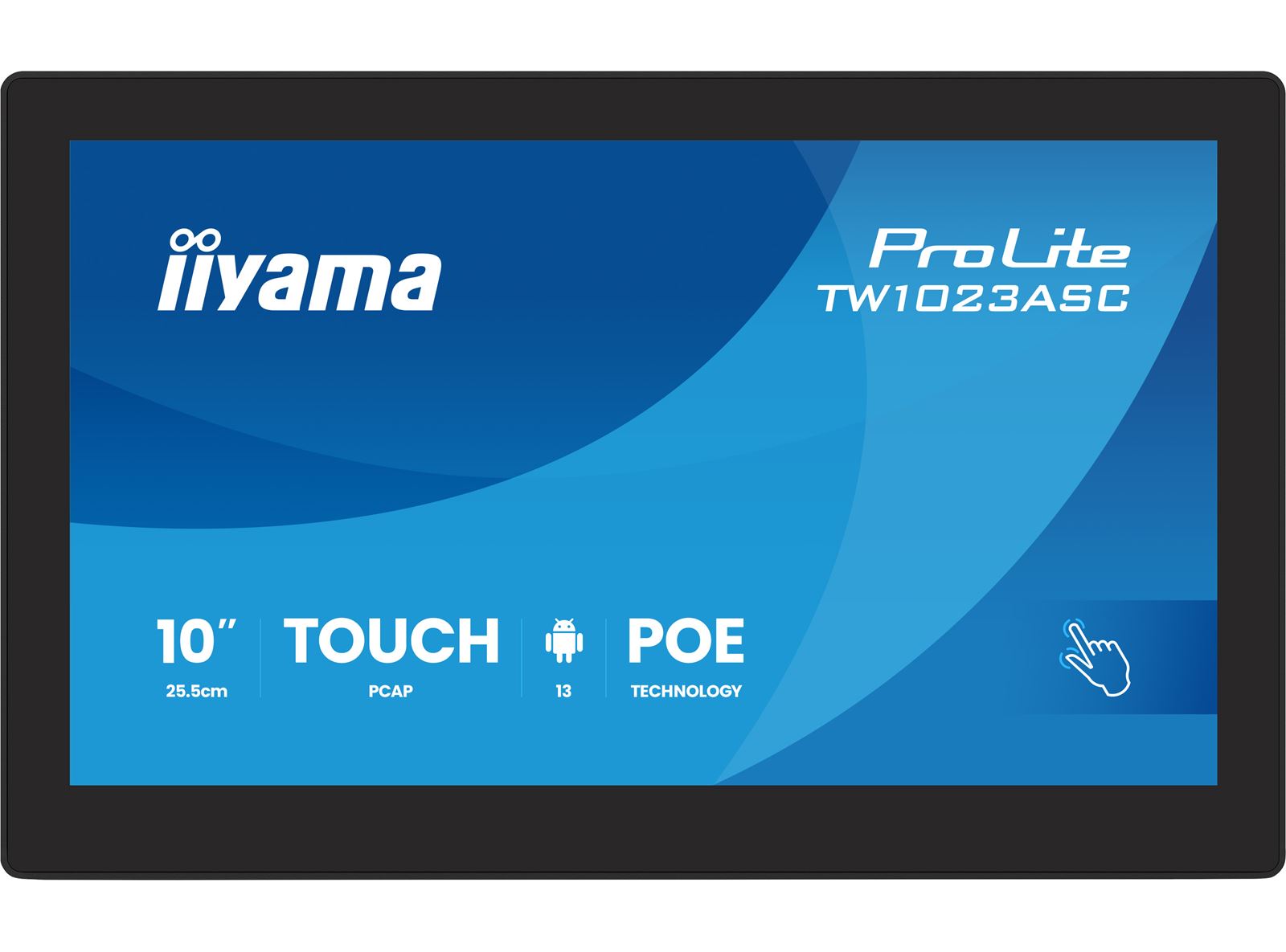

10.1” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage²

The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables.

With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage², iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.

Technical Information

 DISPLAY CHARACTERISTICS

Design Edge to edge glass
Diagonal 10.1", 25.5cm
Panel IPS
Native resolution 1280 x 800 (1 megapixel HD)
Aspect ratio 16:10
Panel brightness 450 cd/m²
Brightness 385 cd/m² with touch
Light transmittance 86%
Static contrast 1000:1 with touch
Response time (GTG) 25ms
Viewing zone horizontal/vertical: 160°/160°, right/left: 80°/80°, up/down: 80°/80°
Colour support 16.7mln 8bit
Viewable area W x H 216.6 x 135.4mm, 8.5 x 5.3"
Pixel pitch 0.1692mm
Bezel colour and finish black, matte

 TOUCH

Touch technology projective capacitive
Touch points 10
Touch method finger, glove (latex), capacitive stylus
Touch interface USB

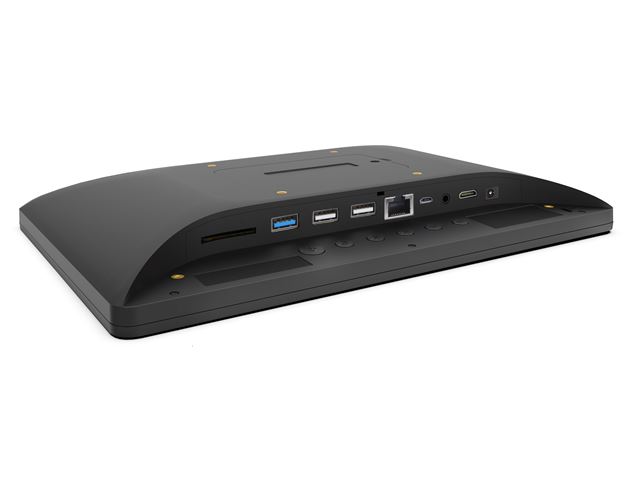

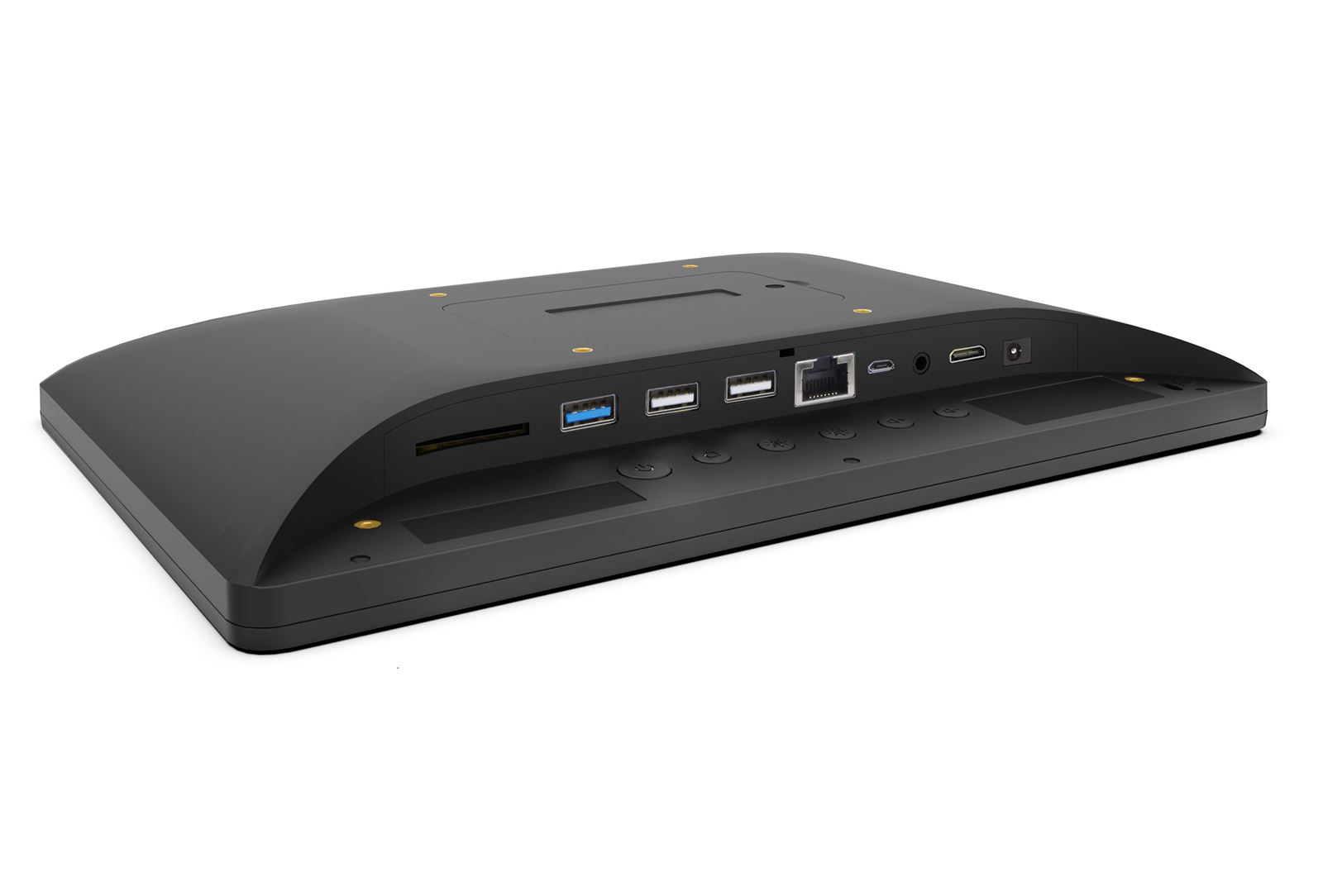

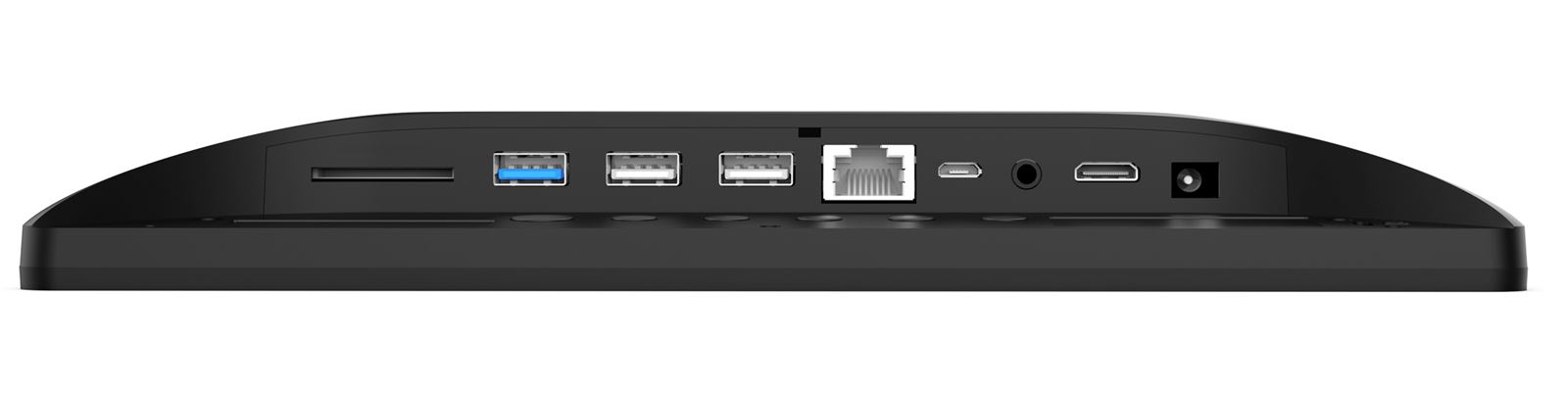

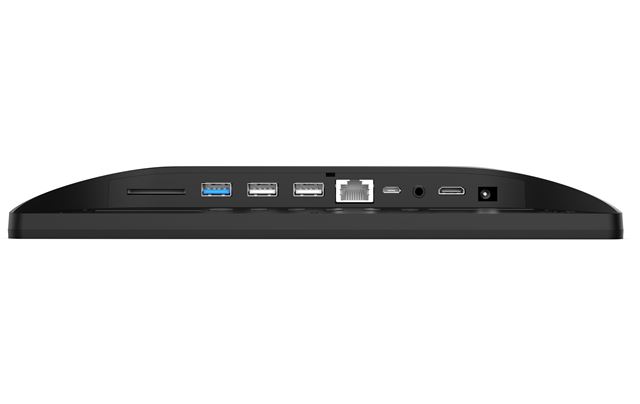

 INTERFACES / CONNECTORS / CONTROLS

Audio input Mini jack x1
Digital signal output HDMI x1 (mini HDMI, 1280x720 @60Hz)
Audio output Speakers 2 x 1.5W
USB ports x4 (1 x 3.2 Gen1 (5Gbps, DC5V, 900mA), 2 x 2.0 (DC5V, 500mA), 1 x MICRO with OTG)
RJ45 (LAN) x1 (PoE - IEEE802.3 at/Max. 30W)
Microphone x1

 FEATURES

Integrated software Android 13
CPU Rockchip RK3568 Quad-core up to 2.0GHz
GPU Mali G52
Storage 32GB eMMC
Memory 4GB LPDDR4X
WiFi IEEE802.11a//b/g/n/ac
Bluetooth 5.2
Extra auto-rotation, webcam (5 megapixel), microphone, SD card slot, anti-fingerprint coating
Kiosk mode yes
Max. non-stop operating time 24/7
Glass thickness 1.25mm
Glass hardness 6H
OSD key lock yes

 GENERAL

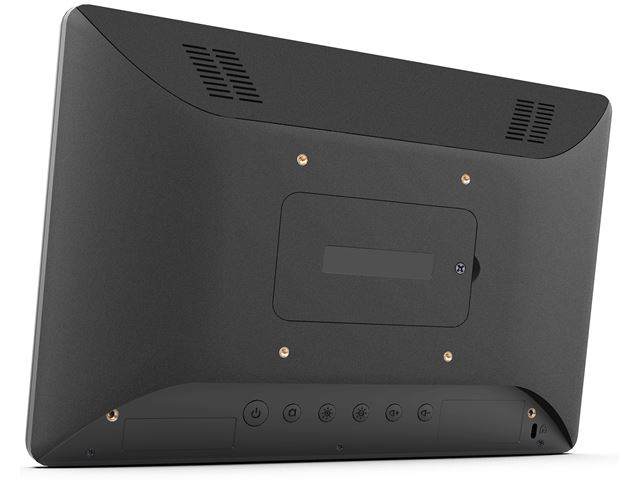

Control buttons Power, home, brightness +, brightness -, volume +, volume -
Applications lock applications, manage restart time, manage power on/off, calculator, calendar, Chrome, alarm/ clock/ timer/ stopwatch, manage files and folders, organize albums, Gmail, Google, iiSignage², play audio files, Play store, system preferences, sound recorder, play video files
Flicker free yes

 MECHANICAL

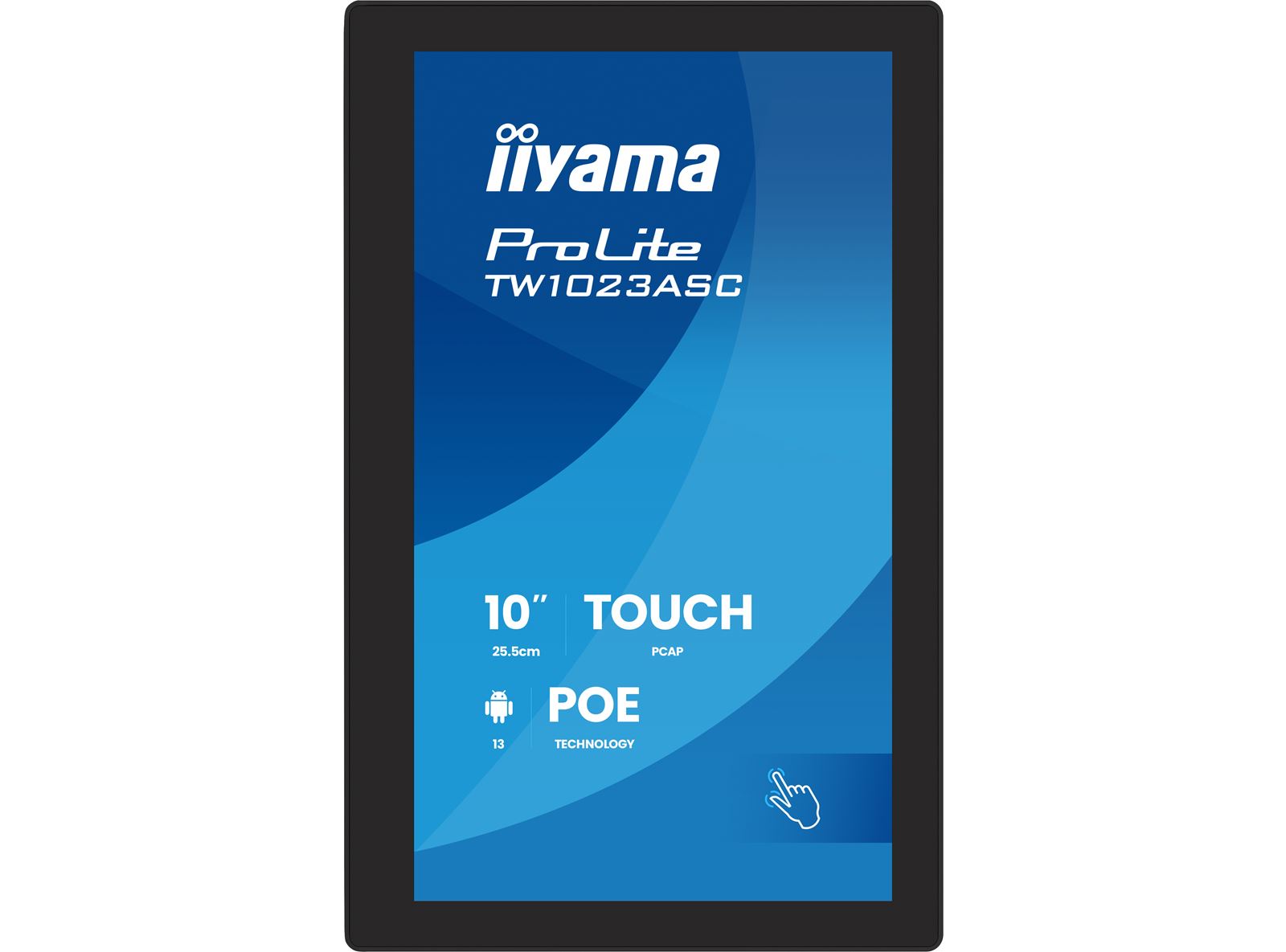

Orientation landscape, portrait, face-up
Cable management system yes

 ACCESSORIES INCLUDED

Cables power (2.5m)
Guides quick start guide, safety guide
Other AC adapter, interchangeable plugs (EU/UK)
Cable cover yes

 POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 18W typical, 0.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 255 x 172 x 30.5mm
Box dimensions W x H x D 398 x 223 x 68mm
Pallet volume 256pcs
Pallet dimensions W x H x D 1000 x 1200 x 2150mm
Weight (without box) 0.8kg
Weight (with box) 1.36kg
EAN code 4948570126927
Features

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

WEBCAM & MICROPHONE



Integrated web camera and microphone assure seamless compatibility with any video or web conferencing applications.

WEBCAM & MICROPHONE

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS
