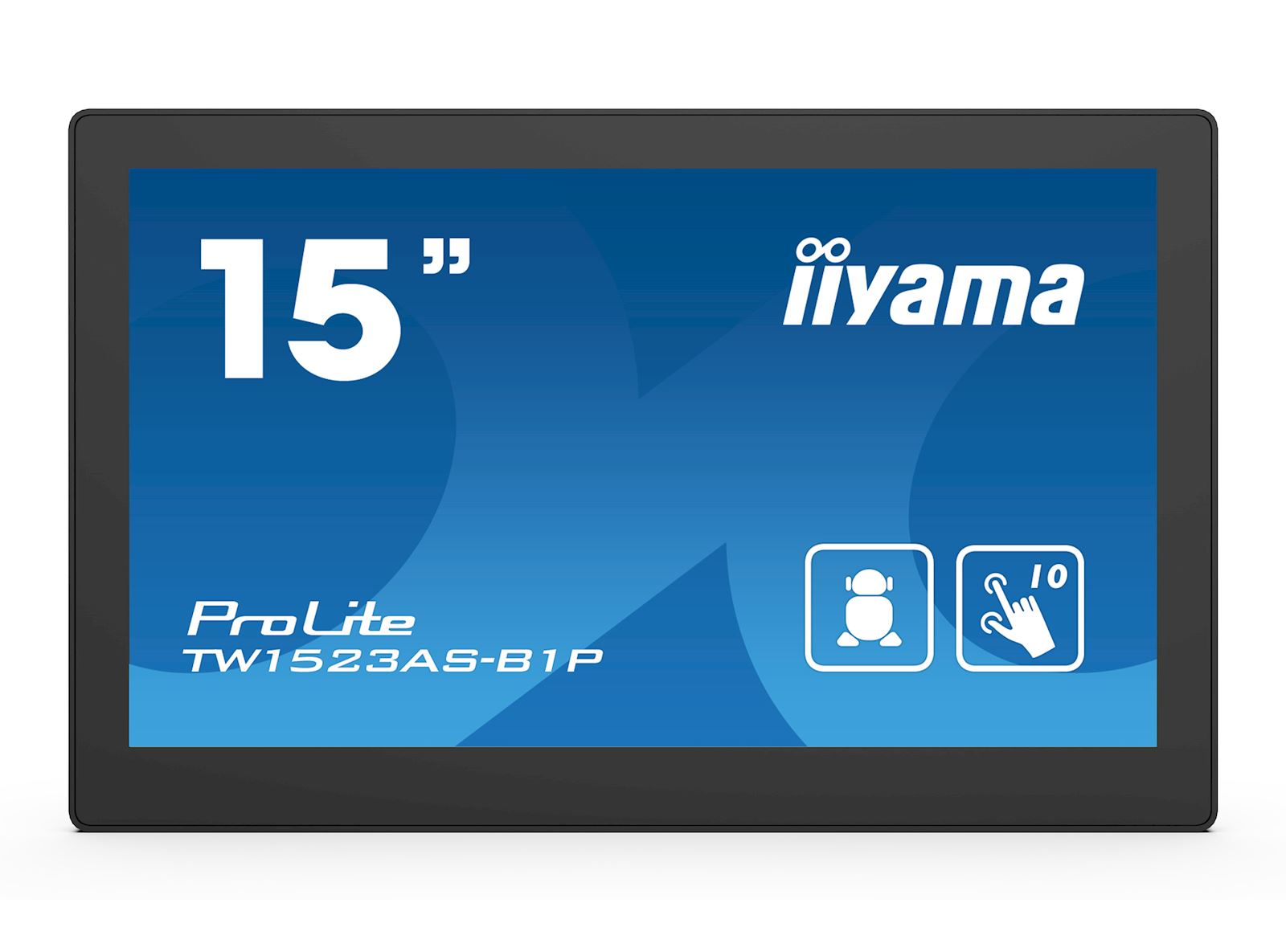

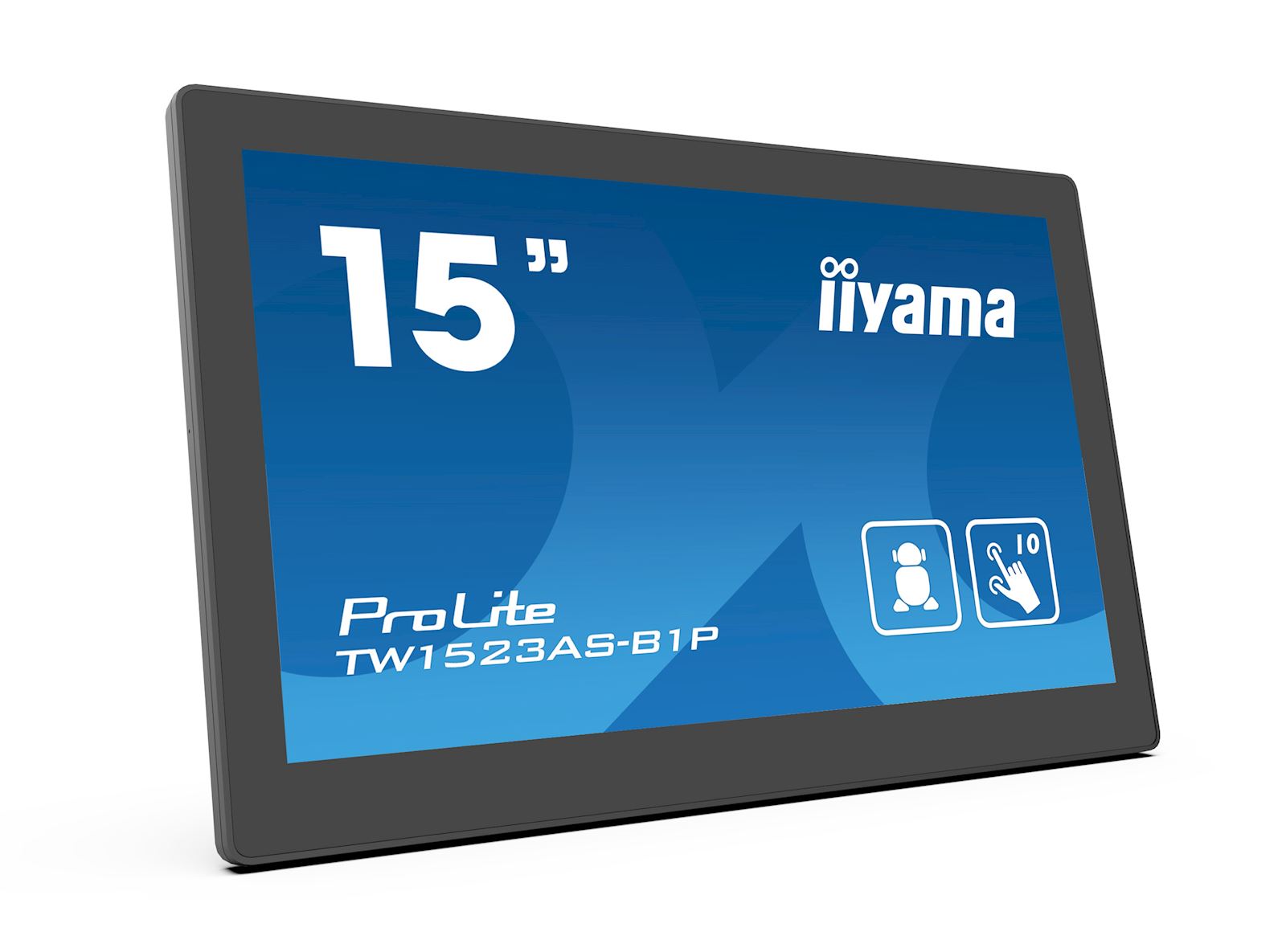

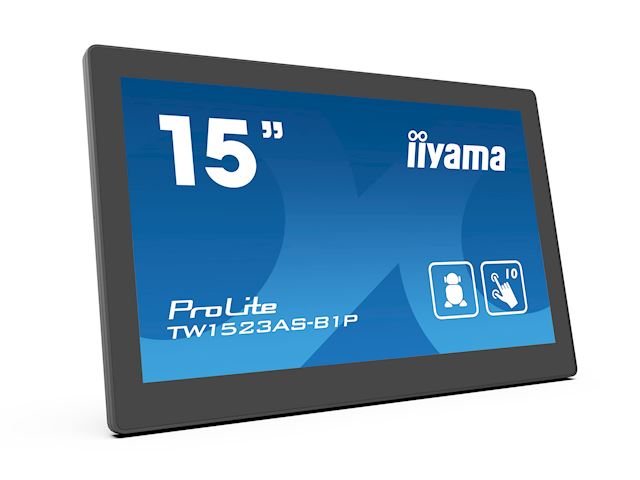

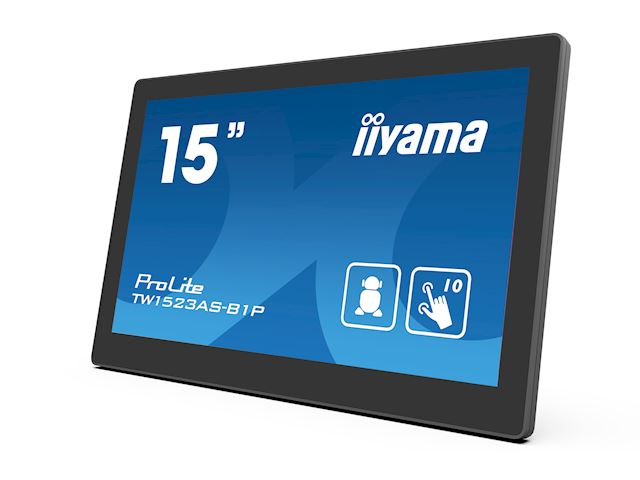

iiyama ProLite TW1523AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology

£287.10 exc. VAT
£344.52 inc. VAT

Brand: iiyama

Manufacturer Code: TW1523AS-B1P

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

15.6” Full HD PCAP 10pt touch screen with Android and POE Technology

The ProLite TW1523AS-B1P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications.

The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Together with the built-in microphone and speakers it offers interactive and almost limitless application possibilities.

Technical Information


Design Edge to edge glass
Diagonal 15.6", 39.5cm
Panel IPS Panel Technology, LED
Native resolution 1920 x 1080 (2 megapixel HD)
Aspect ratio 16:9
Brightness 450 cd/m² typical
Brightness 385 cd/m² with touch
Static contrast 1000:1 with touch
Light transmittance 85%
Response time (GTG) 30ms
Viewing zone horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85°
Colour support 16.7mln 8bit
Viewable area W x H 344.16 x 193.59mm, 13.5 x 7.6"
Pixel pitch 0.17925mm
Bezel colour and finish black, matte


Touch technology projective capacitive
Touch points 10
Touch method finger, glove (latex), capacitive stylus
Touch interface USB

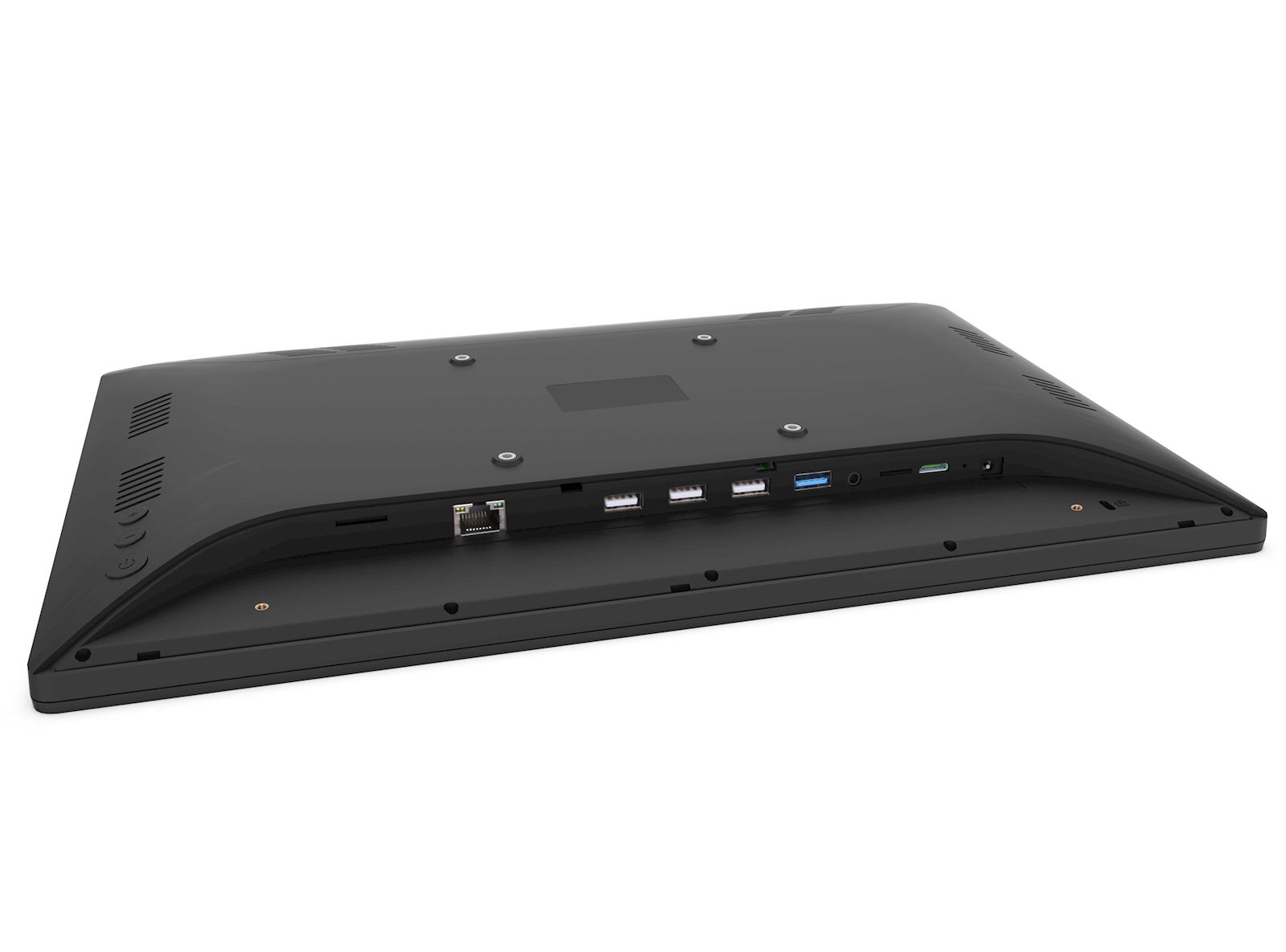

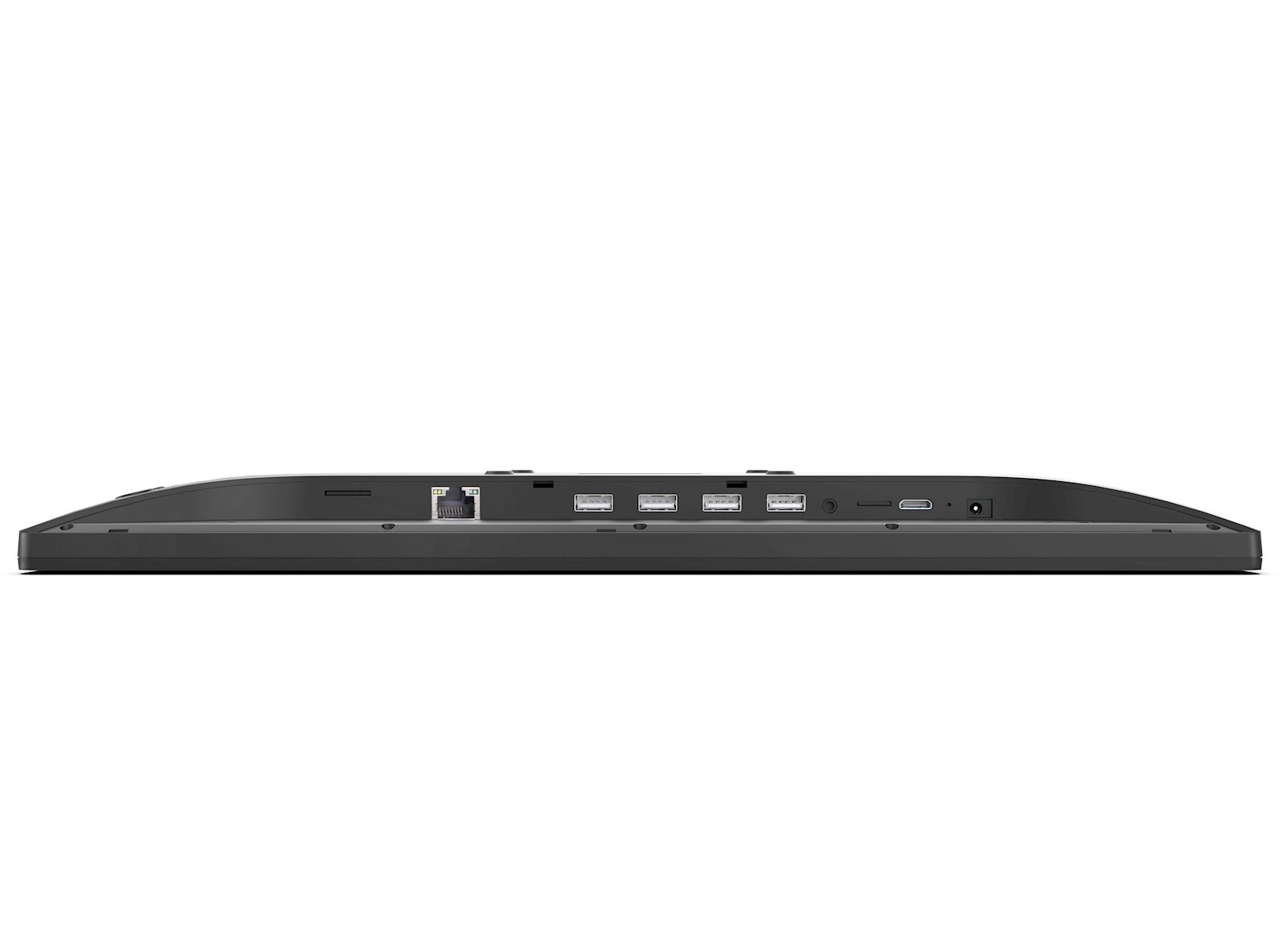

Digital signal output HDMI x1 (mini HDMI, 1920x1080 @60Hz)
Audio output Speakers 2 x 2W
USB ports x2 (2.0)
RJ45 (LAN) x1 (PoE)


Integrated software Android 8.1 without GMS
CPU Rockchip RK3288, quad-core Cortex--A17 up to 1.8GHz
GPU Quad-core cortex A17
Storage 16GB eMMC
Memory 2GB DDR3
WiFi IEEE802.11b/g/n
Bluetooth 4.0
Extra auto-rotation, microphone, SD card slot, anti-fingerprint coating
Max. non-stop operating time 24/7
Glass thickness 1.8mm
Glass hardness 6H


Applications install new application / manage application, lock application, calculator, calendar, chrome, alarm / clock / timer / stopwatch, email, manage files and folders, manage images / video / audio, organize albums, manage power on/off time, play audio files, search engine, system preferences, sound recorder, play video files


Orientation landscape, portrait, face-up

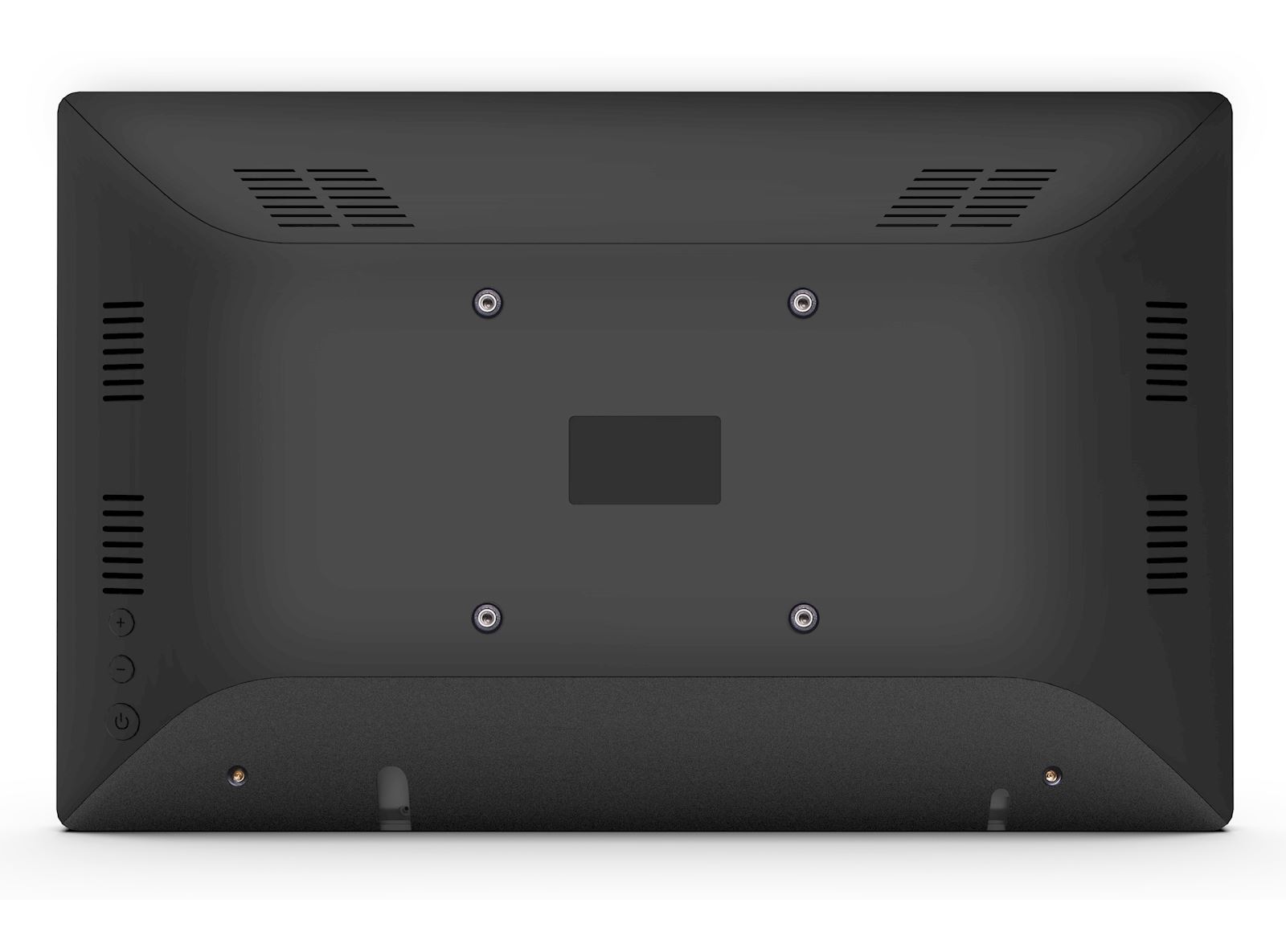

VESA mounting 100 x 100mm


Guides quick start guide, safety guide
Other AC adapter
Cable cover yes


Power supply unit external
Power supply DC 12 V
Power usage 12W typical


Regulations CE, RoHS support, ErP, WEEE, REACH
Other REACH SVHC above 0.1%: Lead


Product dimensions W x H x D 387 x 244 x 30.5mm
Box dimensions W x H x D 477 x 295 x 75mm
Pallet volume 150pcs
Pallet dimensions W x H x D 1000 x 1200 x 1760mm
Weight (without box) 1.5kg
Weight (with box) 2.4kg
EAN code 4948570118014


IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.



LAN control enables making adjustments in the display OSD menu through your network (software not included).




This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.


Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS
