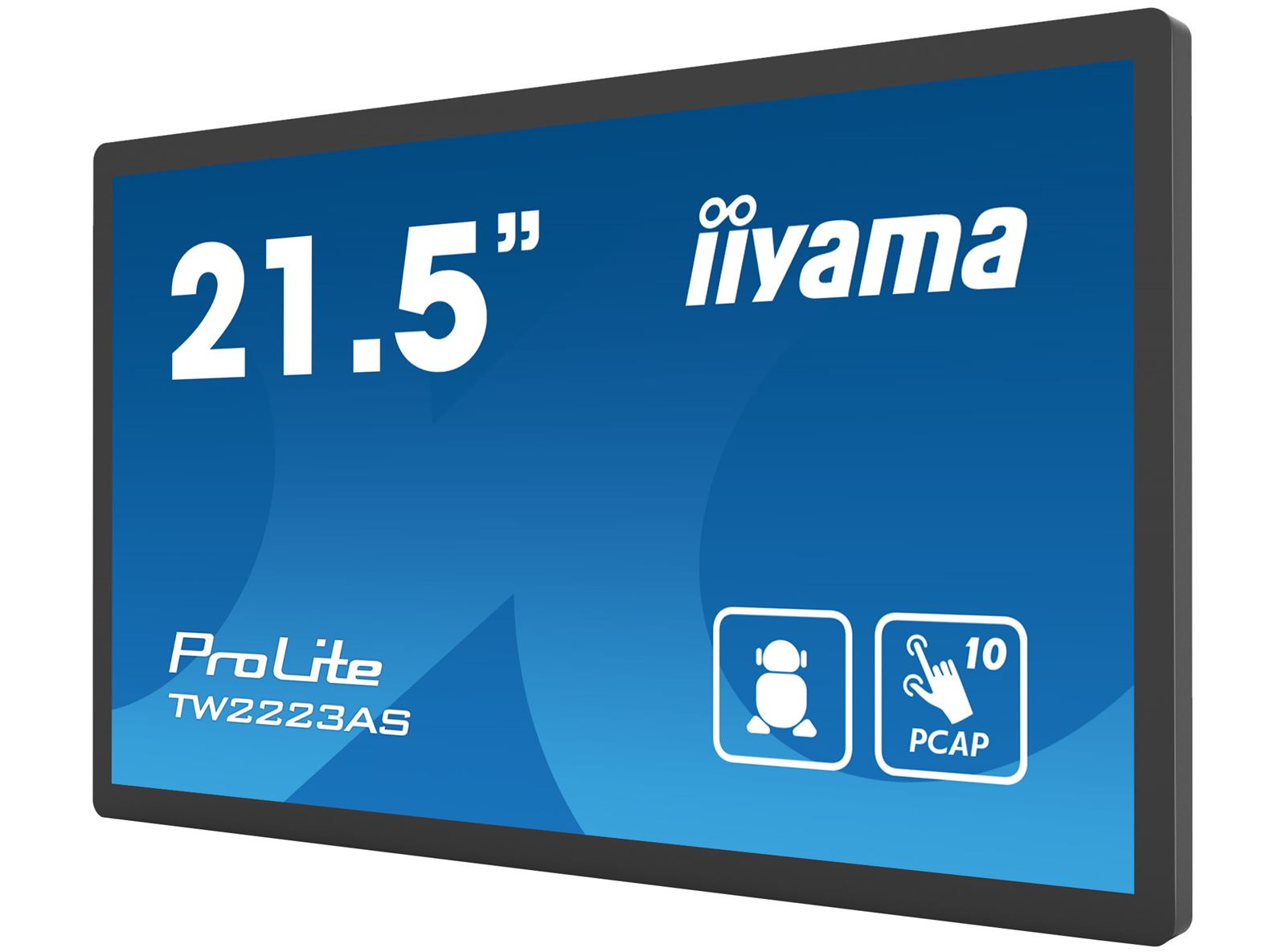

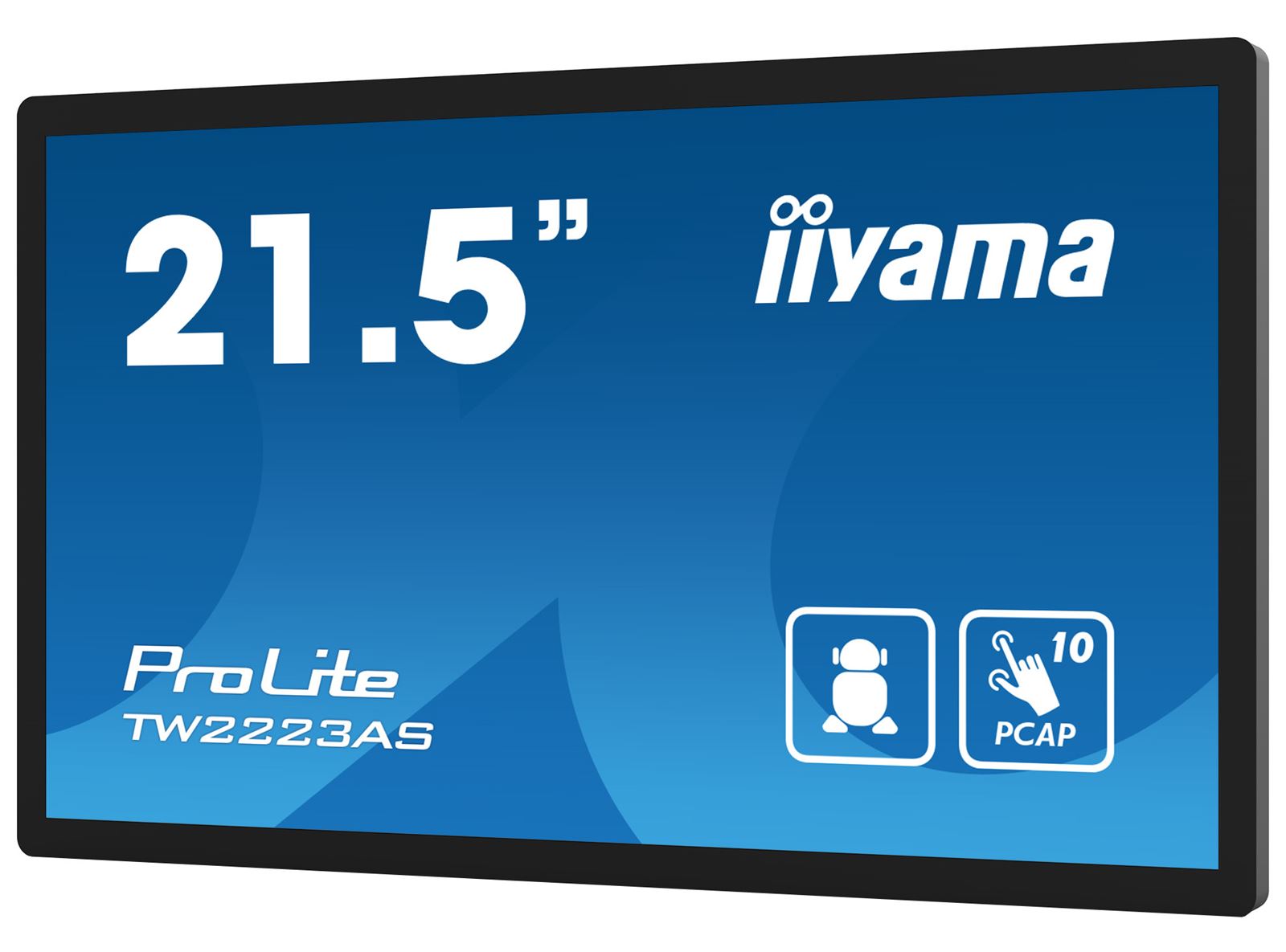

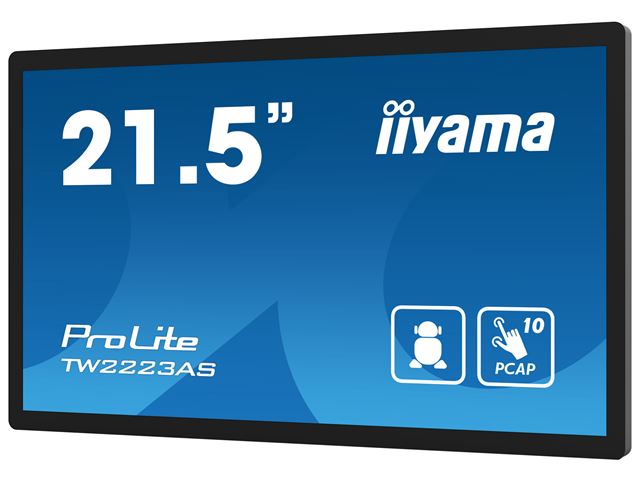

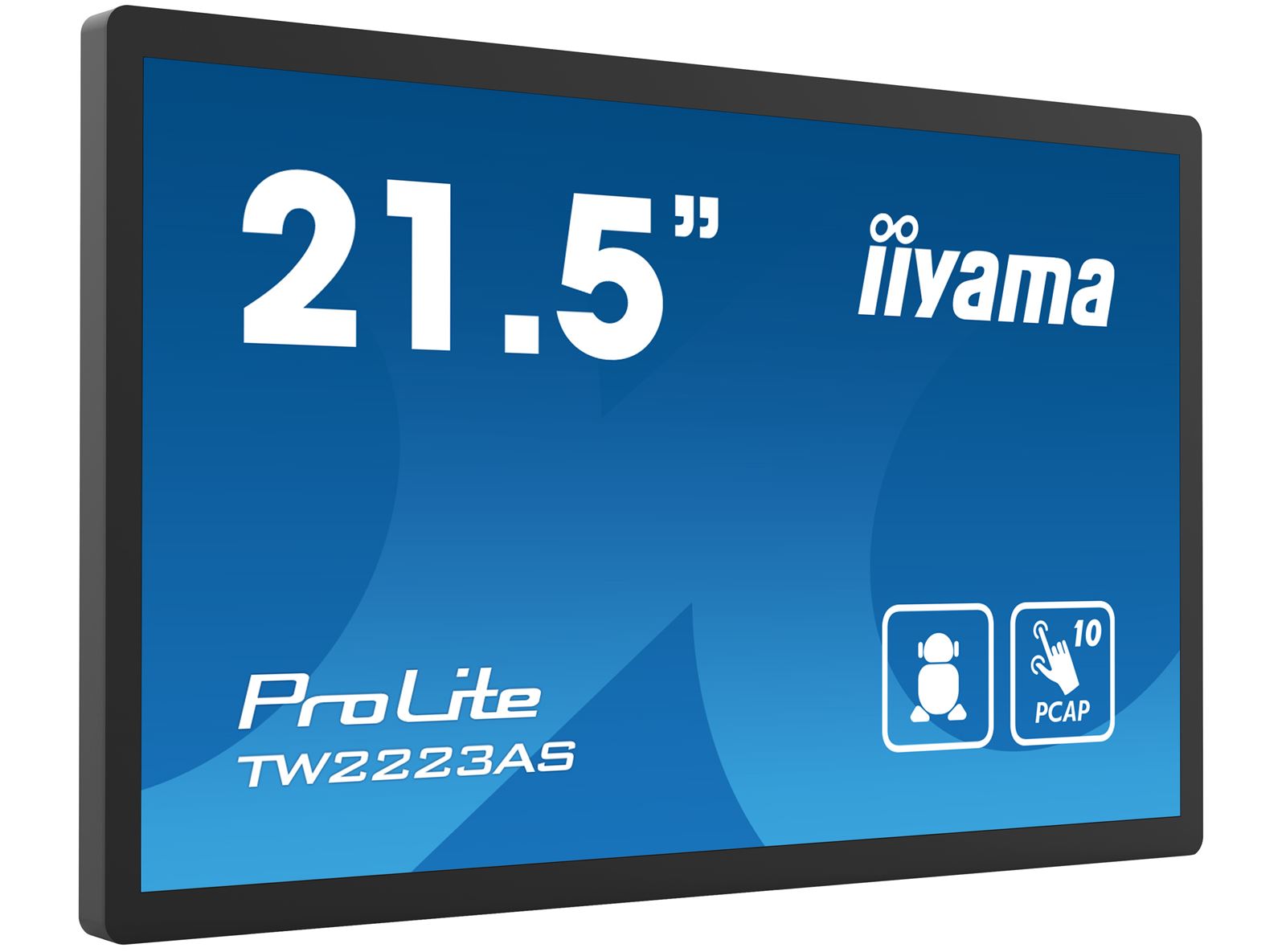

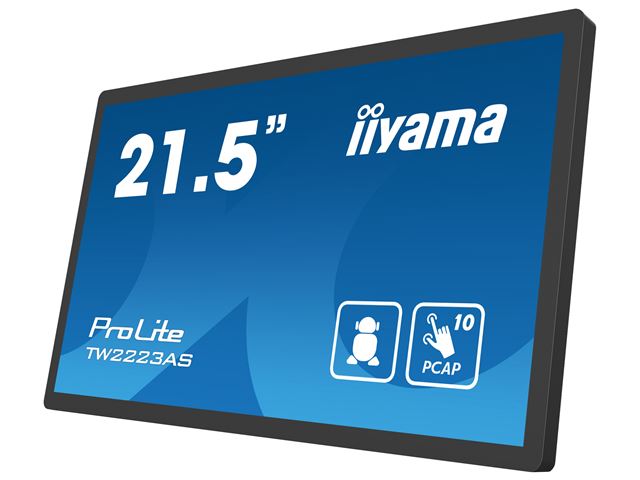

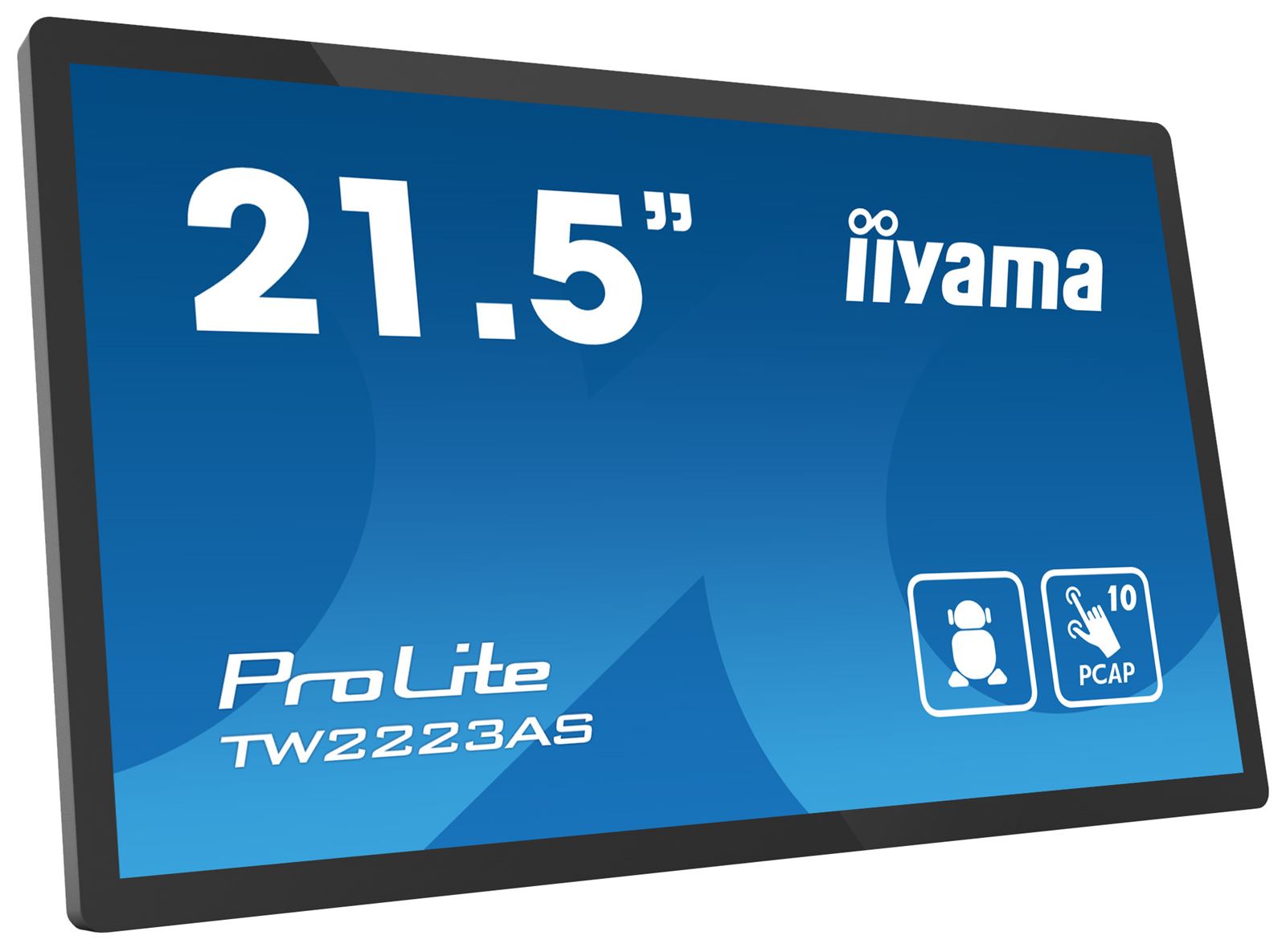

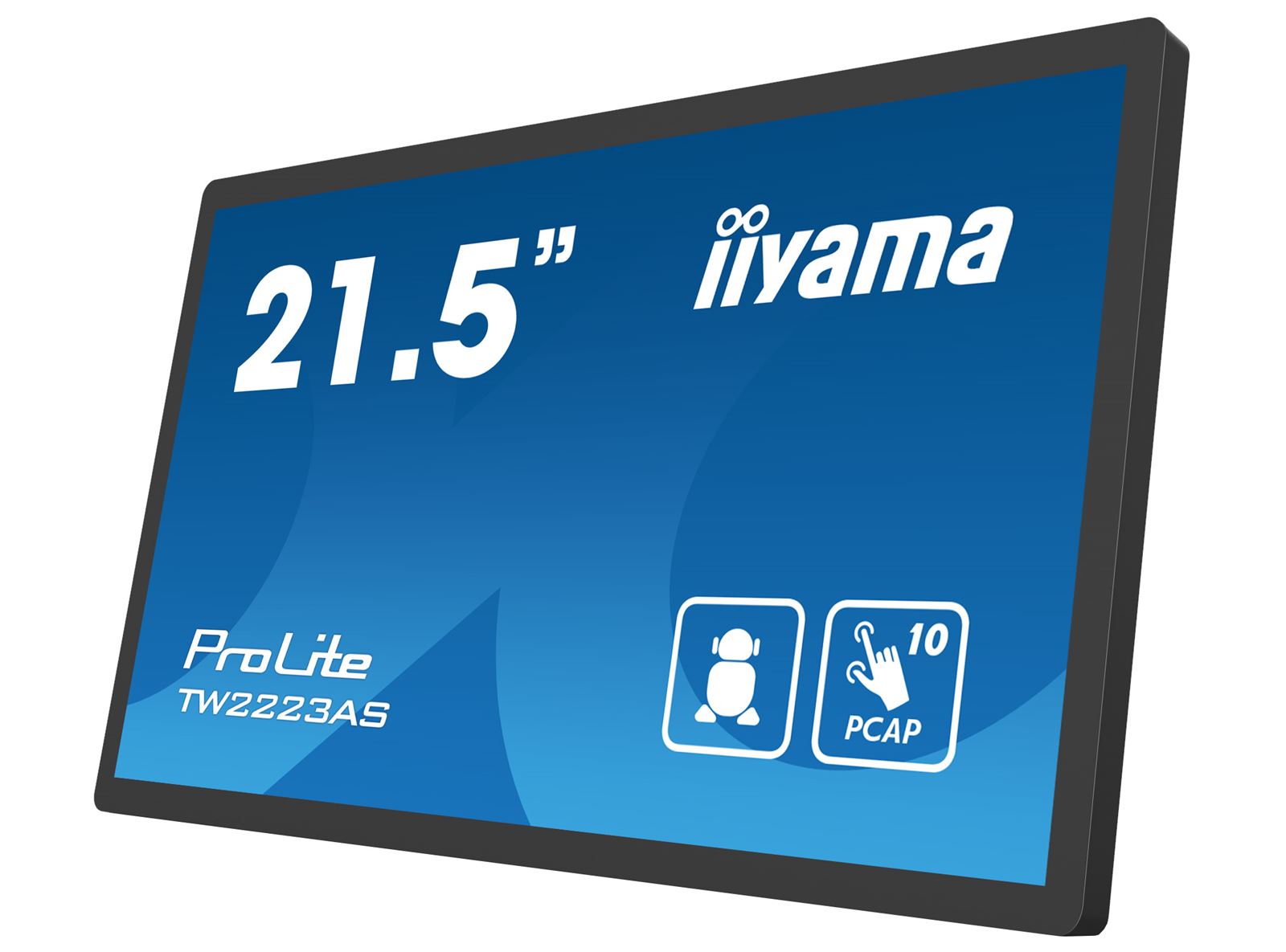

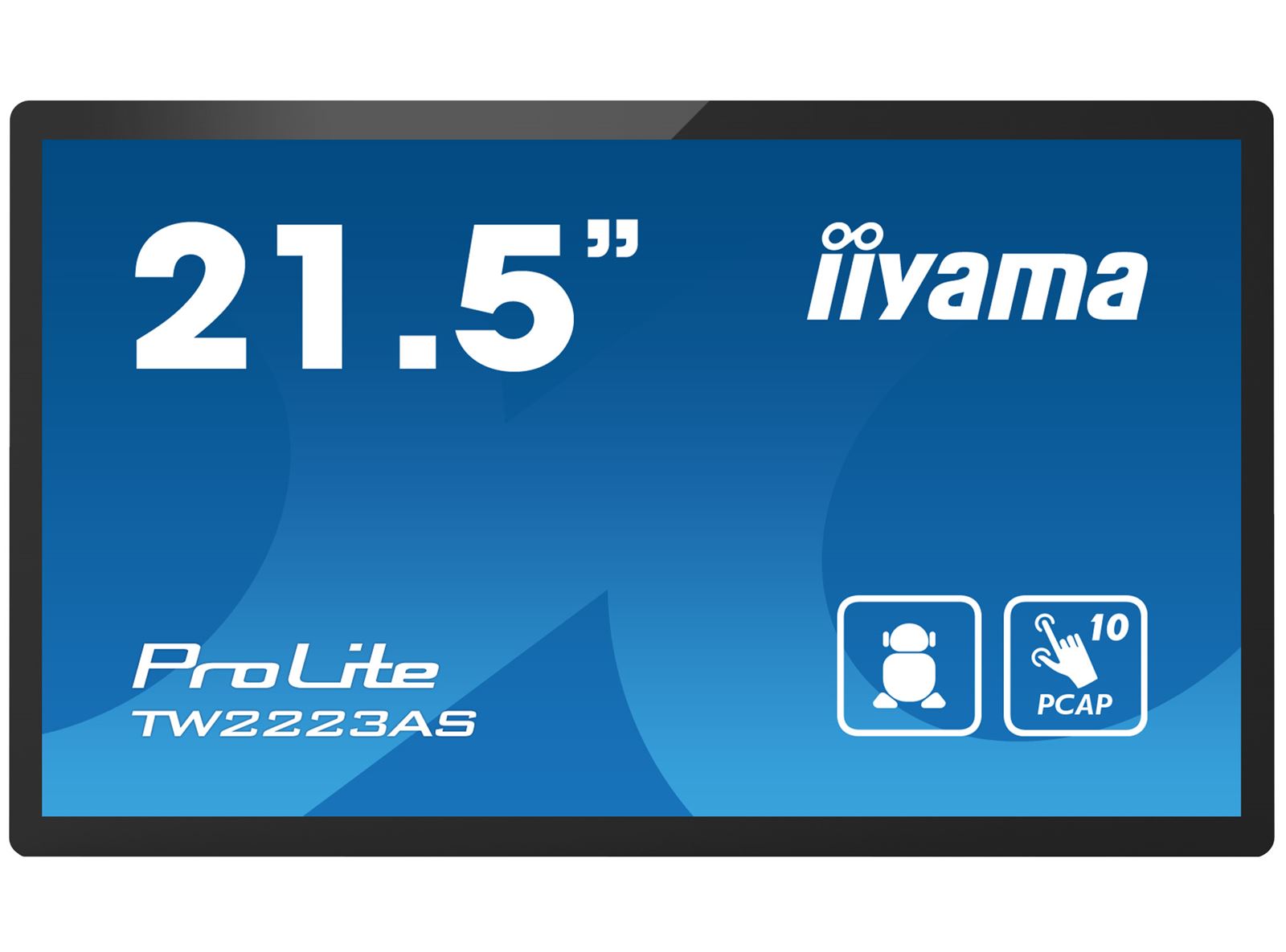

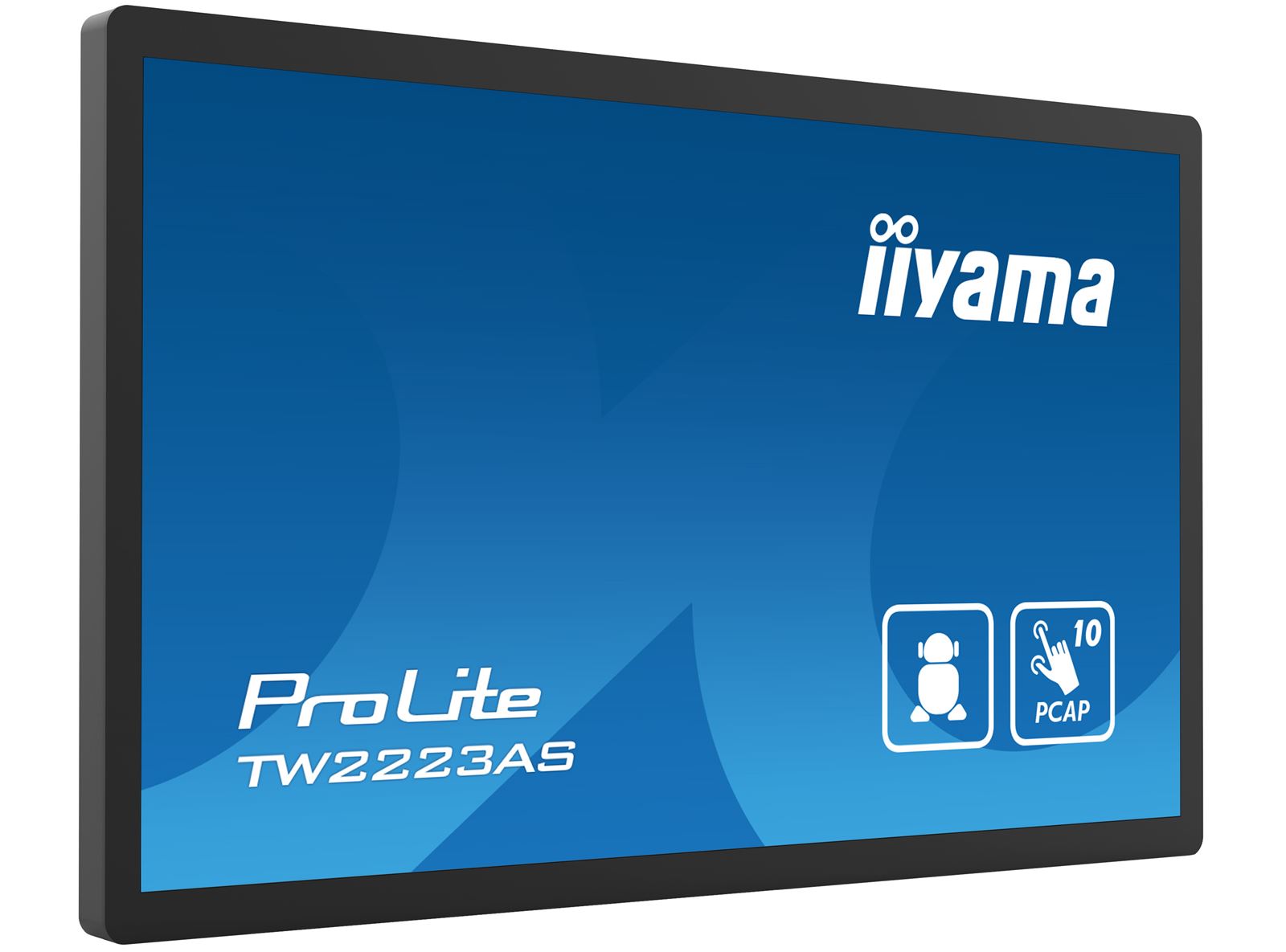

iiyama ProLite TW2223AS-B1, 22” Full HD PCAP 10pt touch screen with Android and edge-to-edge glass design

£278.88 exc. VAT
£334.66 inc. VAT

Brand: iiyama

Manufacturer Code: TW2223AS-B1

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

21.5” Full HD PCAP 10pt interactive Touch Panel PC with Android OS and edge-to-edge glass design

The ProLite TW2223AS-B1 interactive Touchpanel-PC with an elegant edge-to-edge glass design is a perfect choice for high-use environments. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 16GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.

Technical Information


Design Edge to edge glass
Diagonal 21.5", 54.6cm
Panel VA
Native resolution 1920 x 1080 (2 megapixel HD)
Aspect ratio 16:9
Panel brightness 400 cd/m²
Brightness 350 cd/m² with touch
Light transmittance 85%
Static contrast 3000:1 with touch
Response time (GTG) 18ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln
Horizontal Sync 30. - 84.kHz
Viewable area W x H 478 x 269.5mm, 18.8 x 11.8"
Pixel pitch 0.248mm
Bezel colour and finish black, matte


Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch accuracy +- 2mm
Touch method finger, glove (latex), capacitive stylus
Touch interface USB


Digital signal output HDMI x1 (1920x1080 @60Hz)
Audio output Speakers 2 x 2W
HDCP yes

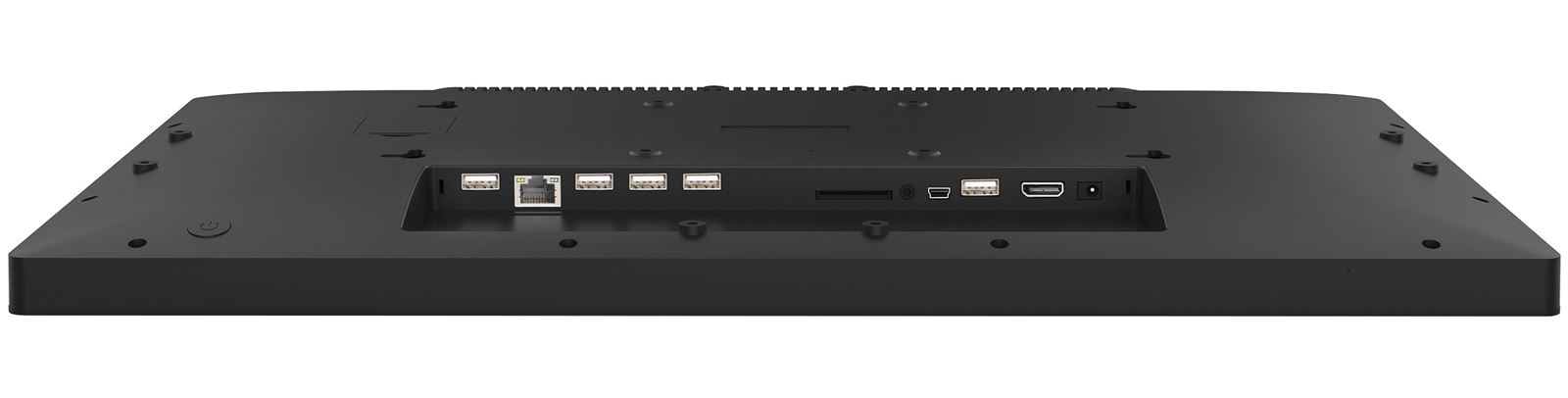

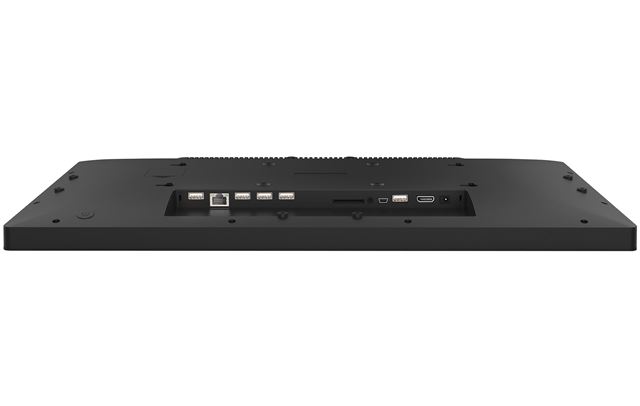

USB ports x5 (2x 2.0 (DC5V, 500mA), 1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 2x serial port (for maintenance use), 1x USB OTG)
RJ45 (LAN) x1


Integrated software Android 12 with GMS
CPU Rockchip RK3399 (1.8GHz, 16Gb storage)
GPU Dual-core A72 + Quad-core A53
Storage 16Gb eMMC
Memory 2Gb LPDDR4
WiFi IEEE802.11a/b/g/n/ac
Bluetooth 5.2
Extra auto-rotation, SD card slot, anti-glare coating
Max. non-stop operating time 24/7
Anti image retention yes
Glass thickness 2.9mm
Glass hardness 6H
OSD key lock yes


Control buttons Power switch
Applications Lock applications, manage restart time, manage power on/off, calculator, calender, Chrome, alarm/ clock, Timer, Stopwatch, Manage files, orginize albums, Gmail, play audio files, Play Store, search engine, system preferences, sound recorder, play videos
Flicker free yes


Orientation landscape, portrait, face-up

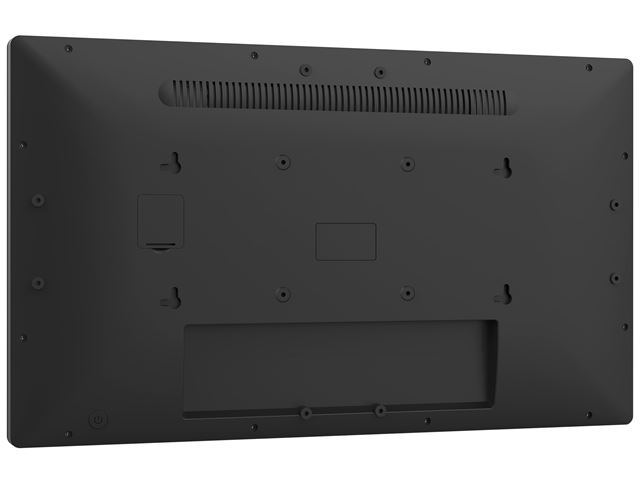

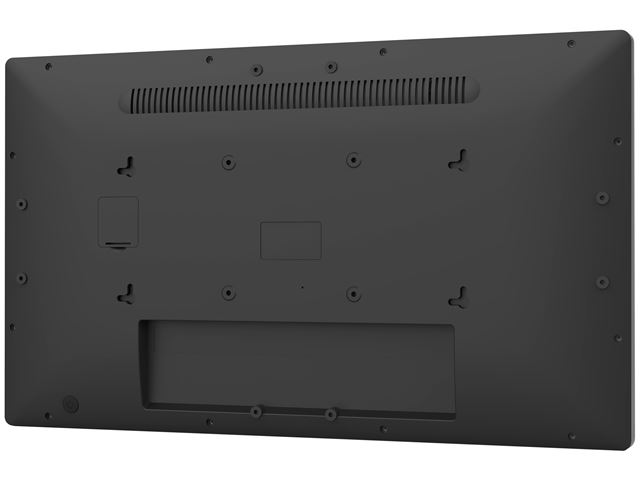

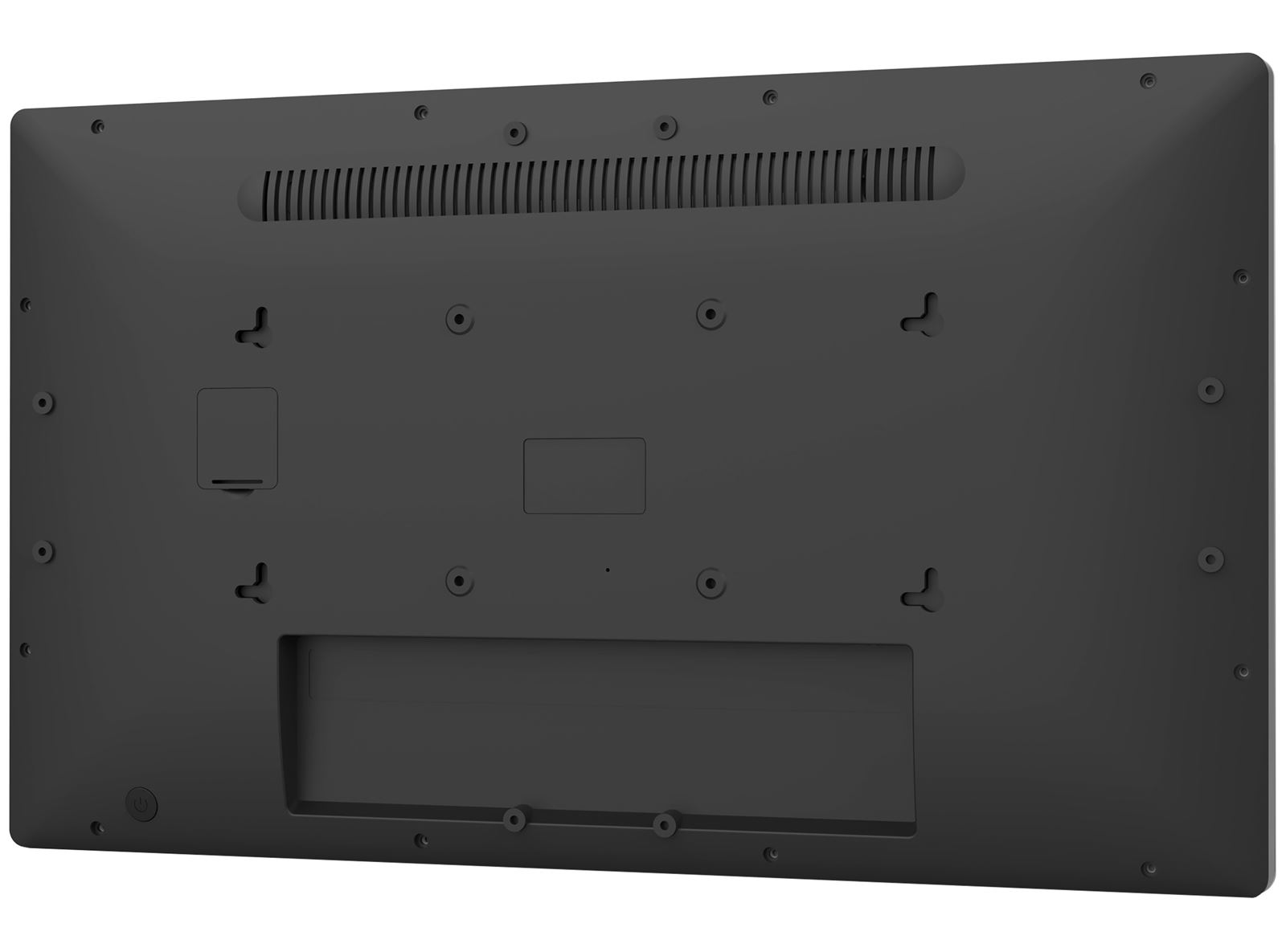

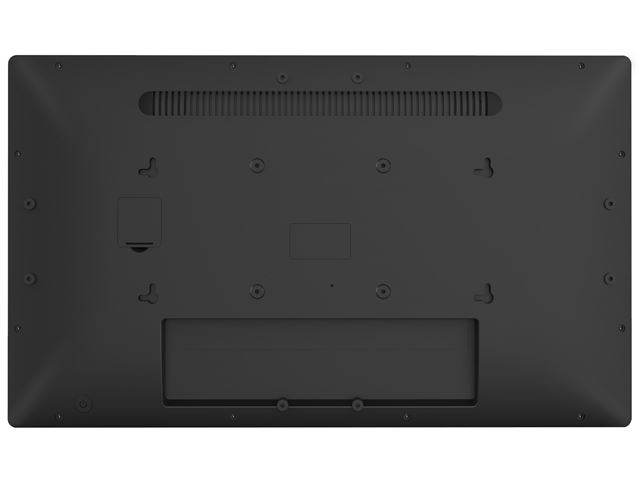

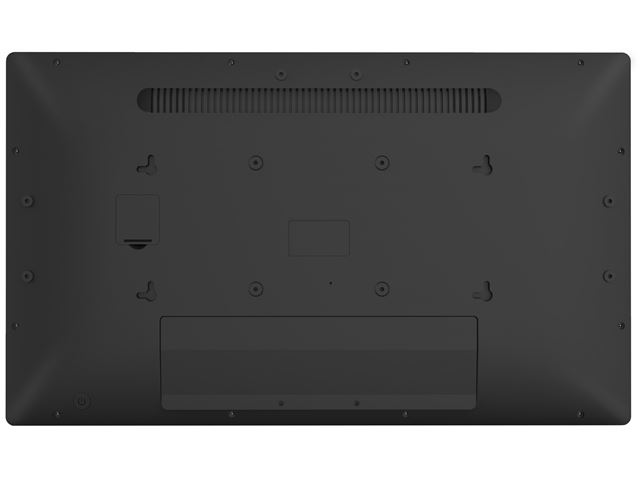

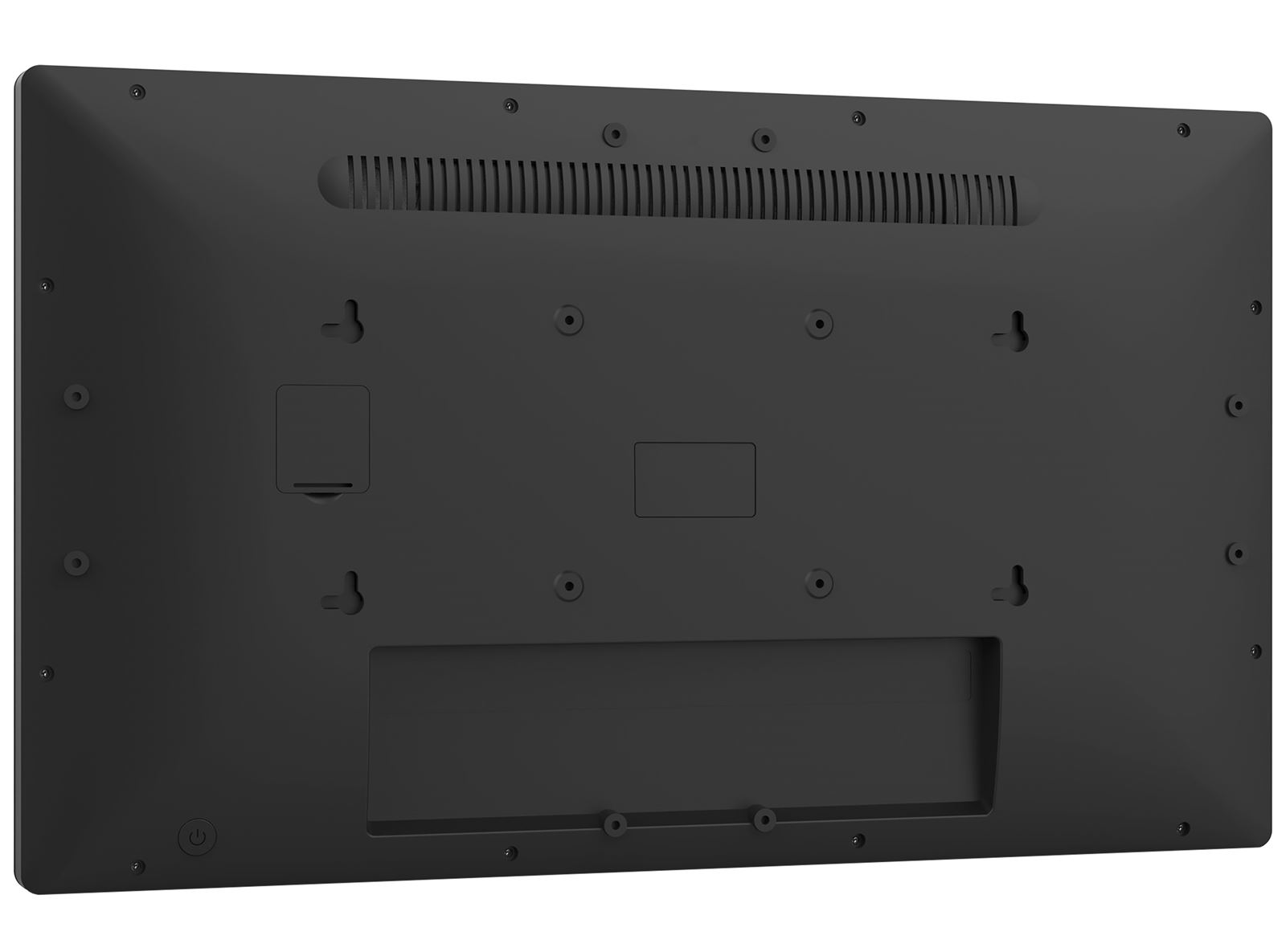

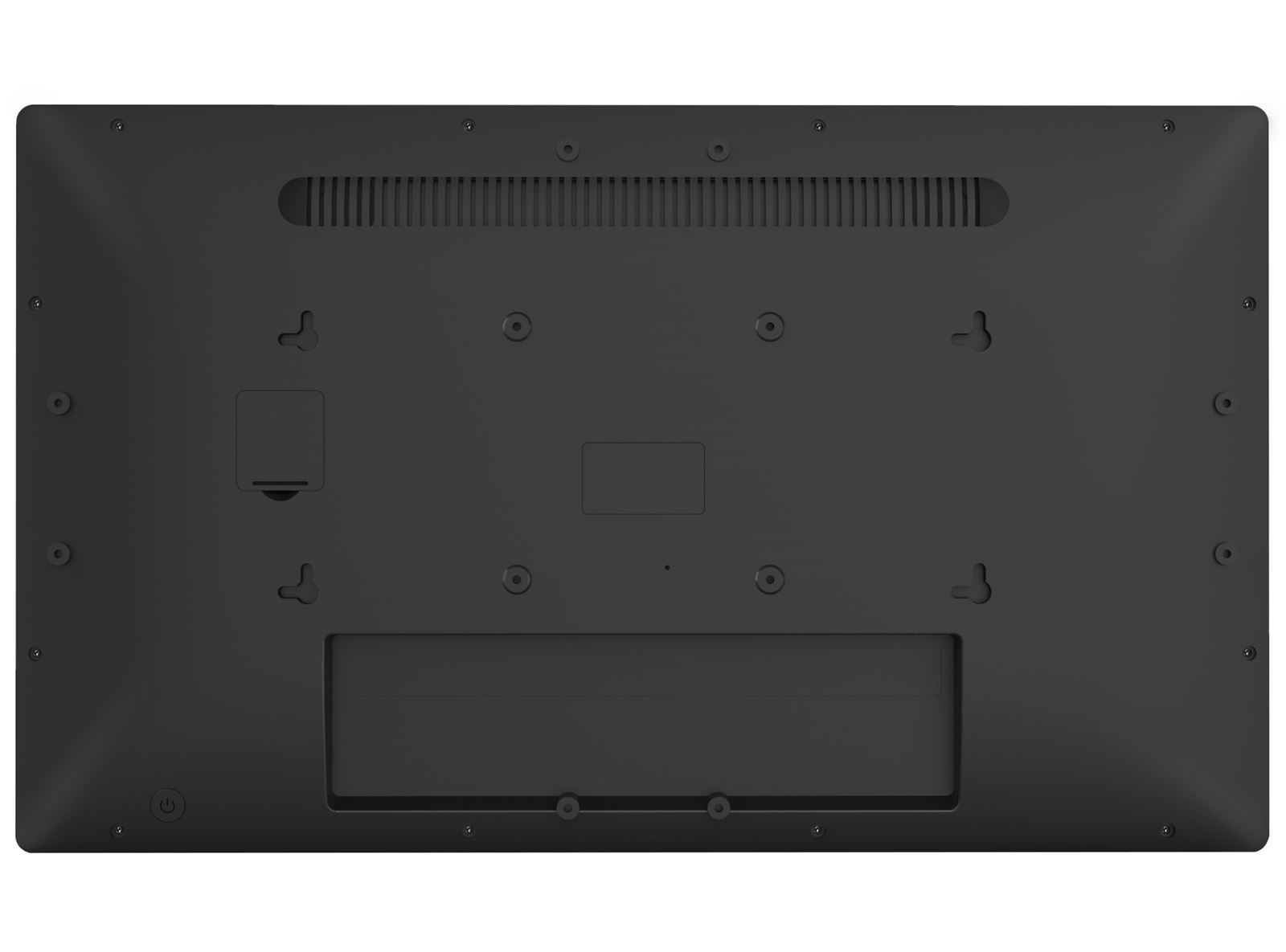

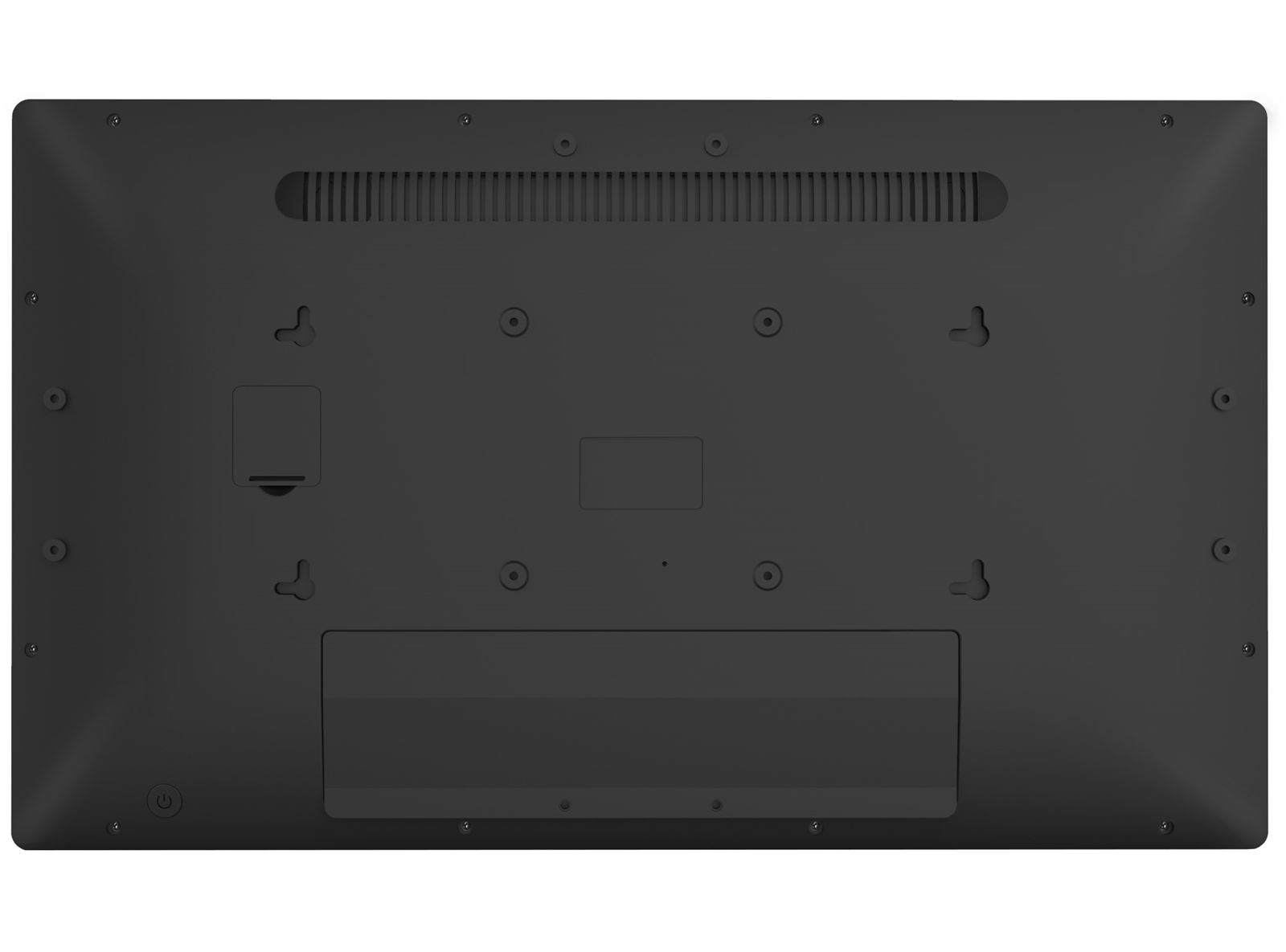

VESA mounting 100 x 100mm
MTBF 50000 hours (excluding backlight)


Cables power
Guides quick start guide, safety guide
Other AC adapter
Cable cover yes


Power supply unit external
Power supply DC 12 V
Power usage 23W typical, 0.5W stand by, 0.3W off mode


Regulations CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC above 0.1%: Lead

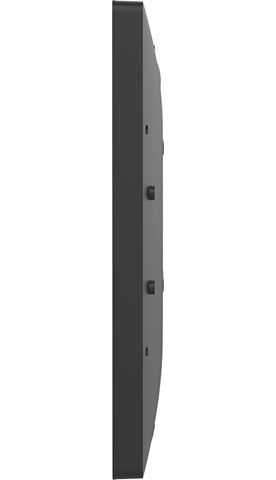

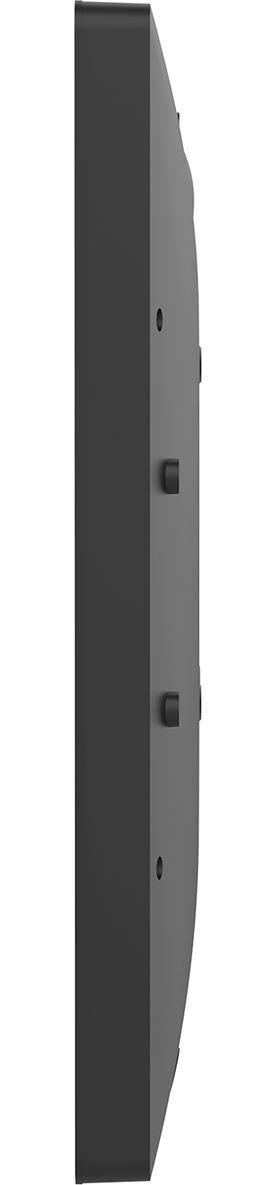

Product dimensions W x H x D 504.5 x 302 x 32mm
Box dimensions W x H x D 640 x 410 x 121mm
Weight (without box) 3.61kg
Weight (with box) 5.98kg
EAN code 4948570122936


This LED monitor is equipped with two high quality stereo speakers.



LAN control enables making adjustments in the display OSD menu through your network (software not included).




24/7 displays are designed for a continuous operation.




This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.



VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS
