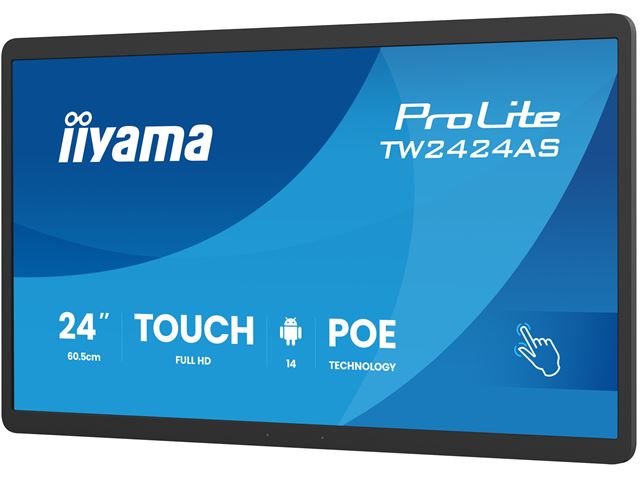

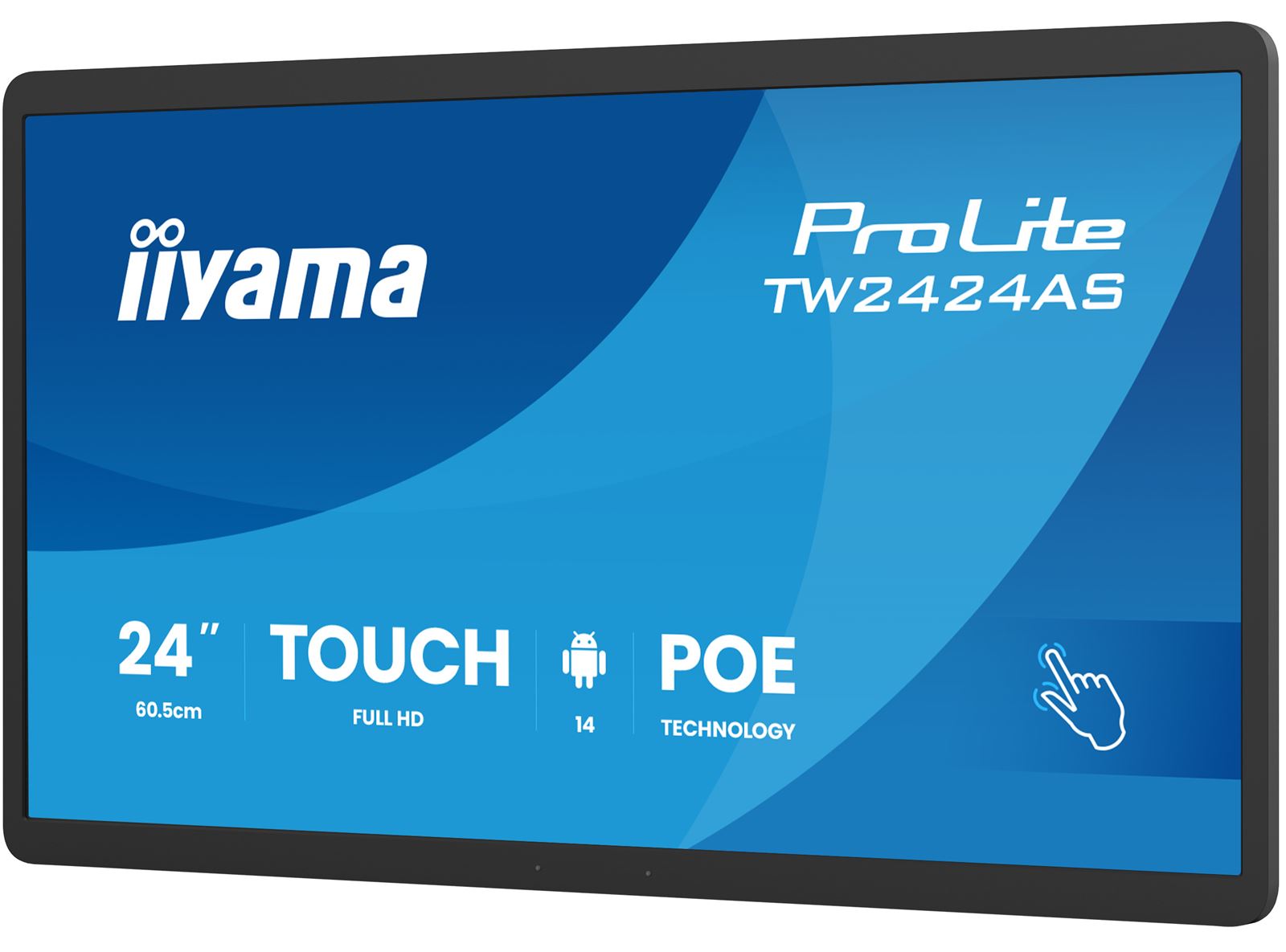

iiyama ProLite TW2424AS-B13P, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating, PoE Technology and iiSignage²

Name: iiyama ProLite TW2424AS-B13P, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating, PoE Technology and iiSignage²
Price: 368.52 GBP
Availability: InStock

iiyama ProLite TW2424AS-B13P, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating, PoE Technology and iiSignage² image 0

iiyama ProLite TW2424AS-B13P, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating, PoE Technology and iiSignage² image 1

iiyama ProLite TW2424AS-B13P, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating, PoE Technology and iiSignage² image 2

iiyama ProLite TW2424AS-B13P, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating, PoE Technology and iiSignage² image 3

iiyama ProLite TW2424AS-B13P, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating, PoE Technology and iiSignage² image 4

iiyama ProLite TW2424AS-B13P, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating, PoE Technology and iiSignage² image 5

iiyama ProLite TW2424AS-B13P, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating, PoE Technology and iiSignage² image 6

iiyama ProLite TW2424AS-B13P, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating, PoE Technology and iiSignage² image 7

iiyama ProLite TW2424AS-B13P, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating, PoE Technology and iiSignage² image 8

iiyama ProLite TW2424AS-B13P, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating, PoE Technology and iiSignage² thumbnail 0

£368.52 exc. VAT

£442.22 inc. VAT

Next working day delivery
In stock
Quantity:
Add to Basket

Brand: iiyama

Manufacturer Code: TW2424AS-B3P

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

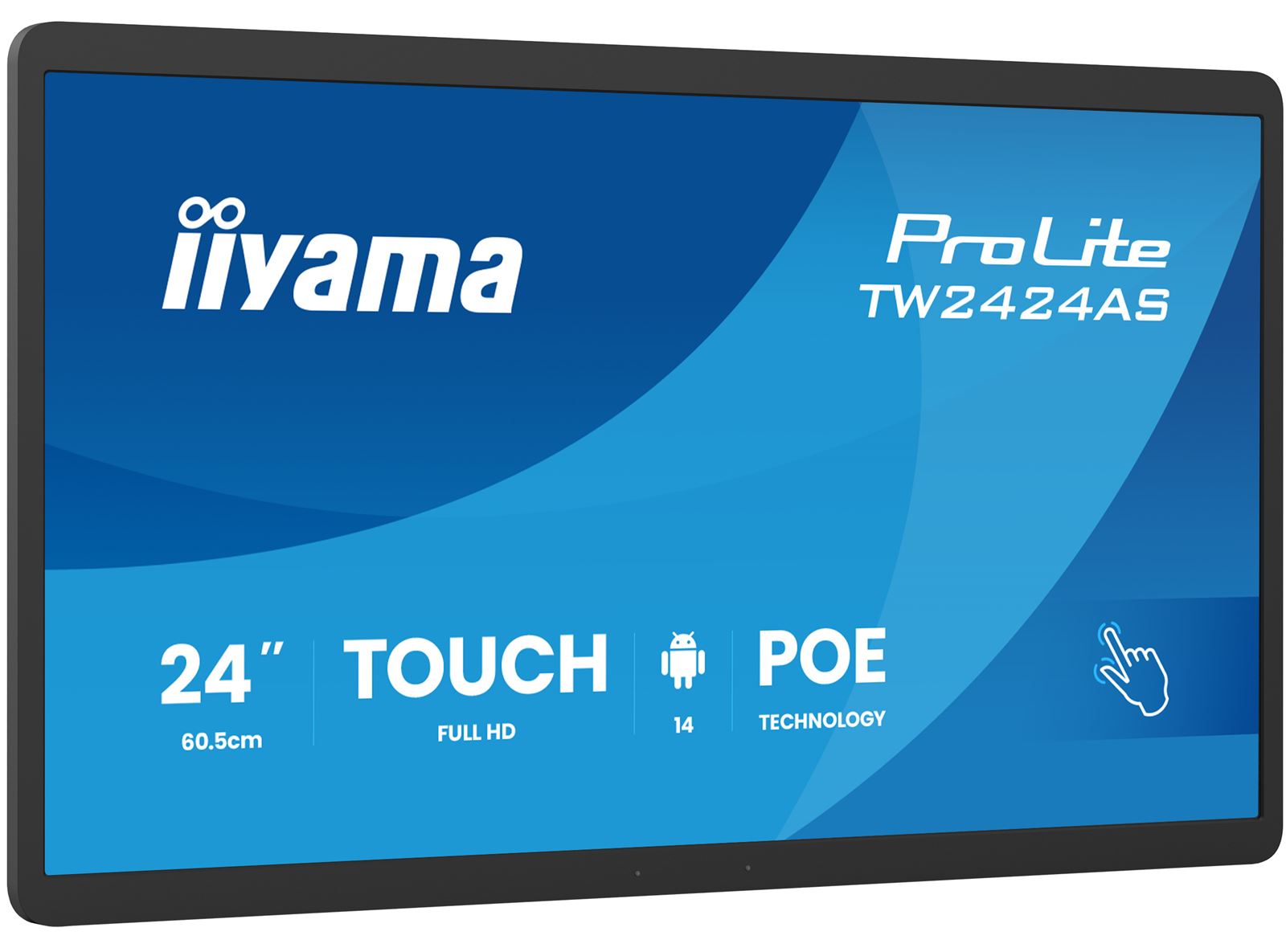

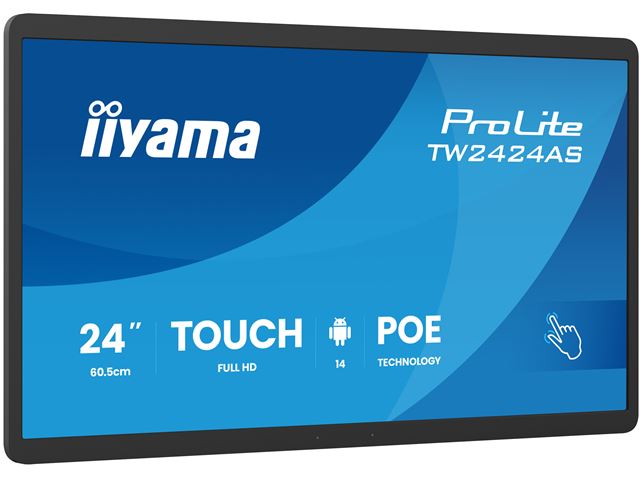

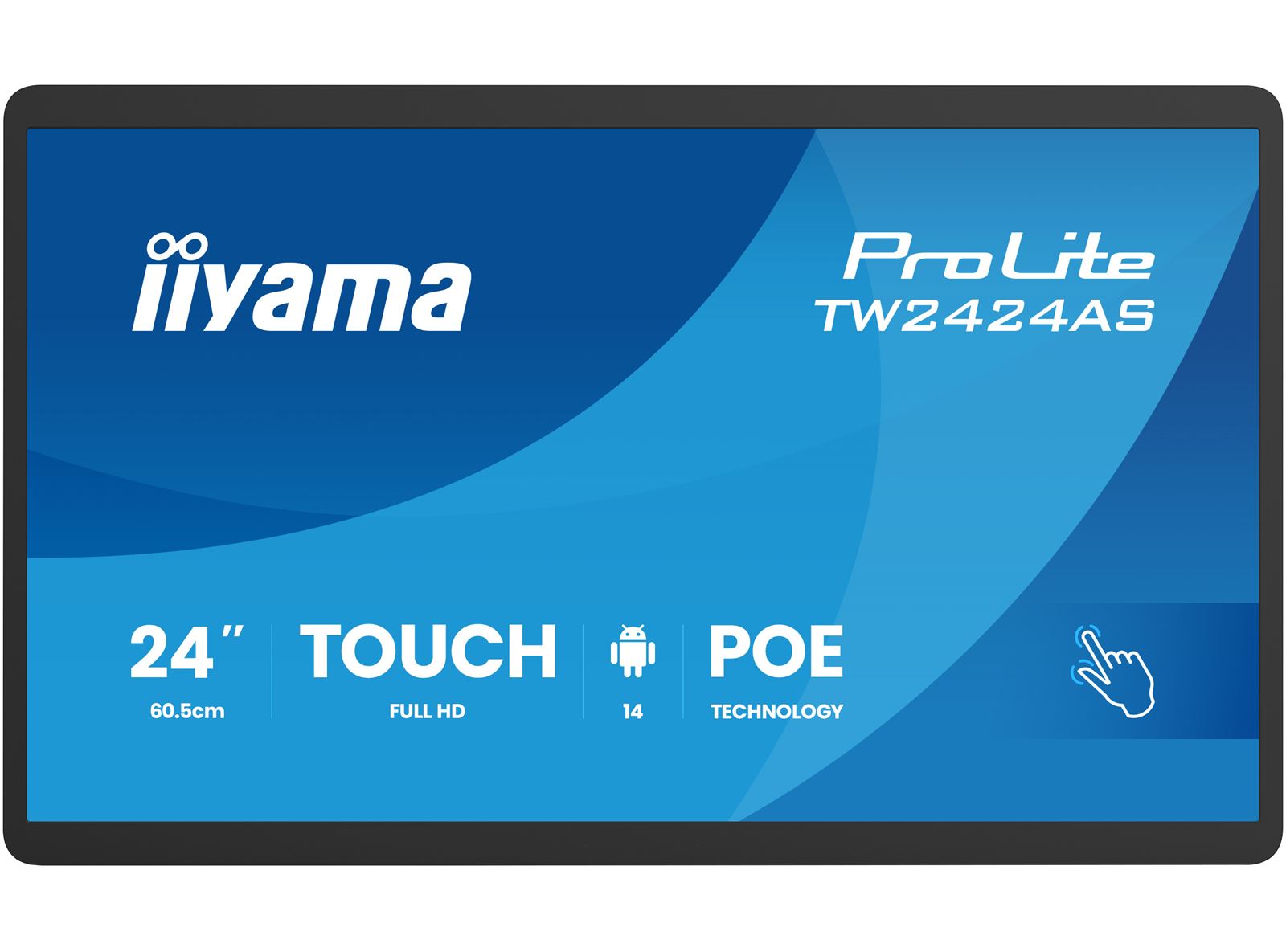

23.8” Full HD In-cell PCAP 10pt interactive Touch Panel PC with Android OS, IPS panel technology, anti glare coating, PoE Technology and iiSignage²

The ProLite TW2424AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables.

Additionally, it integrates effortlessly with iiSignage², iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.

Technical Information

DISPLAY CHARACTERISTICS

Design	Thin bezel
Diagonal	23.8", 60.5cm
Panel	IPS
Native resolution	1920 x 1080 (2 megapixel HD)
Aspect ratio	16:9
Brightness	450 cd/m² with touch
Static contrast	1000:1 with touch
Response time (GTG)	14ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.7mln 8bit
Horizontal Sync	31. - 83.kHz
Viewable area W x H	527 x 296.5mm
Pixel pitch	0.275mm
Bezel colour and finish	black, matte

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only supported by integrated OS, external OS only support single touch)
Touch method	finger, glove (latex), capacitive stylus
Touch interface	USB

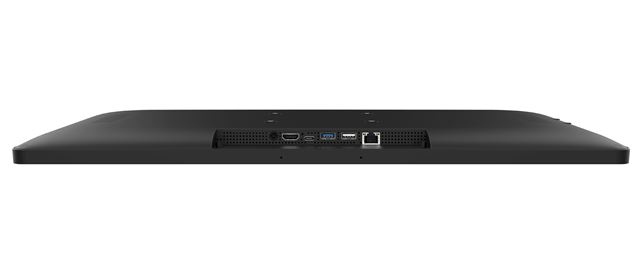

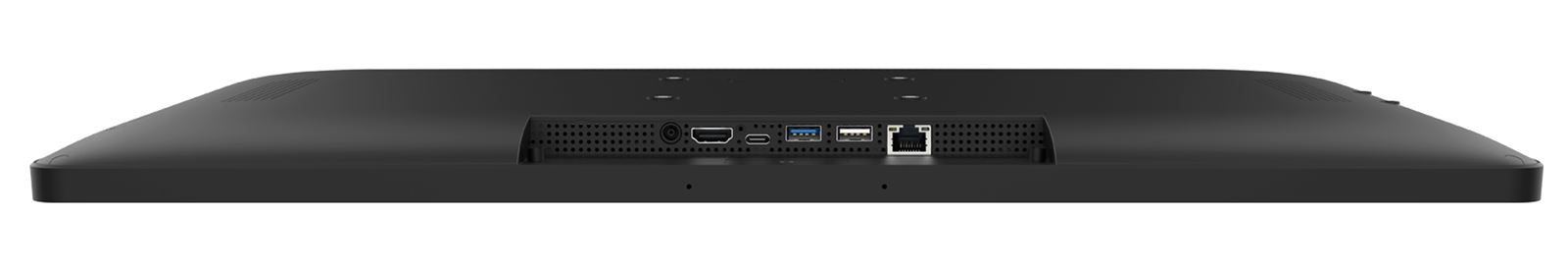

INTERFACES / CONNECTORS / CONTROLS

Audio input	Mini jack x1
Digital signal output	USB-C x1 (1x v. 3.2 (Gen 1, video output and touch board function – mirror screen))
Audio output	Speakers 2 x 5W
HDCP	yes
USB ports	x2 (1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 1x 2.0 (DC5V, 500mA))
RJ45 (LAN)	x1 (PoE - IEEE802.3at/72W (1000M))
Microphone	x1

FEATURES

Integrated software	Android 14 with GMS
SOC	Octa-core RK3576 (4x A53 + 4x A72)
GPU	ARM G52 MC3
Storage	32GB eMMC
Memory	4GB LPDDR4
WiFi	IEEE802.11ax/ac/a//b/g/n
Bluetooth	5.3
Extra	auto-rotation, 2x5W speakers, dual microphone, anti-glare coating, PoE, iiSignage²
Max. non-stop operating time	24/7
Anti image retention	yes
Glass hardness	6H
OSD key lock	yes

GENERAL

Control buttons	Power switch, volume/ button +, volume/ button -
Applications	Applications: lock application, manage restart time, manage power on/off time, calculator, calendar, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, iiSignage², play audio files, Play store, system peferences, sound recorder, play video
Flicker free	yes

MECHANICAL

Orientation	landscape, portrait, face-up

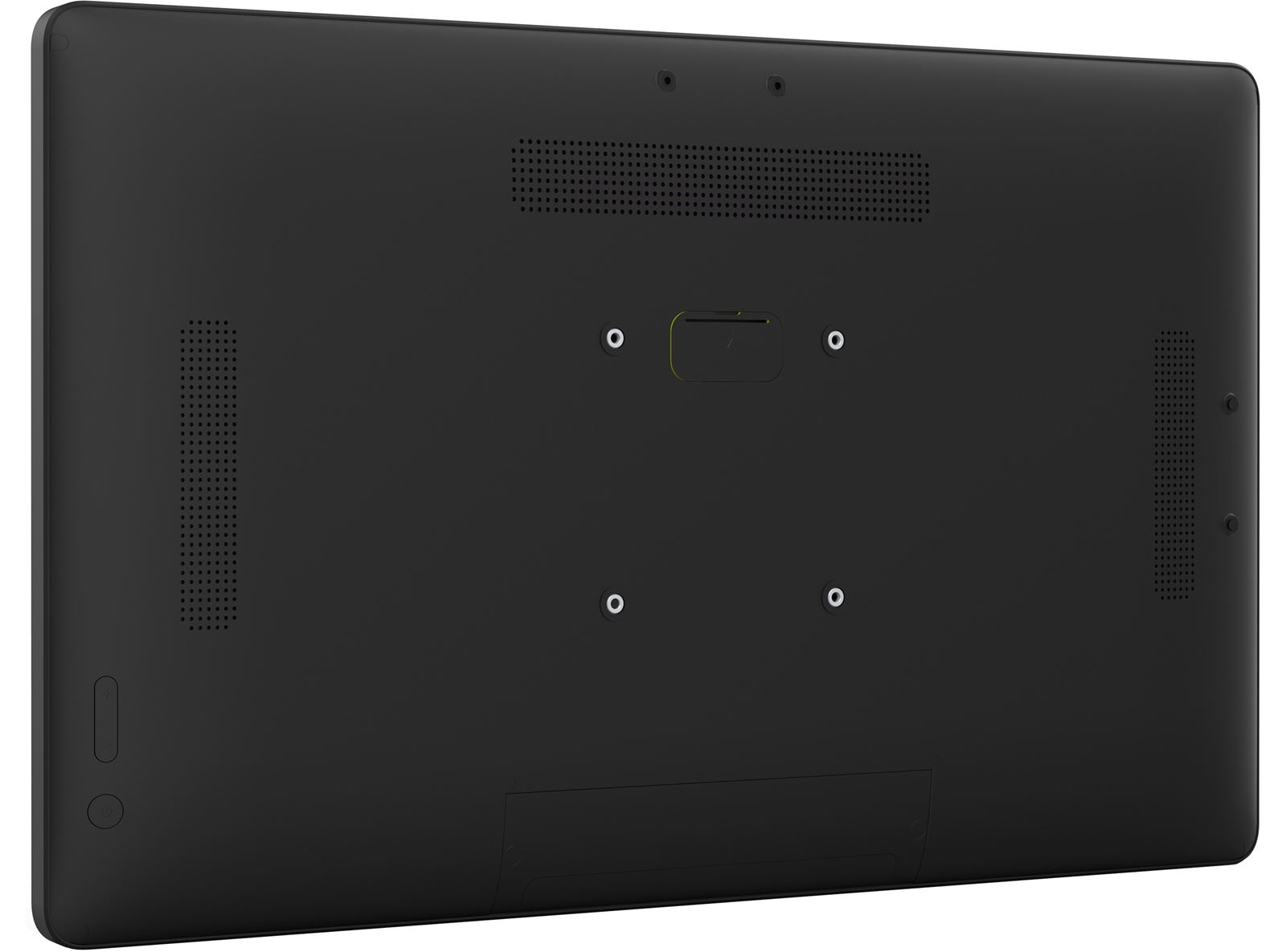

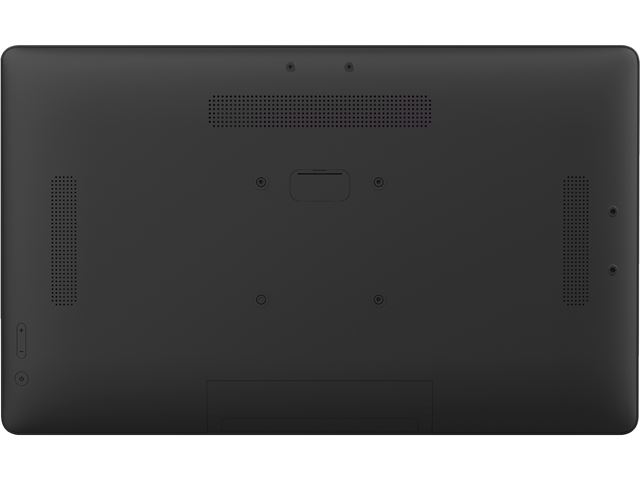

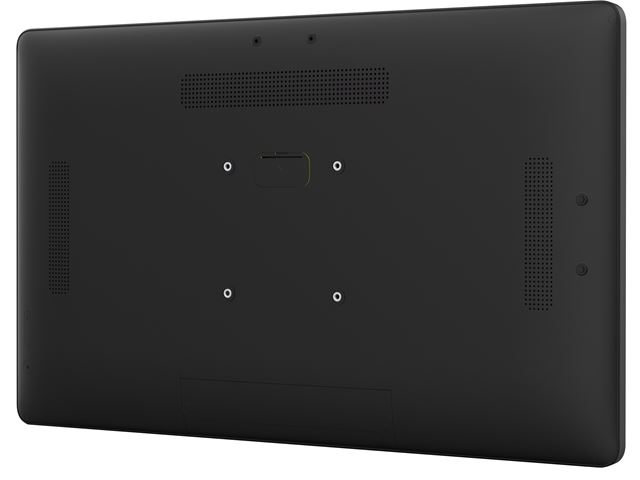

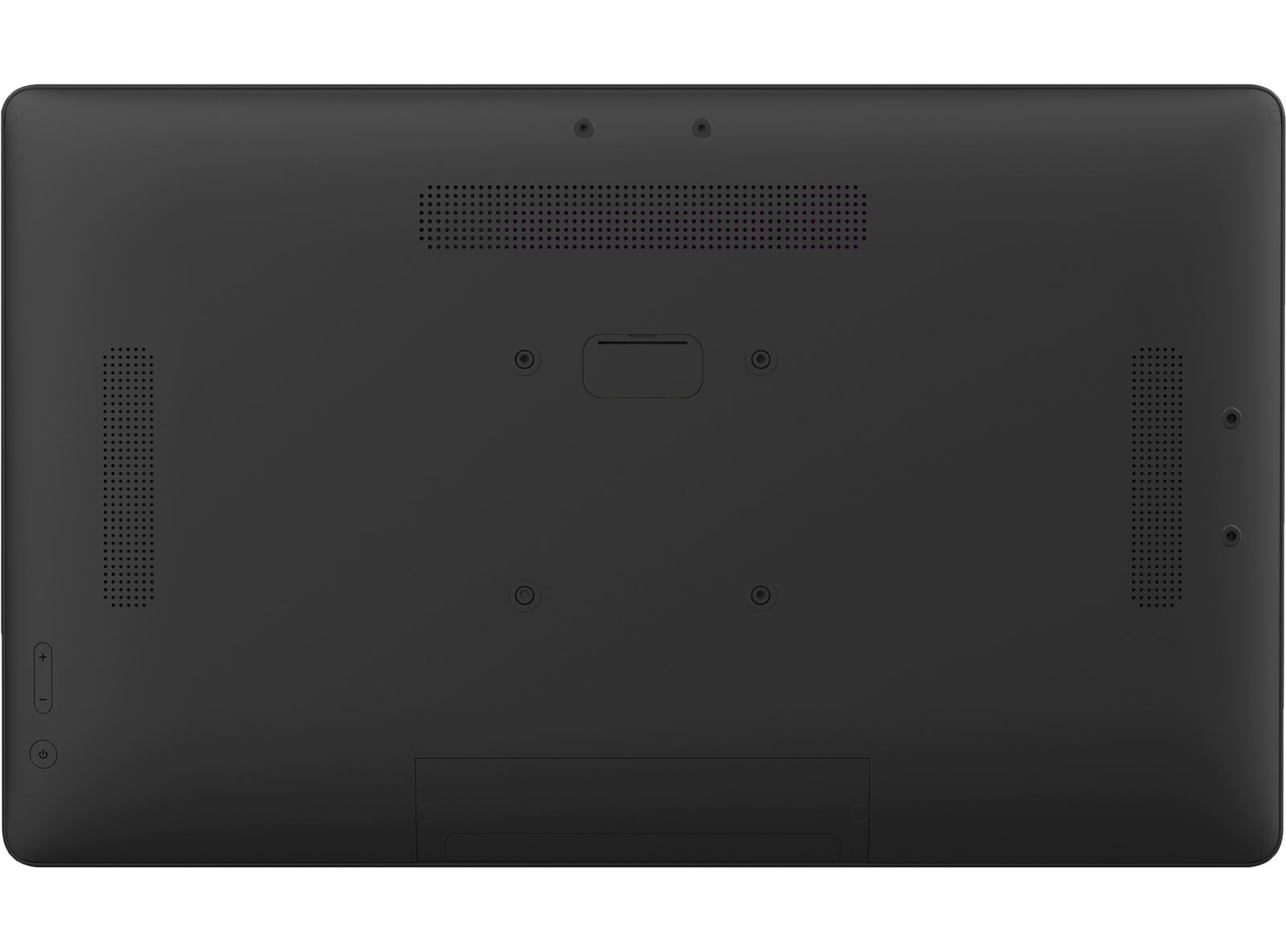

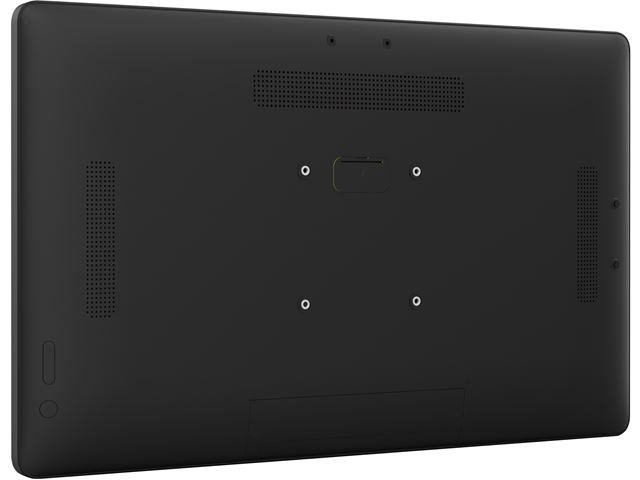

VESA mounting	100 x 100mm
Cable management system	yes
MTBF	50000 hours (excluding backlight)

ACCESSORIES INCLUDED

Cables	power (1.8m)
Guides	quick start guide, safety guide
Other	AC adapter
Cable cover	yes

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	17.5W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC	above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	550 x 336 x 28mm
Box dimensions W x H x D	640 x 410 x 121mm
Weight (without box)	4,24kg
Weight (with box)	6.2kg
EAN code	4948570127153

Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

FULL HD

With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).

IISIGNAGE

With iiSignage, you can easily create, publish and manage your own digital signage content on any iiyama 40-series display from a desktop PC in the same network. Use rich content like video’s and widgets to create highly impactful advertising in minutes and schedule your content across multiple displays to best match your customers' behavior.

24/7

24/7 displays are designed for a continuous operation.

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
