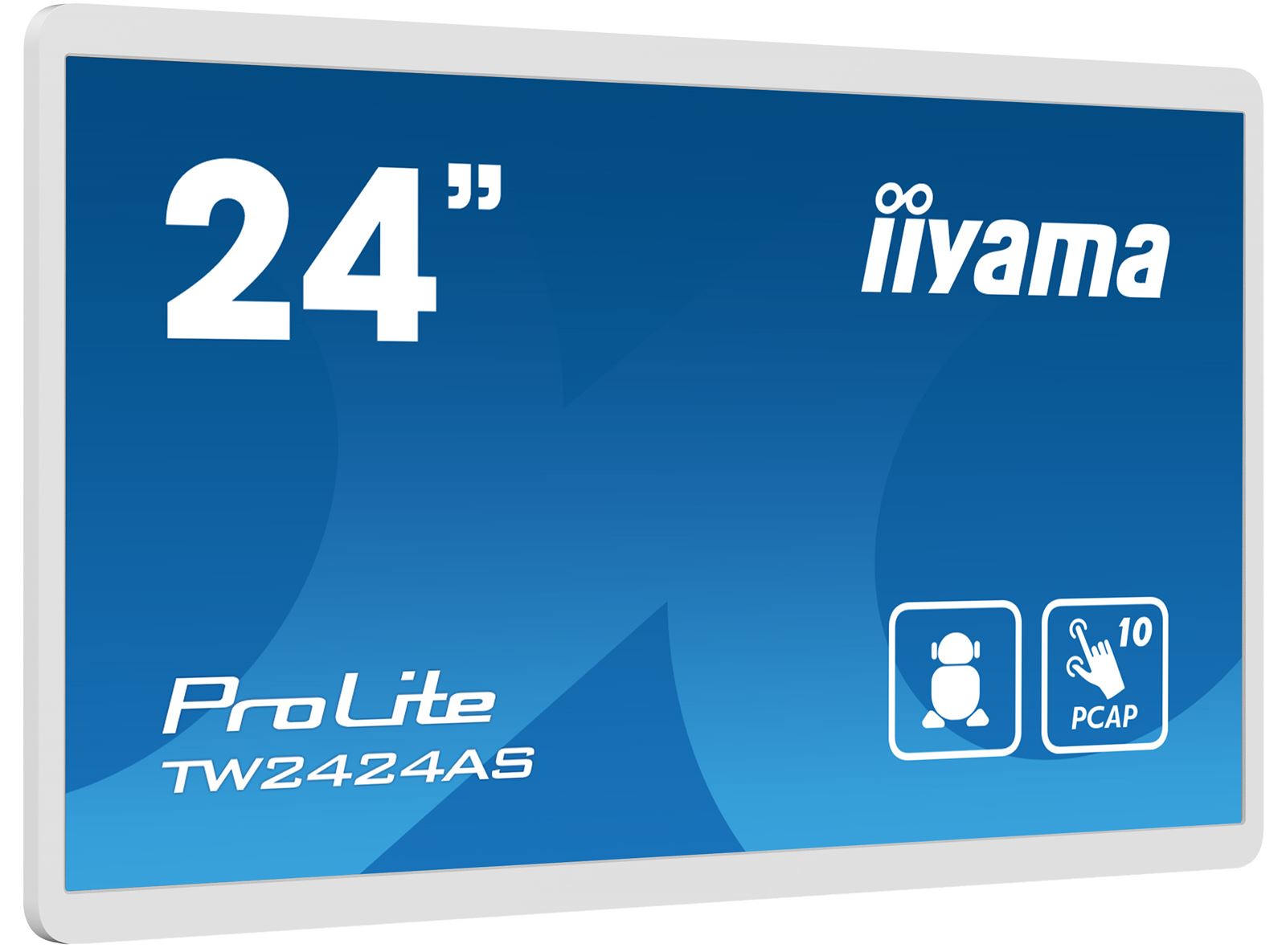

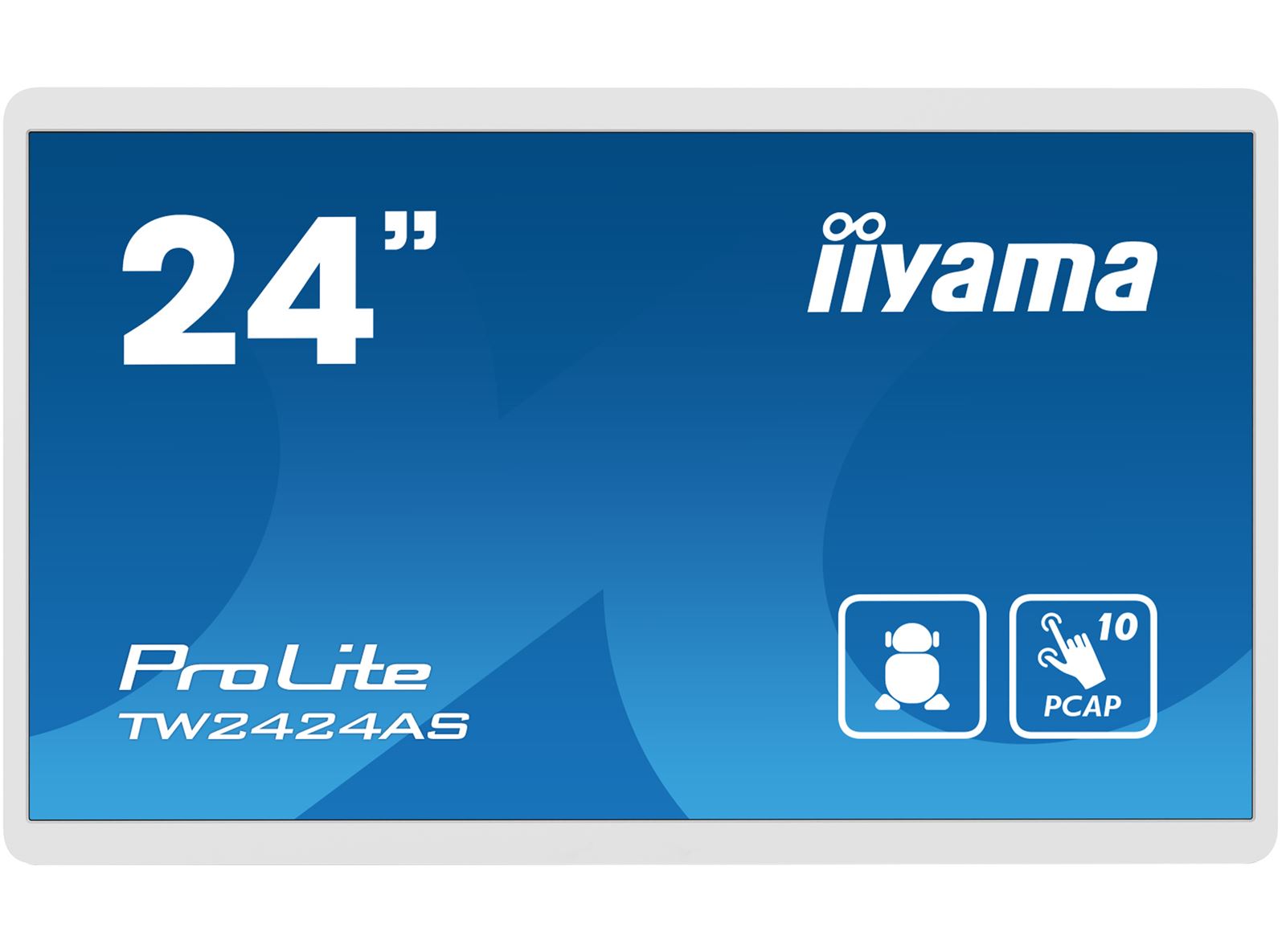

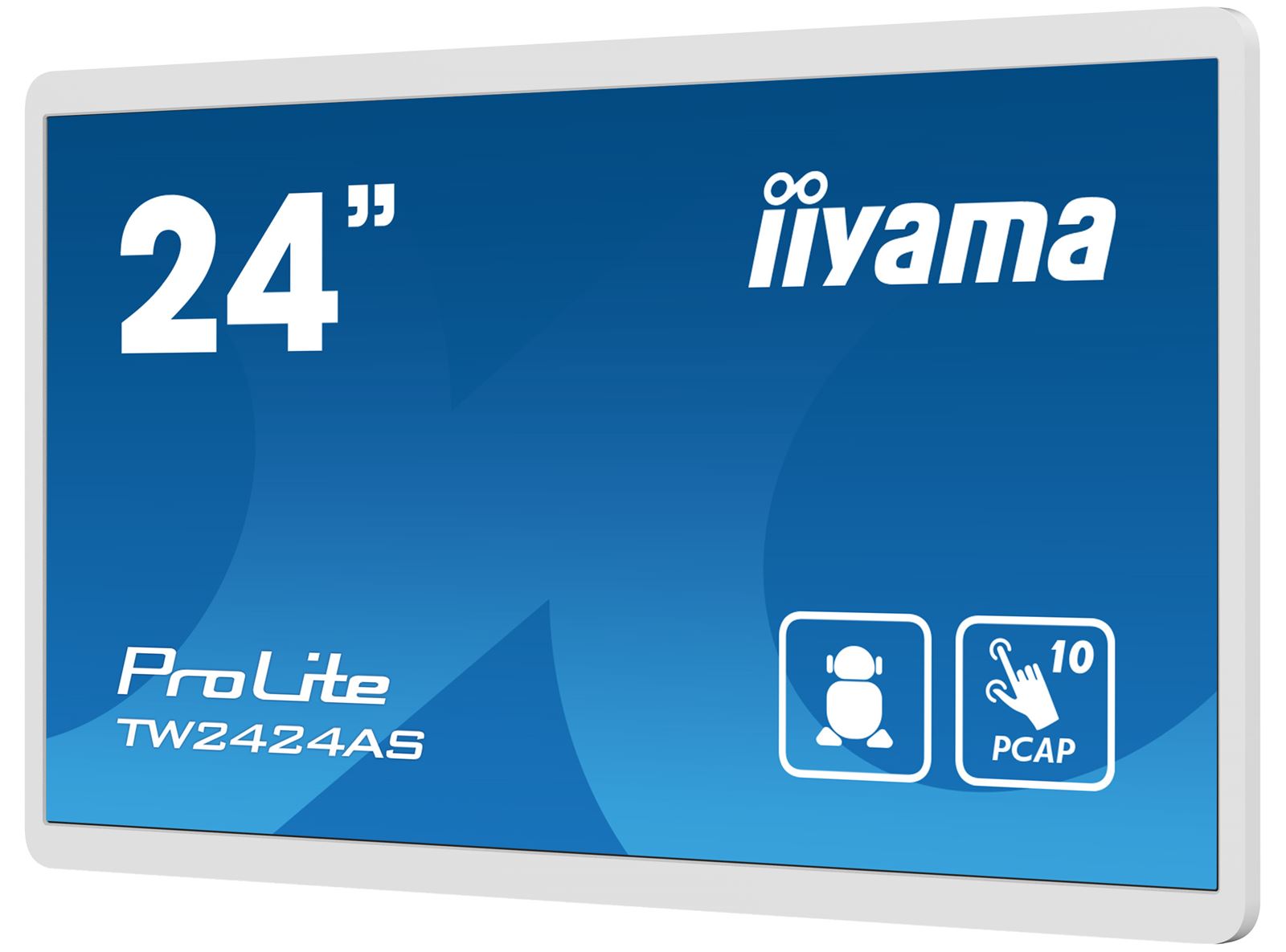

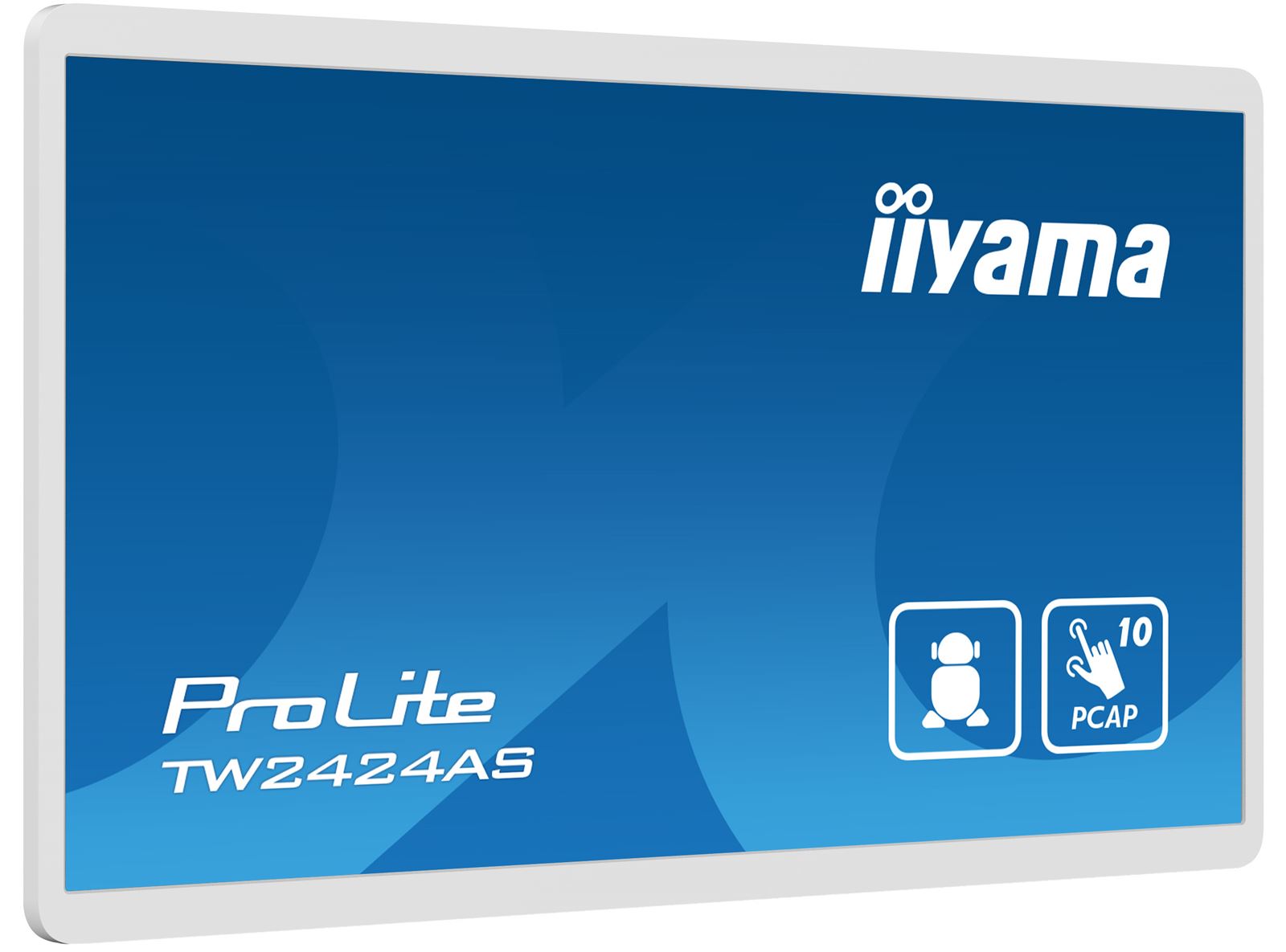

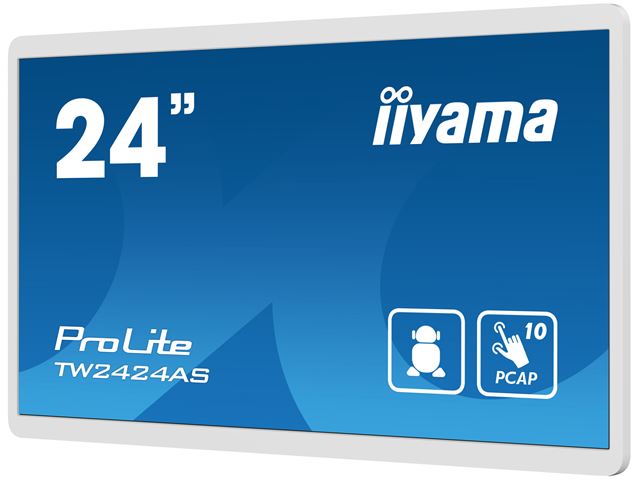

iiyama ProLite TW2424AS-W1, 24” IPS, White, Full HD PCAP 10pt touch screen with Android and anti glare coating

£353.10 exc. VAT
£423.72 inc. VAT

Brand: iiyama

Manufacturer Code: TW2424AS-W1

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

23.8” Full HD In-cell PCAP 10pt interactive Touch Panel PC with Android OS, IPS panel technology and anti glare coating

The ProLite TW2424AS-W1 interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.

Technical Information

DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 23.8", 60.5cm
Panel IPS
Native resolution 1920 x 1080 (2 megapixel HD)
Aspect ratio 16:9
Brightness 250 cd/m² with touch
Static contrast 1000:1 with touch
Response time (GTG) 14ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln
Horizontal Sync 31. - 83.kHz
Viewable area W x H 527 x 296.5mm, 20.7 x 10.6"
Pixel pitch 0.275mm
Bezel colour and finish white, matte

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method finger, glove (latex), capacitive stylus
Touch interface USB

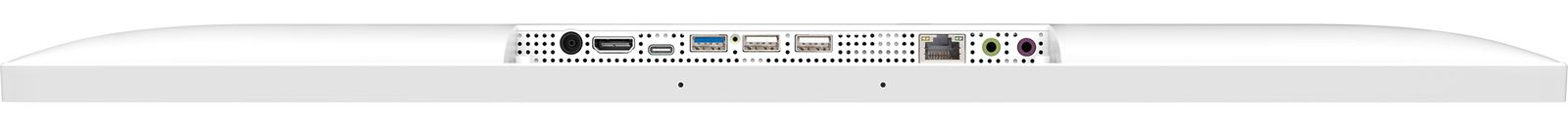

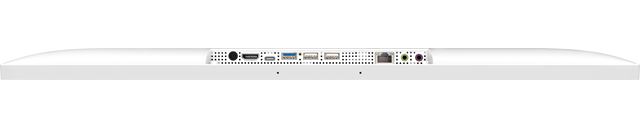

INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x1 (1920x1080 @60Hz)
Audio input Mini jack x1
Digital signal output USB-C x1 (DC5V, 900mA)
Audio output Mini jack x1
Speakers 2 x 5W
HDCP yes
RJ45 (LAN) x1
USB HUB x3 (2x 2.0 (DC5V, 500mA), 1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA))

FEATURES

Integrated software Android 12 with GMS
CPU Rockchip RK3399 (1.8GHz, 32Gb storage)
GPU Dual-core A72 + Quad-core A53
Storage 32Gb eMMC
Memory 4Gb LPDDR4
WiFi IEEE802.11a/b/g/n/ac
Bluetooth 5.2
Extra auto-rotation, 2x5W speakers, microphone, anti-glare coating
Max. non-stop operating time 24/7
Anti image retention yes
Glass hardness 3H
OSD key lock yes

GENERAL

Control buttons Volume +, volume -, power switch
Applications Lock applications, manage restart time, manage power on/off, calculator, calender, Chrome, alarm/ clock, Timer, Stopwatch, Manage files, orginize albums, Gmail, play audio files, Play Store, search engine, system preferences, sound recorder, play videos
Flicker free yes

MECHANICAL

Orientation landscape, portrait, face-up

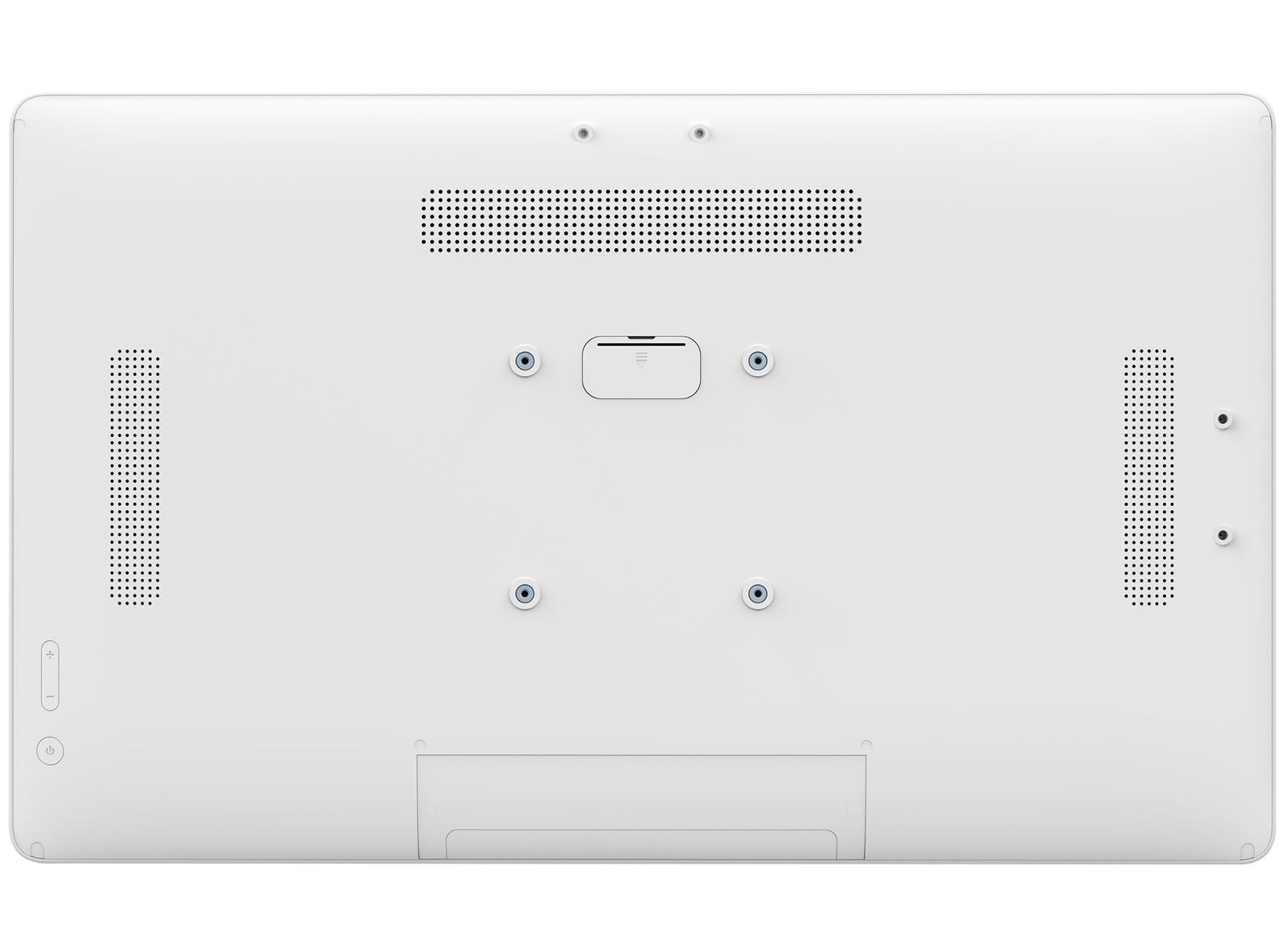

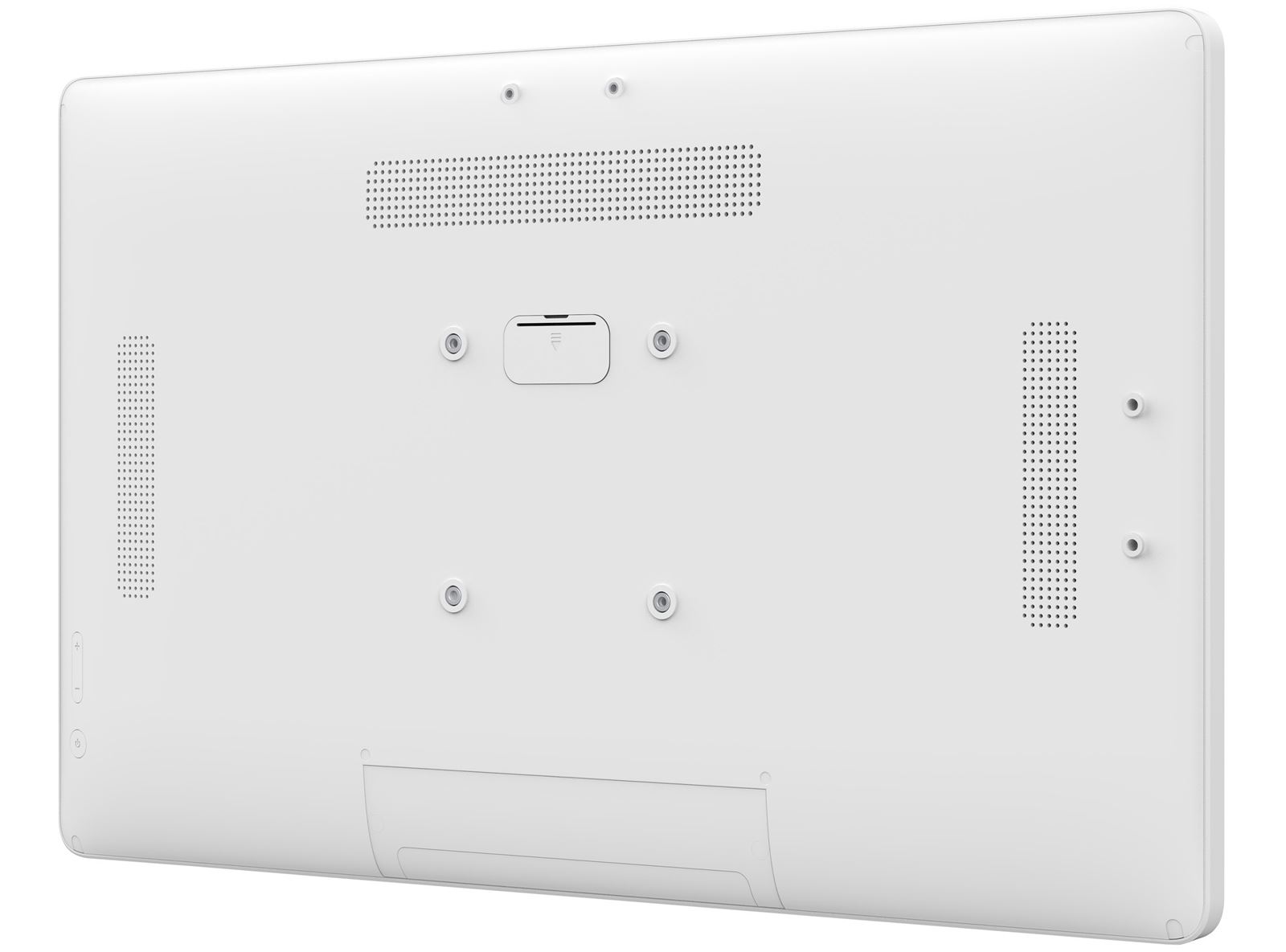

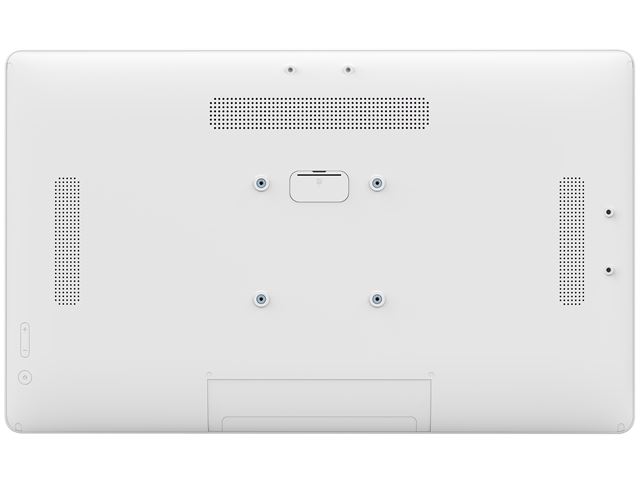

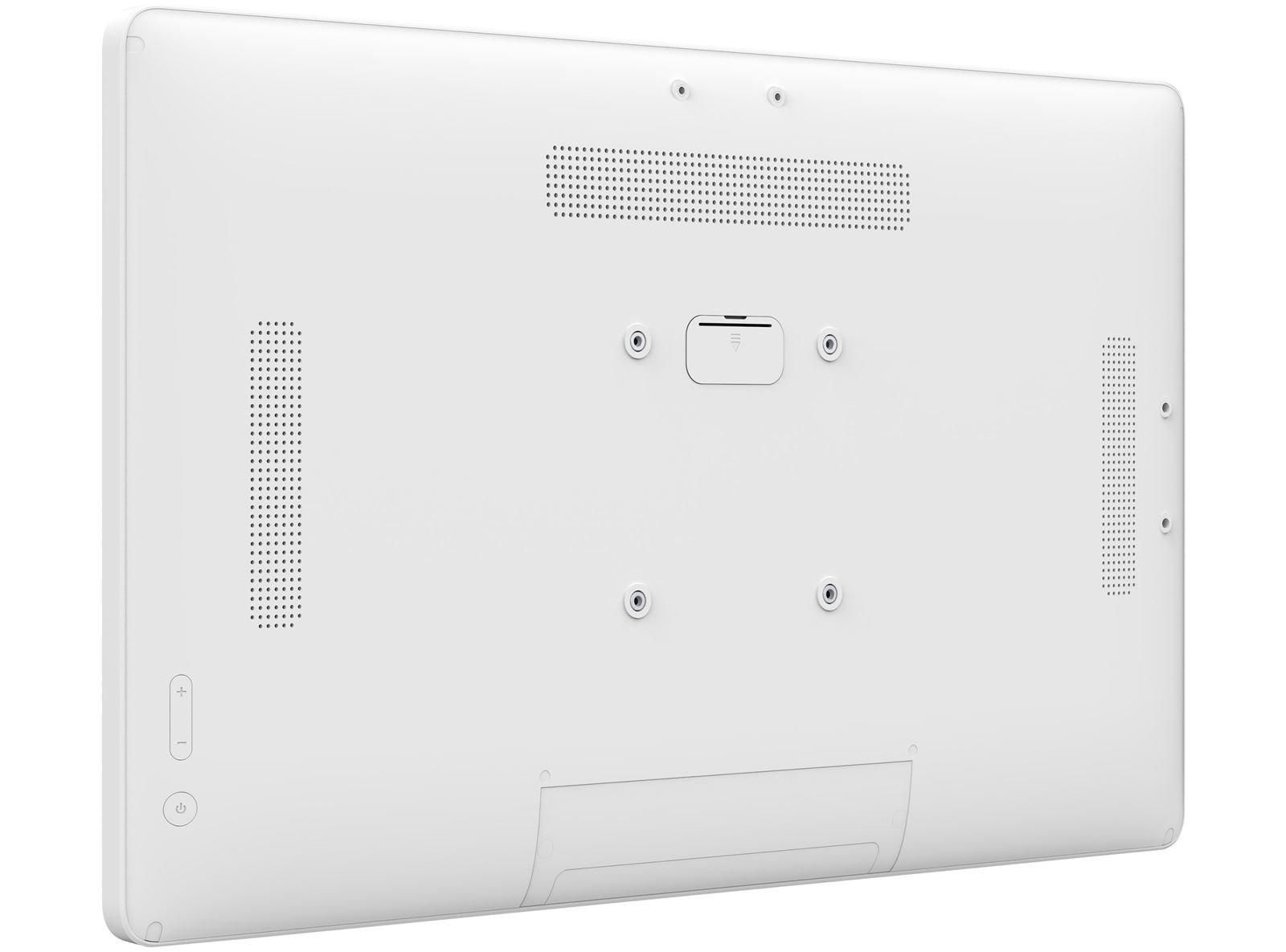

VESA mounting 100 x 100mm
MTBF 50000 hours (excluding backlight)

ACCESSORIES INCLUDED

Cables power
Guides quick start guide, safety guide
Other AC adapter
Cable cover yes

POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 19W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 549.5 x 336 x 28mm
Box dimensions W x H x D 580 x 375 x 126mm
Weight (without box) 4.23kg
Weight (with box) 6.15kg
EAN code 4948570122950
Features

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).




LAN CONTROL

24/7

24/7 displays are designed for a continuous operation.



24/7

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS
