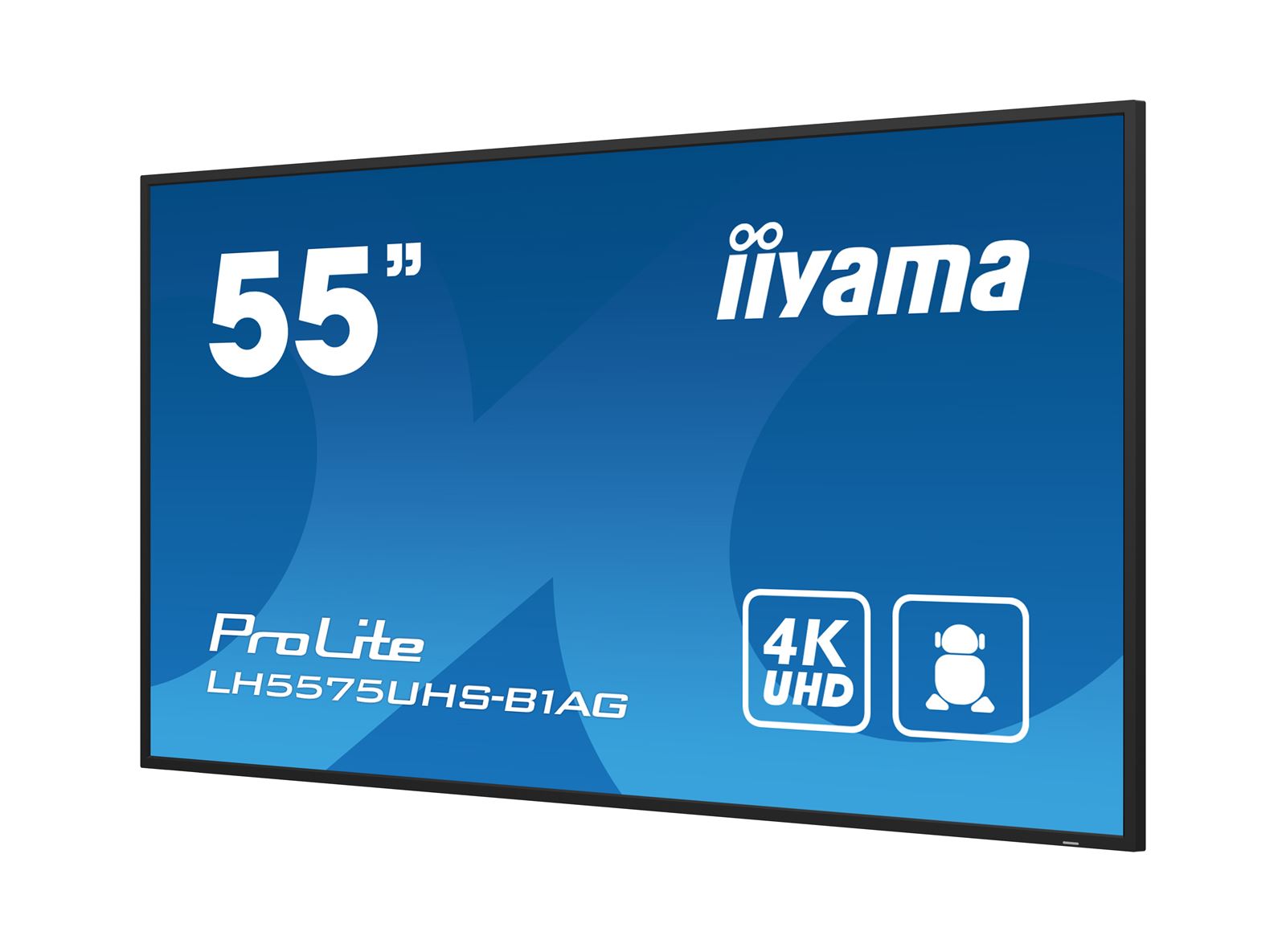

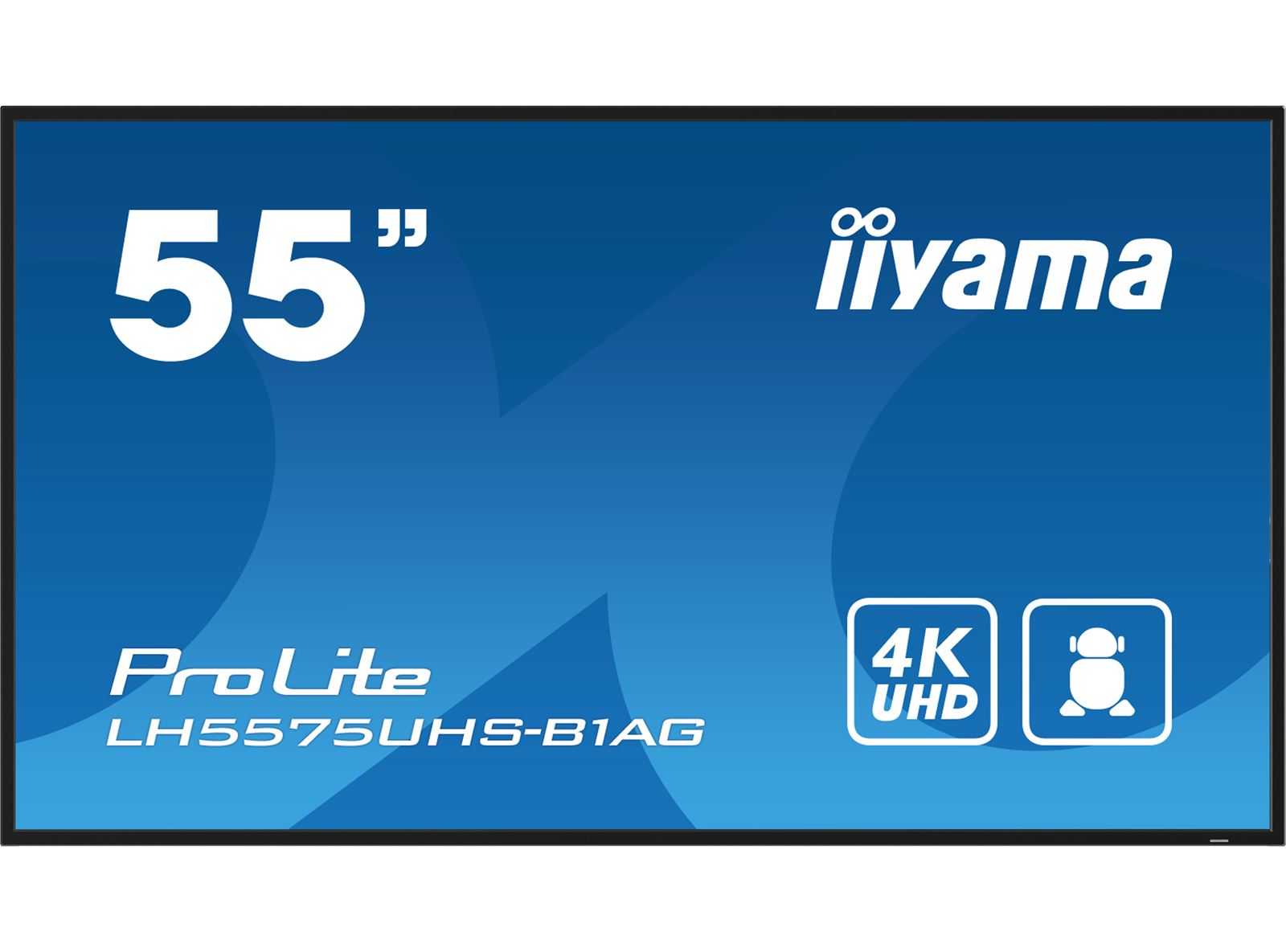

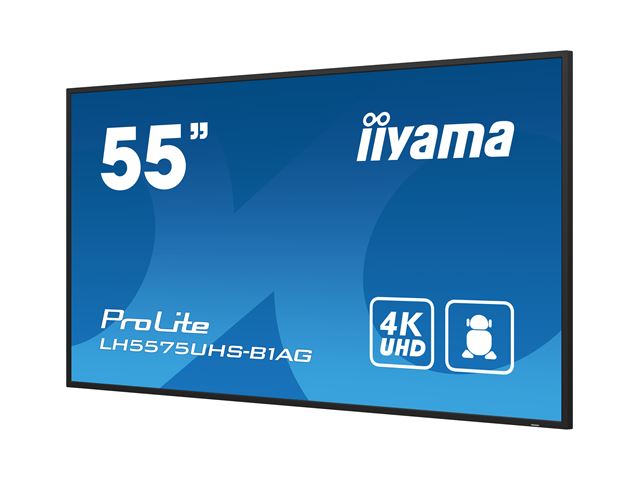

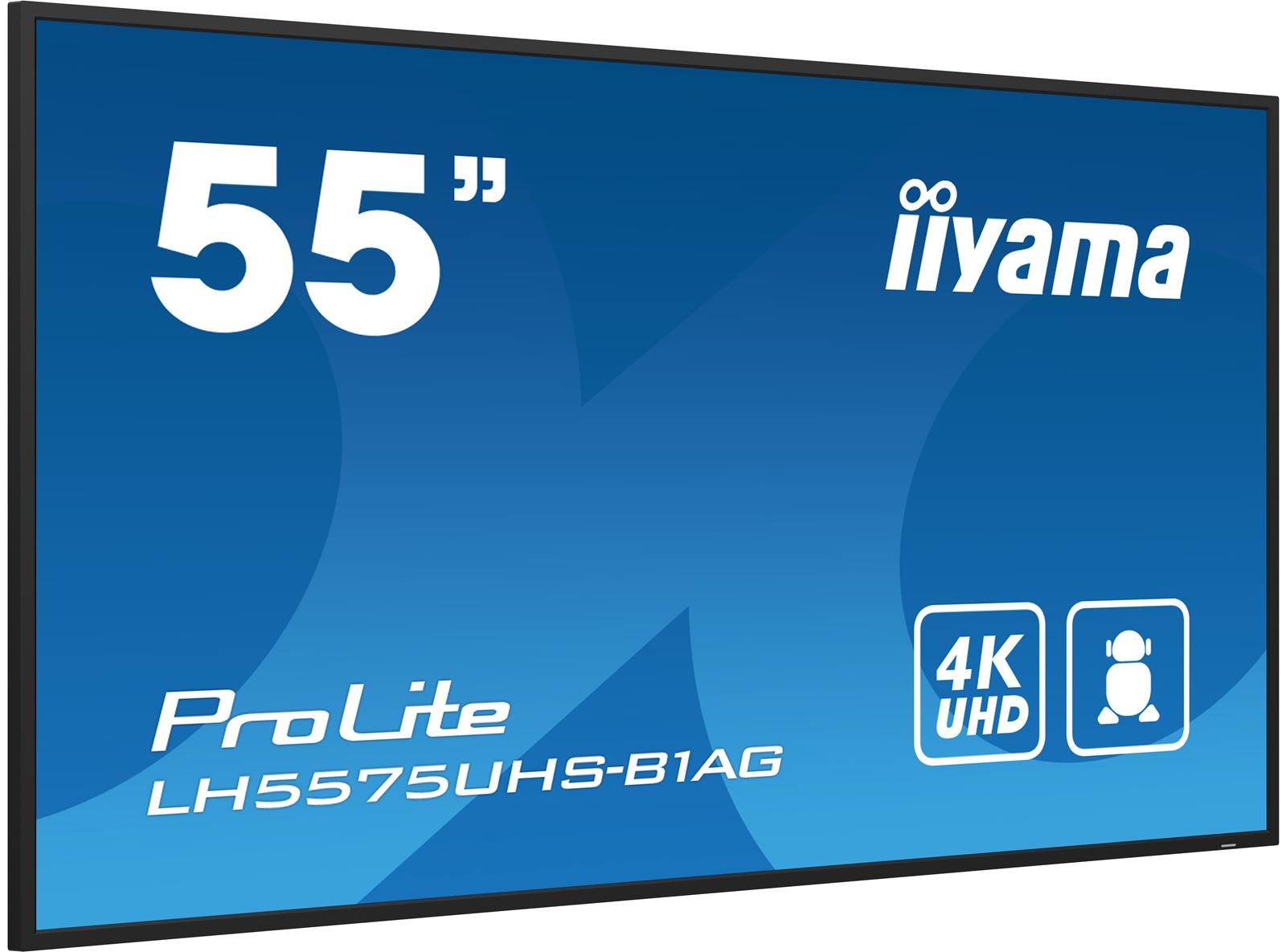

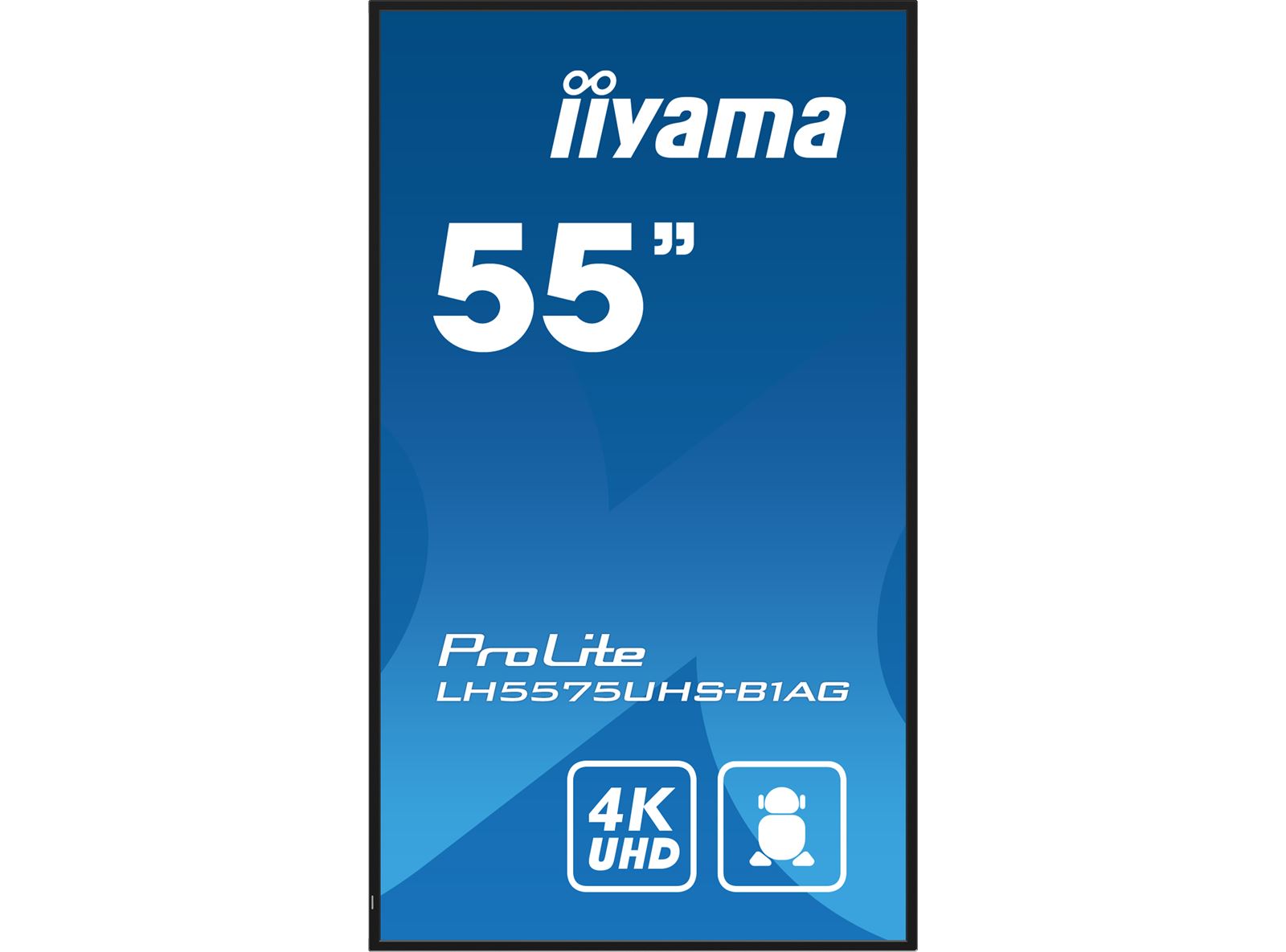

iiyama ProLite monitor LH5575UHS-B1AG 55", Digital Signage, IPS, HDMI, DisplayPort, 4K, 24/7, Landscape/Portrait, Media Player, Intel® SDM slot, Wifi, Anti-Glare

£672.04 exc. VAT
£806.45 inc. VAT

Brand: iiyama

Manufacturer Code: LH5575UHS-B1AG

Warranty: 3 years collect and return

Product Description

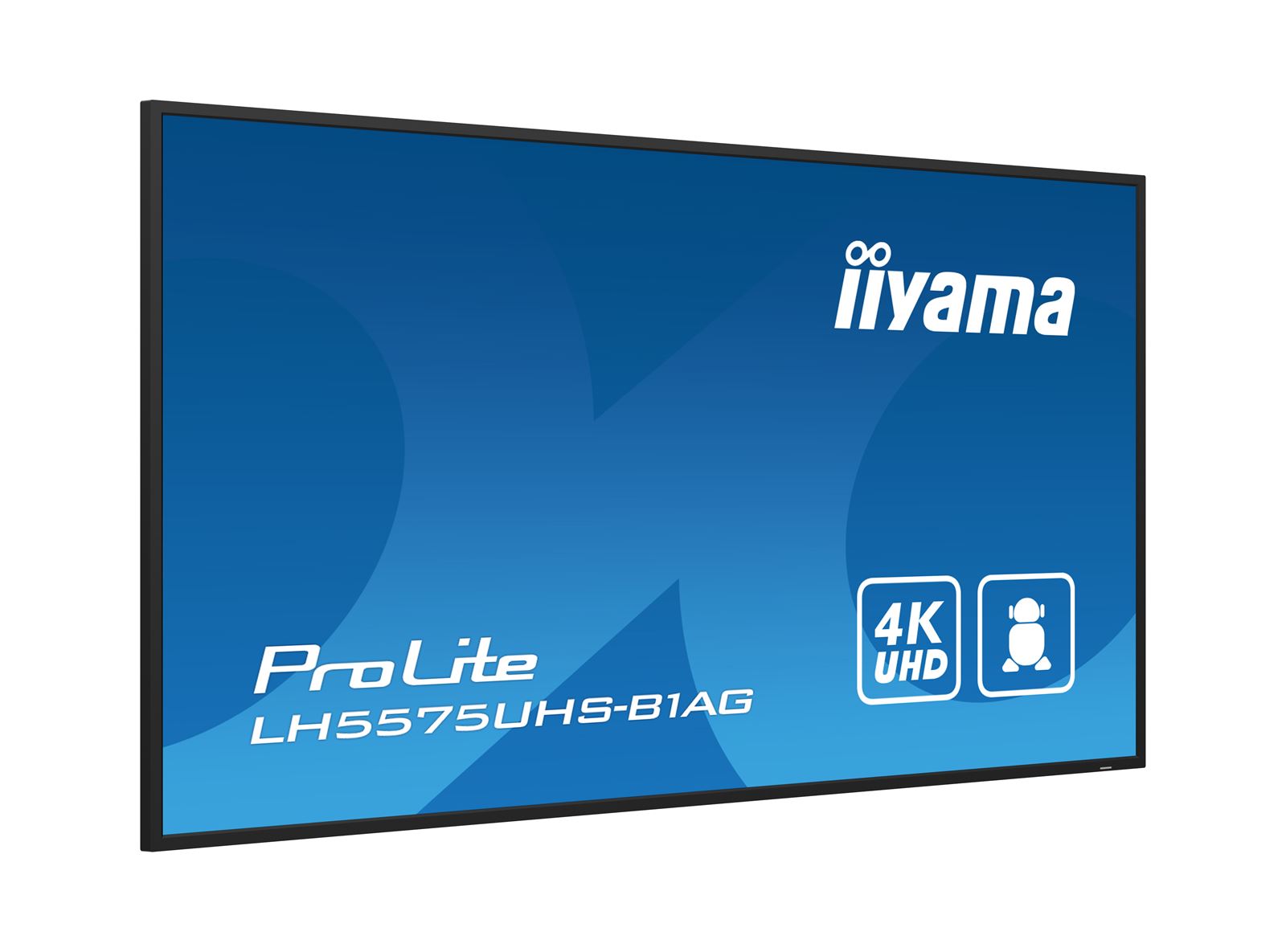

55" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5575UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it.

The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network.

With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Technical Information

 DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 54.6", 139cm
Panel IPS, AG coated glass, matte finish, haze 25%
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 8bit+FRC (NTSC 72%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1209.6 x 680.4mm, 47.6 x 26.8"
Bezel width (sides, top, bottom) 14.9mm, 14.9mm, 14.9mm
Pixel pitch 0.315mm
Bezel colour and finish black, matte

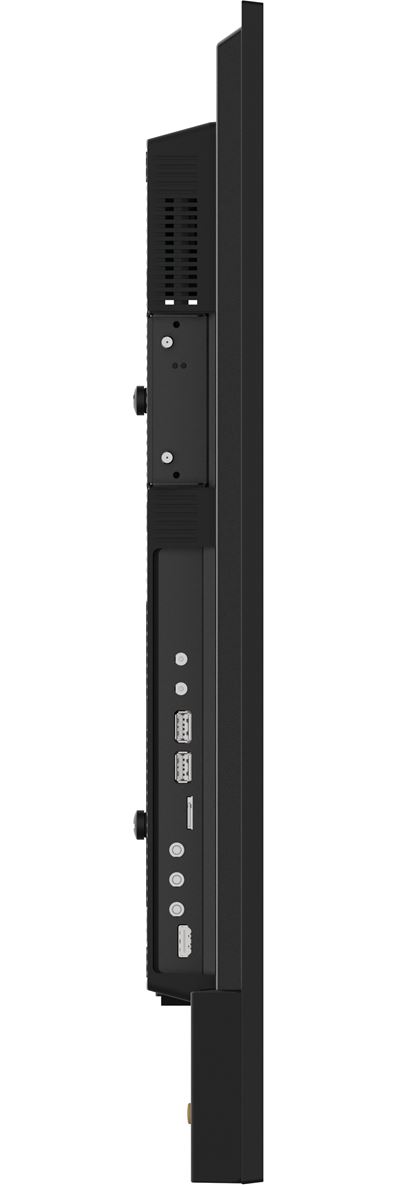

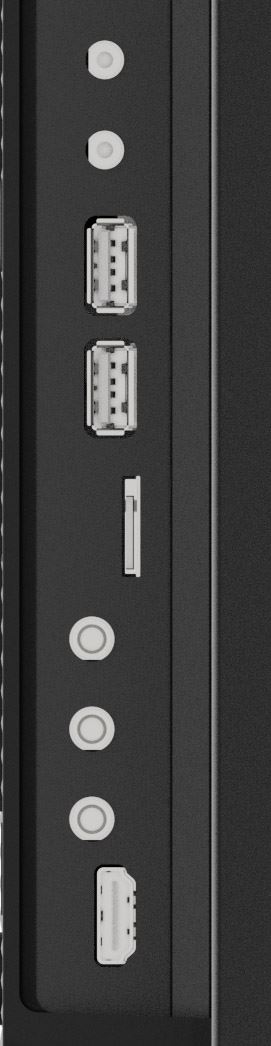

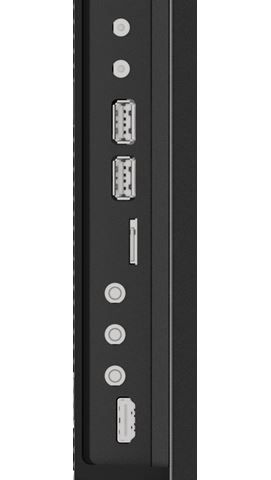

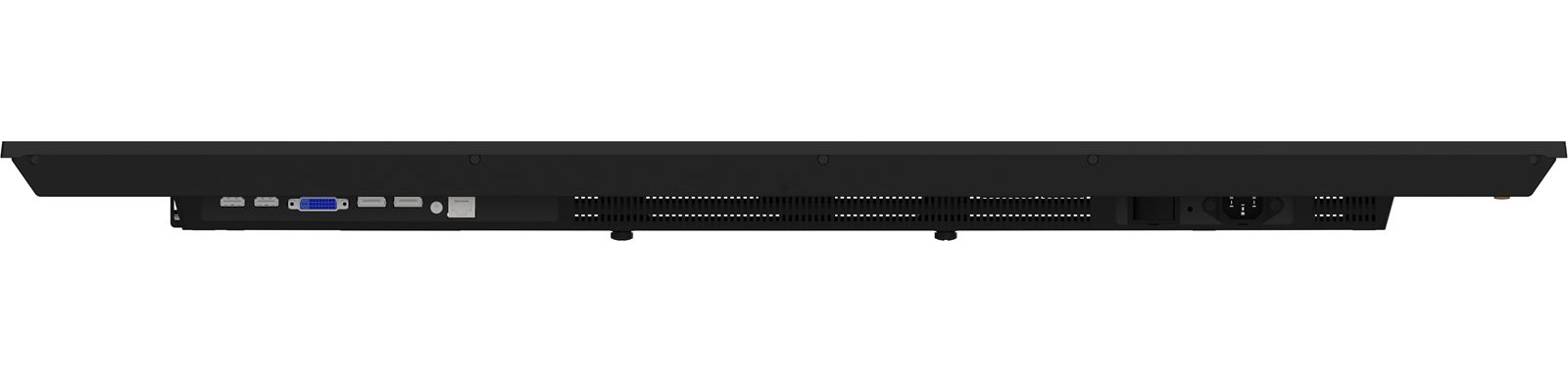

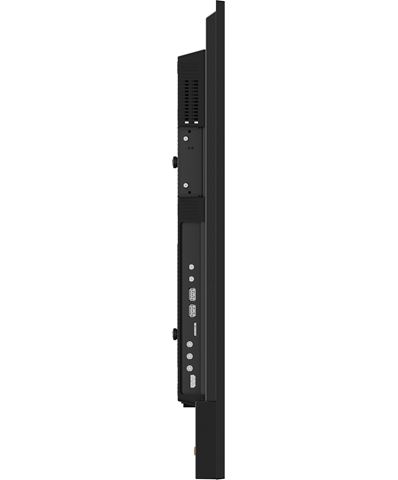

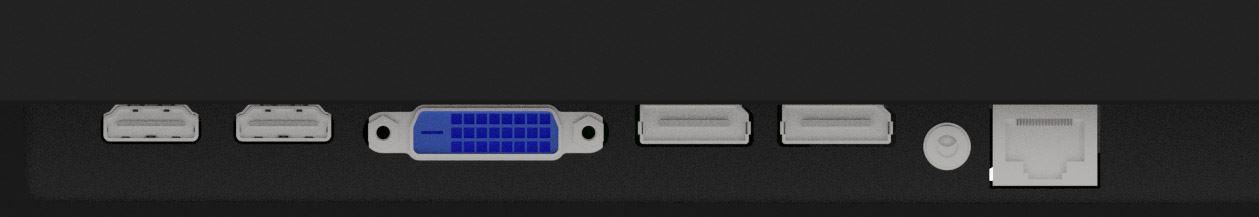

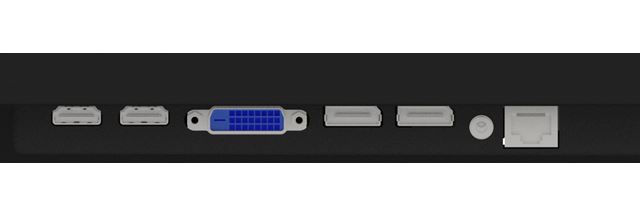

 INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x3 (v.2.0, max. 3840x2160 @60Hz, ARC on HDMI #3)
DisplayPort x1 (v.1.2, max. 3840x2160 @60Hz)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)
Digital signal output DisplayPort x1 (max. 3840x2160 @60Hz, MST-out Daisy Chain v.1.2)
Audio output Mini jack x1
Speakers 2 x 10W
Monitor control output RS-232c x1 (2.5mm sub-mini jack)
IR loop through x1 (3.5mm stereo mini)
HDCP v.2.2
USB ports x2 (v.2.0)

 FEATURES

Integrated software Android 11 OS, iiSignage2, FailOver, EShare
WiFi yes (Built-in, 802.11ac)
Hardware CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
Extra Intel® SDM-L, micro SD card slot
Max. non-stop operating time 24/7
Anti image retention yes
Video wall / daisy chain Yes, (MST-output)
Media playback yes
Housing (bezel) metal

 GENERAL

OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, group ID, monitor information, DP version, DP monitors, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, tiling, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, SDM settings, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Plug&Play DDC2B

 MECHANICAL

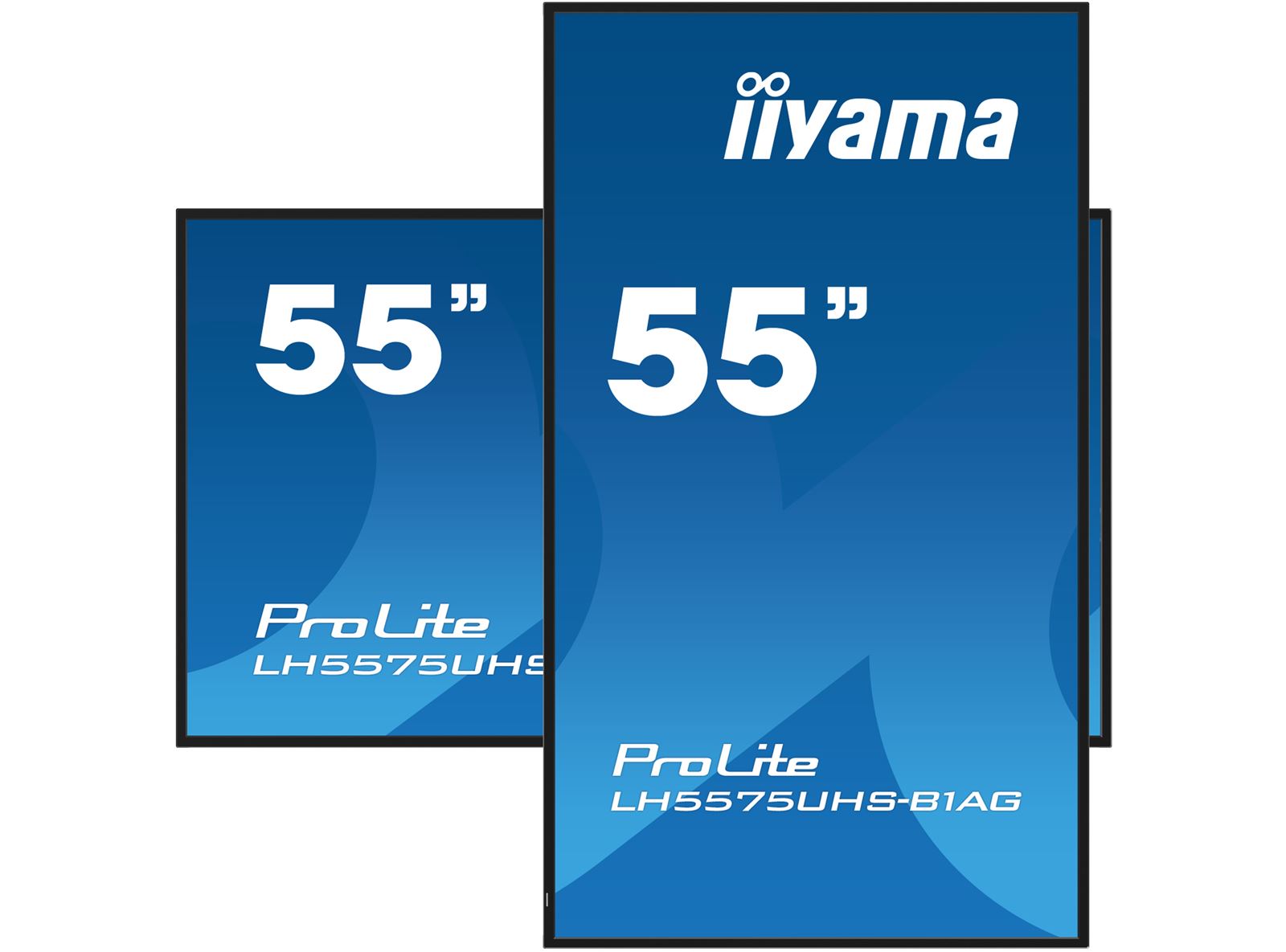

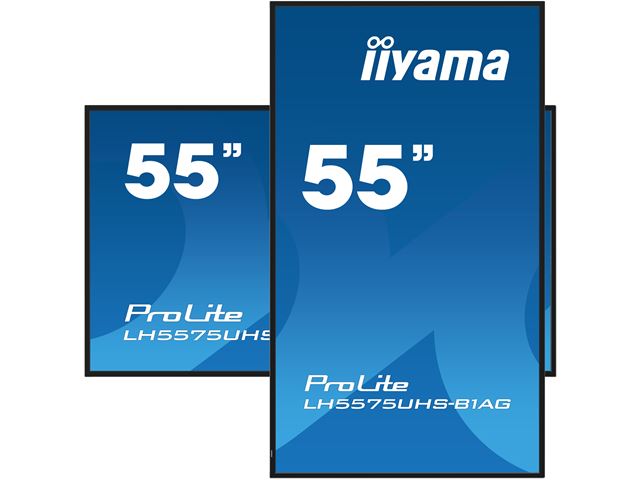

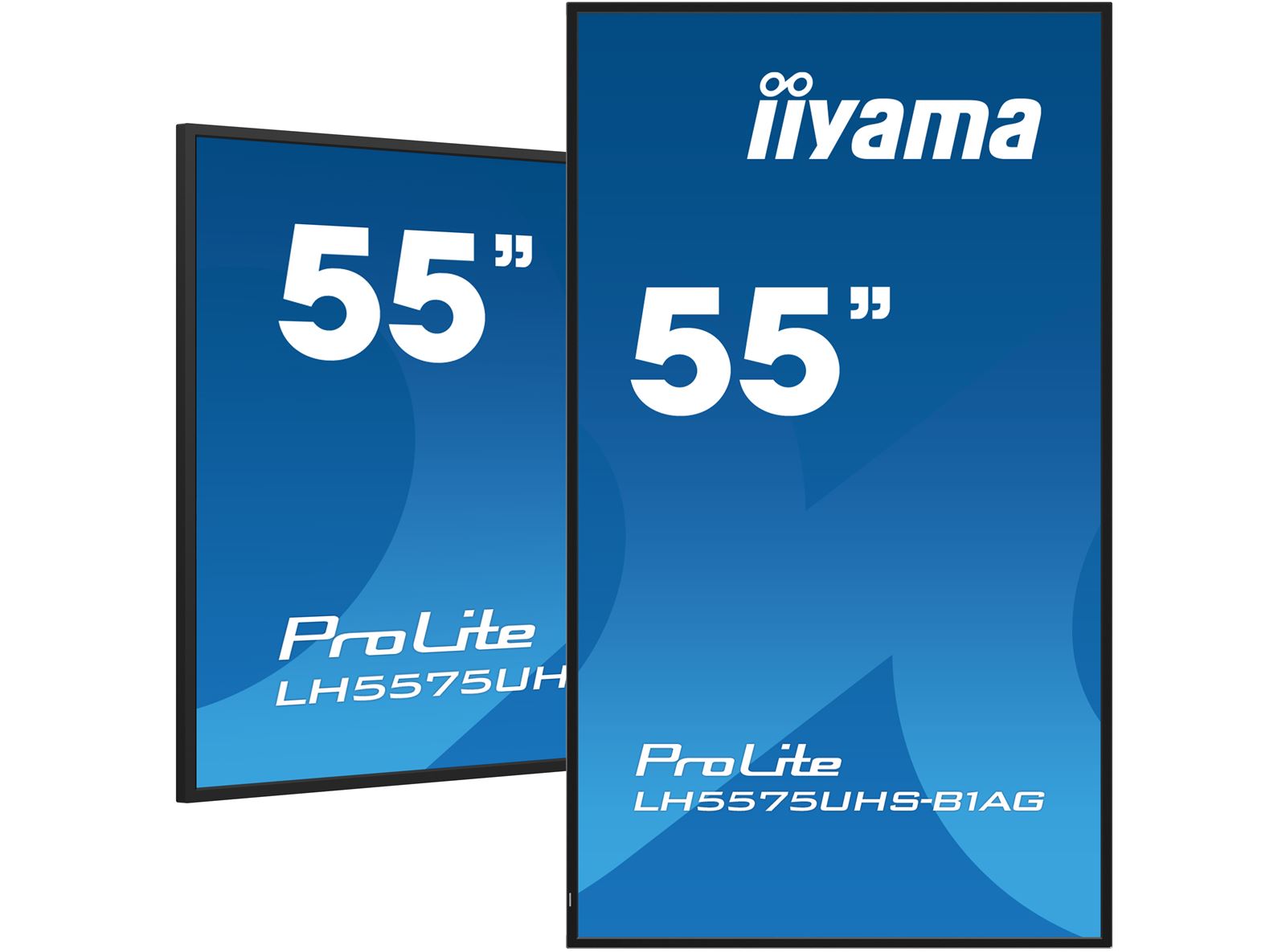

Orientation landscape, portrait
Fanless design yes

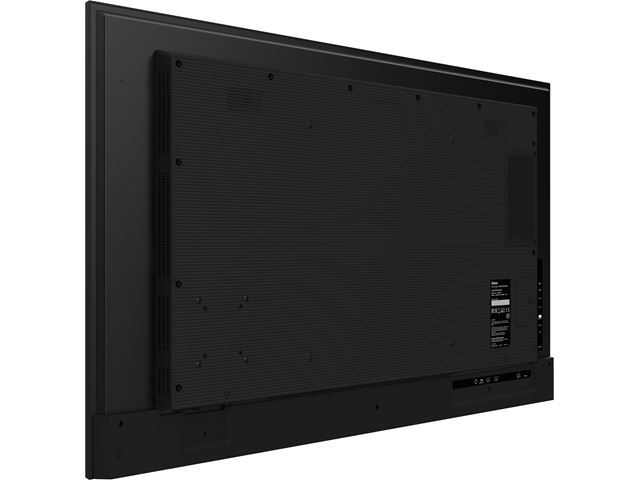

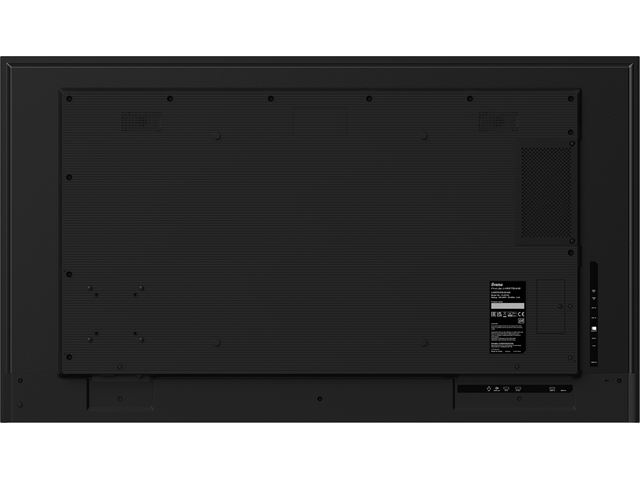

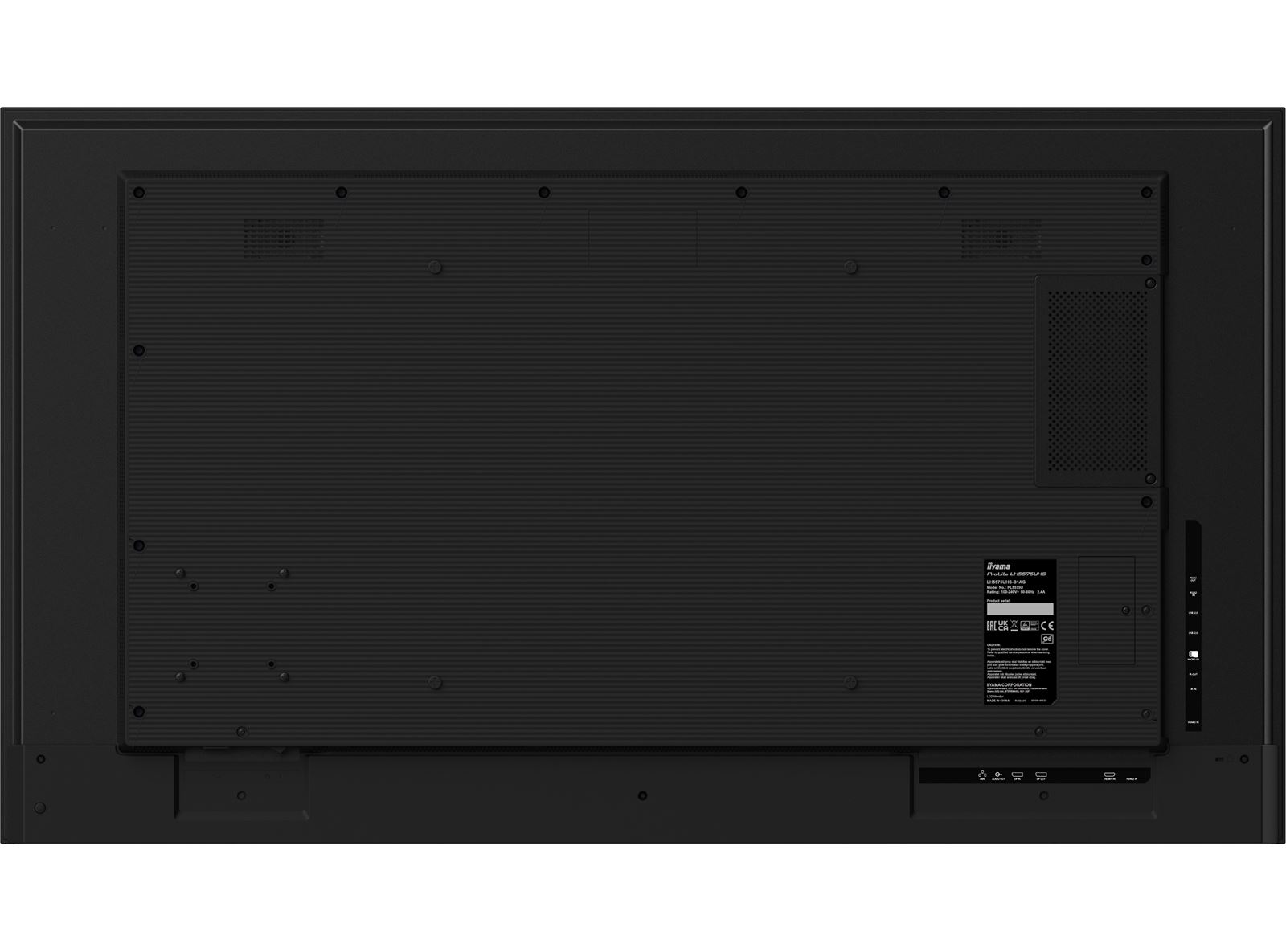

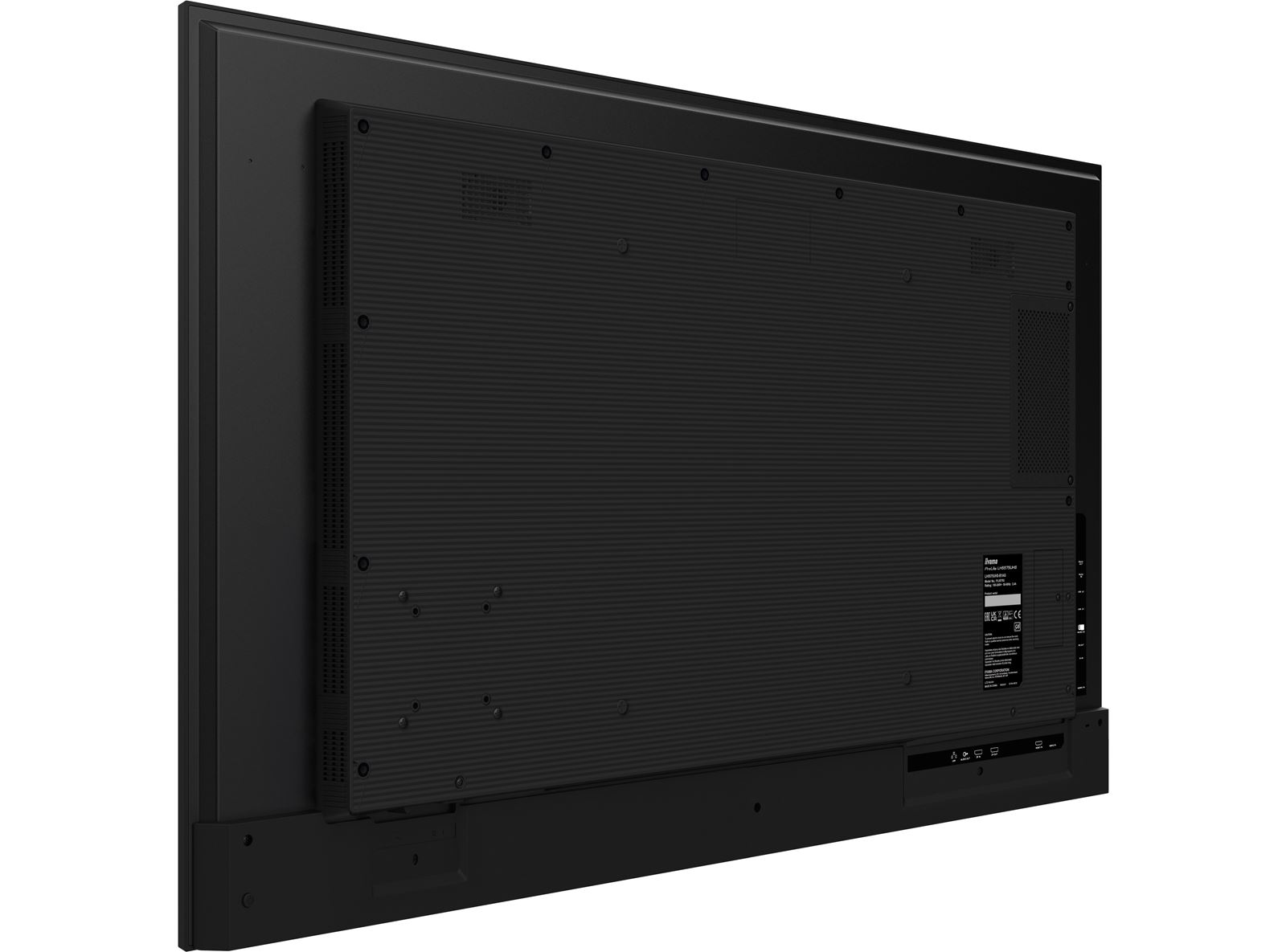

VESA mounting 400 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 44.000 hours (excluding backlight)

 ACCESSORIES INCLUDED

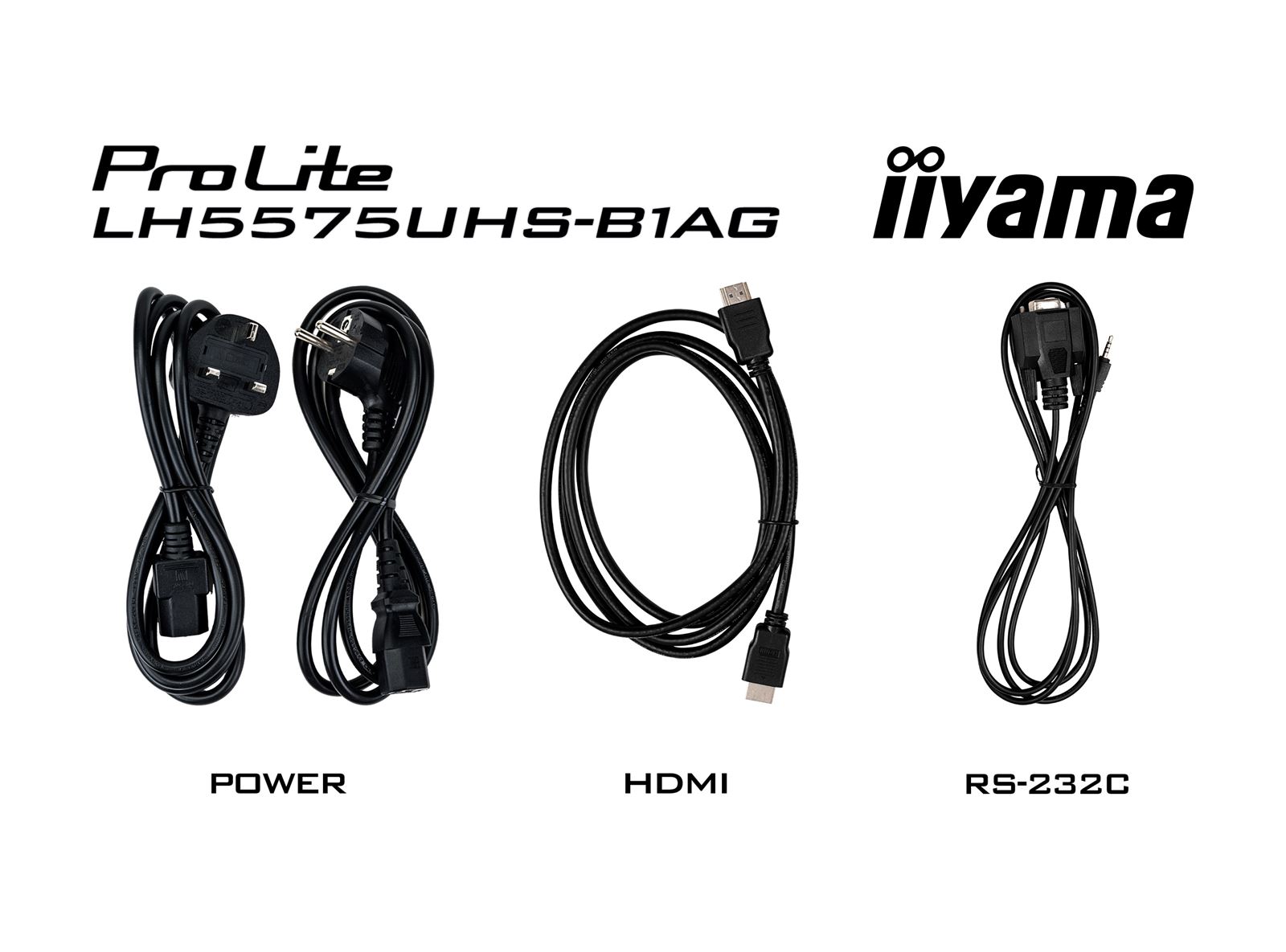

Cables power, HDMI, RS-232c
Guides quick start guide, safety guide
Other Stickers for screw holes, wire buckles
Remote control yes (batteries included)

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 127W typical, 0.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Energy efficiency class (Regulation (EU) 2017/1369) G

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 1237.5 x 710 x 55mm
Box dimensions W x H x D 1386 x 845 x 130mm
Weight (without box) 15.2kg
EAN code 4948570123469
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

OPS PC SLOT

Built-in expansion slot supports the Open Pluggable Specification (OPS) standard; it simplifies the installation of a plug-in PC for digital signage applications.



OPS PC SLOT

DISPLAYPORT/HDMI DAISY CHAIN SUPPORT

A daisy chain is a wiring scheme in which multiple devices are wired together in sequence or in a ring. It enables a connection of a series of devices using a single connection between each two devices, using DisplayPort/HDMI input and a DisplayPort/HDMI output.  The output connects to the next downstream display.  This cabling arrangement, with one DisplayPort/HDMI cable between each set of monitors, provides a simple, less cluttered system configuration.



DISPLAYPORT/HDMI DAISY CHAIN SUPPORT

24/7

24/7 displays are designed for a continuous operation.



24/7

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

IPS TECHNOLOGY

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

IPS TECHNOLOGY

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS

Media player LFD

Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

Media player LFD
