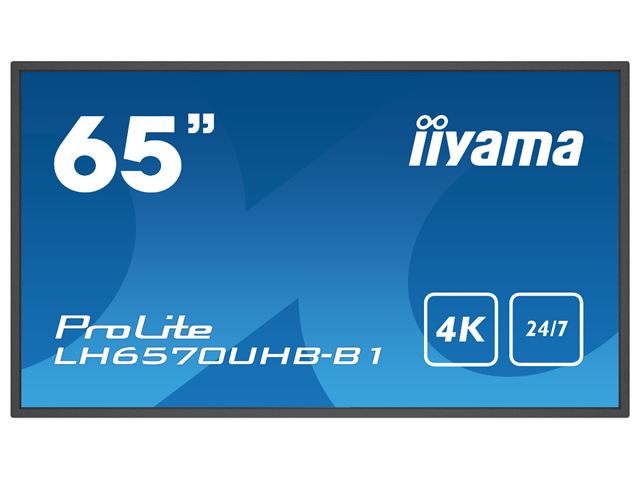

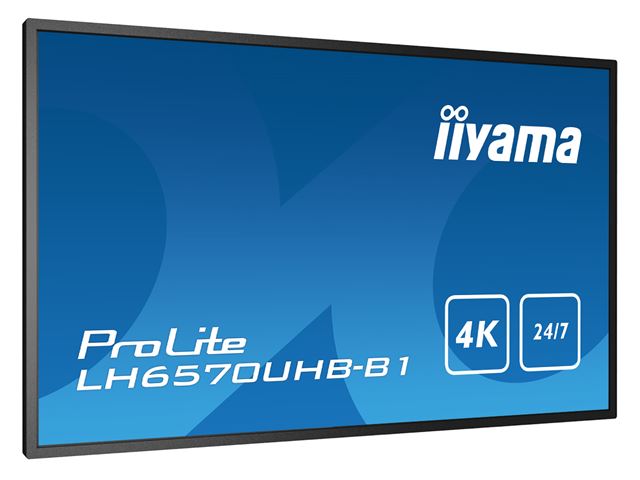

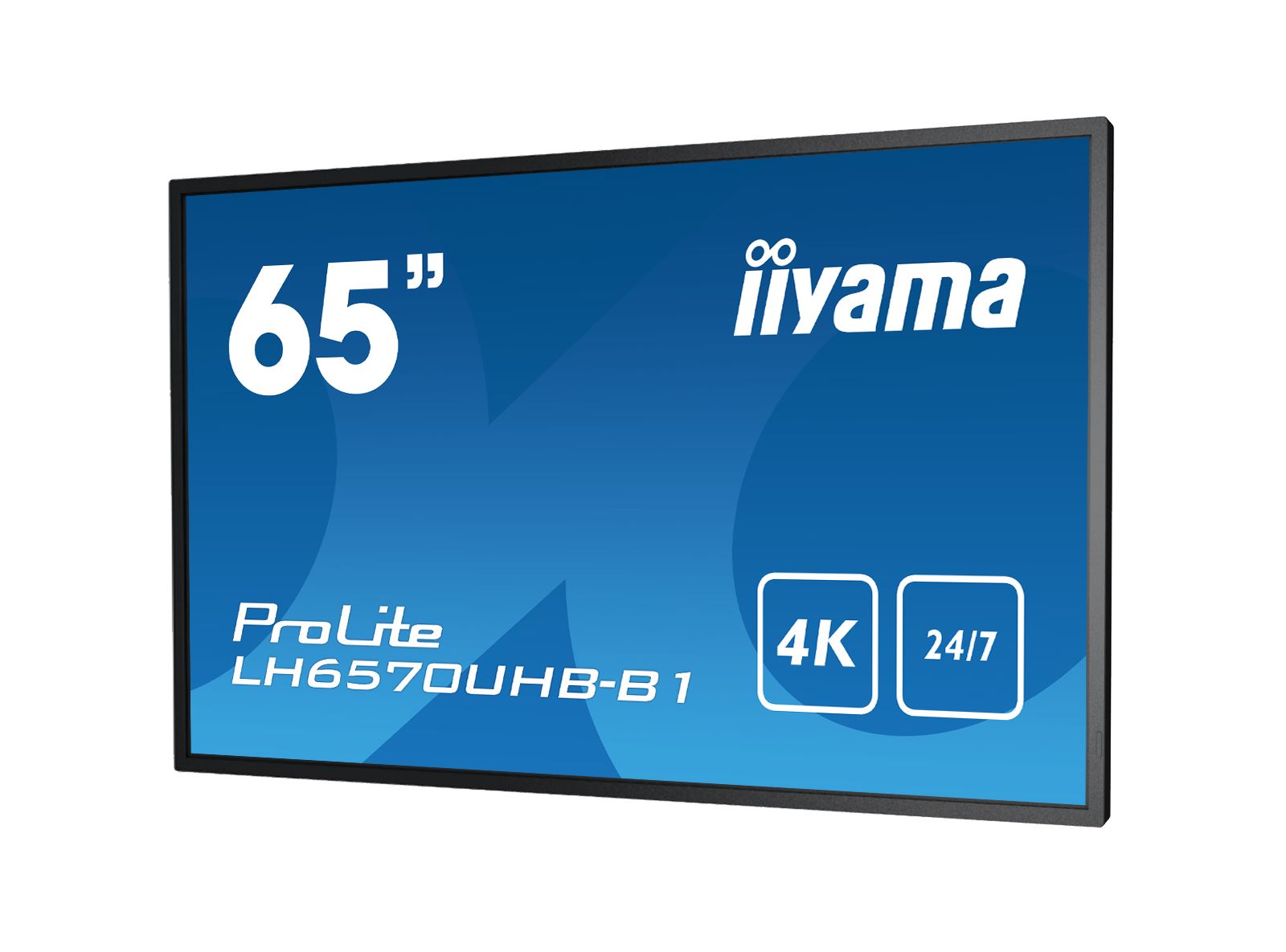

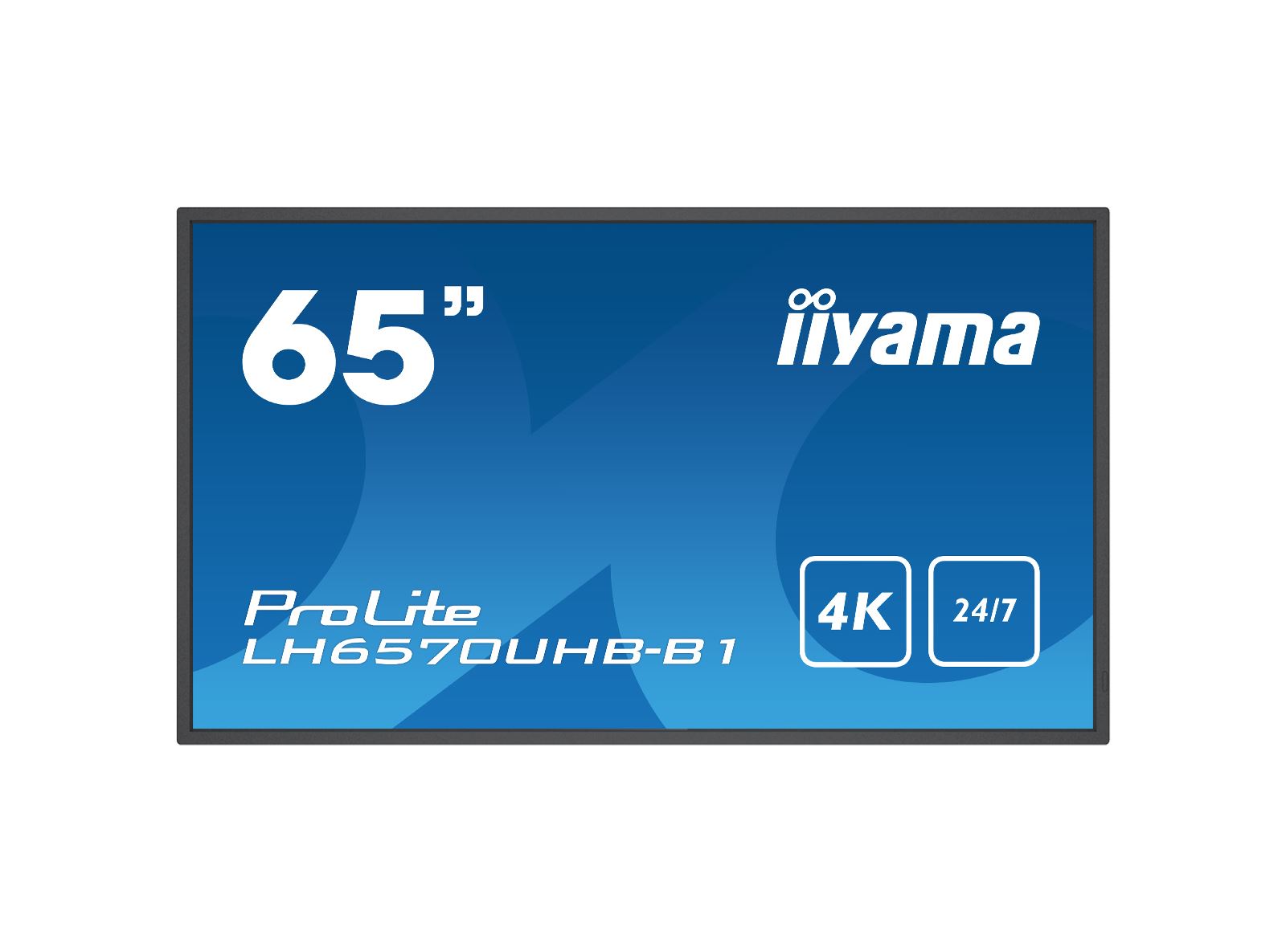

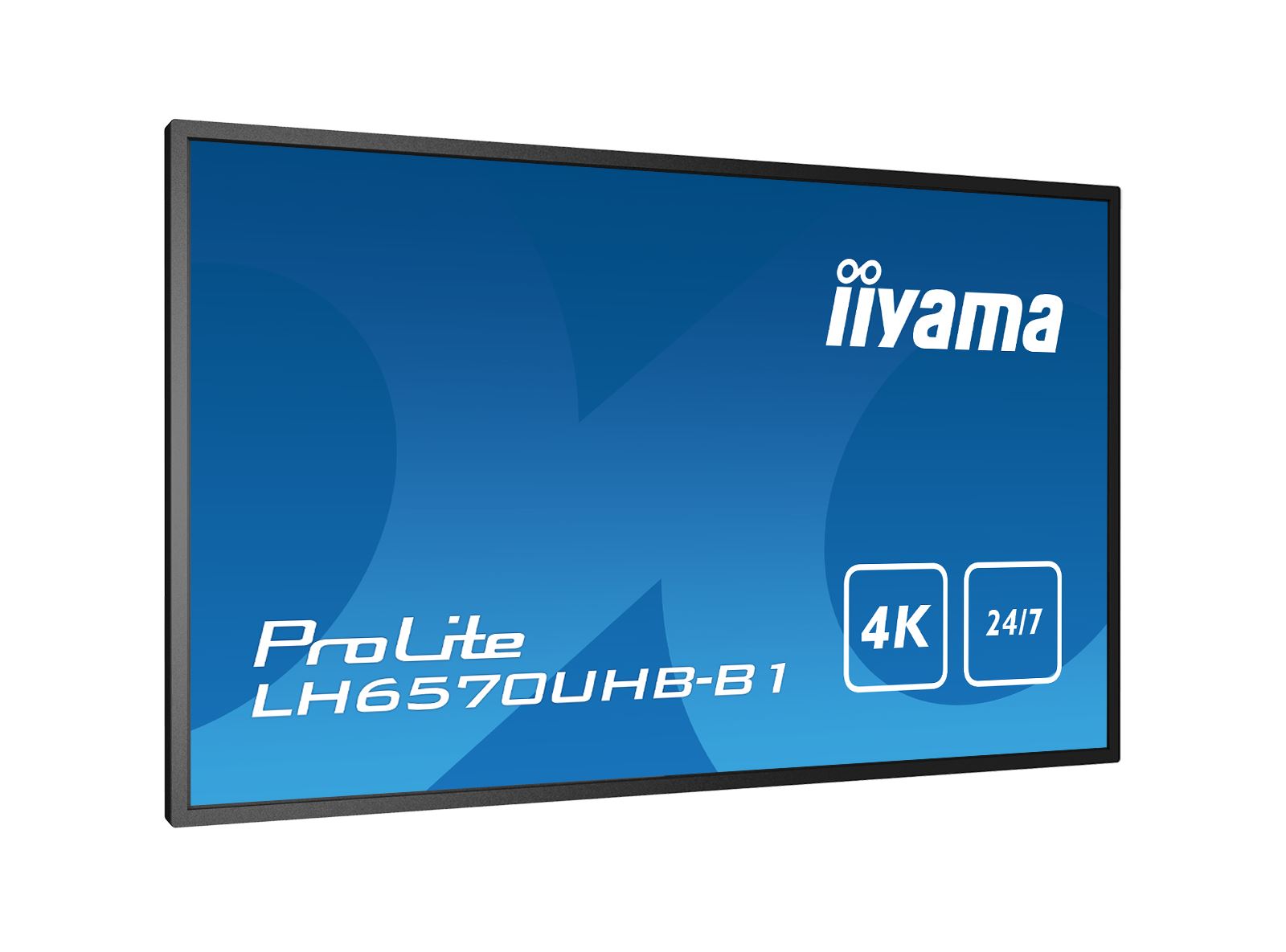

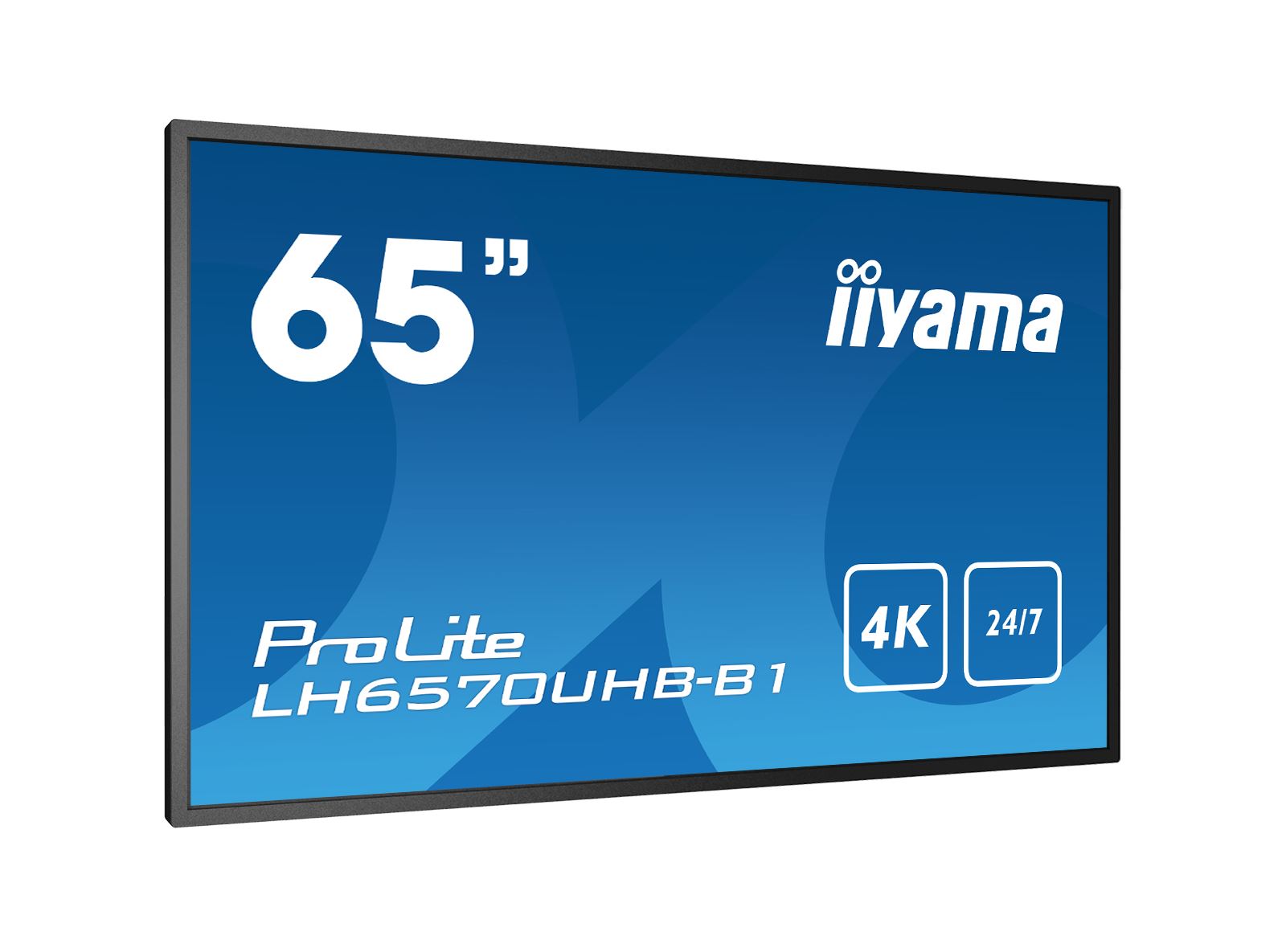

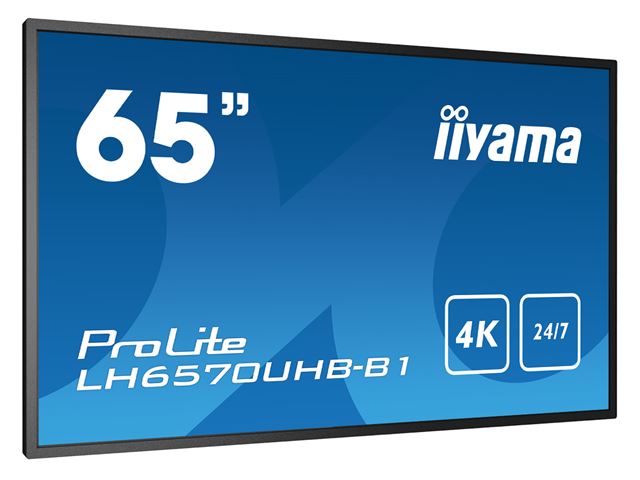

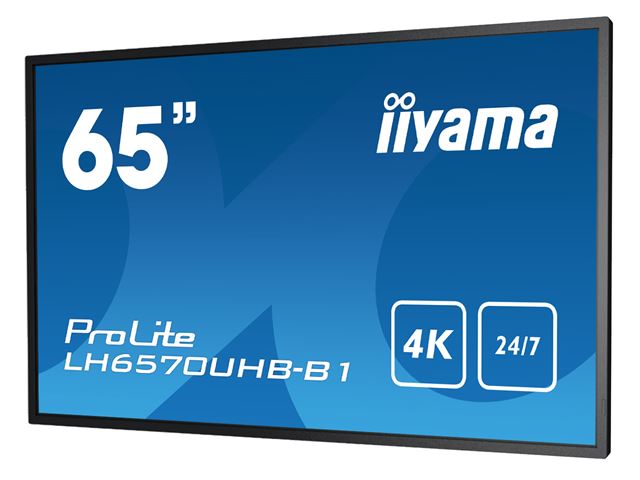

iiyama Prolite monitor LH6570UHB-B1 65" VA, Slim Bezel, 4K UHD, 24/7, Landscape/Portrait, 700cd/m2 brightness

£921.58 exc. VAT
£1,105.90 inc. VAT

Brand: iiyama

Manufacturer Code: LH6570UHB-B1

Product Description

65” Professional Digital Signage display with 24/7, 4K UHD and 700cd/m² high brightness performance

This high brightness display will deliver dynamic and sharp content, designed to entice and captivate your audience. The slim bezel and true commercial display with a 4K UHD resolution (3840x2160), 700cd/m2 and a contrast ratio of 4000:1 provides vibrant, detailed and sublime images. Thanks to on-board Android 9.0 you can easily customize the display by installing applications directly to it and makes it the perfect choice for Digital Signage, In-store communication and messaging.

Designed to perform in continual, around the clock environments, the LH6570UHB can be installed and utilised in landscape and portrait orientation. The jaw dropping and best-in-class 35mm total depth (when used with the included proprietary brackets) will mean this display can be installed discreetly and elegantly in all areas.

Technical Information

DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 64.5", 164cm
Panel VA, matte finish
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 700 cd/m²
Static contrast 4000:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 10bit (8bit + Hi-FRC)
Horizontal Sync 28 - 135kHz
Viewable area W x H 1428.5 x 803.5mm, 56.2 x 26.8"
Bezel width (sides, top, bottom) 12mm, 12mm, 12mm
Pixel pitch 0.372mm
Bezel colour and finish black, matte

INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x2 (v.2.0, max. 3840x2160 @60Hz)
Monitor control input RS-232c x1 (2.5mm mini jack)
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)
Audio output Mini jack x1 (3.5mm - stereo)
HDCP v.2.3
USB ports x2 (v.2.0)

FEATURES

Integrated software Android OS 9.0, iiWare
Hardware CPU: A53*2, quad core 1.5G, GPU: Mali G51 MP2, Memory: 3GB DDR4, Storage:32GB eMMC
Max. non-stop operating time 24/7
Anti image retention yes
Media playback yes
Housing (bezel) metal

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
Control buttons Power
User controls picture (picture mode, contrast, brightness, hue, sharpness, saturation, black level, colour temp., aspect ratio, gamma selection), sound (balance, treble, bass), setting (OSD off timer, colour range, orientation, CEC options, wake on LAN, auto wake up, boot on source, logo on/off, HDMI version, IR/keypad lock, language, power saving, recovery from power off, restore to default), time (date, current time, scheduler), information (iiWare version, FW version, release date, current resolution, IP address, Wi-Fi MAC address, MAC address, internal thermal temp.)
Plug&Play DDC2B

MECHANICAL

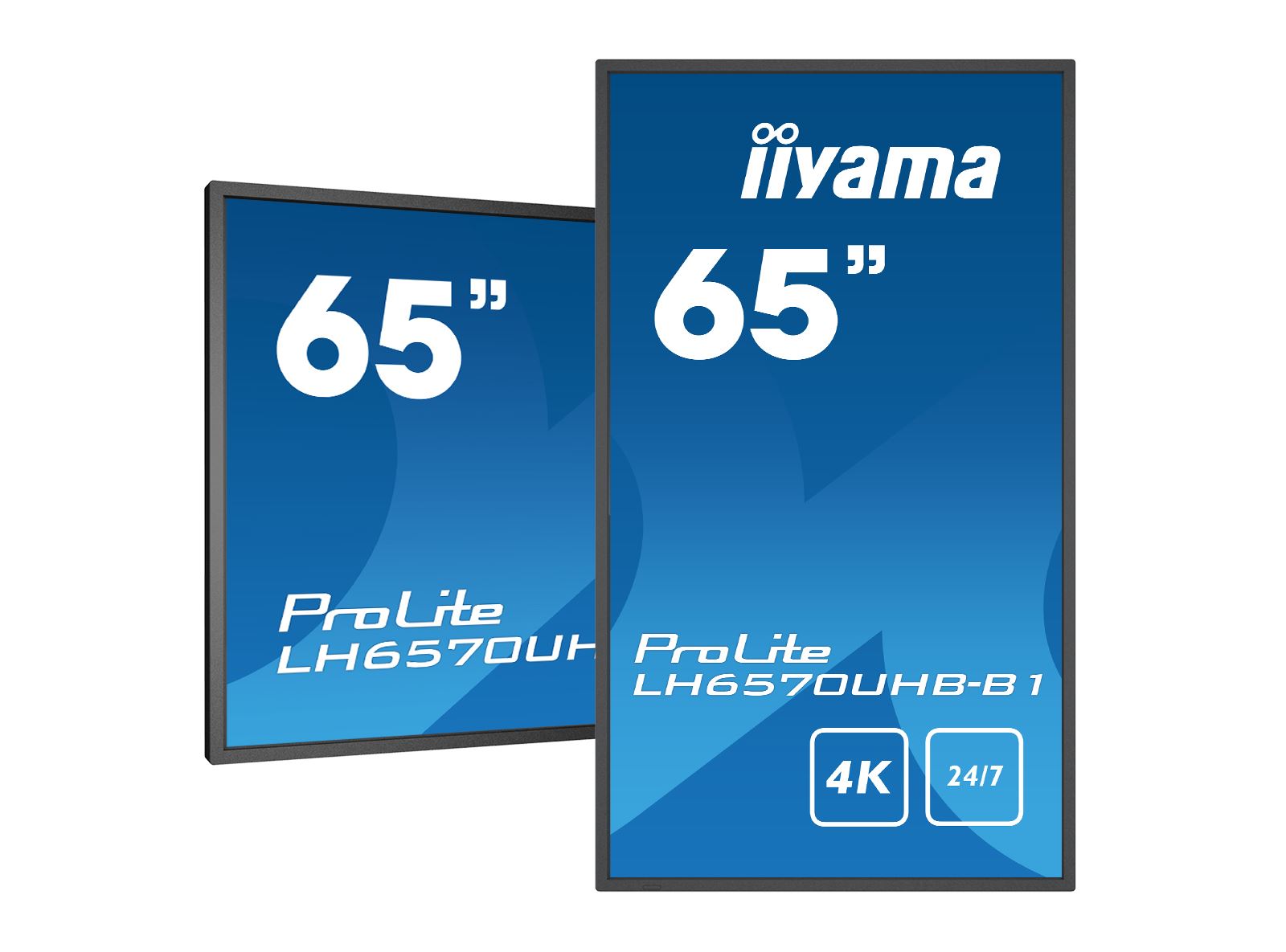

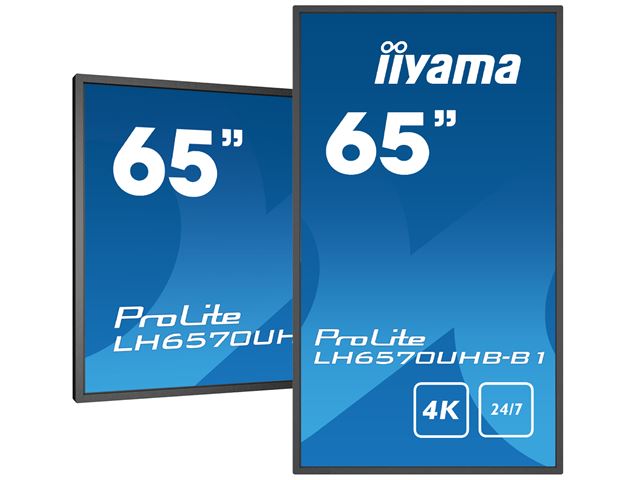

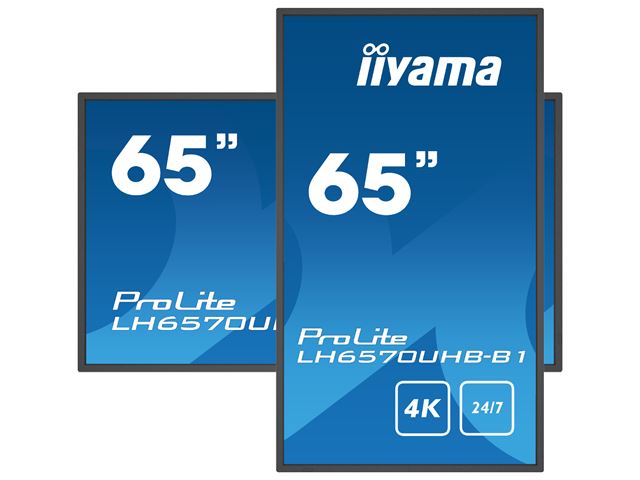

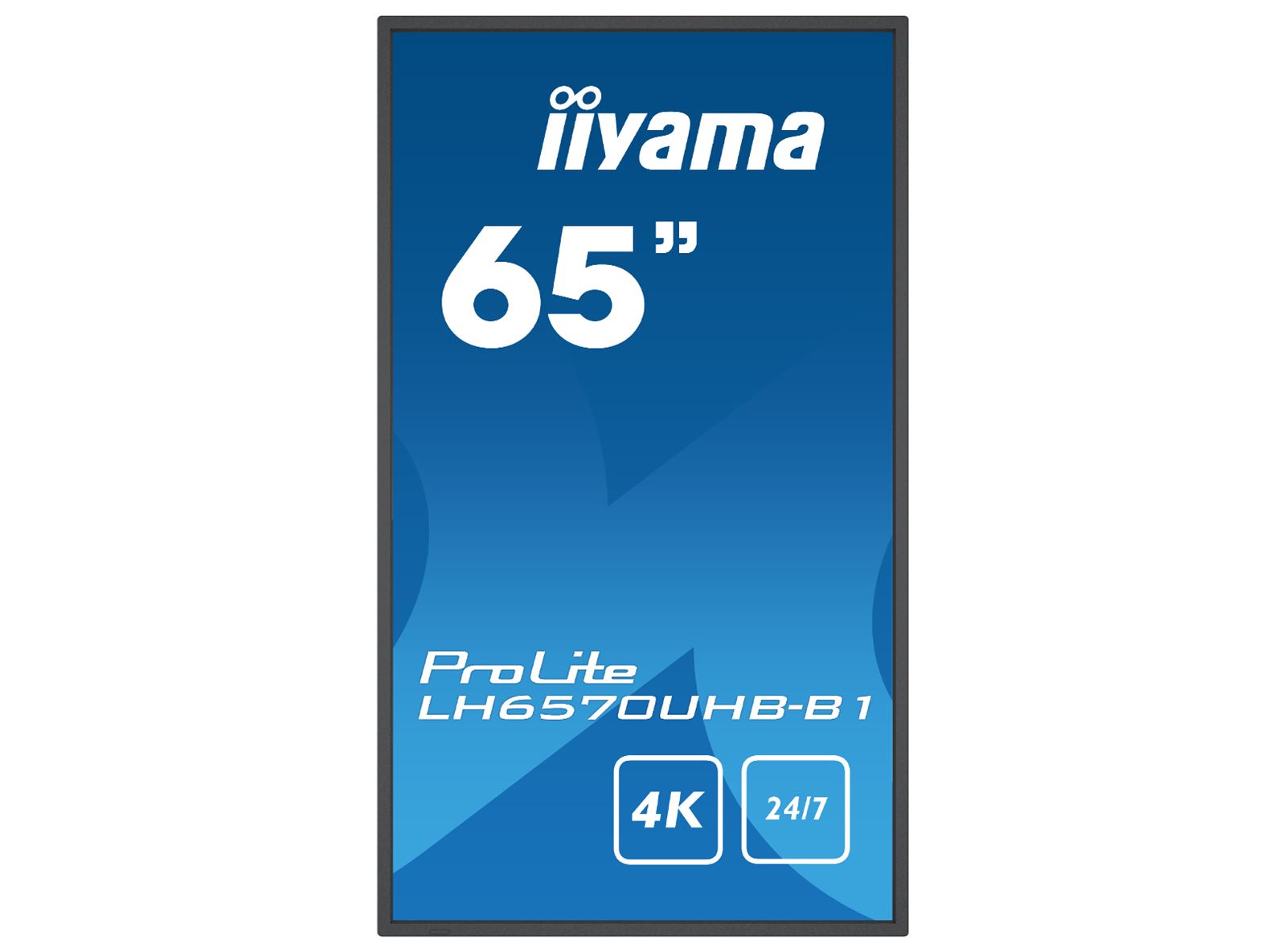

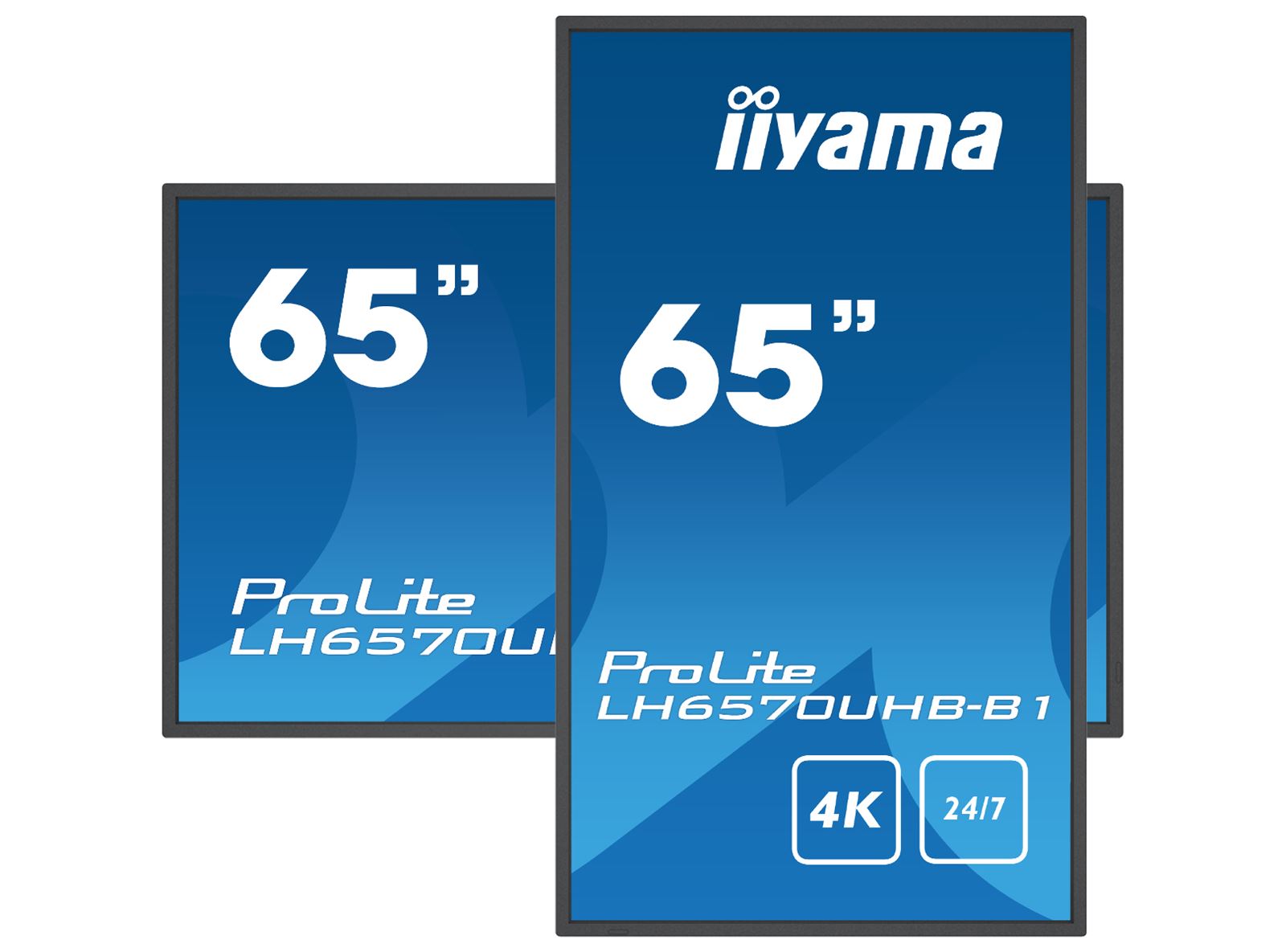

Orientation landscape, portrait
Fanless design yes
VESA mounting 400 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED

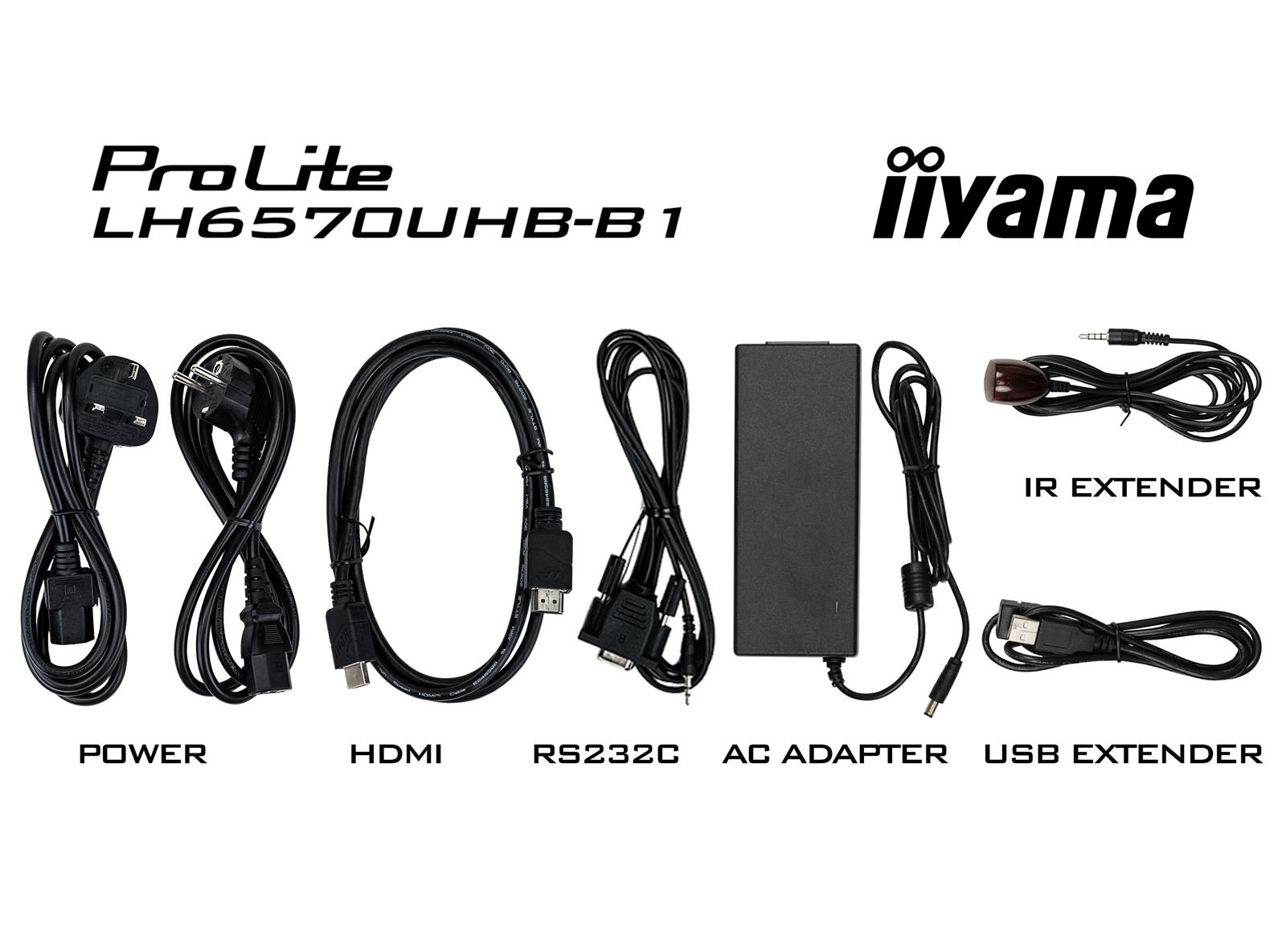

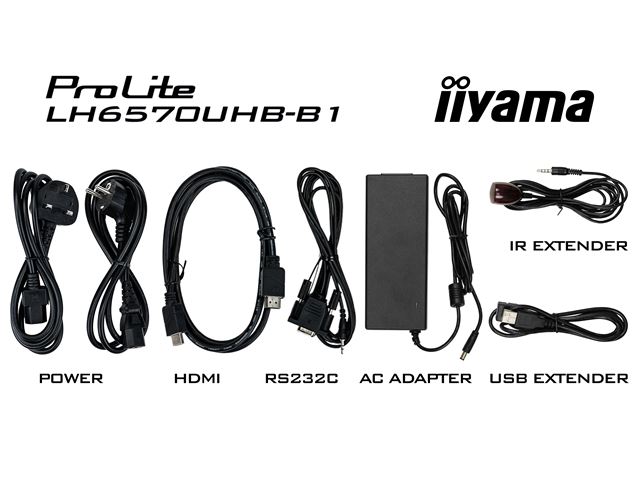

Cables power, USB, HDMI, RS-232c, IR-Extender
Guides quick start guide, safety guide

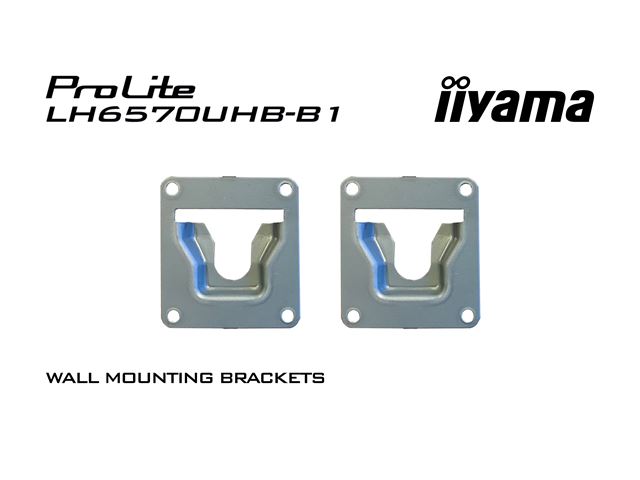

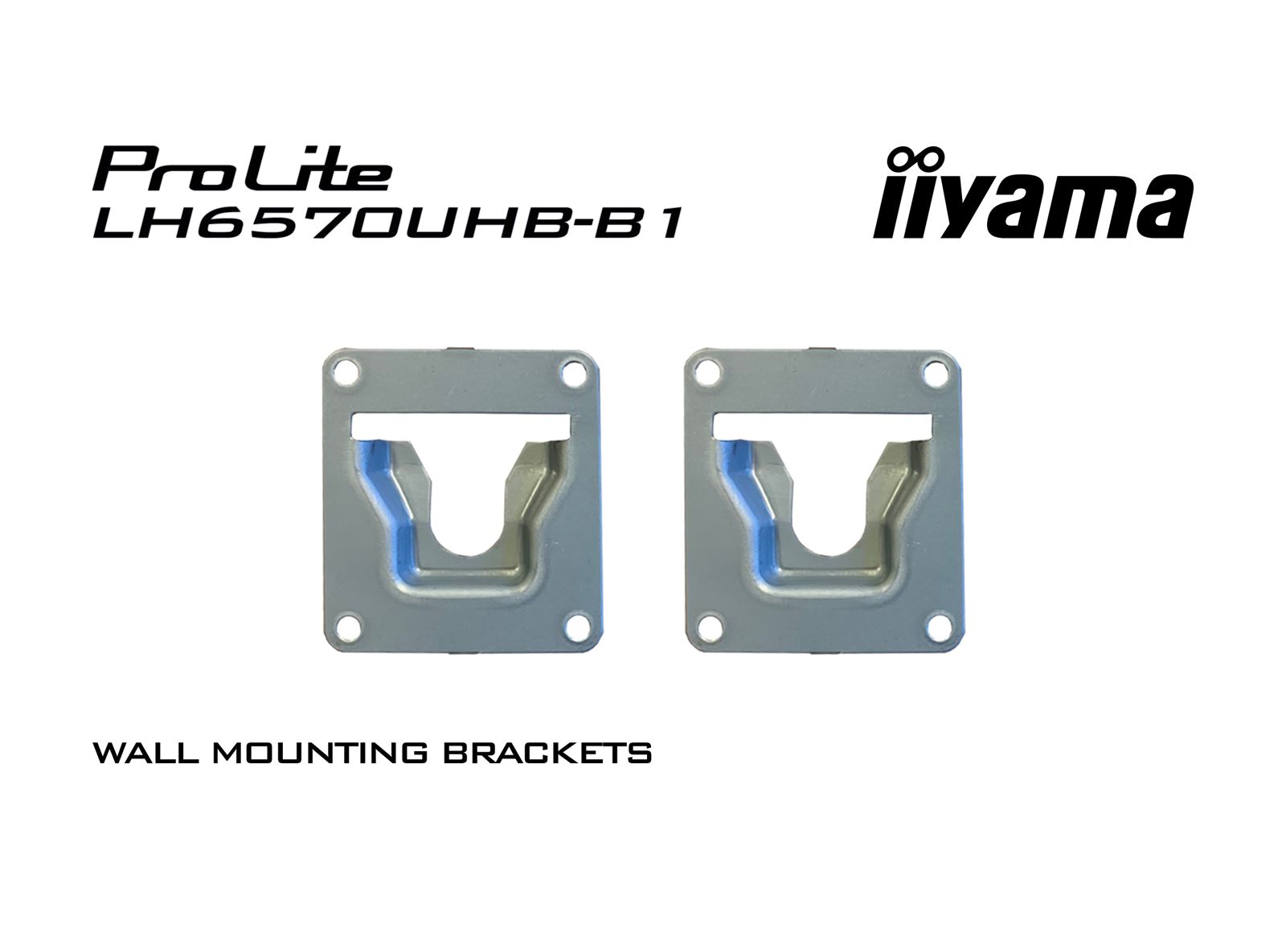

Other Wall mounting brackets, Stickers for screw holes, Adhesive clips for cable management

POWER MANAGEMENT

Power supply unit external
Power supply DC 24 V
Power usage 150W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) G

DIMENSIONS / WEIGHT

Product dimensions W x H x D 1456 x 831 x 35mm
Box dimensions W x H x D 1640 x 970 x 190mm
Pallet volume 12pcs
Weight (without box) 29kg
Weight (with box) 36kg
EAN code 4948570120512
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

AMVA3

AMVA3 technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.




AMVA3

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).




LAN CONTROL

ULTRA SLIM LINE

ULTRA SLIM LINE

24/7

24/7 displays are designed for a continuous operation.



24/7

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS
