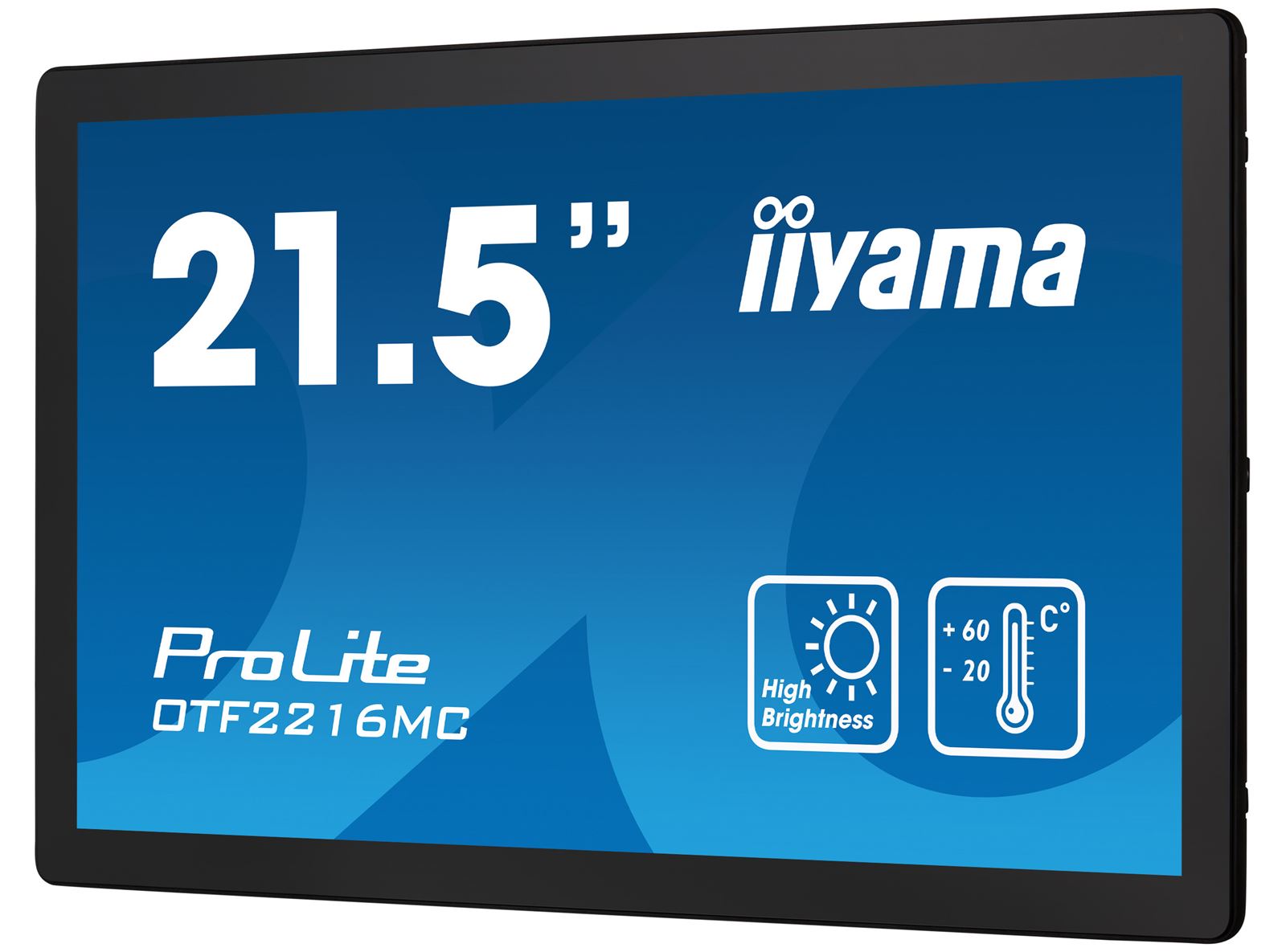

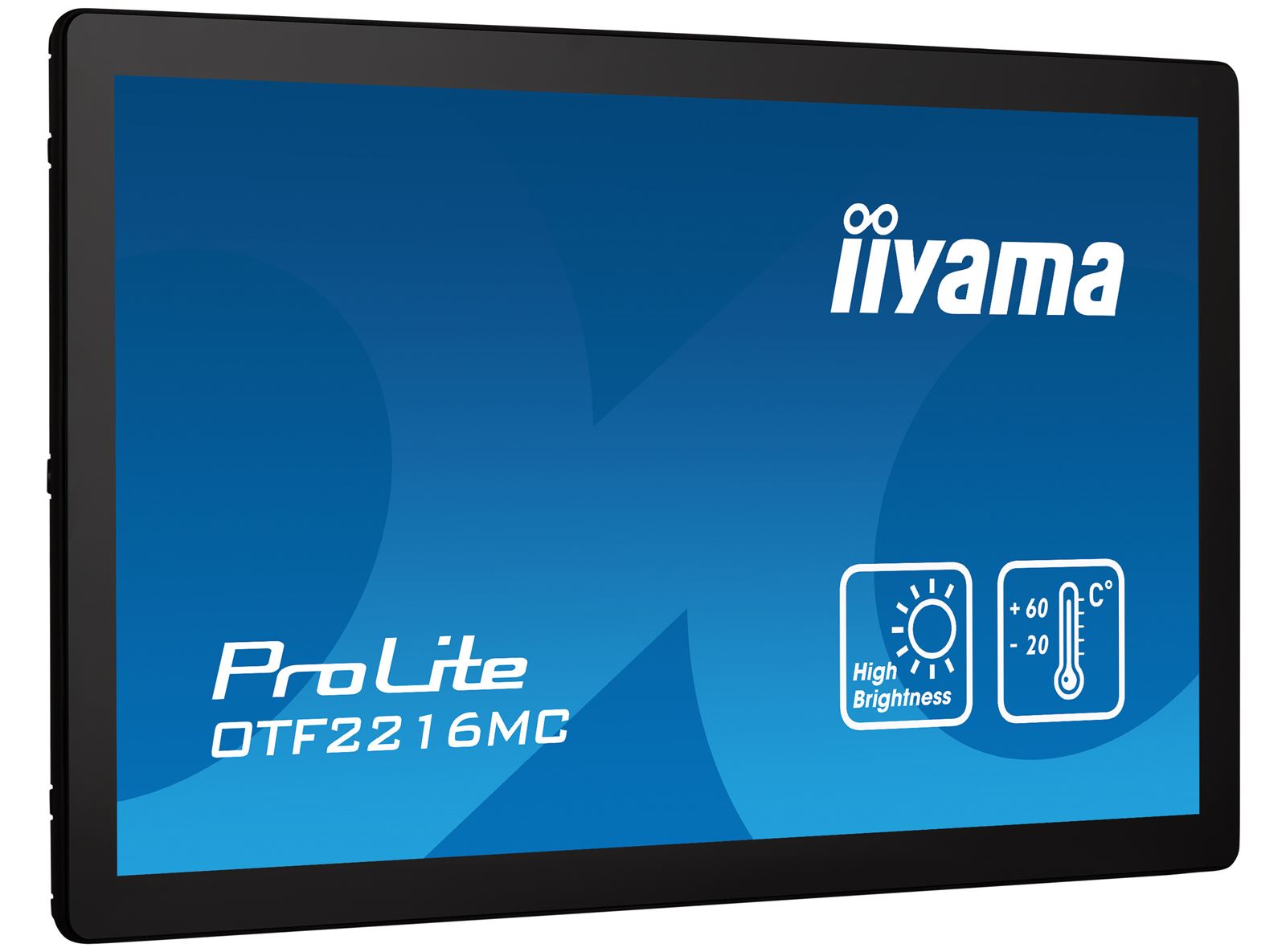

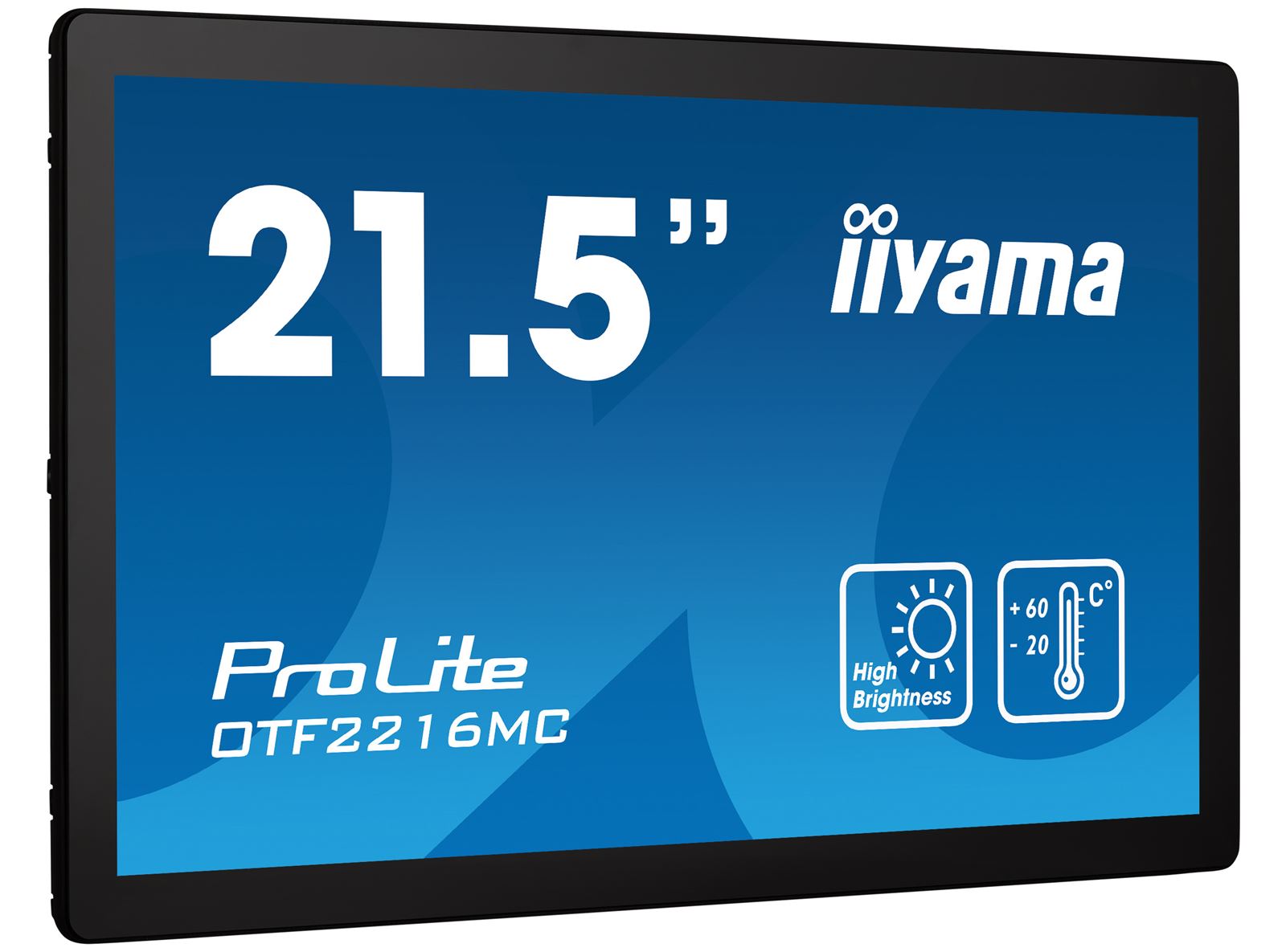

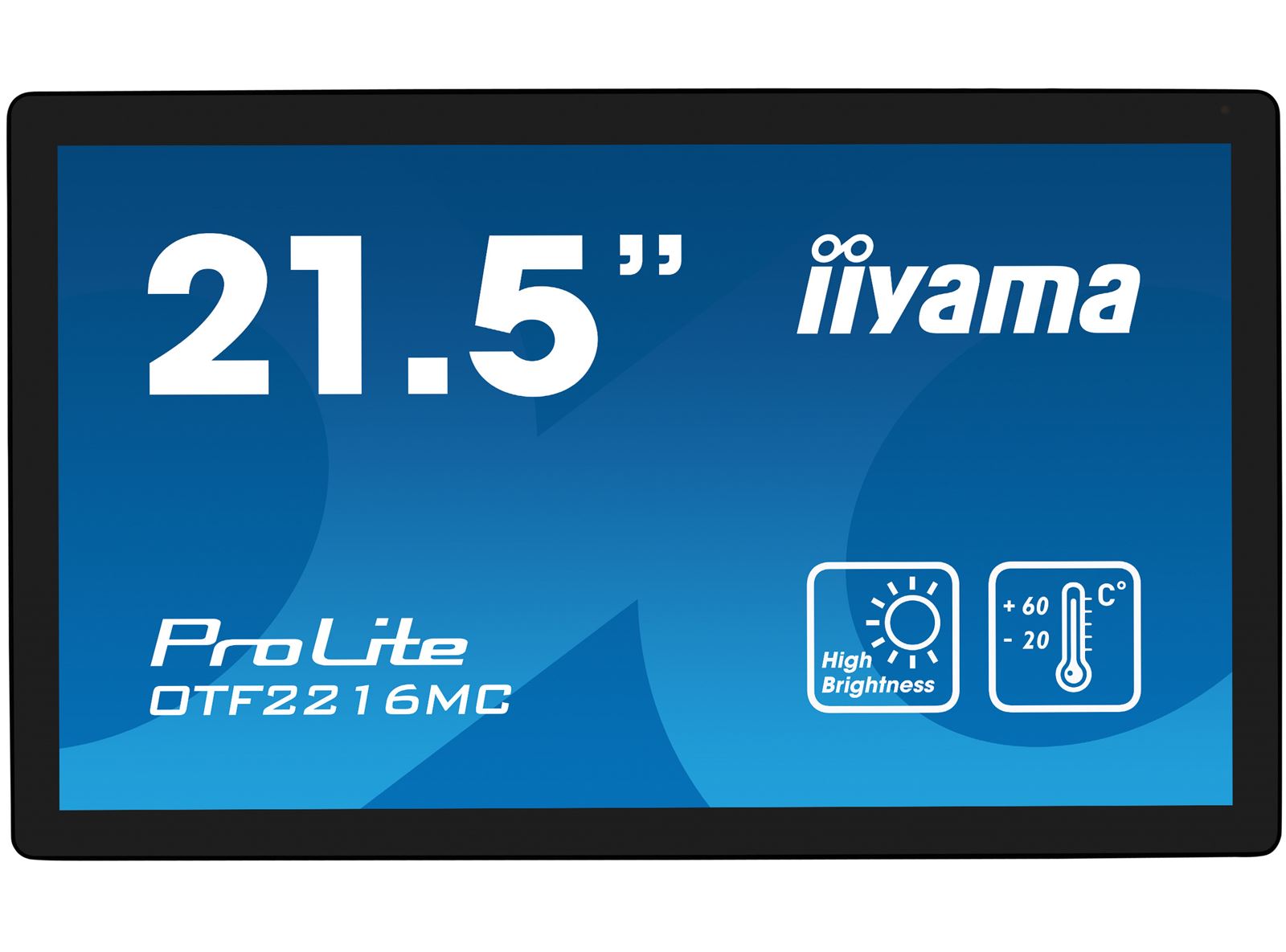

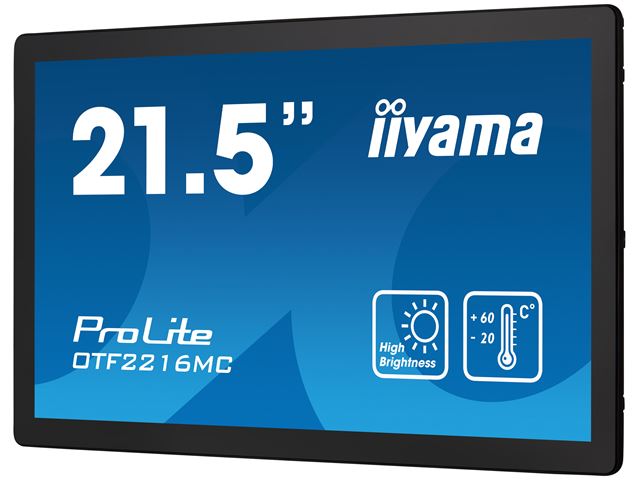

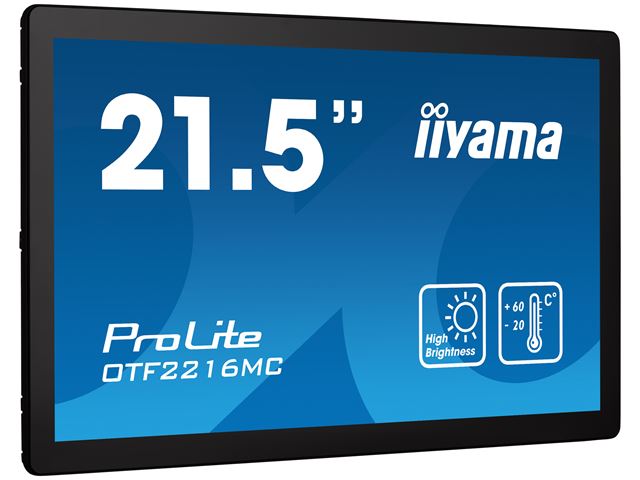

iiyama ProLite monitor OTF2216MC-B1 21.5", PCap 10pt touch for semi-outdoor applications, High Brightness, Smart sensors, Environmental Resistance, Scratch resistant, Anti-fingerprint coating, landscape/portrait/face-up

£842.60 exc. VAT
£1,011.12 inc. VAT

Brand: iiyama

Manufacturer Code: OTF2216MC-B1

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

21.5" high-brightness touchscreen with 10 touch points PCAP touch technology for semi-outdoor applications

Built into a rugged, edge-to-edge glass bezel the ProLite OTF2216MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20˚C up to +60˚C. The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF2216MC-B1 can be equipped with optional external mounting brackets (OMK3-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Technical Information

 DISPLAY CHARACTERISTICS

Design Open Frame
Diagonal 21.5", 54.6cm
Panel VA
Native resolution 1920 x 1080 @60Hz (2.1 megapixel)
Aspect ratio 16:9
Panel brightness 1100 cd/m²
Brightness 935 cd/m² with touch
Light transmittance 85%
Static contrast 5000:1
Response time (BTB) 25ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit
Horizontal Sync 31.4 - 82kHz
Viewable area W x H 477 x 269mm, 18.8 x 10.6"
Pixel pitch 0.248mm
Bezel colour and finish black

 TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes

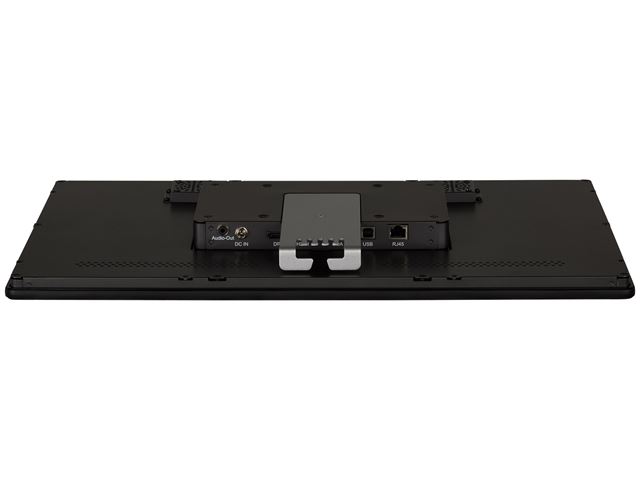

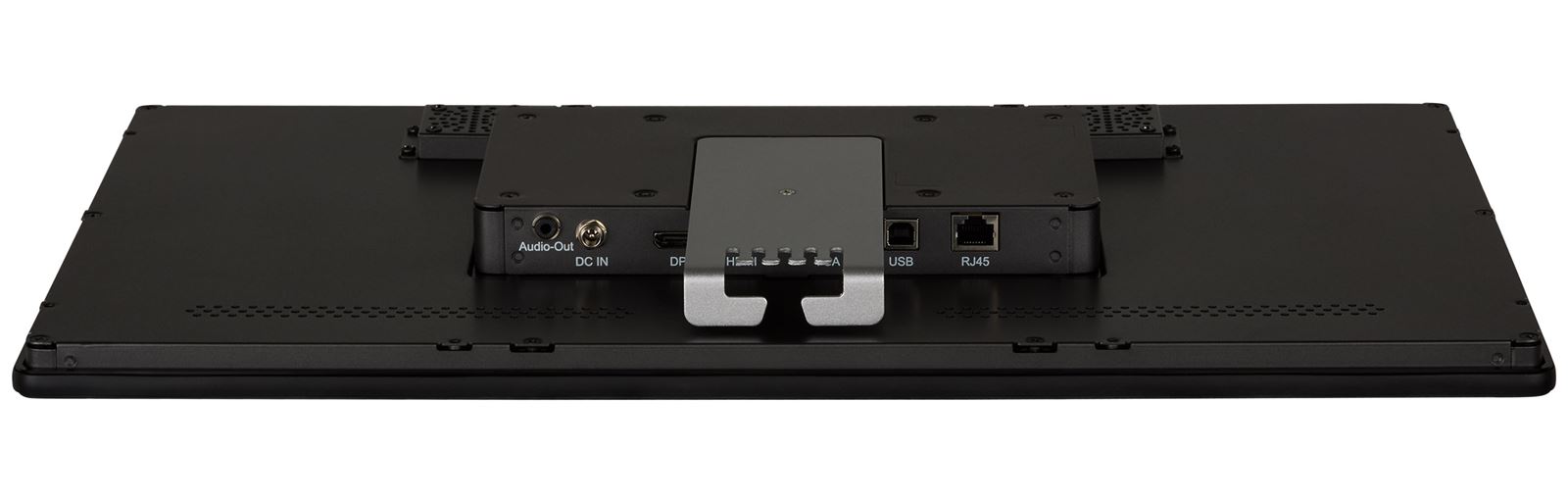

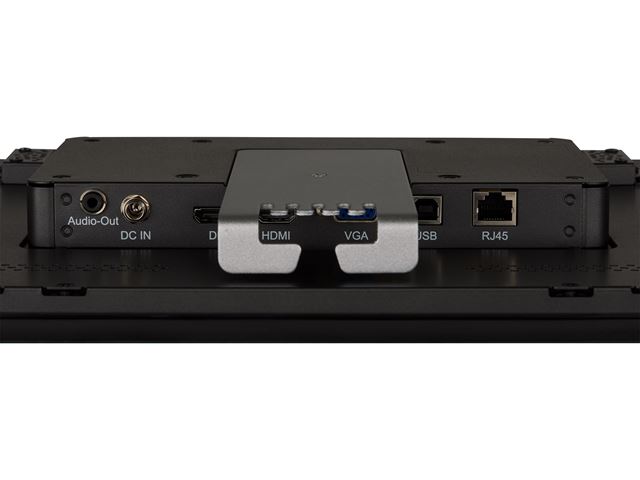

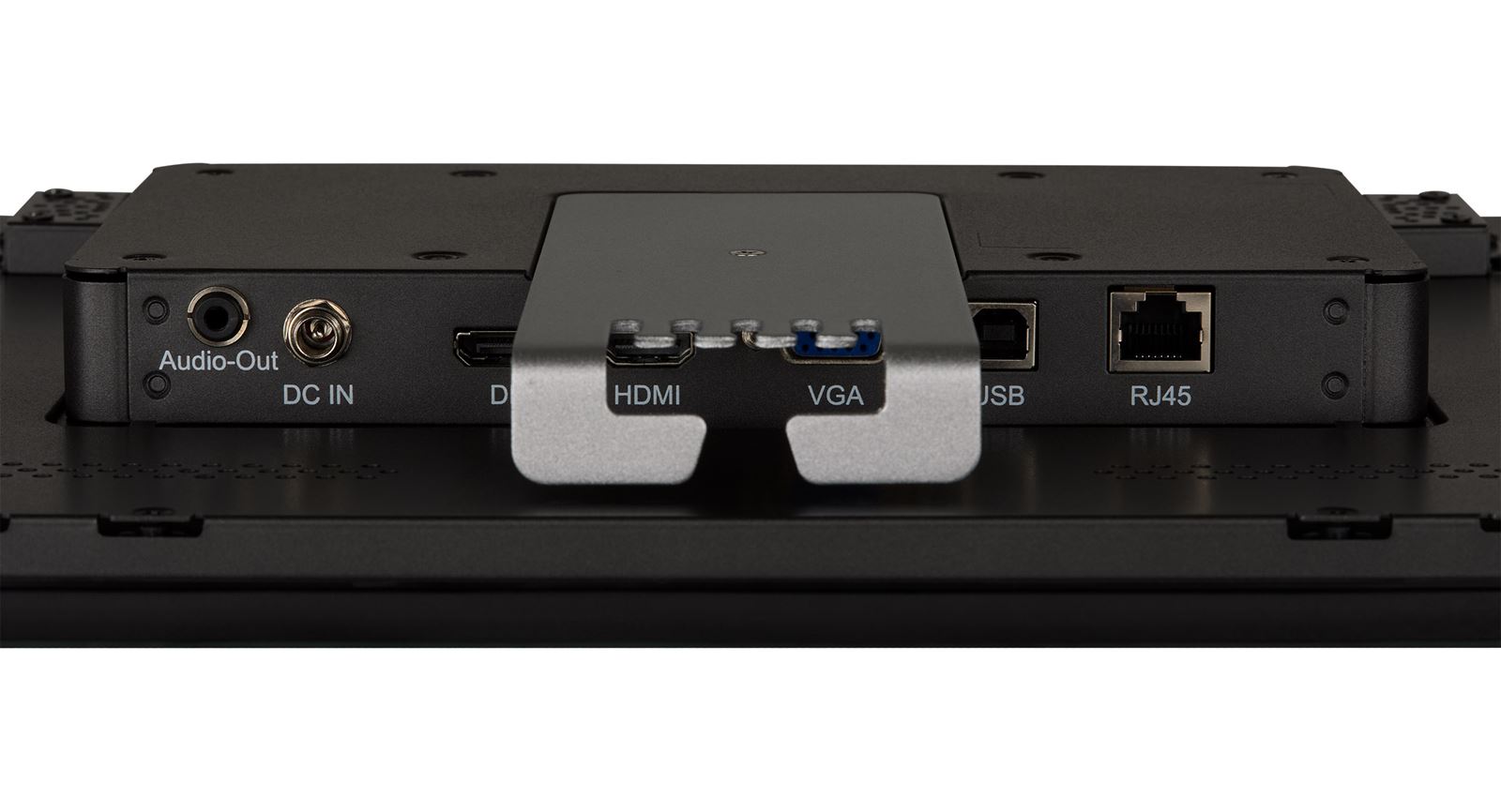

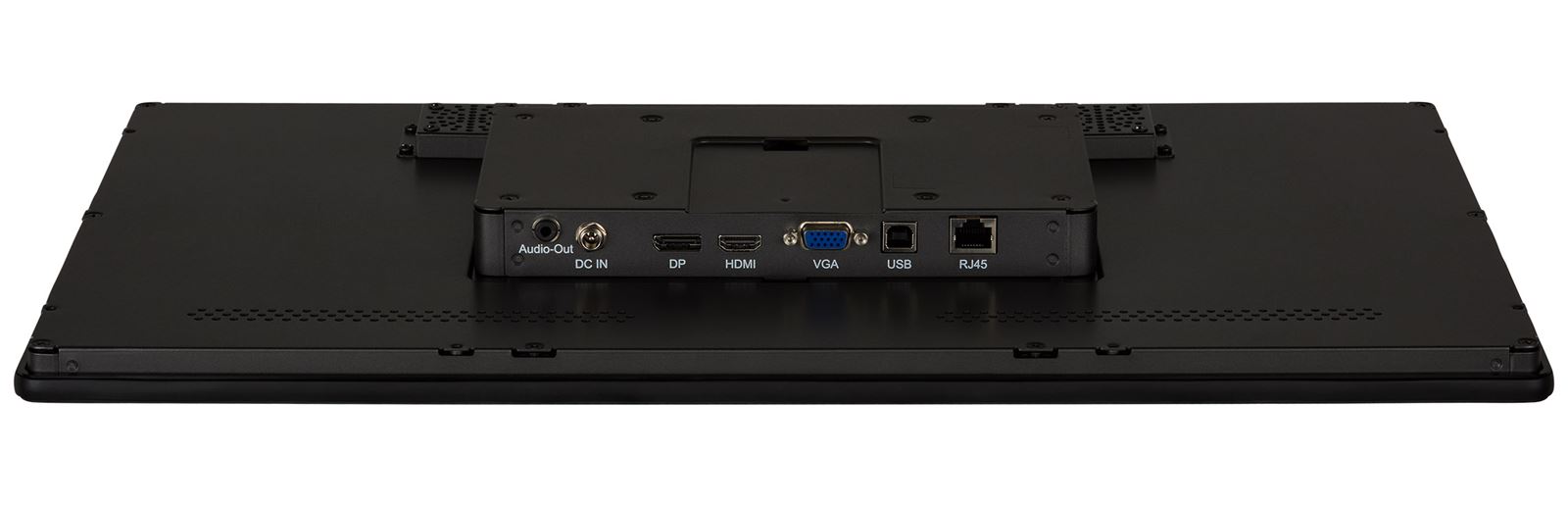

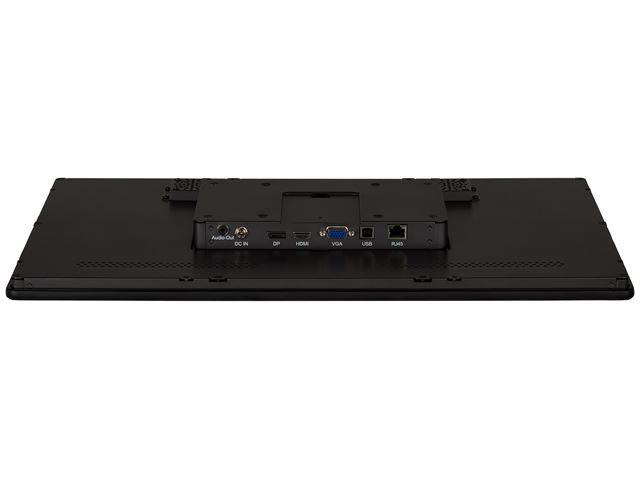

 INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Monitor control input RJ45 (LAN) x1
Audio output Mini jack x1
HDCP yes

 FEATURES

Extra anti-fingerprint coating, touch through-glass, UV resistance, ambient light sensor, proximity sensor, auto FAN control for cooling
Glass thickness 3.15mm
Glass hardness 7H
60950 Ball drop test yes
Water and dust protection IP65 (front)
Housing (bezel) metal
Water tight seal yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
User controls picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch, factory), option (reset, language, source select, display mode, fan control, presence sensor, ambient light sensor)
Plug&Play DDC2B

 MECHANICAL

Orientation landscape, portrait, face-up

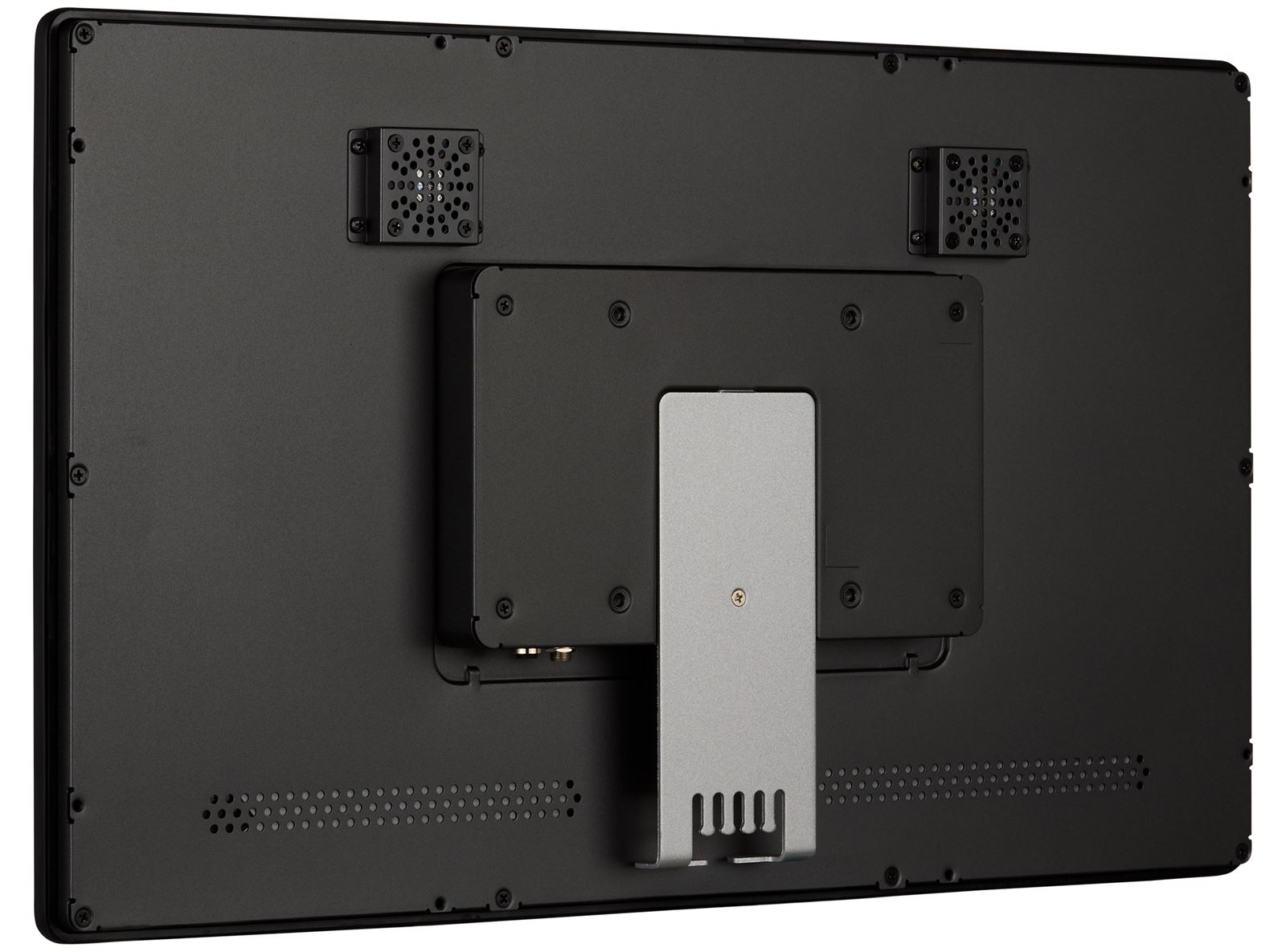

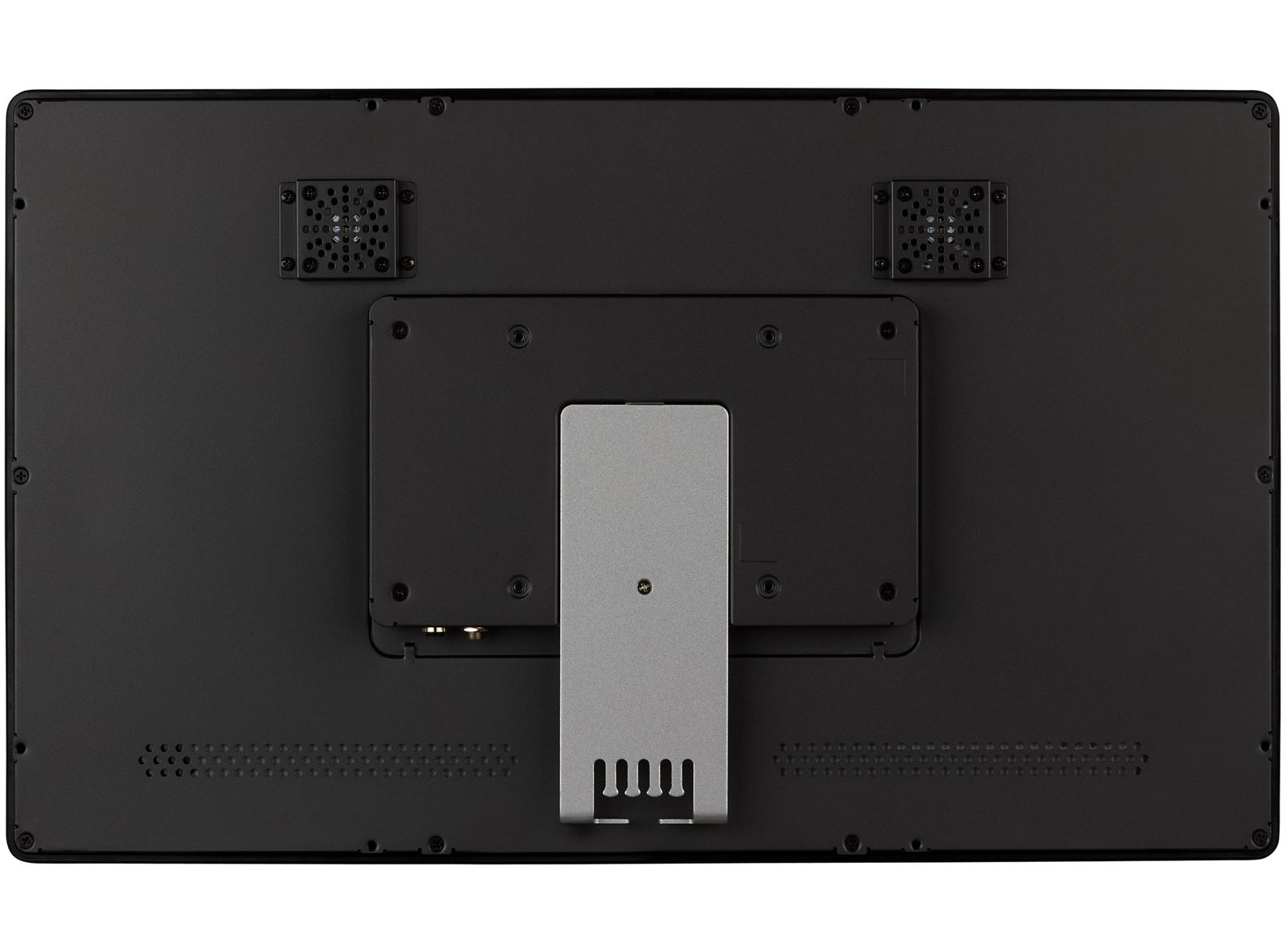

VESA mounting 100 x 100mm
Cable management system yes
Operation temperature range (-°/+°) -20°C - 60°C
MTBF 60000 hours

 ACCESSORIES INCLUDED

Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Other AC adapter
Cable cover yes

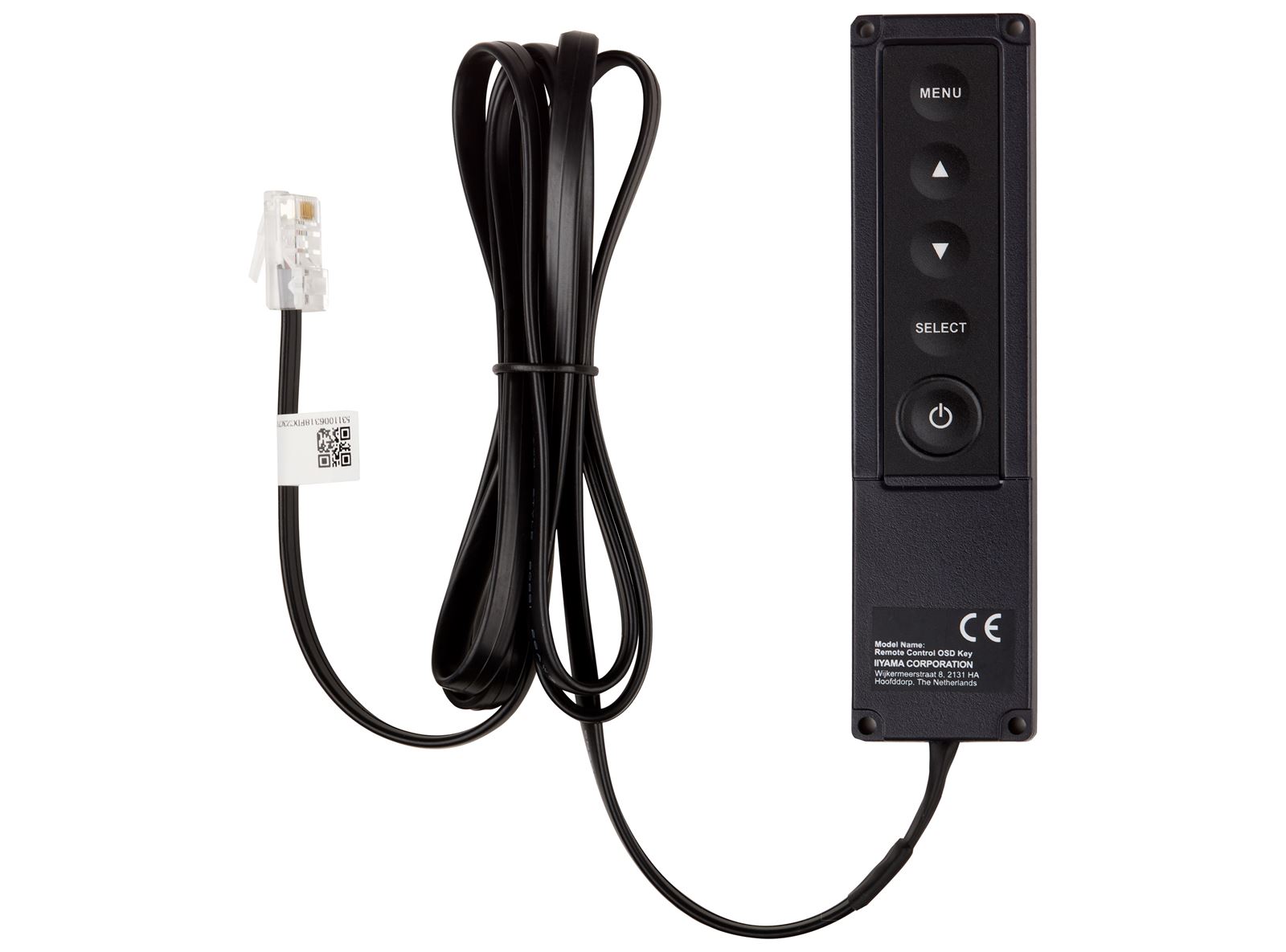

Remote control external control pad

 POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 43W typical, 1.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 520 x 315 x 42.5mm
Box dimensions W x H x D 608 x 400 x 150mm
Weight (without box) 4.6kg
Weight (with box) 4.5kg
EAN code 4948570123735
Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SCRATCH RESISTANCE

VA MATRIX

VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


VA MATRIX

OPEN FRAME LFD

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.

OPEN FRAME LFD
