£290.00 exc. VAT
£348.00 inc. VAT

Brand: iiyama

Manufacturer Code: S2225AS-B1P

Warranty: 3 year onsite swap out

Product Description

rofessional Grade Small Format Signage, optimised with on-board iiSignage² Content Management System

The ProLite S2225AS-B1P is a 21.5” Android-based display created specifically for reliable content playback in professional environments. This specialist signage display is ideal for supermarkets, retail stores and public spaces where clear, continuous visual communication is required. The Full HD IPS panel with 500cd/m² brightness ensures excellent visibility, while Power over Ethernet (PoE) allows for a simple and efficient installation using a single cable for power and data.

iiyama guarantees compatibility with this platform for a minimum of 5 years, ensuring long-term reliability and peace of mind for professional installations.

Technical Information

 DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 21.5", 54.6cm
Panel IPS, Anti-Glare, Hard Coating(3H), haze 25%
Native resolution 1920 x 1080 (2 megapixel HD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Static contrast 1500:1
Response time (GTG) 14ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln
Horizontal Sync 31 - 83kHz
Viewable area W x H 476.1 x 267.8mm, 18.7 x 10.5"
Pixel pitch 0.284mm
Bezel colour and finish black, matte

 INTERFACES / CONNECTORS / CONTROLS

Monitor control input RJ45 (LAN) x1 ((PoE x IEEE802.3at/72W (1000M)))
Digital signal output USB-C x1 (5Gbps, video output only)
Audio output Speakers 2 x 5W
USB ports x2 (1x 2.0 (DC5V, 500mA), 1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA))
RJ45 (LAN) x1 (10M/100M/1000M)
Microphone x1

 FEATURES

Integrated software Android 14, OS, iiSignage²
WiFi yes (802.11ax/ac/a/b/g/n)
Hardware CPU: RK3576 Octo-core, GPU: G52 MC3, RAM: 4GB, ROM: 32GB
Extra Bluetooth 5.3, PoE
Max. non-stop operating time 24/7

 GENERAL

Control buttons Power switch, Volume

 MECHANICAL

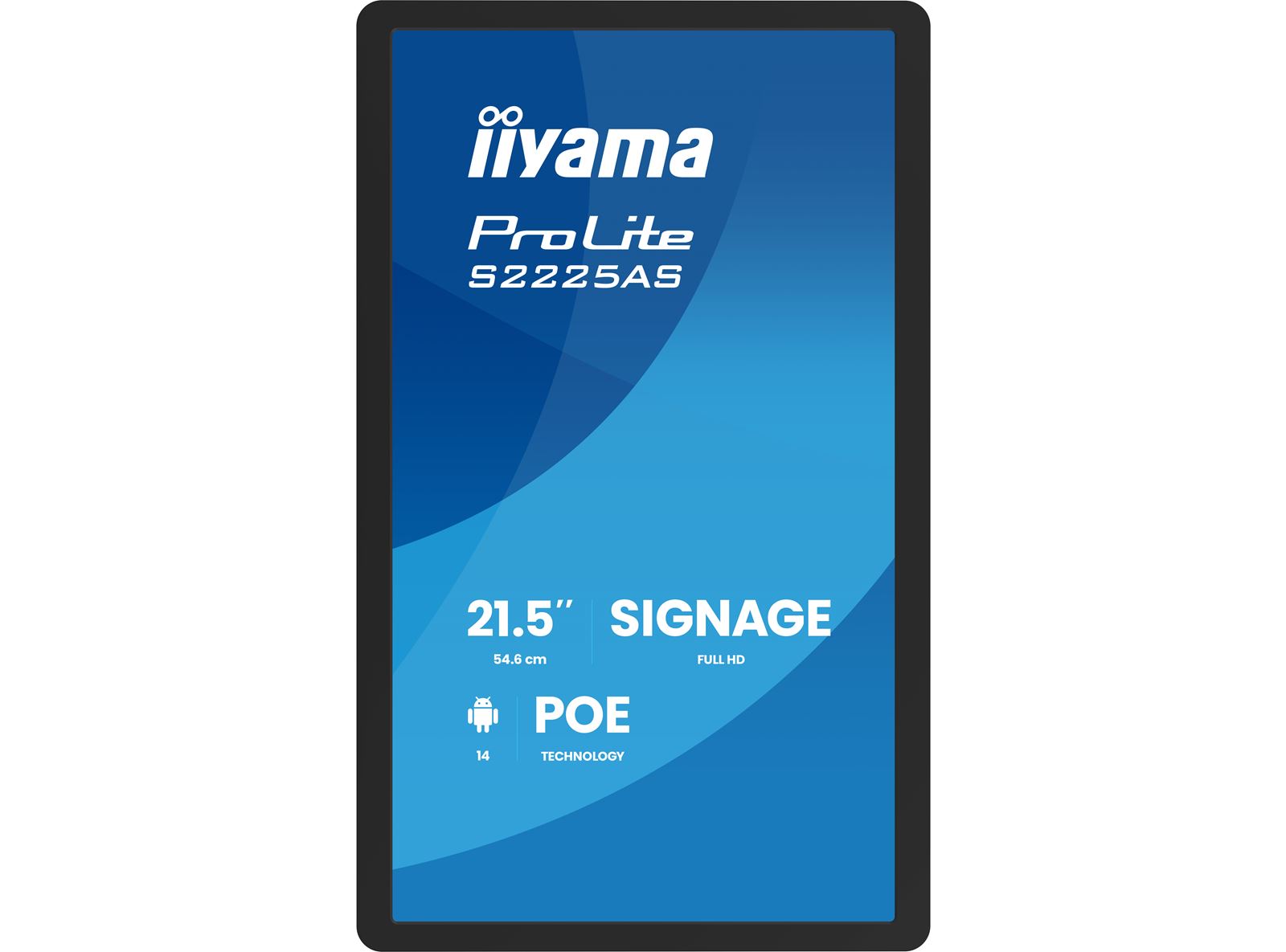

Orientation landscape, portrait, face-up
VESA mounting 100 x 100mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50000 hours (excluding backlight)

 ACCESSORIES INCLUDED

Cables power (1.8m)

 POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 17.5W typical, 14W stand by, 3.5W off mode

 SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 510.5 x 308.5 x 33.5mm
Box dimensions W x H x D 578 x 374 x 123mm
Weight (without box) 2.80kg
EAN code 4948570127177
Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

FULL HD

With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.


FULL HD

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

LED-backlit

A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.

LED-backlit

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).




LAN CONTROL

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS
