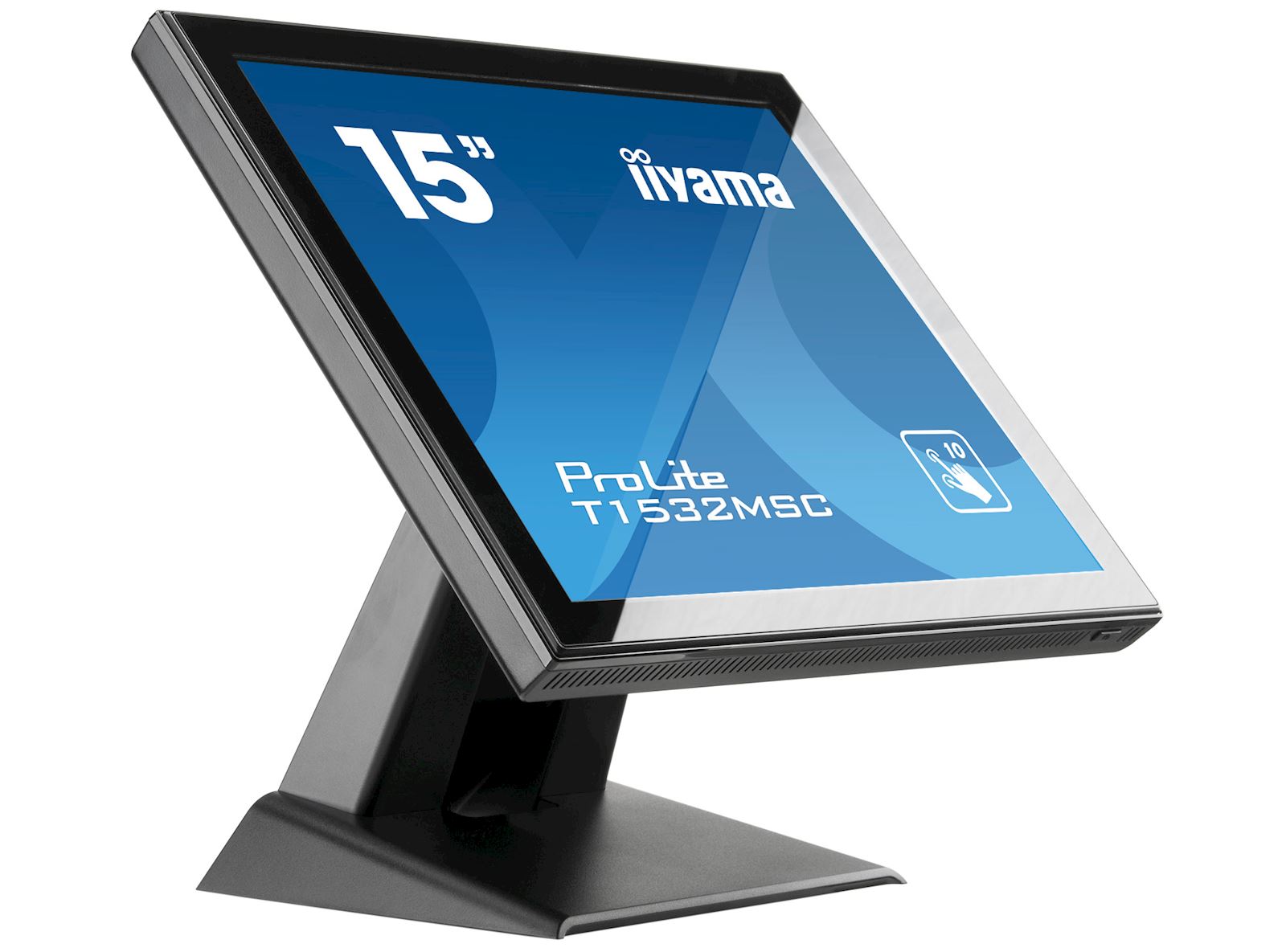

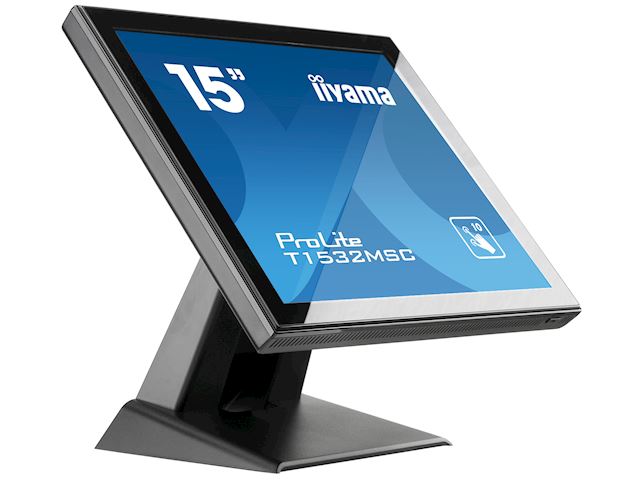

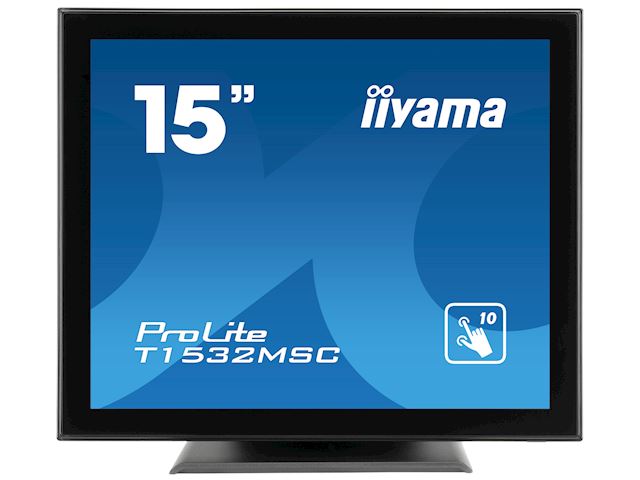

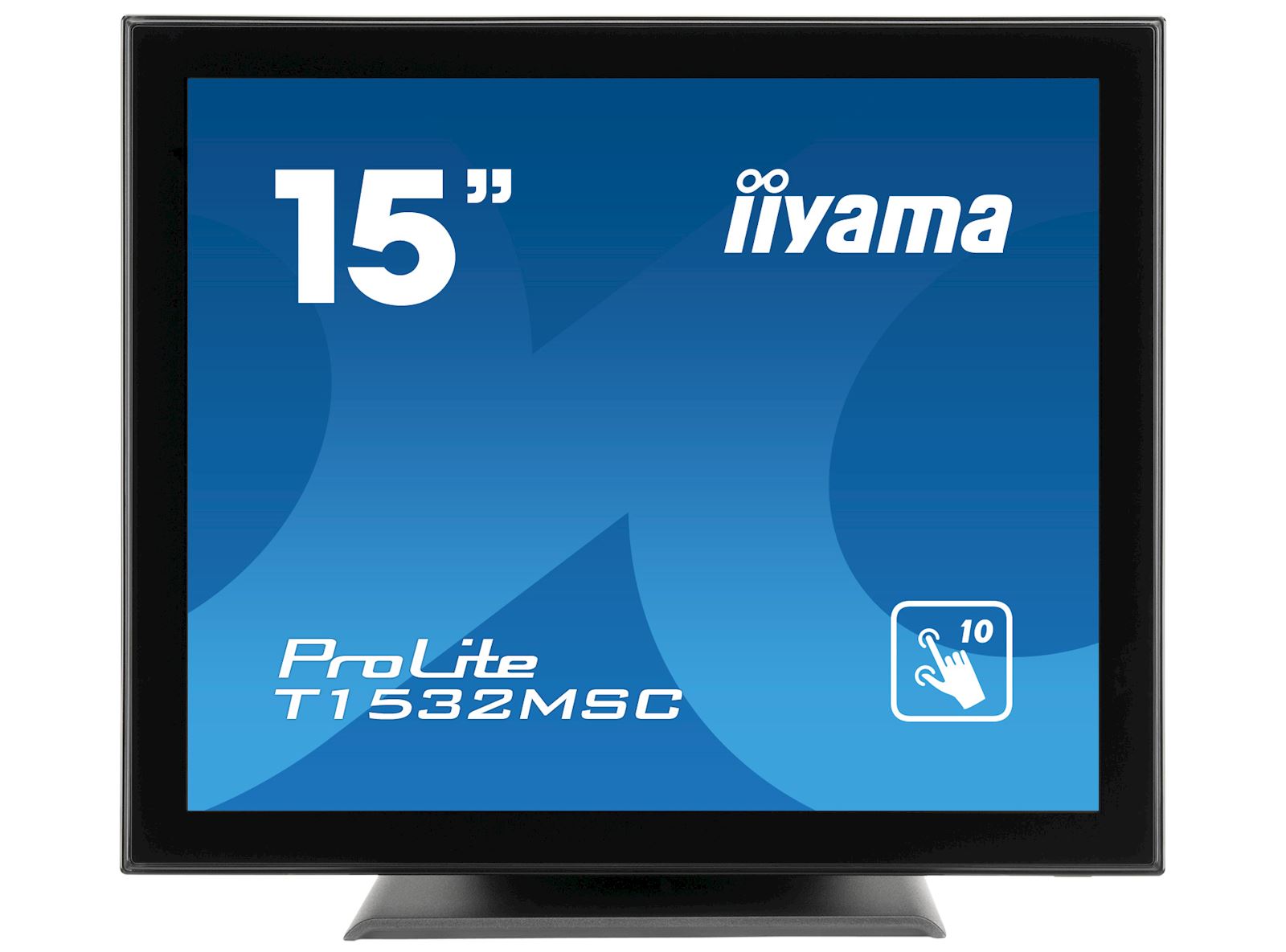

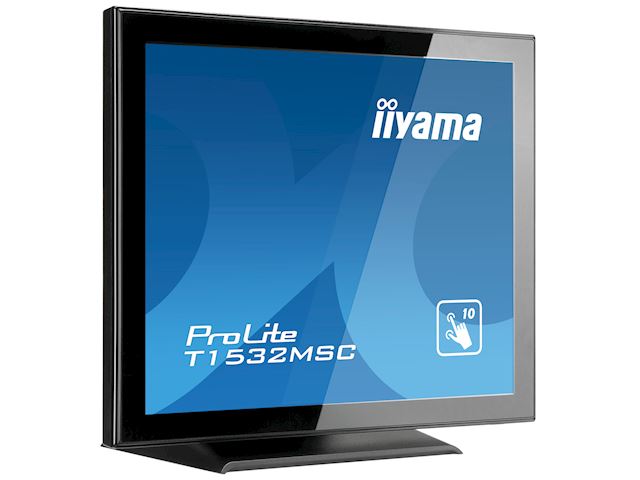

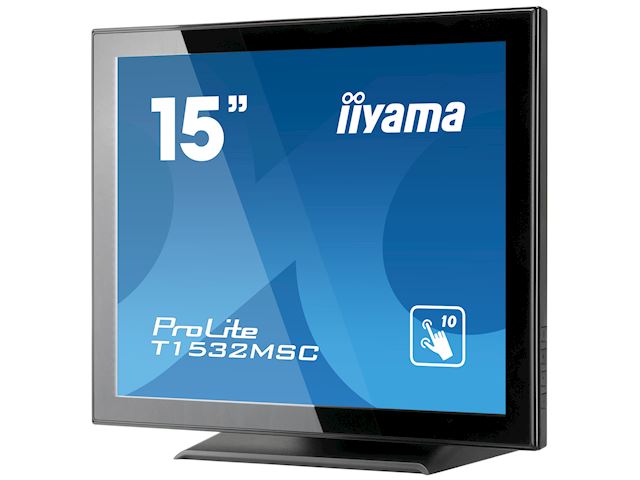

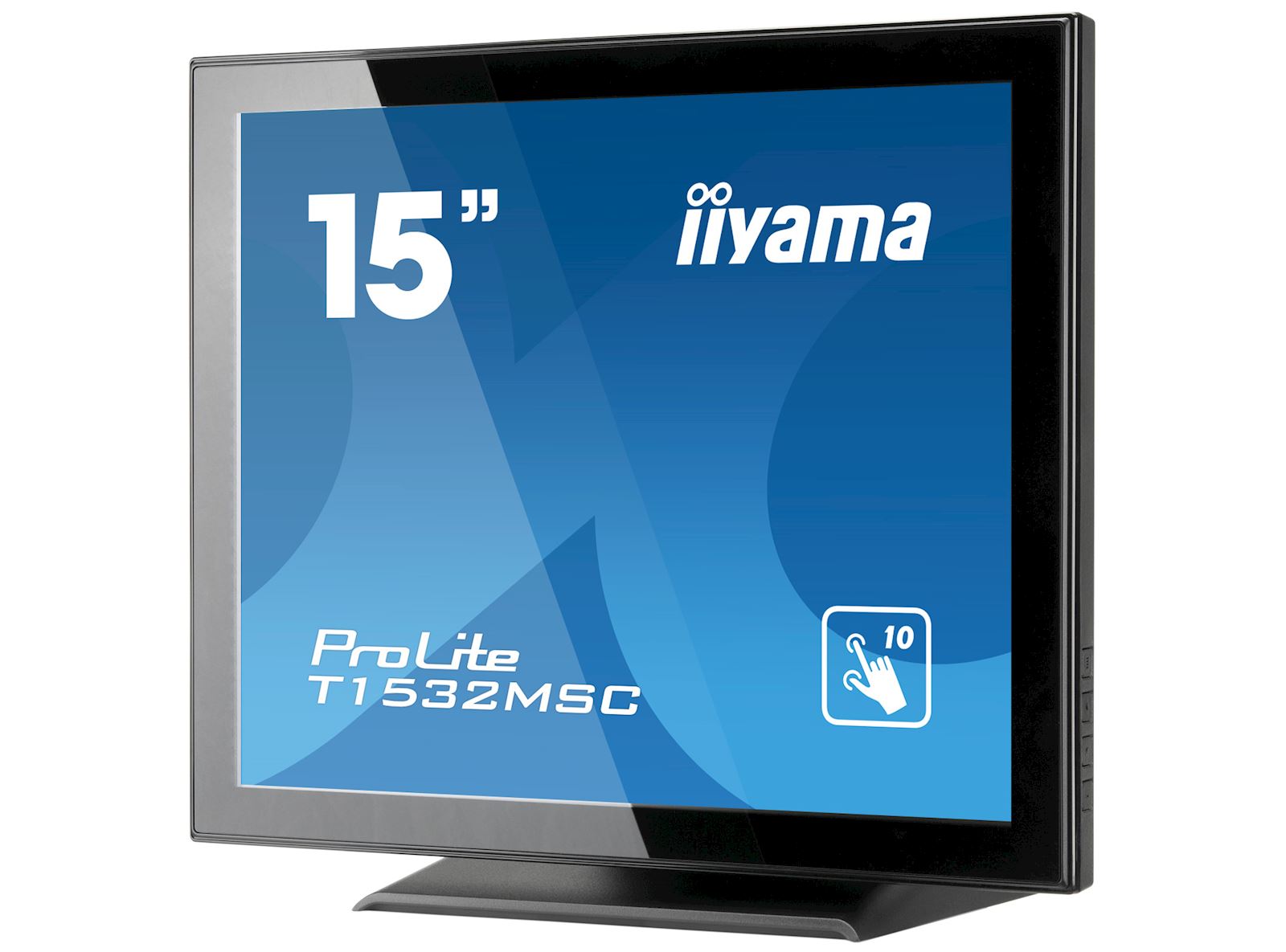

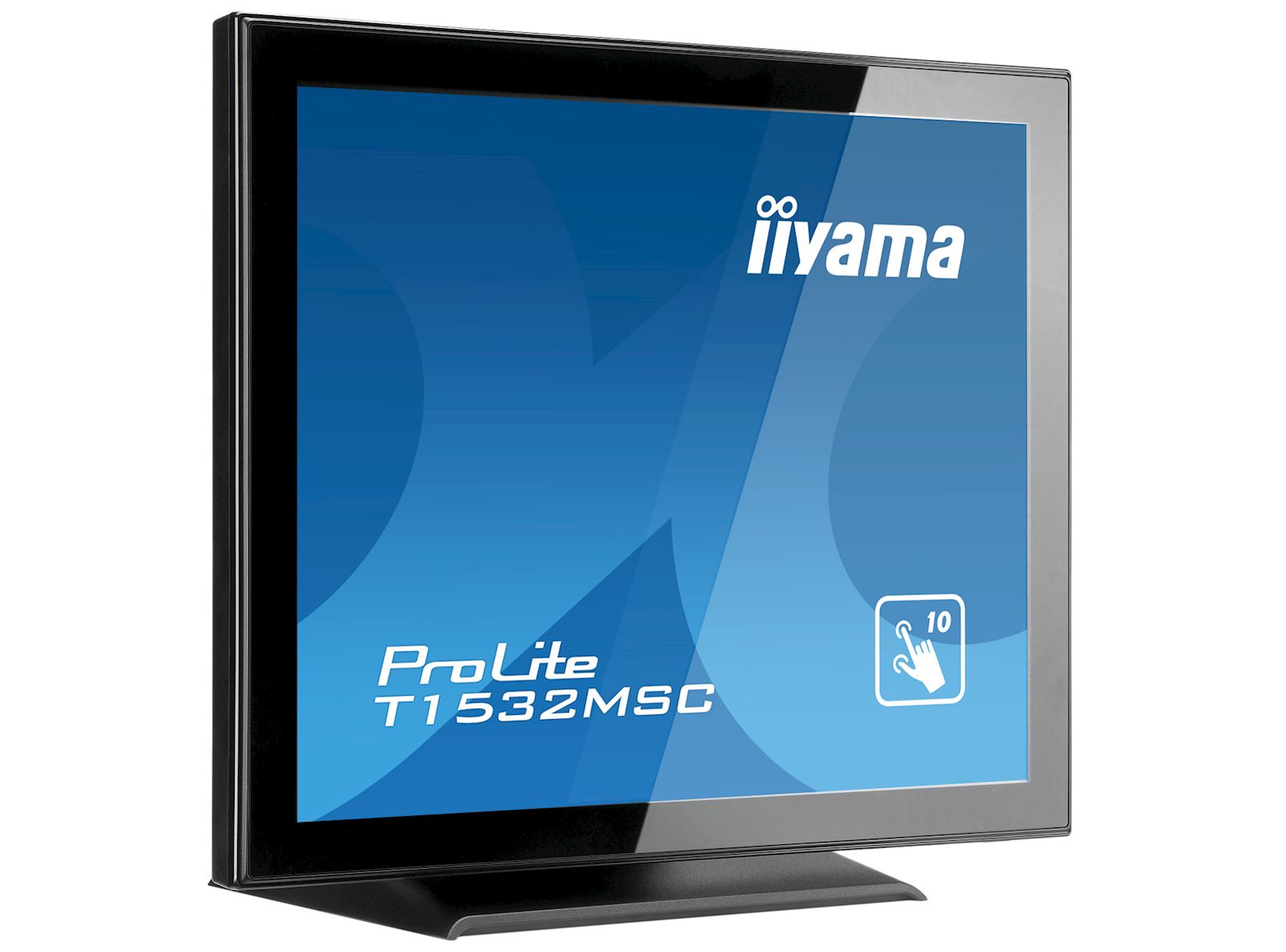

iiyama ProLite monitor T1532MSC-B5AG 15", Black, Projective Capacitive 10pt touch, edge to edge glass, Anti-glare coating, scratch resistant, HDMI, DisplayPort

£358.60 exc. VAT
£430.32 inc. VAT

Brand: iiyama

Manufacturer Code: T1532MSC-B5AG

Product Description

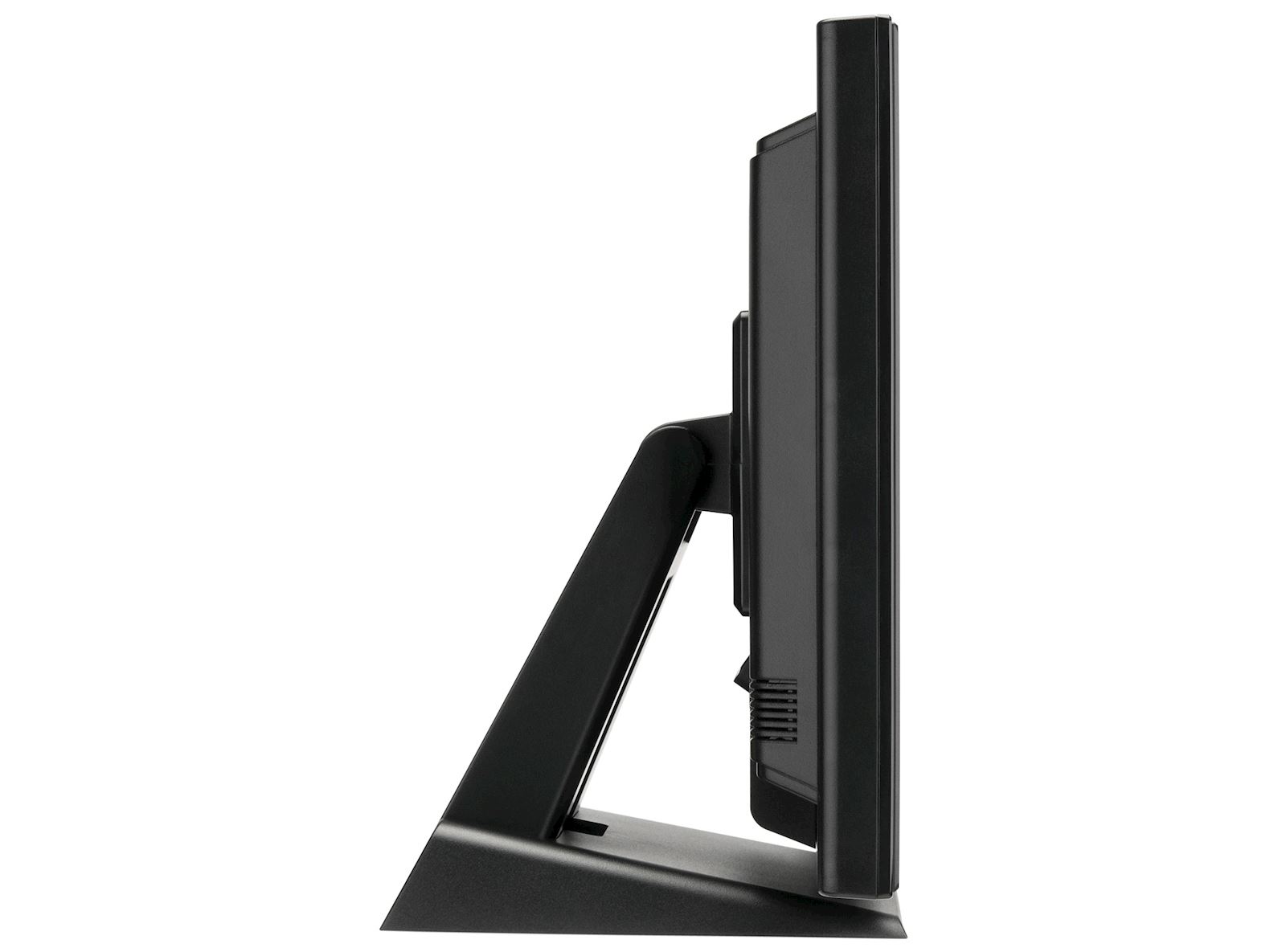

The ProLite T1532MSC 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the TouchScreen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the TouchScreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.

Technical Information

DISPLAY CHARACTERISTICS

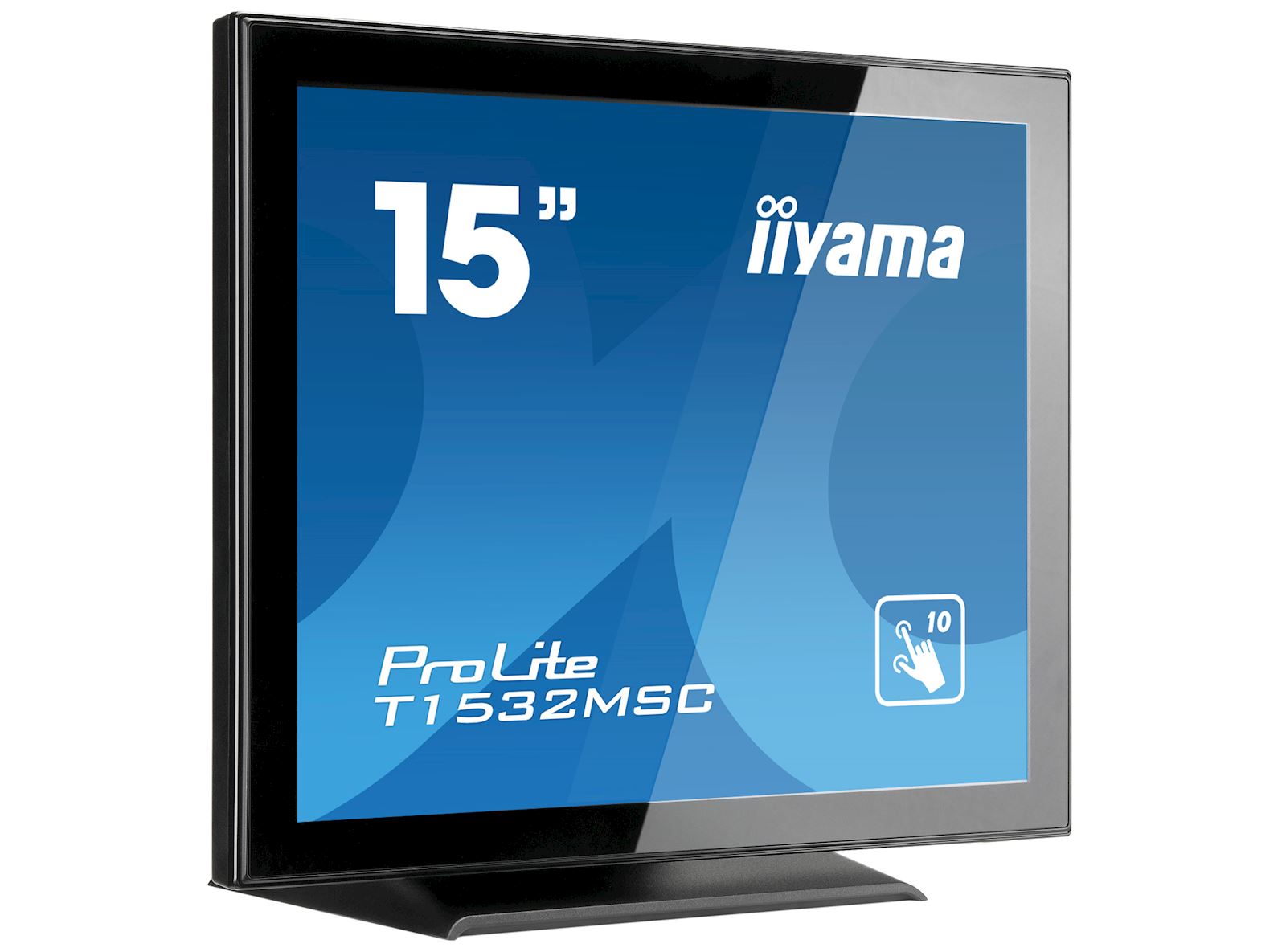

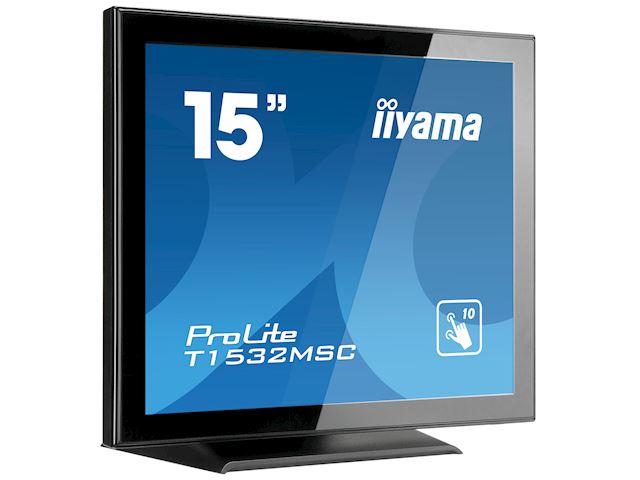

Design Edge to edge glass
Diagonal 15", 38cm
Panel TN LED, AG coated glass
Native resolution 1024 x 768 (0.8 megapixel)
Aspect ratio 4:3
Brightness 370 cd/m² typical
Brightness 315 cd/m² with touch
Static contrast 700:1 with touch
Light transmittance 85%
Response time 8ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.2mln (6bit + Hi-FRC)
Horizontal Sync 31,4 - 60KHz
Vertical Sync 56 - 75Hz
Viewable area W x H 304.1 x 228.1mm, 12 x 9"
Pixel pitch 0.297mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio output Speakers 2 x 1W
HDCP yes

FEATURES

Water and dust protection IP54 (front)
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Mute, Select/ Auto, Power
User controls contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
Convenience Kensington-lock™ prepared
Plug&Play DDC2B

MECHANICAL

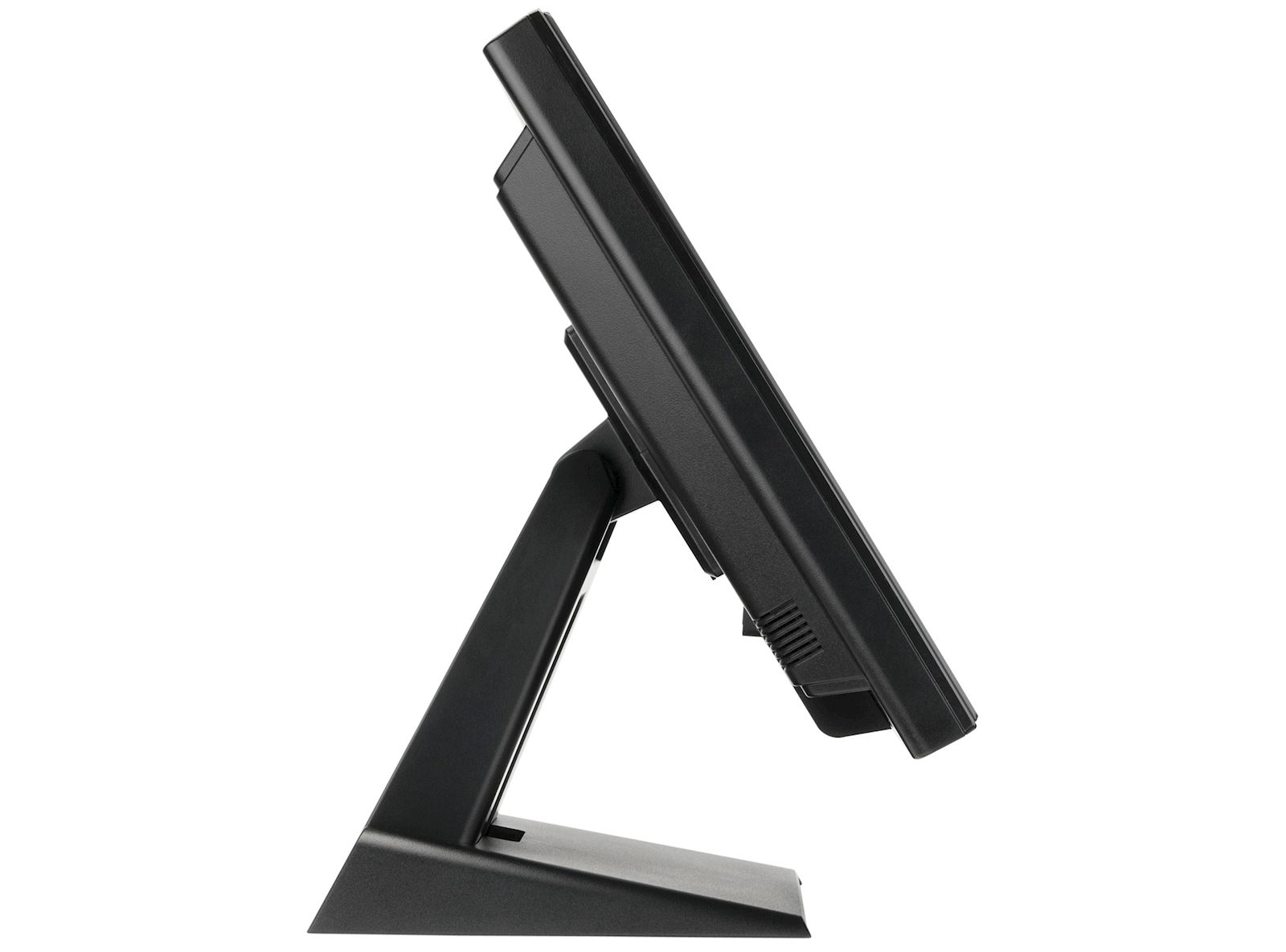

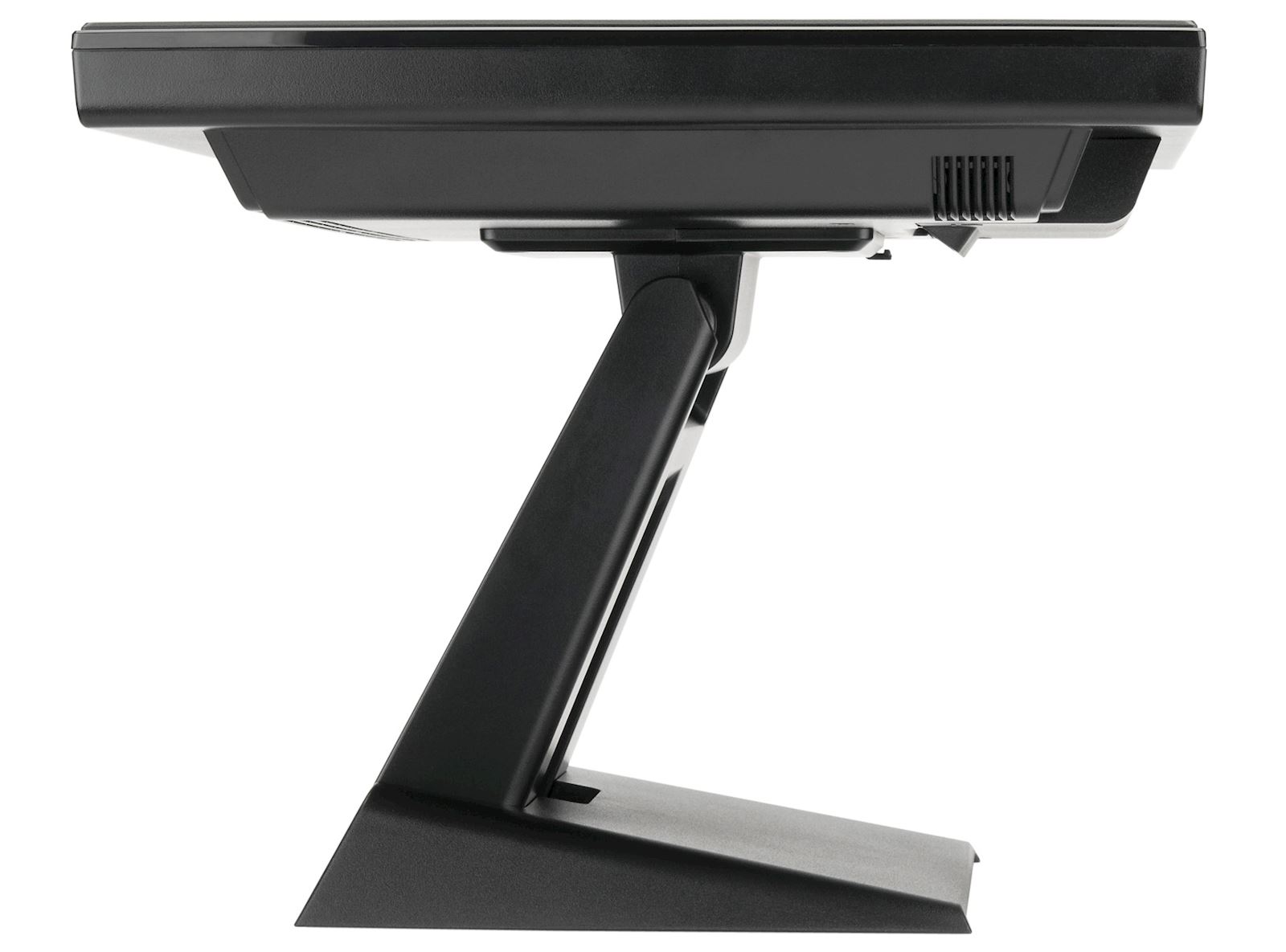

Tilt angle 90° up; 5° down

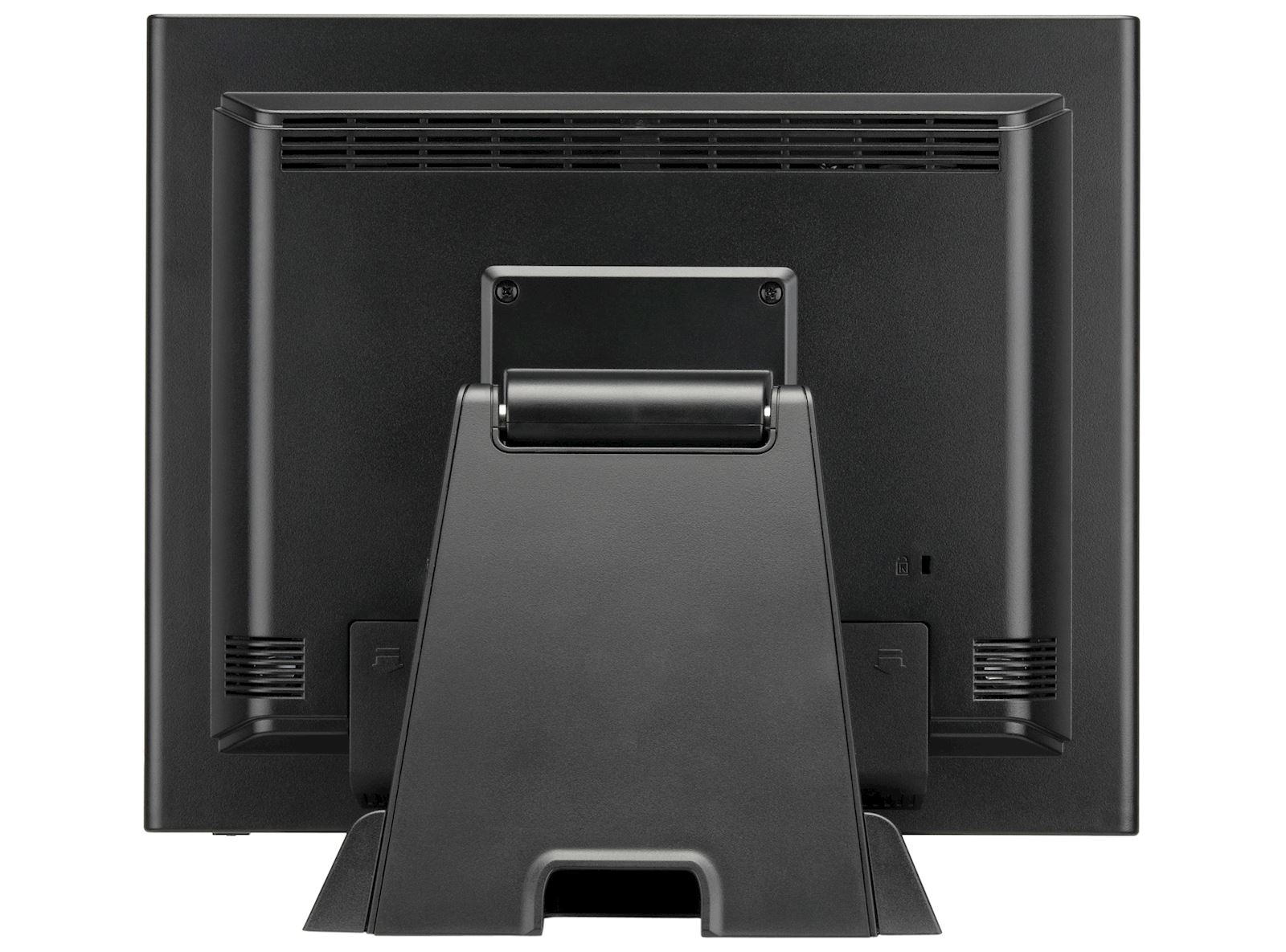

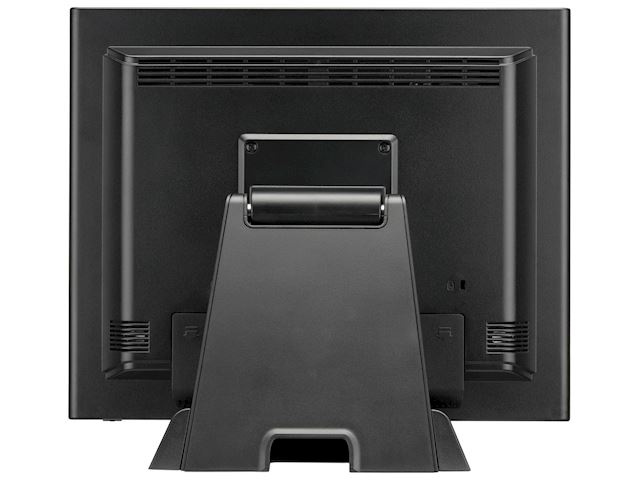

VESA mounting 100 x 100mm
Cable management system yes

ACCESSORIES INCLUDED

Cables power, USB, HDMI, Audio, DP
Guides quick start guide, safety guide
Other Touch Panel Driver Disk (CD-ROM)
Cable cover yes

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 16W typical, 2W stand by, 2W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, CU, cULus, VCCI
Energy efficiency class B
Other REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 351 x 306.5 x 202mm
Weight (without box) 4.5kg
EAN code 4948570115990

EU ENERGY EFFICIENCY LABEL

Manufacturer iiyama
Model ProLite T1532MSC-B5AG
Energy efficiency class B
Visible screen diagonal 38cm; 15"; (15" segment)
ON mode power consumption 15.7W
Annual energy consumption 23kWh/annum*
Power in Standby 2W stand by
Resolution 1024 x 768
Features

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

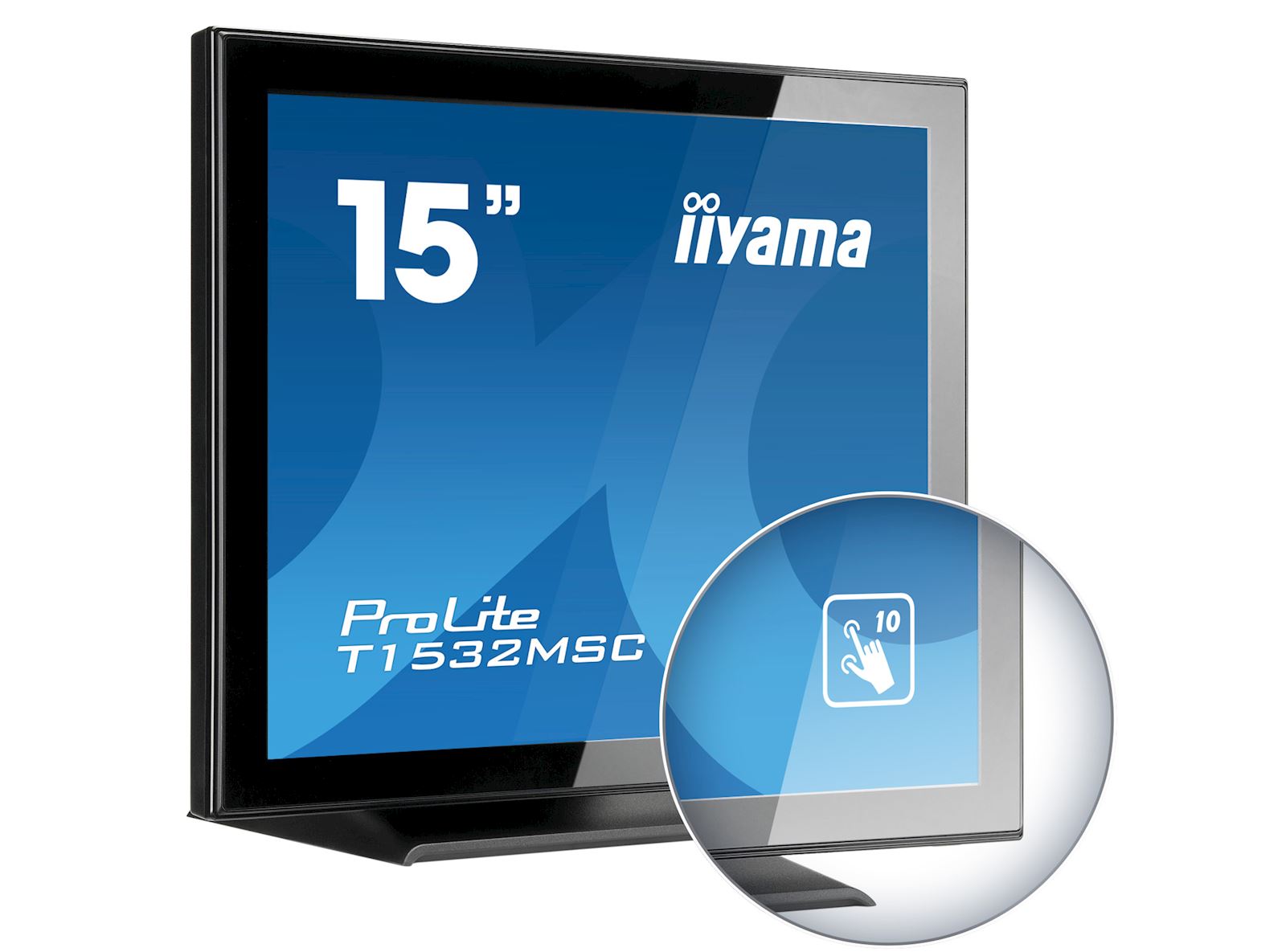

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SCRATCH RESISTANCE

IP54

The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

IP54

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING
