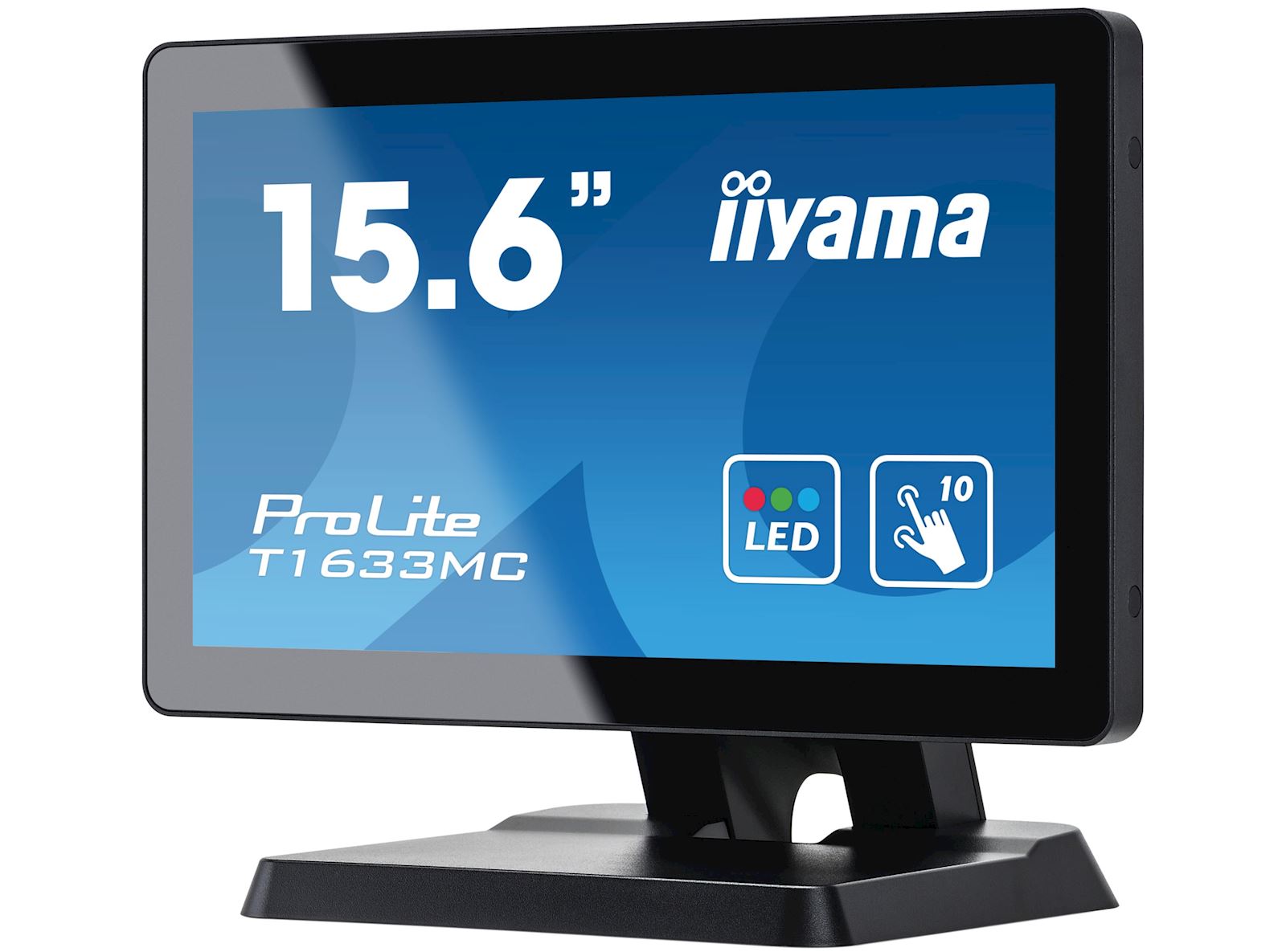

iiyama ProLite monitor T1633MC-B1 15.6", Projective Capacitive 10pt touch, edge to edge glass, HDMI, DisplayPort, USB Hub, scratch resistant

£303.60 exc. VAT
£364.32 inc. VAT

Brand: iiyama

Manufacturer Code: T1633MC-B1

Product Description

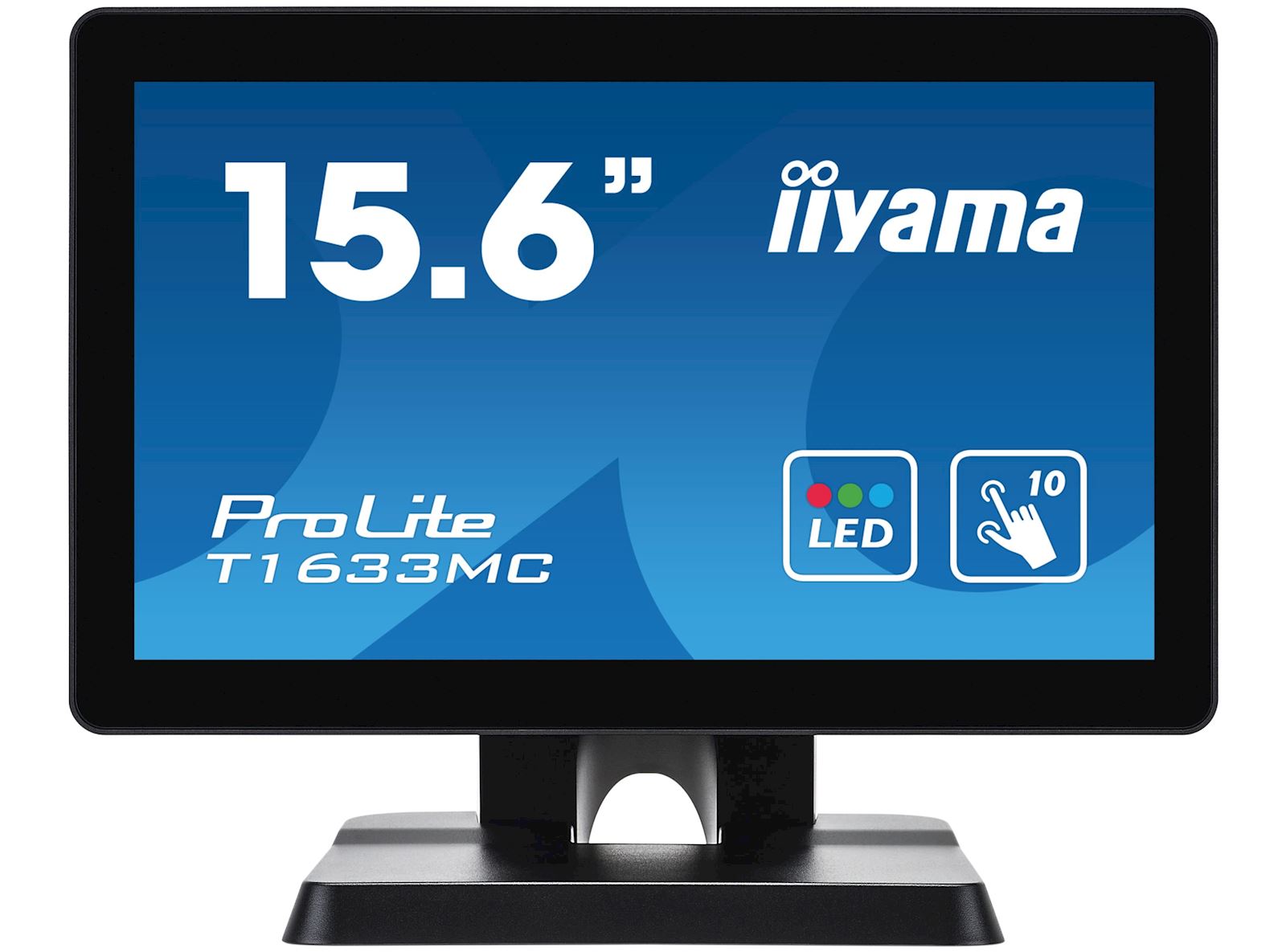

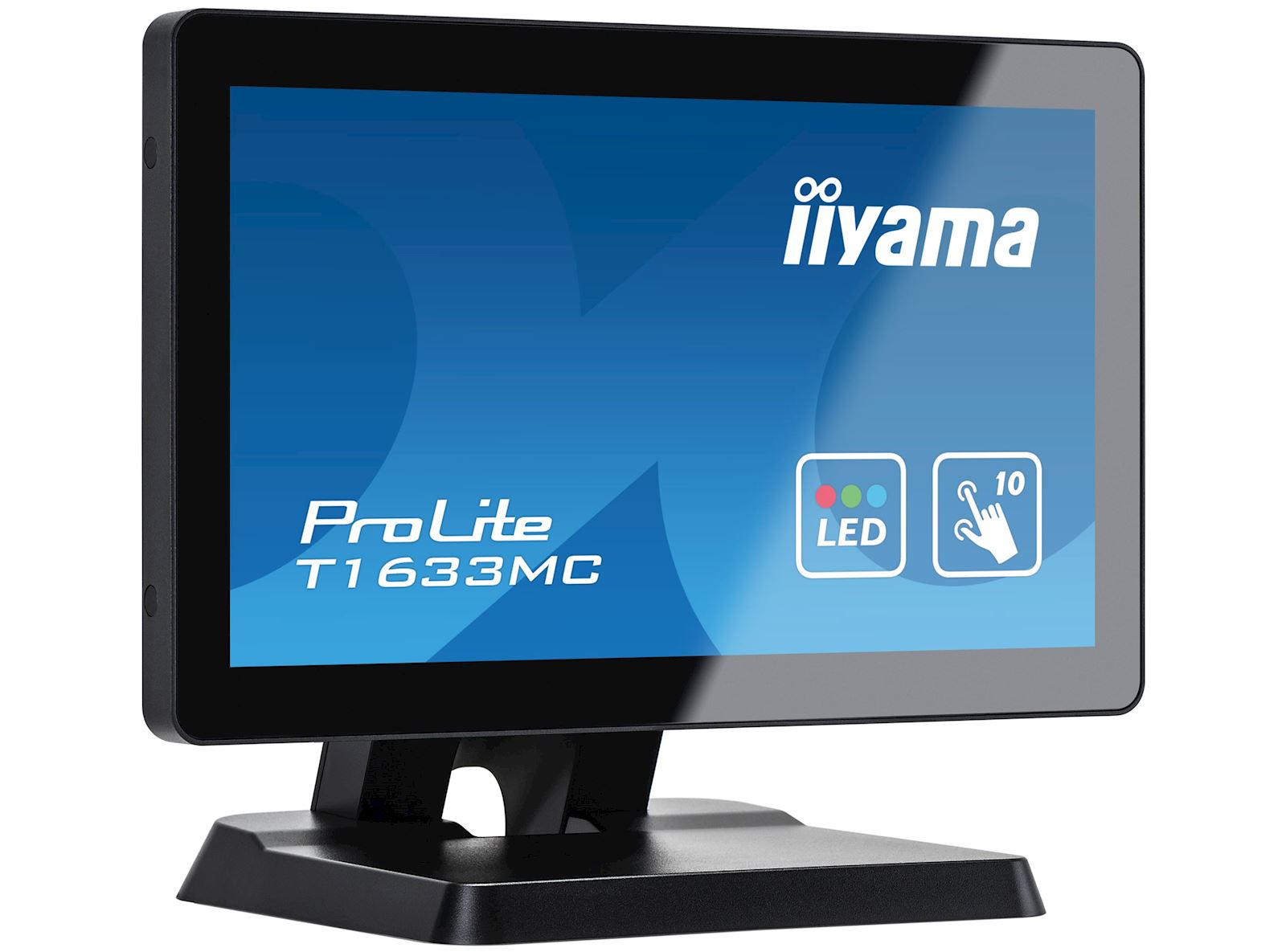

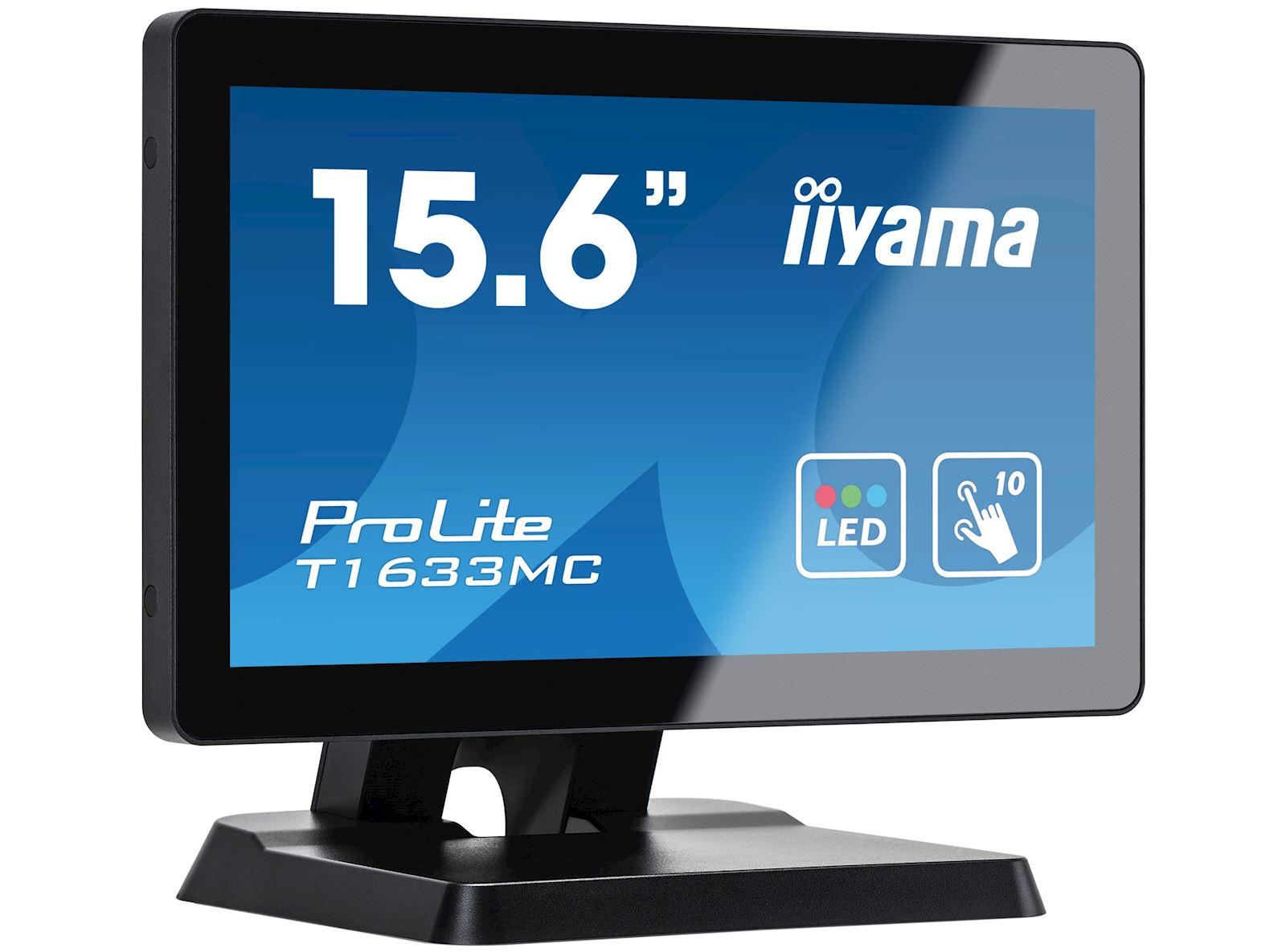

The 15.6” LED-backlit ProLite T1633MC-B1 uses Projective Capacitive Multi-Touch Technology and is built into an eye catching bezel with edge-to-edge glass. The screen features a 1366 x 768 resolution, triple inputs (HDMI, DisplayPort, VGA) and USB Hub, comes with a rugged bezel and IP54 rated front making it suitable for demanding environments.The ProLite T1633MC-B1 is the ideal solution for in-store retail and kiosk integration.

Technical Information


Design Edge to edge glass
Diagonal 15.6", 39.5cm
Panel TN LED
Native resolution 1366 x 768 @60Hz (1.0 megapixel)
Aspect ratio 16:9
Brightness 300 cd/m² typical
Brightness 255 cd/m² with touch
Static contrast 500:1 with touch
Light transmittance 85%
Response time 8ms
Viewing zone horizontal/vertical: 160°/160°, right/left: 80°/80°, up/down: 80°/80°
Colour support 16.7mln 8bit (6bit + Hi-FRC)
Horizontal Sync 31.4 - 60.3KHz
Vertical Sync 56 - 75Hz
Viewable area W x H 344.2 x 193.6mm, 13.6 x 7.6"
Pixel pitch 0.252mm
Bezel colour and finish black, matte


Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection No

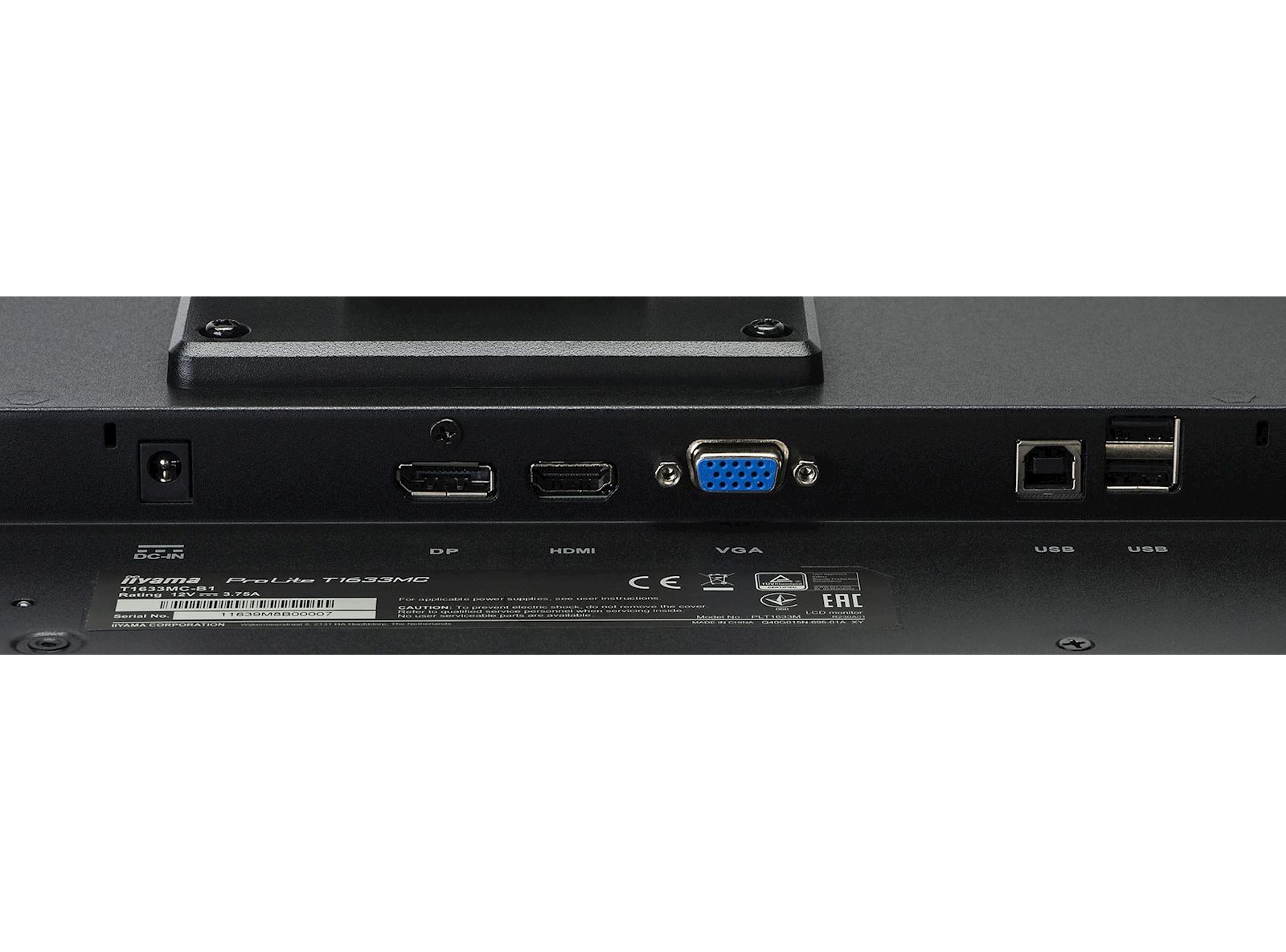

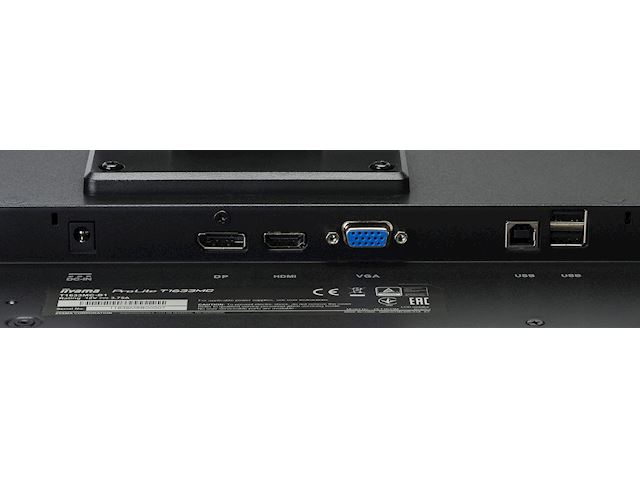

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
HDCP yes
USB HUB x2 (v.2.0)


Glass thickness 1.5mm
Water and dust protection IP54 (front)
OSD key lock yes


OSD languages EN, DE, FR, ES, IT, PT, CN, RU, JP, CZ, NL, PL

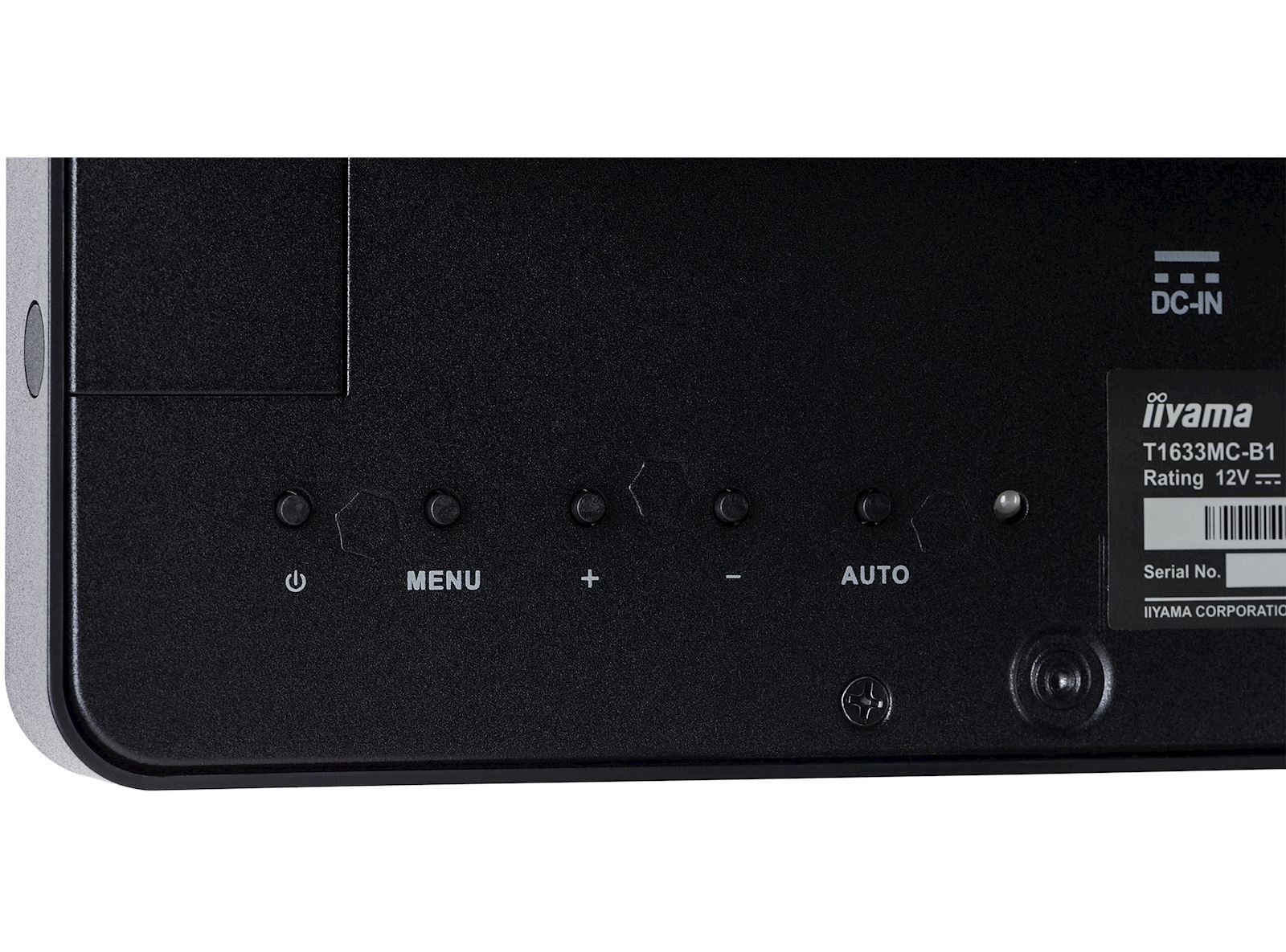

Control buttons Auto/Input Select, -/Eco Button, +/Blue Light Reducer Button, Menu, Power
User controls luminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (clock, phase, H. position, V. position, aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, information, resolution, H. frequency, V. frequency, opening logo, LED)
Convenience Kensington-lock™ prepared
Blue light reducer yes
Plug&Play DDC2B

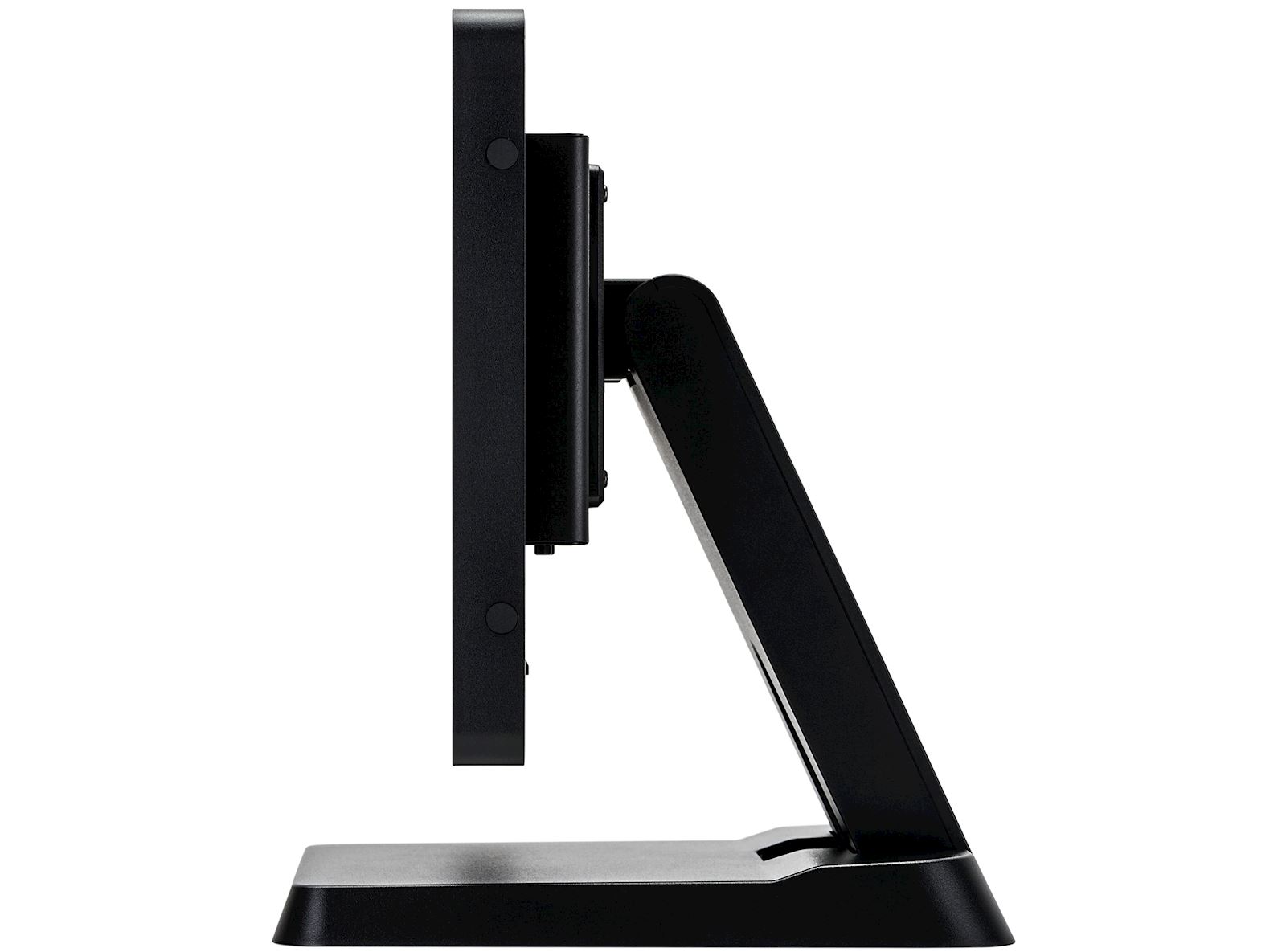

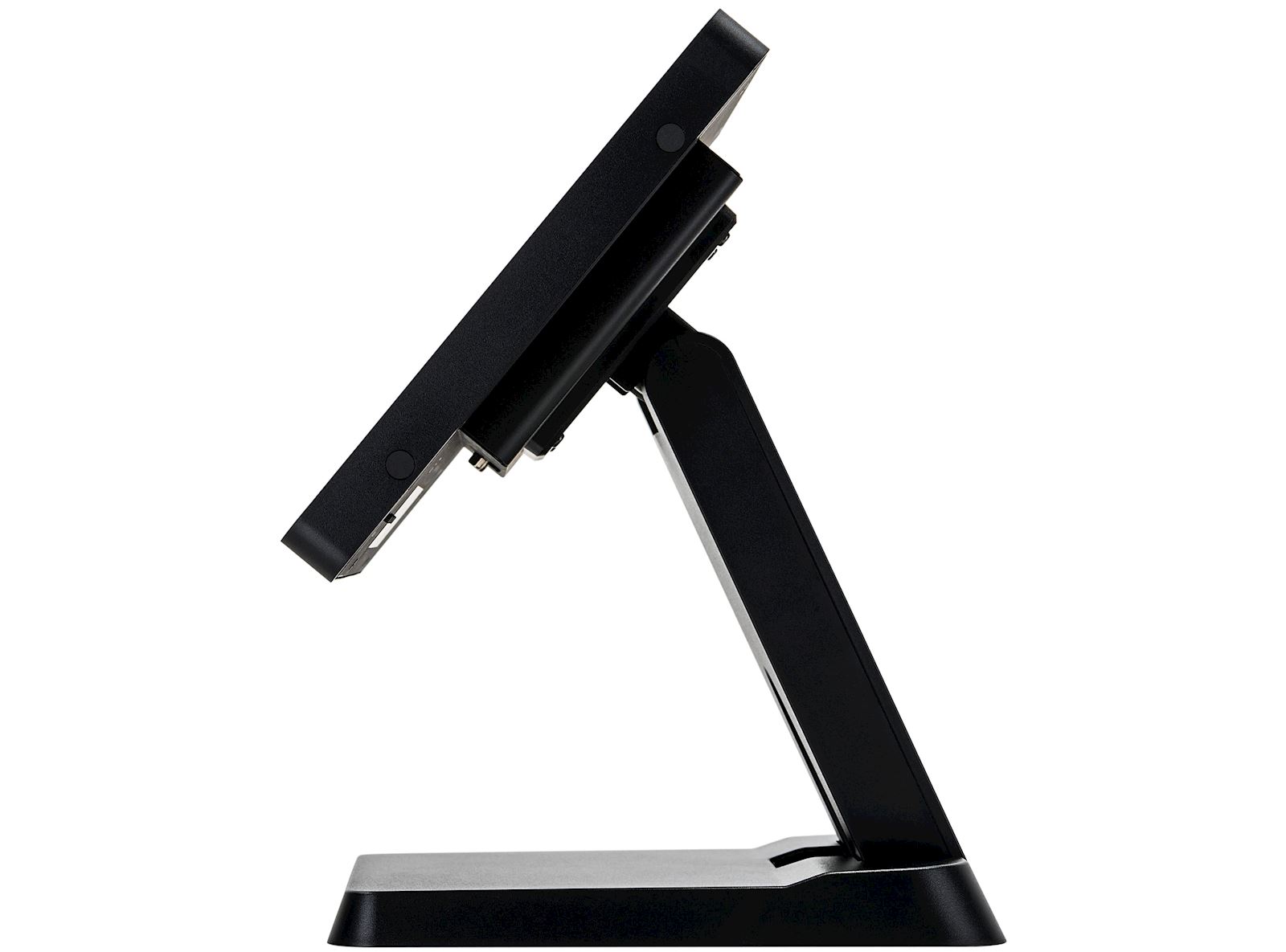

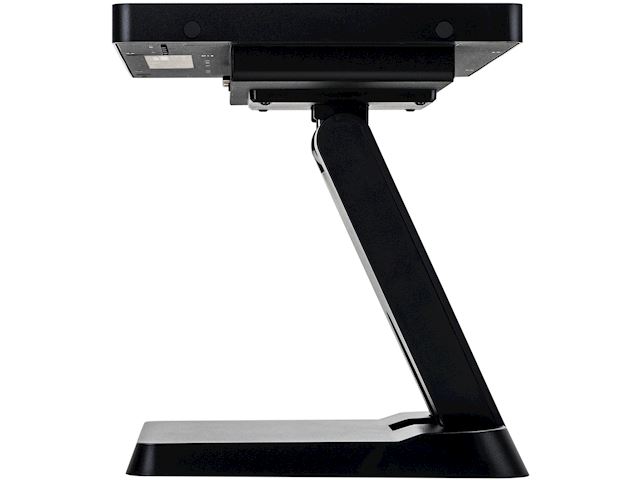

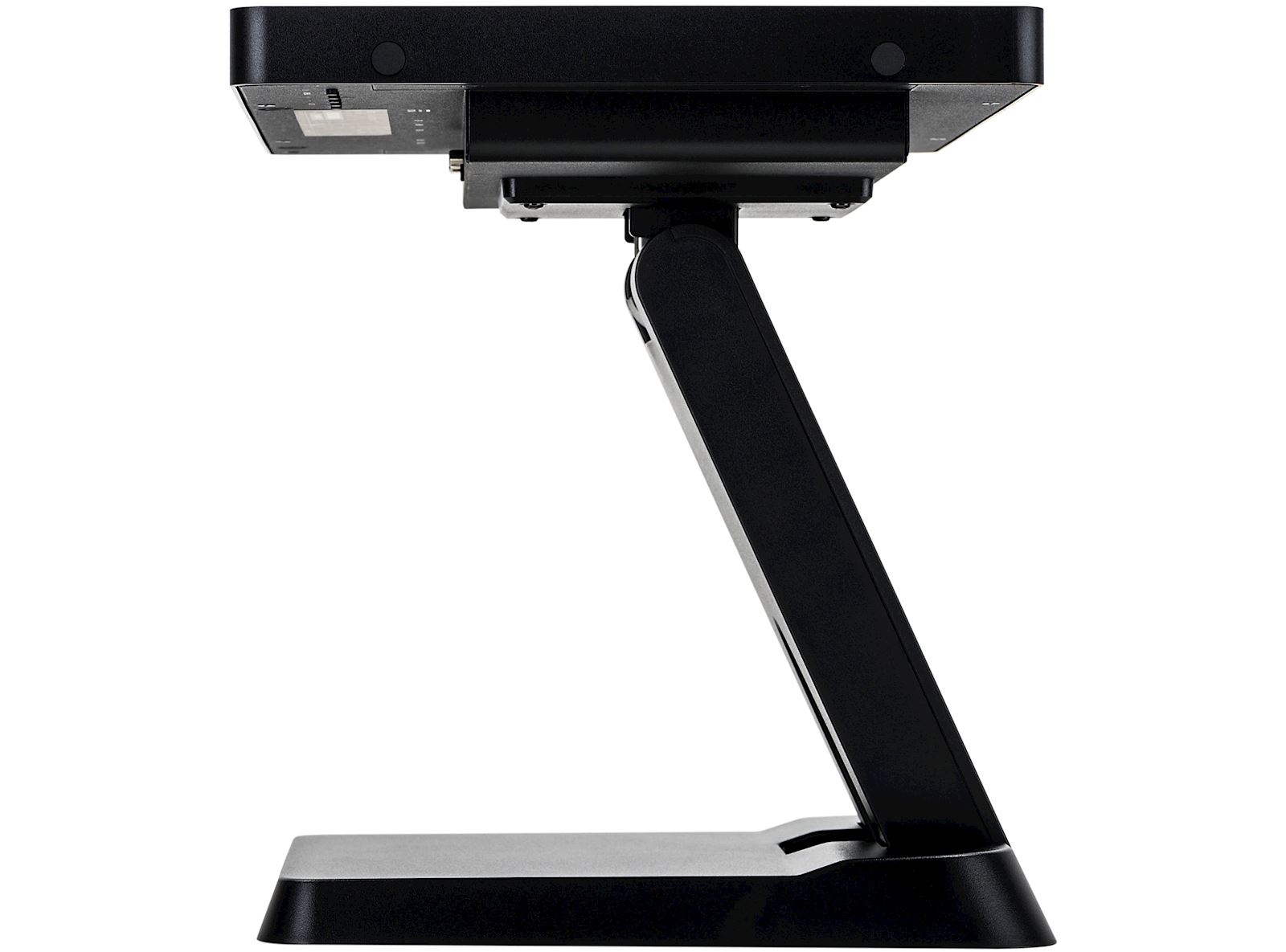

Tilt angle 90° up; 5° down
VESA mounting 100 x 100mm

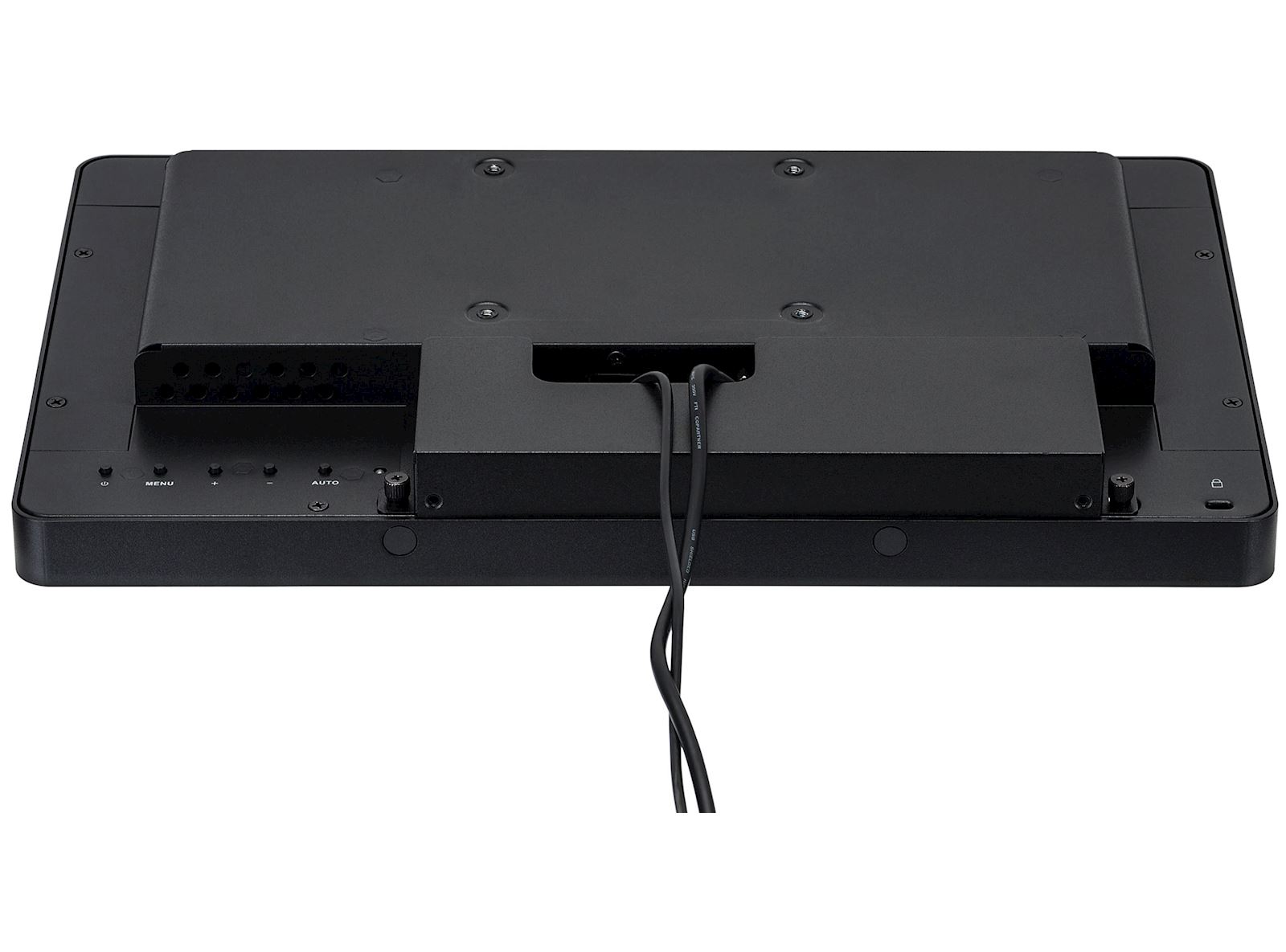

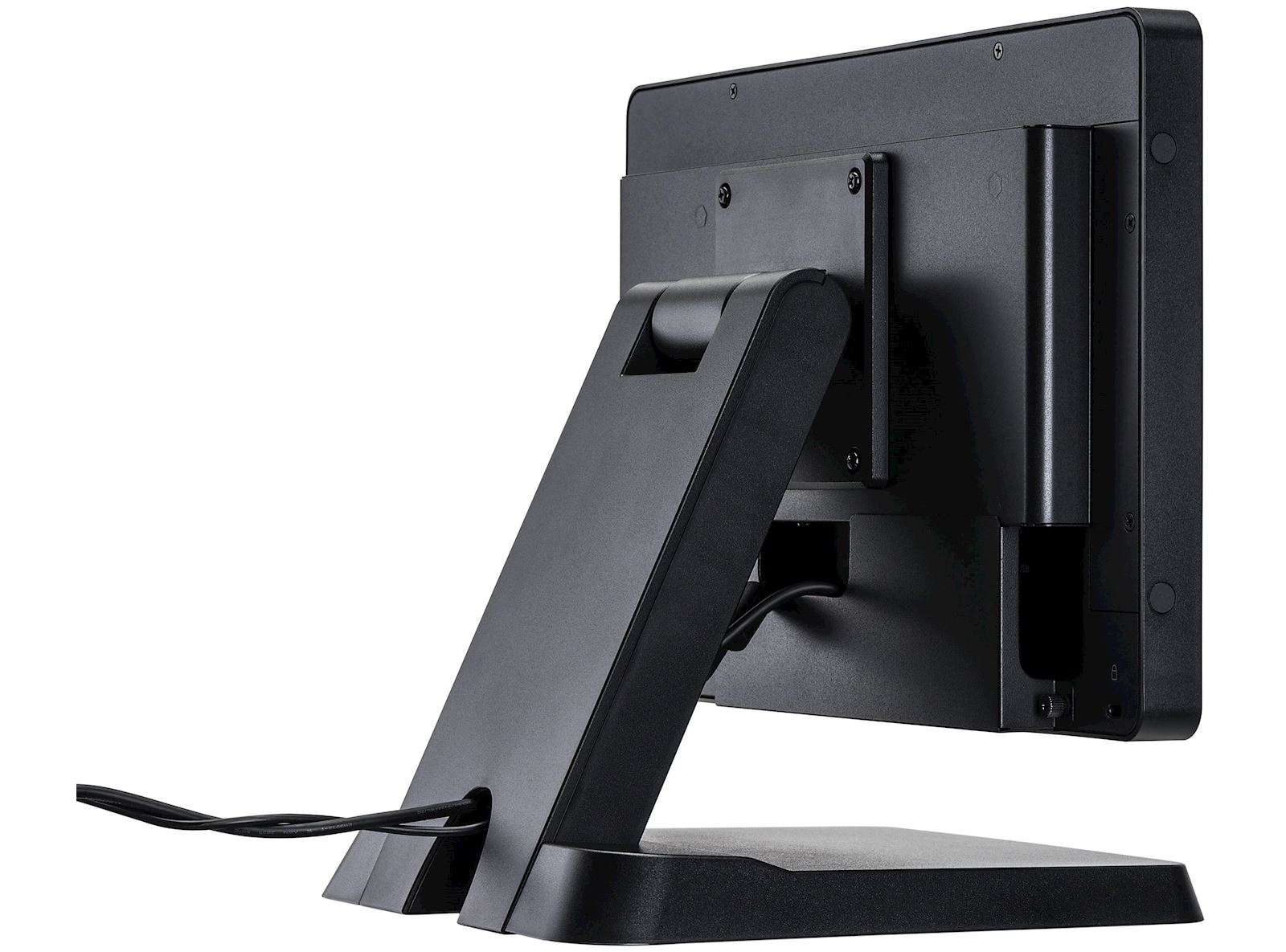

Cable management system yes


Cables power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)
Guides quick start guide, safety guide
Other AC adapter
Cable cover yes


Power supply unit external
Power supply DC 12 V
Power usage 13,5W typical, 2W stand by, 2W off mode


Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Other REACH SVHC above 0.1%: Lead


Product dimensions W x H x D 389 x 312.5 x 254mm
Weight (without box) 4.5kg
EAN code 4948570116393


A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.



This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.



Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.



The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
