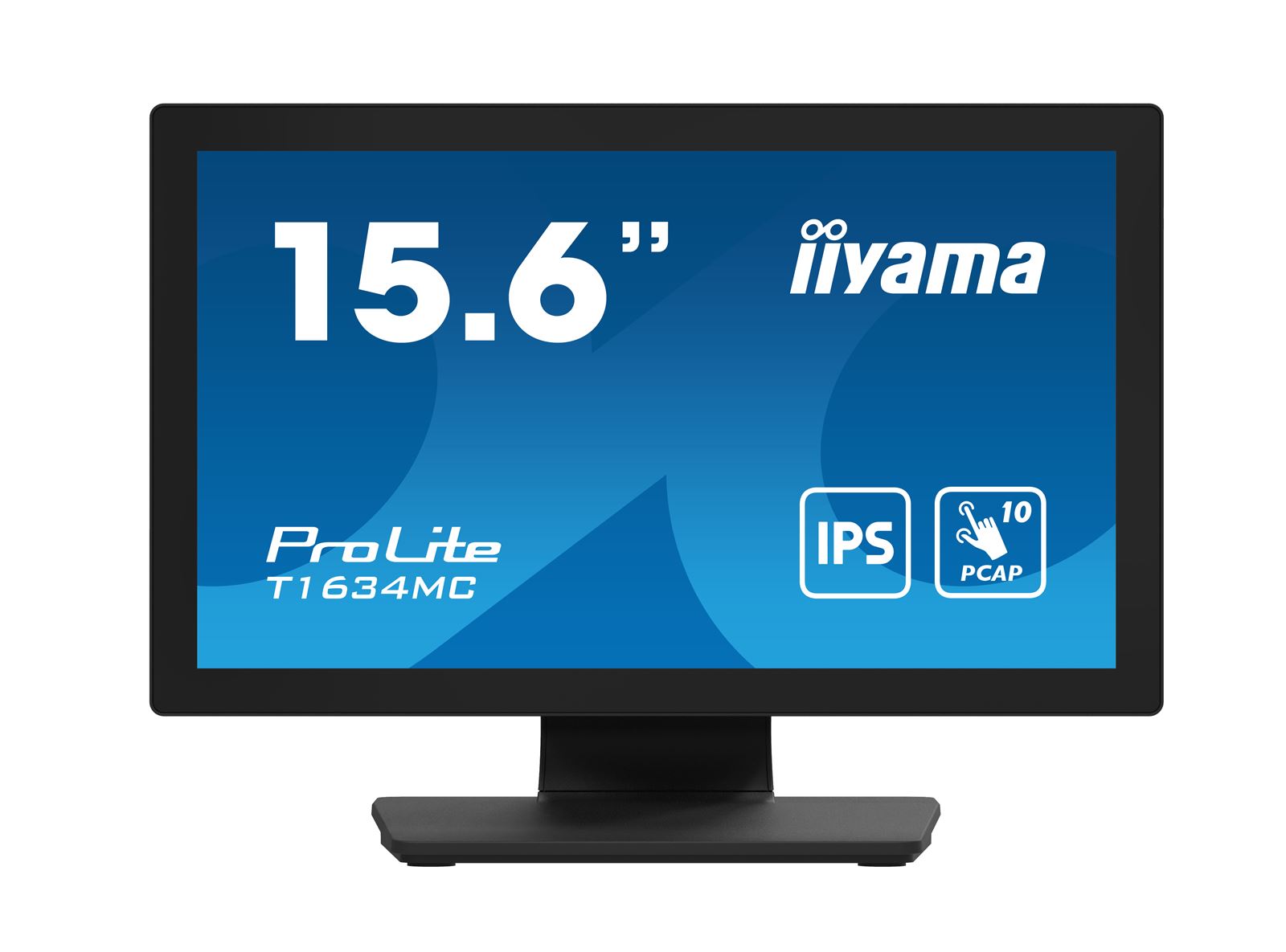

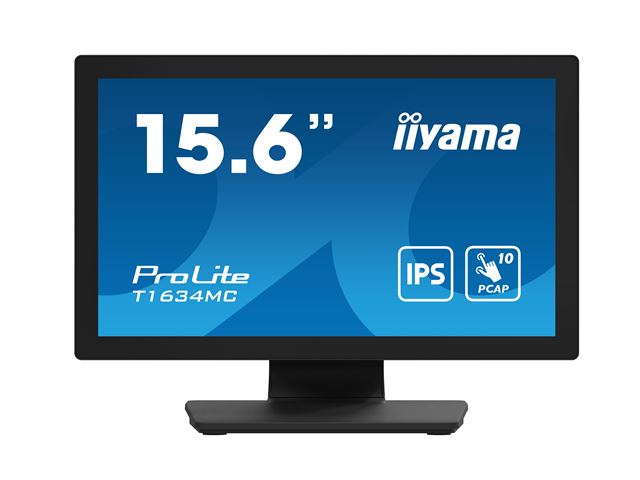

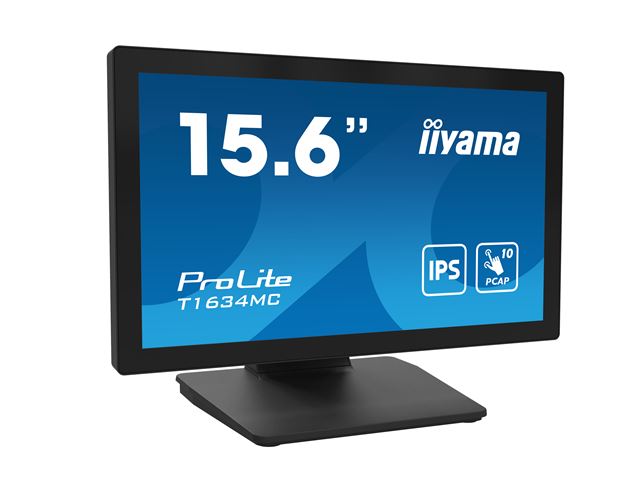

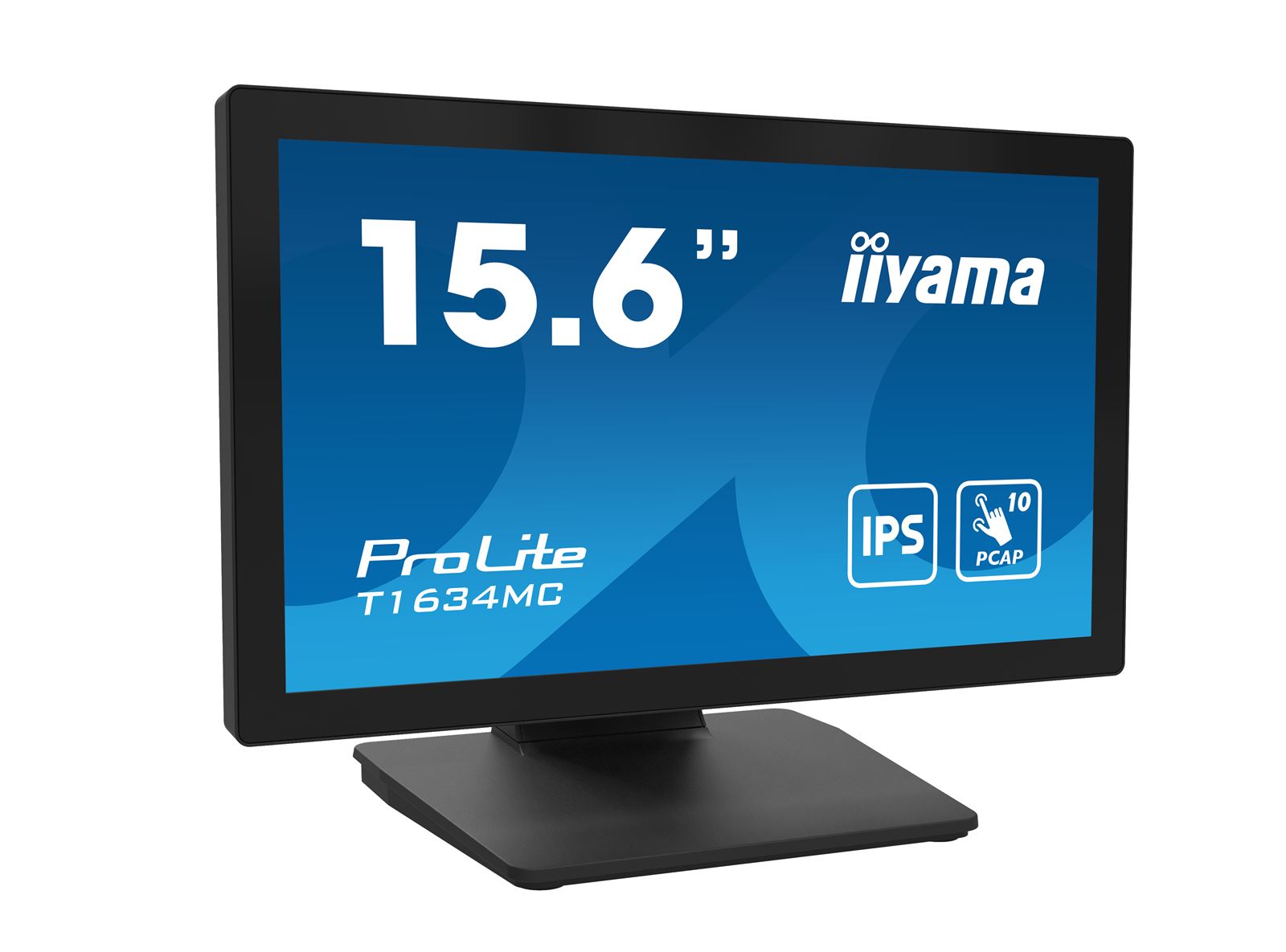

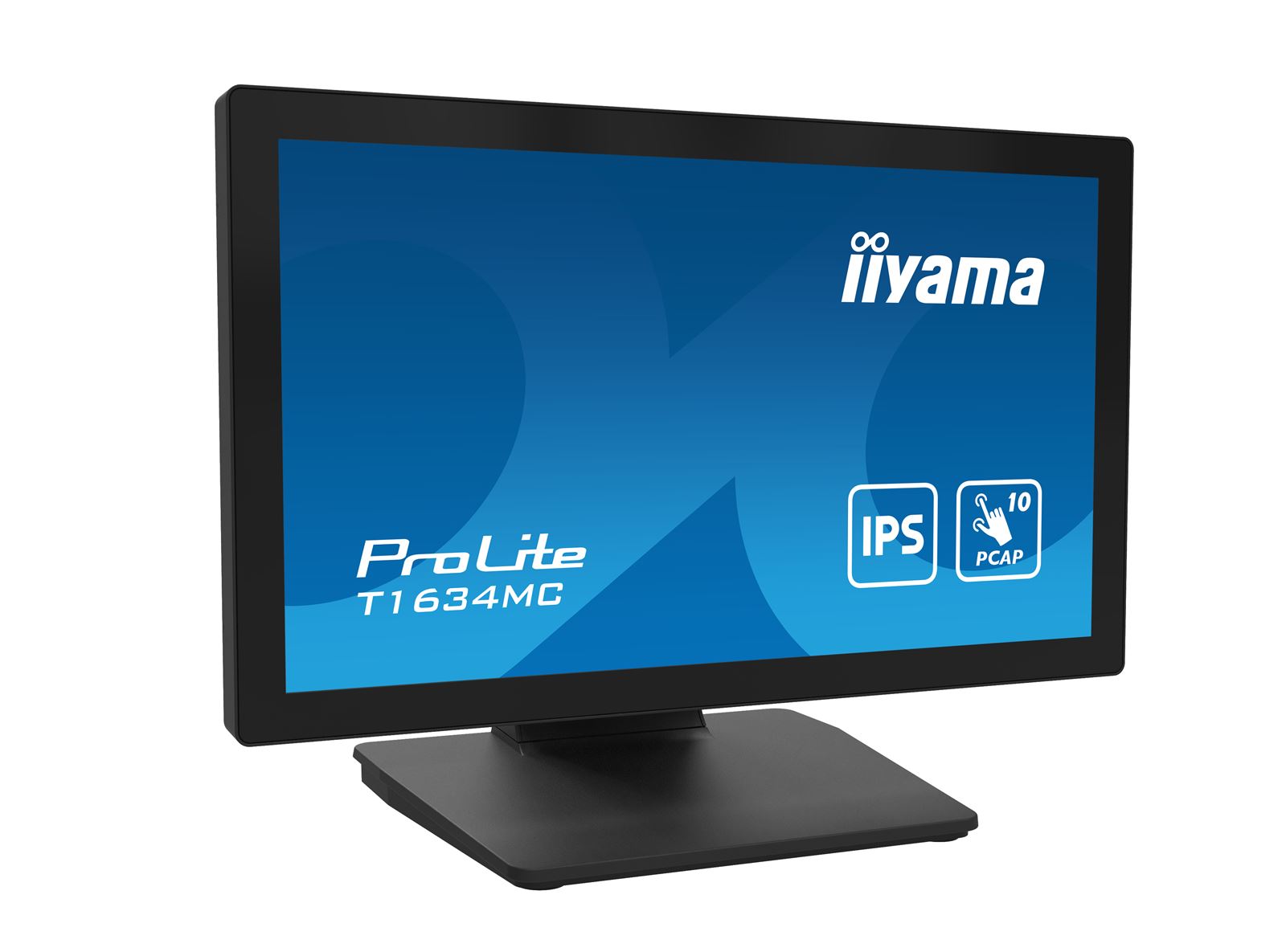

iiyama ProLite T1634MC-B1S 16" Black, IPS, touch through glass, 16:9, Projective Capacitive 10pt touch, IP65 rated

£330.00 exc. VAT
£396.00 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Brand: iiyama

Manufacturer Code: T1634MC-B1S

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

15.6" Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function

The ProLite T1634MC-B1S uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.

Technical Information

 DISPLAY CHARACTERISTICS

Design Edge to edge glass
Diagonal 15.6", 39.5cm
Panel IPS Panel Technology LED
Native resolution 1920 x 1080 @60Hz (2.1 megapixel)
Aspect ratio 16:9
Panel brightness 450 cd/m²
Brightness 405 cd/m² with touch
Light transmittance 90%
Static contrast 700:1 with touch
Response time (GTG) 25ms
Viewing zone horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0°
Colour support 16.2mln (6bit + Hi-FRC)
Horizontal Sync 30 - 84kHz
Viewable area W x H 344.2 x 193.6mm
Pixel pitch 0.179mm
Bezel colour and finish black, matte

 TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes

 INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Monitor control input External control pad TOUCHV01
HDCP yes

 FEATURES

Extra Anti-fingerprint coating, touch through-glass
Glass thickness 2.4mm
Glass hardness 7H
Water and dust protection IP65 (front)
OSD key lock yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B

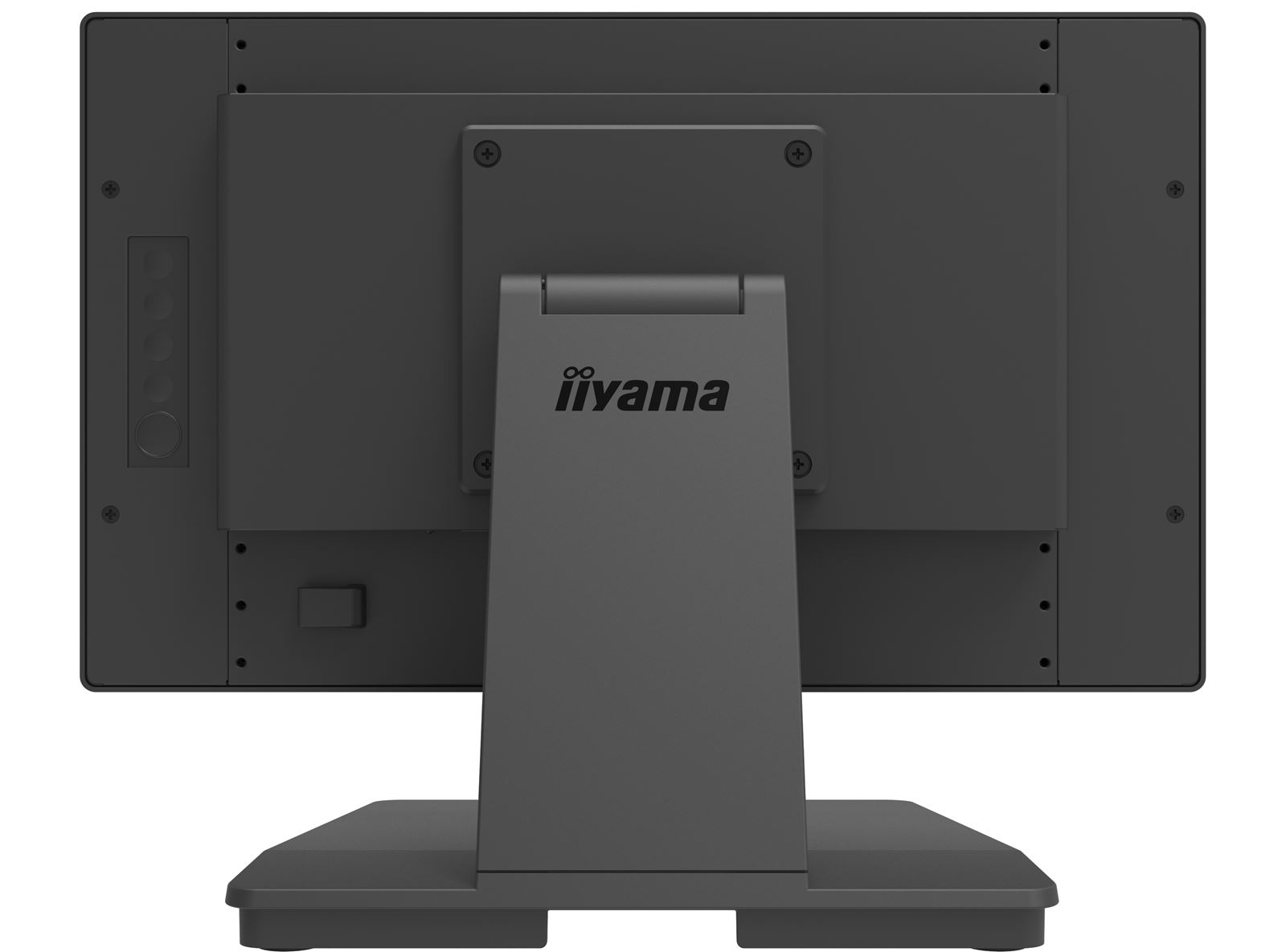

 MECHANICAL

Orientation landscape, face-up

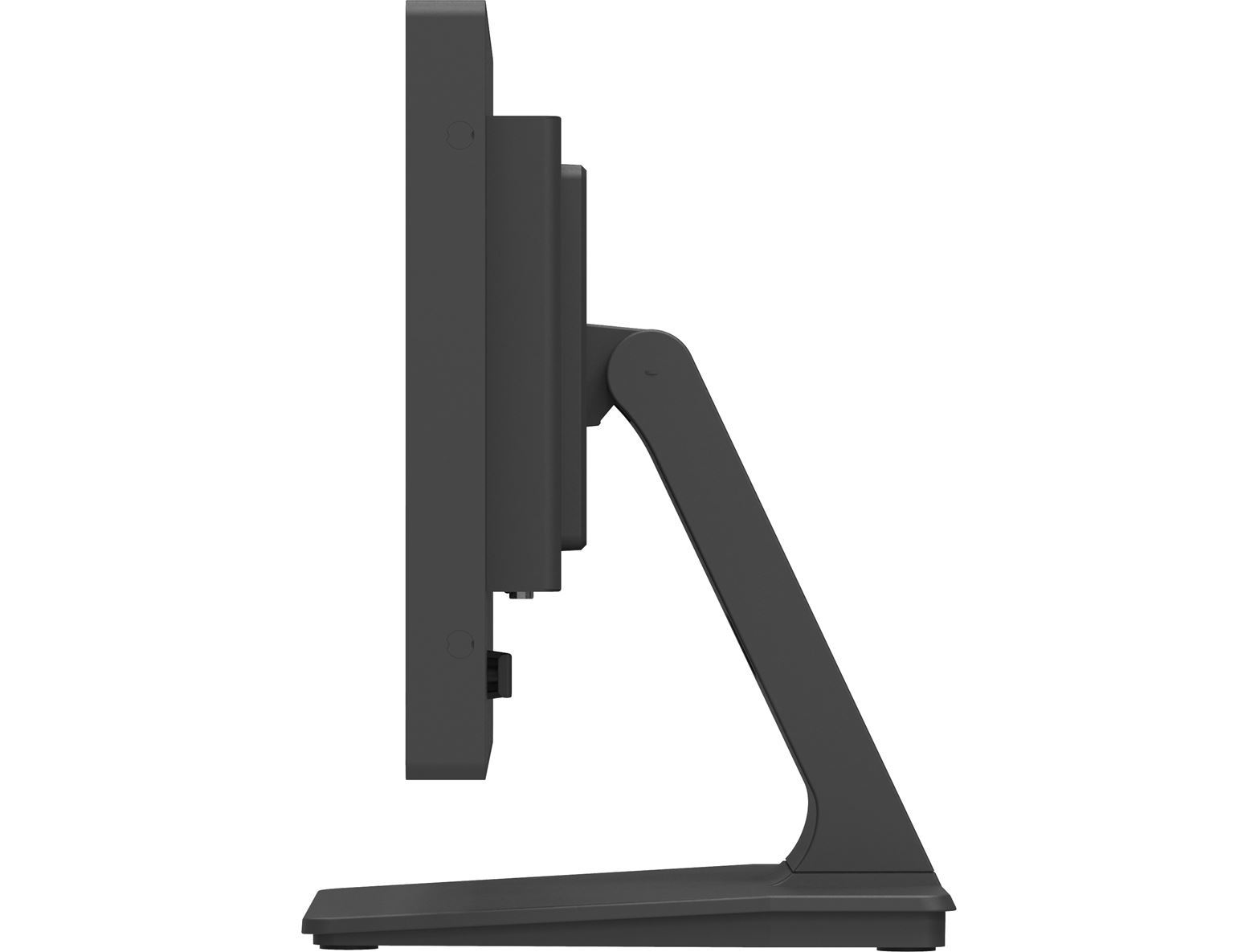

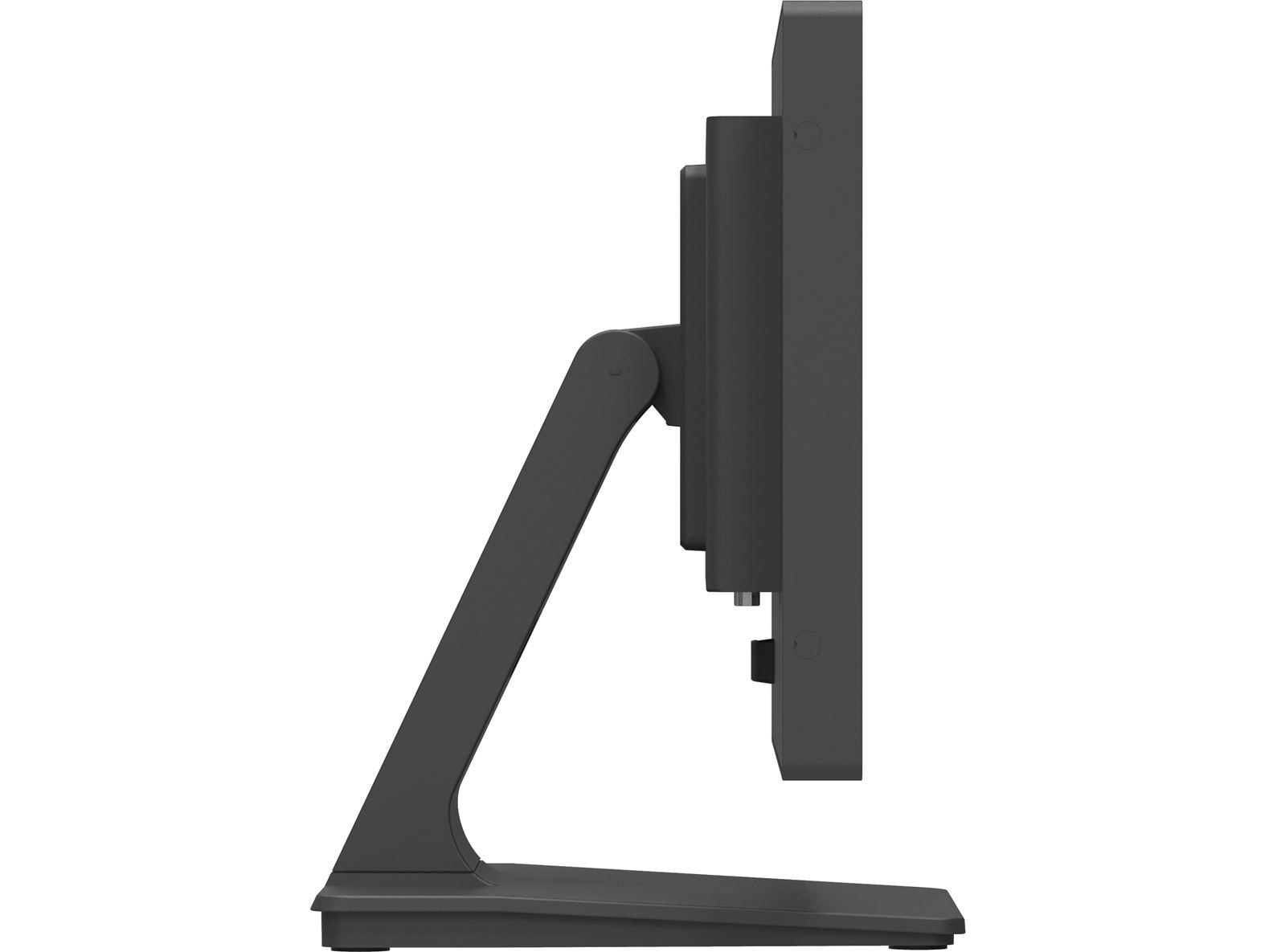

Tilt angle 90° up; 5° down

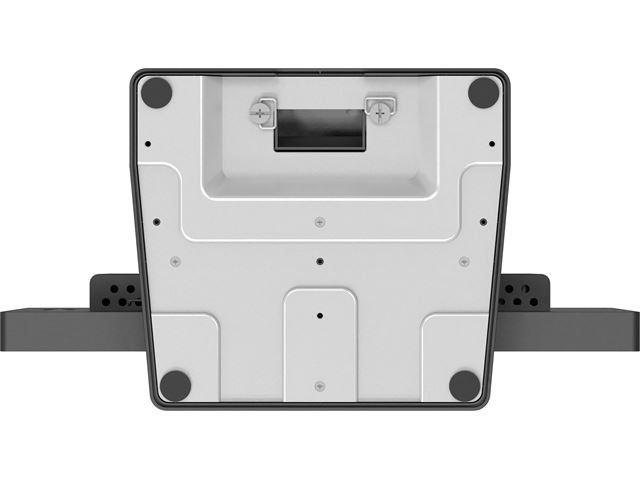

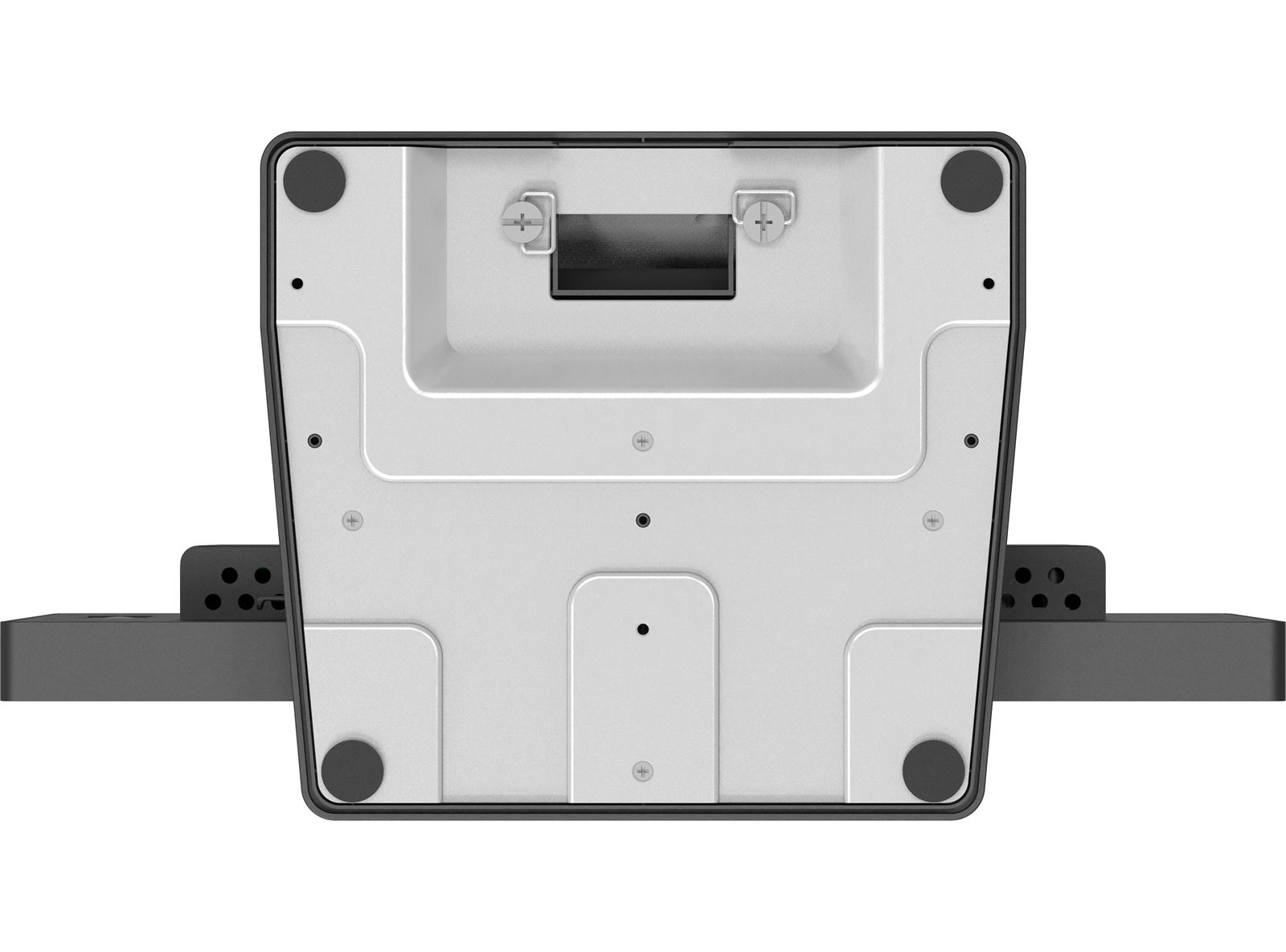

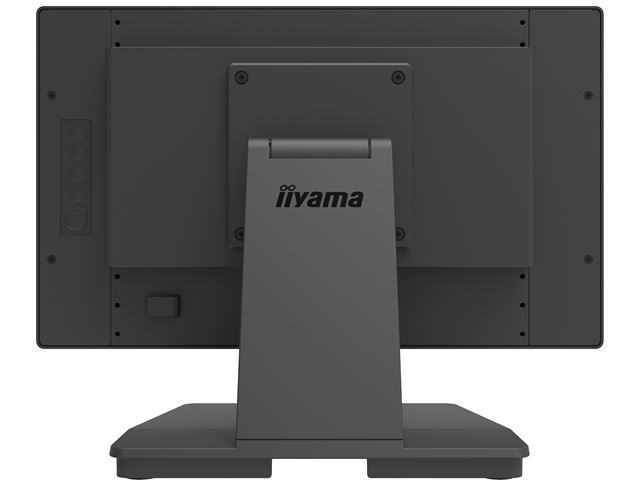

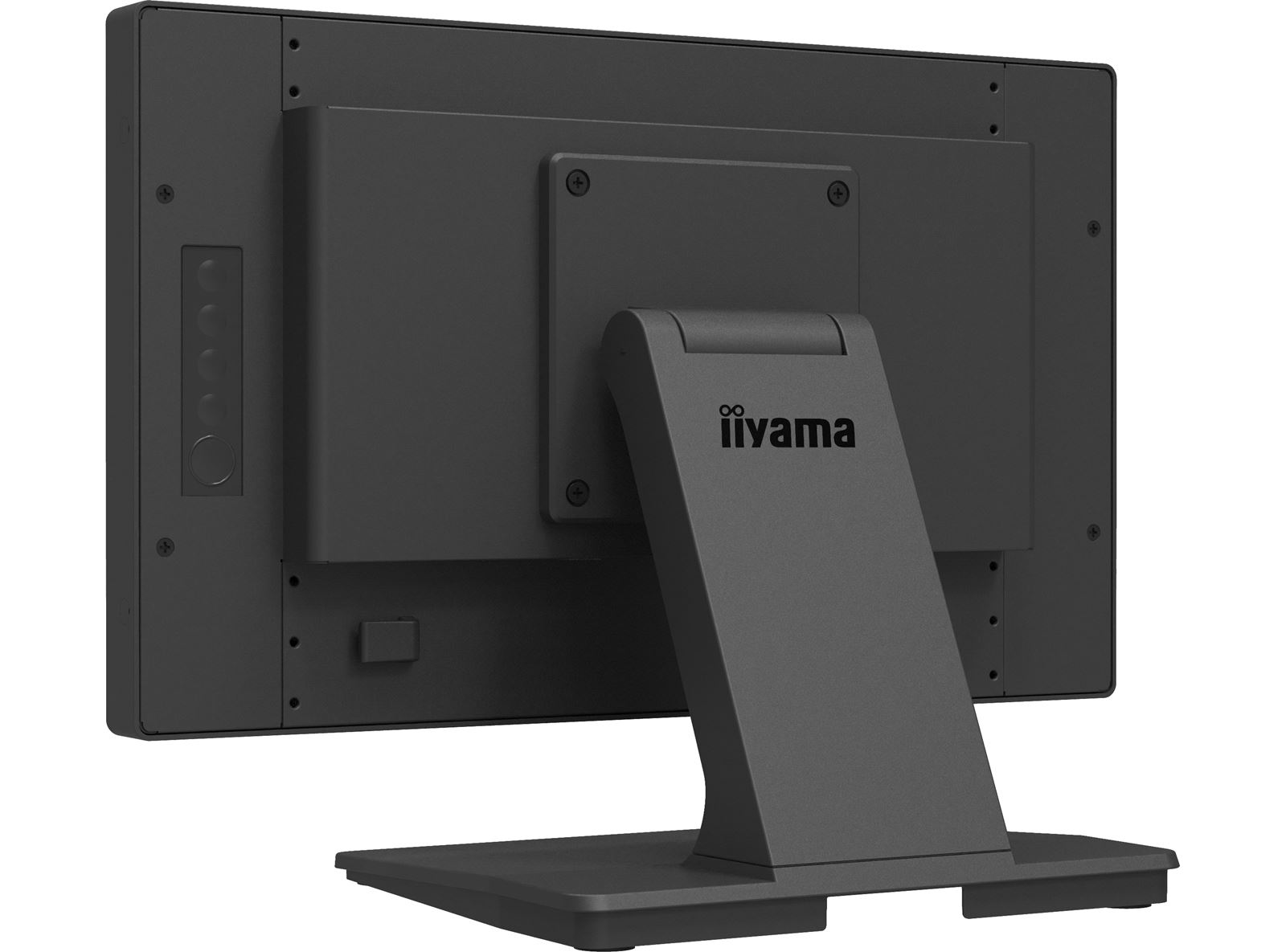

VESA mounting 100 x 100mm

 ACCESSORIES INCLUDED

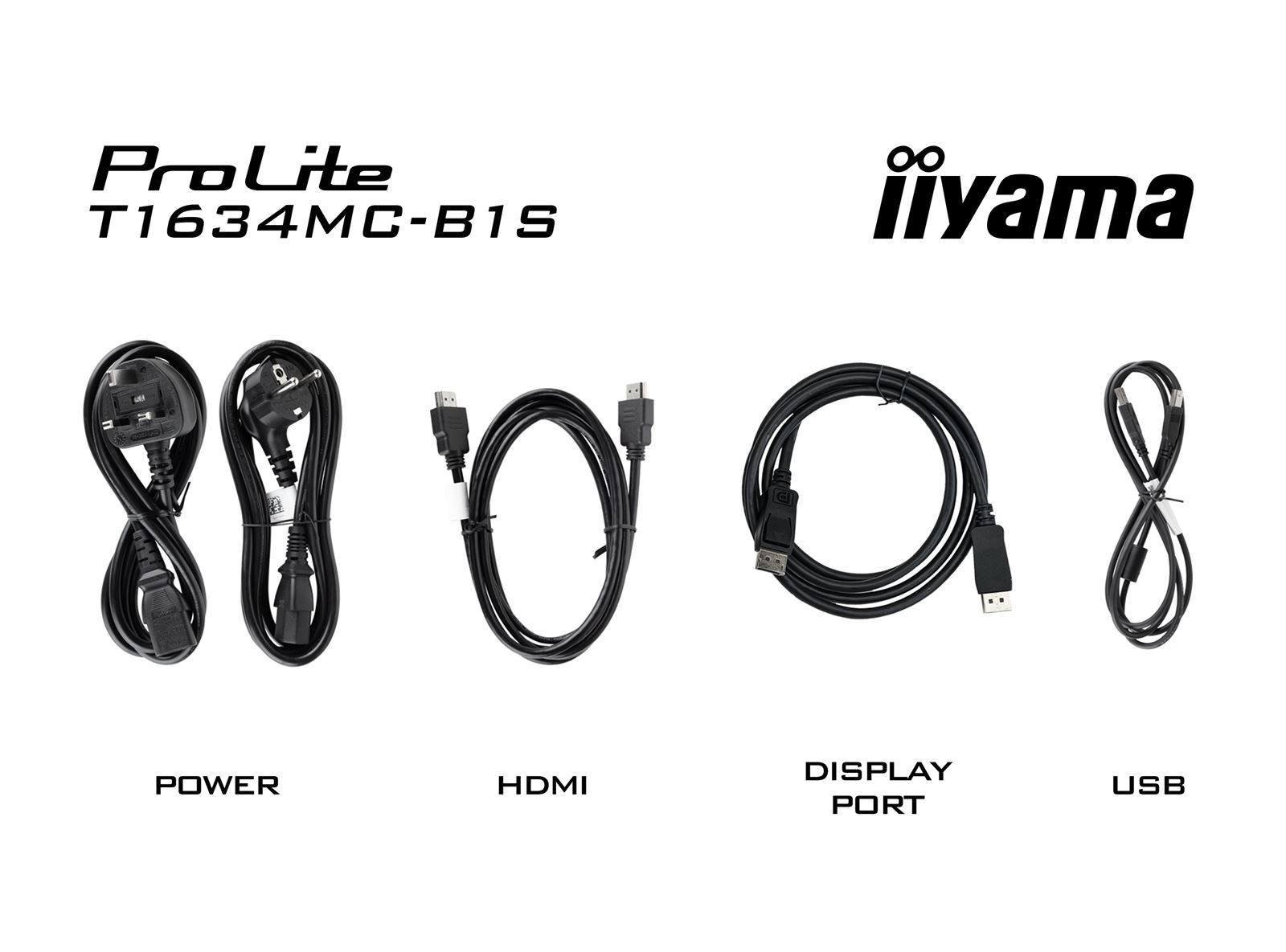

Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Other AC adapter

 POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 18W typical, 1.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) F
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 381 x 285.5 x 200mm
Box dimensions W x H x D 445 x 355 x 150mm
Weight (without box) 3.4kg
Weight (with box) 5.18kg
EAN code 4948570122110
Features

LED-backlit

A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.

LED-backlit

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

IP

The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.


IP

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SCRATCH RESISTANCE
