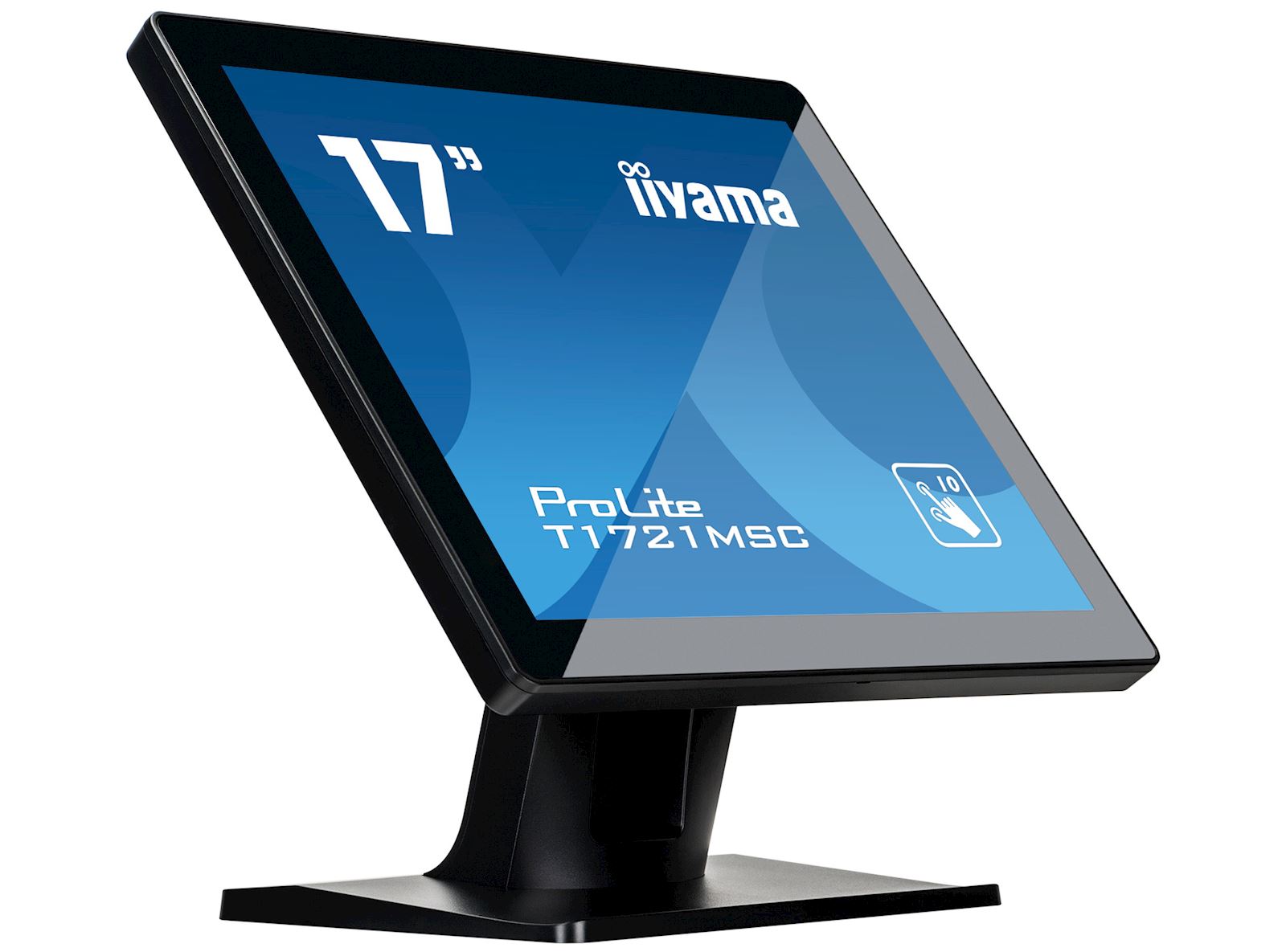

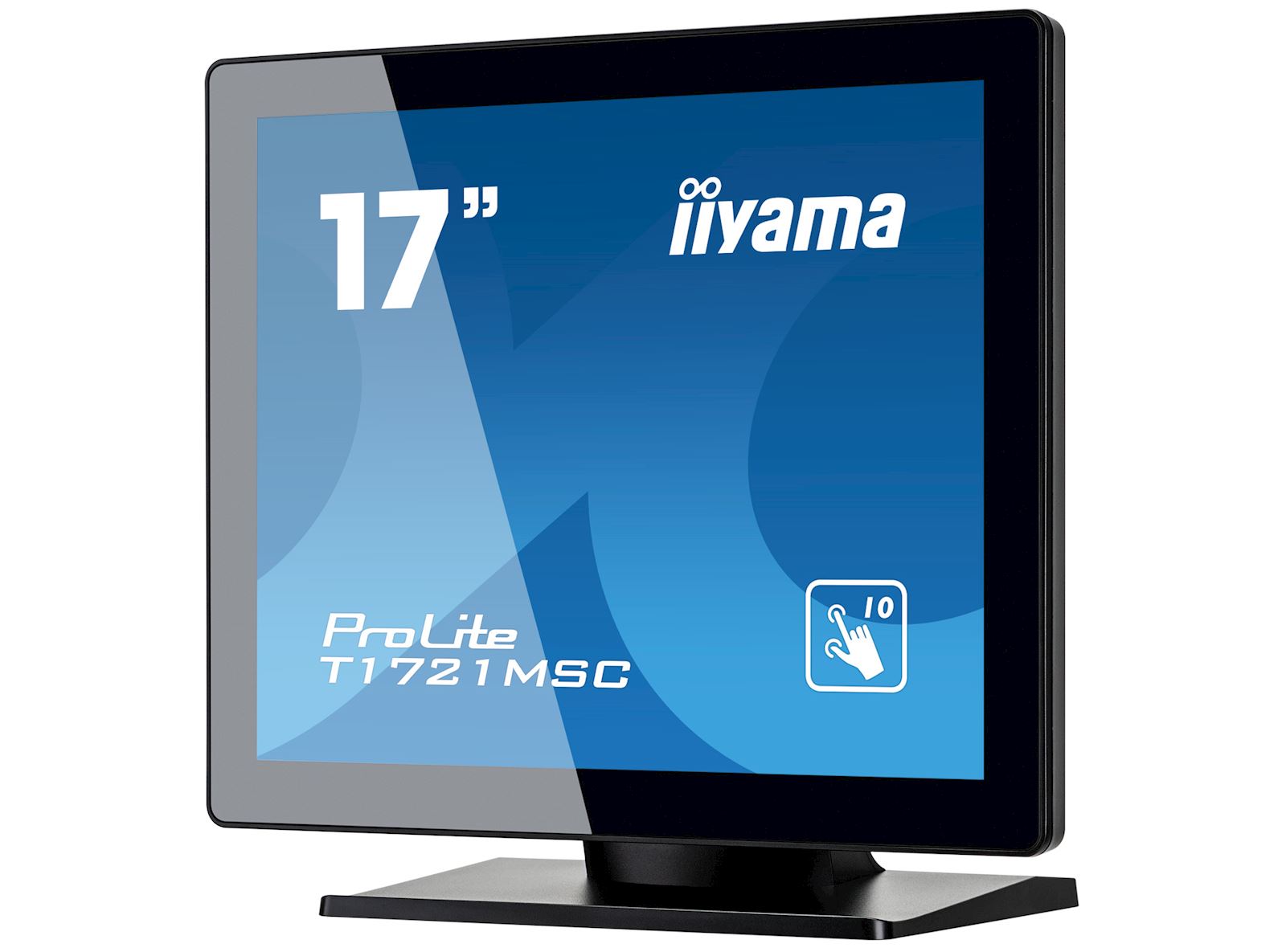

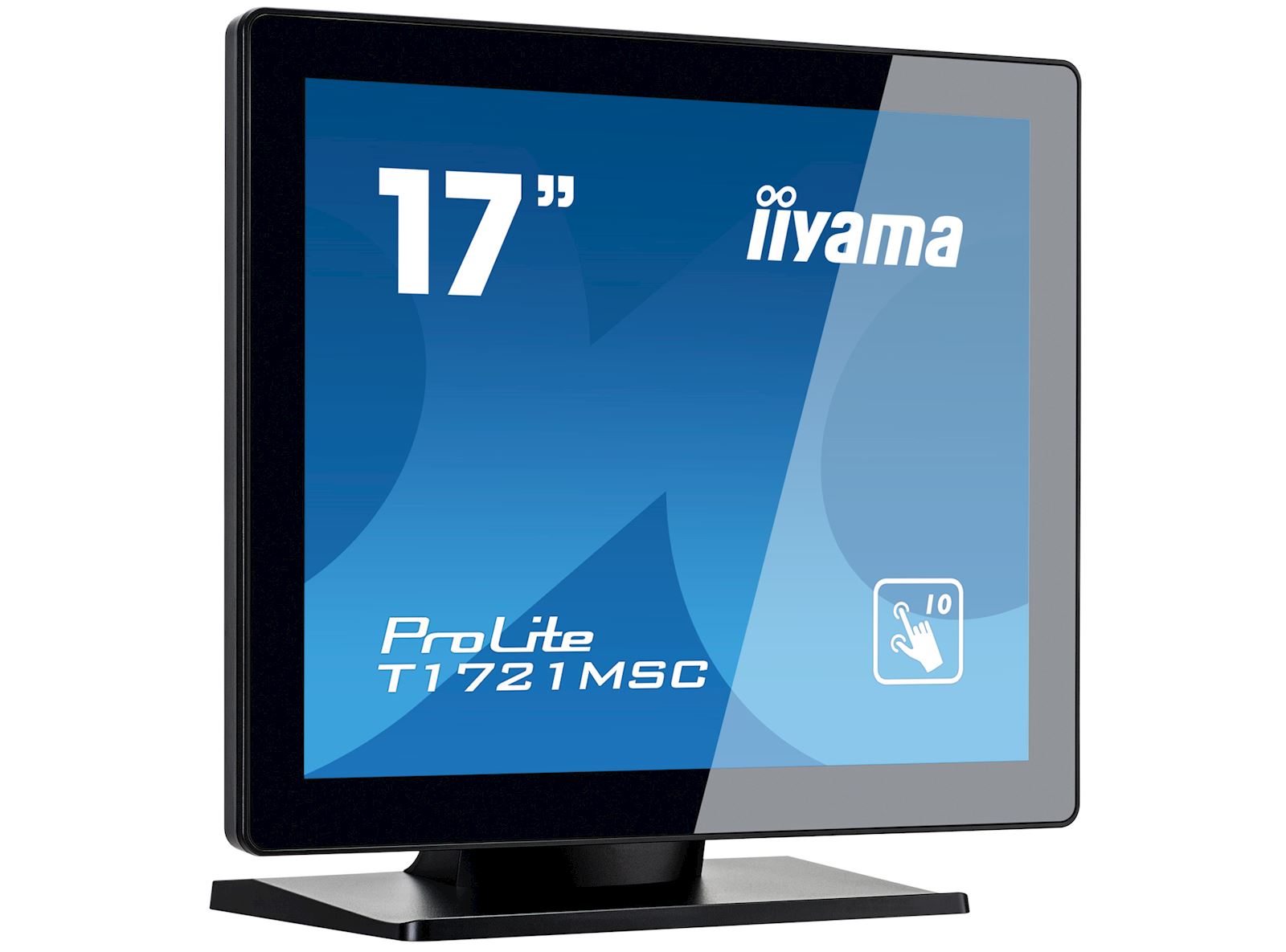

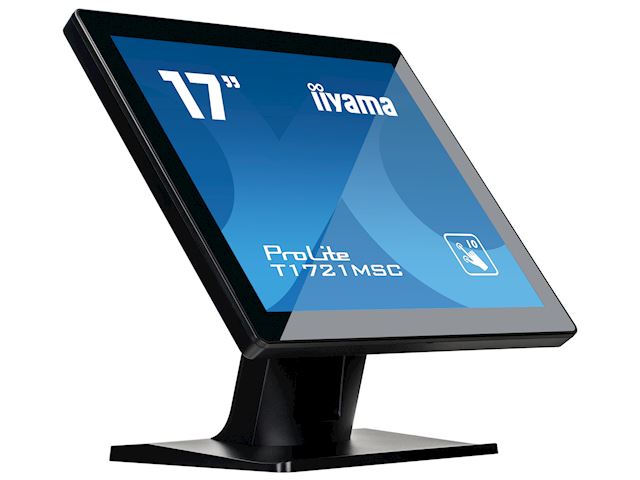

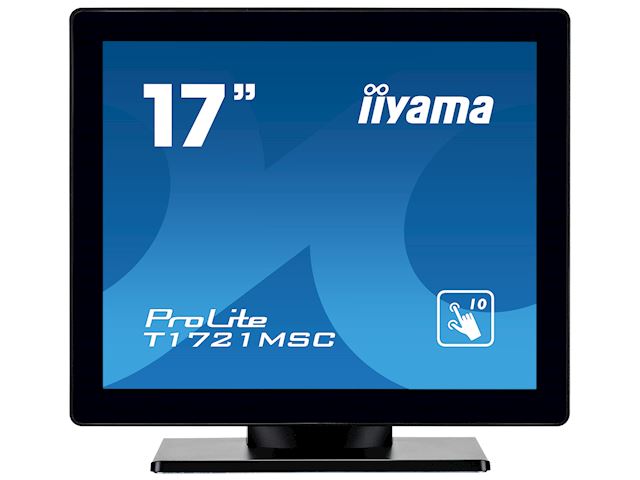

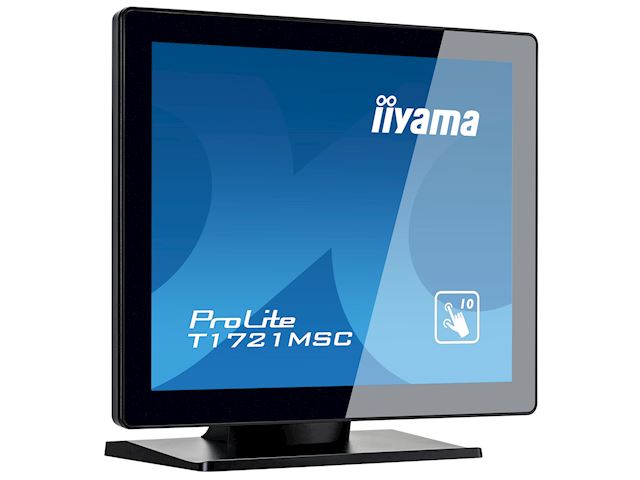

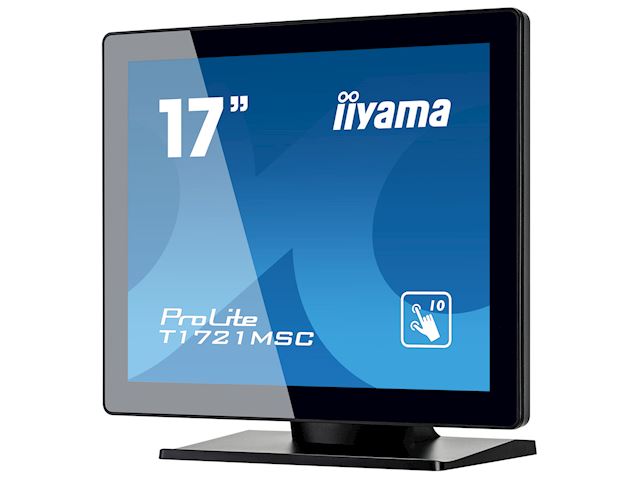

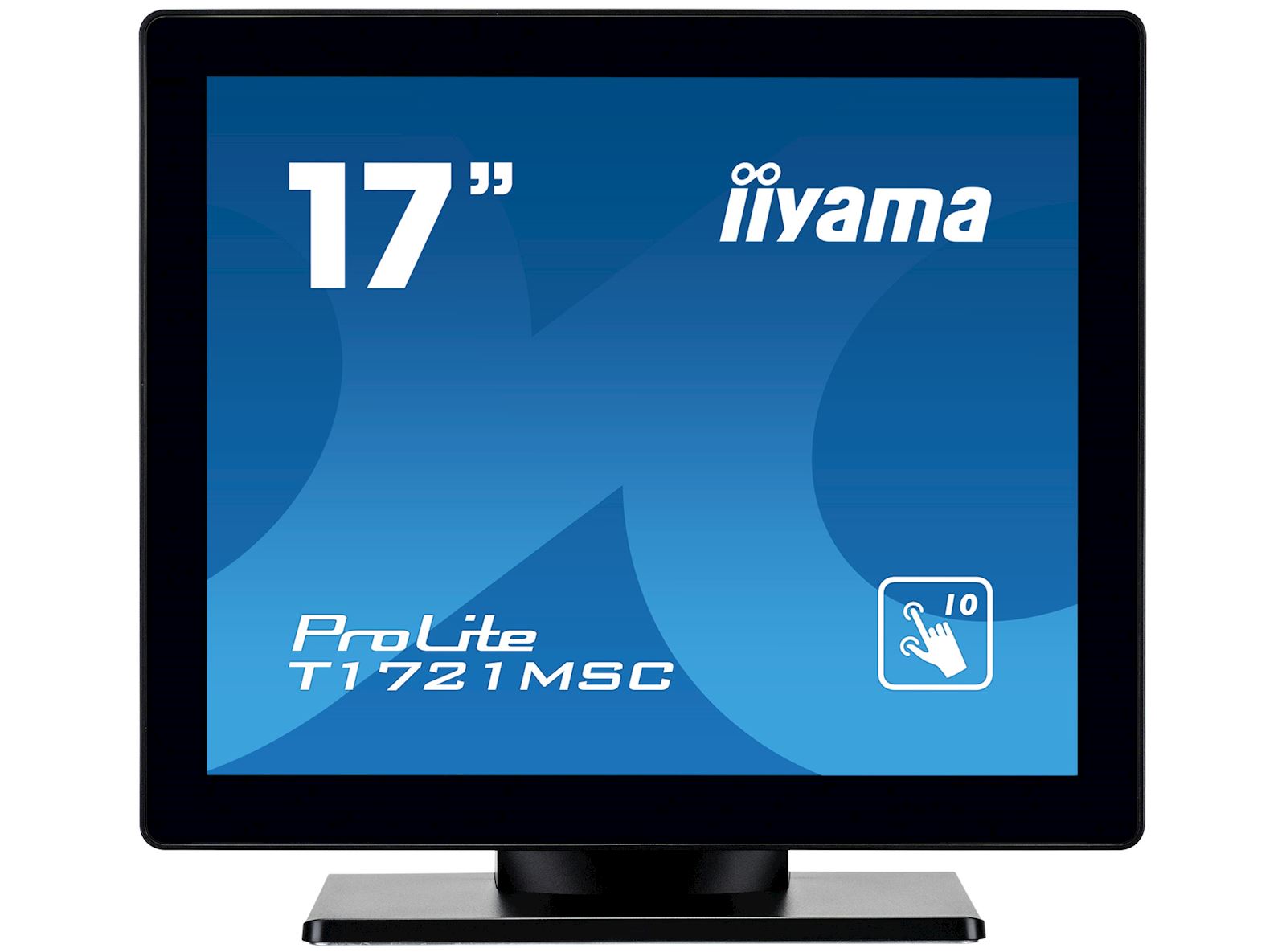

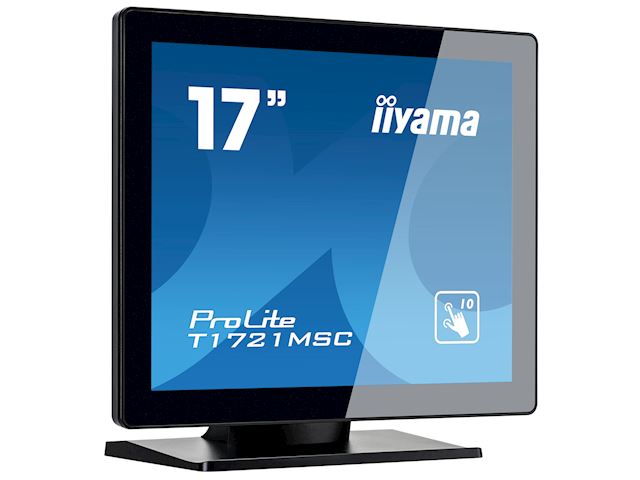

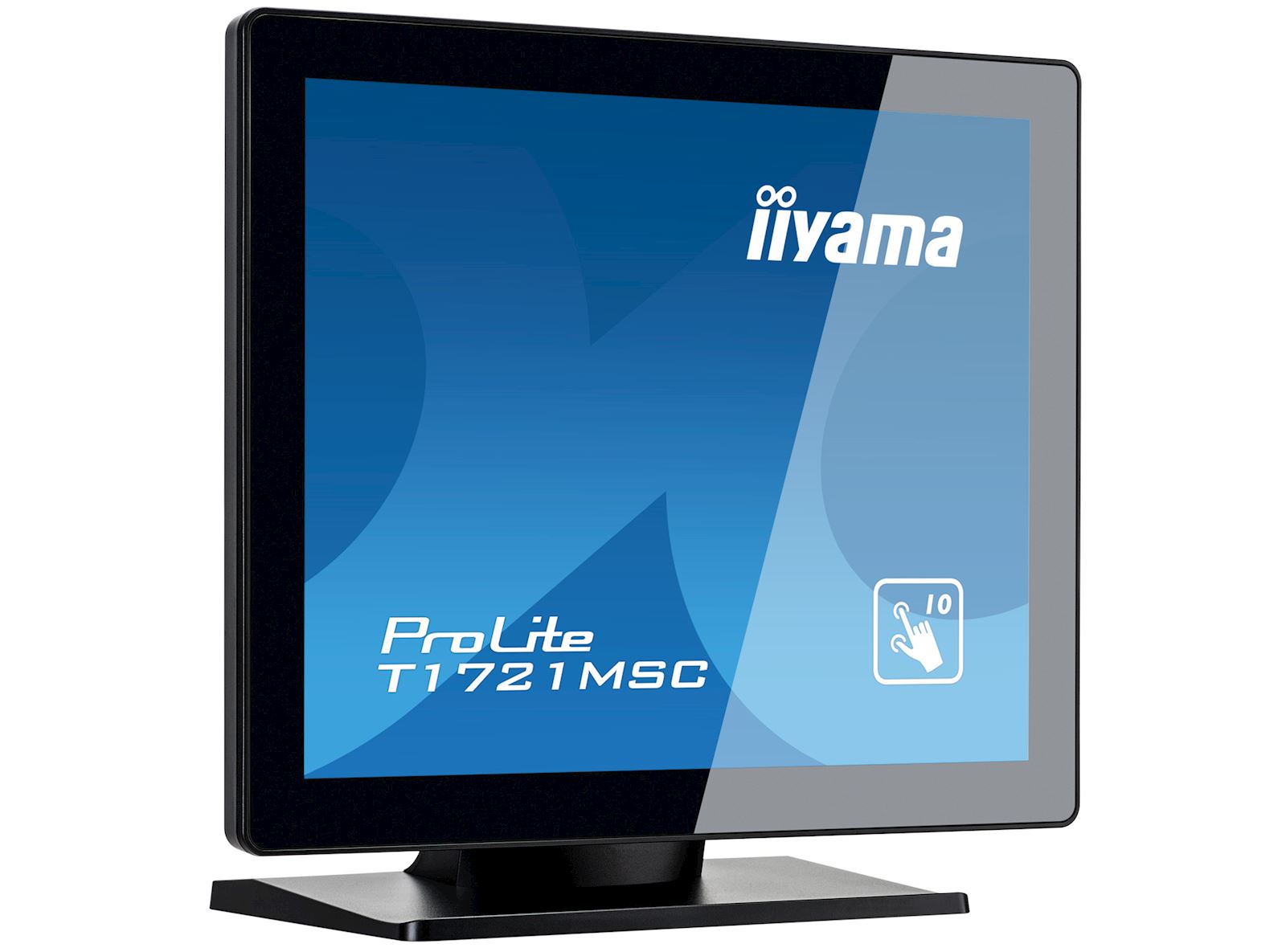

iiyama ProLite monitor T1721MSC-B1 17" Black, 5:4, Projective Capacitive 10pt touch, Bezel Free

£273.90 exc. VAT
£328.68 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Brand: iiyama

Manufacturer Code: T1721MSC-B1

Product Description

17" touchscreen featuring 10 touch points and PCAP technology

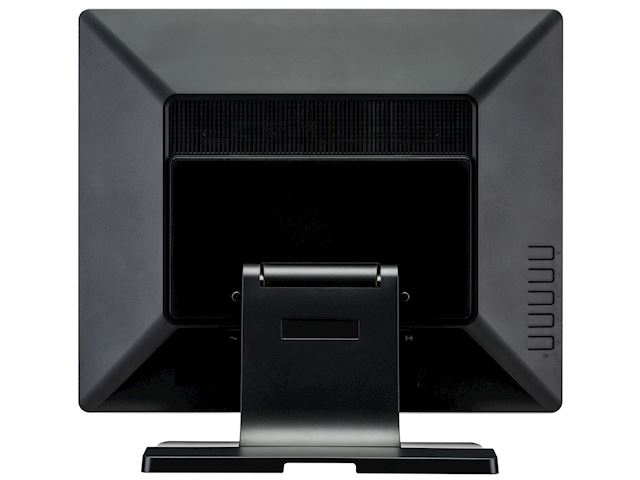

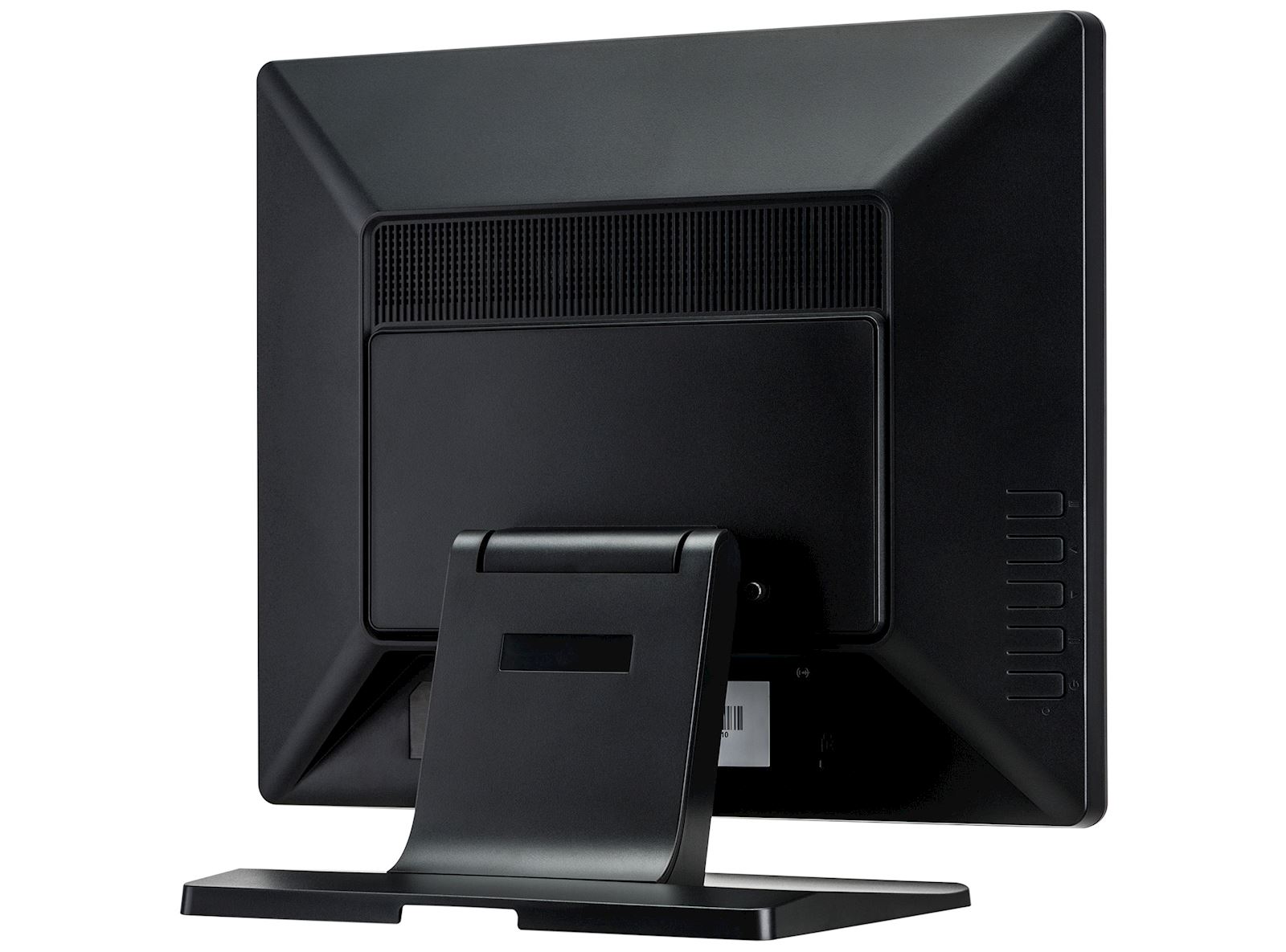

The ProLite T1721MSC-B1 17” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 80 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering and include a handy function to deactivate the touchscreen for cleaning. The ProLite T1721MSC-B1 is an incredibly powerful touch solution, perfect for instore retail purposes.

Technical Information

DISPLAY CHARACTERISTICS

Design Edge to edge glass
Diagonal 17", 43cm
Panel TN LED
Native resolution 1280 x 1024 (1.3 megapixel)
Aspect ratio 5:4
Brightness 250 cd/m² typical
Brightness 215 cd/m² with touch
Static contrast 1000:1 typical
Light transmittance 85%
Response time 5ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.7mln 8bit (6bit + Hi-FRC)
Horizontal Sync 31.4 - 80KHz
Vertical Sync 56 - 75Hz
Viewable area W x H 338 x 270.5mm, 12 x 9"
Pixel pitch 0.264mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

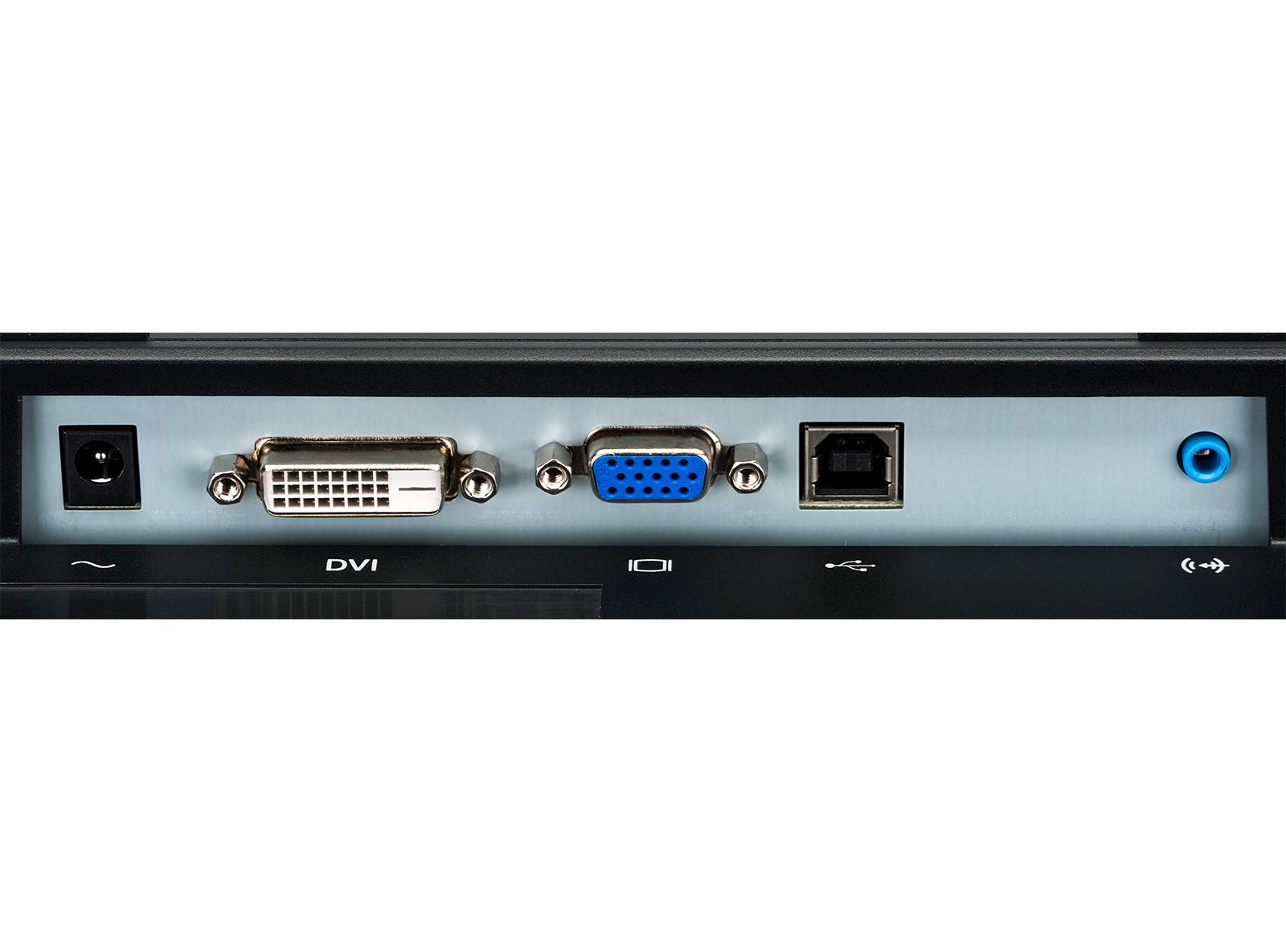

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input DVI x1
Audio output Speakers 2 x 2W

FEATURES

Glass thickness 1.5mm
Water and dust protection IPX3 (front)
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP

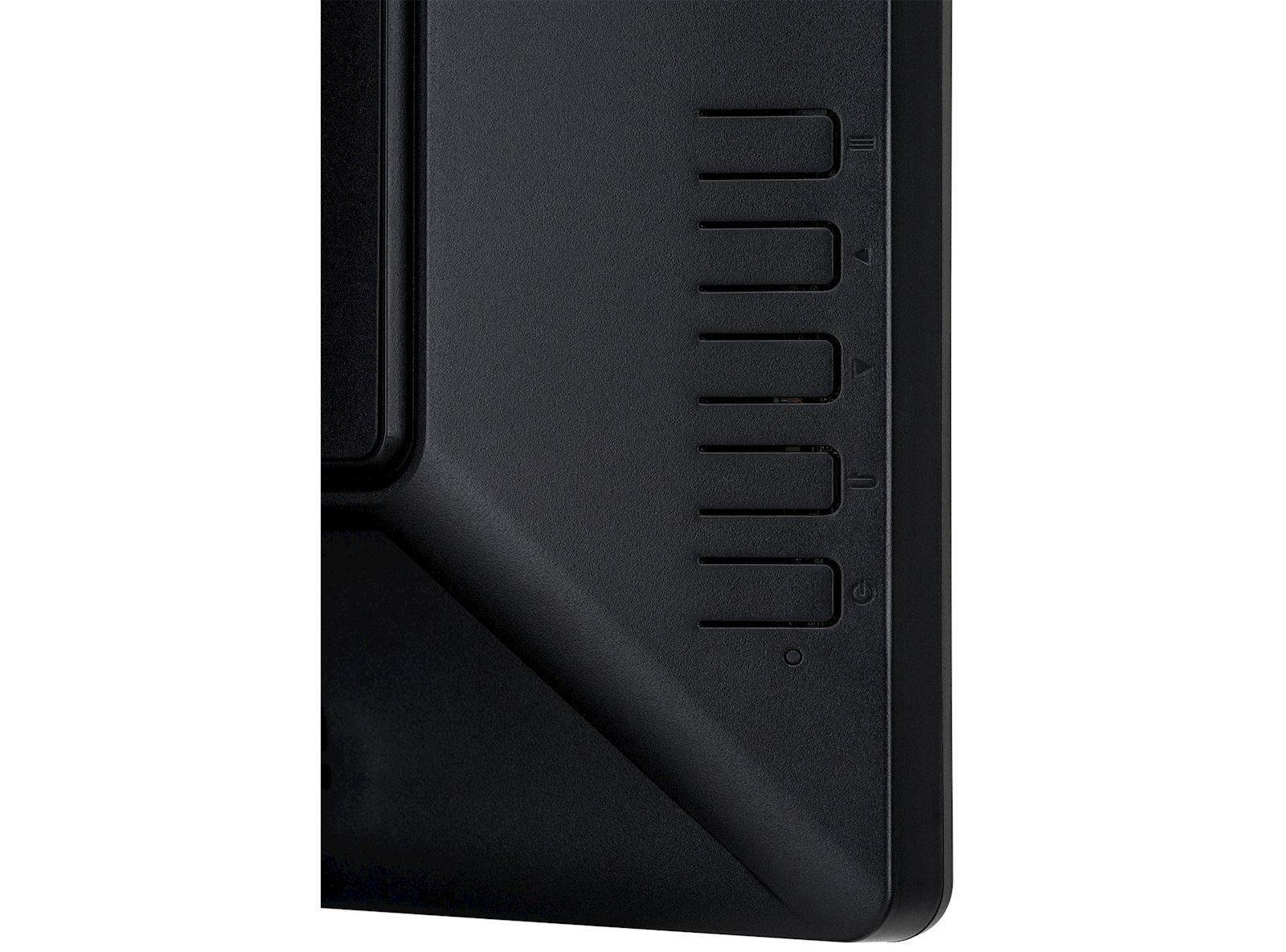

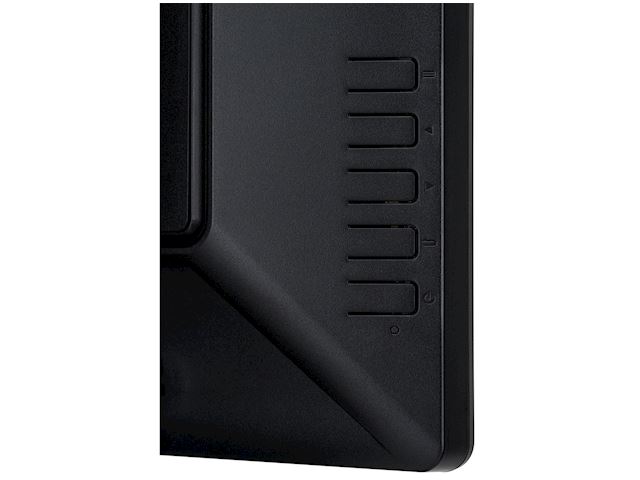

Control buttons Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power
User controls picture (backlight, brightness, contrast, sharpness) display (auto adjustment, H position, V position, pixel clock, phase) colour (colour temp, picture mode) input, audio (volume, mute) other (reset, OSD time, OSD H position, OSD V position, language) information
Plug&Play DDC2B

MECHANICAL

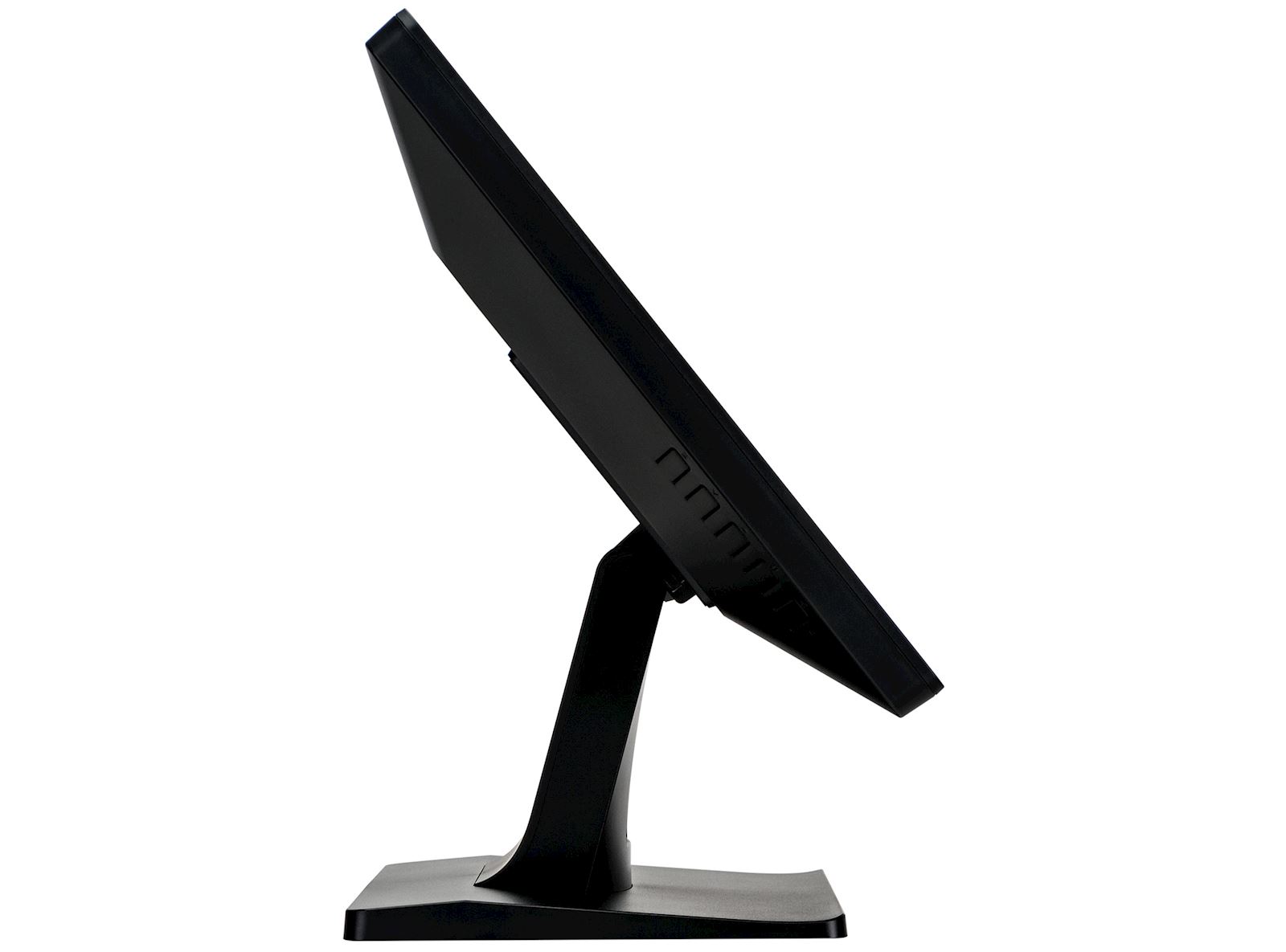

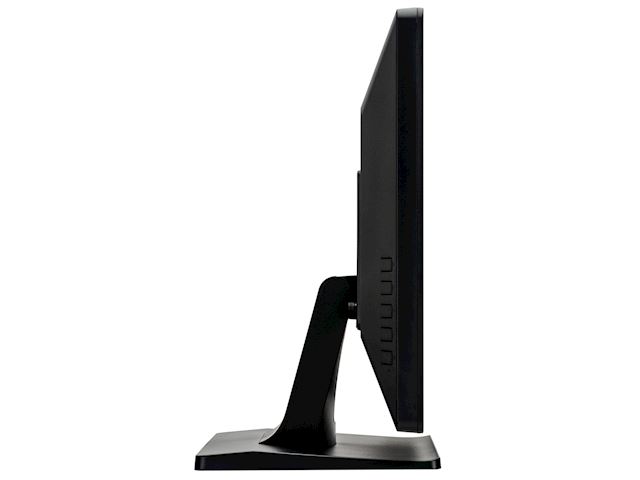

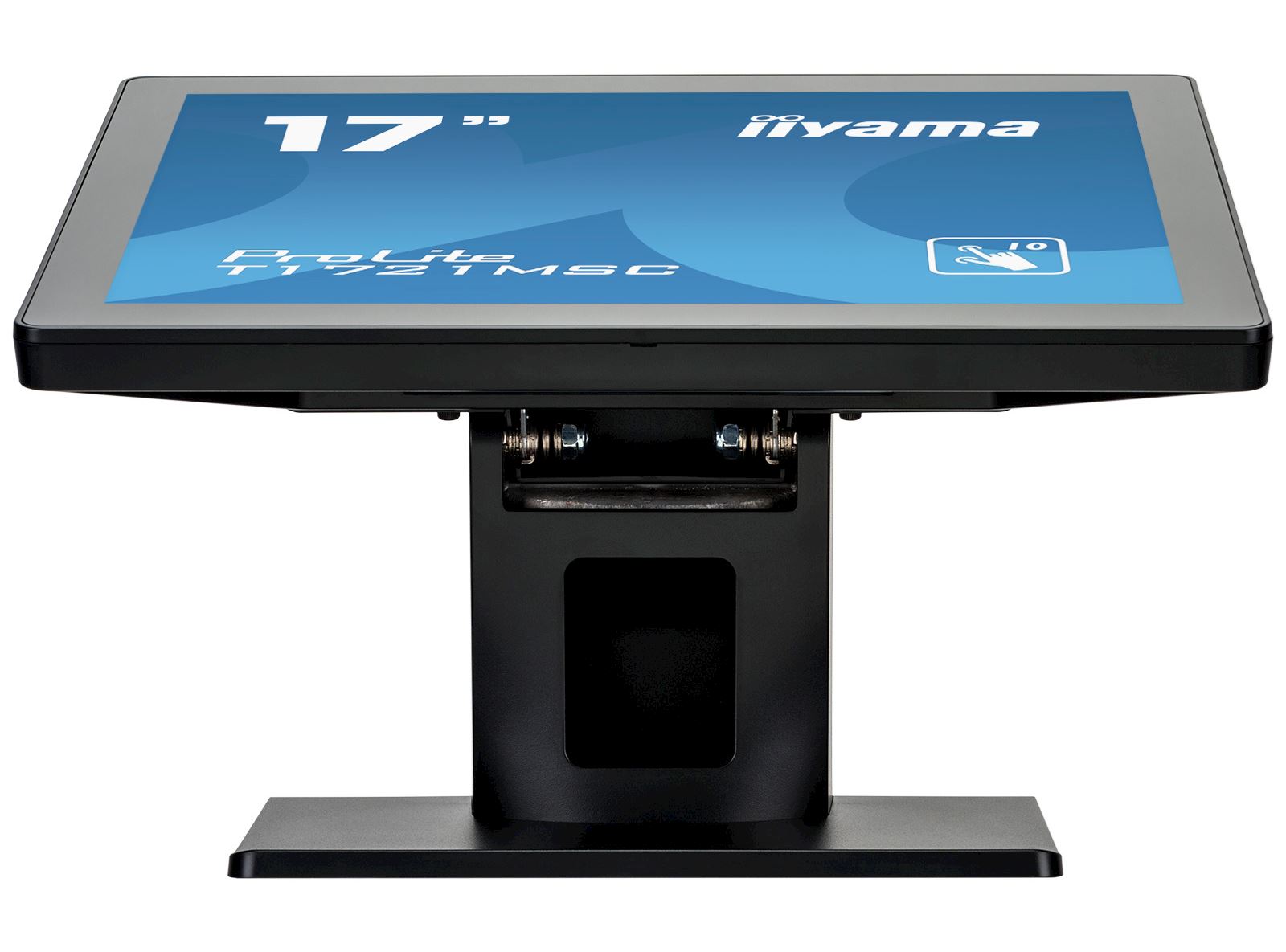

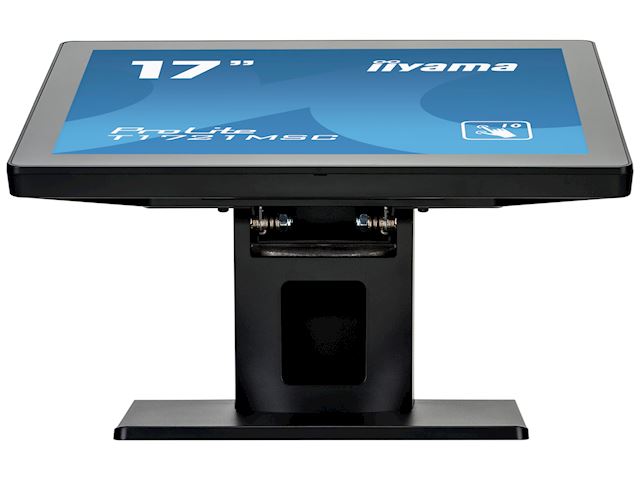

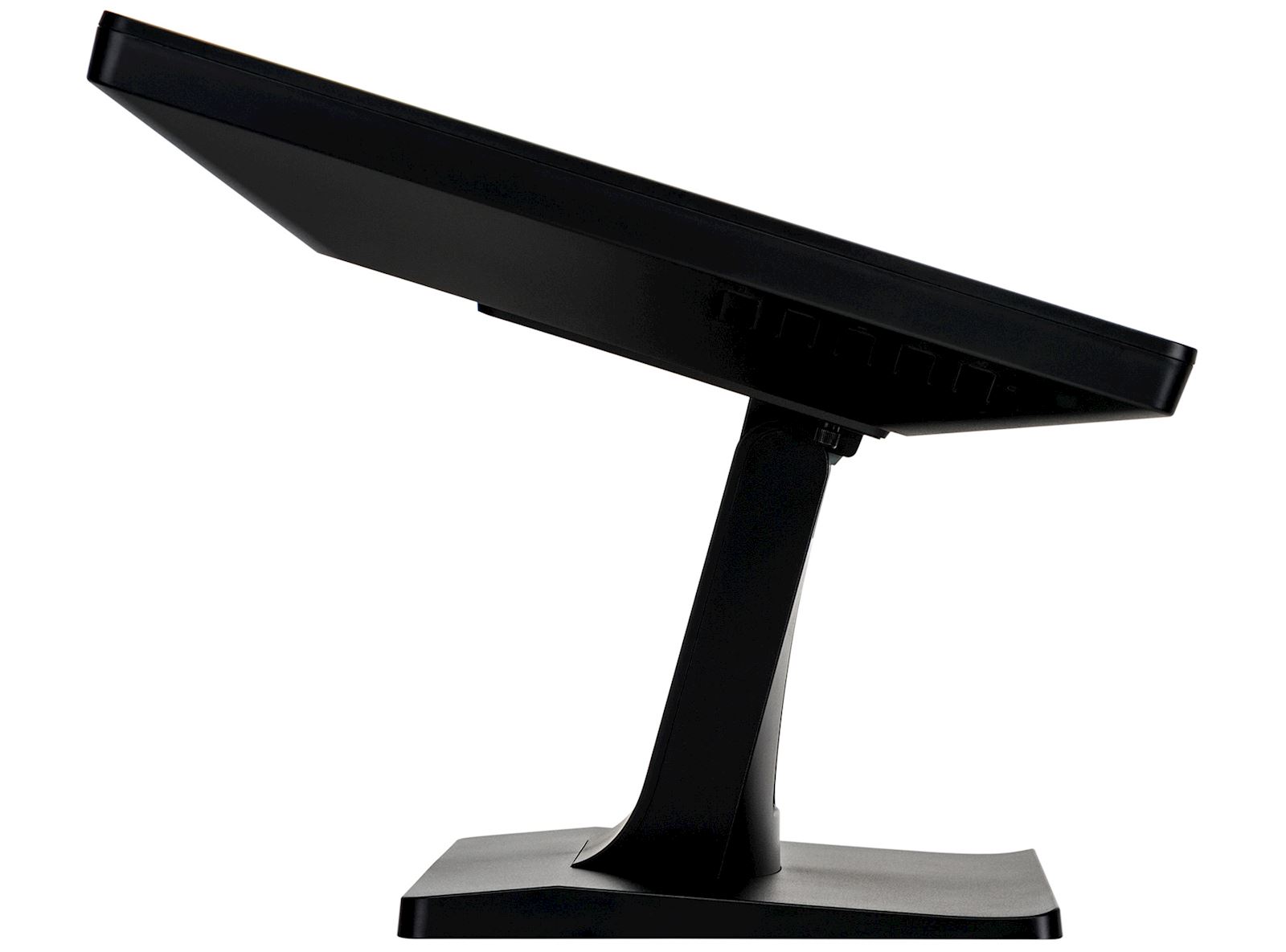

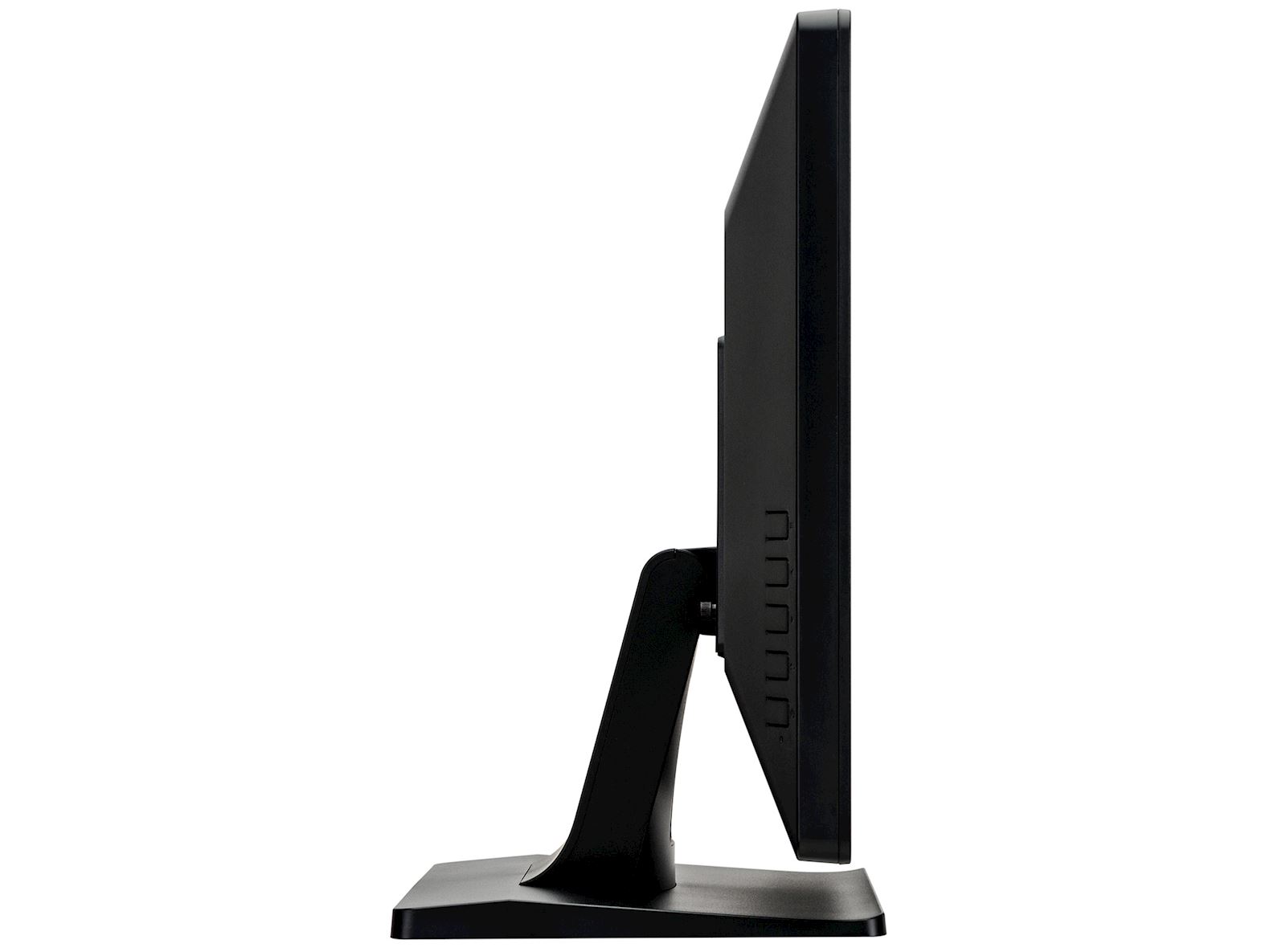

Tilt angle 70° up; 10° down

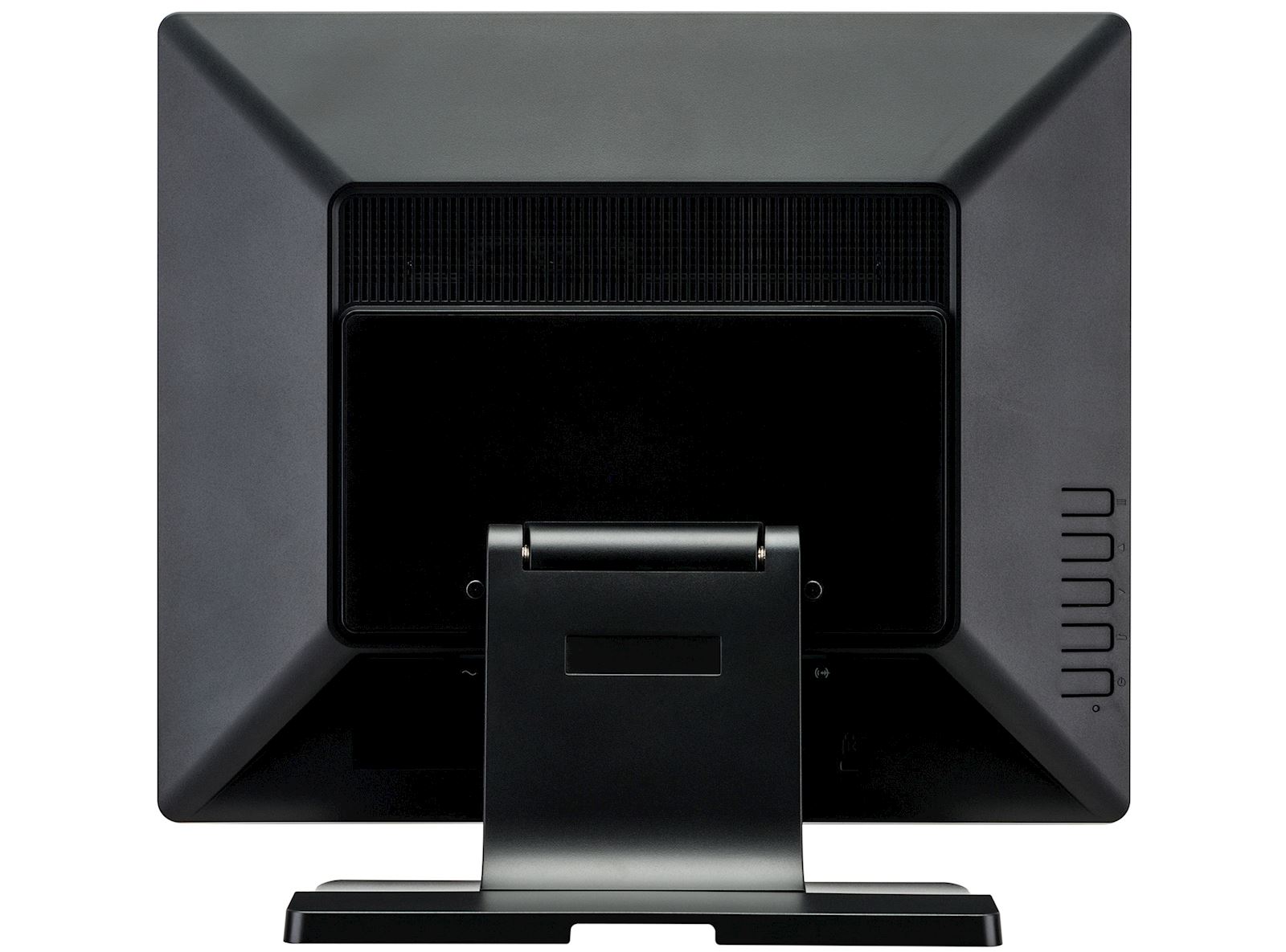

VESA mounting 100 x 100mm
Cable management system yes

ACCESSORIES INCLUDED

Cables power, VGA, DVI, USB, Audio
Guides quick start guide, safety guide
Other AC adapter, mylar sheet (for VESA mount)

POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 20W typical, 3W stand by, 3W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, CU, cULus
Other REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 392.5 x 364 x 198mm
Weight (without box) 4.4kg
EAN code 4948570114887
Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

IP

The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.


IP

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SCRATCH RESISTANCE
Downloads
  • product downloads pdf
    ProLite T1721MSC-B1 Product Information
  • product downloads manuals
    ProLite T1721MSC-B1 User Manual
