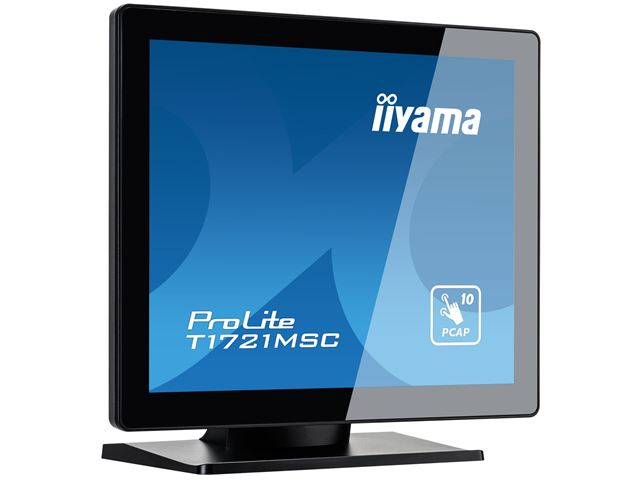

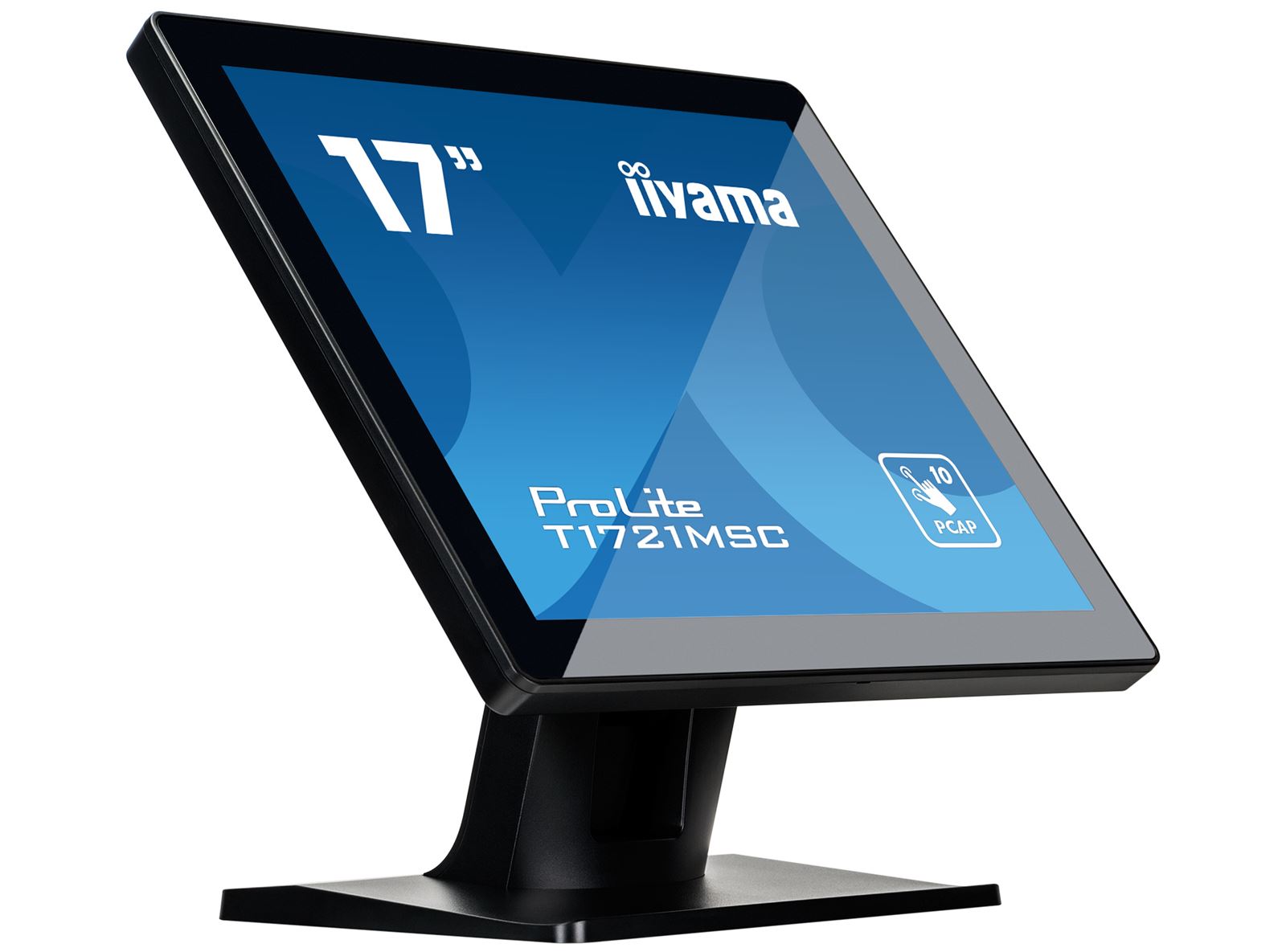

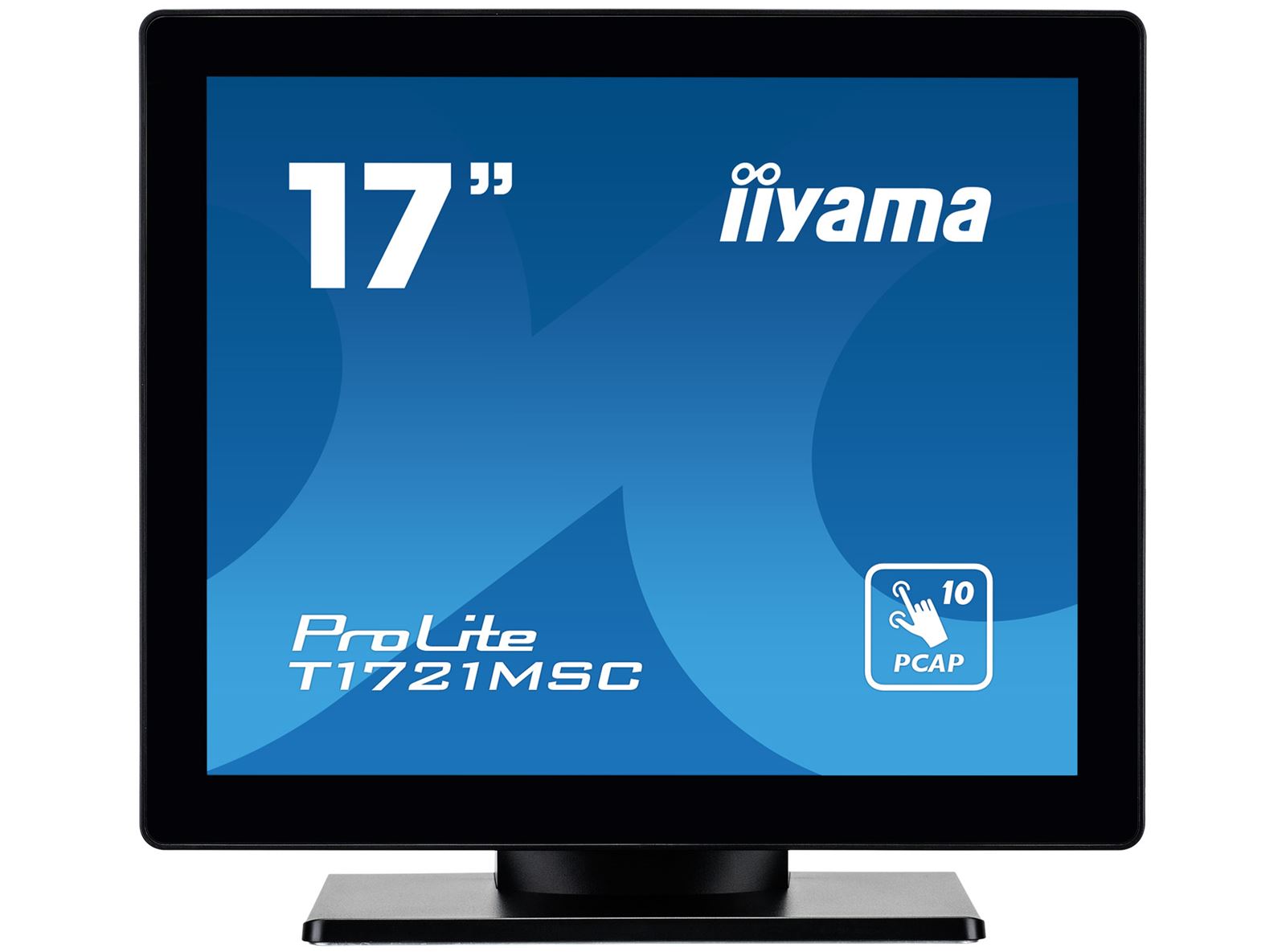

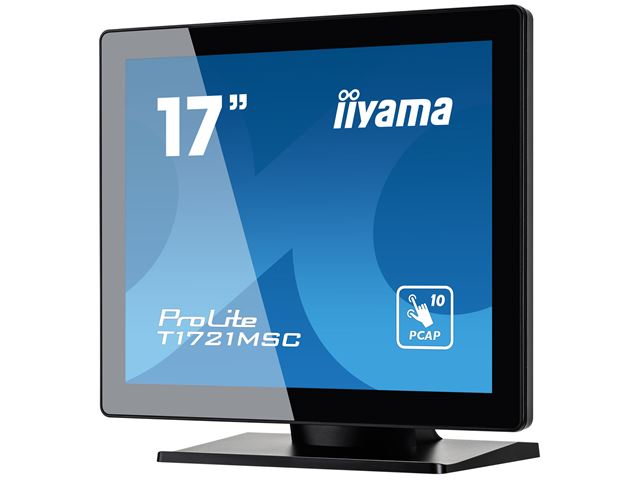

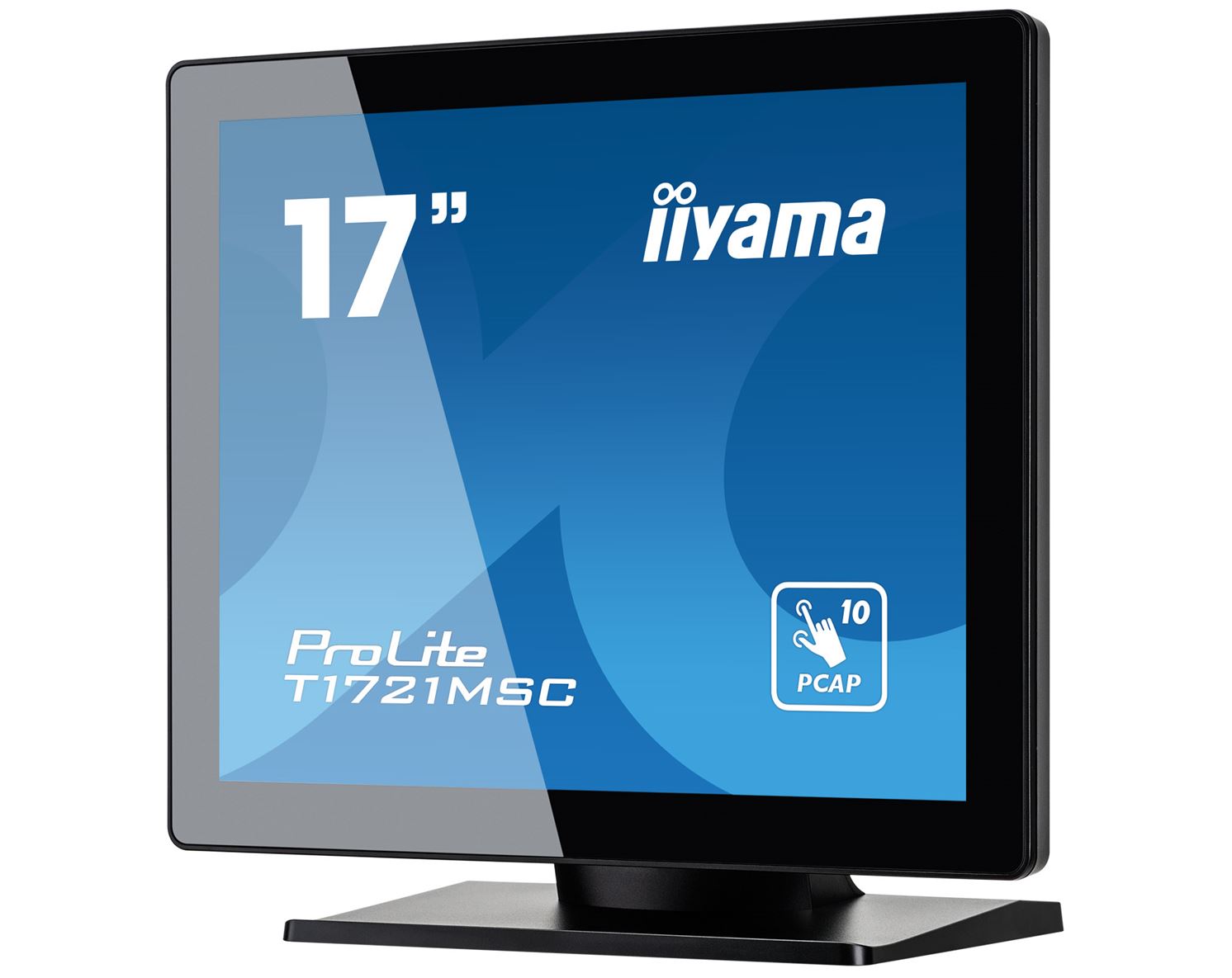

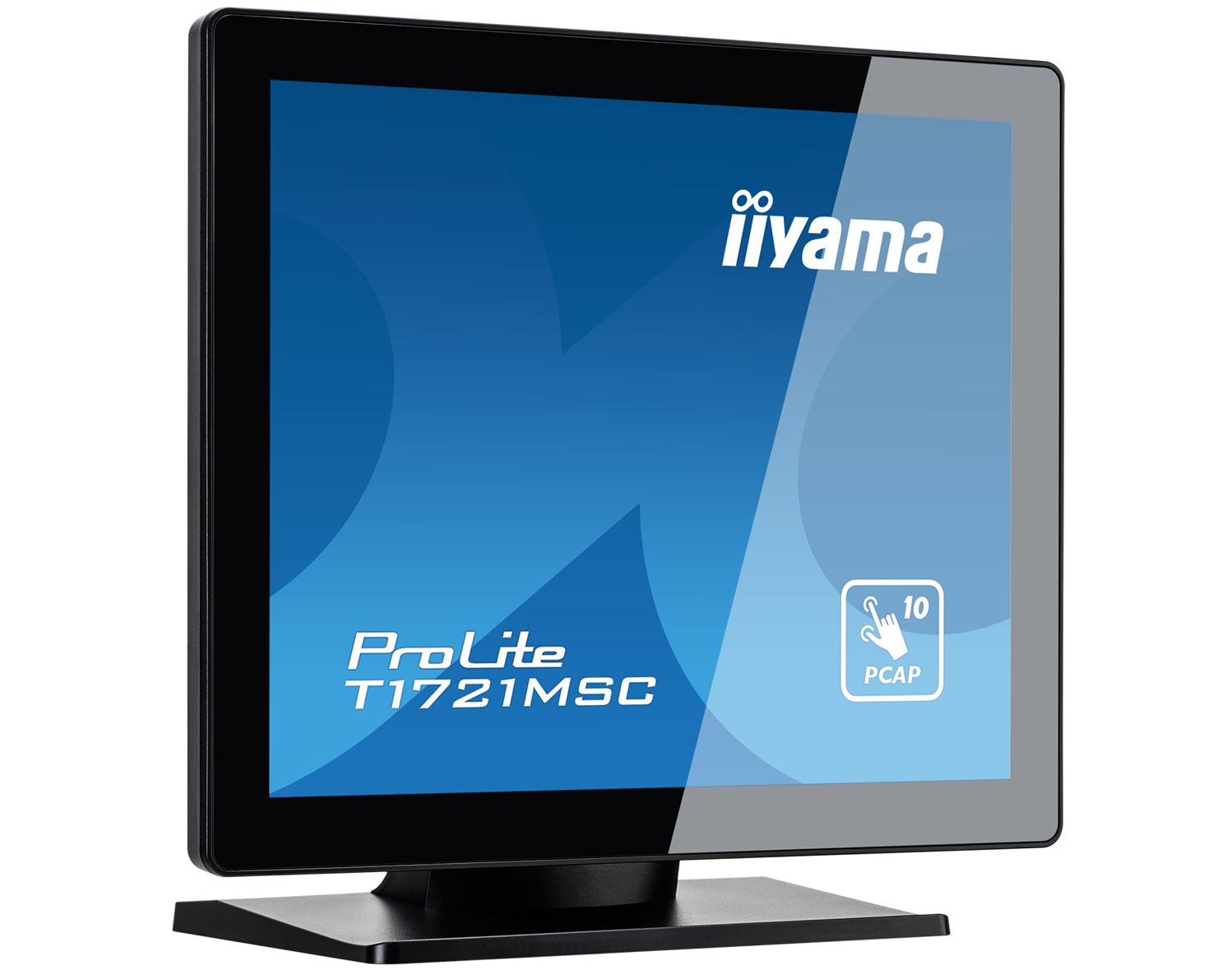

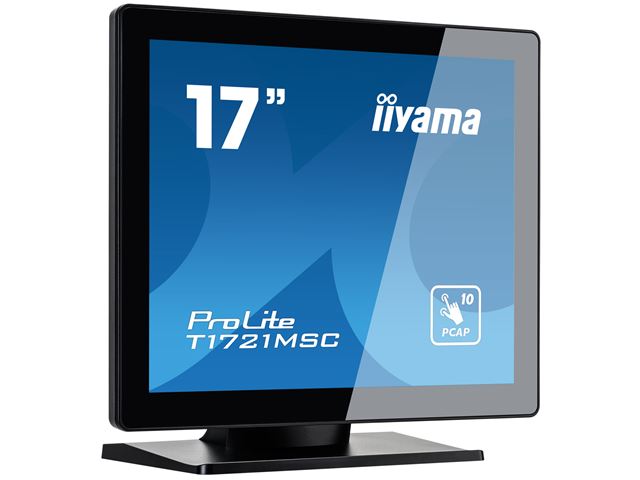

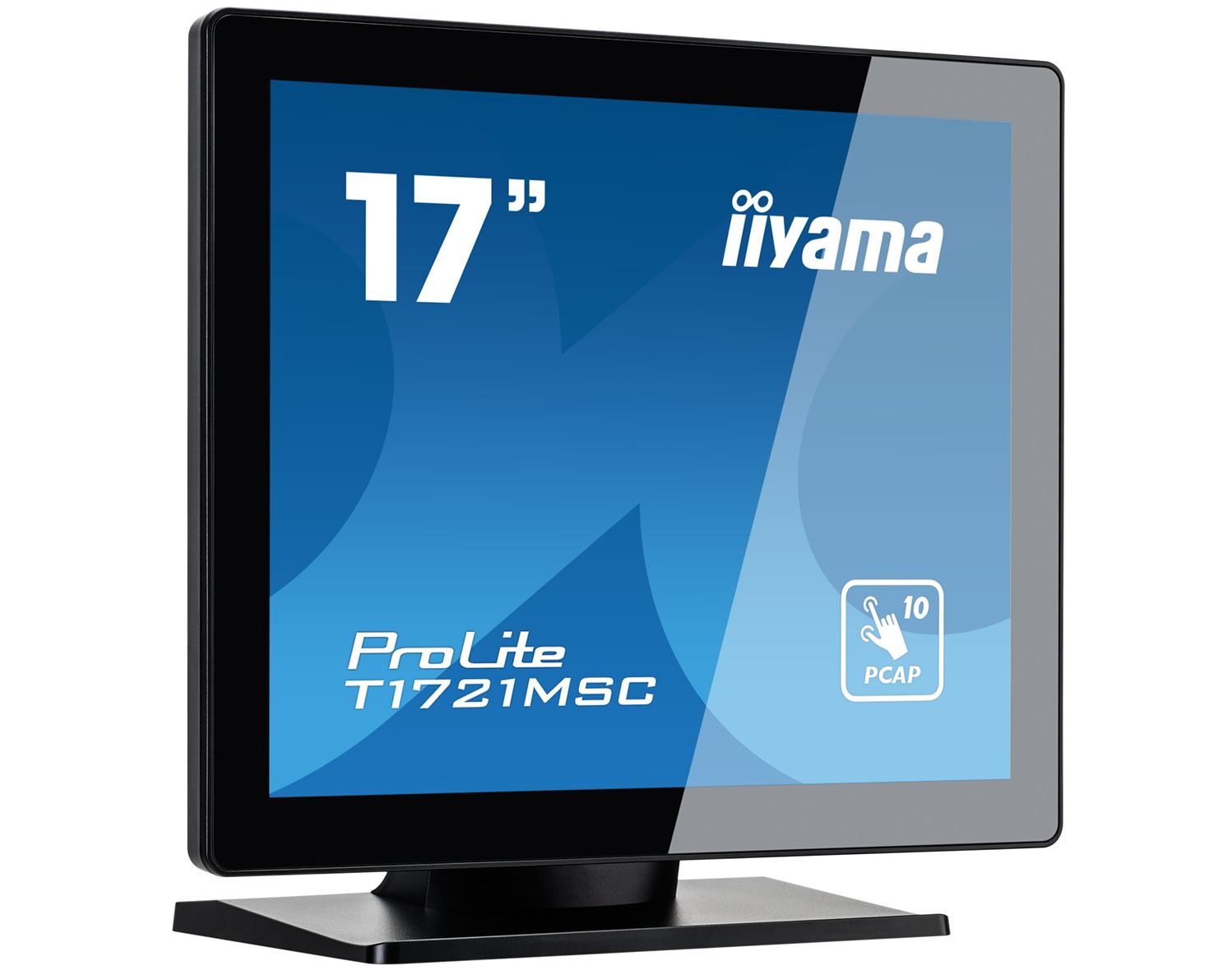

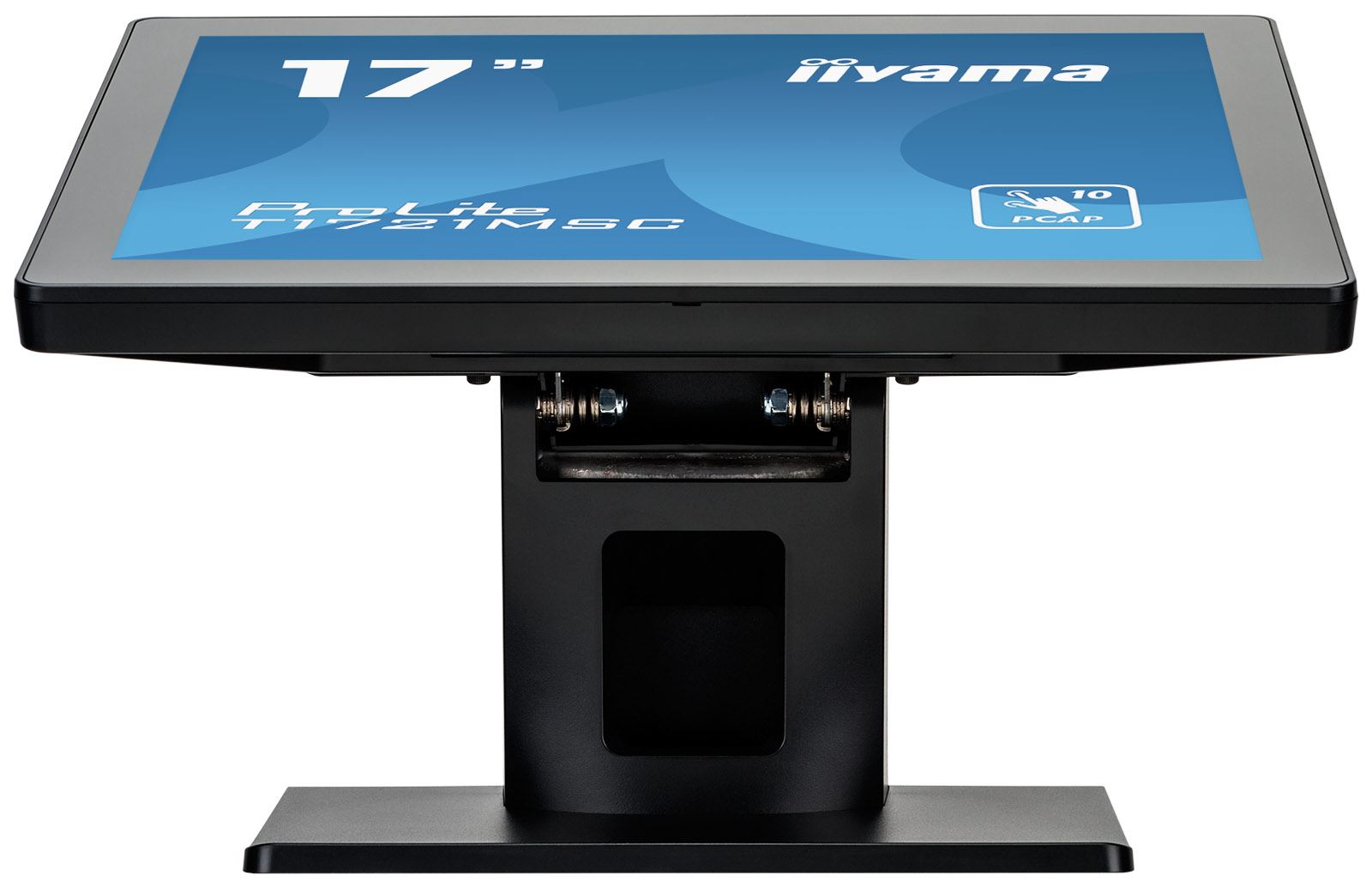

iiyama ProLite monitor T1721MSC-B2 17" Black, 5:4, Projective Capacitive 10pt touch, Bezel Free, edge to edge glass

£257.60 exc. VAT
£309.12 inc. VAT

Brand: iiyama

Manufacturer Code: T1721MSC-B2

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

17" touchscreen featuring 10 touch points and PCAP technology

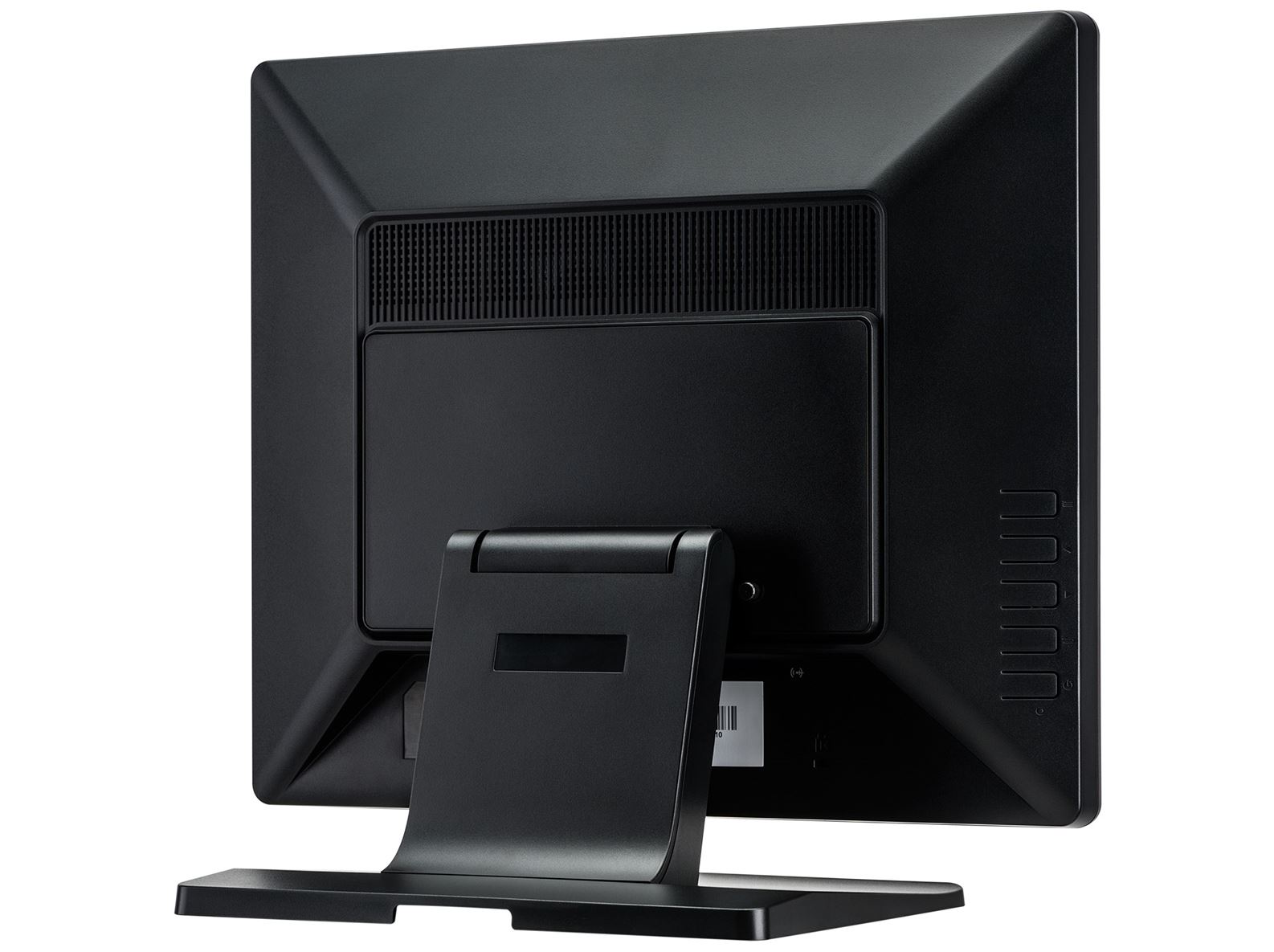

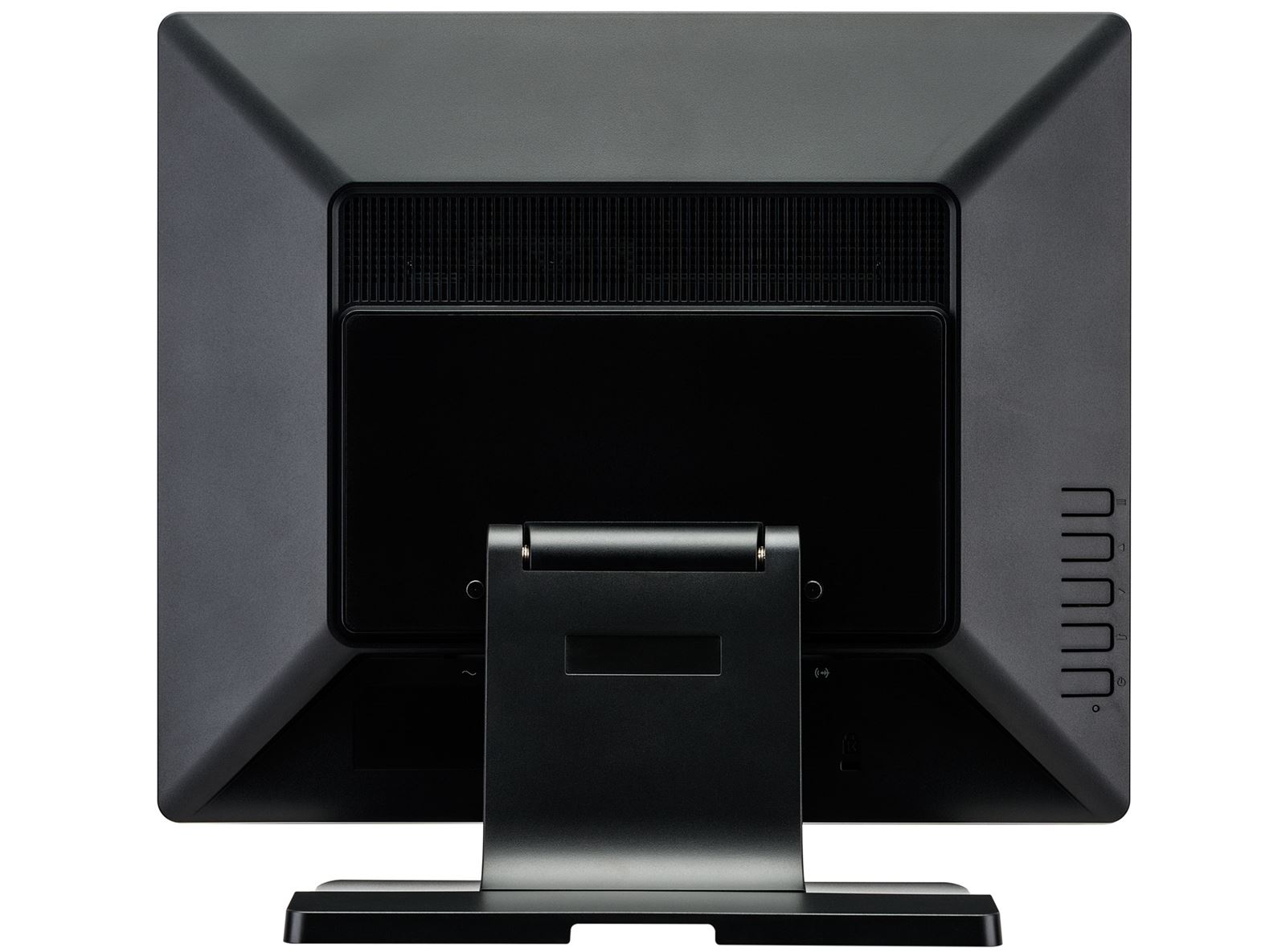

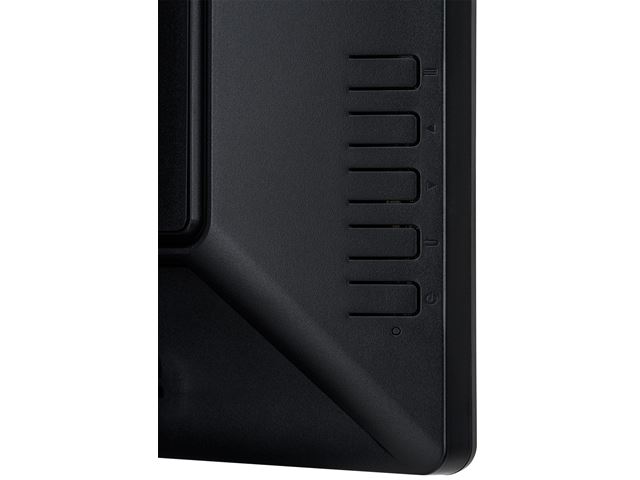

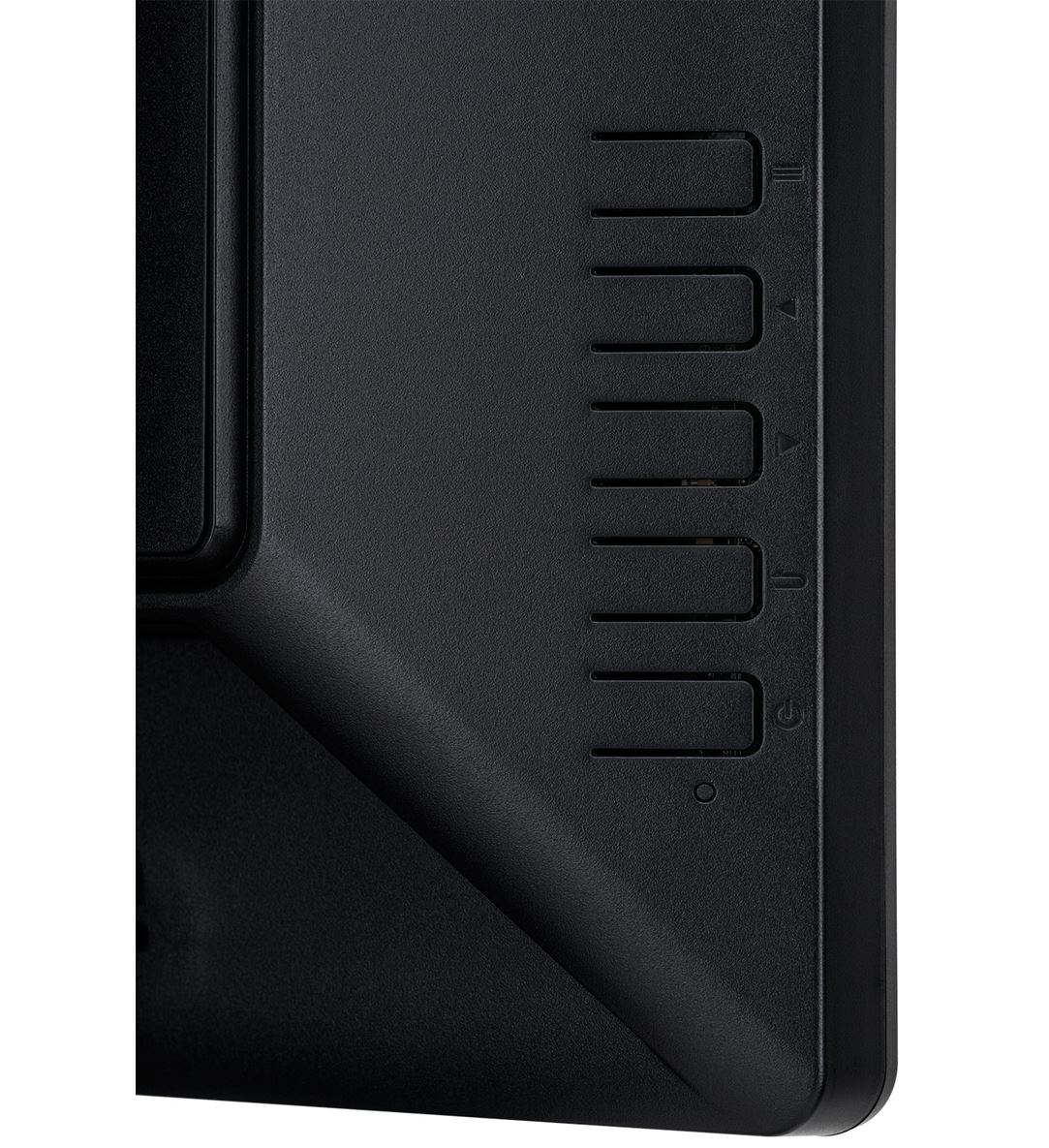

The ProLite T1721MSC-B2 17” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 80 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering and include a handy function to deactivate the touchscreen for cleaning. The ProLite T1721MSC-B2 is an incredibly powerful touch solution, perfect for instore retail purposes.

Technical Information


Design Edge to edge glass
Diagonal 17", 43cm
Panel TN
Native resolution 1280 x 1024 (1.3 megapixel)
Aspect ratio 5:4
Panel brightness 250 cd/m²
Brightness 230 cd/m² with touch
Light transmittance 85%
Static contrast 1000:1
Response time (BTB) 5ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.7mln
Horizontal Sync 31.4 - 80kHz
Viewable area W x H 338 x 270.5mm, 13.3 x 10.6"
Pixel pitch 0.264mm
Bezel colour and finish black, matte


Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.


Analog signal input VGA x1
Digital signal input HDMI x1
Audio output Mini jack x1
Speakers 2 x 2W
HDCP yes
USB ports x1


Glass thickness 1.5mm
Glass hardness 7H
Water and dust protection IPX3 (front)
OSD key lock yes


OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power
User controls picture (backlight, brightness, contrast, sharpness) display (auto adjustment, H position, V position, pixel clock, phase) colour (colour temp, picture mode) input, audio (volume, mute, audio source), other (reset, OSD time, OSD H position, OSD V position, language) information
Blue light reducer yes
Plug&Play DDC2B

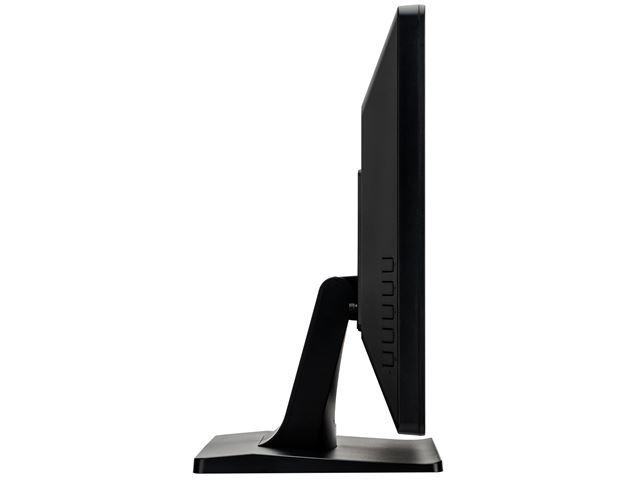

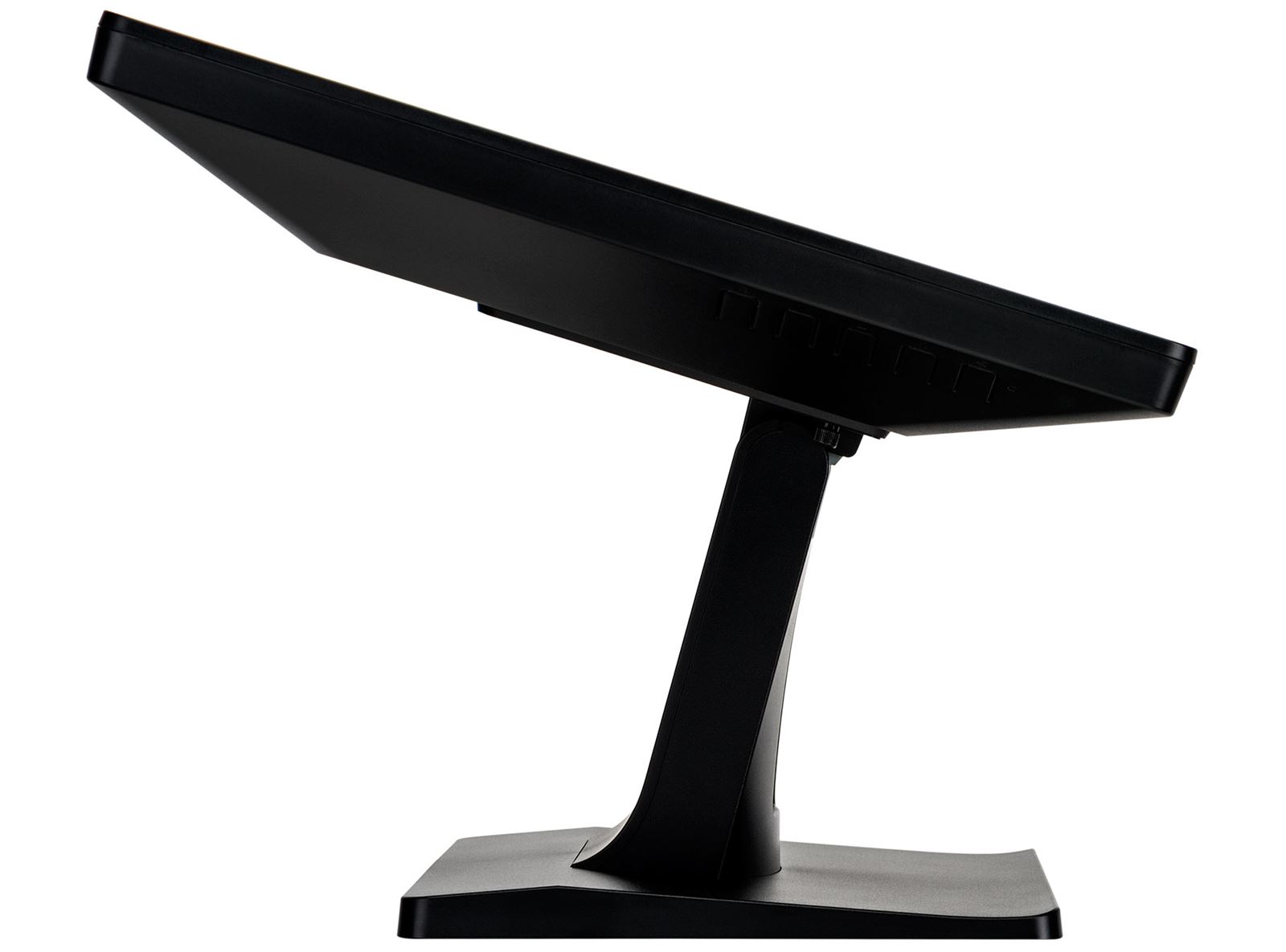

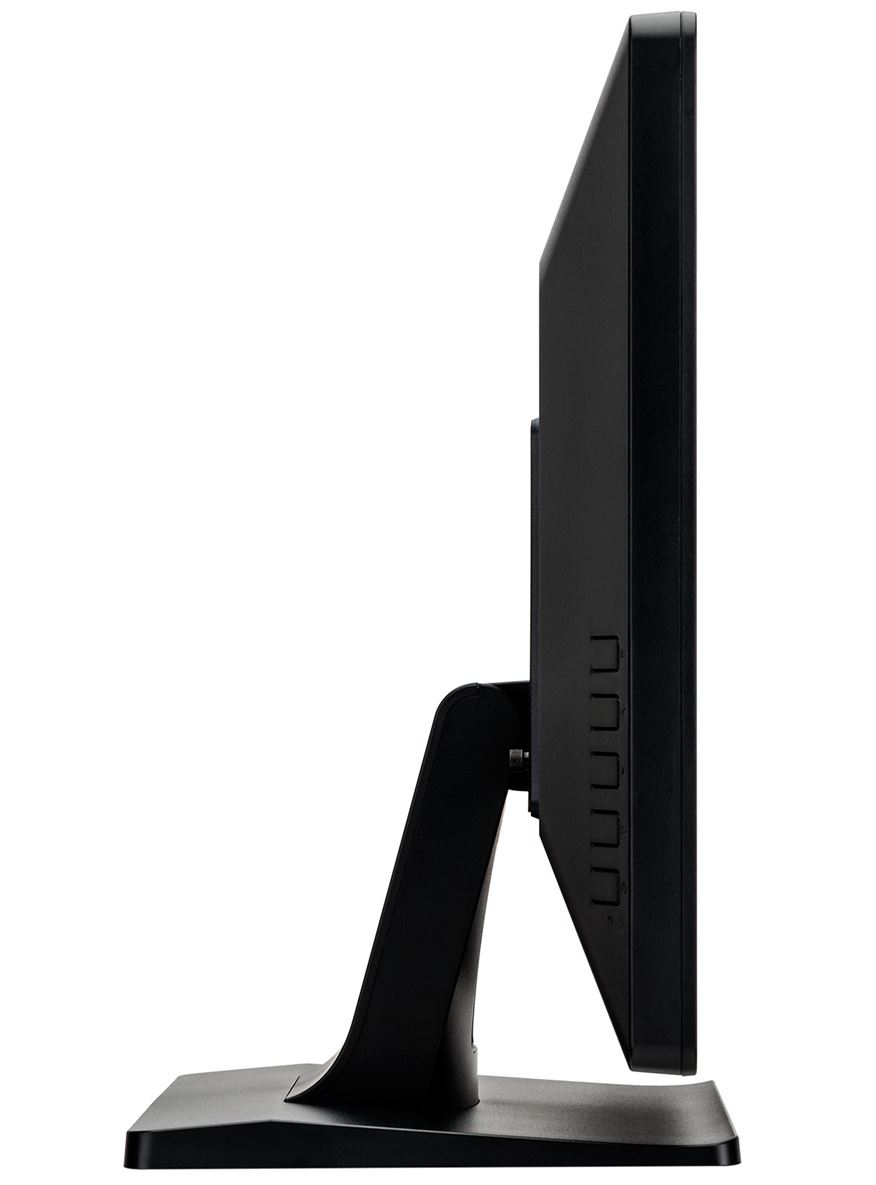

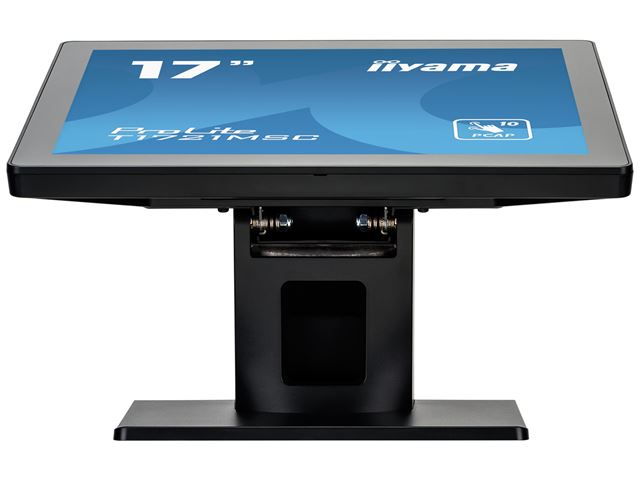

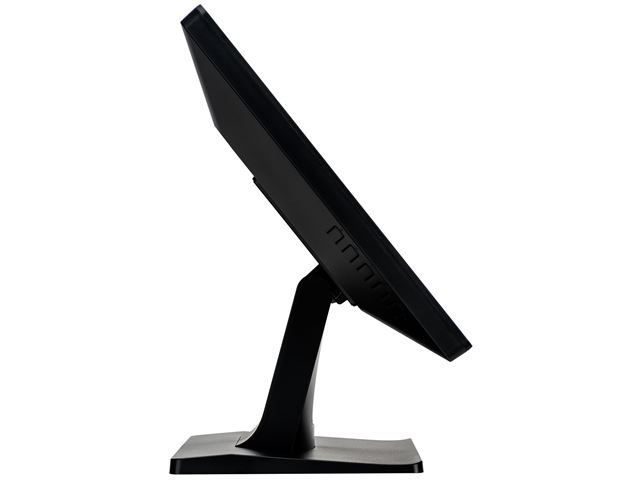

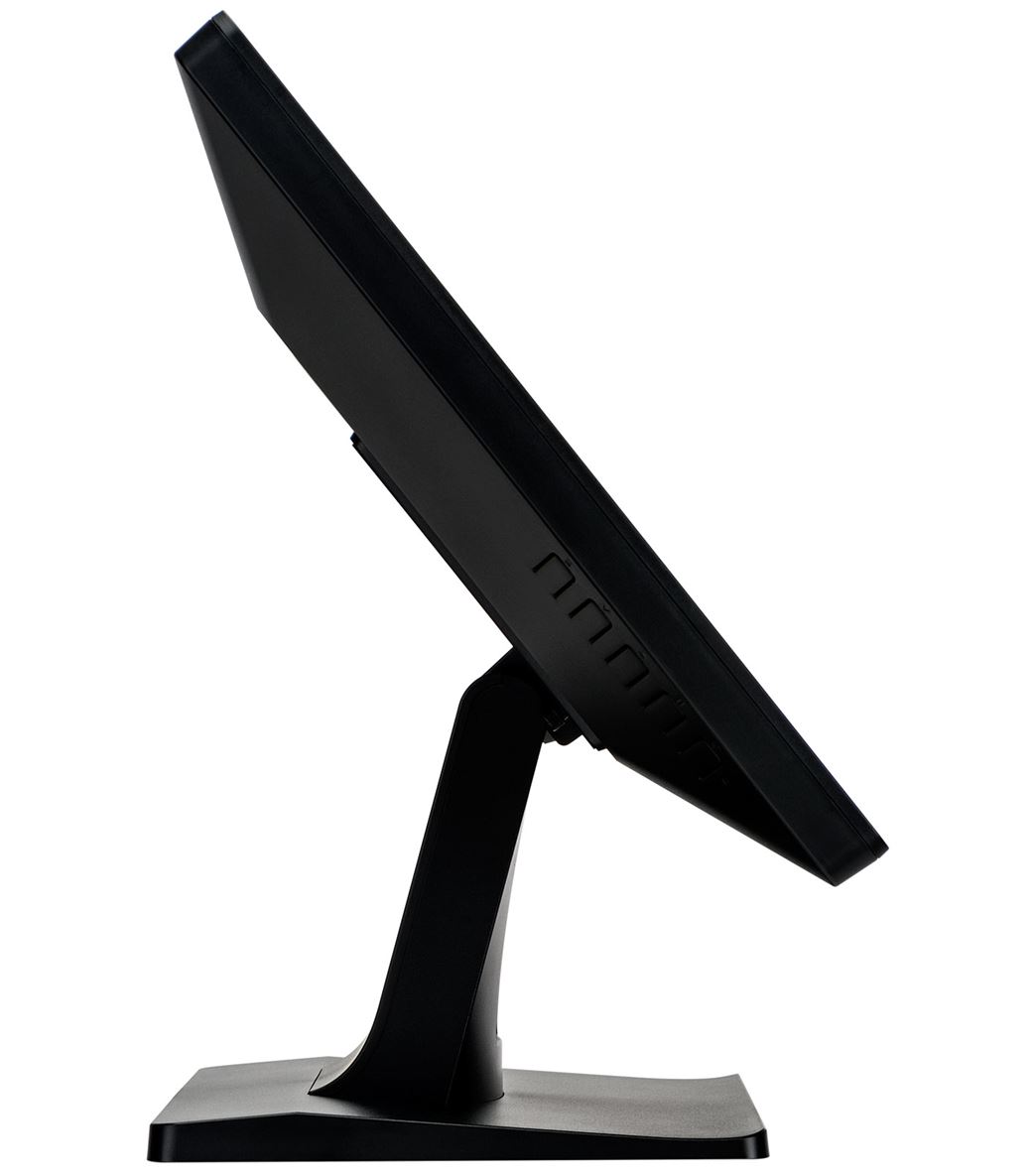

Tilt angle 70° up; 10° down

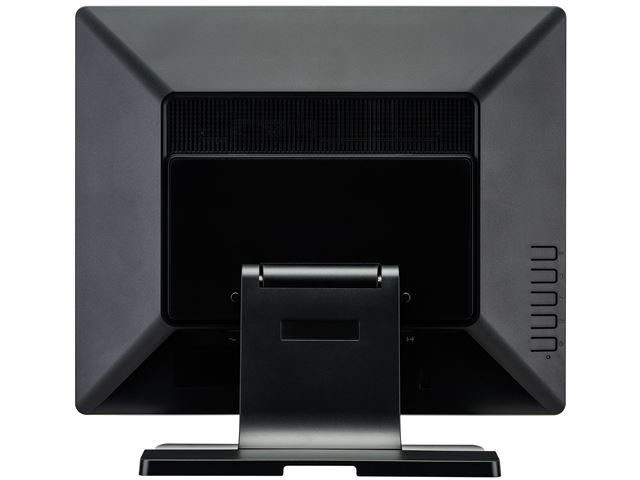

VESA mounting 100 x 100mm
Cable management system yes
MTBF 50000 hours

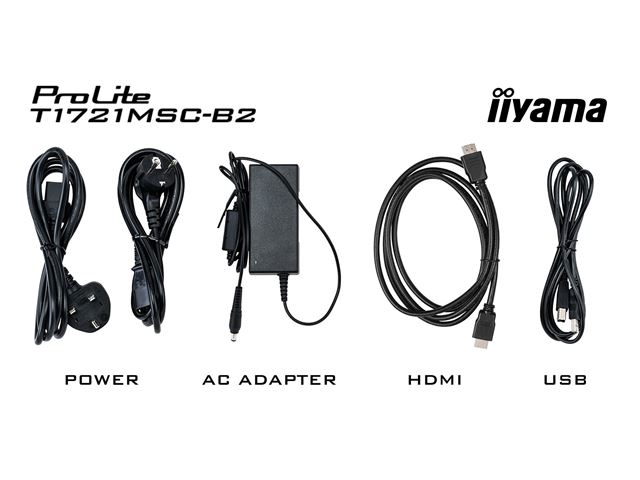

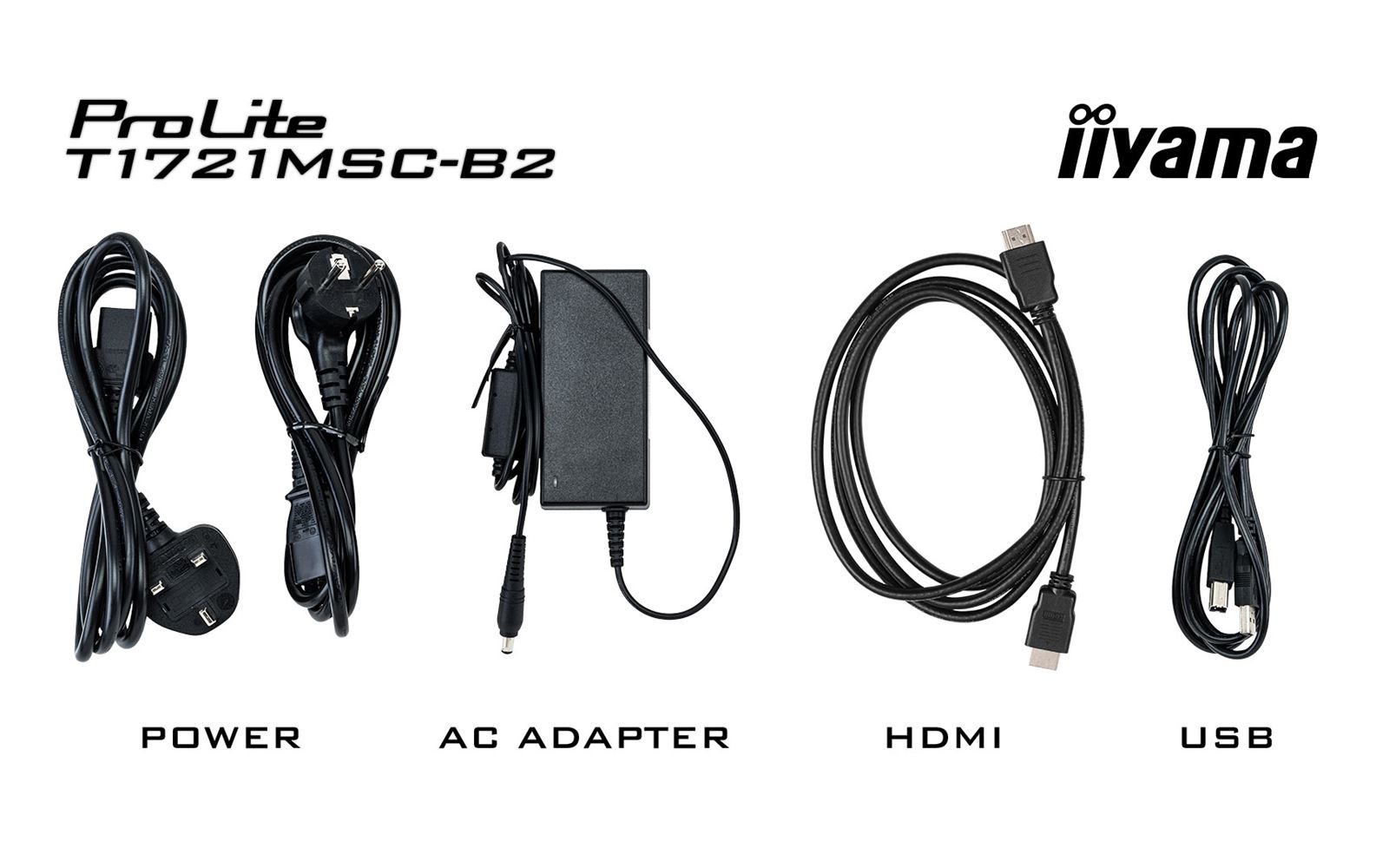

Cables power, USB, HDMI
Guides quick start guide, safety guide
Other AC adapter, mylar sheet (for VESA mount)


Power supply unit external
Power supply DC 12 V
Power usage 20W typical, 1.5W stand by, 0.3W off mode


Regulations CE, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead


Product dimensions W x H x D 392.5 x 364 x 198mm
Box dimensions W x H x D 537 x 500 x 172mm
Weight (without box) 4.4kg
Weight (with box) 5.8kg
EAN code 4948570120659


VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.



This LED monitor is equipped with two high quality stereo speakers.



This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.



The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.



Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
