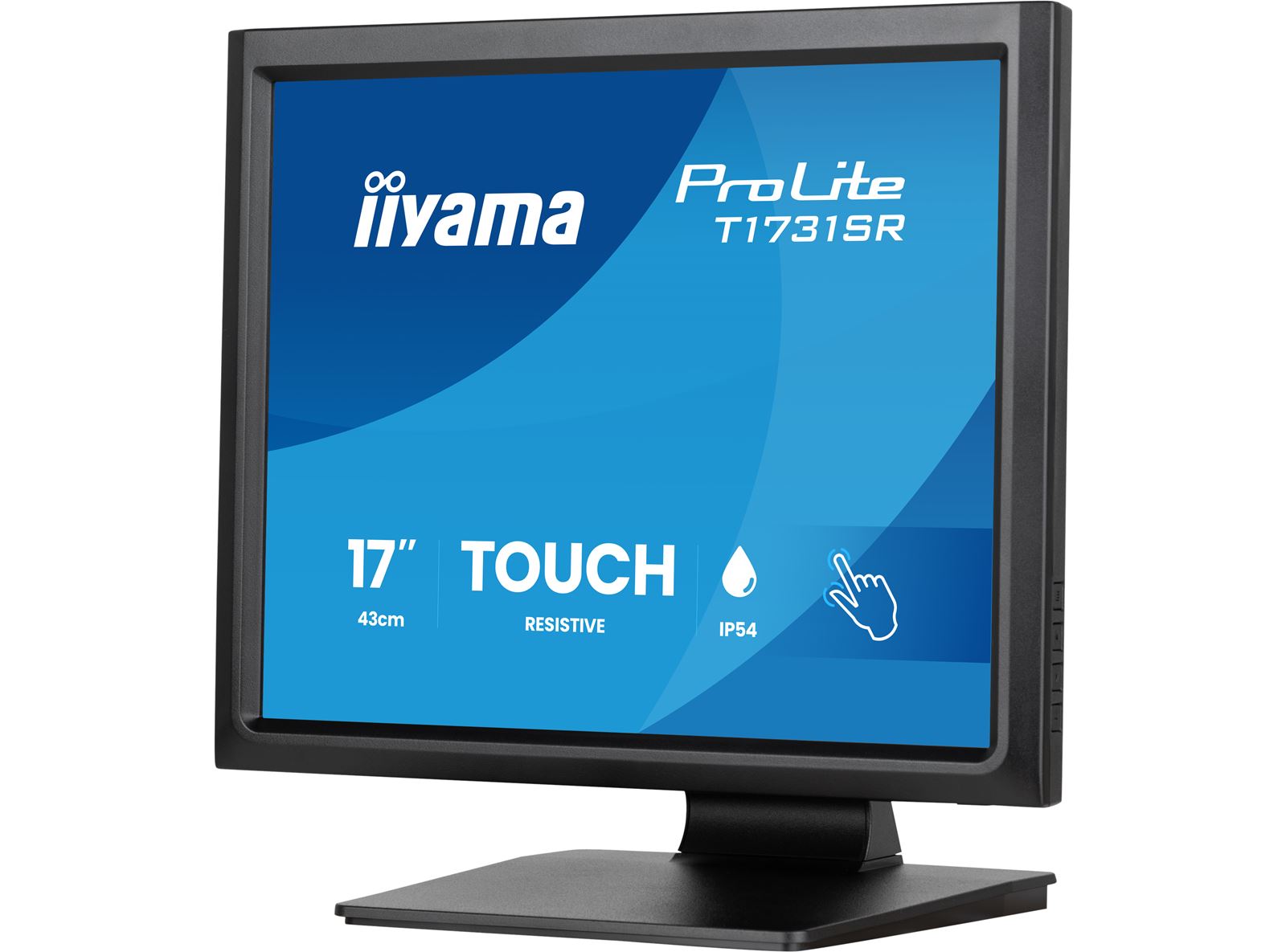

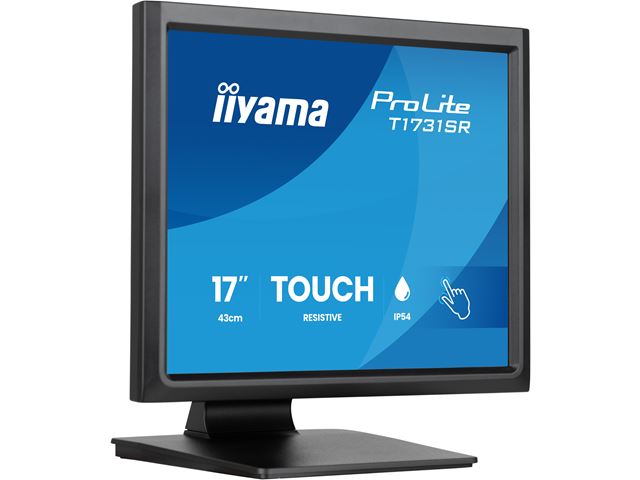

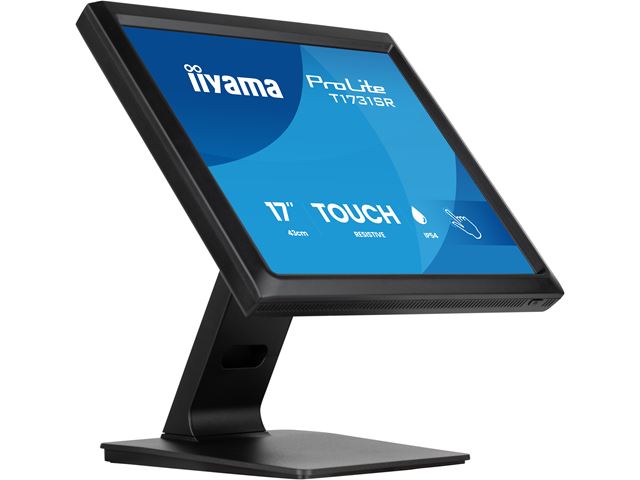

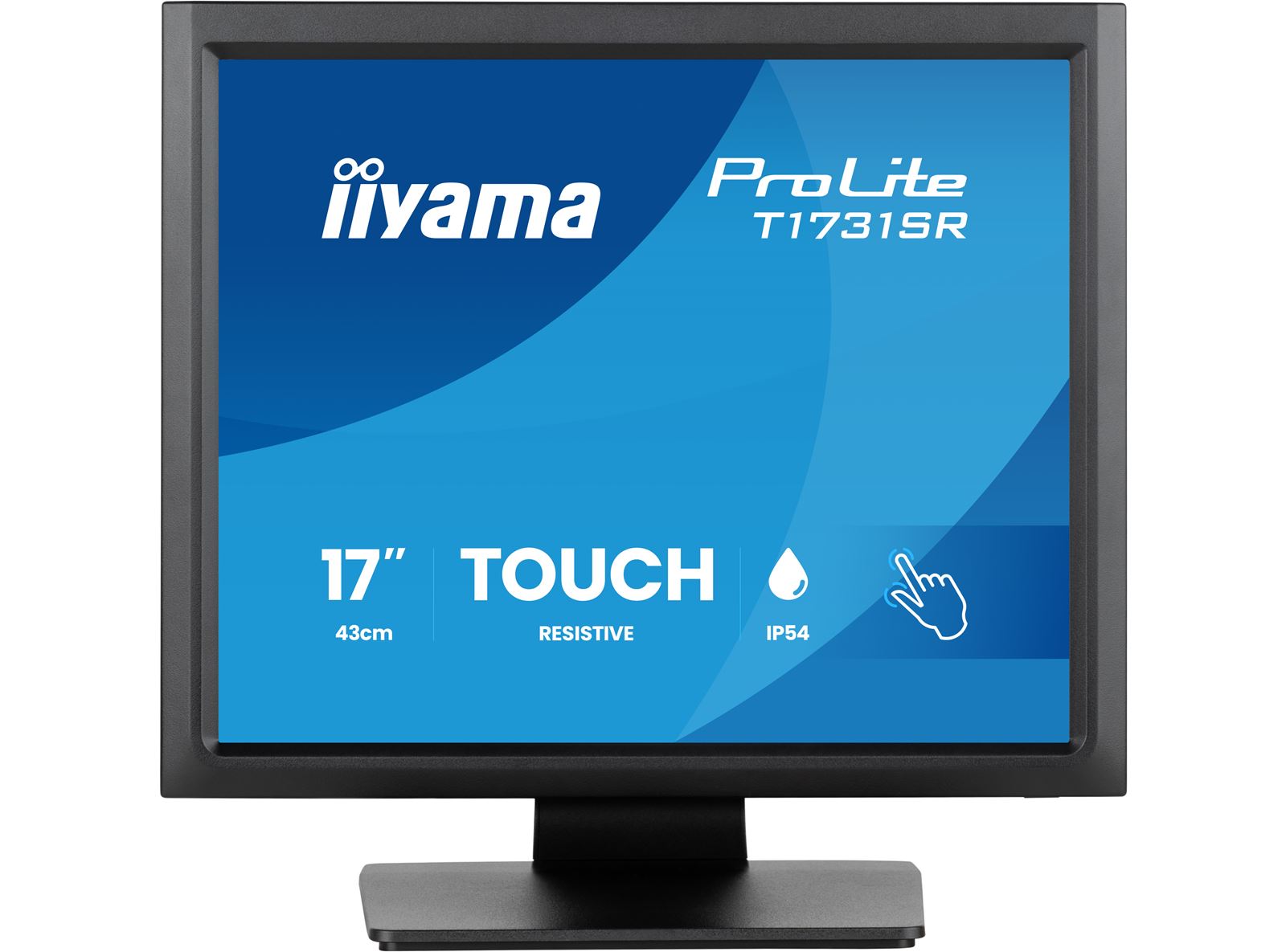

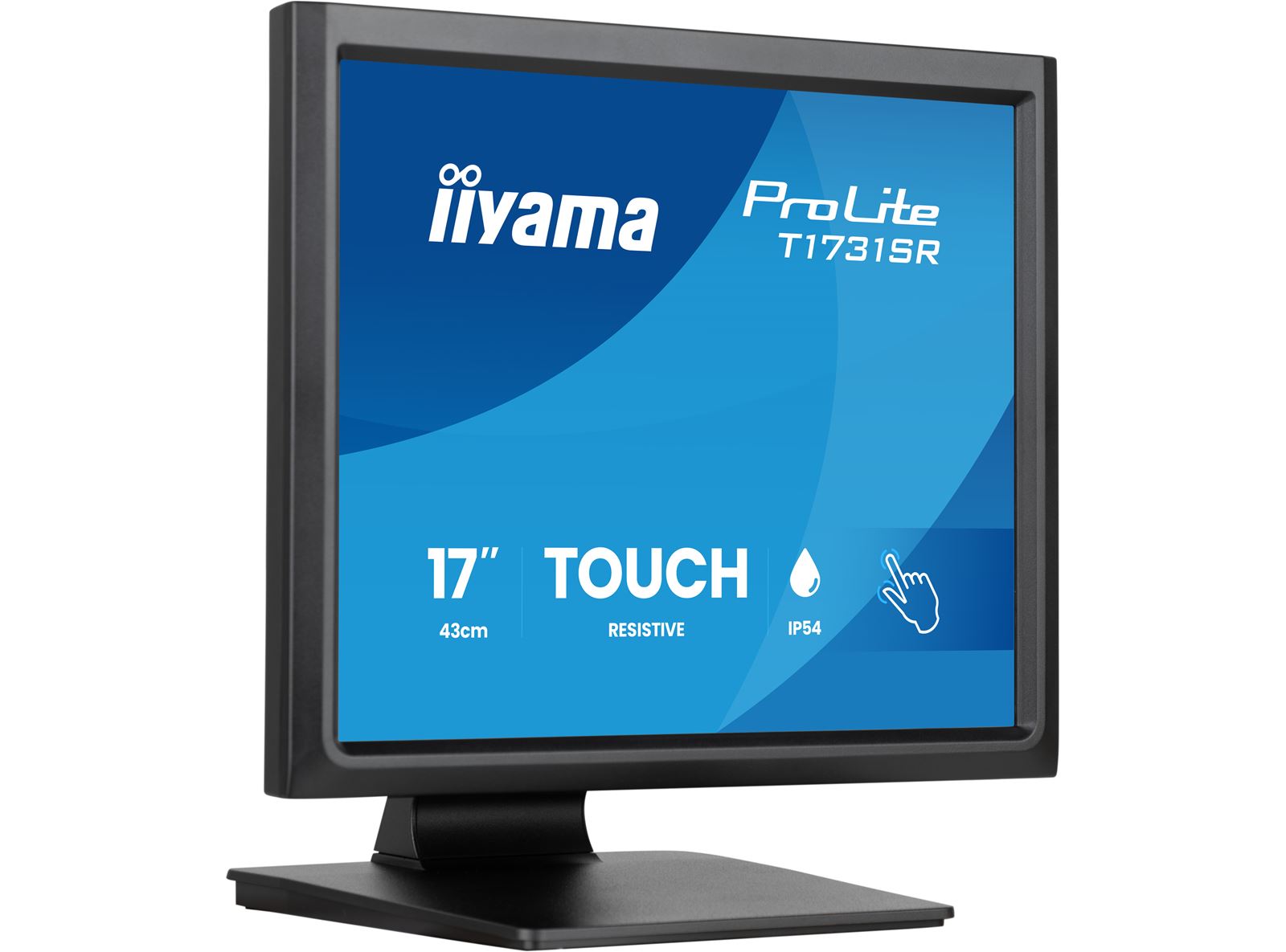

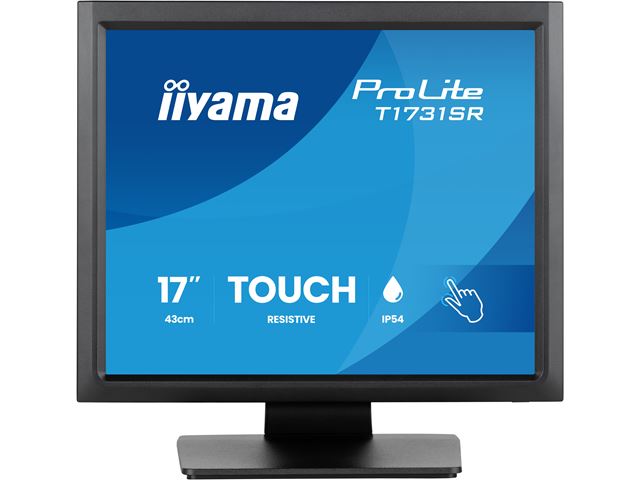

iiyama ProLite monitor T1731SR-B2S 17" Black, 5:4, Resistive single touch, HDMI, Display Port, IP54 rated

£240.90 exc. VAT
£289.08 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Send Back In Stock Notification

Brand: iiyama

Manufacturer Code: T1731SR-B2S

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

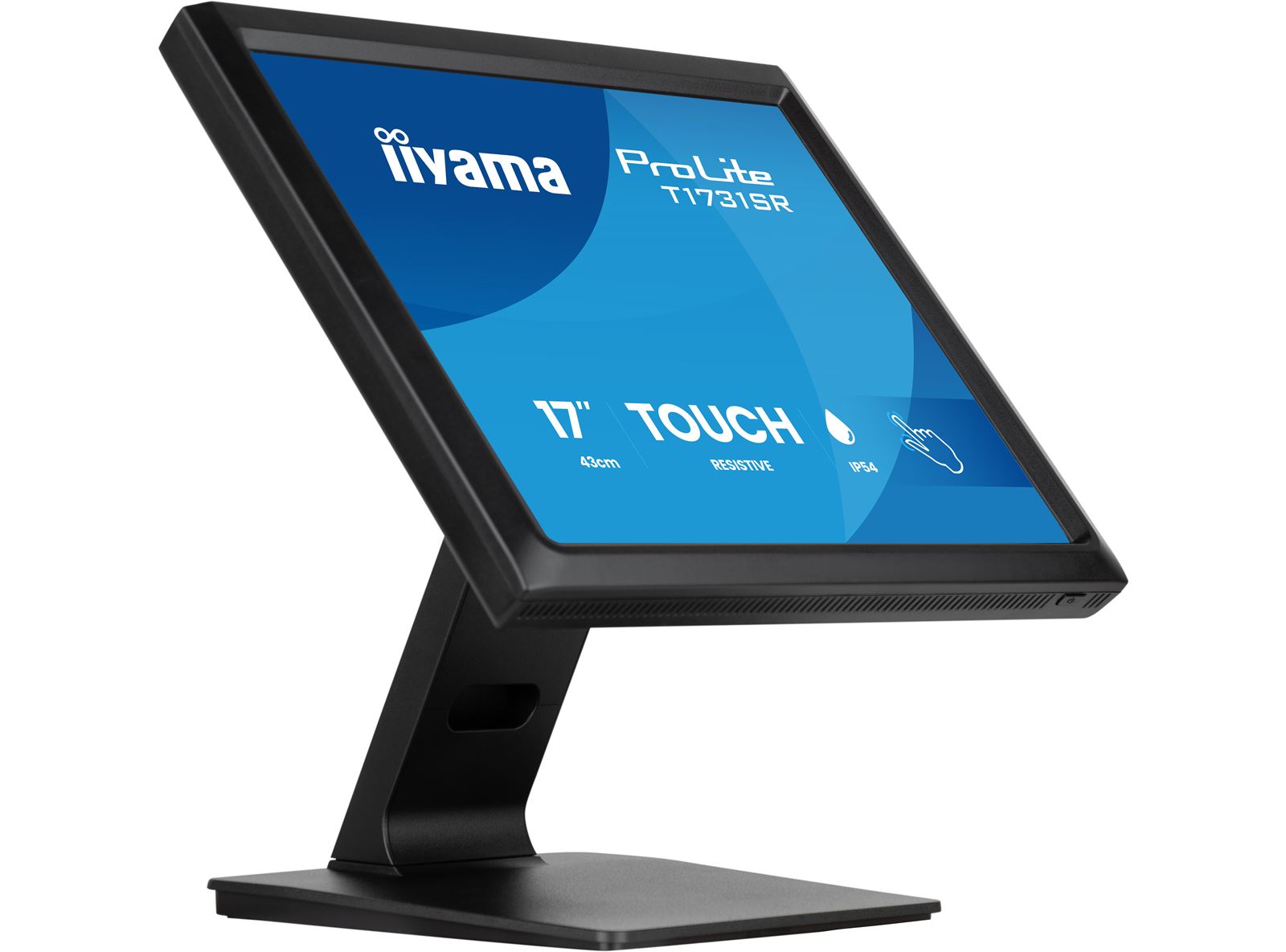

Practical and cost-effective 17” touchscreen monitor for commercial and industrial environments

The ProLite T1731SR-B2S is designed for workplaces where touch interaction needs to be simple, reliable and practical. Its 5-wire resistive touch technology responds to almost any suitable input method, including a finger, glove, stylus or pen-like tool. This makes it ideal for environments where users work quickly, wear gloves or need dependable touch operation without relying on bare fingers.

With its IP54-rated front surface, the display is protected against dust and splashing water from the front, making it a strong choice for retail counters, restaurants, workshops, warehouses and light industrial applications.

The monitor also offers flexible analogue and digital inputs with USB touch support for easy integration. An adjustable ergonomic stand and integrated cable management help create a clean, comfortable and professional workspace.

Technical Information

 DISPLAY CHARACTERISTICS

Diagonal 17", 43cm
Panel TN
Native resolution 1280 x 1024 @75Hz (1.3 megapixel)
Aspect ratio 5:4
Panel brightness 250 cd/m²
Brightness 195 cd/m² with touch
Light transmittance 77%
Static contrast 1000:1 with touch
Response time (BTB) 5ms
Viewing zone horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85°
Colour support 16.7mln
Horizontal Sync 31 - 80kHz
Viewable area W x H 338 x 270mm, 13.3 x 10.6"
Pixel pitch 0.264mm
Bezel colour and finish black, matte

 TOUCH

Touch technology serial resistive
Touch points 1
Touch method stylus, finger, glove, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

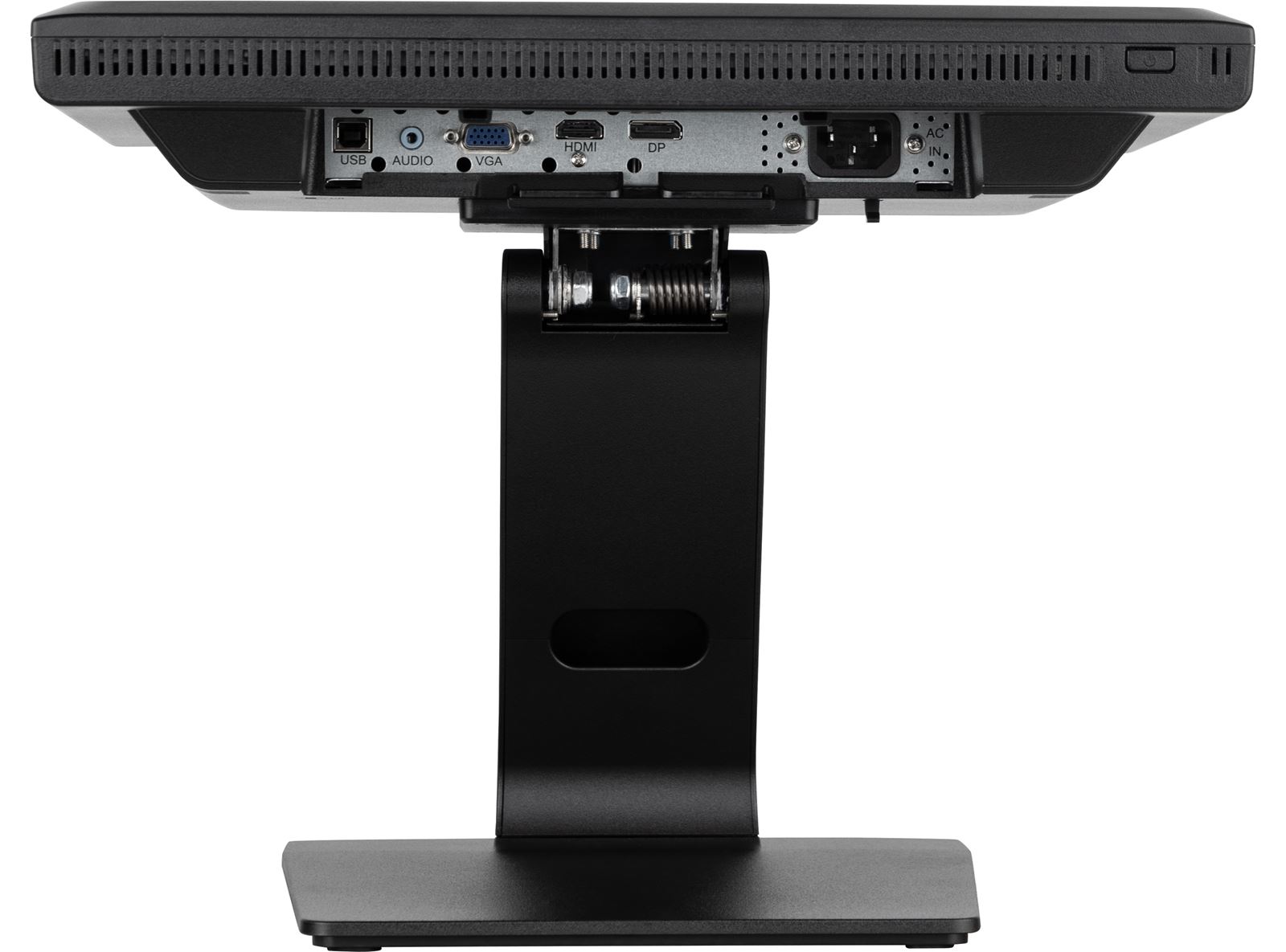

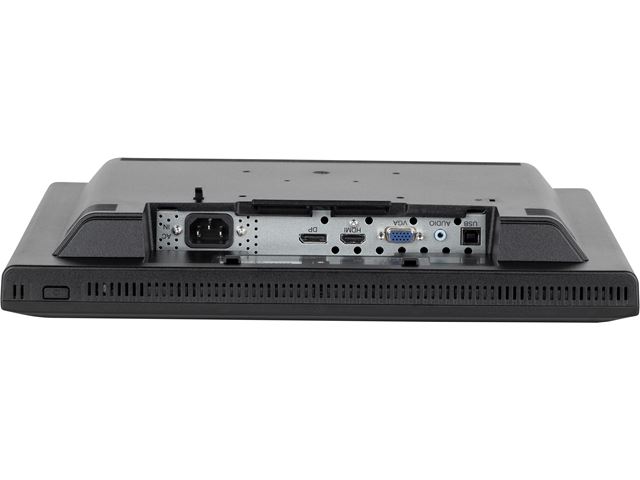

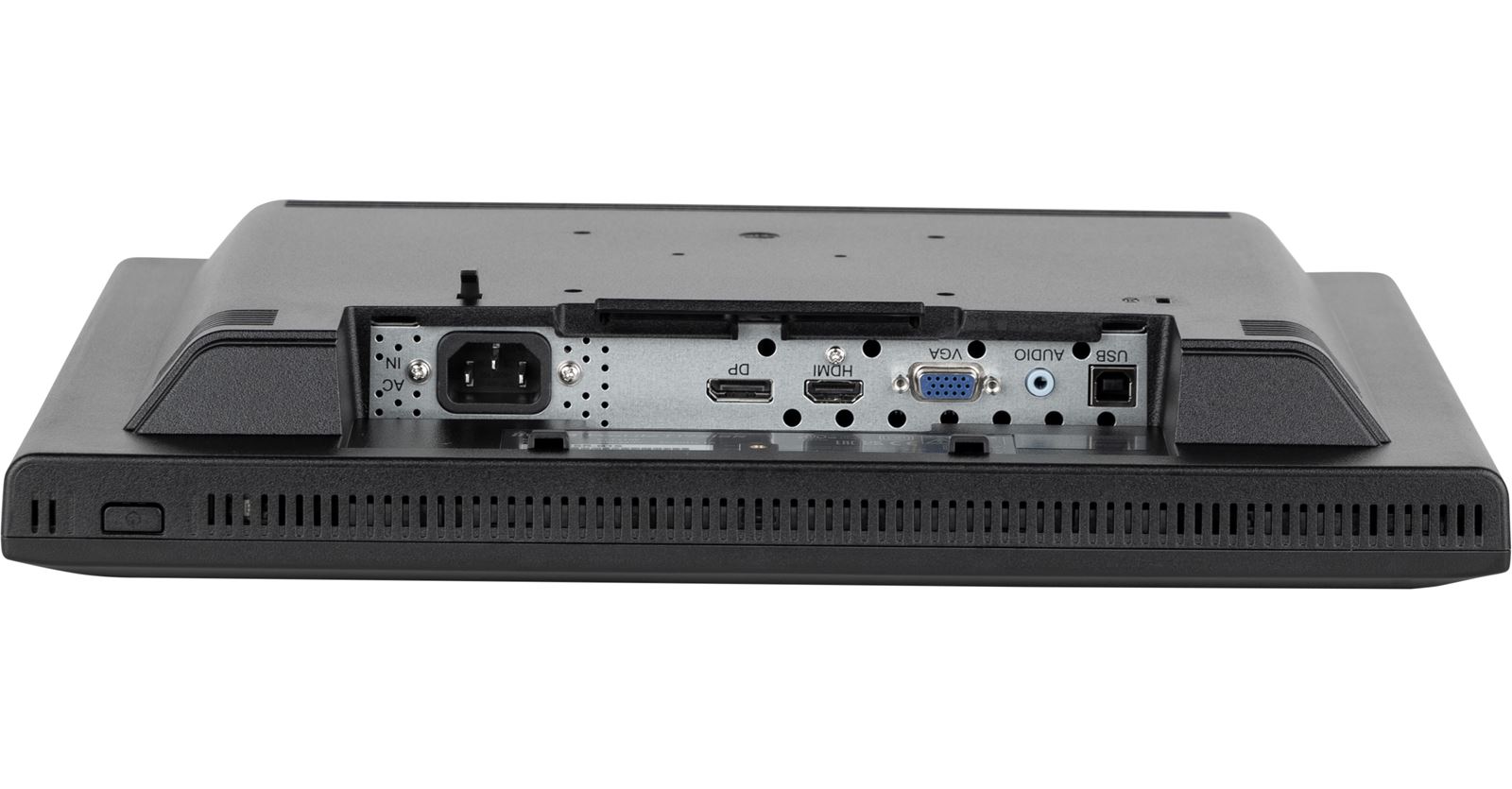

 INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio input Mini jack x1
Audio output Speakers 2 x 1W
HDCP yes

 FEATURES

Extra anti-glare treatment
Water and dust protection IP54 (front)
OSD key lock yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP, TW

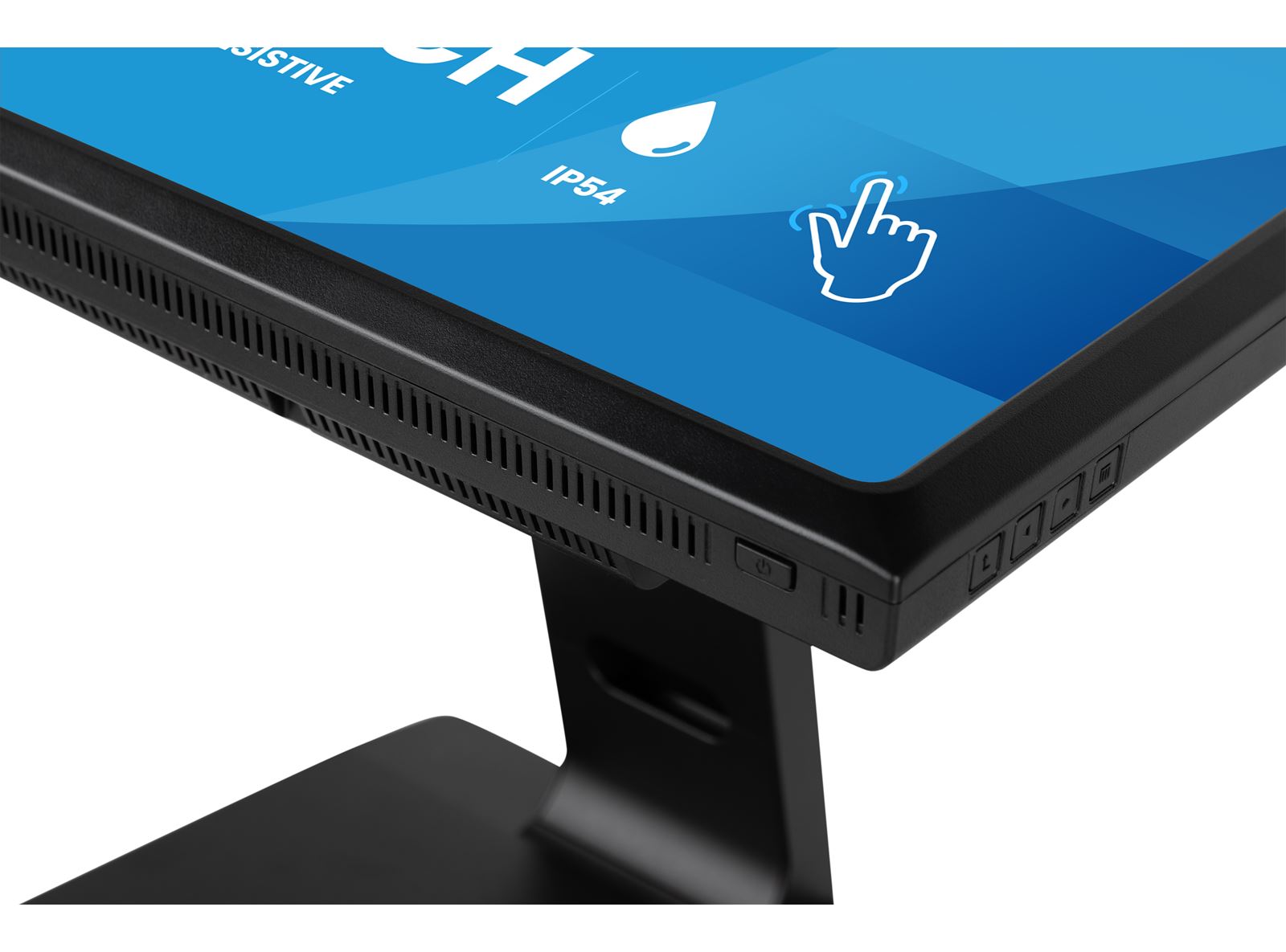

Control buttons Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
Convenience Kensington-lock™ prepared
Plug&Play DDC2B

 MECHANICAL

Orientation landscape, face-up

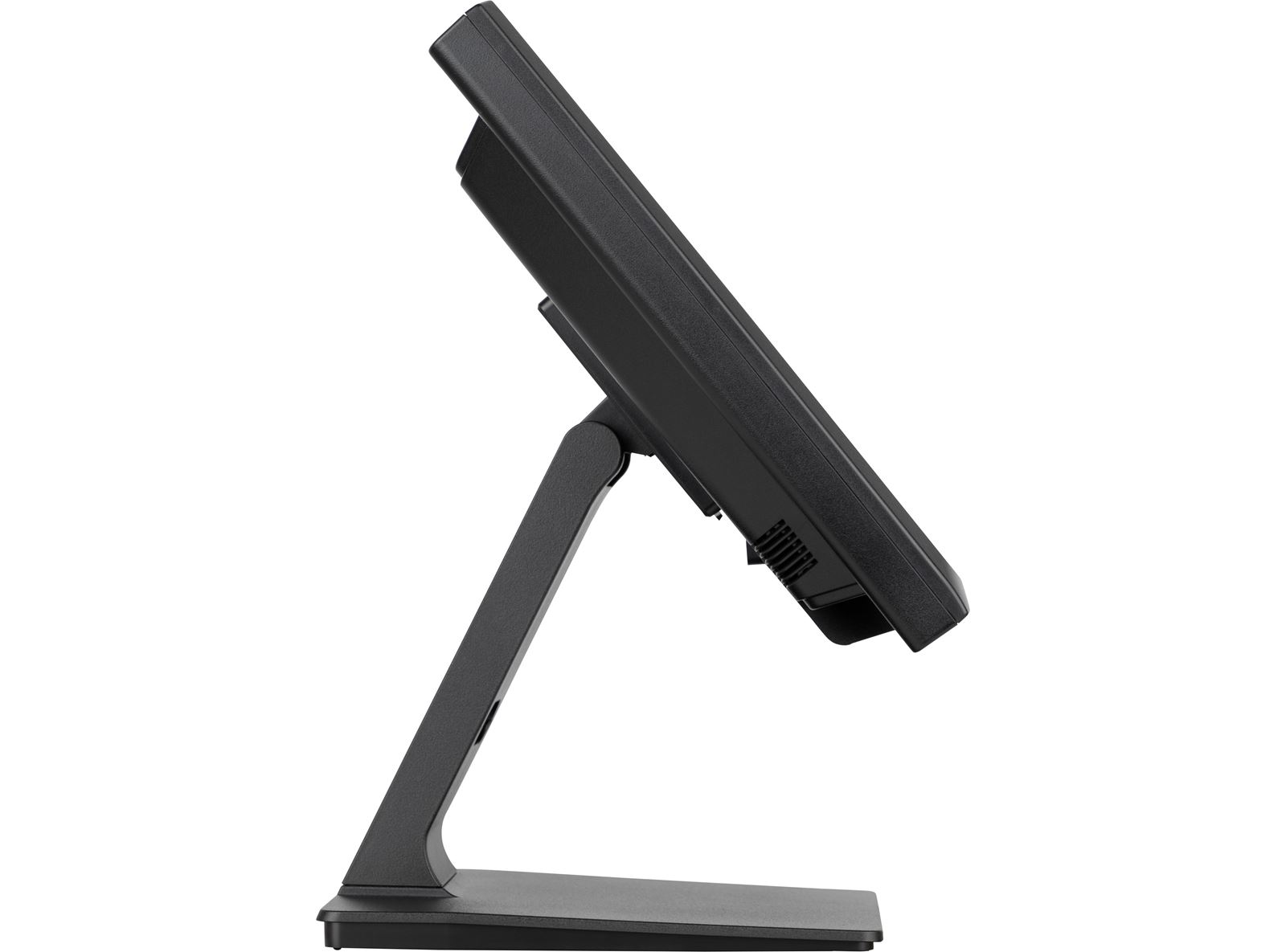

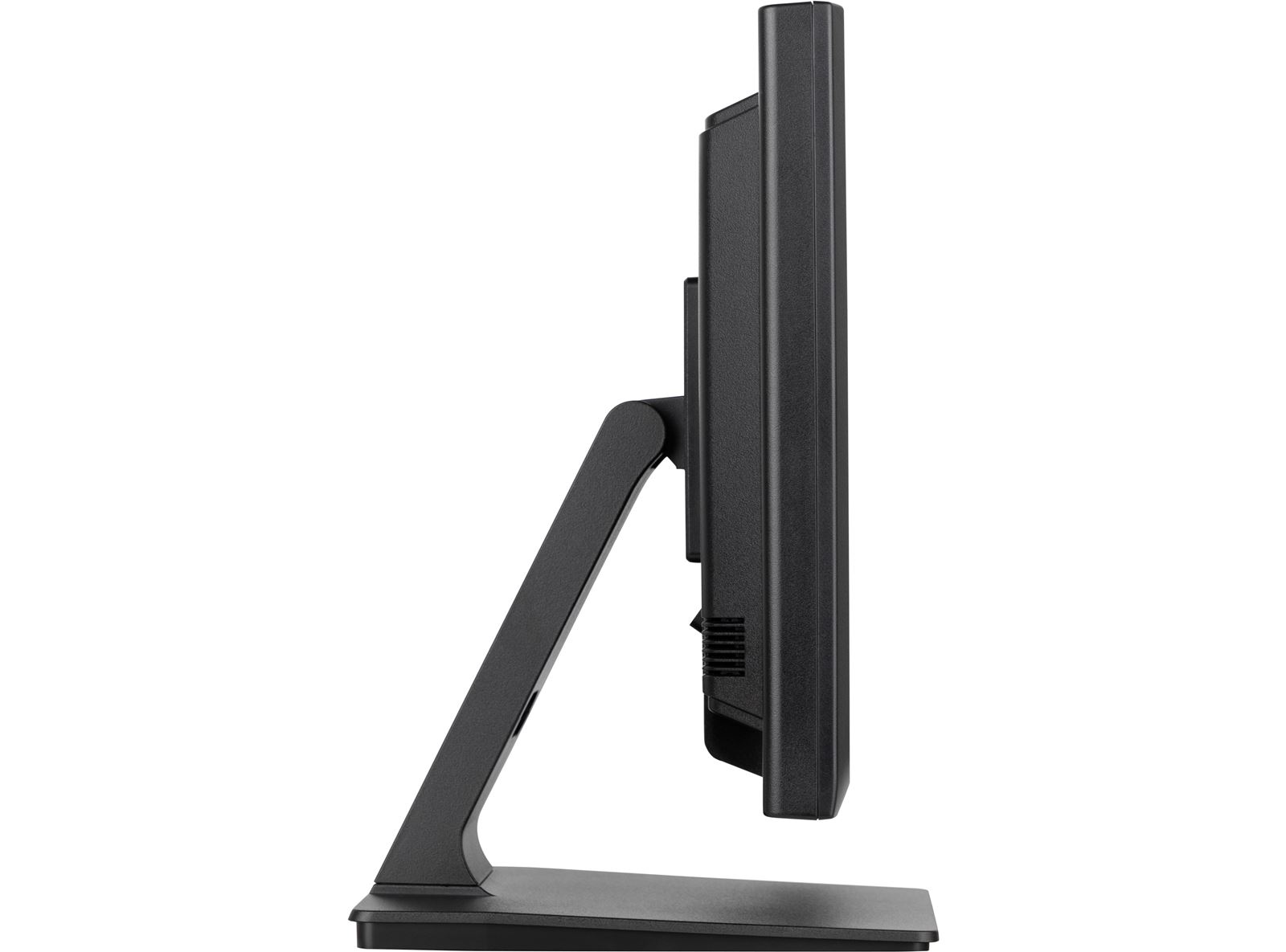

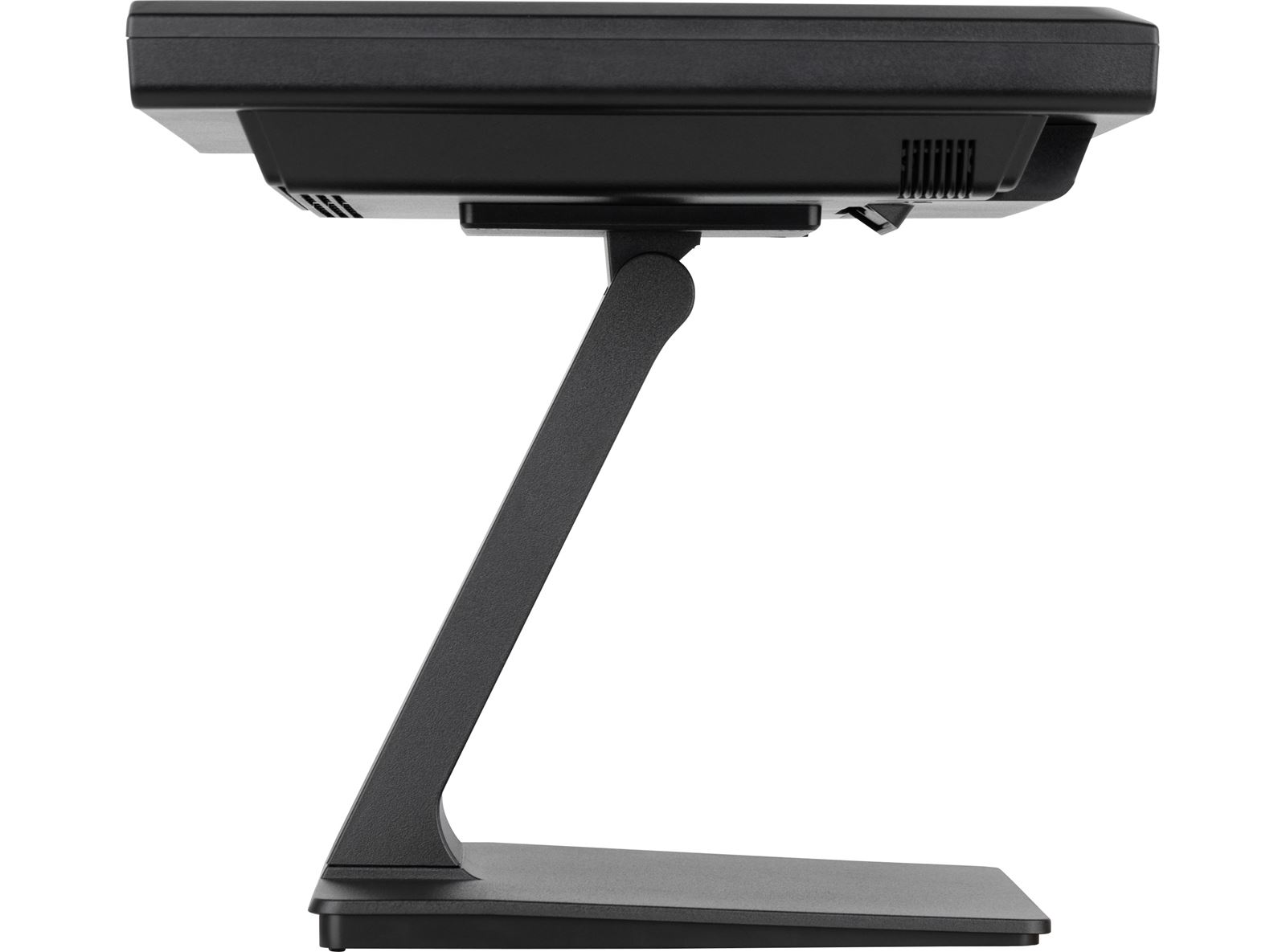

Tilt angle 90° up; 5° down

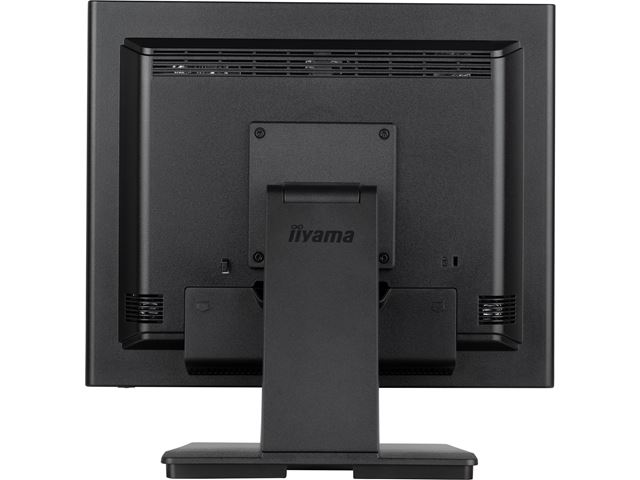

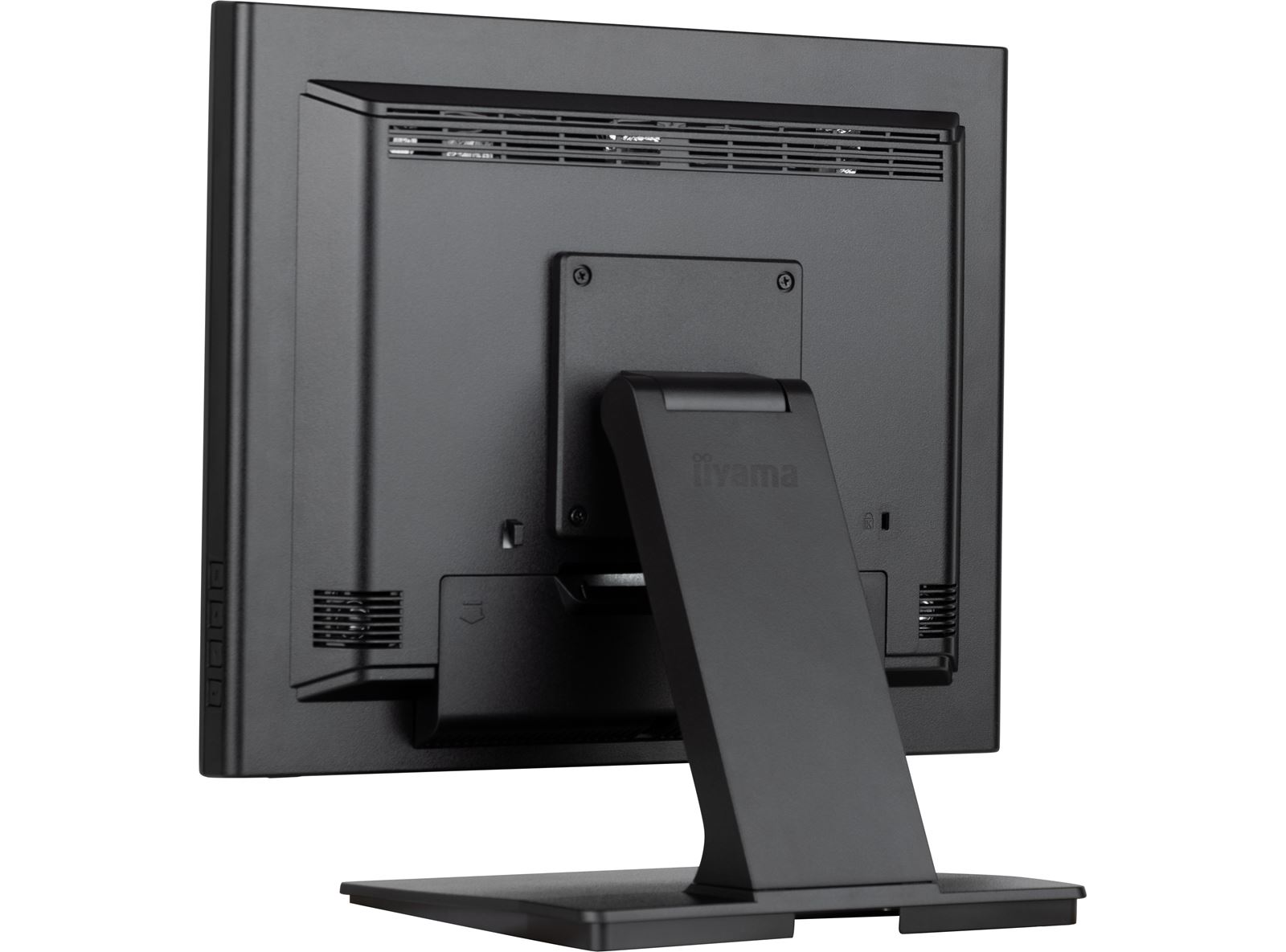

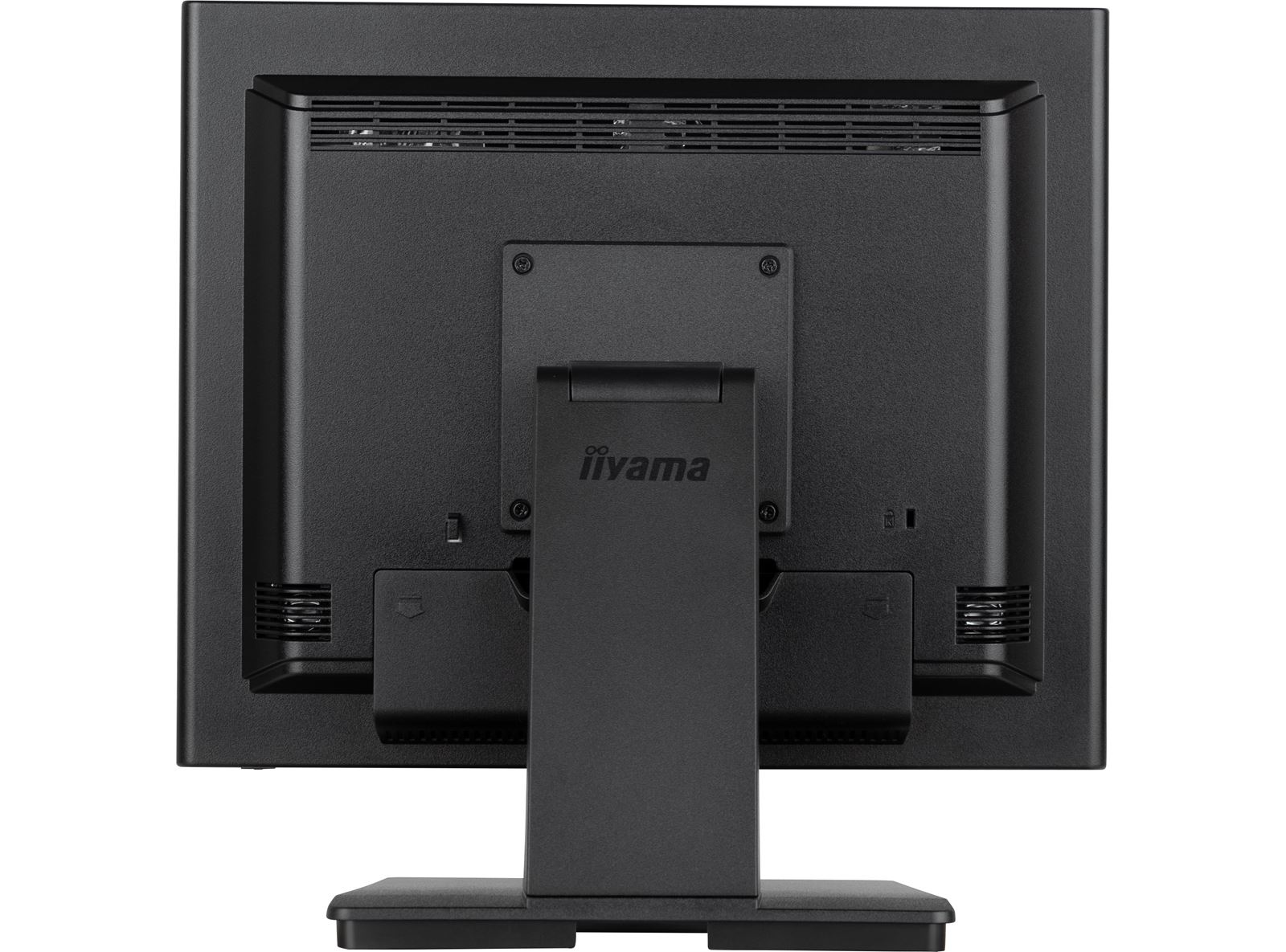

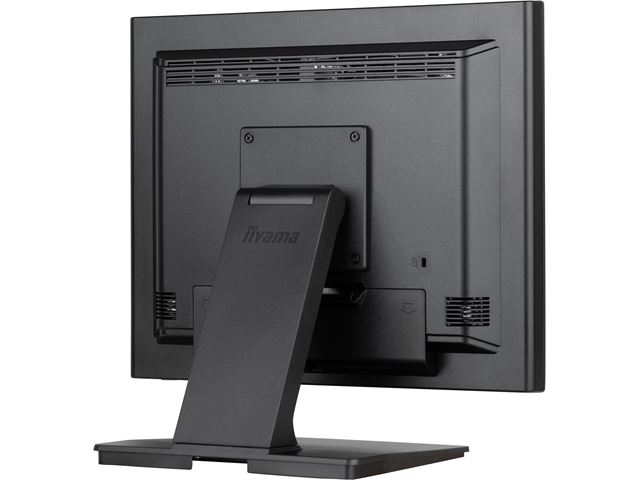

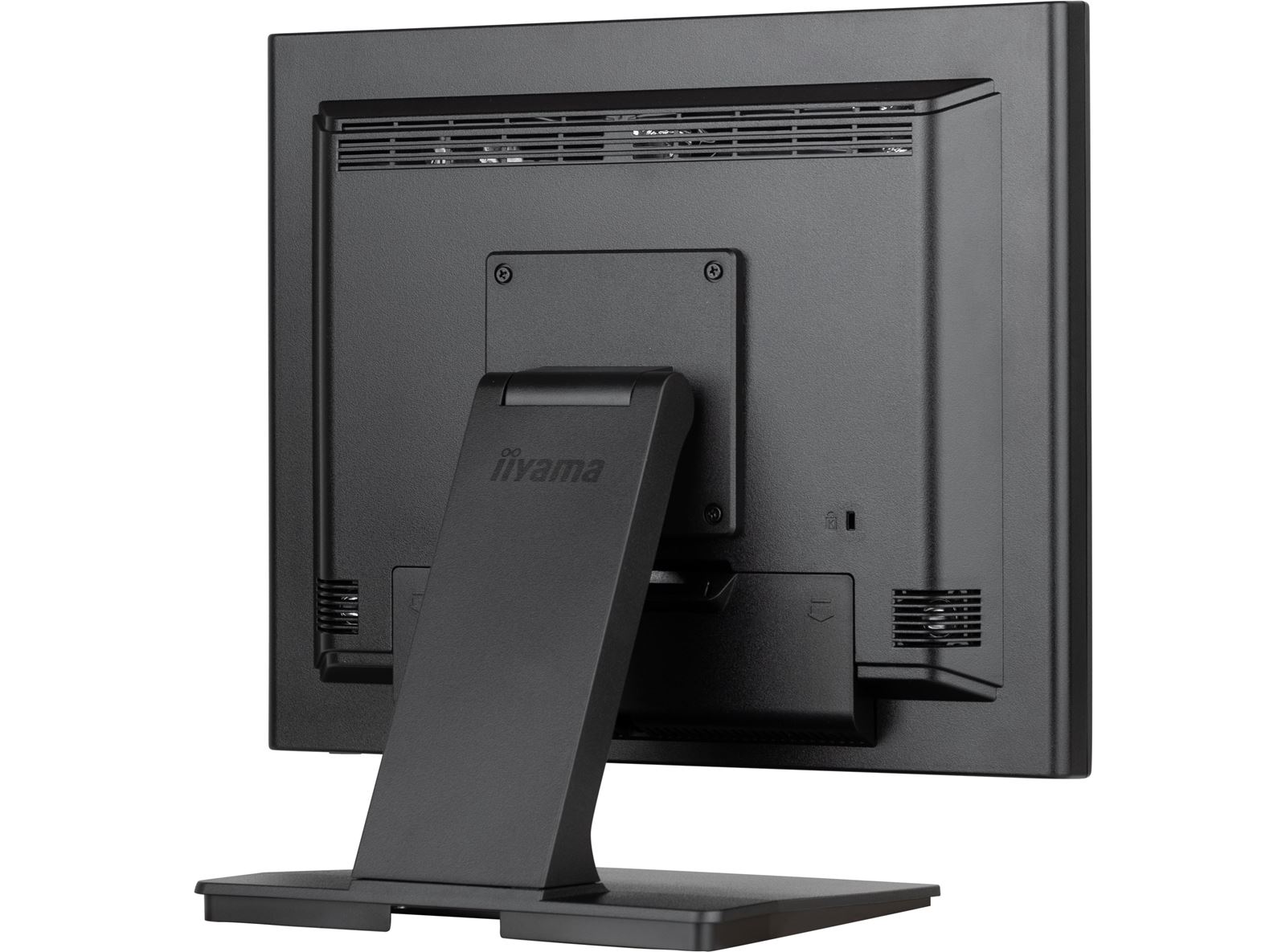

VESA mounting 100 x 100mm

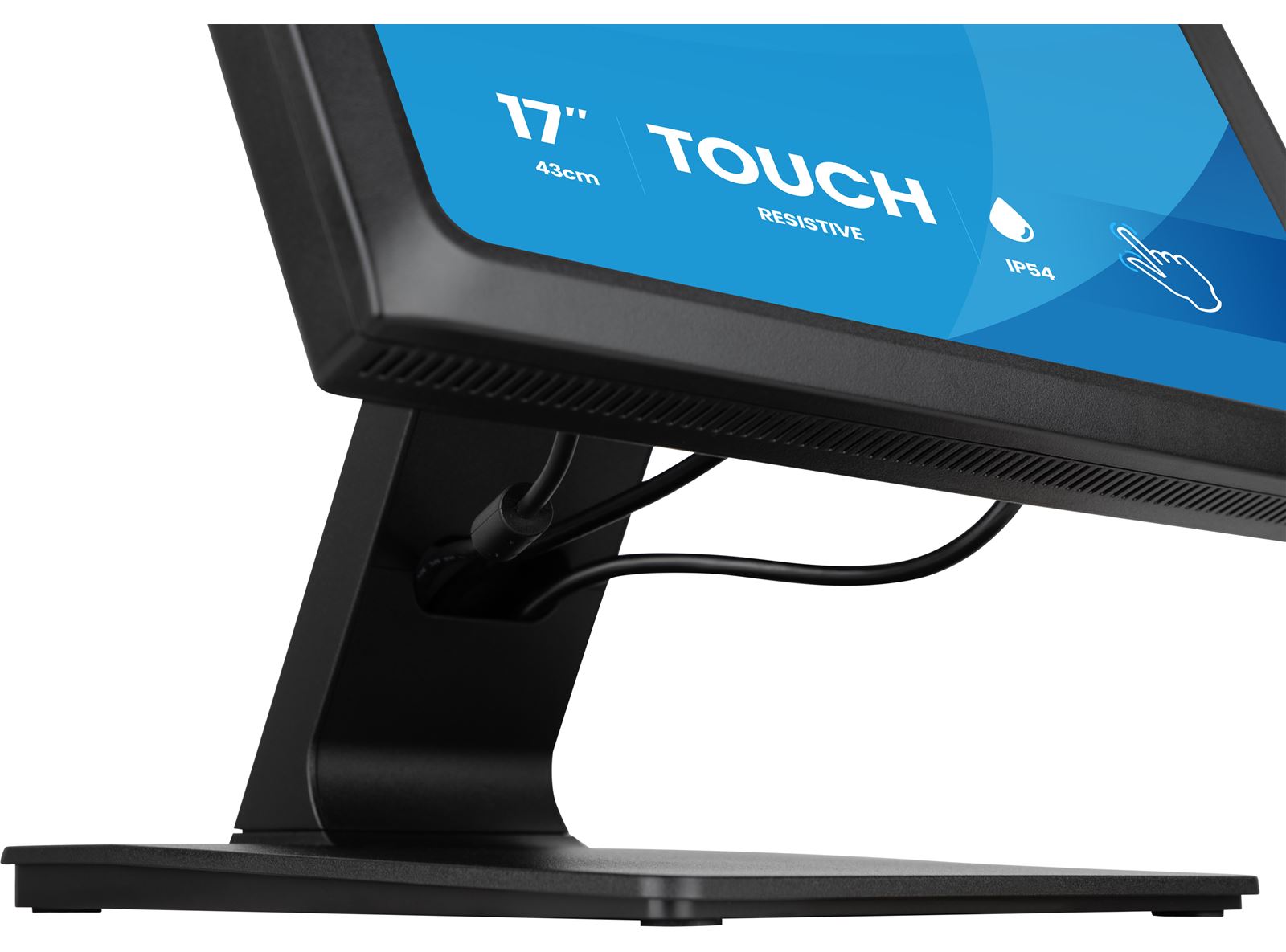

Cable management system yes
MTBF 50000 hours

 ACCESSORIES INCLUDED

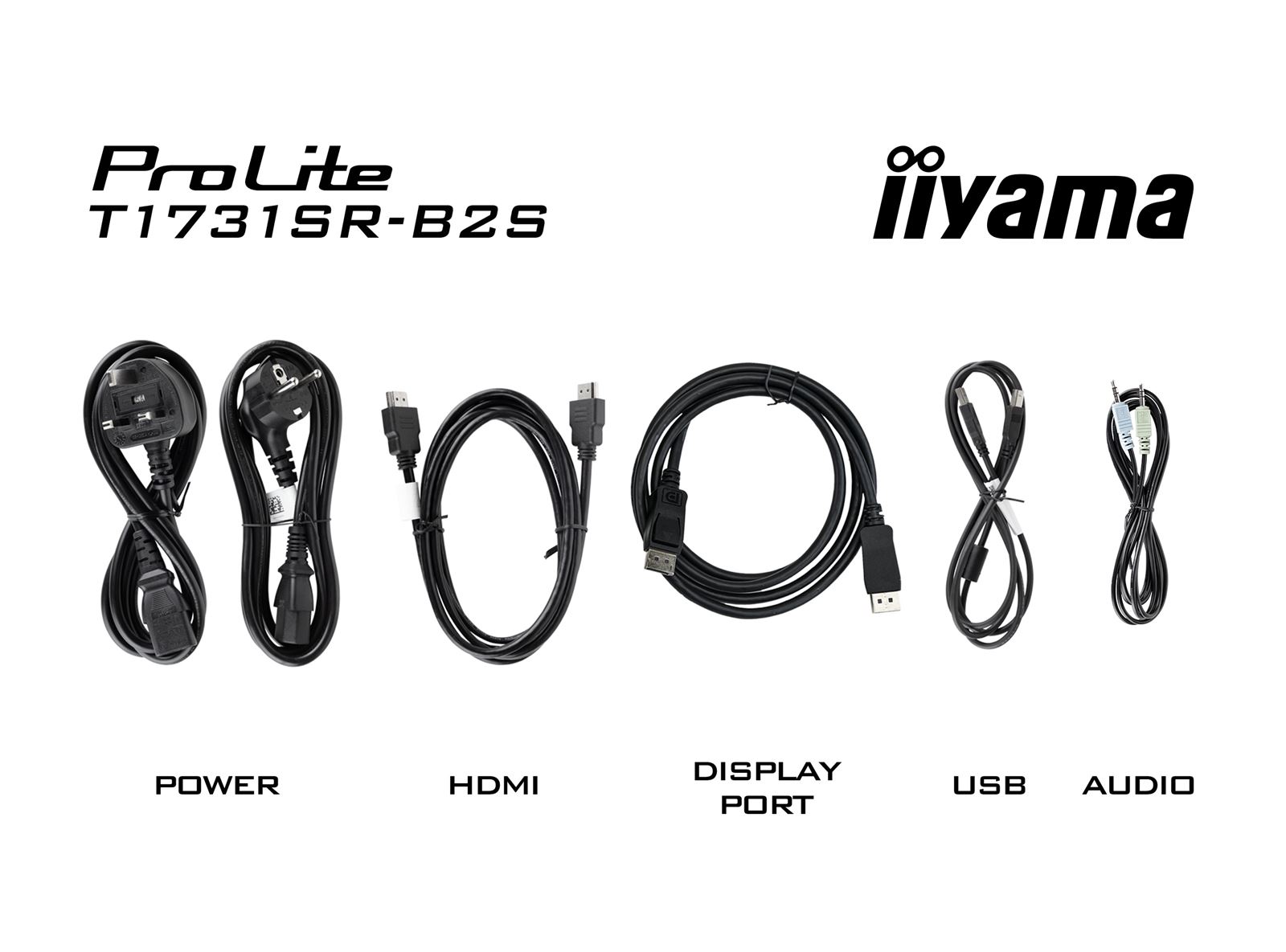

Cables power (1.8m), USB (1.8m), HDMI (1.8m), Audio (1.8m), DP (1.8m)
Guides quick start guide, safety guide
Other Screwdriver
Cable cover yes

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 20W typical, 1.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CE, EAC, VCCI-B, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead, Lead monoxide (lead oxide)

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 387 x 378 x 239.5mm
Box dimensions W x H x D 470 x 445 x 180mm
Weight (without box) 5.4kg
Weight (with box) 7.3kg
EAN code 4948570127702
Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

LED-backlit

A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.

LED-backlit

IP54

The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

IP54

TOUCH TECHNOLOGY - RESISTIVE

5-wire resistive touchscreens are very durable and can be used in a variety of environments. They are especially recommended for shops, restaurants and industrial purposes.


TOUCH TECHNOLOGY - RESISTIVE
