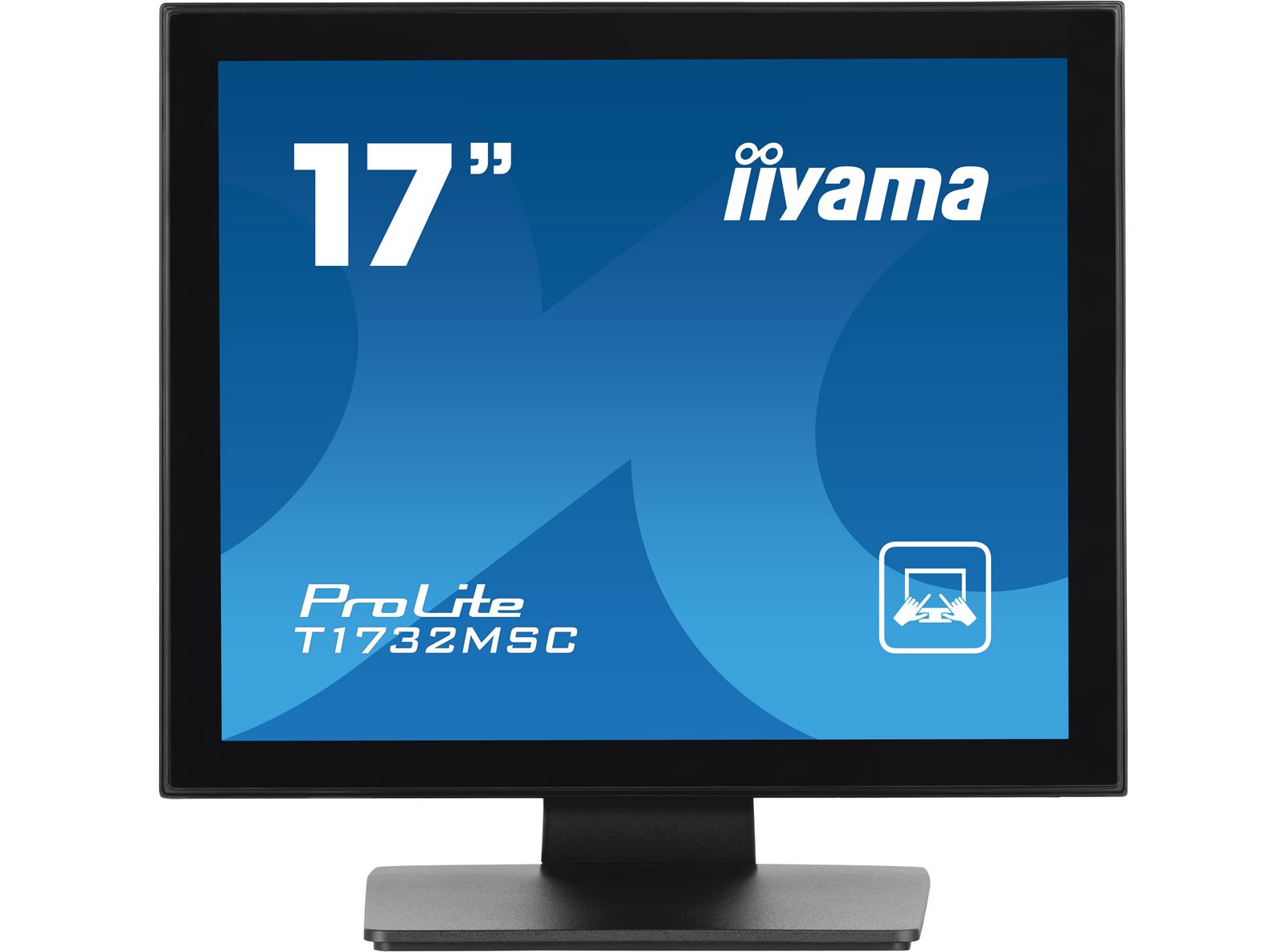

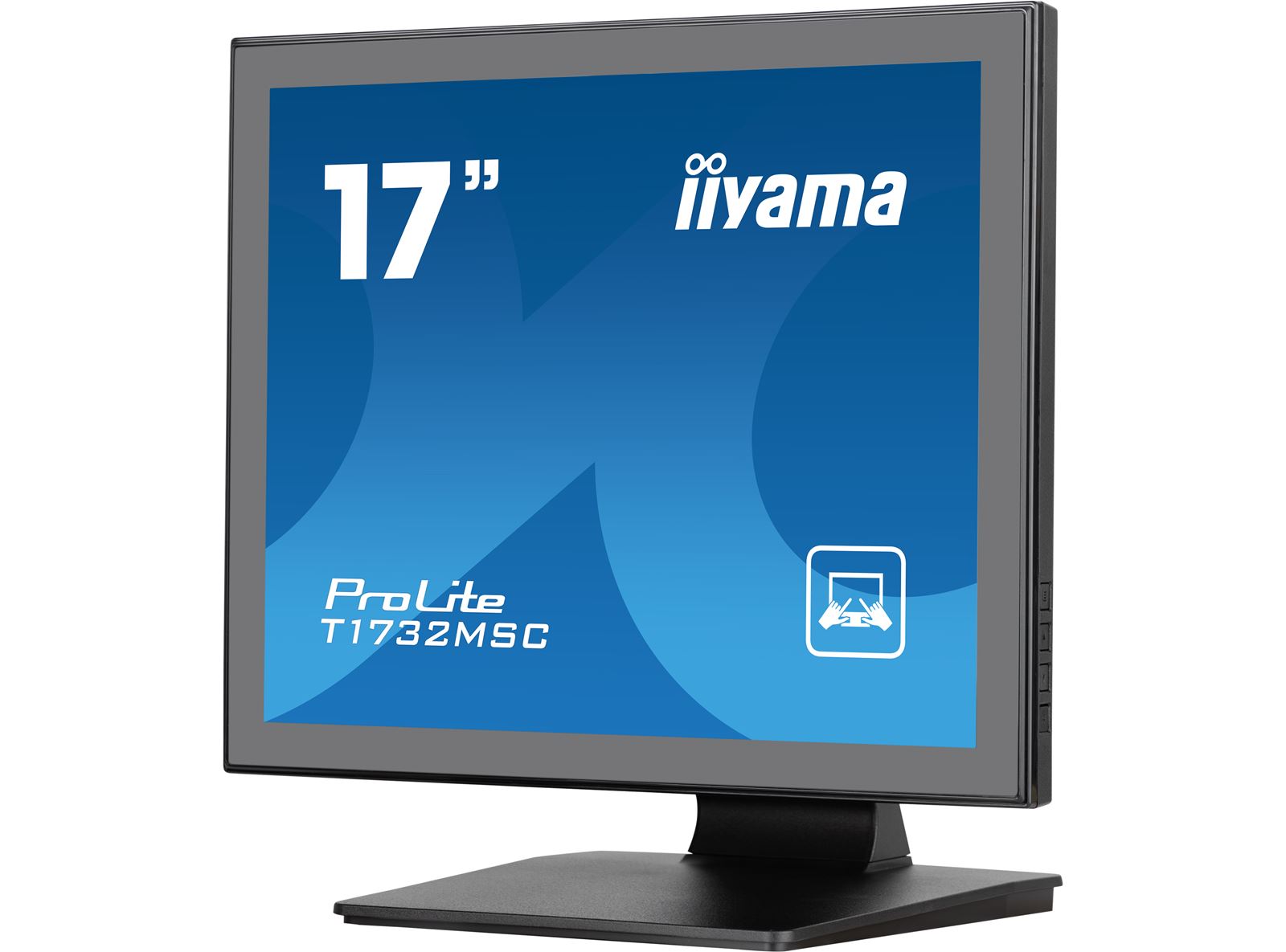

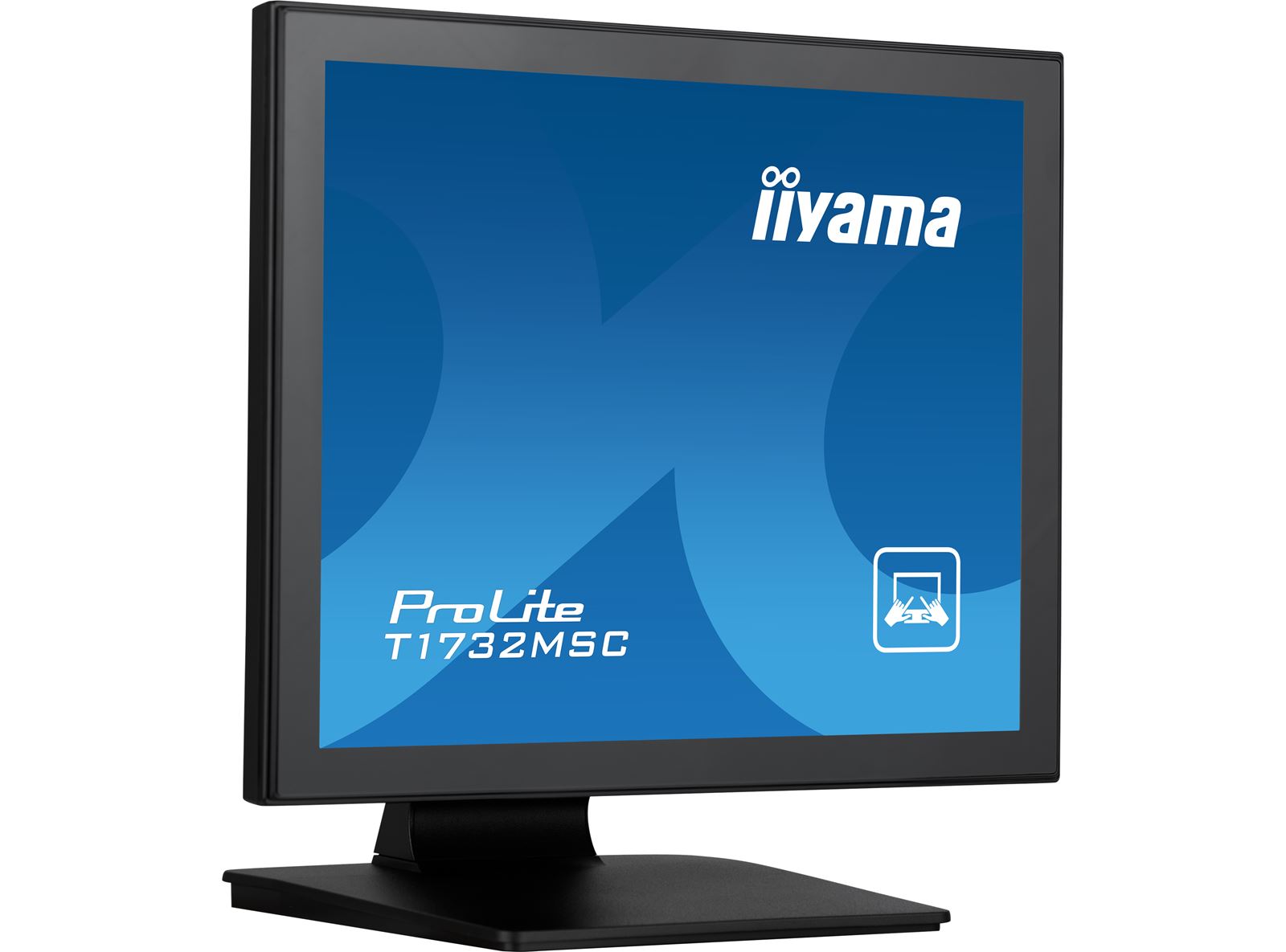

iiyama ProLite monitor T1732MSC-B1S 17" Black, 5:4, Projective Capacitive 10pt touch, IP54, Scratch resistance

£334.88 exc. VAT
£401.86 inc. VAT

Brand: iiyama

Manufacturer Code: T1732MSC-B1S

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

17" Projective Capacitive 10pt touchscreen

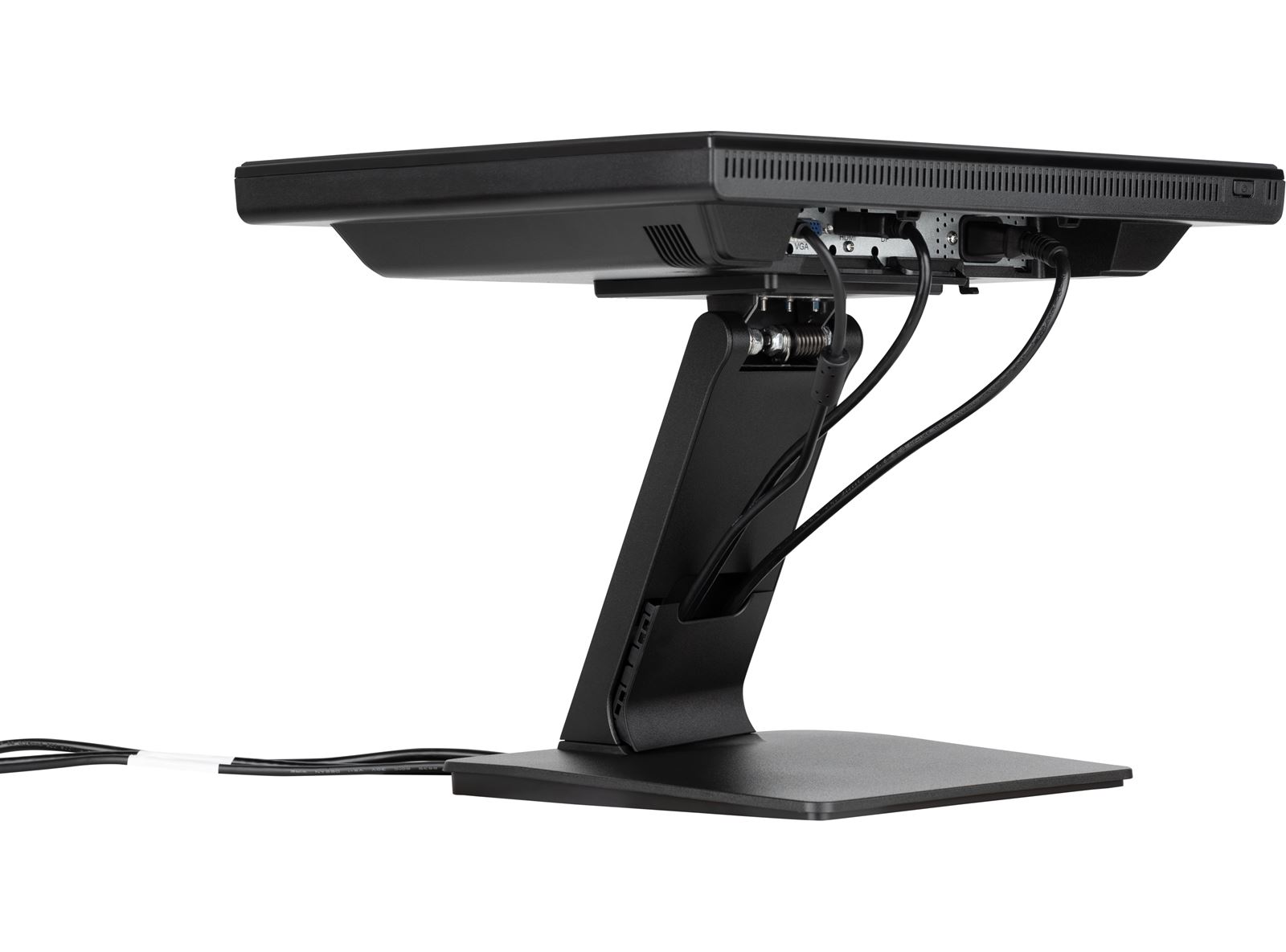

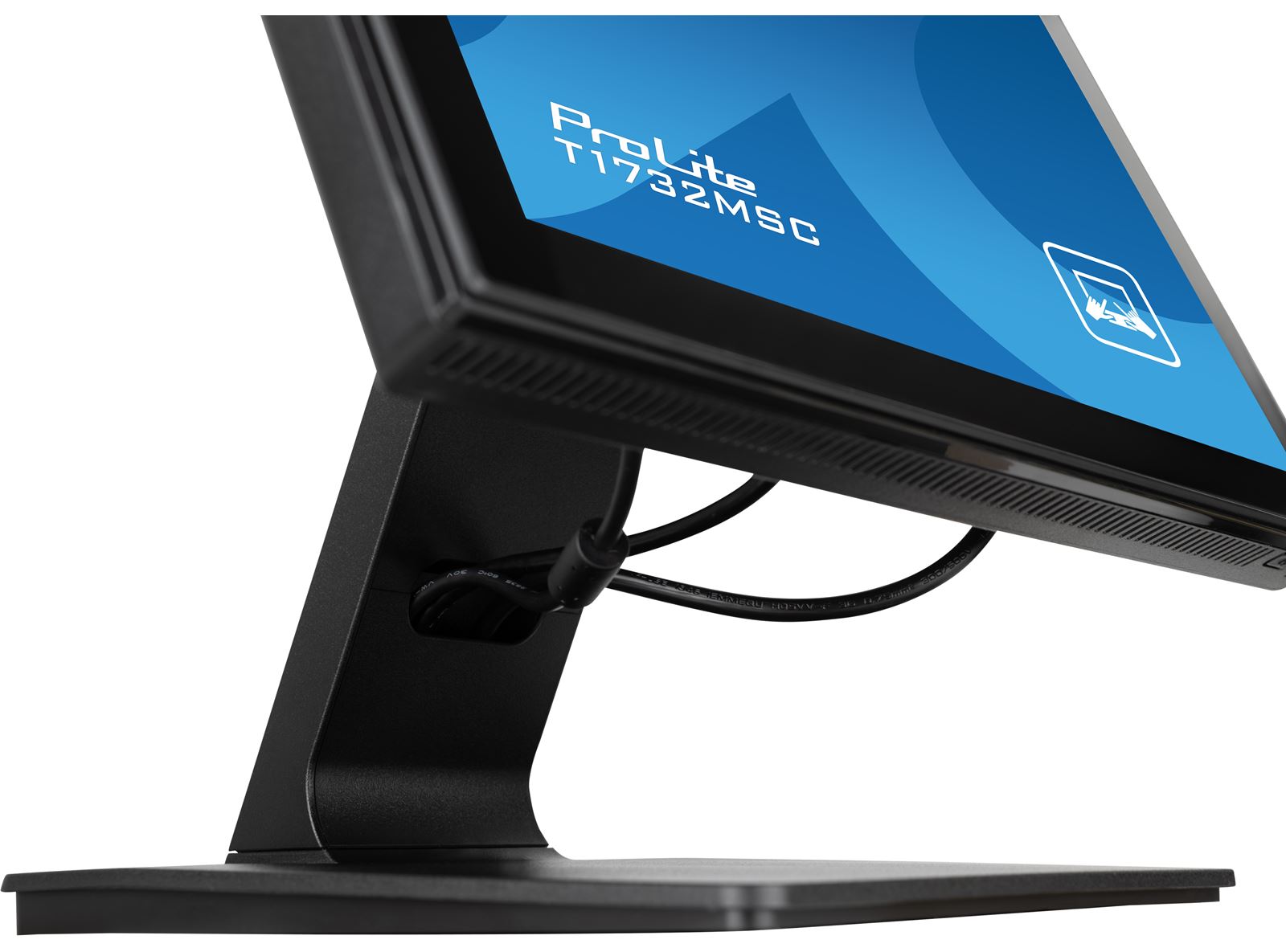

The T1732MSC-B1S 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.

Technical Information

 DISPLAY CHARACTERISTICS

Design Edge to edge glass
Diagonal 17", 43cm
Panel TN
Native resolution 1280 x 1024 (1.3 megapixel)
Aspect ratio 5:4
Panel brightness 250 cd/m²
Brightness 225 cd/m² with touch
Light transmittance 90%
Static contrast 1000:1 with touch
Response time (BTB) 5ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.7mln
Horizontal Sync 31 - 80kHz
Viewable area W x H 338 x 270.5mm, 13.3 x 10.6"
Pixel pitch 0.264mm
Bezel colour and finish black, matte

 TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

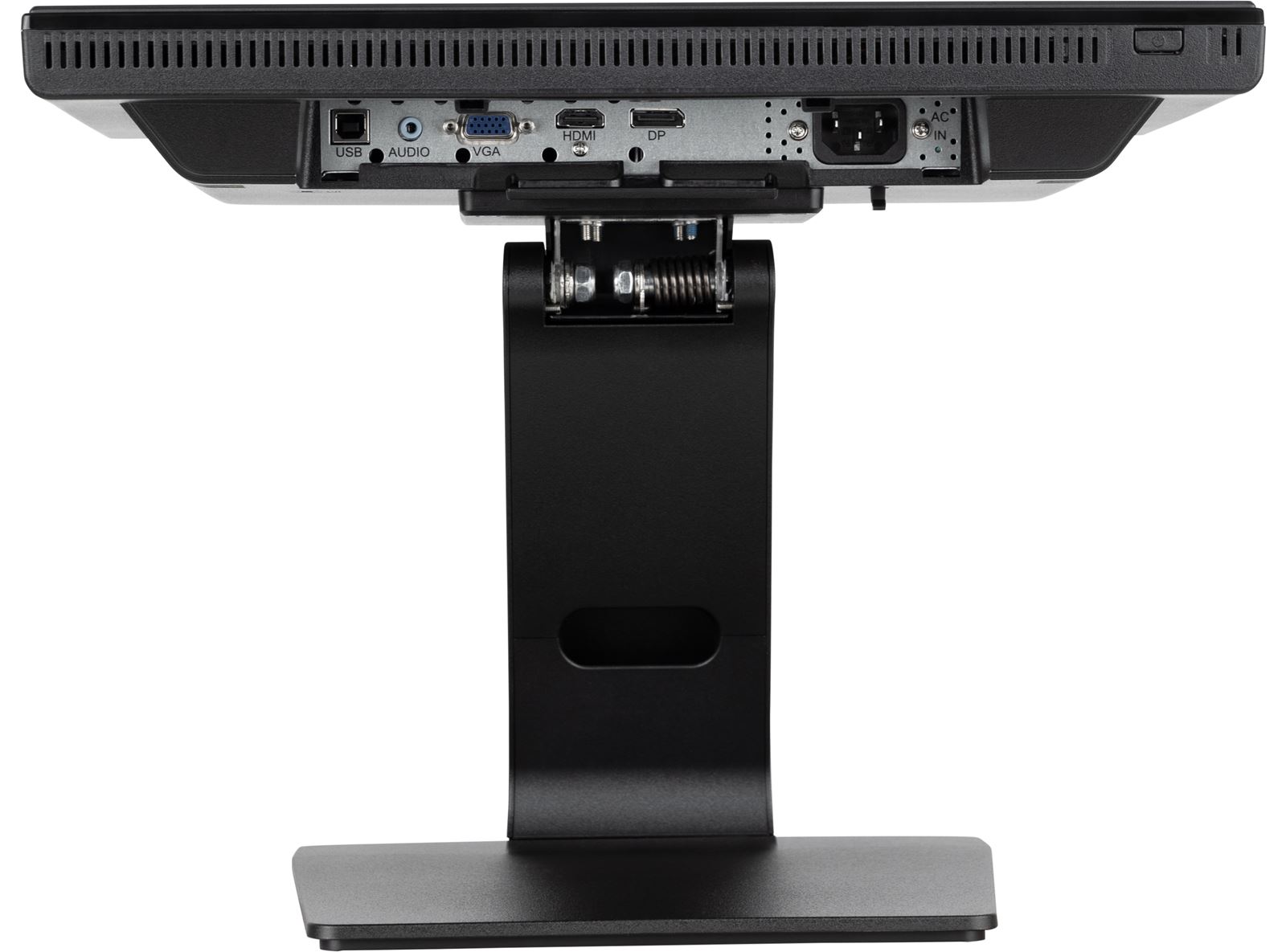

 INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio input Mini jack x1
Audio output Speakers 2 x 1W
HDCP yes

 FEATURES

Water and dust protection IP54 (front)
OSD key lock yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
Convenience Kensington-lock™ prepared
Plug&Play DDC2B

 MECHANICAL

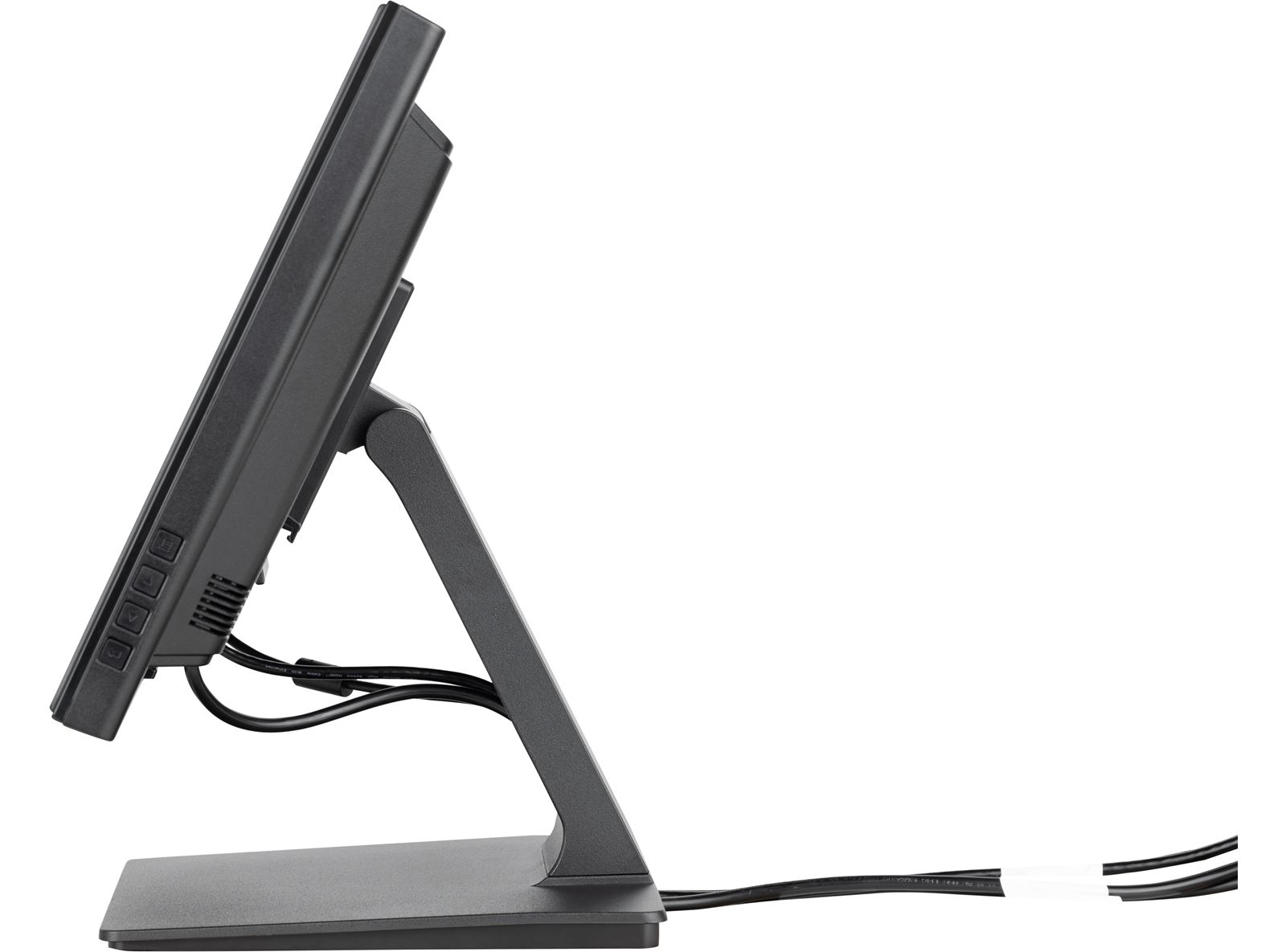

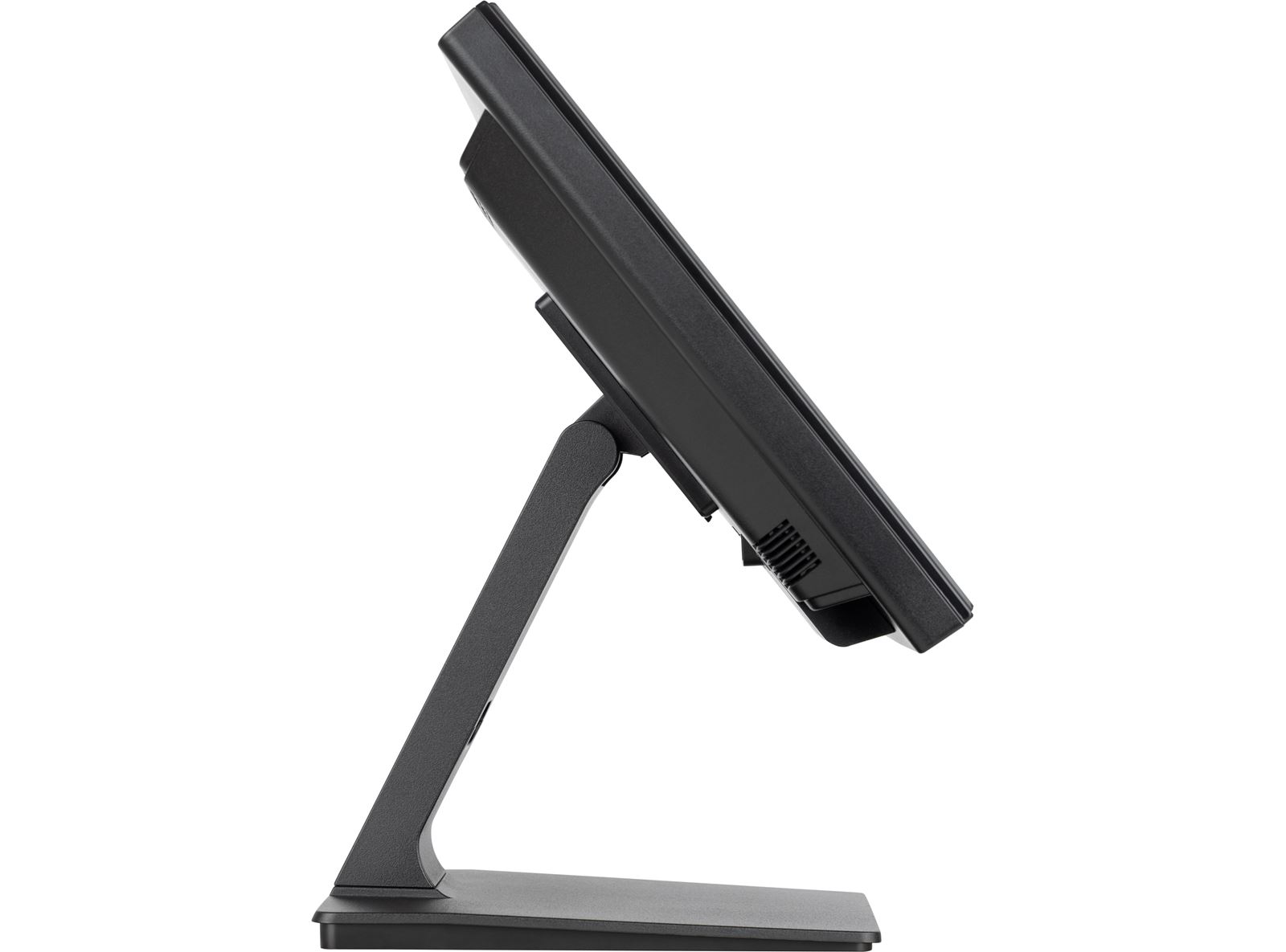

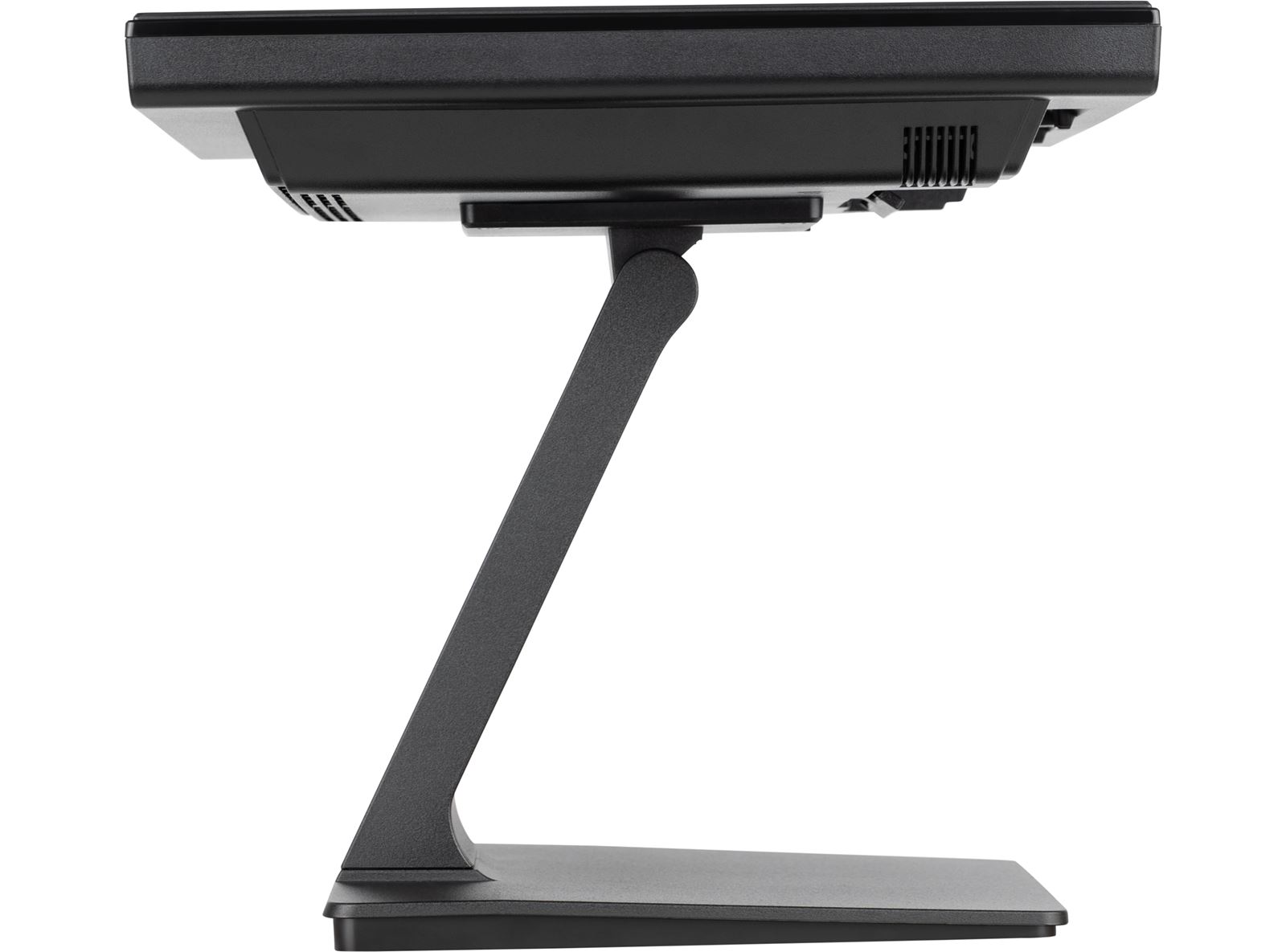

Tilt angle 90° up; 5° down

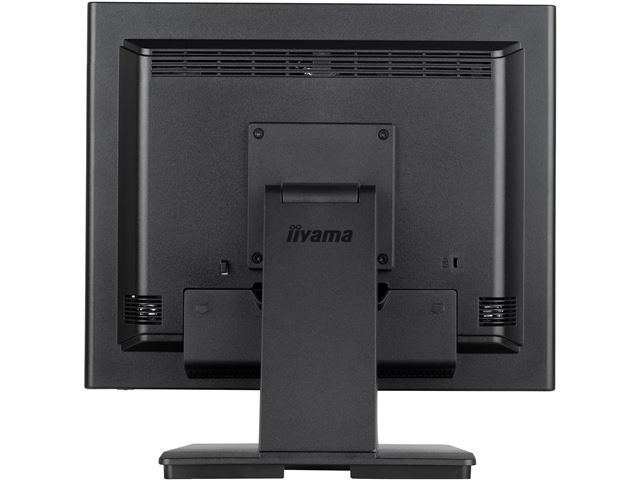

VESA mounting 100 x 100mm
Cable management system yes

 ACCESSORIES INCLUDED

Cables power, USB, HDMI, Audio, DP
Guides quick start guide, safety guide
Cable cover yes

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 20W typical, 1.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 387 x 378 x 240mm
Weight (without box) 4.9kg
EAN code 4948570122141
Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

LED-backlit

A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.

LED-backlit

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SCRATCH RESISTANCE

IP54

The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

IP54
