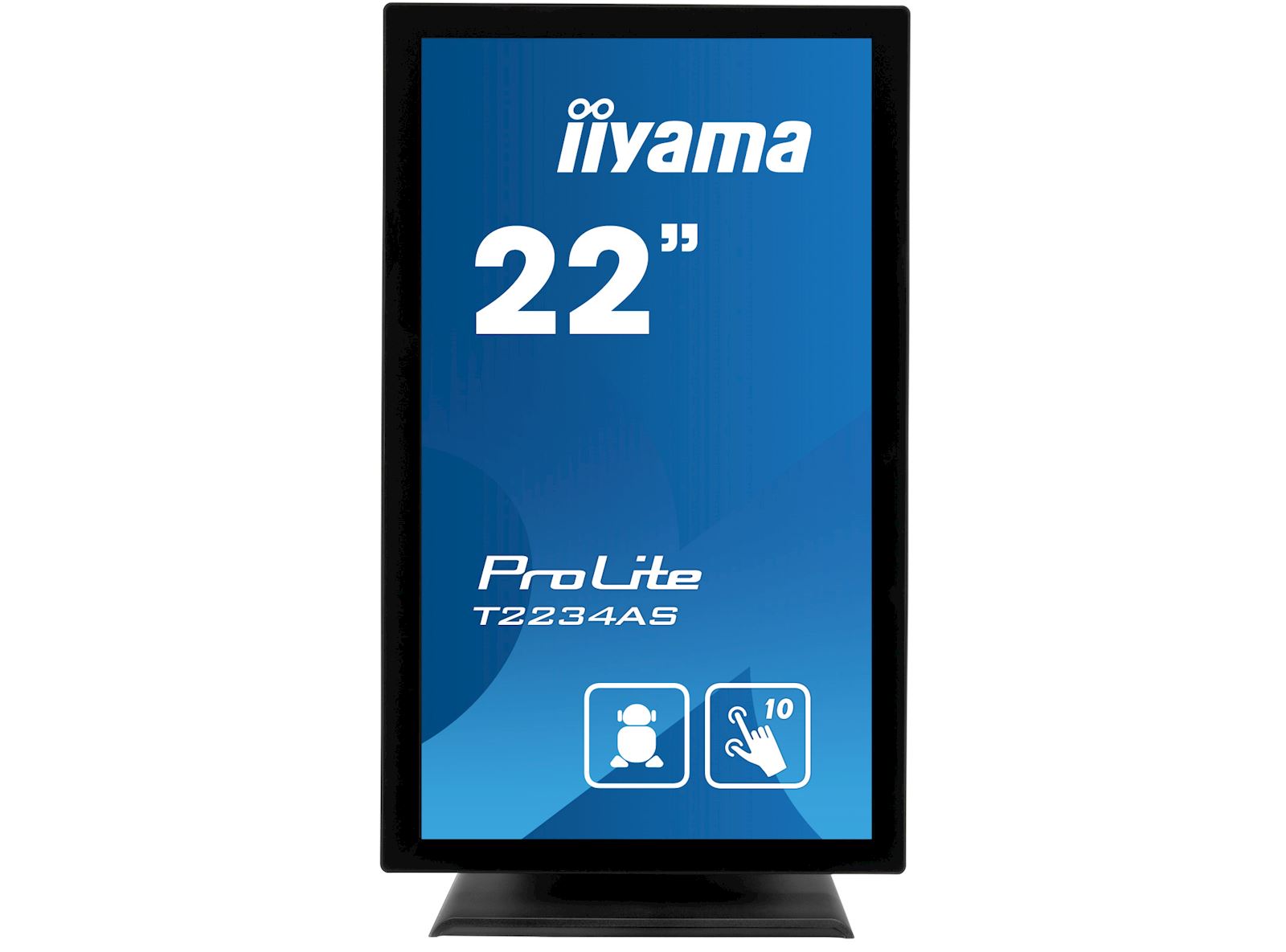

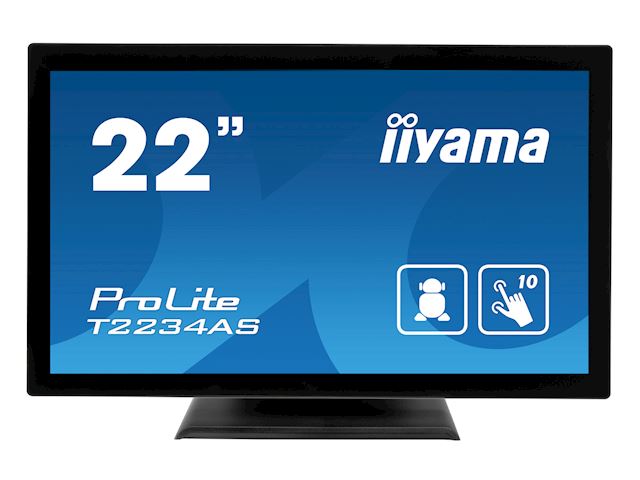

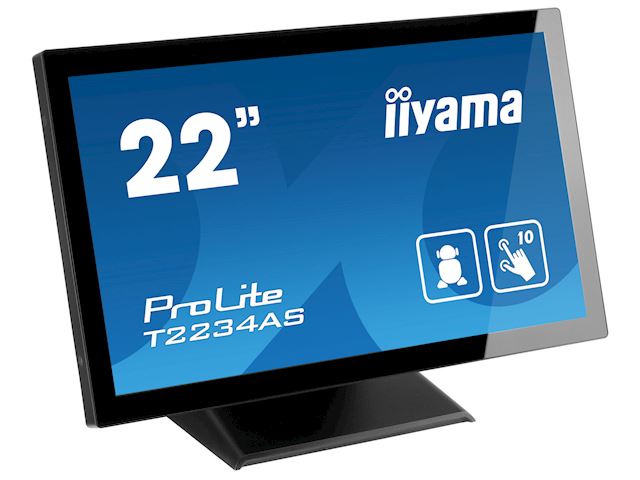

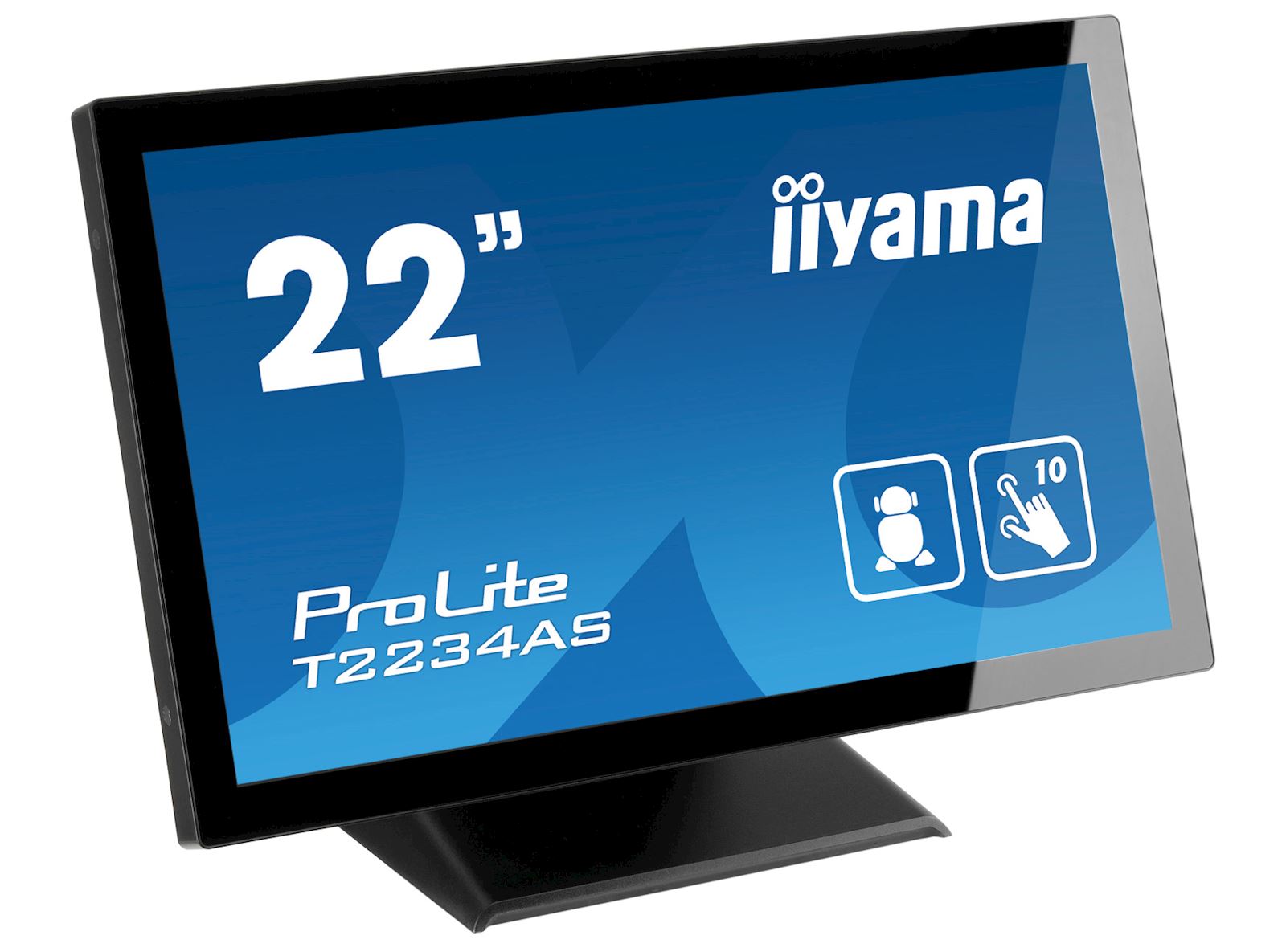

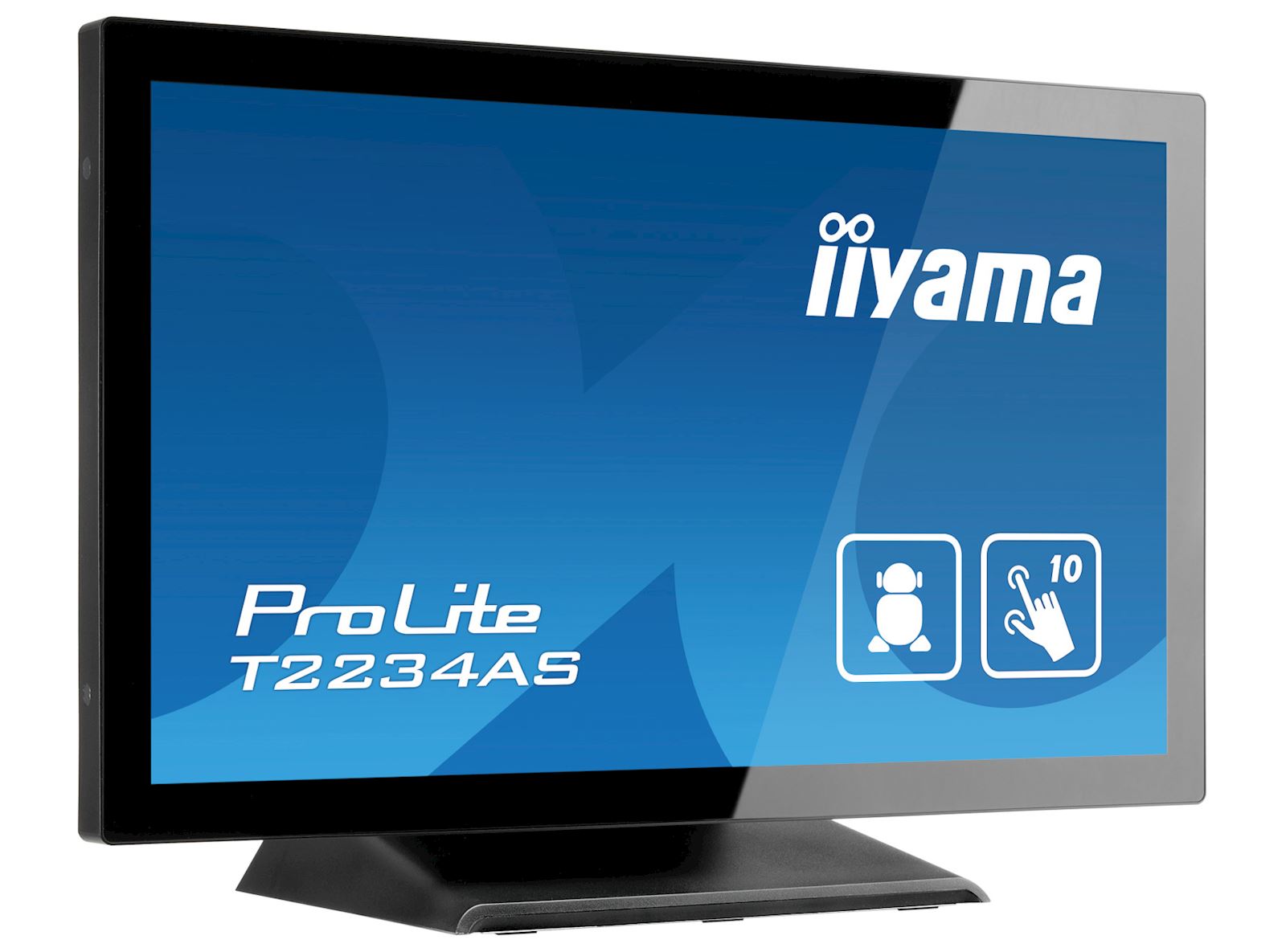

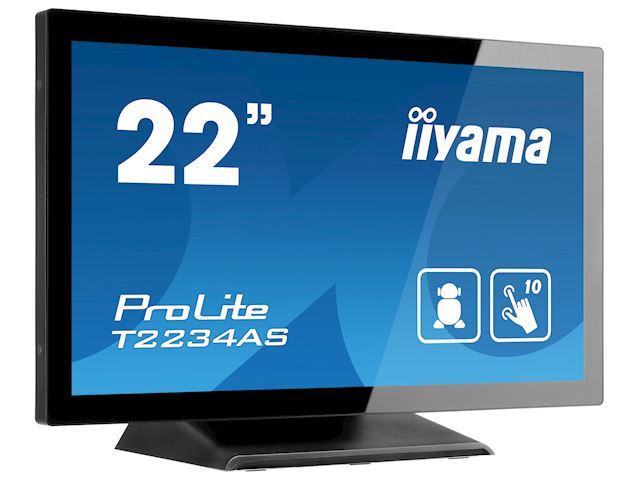

iiyama ProLite monitor T2234AS-B1 22” PCAP 10pt touch screen with Android

£464.20 exc. VAT
£557.04 inc. VAT

Brand: iiyama

Manufacturer Code: T2234AS-B1

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

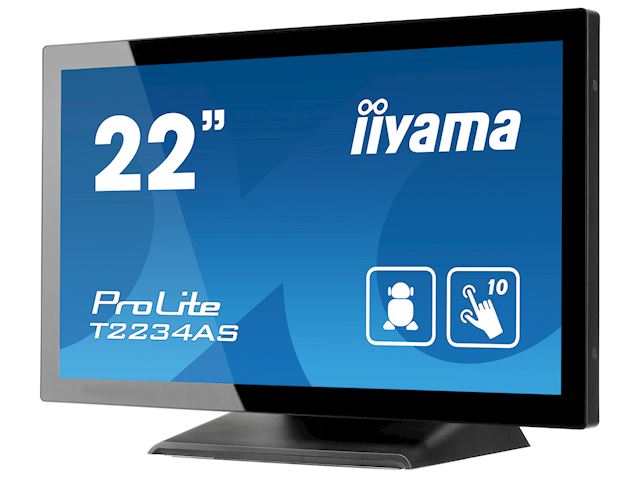

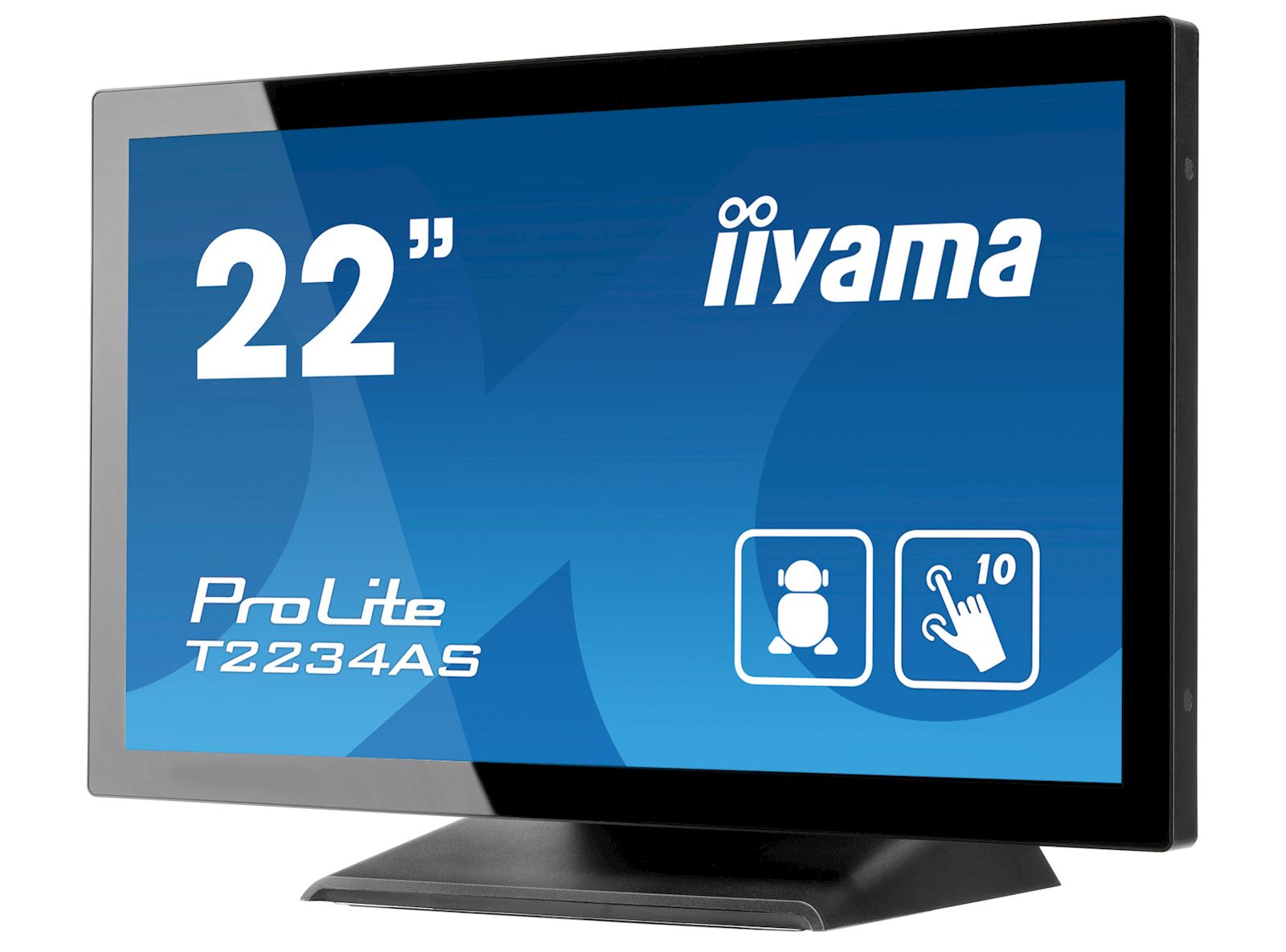

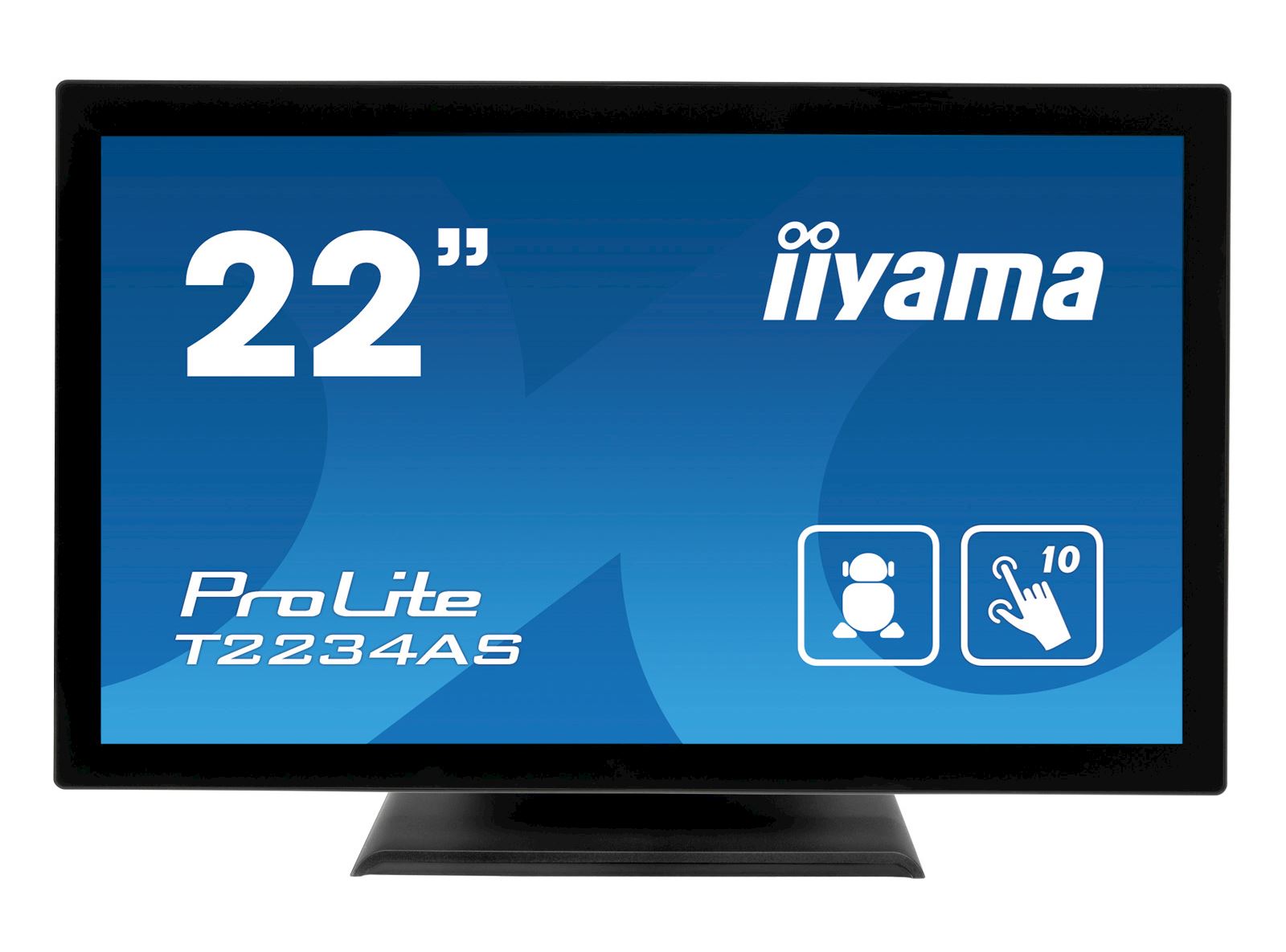

Connect and go with the ProLite T2234AS-B1, the all-in-one monitor solution for shops, retail or information desks. This 21.5” PCAP 10-point touchscreen with Android allows users to directly connect and operate the monitor from any device. The HDMI output makes it easy to connect a second customer-facing display for dynamic content and advertising.

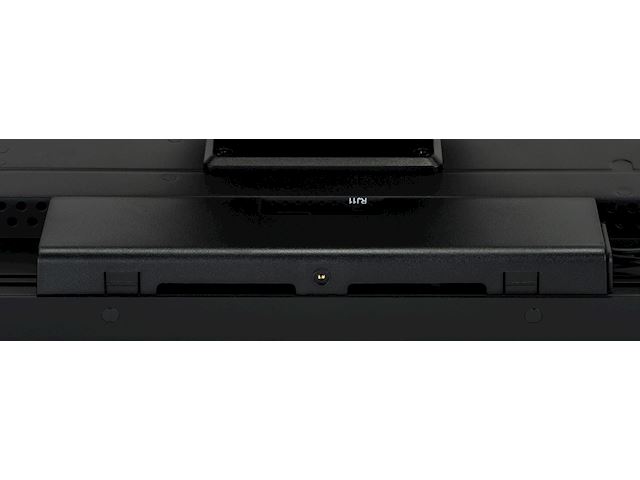

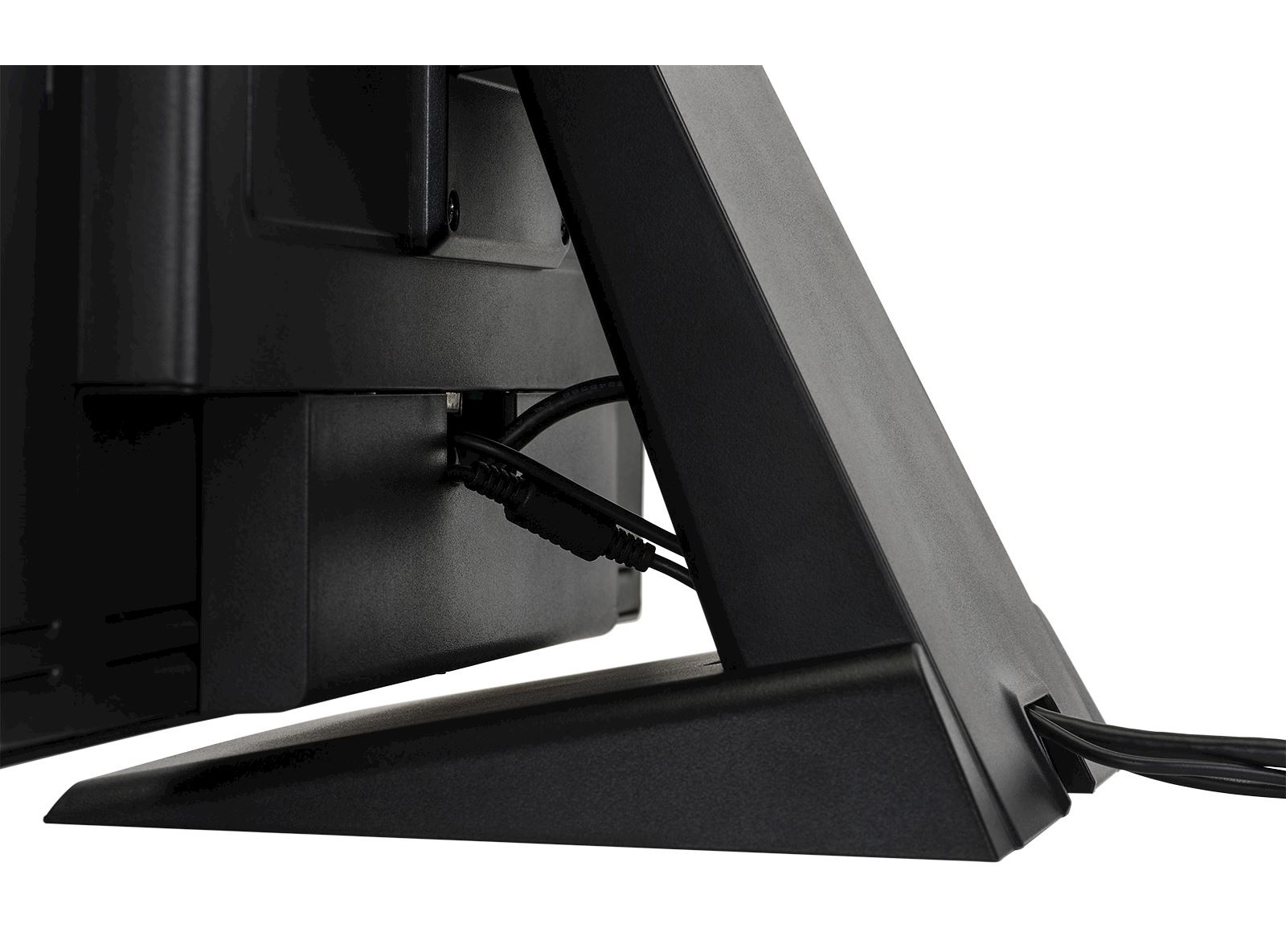

The robust screen comes with a rugged bezel and an IP65 rating, meaning the monitor is dust and water resistant from the front. Cables can be neatly tied with the special cable cover, so they cannot come loose or move around. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect interactive display for instore retail.

Technical Information


Design Edge to edge glass
Diagonal 21.5", 55cm
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Brightness 350 cd/m² typical
Brightness 305 cd/m² with touch
Static contrast 1000:1 with touch
Light transmittance 87%
Response time 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit
Viewable area W x H 476.6 x 268.1mm, 18.8 x 10.6"
Pixel pitch 0.247mm
Bezel colour and finish black, matte


Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

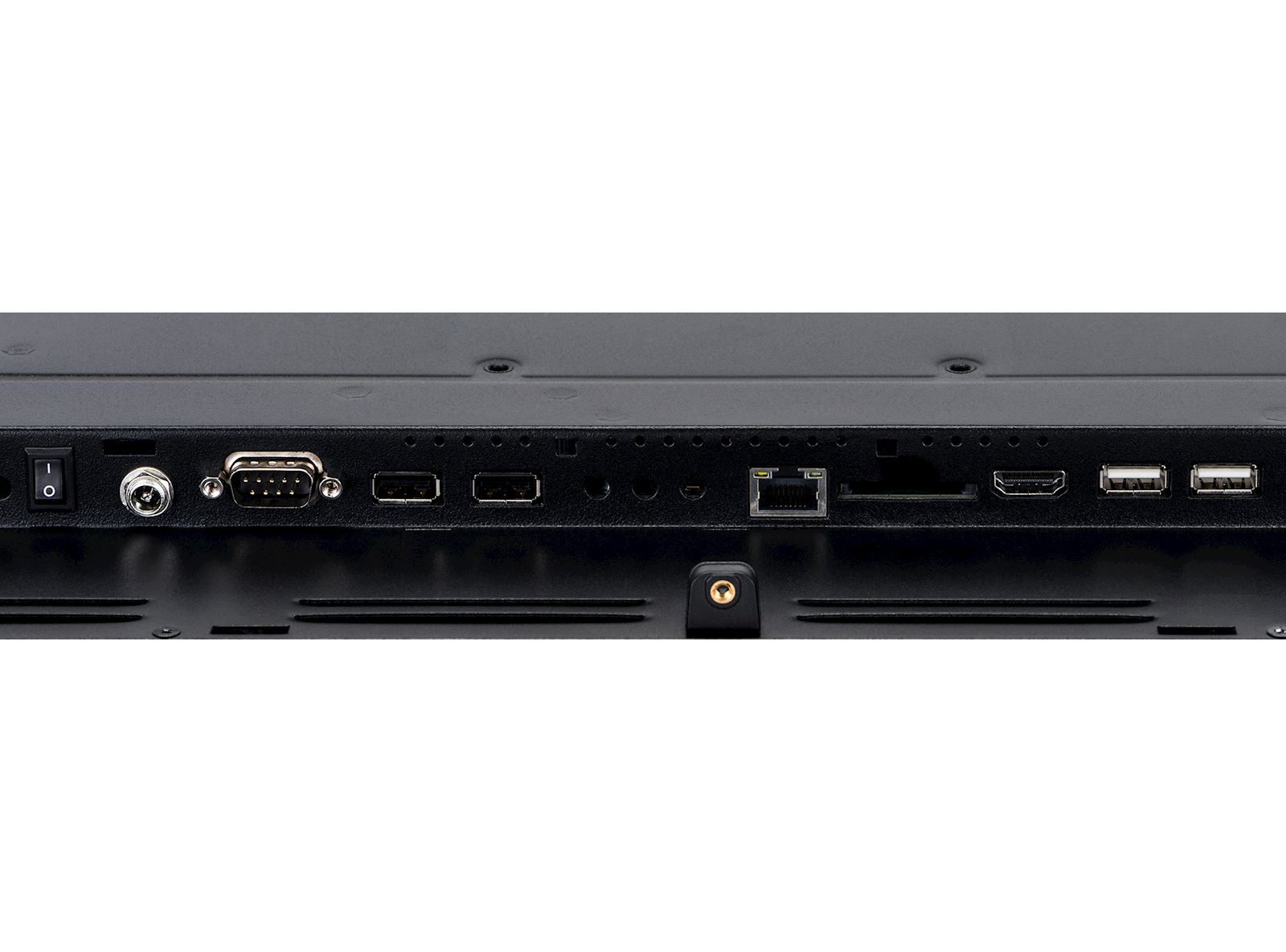

Digital signal output HDMI x1
Audio output Speakers 2 x 2W
HDCP yes
USB ports x4 (2.0 x 3, 2.0 with OTG x1)
RS-232c x1
RJ45 (LAN) x1


Integrated software Android 8.1 without GMS
CPU Rockchip RK3288, quad-core Cortex--A17 up to 1.8GHz
GPU Mail-T760 MP4
Storage 16GB eMMC
Memory 2GB DDR3
Graphics 1920 x 1080 @60Hz

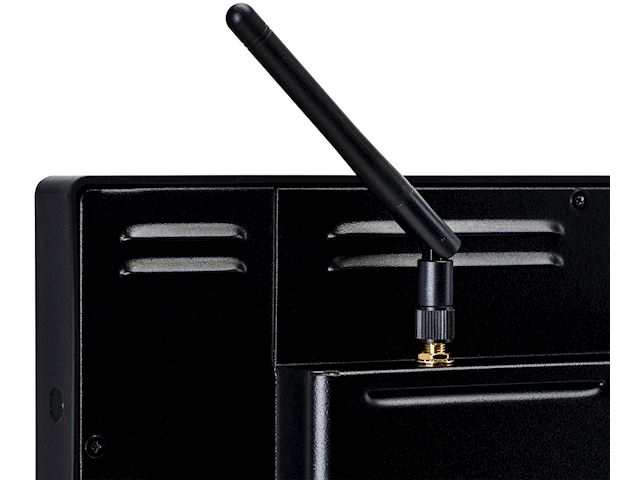

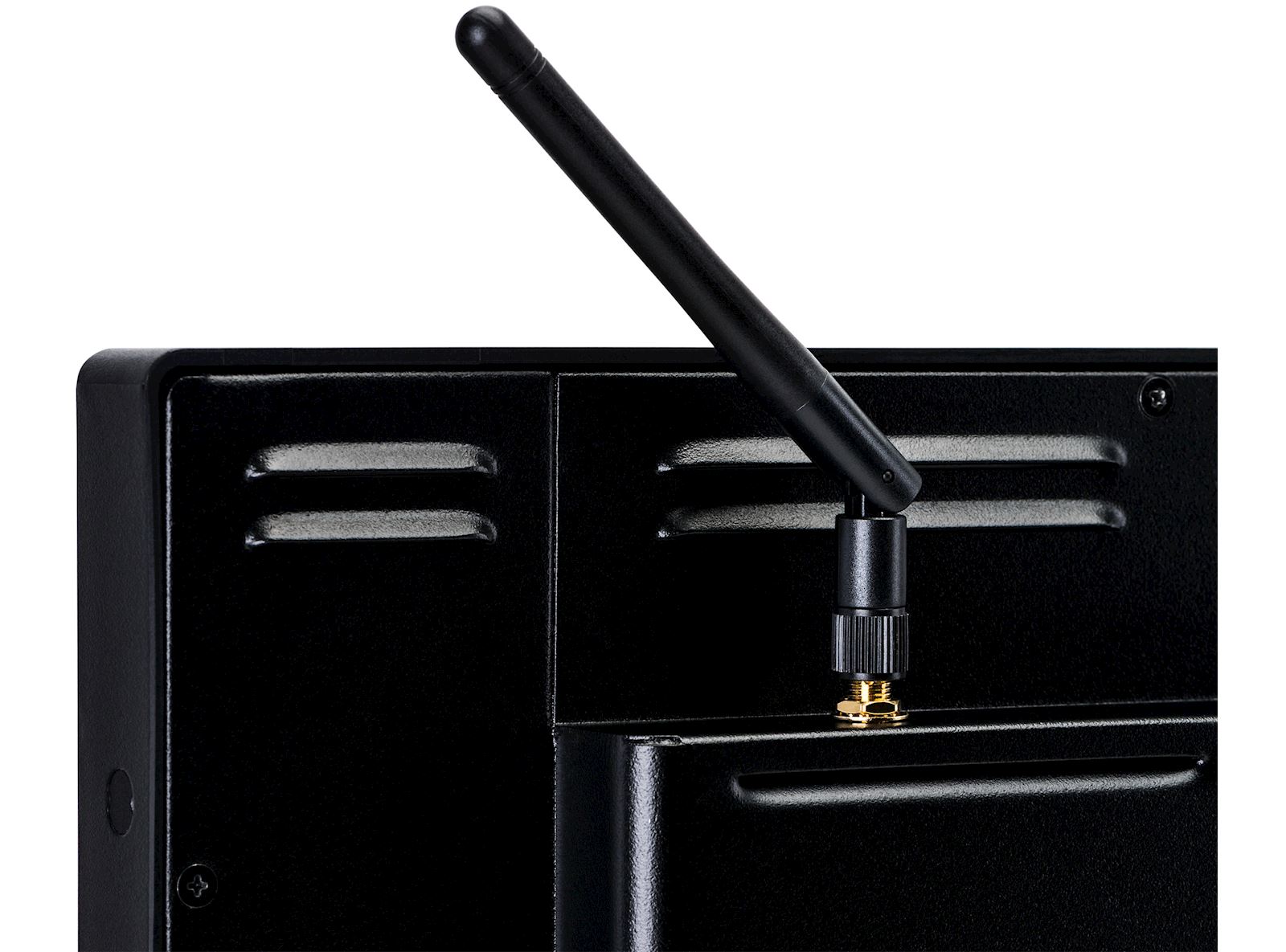

WiFi IEE802.11b/g/n
Bluetooth 4.0
Extra SD card slot, anti-fingerprint coating
Glass thickness 2.5mm
Glass hardness 7H
Water and dust protection IP65 (front)

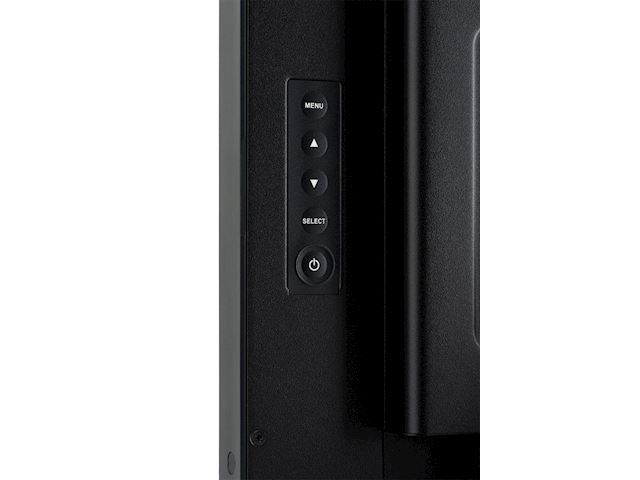

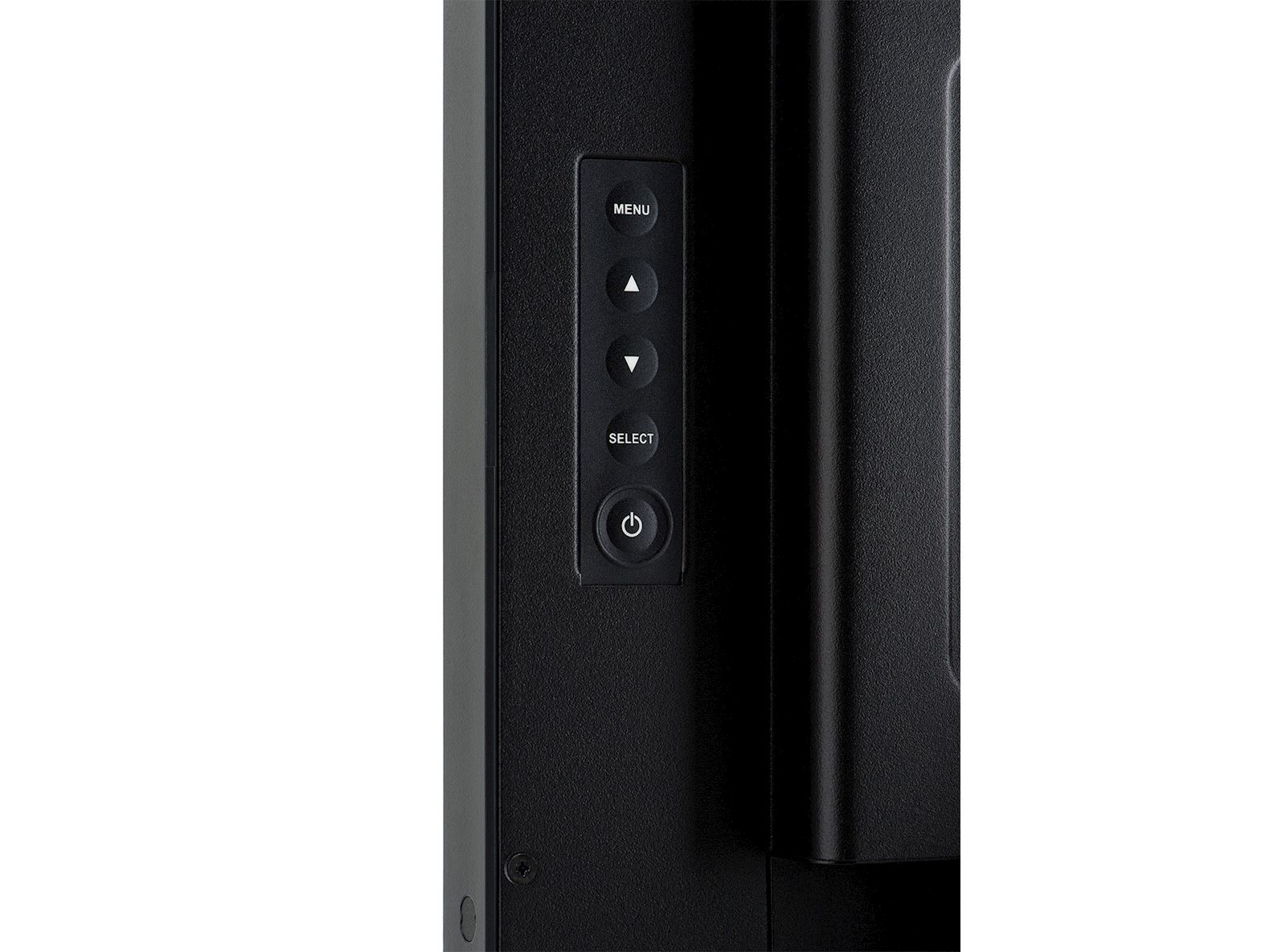

OSD key lock yes


Applications install or uninstall, calculator, calendar, clock and alarm, manage contact information, manage emails, manage files, view photo album, web browser (Lightning), play audio files, update system online, search engine, system preferences, sound recorder, play video files, web browser (WebView)
Plug&Play DDC2B

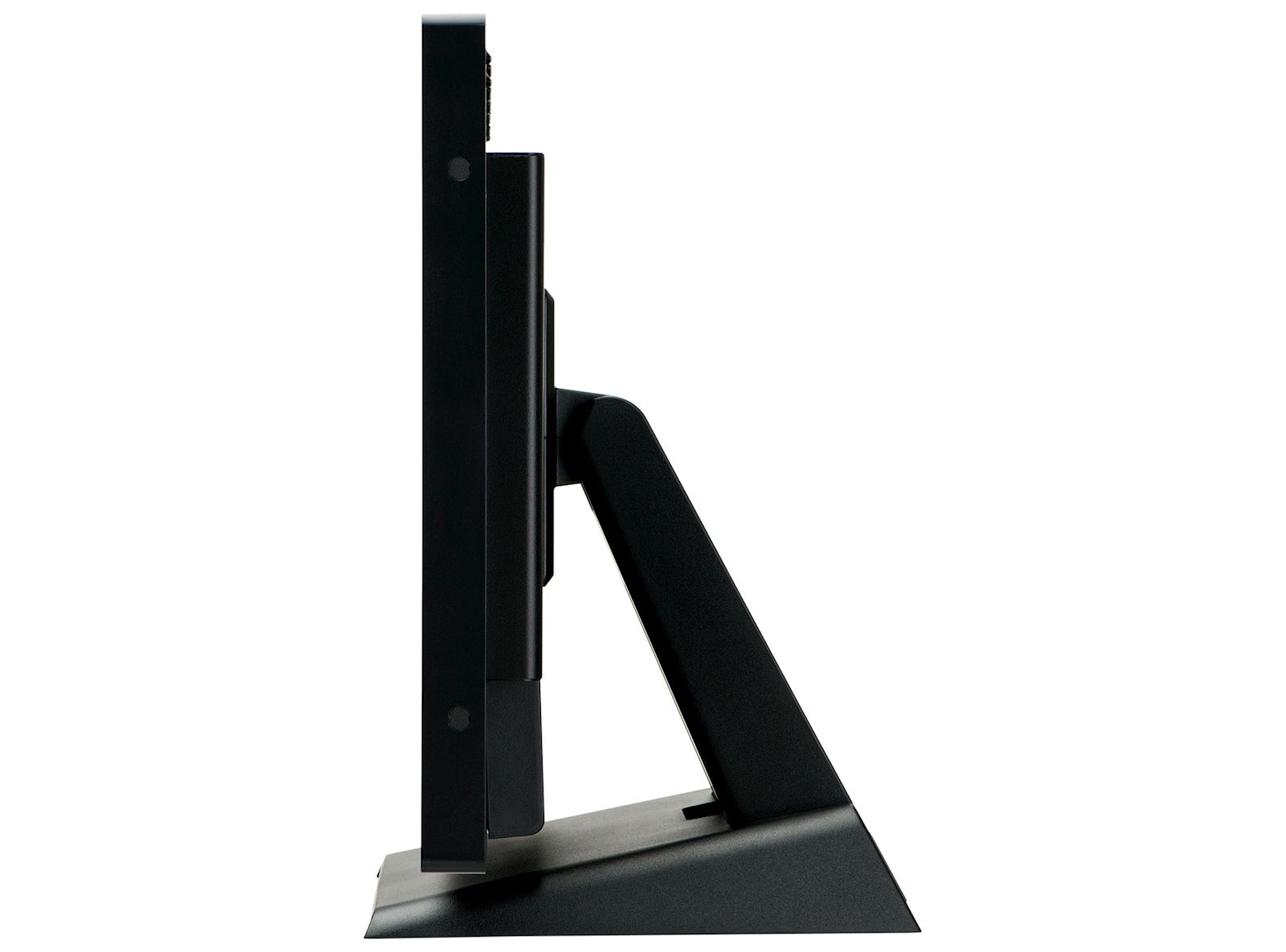

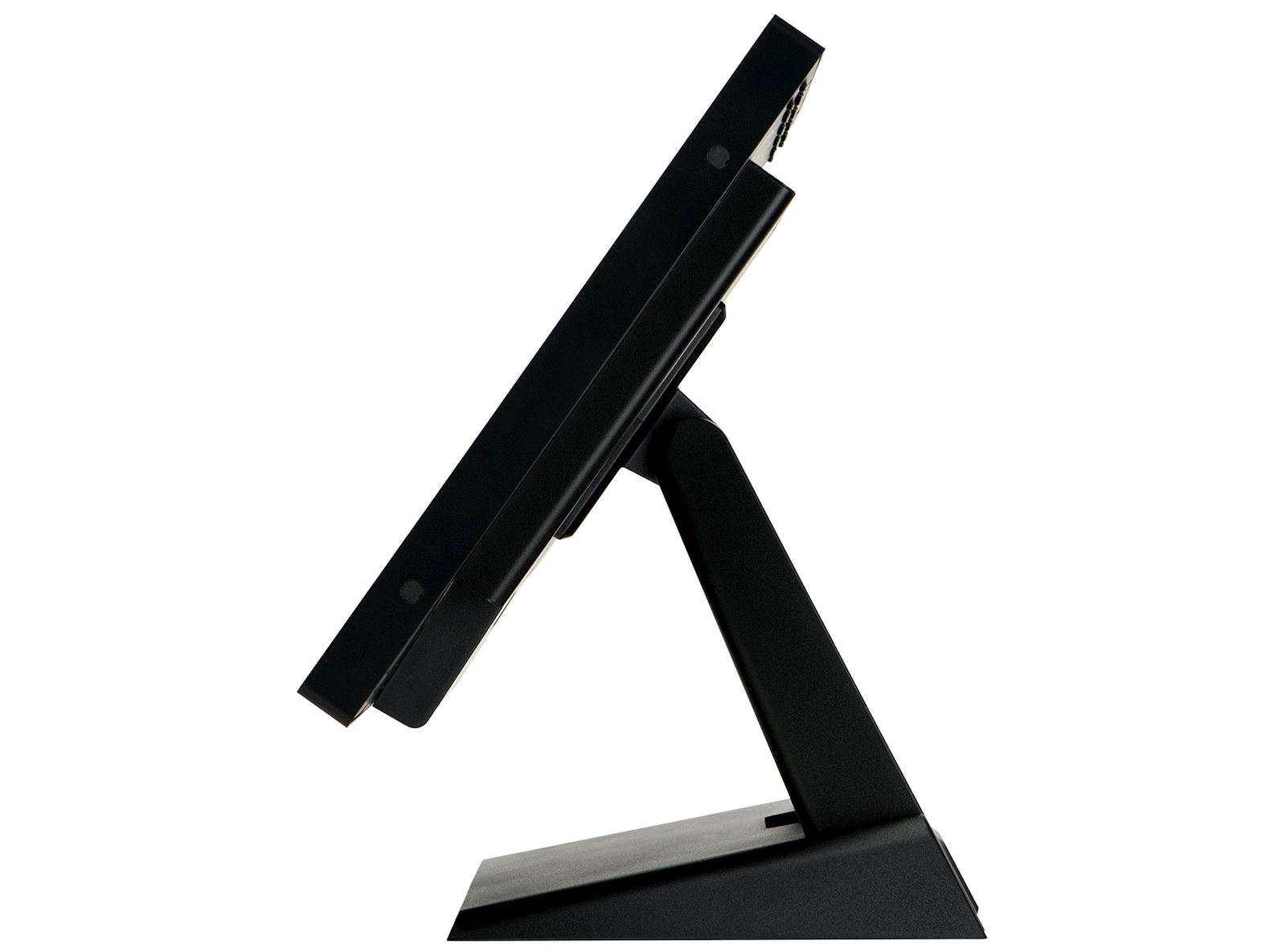

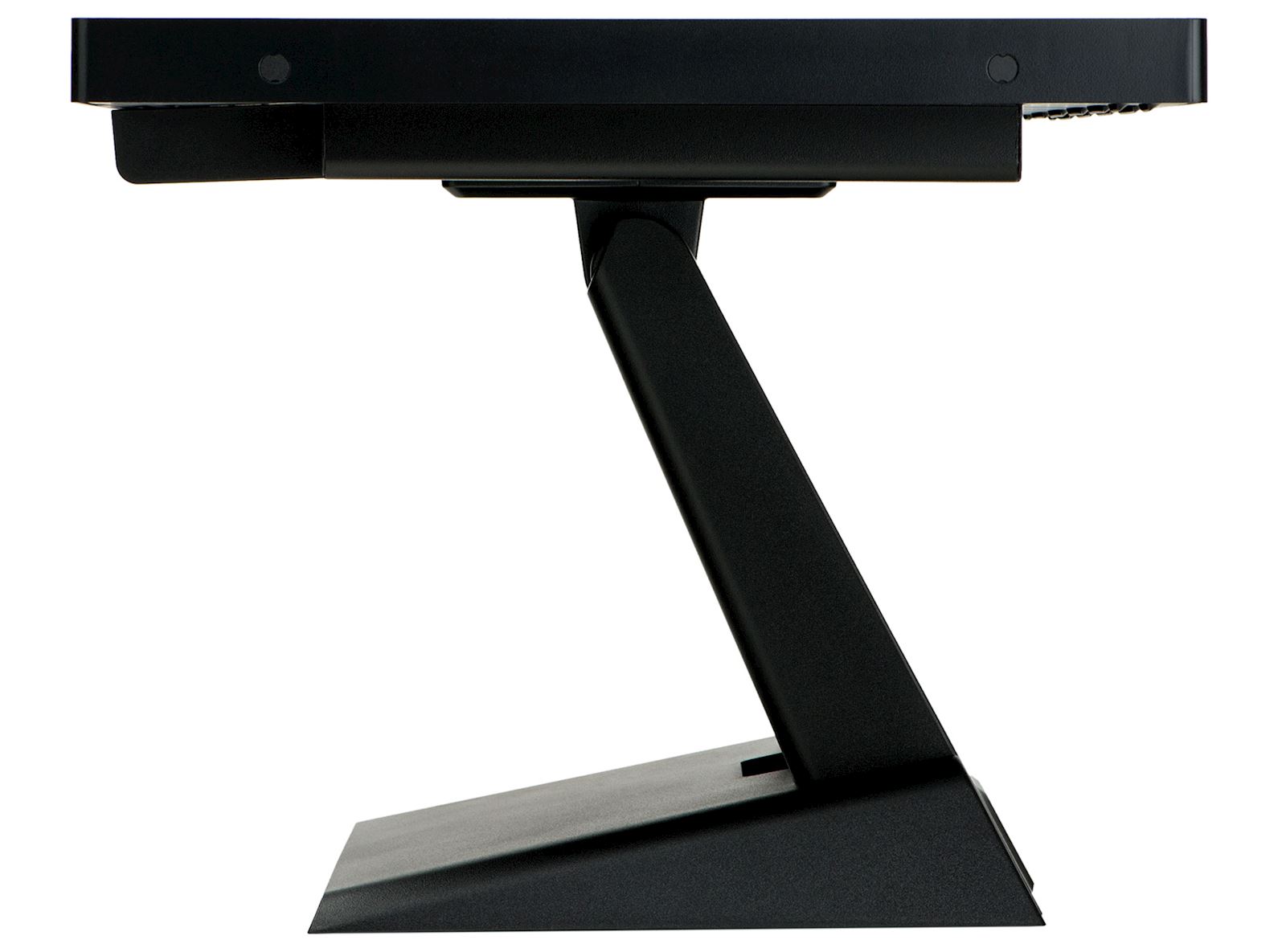

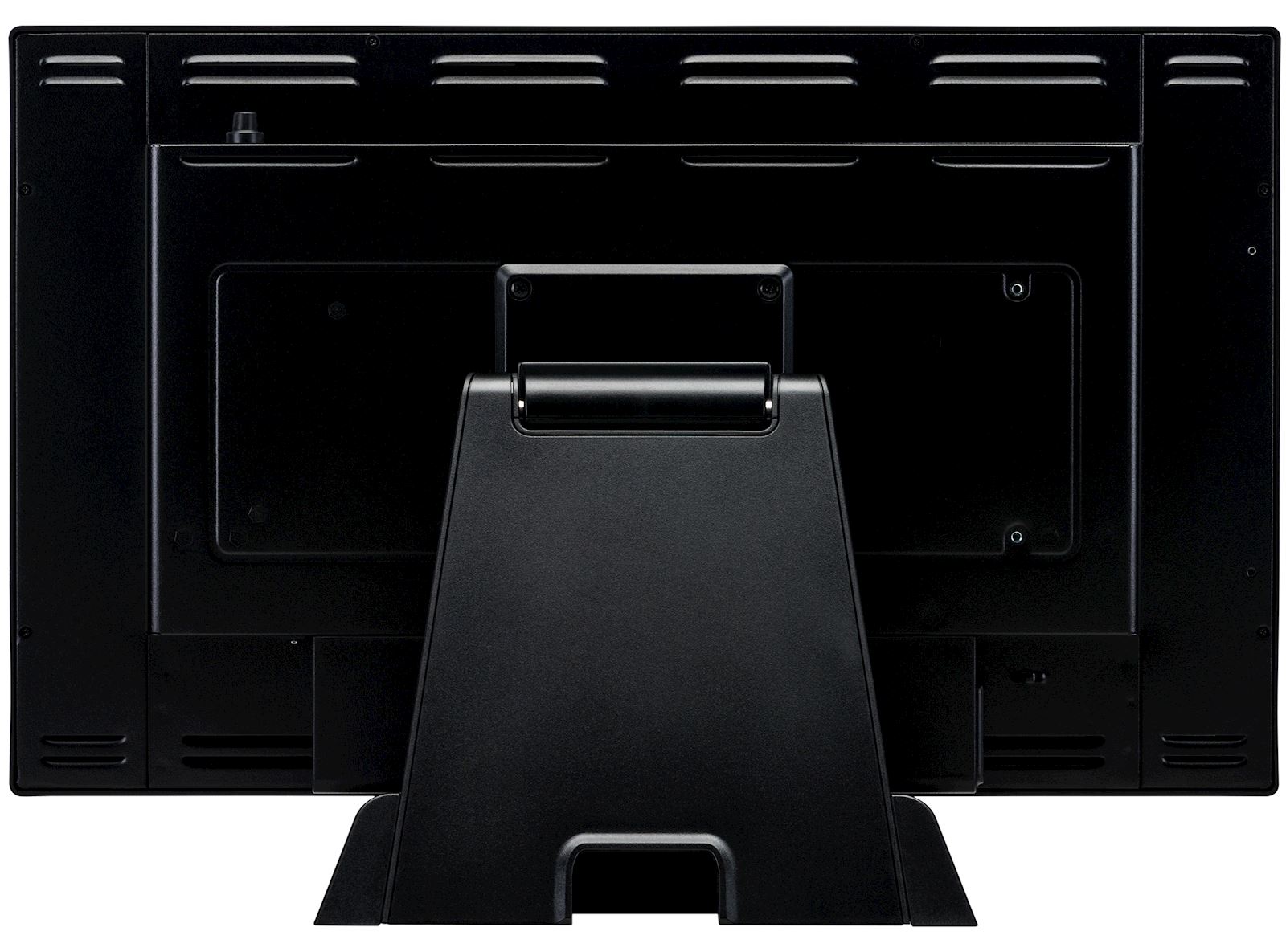

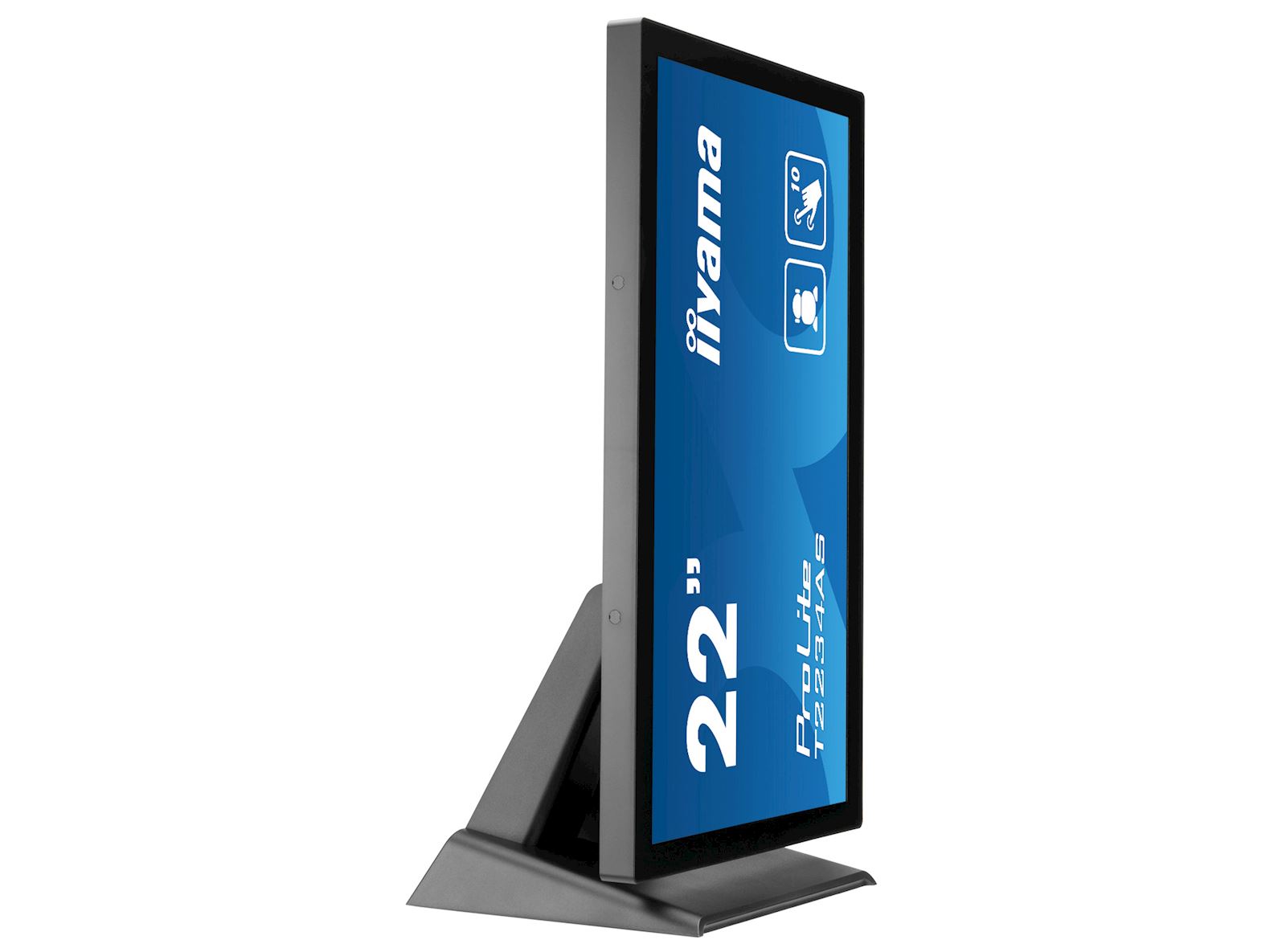

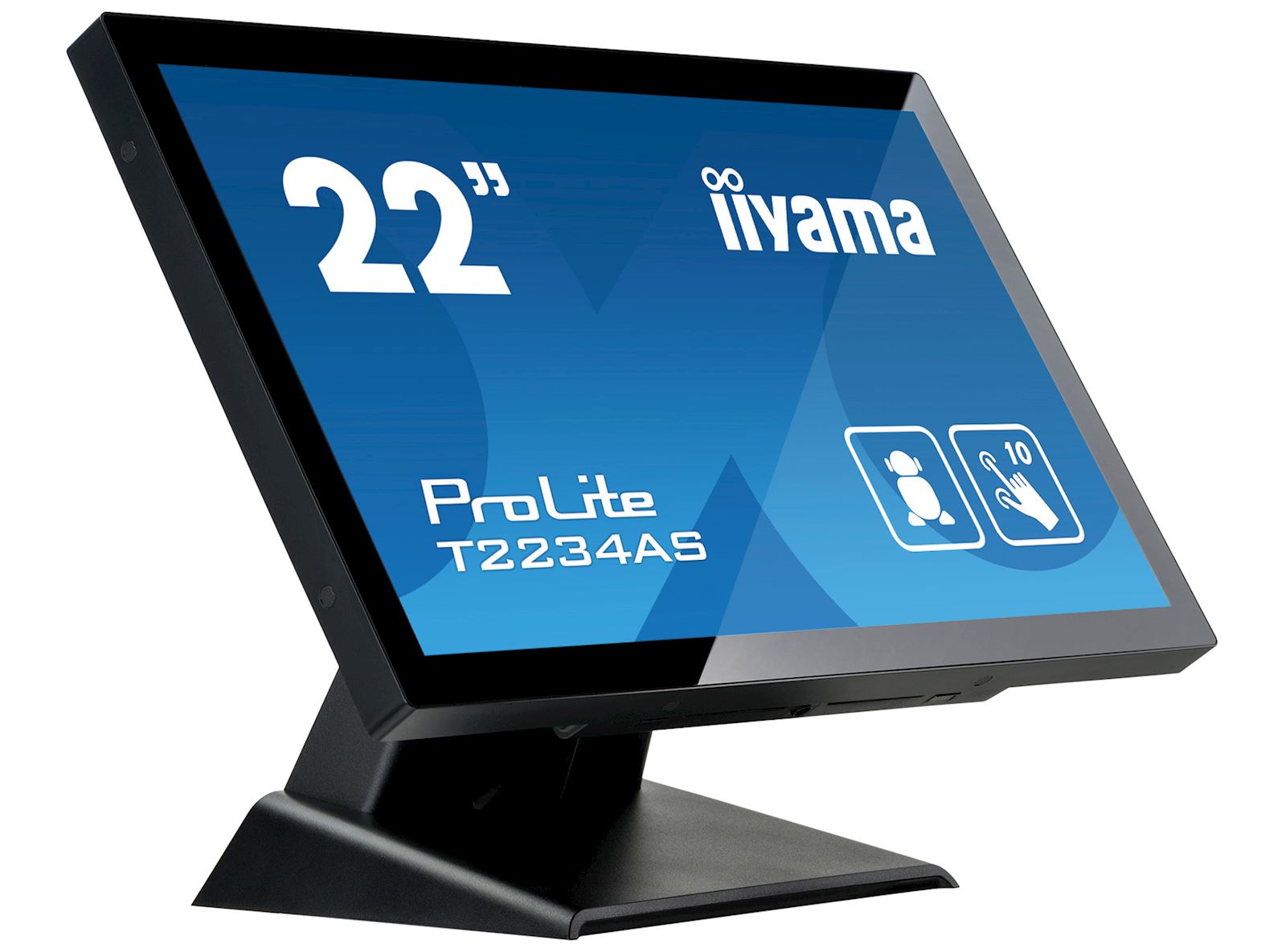

Tilt angle 90° up; 5° down

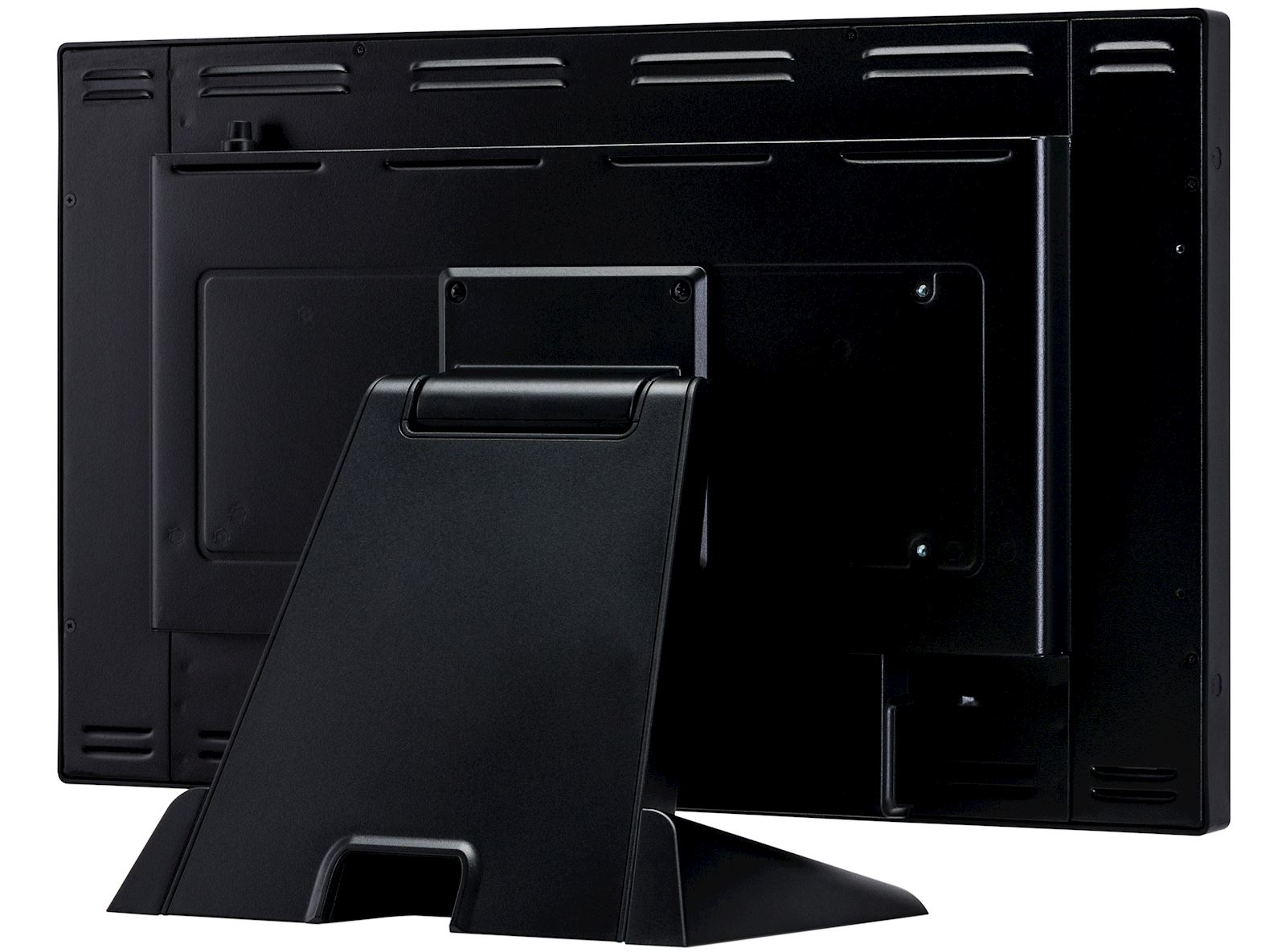

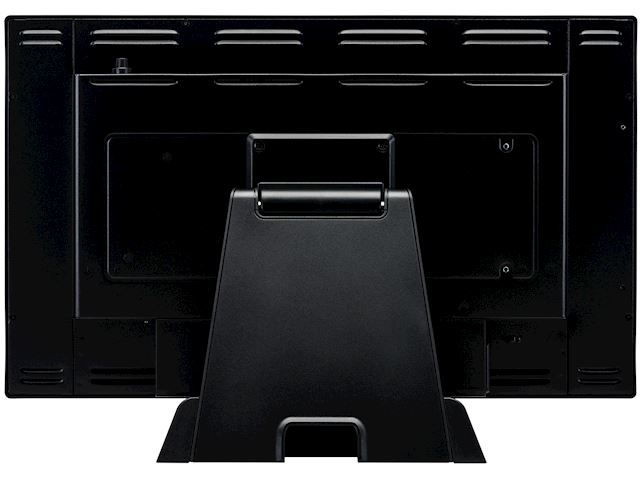

VESA mounting 100 x 100mm

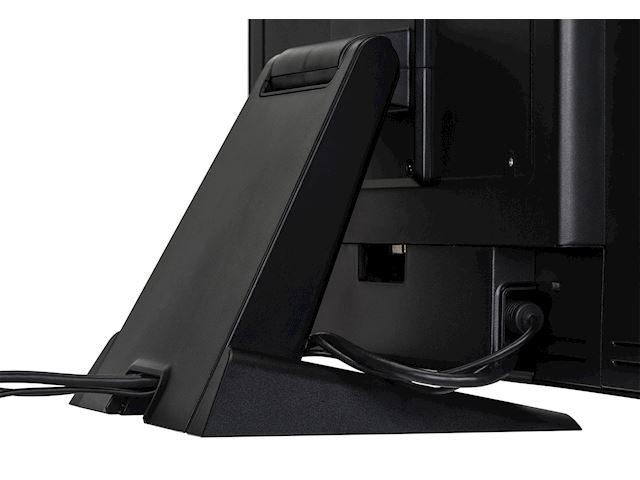

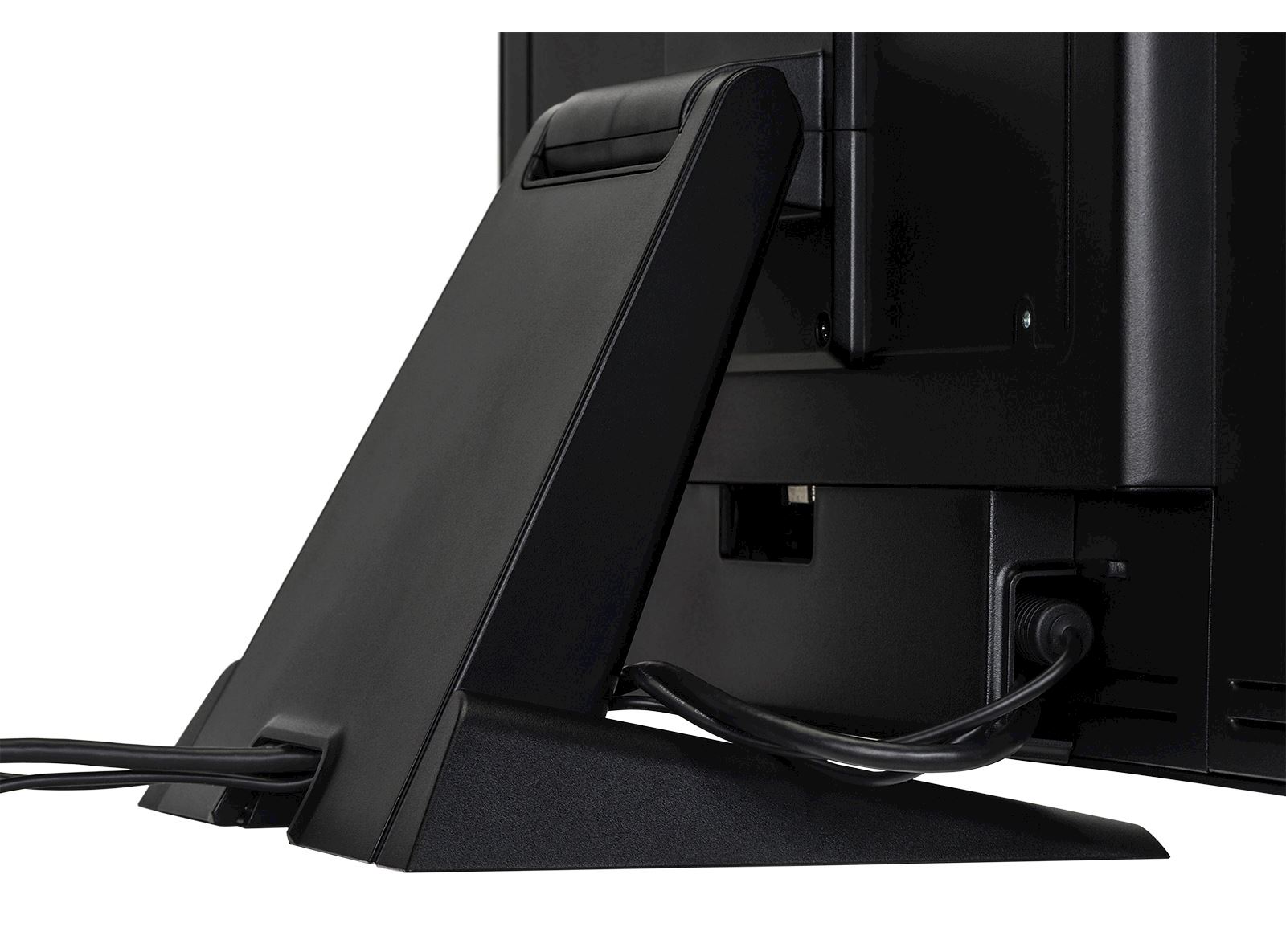

Cable management system yes


Cables power
Guides quick start guide, safety guide
Other AC adapter
Cable cover yes


Power supply unit external
Power supply DC 12 V
Power usage 25W typical, 0.5W off mode


Regulations CE, CU, cULus, CCC
Other REACH SVHC above 0.1%: Lead


Product dimensions W x H x D 517.5 x 351.5 x 219mm
Weight (without box) 6.6kg


With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.



This LED monitor is equipped with two high quality stereo speakers.



A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.



IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS
