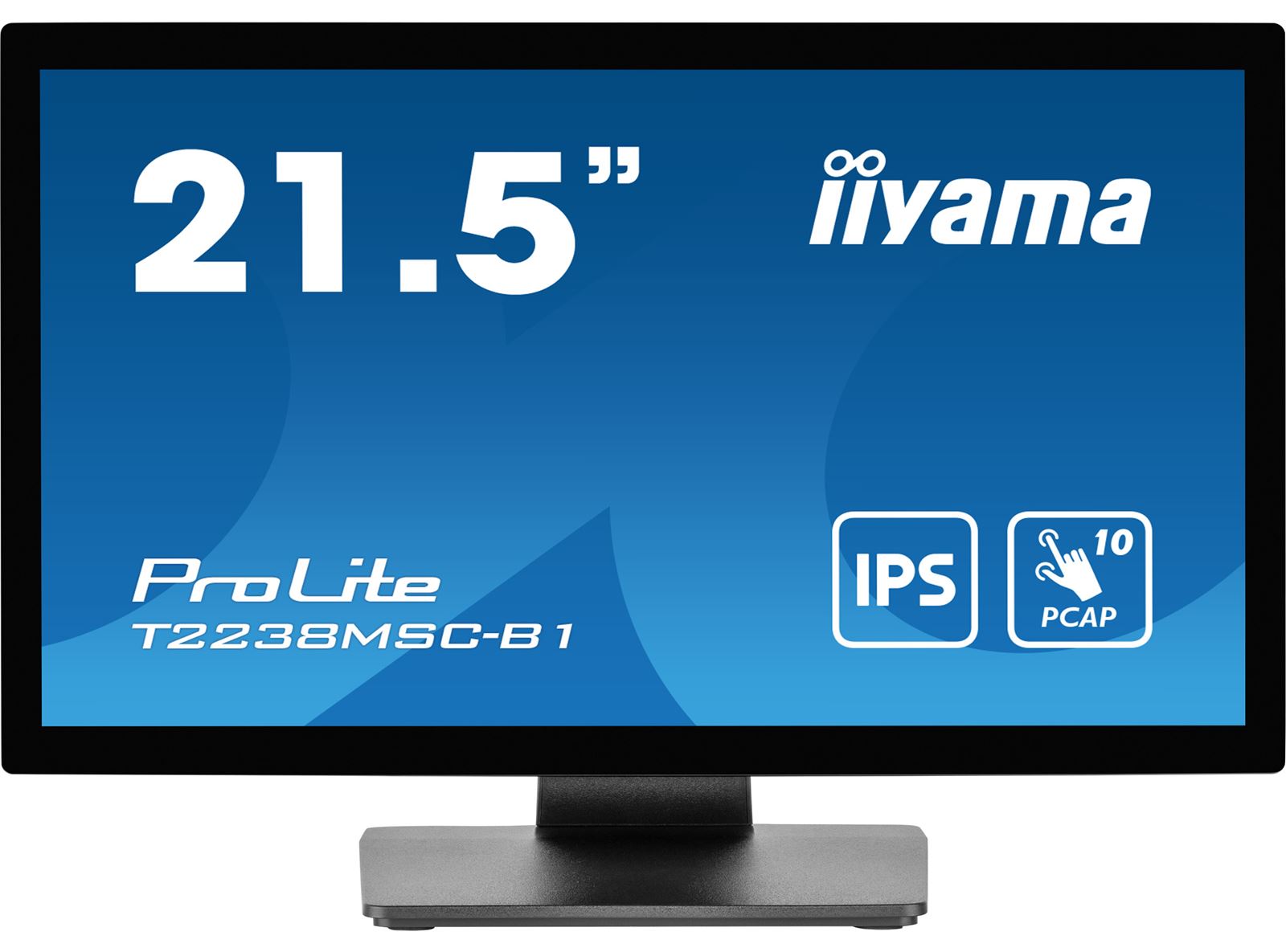

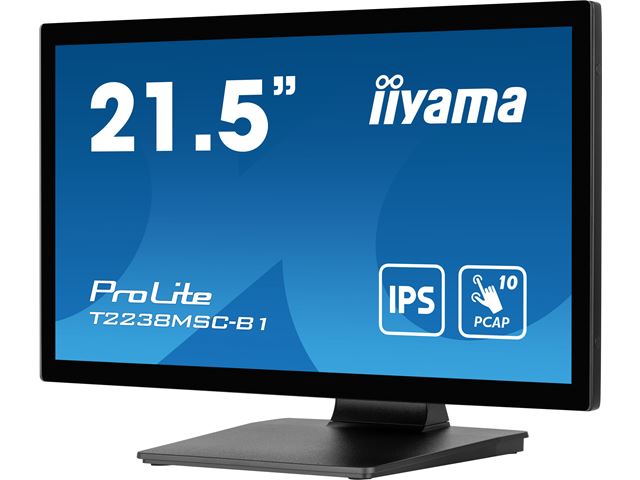

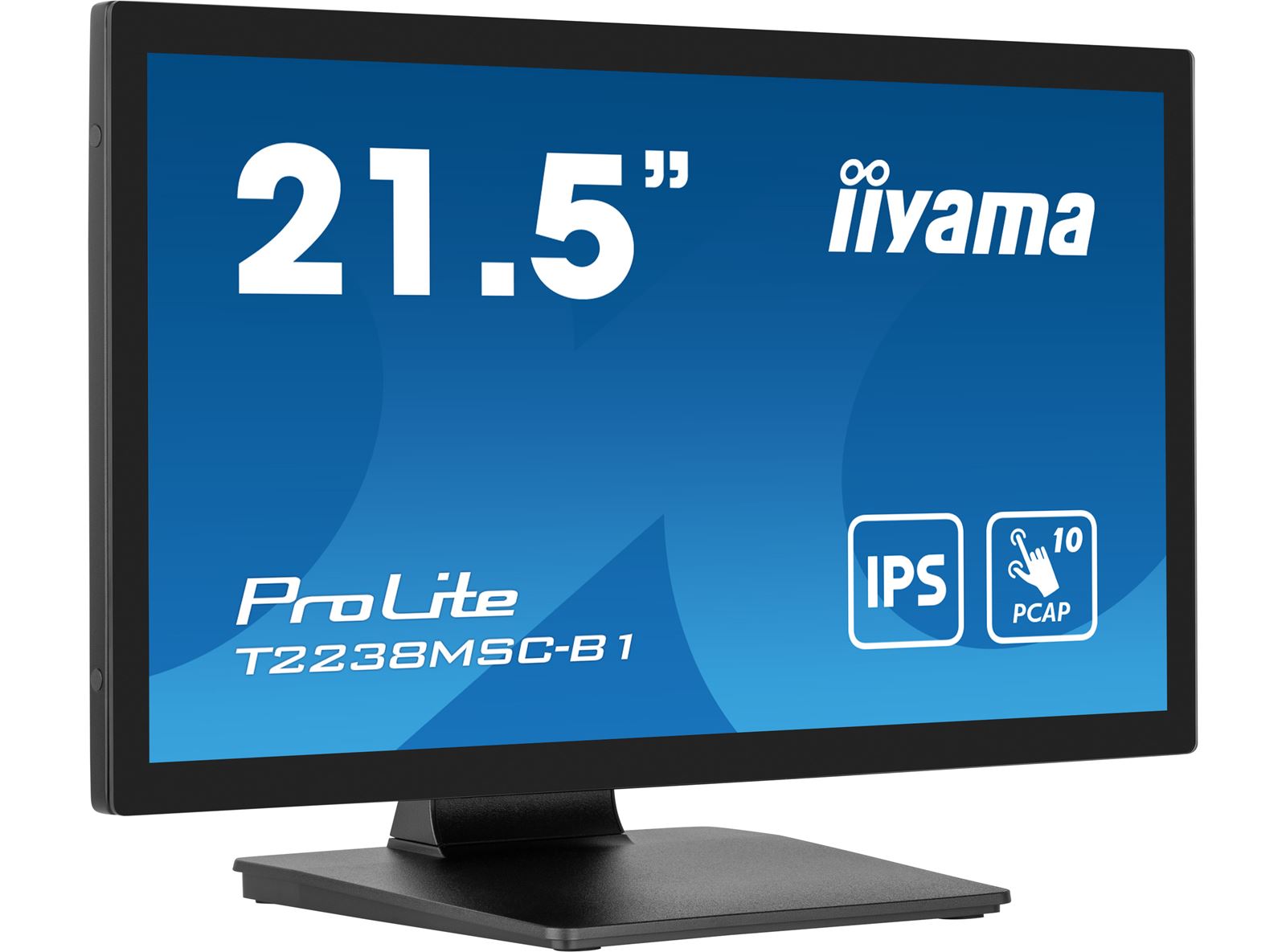

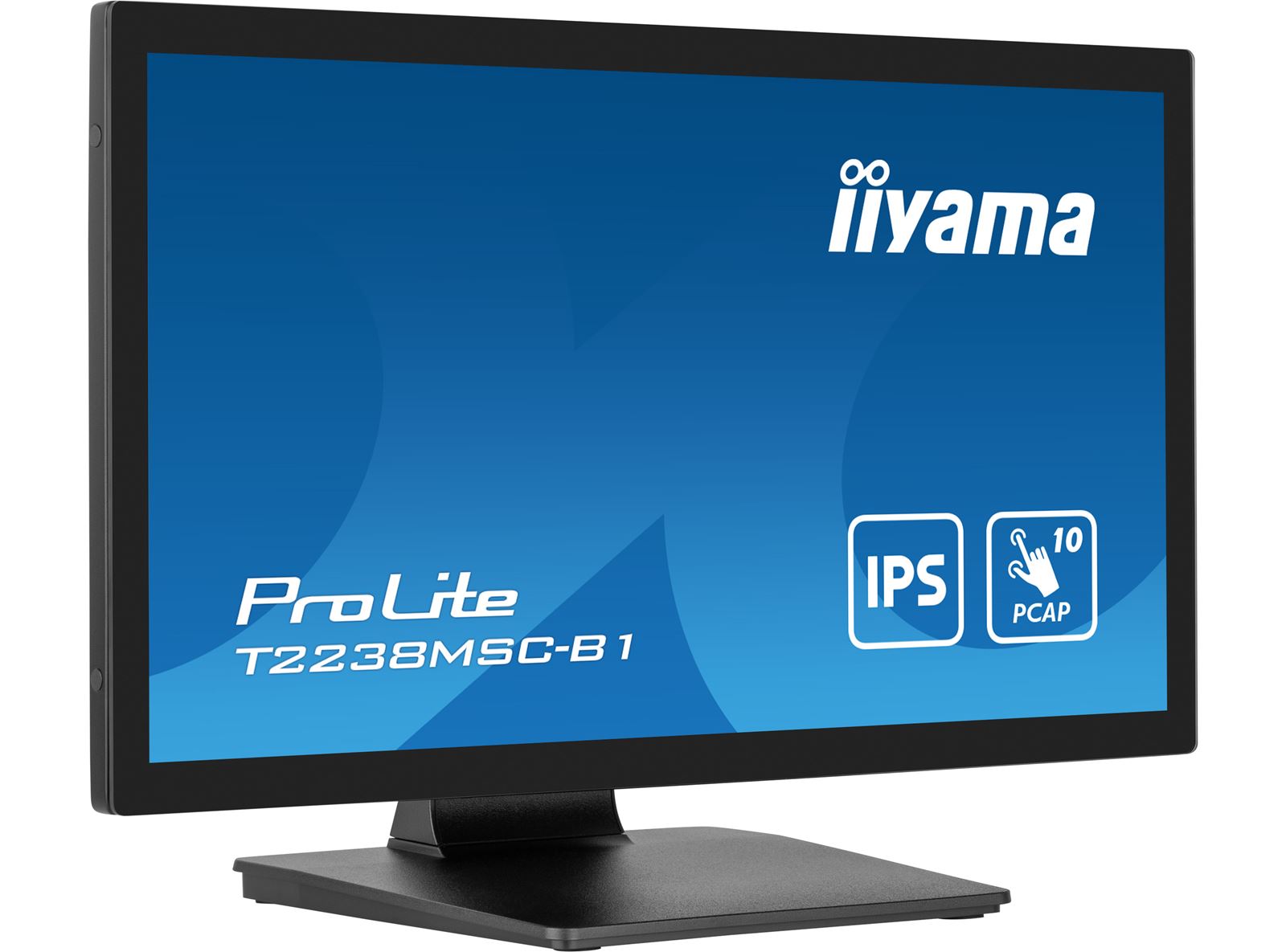

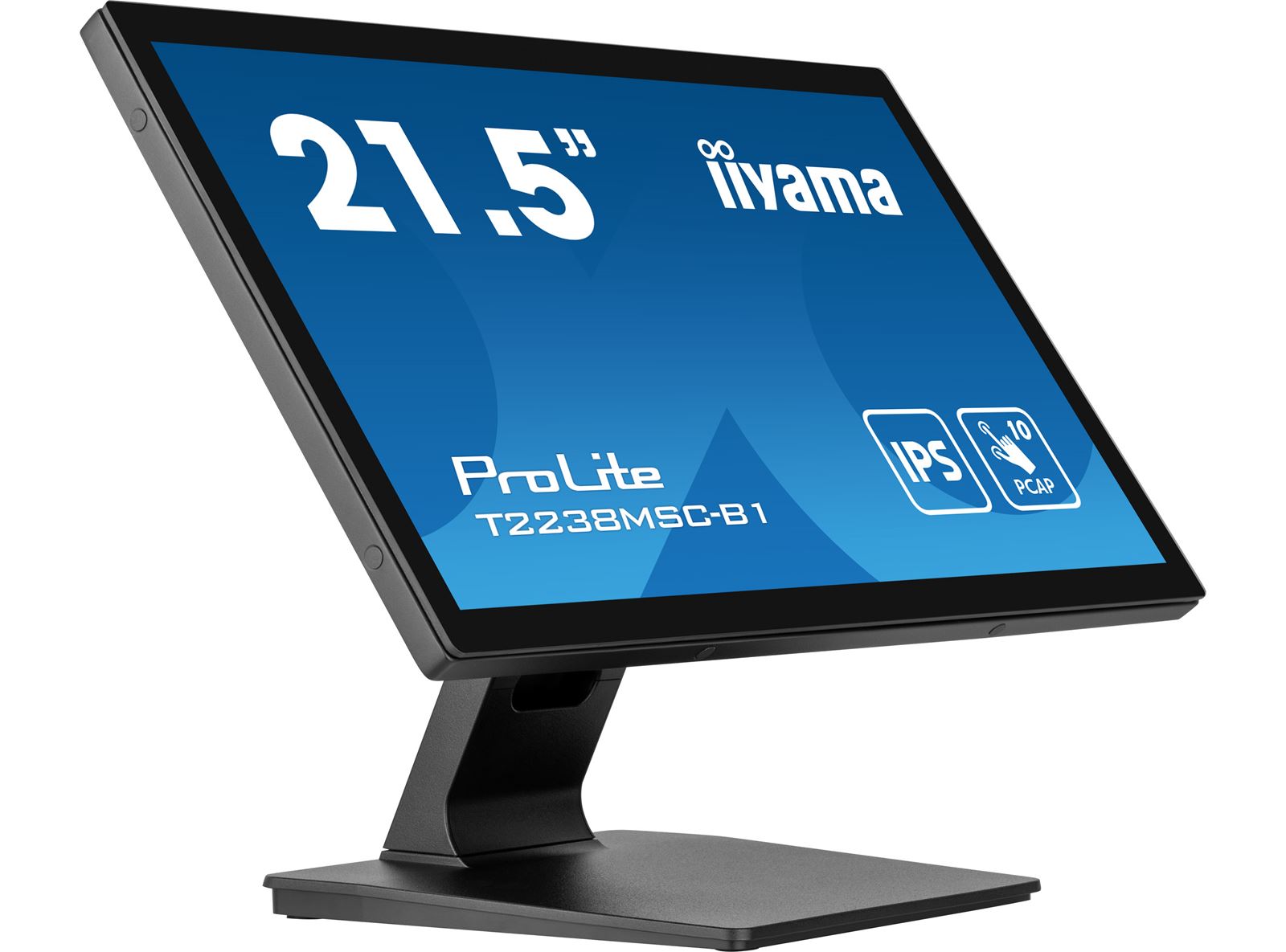

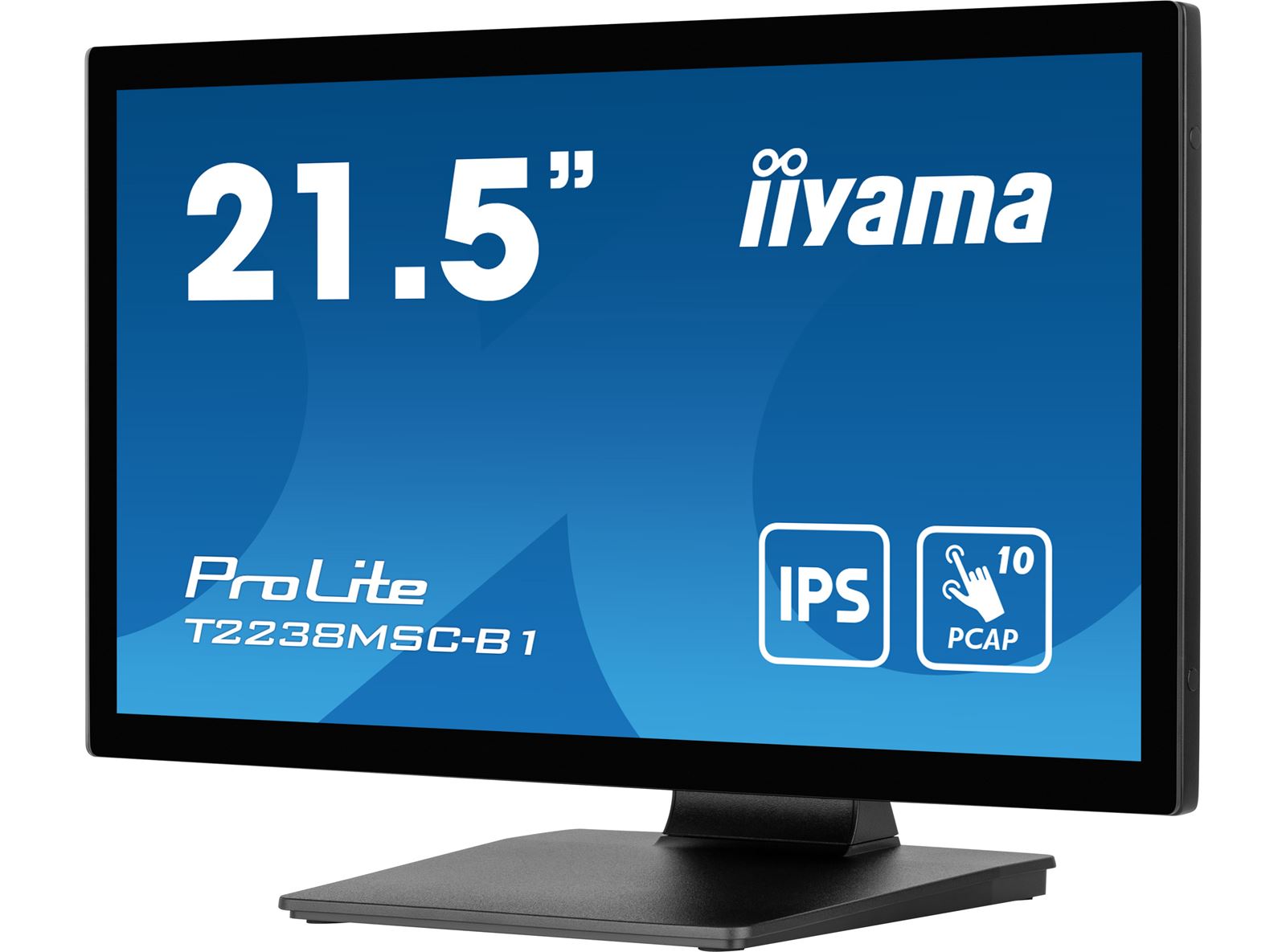

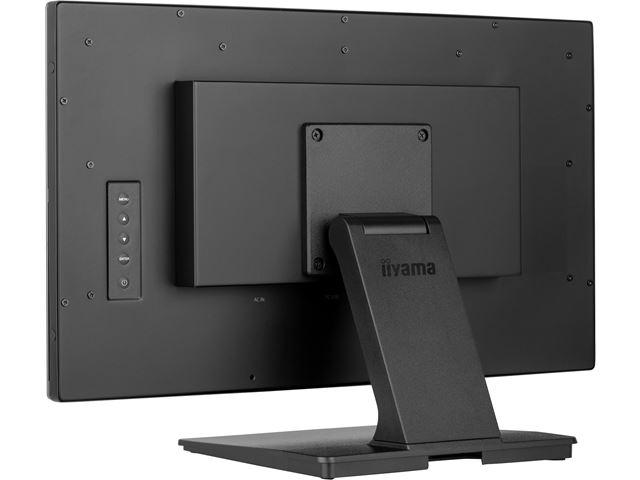

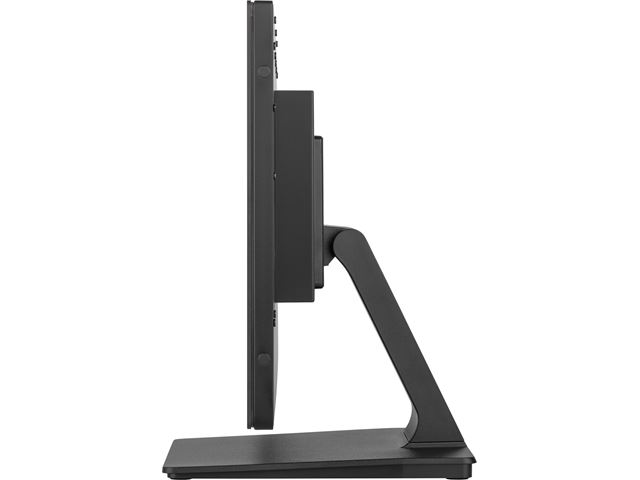

iiyama ProLite monitor T2238MSC-B1 Semi-Outdoor 22" Black, IPS, Full HD, Projective Capacitive 10pt touch, Display Port, edge-to-edge glass, anti-fingerprint coating and metal housing

£378.30 exc. VAT
£453.96 inc. VAT

Brand: iiyama

Manufacturer Code: T2238MSC-B1

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

21.5” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing

The Full HD (1920x1080) monitor ProLite T2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water.

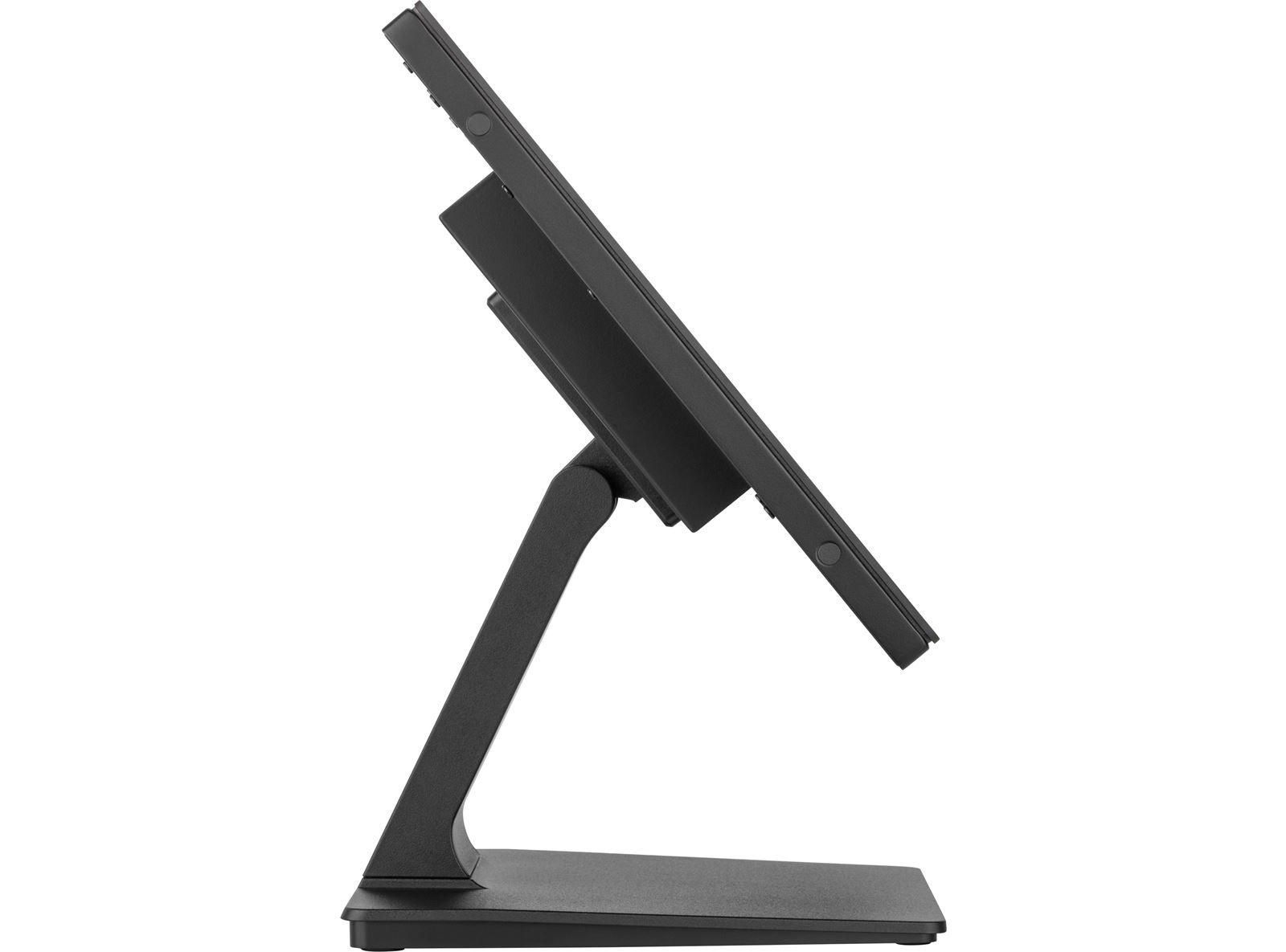

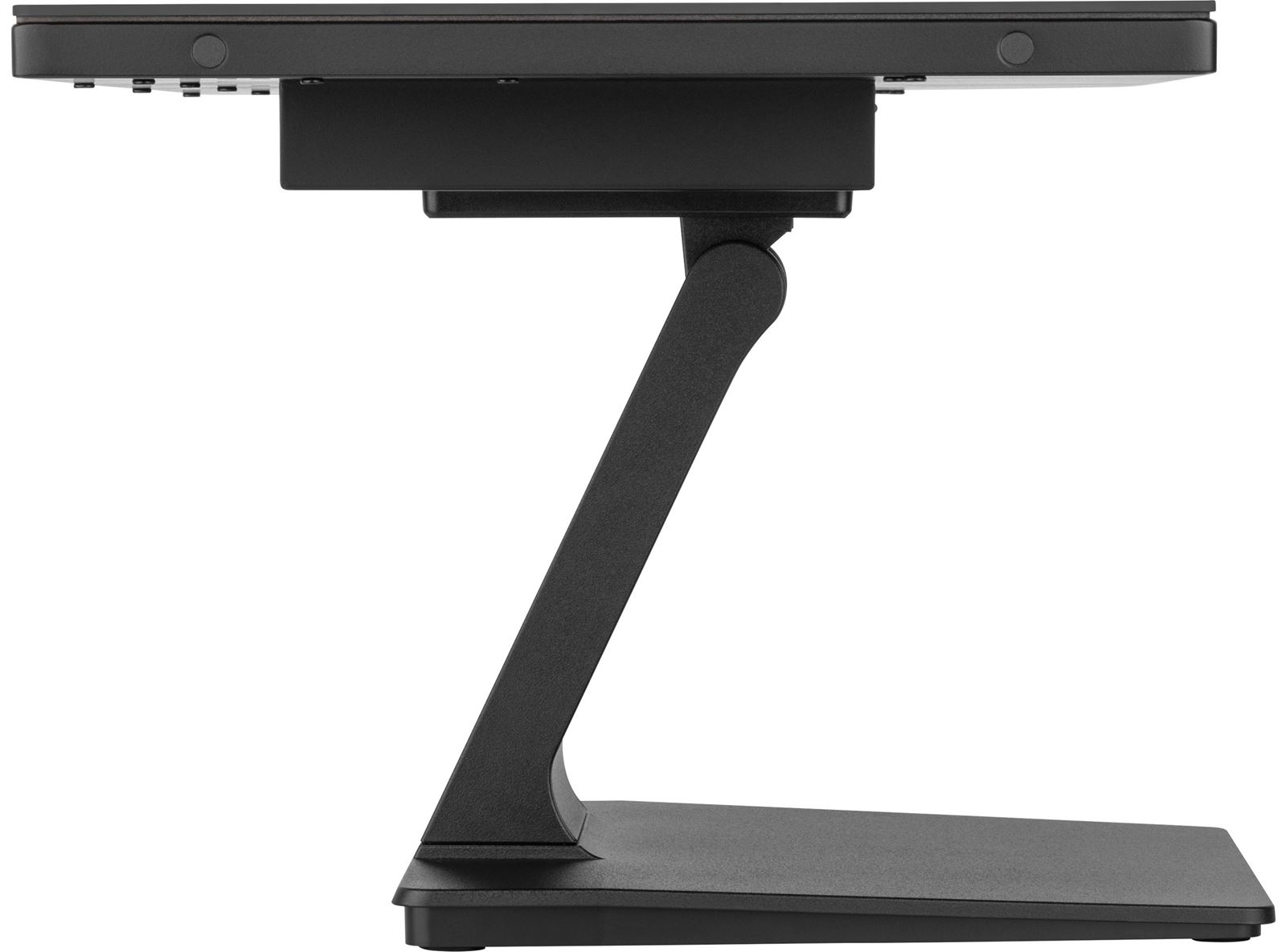

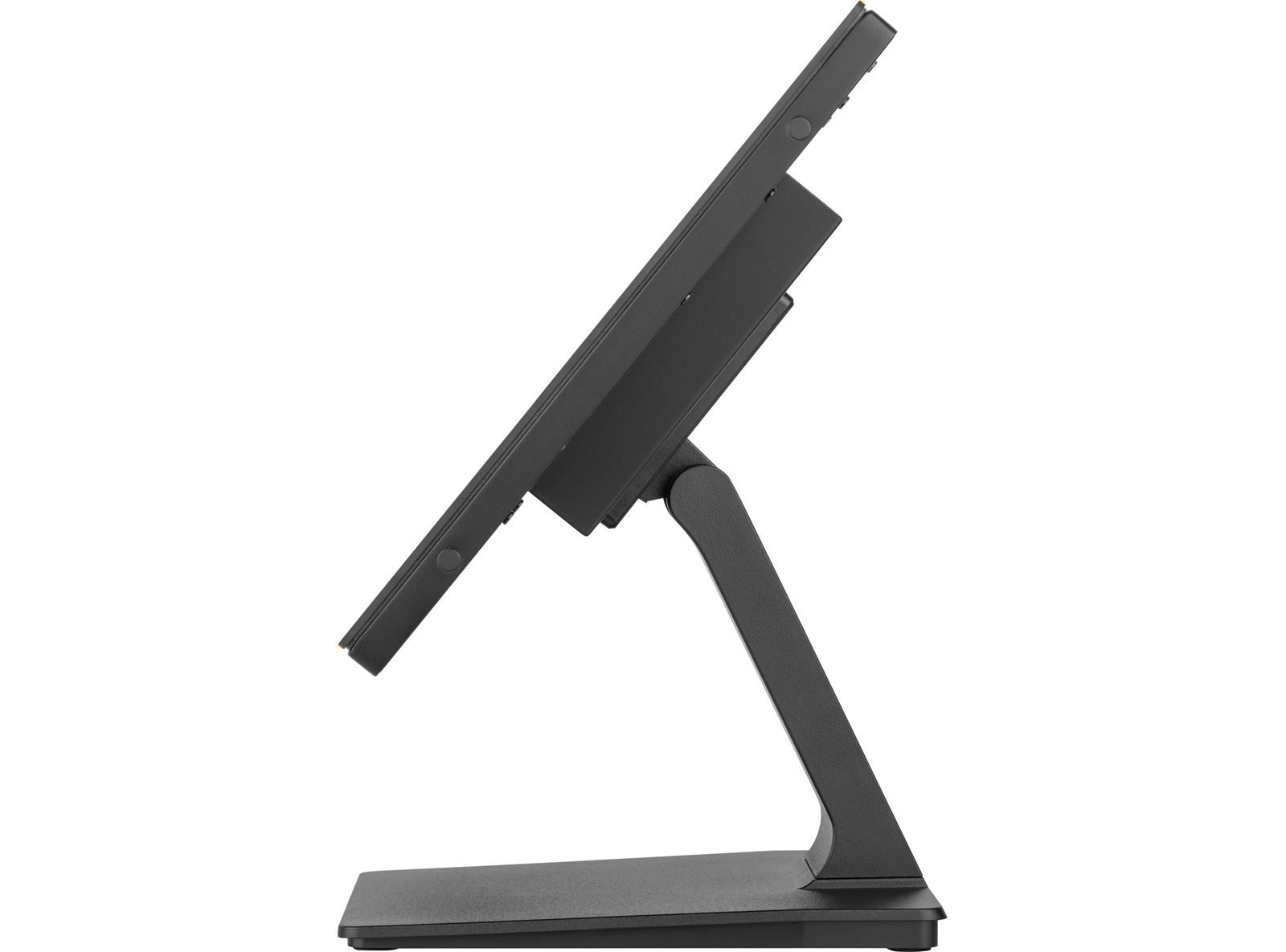

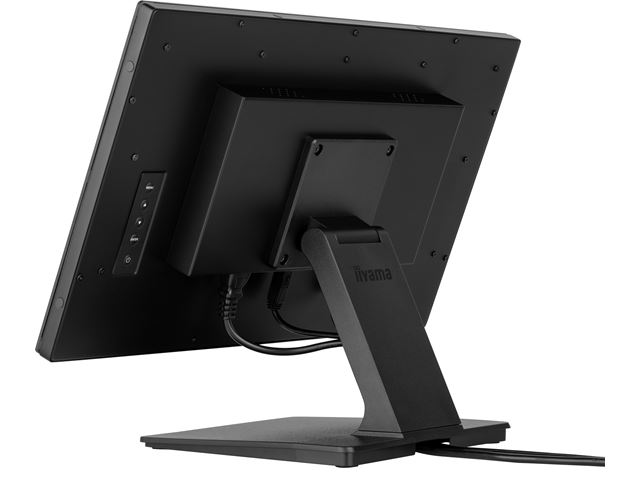

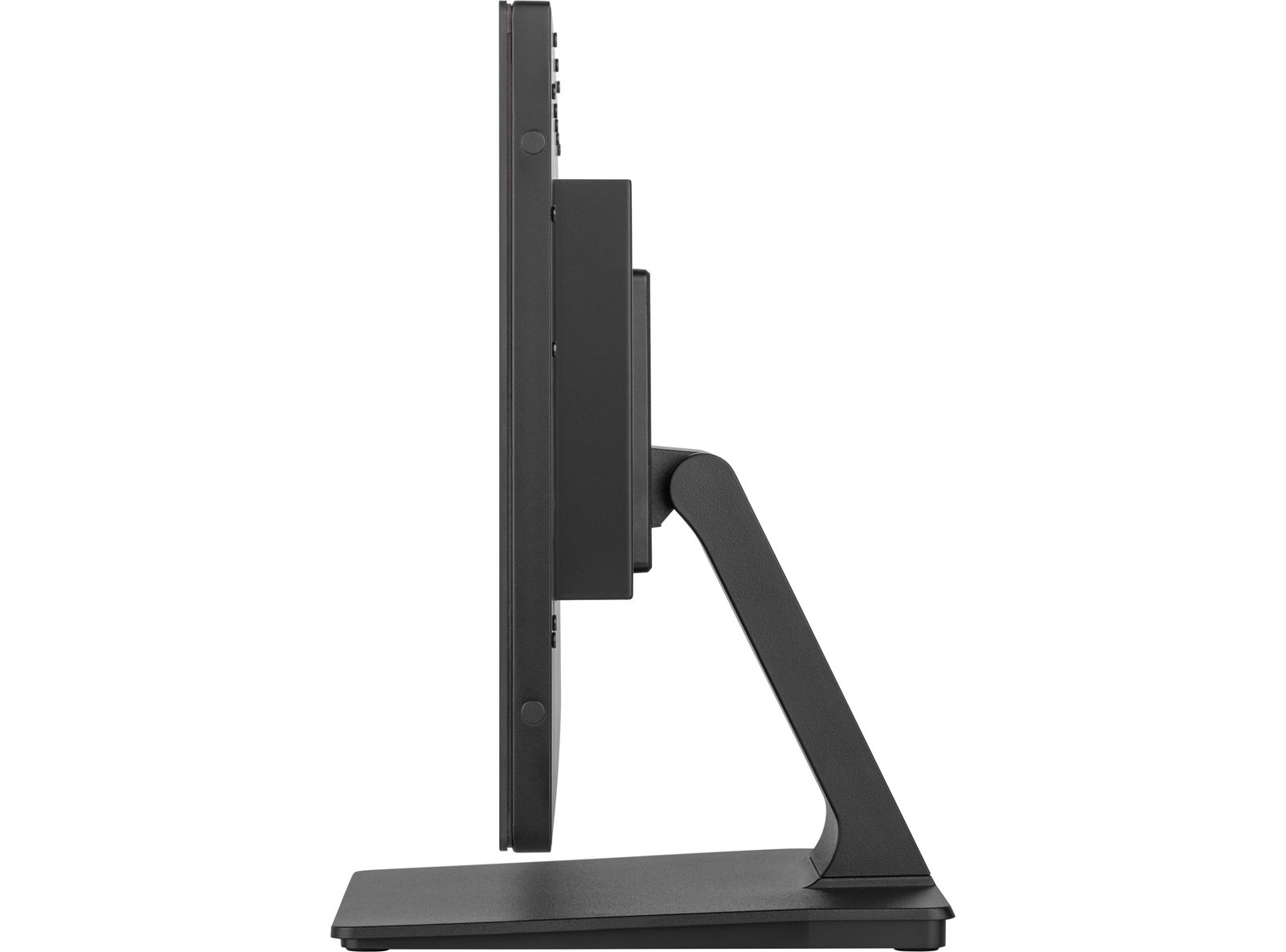

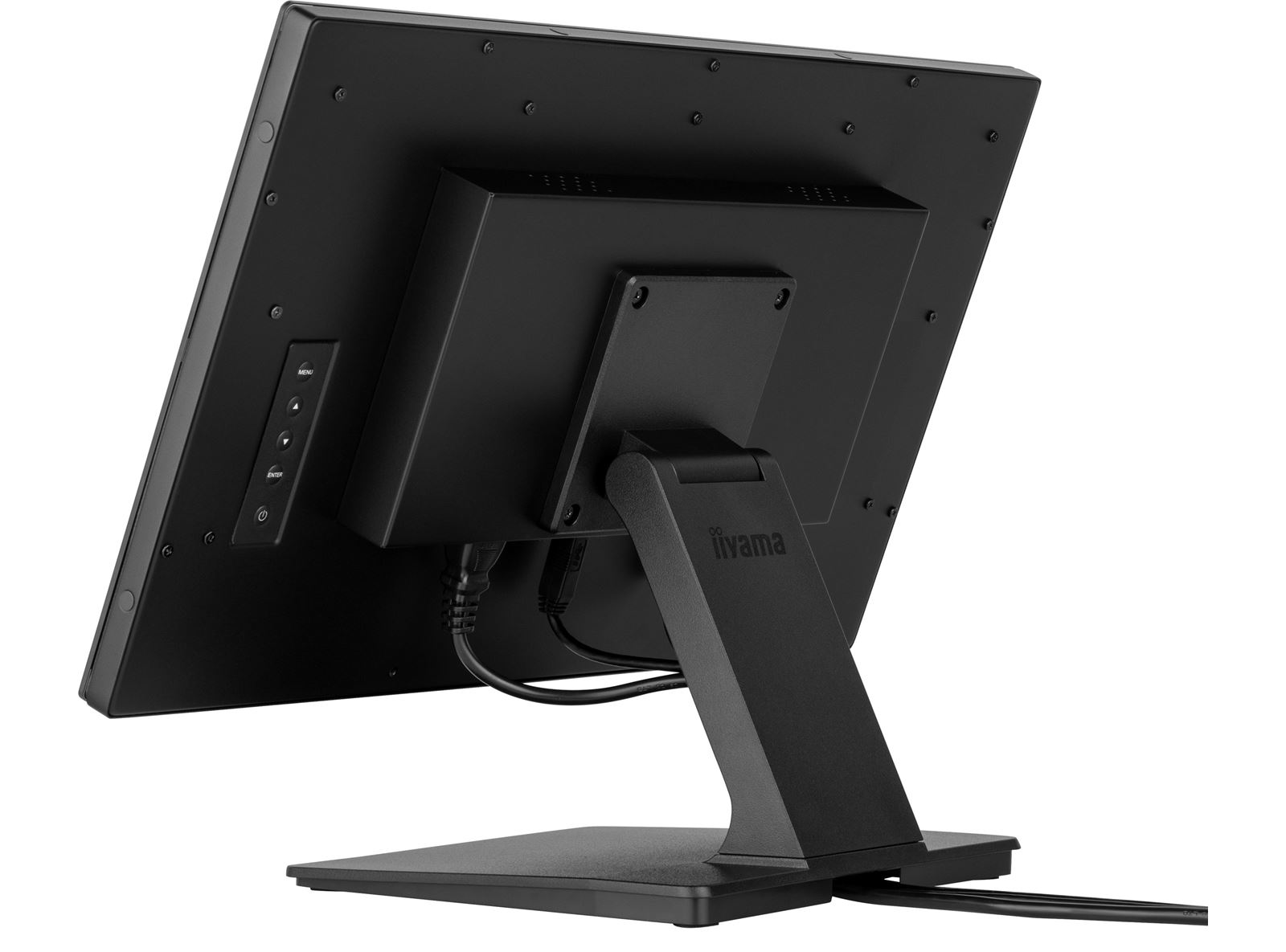

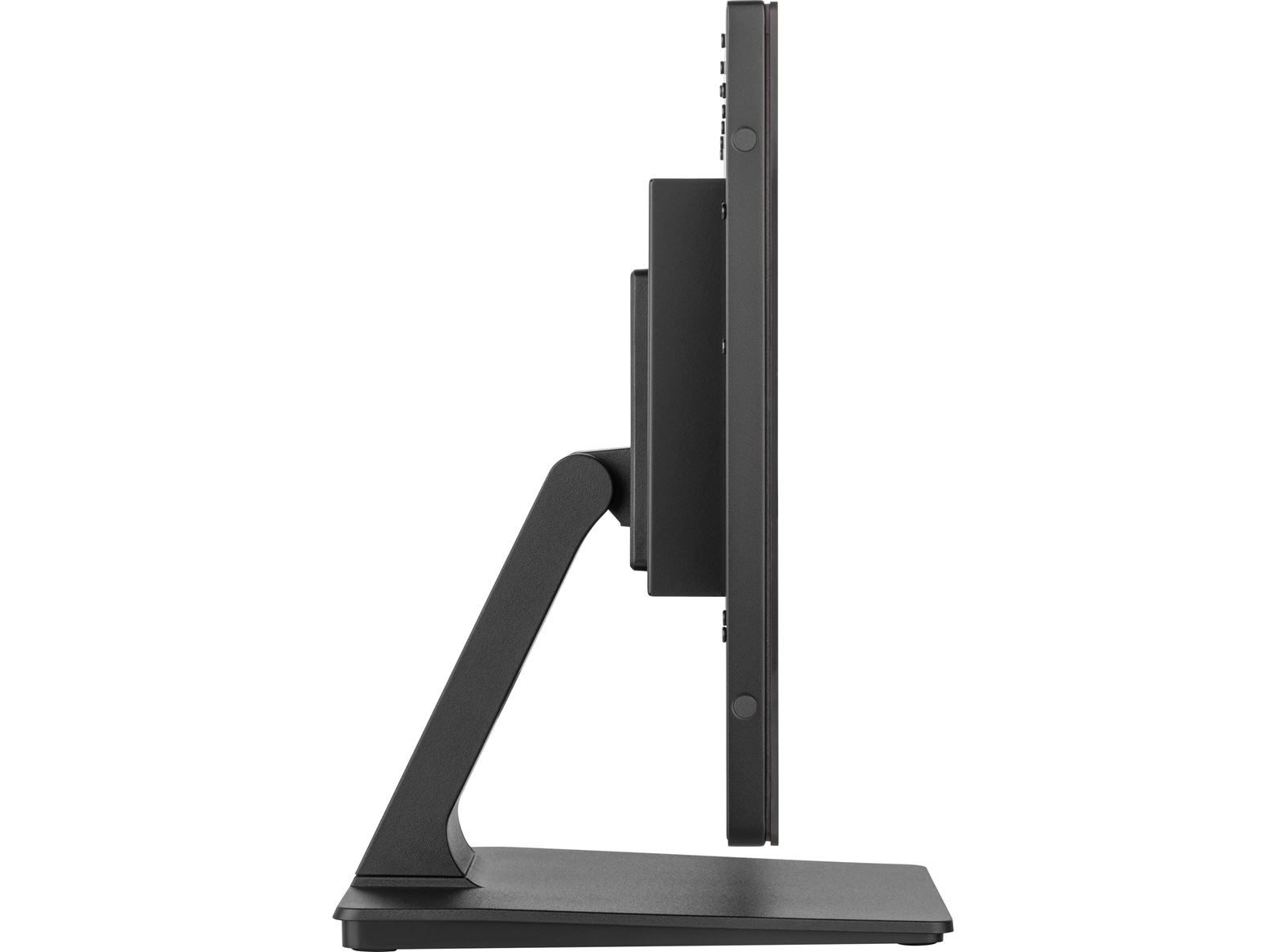

The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.

Technical Information

 DISPLAY CHARACTERISTICS

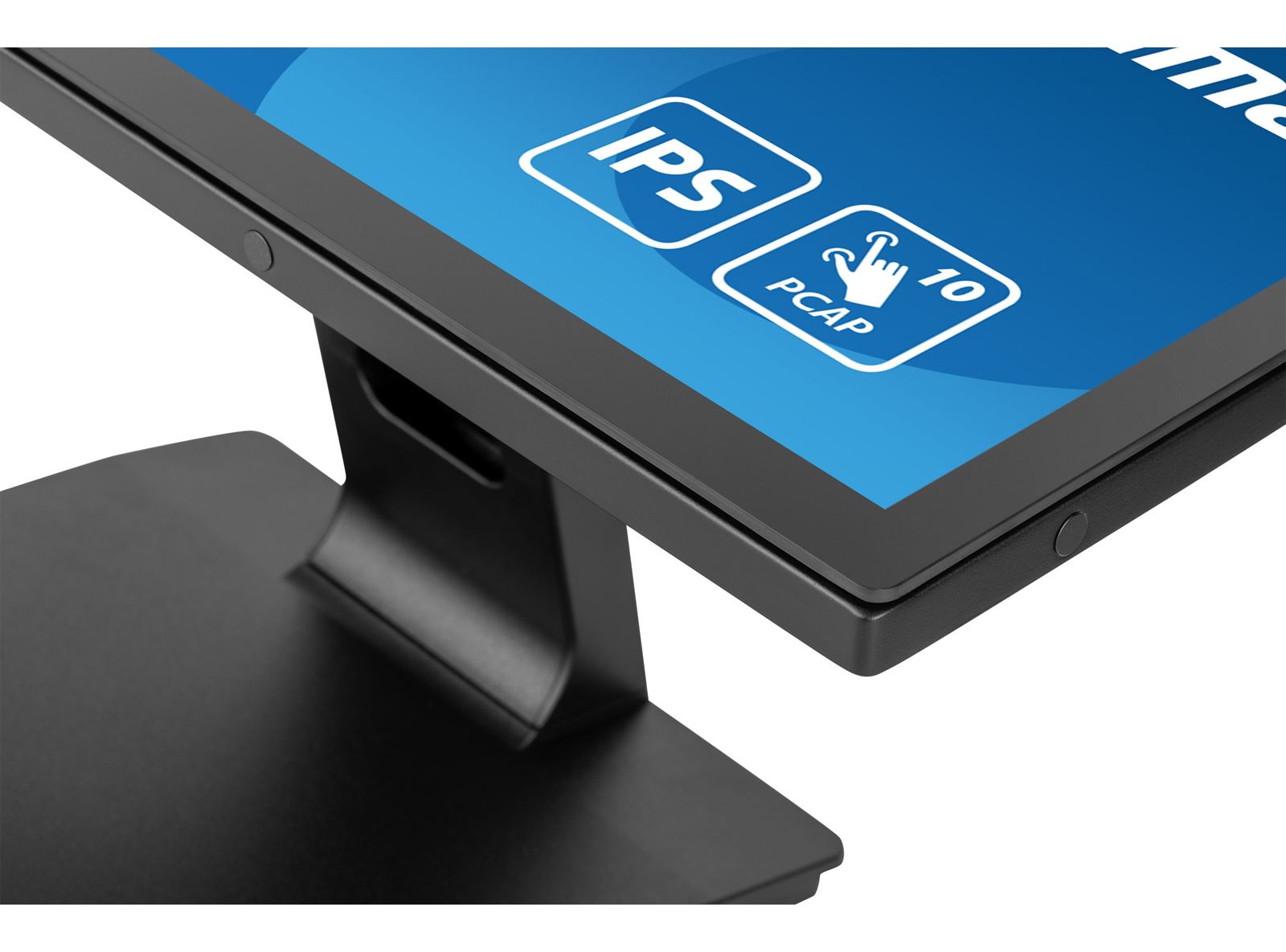

Design Edge to edge glass
Diagonal 21.5", 54.5cm
Panel IPS
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Panel brightness 600 cd/m²
Brightness 525 cd/m² with touch
Light transmittance 87%
Static contrast 1000:1
Response time (GTG) 5ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln
Horizontal Sync 30 - 83kHz
Viewable area W x H 479 x 260mm, 20.2 x 11.8"
Bezel width (sides, top, bottom) 17mm, 19.8mm, 19.8mm
Pixel pitch 0.249mm
Bezel colour and finish black, matte

 TOUCH

Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

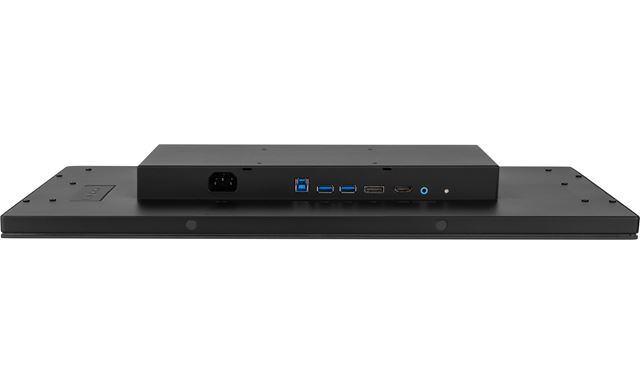

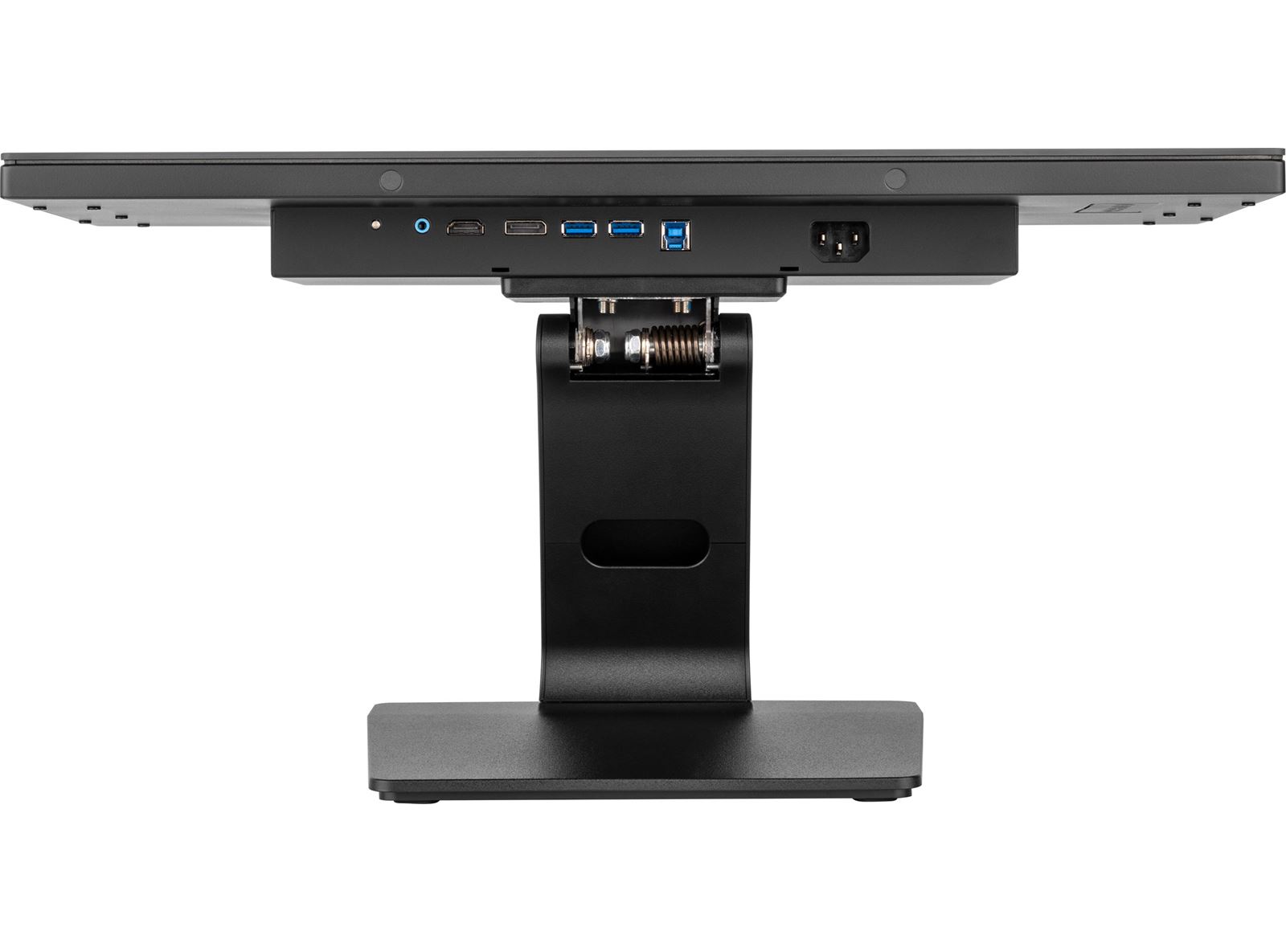

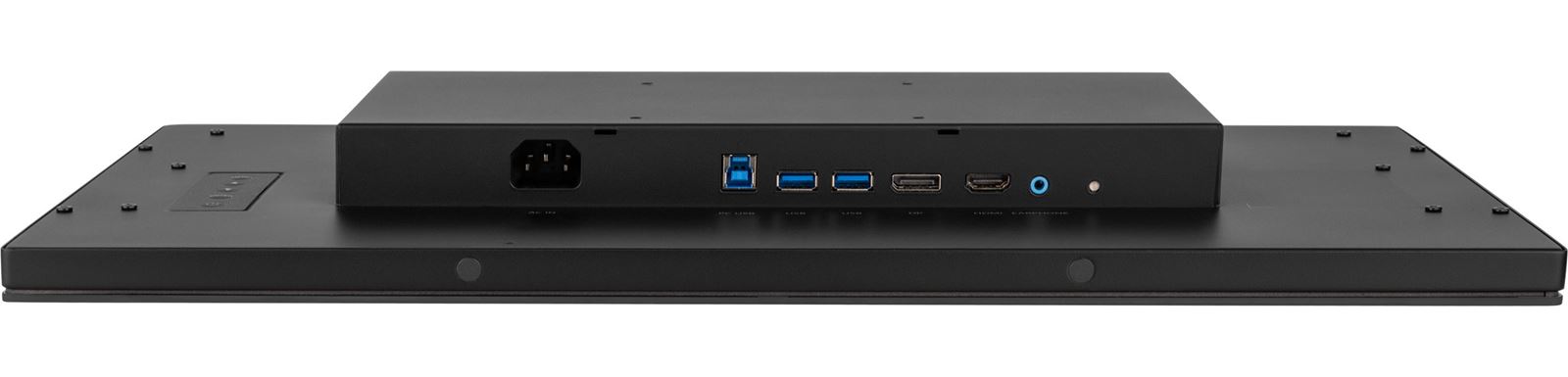

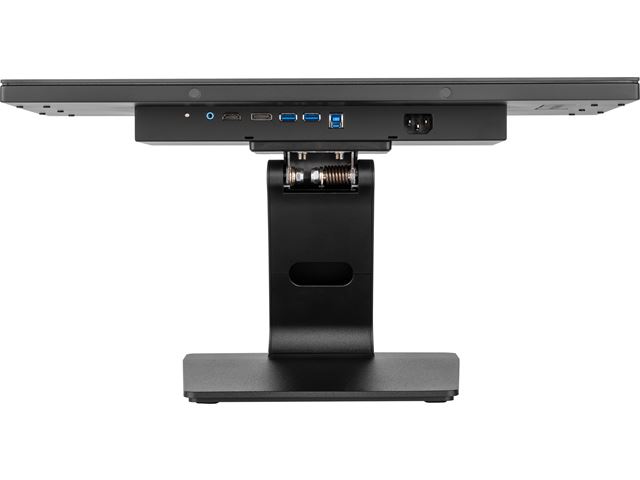

 INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x1
DisplayPort x1
Audio output Speakers 2 x 2W
HDCP yes
USB HUB x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA))

 FEATURES

Extra Optical bonding PCAP, metal housing, anti fingerprint coating, water proof touch function
Glass thickness 3.6mm
Glass hardness 7H
60950 Ball drop test yes
Water and dust protection IP1X (front)
Housing (bezel) metal
OSD key lock yes

 GENERAL

OSD languages EN, DE, FR, CN, RU, JP, NL, PL
Control buttons Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
User controls Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Blue light reducer yes
Plug&Play DDC2B

 MECHANICAL

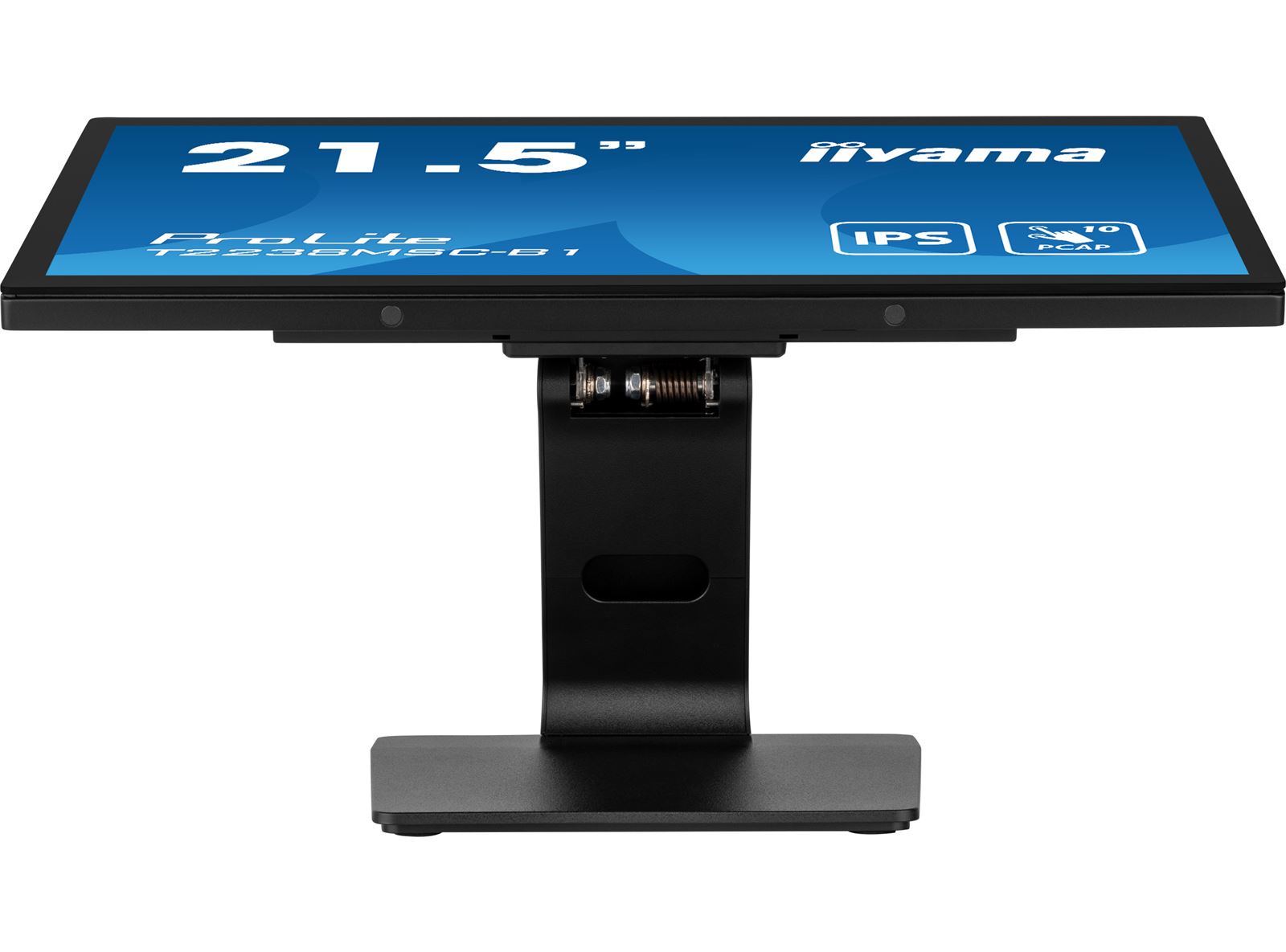

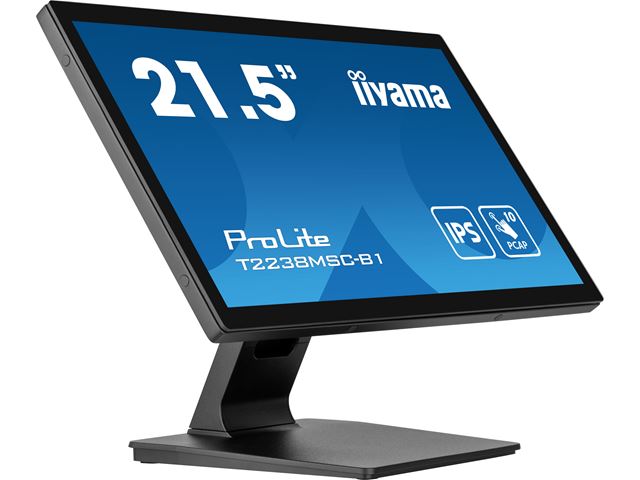

Orientation landscape, portrait, face-up
Fanless design yes

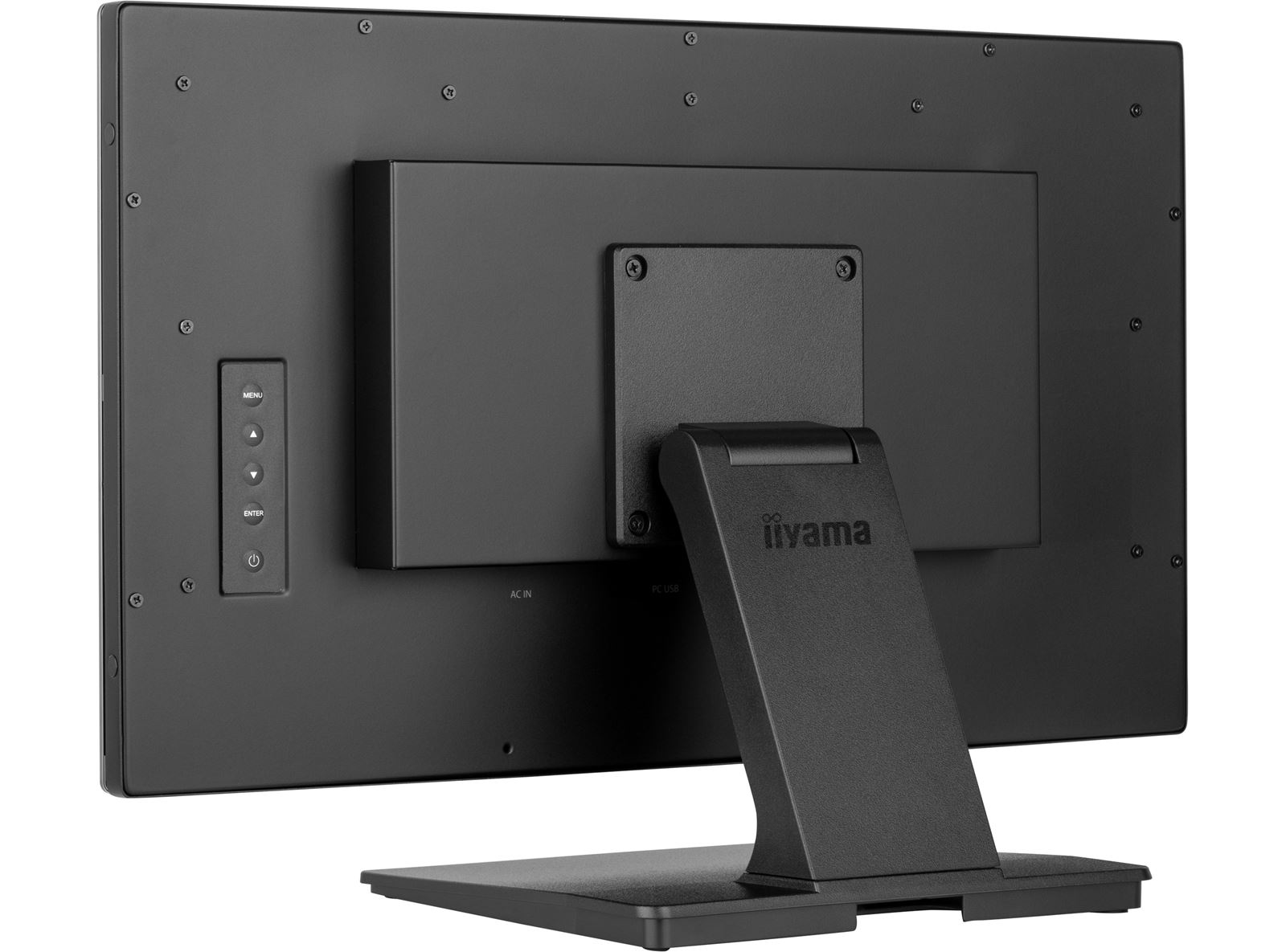

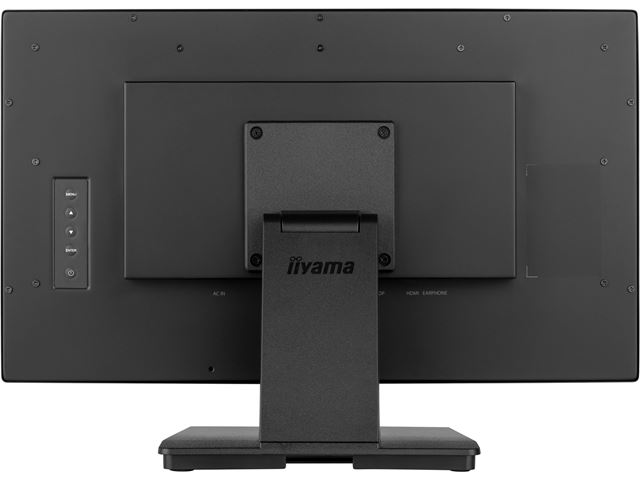

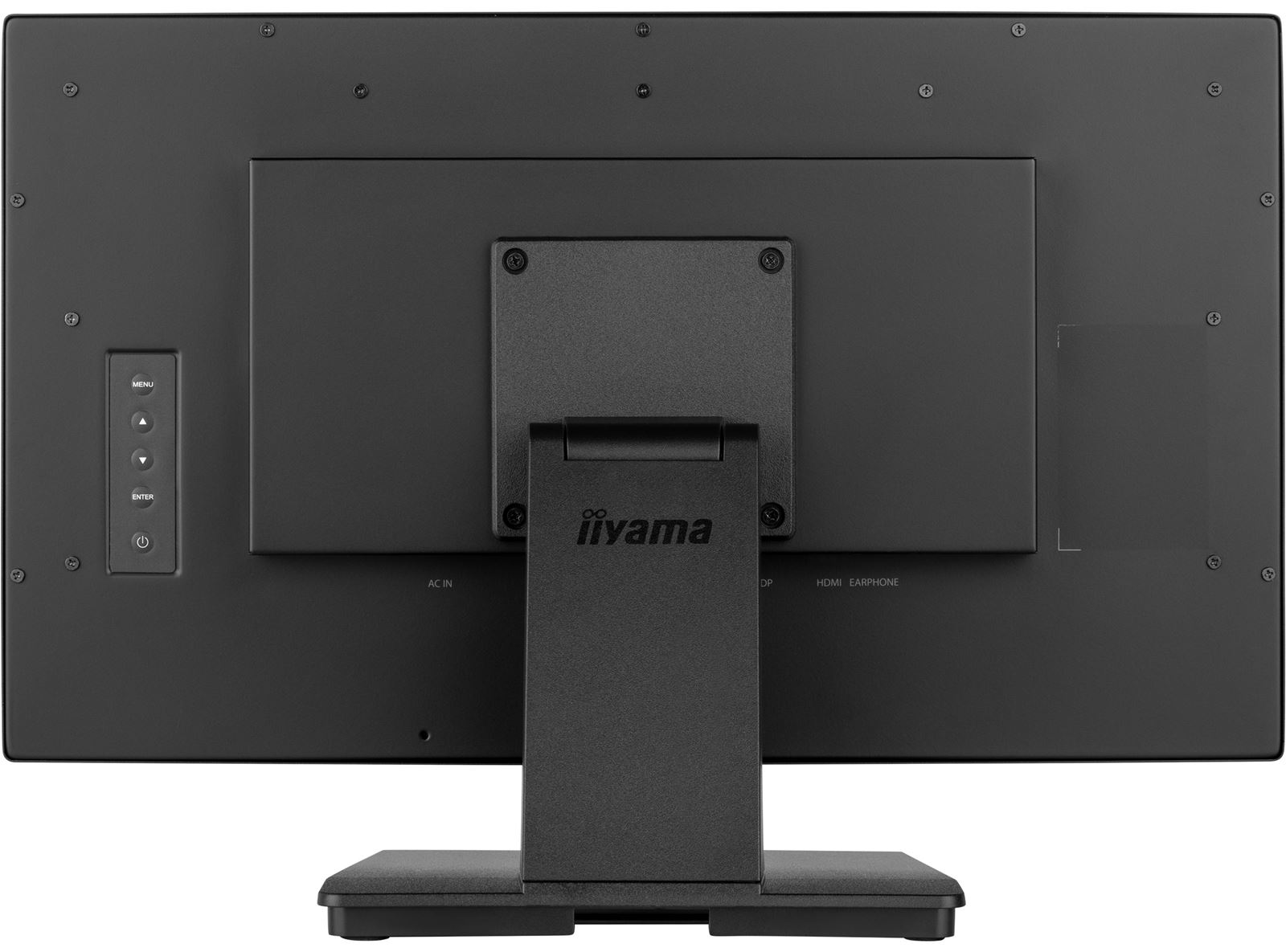

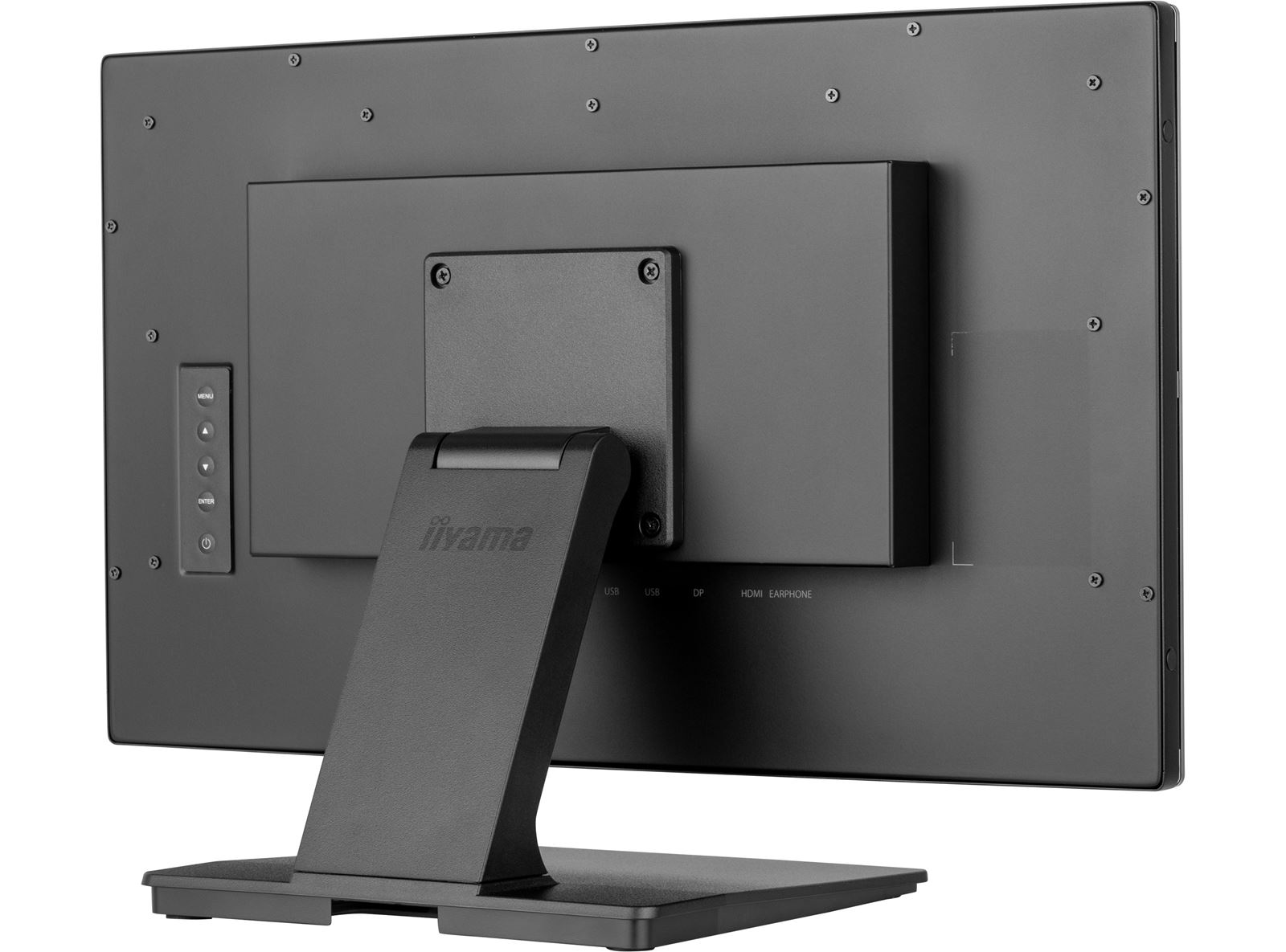

VESA mounting 100 x 100mm

 ACCESSORIES INCLUDED

Cables power, USB, HDMI
Guides quick start guide, safety guide
Cable cover yes

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 17W typical, 1.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) D
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 512.5 x 353.5 x 239.5mm
Box dimensions W x H x D 625 x 430 x 150mm
Weight (without box) 6.8kg
Weight (with box) 8.1kg
EAN code 4948570122899
Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

BLUE LIGHT REDUCER

As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor's brightness and color temperature through a new feature called “Blue light reduction” easily accessible through the monitor’s OSD menu.


BLUE LIGHT REDUCER

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SCRATCH RESISTANCE
