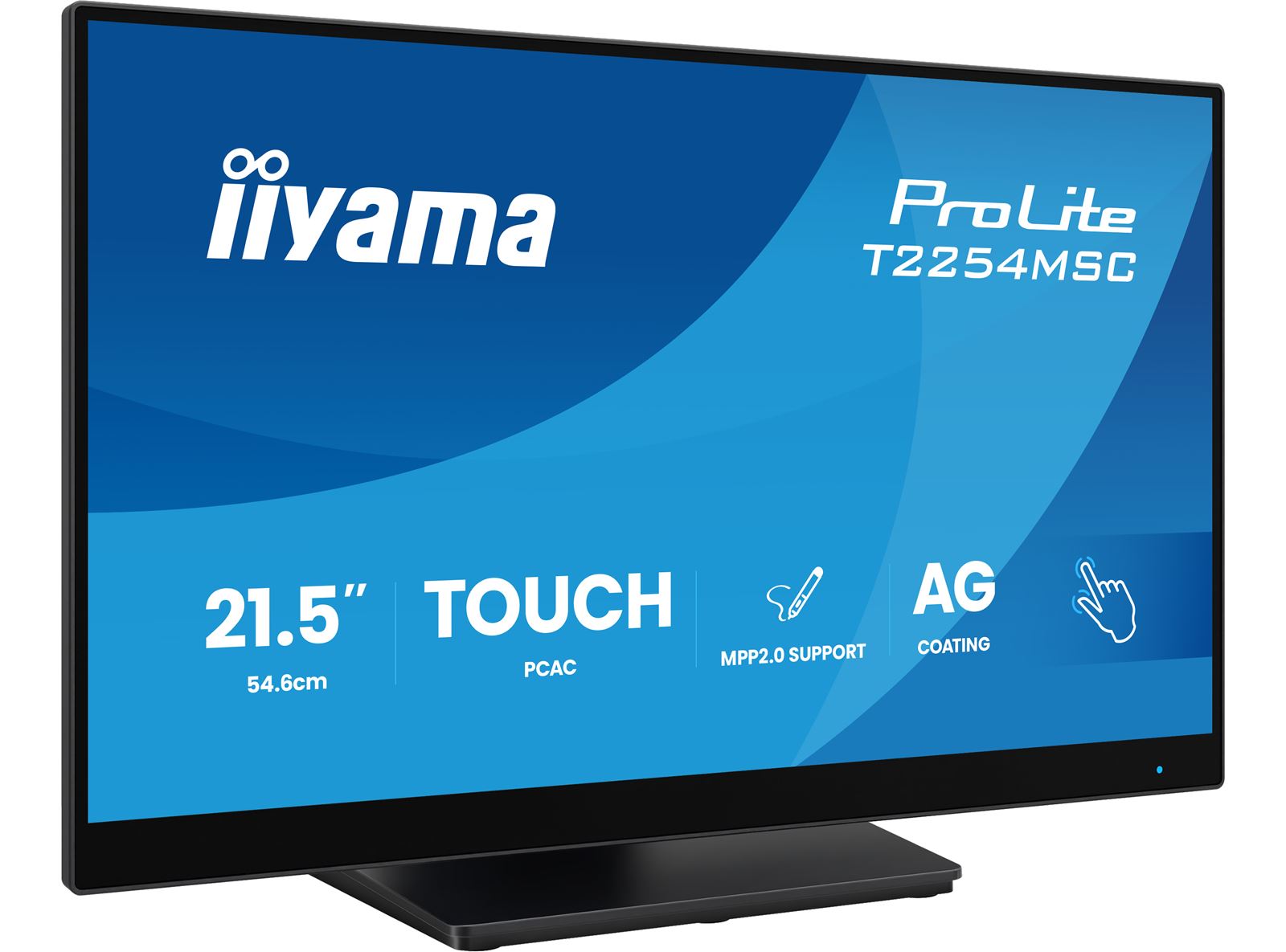

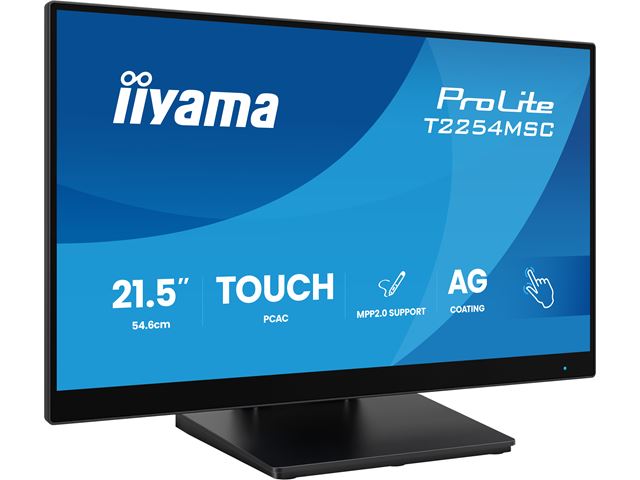

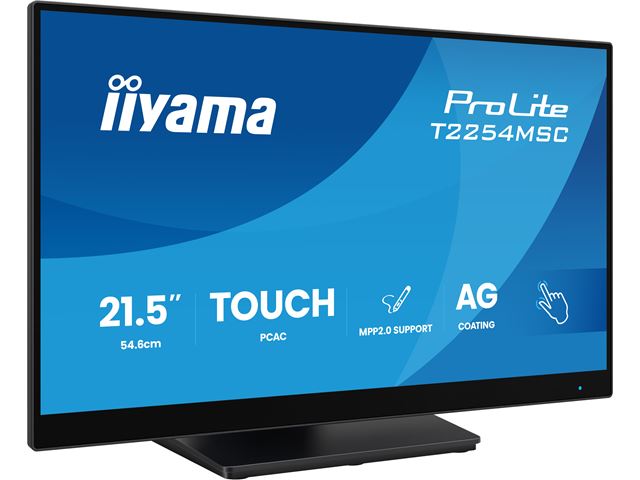

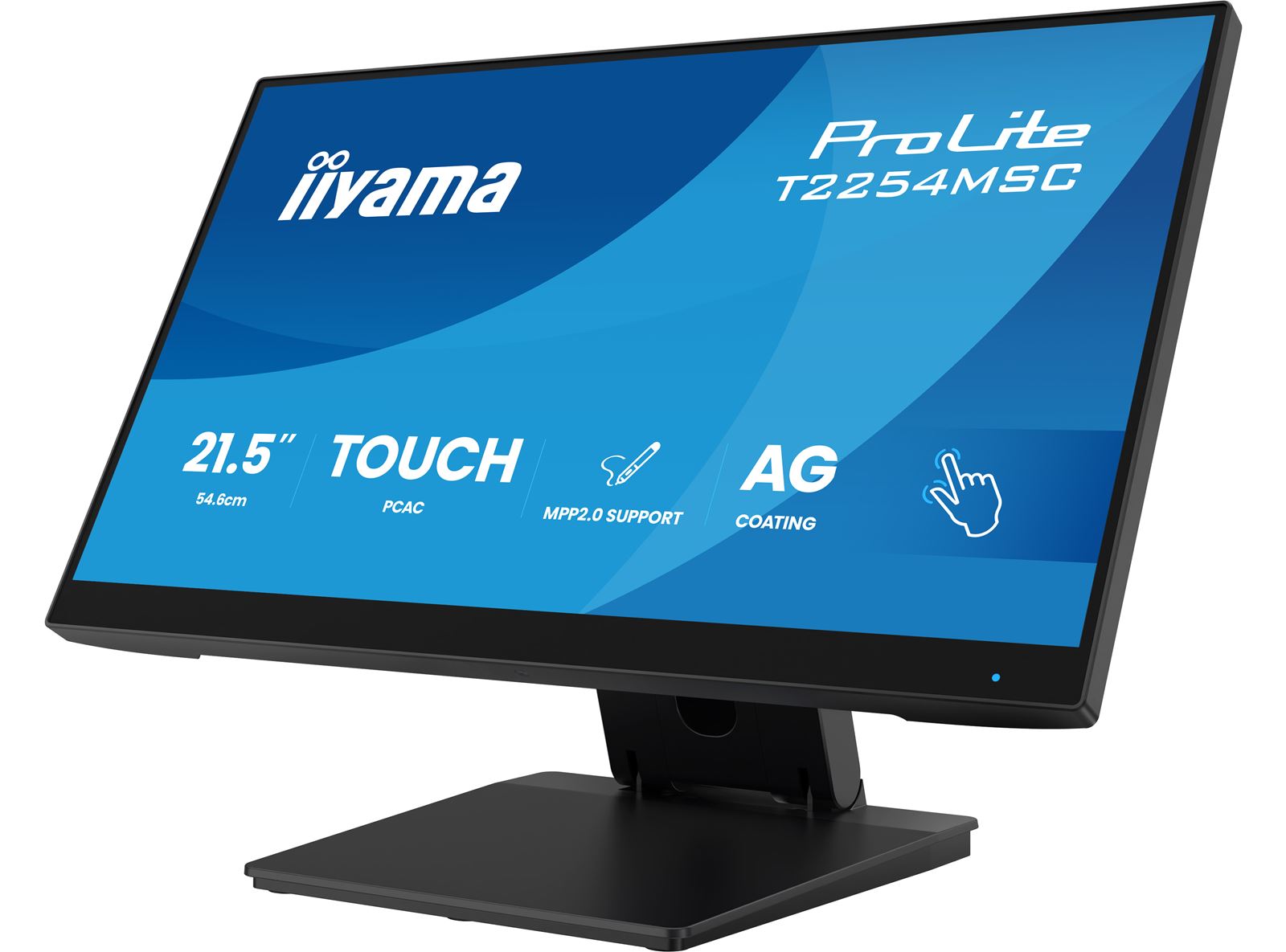

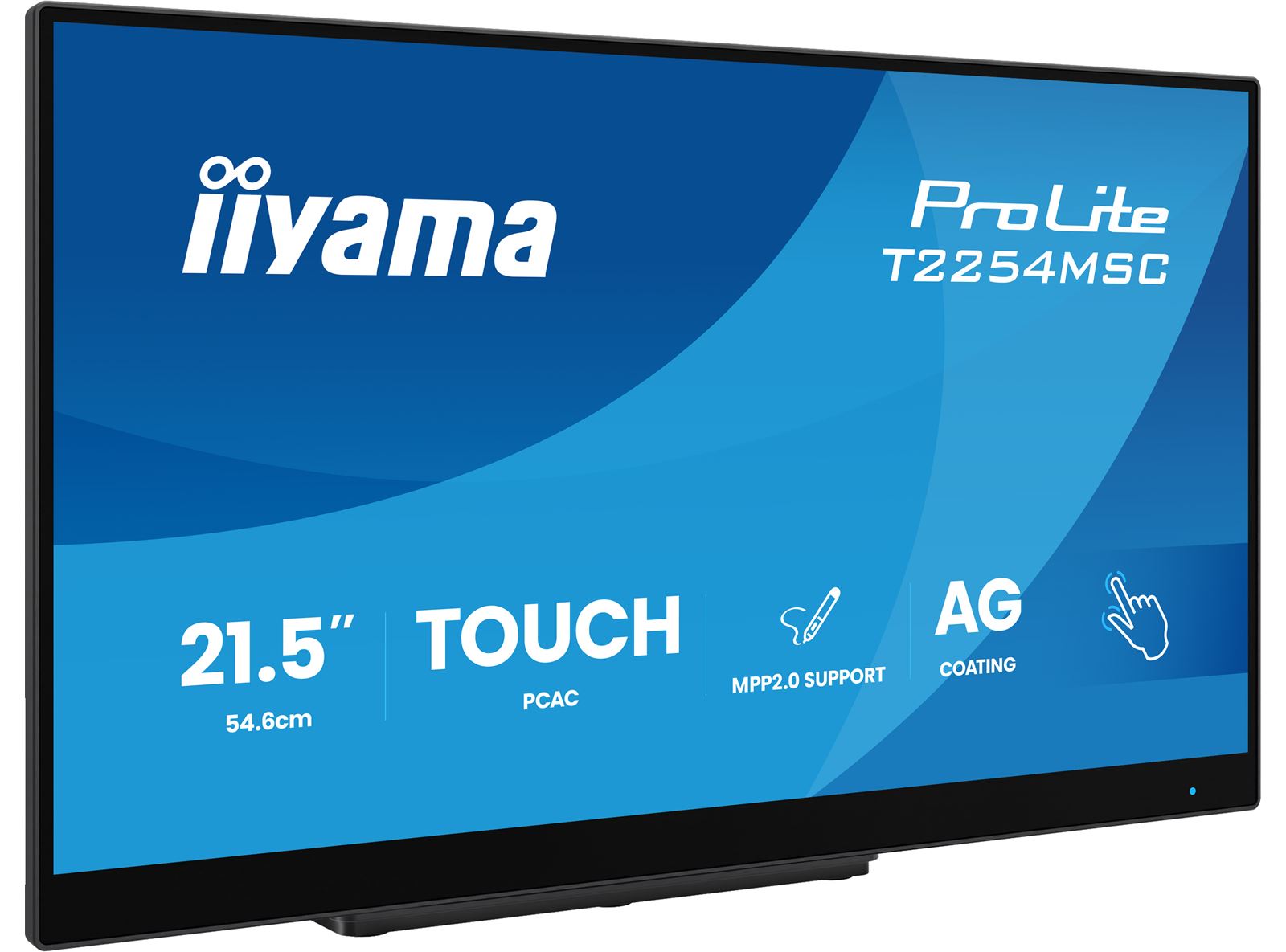

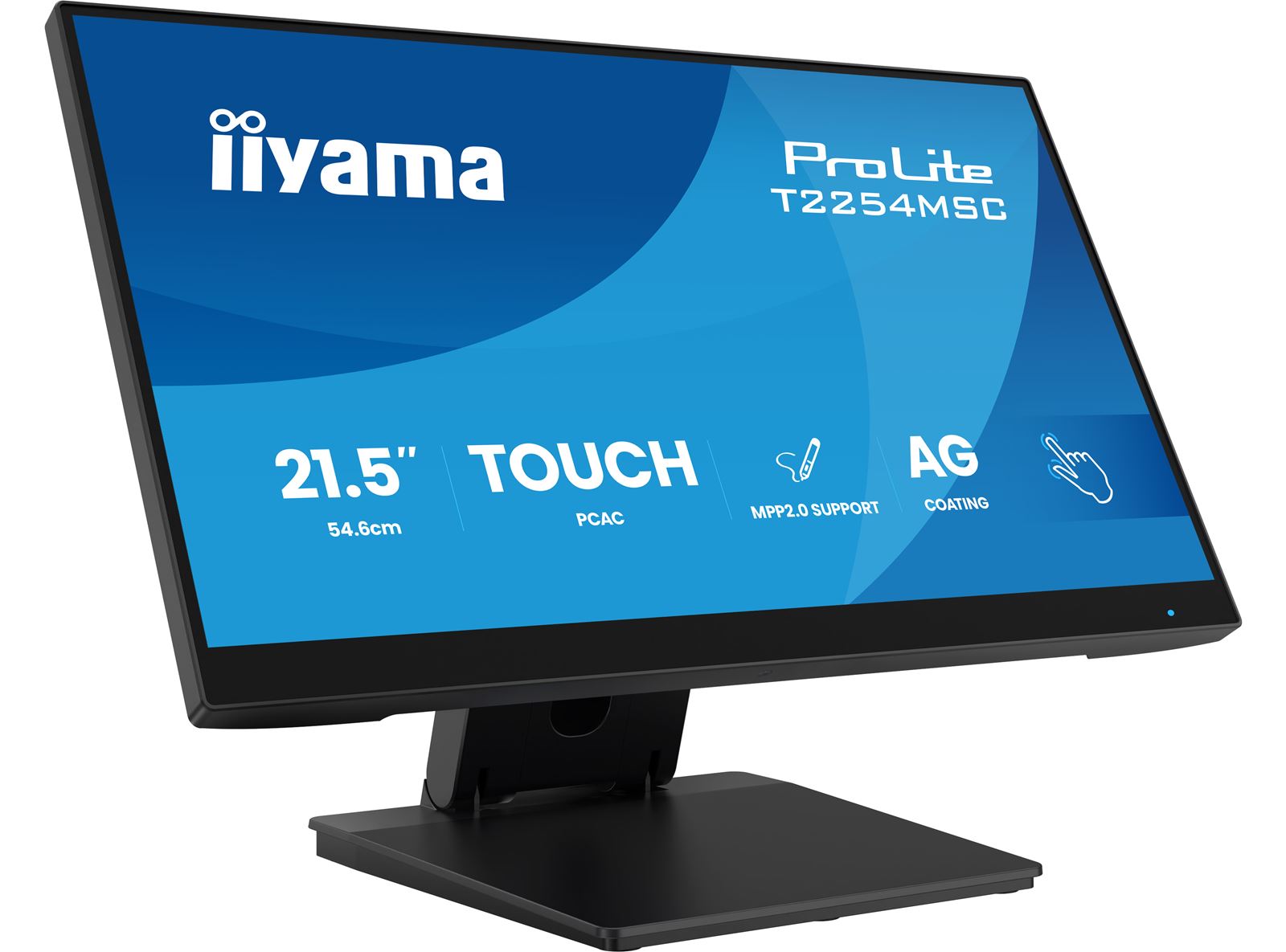

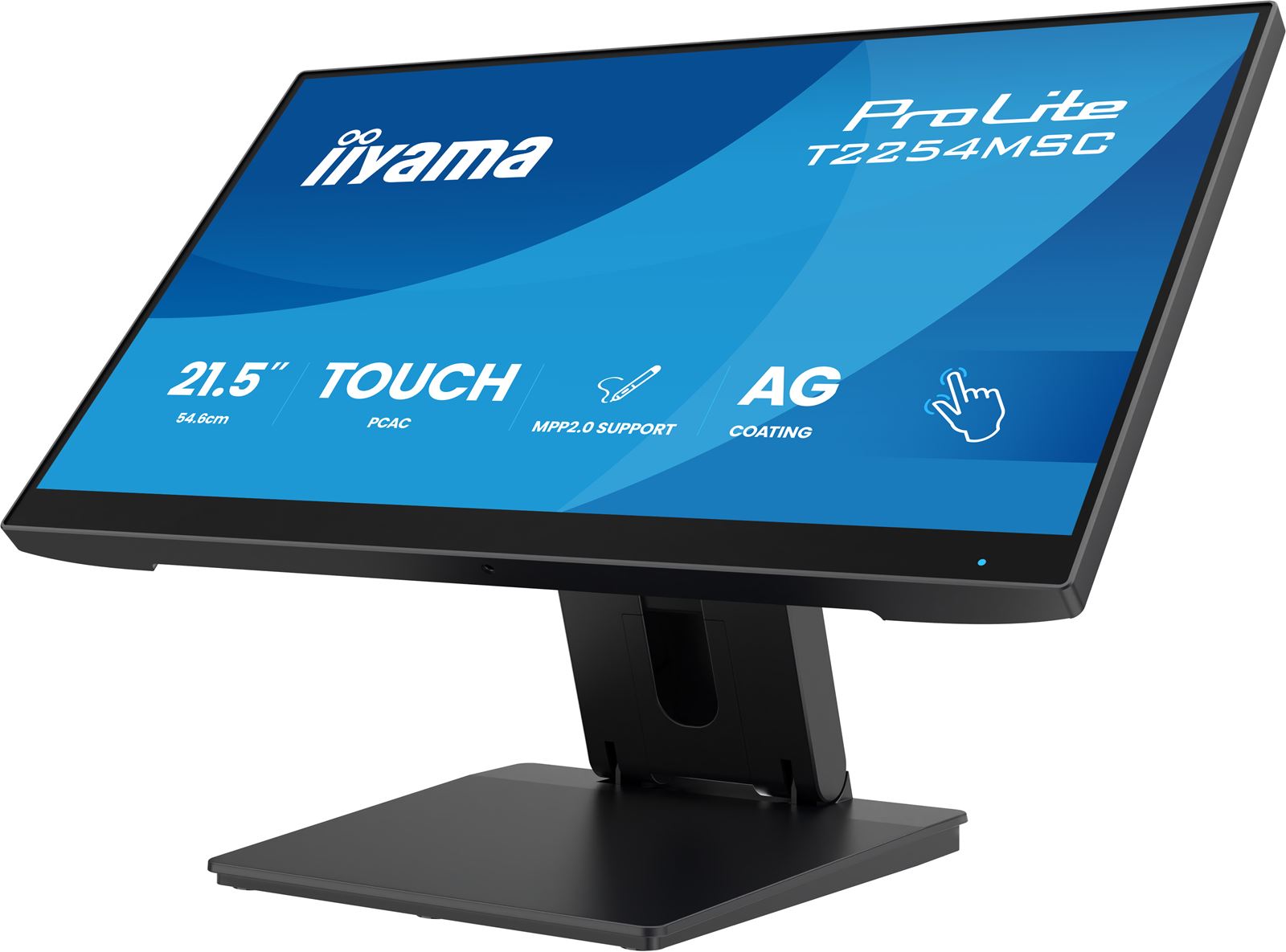

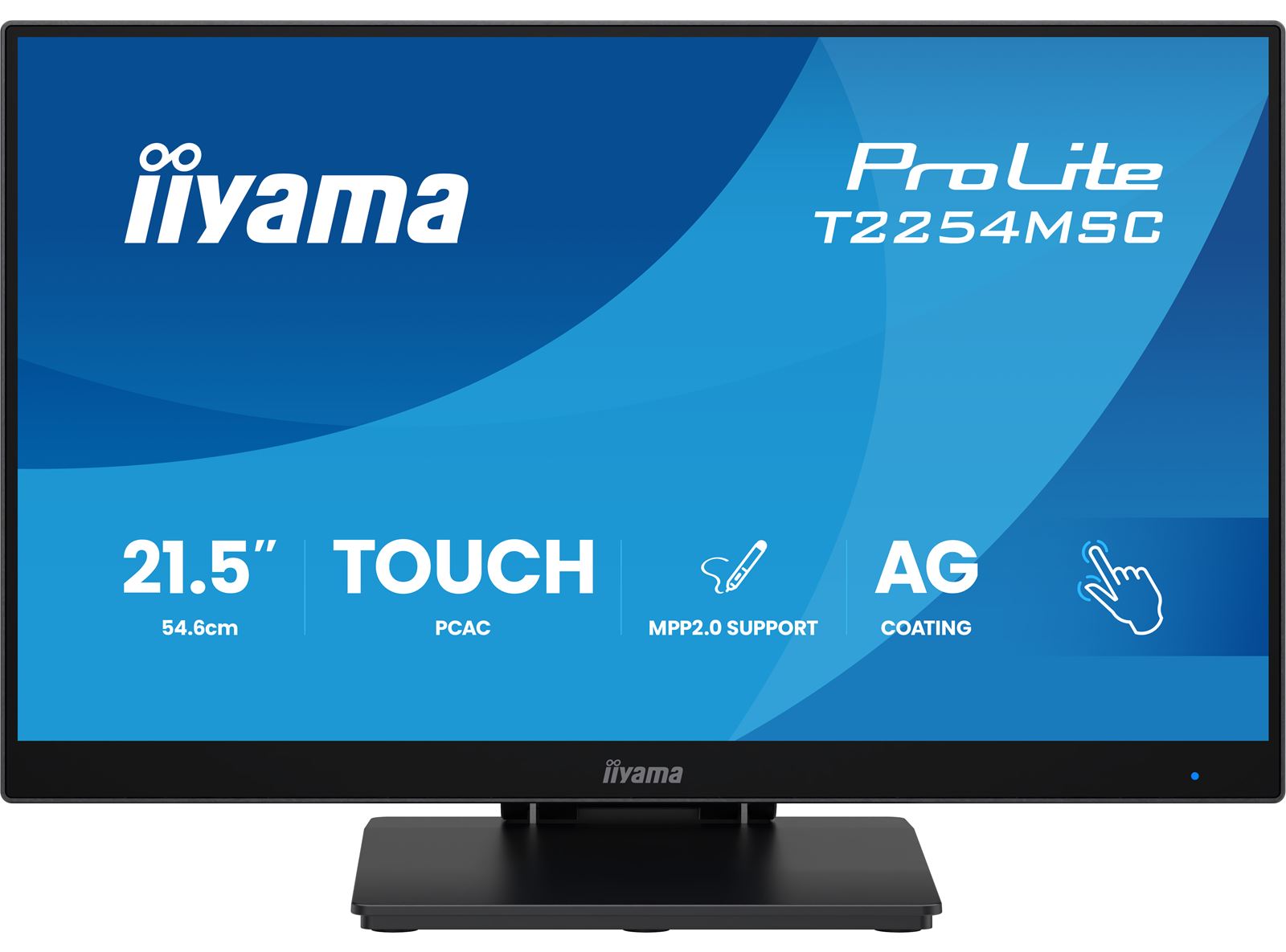

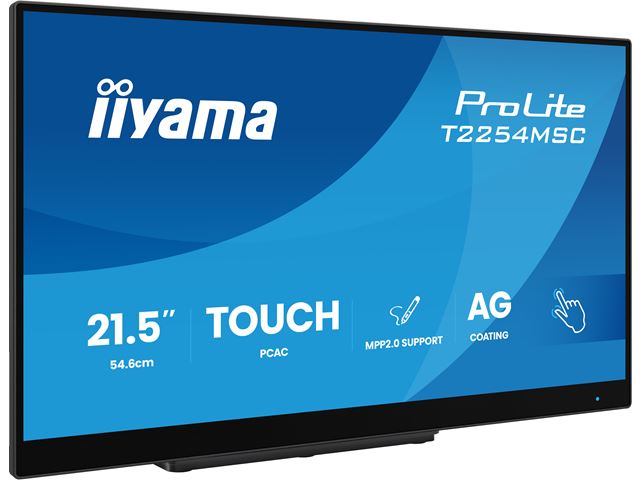

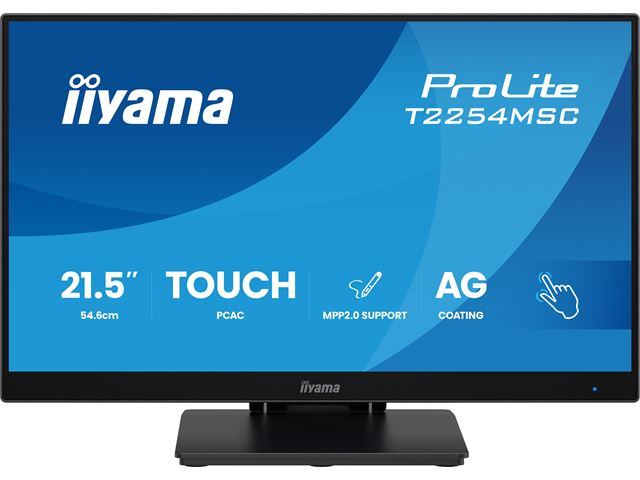

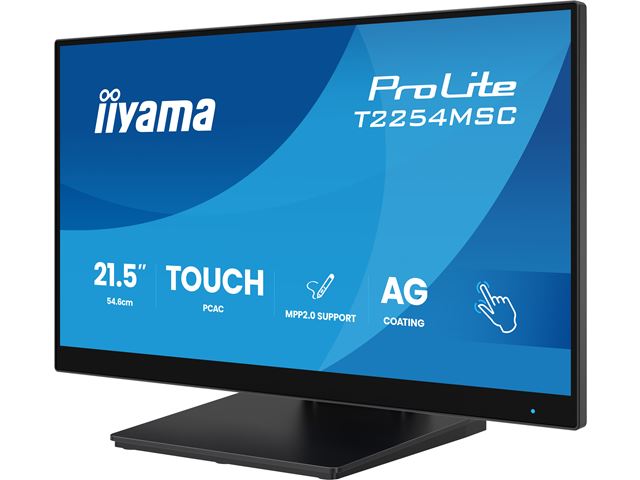

iiyama ProLite monitor T2254MSC-B2AG 22", Projective Capacitive 10pt touch, Anti-glare coating, IPS, Ultra thin bezel, HDMI, edge to edge

£185.90 exc. VAT
£223.08 inc. VAT

Brand: iiyama

Manufacturer Code: T2254MSC-B2AG

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

21.5” Optical Bonded PCAP 10pt touchscreen monitor featuring IPS panel technology, Anti Glare coating, active stylus support (MPP 2.0) and edge-to-edge glass

Immersive interaction and elegant design - Discover the ProLite T2254MSC-B2AG, a vibrant 21.5" Full HD touchscreen monitor designed for exceptional interactive experiences. Featuring intuitive 10-point touch technology (Optical Bonded PCAP), which ensures smooth and precise touch response and low light reflection. In addition, the display is protected from moisture and potential condensation development. With built-in MPP2.0 support (Microsoft Pen Protocol), a stylus with tilt and pressure sensitivity can be used, providing a natural, precise and intuitive writing or drawing experience, just like a pen on paper.

The vibrant colors of the IPS panel will captivate users with precise and natural interaction from any angle. Its sleek and stylish design, edge-to-edge glass and anti-glare surface offer durability and ease of cleaning, perfect for busy commercial environments, hospitality spaces, healthcare facilities and public areas. With adjustable ergonomics, neat cable management, built-in audio and seamless connectivity (HDMI, DisplayPort, USB 3.2 hub), it is an ideal choice for POS, self-service solutions and interactive signage.

Technical Information

 DISPLAY CHARACTERISTICS

Design Edge to edge glass
Diagonal 21.5", 54.6cm
Panel IPS LED, AG surface finish
Native resolution 1920 x 1080 @100Hz (2.1 megapixel Full HD)
Aspect ratio 16:9
Panel brightness 300 cd/m²
Static contrast 1300:1 with touch
Response time (GTG) 4ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit
Horizontal Sync 30 - 120kHz
Viewable area W x H 476 x 268mm, 18.7 x 10.5"
Pixel pitch 0.082mm
Bezel colour and finish black, matte

 TOUCH

Touch technology optical bonding PCAP
Touch points 10 (HID, only with supported OS)
Touch accuracy +- 2mm
Touch method finger, glove (latex), capacitive stylus
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

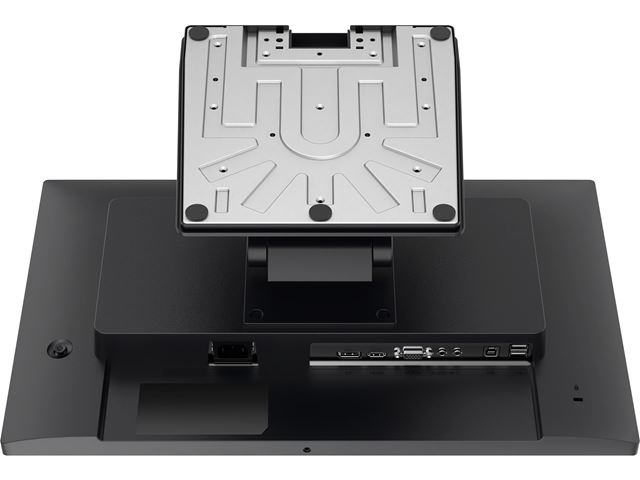

 INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x1
DisplayPort x1
Audio output Mini jack x1
Speakers 2 x 2W
HDCP yes
USB HUB x2 (v.3.2 (Gen 1, 5Gbit))

 FEATURES

Extra Optical Bonding PCAP, anti-glare coating, MPP2.0 support, TCO10 & EPEAT Silver certification
Kiosk mode yes
Glass hardness 7H
OSD key lock yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, PT, RU, JP, NL, PL
Control buttons Joystick / power button - power/menu, up/input select, down, left/eco/i-Syle color/blue light reducer, right/volume
User controls Picture adjust (brightness, contrast, eco, adv. contrast, Overdrive, X-Res technology,, black tuner), color settings (6-axis, i-Style color, blue light reducer, gamma, RGB range), color temperature), OSD (horizontal position, vertical position, rotate, time, background, DDC/CI control, display information), language, miscellaneous (sharpness. video mode adjust, opening logo, power led, usb charge), input select, audio settings (volume, mute audio), recall
Blue light reducer yes
Flicker free yes
Plug&Play DDC2B

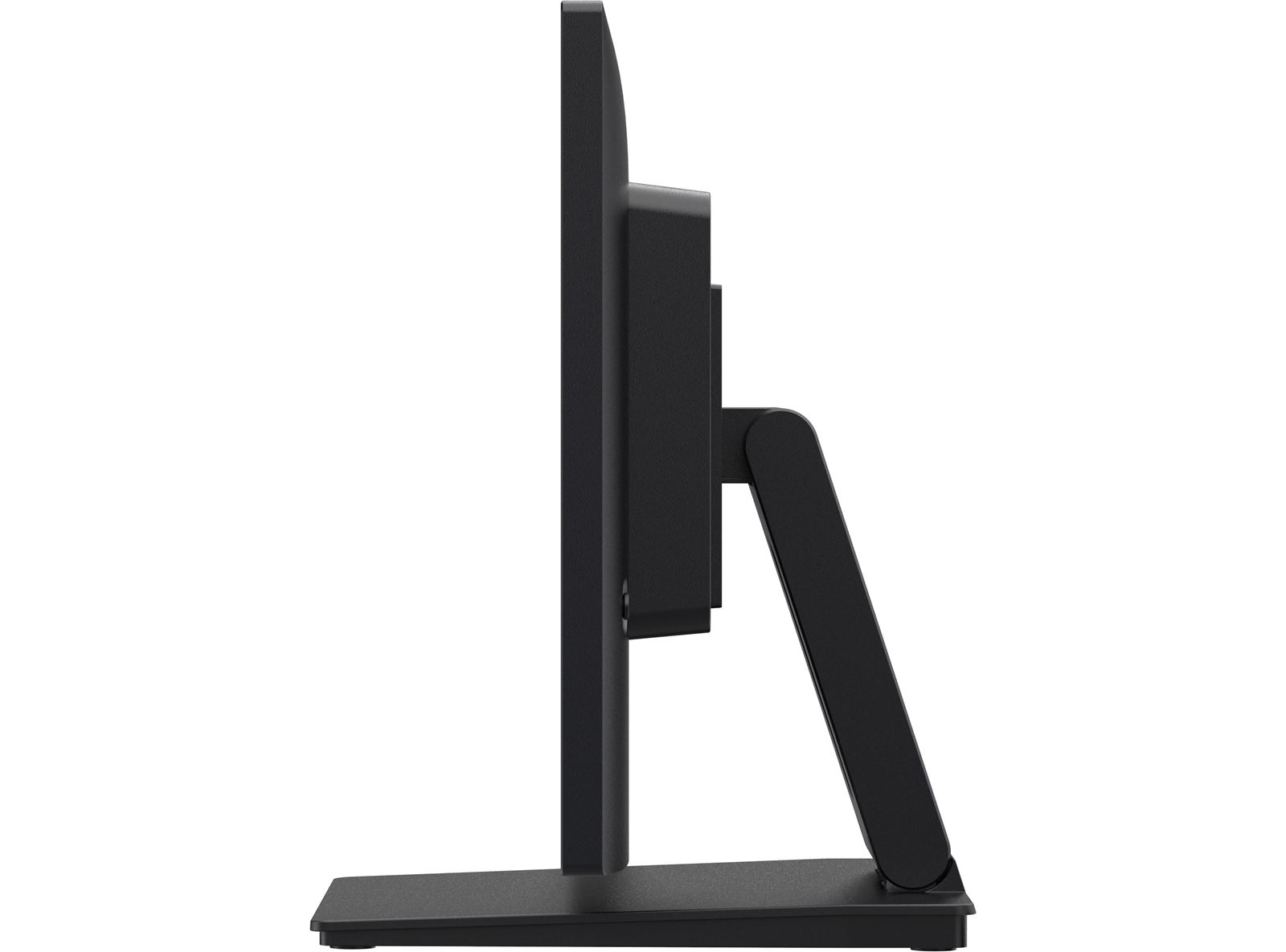

 MECHANICAL

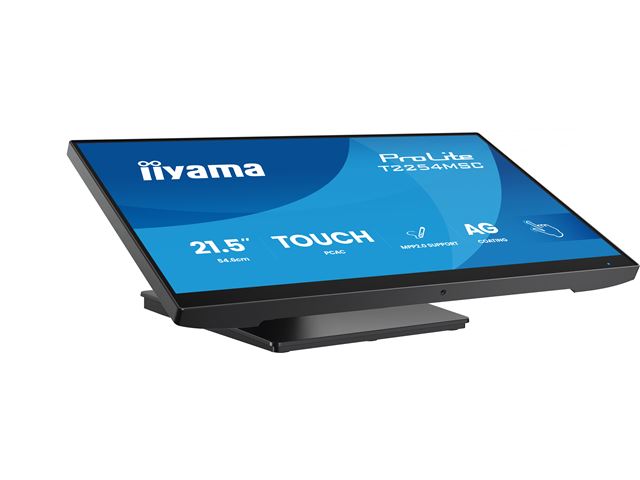

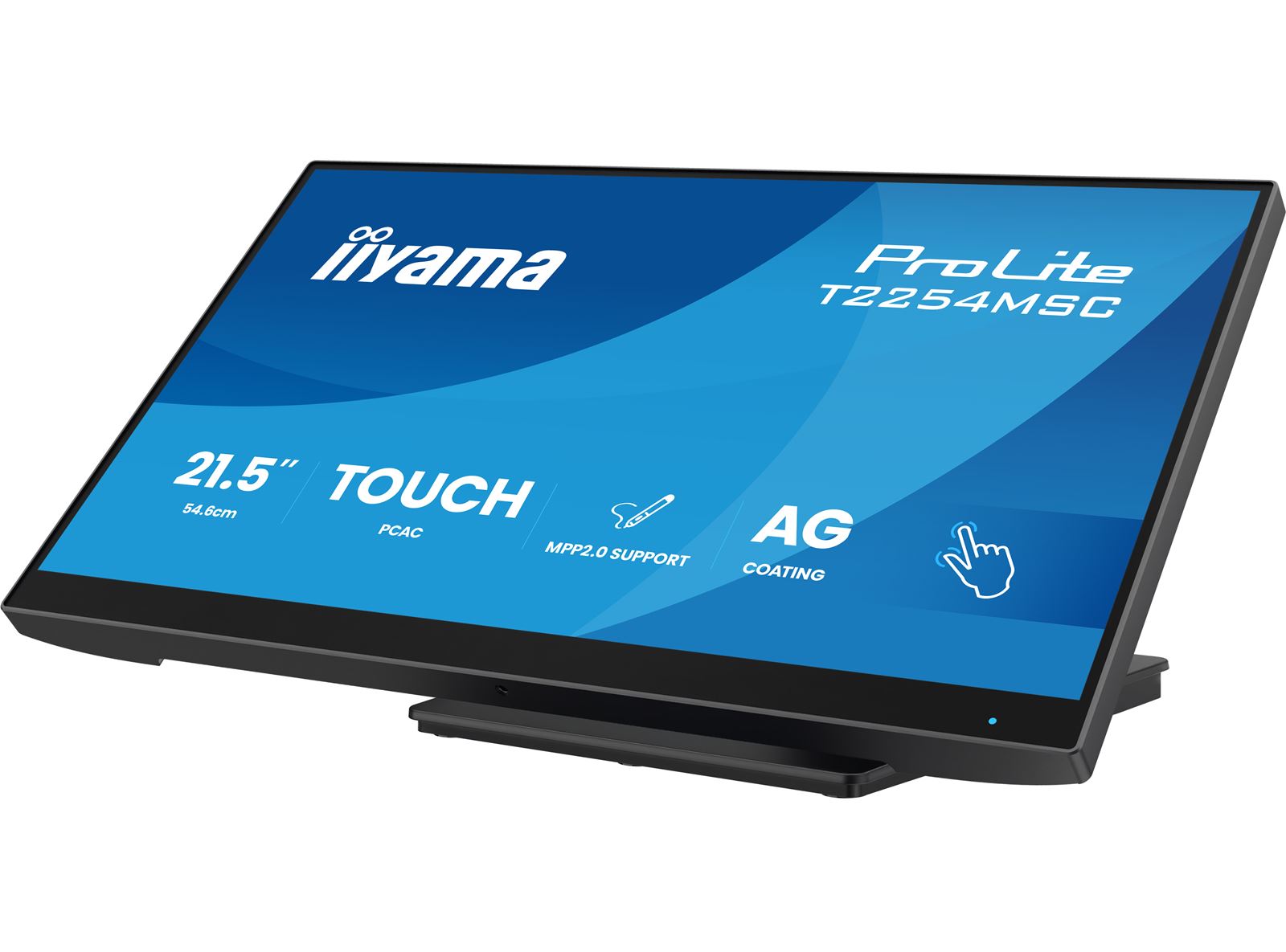

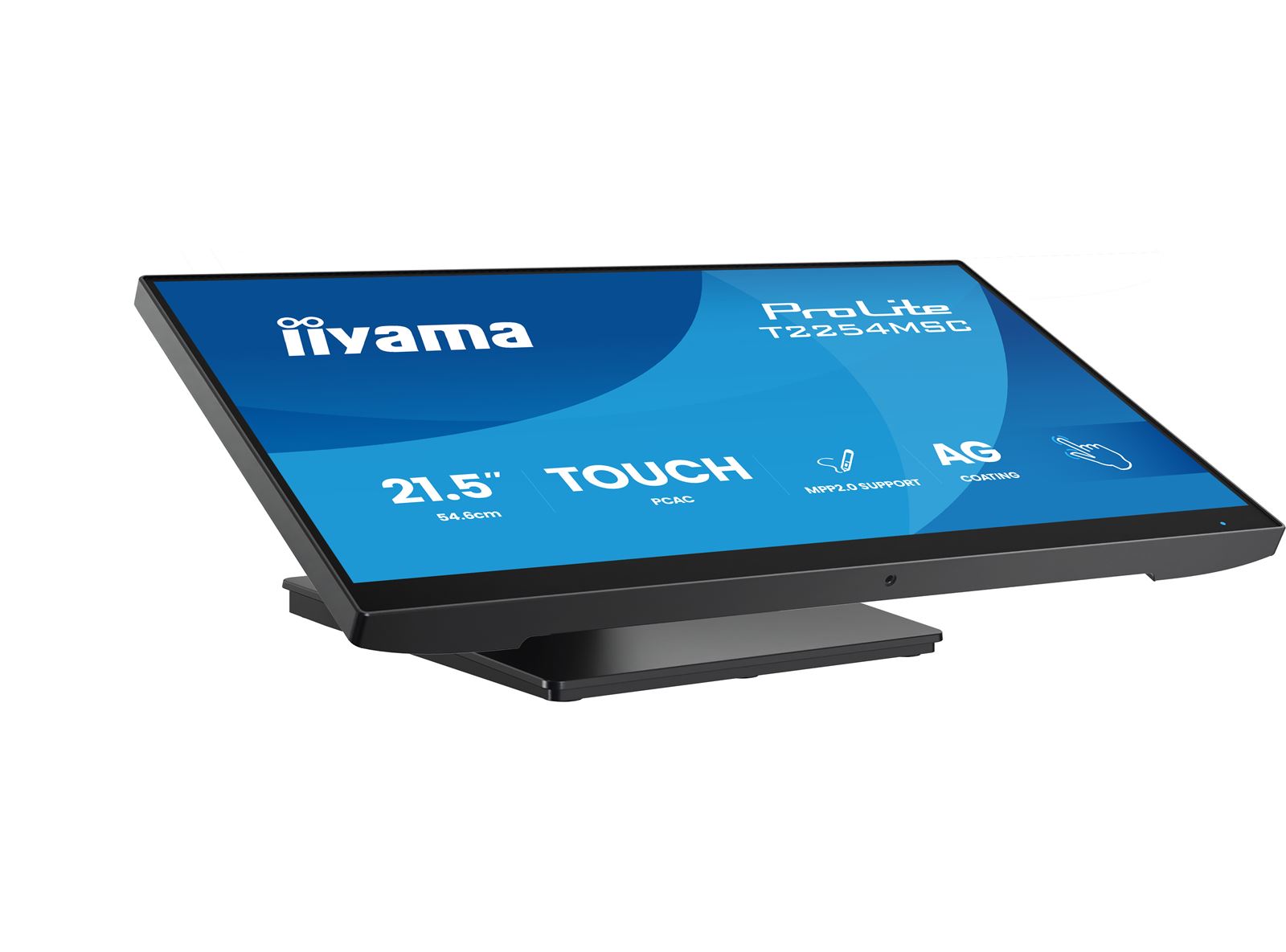

Orientation landscape, face-up
Height adjustment 112mm

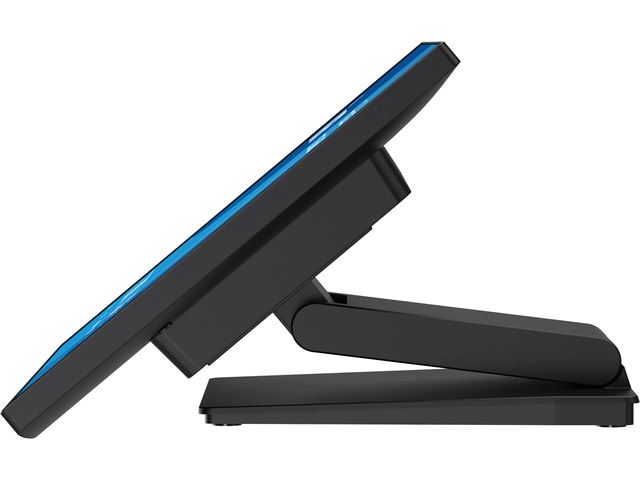

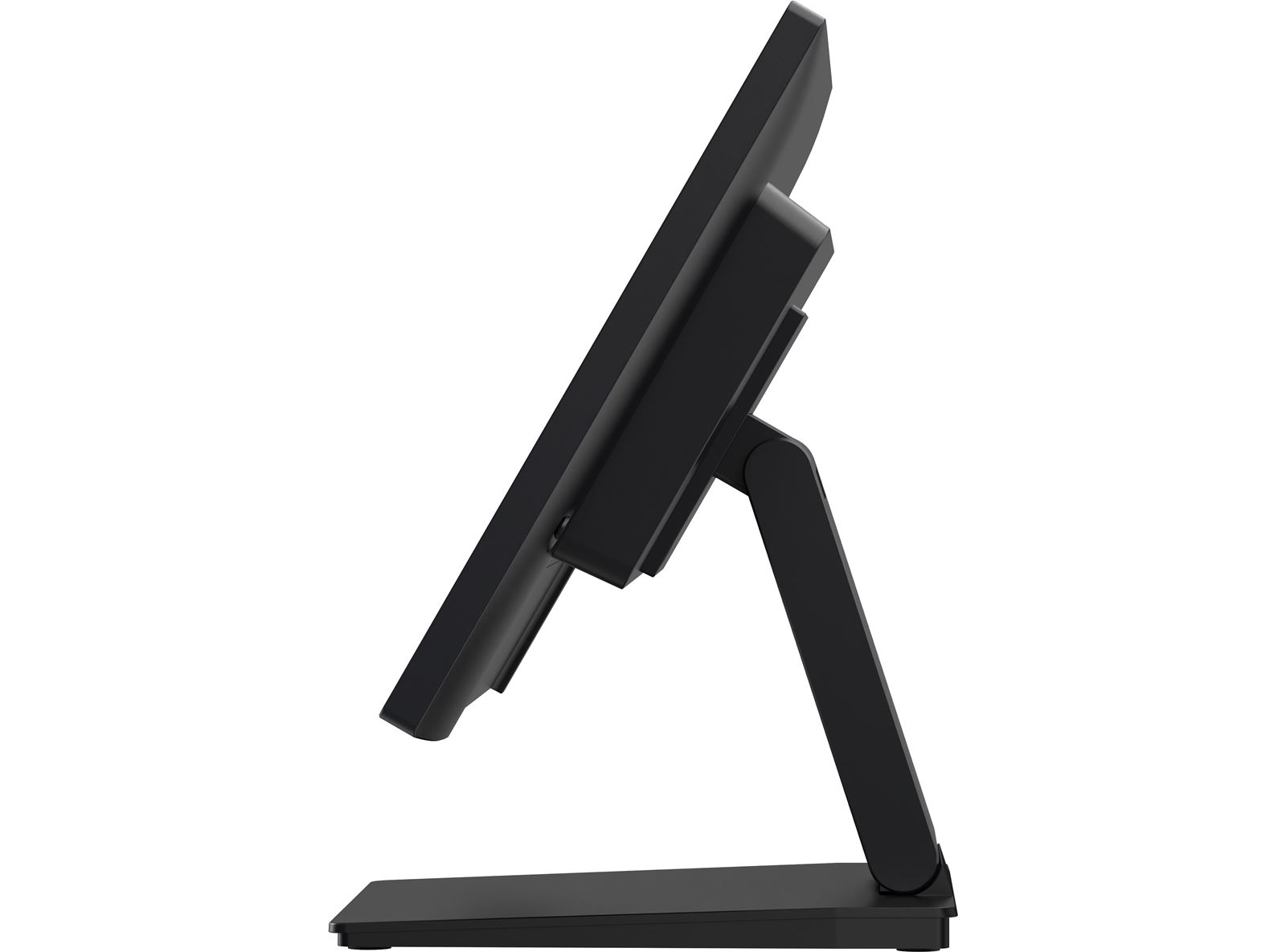

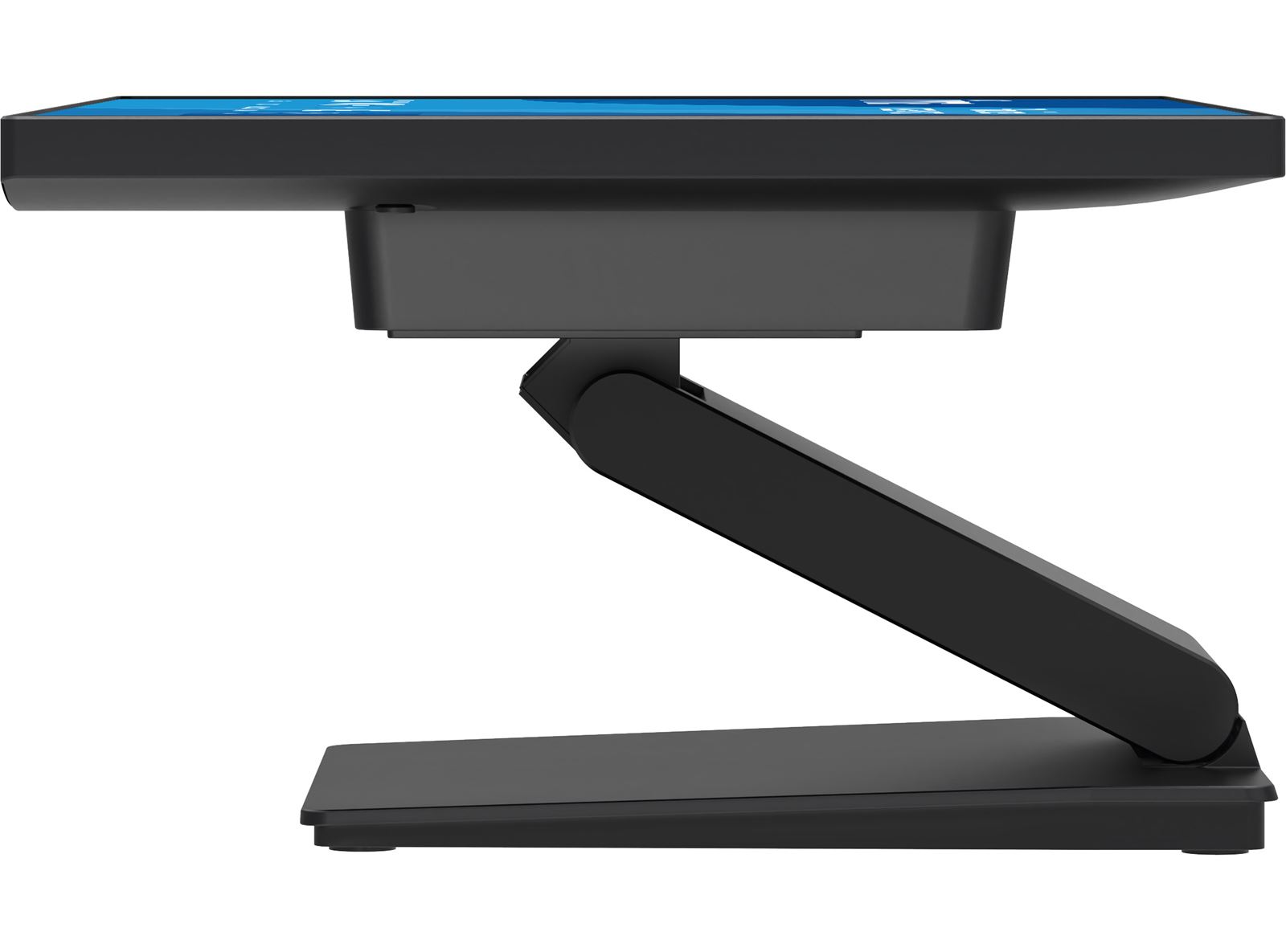

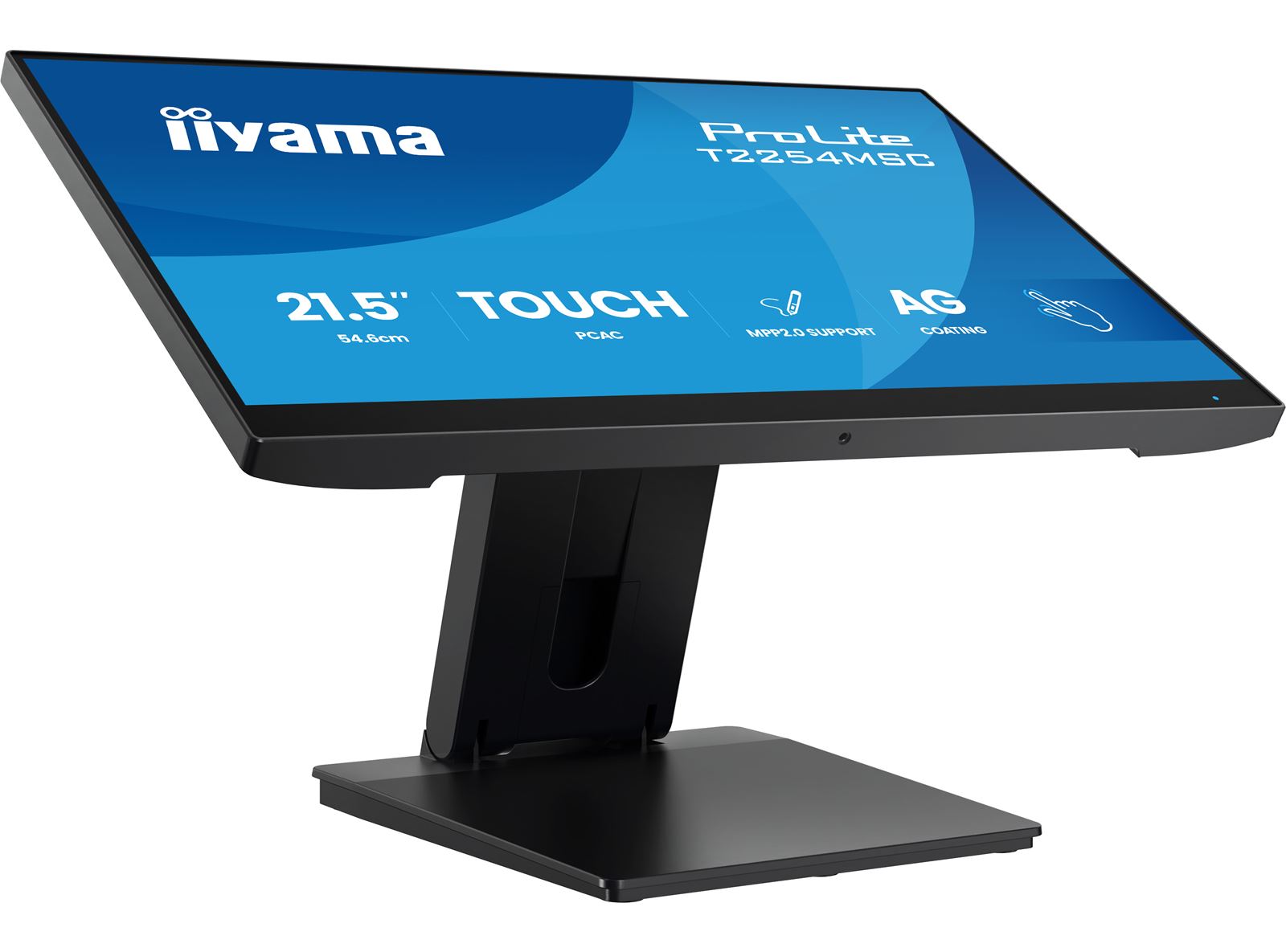

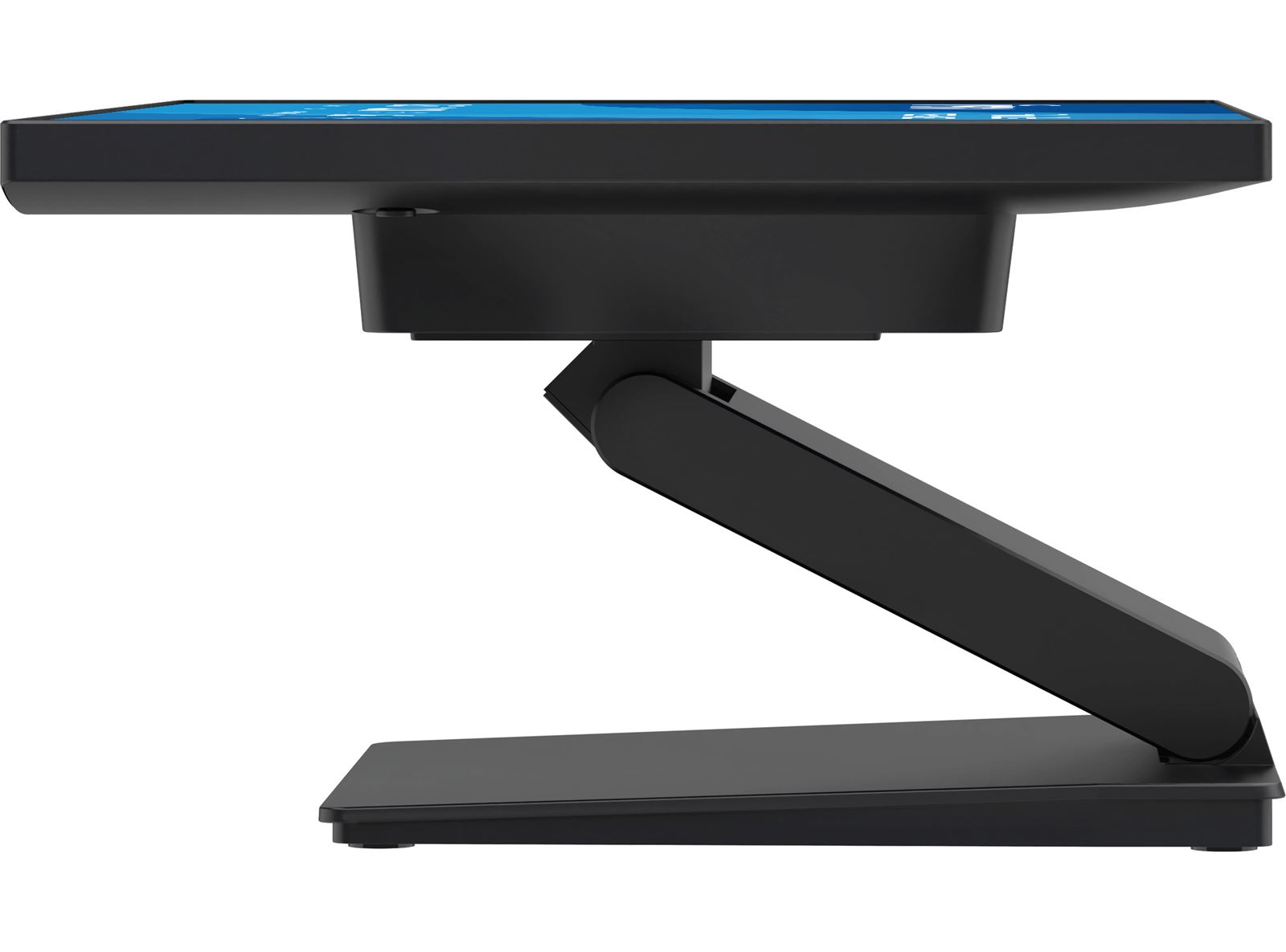

Tilt angle 90° up; 5° down

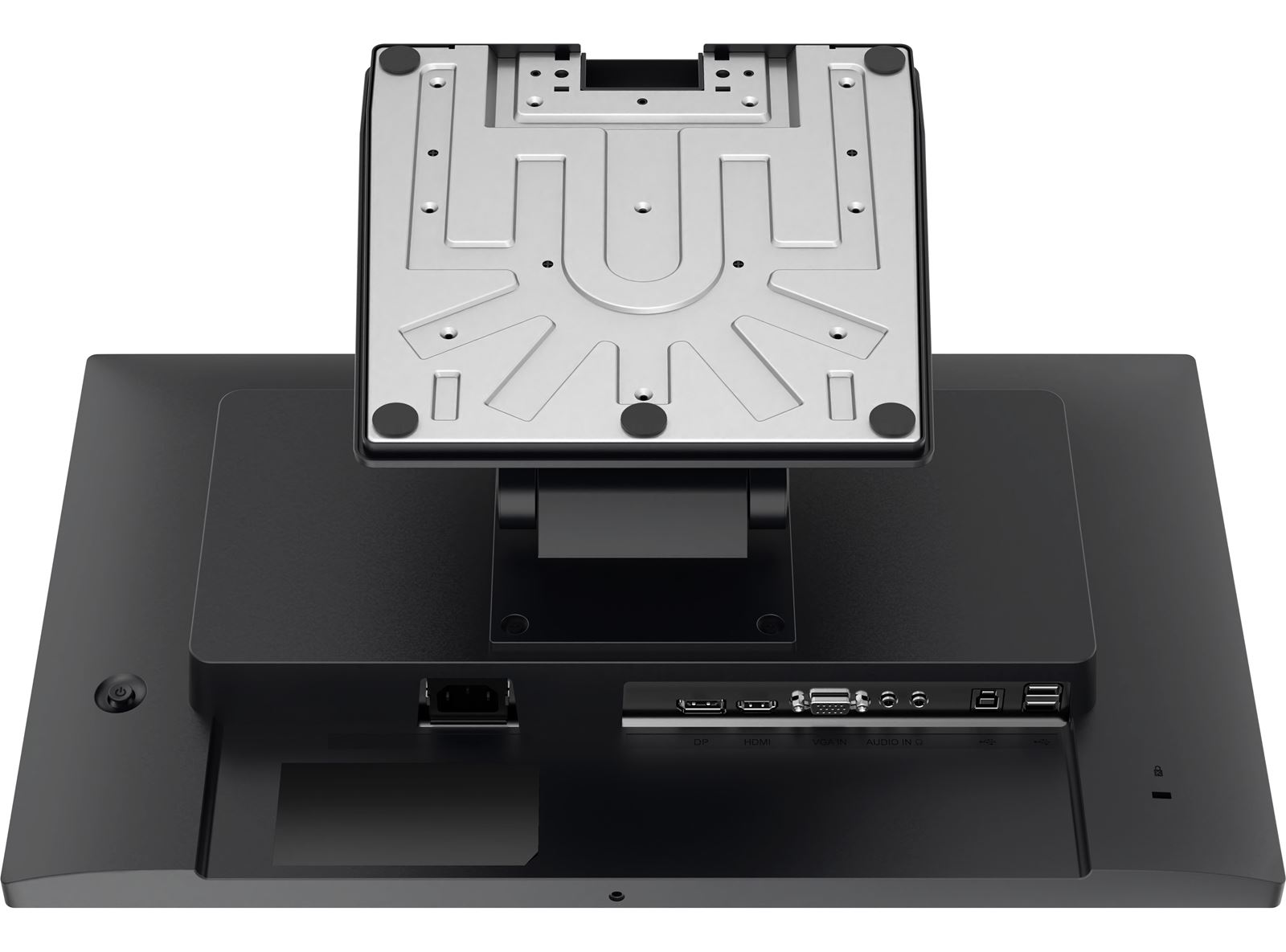

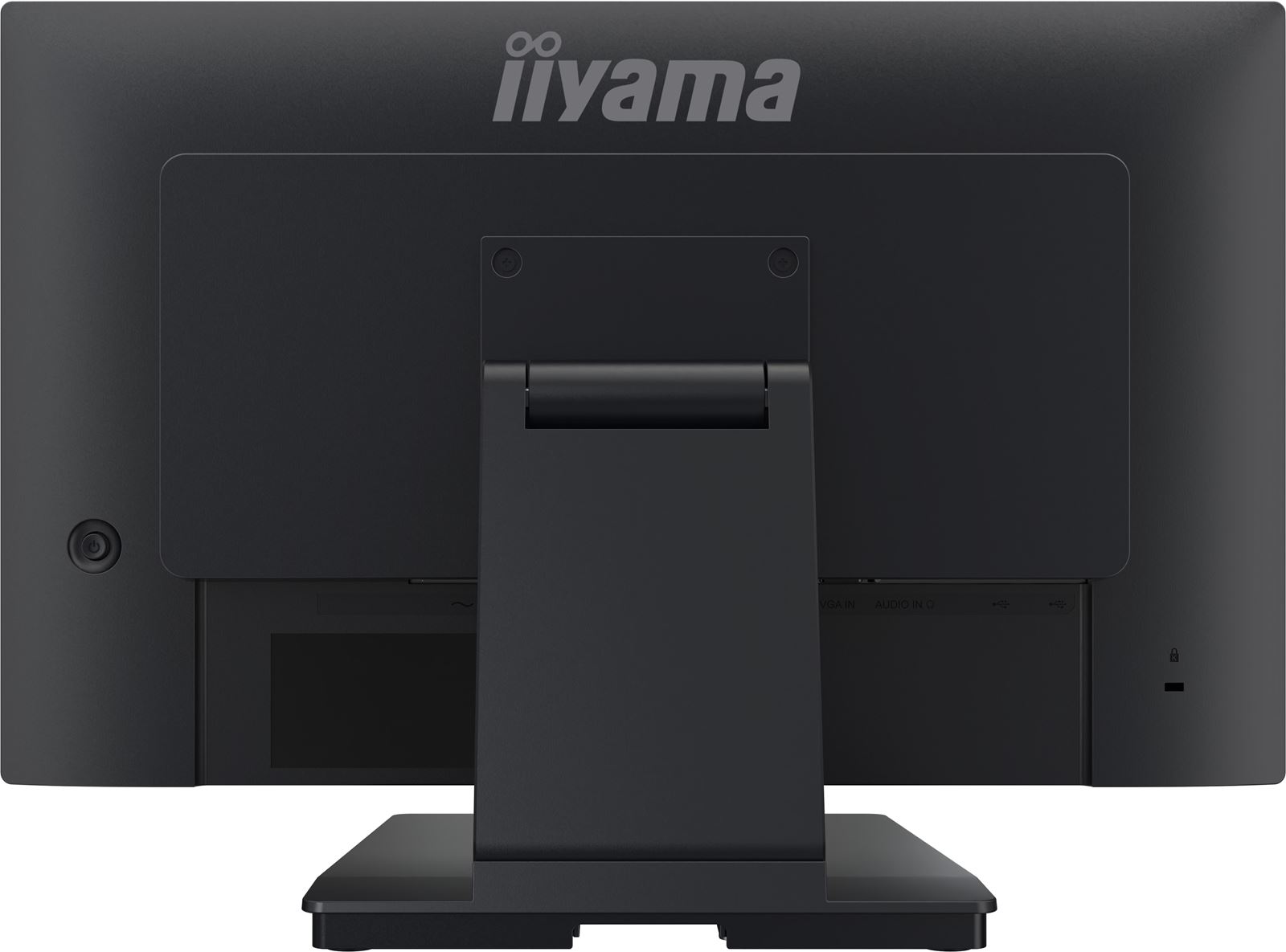

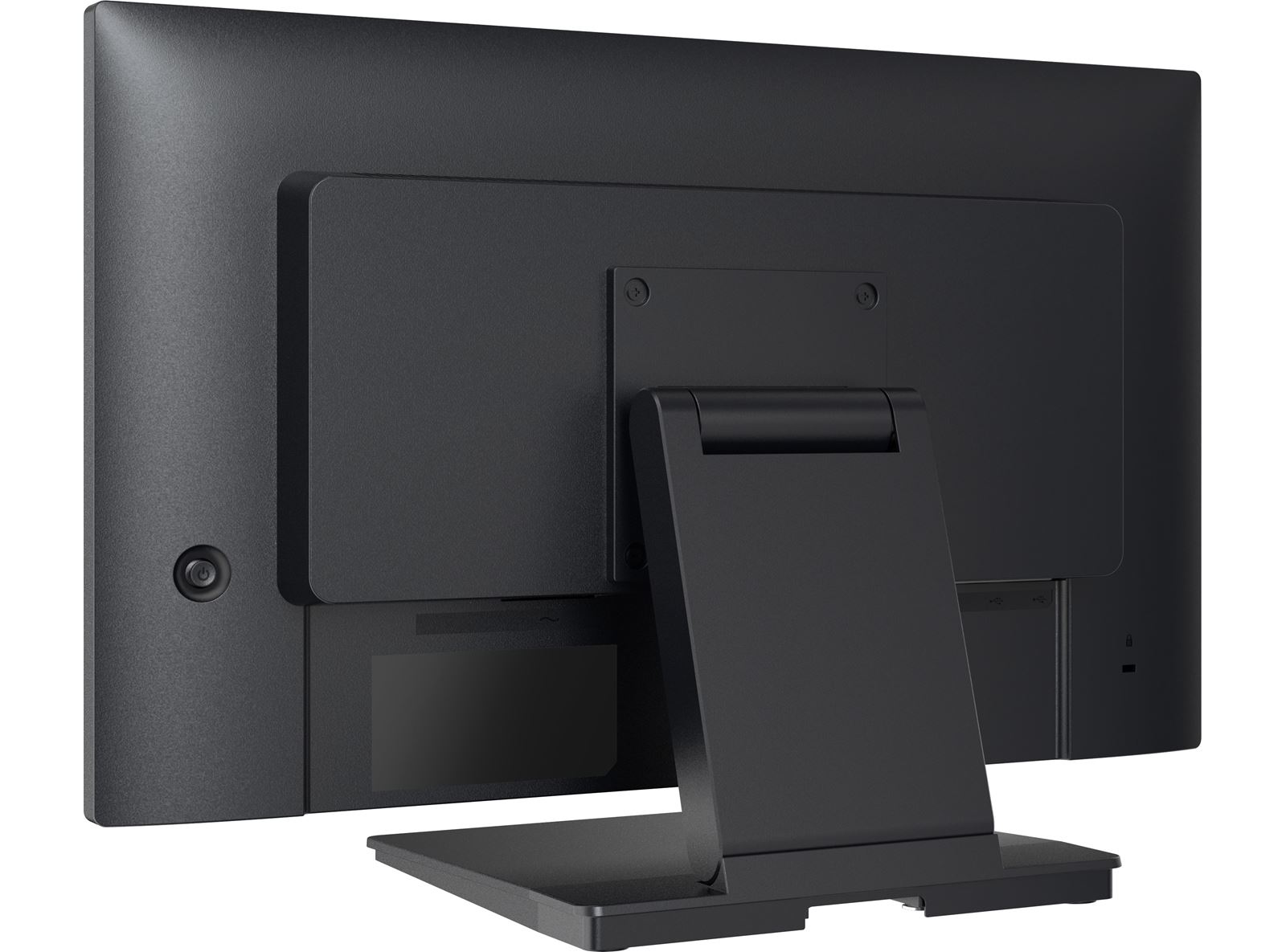

VESA mounting 100 x 100mm
Cable management system yes
MTBF 50000 hours (excluding backlight)

 ACCESSORIES INCLUDED

Cables power, USB, HDMI
Guides quick start guide, safety guide
Other Screwdriver
Cable cover yes

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 15W typical, 0.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, EPEAT, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) D
EPEAT Silver EPEAT is a comprehensive environmental rating that helps identify greener computers and other electronic equipment. The Silver certification means the monitor meets all required criteria plus at least 50% of the optional requirements. EPEAT Silver is valid in countries where iiyama registers the product. Please visit www.epeat.net for the registration status in your country.
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 489 x 355 x 241mm
Box dimensions W x H x D 570 x 367 x 151mm
Weight (without box) 4.9kg
Weight (without stand) 2.9kg
Weight (with box) 7.6kg
EAN code 4948570125715
Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

FLICKER-FREE + BLUE LIGHT

The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

FLICKER-FREE + BLUE LIGHT

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING
