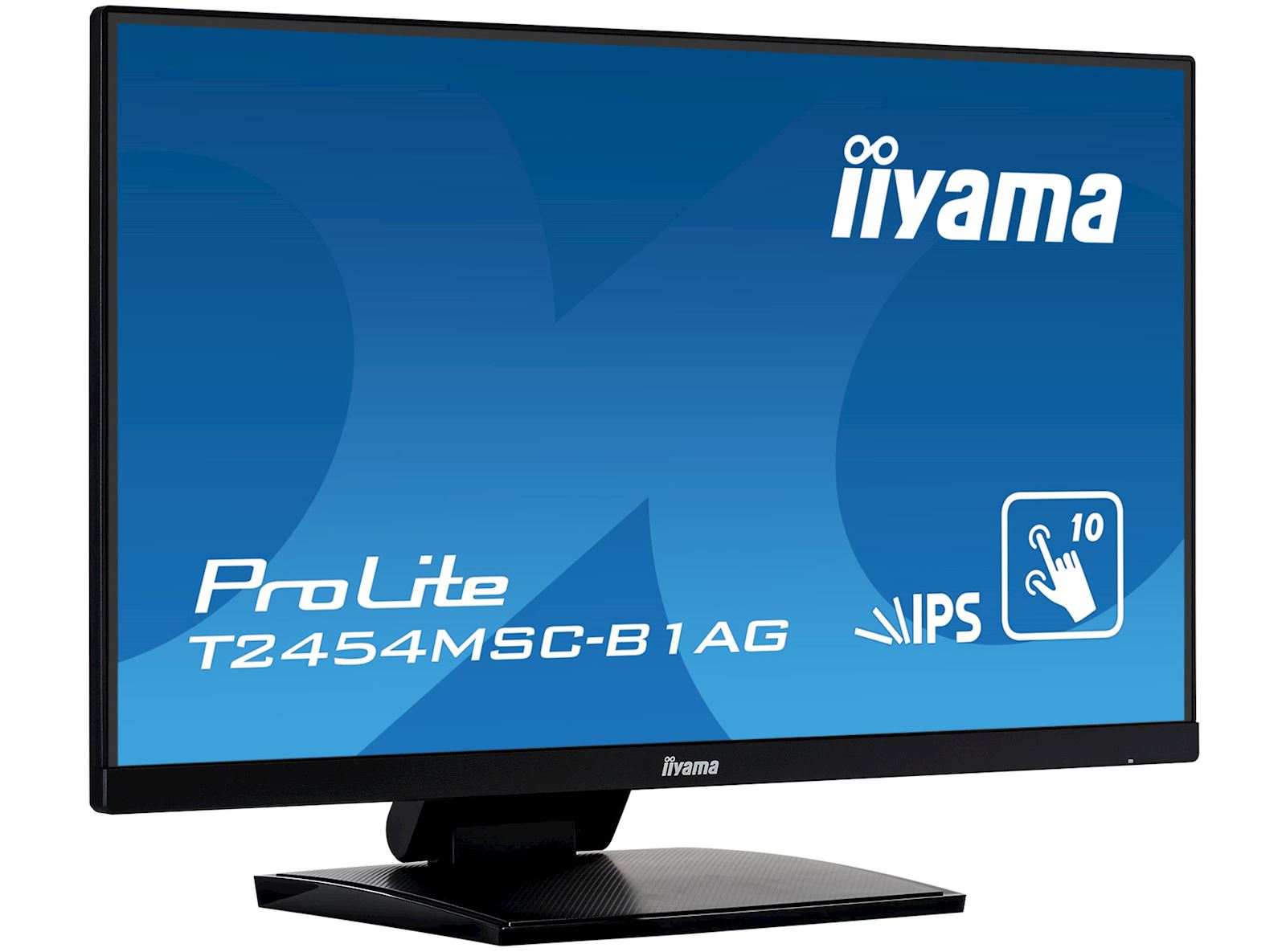

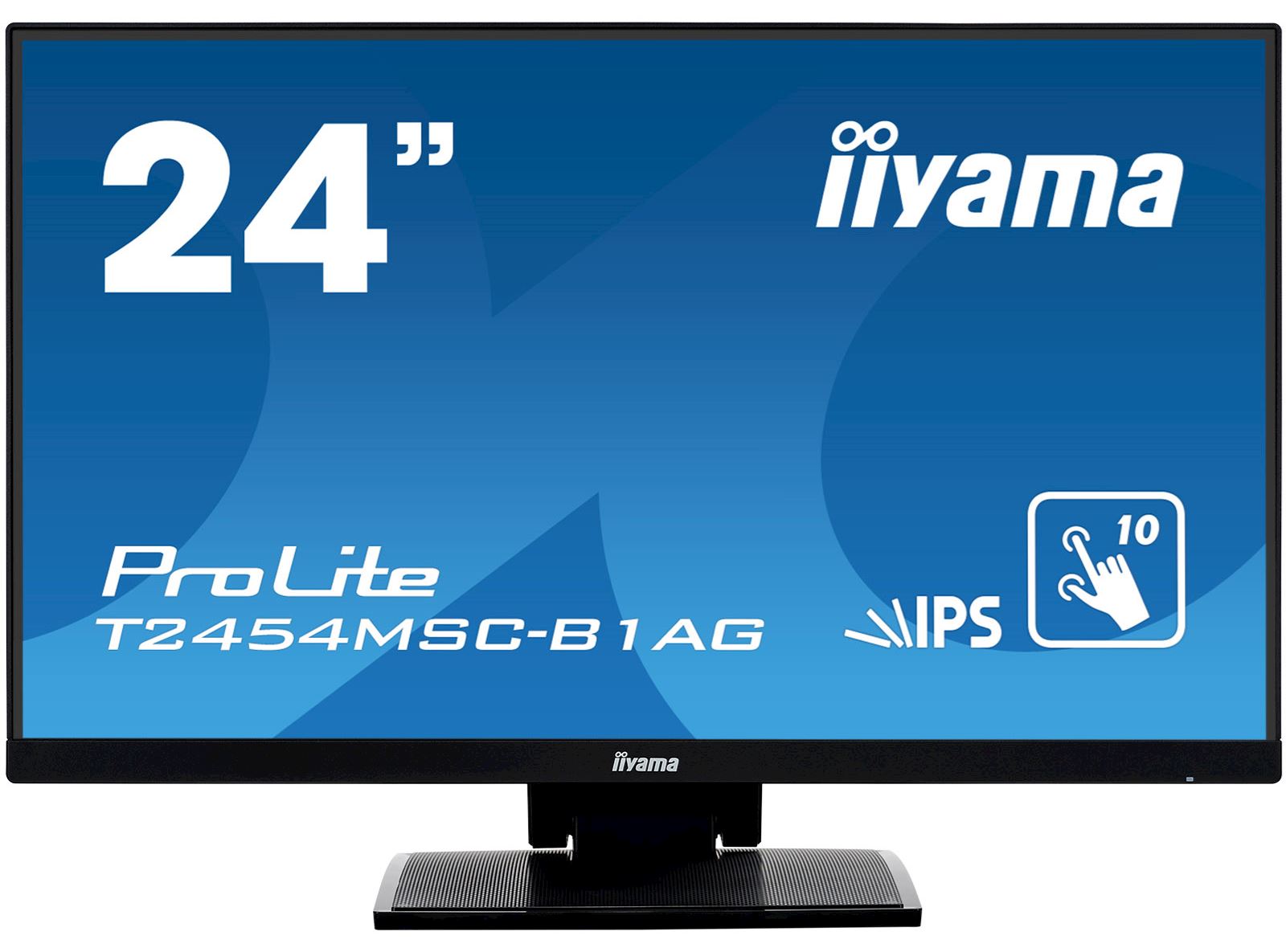

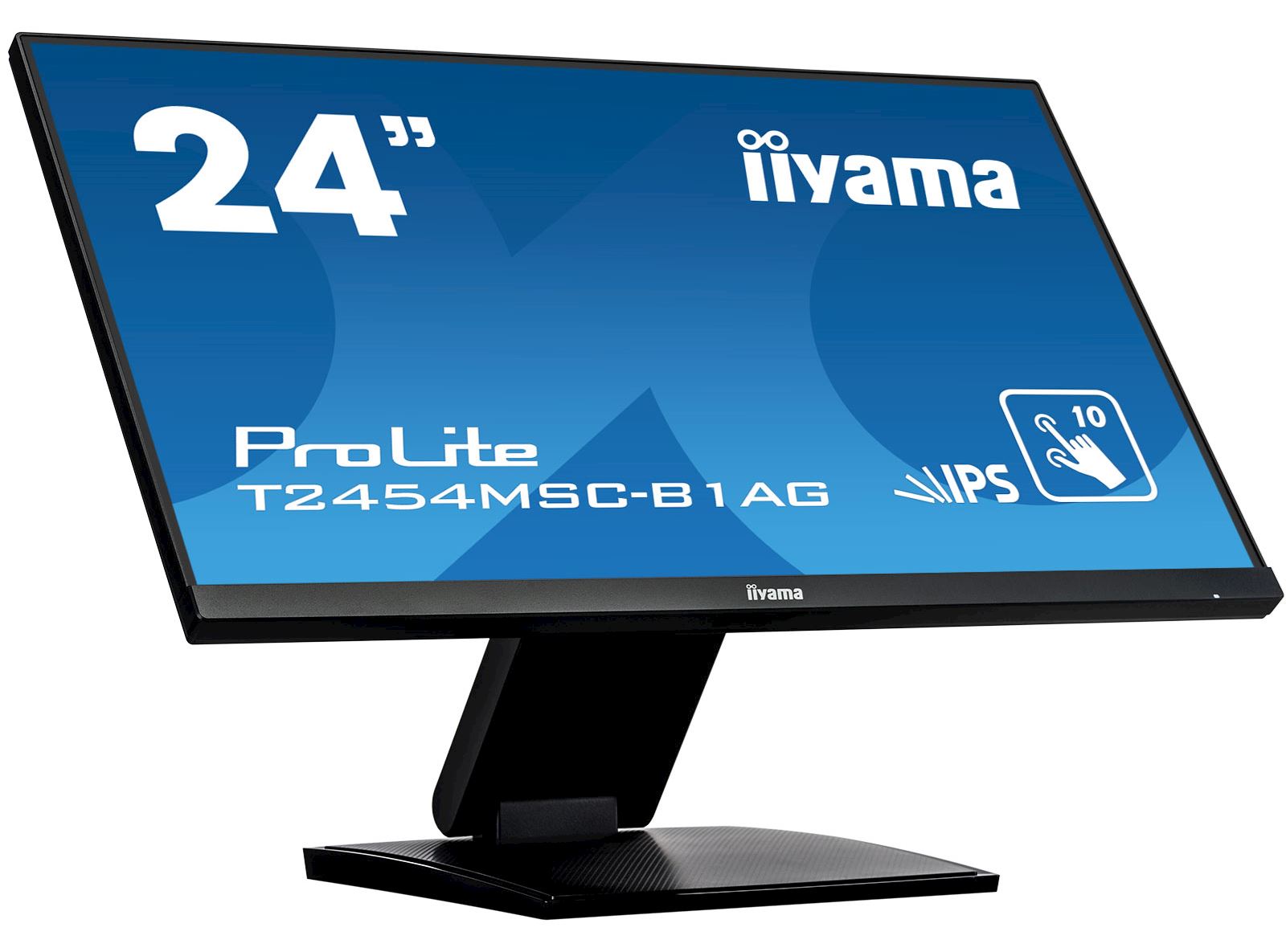

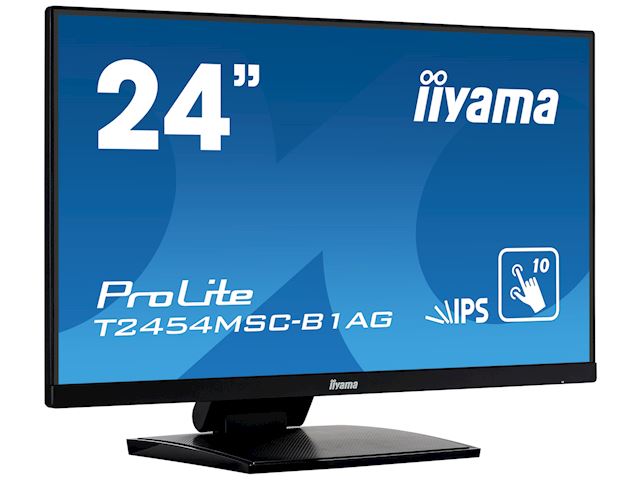

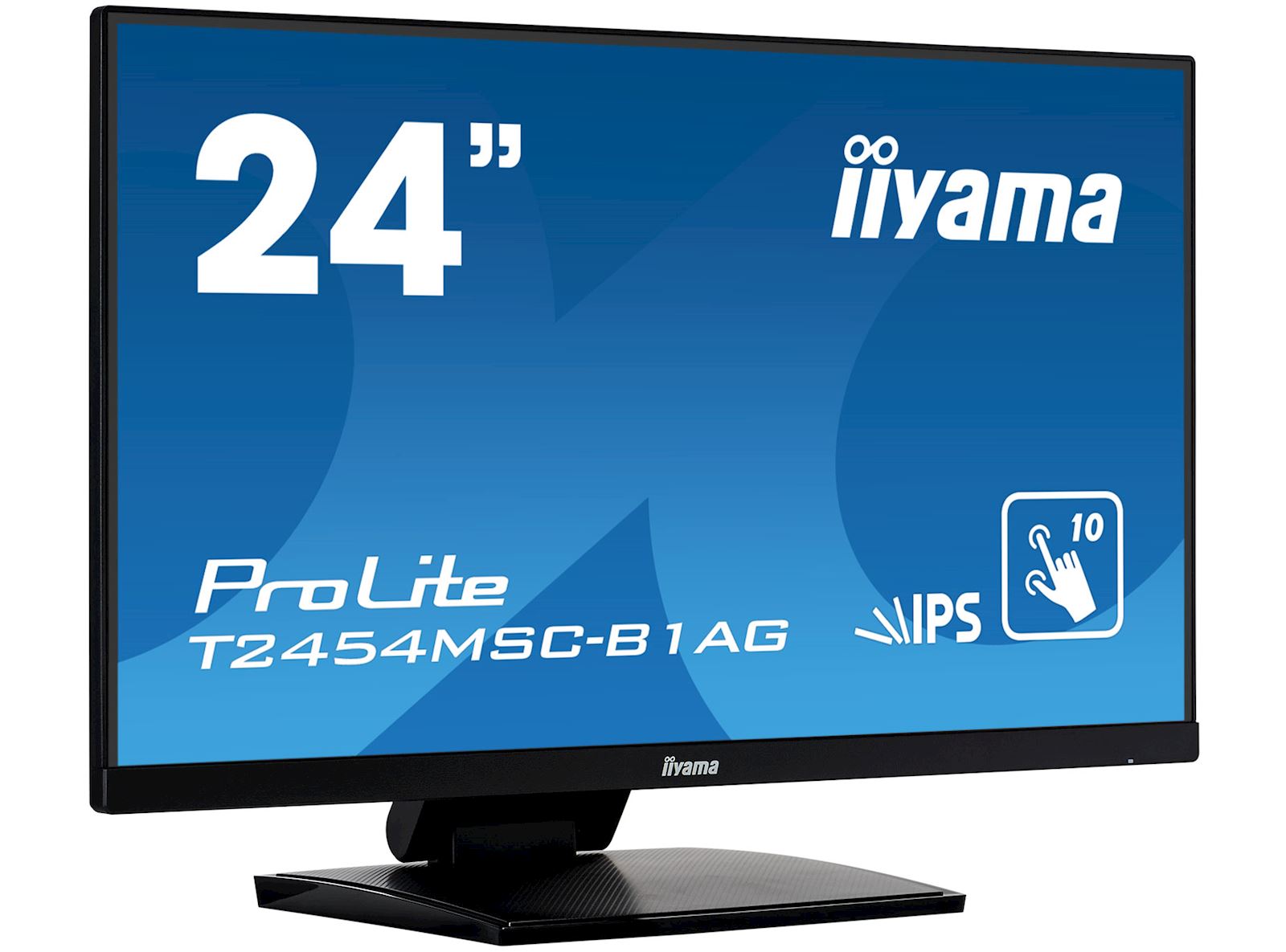

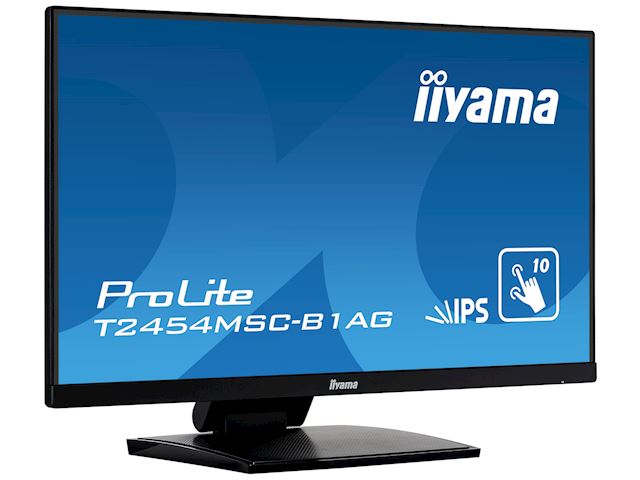

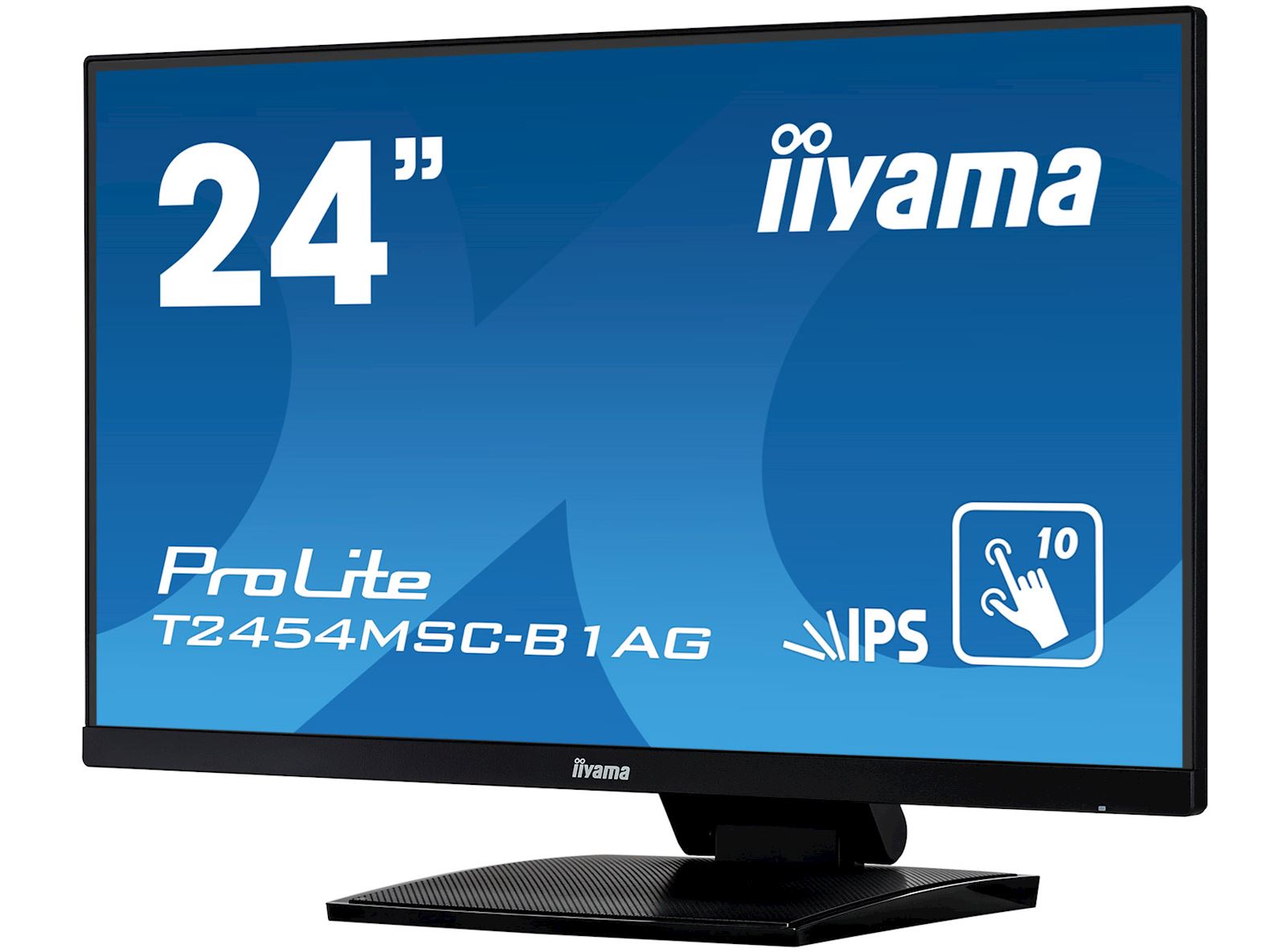

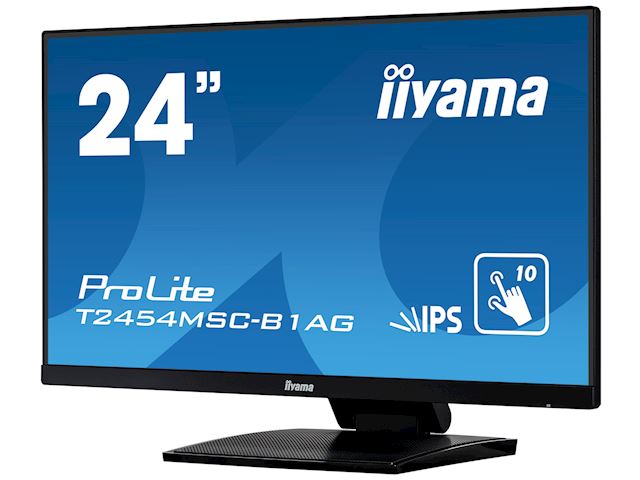

iiyama ProLite monitor T2454MSC-B1AG 24", Projective Capacitive 10pt touch, Anti-glare coating, IPS, Ultra thin bezel, HDMI

£202.40 exc. VAT
£242.88 inc. VAT

Brand: iiyama

Manufacturer Code: T2454MSC-B1AG

Product Description

**2 day delivery (usual carriage fee applies)**

24” P-CAP 10pt touch screen featuring IPS panel technology and Anti Glare coating

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.

Technical Information

DISPLAY CHARACTERISTICS

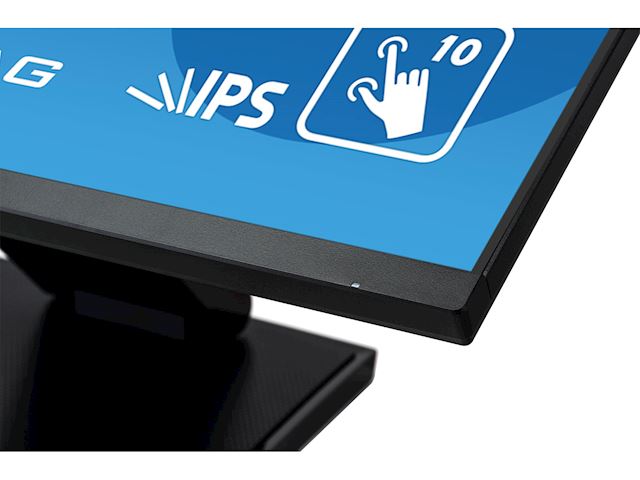

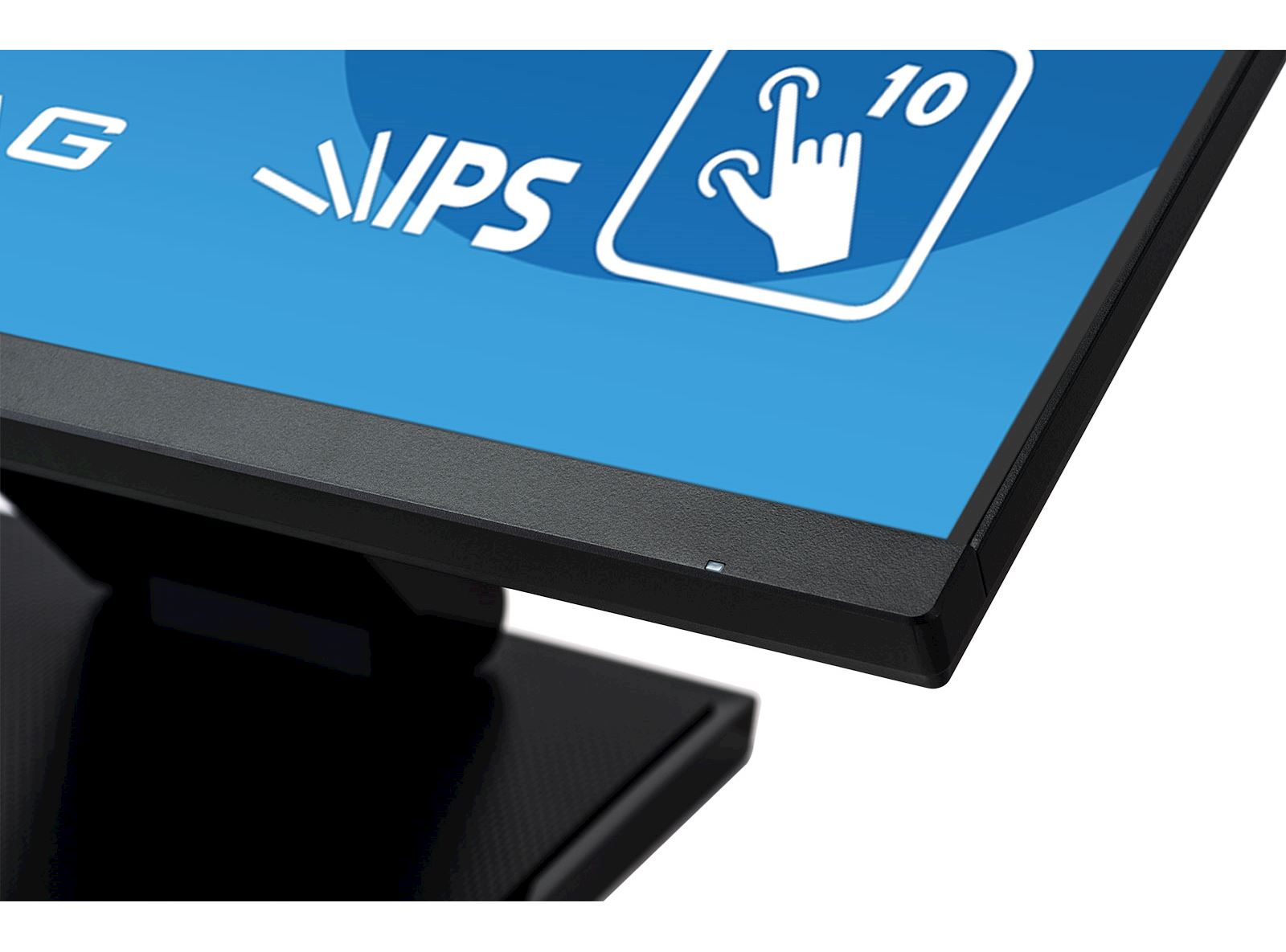

Design Ultra thin bezel
Diagonal 23.8", 60.5cm
Panel IPS LED, AG coated glass
Native resolution 1920 x 1080 @60Hz (2.1 megapixel Full HD)
Aspect ratio 16:9
Brightness 250 cd/m² typical
Static contrast 1000:1 typical
Advanced contrast 5M:1
Response time 4ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit
Horizontal Sync 30 - 80KHz
Vertical Sync 56 - 75Hz
Viewable area W x H 527.04 x 296.46mm, 20.7 x 11.7"
Pixel pitch 0.274mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes

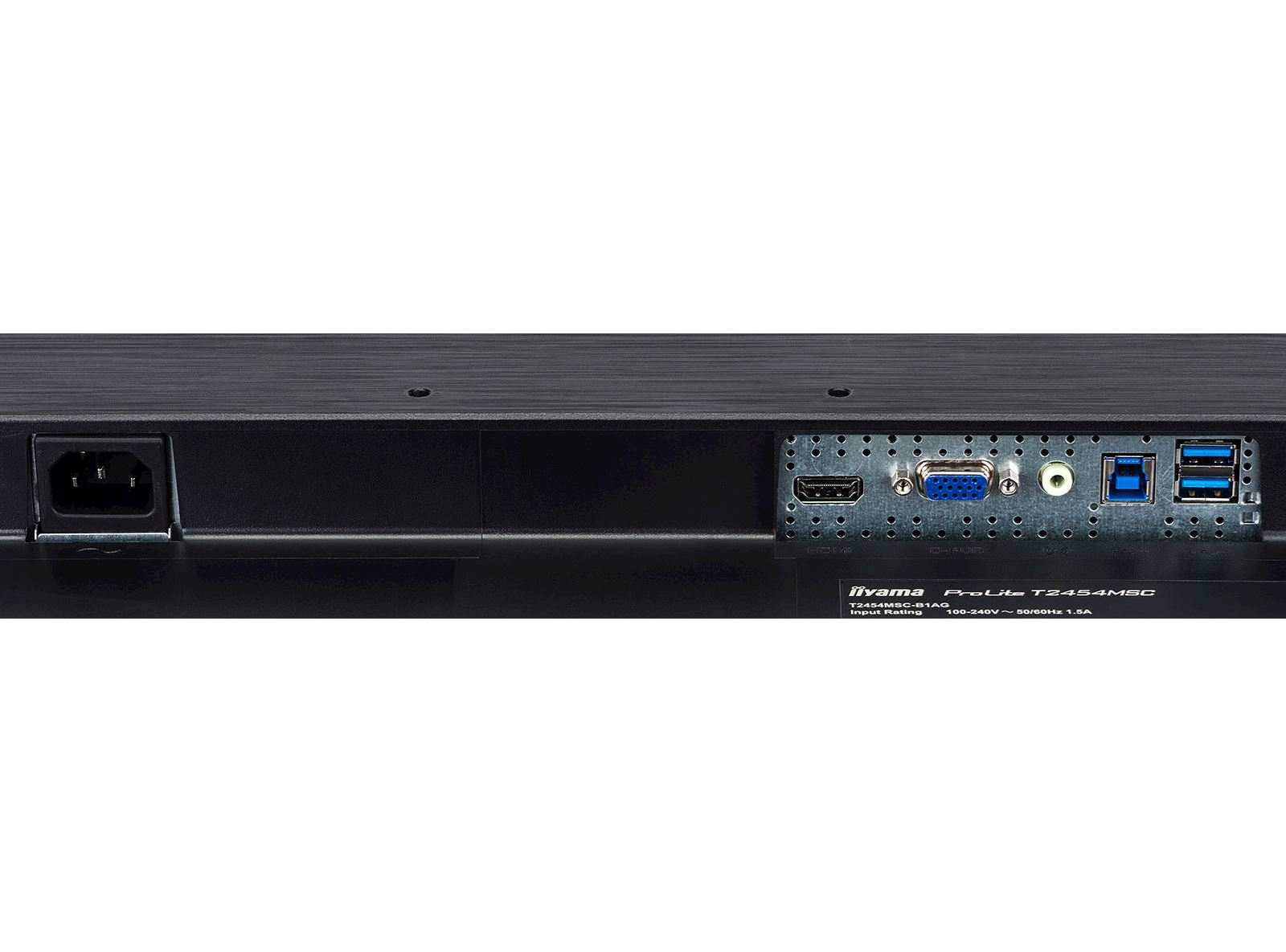

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
Audio output Speakers 2 x 2W
HDCP yes
USB HUB x2 (v.3.0)

FEATURES

Water and dust protection IPX1 (front)
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, PT, RU, JP, NL, PL

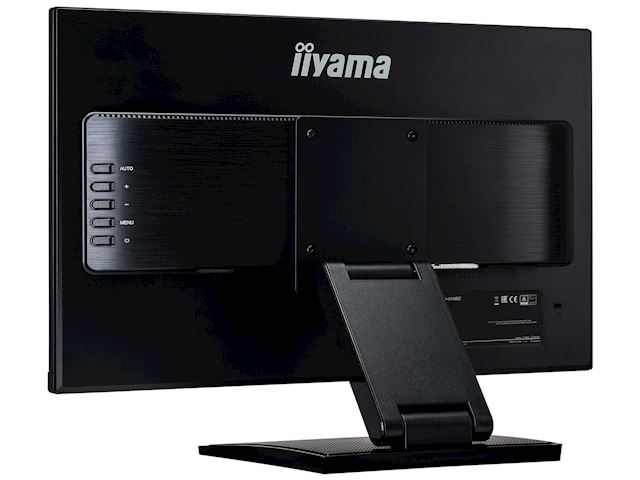

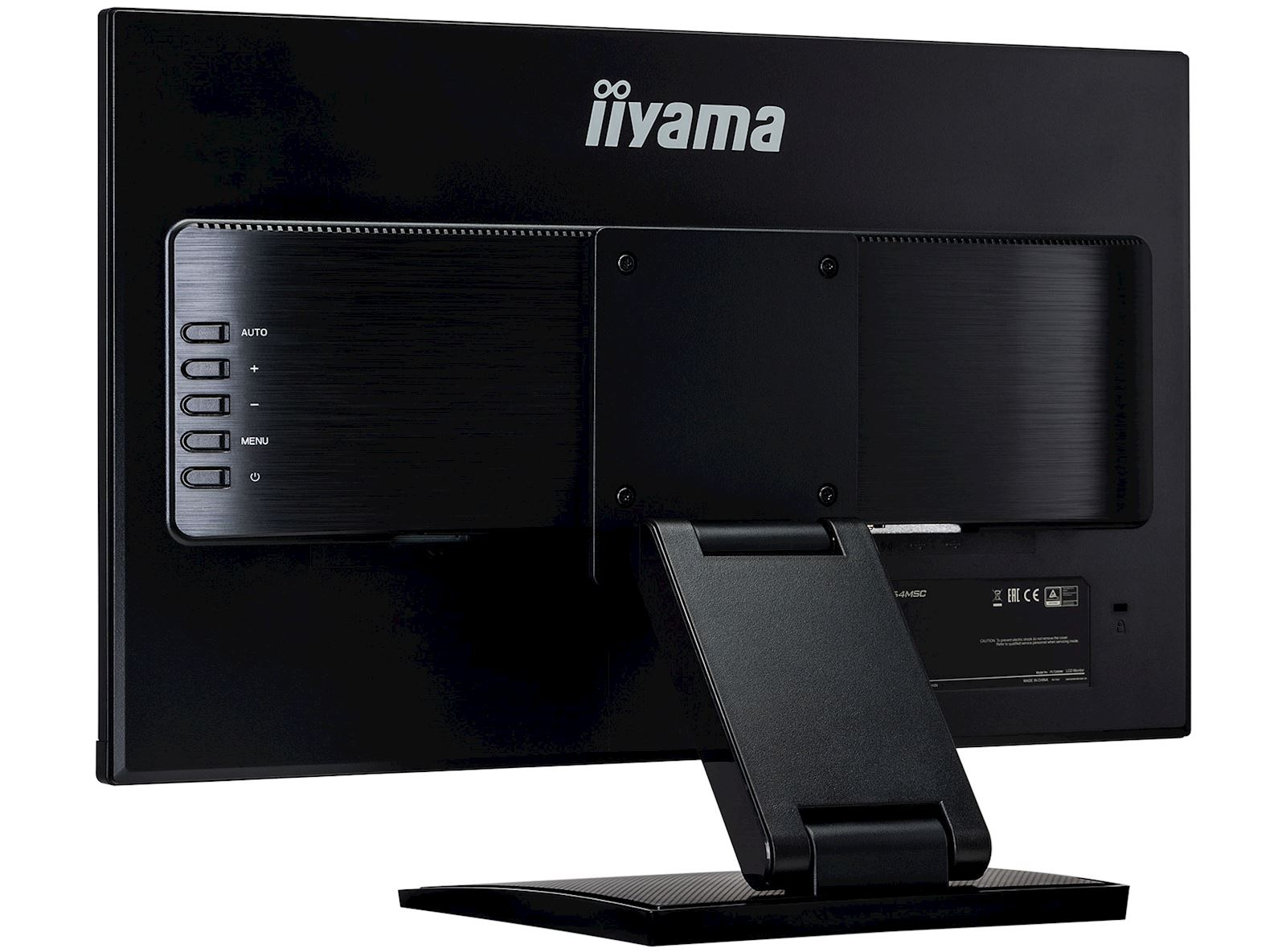

Control buttons Auto, + Up, - Down,. Menu, Power
User controls Picture adjust (brightness, contrast, Eco, i-Style Color, adv. contrast), Geometry (pixel clock, phase, horizontal position, vertical position, aspect), Color settings (gamma, color temp), OSD (OSD horizontal position, OSD vertical position, OSD time, language, auto power off, touch wake up), Extra (reset, signal select, audio input, opening logo, LED, Overdrive, Information, volume, auto adjust)
Convenience Kensington-lock™ prepared
Blue light reducer yes
Plug&Play DDC2B

MECHANICAL

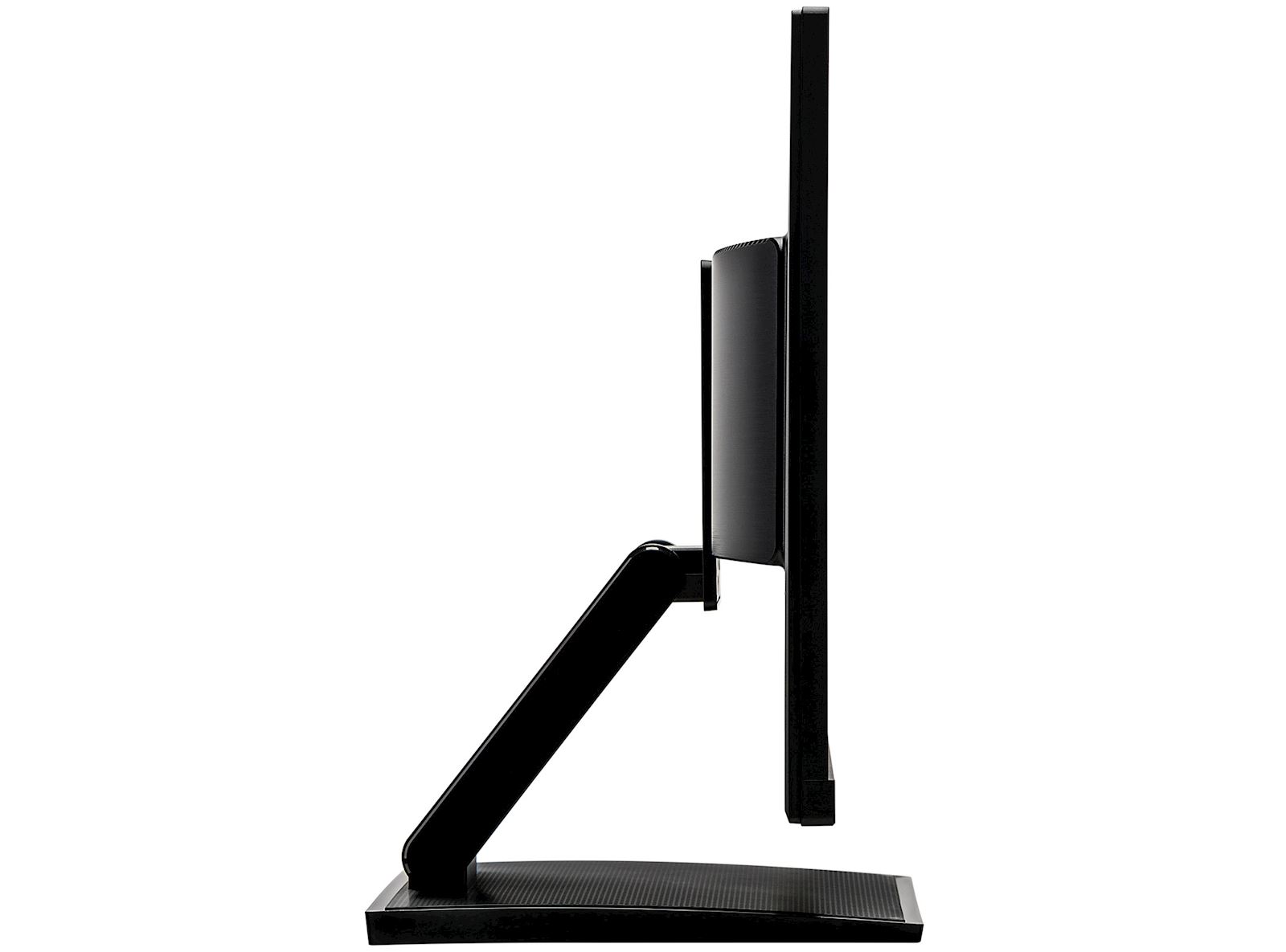

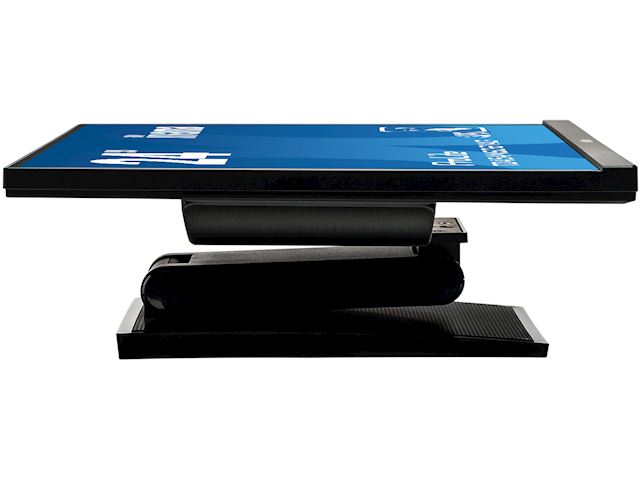

Height adjustment 70mm

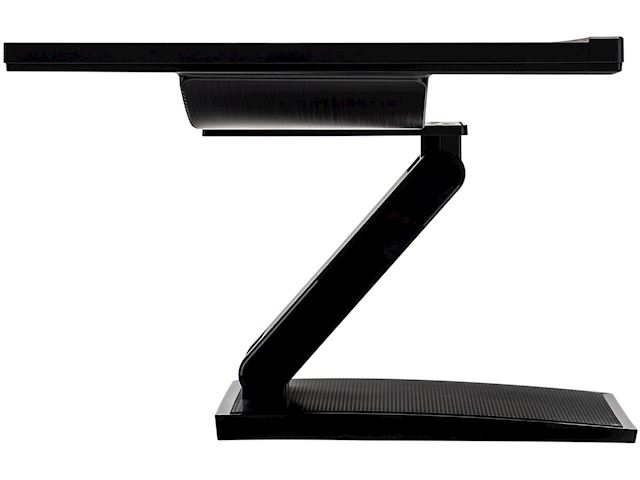

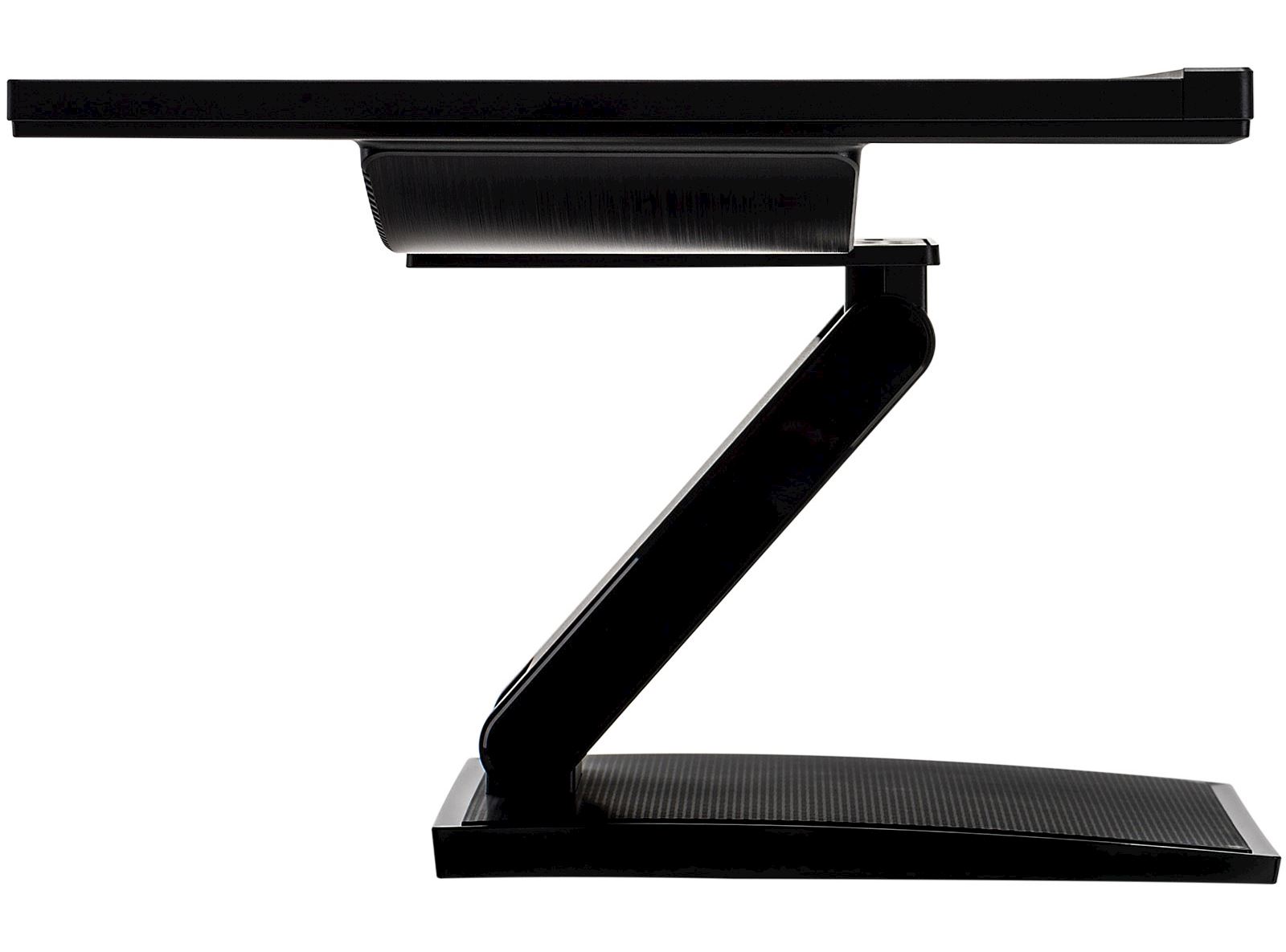

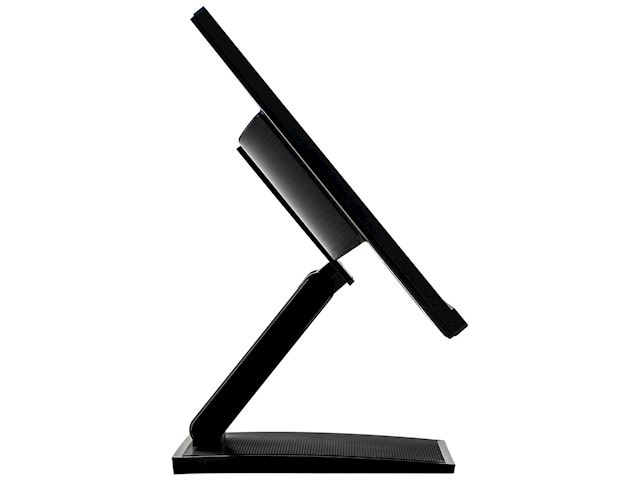

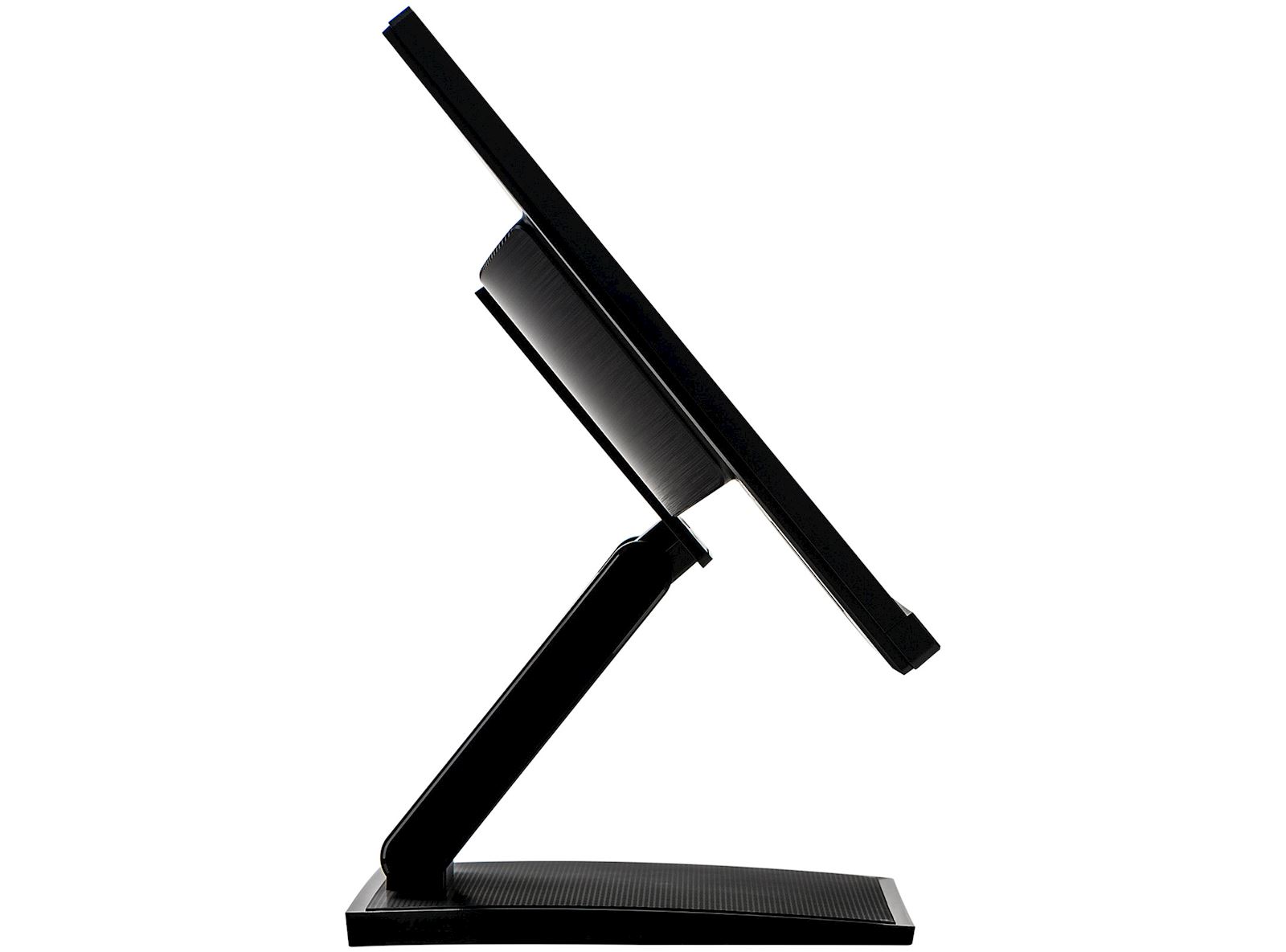

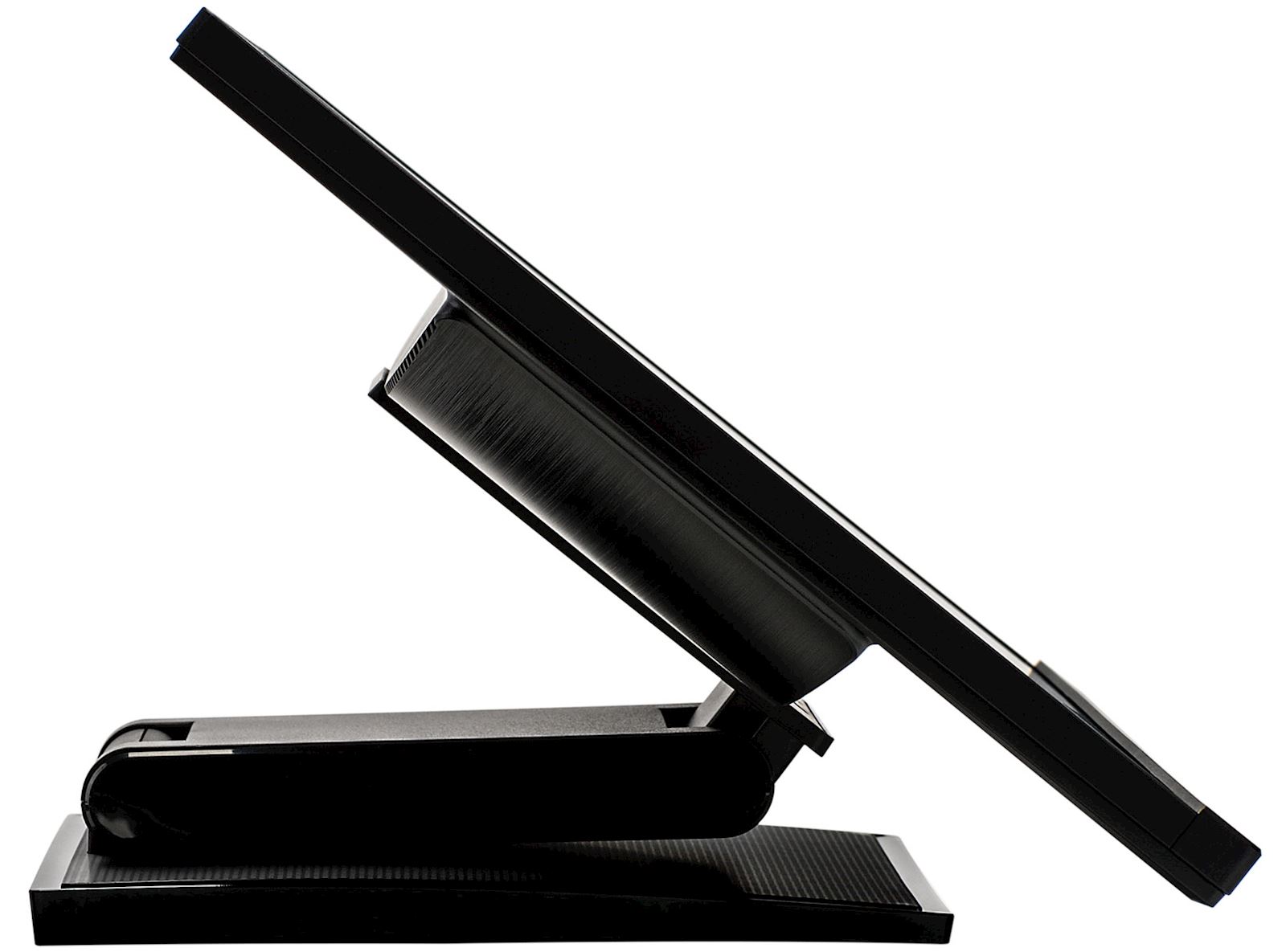

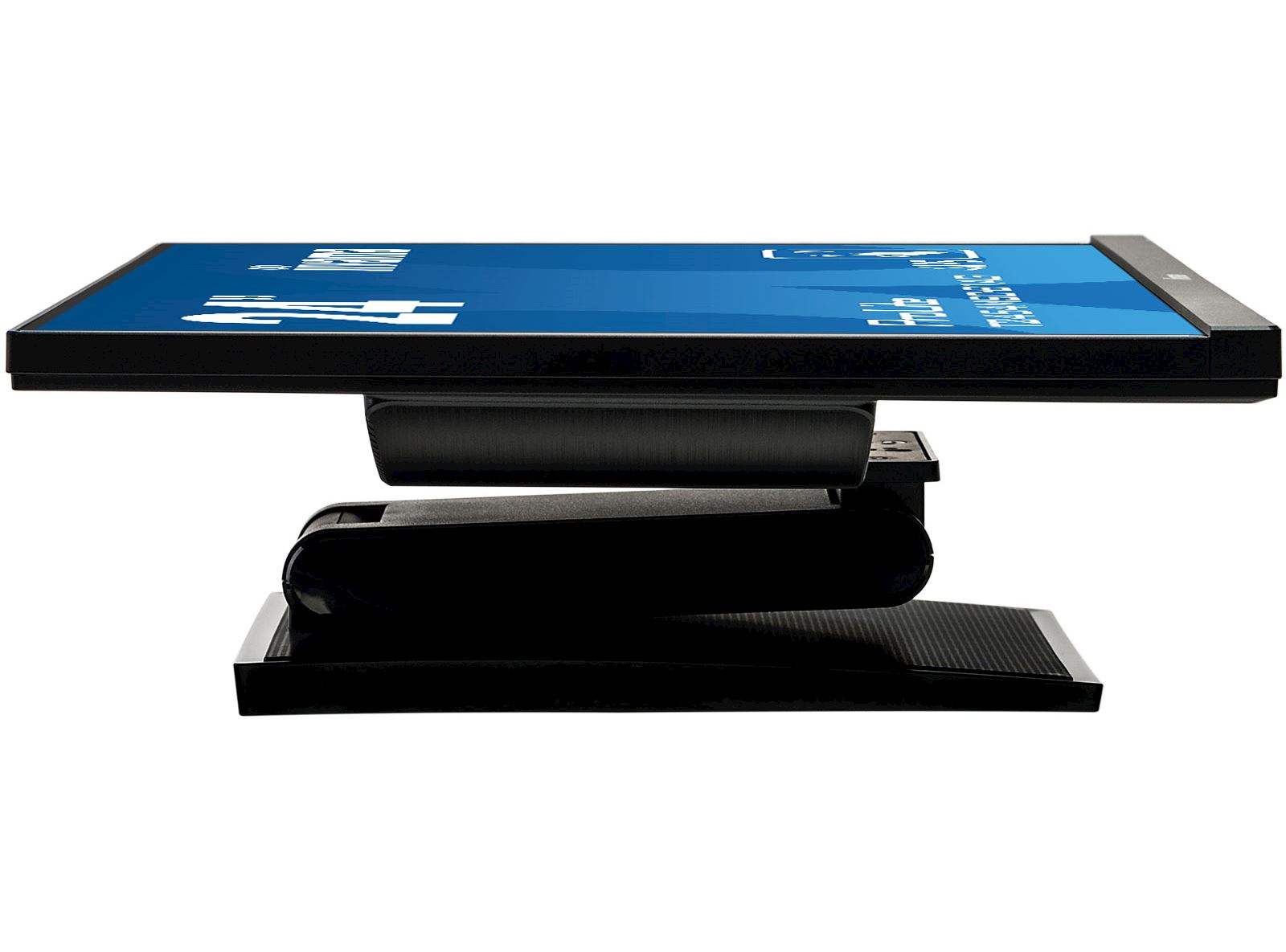

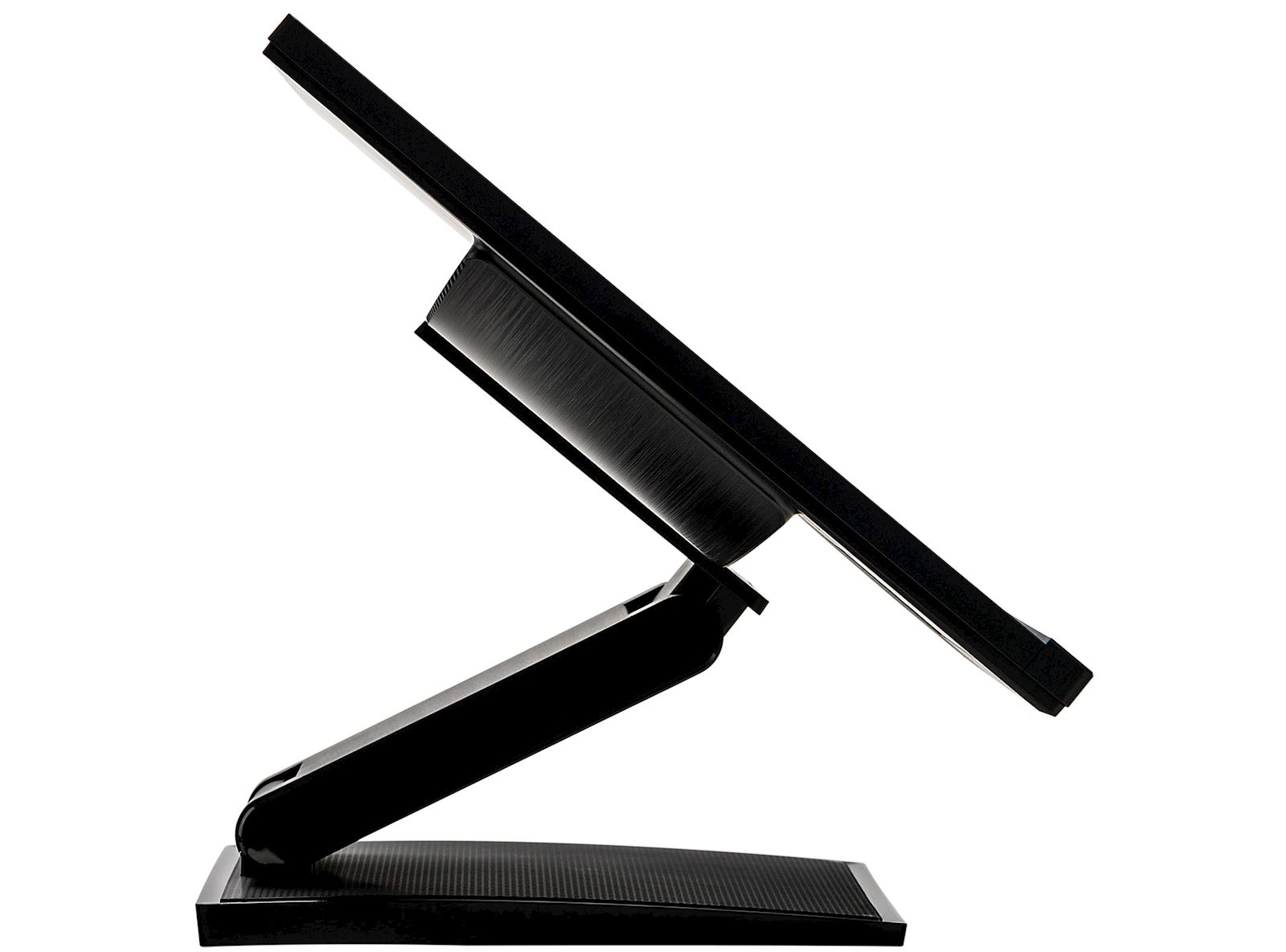

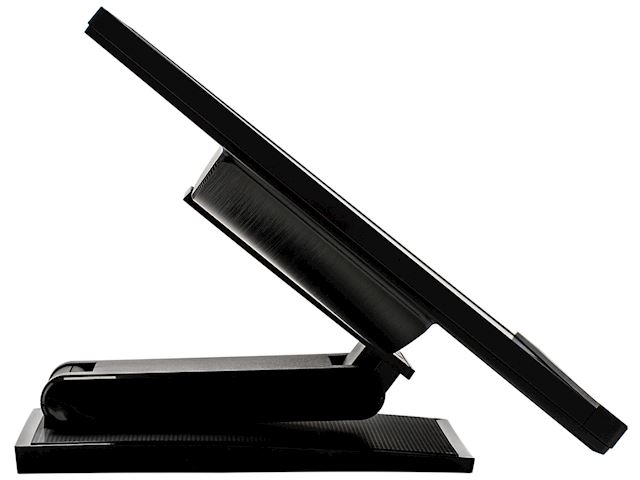

Tilt angle 5° up; 90° down

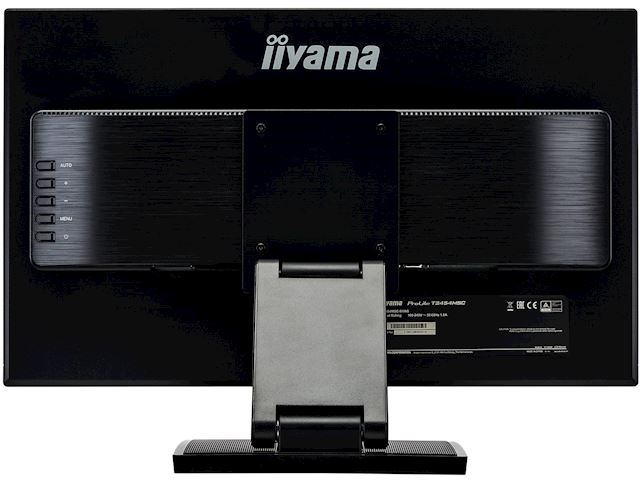

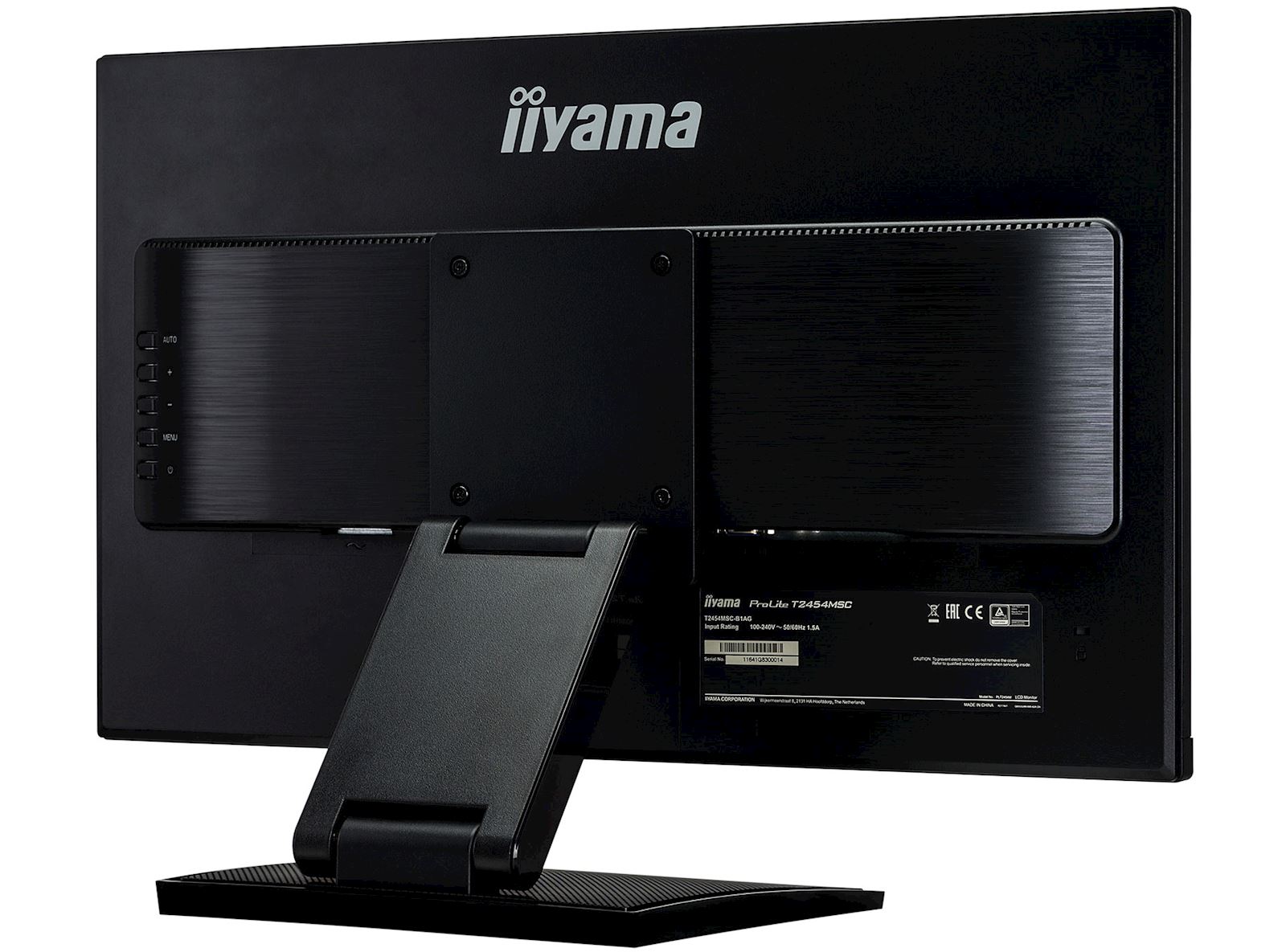

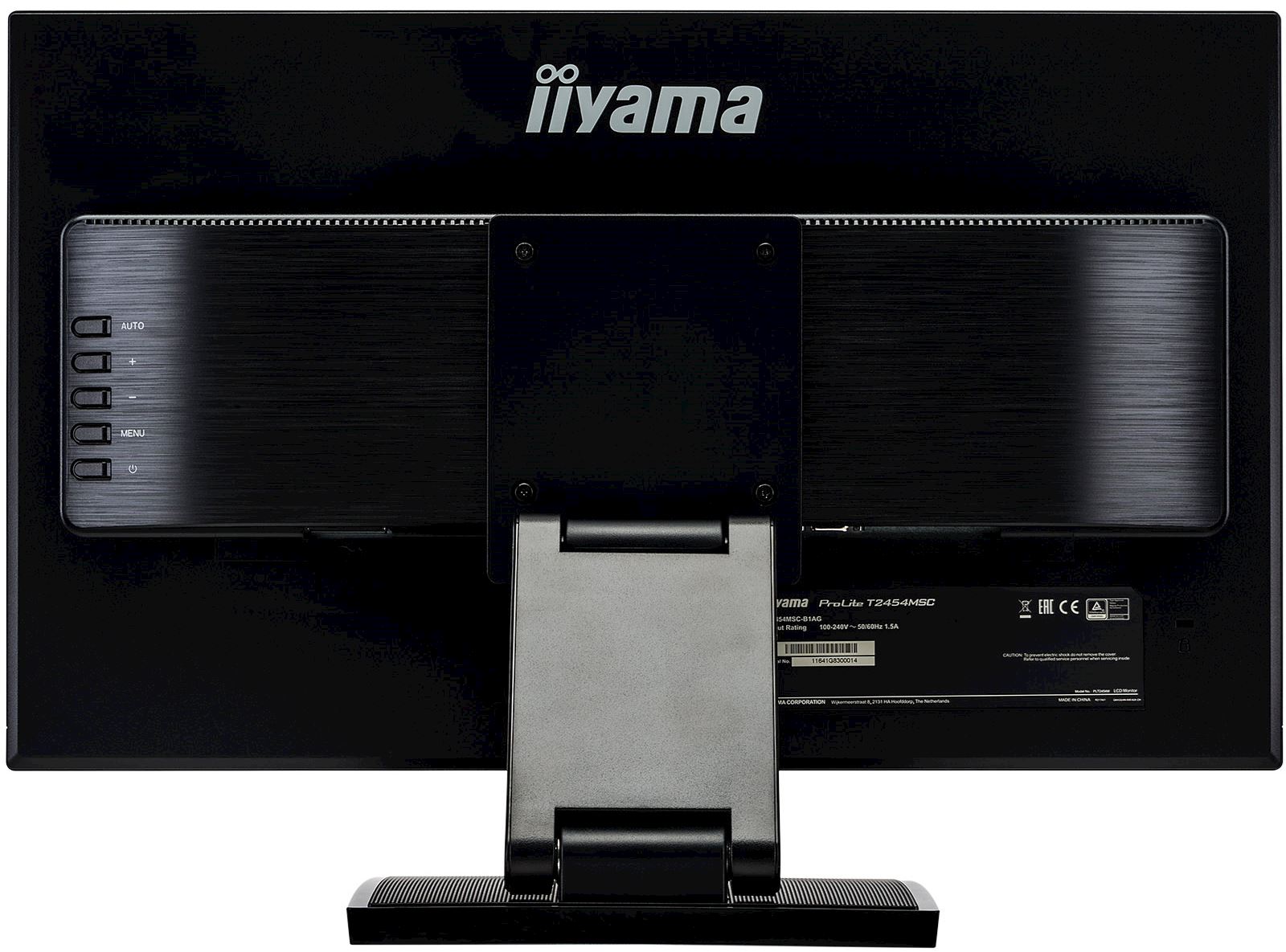

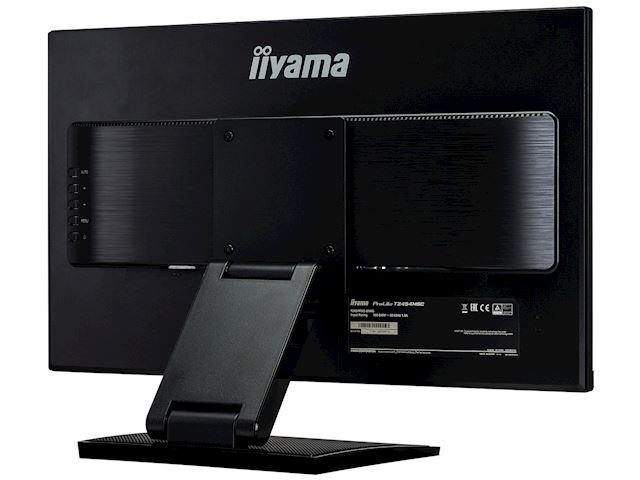

VESA mounting 100 x 100mm
MTBF 30000 hours (excluding backlight)

ACCESSORIES INCLUDED

Cables power (1.8m), VGA (1.8m), USB (1.8m), HDMI (1.8m)
Guides quick start guide, safety guide

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 24W typical, 0.5W stand by, 0.5W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, VCCI-B, RoHS support, ErP, WEEE, EPEAT, REACH
Energy efficiency class A
Other REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 540.5 x 388 x 128mm
Weight (without box) 5.5kg
EAN code 4948570116416

EU ENERGY EFFICIENCY LABEL

Manufacturer iiyama
Model ProLite T2454MSC-B1AG
Energy efficiency class A
Visible screen diagonal 60cm; 23.8"; (24" segment)
ON mode power consumption 24W
Annual energy consumption 35kWh/annum*
Power in Standby 0.5W stand by
Resolution 1920 x 1080
Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING
