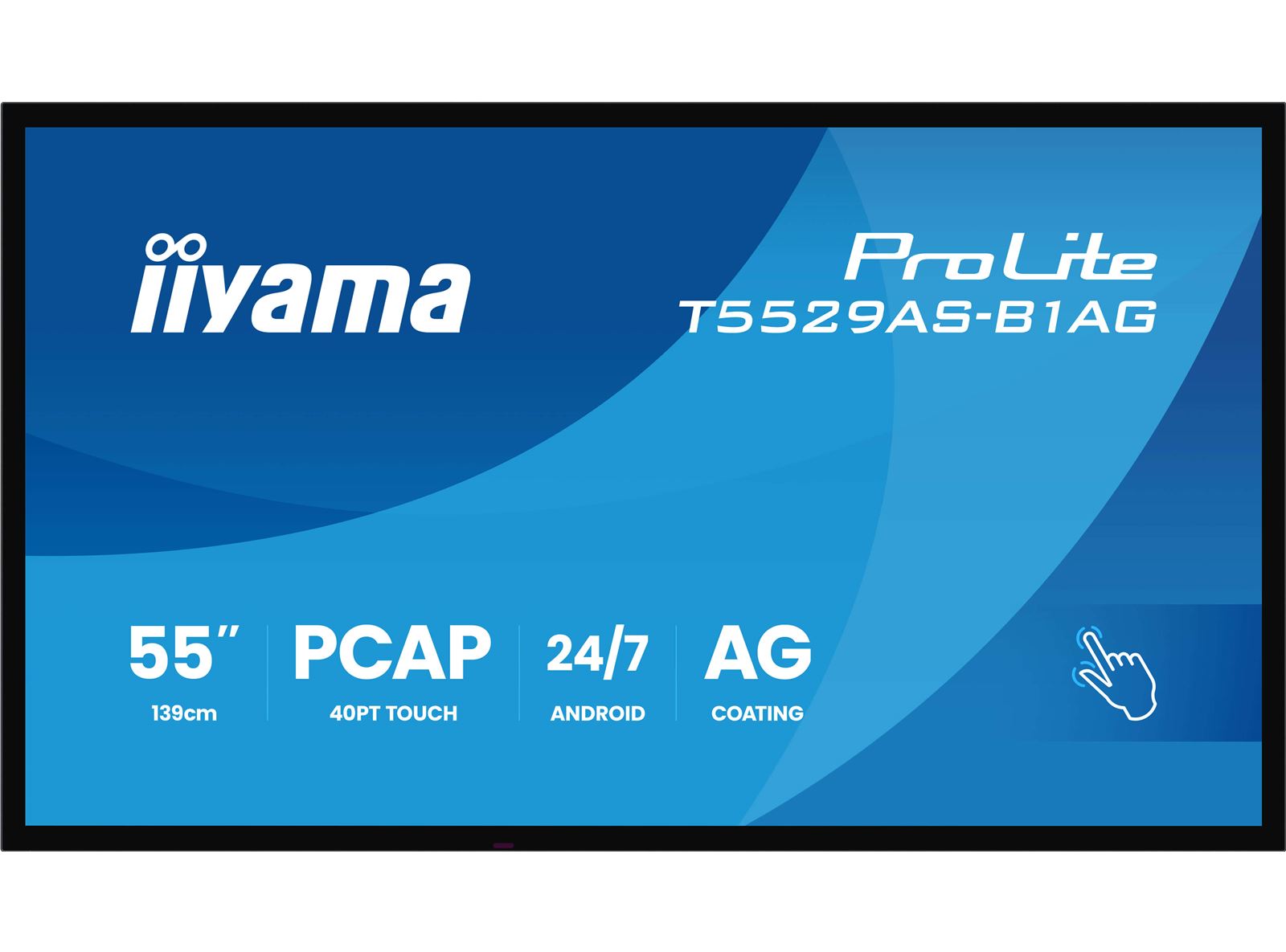

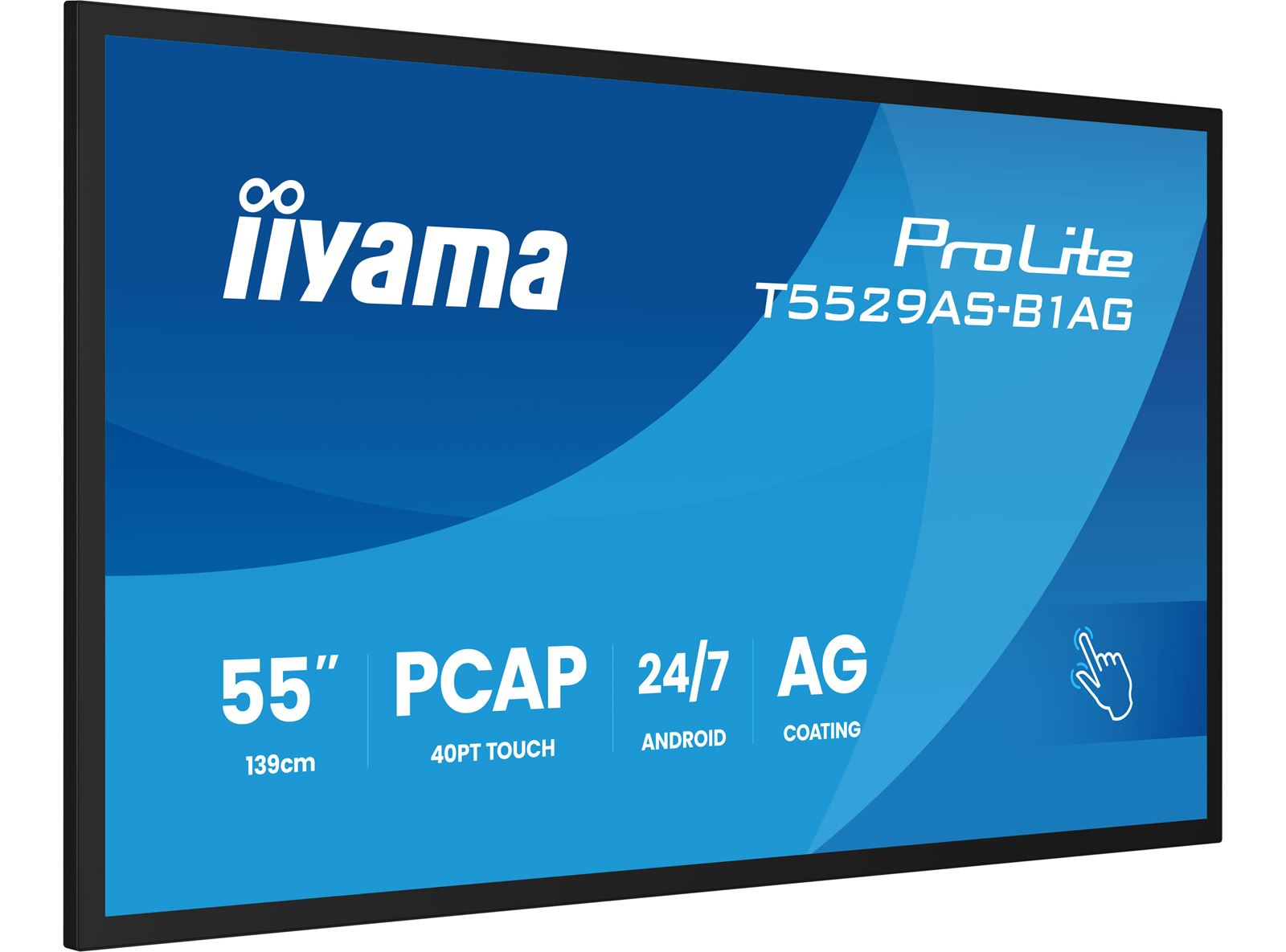

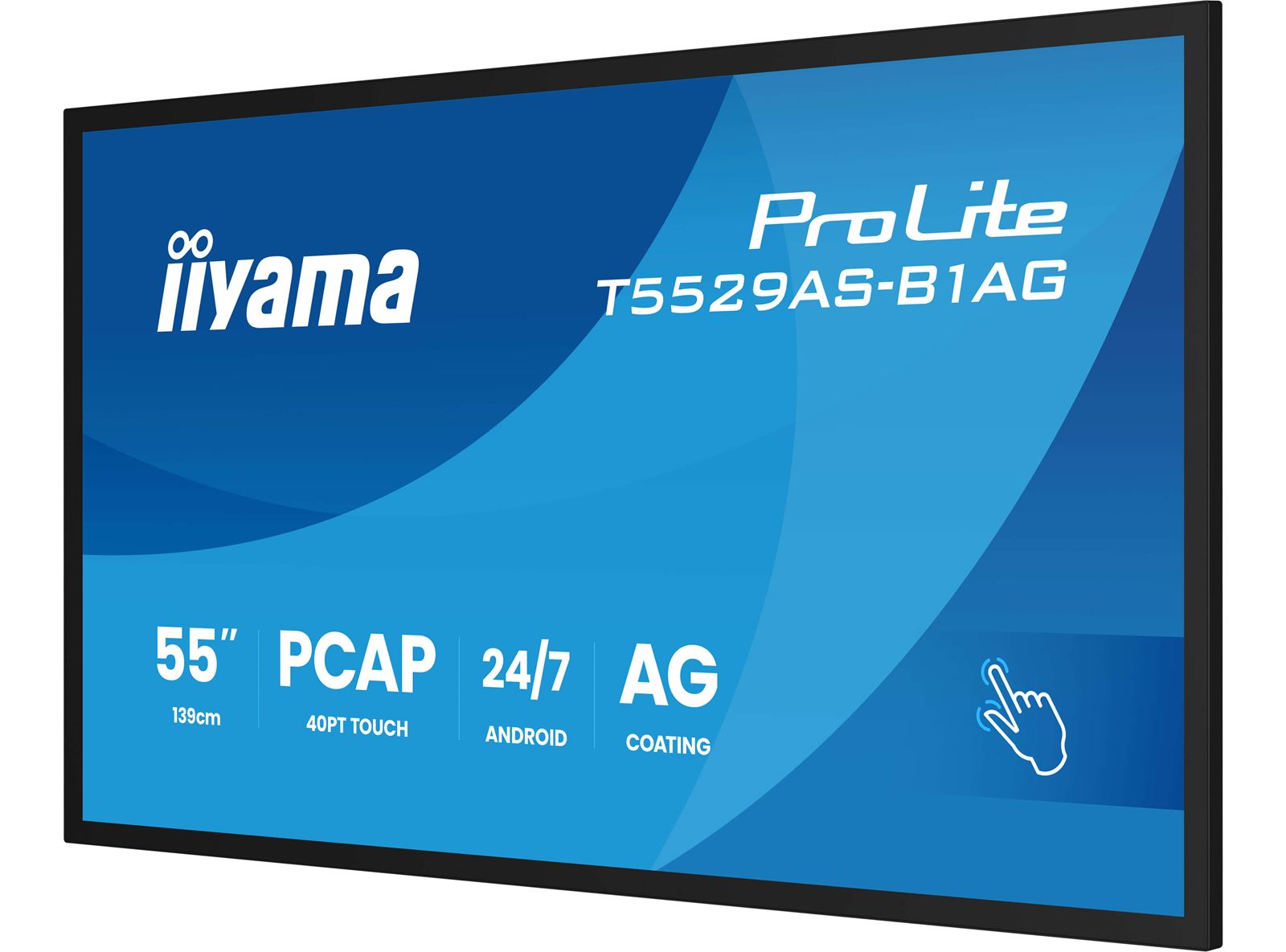

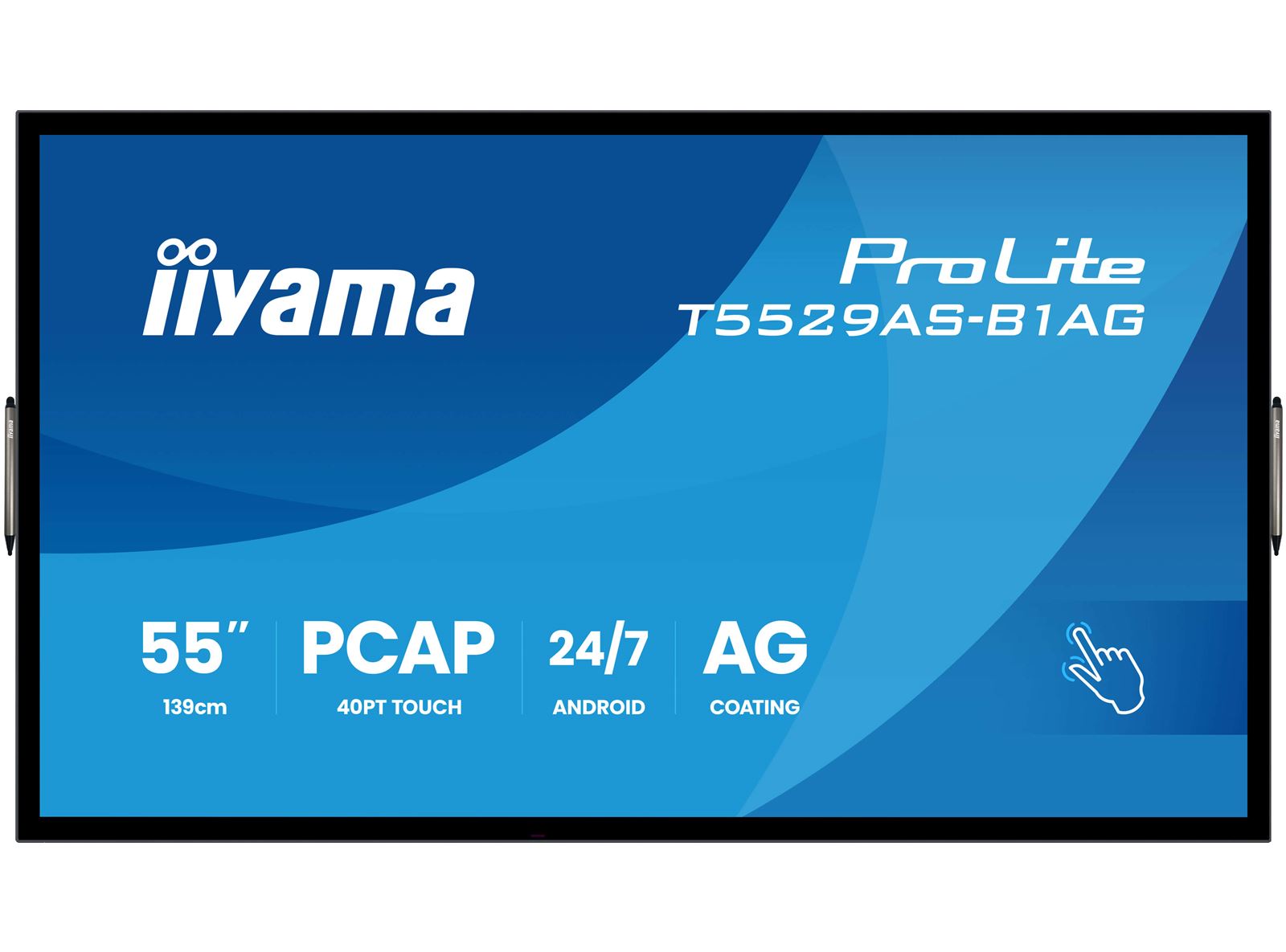

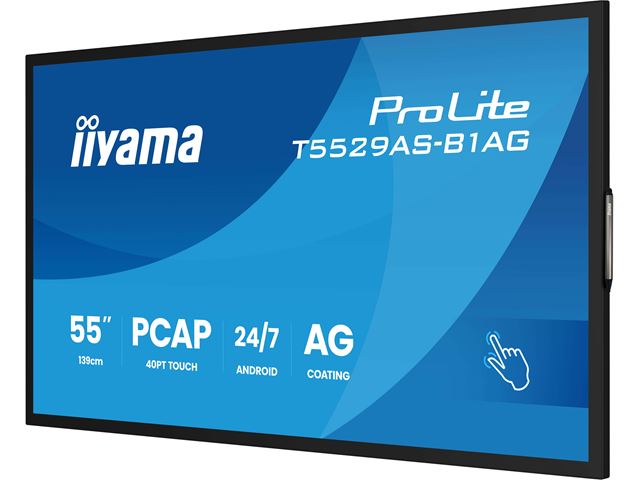

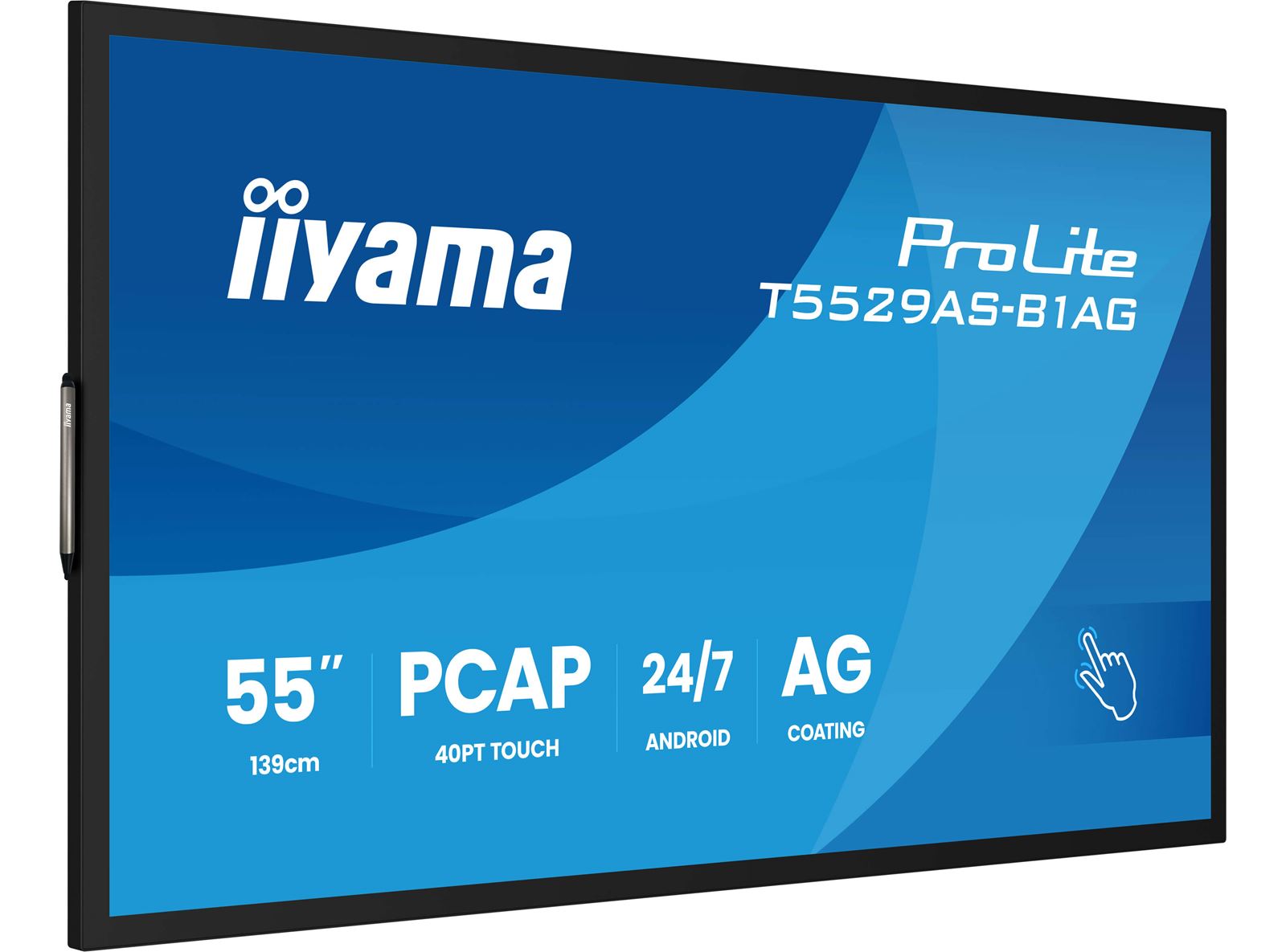

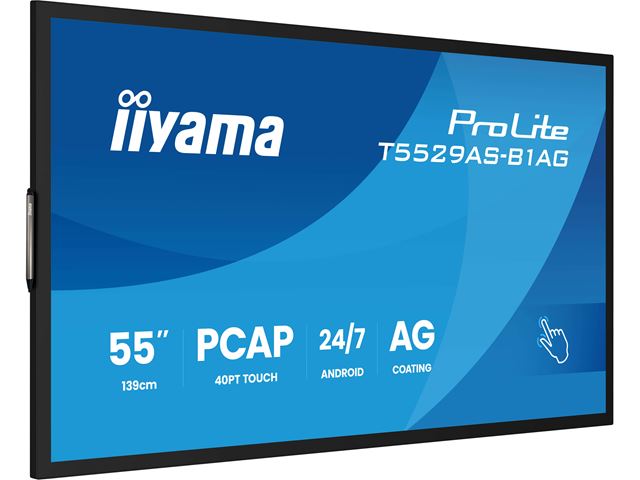

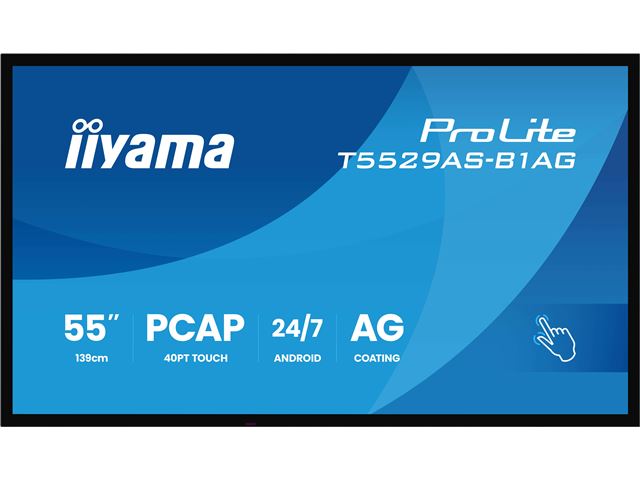

iiyama ProLite monitor T5529AS-B1AG 55", all-in-one P-Cap 20pt Touch, 4K, VA DLED panel Touch Screen with Android OS

£1,108.80 exc. VAT
£1,330.56 inc. VAT

Brand: iiyama

Manufacturer Code: T5529AS-B1AG

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

55" All-in-One PCAP Interactive Display for Smart Collaboration Spaces

The ProLite T5529AS-B1AG is a 55" all-in-one PCAP touchscreen display built for the evolving needs of modern workspaces, especially huddle spaces where creativity, flexibility, and seamless sharing take center stage.

Powered by Android OS, this interactive display delivers a user-friendly and highly adaptable experience. You can install your preferred apps directly on the device, enabling customized workflows tailored to your environment — whether in a collaborative meeting area, an enterprise innovation hub, or an educational breakout room.

The USB-C loop-through feature simplifies connectivity by allowing multiple displays to be easily daisy-chained while transmitting power, data, and video — all through a single cable. This reduces cable clutter and setup time, making it ideal for dynamic workspaces. The included wall mounting bracket makes installation straightforward and secure.

With iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation) you gain full control over content and messaging, even remotely — perfect for updating shared information or branded visuals on the fly. The integrated EShare app brings wireless screen sharing and collaboration to life, supporting multi-user interaction and real-time ideation.

The T5529AS-B1AG isn’t just a display — it’s a collaboration tool designed to empower teams, streamline communication, and make every meeting count.

Technical Information

 DISPLAY CHARACTERISTICS

Design Edge to edge glass
Diagonal 54.6", 139cm
Panel VA DLED
Touch Glass Anti-Glare Glass with Anti-Gloss treatment, Smooth writing, Zero Gap - Air Bonde, DeepContrast PCAP
Native resolution 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Brightness 450 cd/m² with touch
Light transmittance 83%
Static contrast 4000:1
Response time (GTG) 6.5ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (72% NTSC)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1209.6 x 680.4mm, 47.6 x 26.8"
Pixel pitch 0.315mm
Bezel colour and finish black, matte

 TOUCH

Touch technology DeepContrast-PCAP
Touch points 20 (HID, only with supported OS)
Touch accuracy +- 2.5mm
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes

 INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x2 (᠎1.4/ 2.0, max. 3840x᠎2160 @60Hz)
USB-C x1 (3.2, DP 1.2 Alt mode, 15W PD)
Monitor control input RS-232c x1
RJ45 (LAN) x1
IR x1 (3.5mm)
Audio output Speakers 2 x 10W
Monitor control output RS-232c x1
IR loop through x1 (3.5mm)
HDCP 1.4 / 2.2
USB ports x2 (2.0 with Multi-Media support)
RS-232c x1

 FEATURES

Integrated software Android 14 OS, Whiteboard, iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, Web-, PDF & Media Player, iiBrowser, File manager
WiFi WiFi 5 @ 2.4G / 5G
Hardware CPU: MTK9679 Quad-core A73*4, GPU: Mali G51, RAM: 4GB, ROM: 32GB
Kiosk mode yes
Max. non-stop operating time 24/7
Anti image retention yes
Glass thickness 3.7mm
Glass hardness 8H
Housing (bezel) metal
OSD key lock yes
Remote control lock yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power (long press for Quick Menu (source, volume +, volume -, brightness +, brightness -, Touch unlock)
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noice reduction, gamma selection, low blue light, color temp., color control, picture reset), audio (balance, treble, bass,volume, audio out, max. volume, min. volume, mute, speakers setting audio reset), OSD setting (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD, side bar), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, scree reset), device (power on status, RS232 routing, IR control, Physical button, motorized stand, power saving, panel saving, monitor info, Touch lock, other), system (language, system update, settng reset, factory reset, Android setting), admin (menu lock, meeting lock, HDMI CEC, kiosk mode, screen share, Miracast standby, log export)
Plug&Play DDC2B

 MECHANICAL

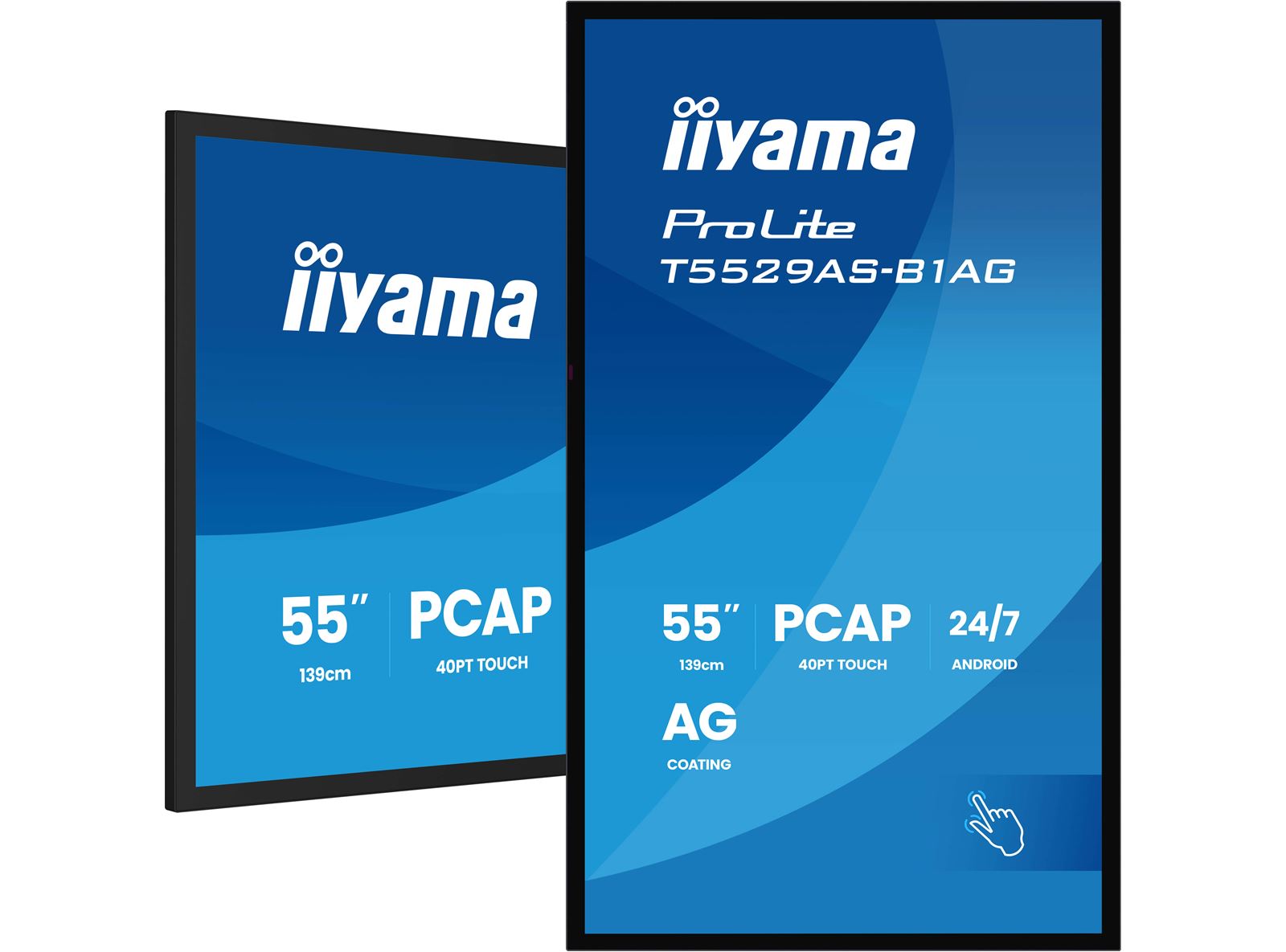

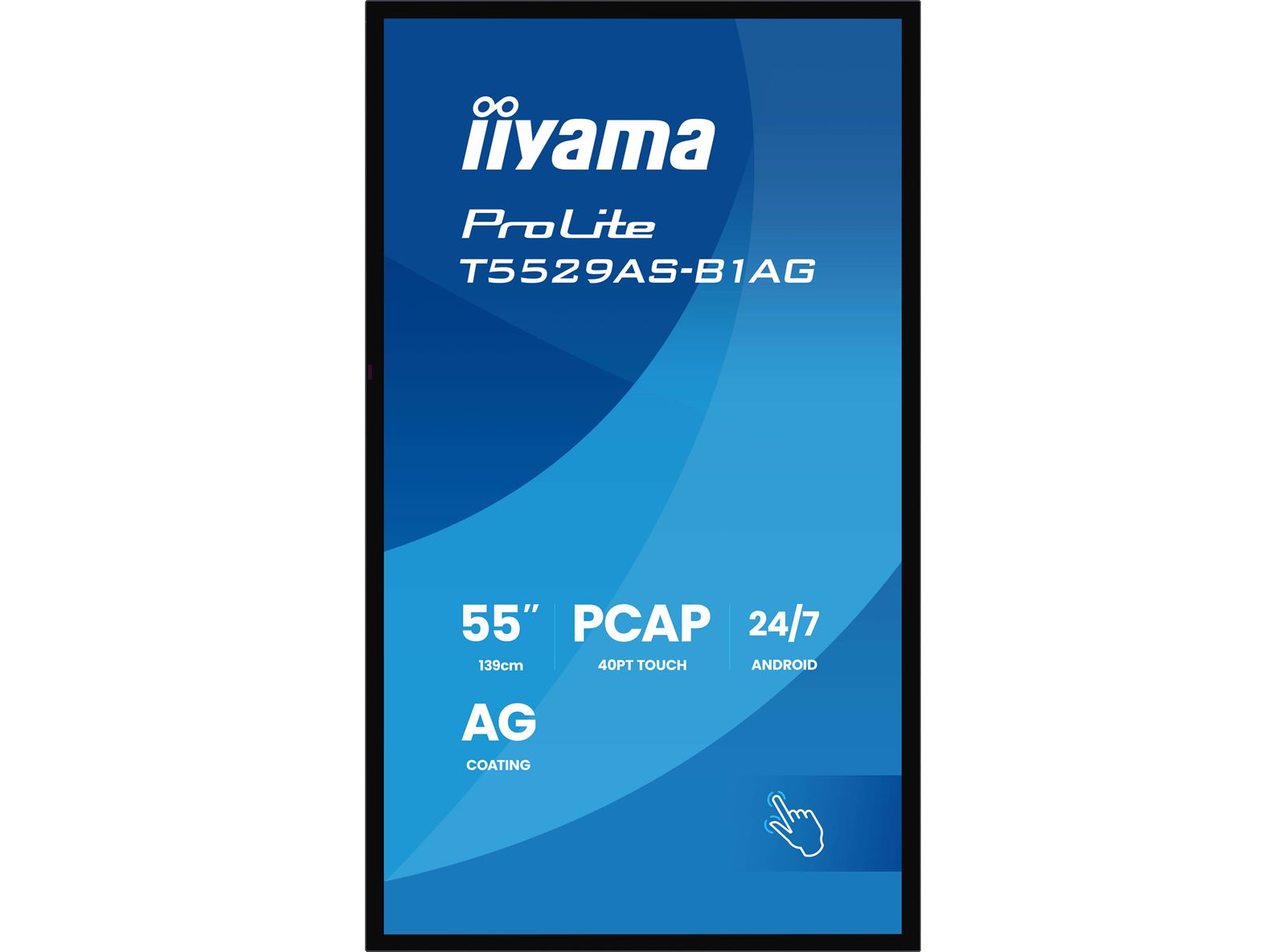

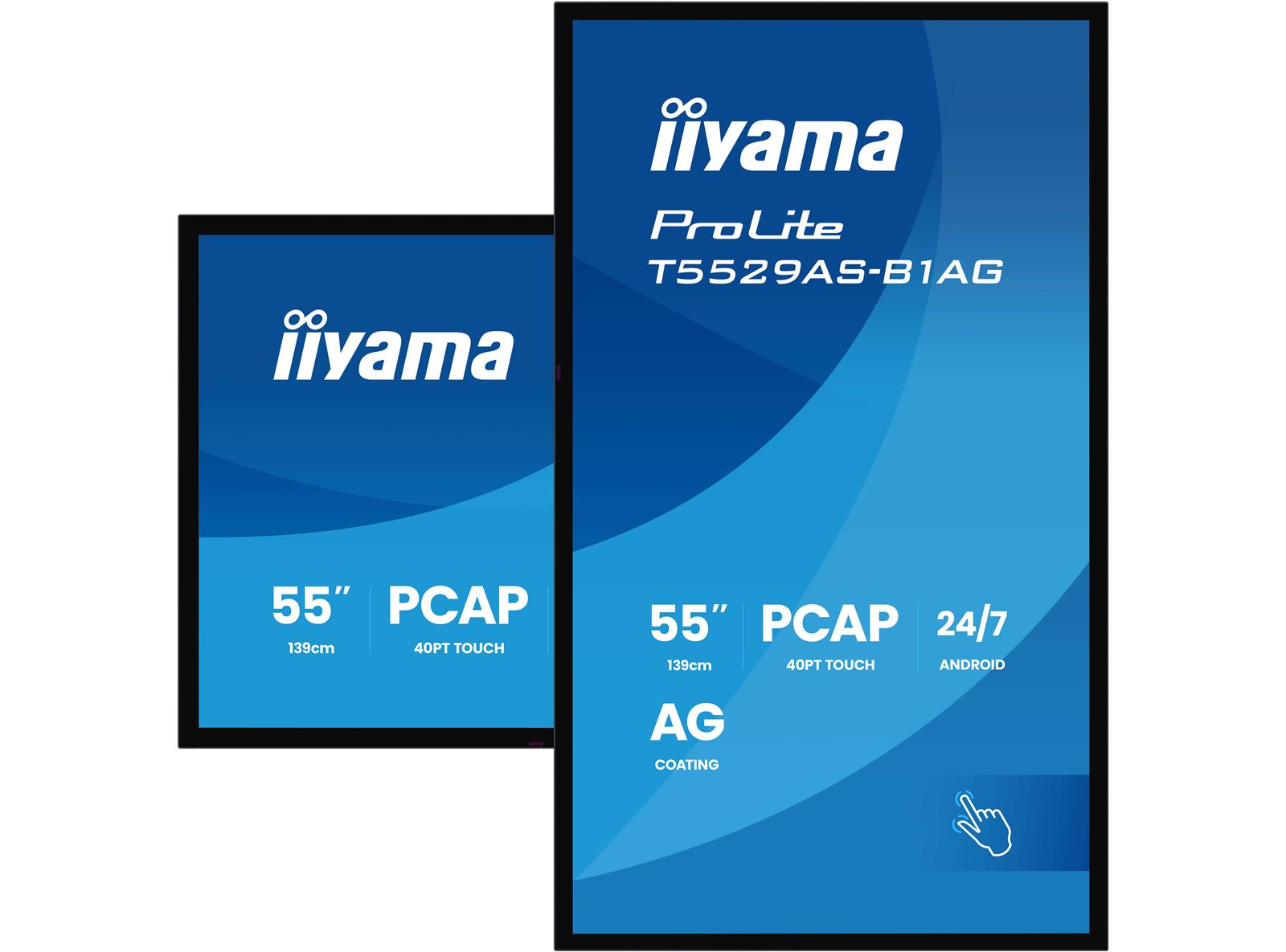

Orientation landscape, portrait
Fanless design yes

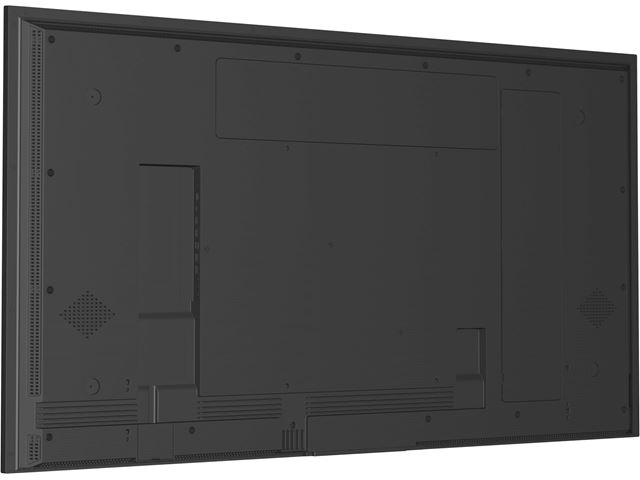

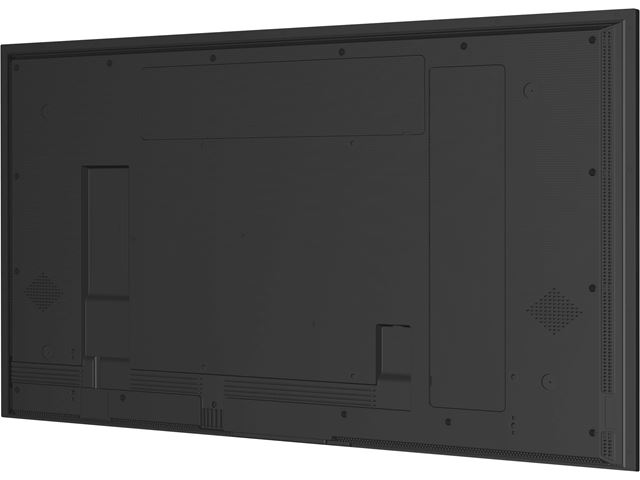

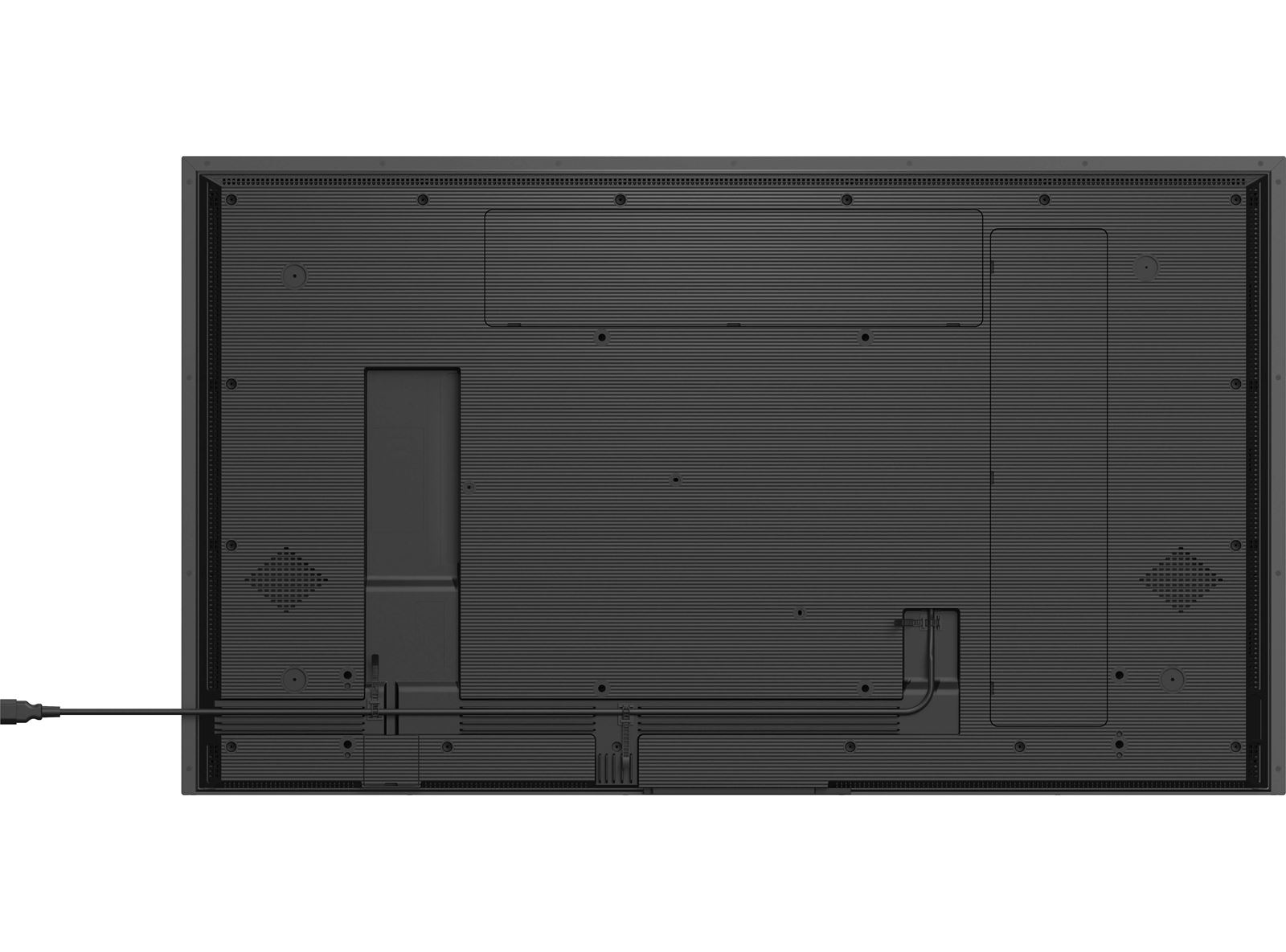

VESA mounting 300 x 400mm
Operation temperature range 0°C - 40°C
Operation temperature range (-°/+°) -20°C - 60°C
MTBF 50000 hours (excluding backlight)

 ACCESSORIES INCLUDED

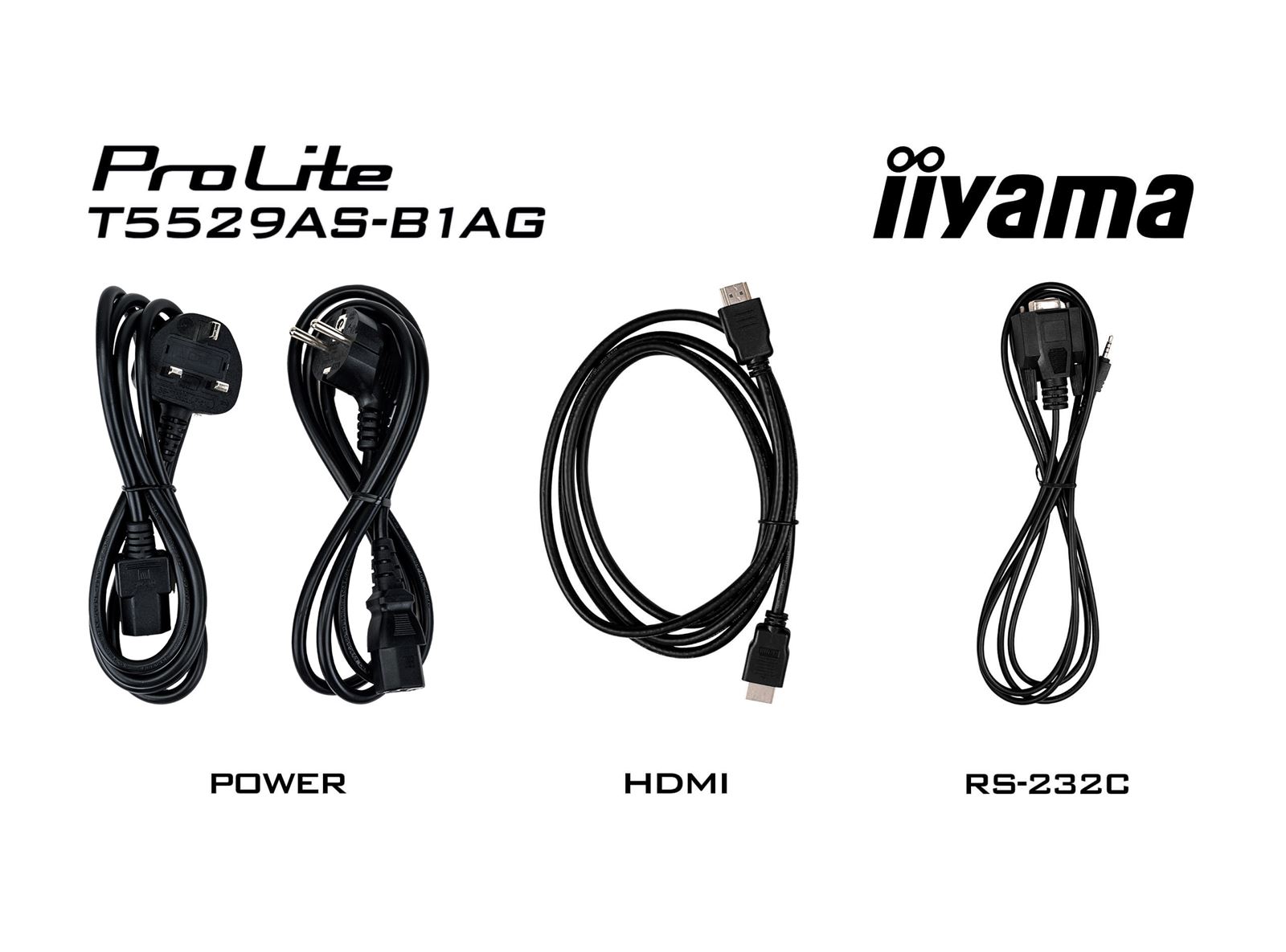

Cables power, HDMI, RS-232c

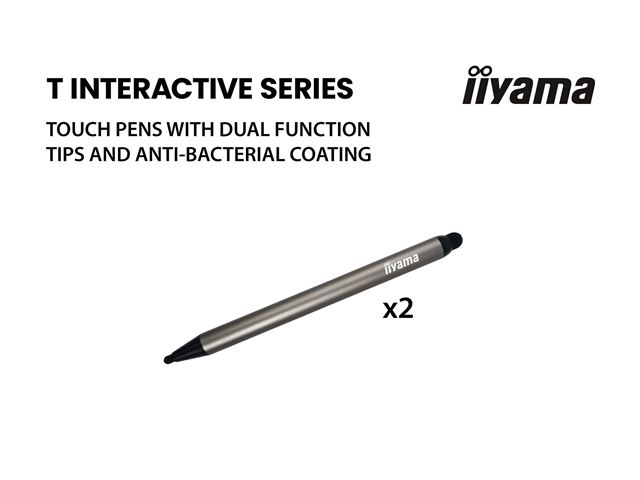

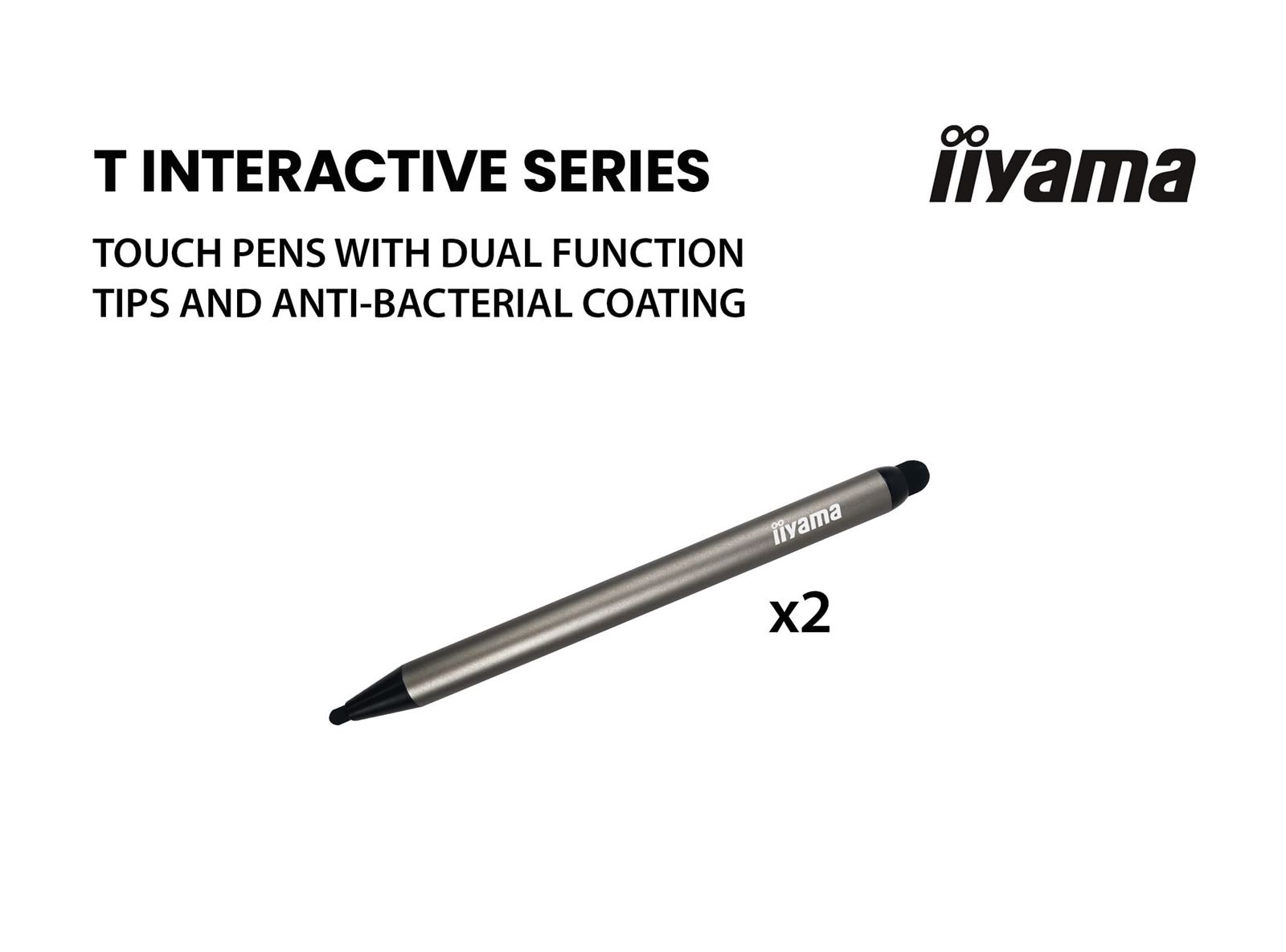

Touch pen x2 (Dual tips)
Guides quick start guide, safety guide
Other Wall Mounting Bracket (VESA 300x400), Magnetic holding places for Touch pens (on sides in landscape)
Remote control yes (batteries included)

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 104W typical, 0.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Energy efficiency class (Regulation (EU) 2017/1369) G
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 1258.2 x 728.8 x 42.3mm
Box dimensions W x H x D 1400 x 850 x 164mm
Weight (without box) 26.8kg
Weight (with box) 32.7kg
EAN code 4948570125586
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

24/7

24/7 displays are designed for a continuous operation.



24/7

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

VA MATRIX

VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


VA MATRIX

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS

Included Wall Mount

Wall mount bracket included, compatible VESA mounting sizes.

Included Wall Mount
