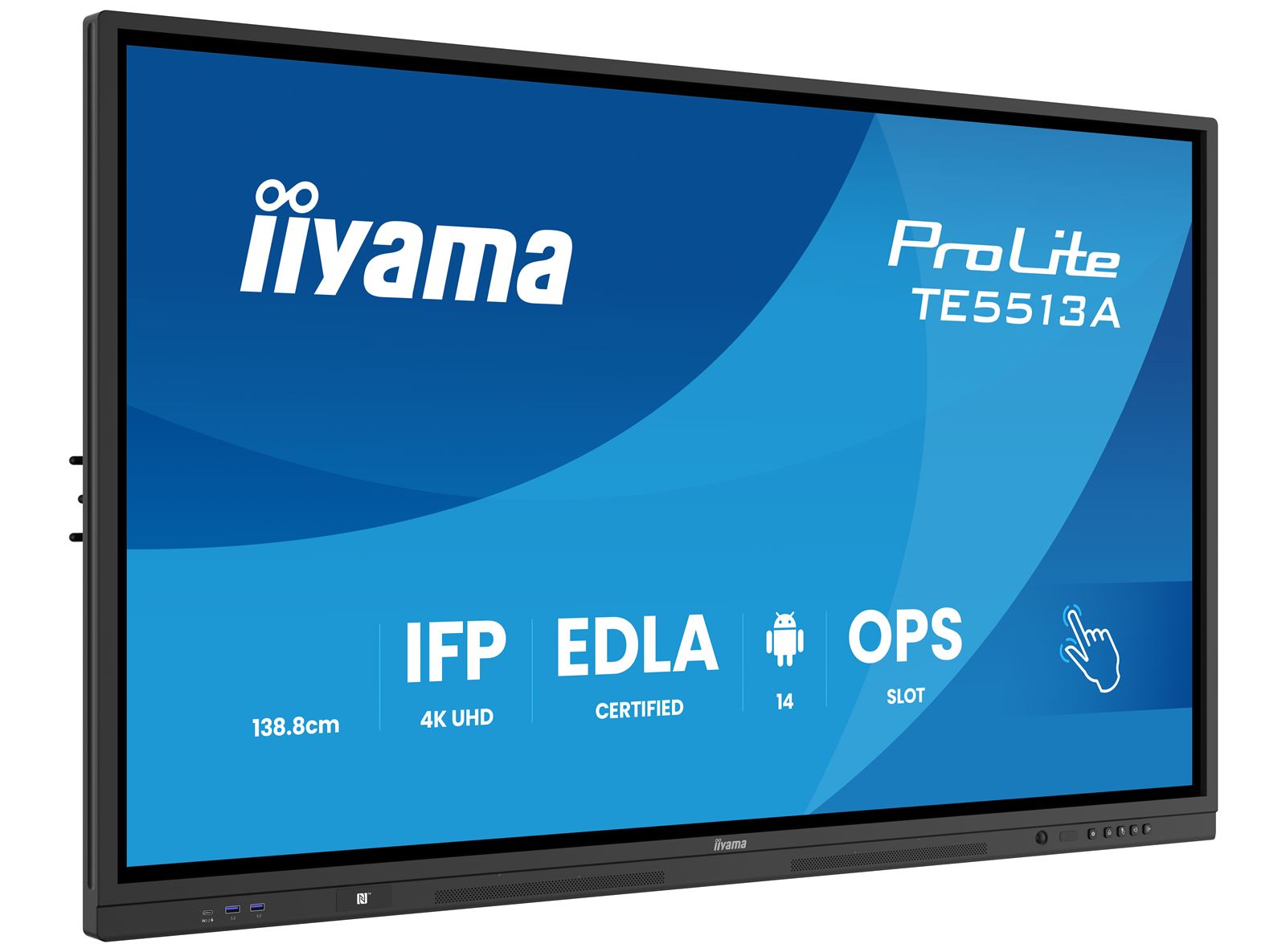

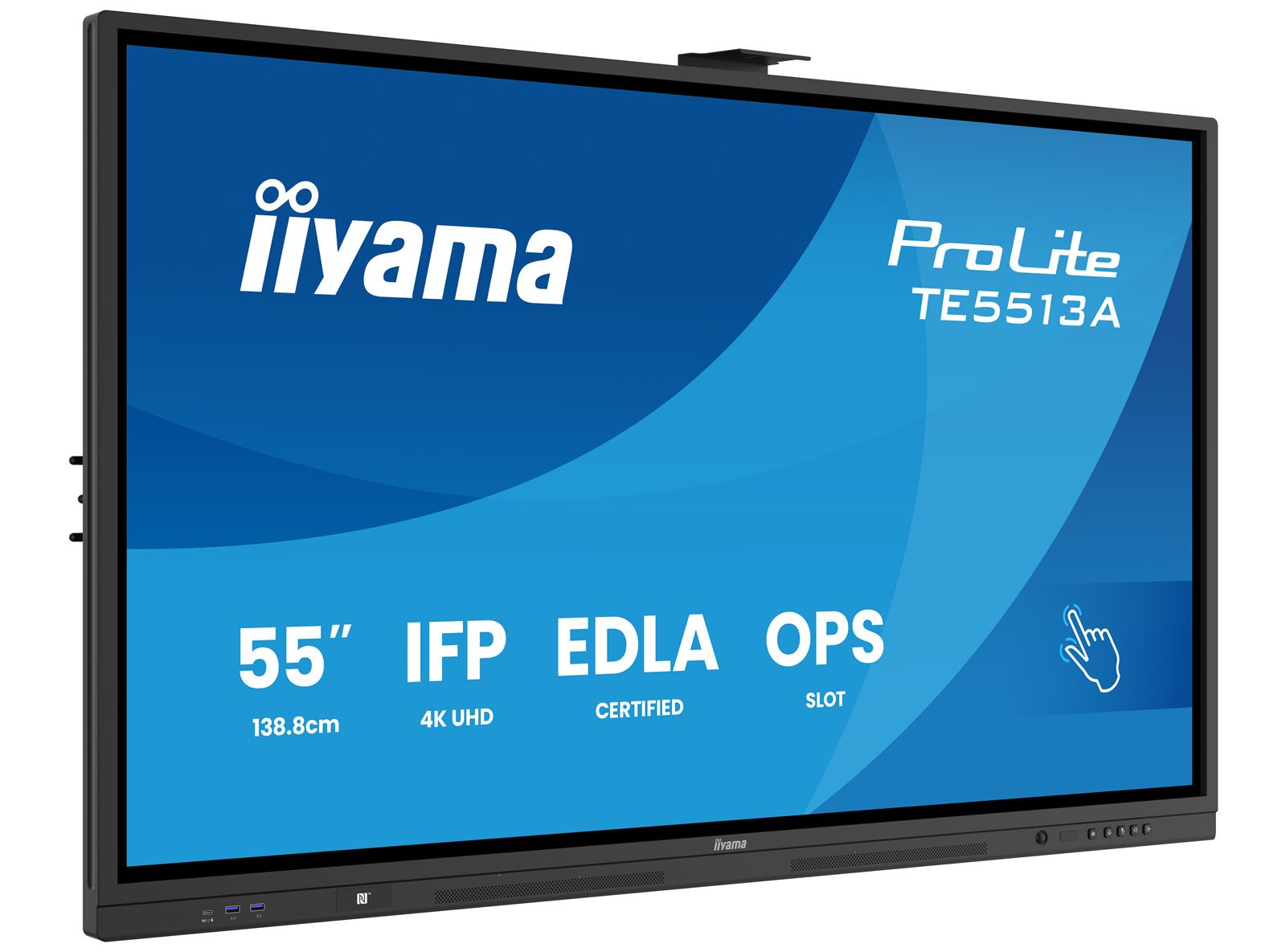

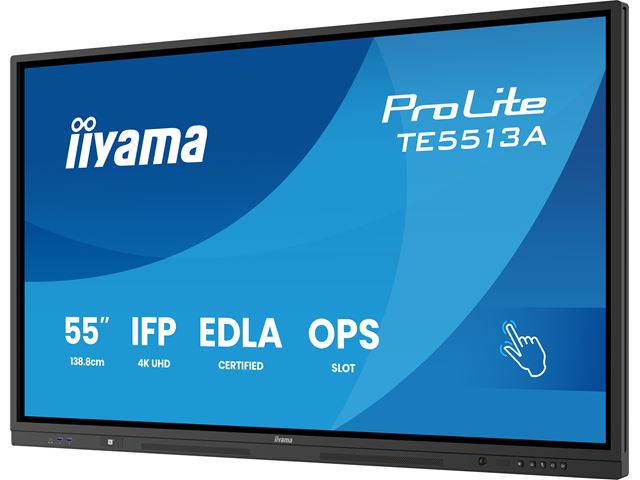

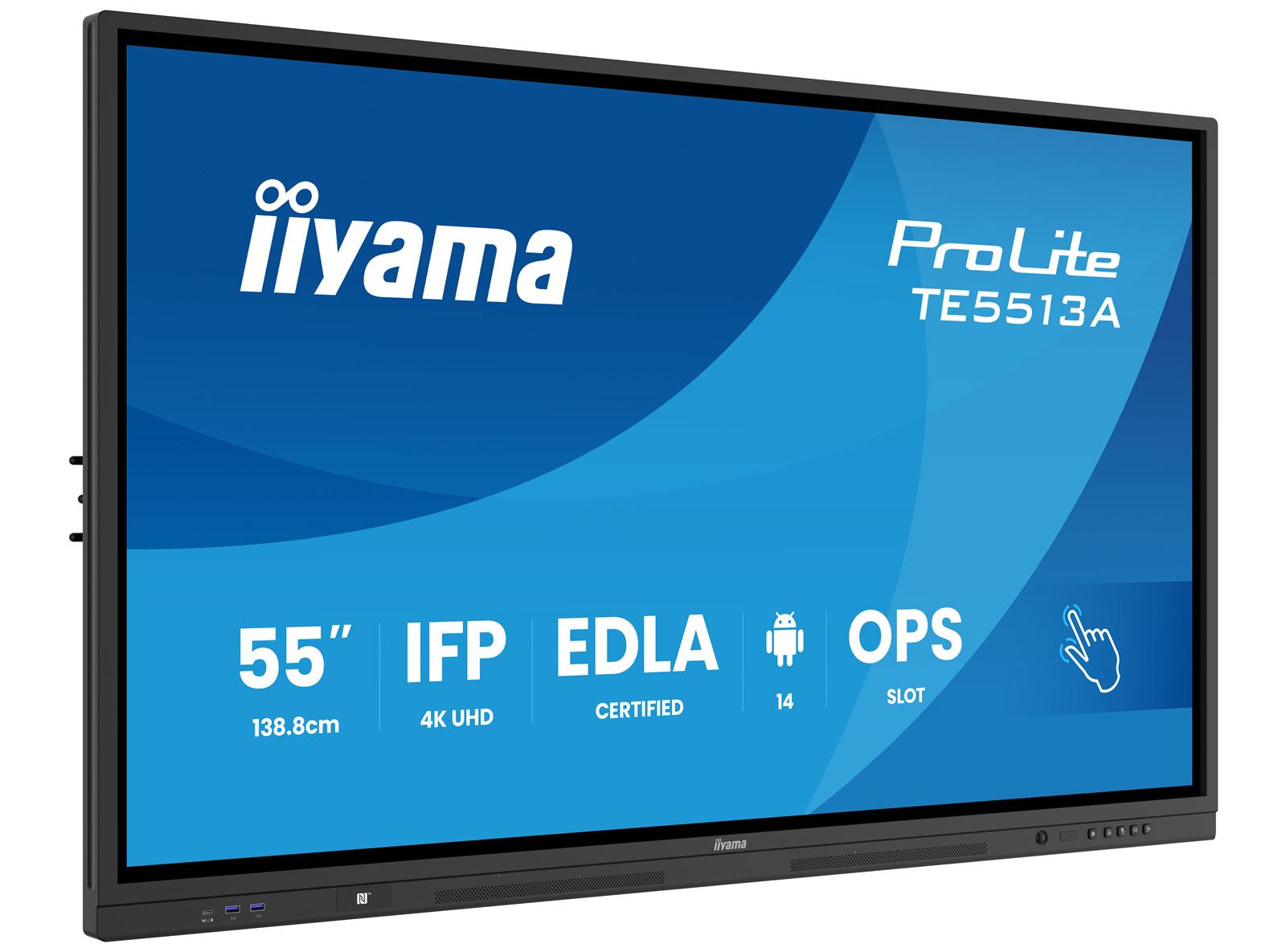

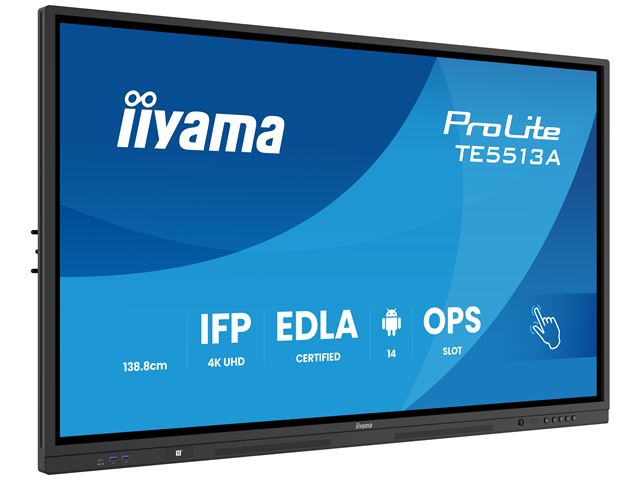

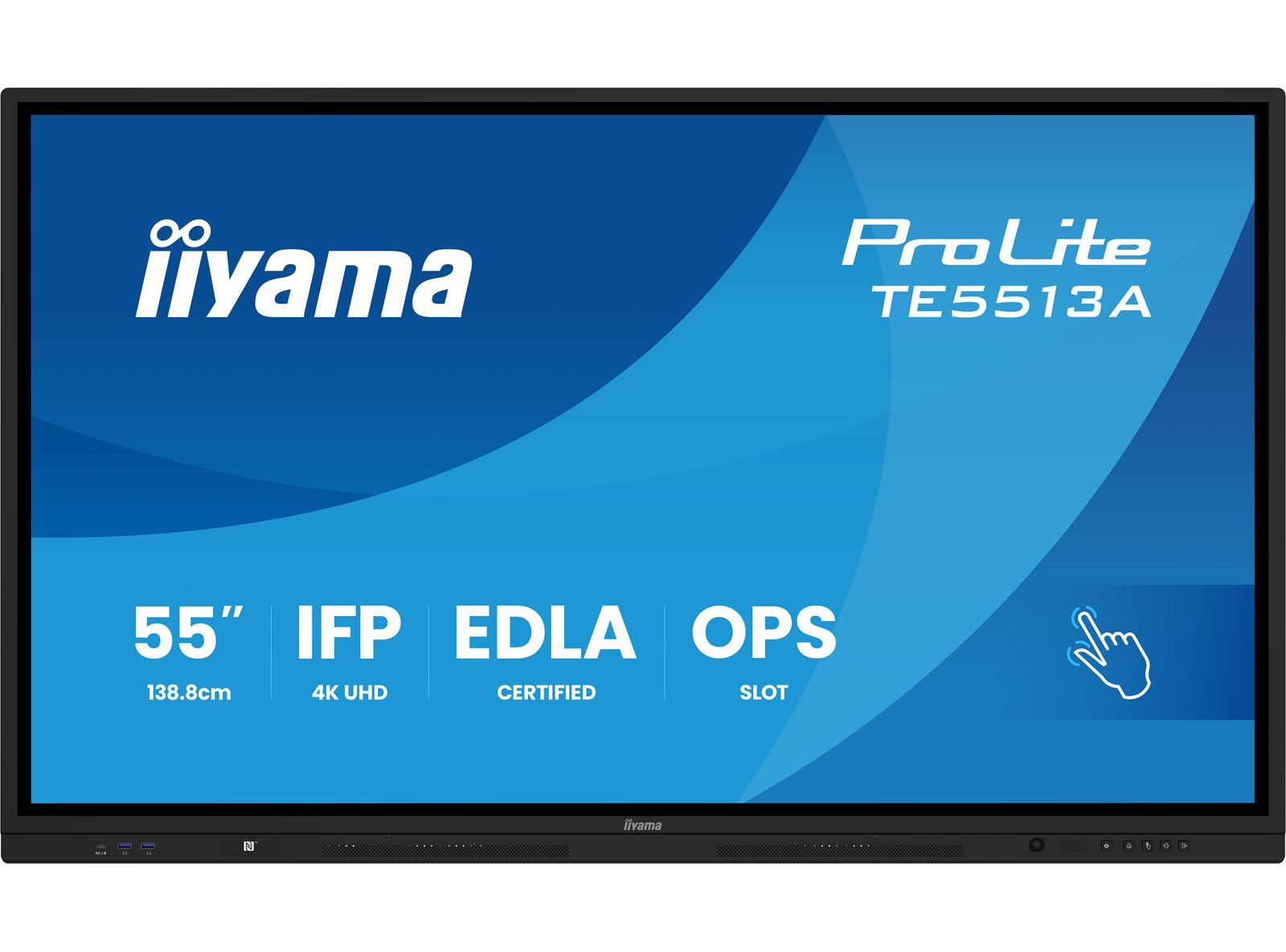

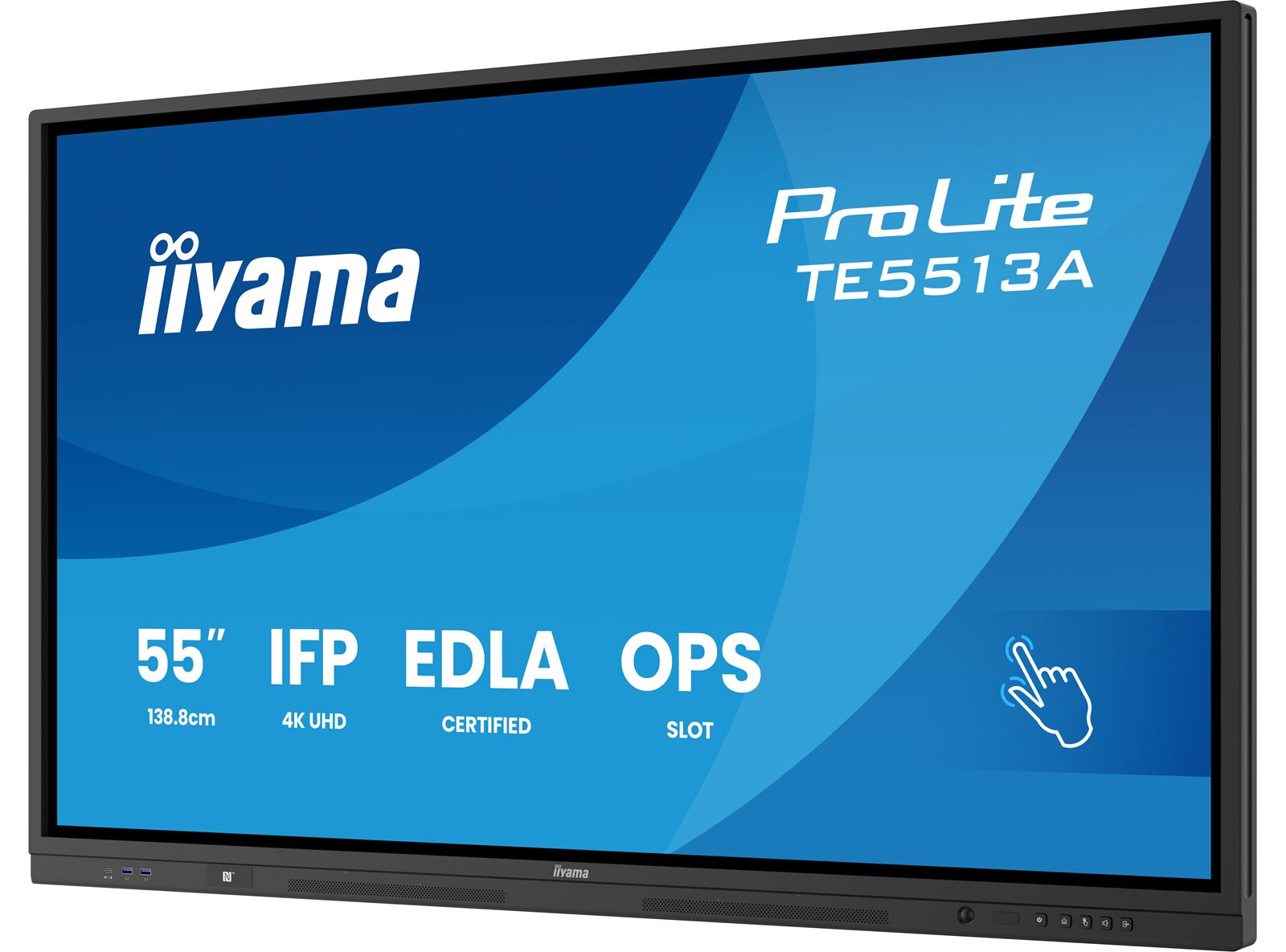

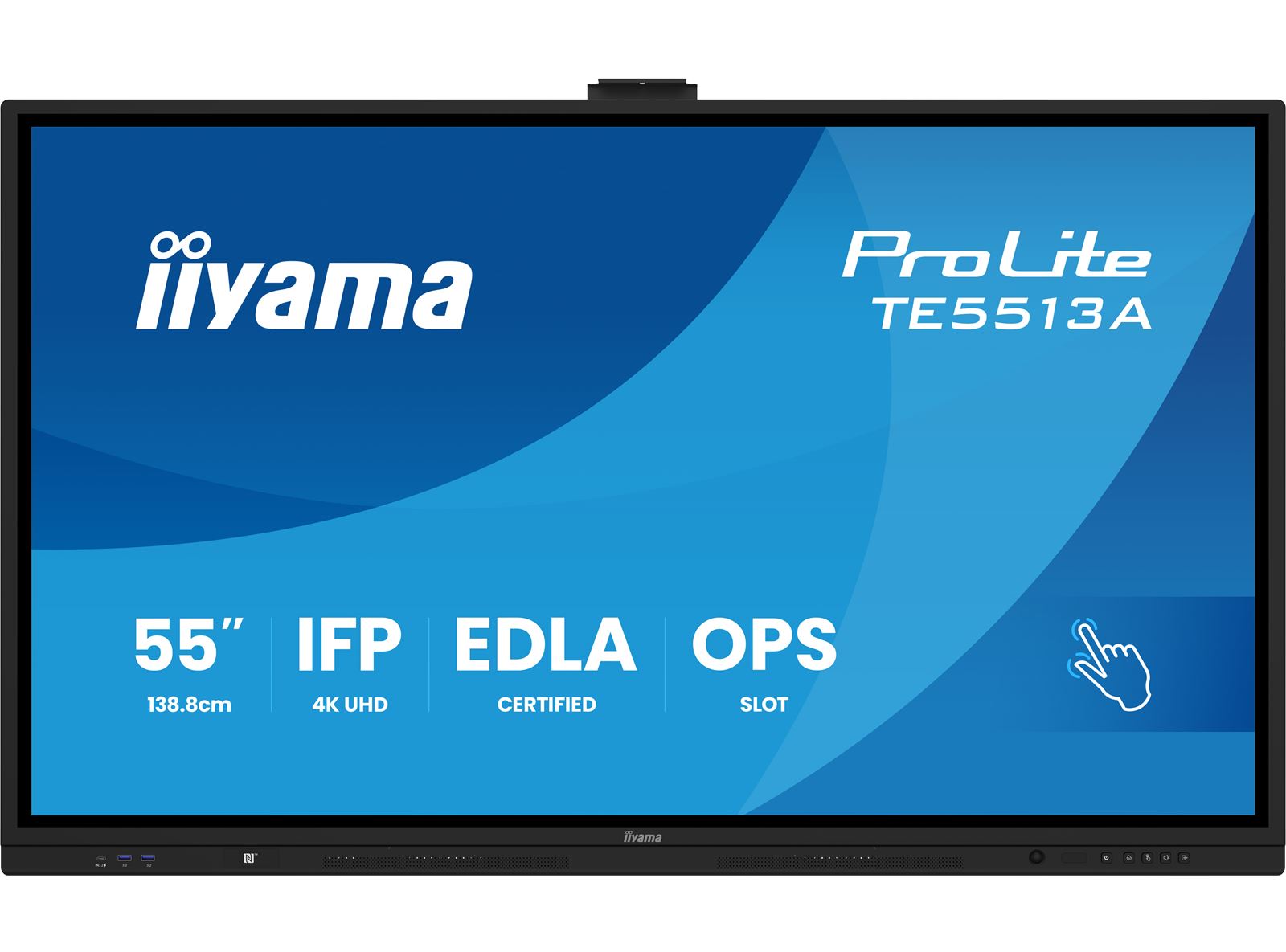

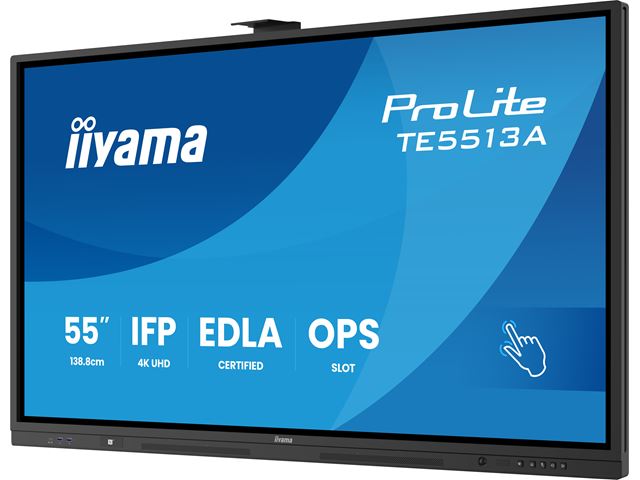

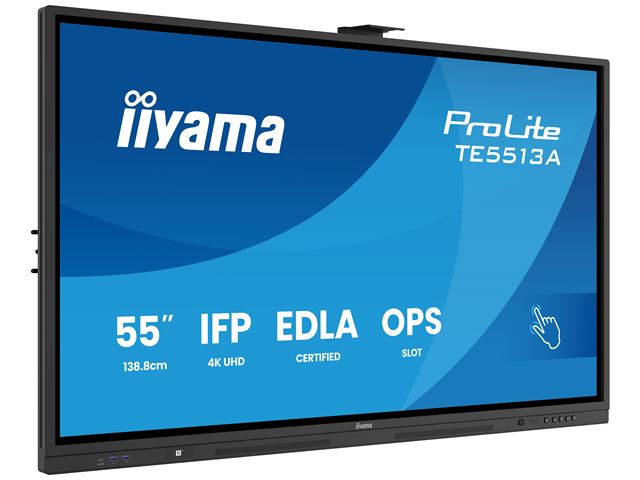

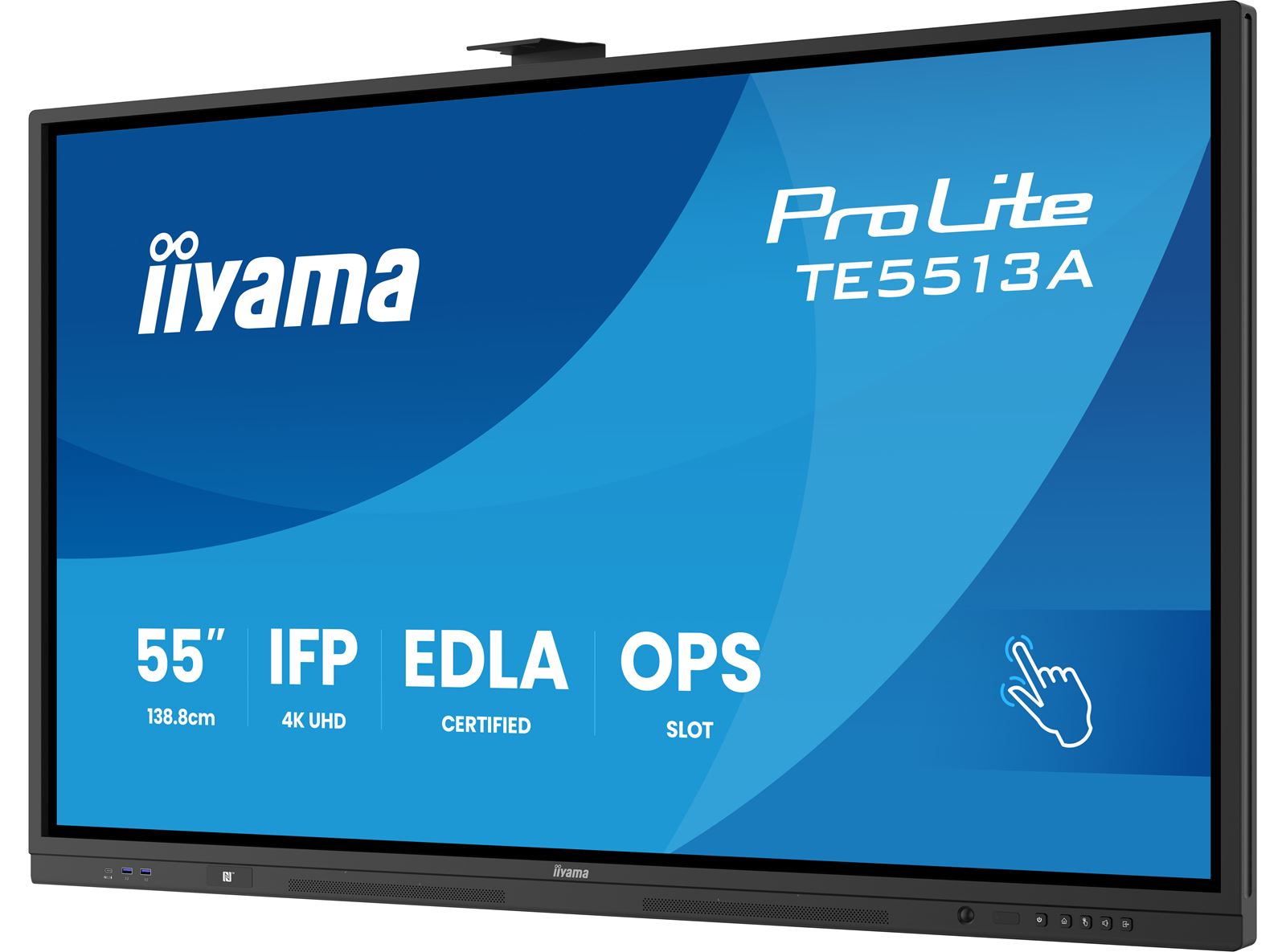

iiyama ProLite TE5513A-B1AG 55’’ Google EDLA Certified 4K Touchscreen, iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5, with wall mount.

£902.00 exc. VAT
£1,082.40 inc. VAT

Brand: iiyama

Manufacturer Code: TE5513A-B1AG

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

55" Google EDLA Certified IFP - Interactive display for seamless integration and collaboration in education and enterprise

The TE5513A-B1AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero Airgap LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction.

Powered by iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5.0 connectivity, and iiControl (DMS), it integrates seamlessly into your ecosystem.

Enjoy advanced wireless sharing with the intuitive iiShare app for streamlined collaboration and enjoy added features like a PIR motion sensor for energy efficiency and NFC Reader for security. Perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.

Technical Information

 DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 54.6", 138.8cm
Panel IPS
Touch Glass Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero Bonding
Panel IPS
Native resolution 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio 16:9
Panel brightness 450 cd/m²
Light transmittance 88%
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Horizontal Sync 30 - 135kHz
Viewable area W x H 1210 x 680mm
Pixel pitch 0.315mm
Bezel colour and finish black, matte

 TOUCH

Touch technology PureTouch-IR⁺
Touch points 40, 10pt writing (HID, only with supported OS, 32pt Touch with Android)
Scan rate 200Hz
Touch accuracy +- 1mm
Touch method stylus, finger, glove (Passive pen, Opaque objects)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes

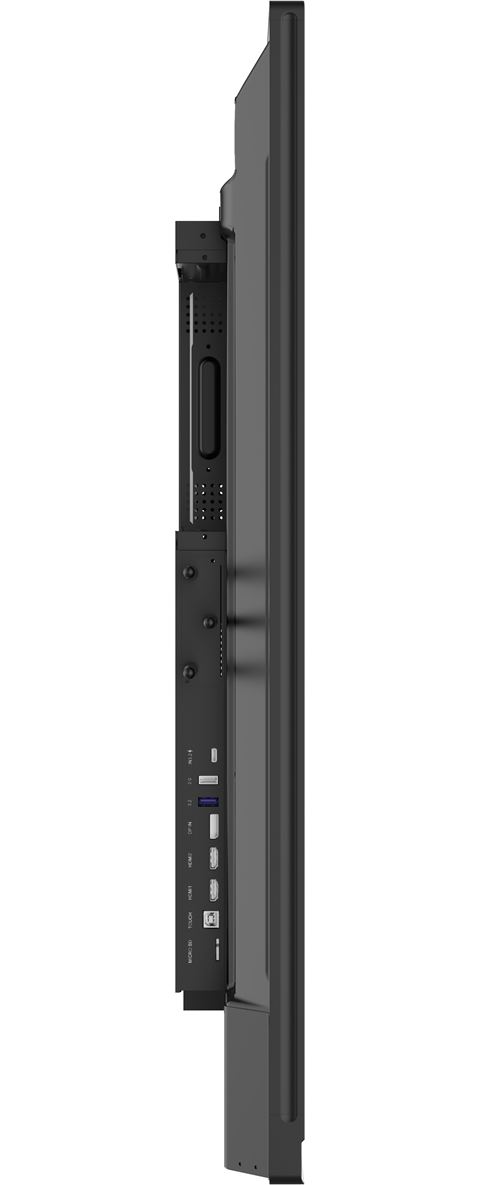

 INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444, ARC on HDMI #1)
DisplayPort x1 (1.2, max. 3840x2160 @60Hz)
USB-C x2 (3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz (RGB444), DP 1.2 Alt mode, 100W PD (1x front (network sharing 100M, 1x side), Data, Touch)
Audio input Mini jack x1 (Microphone)
Monitor control input RS-232c x1 (DSUB 9pin)
Digital signal output HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444, MSD (Multi-Screen Display))
Audio output S/PDIF (Optical) x1
Mini jack x1 (Headphone)
Speakers 2 x 20W (Front facing + 20W Subwoofer)
Monitor control output OPS Slot x1 (Intel OPS 80pin)
HDCP 2.3
USB ports x5 (media playback / peripherals / storage – front side: 2x 3.2 (Gen 1, 5Gbit,), 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), side: 1x 3.2 (Gen 1, 5Gbit, 1x USB-C v.3.2 (Gen 1, 5Gbit, 100W PD))
RJ45 (LAN) x2 (IN / OUT, Auto switch for PC & Android, 1000MB)

 FEATURES

Integrated software iiWare 21E (Android 14 OS) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices
WiFi yes (WiFi-6, Bluetooth 5.0)
Hardware CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB
Extra Ambiant light Sensor, NFC Reader, PIR Motion Sensor, Slot for optional OPS PC, 4x Touch pen (anti-bacterial coating)
Kiosk mode yes
Media playback yes
Glass thickness 3.2mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power, Home, Touch-freeze, Volume, Input (source)
User controls general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system)
Blue light reducer yes
Flicker free yes
Plug&Play DDC2B
Warranty 5 years (for details and eligible countries please check the Warranty section of our website)

 MECHANICAL

Orientation landscape
Fanless design yes

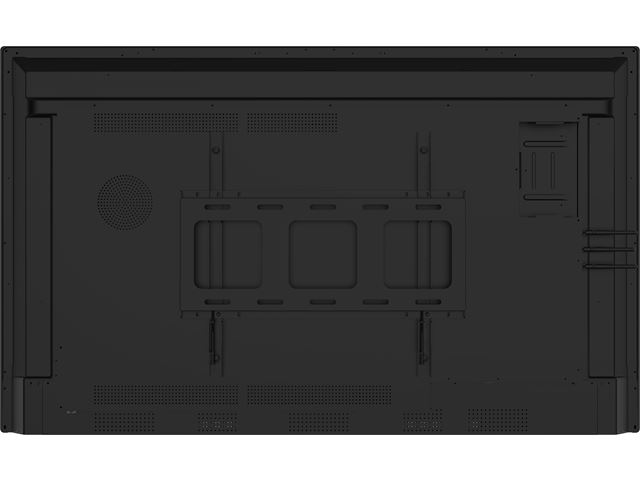

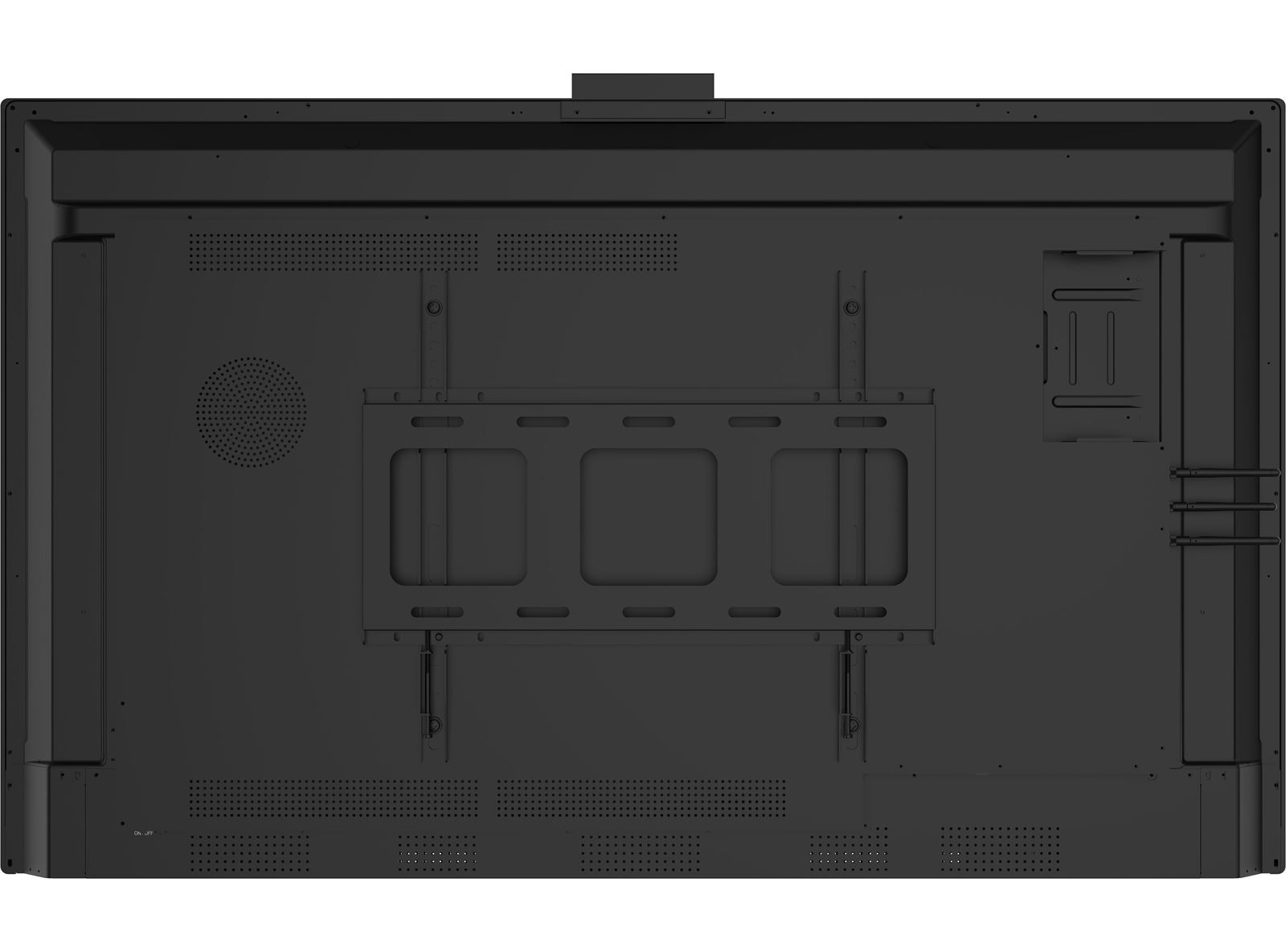

VESA mounting 400 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

 ACCESSORIES INCLUDED

Cables power (EU 3m, UK 3m), USB (3m), HDMI (3m)

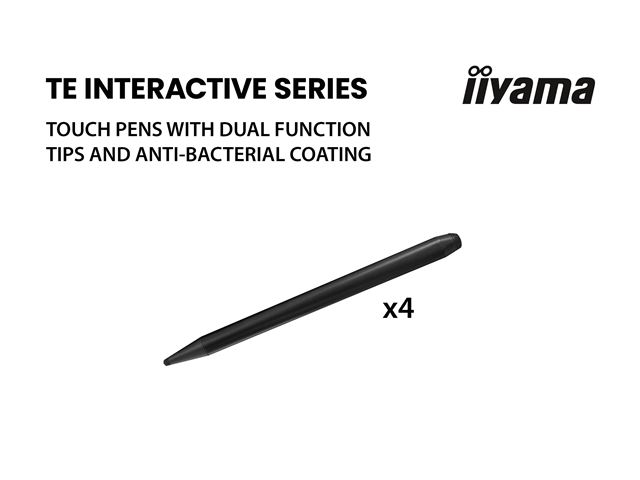

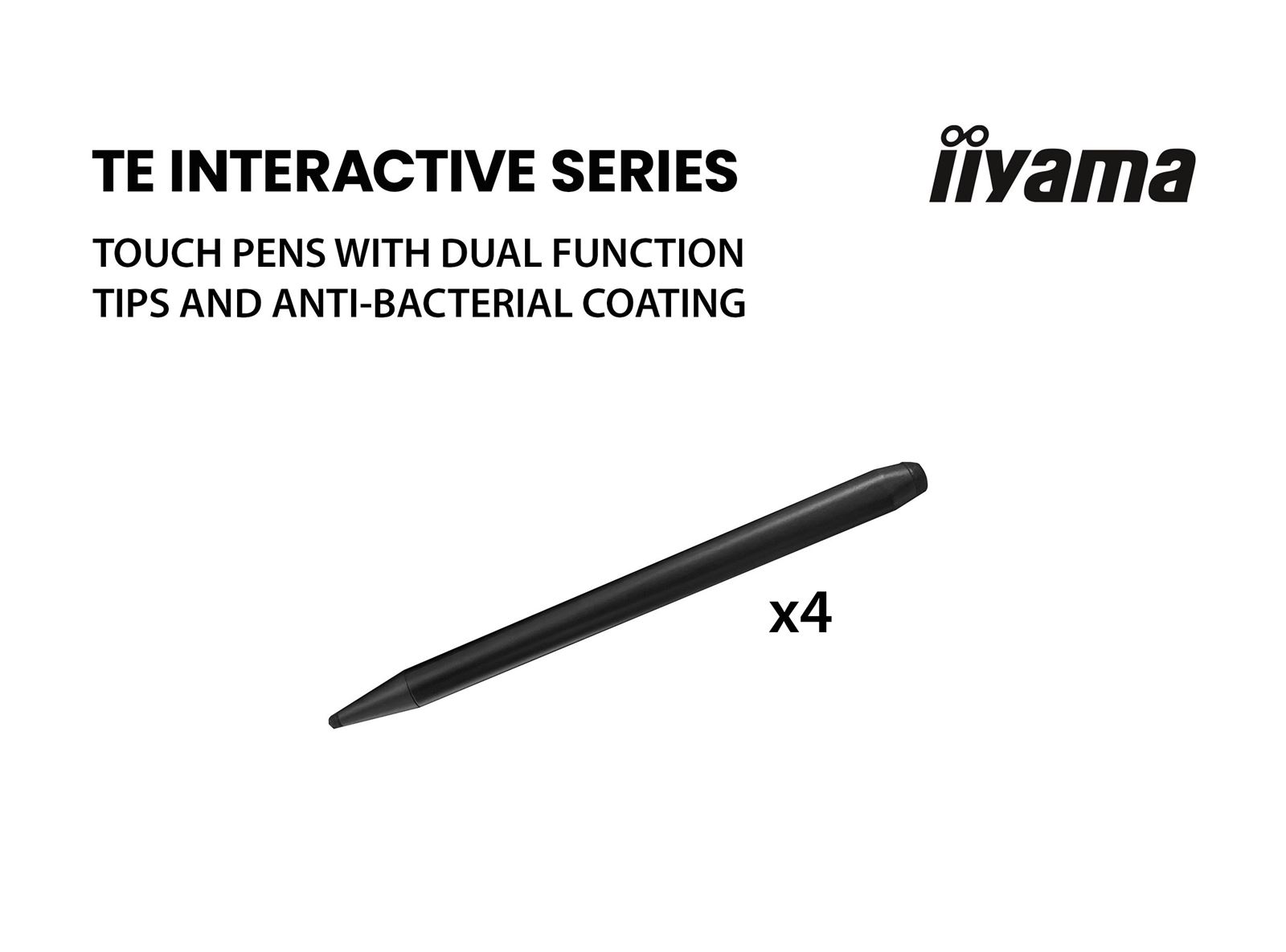

Touch pen x4 (Dual function tips, anti-bacterial coating)
Guides quick start guide, safety guide

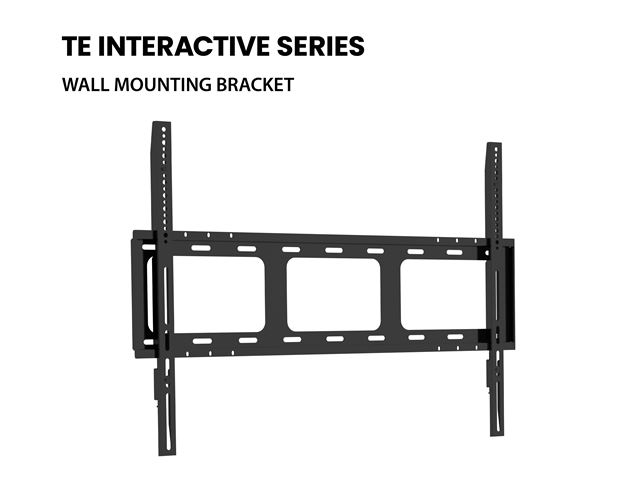

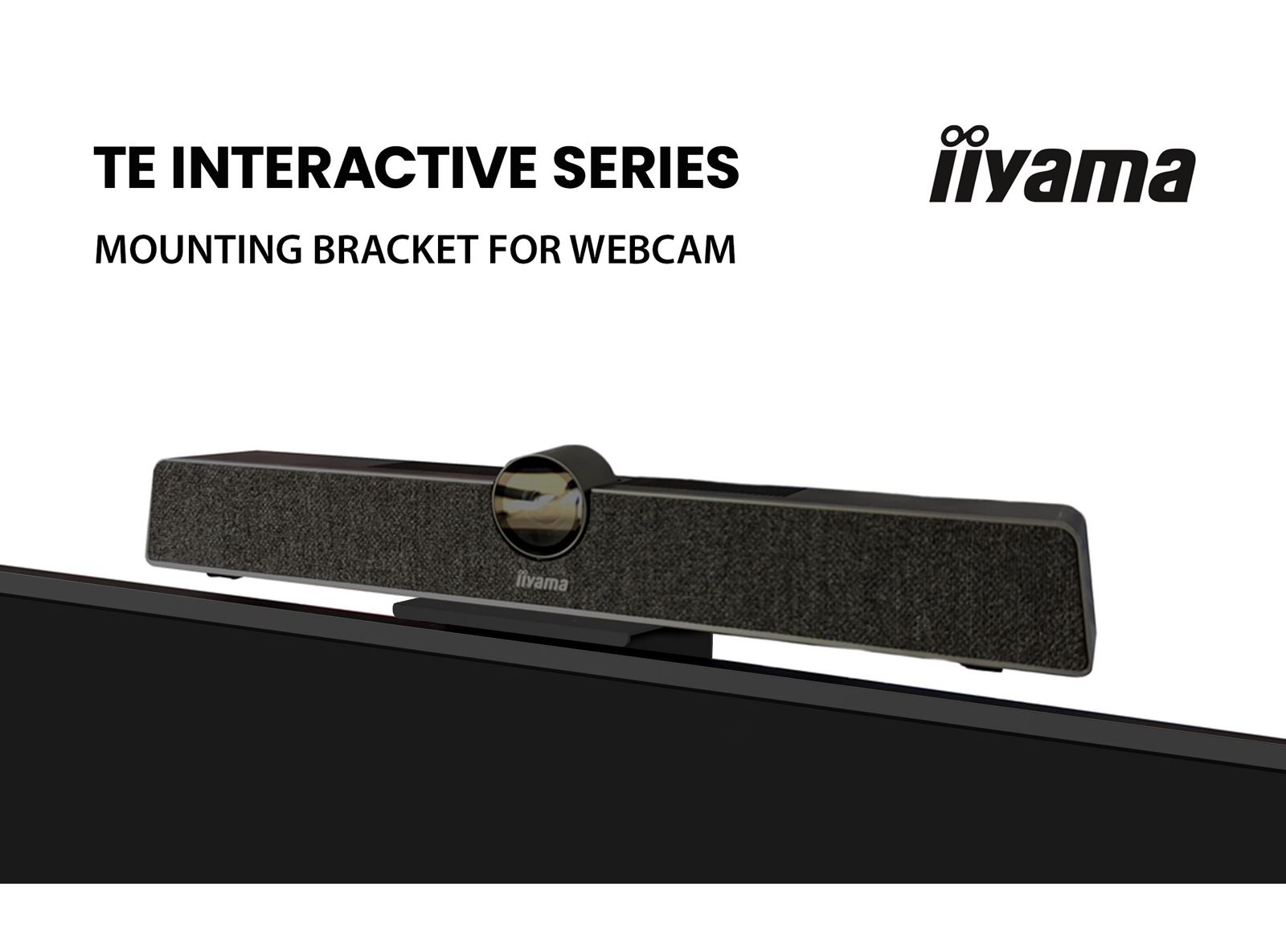

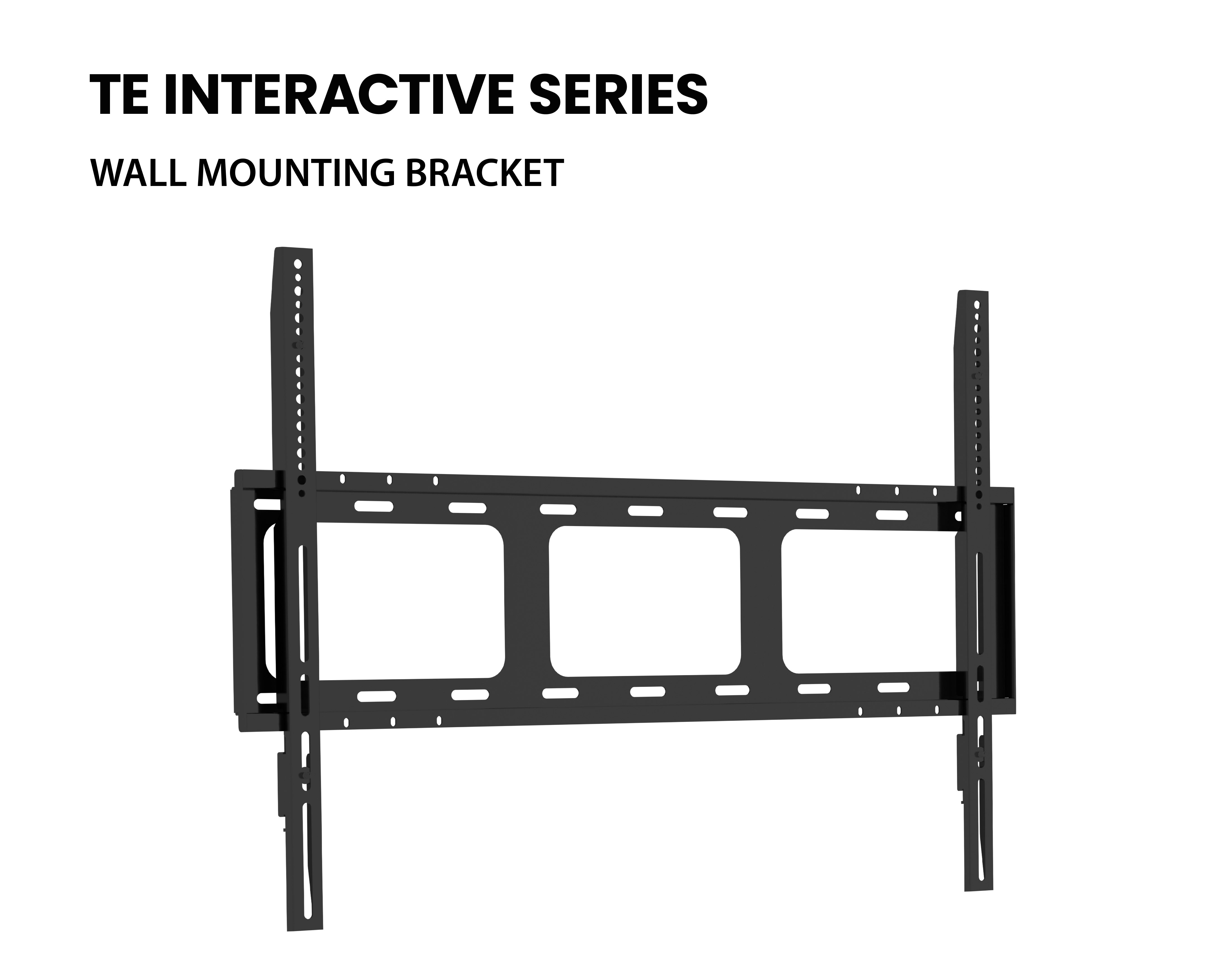

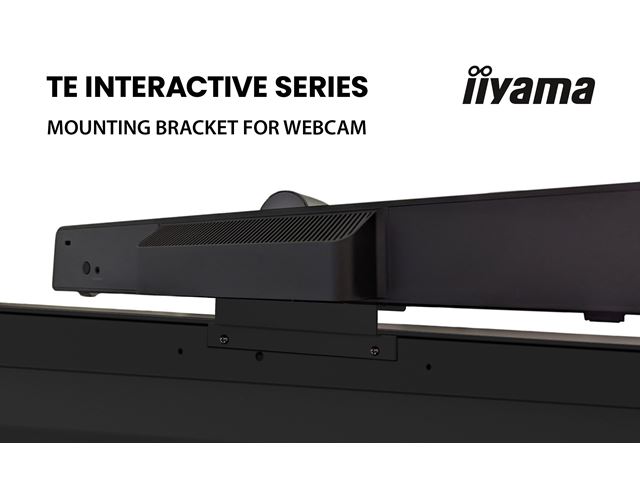

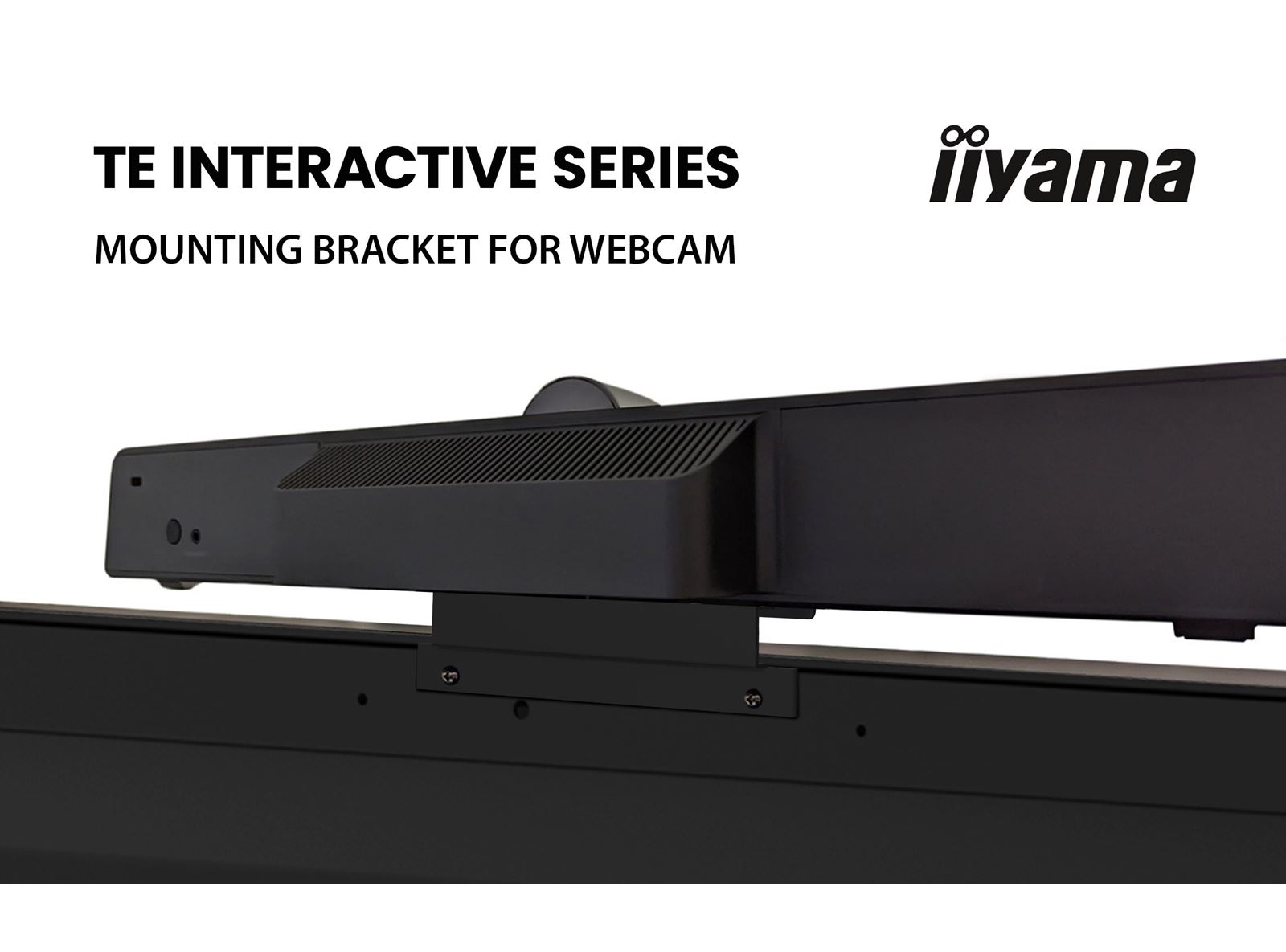

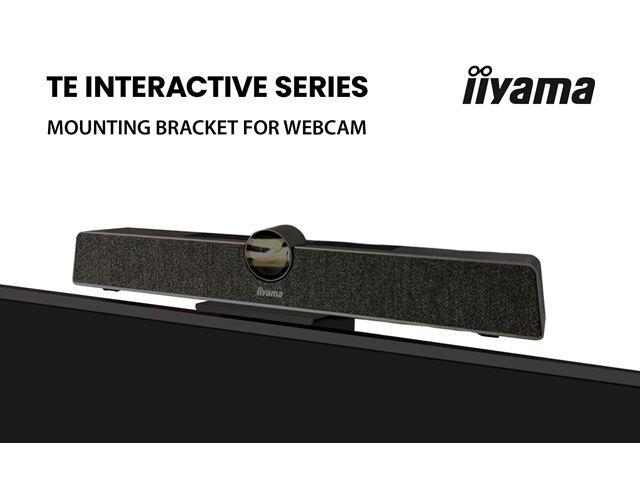

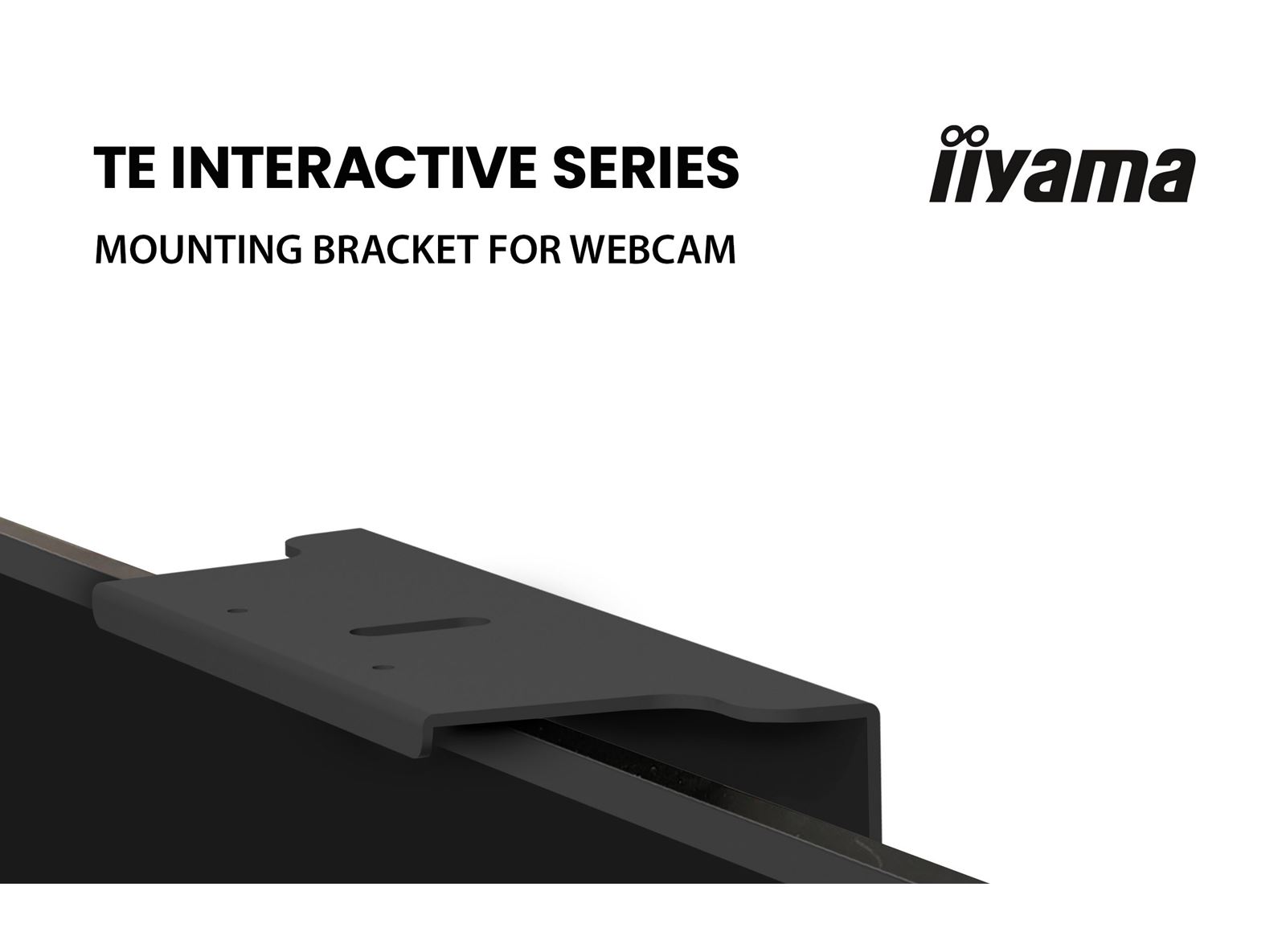

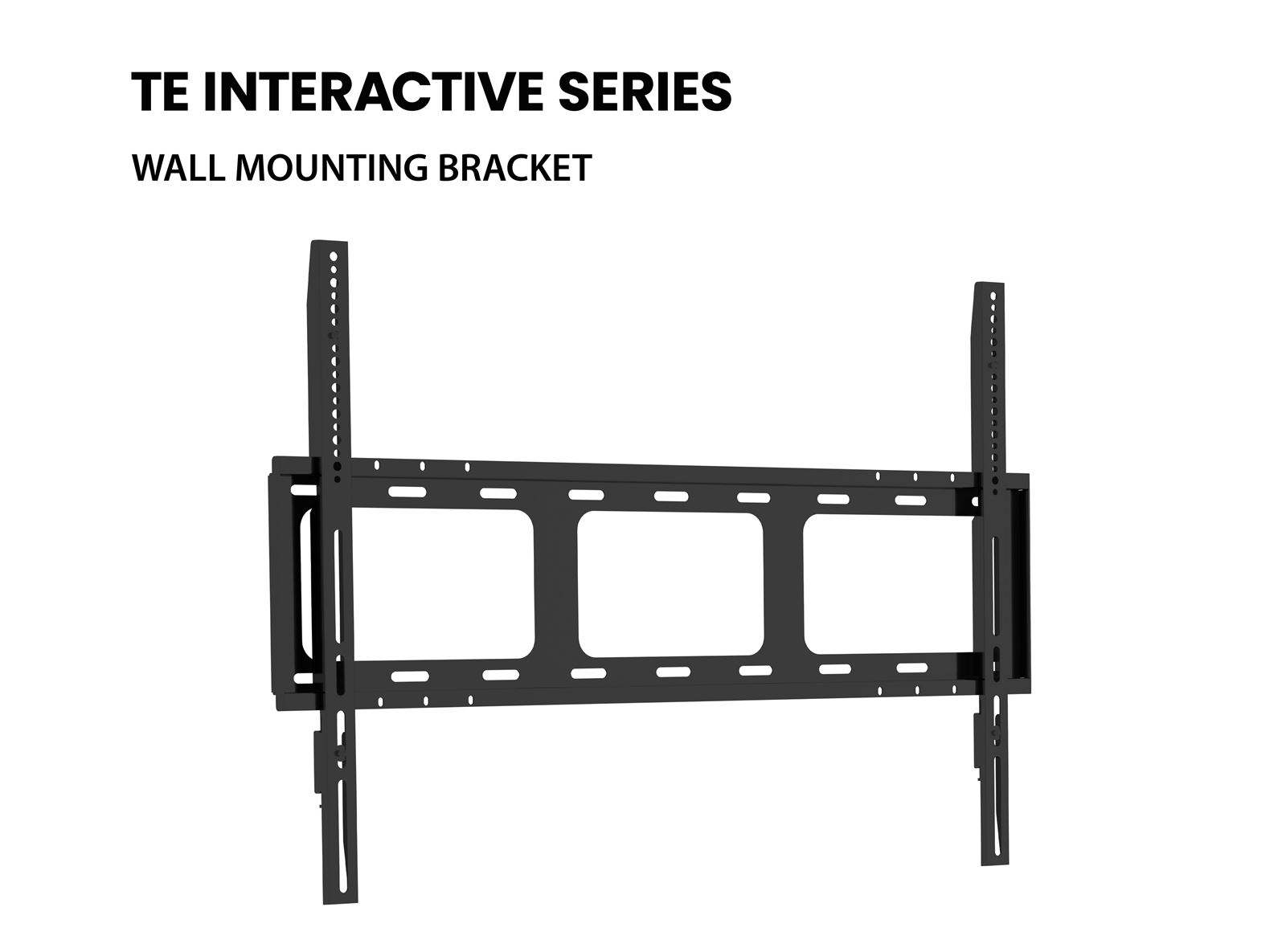

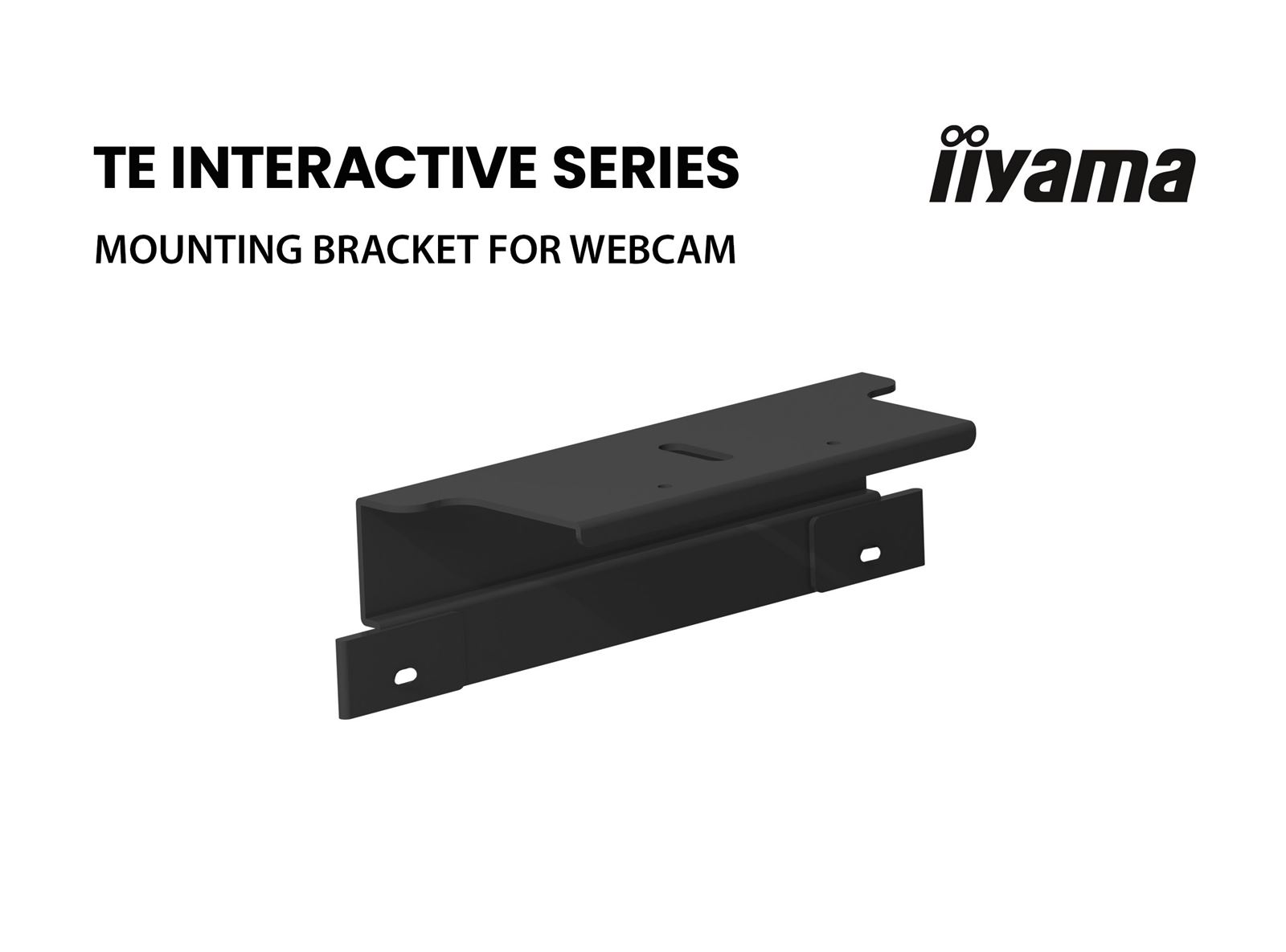

Other Wall Mounting Bracket (VESA 400x400), Webcam Mounting Bracket
Remote control yes (batteries included)

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 125W typical, 0.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS)
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 1267 x 765.4 x 86mm
Box dimensions W x H x D 1385 x 865 x 185mm
Weight (without box) 28.7kg
Weight (with box) 34.8kg
EAN code 4948570124794
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

OPS PC SLOT

Built-in expansion slot supports the Open Pluggable Specification (OPS) standard; it simplifies the installation of a plug-in PC for digital signage applications.



OPS PC SLOT

24/7

24/7 displays are designed for a continuous operation.



24/7

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

PALM REJECTION FUNCTION

Palm rejection is a way to disregard signal from finger while using the pen mode. When you touch the screen with a pen, and your palm is touching the monitor, palm rejection is activated and the screen does not recognize touch made with the finger. If the screen is not touched for 1 second, it will automatically return to the finger mode.

PALM REJECTION FUNCTION

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS

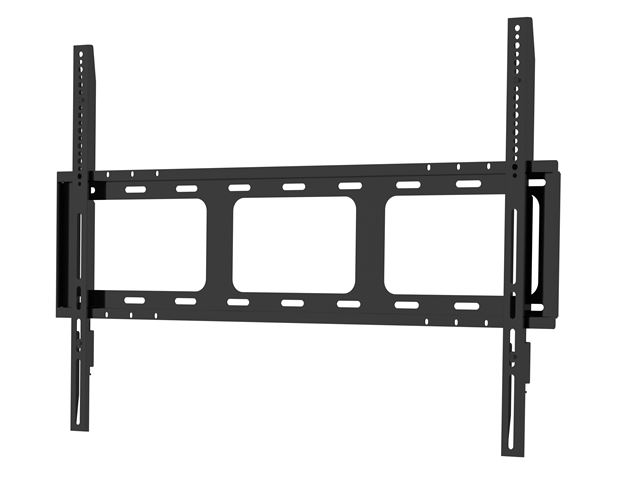

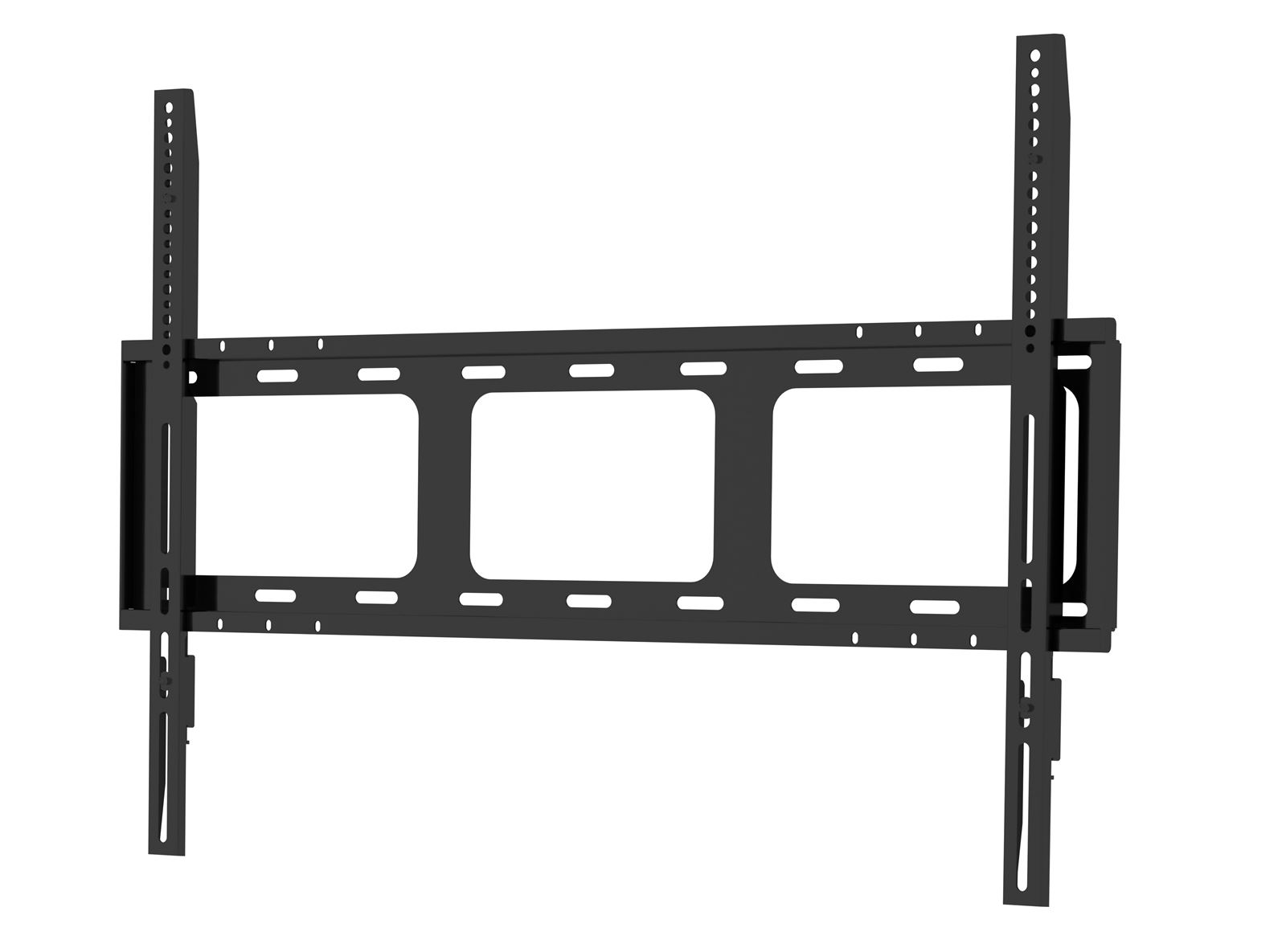

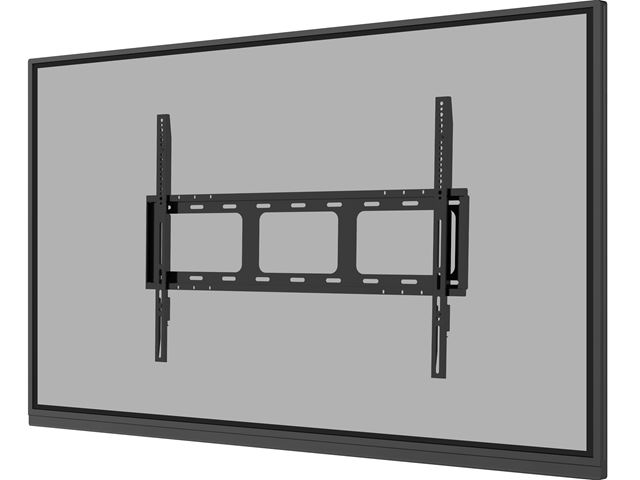

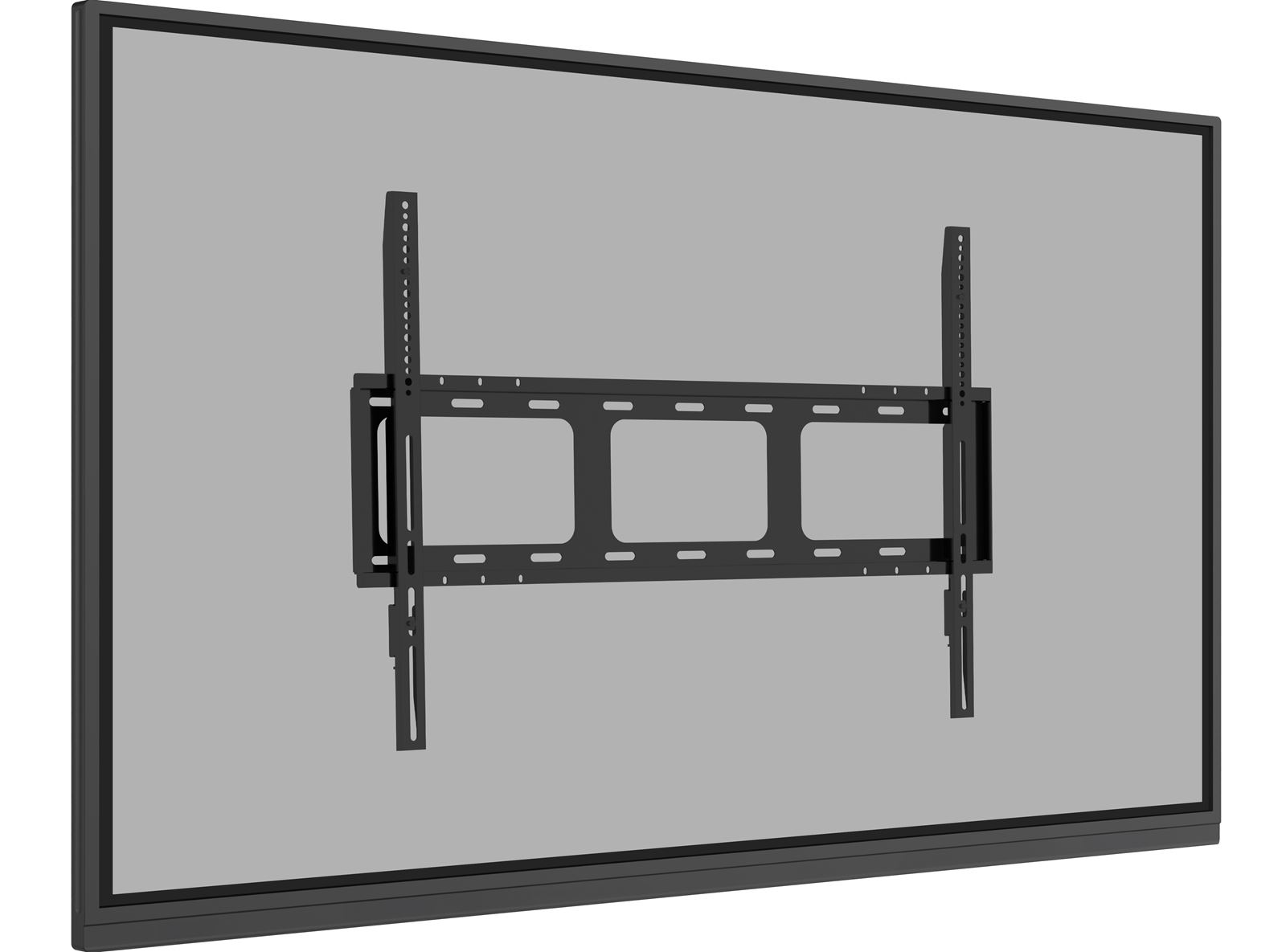

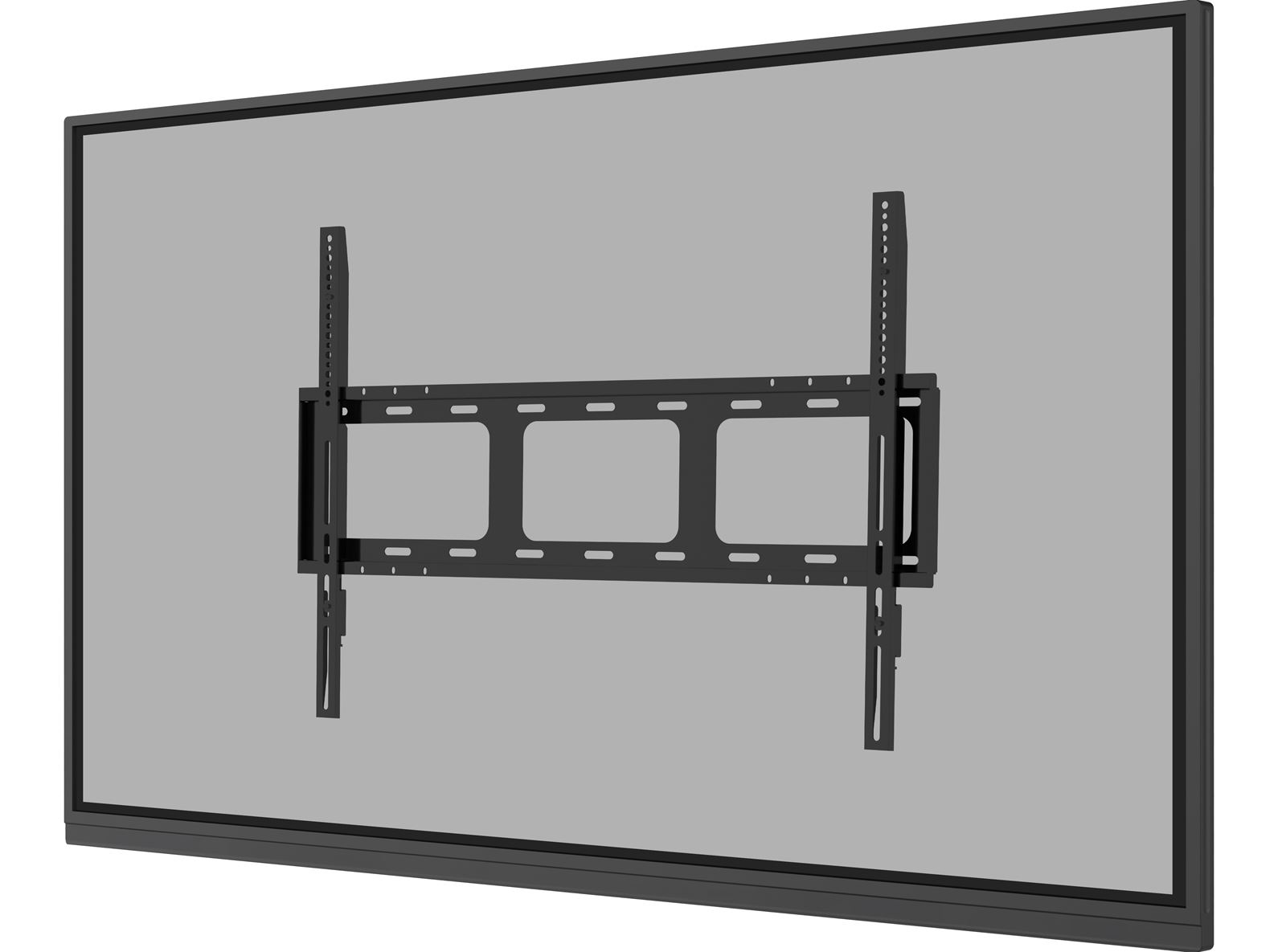

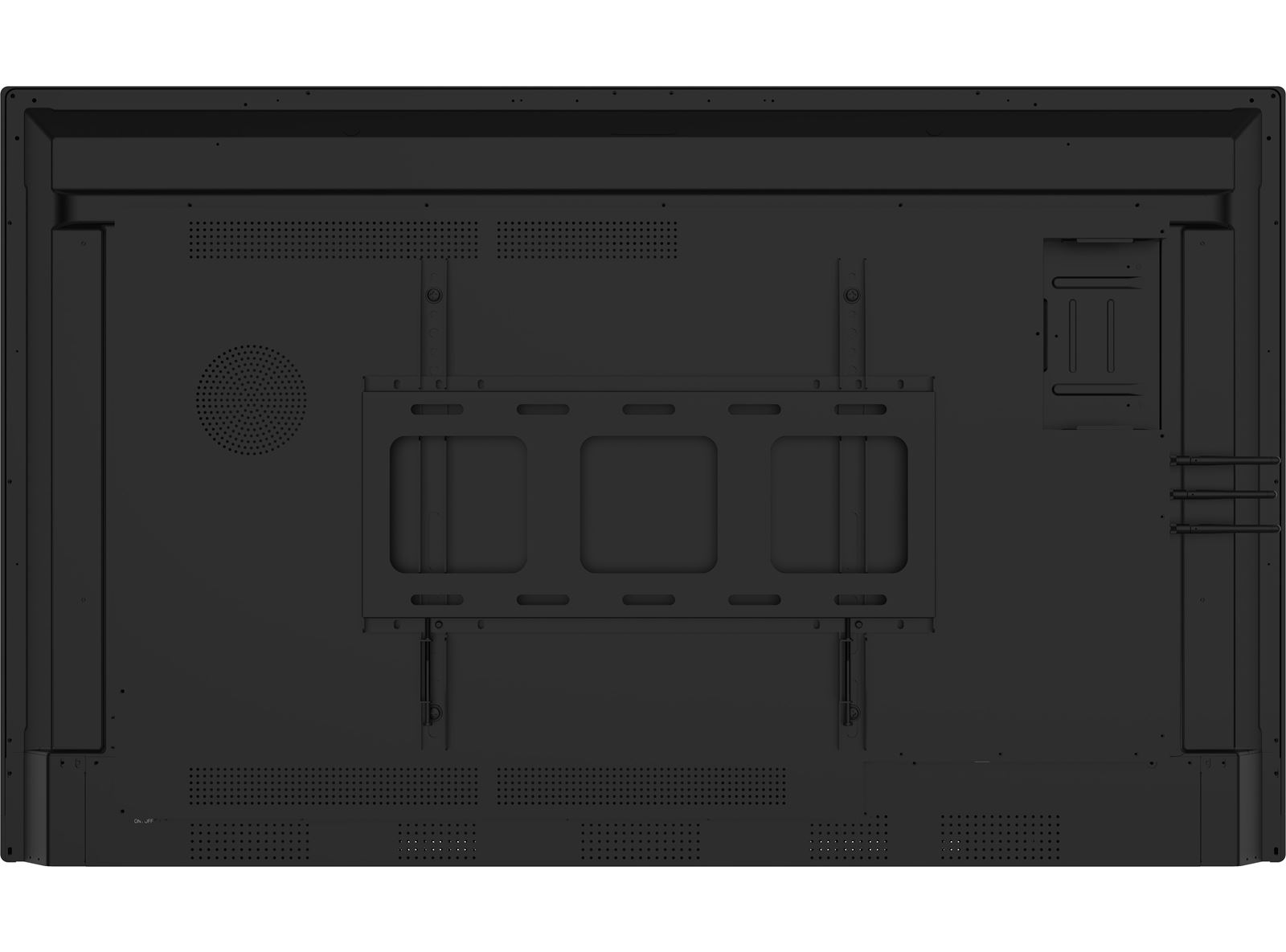

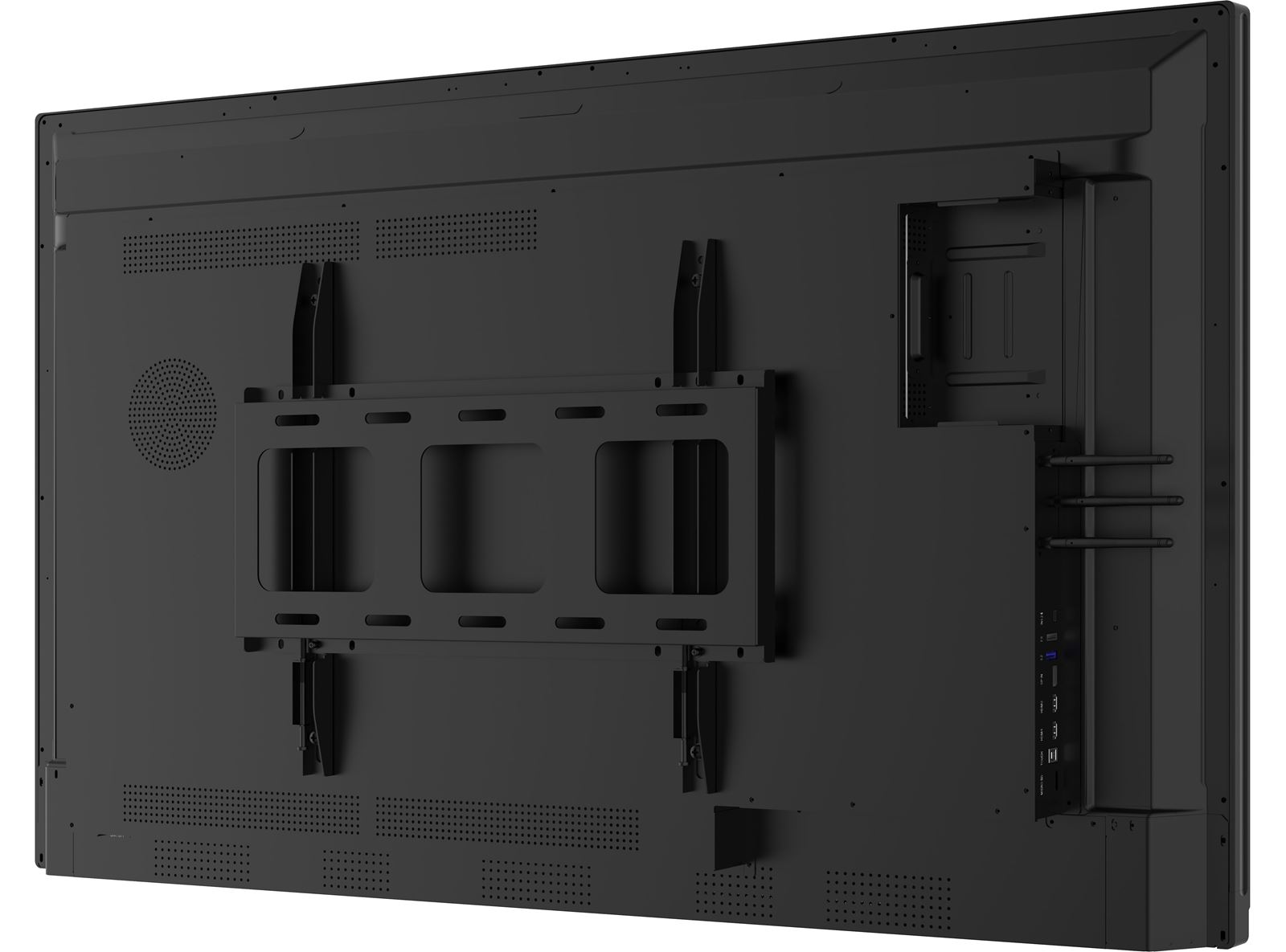

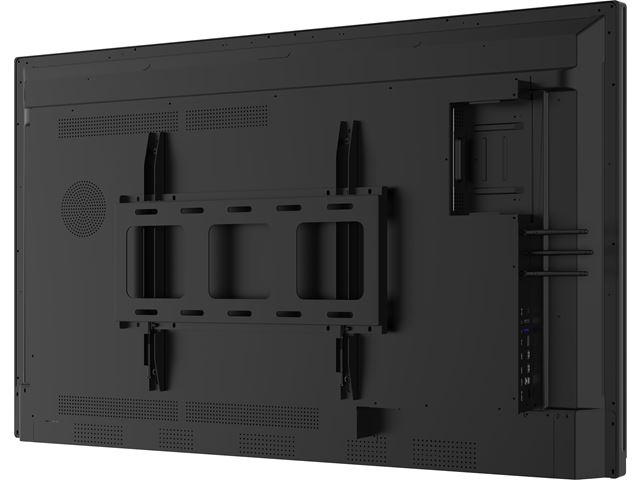

Included Wall Mount

Wall mount bracket included, compatible VESA mounting sizes.

Included Wall Mount
