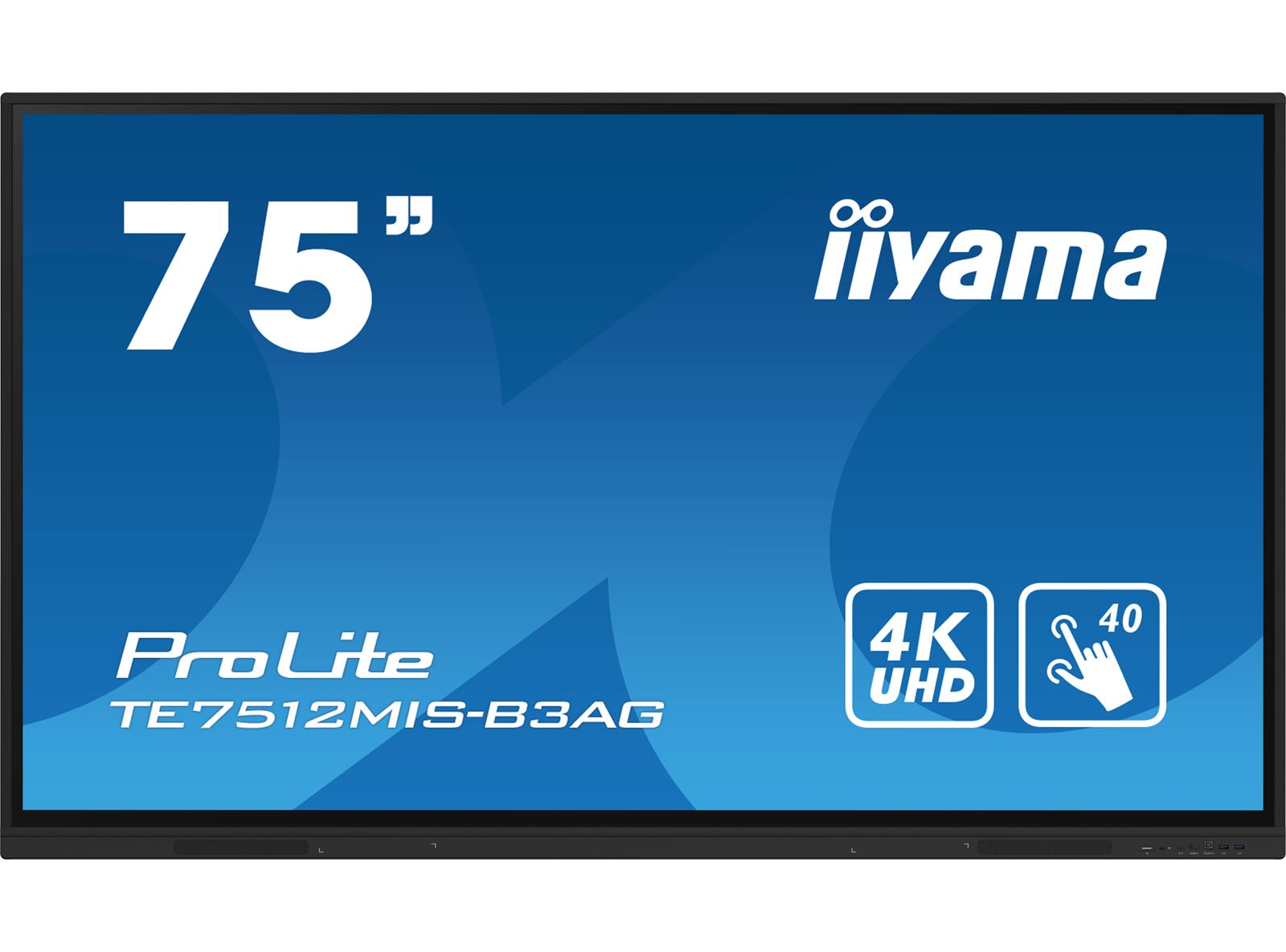

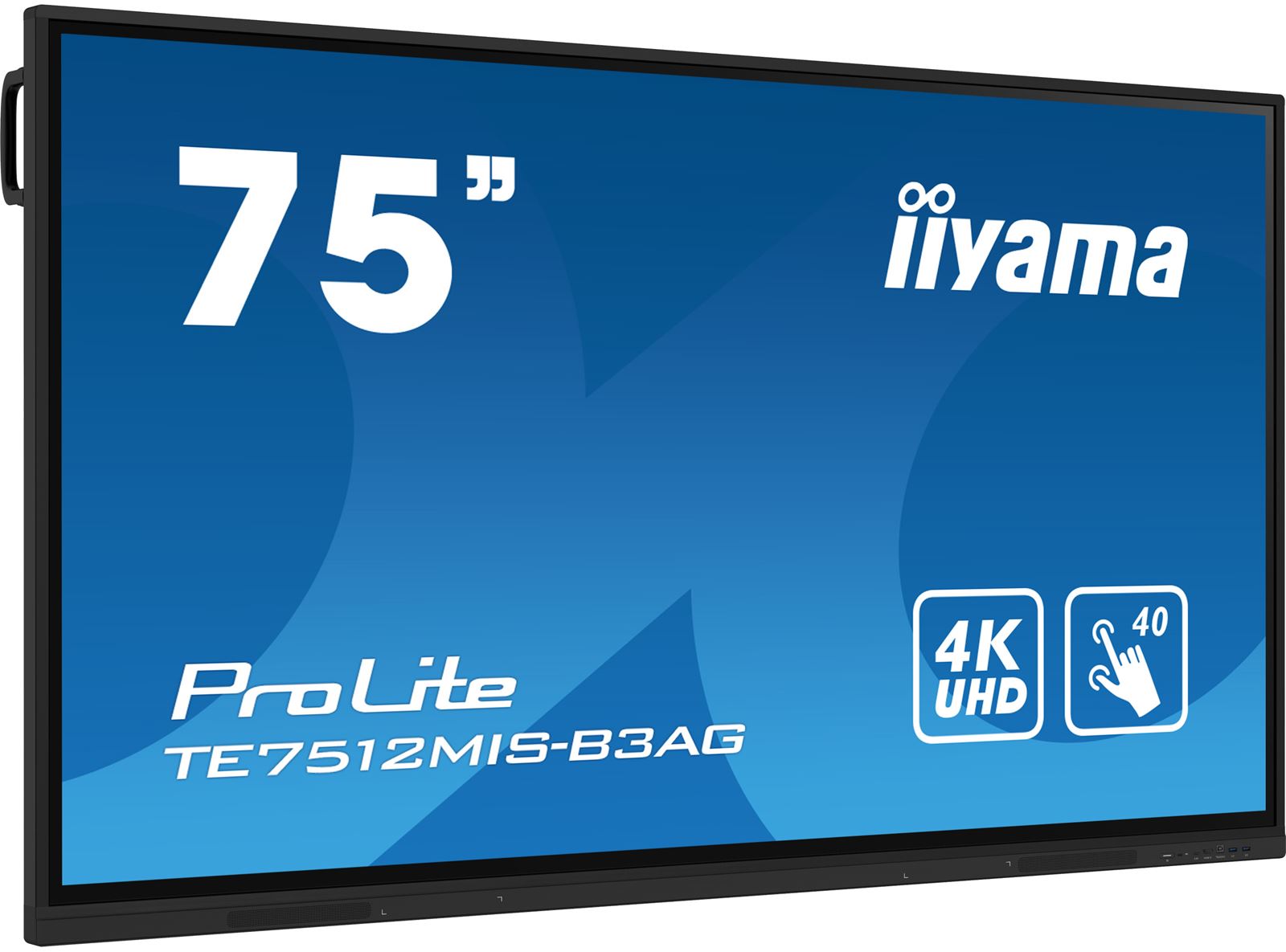

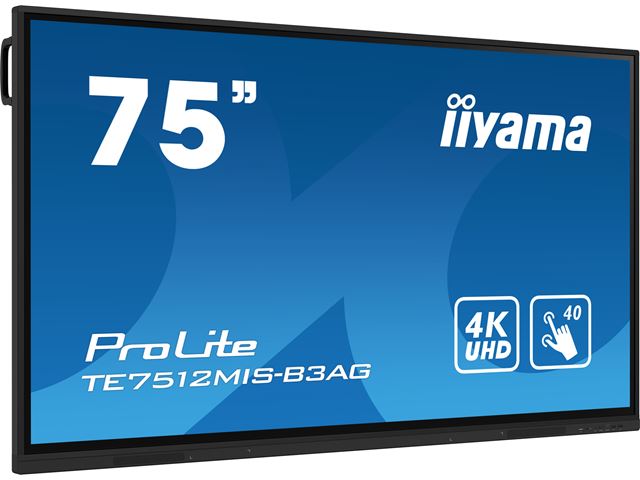

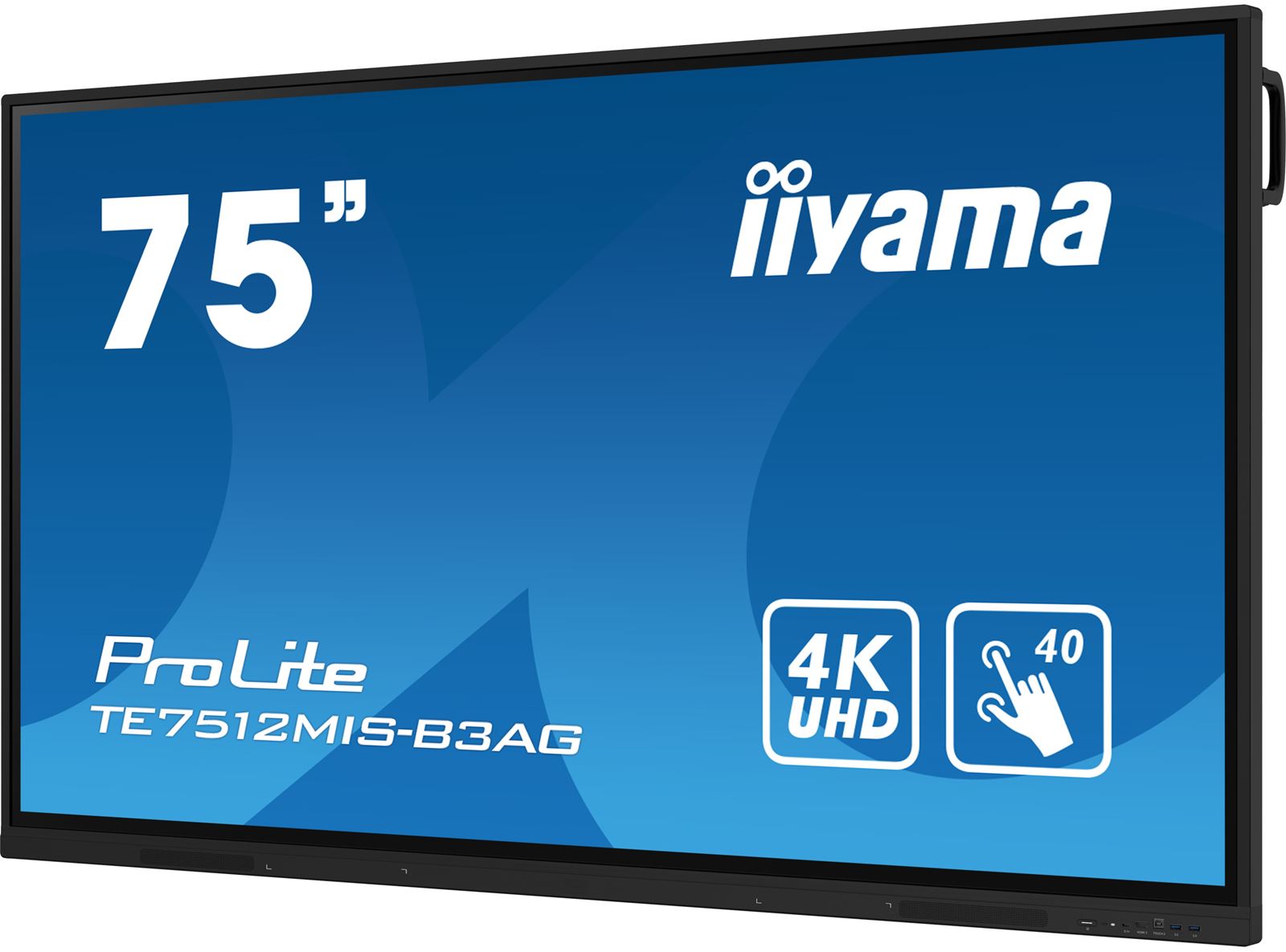

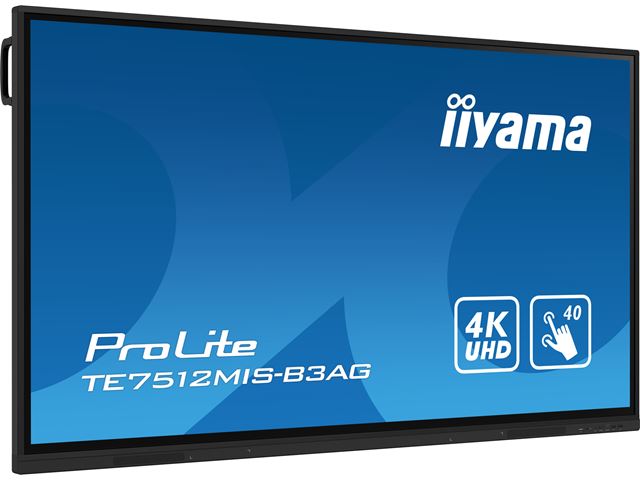

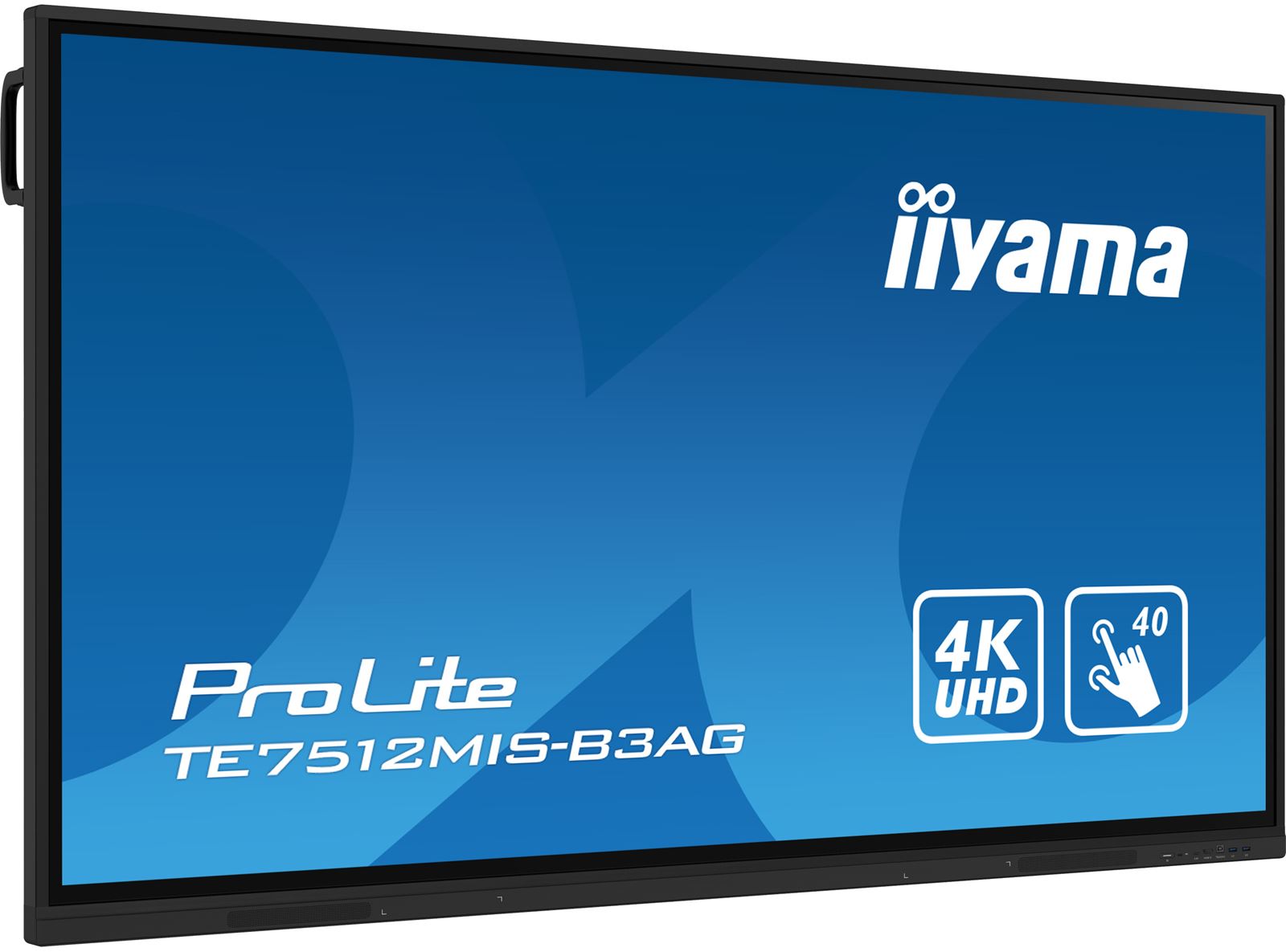

iiyama ProLite TE7512MIS-B3AG 75’’ Interactive 4K UHD Touchscreen, iiWare 10 with Android 11, Wifi, Eshare app

£1,291.45 exc. VAT
£1,549.74 inc. VAT

Brand: iiyama

Manufacturer Code: TE7512MIS-B3AG

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

75" Interactive 4K UHD Touchscreen elevating interactive collaboration

The TE7512MIS-B3AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD screen eliminating parallax, accurate PureTouch-IR, iiWare 10 with Android 11, Wifi, and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings.

Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE7512MIS-B3AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users.

Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.

Technical Information

 DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 75", 189.3cm
Panel IPS
Touch Glass AG coated glass, zero air-gap
Native resolution 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio 16:9
Panel brightness 400 cd/m²
Brightness 350 cd/m² with touch
Light transmittance 92%
Static contrast 1200:1
Dynamic contrast 4000:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 8bit+FRC
Horizontal Sync 30 - 135kHz
Viewable area W x H 1650 x 928mm, 65 x 36.5"
Bezel width (sides, top, bottom) 16.5mm, 16.5mm, 45mm
Pixel pitch 0.4296mm
Bezel colour and finish black, matte

 TOUCH

Touch technology PureTouch-IR
Touch points 40, 5pt writing (HID, only with supported OS)
Touch accuracy +- 1.5mm
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

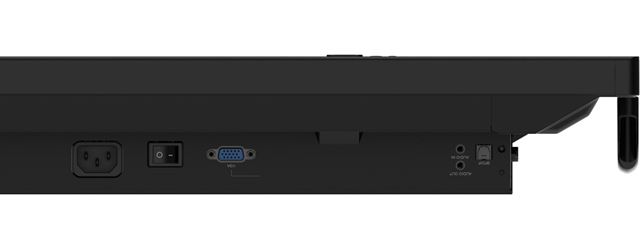

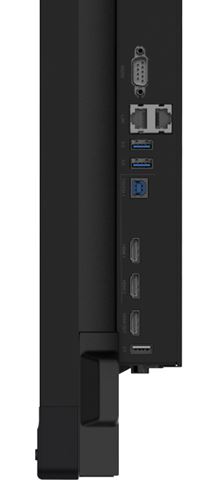

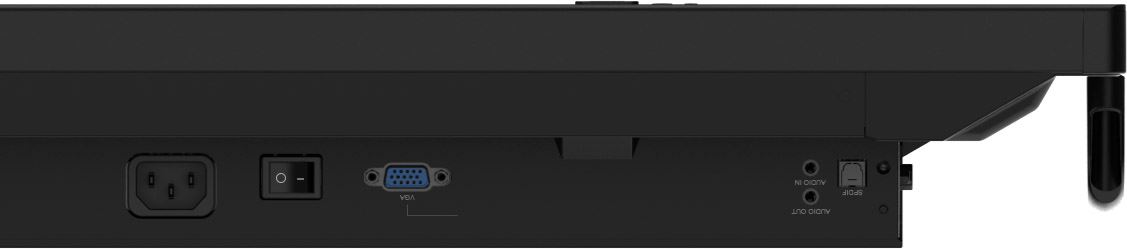

 INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1 (max. 1920x1080 @60Hz)
Digital signal input HDMI x3 (v.2.0, max. 3840x2160 @60Hz, YUV444)
USB-C x1 (v.3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz - RGB444 - (65W charging, Touch)
Audio input Mini jack x1
Monitor control input RS-232c x1 (DSUB 9pin)
RJ45 (LAN) x1 (LAN Control)
IR x1
Digital signal output HDMI x1 (3840x2160 @60Hz)
Audio output S/PDIF (Optical) x1
Mini jack x1
Speakers 2 x 16W (Front)
HDCP HDMI 1: 2.1, USB-C: 2.2
USB ports x5 (media playback / peripherals / storage – front side: 2x v.3.2 (Gen 1, 5Gbit), 1x USB-C v.3.2 (Gen 1, 5Gbit, 65W PD), right side: 2x v.3.2 (Gen 1, 5Gbit))
RJ45 (LAN) x2 (Auto switch for PC & Android, 1000MB)

 FEATURES

Integrated software iiWare 10 (Android OS 11) featuring iiyama DMS, Note, web browser, file manager, cloud drives, WPS office, iiyama Share and EShare for wireless connection with Windows/iOS/Android devices
WiFi yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0)
Hardware CPU: Quad core A55, GPU: Mali G52, RAM: 8GB, ROM: 64GB
Extra WiFi 6 Module (OWM002), Slot for optional OPS Slot PC, 4x Touch pen
Kiosk mode yes
Max. non-stop operating time 24/7
Media playback yes
Glass thickness 3mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power, Power Indicator, Remote Sensor, Light Sensor
User controls general settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system)
Blue light reducer yes
Plug&Play DDC2B
Warranty 5 years (for details and eligible countries please check the Warranty section of our website)

 MECHANICAL

Orientation landscape
Fanless design yes

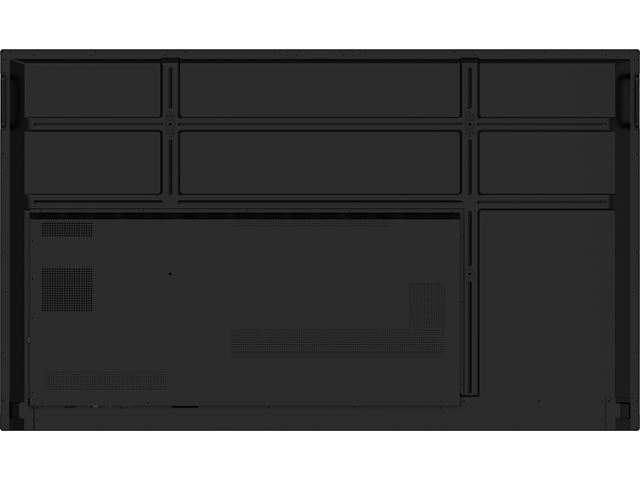

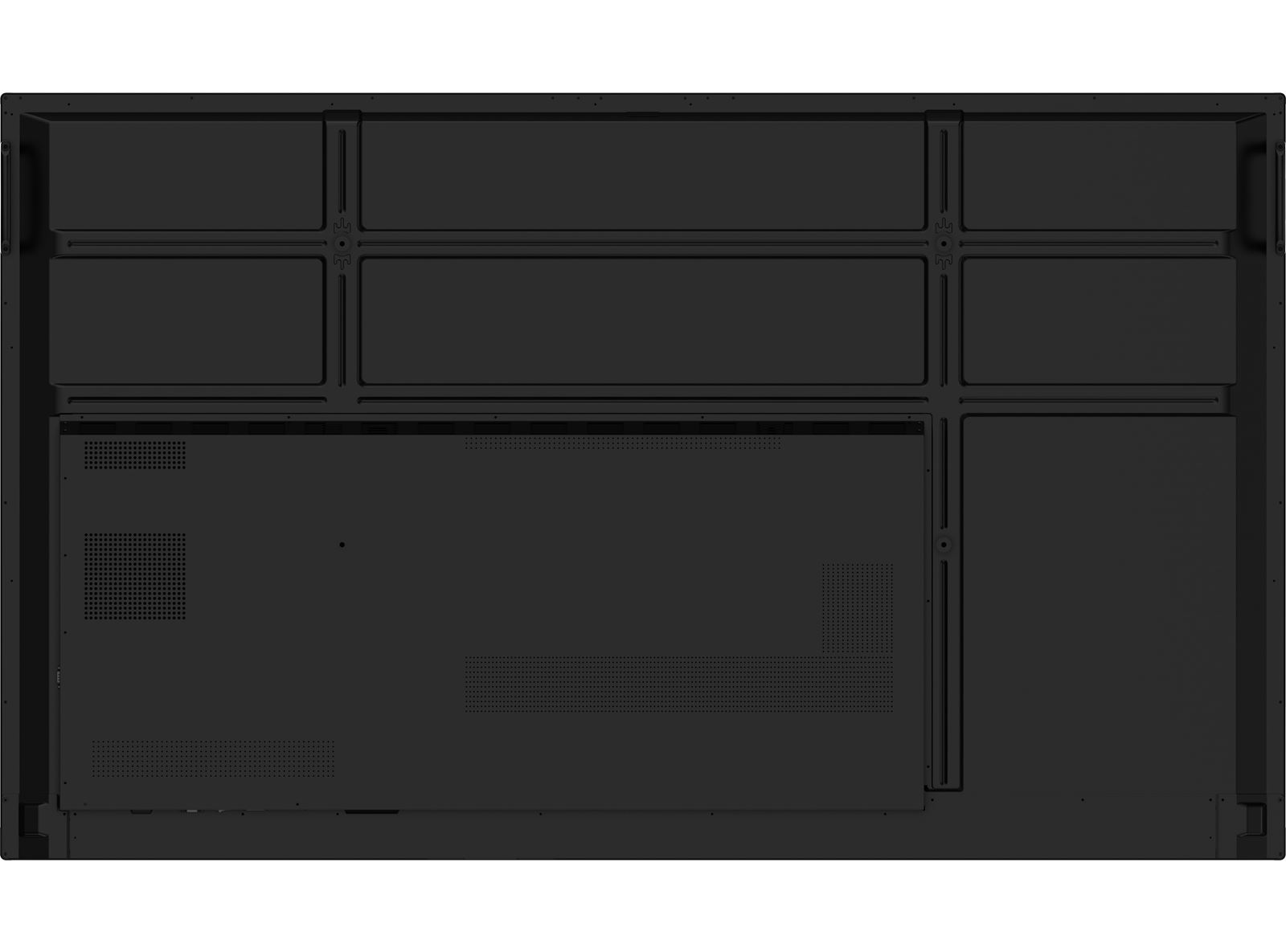

VESA mounting 800 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

 ACCESSORIES INCLUDED

Cables power, USB, HDMI

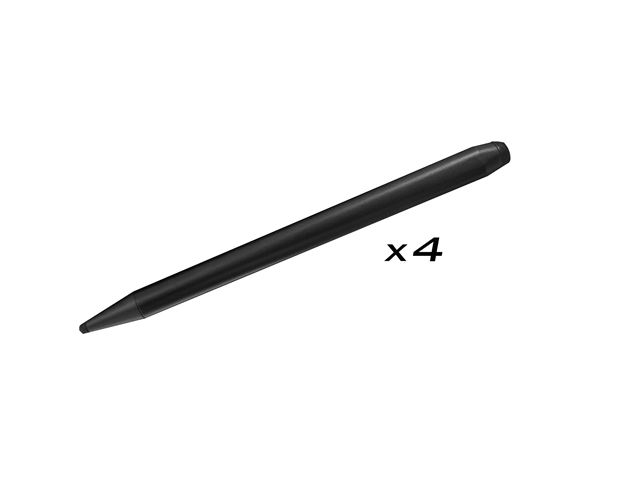

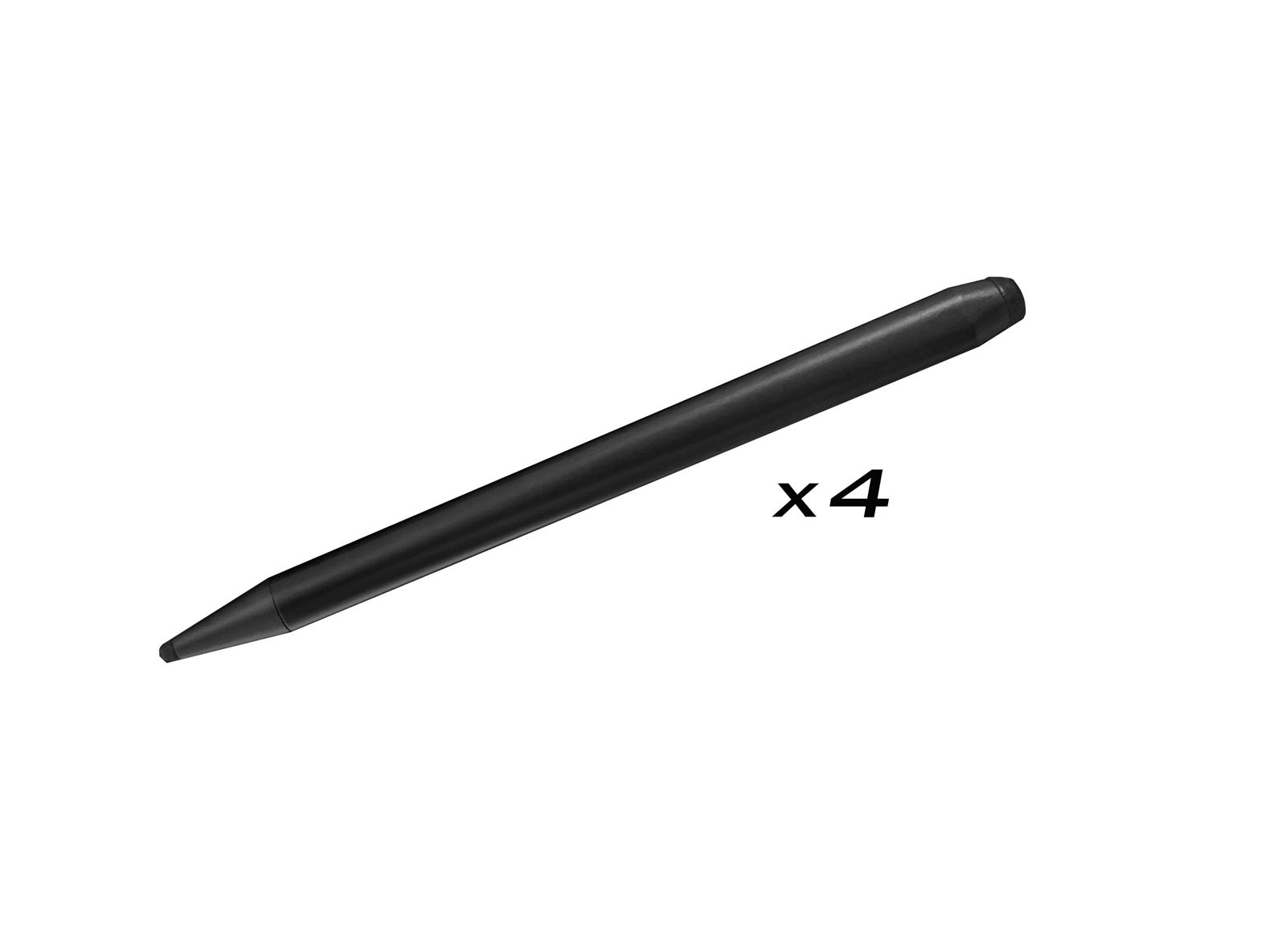

Touch pen x4 (Dual function tips)
Guides quick start guide, safety guide

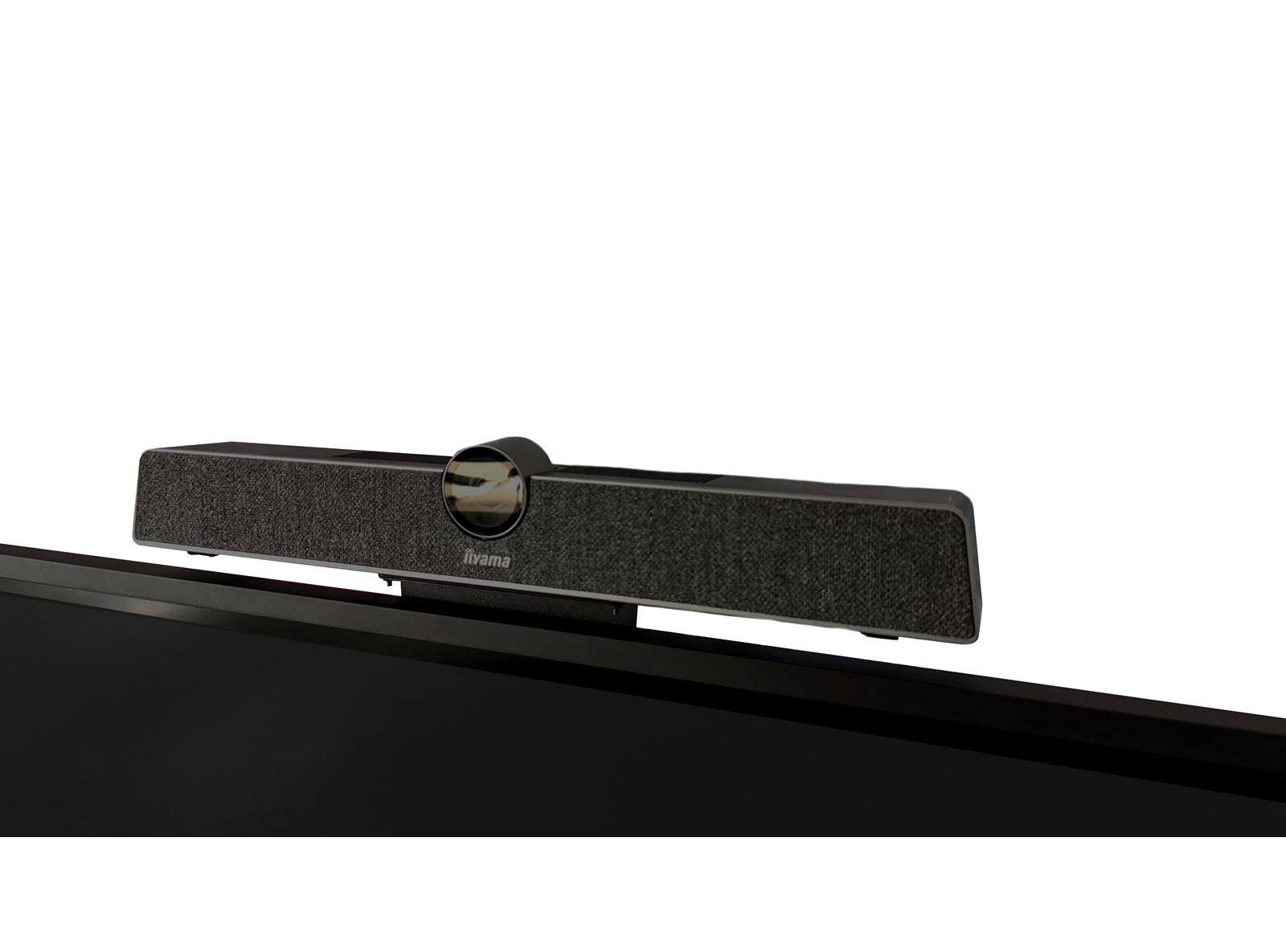

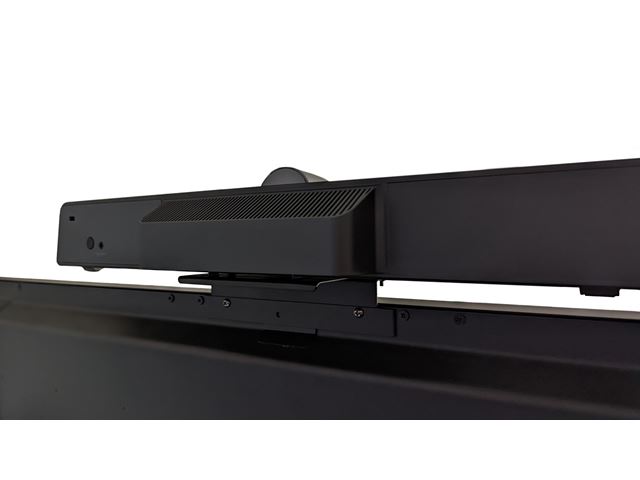

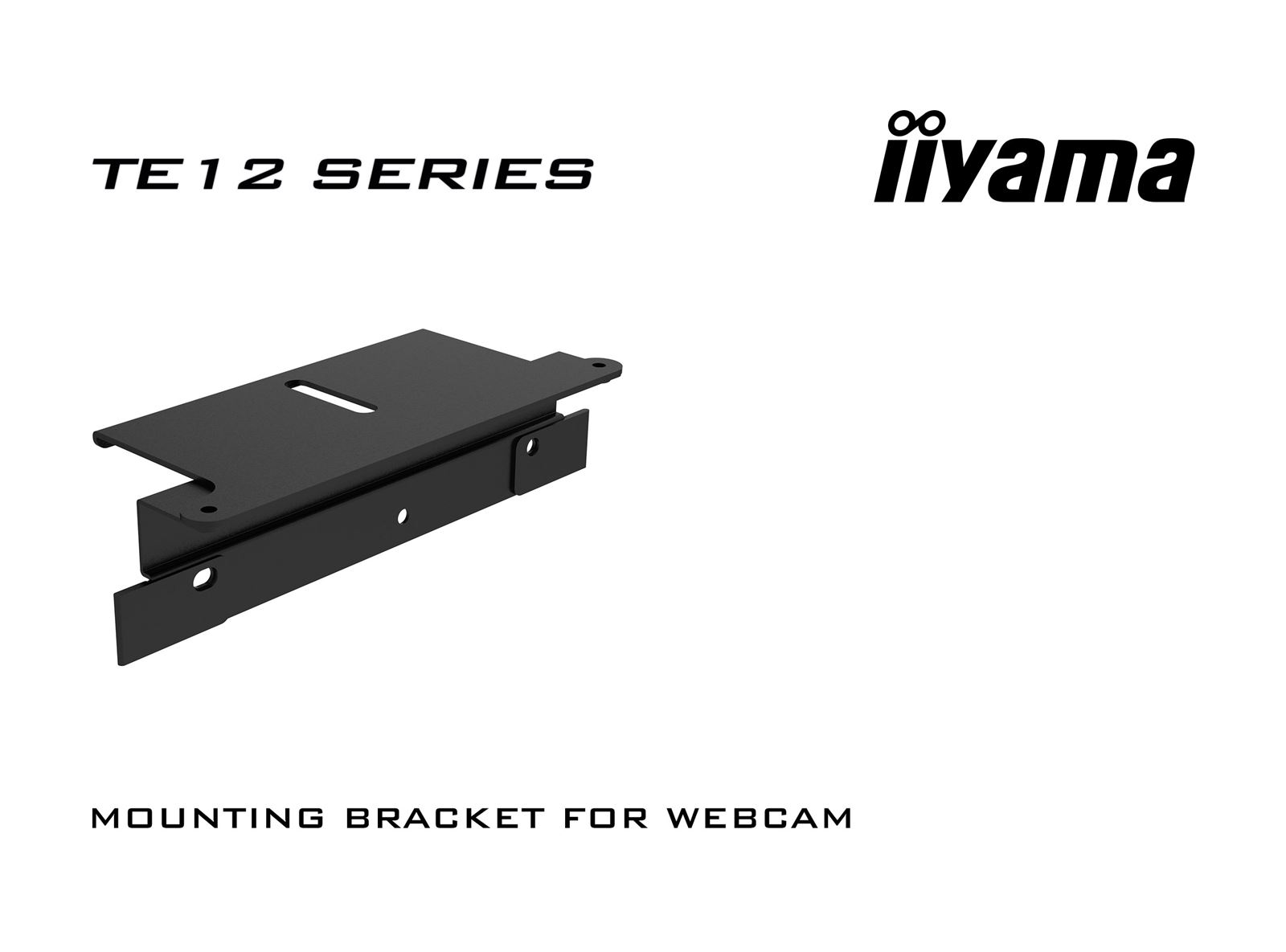

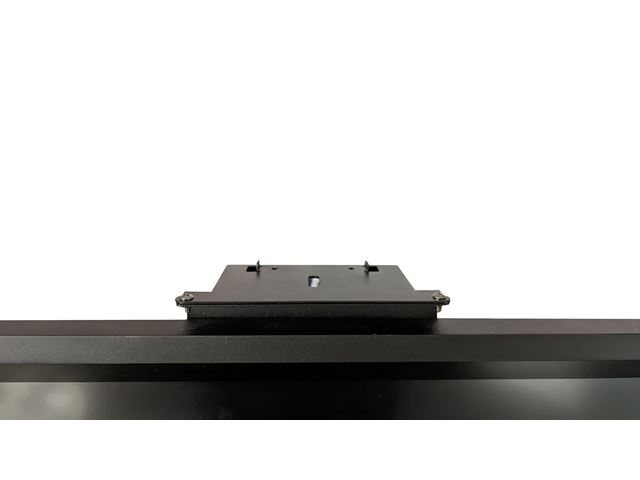

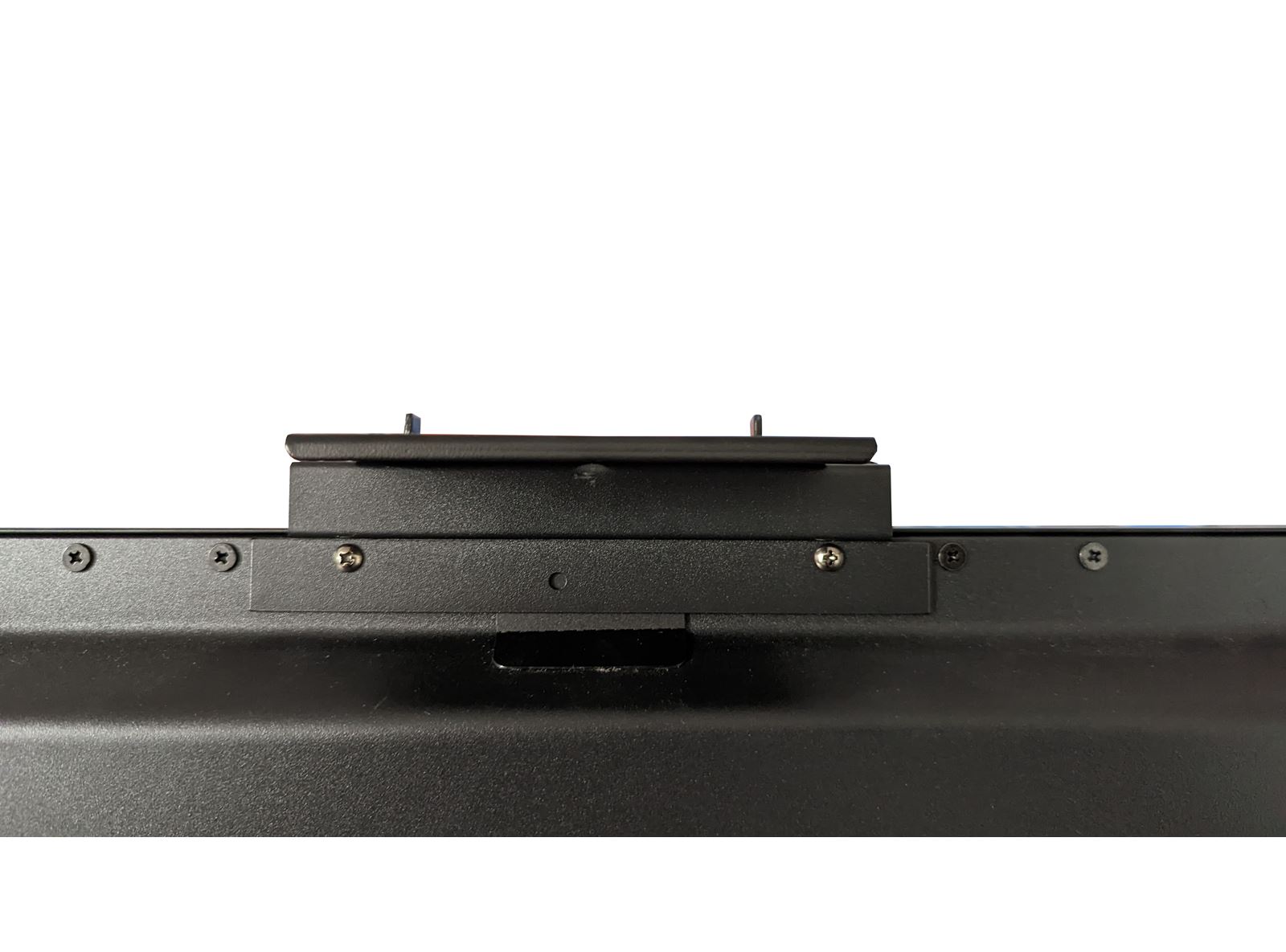

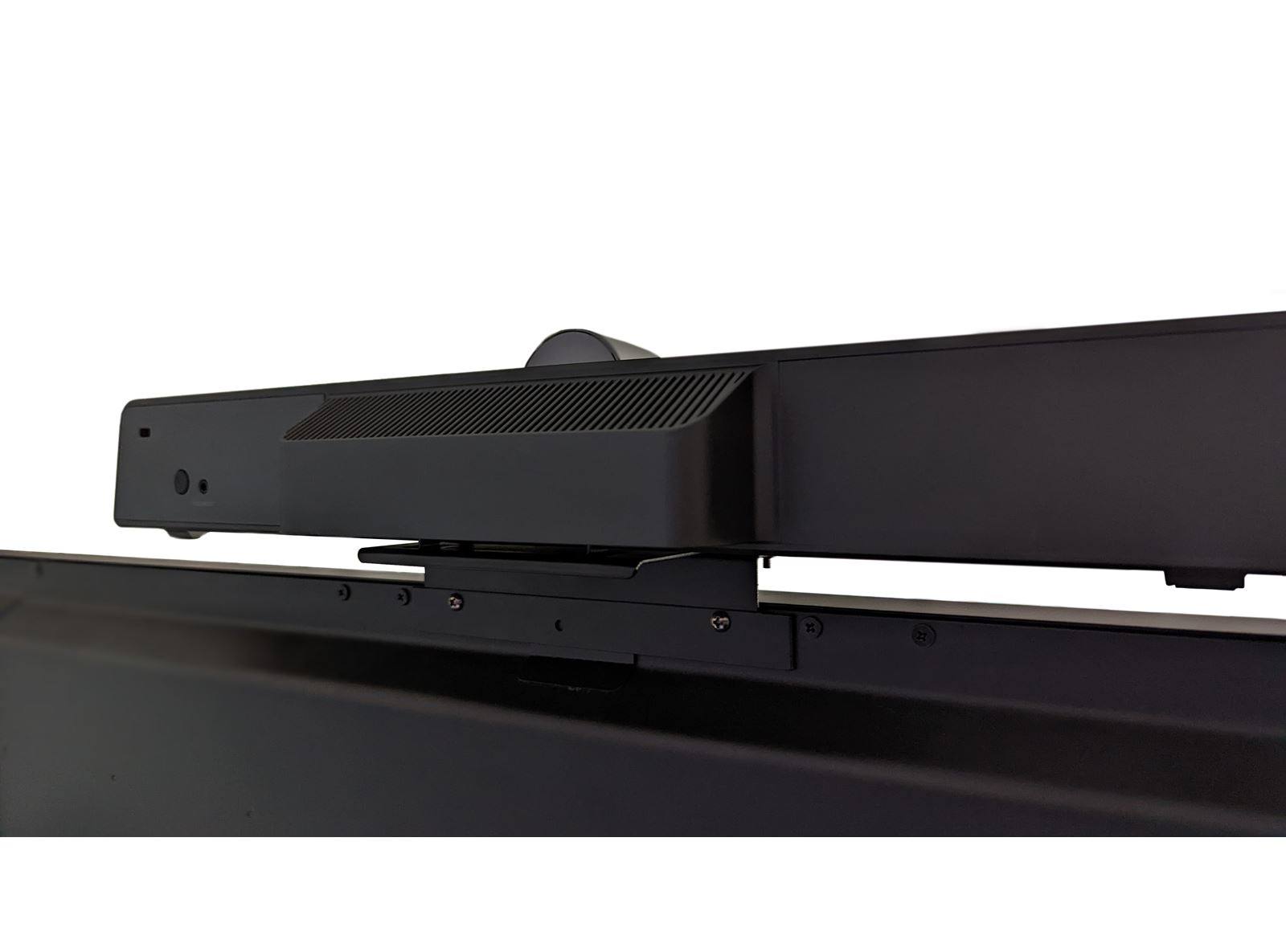

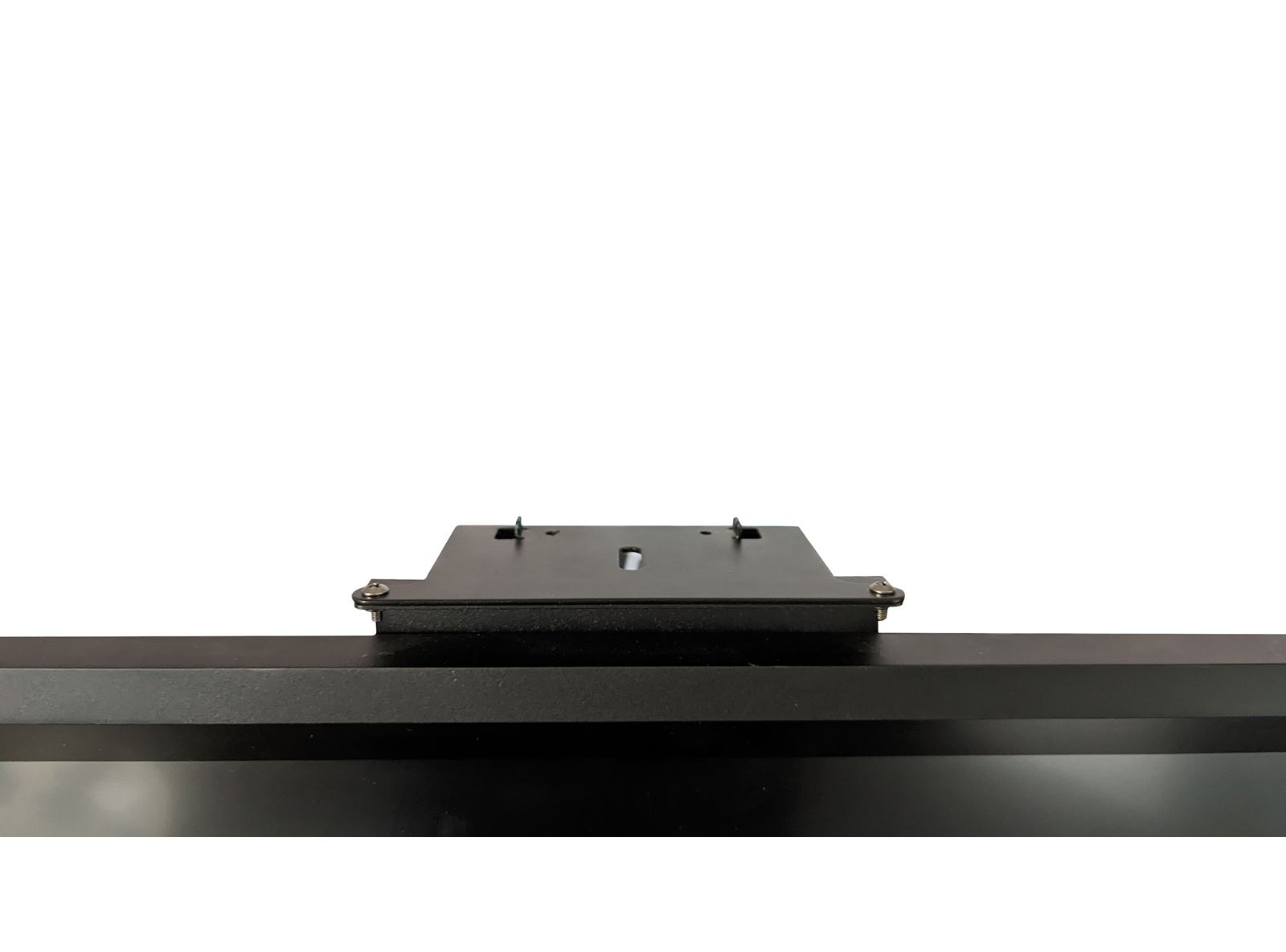

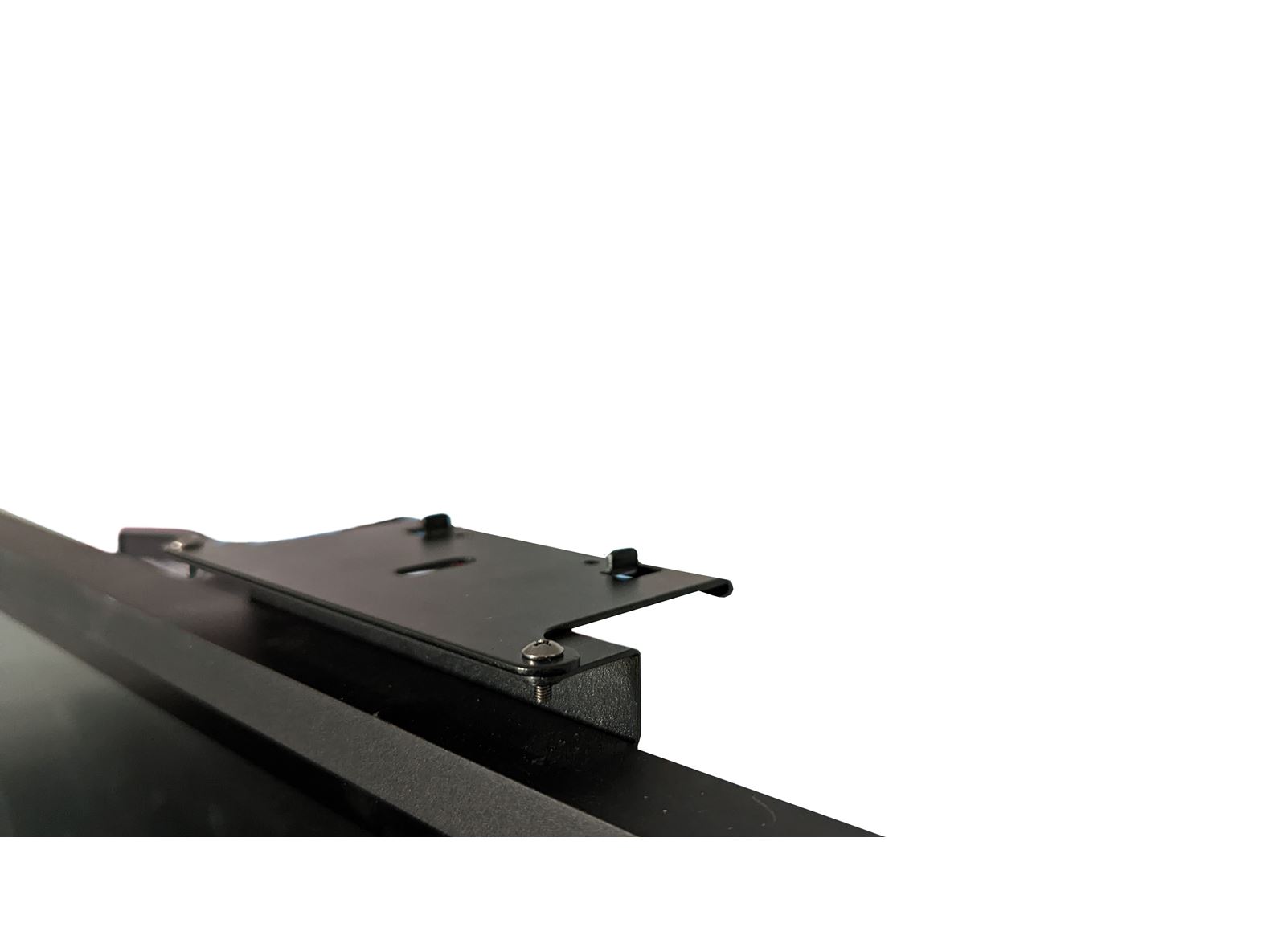

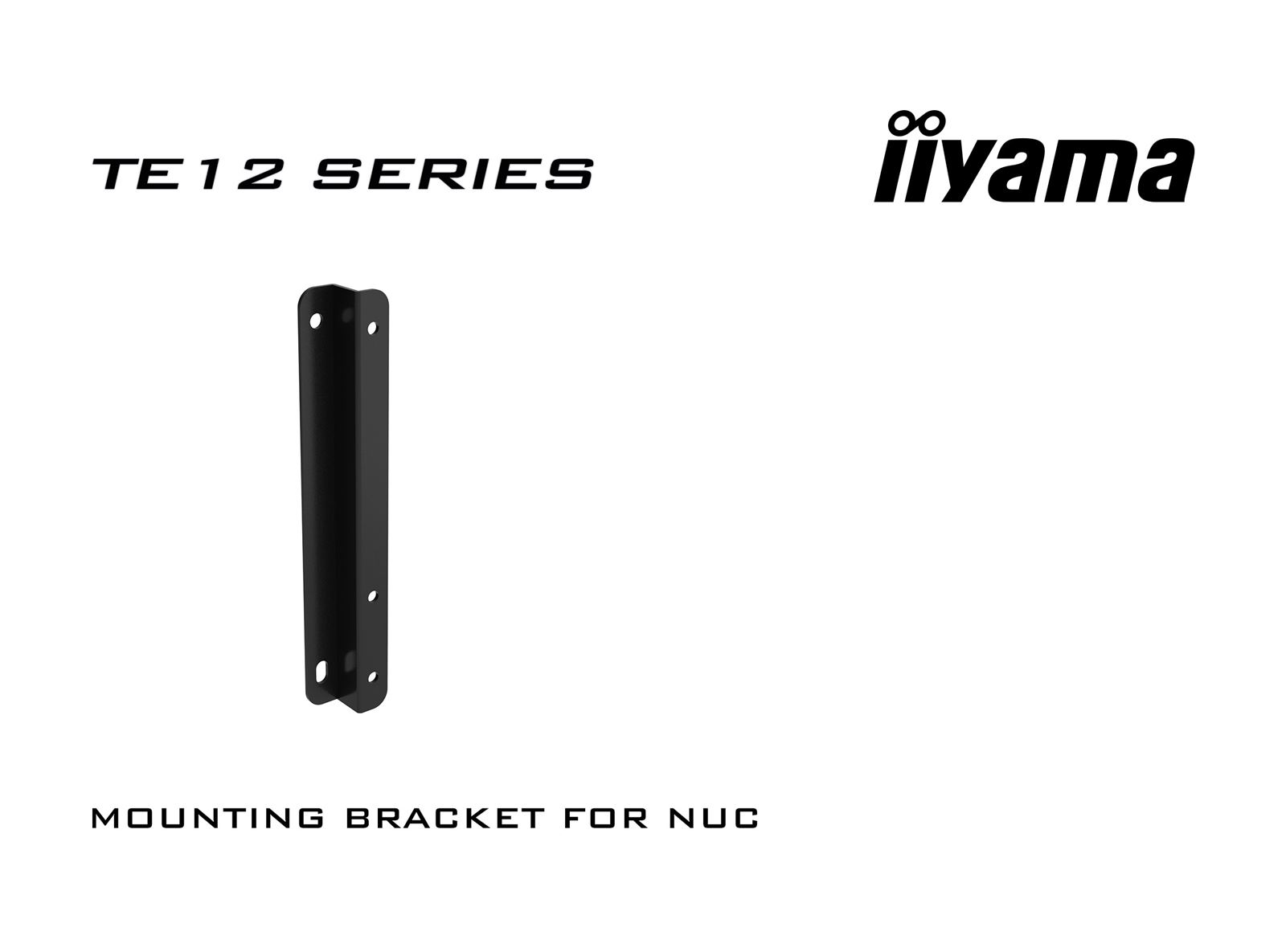

Other WiFi 6 Module (OWM002), Mounting bracket for NUC, Mounting bracket for webcam
Remote control yes (batteries included)

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 125W typical, 0.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, EPA 8.0
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 1709.5 x 1020 x 88mm
Box dimensions W x H x D 1863 x 1140 x 225mm
Weight (without box) 47.3kg
Weight (with box) 60.6kg
EAN code 4948570123704
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

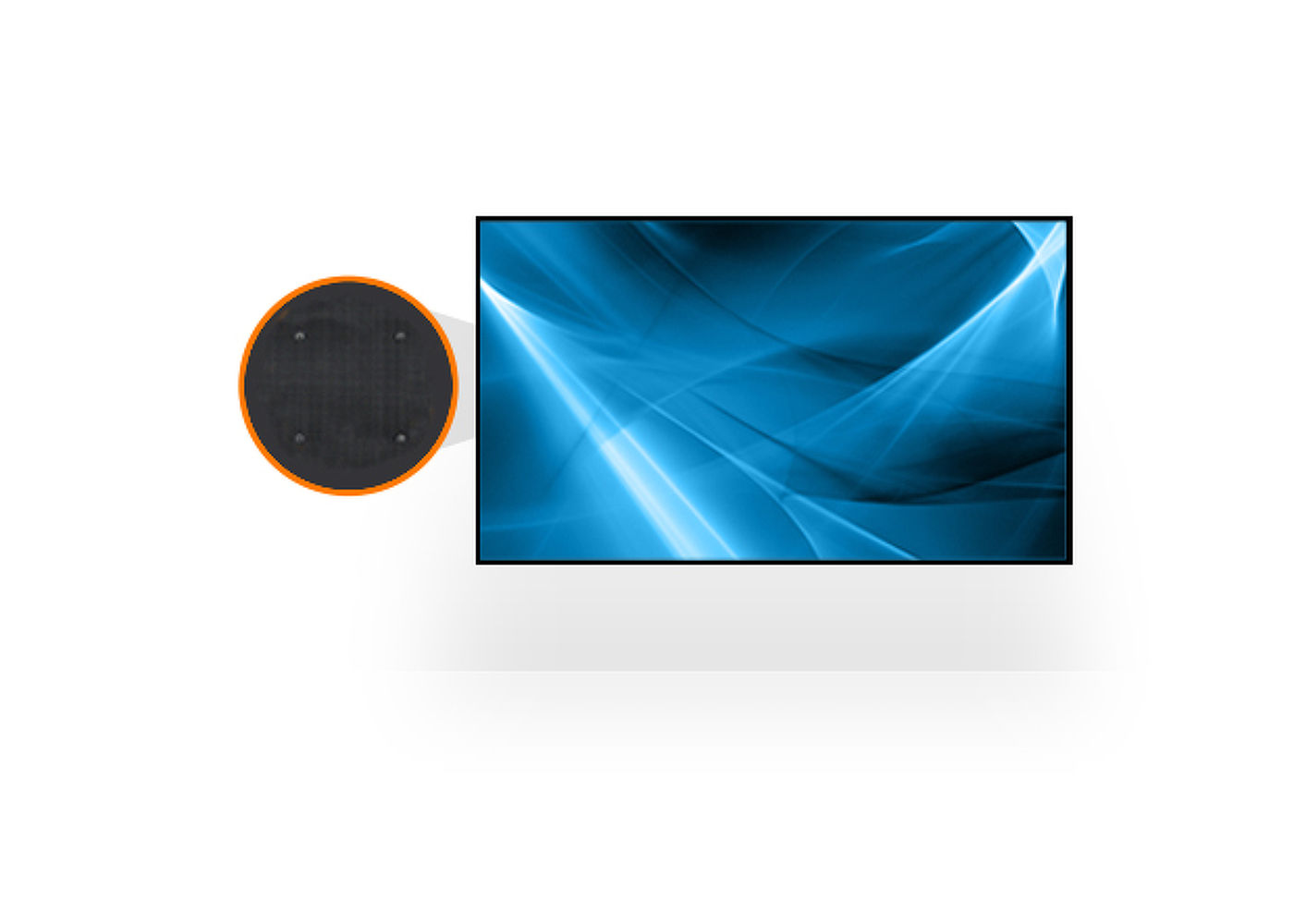

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

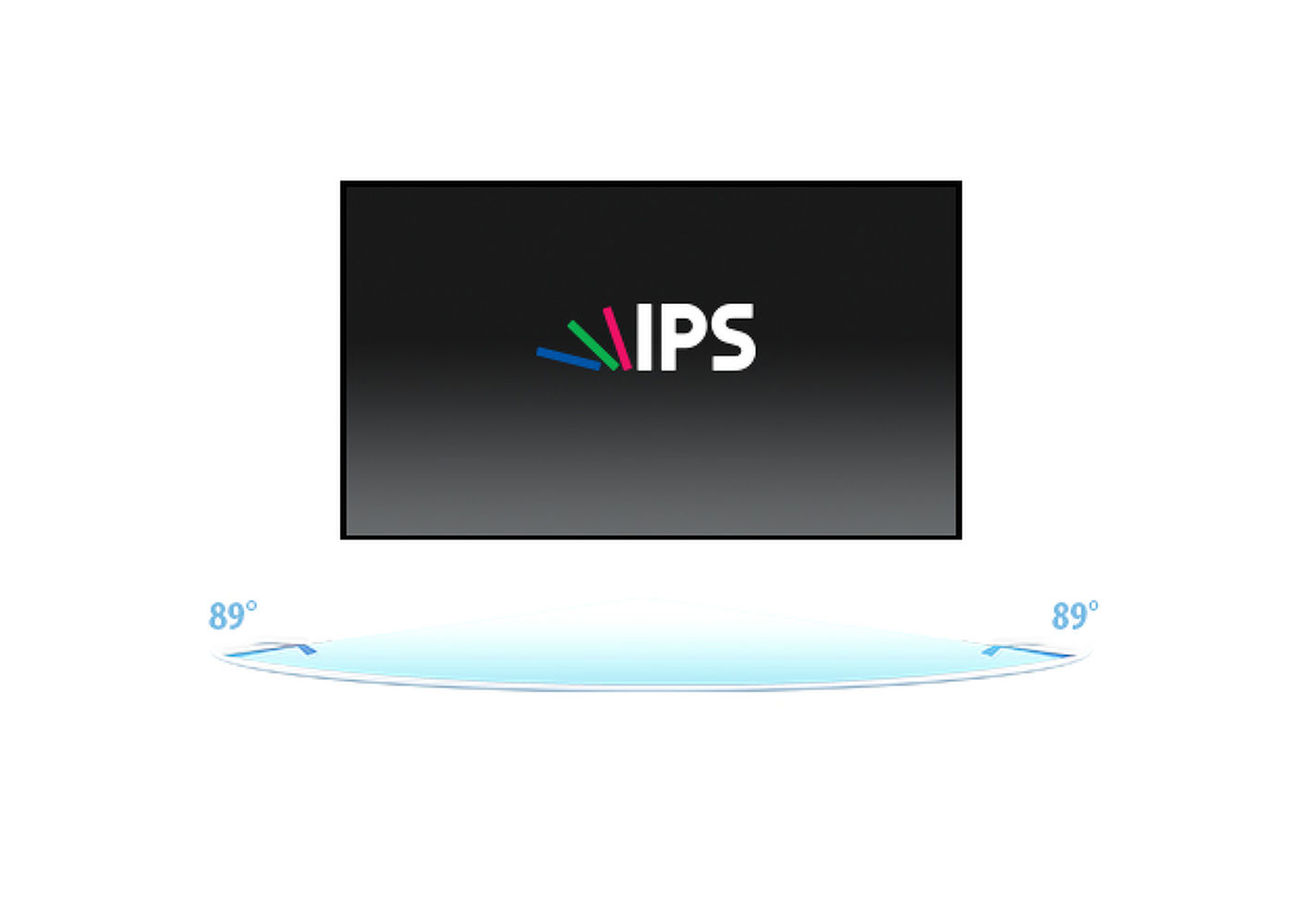

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

OPS PC SLOT

Built-in expansion slot supports the Open Pluggable Specification (OPS) standard; it simplifies the installation of a plug-in PC for digital signage applications.



OPS PC SLOT

24/7

24/7 displays are designed for a continuous operation.



24/7

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

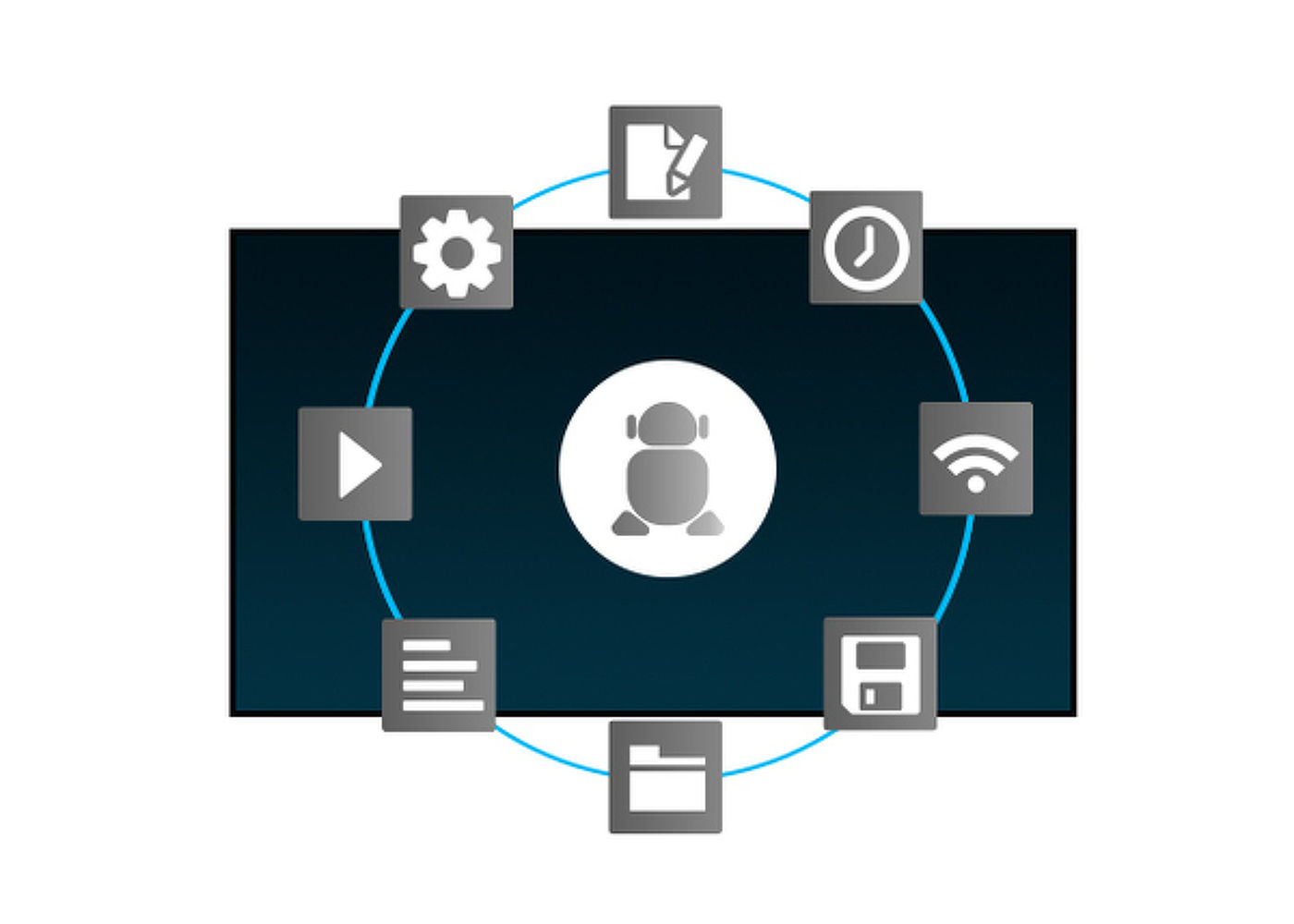

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS
