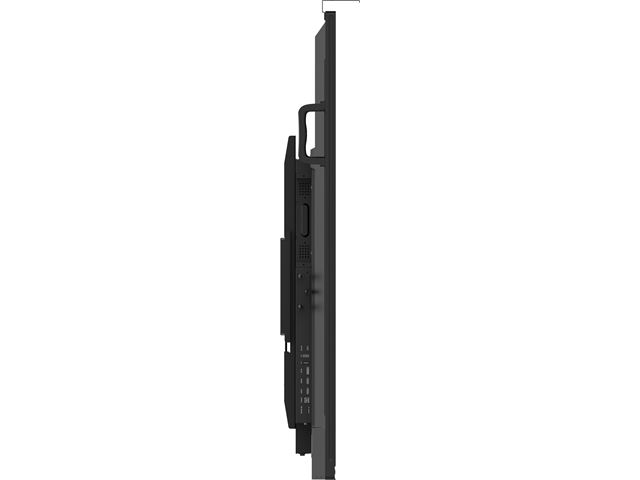

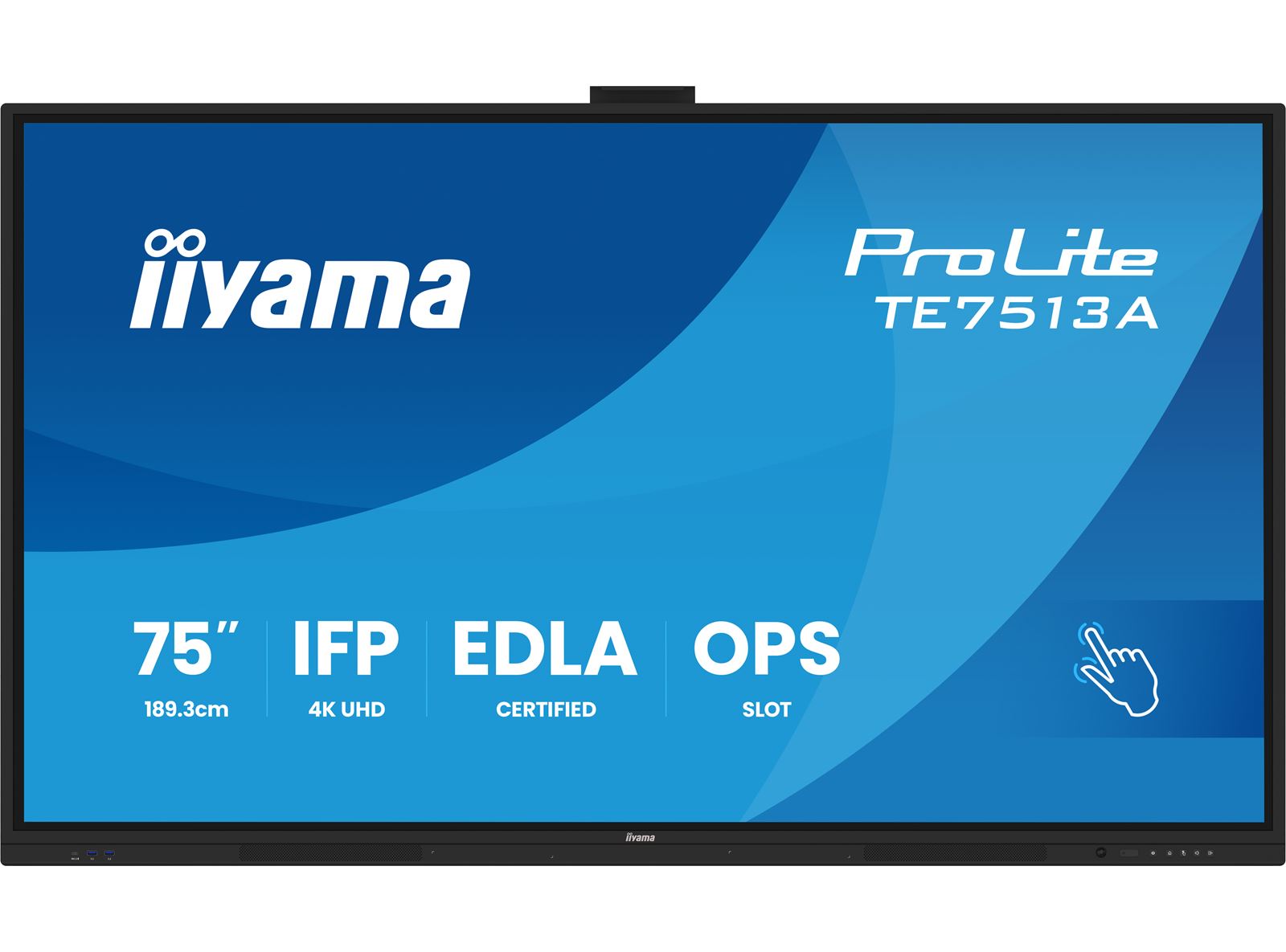

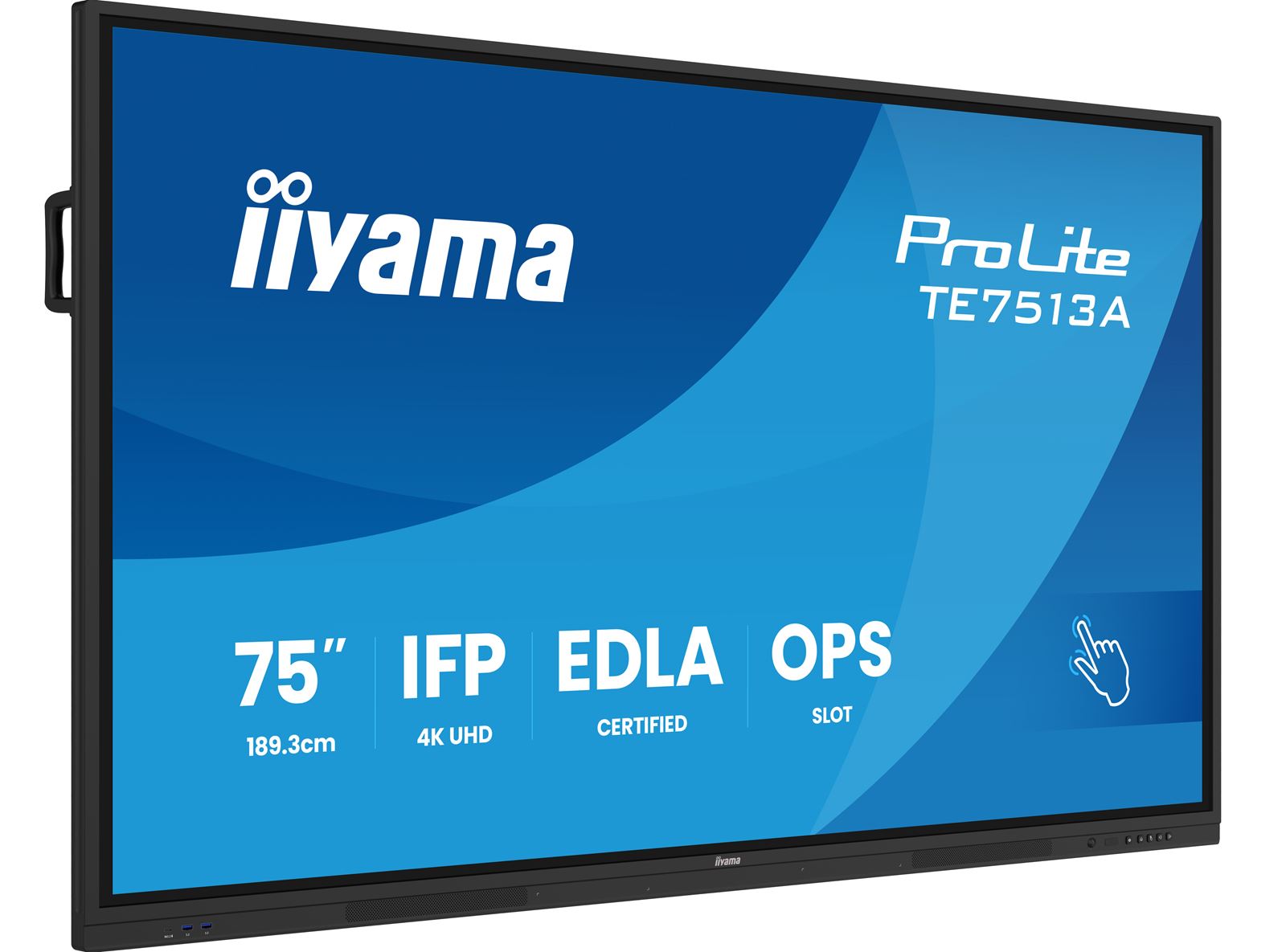

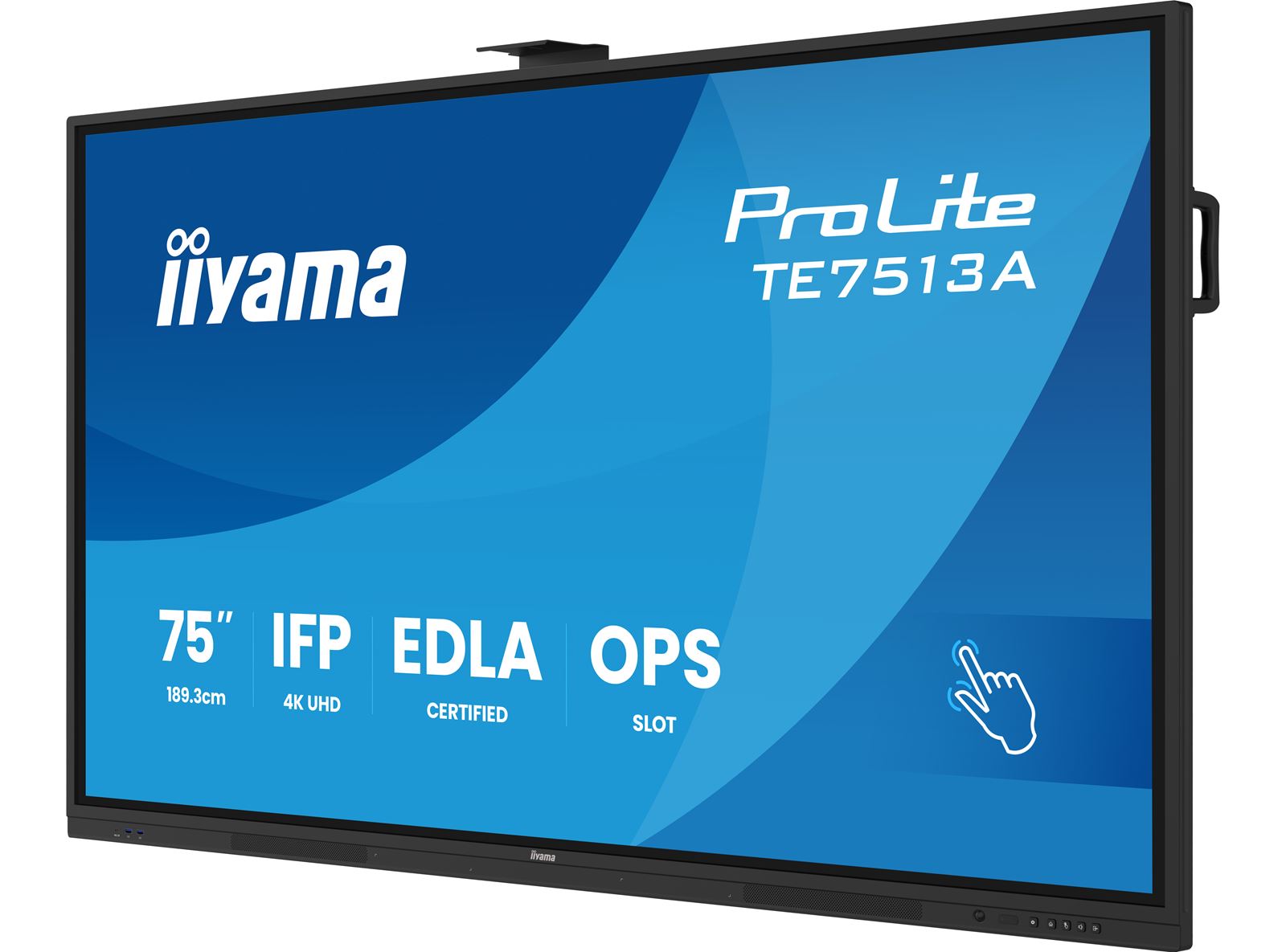

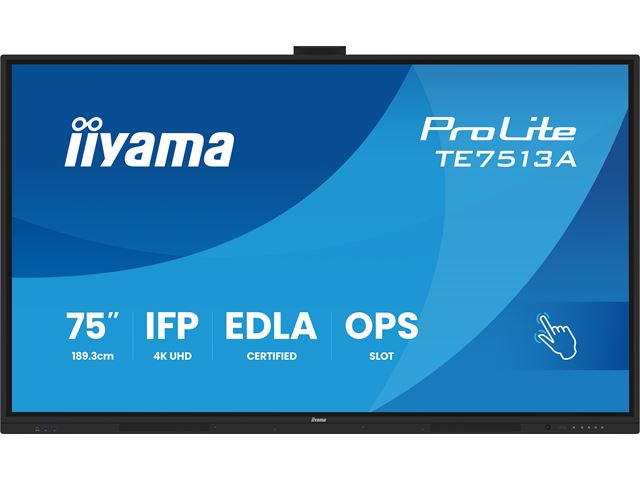

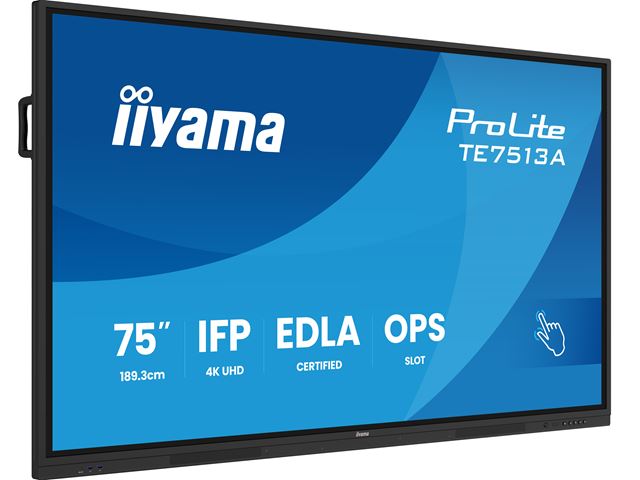

iiyama ProLite TE7513A-B2AG 75’’ Google EDLA Certified 4K Touchscreen, iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5, with wall mount.

£1,549.00 exc. VAT
£1,858.80 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Send Back In Stock Notification

Brand: iiyama

Manufacturer Code: TE7513A-B2AG

Warranty:

Product Description

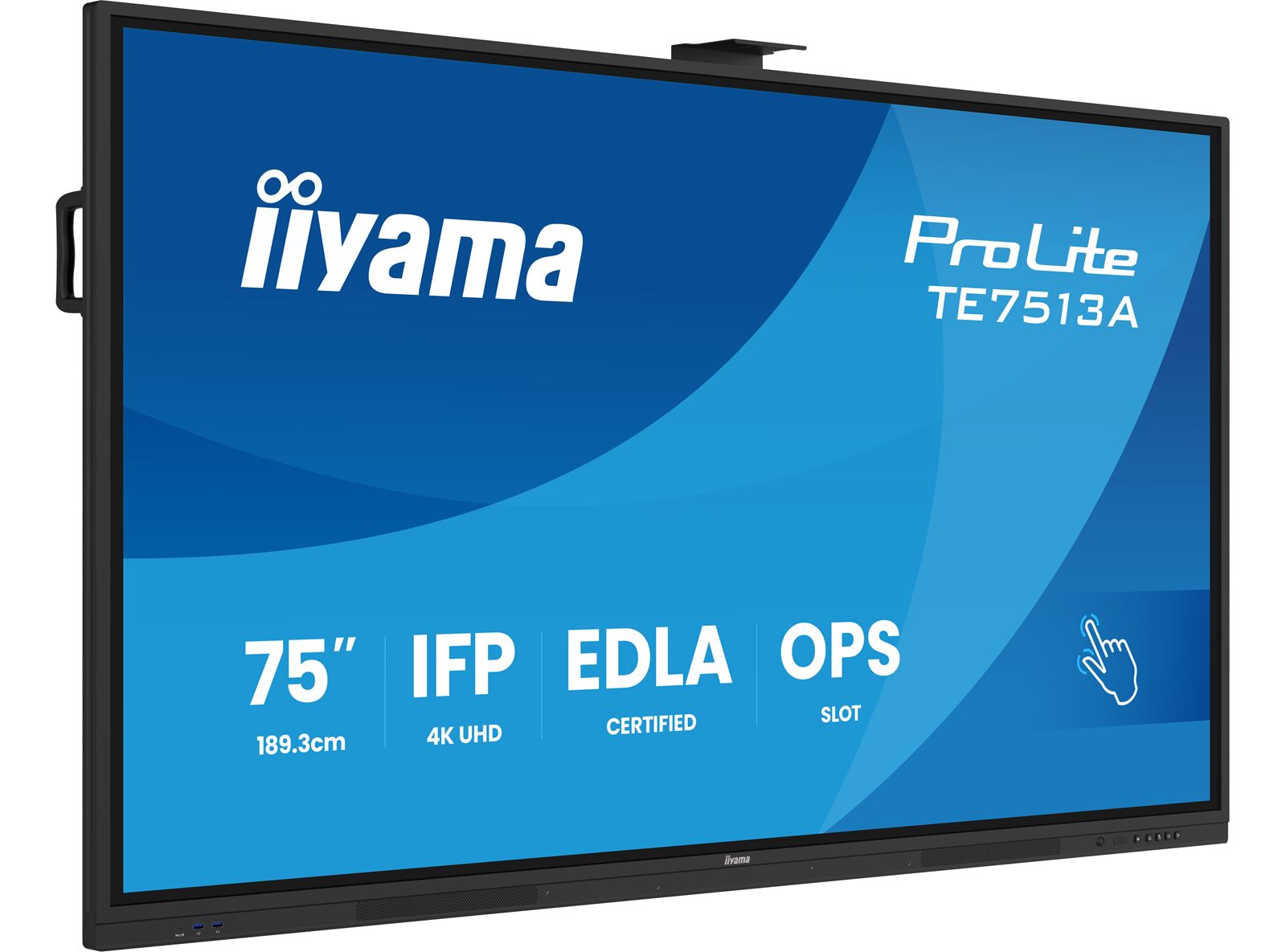

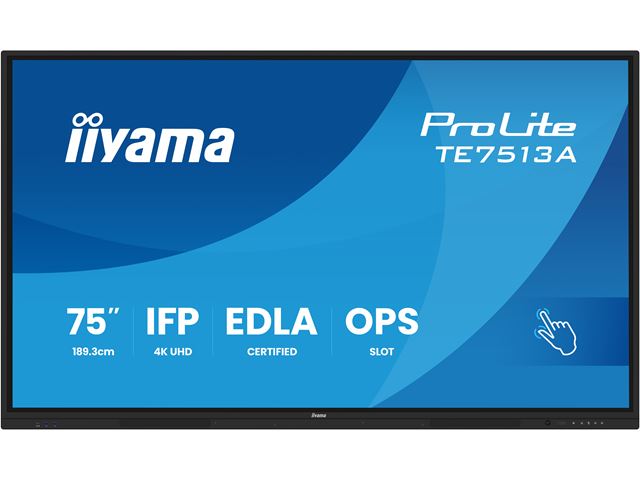

75" Google EDLA Certified IFP - Interactive display for seamless integration and collaboration in education and enterprise

The TE7513A-B2AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction.

Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with Bluetooth 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem.

Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.

Technical Information

 DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 75", 189.3cm
Panel IPS, haze haze 25%
Touch Glass Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding
Native resolution 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Brightness 500 cd/m² (max.)
Light transmittance 88%
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Horizontal Sync 30 - 135kHz
Viewable area W x H 1650 x 928mm, 65 x 36.5"
Bezel width (sides, top, bottom) 16.5mm, 16.5mm, 41mm
Pixel pitch 0.4296mm
Bezel colour and finish black, matte

 TOUCH

Touch technology PureTouch-IR⁺
Touch points 40, 10pt writing (HID, only with supported OS, 32pt Touch with Android)
Scan rate 200Hz
Touch response time 5ms
Touch method stylus, finger, glove (Passive pen, Opaque objects)
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes

 INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x2 ((v2.0) (H1 CEC/ARC / H2 CEC))
DisplayPort x1 (v1.2)
USB-C x2 ((DP-Alt, Data, Touch) front 100W PD, side 65W PD)
Audio input Mini jack x1 (Microphone)
Monitor control input RS-232c x1 (DSUB 9pin)
Digital signal output HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444)
USB-C x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444, DP1 Alt Mode, USB-C X1 (3.2 Gen 1, 5 Gbps))
Audio output S/PDIF (Optical) x1
Mini jack x1 (Headphone)
Speakers 2 x 20W (Front facing + 20W Subwoofer on the backside)
Monitor control output OPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 65W, side: 15W)
HDCP 2.2
USB ports x5 (media playback / peripherals / storage – front side: 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2x 3.2 (Gen 1, 5Gbit), side: 1x USB-C 2.0 (480 Mbps, 65W PD), 1x 2.0 (480Mbps), 1x 3.2 (Gen 1, 5Gbit))
RJ45 (LAN) x2 (IN / OUT, Auto switch for PC & Android, 1000MB)

 FEATURES

Integrated software iiWare 21E (Android 14 OS, Android 16 summer 2026) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices
WiFi yes (WiFi-6E, Bluetooth 5.0)
Hardware CPU: RK3576 Octa-core A72*4 + A53*4, GPU Mali G52 MC3, RAM: 8 GB, ROM: 128 GB
Extra Ambiant light Sensor, Pen Pick-up Sensor, PIR Motion Sensor, NFC, Slot for optional OPS PC, 4x Touch pen
Max. non-stop operating time 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity)
Media playback yes
Glass thickness 3.2mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB, ET, LV, LT, HU, UK
Control buttons Power, Home, Freeze, Volume, Input (source)
User controls general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system)
Blue light reducer yes
Flicker free 98" not supported
Plug&Play DDC2B
Warranty 5 years (for details and eligible countries please check the Warranty section of our website)

 MECHANICAL

Orientation landscape
Fanless design yes

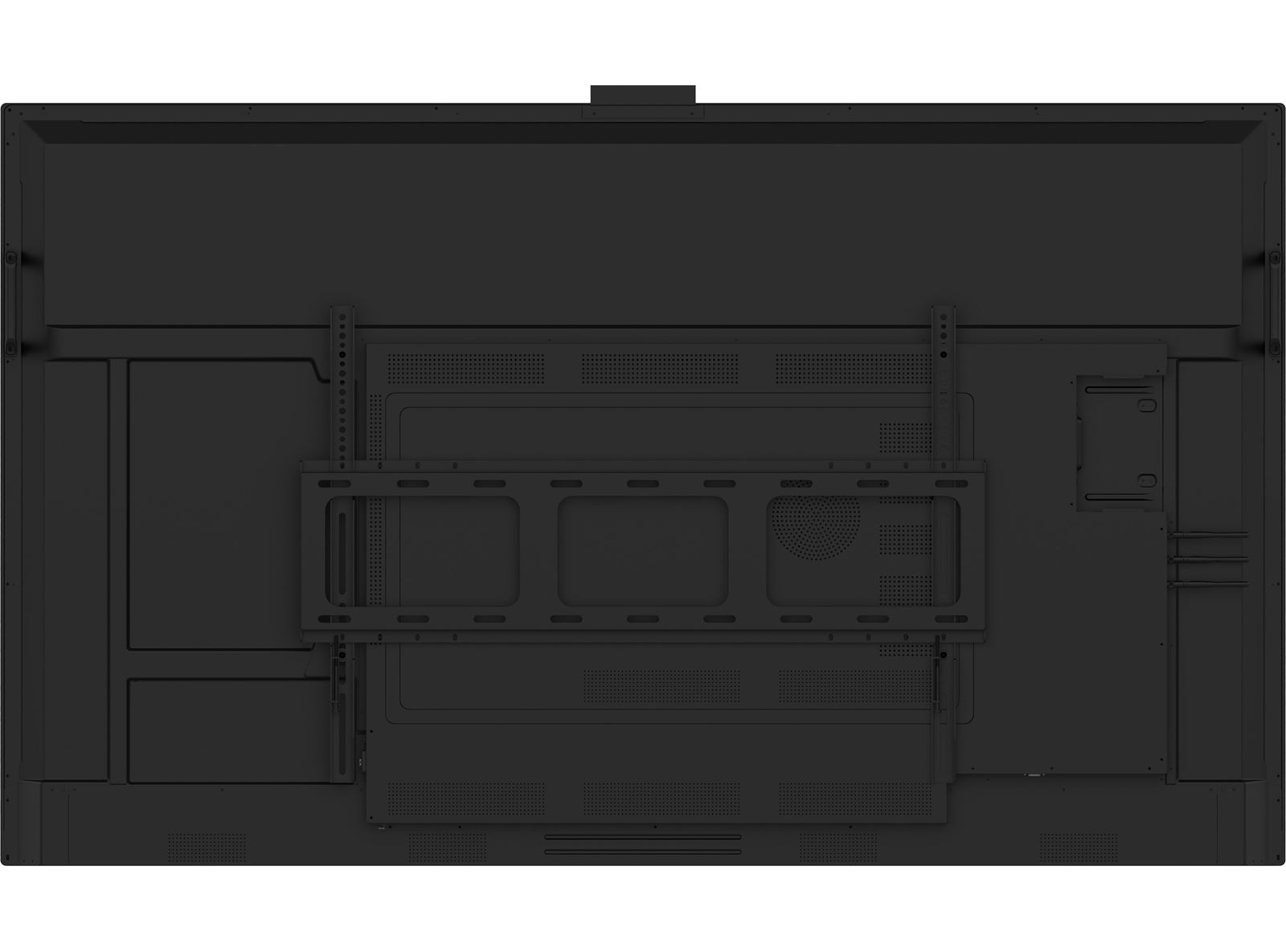

VESA mounting 800 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

 ACCESSORIES INCLUDED

Cables power (EU 3m, UK 3m), USB (3m), HDMI (3m)

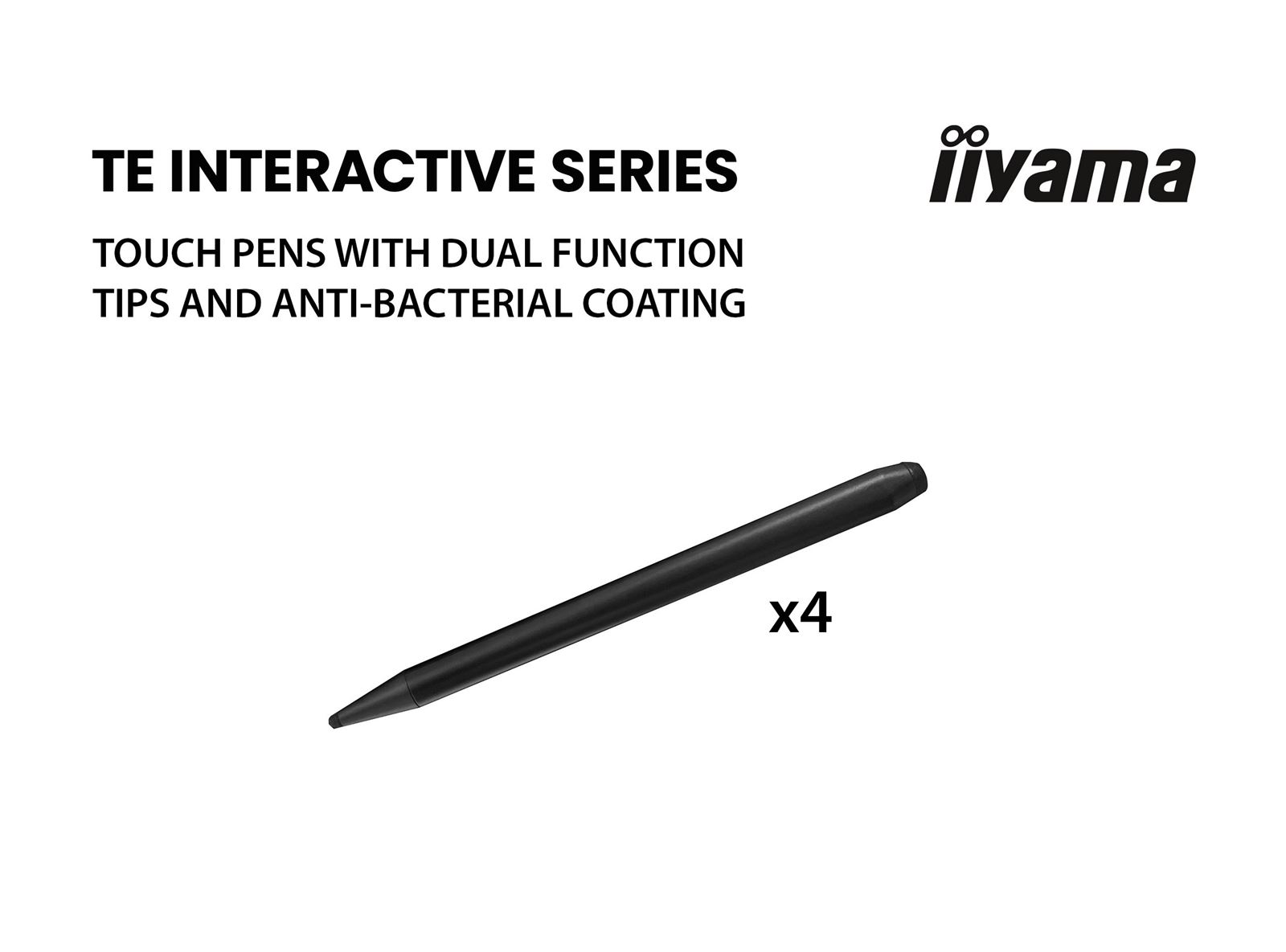

Touch pen x4 (Dual function tips)
Guides quick start guide, safety guide

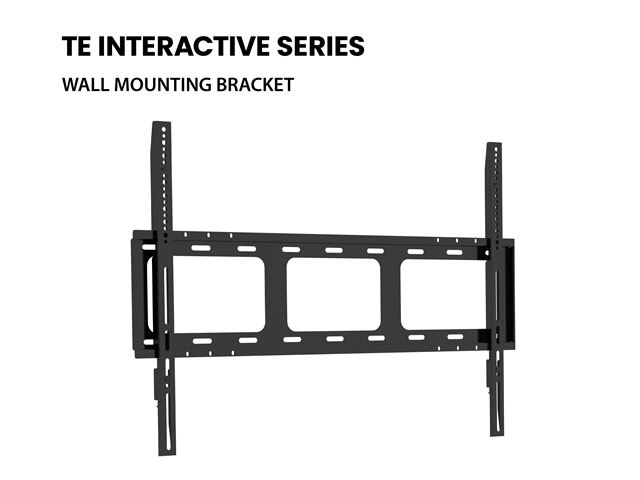

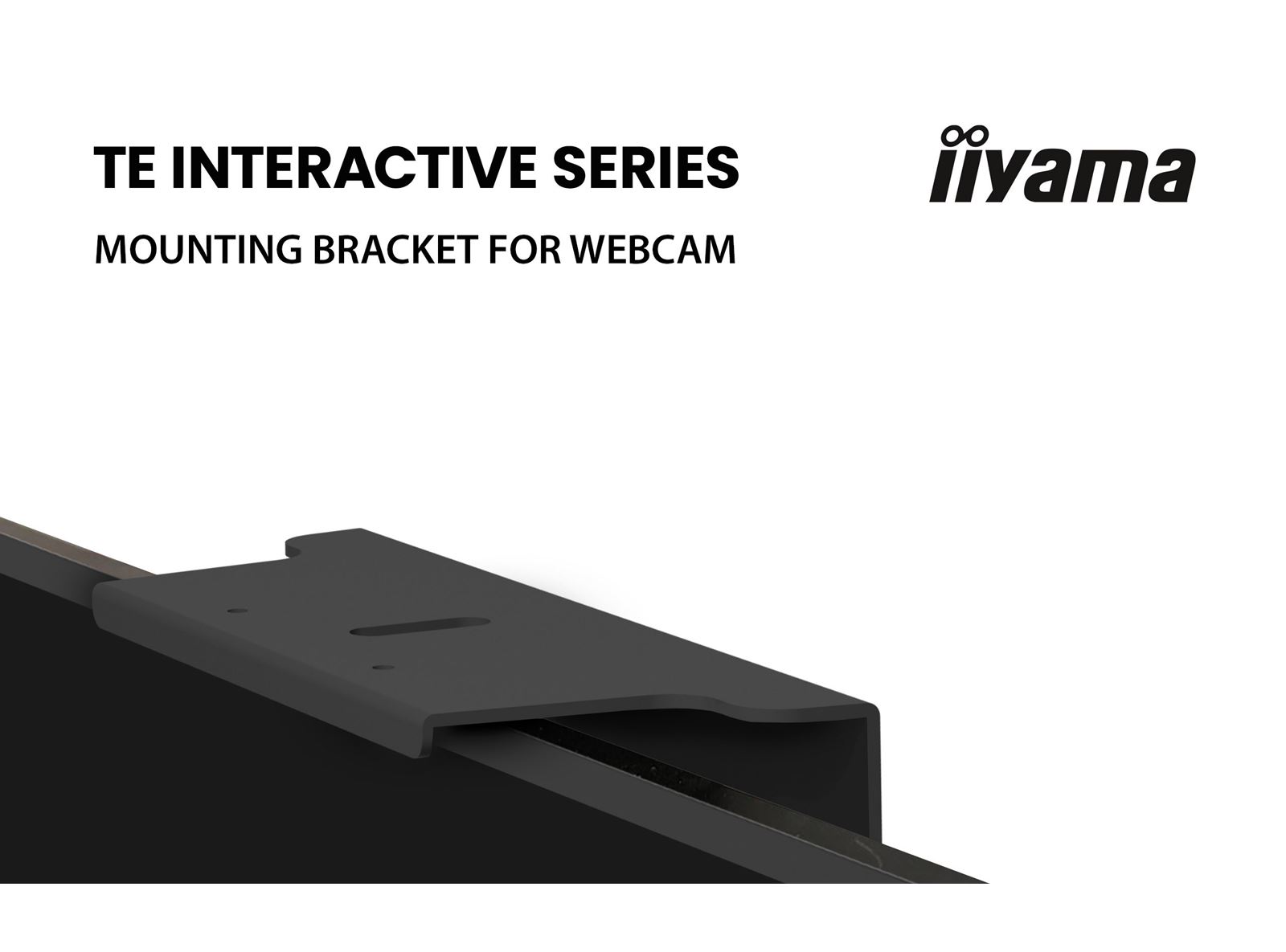

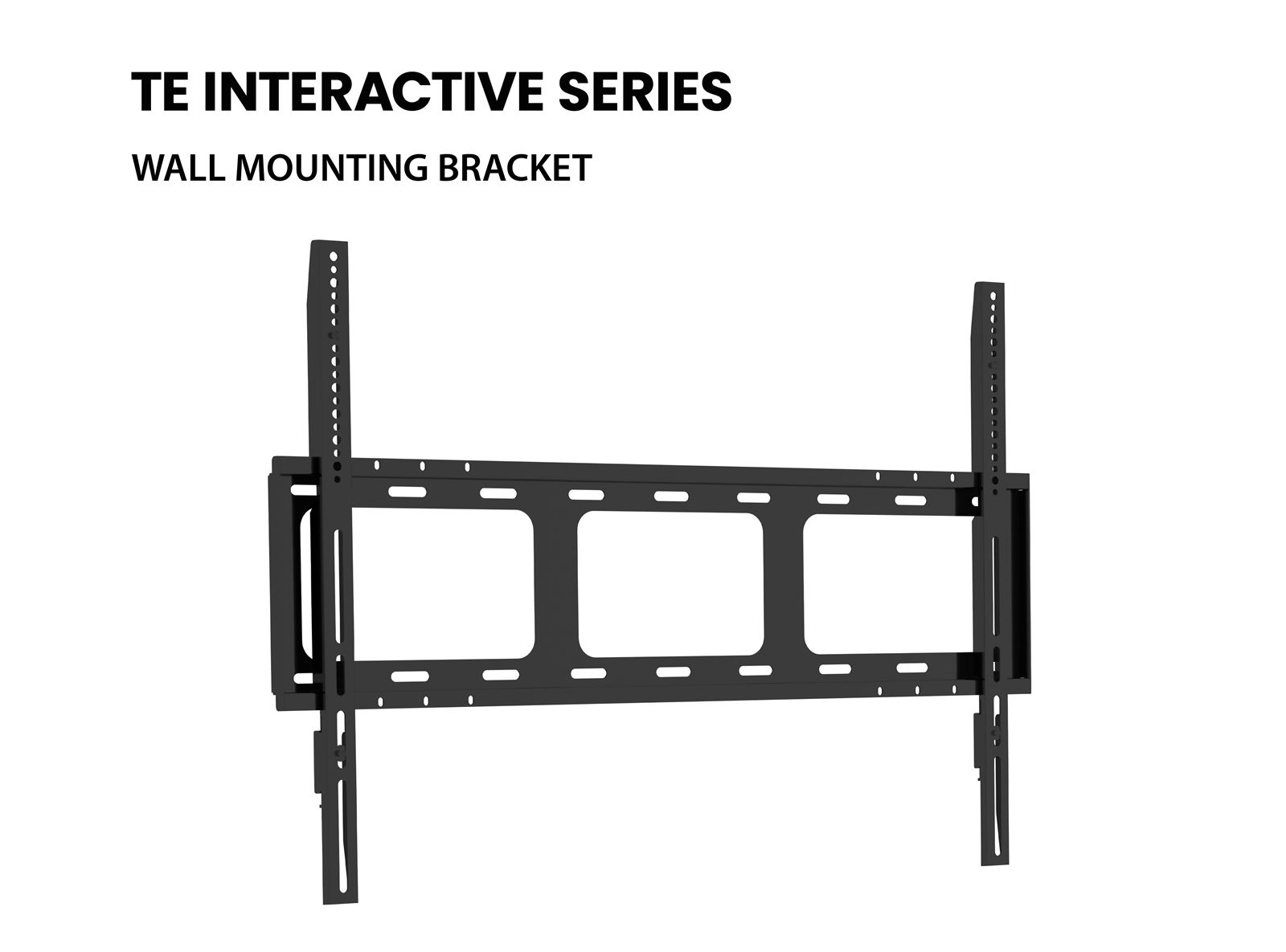

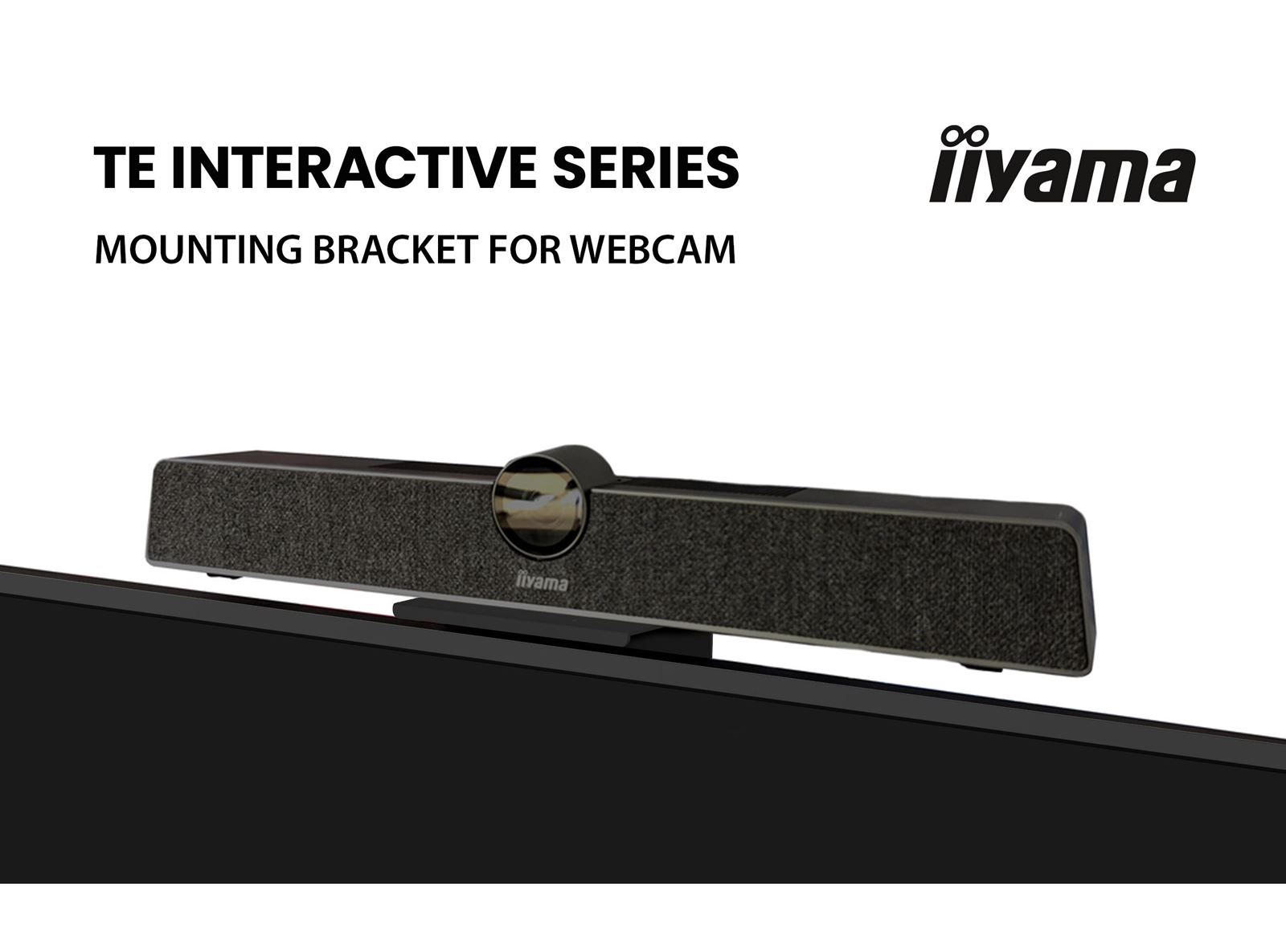

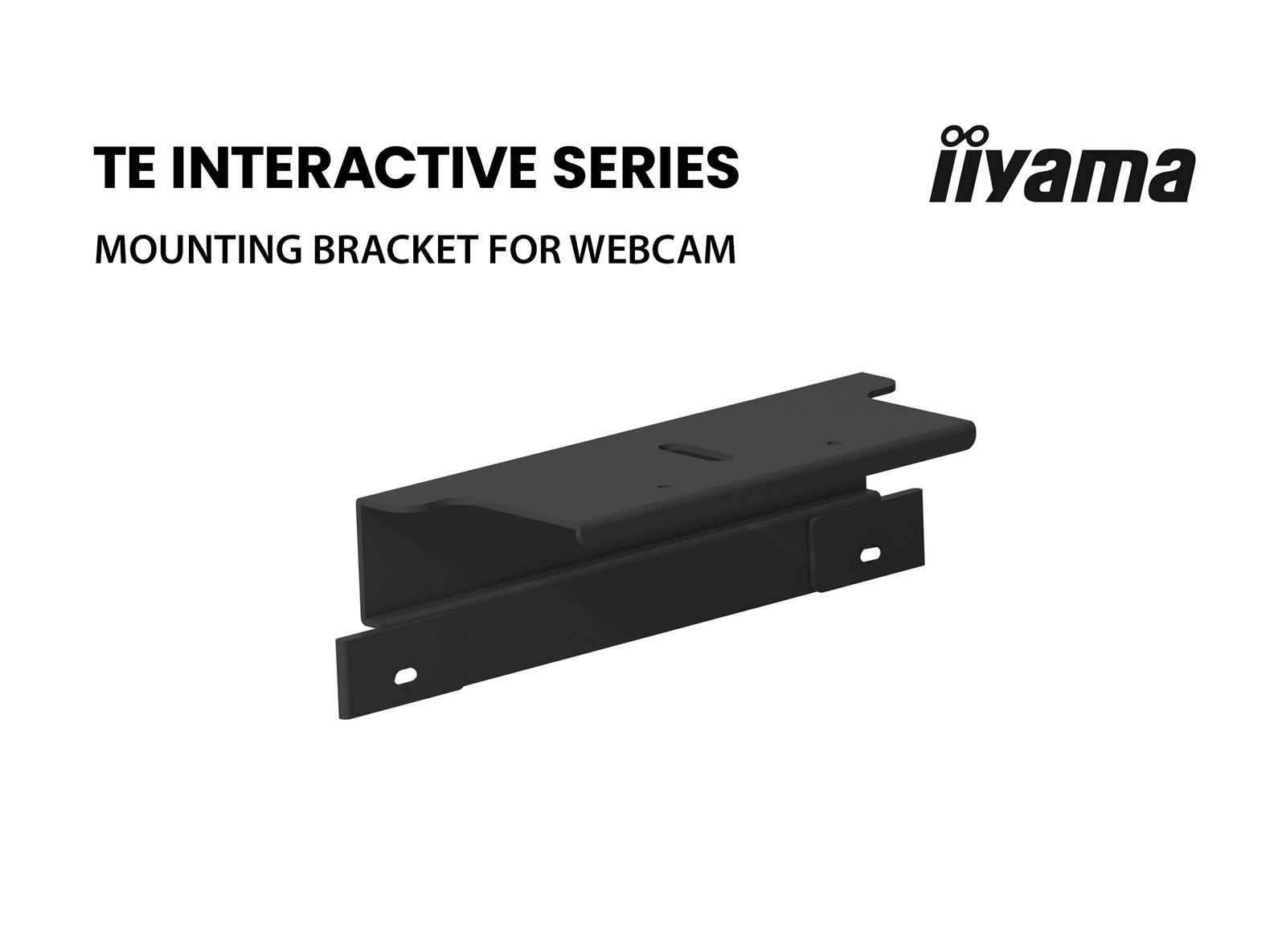

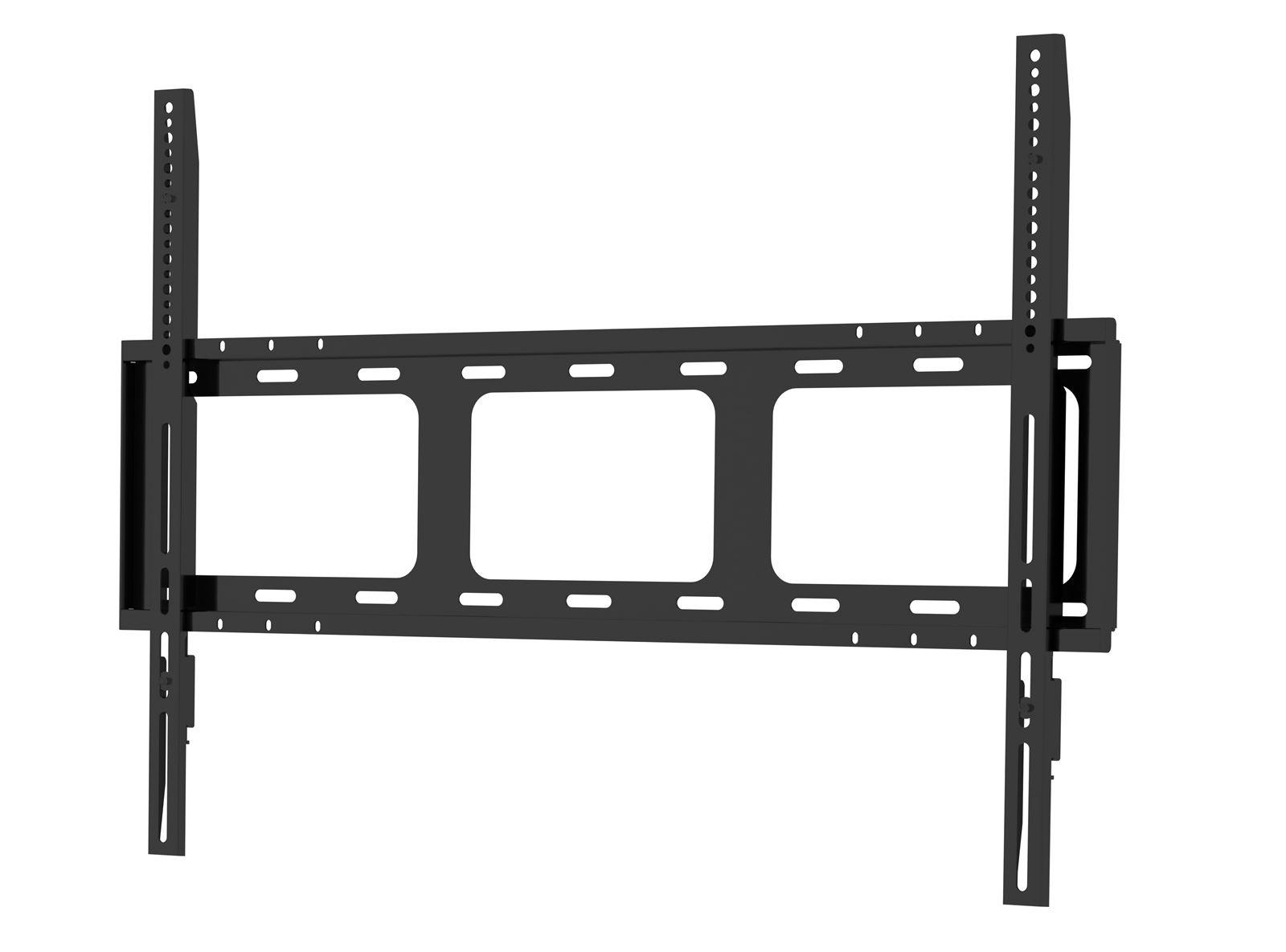

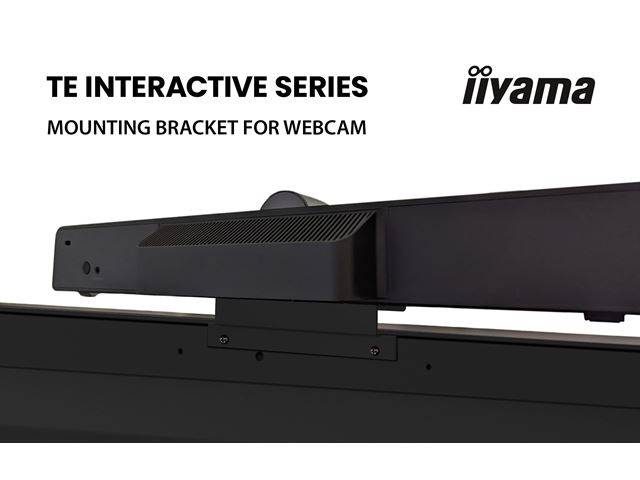

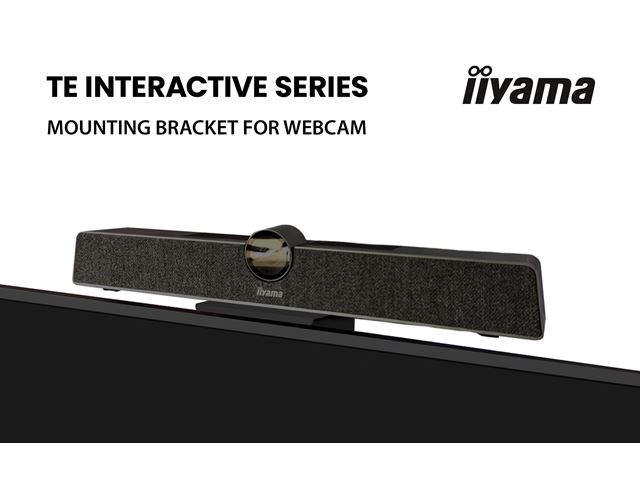

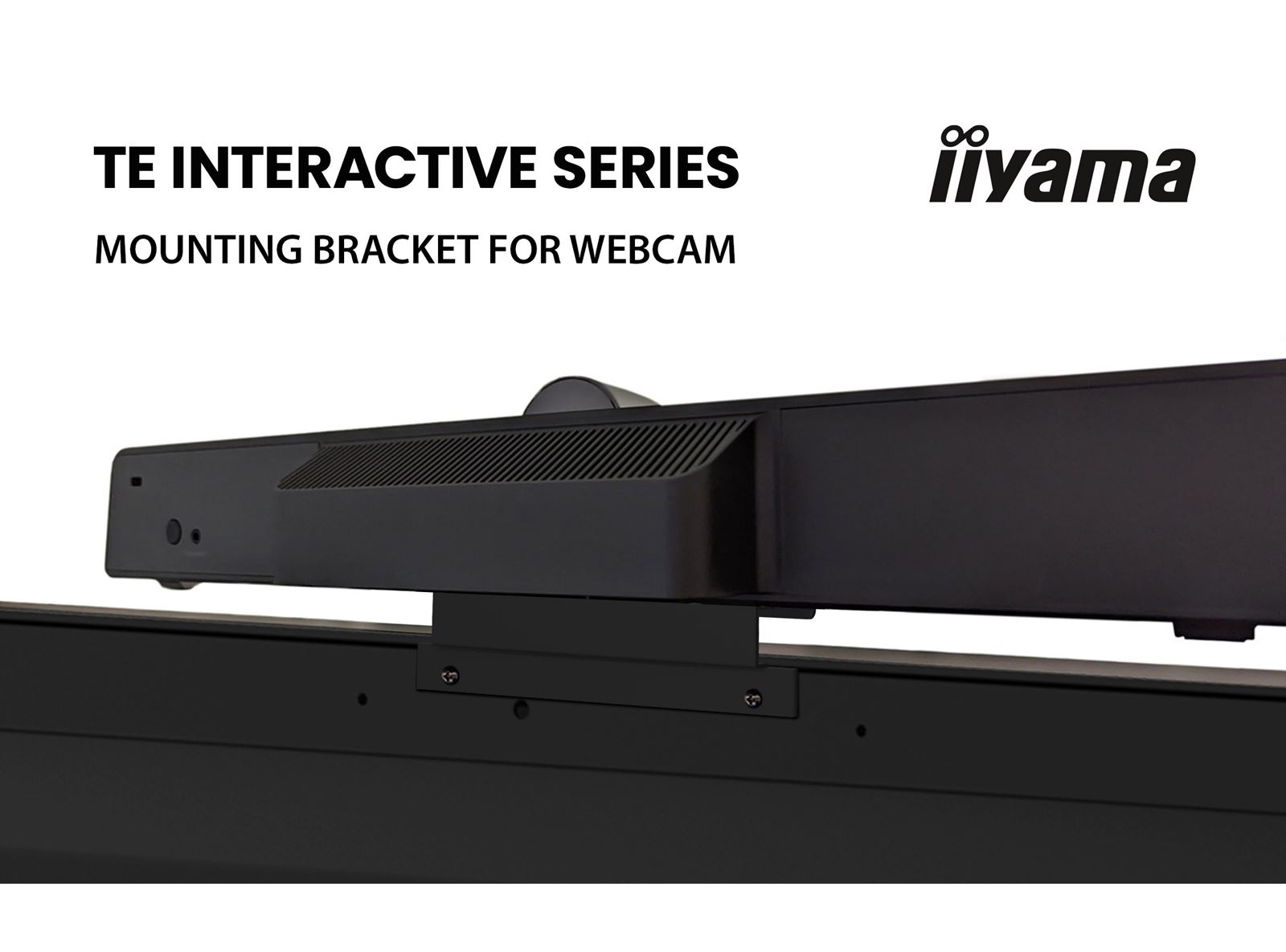

Other Wall Mounting Bracket (VESA 800x400), Webcam Mounting Bracket
Remote control yes (batteries included)

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 217W typical, 0.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 1710 x 1016 x 87mm
Box dimensions W x H x D 1860 x 1125 x 185mm
Pallet volume 4pcs
Weight (without box) 51.8kg
Weight (with box) 63kg
EAN code 4948570125746
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

OPS PC SLOT

Built-in expansion slot supports the Open Pluggable Specification (OPS) standard; it simplifies the installation of a plug-in PC for digital signage applications.



OPS PC SLOT

24/7

24/7 displays are designed for a continuous operation.



24/7

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

PALM REJECTION FUNCTION

Palm rejection is a way to disregard signal from finger while using the pen mode. When you touch the screen with a pen, and your palm is touching the monitor, palm rejection is activated and the screen does not recognize touch made with the finger. If the screen is not touched for 1 second, it will automatically return to the finger mode.

PALM REJECTION FUNCTION

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS

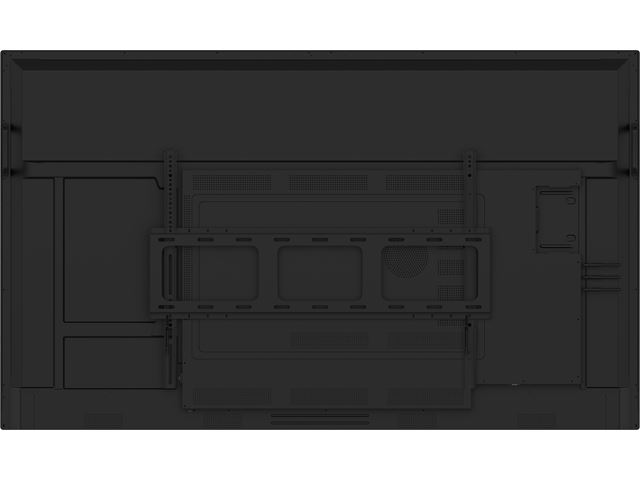

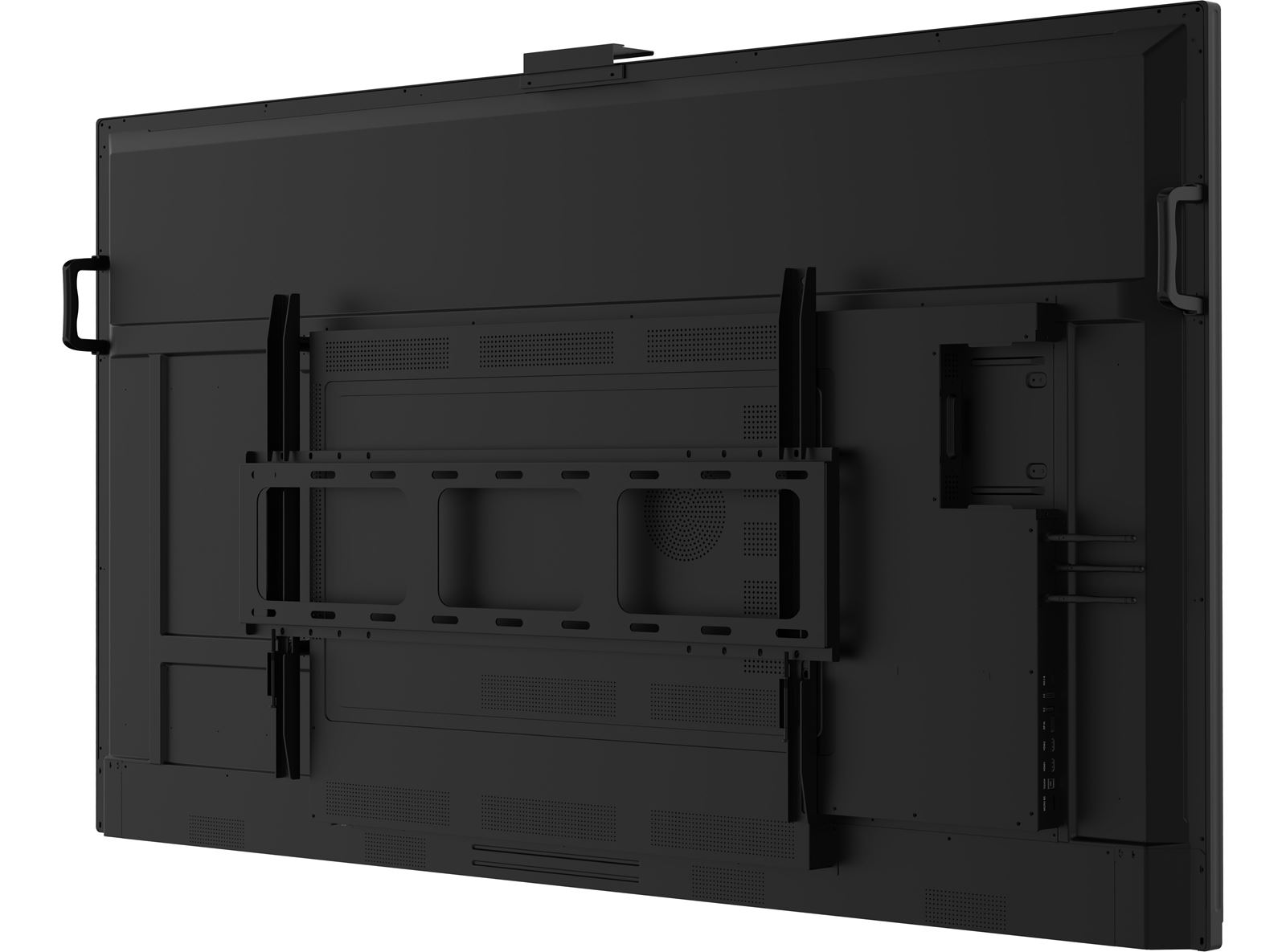

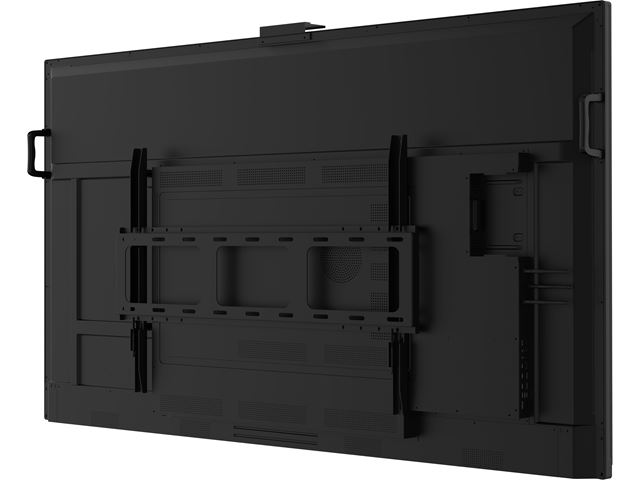

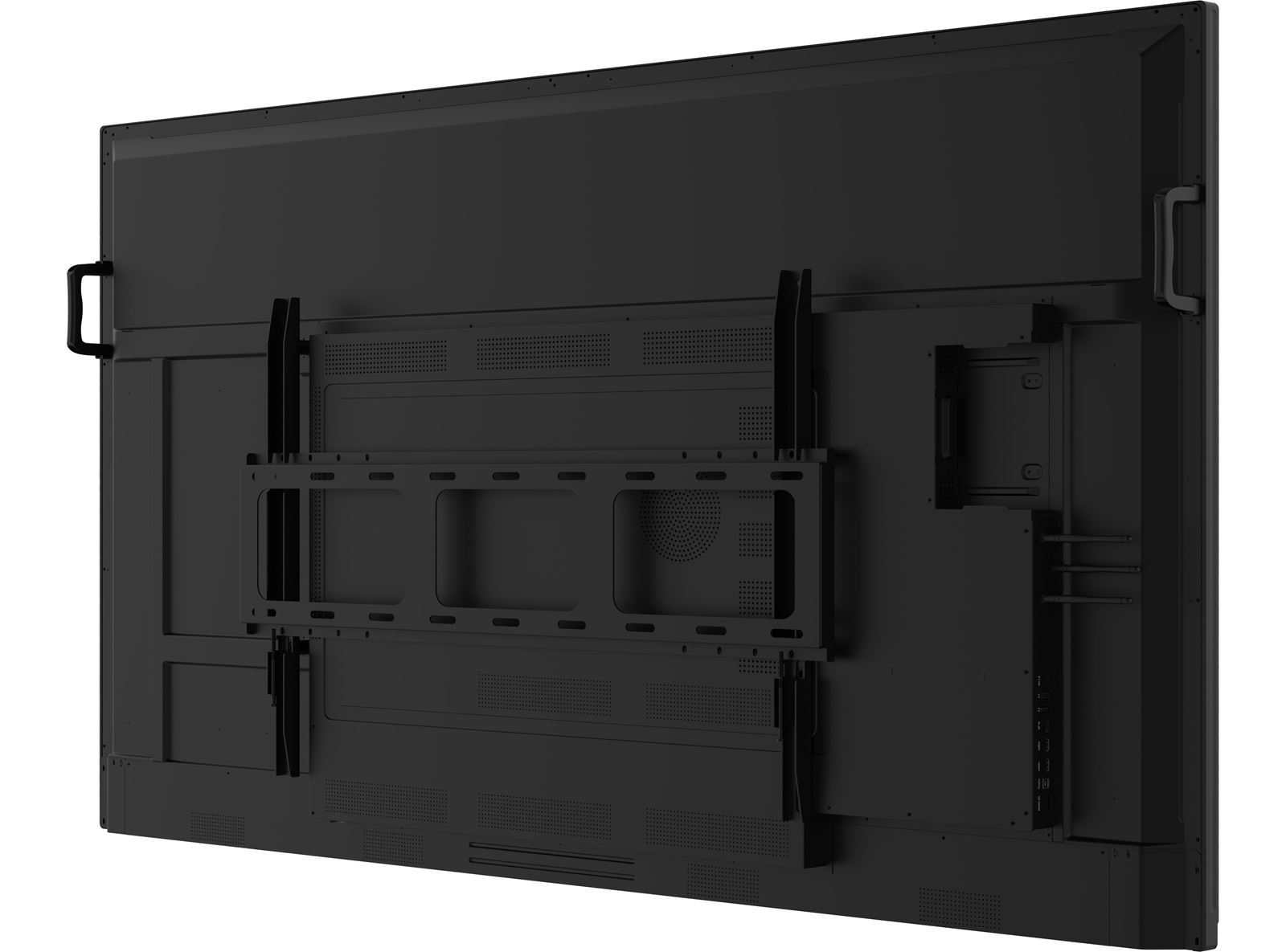

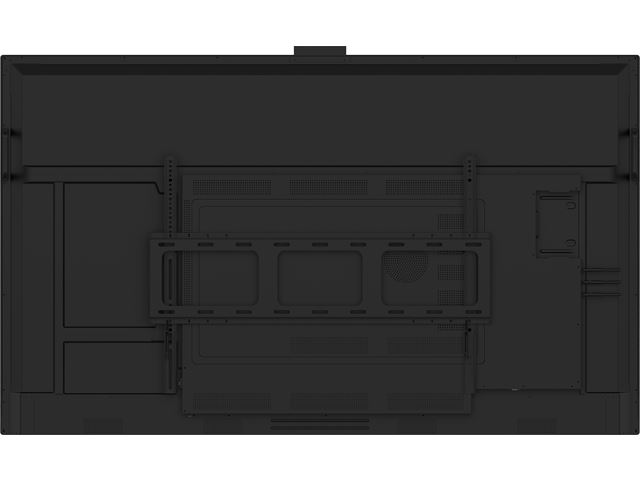

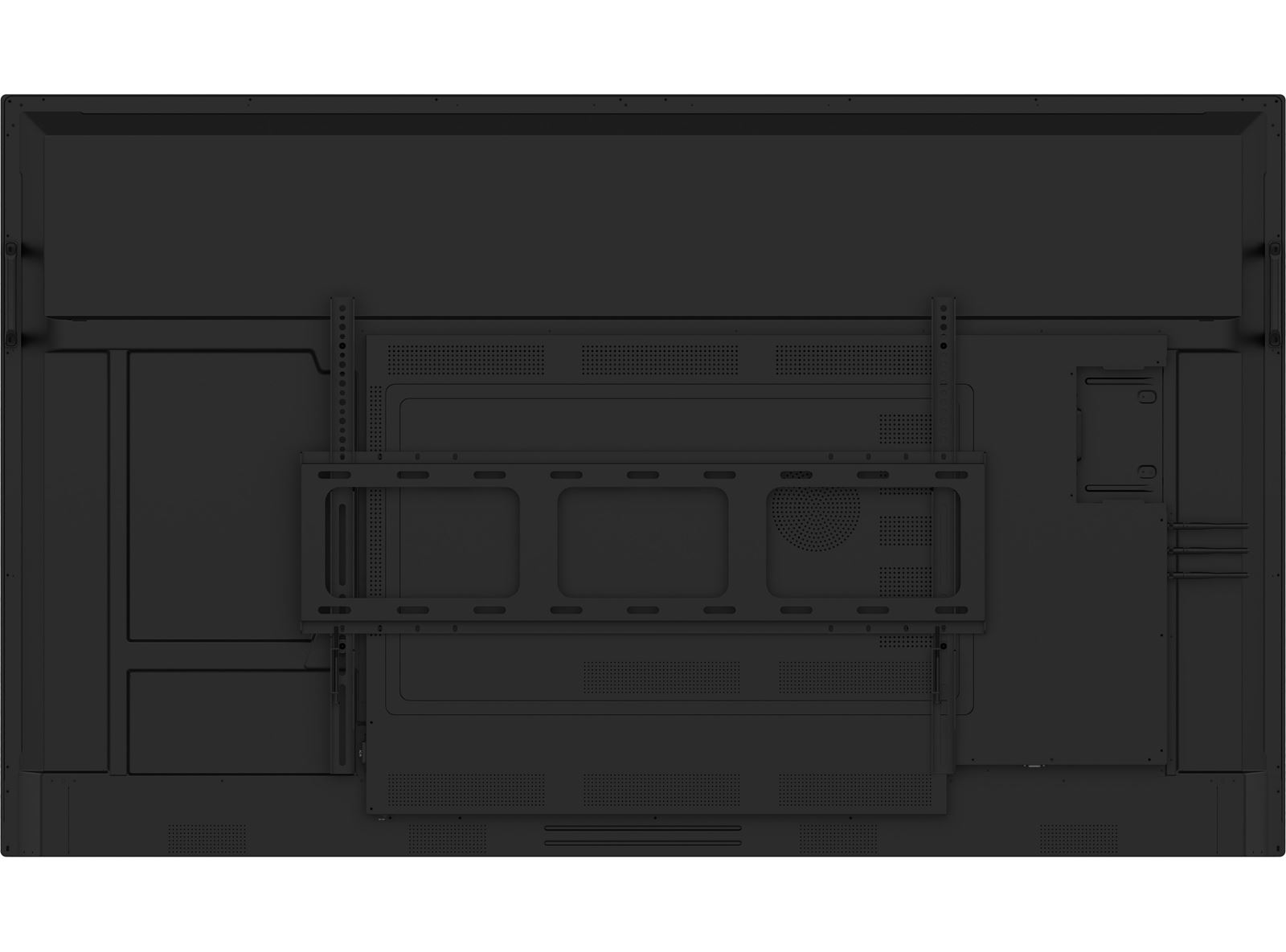

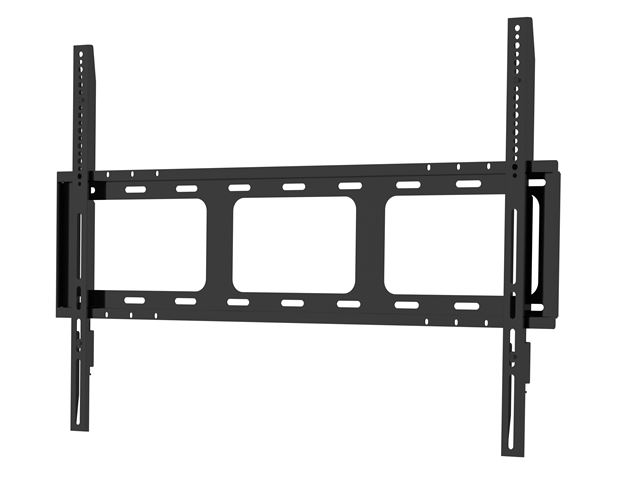

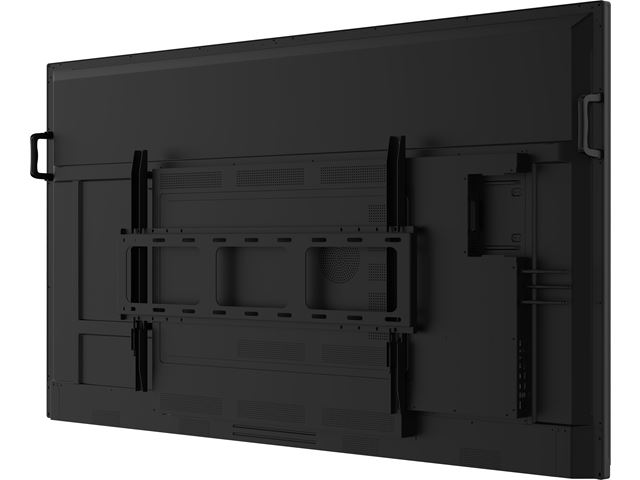

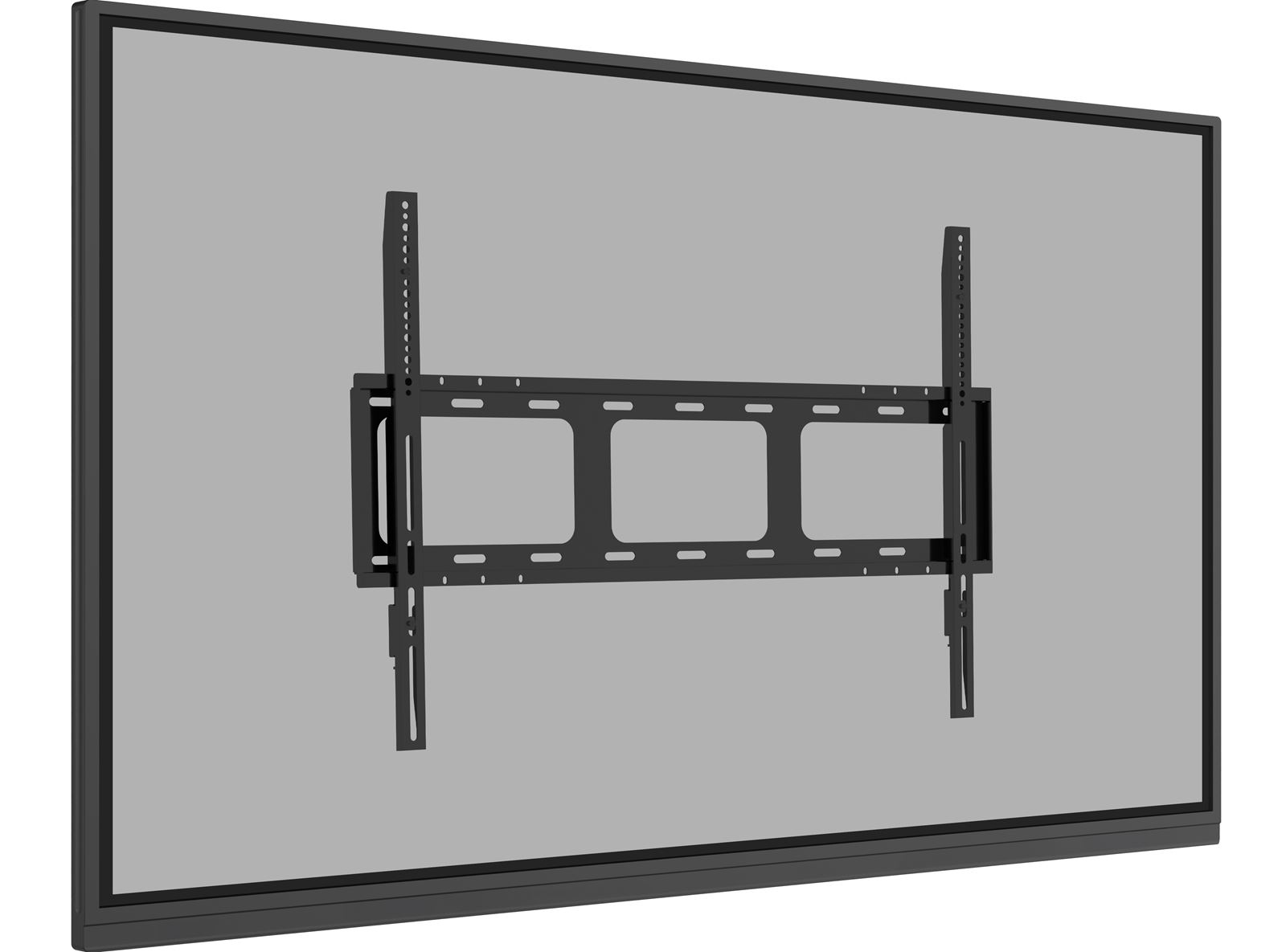

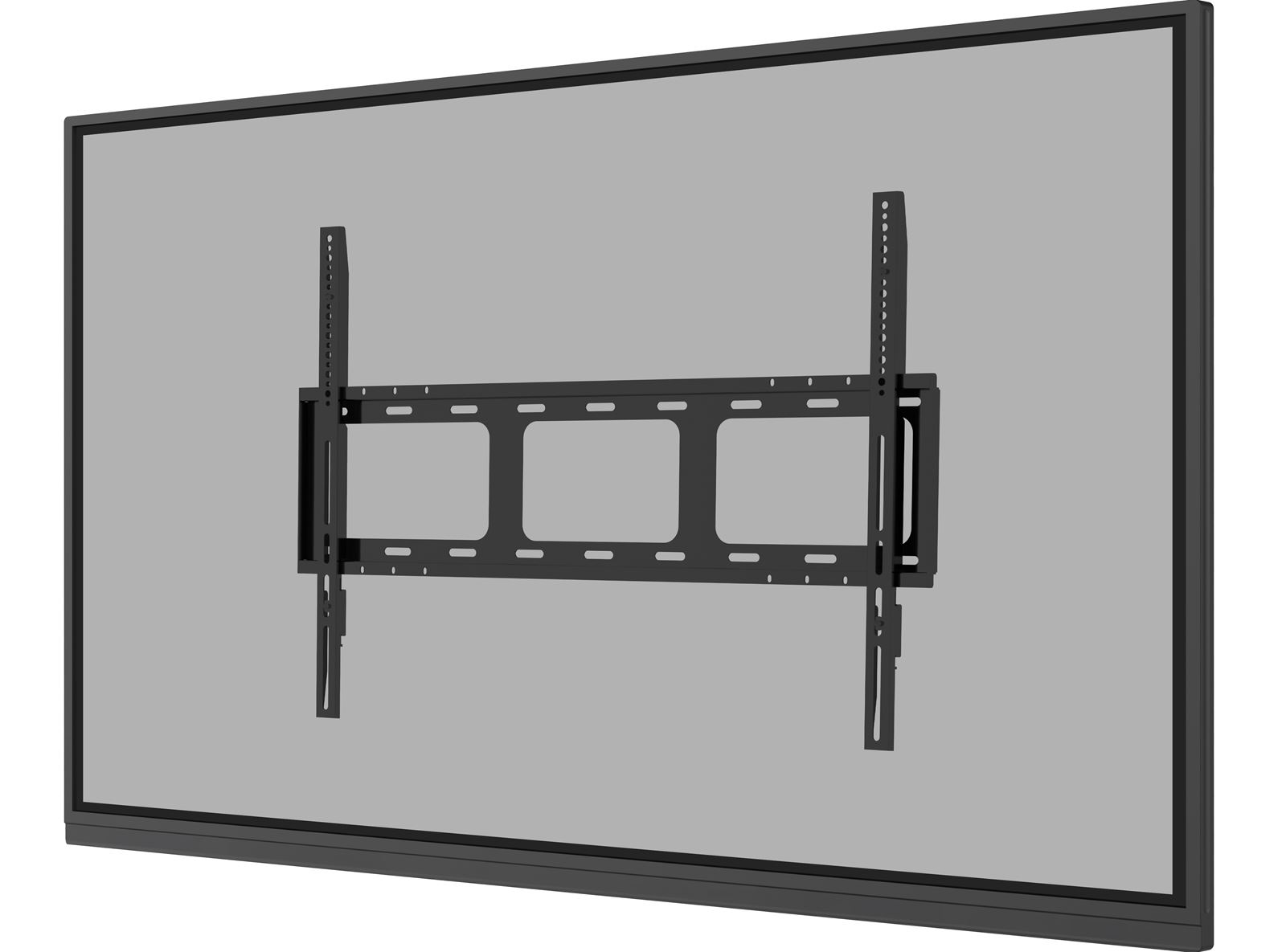

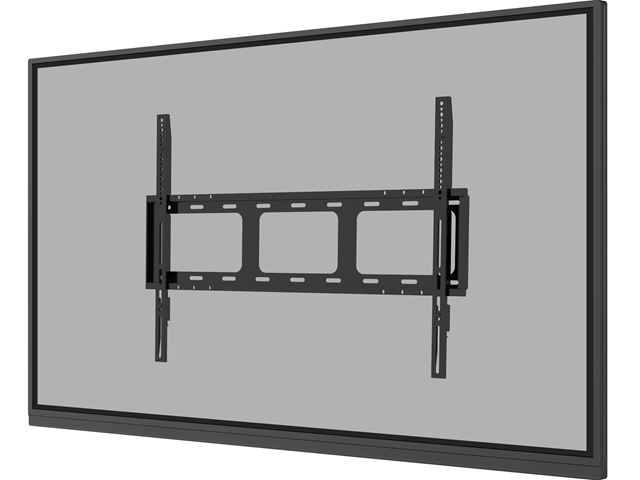

Included Wall Mount

Wall mount bracket included, compatible VESA mounting sizes.

Included Wall Mount
