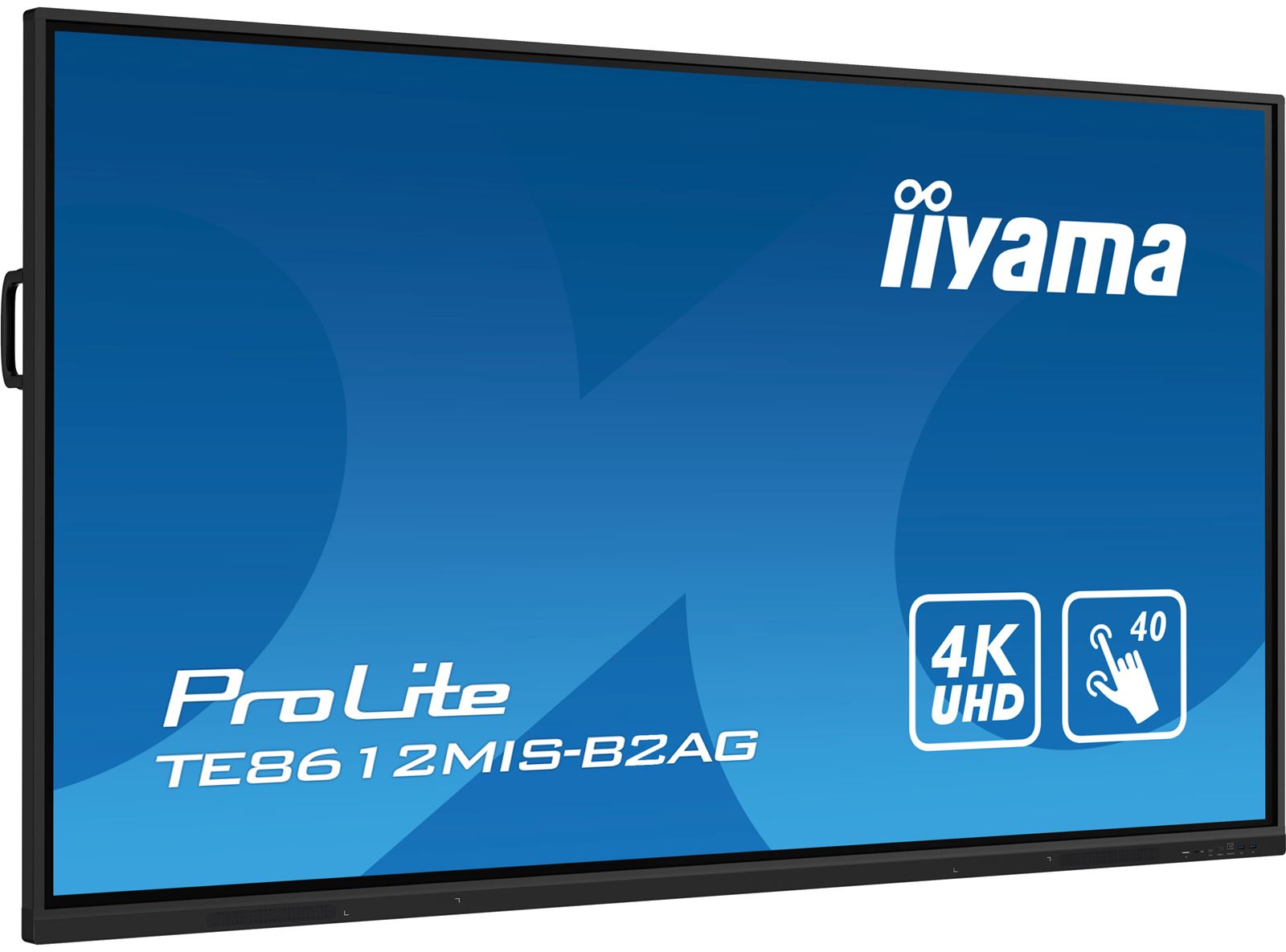

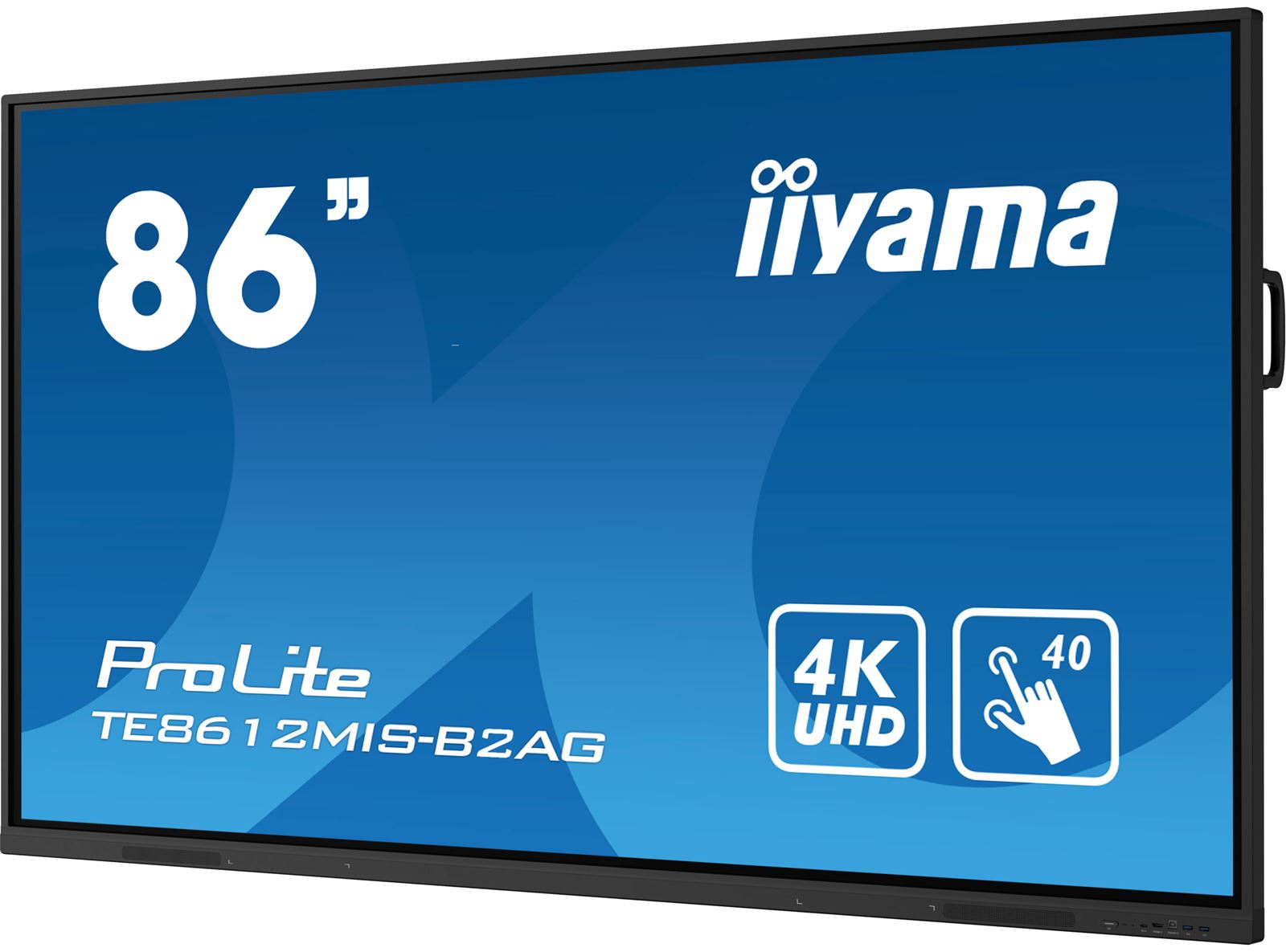

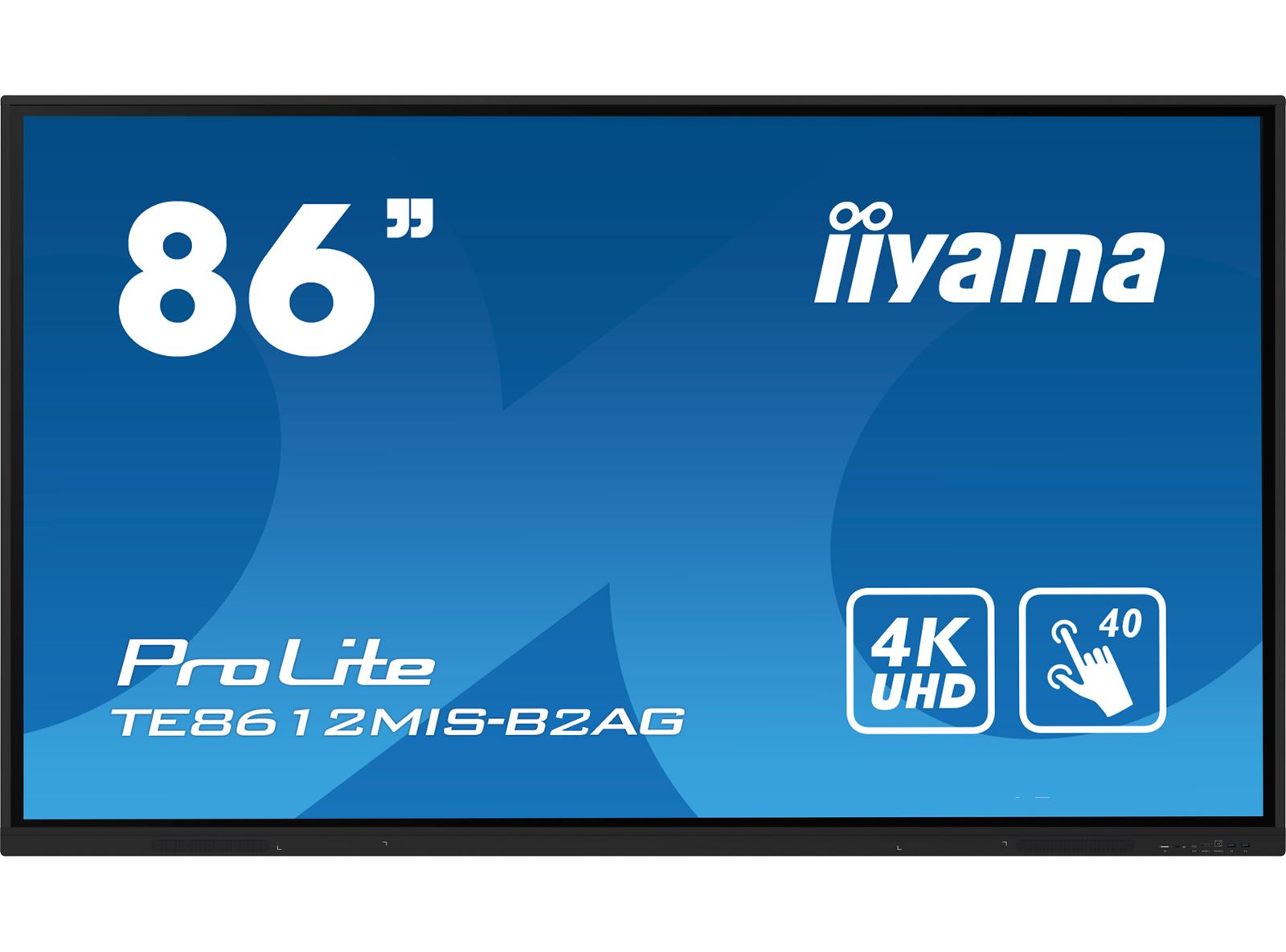

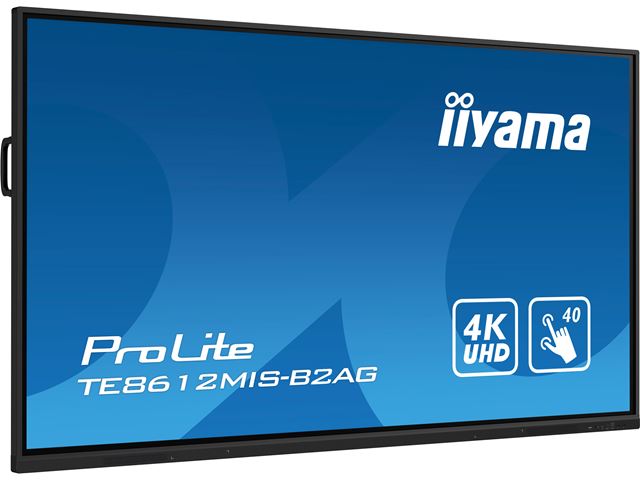

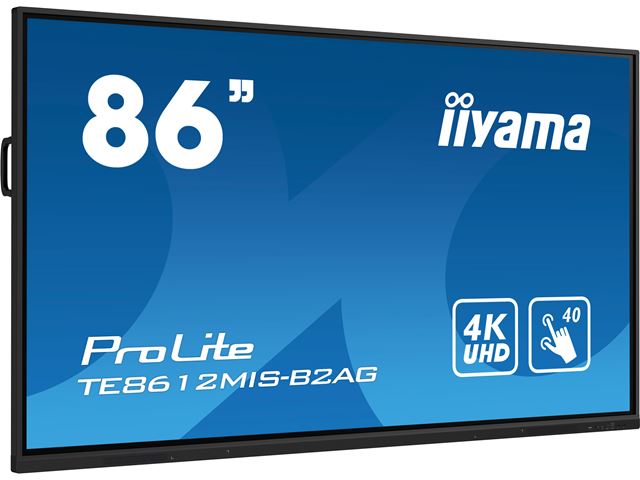

iiyama ProLite TE8612MIS-B2AG 86", 4k UHD, Infrared 40pt touch, PC slot, 24/7, VA, Anti-glare coating, 32GB internal memory, HDMI, USB-C, Android 11 OS

£1,850.00 exc. VAT
£2,220.00 inc. VAT

Brand: iiyama

Manufacturer Code: TE8612MIS-B2AG

Product Description

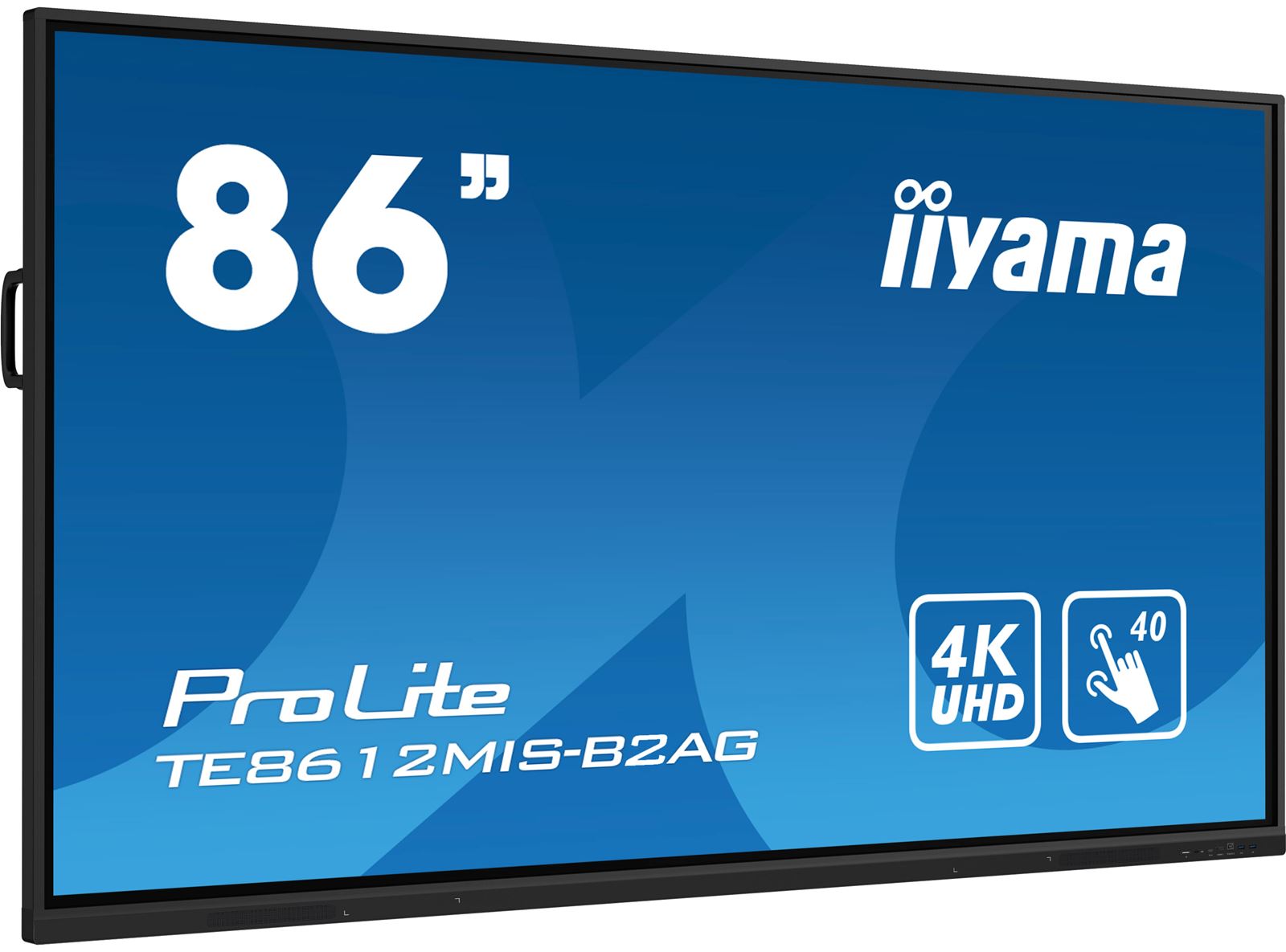

86" Interactive 4K UHD Touchscreen featuring a 4K interface with User Profiles

Collaboration for education and enterprise made simple. The TE8612MIS-B2AG from iiyama inspires all possibilities in all stages for education, start-up and large-scale businesses. With our hybrid interactive solution, you can smoothly annotate in 4K and control any content on the display from any source.

This PureTouch-IR 40-point Touchscreen with iiWare 10 (Android 11 OS) features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation. It comes with dual functionTouch pens, and you can easily save your notes and on-screen content directly to a USB device, 32GB internal memory or a selected cloud drive. Including an additional USB-C connection, the display supports the latest in video, audio and Touch signal via a single port and even charge your device with 65W power delivery.

With a 4K UHD resolution (3840x2160) and 400cd/m2 brightness this 86” VA screen provides vibrant, detailed, and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image.

You can be sure that no matter what your Interactive aspiration, iiyama has the simplified solution just for you. Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke menu and Cloud Drives, the TE8612MIS-B2AG becomes a highly personalised device within a busy hybrid environment for multiple users.

Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002), ScreenSharePro and EShare app.

Technical Information

DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 85.6", 217.4cm
Panel VA, haze 25%
Touch Glass AG coated glass, zero air-gap
Native resolution 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio 16:9
Panel brightness 400 cd/m²
Light transmittance 92%
Static contrast 4000:1
Dynamic contrast 8000:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 8bit+FRC
Horizontal Sync 30 - 135kHz
Viewable area W x H 1895 x 1066mm, 74.6 x 42"
Bezel width (sides, top, bottom) 16.5mm, 16.5mm, 30mm
Pixel pitch 0.4935mm
Bezel colour and finish black, matte

TOUCH

Touch technology PureTouch-IR
Touch points 40 (5pt writing, HID, only with supported OS)
Touch accuracy +- 1.5mm
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

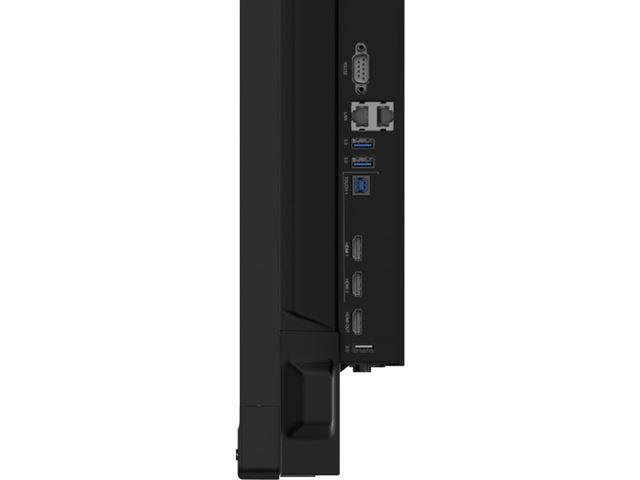

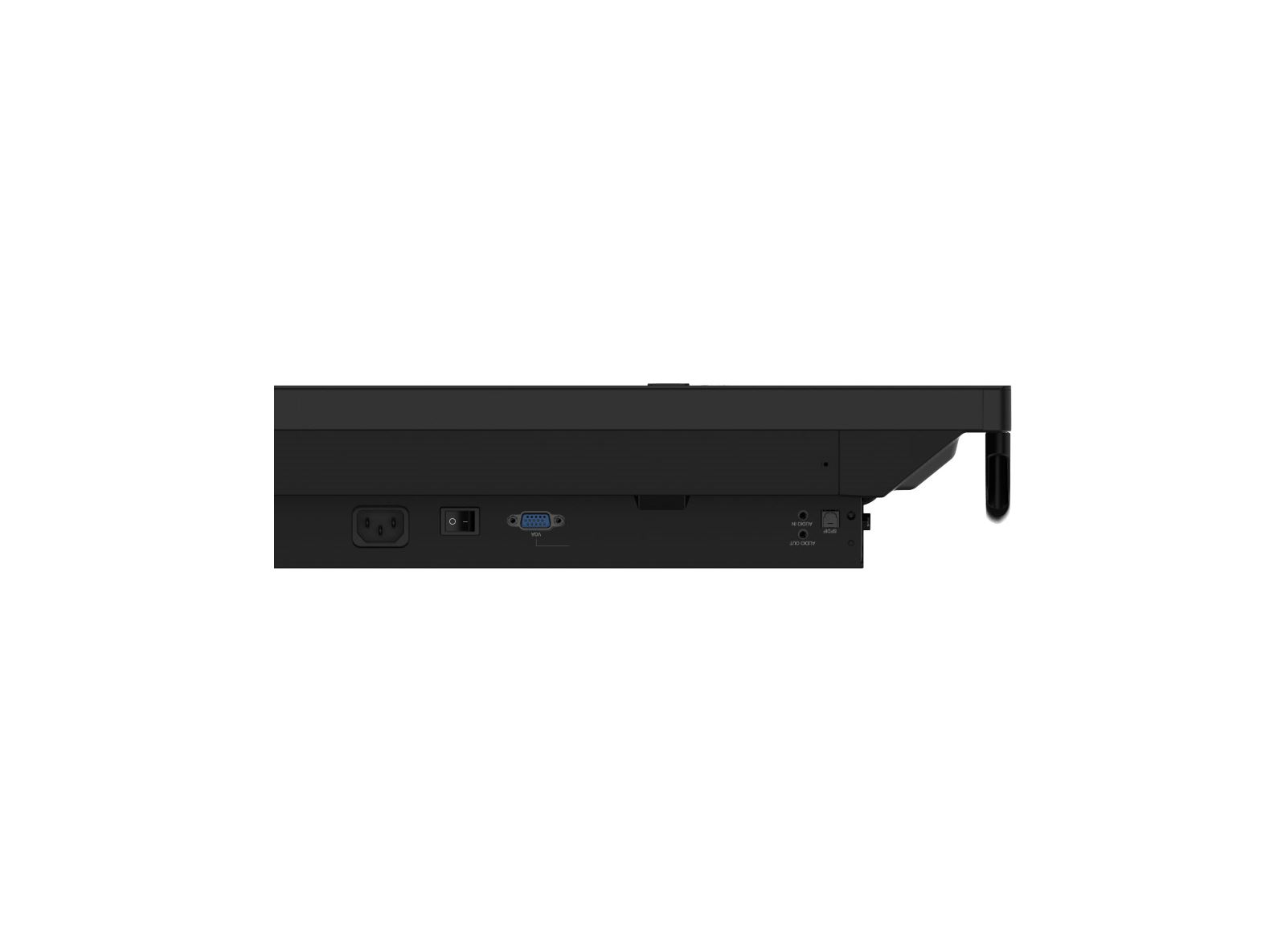

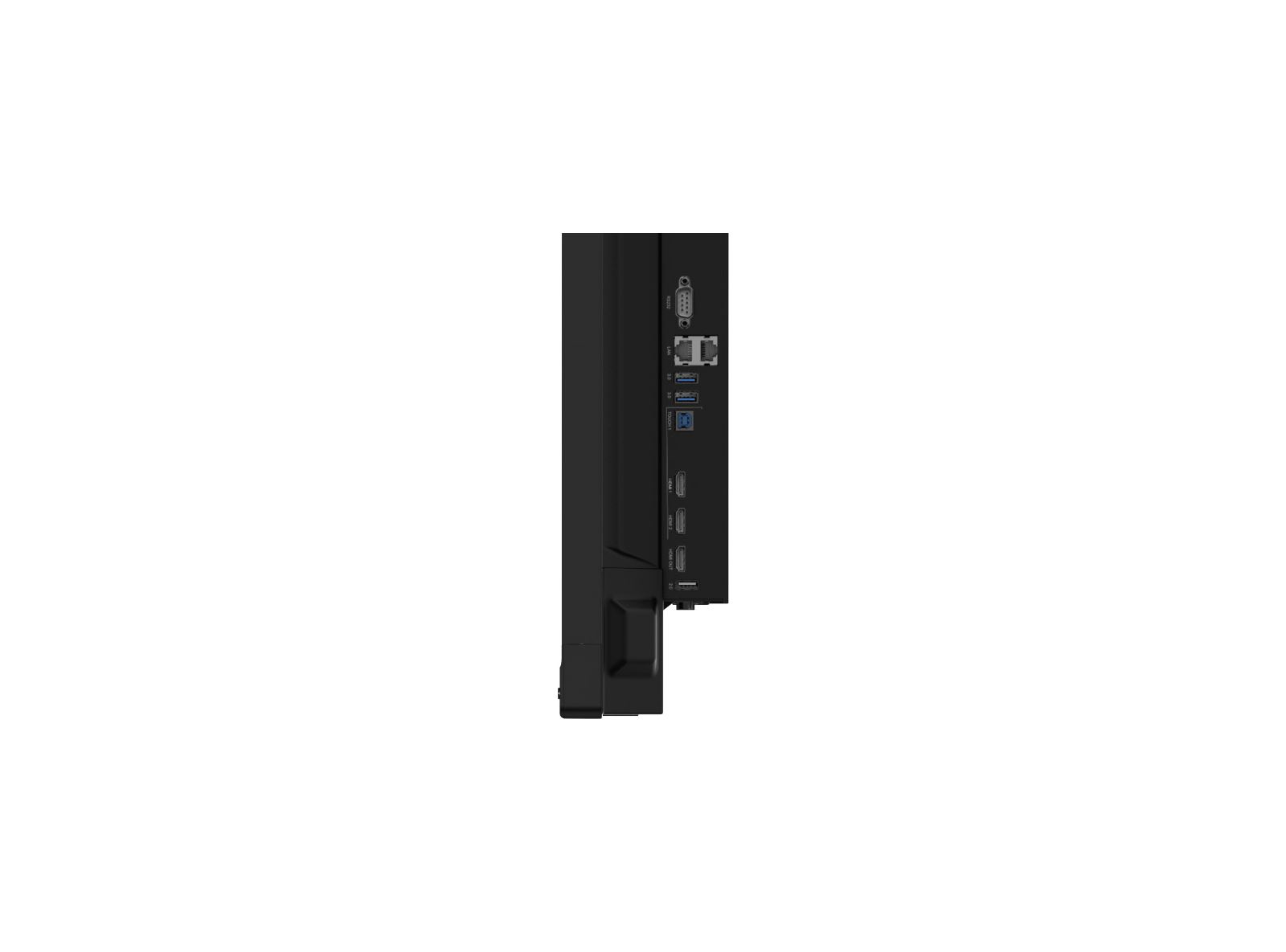

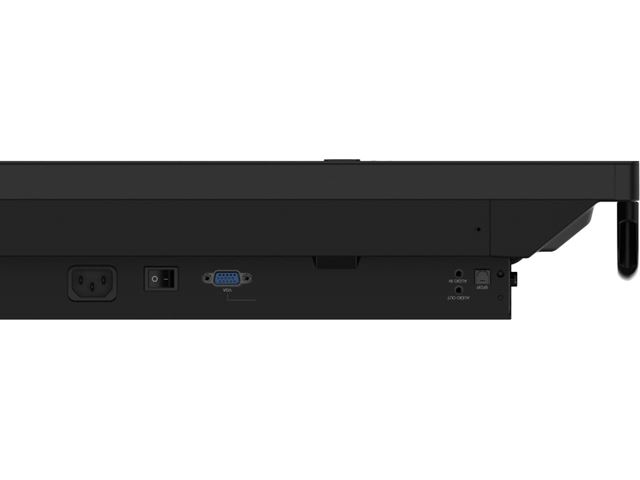

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1 (max. 1920x1080 @60Hz)
Digital signal input HDMI x3 (v.2.0, max. 3840x2160 @60Hz, YUV444)
USB-C x1 (3.1, 3840x2160 @60Hz - RGB444 - (65W charging, Touch)
Audio input Mini jack x1
Monitor control input RS-232c x1 (DSUB 9pin)
RJ45 (LAN) x1 (LAN Control)
IR x1
Digital signal output HDMI x1 (3840x2160 @60Hz)
Audio output S/PDIF (Optical) x1
Mini jack x1
Speakers 2 x 16W (Front)
HDCP HDMI 1: 2.1, USB-C: 2.2
USB ports x5 (media playback / peripherals / storage – front side: 2x 3.0, 1x USB-C 3.1 (65W PD), right side: 2x 3.0)
RJ45 (LAN) x2 (Auto switch for PC & Android, 1000MB)

FEATURES

Integrated software iiWare 10 (Android 11 OS) featuring iiyama DMS, Note, web browser, file manager, cloud drives, WPS office, iiyama Share and EShare for wireless connection with Windows/iOS/Android devices
WiFi yes (WiFi Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac, Bluetooth Support: 2.1/3.0/4.2/5.0)
Hardware Quad core A55 CPU, Mali G52 GPU, 4GB RAM, 32GB internal memory
Extra WiFi Module (OWM002), Slot for optional OPS Slot PC, 4x Touch pen
Kiosk mode yes
Max. non-stop operating time 24/7
Media playback yes
Glass thickness 3mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL
Control buttons Power, Power Indicator, Remote Sensor, Light Sensor
User controls general settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system)
Blue light reducer yes
Plug&Play DDC2B

MECHANICAL

Orientation landscape
Fanless design yes

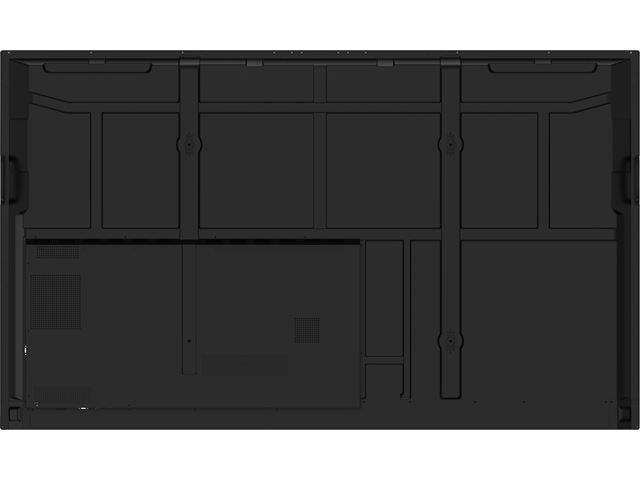

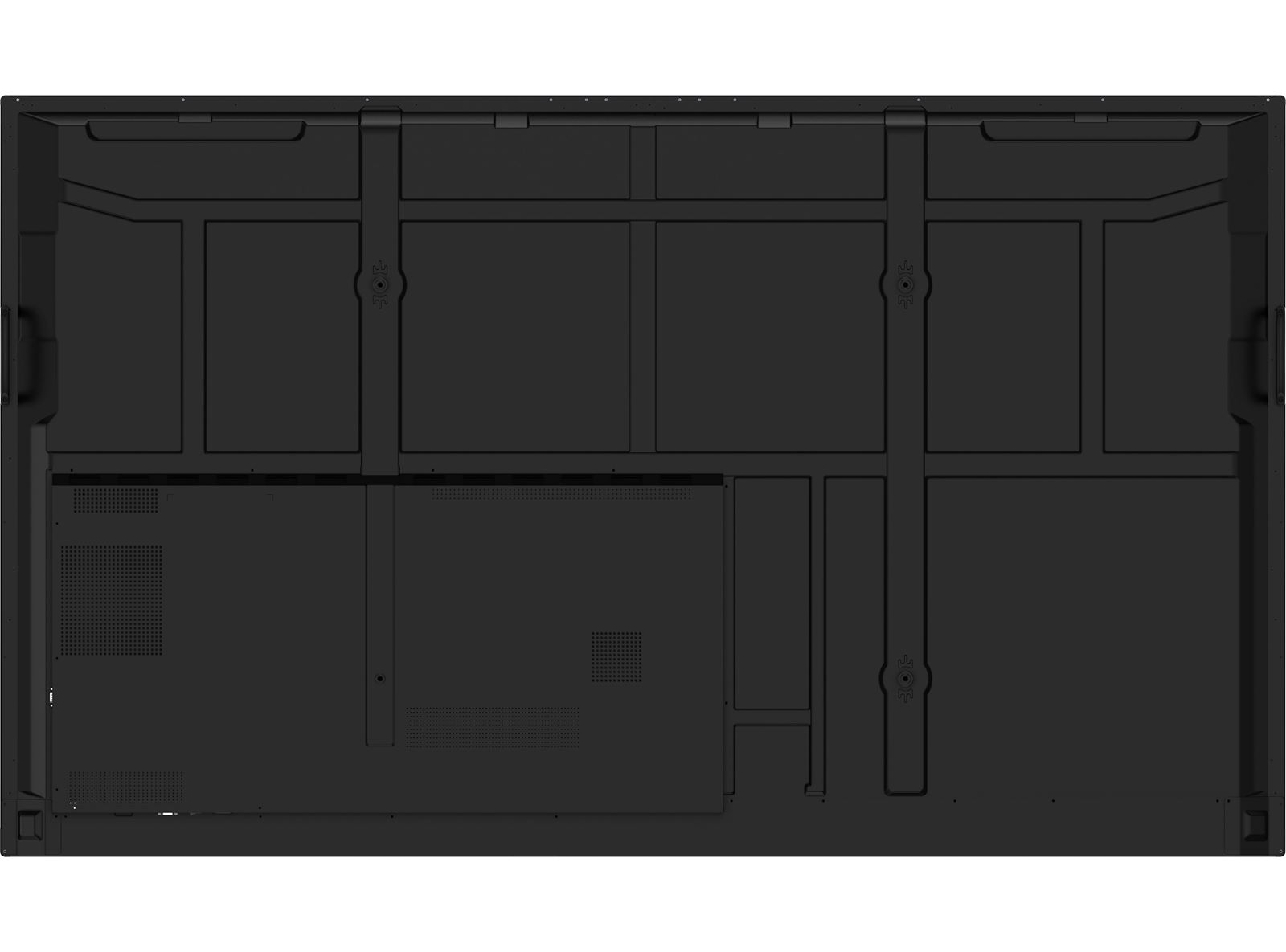

VESA mounting 800 x 600mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED

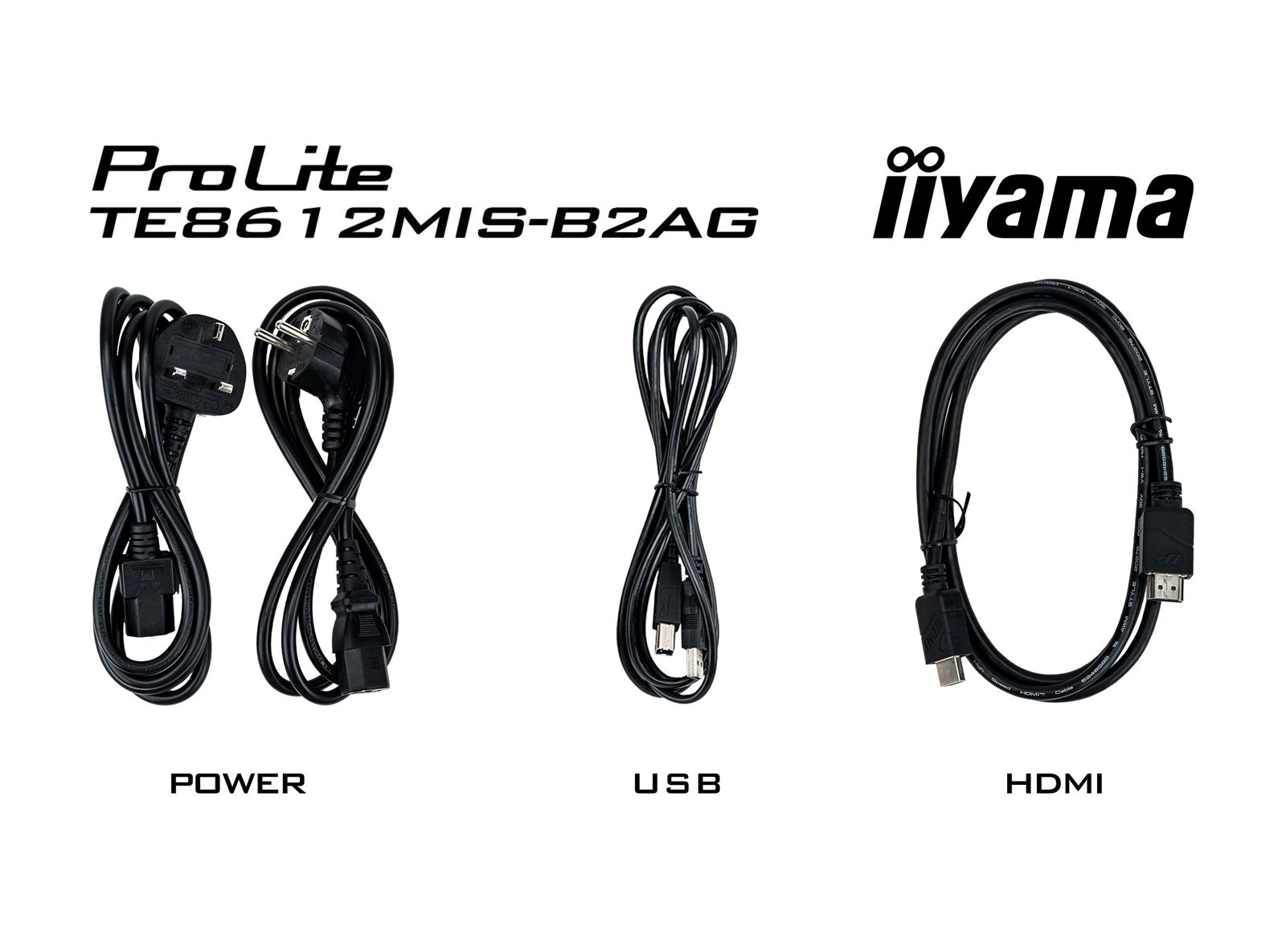

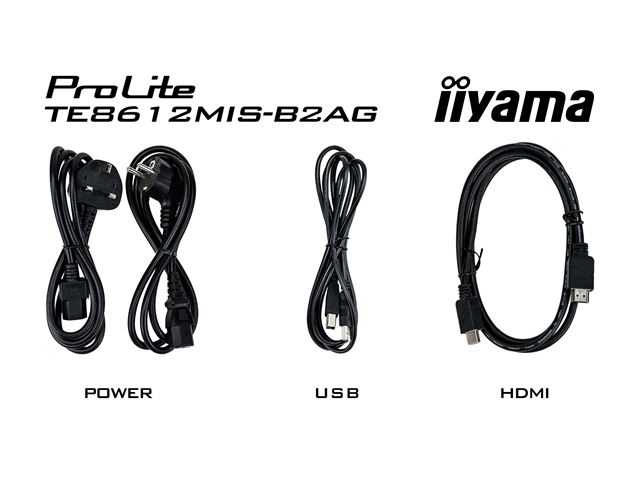

Cables power, USB, HDMI

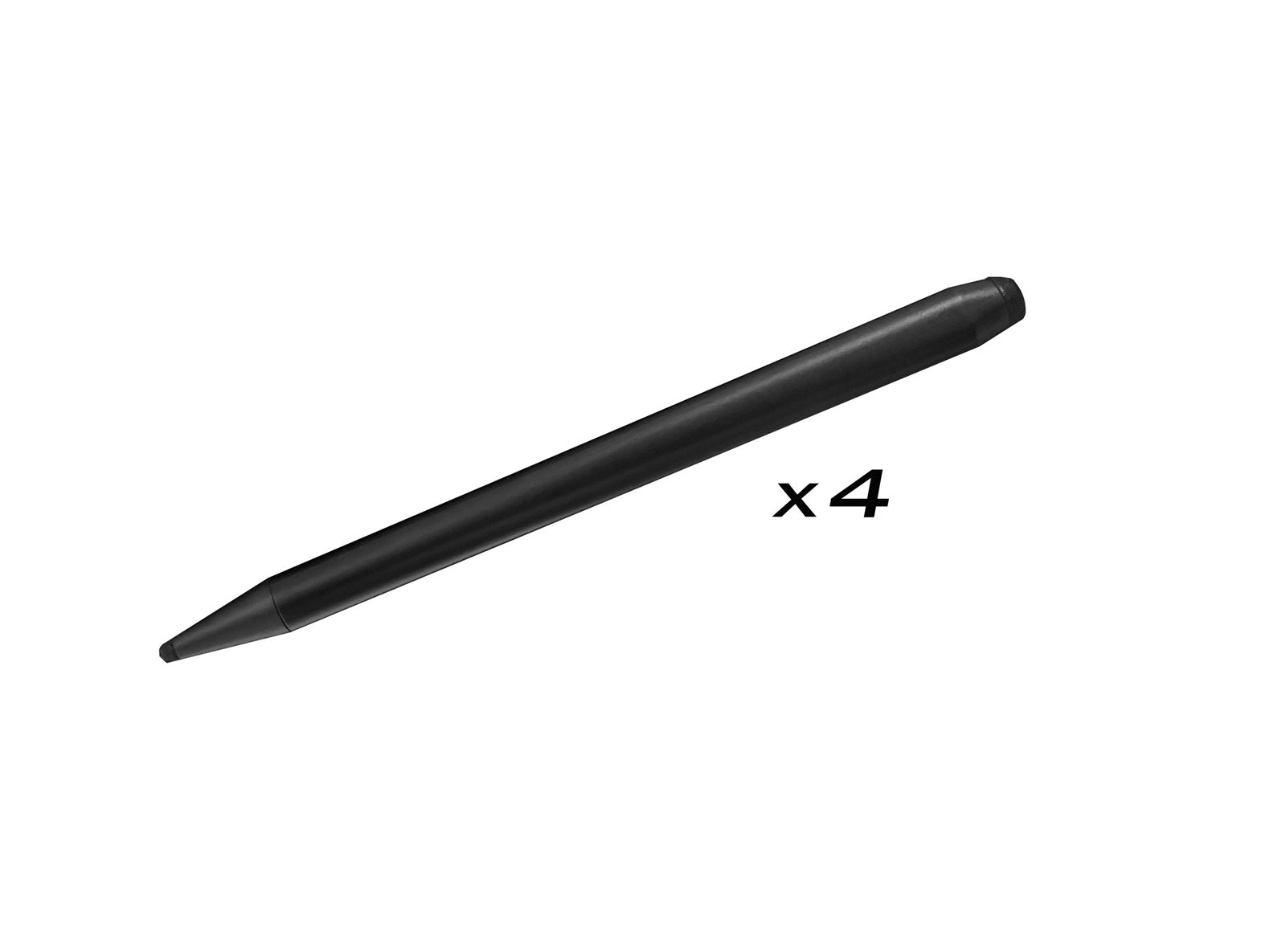

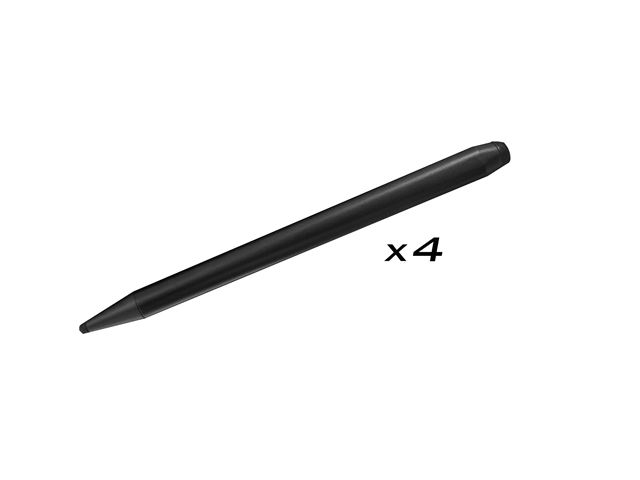

Touch pen x4 (Dual function tips)
Guides quick start guide, safety guide

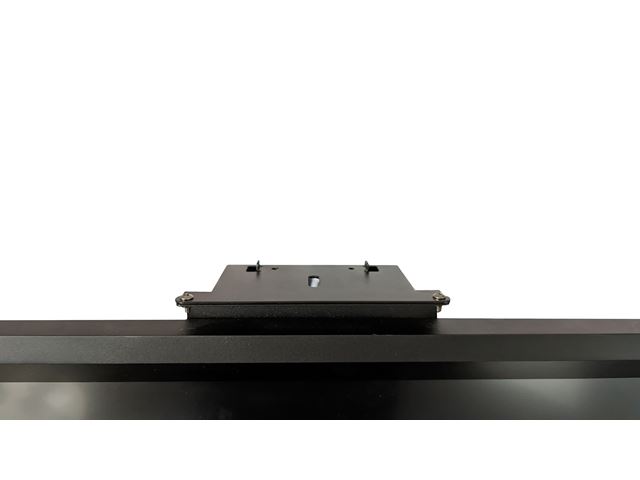

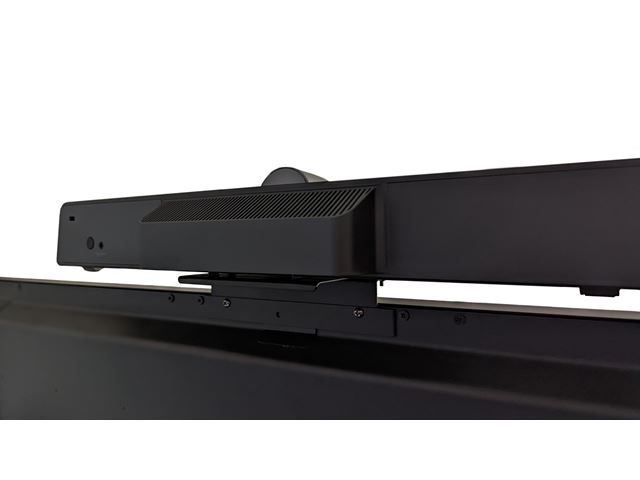

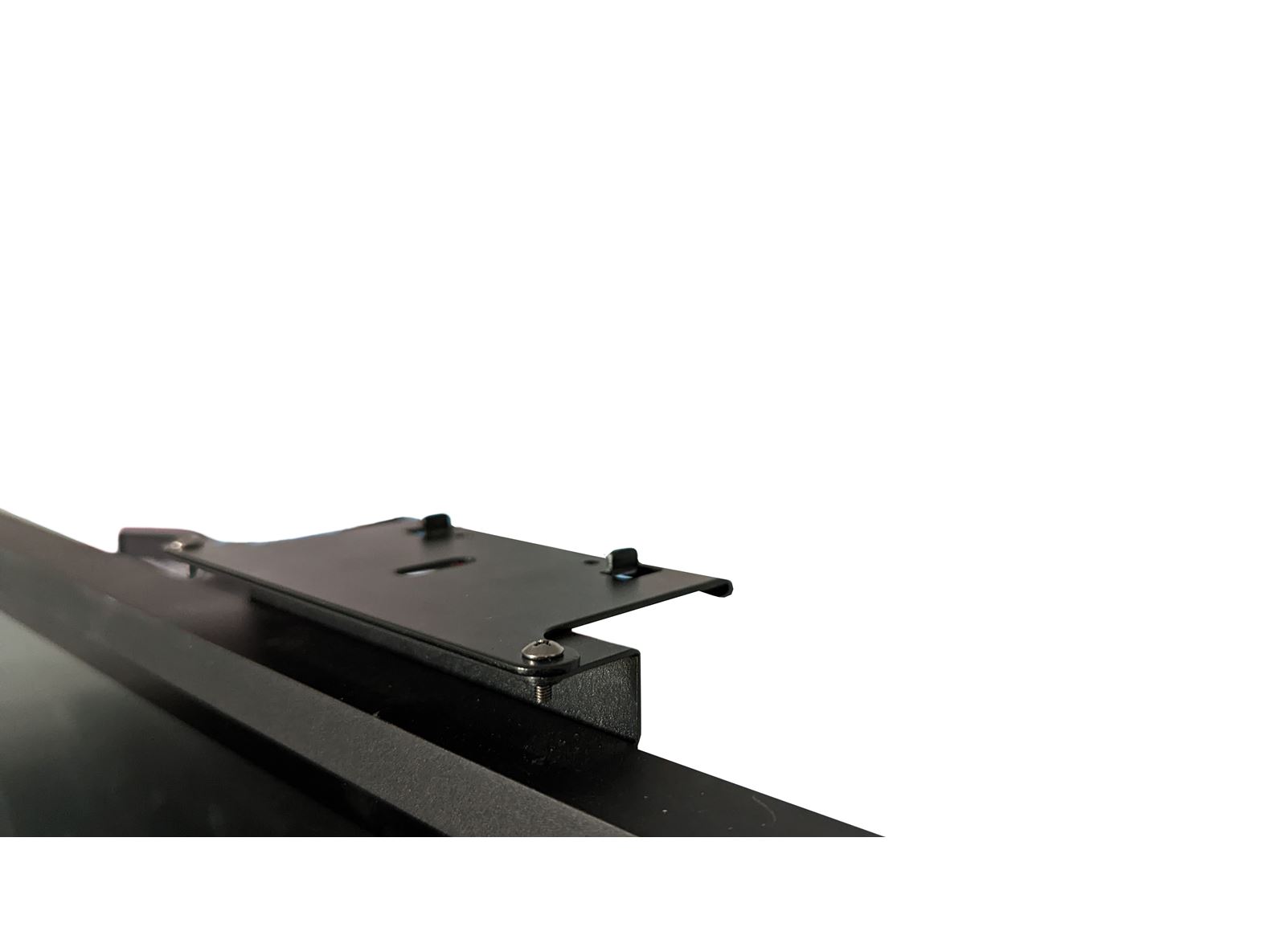

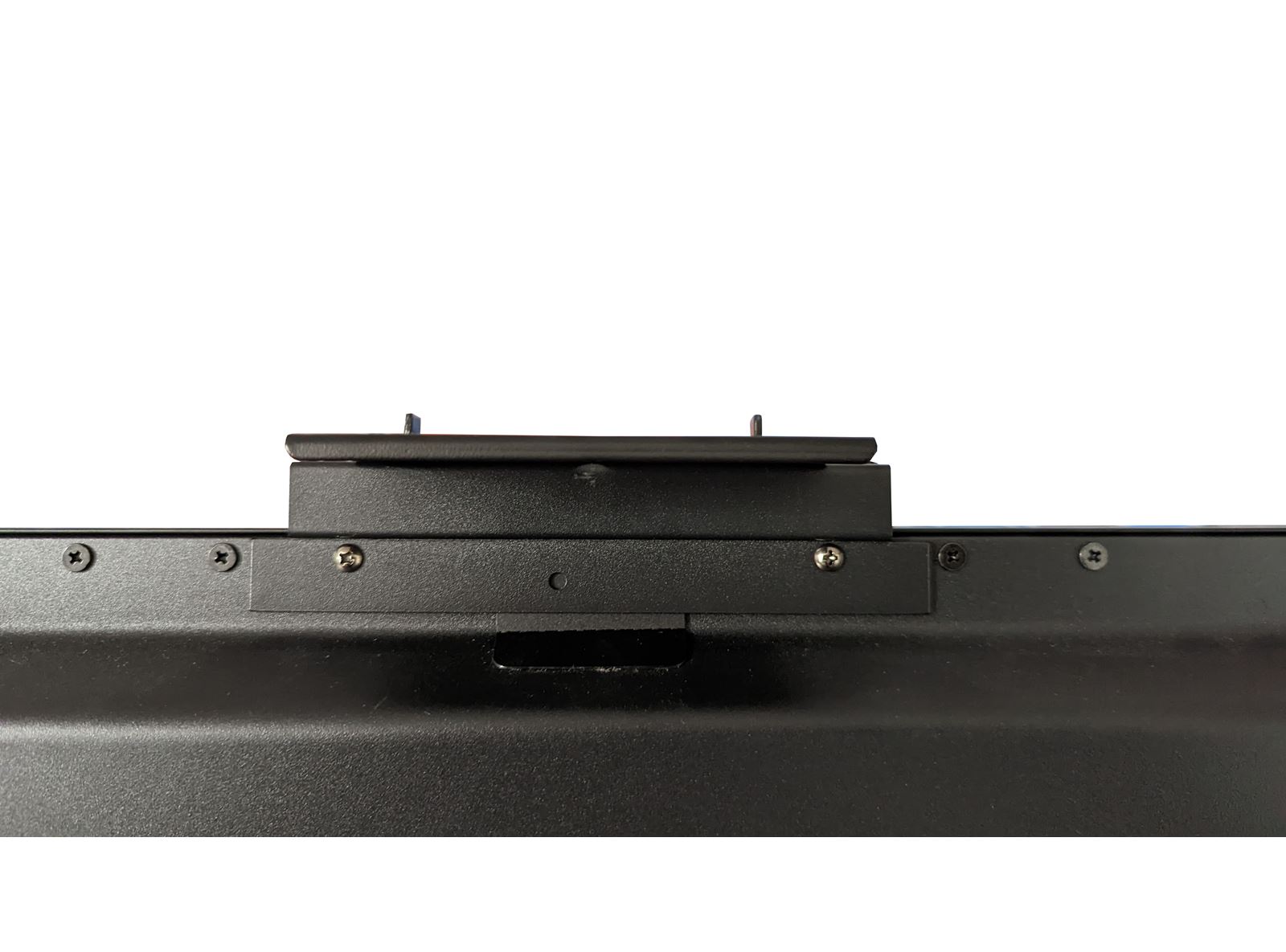

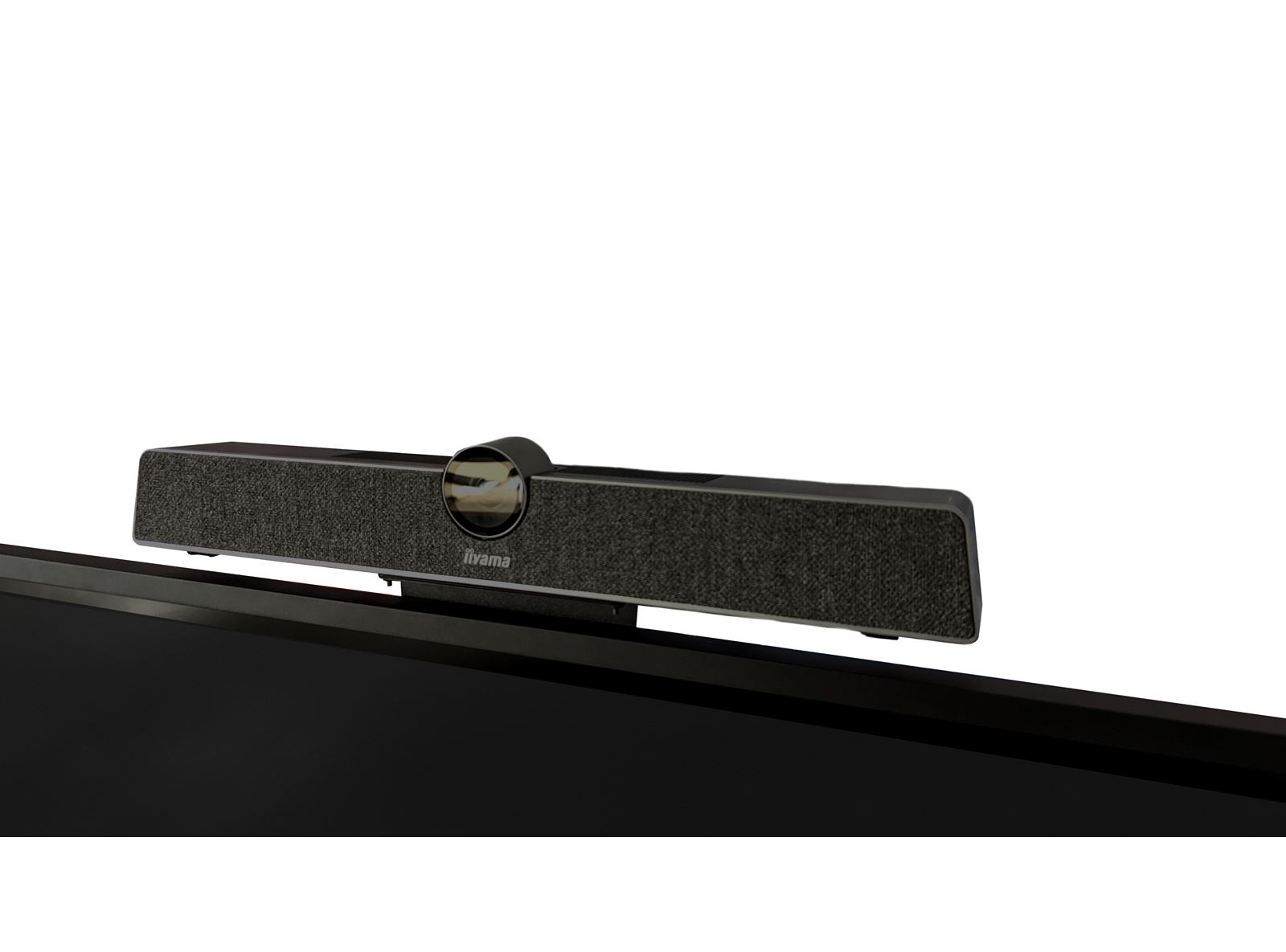

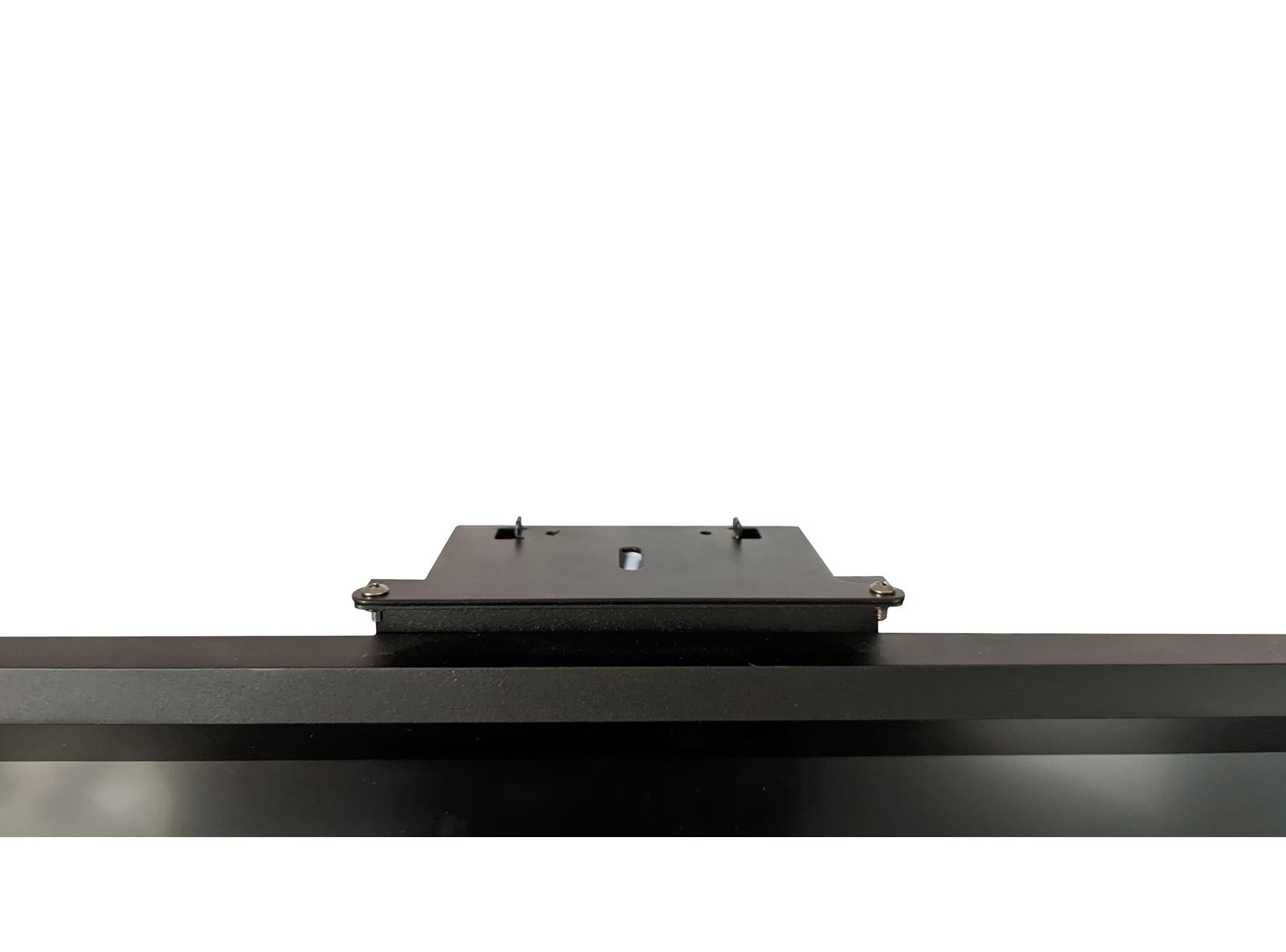

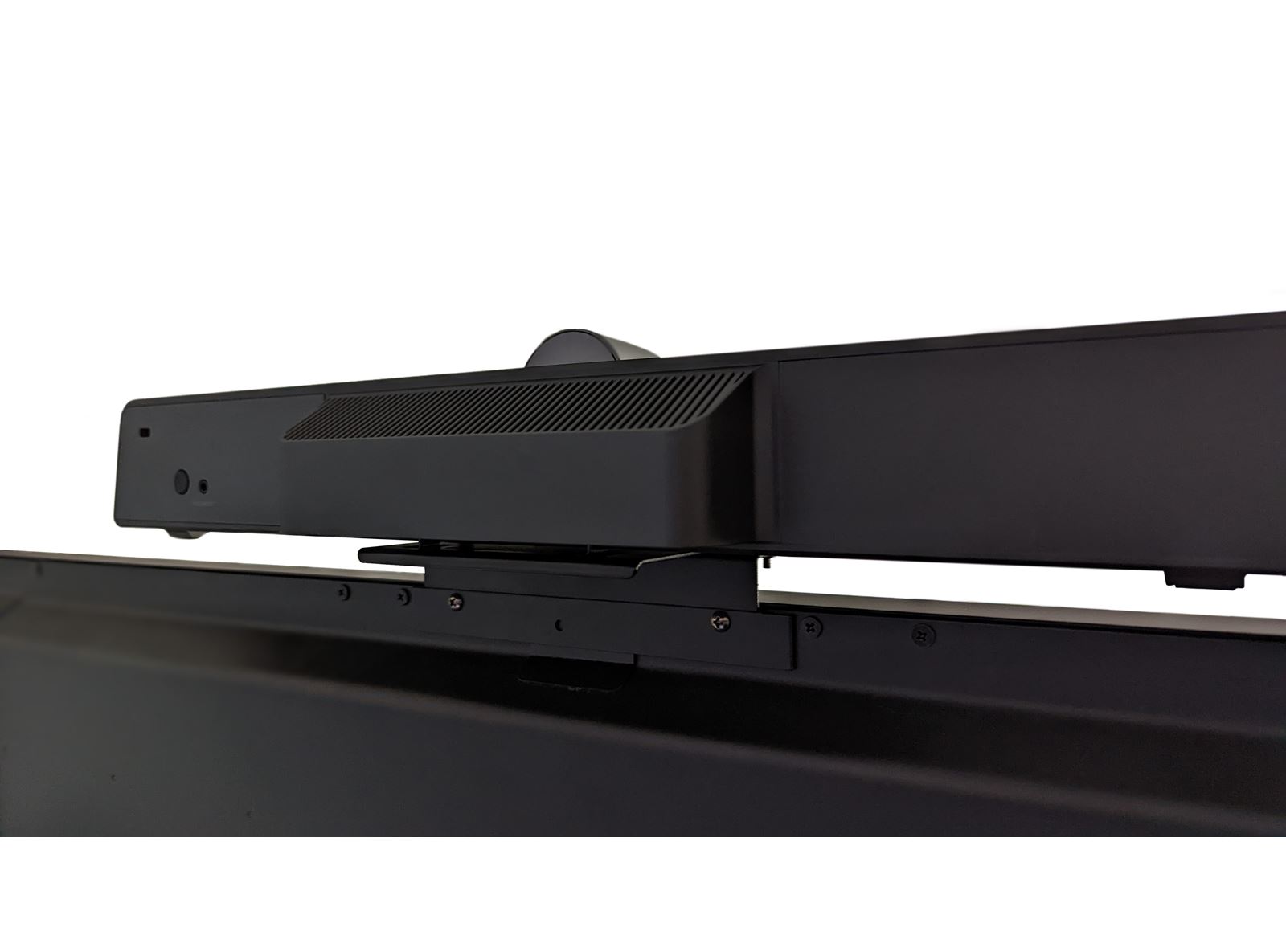

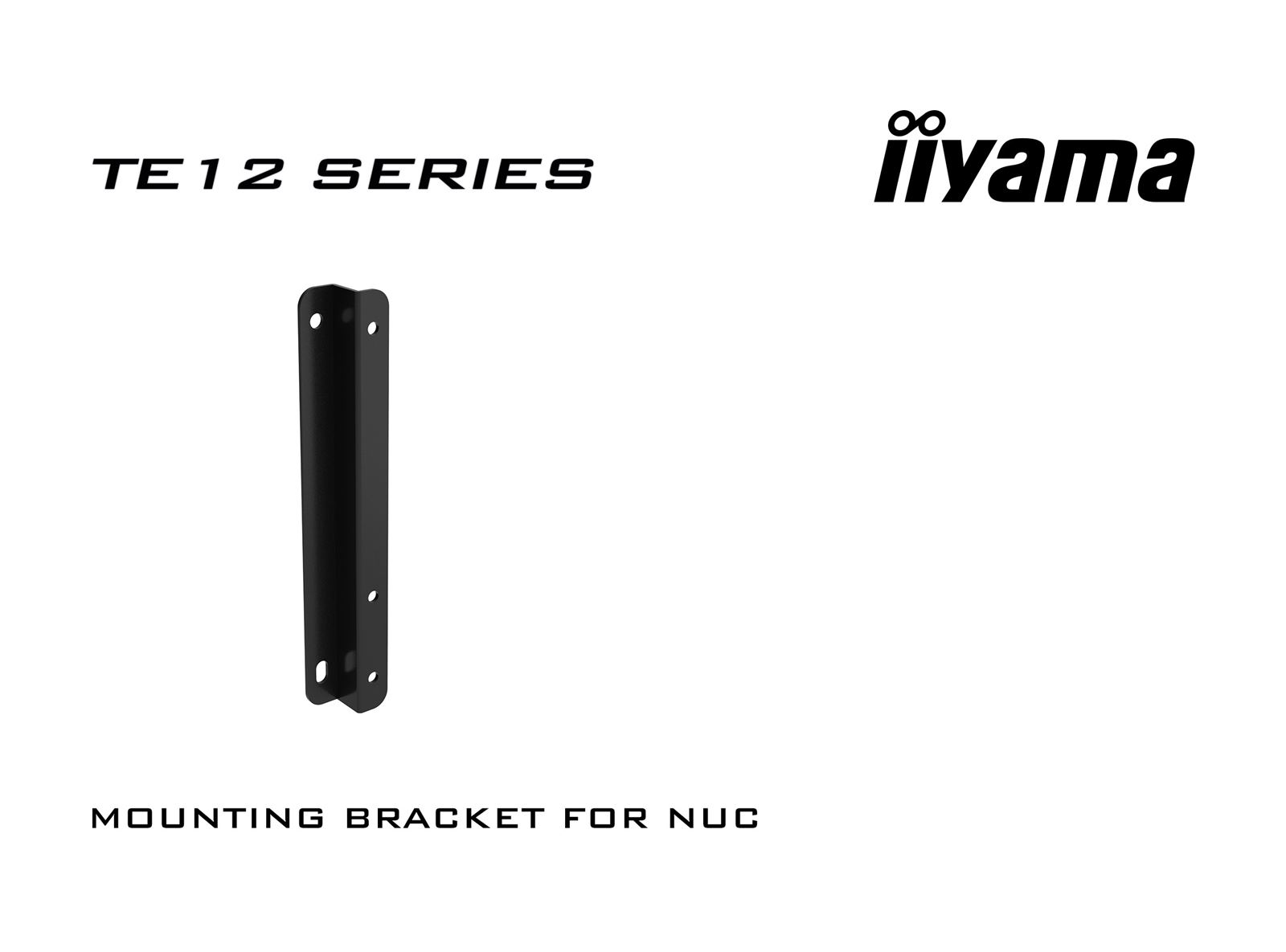

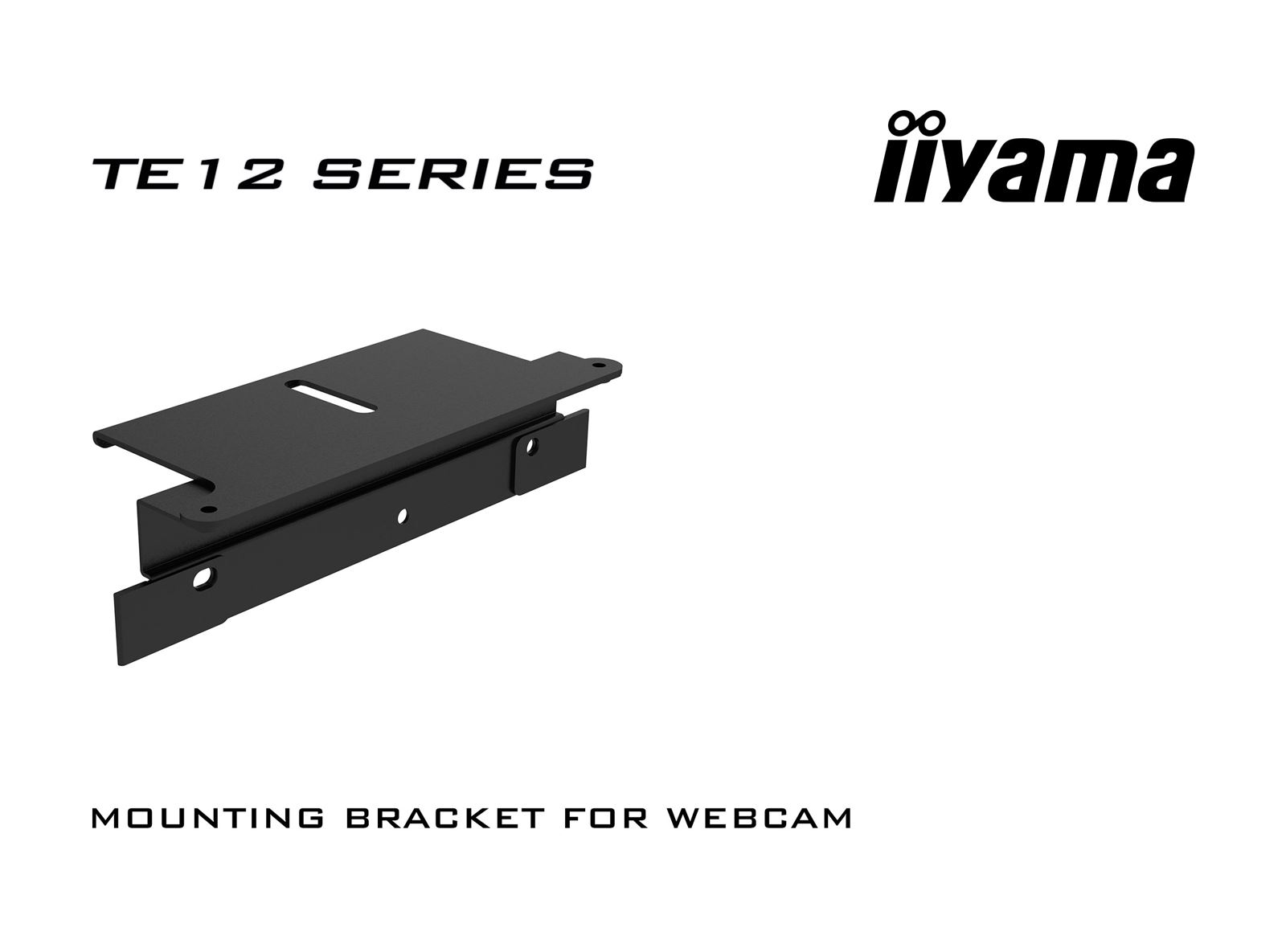

Other WiFi Module (OWM002), Mounting bracket for NUC, Mounting bracket for webcam
Remote control yes (batteries included)

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 222W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 1957 x 1160 x 100mm
Box dimensions W x H x D 2110 x 1283 x 225mm
Weight (without box) 58.6kg
Weight (with box) 75.9kg
EAN code 4948570122967
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

USB PLAYBACK

The monitor supports playback of presentations, video and almost any type of content stored on the USB device or internal memory.

USB PLAYBACK

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).




LAN CONTROL

OPS PC SLOT

Built-in expansion slot supports the Open Pluggable Specification (OPS) standard; it simplifies the installation of a plug-in PC for digital signage applications.



OPS PC SLOT

24/7

24/7 displays are designed for a continuous operation.



24/7

PROTECTIVE GLASS

The toughened safety glass fitted behind the bezel at 8H hardness rating is capable of resisting above normal impacts to the display making this LCD the ideal choice for Education, Retail and Industrial applications.

PROTECTIVE GLASS

VA MATRIX

VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


VA MATRIX
