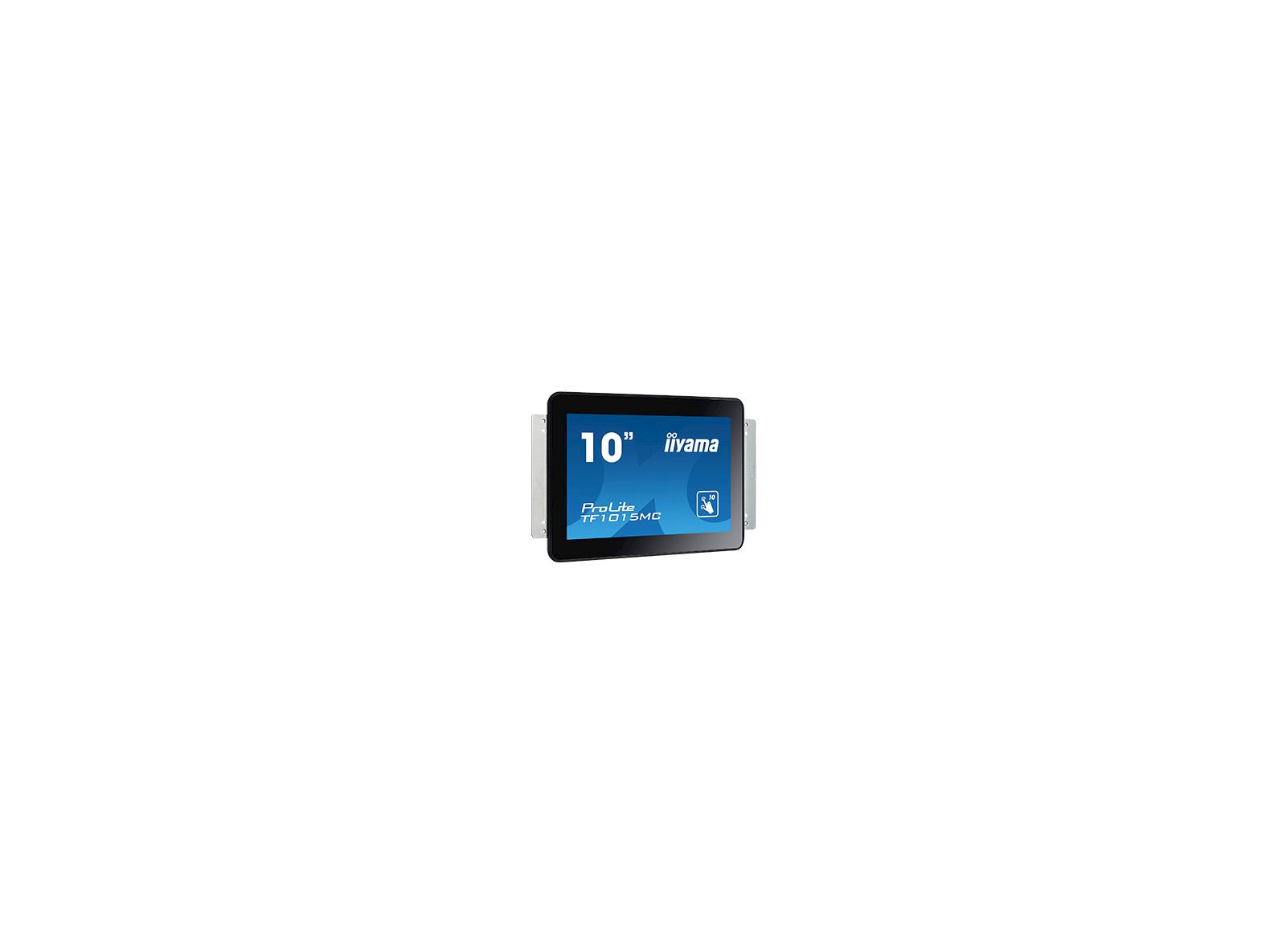

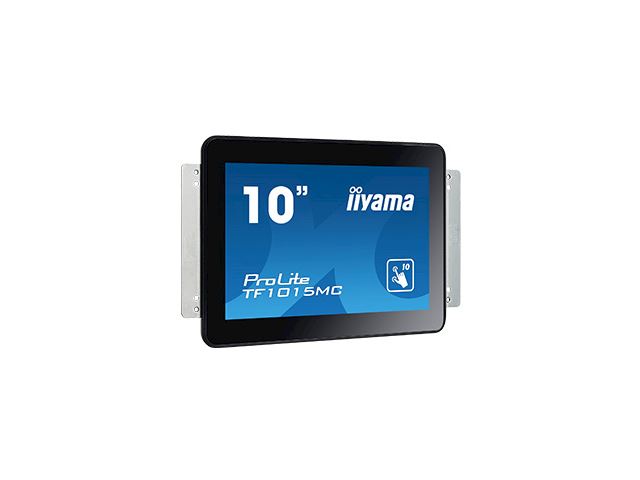

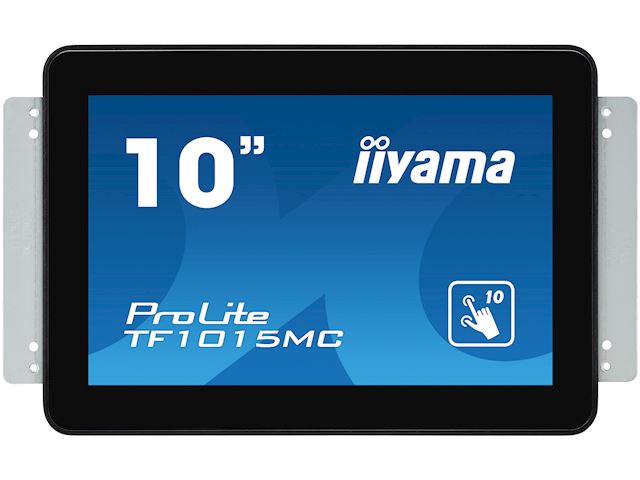

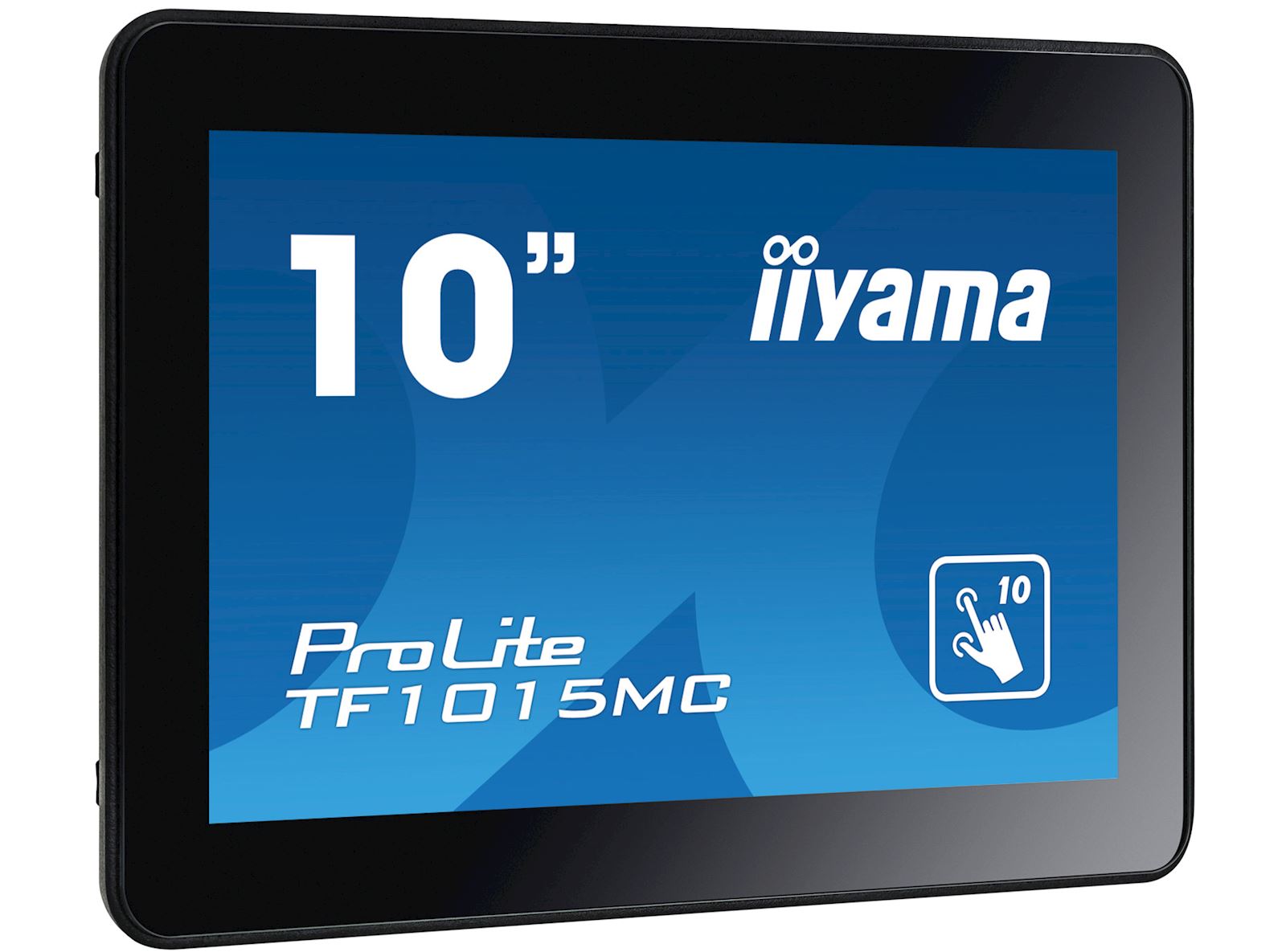

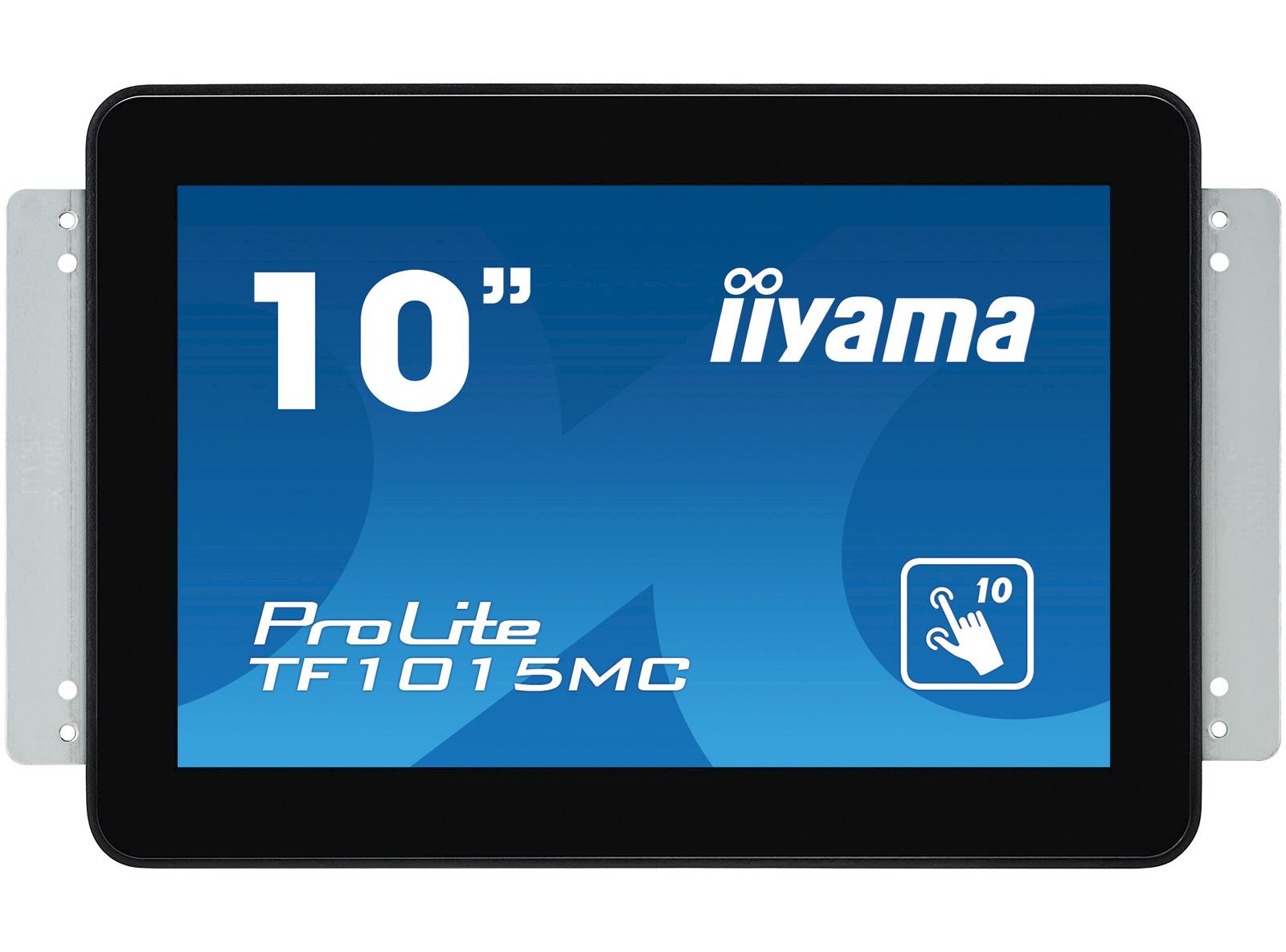

iiyama ProLite monitor TF1015MC-B2 10.1", Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort

£269.50 exc. VAT
£323.40 inc. VAT

Brand: iiyama

Manufacturer Code: TF1015MC-B2

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

The ProLite TF1015MC-B1 (10.1 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation.  It is an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Technical Information


Design Open Frame
Diagonal 10.1", 25.7cm
Panel VA LED
Native resolution 1280 x 800 (1 megapixel)
Aspect ratio 16:10
Brightness 500 cd/m² typical
Brightness 450 cd/m² with touch
Static contrast 1300:1 with touch
Light transmittance 90%
Response time 25ms
Viewing zone horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85°
Horizontal Sync 31.4 - 49.7KHz
Vertical Sync 60 - 60Hz
Viewable area W x H 216.96 x 135.6mm, 8.5 x 5.3"
Pixel pitch 0.1695mm
Bezel colour and finish black


Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

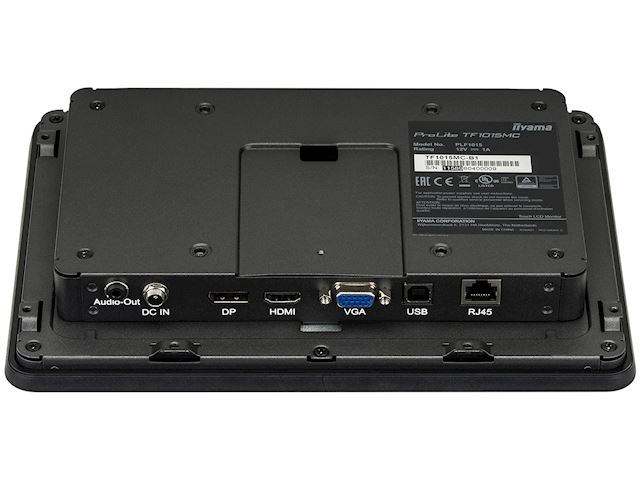

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio output Mini jack x1
HDCP yes


Extra anti-fingerprint coating, touch through-glass
60950 Ball drop test yes
Water and dust protection IP65 (front)
OSD key lock yes


OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B


Orientation landscape, portrait, face-up

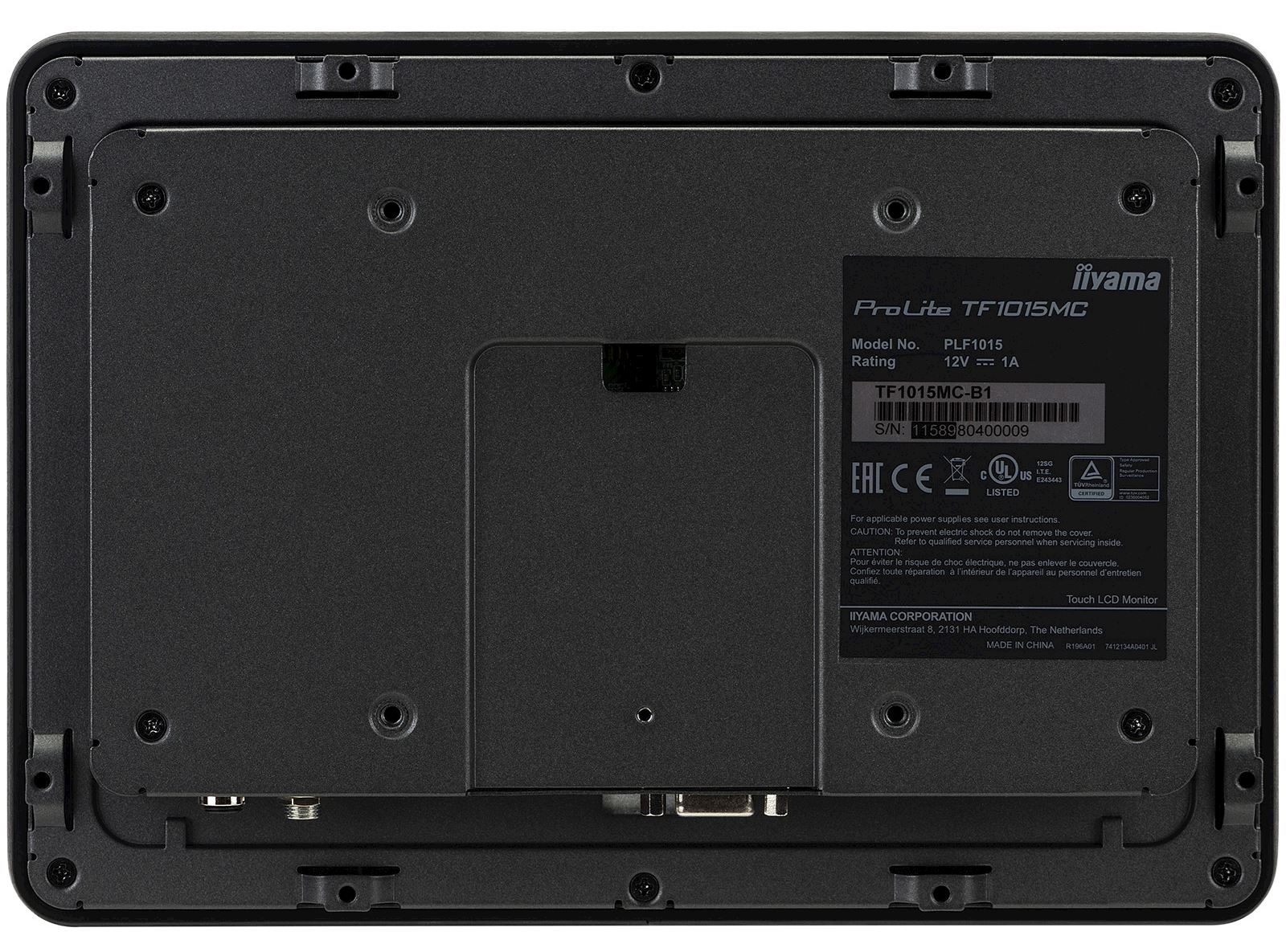

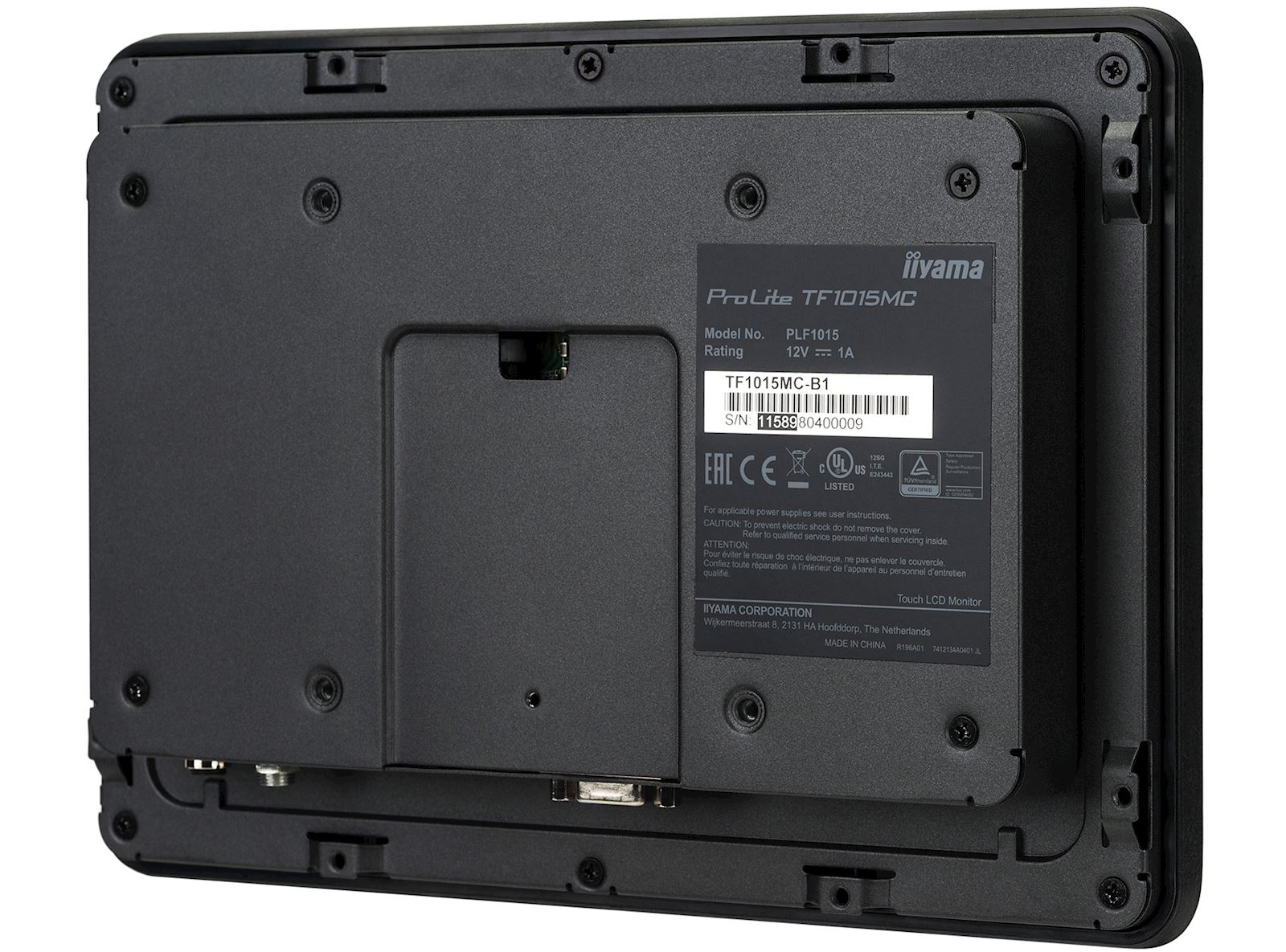

VESA mounting 100 x 100mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C

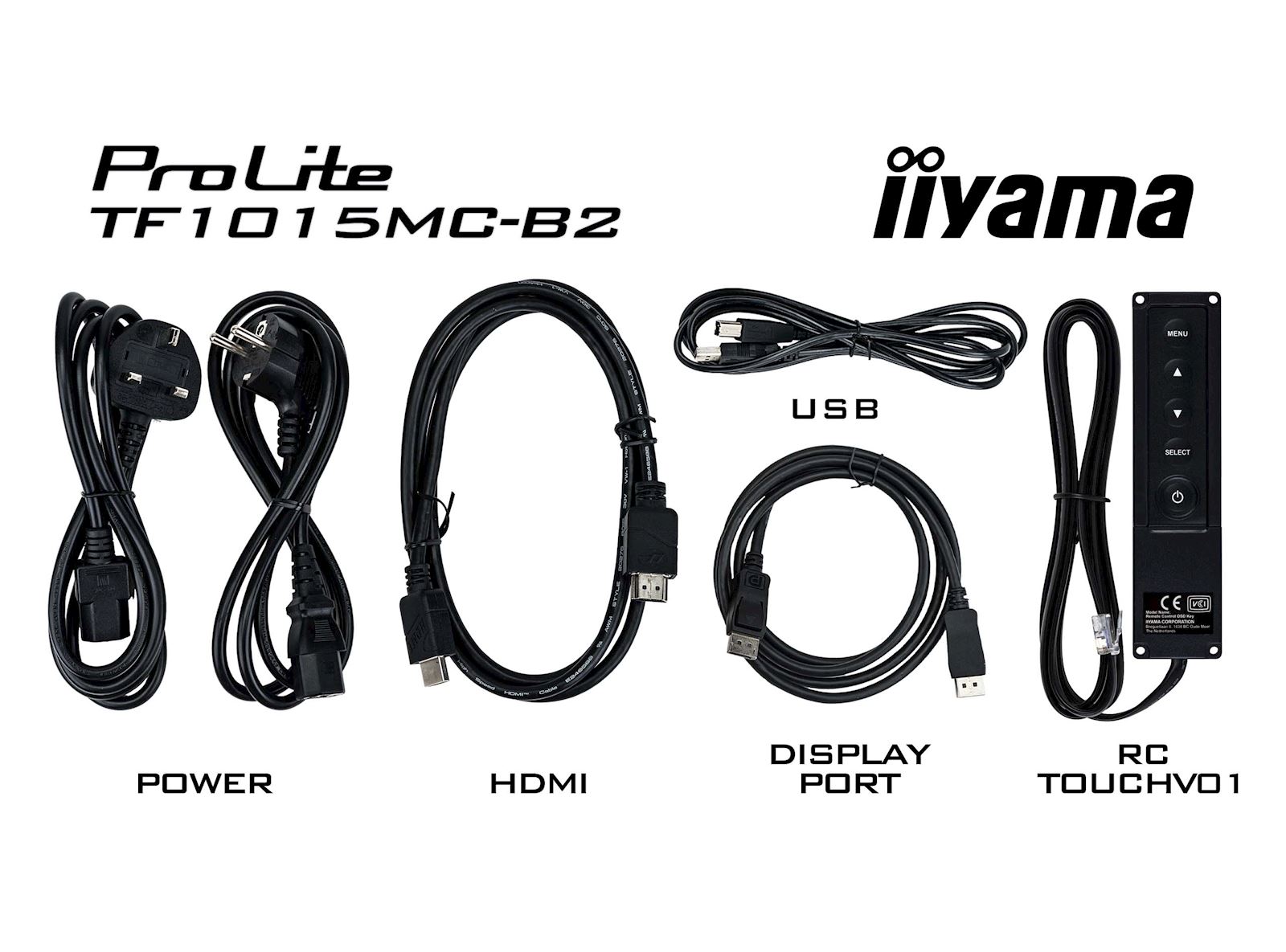

Cables power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)
Guides quick start guide, safety guide
Other AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad


Power supply unit external
Power supply DC 12 V
Power usage 10W typical, 1.2W stand by, 1.2W off mode


Regulations CB, CE, TÜV-Bauart, CU, cULus
Energy efficiency class A
Other REACH SVHC above 0.1%: Lead


Product dimensions W x H x D 260.5 x 183.5 x 39.5mm
Weight (without box) 1.4kg
EAN code 4948570116744


Manufacturer iiyama
Energy efficiency class A
Visible screen diagonal 26cm; 10.1"; (10" segment)
ON mode power consumption 10W
Power in OFF Mode 1.2W off mode


A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.



This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.



VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
