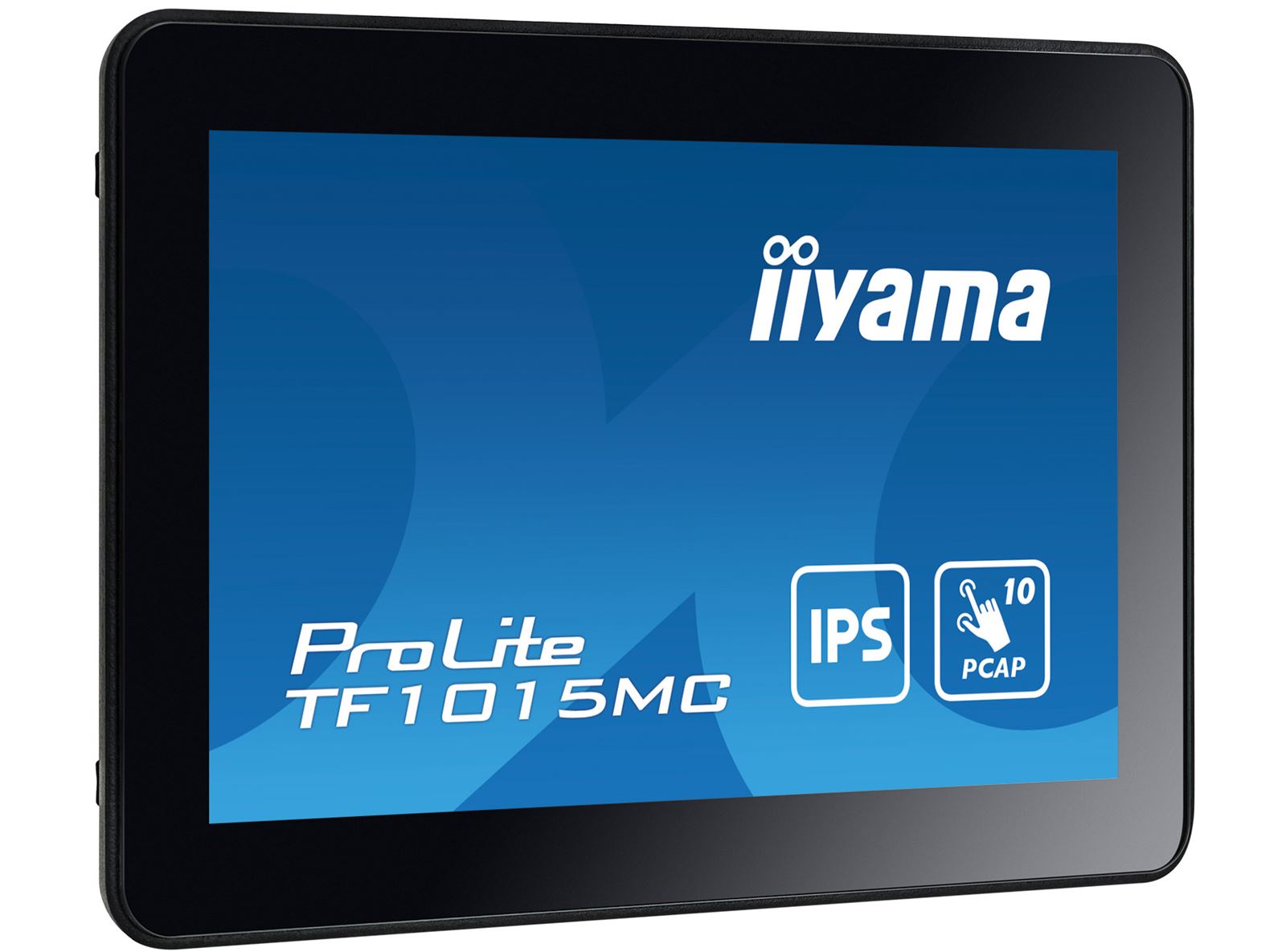

iiyama ProLite monitor TF1015MC-B3 10.1", IPS, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort, foam seal finish

Name: iiyama ProLite monitor TF1015MC-B3 10.1", IPS, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort, foam seal finish
Brand: iiyama
SKU: TF1015MC-B3
Price: 323.40 GBP
Availability: InStock

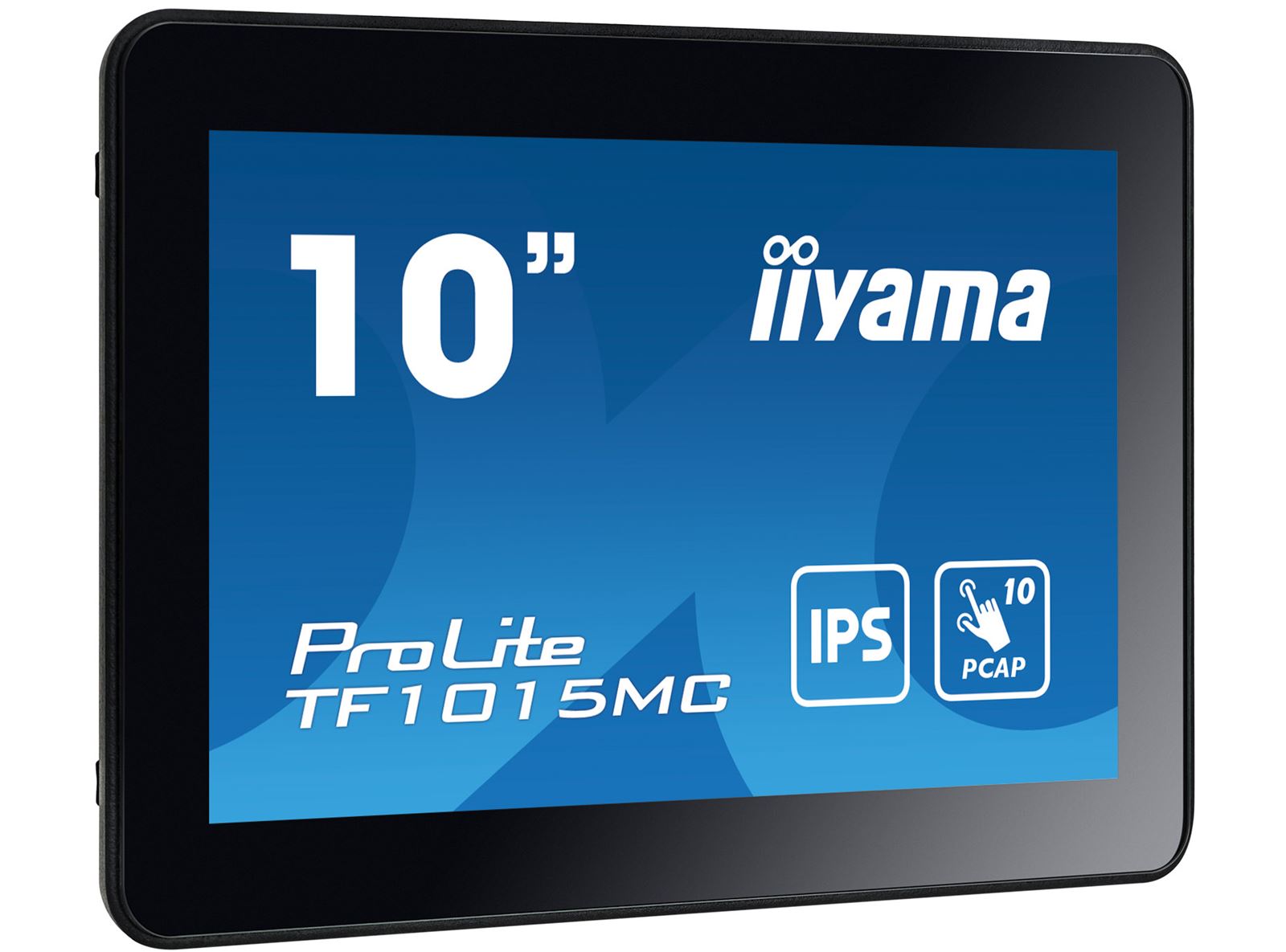

iiyama ProLite monitor TF1015MC-B3 10.1", IPS, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort, foam seal finish image 0

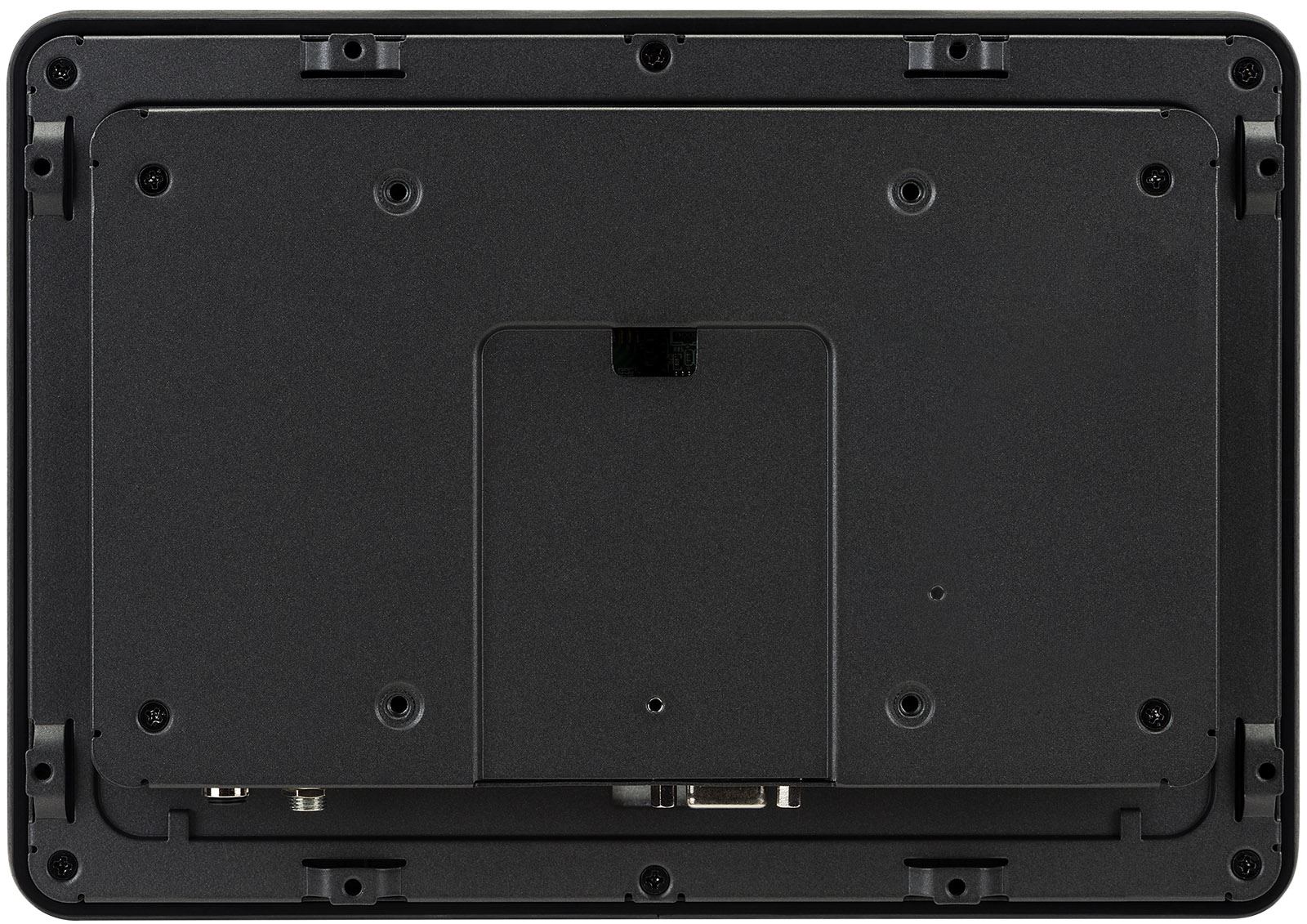

iiyama ProLite monitor TF1015MC-B3 10.1", IPS, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort, foam seal finish image 1

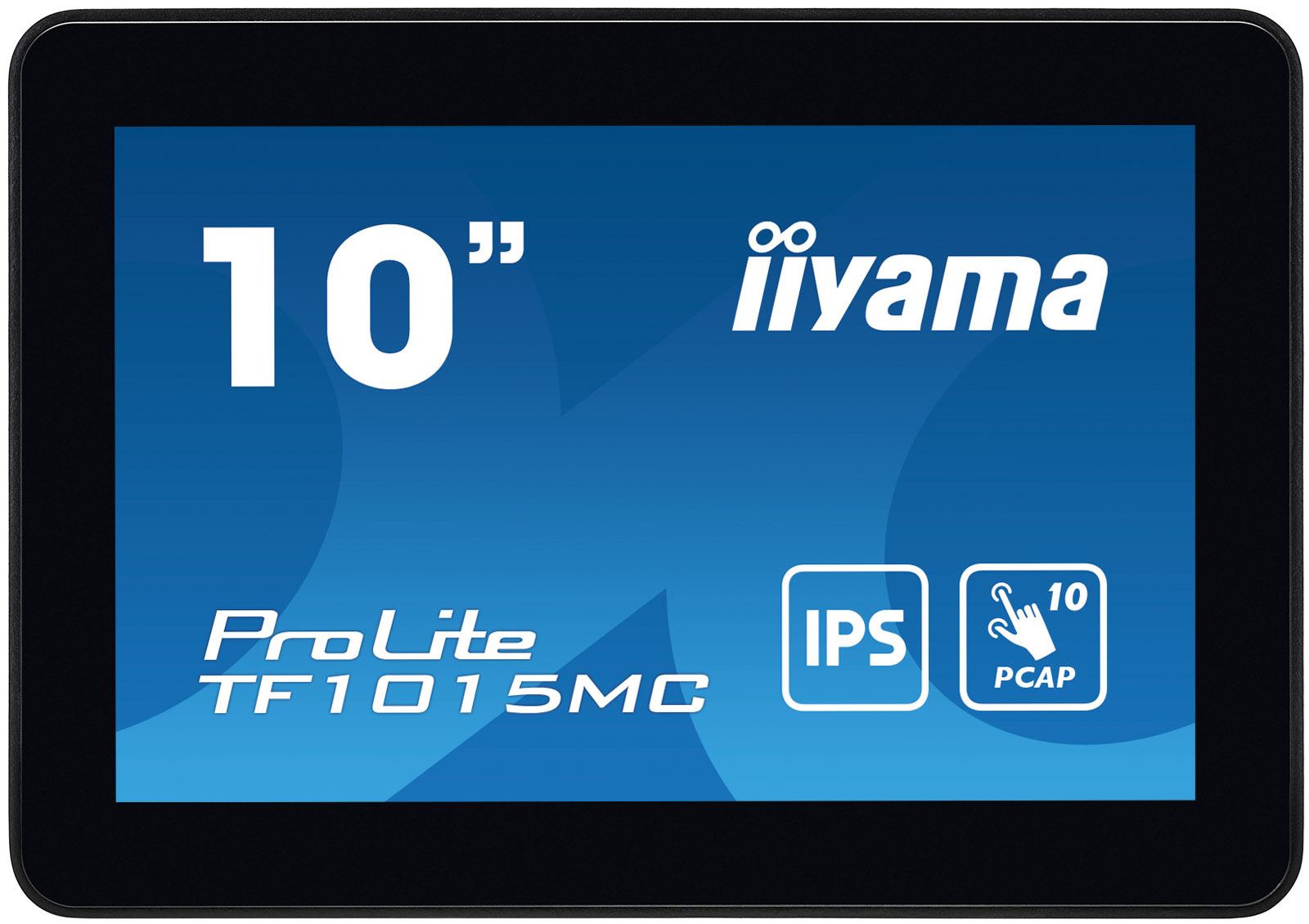

iiyama ProLite monitor TF1015MC-B3 10.1", IPS, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort, foam seal finish image 2

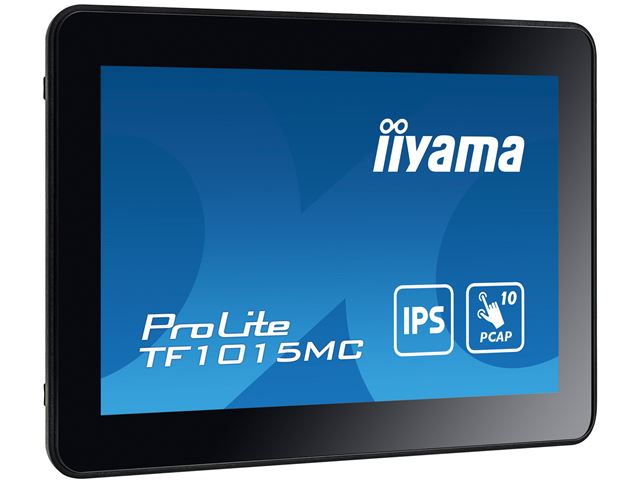

iiyama ProLite monitor TF1015MC-B3 10.1", IPS, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort, foam seal finish image 3

iiyama ProLite monitor TF1015MC-B3 10.1", IPS, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort, foam seal finish image 4

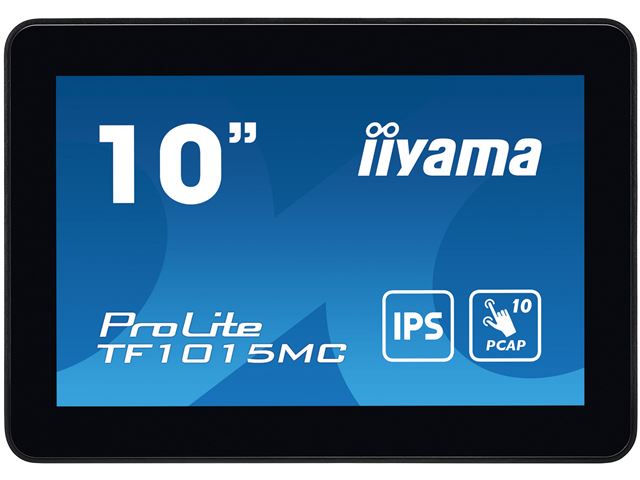

iiyama ProLite monitor TF1015MC-B3 10.1", IPS, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort, foam seal finish image 5

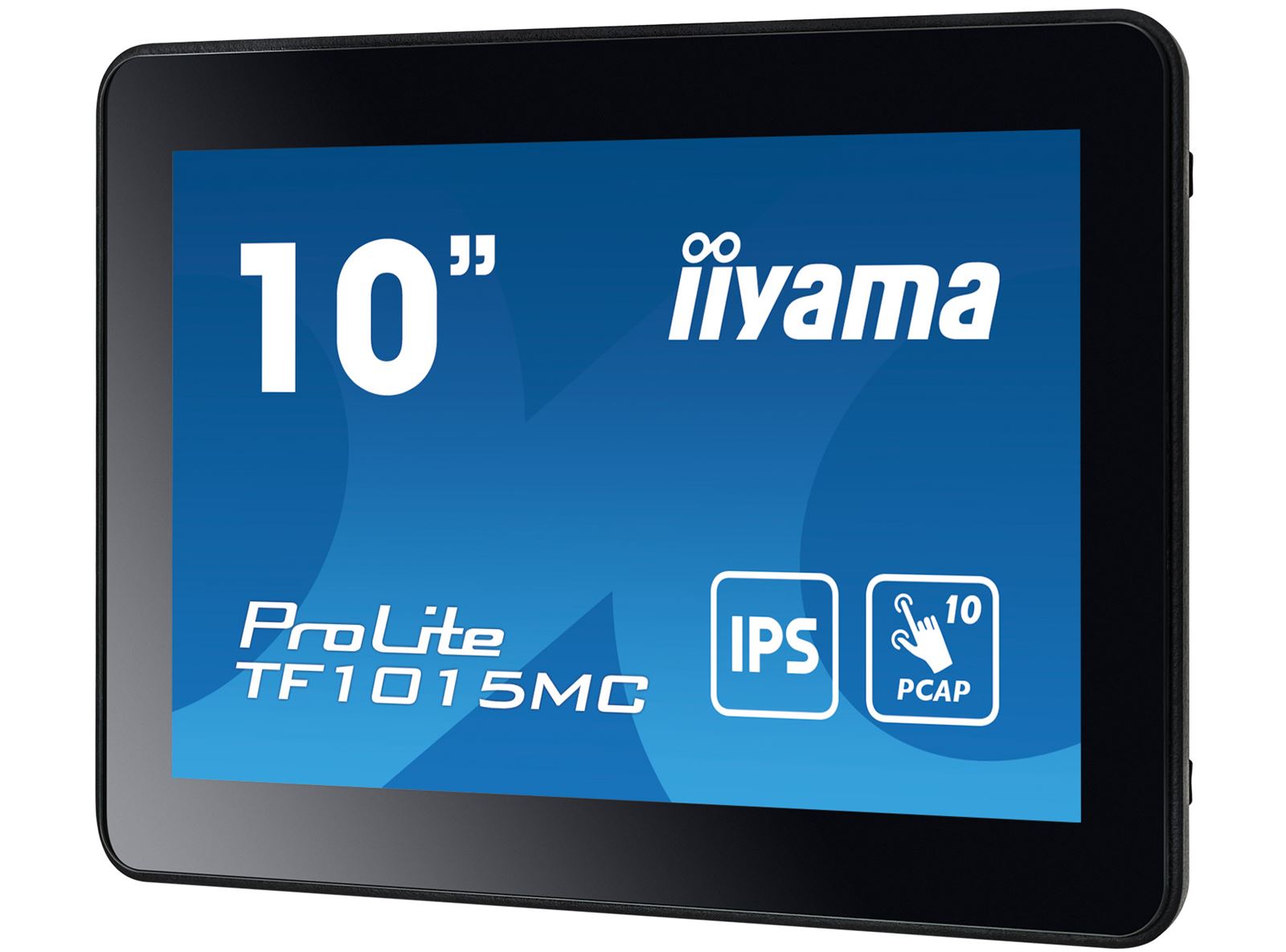

iiyama ProLite monitor TF1015MC-B3 10.1", IPS, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort, foam seal finish image 6

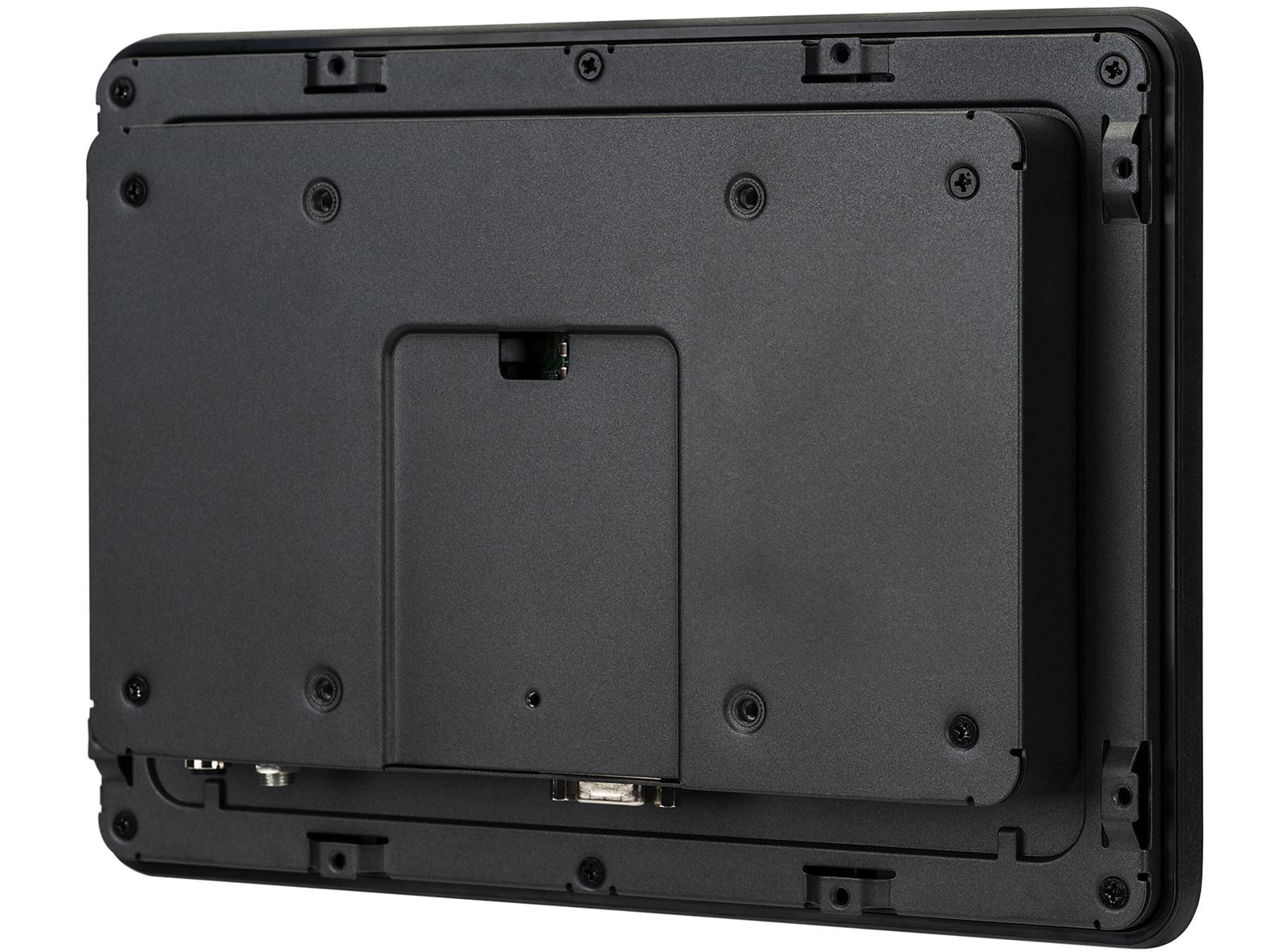

iiyama ProLite monitor TF1015MC-B3 10.1", IPS, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort, foam seal finish image 7

iiyama ProLite monitor TF1015MC-B3 10.1", IPS, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort, foam seal finish image 8

iiyama ProLite monitor TF1015MC-B3 10.1", IPS, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort, foam seal finish thumbnail 0

£269.50 exc. VAT

£323.40 inc. VAT

Next working day delivery
In stock
Quantity:
Add to Basket

Brand: iiyama

Manufacturer Code: TF1015MC-B3

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration

The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Technical Information

DISPLAY CHARACTERISTICS

Design	Open Frame
Diagonal	10.1", 25.7cm
Panel	IPS
Native resolution	1280 x 800 (1 megapixel)
Aspect ratio	16:10
Panel brightness	500 cd/m²
Brightness	425 cd/m² with touch
Light transmittance	85%
Static contrast	800:1
Response time (BTB)	29ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.7mln
Horizontal Sync	30 - 49.7kHz
Viewable area W x H	216.96 x 135.6mm, 8.5 x 5.3"
Pixel pitch	0.1695mm
Bezel colour and finish	black

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	stylus, finger, glove (latex)
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass	6mm
Palm rejection	yes

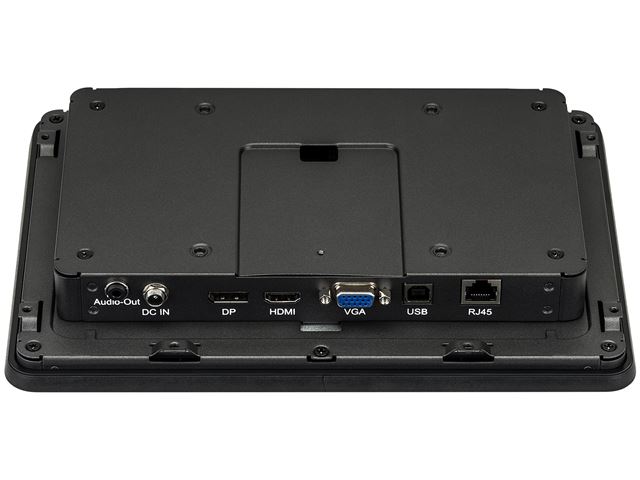

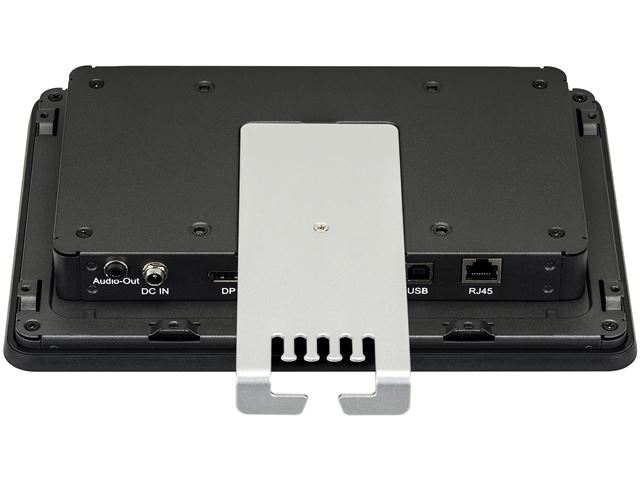

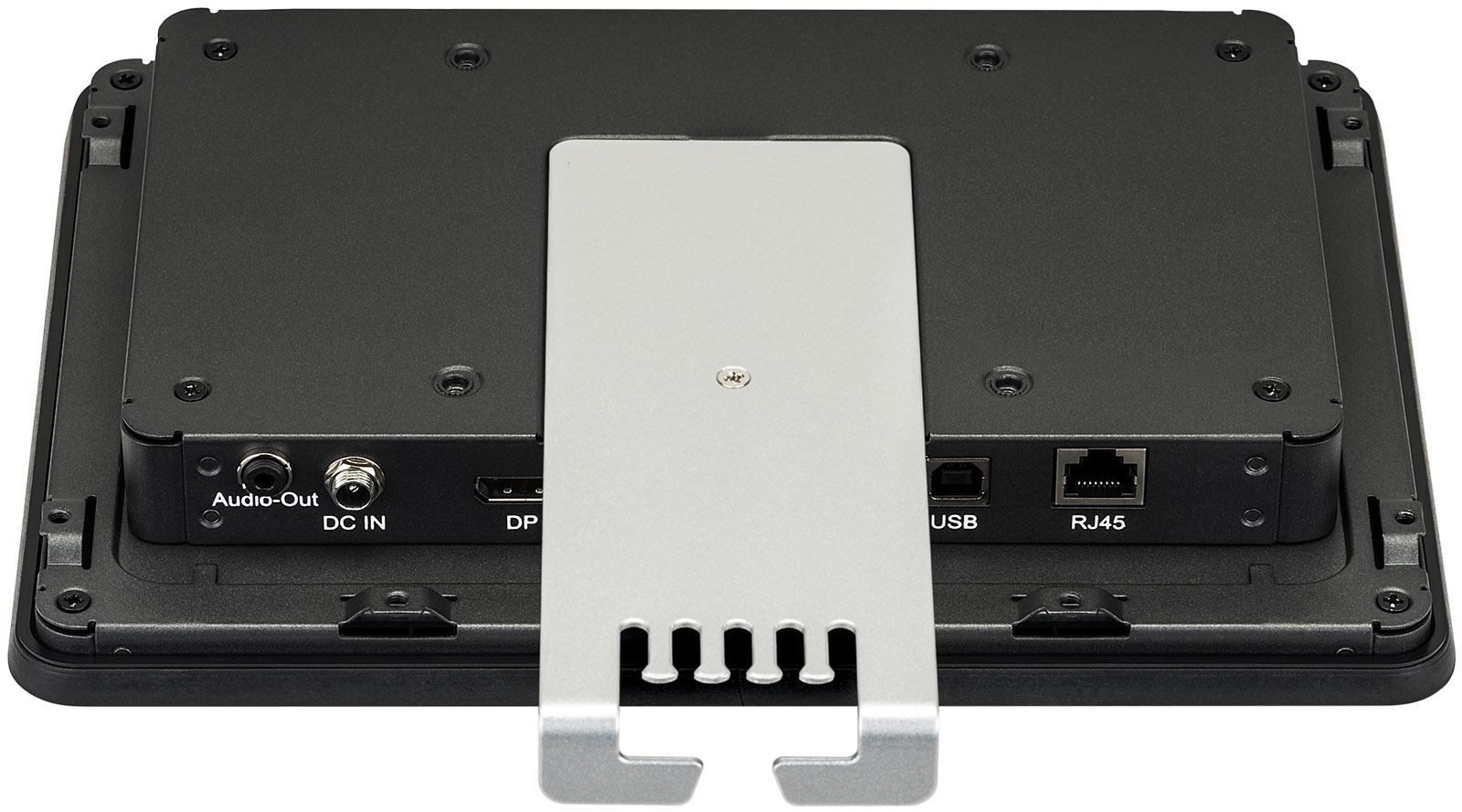

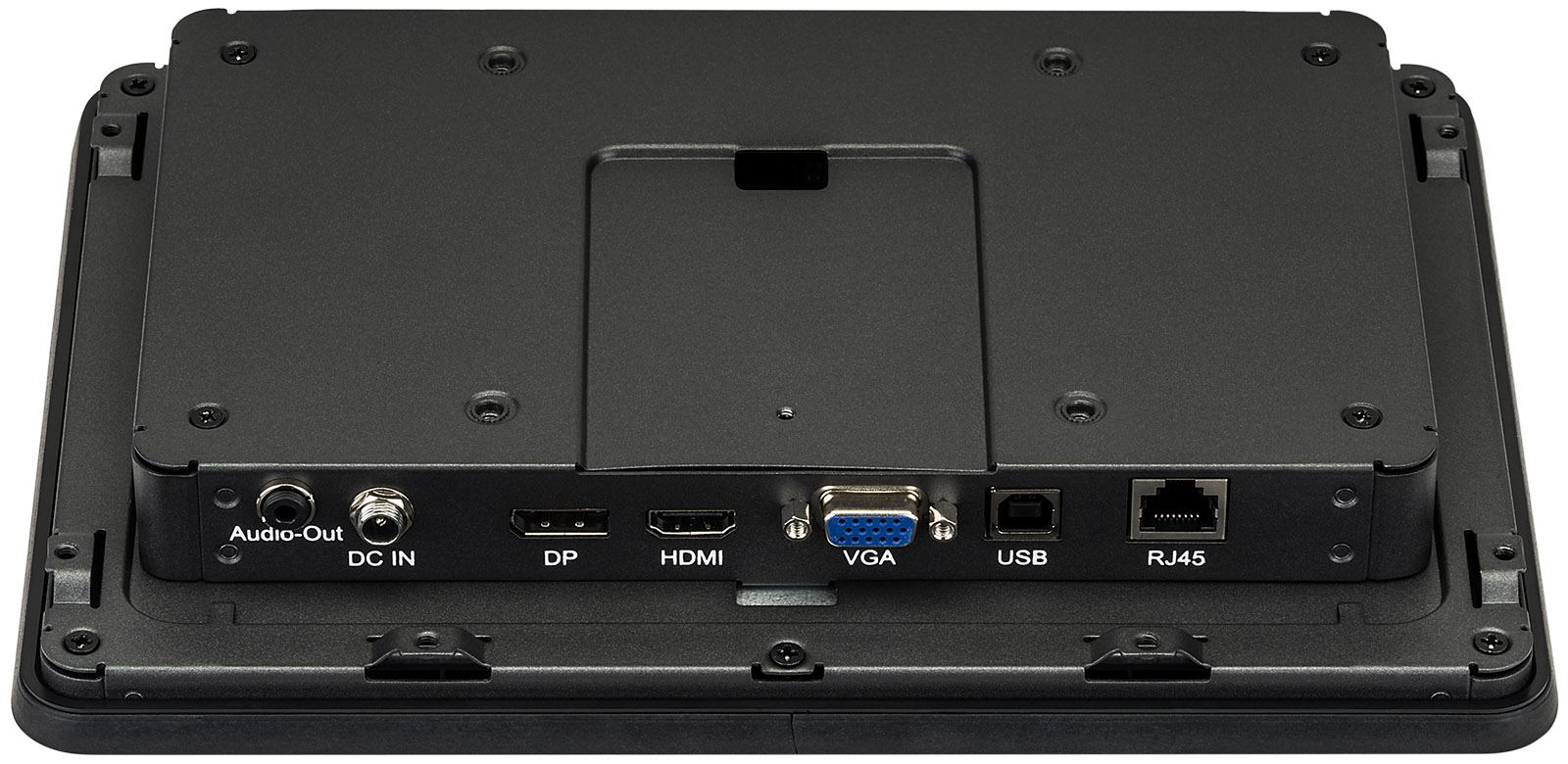

INTERFACES / CONNECTORS / CONTROLS

Analog signal input	VGA x1
Digital signal input	HDMI x1 DisplayPort x1
Monitor control input	RJ45 (LAN) x1
Audio output	Mini jack x1
HDCP	yes
USB ports	x1

FEATURES

Extra	anti-fingerprint coating, touch through-glass
Glass thickness	3.3mm
Glass hardness	7H
60950 Ball drop test	yes
Water and dust protection	IP65 (front)
Water tight seal	yes
OSD key lock	yes

GENERAL

OSD languages	EN, DE, FR, ES, IT, CN, JP
Control buttons	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls	picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play	DDC2B

MECHANICAL

Orientation	landscape, portrait, face-up

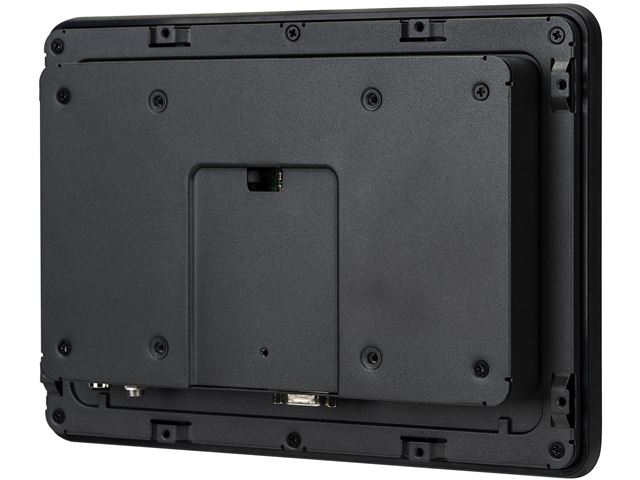

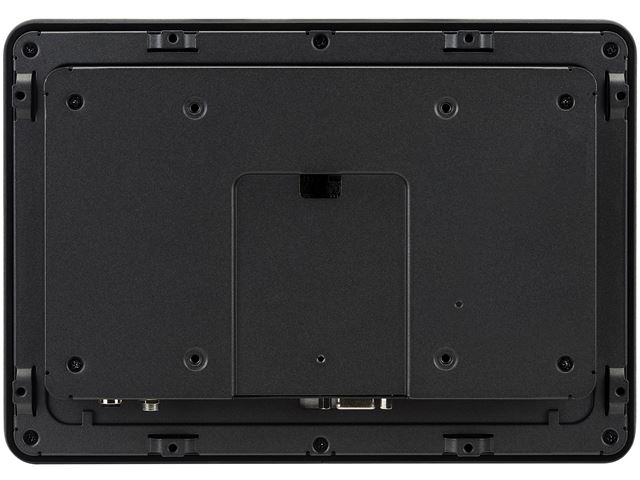

VESA mounting	100 x 100mm
Operation temperature range	0°C - 40°C
Storage temperature range	- 20°C - 60°C
MTBF	50000 hours

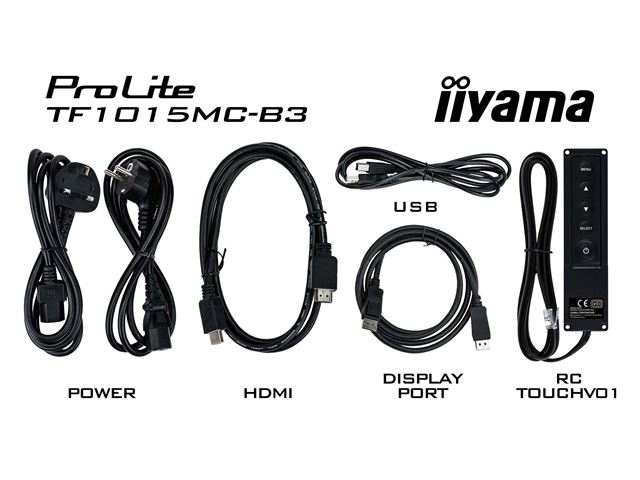

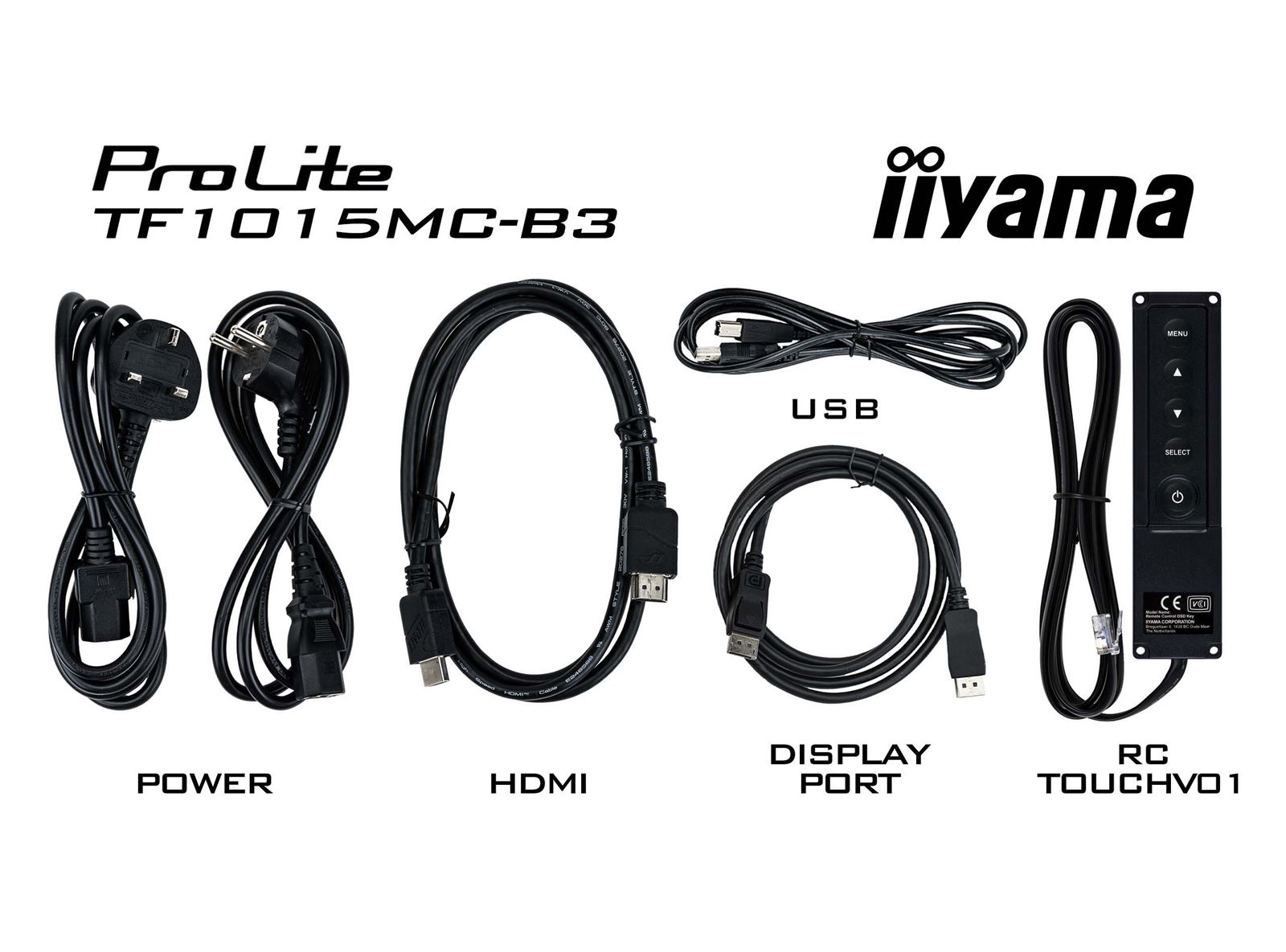

ACCESSORIES INCLUDED

Cables	power, USB, HDMI, DP
Guides	quick start guide, safety guide
Other	AC adapter, external control pad
Cable cover	yes
Remote control	yes

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	6W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)	C
REACH SVHC	above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	260.5 x 183.5 x 39.5mm
Box dimensions W x H x D	310 x 160 x 370mm
Weight (without box)	1.4kg
Weight (without stand)	2.7kg
EAN code	4948570124107

Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

LED-backlit

A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IP

The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
