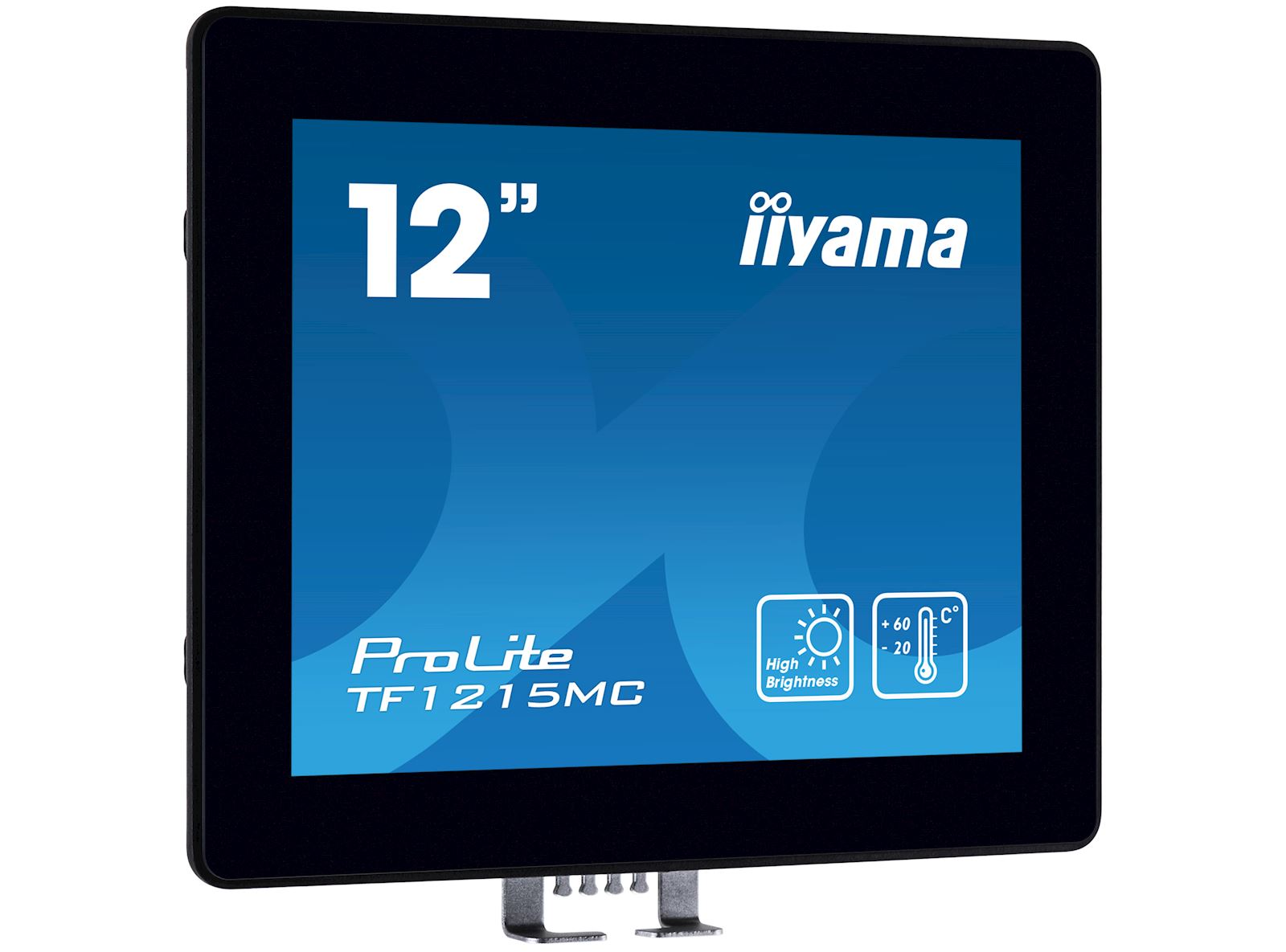

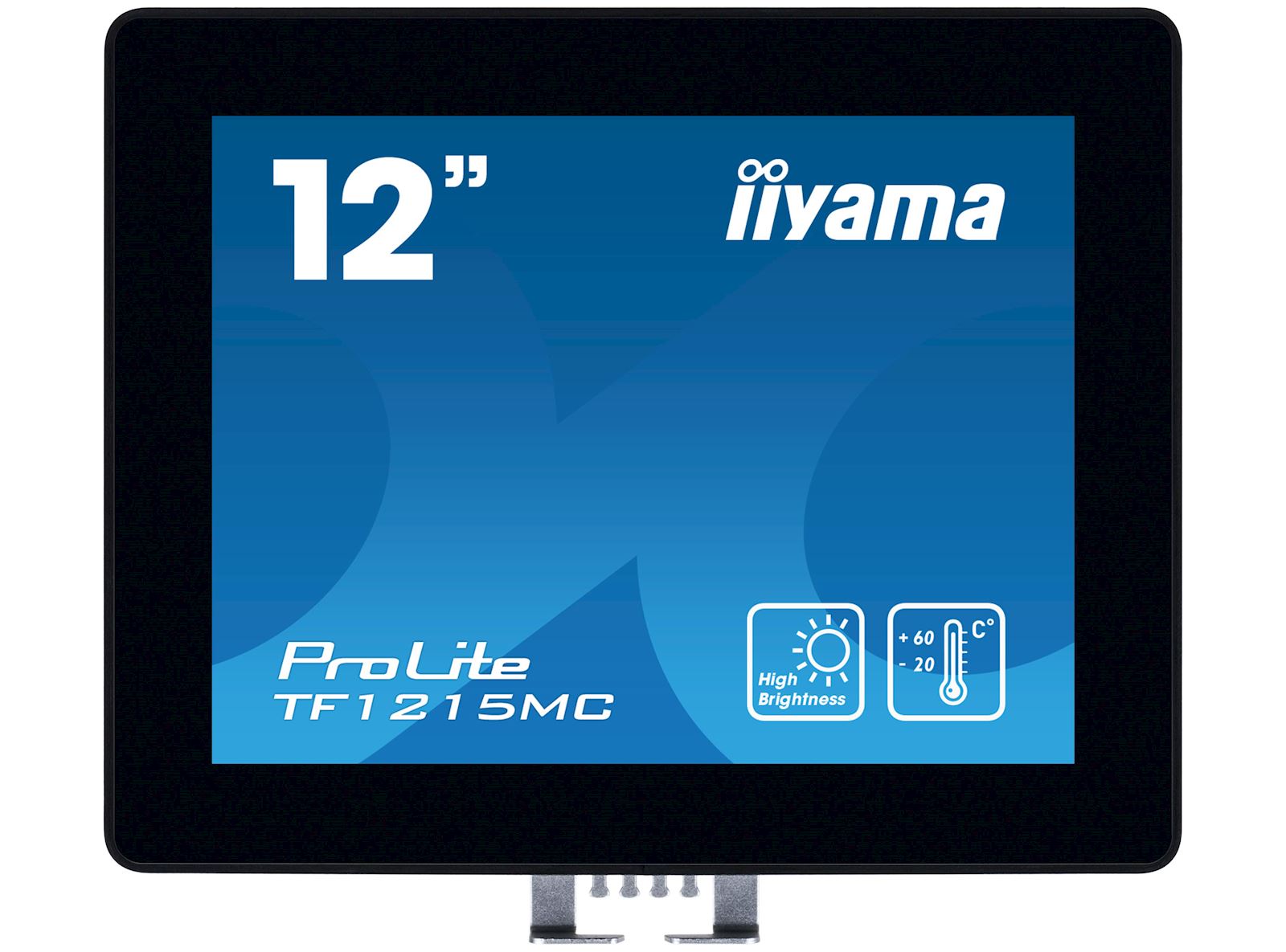

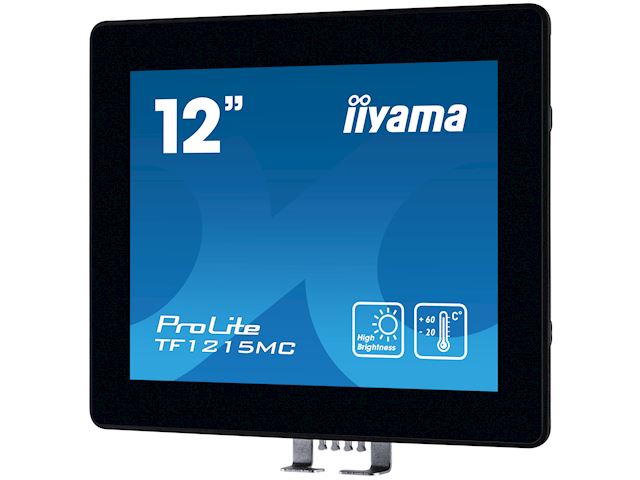

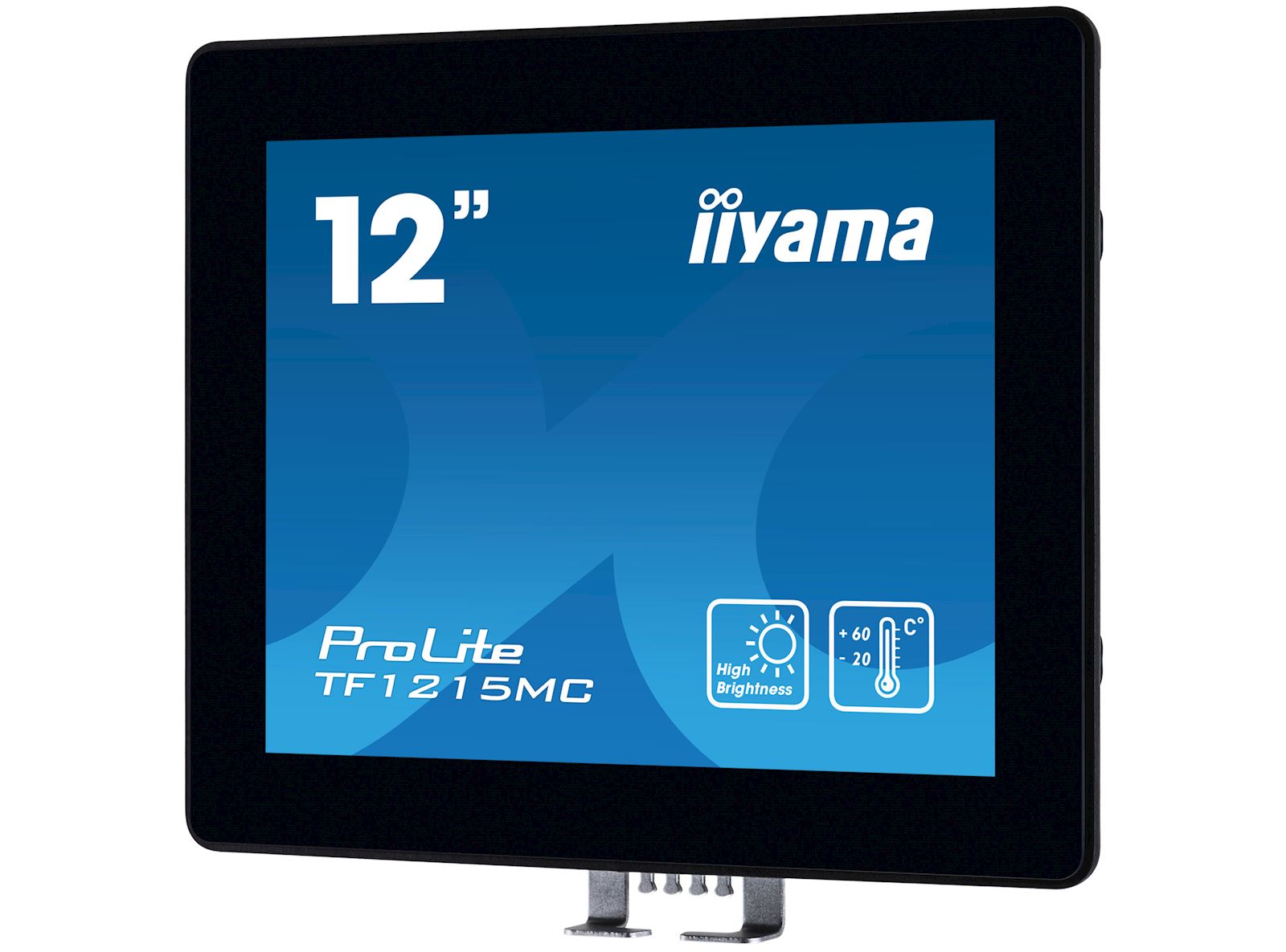

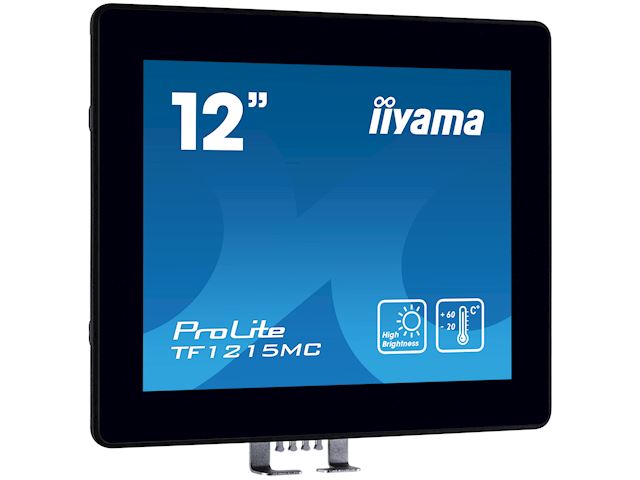

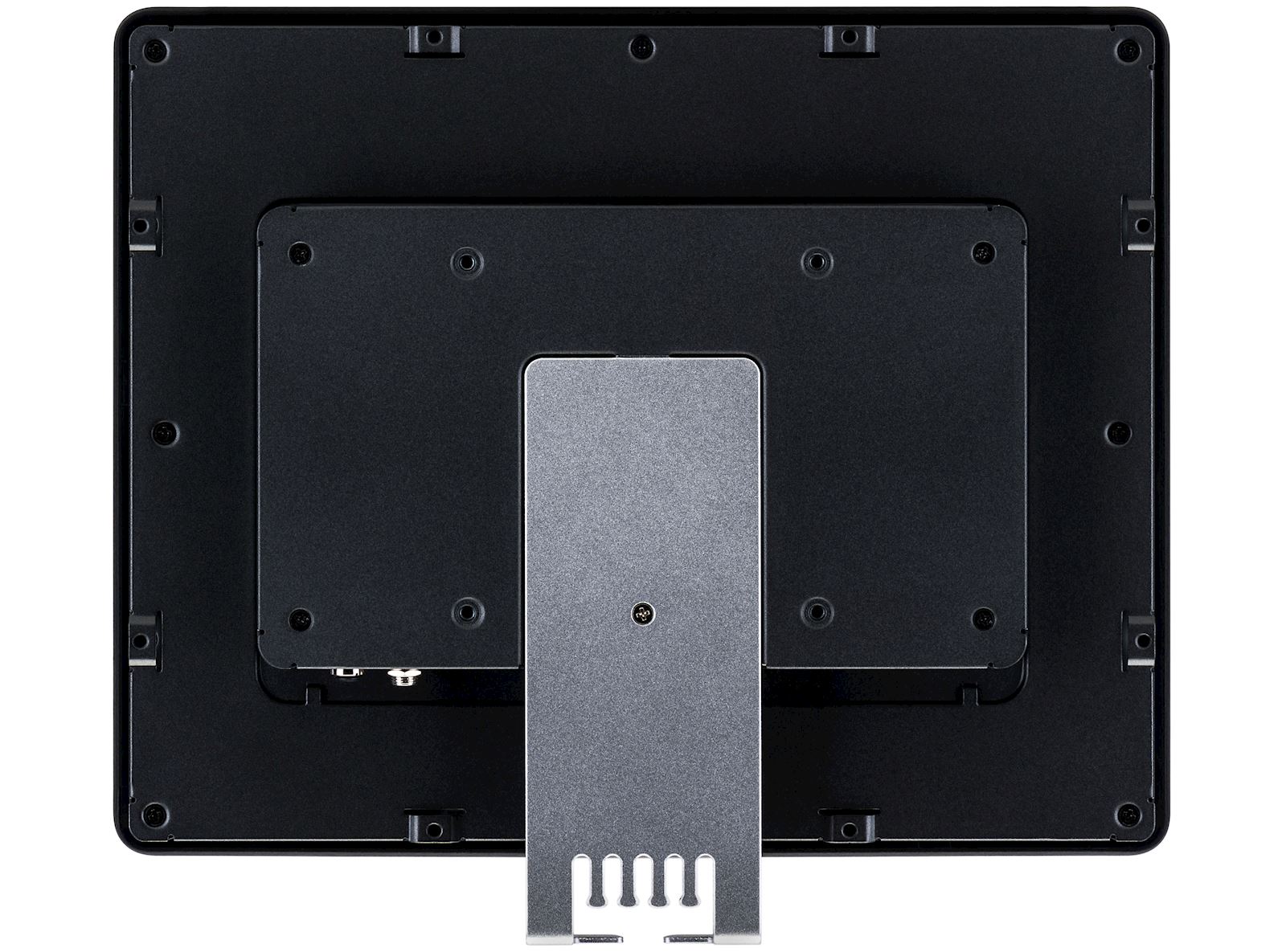

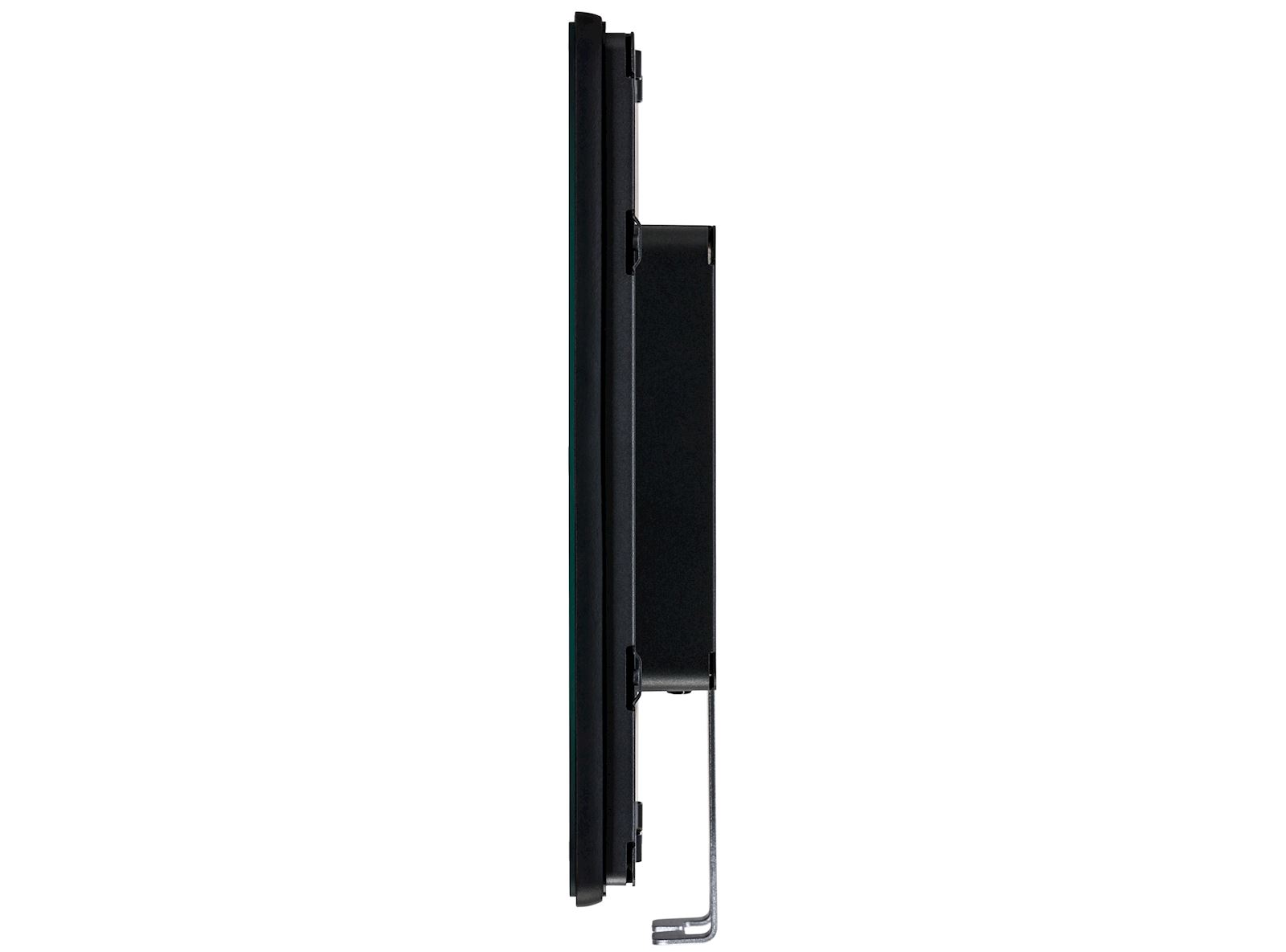

iiyama Prolite monitor TF1215MC-B1 12.1" Black, 1024 x 768 resolution, Projective Capacitive 10pt Touch, touchscreen solution for pick-up points

£337.70 exc. VAT
£405.24 inc. VAT

Brand: iiyama

Manufacturer Code: TF1215MC-B1

Product Description

12.1’’ PCAP 10pt touchscreen solution for pick-up points

Built into a rugged, edge-to-edge glass bezel the ProLite TF1215MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It can operate in temperatures ranging from -20˚C-to 60˚C and is IP65 rated, resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks in semi-outside environments like petrol or train stations. For ease of integration, the TF1215MC-B1 can be equipped with optional external mounting brackets (OMK3-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Technical Information

DISPLAY CHARACTERISTICS

Design Open Frame
Diagonal 12.1", 31cm
Panel IPS Technology
Native resolution 1024 x 768 (0.8 megapixel)
Aspect ratio 4:3
Panel brightness 540 cd/m²
Brightness 450 cd/m² with touch
Light transmittance 85%
Static contrast 1000:1
Response time (BTB) 25ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.2mln (6bit + Hi-FRC)
Horizontal Sync 31.4 - 60kHz
Viewable area W x H 245.8 x 184.3mm, 9.7 x 7.2"
Pixel pitch 0.24mm
Bezel colour and finish black

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method finger, glove (latex), capacitive stylus
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes

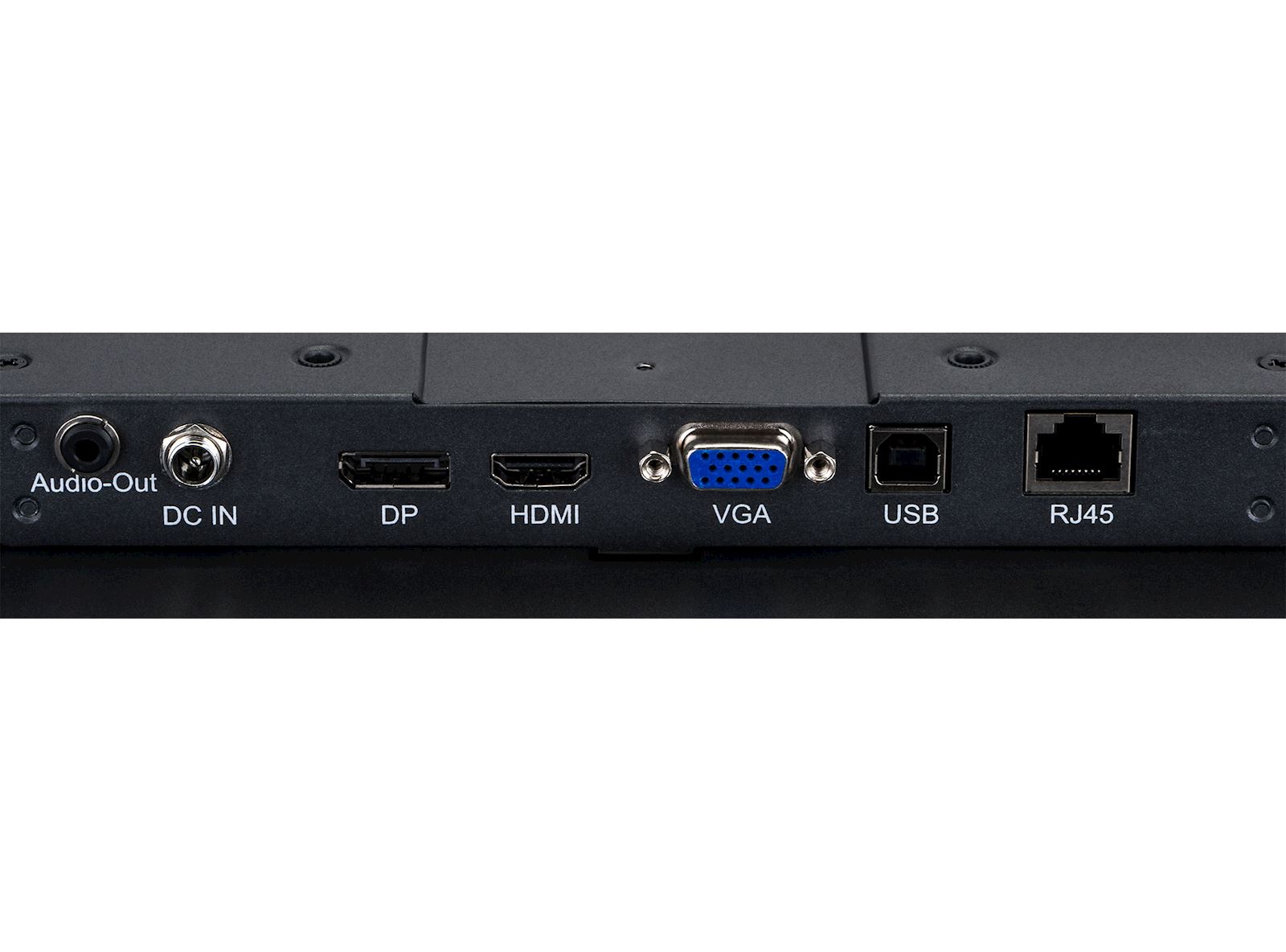

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio output Mini jack x1
HDCP yes

FEATURES

Extra anti-fingerprint coating, touch through-glass
Glass thickness 3.15mm
Glass hardness 7H
60950 Ball drop test yes
Water and dust protection IP65 (front)
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
User controls picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B

MECHANICAL

Orientation landscape, portrait, face-up
VESA mounting 100 x 100mm
Operation temperature range (-°/+°) -20°C - 60°C
Storage temperature range - 20°C - 60°C

ACCESSORIES INCLUDED

Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Other AC adapter, external control pad
Remote control external control pad

POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 10W typical, 0.55W stand by, 0.5W off mode

SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369) F

DIMENSIONS / WEIGHT

Product dimensions W x H x D 308.5 x 248 x 41.5mm
Box dimensions W x H x D 435 x 355 x 165mm
Weight (without box) 2.1kg
Weight (with box) 3.9kg
EAN code 4948570118007
Features

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

FOAM SEAL

A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.


FOAM SEAL

CABLE MANAGEMENT

Cables can be neatly tied and routed with the special cable cover, so they cannot come loose or move around. A lockable DC connector ensures fixing the power cable.

CABLE MANAGEMENT

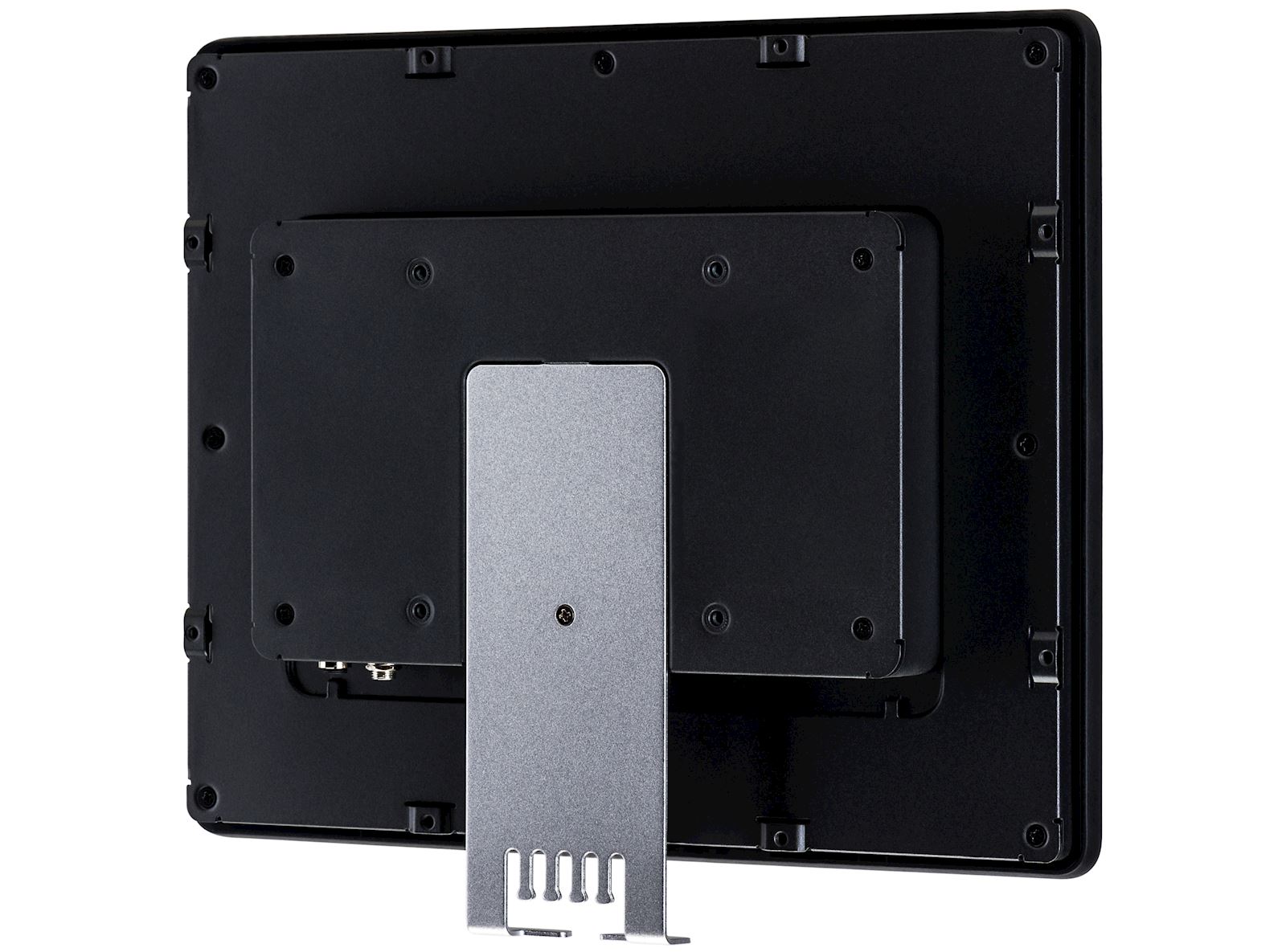

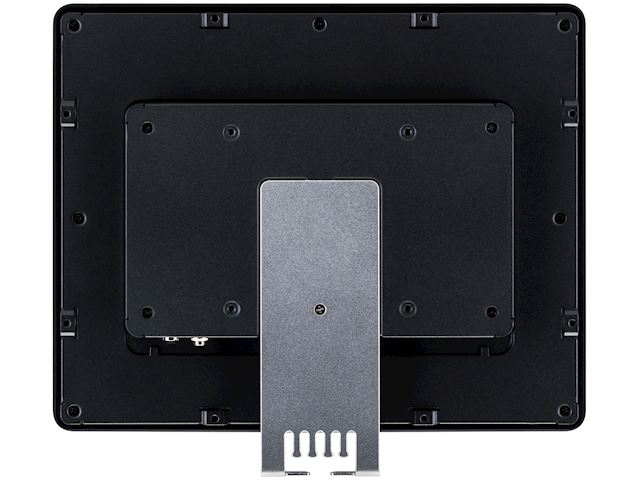

OPEN FRAME BRACKETS

This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.

OPEN FRAME BRACKETS

BALL-DROP-TEST PROOF

The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.

BALL-DROP-TEST PROOF
