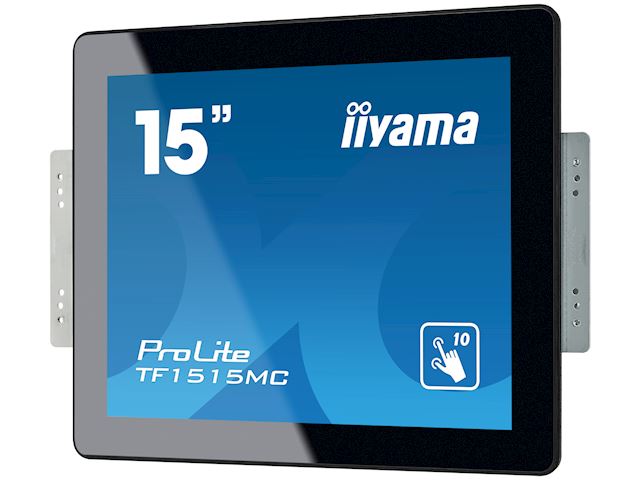

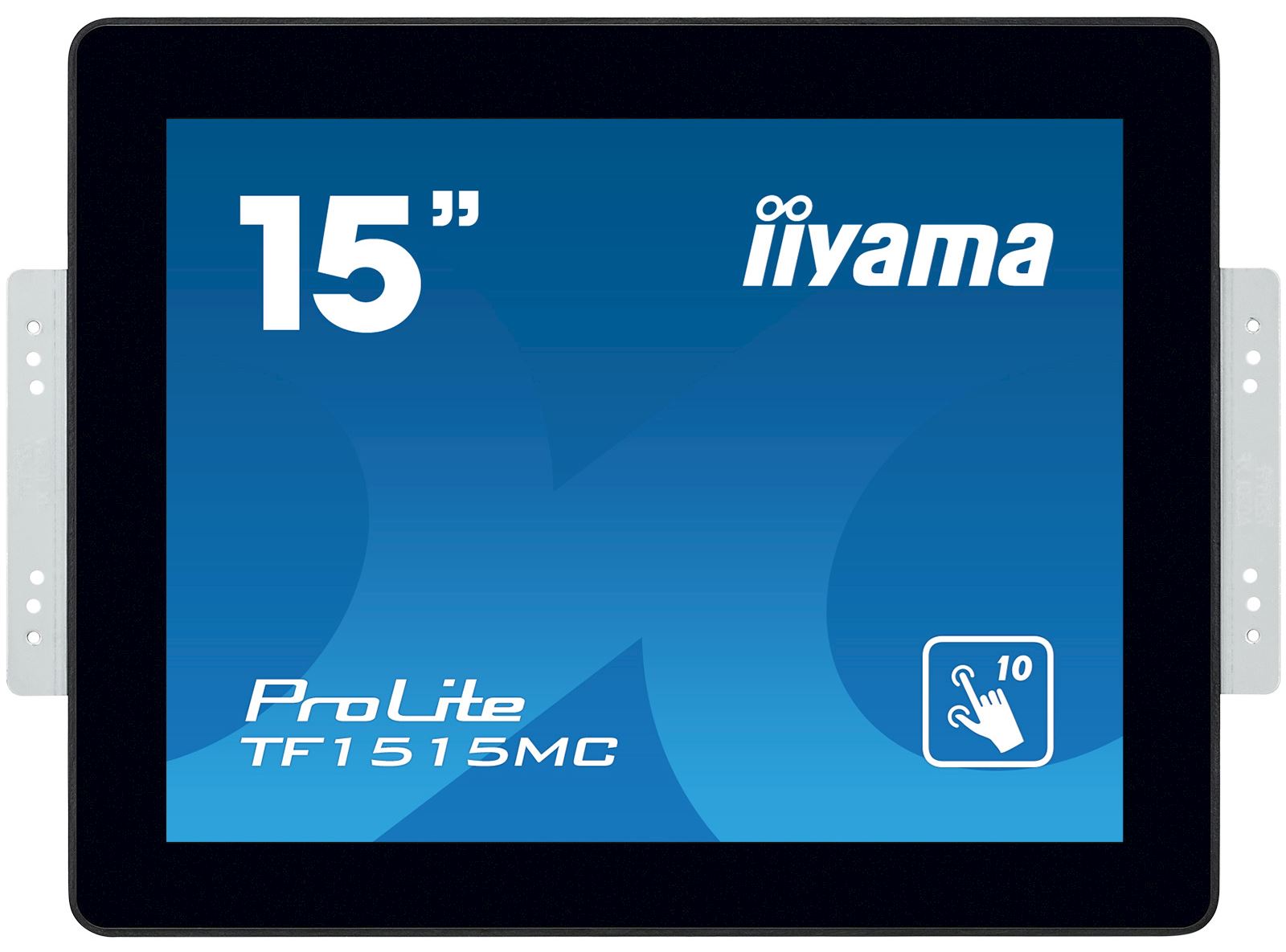

iiyama Prolite monitor TF1515MC-B2 15" Black, 1024 x 768 resolution, Projective Capacitive 10pt Touch, equipped with touch through glass function, (Mounting brackets not included)

Name: iiyama Prolite monitor TF1515MC-B2 15" Black, 1024 x 768 resolution, Projective Capacitive 10pt Touch, equipped with touch through glass function, (Mounting brackets not included)
Brand: iiyama
SKU: TF1515MC-B2
Price: 394.68 GBP
Availability: InStock

iiyama Prolite monitor TF1515MC-B2 15" Black, 1024 x 768 resolution, Projective Capacitive 10pt Touch, equipped with touch through glass function, (Mounting brackets not included) image 0

£328.90 exc. VAT

£394.68 inc. VAT

Next working day delivery
In stock
Quantity:
Add to Basket

Brand: iiyama

Manufacturer Code: TF1515MC-B2

Product Description

Open Frame PCAP 10 point touch screen equipped with touch through glass function (bracket not included)

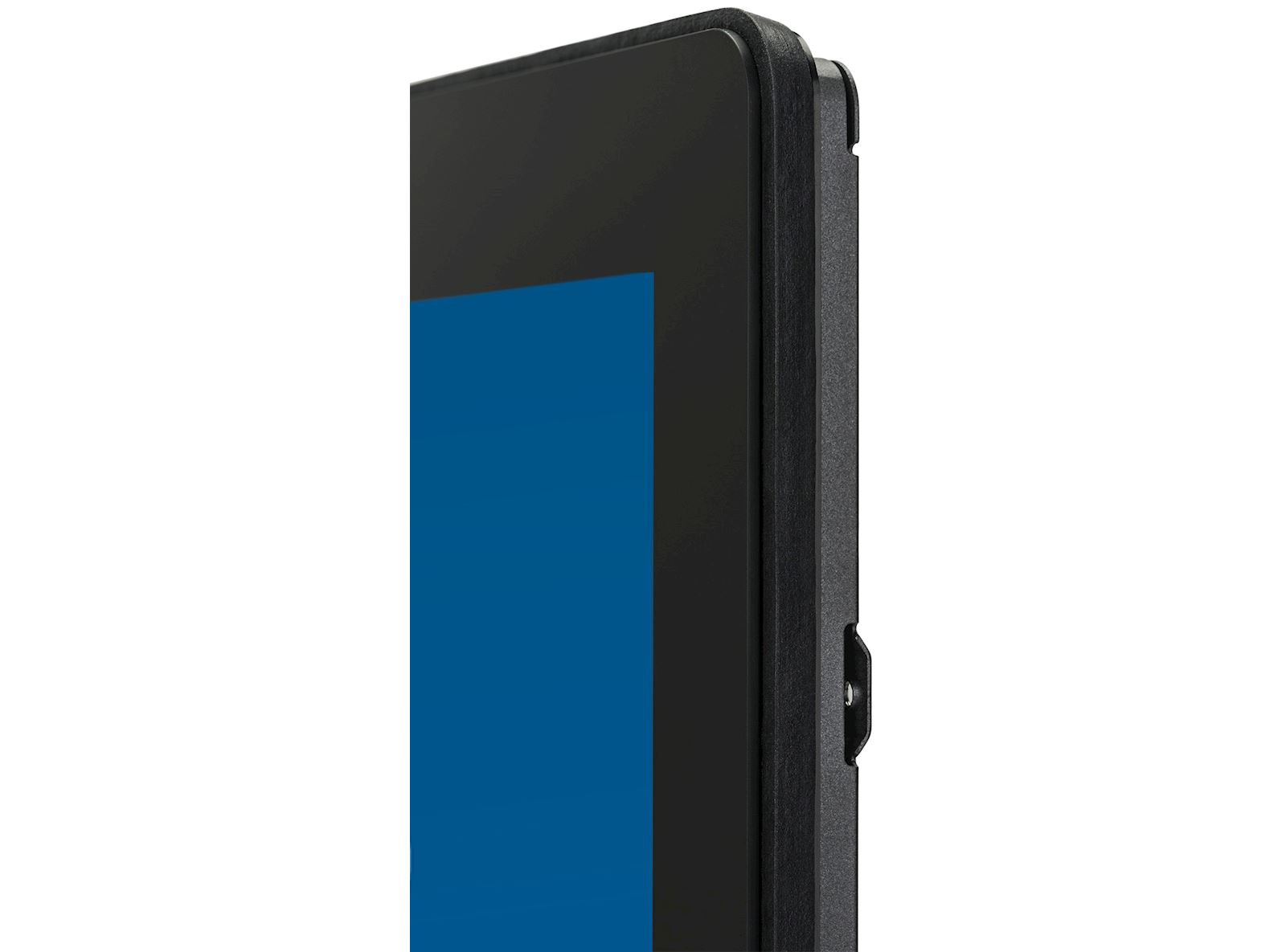

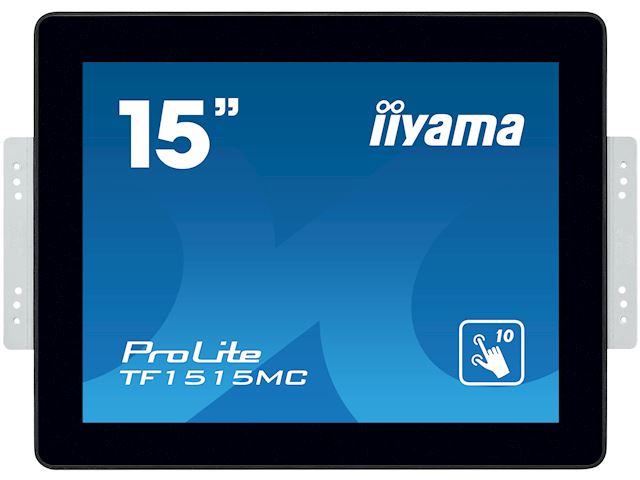

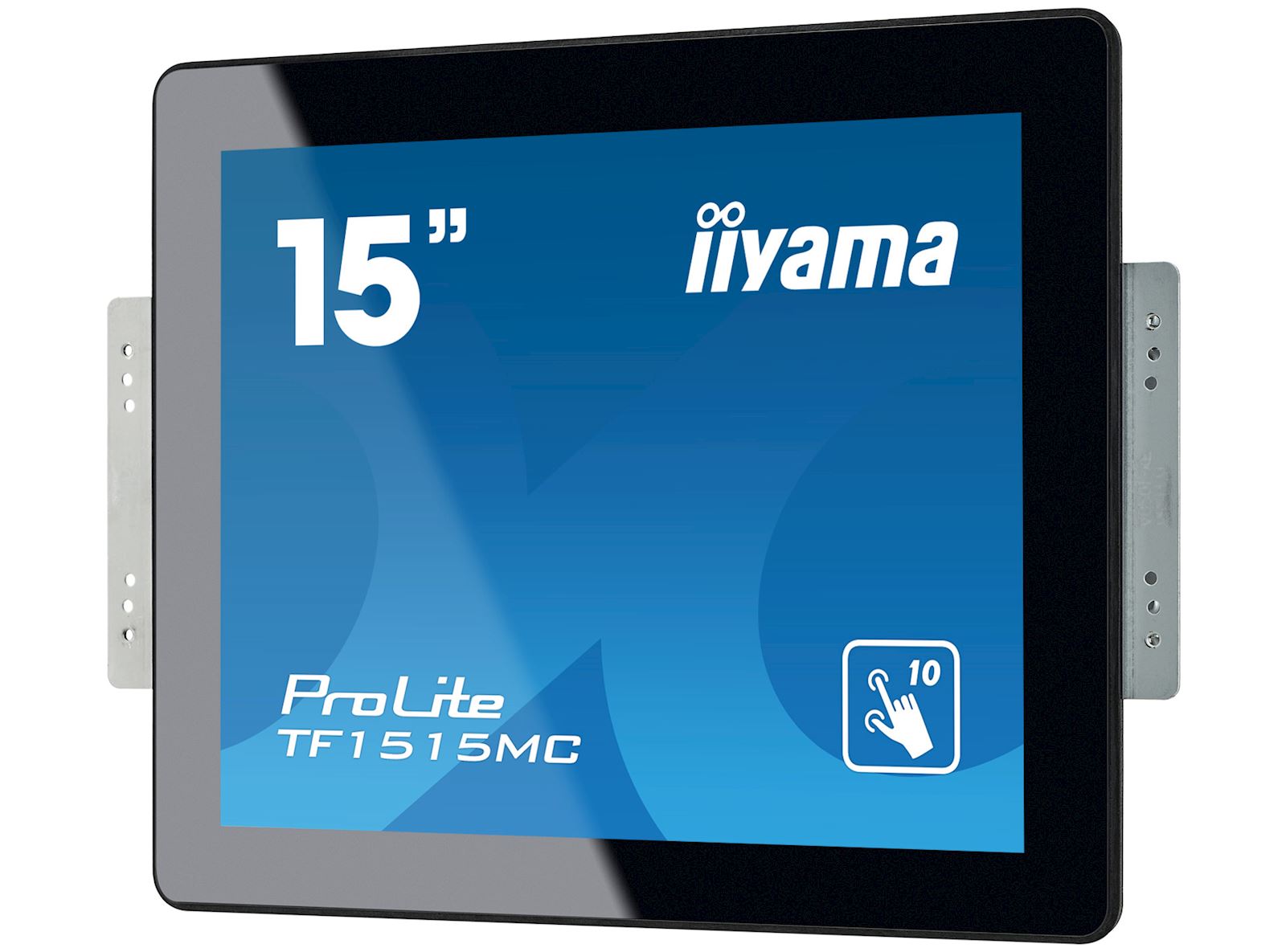

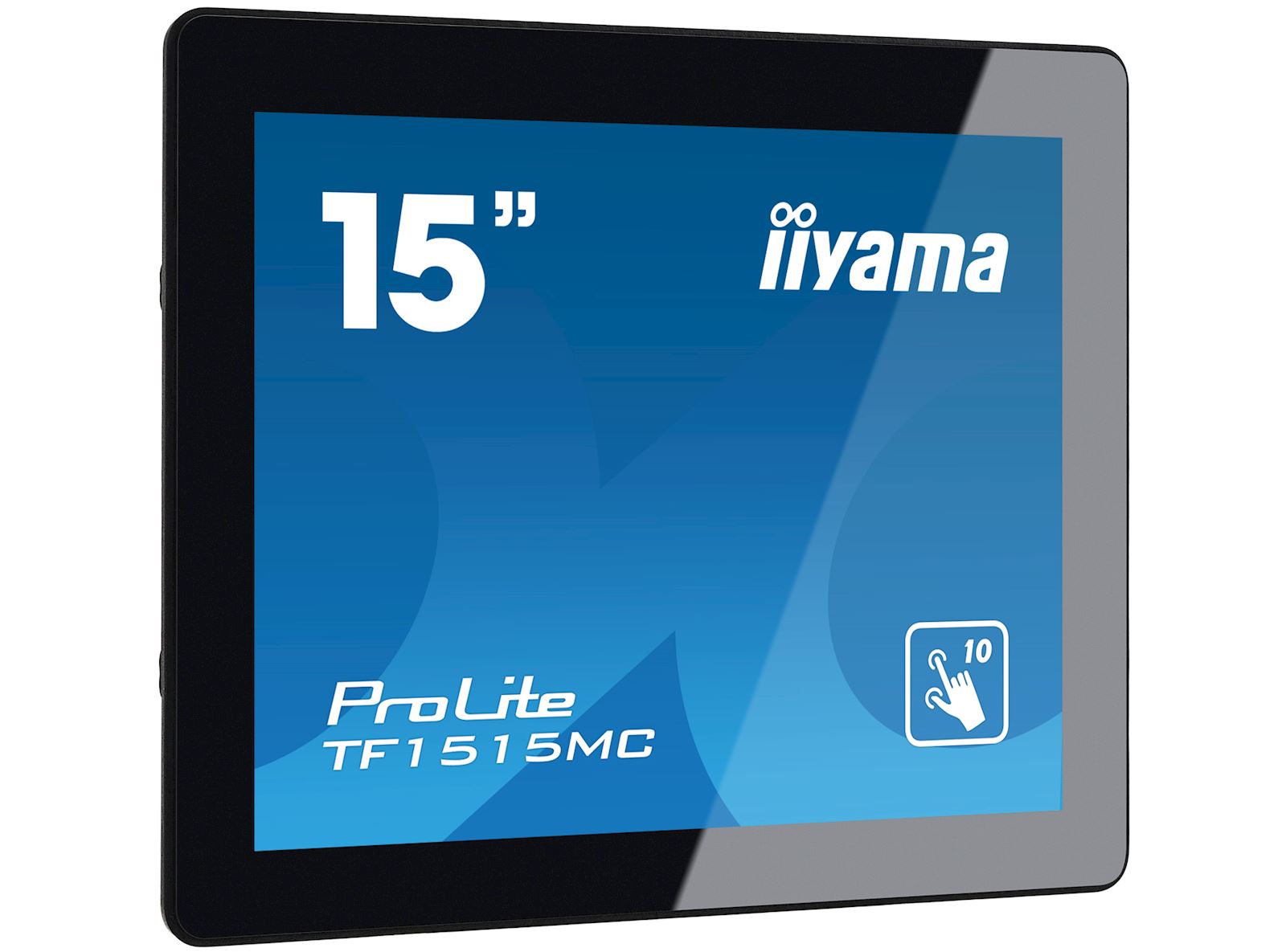

The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Technical Information

DISPLAY CHARACTERISTICS

Design	Open Frame
Diagonal	15", 38cm
Panel	TN LED
Native resolution	1024 x 768 (0.8 megapixel)
Aspect ratio	4:3
Brightness	350 cd/m² typical
Brightness	315 cd/m² with touch
Static contrast	800:1 with touch
Light transmittance	90%
Response time (BTB)	8ms
Viewing zone	horizontal/vertical: 160°/150°, right/left: 80°/80°, up/down: 75°/75°
Colour support	16.2mln (6bit + Hi-FRC)
Horizontal Sync	31.4 - 60kHz
Viewable area W x H	304.1 x 228.1mm, 12 x 9"
Pixel pitch	0.297mm
Bezel colour and finish	black

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	stylus, finger, glove (latex)
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass	6mm

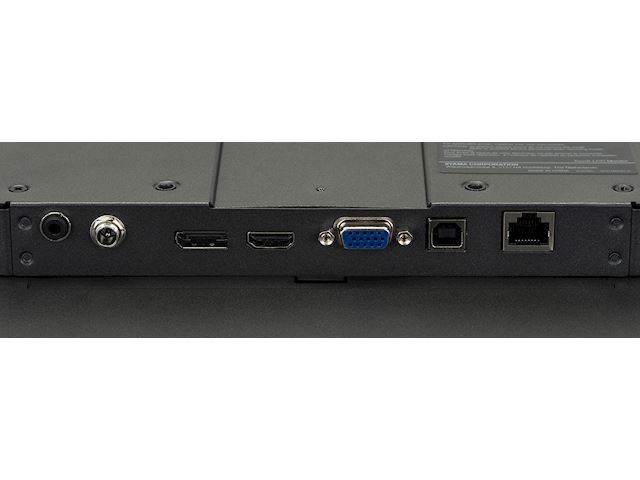

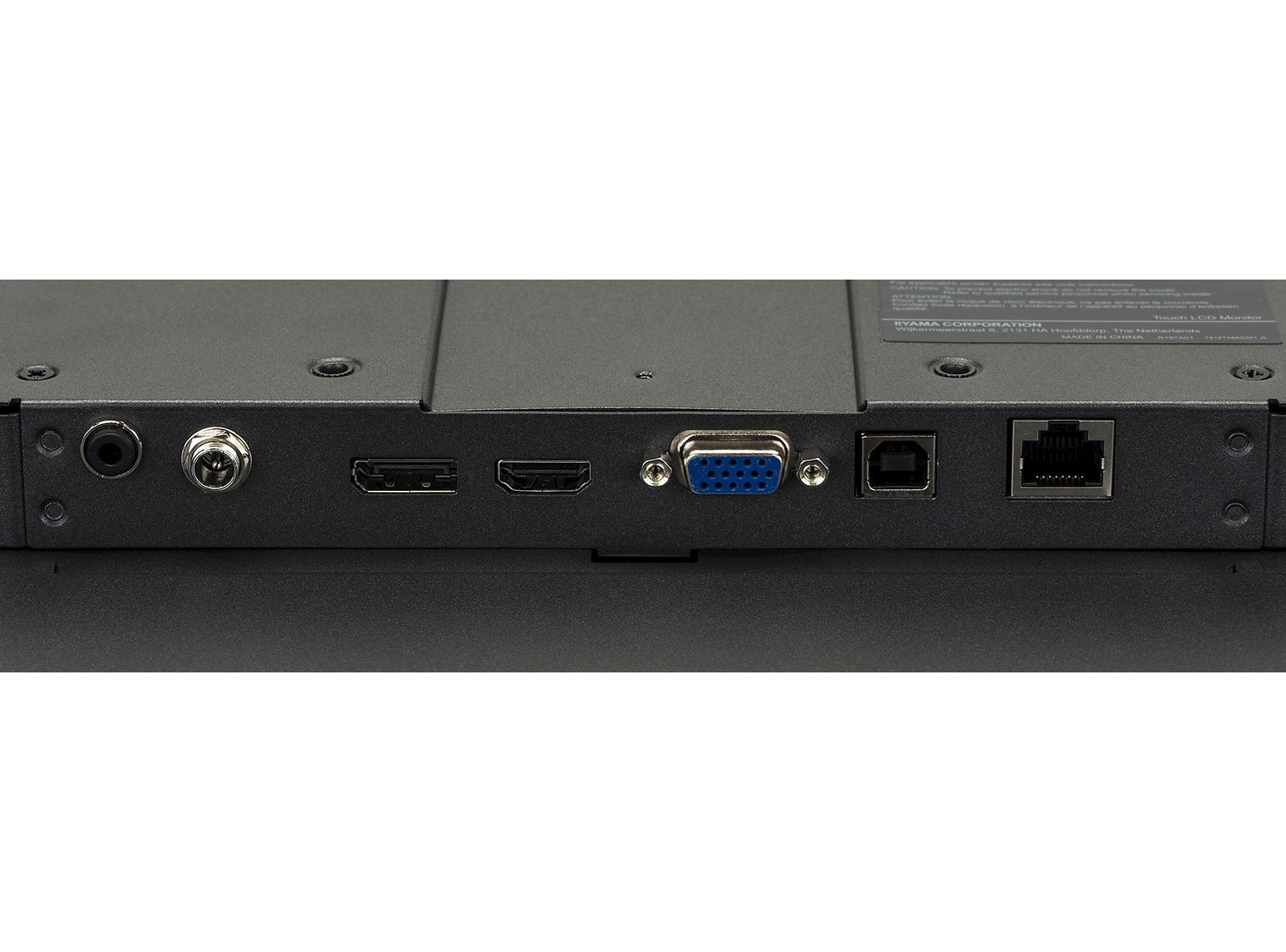

INTERFACES / CONNECTORS / CONTROLS

Analog signal input	VGA x1
Digital signal input	HDMI x1 DisplayPort x1
Audio output	Mini jack x1
HDCP	yes

FEATURES

Extra	anti-fingerprint coating, touch through-glass, foam seal
60950 Ball drop test	yes
Water and dust protection	IP65 (front)
OSD key lock	yes

GENERAL

OSD languages	EN, DE, FR, ES, IT, CN, JP
Control buttons	menu,scroll up/ brightness, scroll down/ contrast, select, power
User controls	picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play	DDC2B

MECHANICAL

Orientation	landscape, portrait, face-up
VESA mounting	100 x 100mm
Operation temperature range	0°C - 40°C
Storage temperature range	- 20°C - 60°C

ACCESSORIES INCLUDED

Cables	power, USB, HDMI, DP
Guides	quick start guide, safety guide
Other	AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad

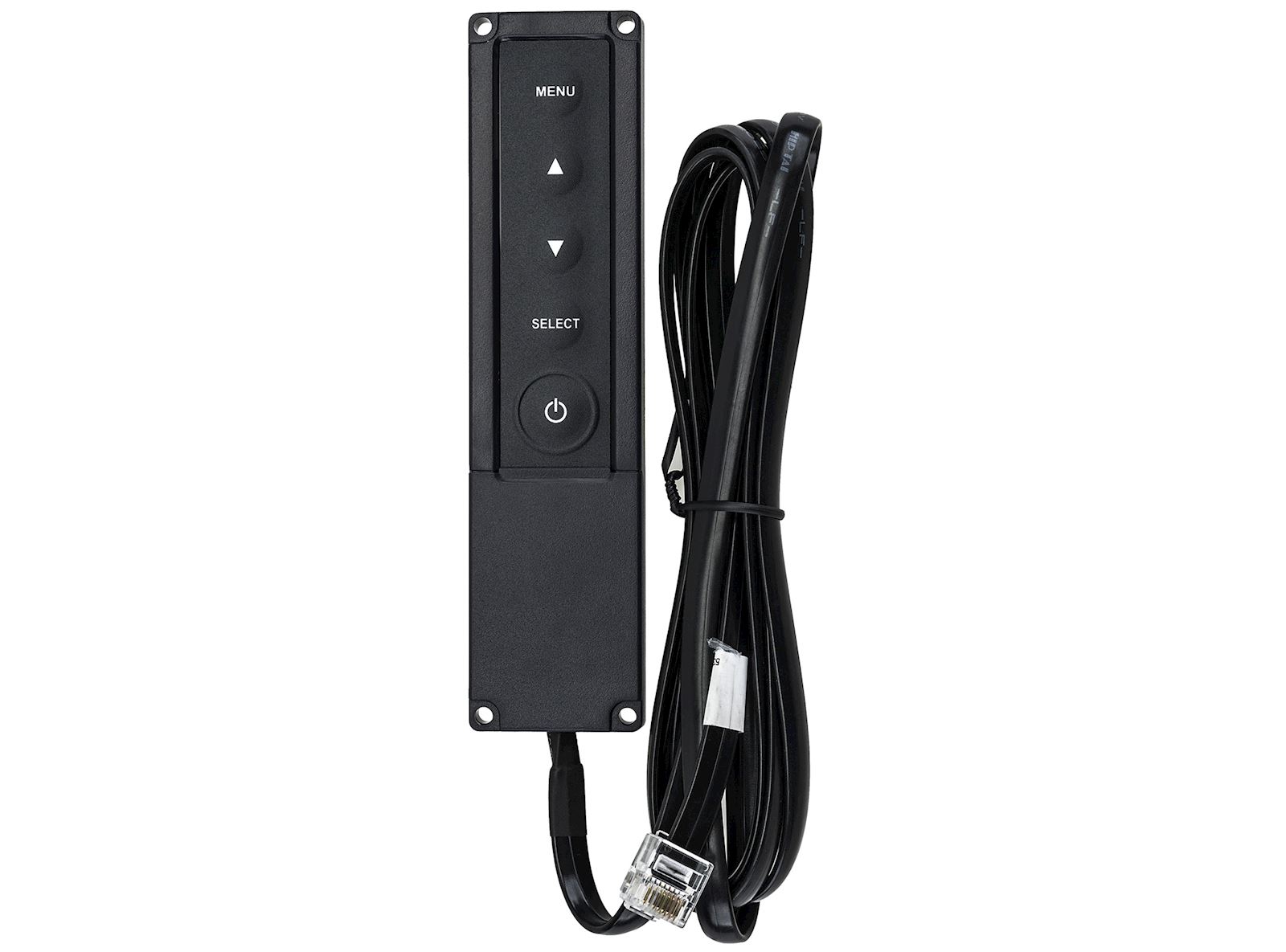

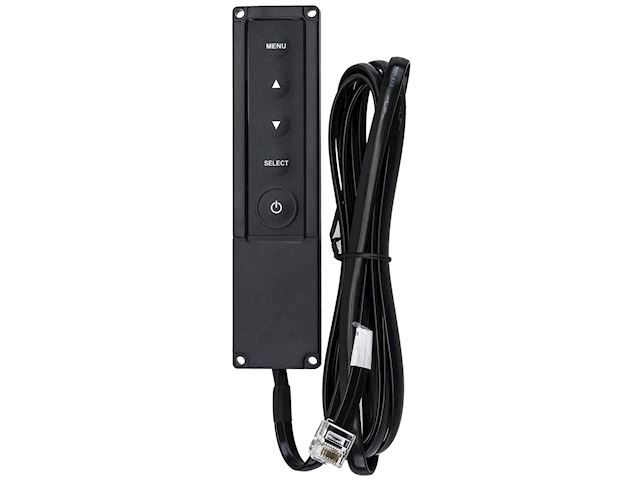

Remote control	external control pad

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	16W typical, 1.2W stand by

SUSTAINABILITY

Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369)	E
Other	REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	364 x 291 x 41.5mm
Box dimensions W x H x D	460 x 470 x 175mm
Pallet volume	44pcs
Pallet dimensions W x H x D	860 x 970 x 120mm
Weight (without box)	2.9kg
Weight (with box)	4.6kg
EAN code	4948570116751

Features

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

FOAM SEAL

A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

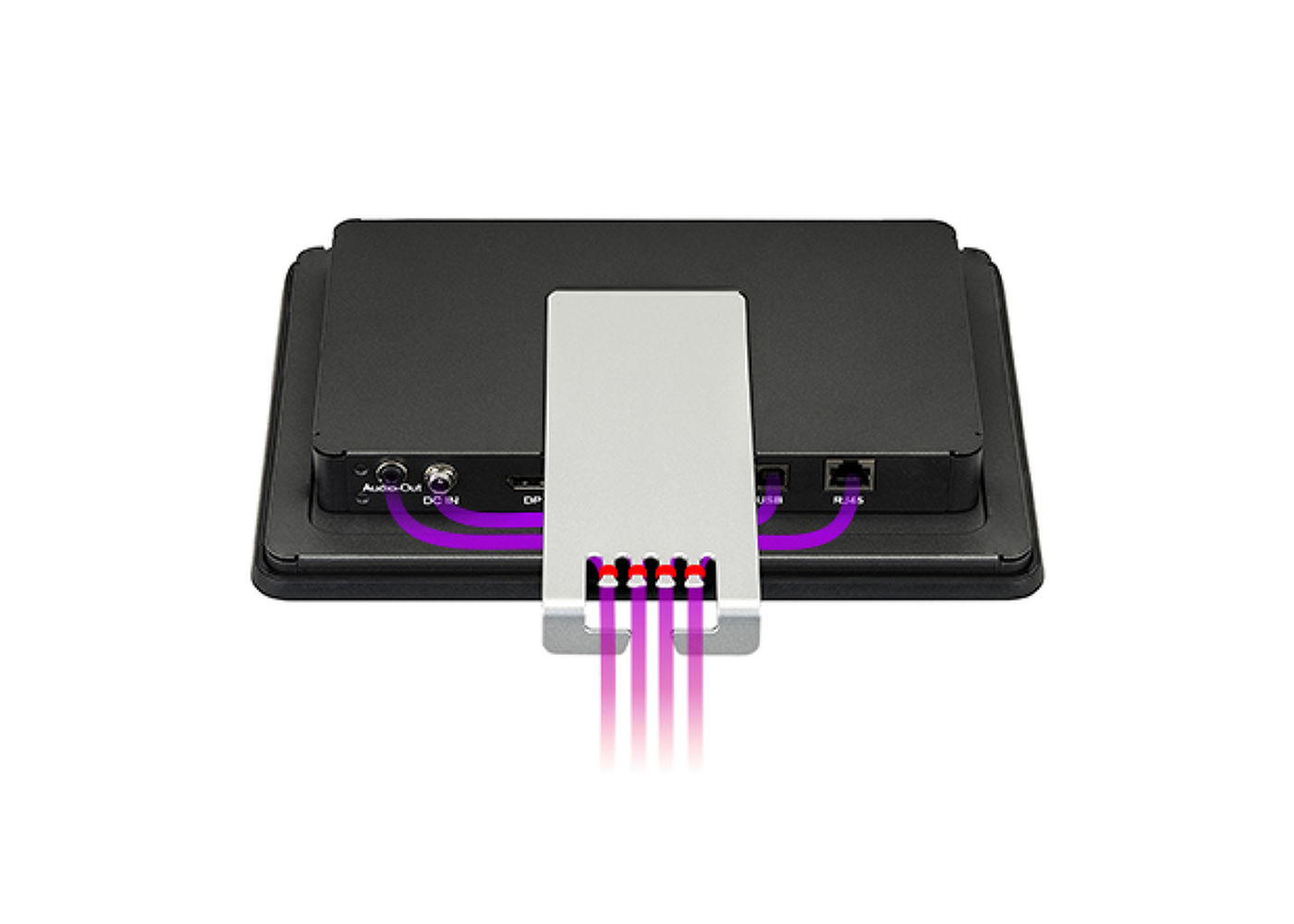

CABLE MANAGEMENT

Cables can be neatly tied and routed with the special cable cover, so they cannot come loose or move around. A lockable DC connector ensures fixing the power cable.

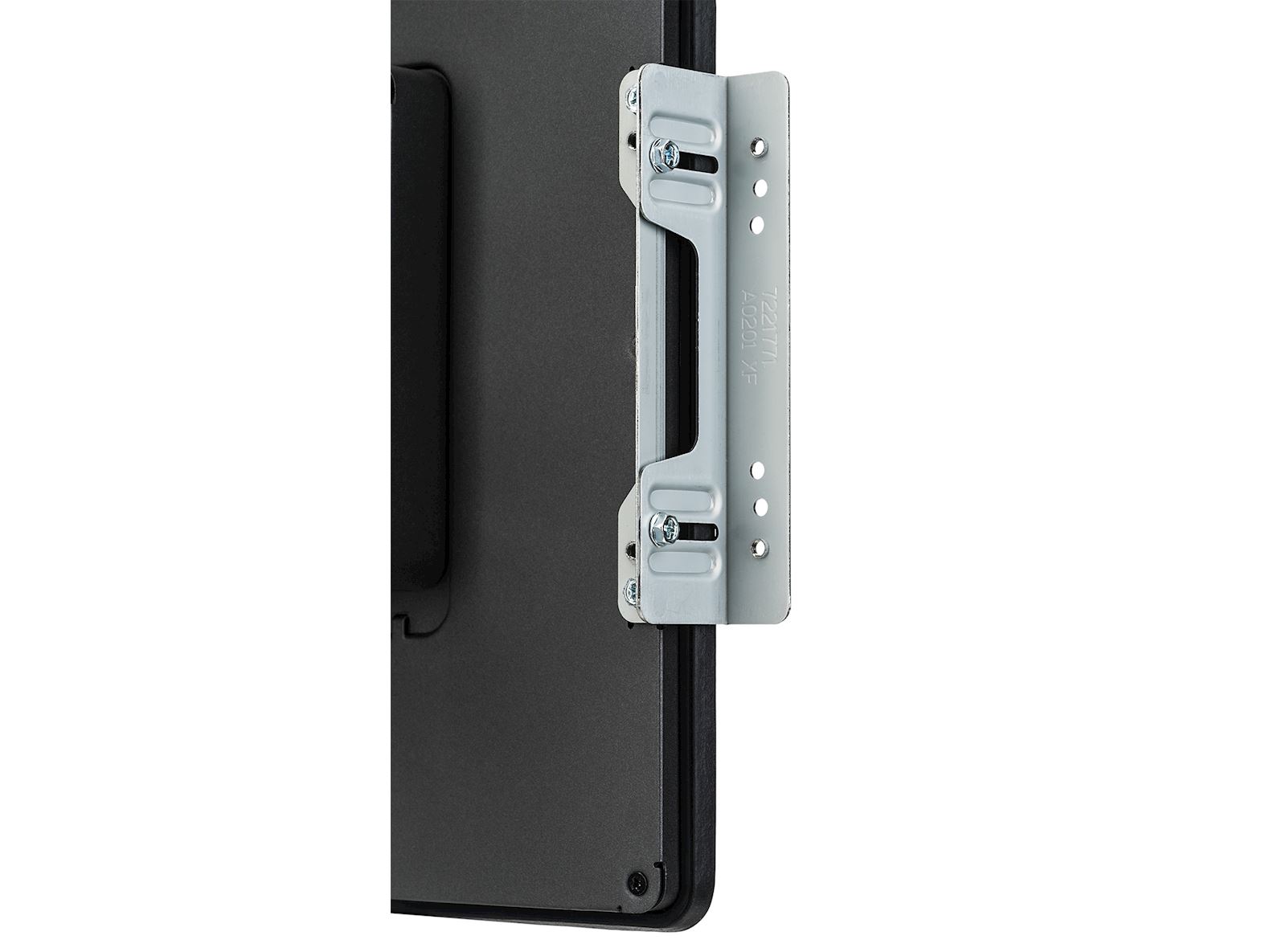

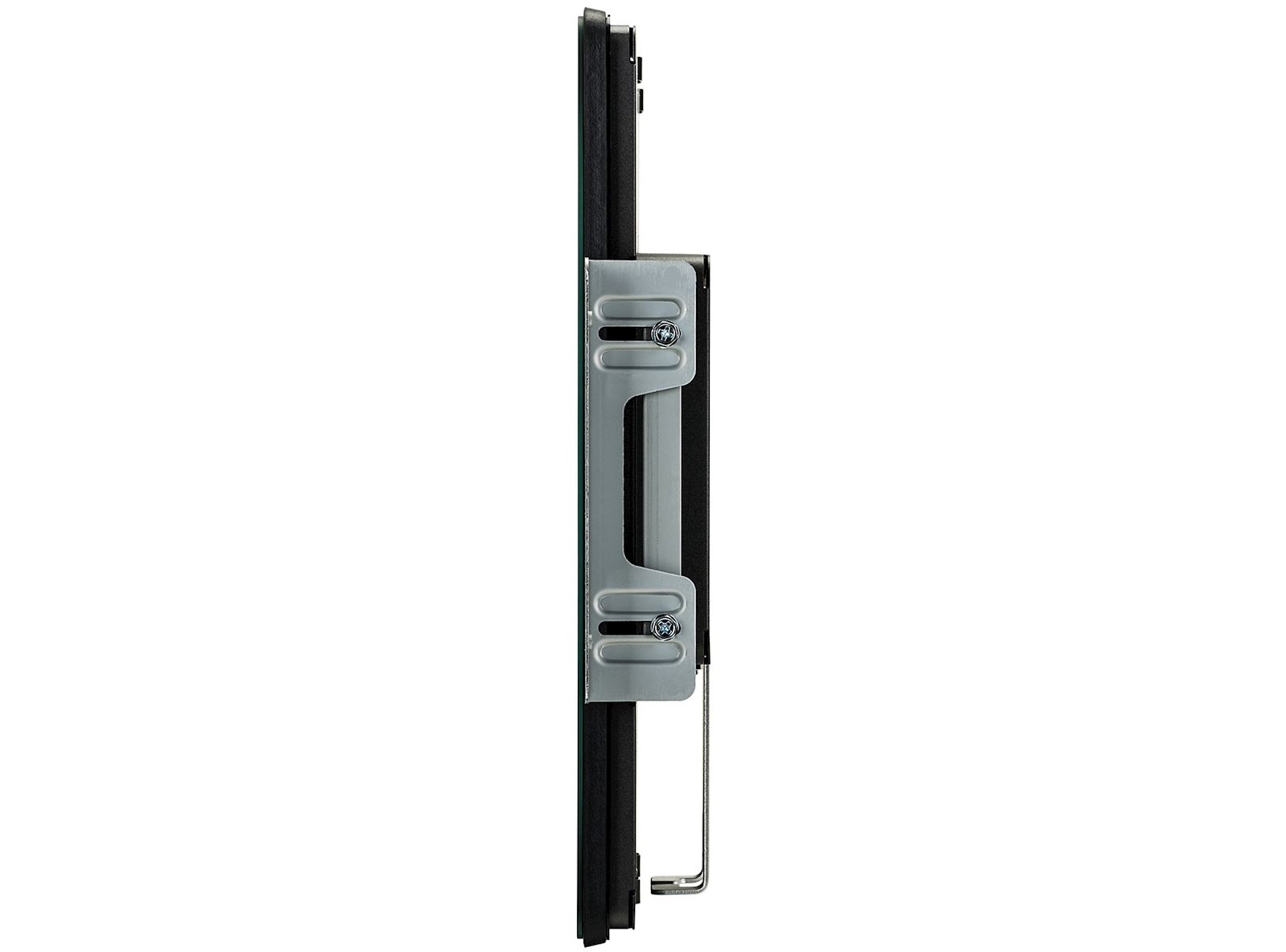

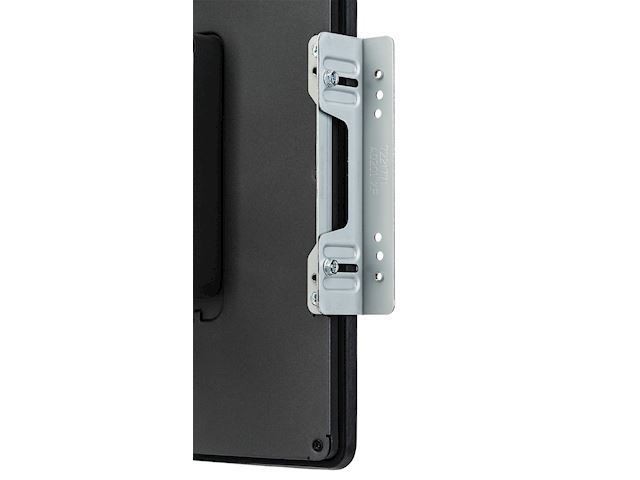

OPEN FRAME BRACKETS

This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.

BALL-DROP-TEST PROOF

The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.
