iiyama ProLite monitor TF1634MC-B8X 16", P Cap 10pt touch, edge to edge glass, Open frame, Scratch resistant, Anti-fingerprint coating, Water and dust resistant

Name: iiyama ProLite monitor TF1634MC-B8X 16", P Cap 10pt touch, edge to edge glass, Open frame, Scratch resistant, Anti-fingerprint coating, Water and dust resistant
Brand: iiyama
SKU: TF1634MC-B8X
Price: 432.00 GBP
Availability: OutOfStock

iiyama ProLite monitor TF1634MC-B8X 16", P Cap 10pt touch, edge to edge glass, Open frame, Scratch resistant, Anti-fingerprint coating, Water and dust resistant image 0

£360.00 exc. VAT

£432.00 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Please enter a valid email address

Send Back In Stock Notification

Brand: iiyama

Manufacturer Code: TF1634MC-B8X

Product Description

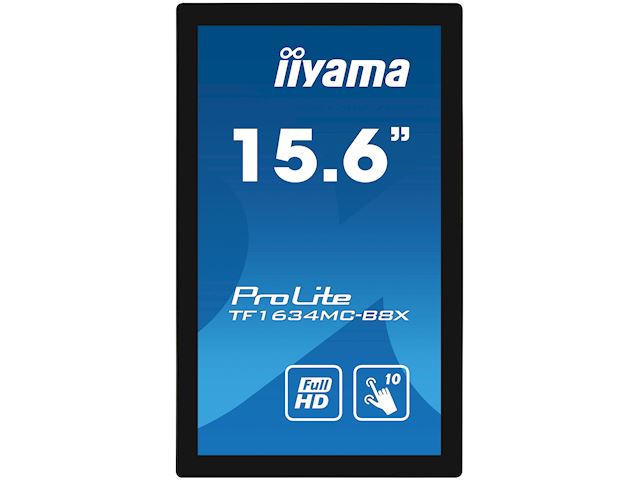

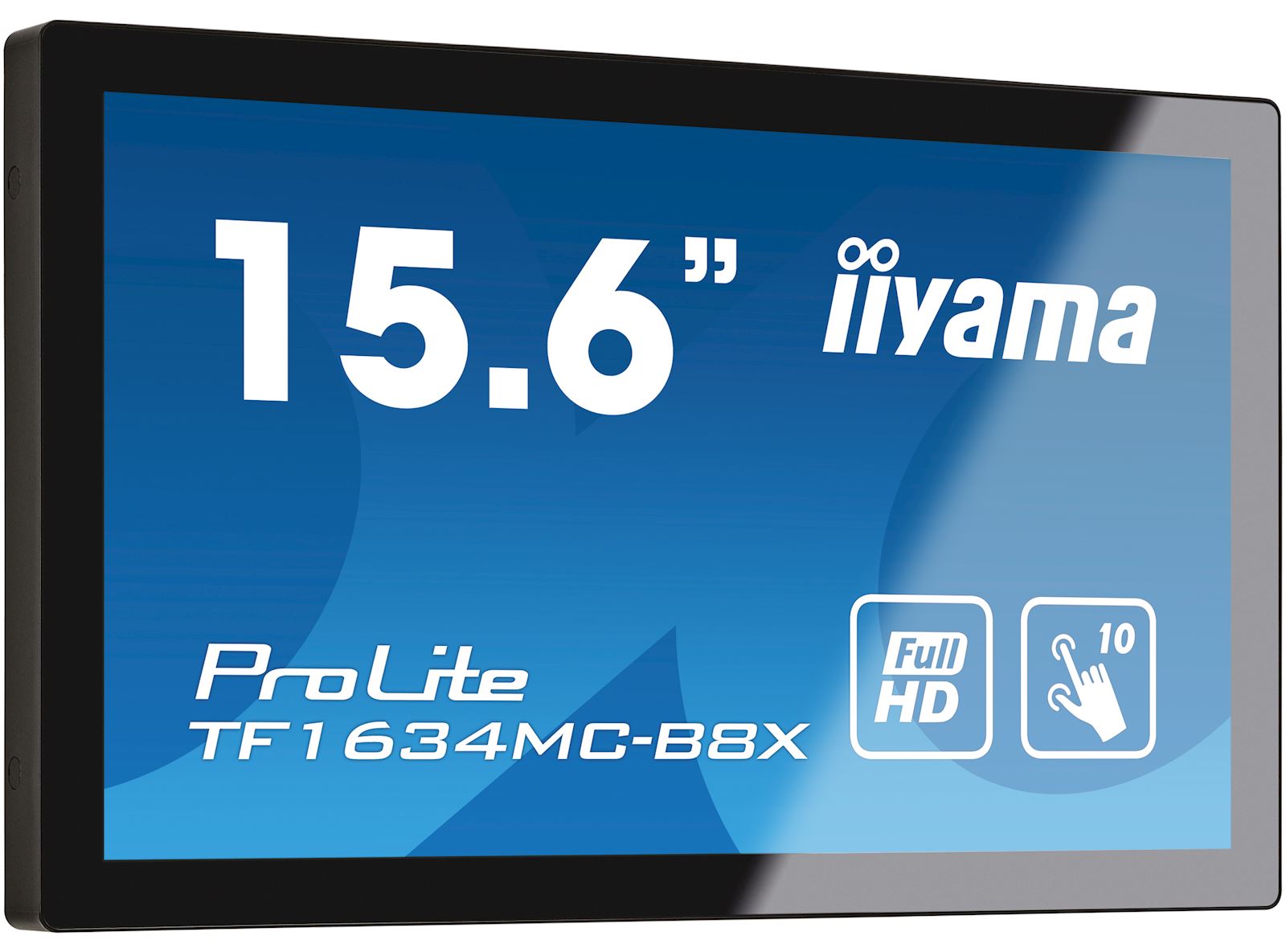

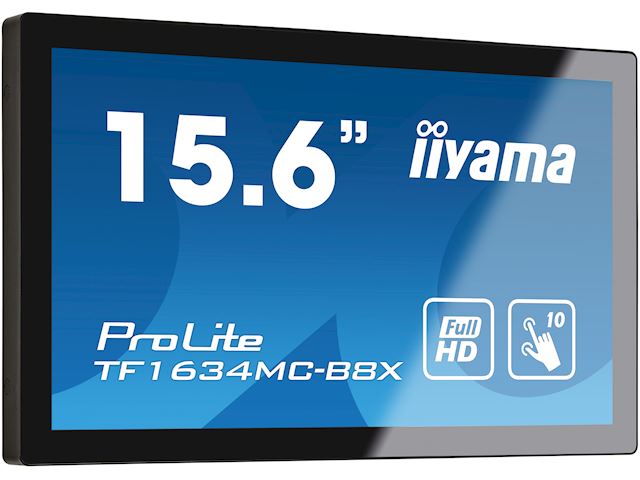

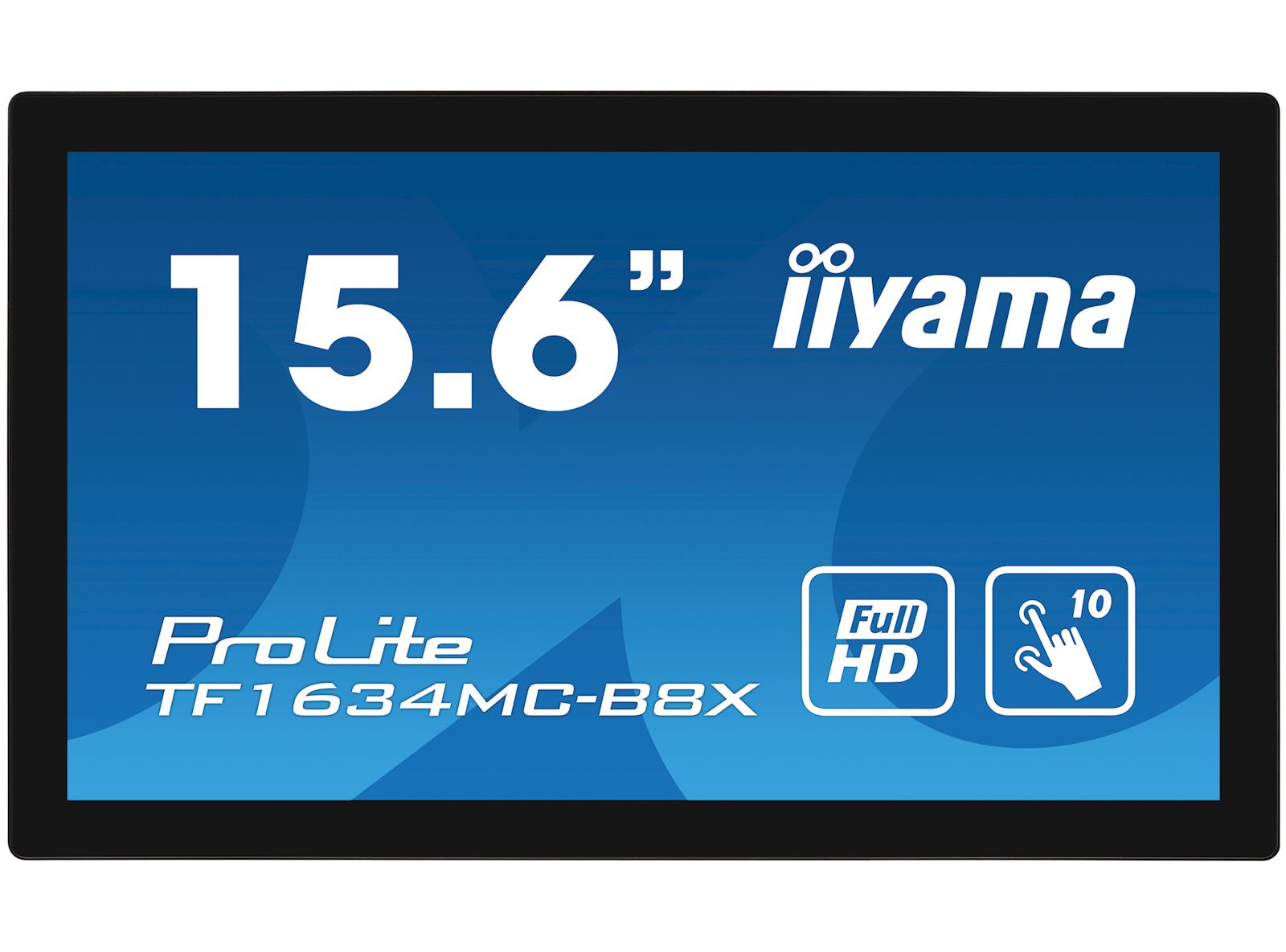

15.6" Full HD 10 point PCAP Open Frame touchscreen featuring IPS Panel Technology and touch through glass function

The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations.

Technical Information

DISPLAY CHARACTERISTICS

Design	Edge to edge glass, Open Frame
Diagonal	15.6", 39.5cm
Panel	IPS Panel Technology LED
Native resolution	1920 x 1080 @60Hz (2.1 megapixel)
Aspect ratio	16:9
Panel brightness	450 cd/m²
Brightness	405 cd/m² with touch
Light transmittance	90%
Static contrast	700:1 with touch
Response time (GTG)	25ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.2mln (6bit + Hi-FRC)
Horizontal Sync	30 - 84kHz
Viewable area W x H	344.2 x 193.5mm, 13.6 x 7.6"
Pixel pitch	0.179mm
Bezel colour and finish	black, matte

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	stylus, finger, glove (latex)
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass	6mm
Palm rejection	yes

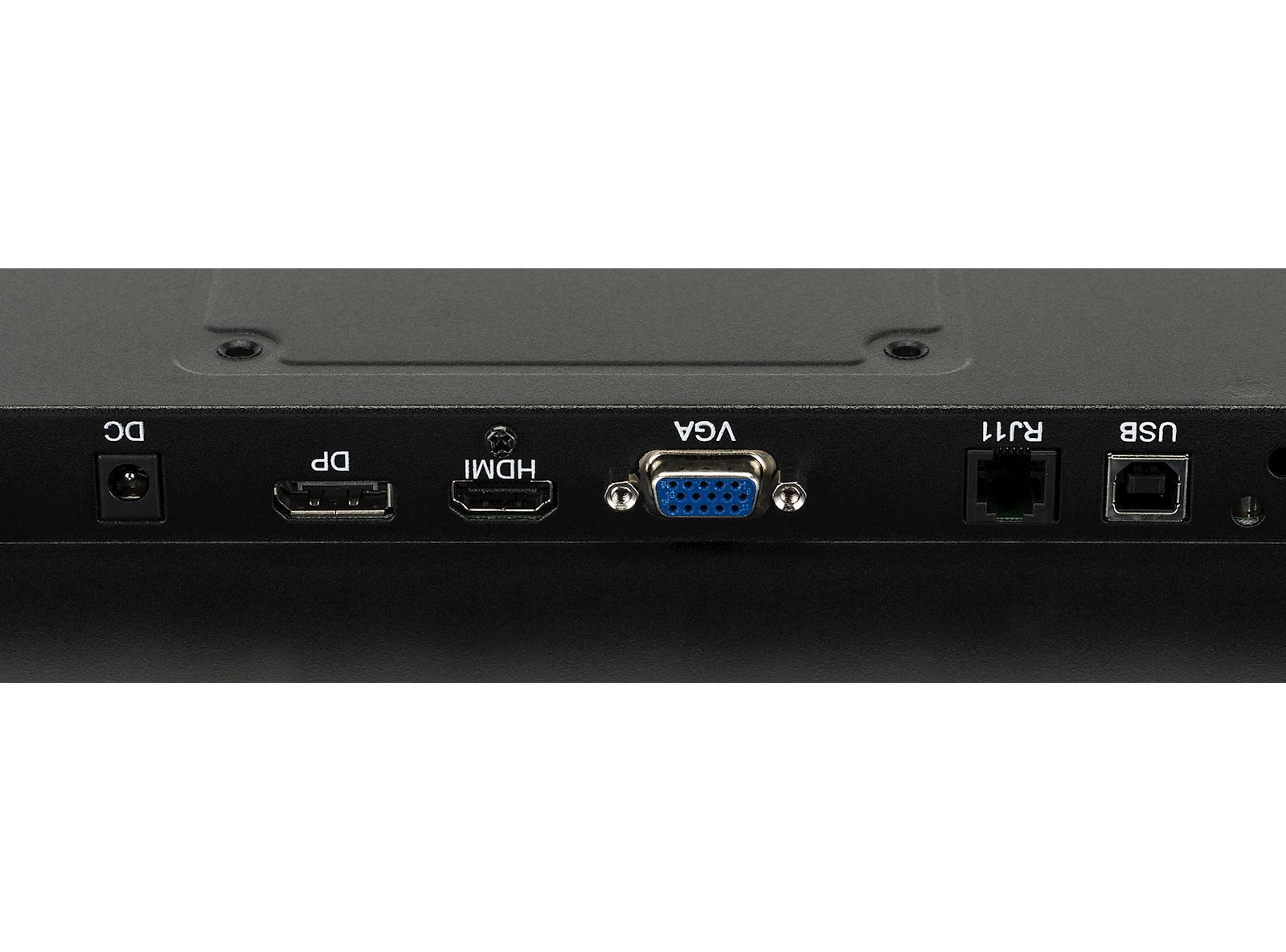

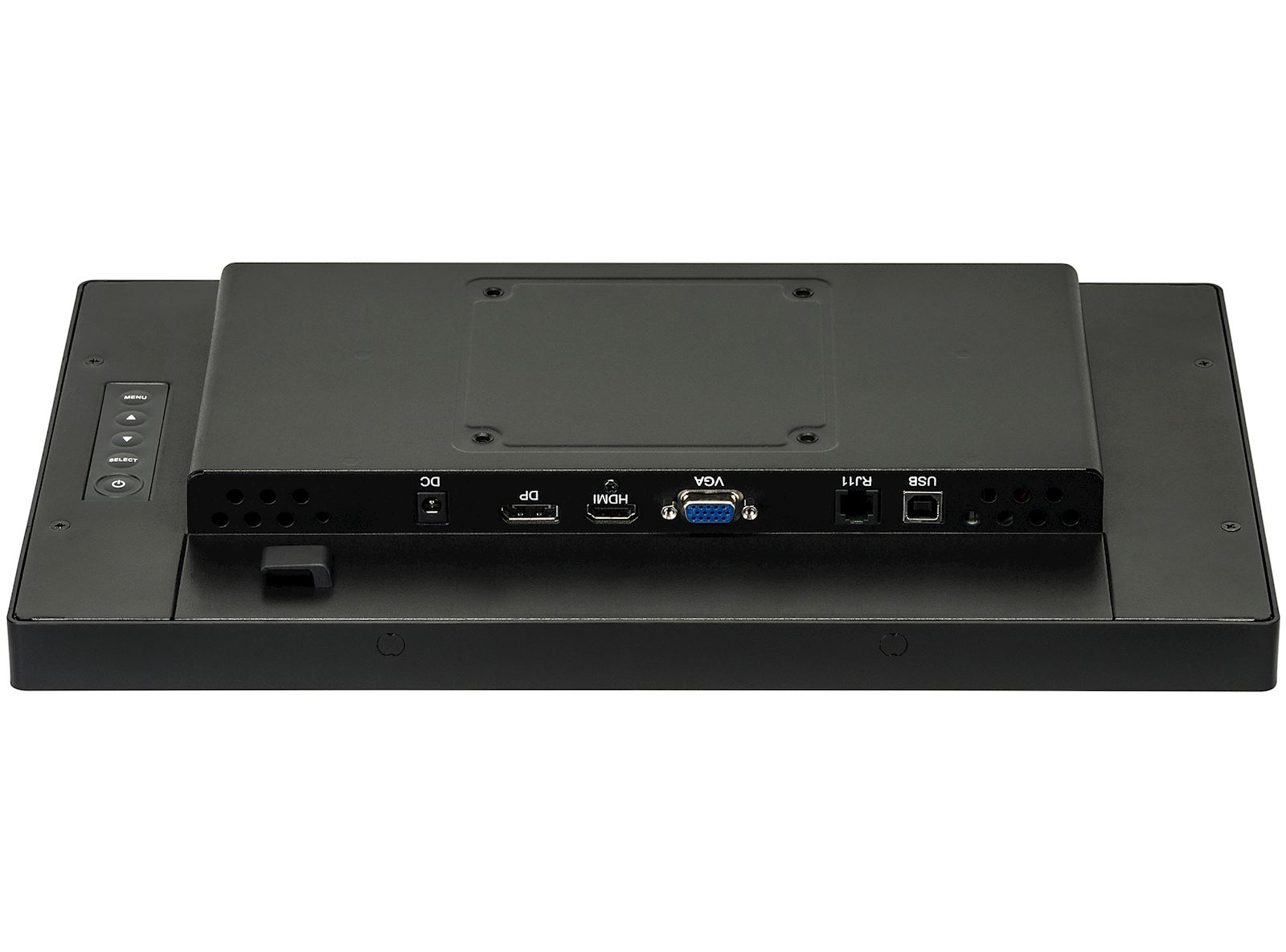

INTERFACES / CONNECTORS / CONTROLS

Analog signal input	VGA x1
Digital signal input	HDMI x1 DisplayPort x1
HDCP	yes

FEATURES

Extra	anti-fingerprint coating, touch through-glass
Glass thickness	2.4mm
Glass hardness	7H
Water and dust protection	IP65 (front)
OSD key lock	yes

GENERAL

OSD languages	EN, DE, FR, ES, IT, CN, JP

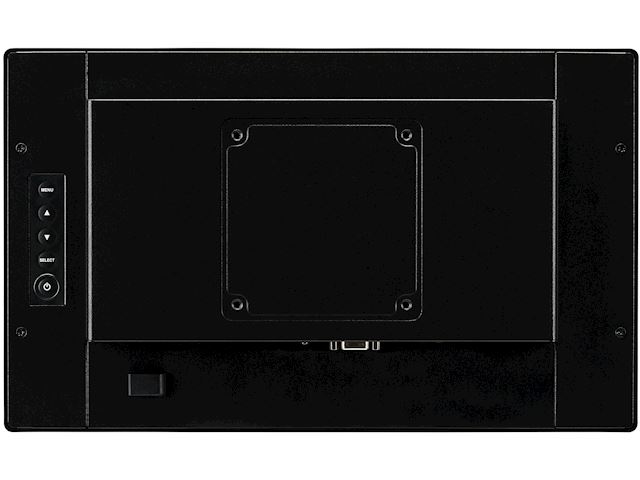

Control buttons	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls	picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play	DDC2B

MECHANICAL

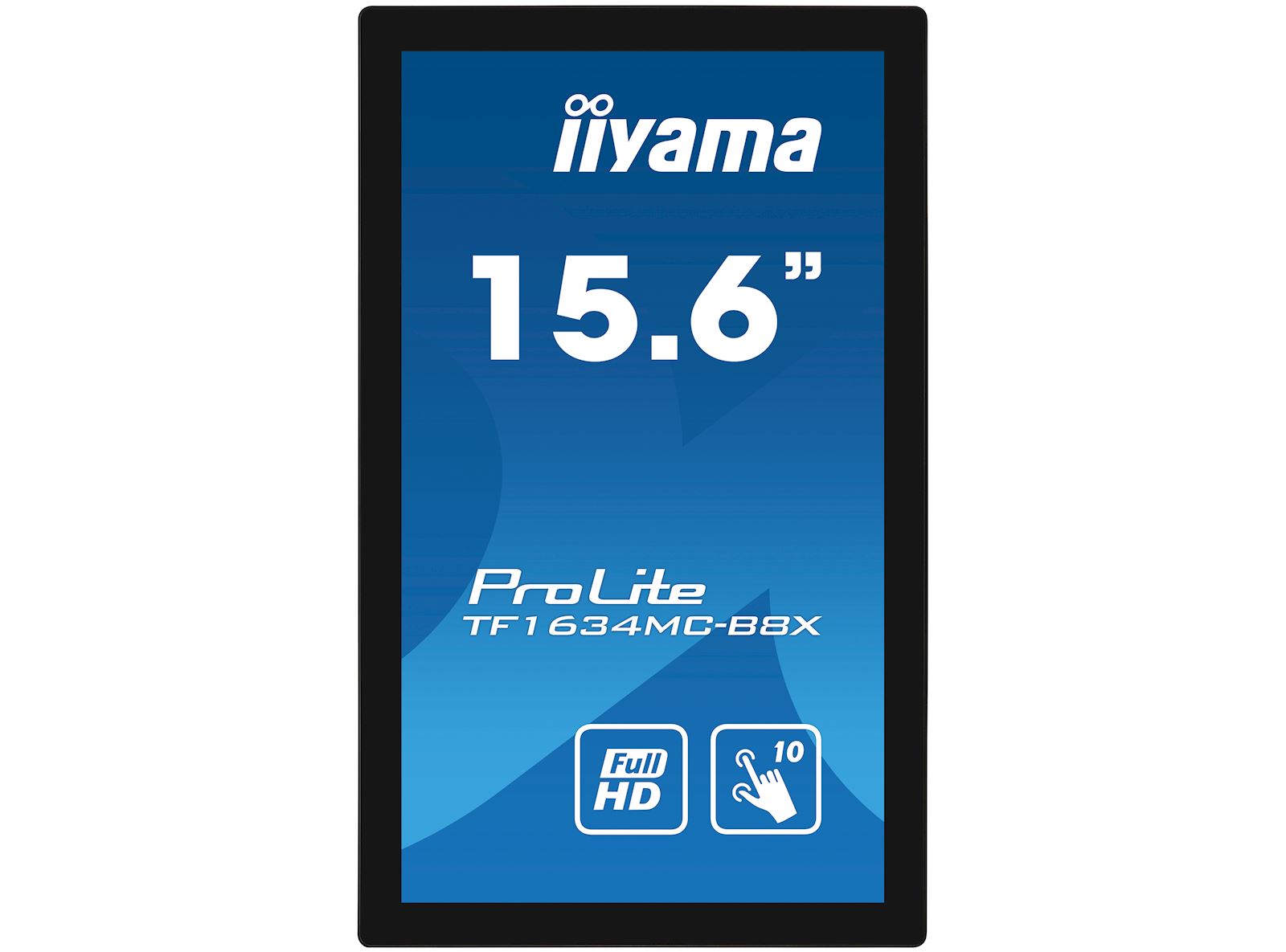

Orientation	landscape, portrait, face-up

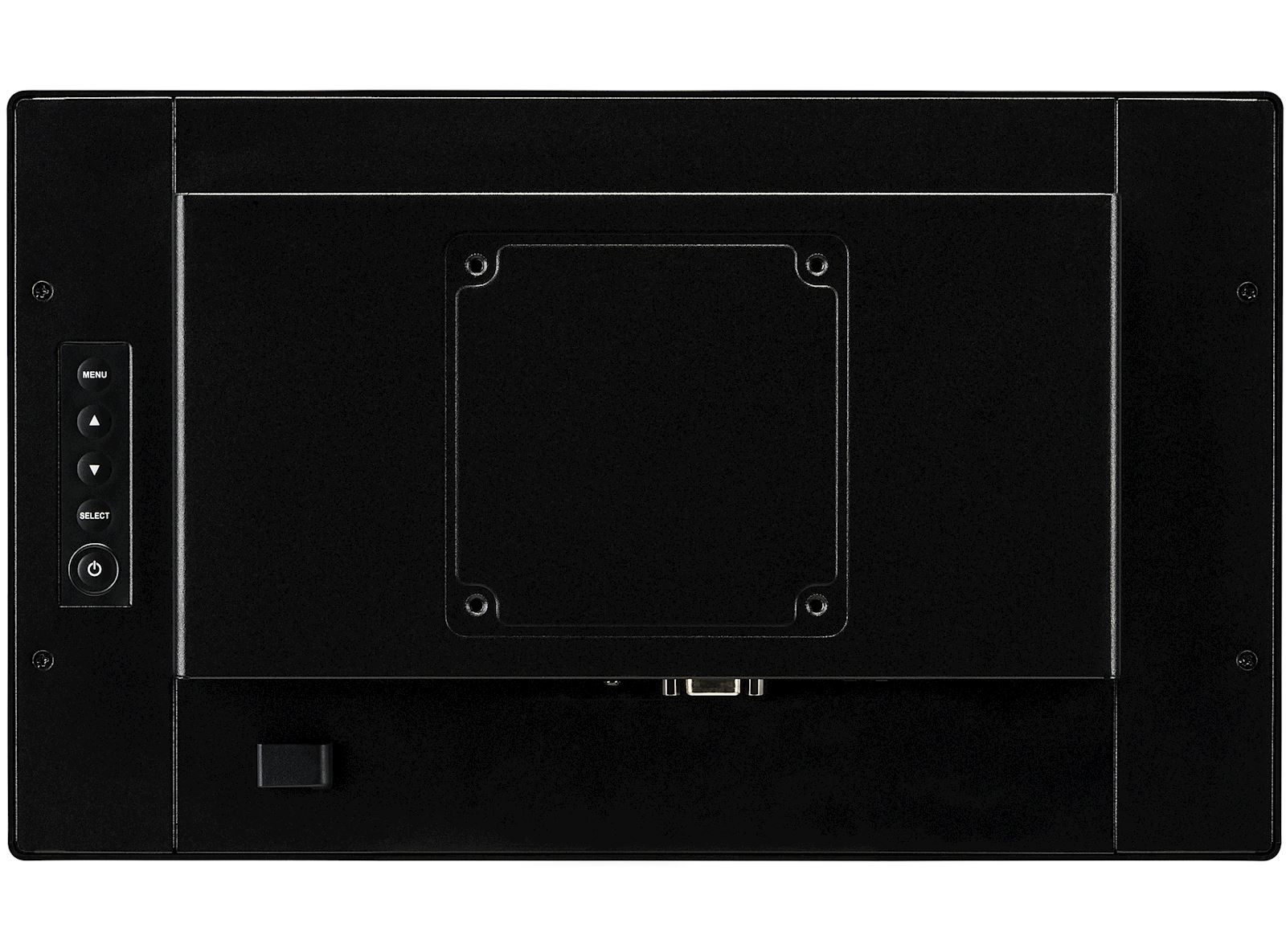

VESA mounting	100 x 100mm

ACCESSORIES INCLUDED

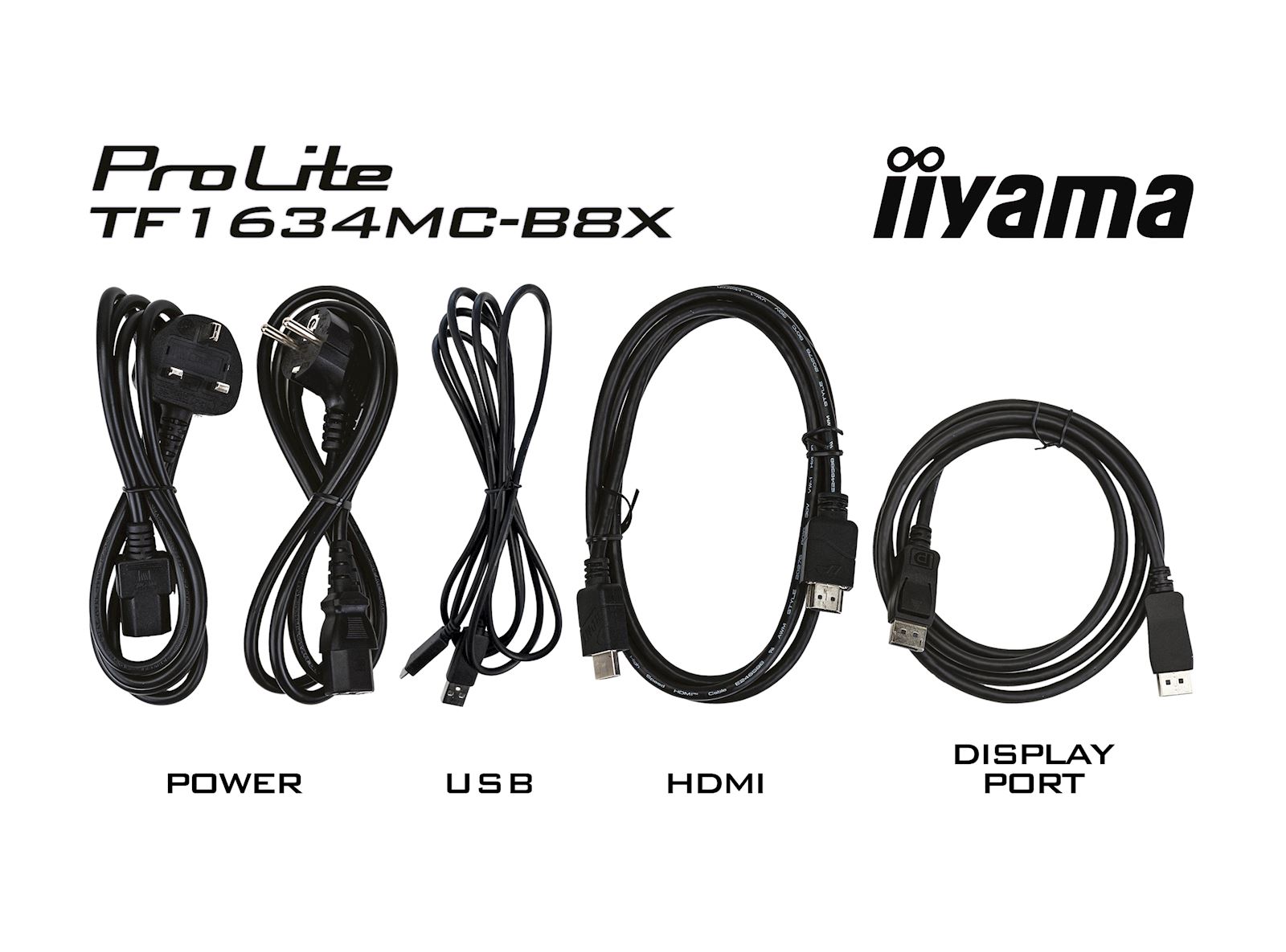

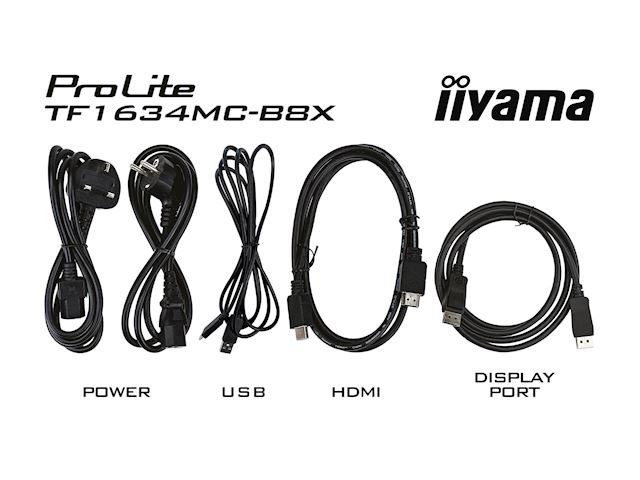

Cables	power, USB, HDMI, DP
Guides	quick start guide, safety guide
Other	AC adapter

POWER MANAGEMENT

Power supply unit	external
Power supply	DC DC DC 12 V
Power usage	18W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369)	F
Other	REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

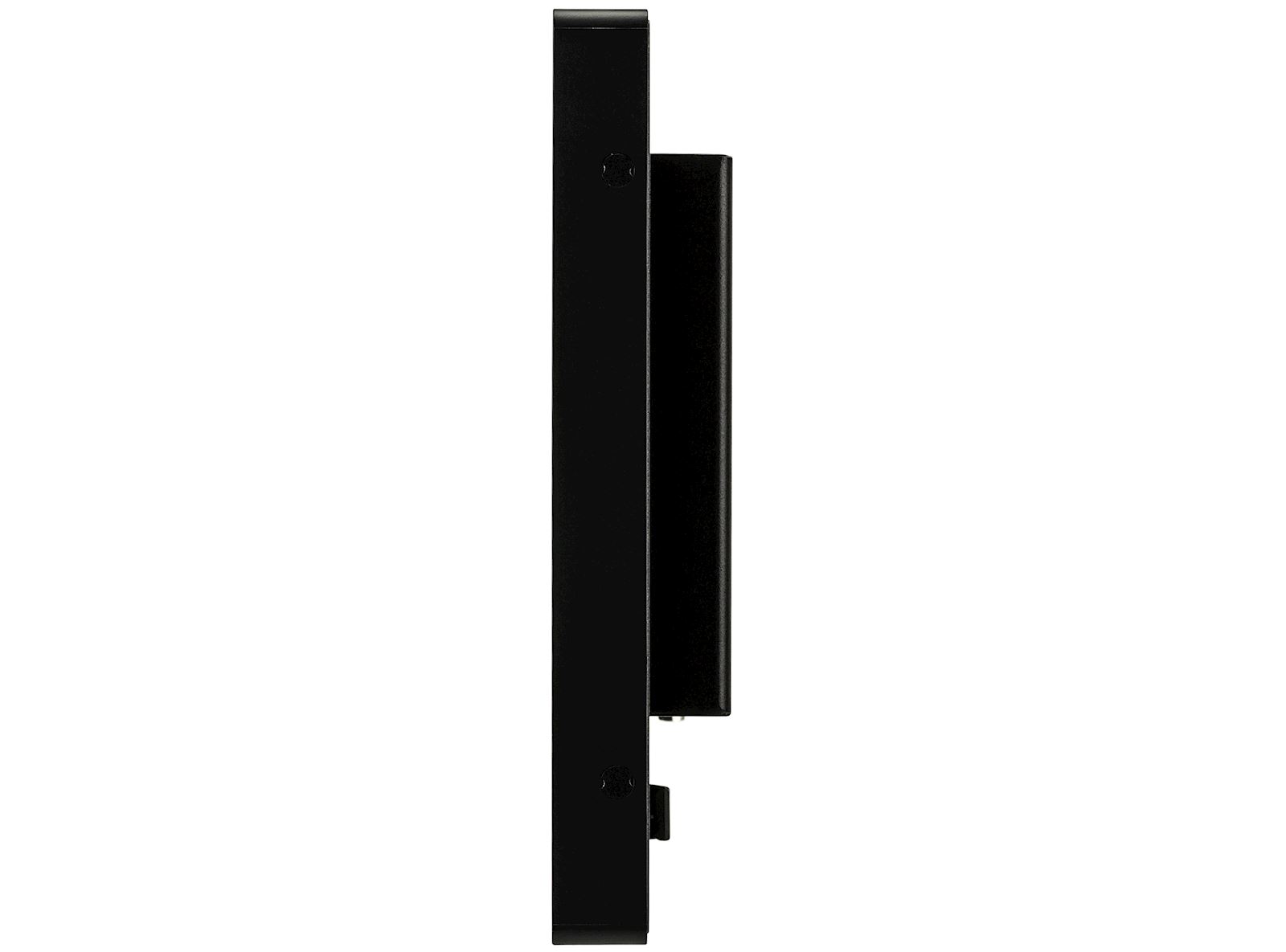

Product dimensions W x H x D	381 x 230.5 x 46mm
Box dimensions W x H x D	455 x 365 x 290mm
Pallet volume	78pcs
Pallet dimensions W x H x D	115 x 97 x 204mm
Weight (without box)	2.0kg
Weight (with box)	4kg
EAN code	4948570118342

Features

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IP

The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
