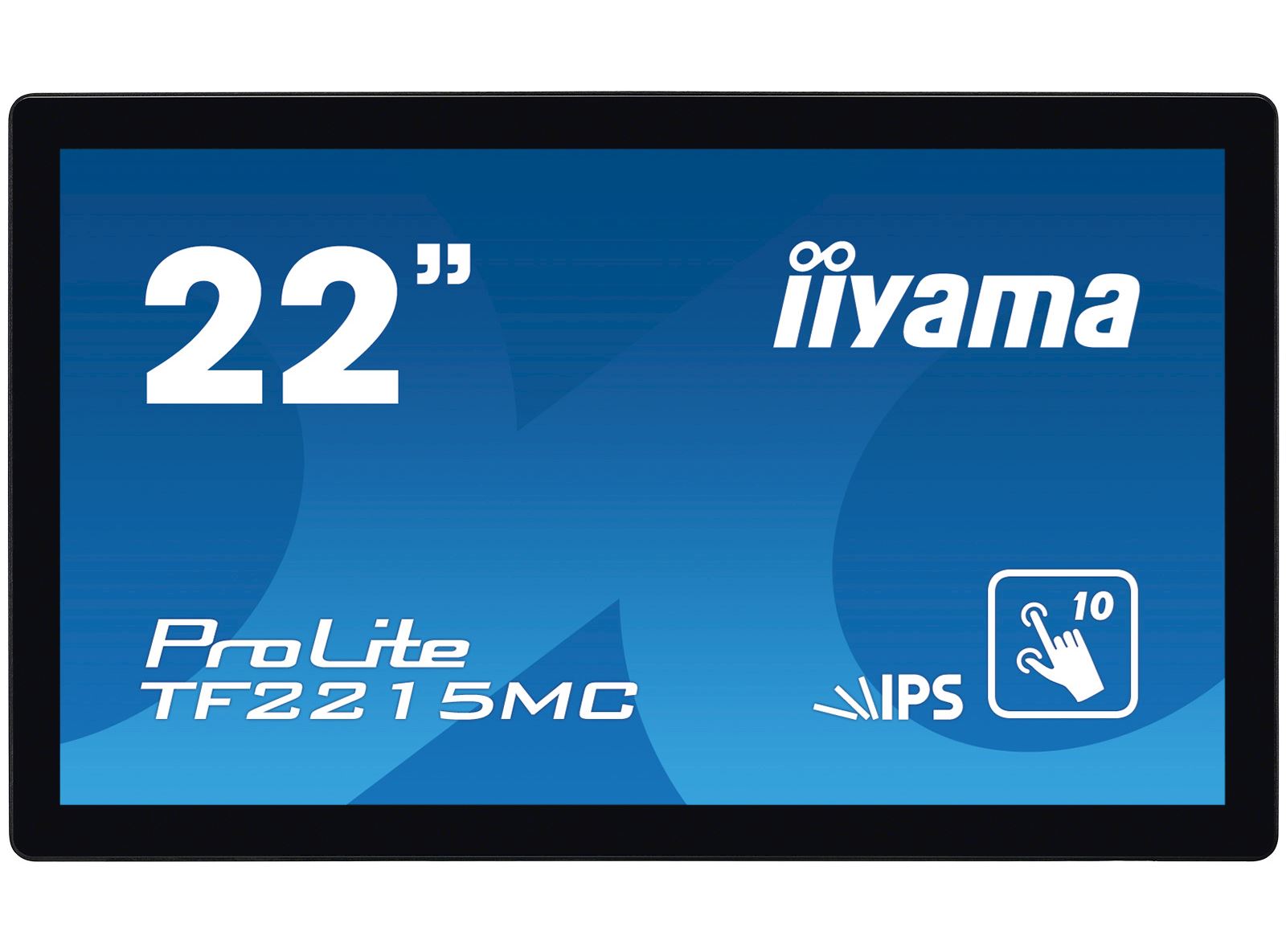

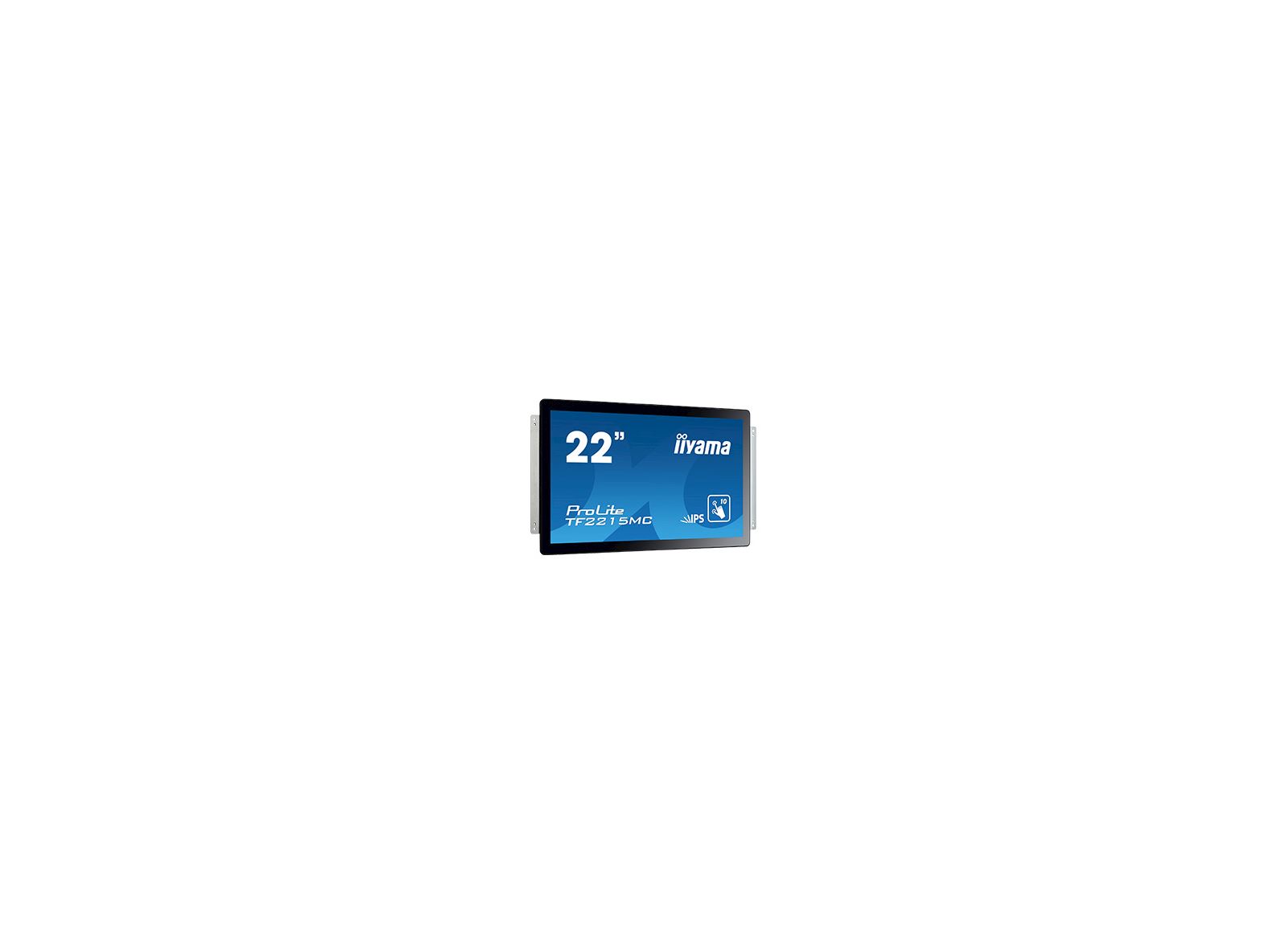

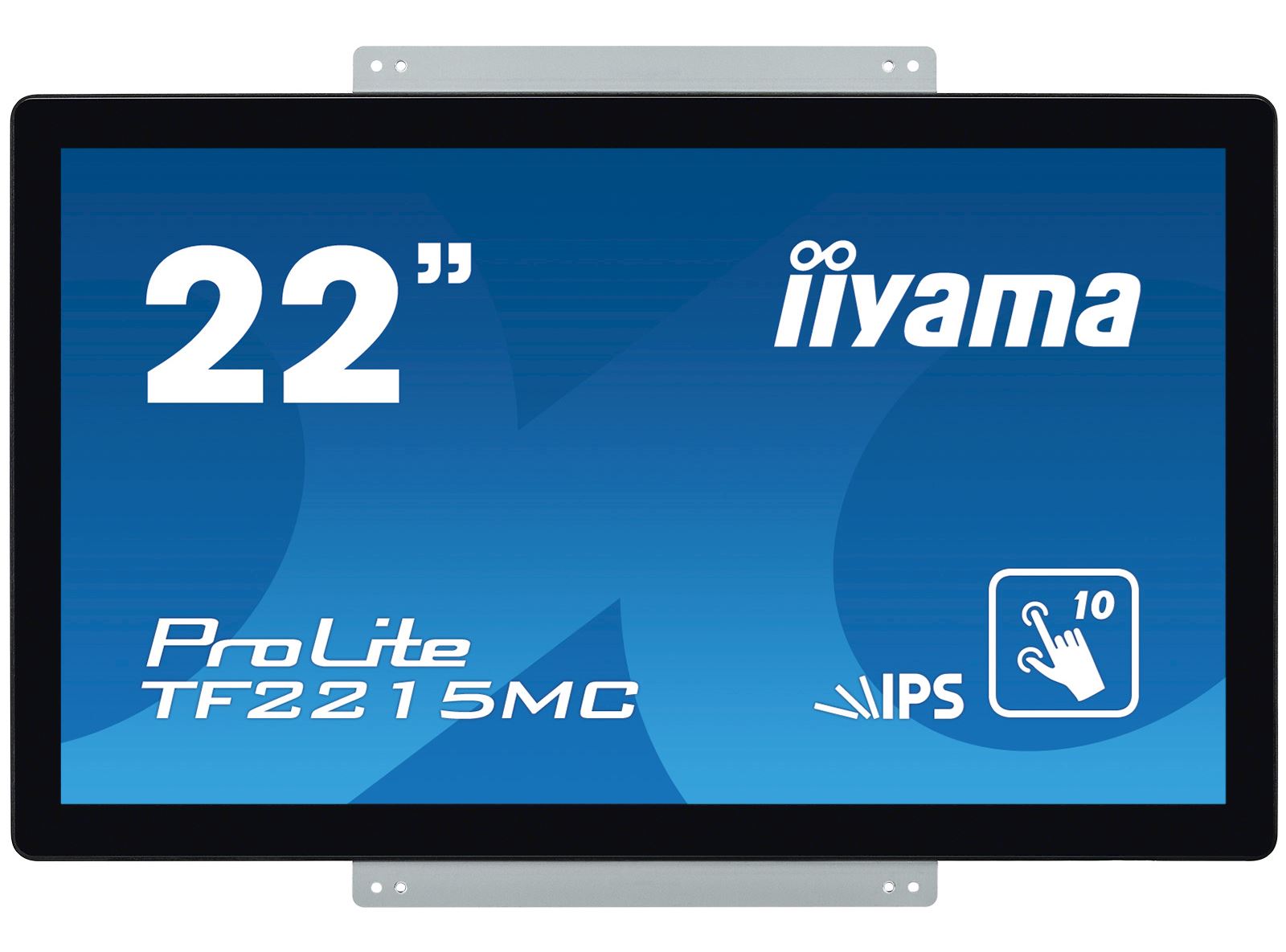

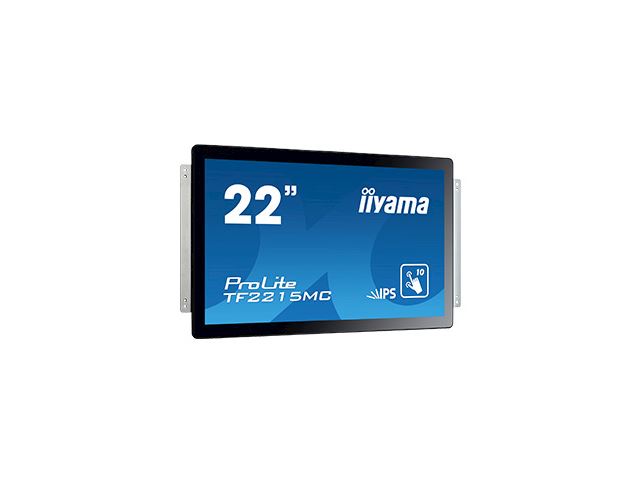

iiyama Prolite TF2215MC-B2 22" Black, Full HD, Projective Capacitive 10pt Touch, IPS Touch screen

£397.10 exc. VAT
£476.52 inc. VAT

Brand: iiyama

Manufacturer Code: TF2215MC-B2

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

Open Frame PCAP 10 point touch screen equipped with touch through glass function

The ProLite TF2215MC-B2 (21.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2215MC-B2 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Technical Information

DISPLAY CHARACTERISTICS

Design Open Frame
Diagonal 21.5", 54.6cm
Panel IPS LED
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Brightness 350 cd/m² typical
Brightness 315 cd/m² with touch
Static contrast 1000:1 typical
Light transmittance 90%
Response time 14ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Horizontal Sync 31.4 - 82KHz
Vertical Sync 56 - 75Hz
Viewable area W x H 476.064 x 267.786mm, 18.7 x 10.5"
Pixel pitch 0.24795mm
Bezel colour and finish black

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm

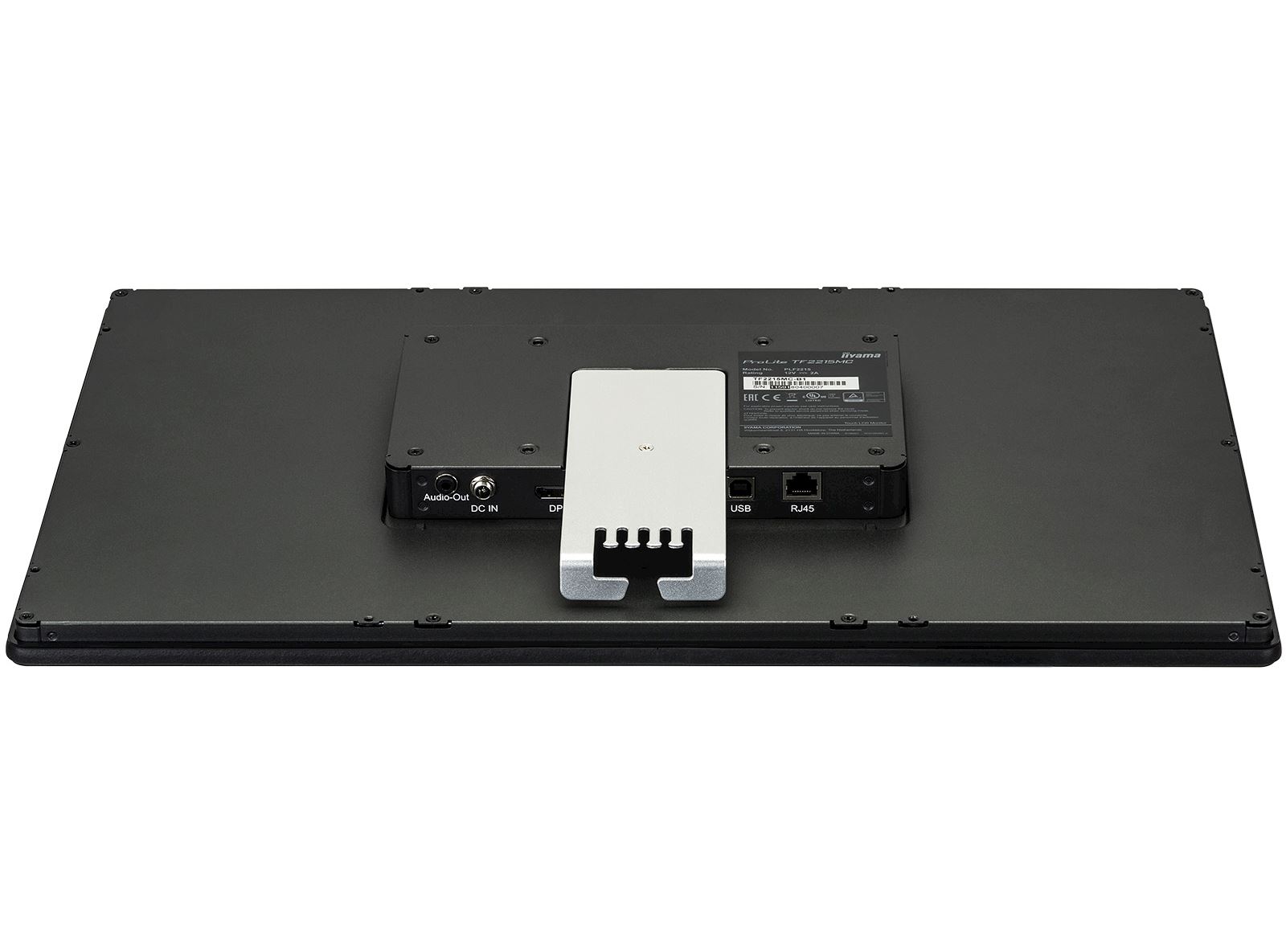

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio output Mini jack x1
HDCP yes

FEATURES

Extra anti-fingerprint coating, touch through-glass
60950 Ball drop test yes
Water and dust protection IP65 (front)
Water tight seal yes
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B

MECHANICAL

Orientation landscape, portrait, face-up

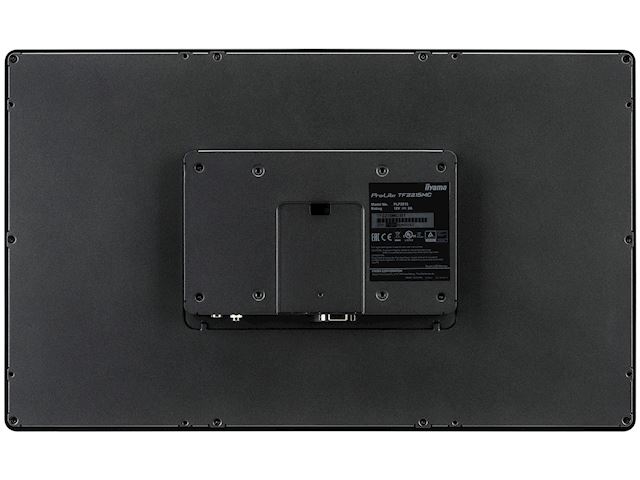

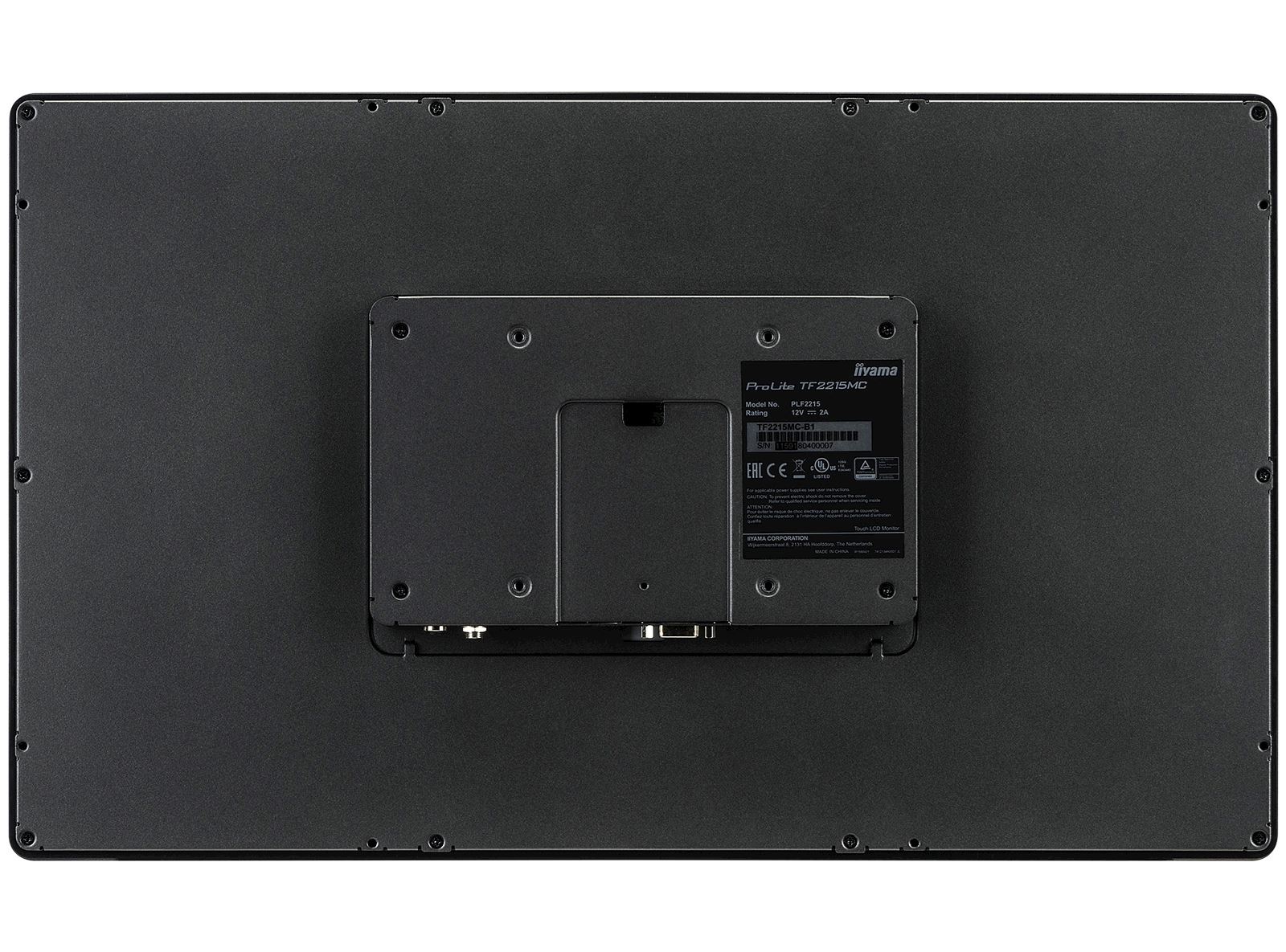

VESA mounting 100 x 100mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C

ACCESSORIES INCLUDED

Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Other AC adapter, Touch Panel Driver Disk (CD-ROM), L-Bracket, external control pad

POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 19W typical, 1.2W stand by, 1.2W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, CU, cULus
Energy efficiency class A
Other REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 520 x 315 x 42.5mm
Weight (without box) 4.4kg
EAN code 4948570116768

EU ENERGY EFFICIENCY LABEL

Manufacturer iiyama
Energy efficiency class A
Visible screen diagonal 55cm; 21.5"; (22" segment)
ON mode power consumption 21W
Annual energy consumption 30kWh/annum*
Power in Standby 1.2W stand by
Power in OFF Mode 1.2W off mode
Resolution 1920 x 1080

The Windows update prank can easily trick someone when opened in full screen. It looks and acts like a real install page.

Features

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

FOAM SEAL

A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

FOAM SEAL

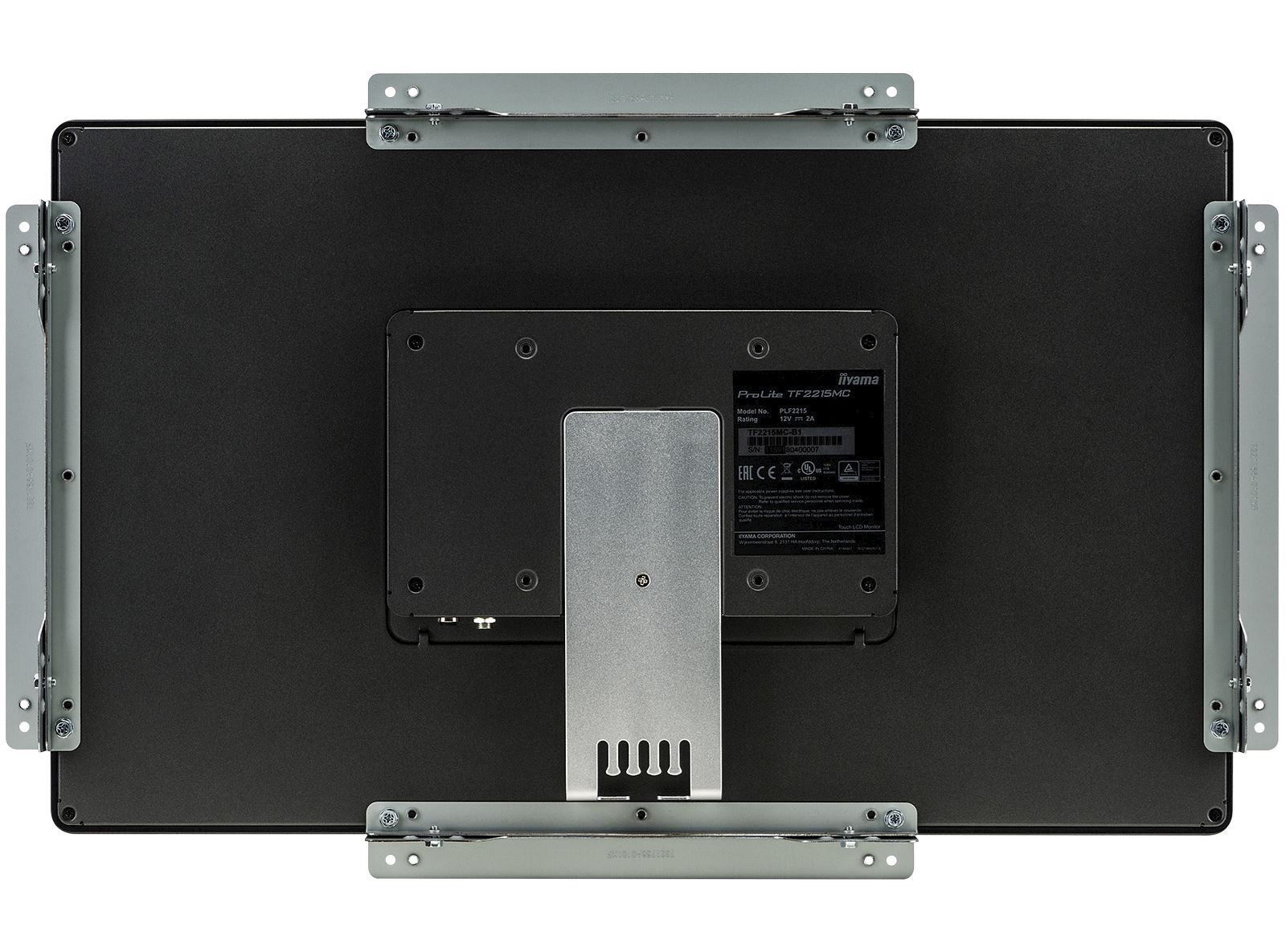

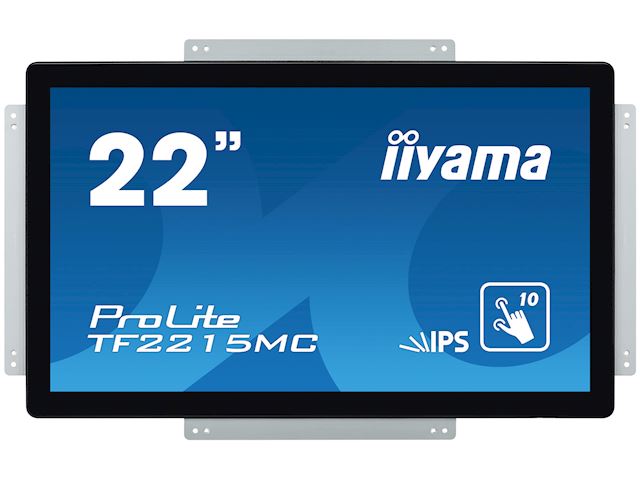

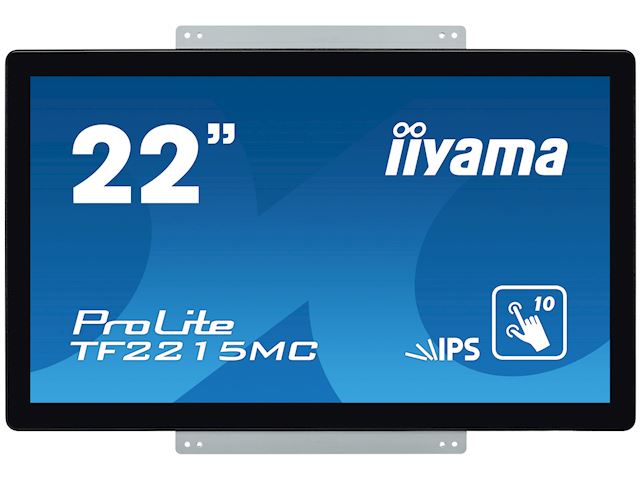

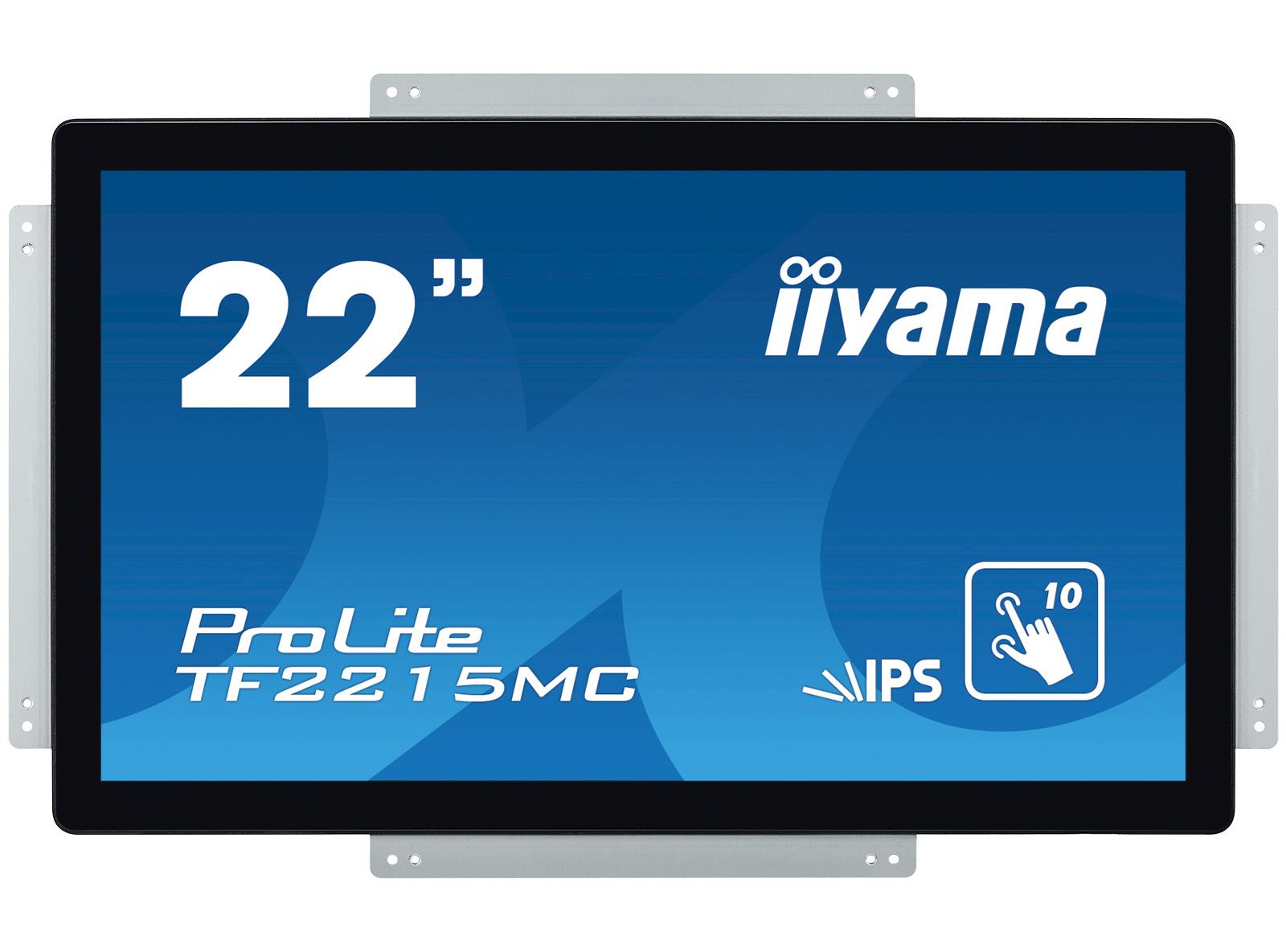

OPEN FRAME BRACKETS

This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.

OPEN FRAME BRACKETS
