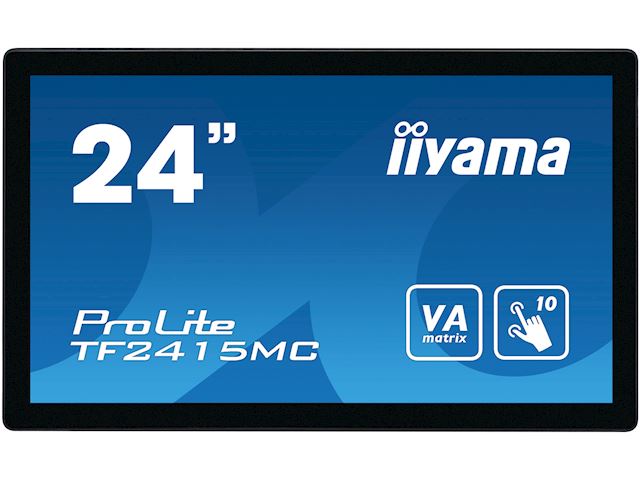

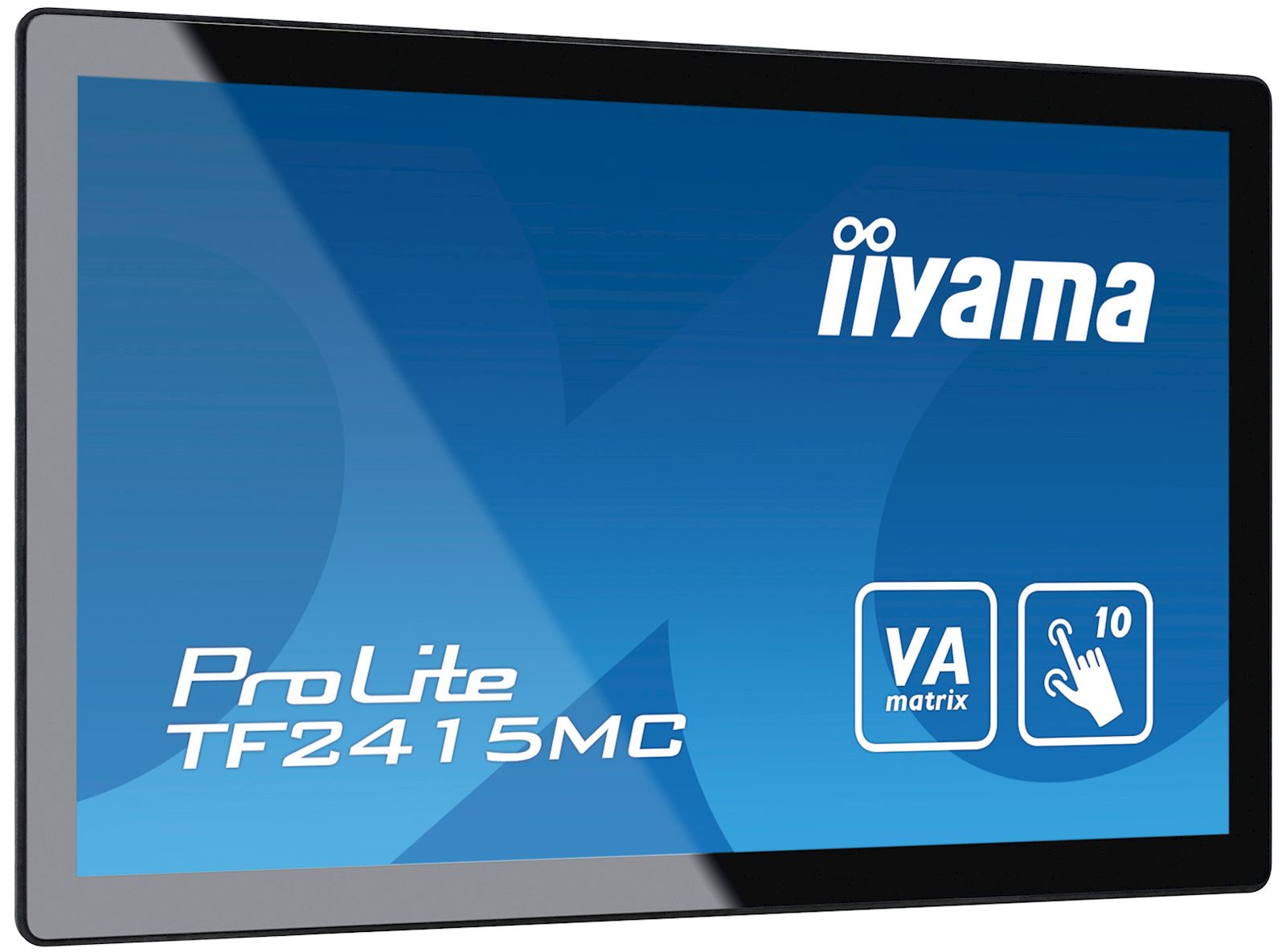

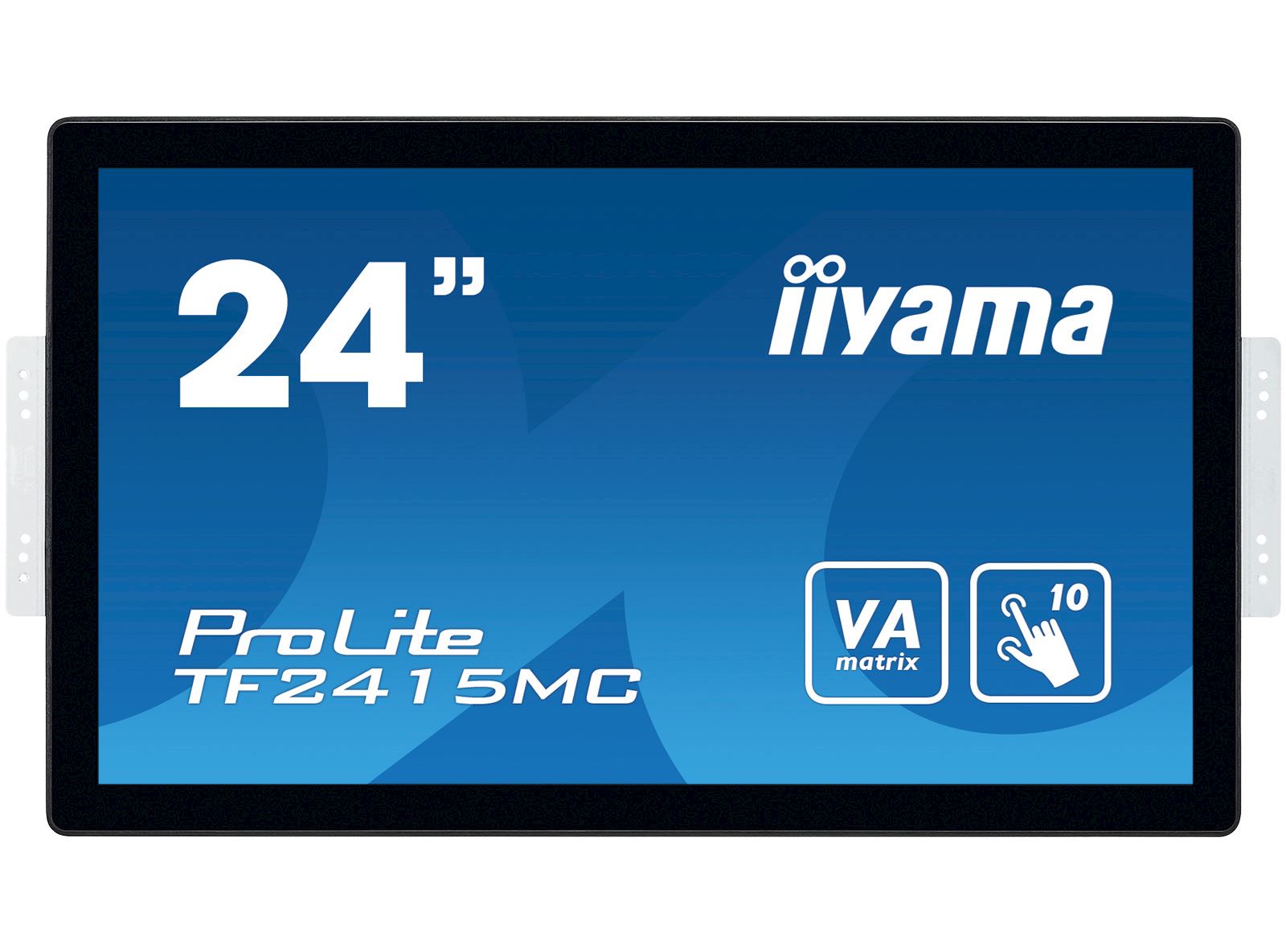

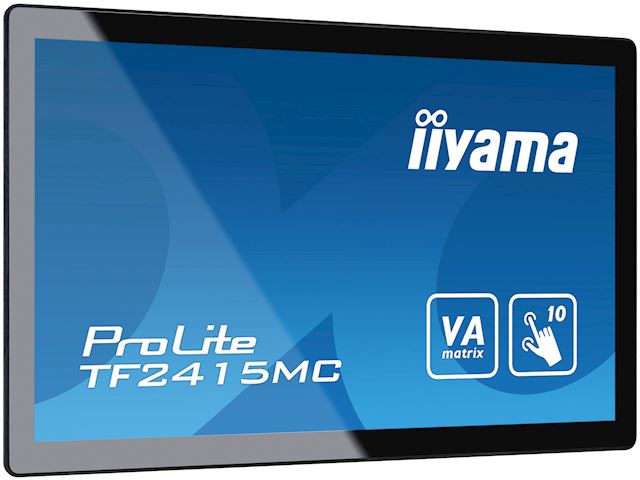

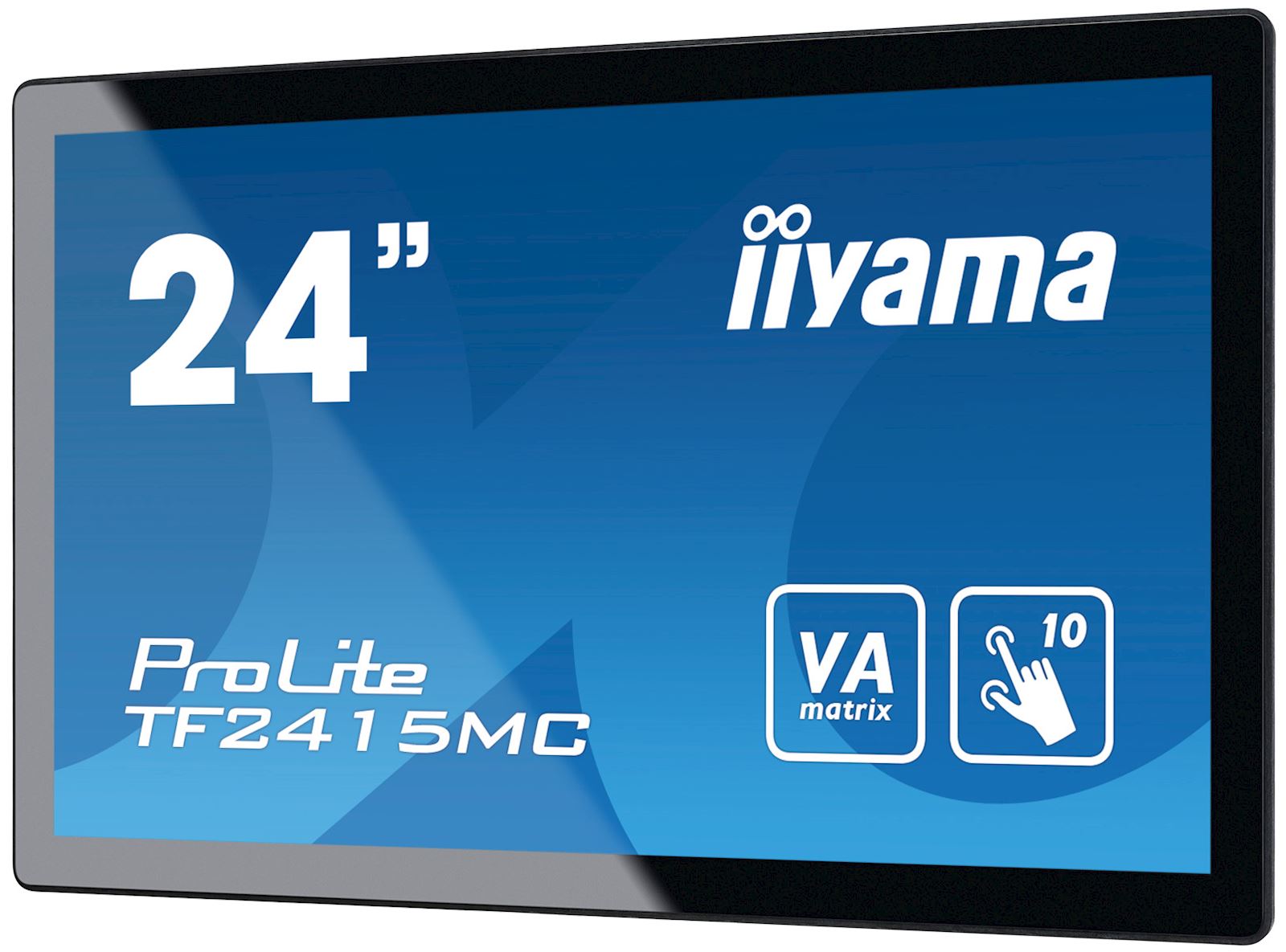

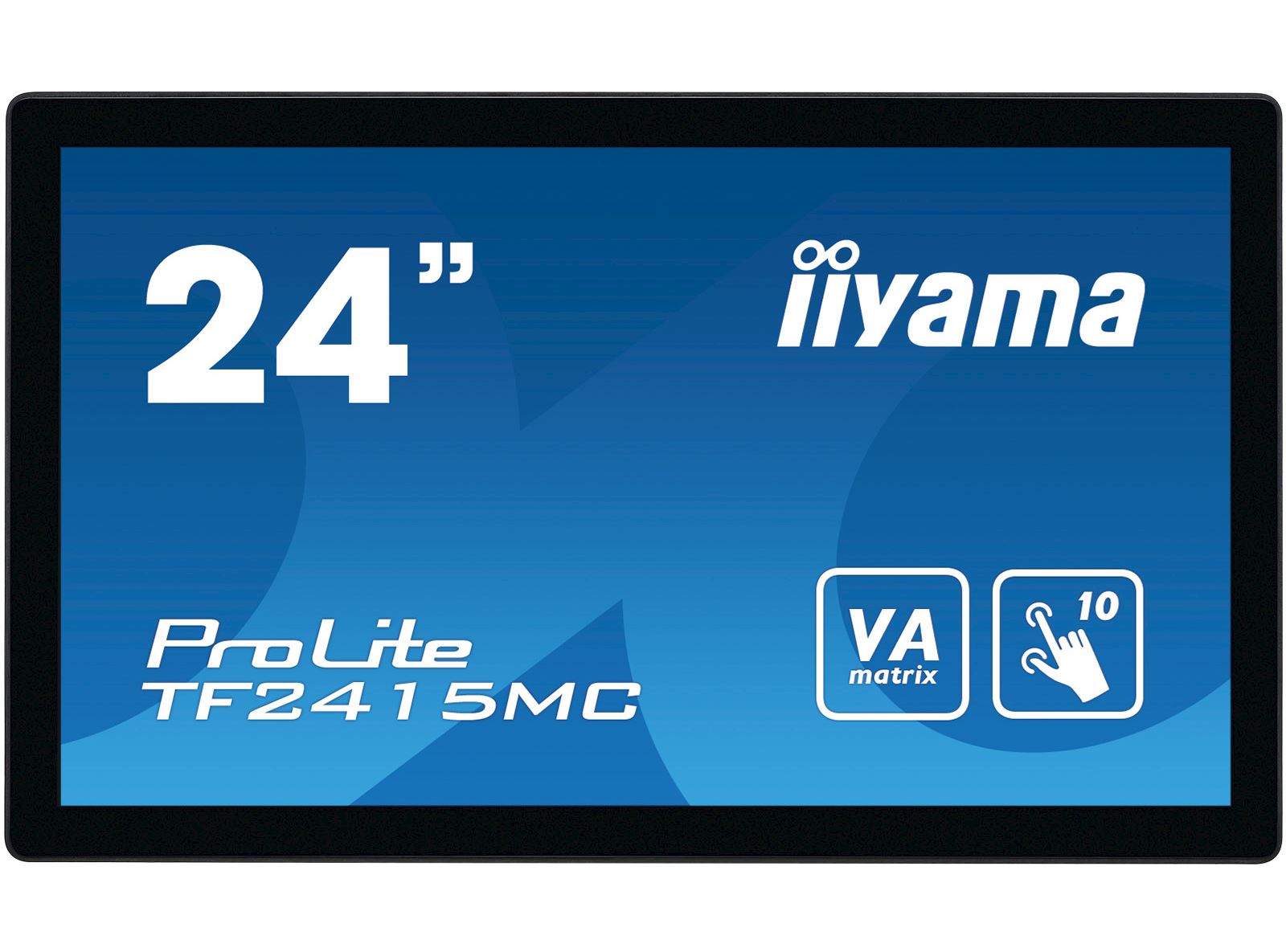

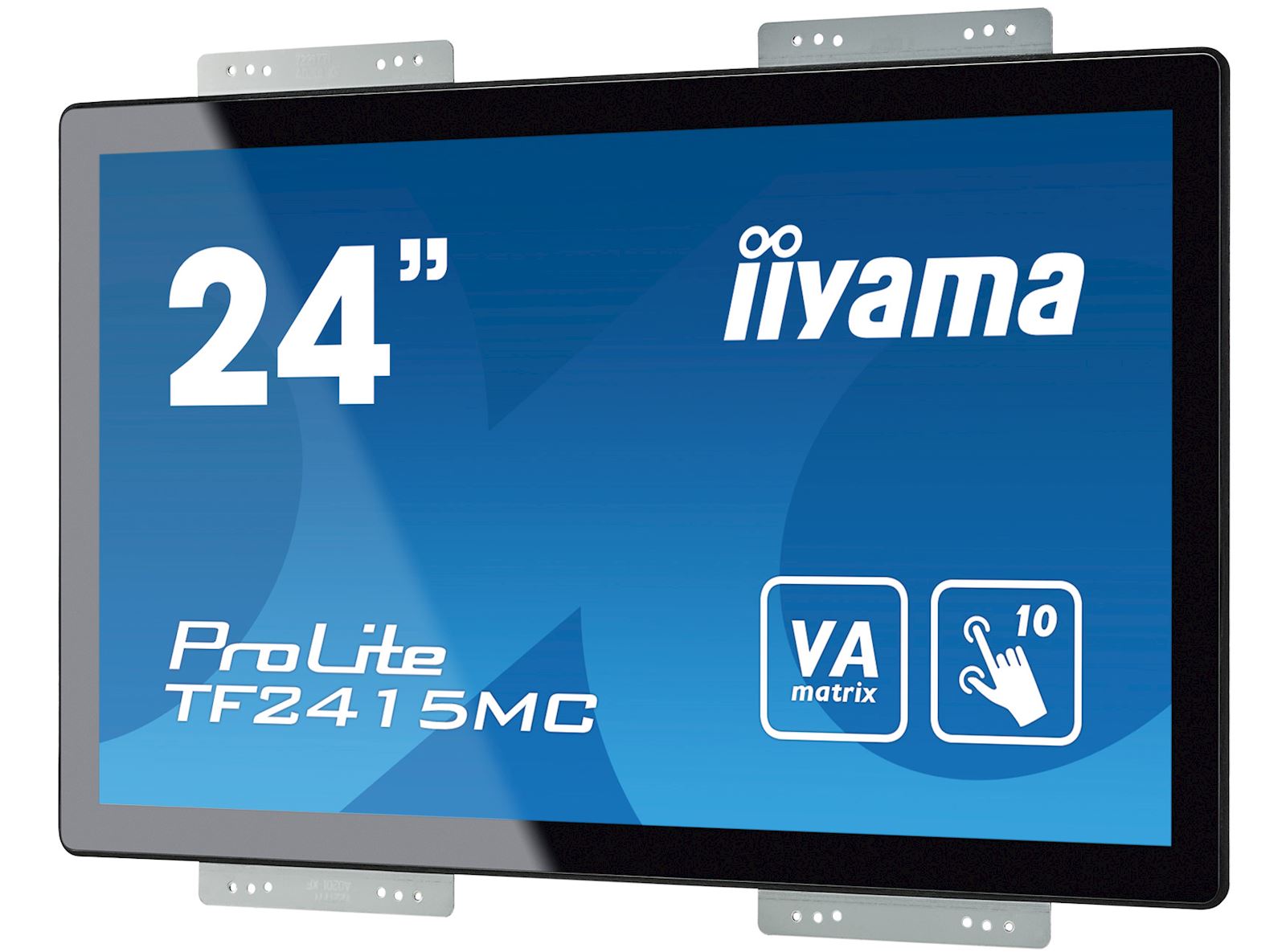

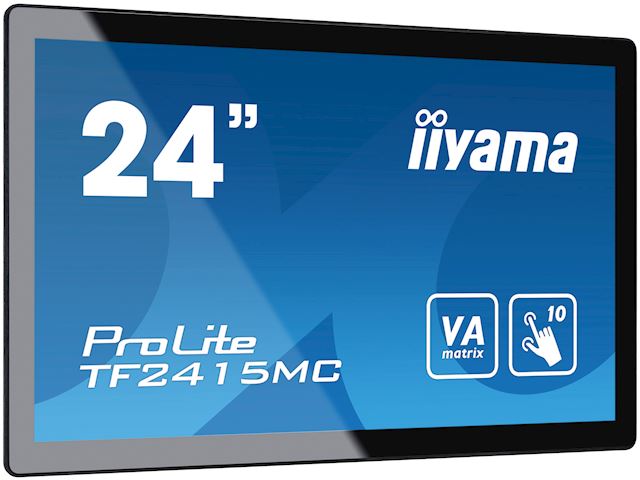

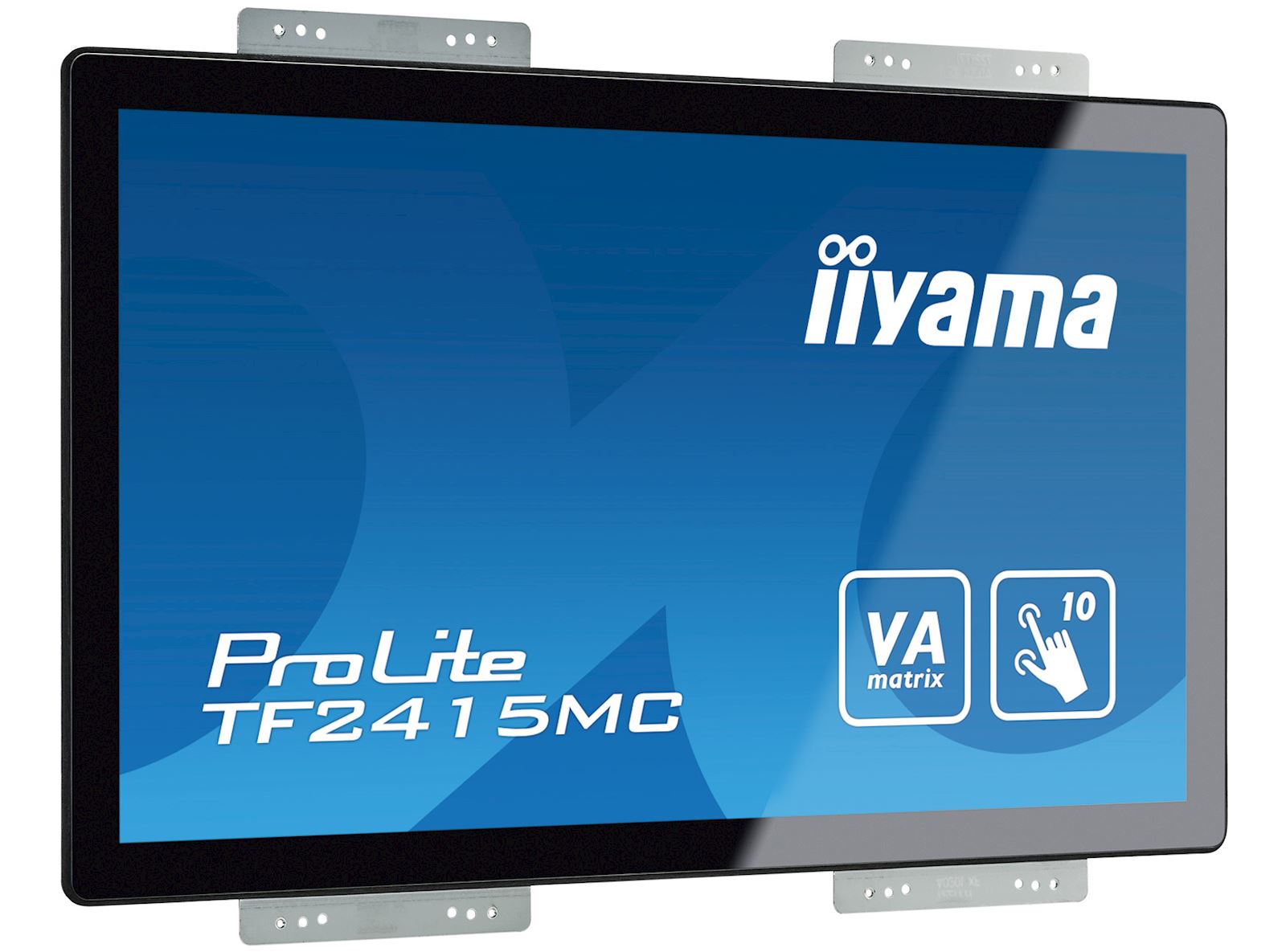

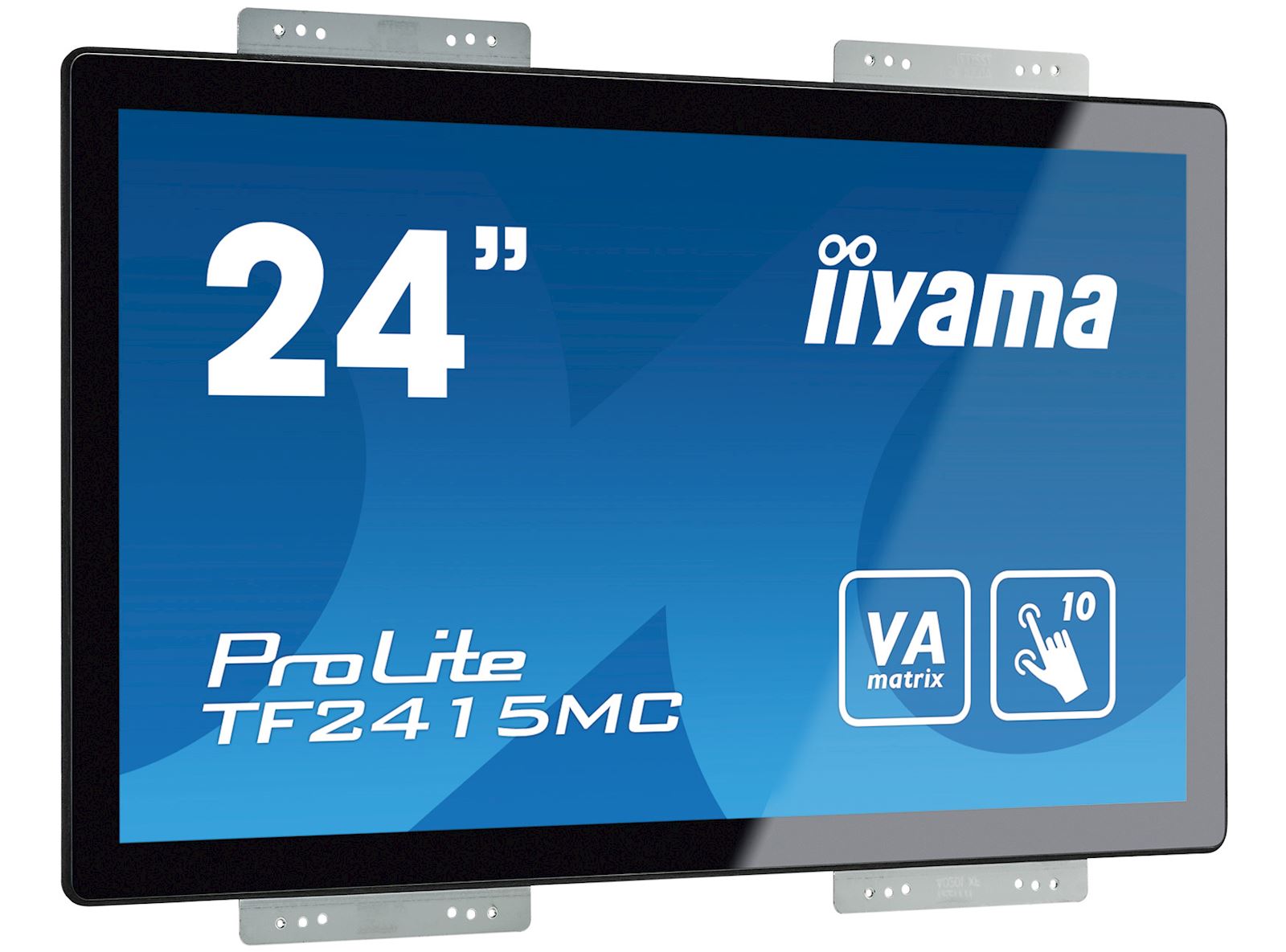

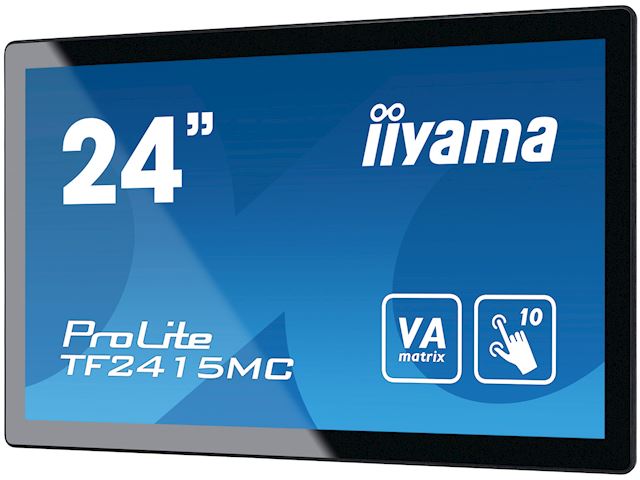

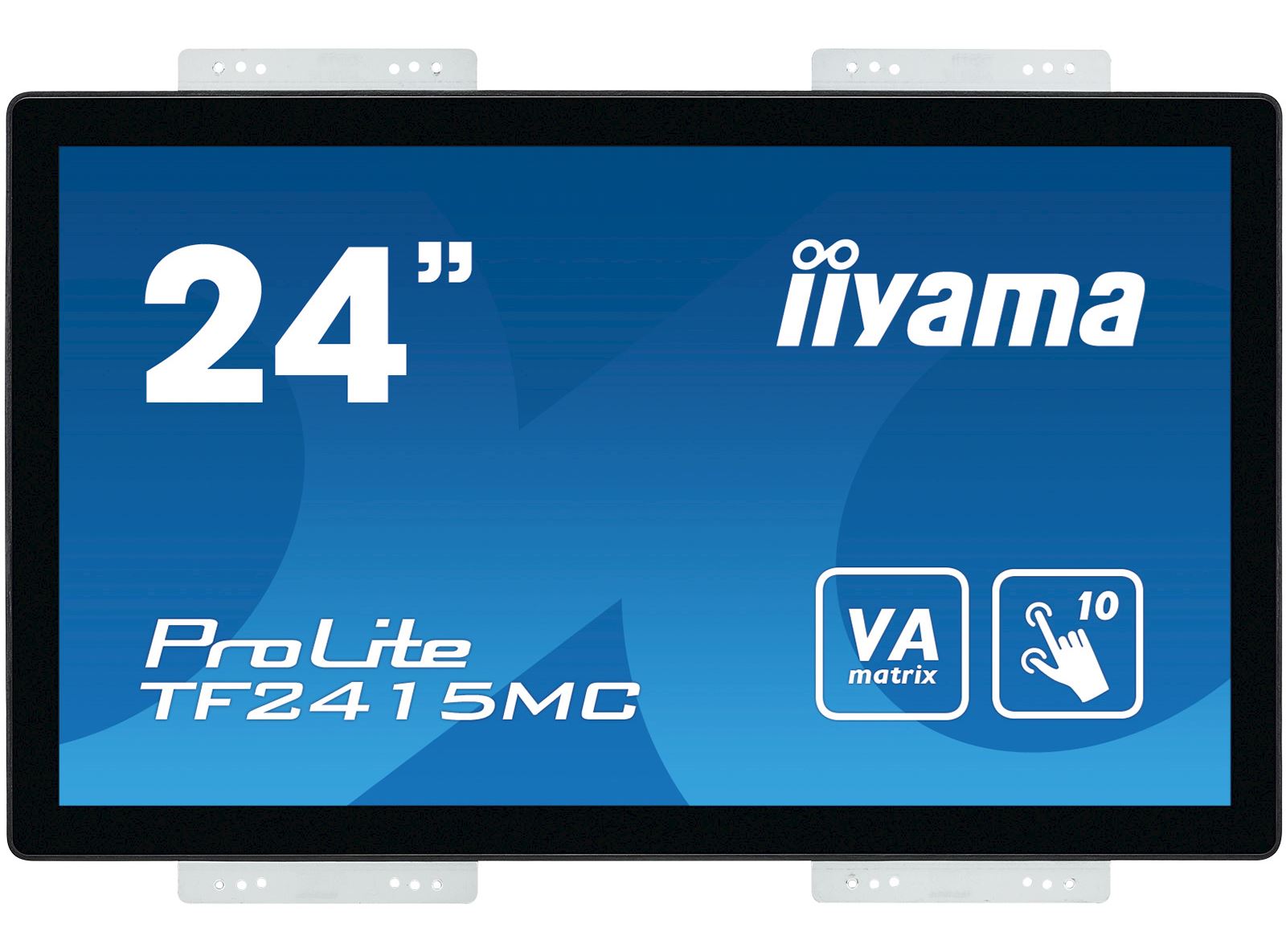

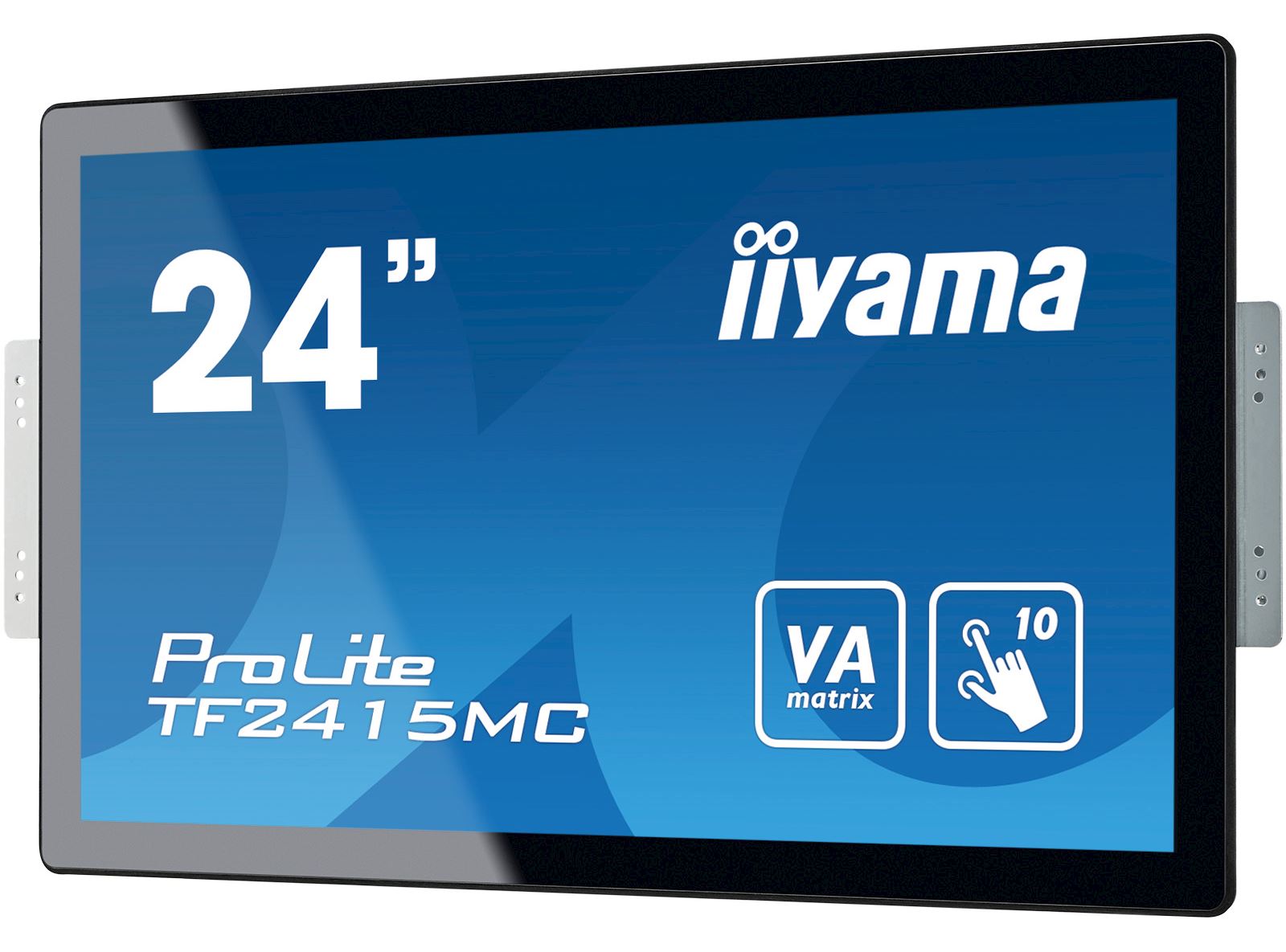

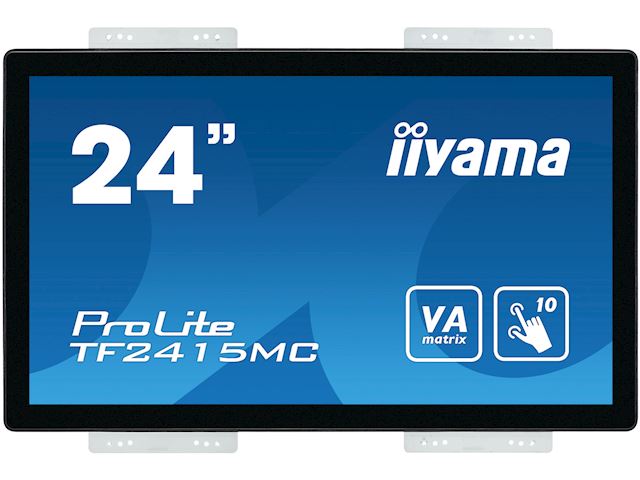

iiyama ProLite monitor TF2415MC-B2 23.8", Full HD, Open Frame, Projective Capacitive, 10pt touch screen, VGA/HDMI/DisplayPort

£404.80 exc. VAT
£485.76 inc. VAT

Brand: iiyama

Manufacturer Code: TF2415MC-B2

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

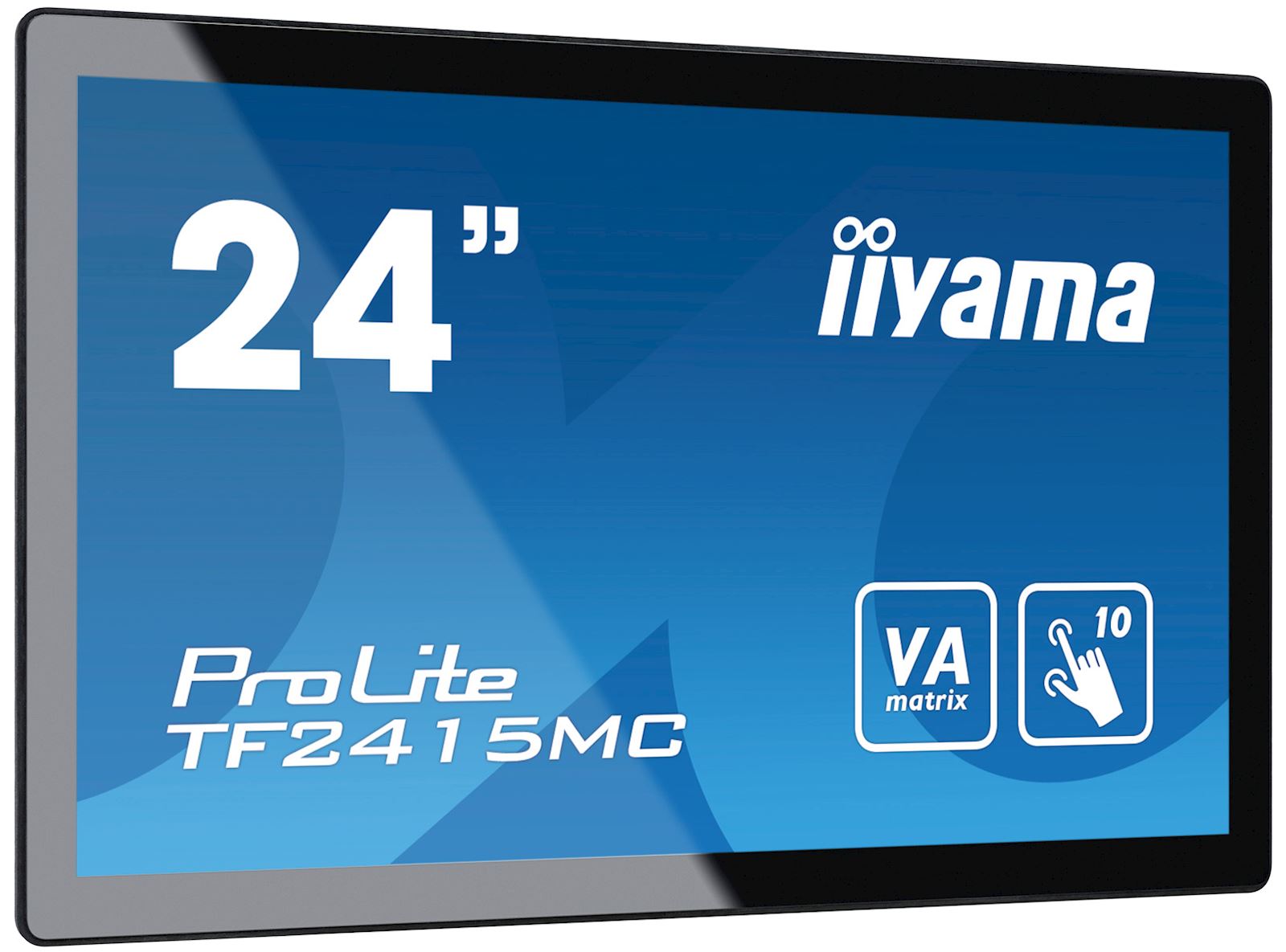

The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. The TF2415MC-B2 is an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Technical Information

DISPLAY CHARACTERISTICS

Design Open Frame
Diagonal 23.8", 60.5cm
Panel VA LED
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Brightness 350 cd/m² typical
Brightness 315 cd/m² with touch
Static contrast 3000:1 with touch
Light transmittance 90%
Response time 16ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Horizontal Sync 31.4 - 82KHz
Vertical Sync 56 - 75Hz
Viewable area W x H 527.04 x 296.46mm, 20.7 x 11.7"
Pixel pitch 0.2745mm
Bezel colour and finish black

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

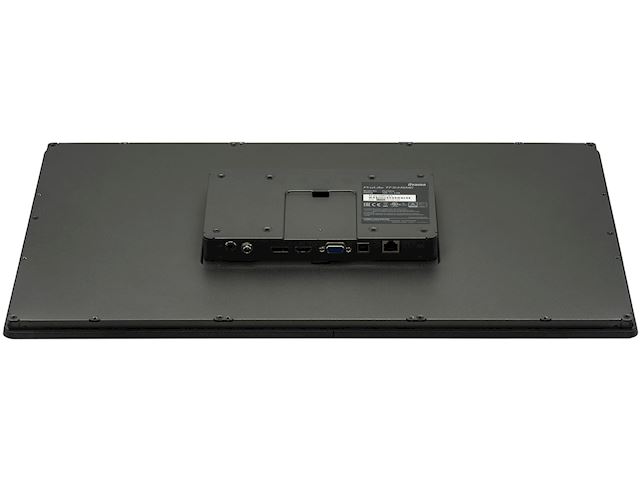

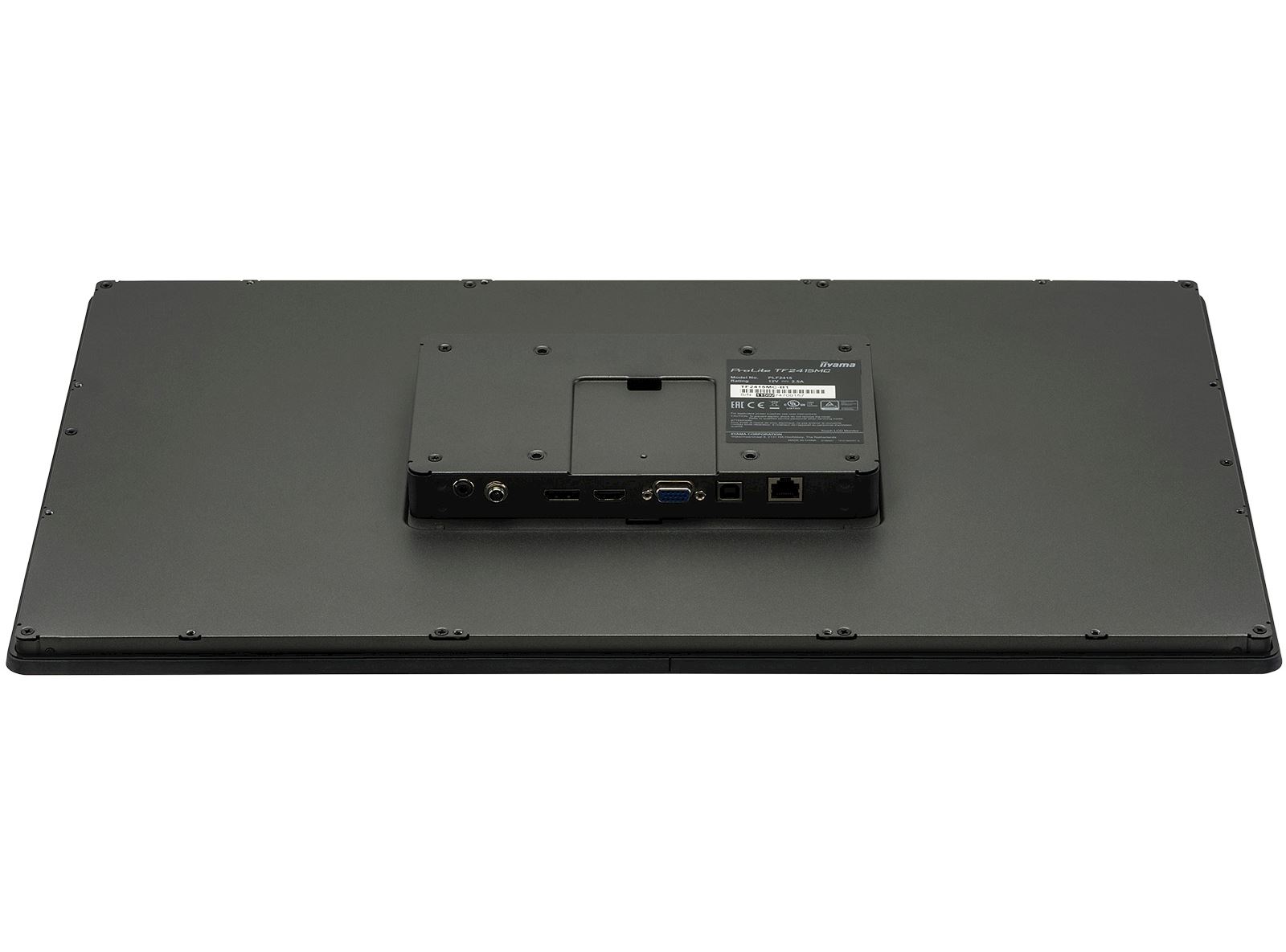

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio output Mini jack x1
HDCP yes

FEATURES

Extra anti-fingerprint coating, touch through-glass
60950 Ball drop test yes
Water and dust protection IP65 (front)
Water tight seal yes
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B

MECHANICAL

Orientation landscape, portrait, face-up

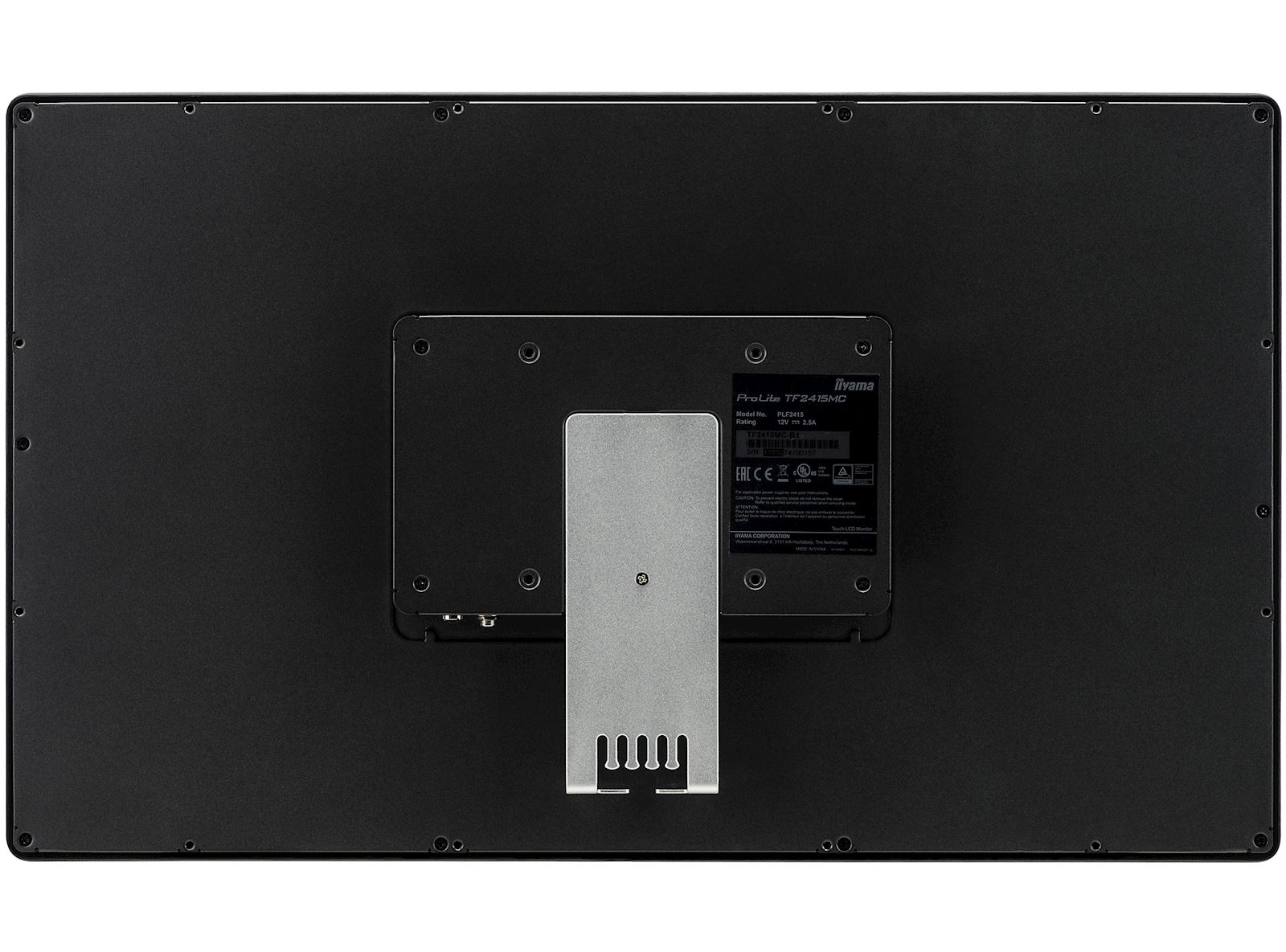

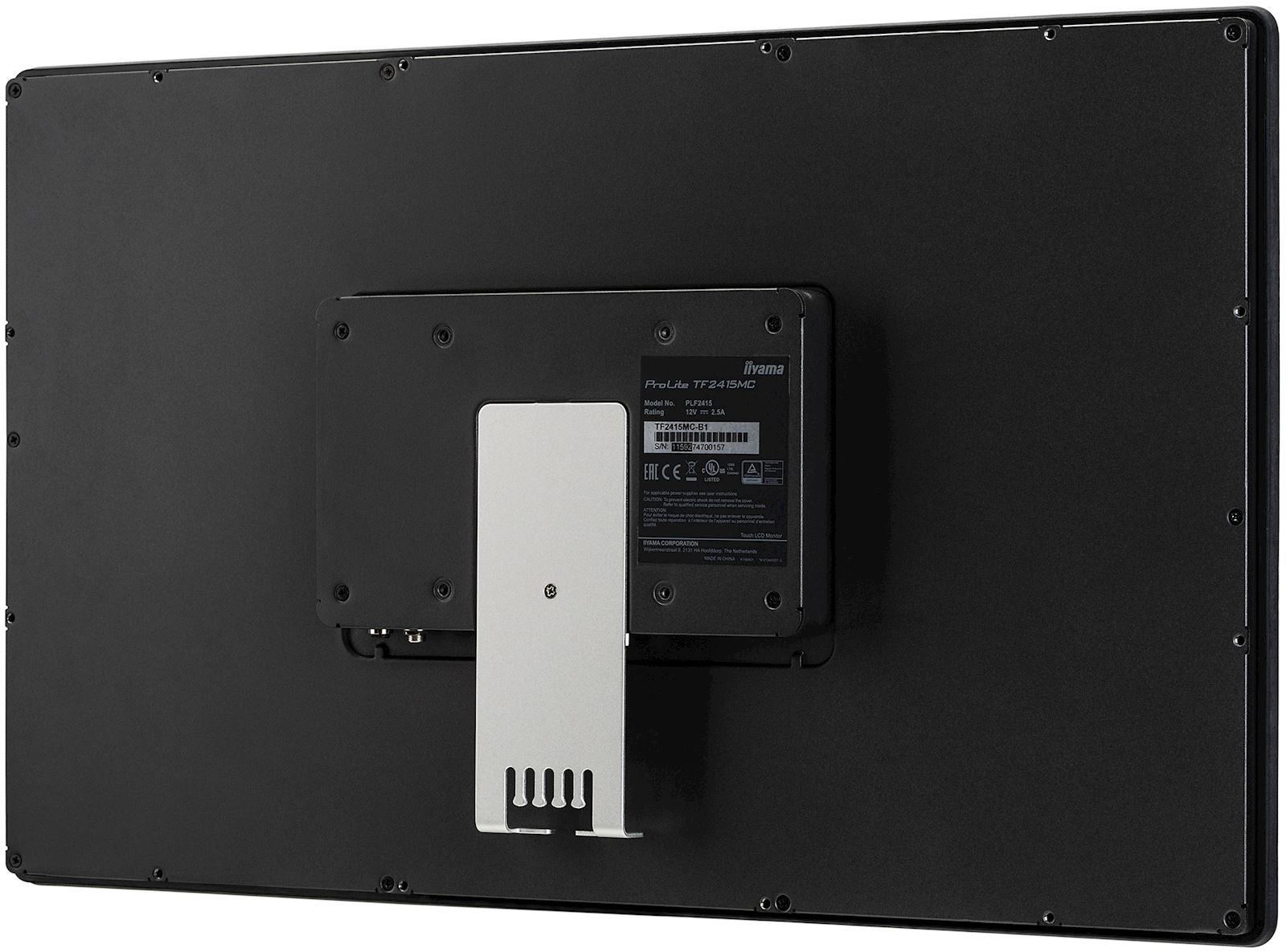

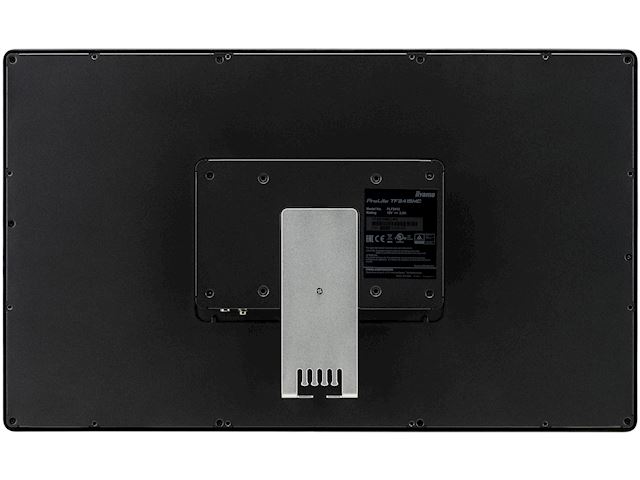

VESA mounting 100 x 100mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C

ACCESSORIES INCLUDED

Cables power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)
Guides quick start guide, safety guide
Other AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad

POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 25W typical, 1.2W stand by, 1.2W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, CU, cULus
Energy efficiency class A
Other REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 575 x 347 x 42.5mm
Weight (without box) 5.8kg
EAN code 4948570116775

EU ENERGY EFFICIENCY LABEL

Manufacturer iiyama
Energy efficiency class A
Visible screen diagonal 60.5cm; 23.8"; (24" segment)
Features

LED-backlit

A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.

LED-backlit

VA MATRIX

VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


VA MATRIX

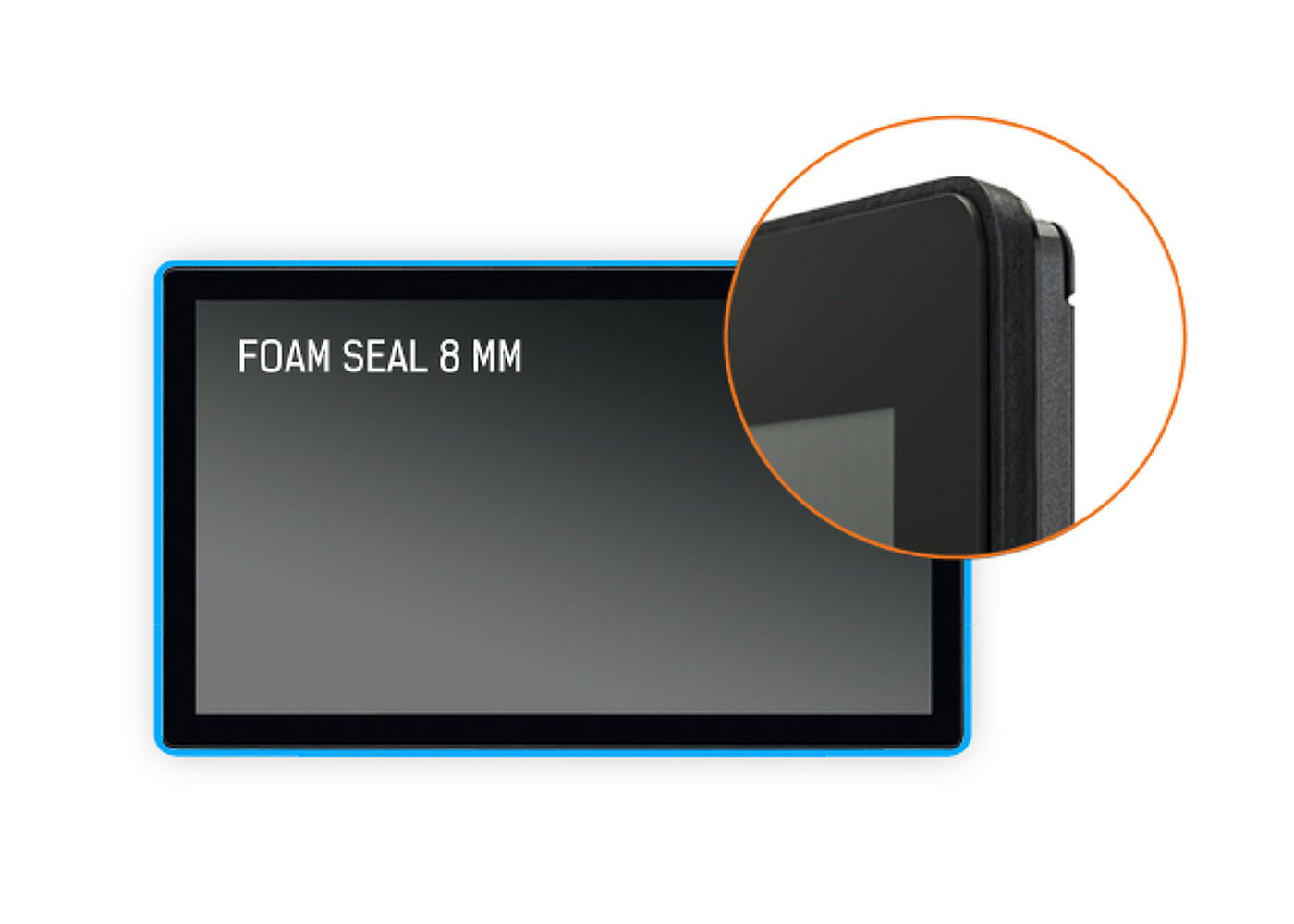

FOAM SEAL

A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.


FOAM SEAL

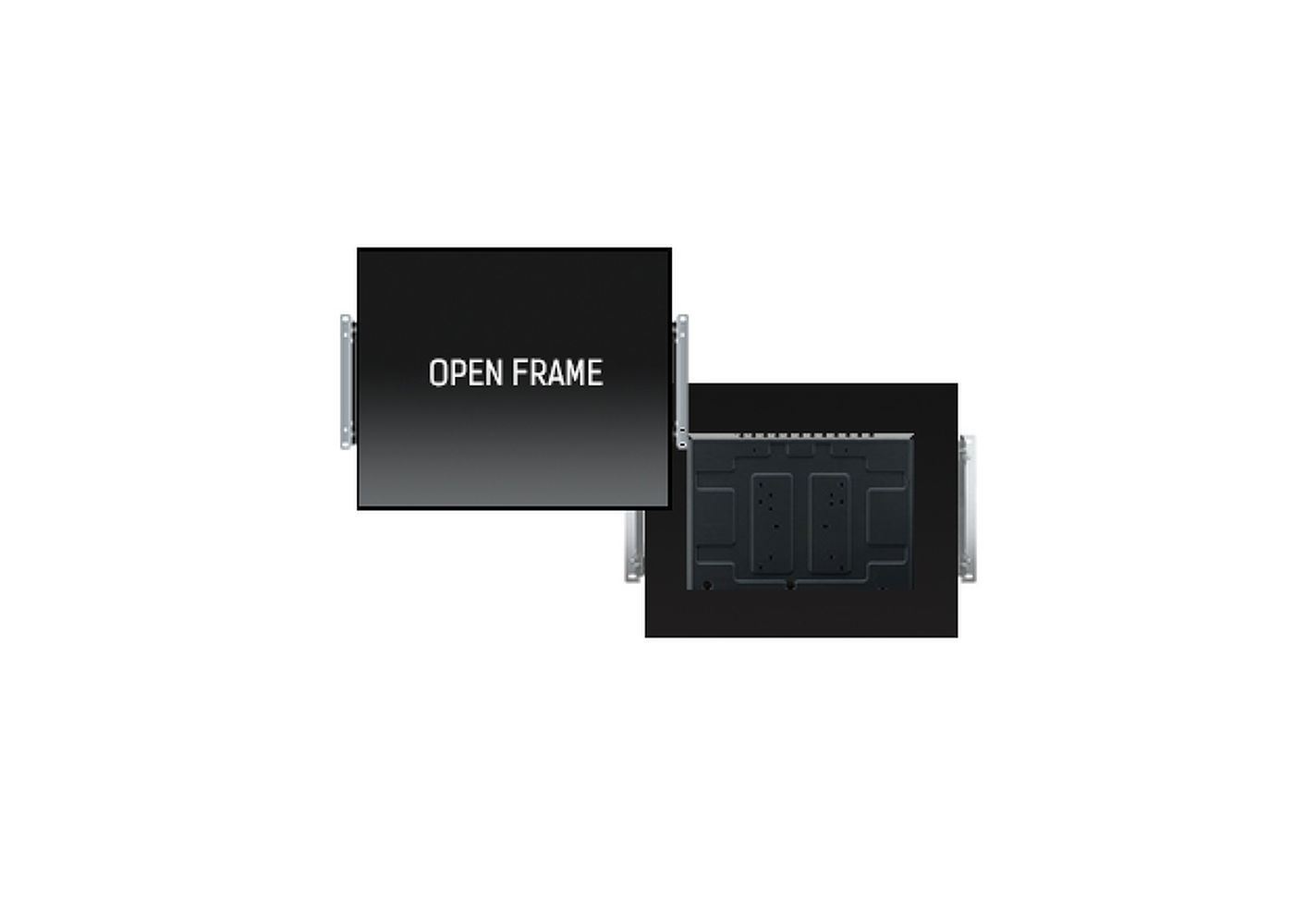

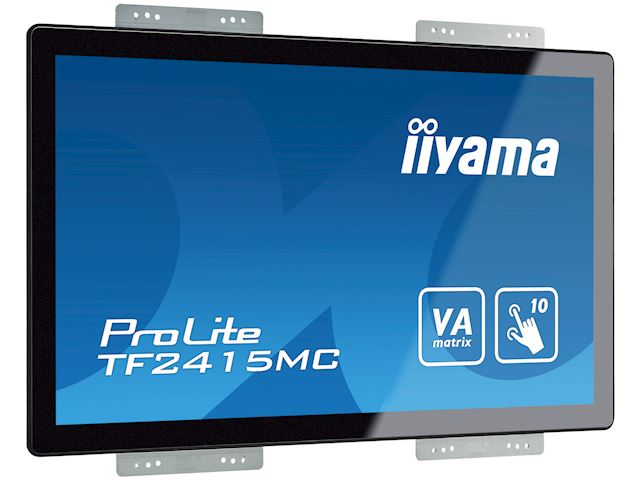

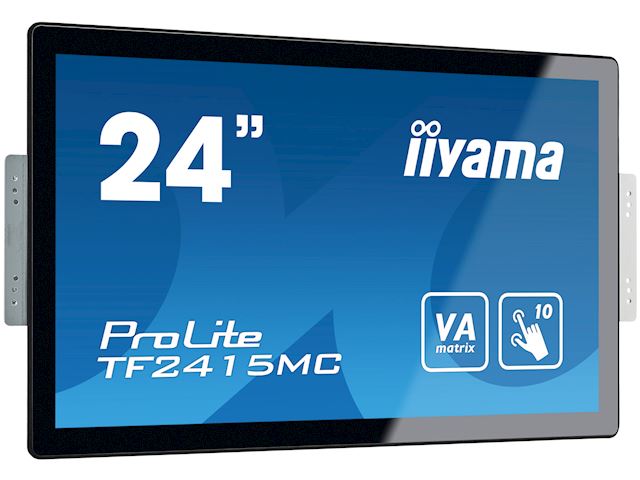

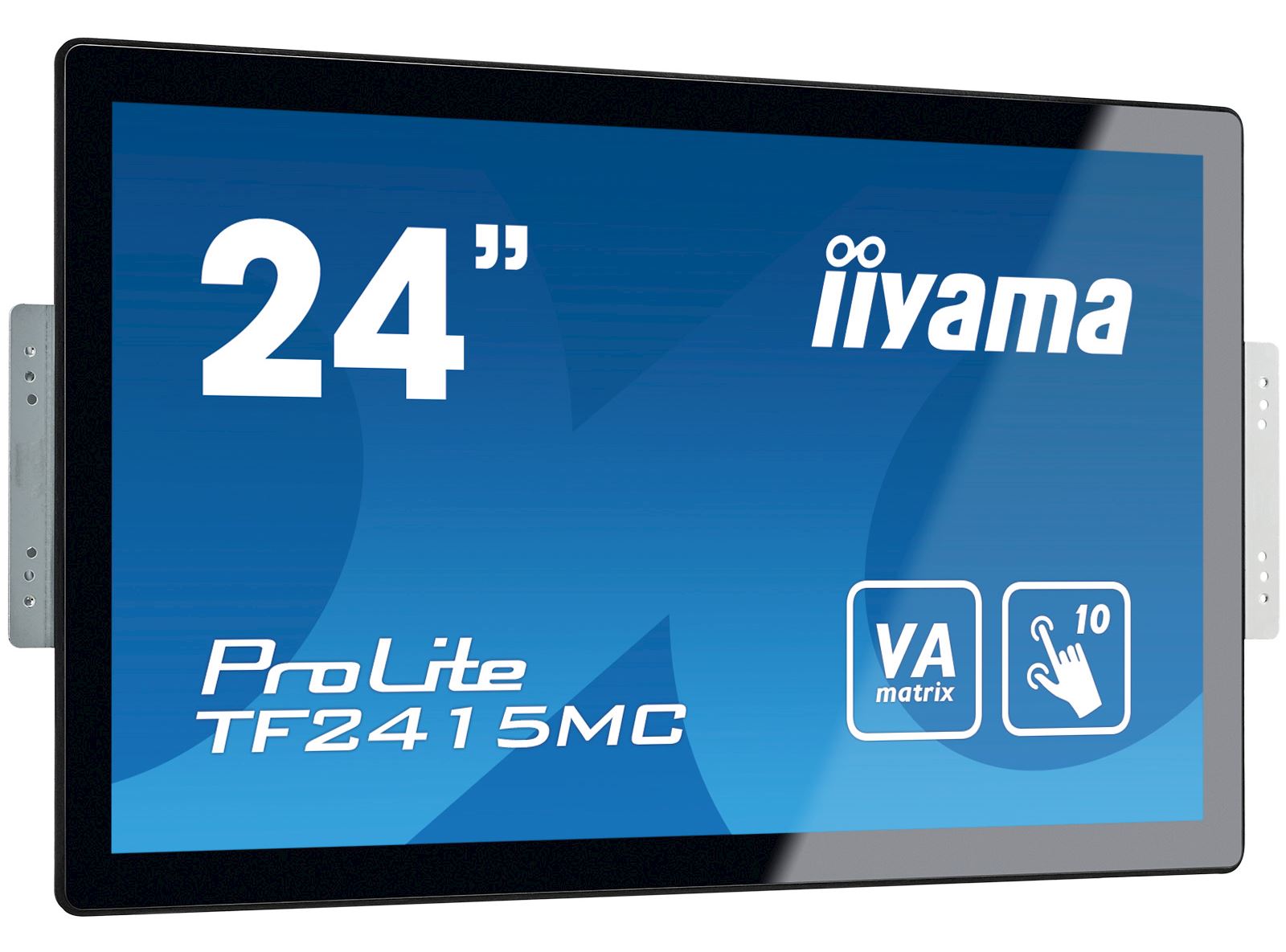

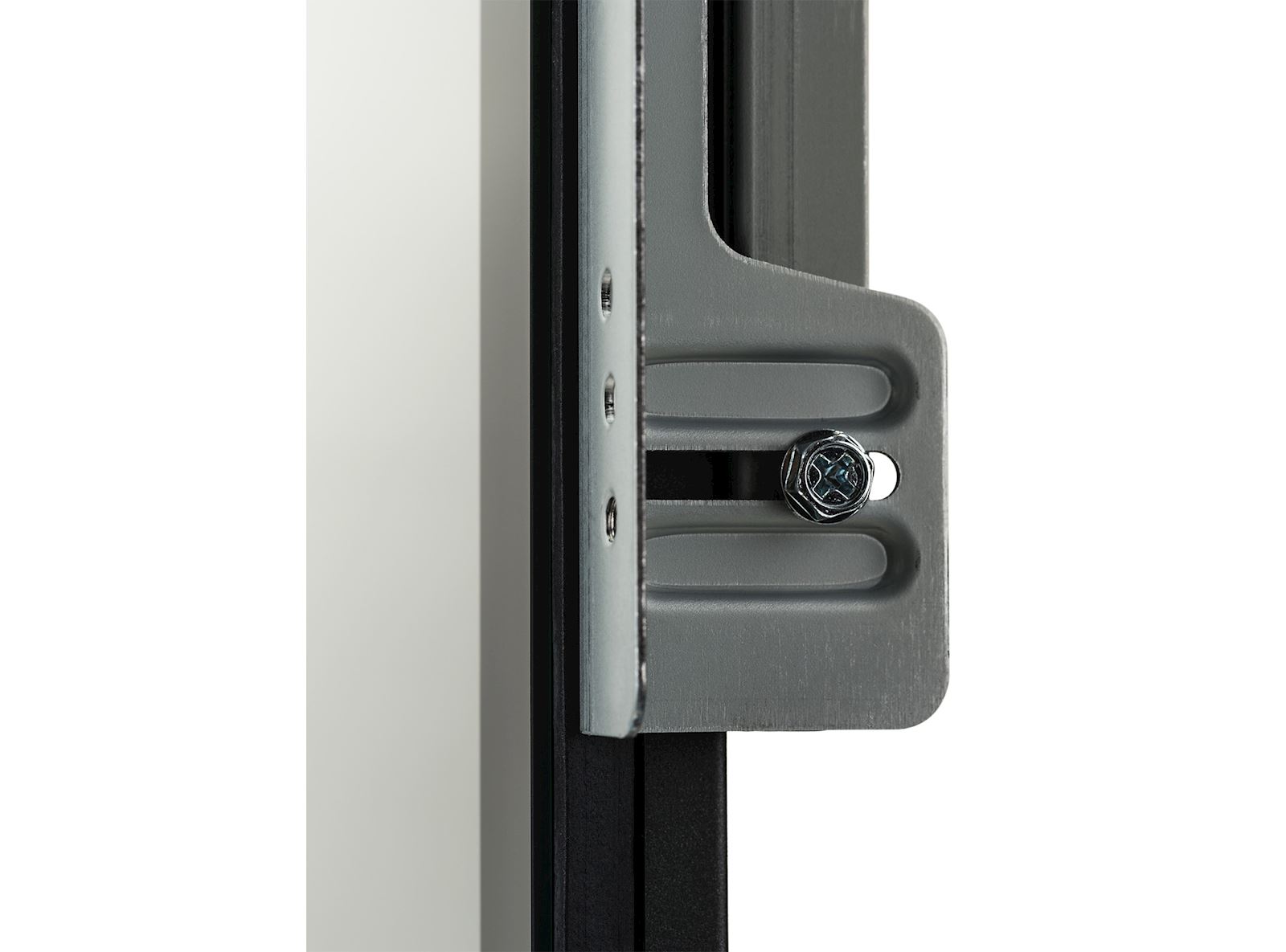

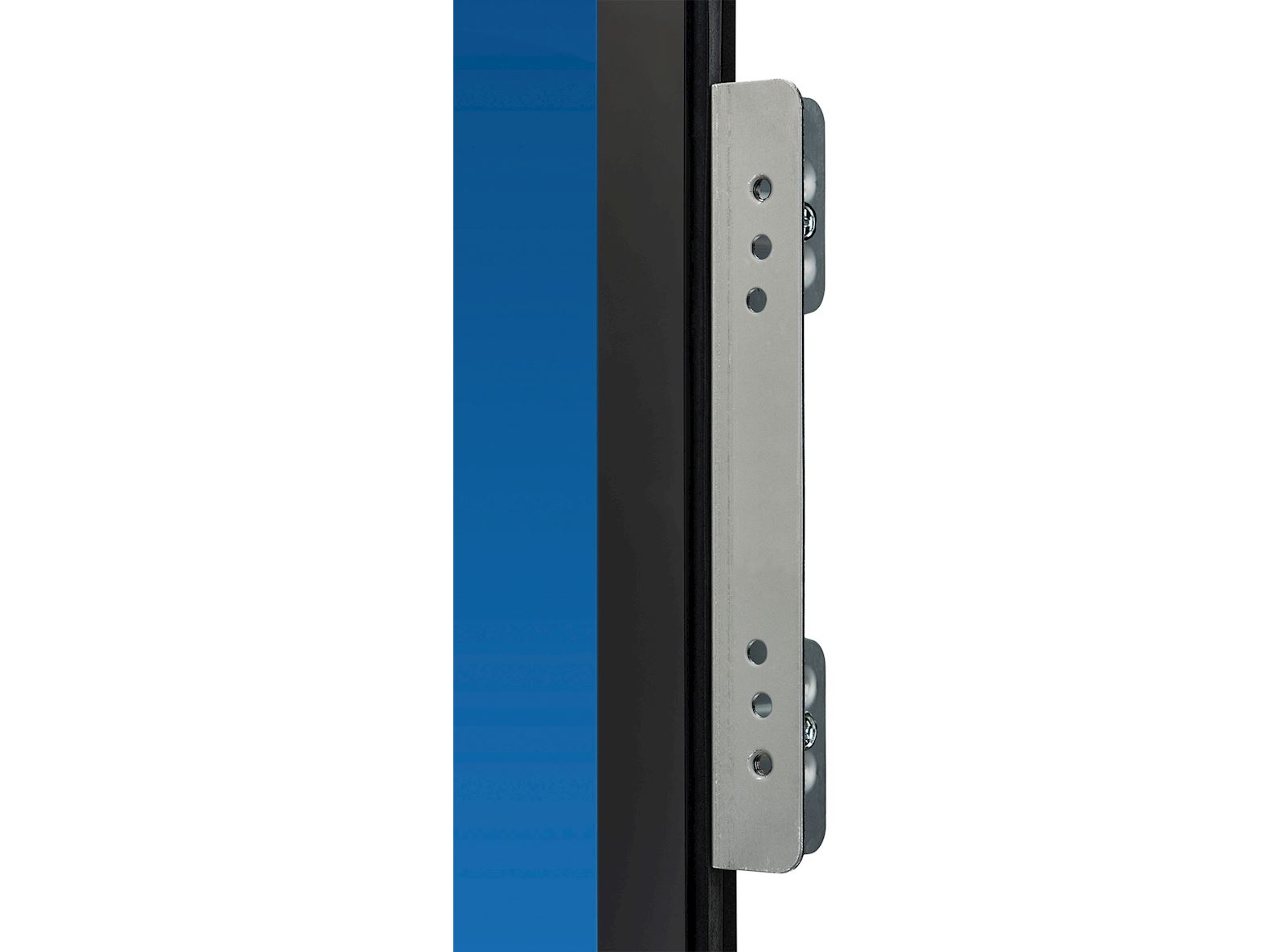

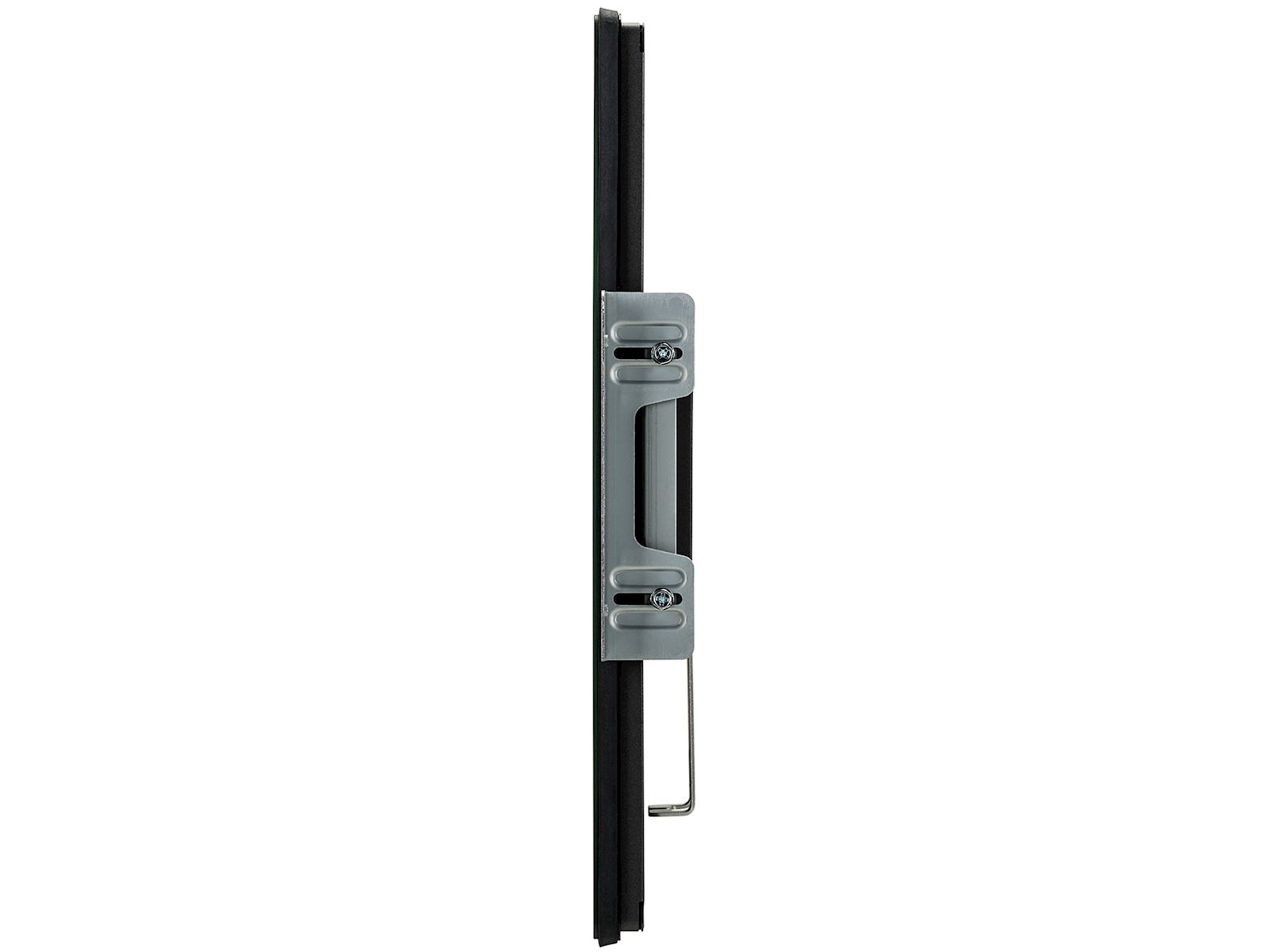

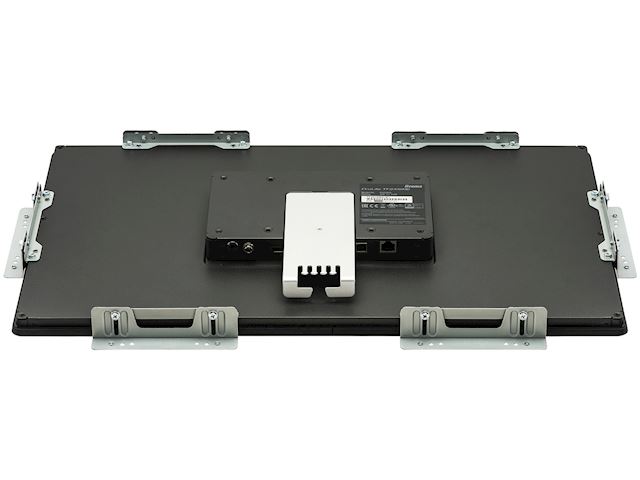

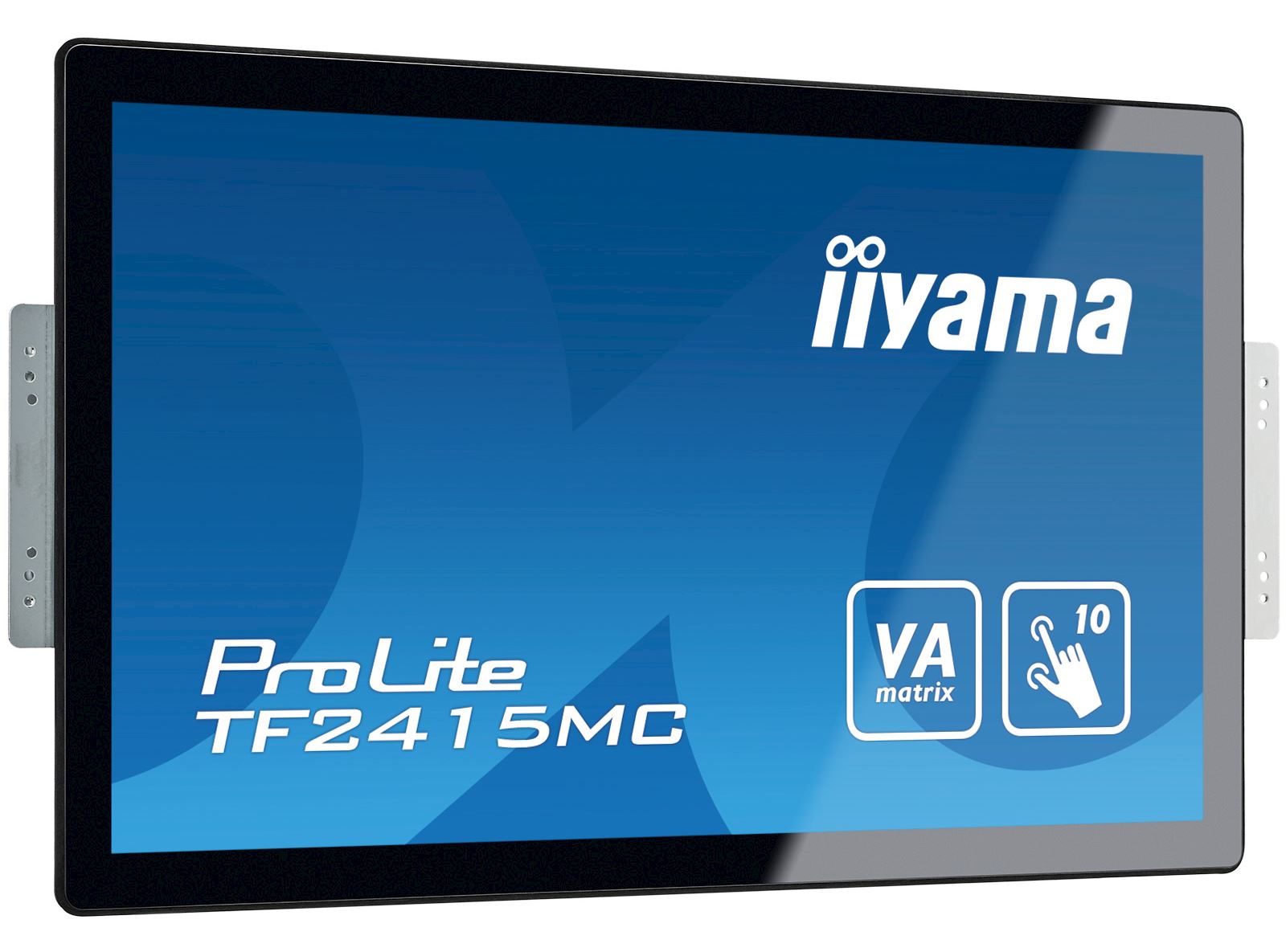

OPEN FRAME BRACKETS

This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.

OPEN FRAME BRACKETS
